USER MANUAL GF730HLDB INVENTUM

Black Int'l air fryer with control panel and digital display (no visible text or symbols)

• gebruiksaanwijzing
• instruction manual
• Gebrauchsanweisung
  • mode d'emploi

Nederlands

1. safety instructions page 12

2. appliance description page 15

3. before first use page 15

4. hot air frying page 16

5. tips page 17

6. cleaning & maintenance page 18

7. troubleshooting page 19

general terms and conditions of service and warranty page 39

Deutsch

Simple line drawing of a hand holding a rectangular object with a cross mark below (no text or symbols)

Illustration of a hand pressing down on a tray with a black X symbol (no text or symbols present)

turn·Food

8 • Nederlands

1 safety instructions

• Carefully and fully read the instruction manual prior to using the appliance and carefully store the manual for future reference.
• Caution! Avoid contact with hot surfaces within the appliance, when it is switched on.
• Never cover the air inlet and outlet openings when the appliance is being used.
  • Always place the ingredients to be fried in the pan, to prevent them from making contact with the heating elements.
• Never fill the appliance with oil, this could cause a fire hazard.
• Never submerge the appliance, cord or plug in water.
• Only use this appliance for the purposes described in the instruction manual.
• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.
• Keep the appliance out of reach of children. Children do not see the dangers associated with handling electrical appliances. Therefore, never allow children to operate electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.
• The appliance can be used by children of 8 years and older and by persons with limited physical, sensory or mental capacities or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards it may involve.
  • Children must not play with the appliance.
• The appliance may not be cleaned or maintained by children, unless this is done under supervision.
• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance is no longer functioning properly, or has been dropped or damaged in any other way. If this is

the case, consult the retailer or our maintenance service. Never replace the plug or cord yourself. Repairs to electrical appliances should only be performed by skilled persons.

• Incorrect repairs could cause considerable hazards for the user. Never use the appliance with parts that are not recommended or supplied by the manufacturer.
• Never bend the power cord sharply or allow it to run across hot parts.
• Connect the appliance only to an earthed socket. Always check that the plug is properly inserted in the socket.
• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or damp hands.
• Never connect the appliance to an external timer or a separate remote control system, in order to prevent hazardous situations.
• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other objects that may catch fire, such as curtains, towels (cotton or paper, etc.).
• Place the appliance on a sturdy, flat surface and make sure there is enough space around it for sufficient ventilation. A minimum space of 10 cm is required between the appliance and other appliances or the walls. Place nothing on top of the appliance.
• Do not leave the appliance unsupervised if the appliance is operational.

Caution! A lot of steam is released via the outlet openings during hot air frying. Keep your hands and face away from the steam coming out of the outlet openings. Watch out for the steam, when removing the pan.

• After use, the interior is very hot. Therefore avoid contact with the interior.

• Always make sure the appliance is placed on an even, flat surface and is only used indoors.

- This appliance is only intended for household use and not for use:

- in staff kitchens, in shops, offices and other work environments.

• by guests of hotels, motels and other residential environments.
• in Bed&Breakfast type environments

-farms

• If the appliance is not being used or is being cleaned, switch off the appliance and remove the plug from the socket.
• Allow the appliance to cool down for 30 minutes before storing or cleaning it.
• Ensure that the ingredients being prepared in the appliance come out golden-brown and not dark or brown. Remove burnt parts.
• In case of a breakdown, never make repairs yourself; a tripped safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should be used.
• This appliance is only suitable for household use. If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.
• If you decide to cease using the appliance due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Take the appliance to the waste disposal site of your municipality.

overheating protection

This appliance has been provided with an overheating safety system. If the interior temperature is too high, the appliance is switched off automatically by the safety system. In that case, the appliance can no longer be used. Remove the plug from the socket, allow the appliance to cool down and contact the service department of Inventum or your retailer.

automatic deactivation

This appliance has been provided with a timer. Once the timer has counted down to 0, a beep sound can be heard and the appliance switches off automatically. Extra: when the pan is removed during use, the appliance will also switch off automatically.

electromagnetic fields (EMF)

This appliance complies with all requirements relating to electromagnetic fields (EMF).

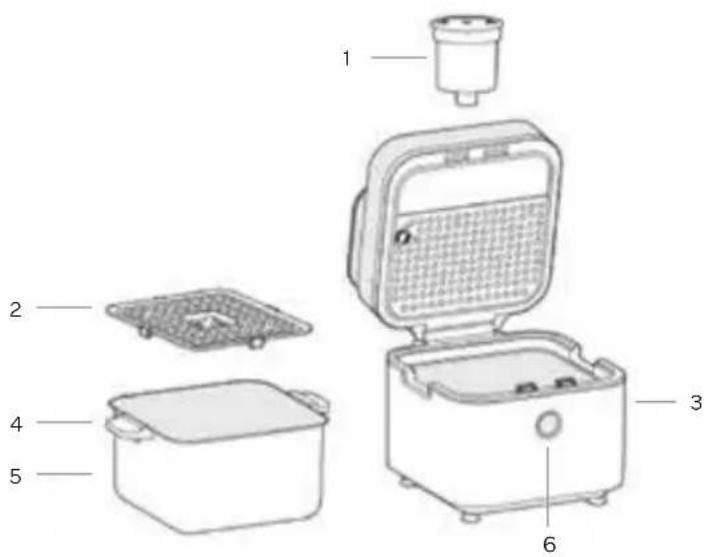

2 product description

1. Water reservoir
2. Grid
3. Base unit
4. Handles
5. Pan
6. Open button

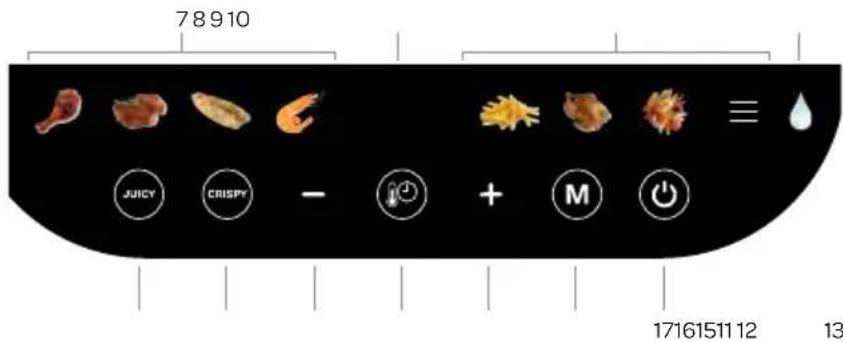

7. Automatic menus for cooking with Juicy or Crispy
8. Indication of temperature and cooking time
9. Automatic menus for cooking with Crispy
10. Indicator for 'add water' when cooking with Juicy
11. Juicy key for juicy result
12. Crispy key for crispy result
13. Temperature down (only works with Crispy mode and manual setting)
14. Key for switching between temperature and time display
15. Temperature up (only works with Crispy mode and manual setting)
16. Menu key for selecting automatic menus and activating display
17. On and pause key

1 2 3 4 5 6

78910 JUICY CRISPY - + M 1716151112 13

3 prior to first use

Before using the appliance for the first time, you should proceed as follows: carefully unpack the hot air fryer and remove all packaging material and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of reach of children. After unpacking the appliance, carefully check it for external damage that may have occurred during transport. Place the hot air fryer on a sturdy, flat and heat-resistant surface.

The keys used to operate the hot air fryer are touch controls. Carefully touch the controls with a finger to activate. At each touch of a touch control, you can hear a sound signal.

SWITCHING ON AND SWITCHING TO STANDBY

As soon as you insert the plug in the socket, the hot air fryer is in the standby position. The display lights up.

When no key is touched for 2 minutes, the hot air fryer display switches off automatically. Press the ⏻ button to activate the display again

• The hot air fryer only functions if the pan has been placed in the appliance correctly.
• Once the set time has elapsed, the hot air fryer automatically switches to the standby position. The fan continues to run to allow the hot air fryer to cool down. After that, a beep will sound.

PRIOR TO FIRST USE

Check that the voltage corresponds with what is stated on the information plate and insert the plug in an earthed socket. The heating element is provided with a protective layer that must be removed prior to first use. This is done by setting the hot air fryer to the maximum position for approximately 10 minutes without any food in the appliance. Light smoke may form due to the protective layer burning off the heating element. Therefore, ensure proper ventilation in the room. After removing the protective layer you can switch off the hot air fryer.

Remove the plug from the socket and clean the individual components before you actually start using the hot air fryer. Clean the grid and pan with warm water, a mild washing-up liquid and a soft sponge. Tip: these components may also be cleaned in the dishwasher.

Clean the interior and exterior of the appliance with a damp cloth.

This fryer works with hot air. Do not fill the pan with oil or frying fat.

• Place the hot air fryer on a heat-resistant flat surface.
  • Properly place the grid in the pan.
• Place the pan in the hot air fryer.

CAUTION! Properly place the pan in the hot air fryer, otherwise it will not function.

Do not fill the pan with oil or other liquids. Place nothing on top of the appliance.

Do not place anything over the air inlet openings. This will disrupt the air circulation and will have a negative effect on the cooking result.

4 hot air frying

The hot air fryer can be used to prepare a wide range of dishes.

1. Check that the voltage corresponds with what is stated on the information plate and insert the plug in an earthed socket. The full display lights up and the hot air fryer is in the standby position.
2. Open the lid with the open button (6) and carefully lift the pan out of the hot air fryer by its handles.
3. Place the ingredients on the grid in the pan. Caution: never exceed the recommended volume and never fill the pan above the maximum, because in that case the food could make contact with the heating element. Ensure the air is able to circulate through the ingredients freely.
4. Properly place the pan back in the hot air fryer. Never use the pan without the grid. If the pan is not properly placed in the hot air fryer, the appliance will not function and error message 'C4' is shown on the display.
5. Caution: do not touch the pan and grid during and shortly after use, as they get very hot. Only hold the pan by its handles.

6. Press the menu key = to switch on the display of the hot air fryer again after it has switched off automatically.

7. Select an automatic menu by first pressing menu key M and then the 'Juicy' or 'Crispy' key.

- The 4 dishes shown on the left side can be cooked with 'Juicy' for a juicy cooking result, or with 'Crispy' for a crispy result.

- The 4 dishes shown on the right side can only be cooked with 'Crispy' for a crispy cooking result.

Then select one of the available automatic menus that are flashing. The display now shows the accompanying cooking time and temperature.

• When 'Juicy' is selected, the text 'Add water' starts to flash as well. Now you must first fill the water reservoir with fresh mains water. This reservoir can contain 0.1 litres of water maximum.
• Only in case of dishes that are cooked in the 'Crispy' mode, you are able to adjust the cooking time and temperature if you want.

If you do not want to use an automatic menu, you can set a time (1 - 60 minutes) and temperature (40 - 200 °C) for the 'Juicy' or 'Crispy' mode yourself by using the and keys. Use the key to switch between temperature and time.

Tip: add 3 minutes to the cooking time when the hot air fryer is cold.

1. To switch on the hot air fryer, you then press the ON key ⏻.

2. The display alternates between the set time and set temperature.

3. The display shows the remaining time. Time and temperature can be increased and decreased during frying by pressing the end keys. (Only in case of 'Crispy' preparation and manual setting.)

4. Excess oil dripping from the ingredients is collected in the pan.

5. Some ingredients must be shaken halfway the cooking time. The appliance beeps 5 times and the display shows 'turn food'. After that, place the pan back in the hot air fryer and close the lid to continue frying.

6. Once the set time has elapsed, the hot air fryer automatically switches to the standby position. The fan does continue to run in order to allow the hot air fryer to cool down. After that, a beep will

Simple line drawing of a hand holding a rectangular container with a cross mark below (no text or symbols)

Illustration of a hand pressing down on a tray with a black X symbol (no text or symbols present)

turn·Food

sound. Open the lid with the open button (6) and lift the pan from the hot air fryer by its handles and place it on a heat-resistant surface, such as a pan coaster.

Check that the ingredients are cooked.

If the ingredients are not yet ready, place the pan back in the hot air fryer, add a few extra minutes to the timer and press the ON key 🔊.

1. Do not hold the pan upside down while the grid is still in it. The excess fat accumulated on the bottom of the pan will spread all over the ingredients.

After hot air frying, the pan and the ingredients are hot. Depending on the type of ingredients, it is possible that steam comes out of the pan.

After hot air frying, the pan and the metal interior are very hot, avoid contact with these components.

1. Empty the pan onto a dish or plate. In case of large ingredients, use tongs.

PAUSE

• Press the ON/Pause key ⏻ to pause the hot air frying process. The 📋 indicator flashes. Press the ON/Pause key again to resume the hot air frying process.
• The hot air frying process is also paused when the pan is removed from the hot air fryer.

Caution: the display switches off completely.

When you place the pan back in the hot air fryer, the display switches on and the hot air frying process is resumed.

TERMINATION

Press the ⏻ key for a few moments when you want to stop the hot air frying process in the meantime.

REMOVING WATER FROM THE HOT AIR FRYER

Hold down the 'Juicy' and 'Crispy' keys at the same time for three seconds when you want to remove the water from the hot air fryer.

EXAMPLES OF AUTOMATIC MENUS

You can select the following modes:

Menu TIME TEMPERATURE		TURN FOOD
		Standard setting Range	Range Standard setting Range
Fries		27 min 1 - 60 min	180 °C 40 - 200°C YES
Shrimps		15 min 1 - 60 min	180 °C 40 - 200°C YES
Meat		28 min 1 - 60 min	200 °C 40 - 200°C YES
Fish		20 min 1 - 60 min	180 °C 40 - 200°C YES
Poultry		20 min 1 - 60 min	200 °C 40 - 200°C YES
Vegetables		16 min 1 - 60 min	180 °C 40 - 200°C YES
Whole chicken		50 min 1 - 60 min	180 °C 40 - 200°C YES

The temperatures and times in the table are indications. Depending on size and weight, it may be necessary to adjust temperature and time.

5 tips

• Smaller ingredients usually require a slightly shorter cooking time.
• A larger amount of ingredients only requires a little more time, and a smaller amount requires a little less cooking time.
• Turning smaller ingredients several times during the cooking time results in a better and more even end result.
• Do not cook extremely fat ingredients such as sausages in the hot air fryer.
• Snacks that can be cooked in the oven, can also be cooked in the hot air fryer.
• Optimum amount for preparing crispy fries is 1000 grammes. The maximum amount is 1500 grammes.
• If necessary, use an oil spray to lightly oil the ingredients and make them even more crispy.
• Use ready-made dough for a fast and simple preparation of filled snacks. Ready-made dough also cooks faster than home-made dough.

• Place a baking tin or oven dish in the pan if you want to make a cake or quiche, or if you want to cook delicate or filled ingredients.

• The hot air fryer can also be used to reheat ingredients. For this, set the temperature to 150^ for 10 minutes.

• Add 3 minutes to the cooking time if the hot air fryer is still cold.
• As the turbo hot air technology immediately reheats the air in the appliance, briefly removing the pan from the hot air fryer does not have an effect on the end result.

As ingredients can differ in origin, dimension, shape and brand, Inventum is unable to indicate the most optimum setting.

6 cleaning and maintenance

Clean the hot air fryer after every use.

Before cleaning the hot air fryer, allow it to cool down fully.

Do not touch the metal interior in order to clean it, when hot air frying has just been completed.

When cleaning the pan and grid, do not use metal kitchenware or abrasive agents, as these could damage the anti-stick coating.

1. Remove the plug from the socket and allow the hot air fryer to cool down fully.
   Tip: remove the pan from the hot air fryer to allow the appliance to cool down faster.
2. Clean the exterior of the hot air fryer with a damp cloth.
3. Clean the pan and grid with hot water containing a little washing-up liquid and a sponge. The pan and grid may also be cleaned in the dishwasher.
   A degreaser can be used to remove remaining dirt.
   Tip: fill the pan with hot water and a little washing-up liquid and allow it to soak for 10 minutes to remove persistent dirt.
4. Clean the interior of the appliance with hot water and a soft sponge.
5. Clean the heating element with a soft washing-up brush to remove any food residues. Be careful with washing-up liquid. This could be left behind on the heating element and give a foreign taste to the ingredients.

Never submerge the appliance, cord or plug in water or other liquids.

Before storing the hot air fryer, allow it to cool down fully and remove the plug from the socket. Check that all components are clean and dry. Store the hot air fryer in a clean and dry location.

7 breakdowns and solutions

Failure Possible cause Solution
Error code E1 on display Broken	en sensor cable Contact the Inventum service department or consult your supplier.
Error code E2 on display Short circuit in sensor cable Contact the Inventum service department or consult your supplier.
Error code C4 on display The pan is not properly placed in the appliance.		Properly place the pan in the appliance.
The hot air fryer does not function.	The plug is not in the socket. Insert the plug in an earthed socket.
	The pan is not properly placed in the appliance.	Properly place the pan in the appliance.
The ingredients are not cooked.	The amount of ingredients in the pan is too much.	Place smaller amounts in the pan. Smaller portions can be fried more evenly.
	The set temperature is too low. Set the hot air fryer to a higher temperature.
	The cooking time is too short. Set a longer time.
The ingredients are not fried evenly.	Certain ingredients must be shaken halfway the cooking time.	Ingredients lying on top of each other (such as fries), must be shaken halfway the cooking time.
Fried snacks are not crispy when they come out of the hot air fryer.	The snacks are not suitable for a hot air fryer, but should be fried in oil.	Use oven snacks or cover the snacks with a little oil for a more crispy result.
There is white smoke coming from the appliance.	You are cooking fatty ingredients. When fatty ingredients are being cooked in the hot air fryer, it is possible that a lot of fat drips in the pan. The fat causes white smoke and the pan can become hotter than normal. This does not have an effect on the appliance or on the end result.
	The pan still contains fat residues from a previous preparation.	Clean the pan after every use. Fat residues that become hot can cause white smoke.
Fresh fries are not fried evenly in the hot air fryer.	An unsuitable potato variety has been used.	Use fresh potatoes that are a little floury when cooked.
	The fries have not been properly rinsed prior to frying.	Properly rinse the cut fries to remove starch.
Fresh fries are not crispy when they come out of the hot air fryer.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure the fries are properly patted dry, before the oil is added.
		Cut the fries more finely for a crispier result.
		Add a little more oil for a crispier result.

Energy consumption

Product information for power consumption and maximum time to reach applicable low power mode

Standby mode 0,5 W

The maximum time needed for the microwave oven to automatically reach the applicable low power mode or condition. 20 minutes

Simple line drawing of a hand holding a rectangular object with a cross mark below (no text or symbols)

Illustration of a hand pressing down on a grid-patterned object with a black X symbol (no text or symbols present)

Simple line drawing of a hand holding a rectangular object with a cross mark below (no text or symbols)

Illustration of a hand pressing down on a tray with a black X mark (no text or symbols)

General terms and conditions of service and warranty

5-year Inventum warranty!

1. Customers enjoy a 5-year full manufacturer's warranty on all Inventum products.
2. Within this period, a defective product or part, which makes normal functioning of the product or part impossible, will always be repaired free of charge or, if repair is not possible and/or does not provide a solution, replaced (by the same or equivalent product). The assessment of this lies with Inventum.
3. In order to make a claim under the 5-year Inventum warranty you must, within two months after discovering the fault or defect, either return the product to the shop where you bought it, or contact the Inventum customer service department by using the form at www.inventum.eu/service.
4. The warranty period starts from the date stated on the product's original sales receipt.
5. To invoke the warranty, you must always send a copy of the original proof of purchase with the service request and present the original proof of purchase to the service technician.
6. The 5-year warranty applies only to normal domestic use of Inventum products within the Netherlands.

Warranty exclusions

1. The 5-year Inventum guarantee does not apply in case of: normal wear and tear, consumables, improper use, insufficient or incorrect maintenance, incorrect and/or inexpert assembly and installation of the appliance, repairs by unauthorised third parties, business or commercial use, missing serial number, damage caused by an external cause. This enumeration is not exhaustive.
2. B-choice products and products that have been built-in in a showroom are not covered by the 5-year Inventum warranty. All optical damage such as dents, scratches and slight traces of use are excluded from any warranty.

Reporting malfunctions on Inventum products

1. Faults or defects on Inventum products can be reported by using the service request form on the website www.inventum.eu/service or through the seller of the product.
2. A copy of the original proof of purchase must be included with the request.
3. Inventum's service department determines whether the product will be repaired or replaced, based on the request and the sales receipt.

Important to know

• Products sent without prior notification will not be accepted. Further to the notification you will be informed by Inventum whether a warranty applies and whether you must return the product.
• The replacement or repair of a defective product, or a part thereof, does not lead to an extension of the original warranty period.
• Products eligible for replacement or repair must be emptied and clean.

For a detailed explanation of the warranty conditions and items excluded from them, please visit Inventum's website www.inventum.eu/algemene-voorwaarden

These general warranty and service conditions apply to Inventum brand products purchased after 27 April 2022 and intended for use within the Netherlands.

For Inventum products used outside the Netherlands, but within a EU Member State, the warranty rules of that country apply. Inventum provides warranty and service by a white goods technician only in the Netherlands.

As a consumer, you are entitled by law to a properly working product. Does the product break down sooner than you might expect? This means that the product is not in conformity. In that case, the law offers you, the buyer, with a number of legal remedies for your protection. This legal protection is not affected by the above commercial warranty given by Inventum on Inventum products used within the Netherlands.

Place FSC logo inside

FR MANUEL

instagram.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908
