WELCOME

Thank you for choosing our product. To ensure your safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference.

Before installing the oven note the serial number, which you might need for repairs. Check for any damage during transportation and consult a technician if you're unsure before using it. Keep packaging materials away from children.

NOTE: Please note that the oven's features and accessories may vary depending on the model you purchased.

SUMMARY

1. SAFETY INFORMATION

2. PRODUCT INTRODUCTION

2.1. Overview of the product
2.2. Accessories
2.3. Control panel
2.4. Connectivity

3. BEFORE STARTING

3.1. Information to start
3.2. First usage

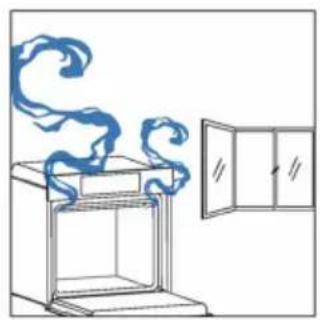

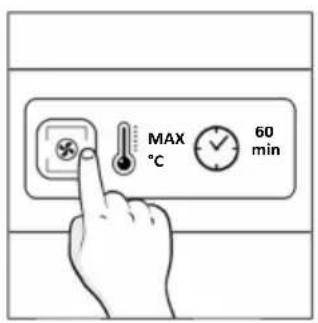

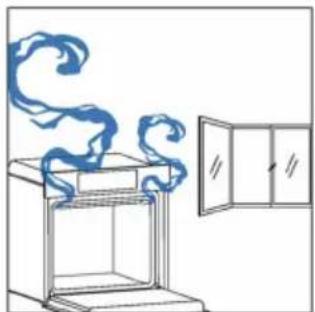

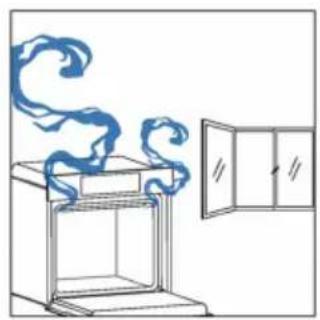

3.3. Preliminary cleaning

4. OPERATION OF PRODUCT

4.1. How the product works
4.2. Cooking functions
4.2.1. Main functions
4.2.2. Special functions

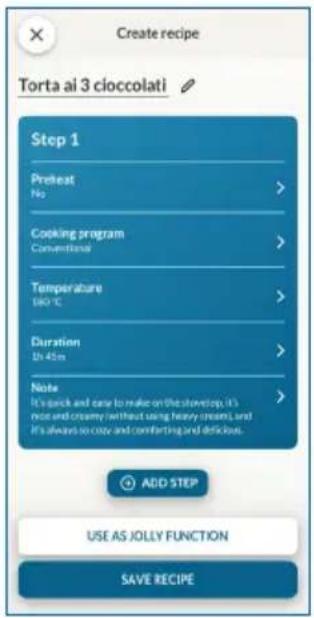

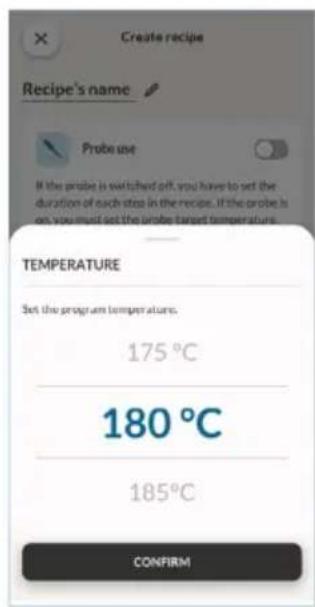

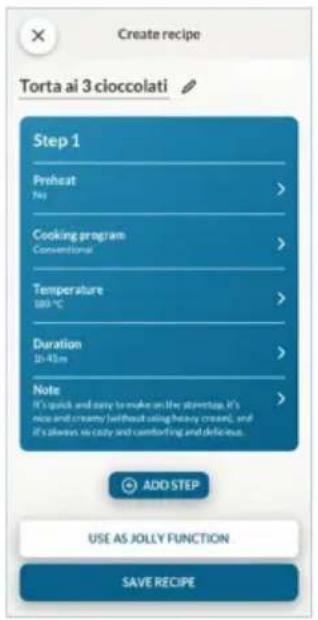

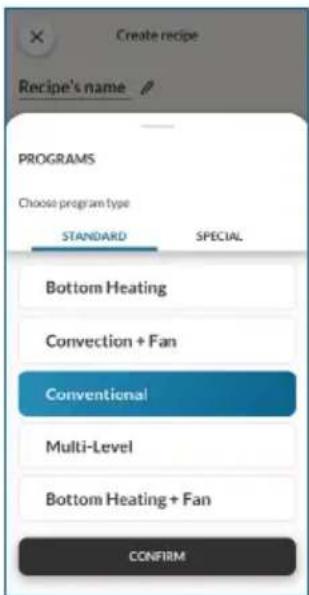

4.2.3. Multi Step Feature
4.2.4. How to use the camera

5. COOKING GUIDELINES

5.1. General Cooking tables
5.2. Everyday Cooking tables

6. CARE & CLEANING

6.1. General recommendations
6.2. Cleaning the oven

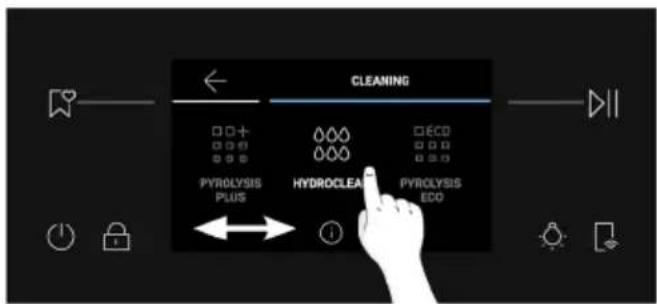

6.2.1. Inside the oven: cleaning functions

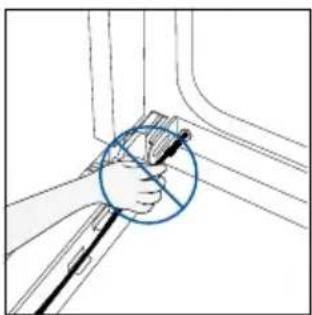

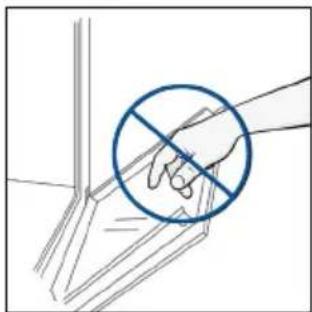

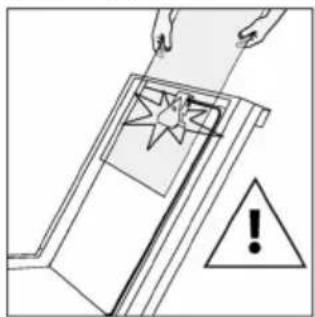

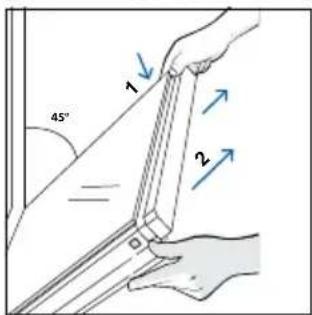

6.2.2. Outside the oven: removal and cleaning the glass door

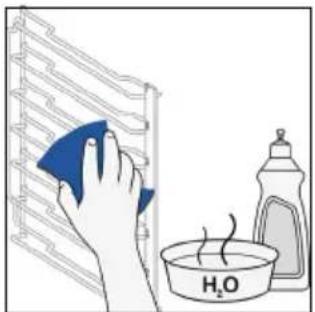

6.3. Cleaning of accessories
6.4. Maintenance

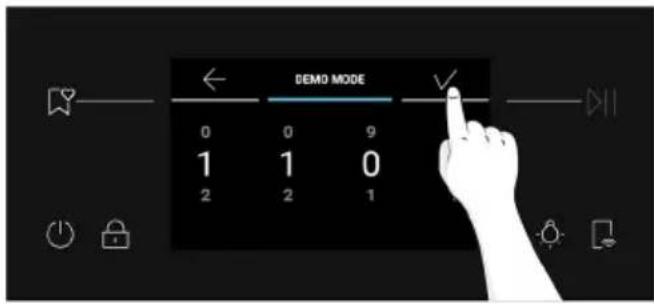

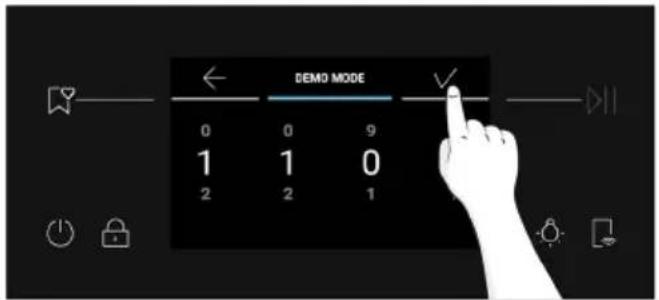

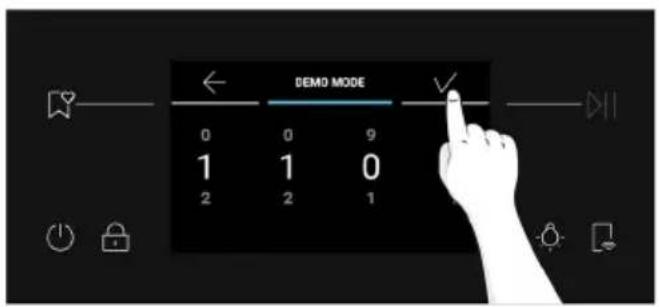

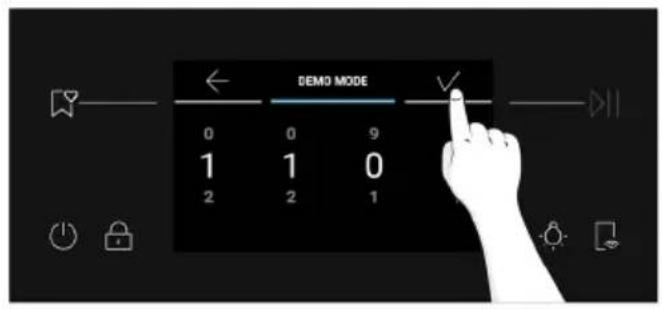

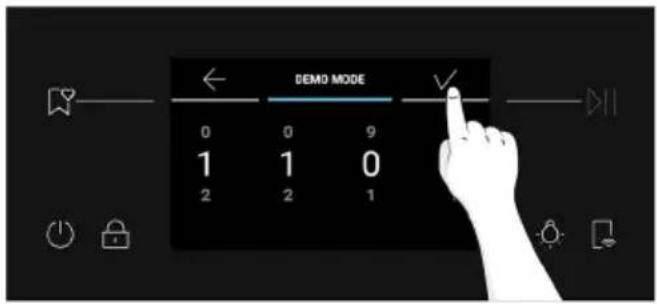

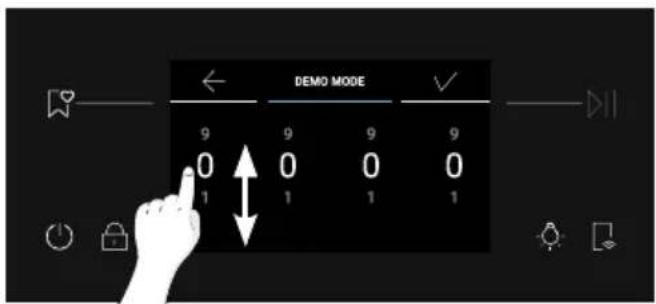

6.5. Demo Mode

7. TROUBLESHOOTING

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. Appliance disposal
8.2. Saving and respecting the environment

9. INSTALLATION

1.SAFETY INFORMATION

GENERAL WARNINGS

• Do not use a steam cleaner for cleaning operations.
• During use the appliance become hot. Care should be taken to avoid touching heating elements inside the oven.

Use in accordance with attendend use

- Only use the oven for its intended purpose, that is only for the cooking of foods: any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage.

Use limitations

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• ⚠WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements Children less than 8 years of age shall be kept at away unless continuously supervised.
• ⚠ WARNING: Accessible parts may become hot during use. Young children should be kept away.

INSTALLATION WARNINGS

• The oven can be located high in a column or under a worktop.
• Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on the illustrations according to the type of fitting. Always fix the oven to the furniture with screws provided with the appliance.

- No additional operation/setting is required in order to operate the appliance at the rated frequencies.

- The appliance must not be installed behind a decorative door in order to avoid overheating.

- During installation the oven should be disconnected from the mains to avoid overheating.

- If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed.

- Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.

- Installation must be carried on by a qualified technician who must know and respect the laws in force in the country of installation and the manufacturer's instruction.

- After unboxing the appliance, always check it is not damaged, in case of issue contact the customer service before installing and do not connect to the power supply.

- Remove the packaging material before operating the appliance.

- During installation do not use the oven door's handle to lift and move the oven.

- The installation furniture and the adjacent ones must with stand temperatures of 95°C.

- It is recommended to wear protective gloves during installation to avoid cut injuries.

- Do not install the product in open environments exposed to atmospheric agents.

- This appliance is designed to be used at altitude lower than 2000m.

- To remove protective films and advertisement stickers on front surface of the oven before first usage.

ELECTRICAL WARNINGS

• The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional.
• Connection to the power source can be made by plug or by fixed wiring placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.
• In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country.
• The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• ⚠ WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.
• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.
• The use of any electrical appliance implies the observance of some fundamental rules:

- do not pull on the power cable to disconnect the appliance from the power source;

- do not touch the appliance with wet or damp hands or feet;

- in general the use of adaptors, multiple sockets and extension cables is not recommended;

- in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed.
- Any repair, installation and maintenance not carried out correctly can seriously endanger the user.
- The manufacturing company hereby states that it does not assume any responsibility for direct or indirect damages caused by incorrect installation, maintenance, or repair work. Furthermore, it is not liable for damages caused by the absence or interruption of the grounding system (e.g., electric shock).
- CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplier through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
- The appliance is not designed to be activated by an external timer or separate remote control system.

USE & MANTEINANCE

• The dripping pan collects the residues that drip during cooking.
• When you place the Airfry tray or the grid on the side racks, make sure that the shorter section of the side (between the stop and the extremity) is directed towards the interior of the oven. If the grid has a decorative metal bar, pay attention to position it on the exterior of the oven so that the brand logo can be visible and readable. For the correct positioning refer also to the image in the Accessories section of this user manual.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glasses, since they can scratch the surface, which may result in shattering of the glass.
• Only use the temperature probe recommended for this oven.

• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.

• Cook the vegetables in a container with a lid instead of an open tray.

• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.
• WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.
• WARNING: Never remove the oven door seal.
• CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.
• For a correct use of the oven it is advisable not to put the food in direct contact with the racks and trays, but to use oven papers and/or special containers.

WARNINGS (\*FOR PYRO OVENS)

• Excess spillage must be removed before cleaning.

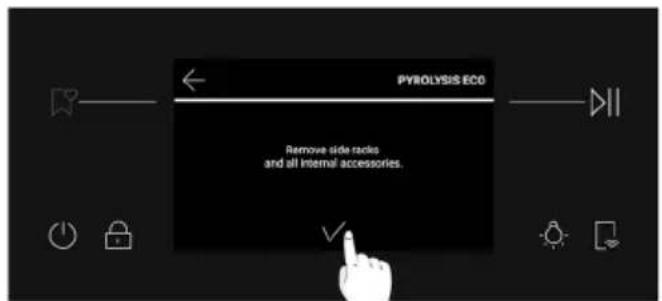

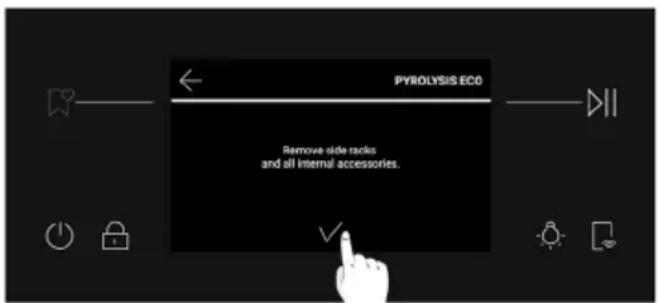

• WARNING: before initiating the automatic cleaning cycle:

- Clean the oven door;

- Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;

- Remove all accessories and the sliding rack kit (where present); - Do not place tea towels.

• In ovens with Preci Probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the Preci Probe is not used.
• During the pyrolytic cleaning process (if available), the surfaces may get hotter than usual and children should be kept away.
• If a hob has been fitted above the oven, never use the hob while the Pyrolizer is working, this will prevent the hob from overheating.

WARNINGS for PRECI PROBE (only if present\*)

• This product is exclusive for oven appliances. It should only be used as described in this User Manual.
• DO NOT TOUCH Preci Probe WITH BARE HANDS JUST AFTER COOKING. Always wear oven gloves to remove Preci Probe from the food after cooking.
• To use the temperature probe correctly, it is essential to fully insert the metal bar of the probe into the food during cooking until it reaches the black-colored ceramic portion located at the tip of the probe.

Insert Preci Probe in the food up to there

Simple illustration of a blue-handled tool with a downward arrow pointing to it (no text or symbols)

• Do not expose the metal part of Preci Probe to the heat generated by oven directly.
• Do not use Preci Probe in another appliance except for the built-in oven.
• Do not use Preci Probe in a microwave oven.
• Preci Probe can be cleaned and washed but do not immerse it long in water.
• This product is not intended for use by persons with ages 12 and under.
• The supplier will not be liable for any damage of Preci Probe due to misuse of the device.
• Clean the Preci Probe before the use.
• Probe can work in this range of temperature: 10 °C to an internal maximum temperature of 100°C of the metal part. Ceramic part can reach 350°C.
• If the Preci Probe temperature exceeds 100^ C, cooking will stop and the Preci Probe must be removed from the oven as soon as possible, wearing gloves, to avoid damage to the probe.

2. PRODUCT INTRODUCTION

2.1. OVERVIEW OF THE PRODUCT

Diagram of a multi-level oven with numbered compartments and labeled parts

1. Control panel
2. Shelf positions numbers
3. Grids
4. Trays
5. Fan cover
6. Oven door
7. Lateral wire grids (if present: only for flat cavity)
8. Telescopic Guides
9. Camera
10. Serial number & QRcode

Empty white rectangle with black border (no text or symbols)

Write here your serial number for future reference.

2.2 ACCESSORIES

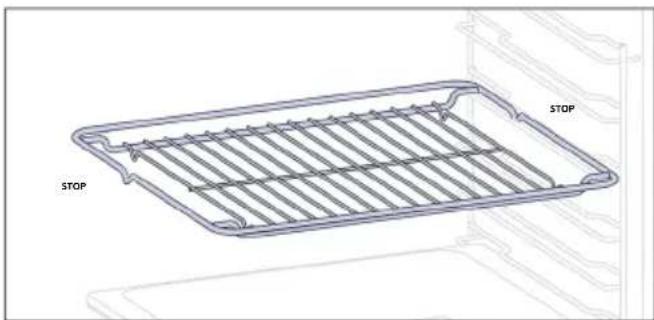

Metal grid

STOP —STOP

A metal grid in an oven is a removable, adjustable shelf that supports cookware, ensuring even cooking, and makes cleaning easy. It can be used to hold plates and pans at different heights for various cooking needs. Trays are counted from bottom to top

Baking tray (only if present\*)

3D diagram of a rectangular tray placed inside an oven, with no text or symbols present.

A baking tray is ideal for achieving even bottom browning, making it perfect for cookies and pastries due to its shallow, flat design. Additionally, placing it under a cooking grid can help collect drips and prevent messes in the oven.

Deeper Tray

3D diagram of a rectangular tray with internal compartments, placed inside a rack (no text or symbols)

The deeper tray is ideal for recipes with added liquids or layers, such as casseroles or roasts. Its depth is specifically designed to ensure the desired consistency of the food prepared in it.

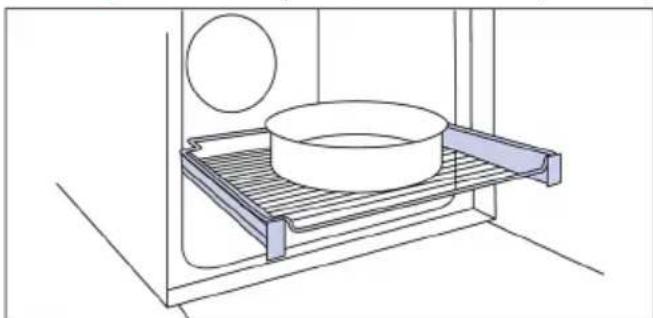

Telescopic Guides (only if present\*)

Technical line drawing of a laboratory apparatus with a round-bottom flask, mesh tray, and wall (no text or symbols)

Telescopic oven rails are shelves that can be extended, making it easier to place or remove items, without the need to reach deep inside a hot oven. They improve safety, stability, and can be adjusted at different level positions.

Lateral wire grids (only if present*)

Line drawing of a two-tiered modular bed with horizontal and vertical metal supports (no text or symbols)

Located on both sides of the oven cavity, the side racks are designed for placing baking tray and grids during the cooking.

NOTE: 6 or 7 levels depending on the model.

Preci Probe_(only if present*)

Simple line drawing of a pen with a pointed tip and handle (no text or symbols)

This Preci Probe is a temperature sensor that, inserted into the food and connected to the oven via cable, allows to control the inner temperature of the food during cooking. It is mainly used for fish and meat.

Dual tray – STEAM mode (only if present*)

Technical line drawing of a rectangular tray with internal grid pattern (no text or symbols)

The concave shape allows a correct circulation of humidity generated in cooking, keeping the food humidity rate high. According to the quantity of water inserted in the tray, a drier or more "wet" cooking will be obtained.

Dual tray – BBQ mode (only if present*)

Technical line drawing of a rectangular appliance with a grating base, mounted on an oven (no text or symbols)

The convex shape is suitable for grilling in the oven at high temperature (220°) allowing a BBQ result even at home with little smoke thanks to the drainage action of the fats on the bottom of the tray.

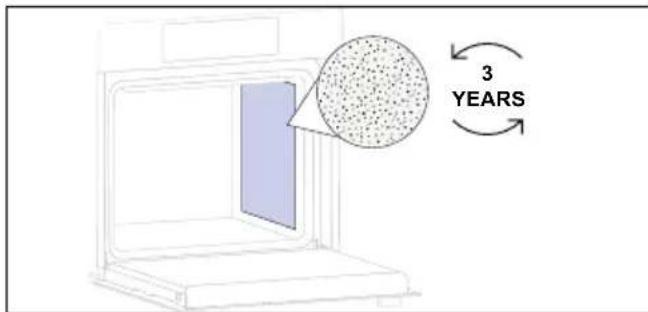

Catalytic Panels (only if present*)

3 YEARS

Special panels coated with enamel, made with a microporous structure to turn fat into gaseous elements that are easy to remove. Replace after 3 years of use (at 2/3 cooking cycles per week).

Softclose/Soft open hinges (only if present*)

Simple line drawing of a door with a circular icon and arrow, no text or symbols present

Soft close and open hinges control the door's motion, ensuring smooth movement and preventing slamming.

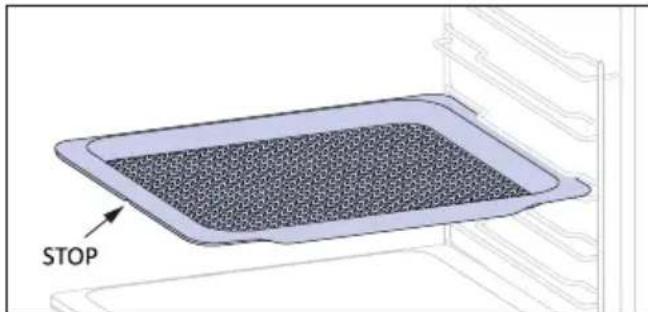

Airfry tray (only if present*)

STOP

The airfry tray ensures that hot air reaches the food evenly and tridimensionally, resulting in a crispier exterior while maintaining tenderness inside. A baking tray can be optionally placed at L1 to collect juices or breadings.

Camera (only if present*)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

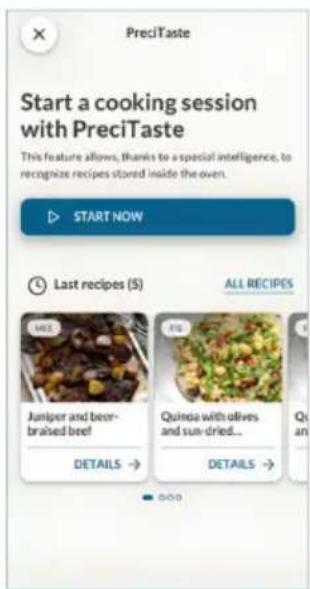

The bionic vision camera detects and recognizes the food, setting the most appropriate parameters to cook it.

EN: Oven trays and grids are not suitable for direct contact with food. Please use suitable cookware or baking paper

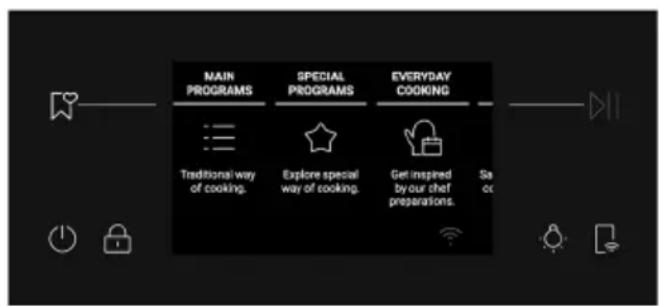

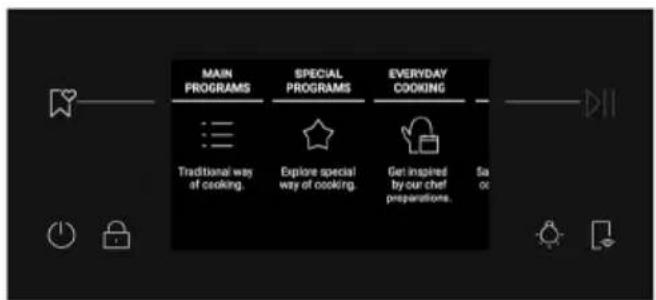

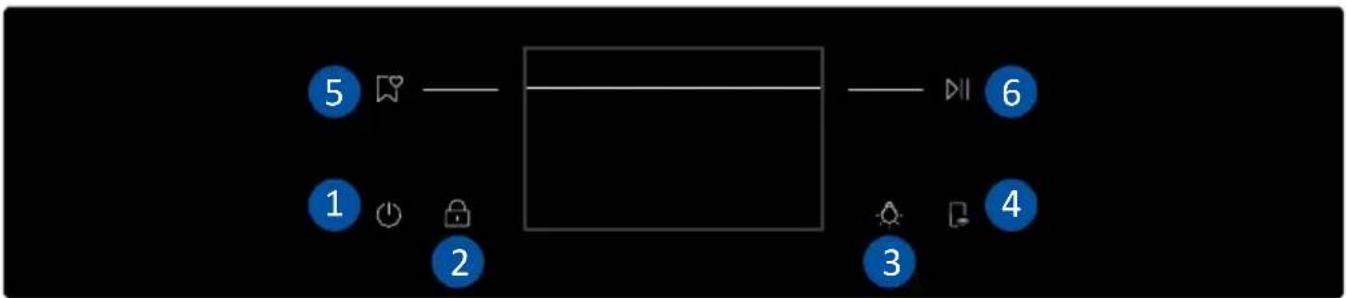

2.3 CONTROL PANEL

5 — 1 2 3 4 6

Functions and function ranking can be changed depending on the model.

1. On/Off
2. Child Lock
3. Lamp

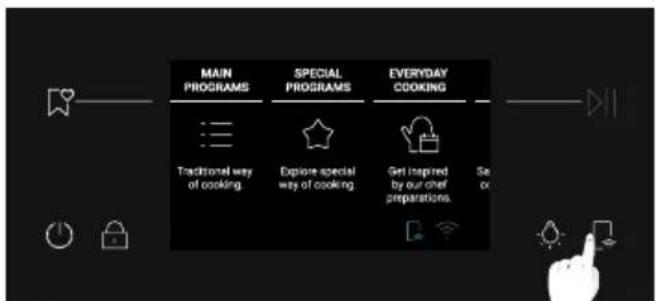

4. Remote Control
5. Favorites
6. Start/Pause

MAIN FUNCTIONS

Symbol Function Description
	On/Off	Press to turn on/off the oven.

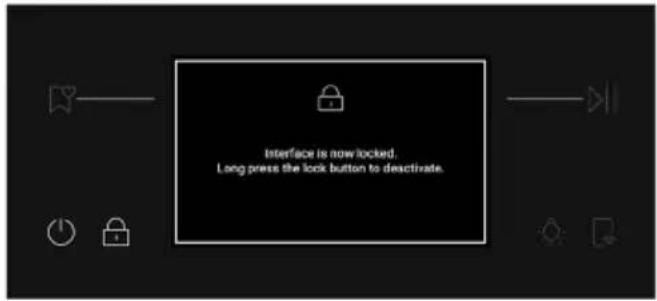

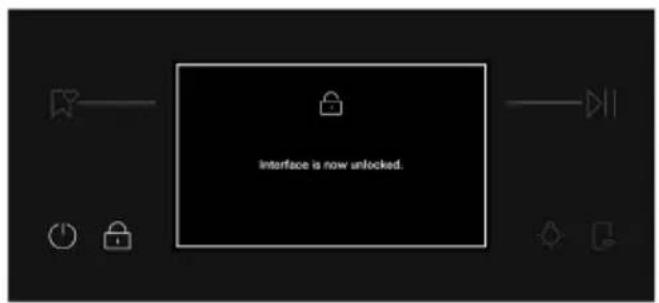

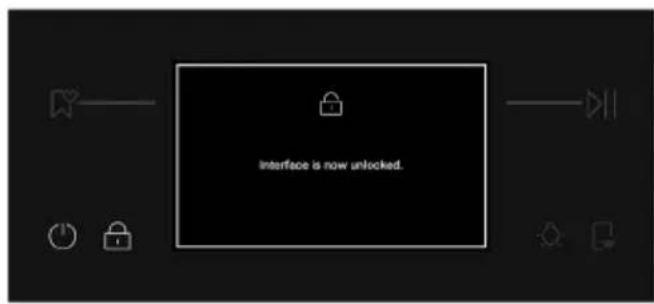

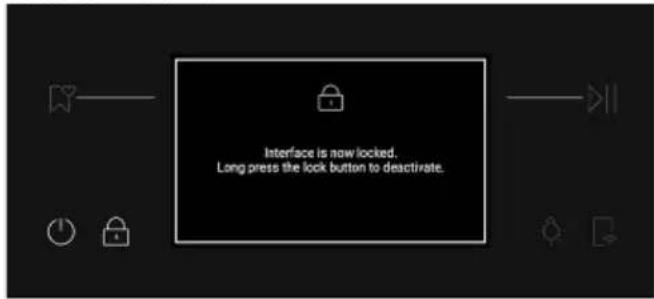

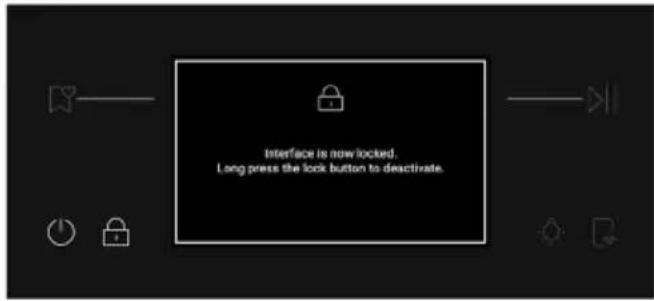

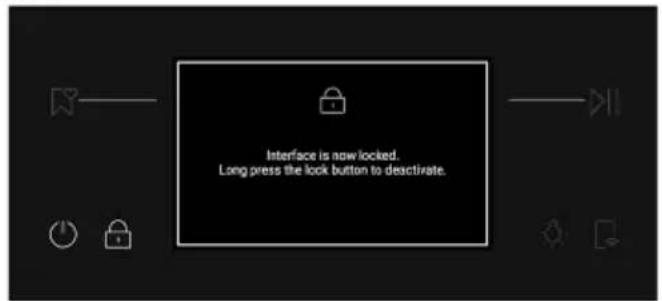

	Child lock	Press and hold for 3 seconds to lock the screen and prevent unwanted use by minors.
	Light	Press to turn on/off the oven cavity light.

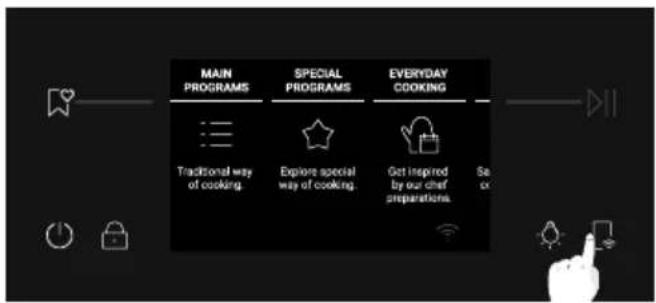

	Remote Control	Press and hold the button for 3 seconds to activate remote control, after pairing the oven with the hOn app (through the application).

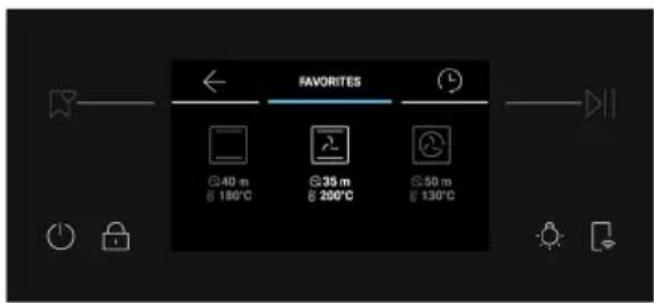

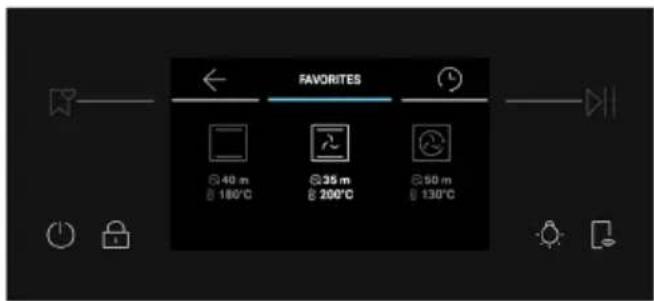

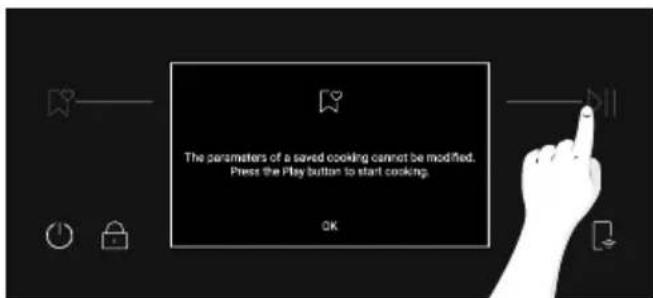

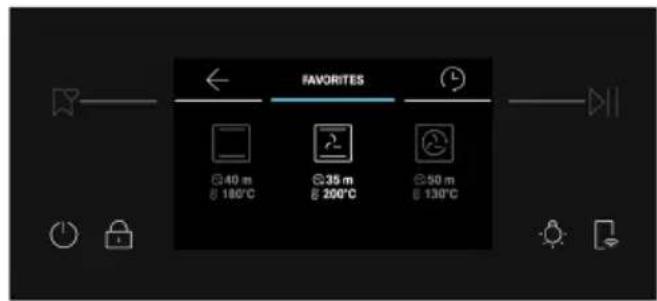

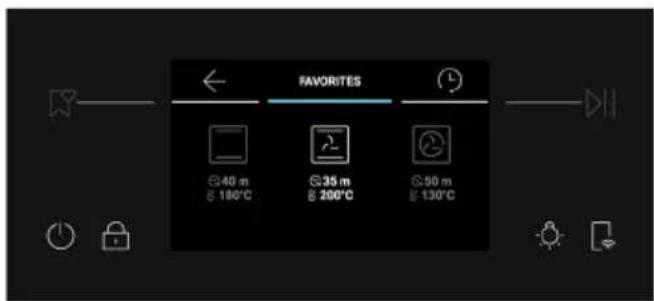

	Favorites	Press to access the Favorites menu.
	Start/Pause	Press to Start/Pause cooking or to confirm the functions.

2.4 CONNECTIVITY

Wireless parameters

Technology Wi-Fi Bluetooth
Standard IEEE 802.11 b/g/n	Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401 ÷2483 2402÷2480
Maximum Power [mW]	100 10

Product information for networked equipment

Power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated: 2,0 W.

Preci probe model et180 wireless parameters

Technology Bluetooth
Standard Bluetooth v4.0 BLE
Frequency Band(s) [MHz] 2400÷2480
Maximum Power [mW]	2.5 - (4dBm)

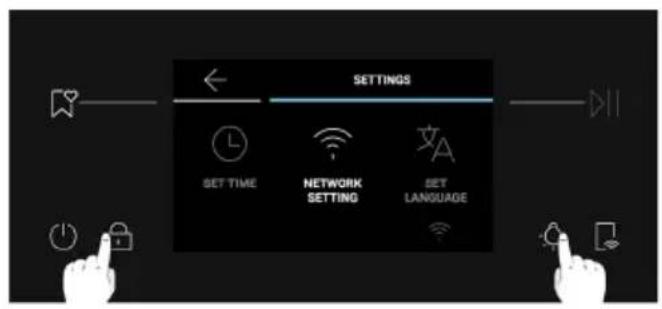

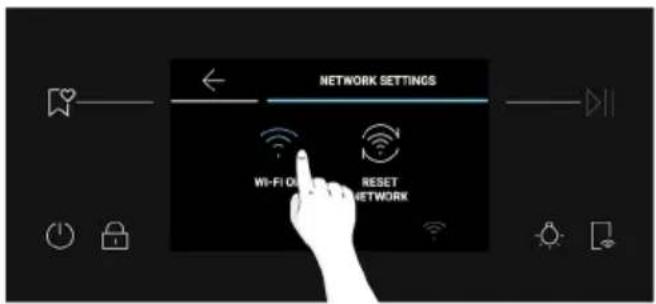

How to activate wireless network port

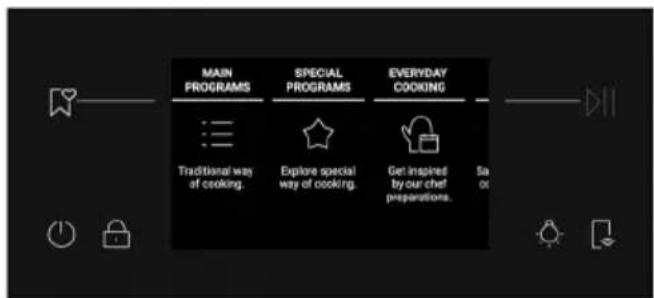

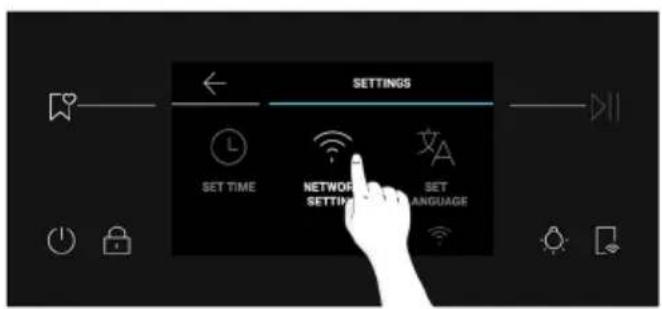

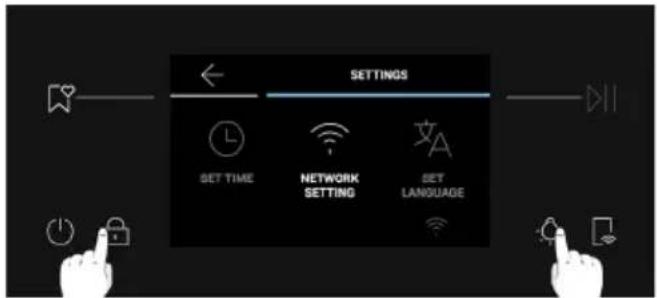

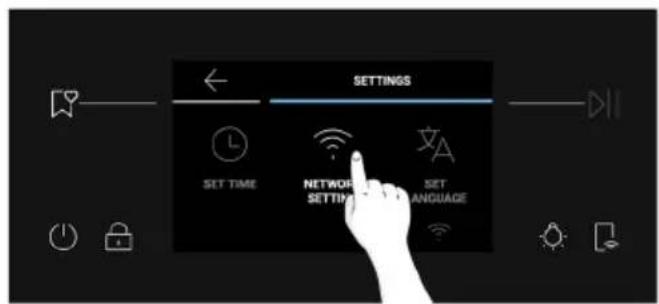

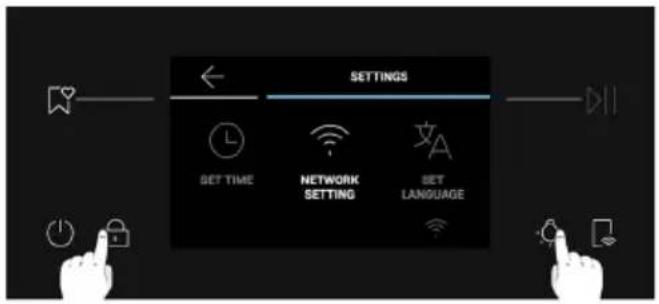

Press "Settings" on the Home Carousel, then press on "Network Settings". Toggle Wi-Fi OFF to turn on the Wi-Fi.

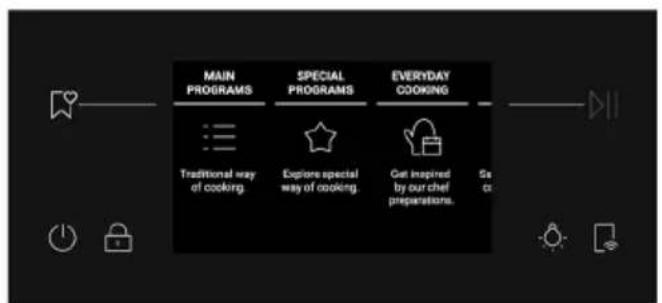

FAVORITES Collect your favorite cooking programs. CLEANING Choose the cleaning mode. SETTINGS Personalizing your own settings.

SETTINGS SET TIME NETWORK NETWORK LANGUAGE

NETWORK SETTINGS Wi-Fi Off RESET NETWORK

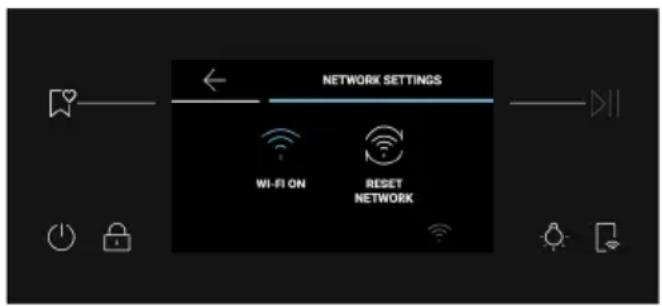

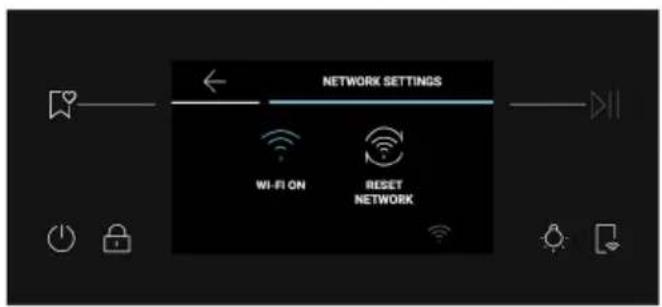

NETWORK SETTINGS Wi-FI ON RESET NETWORK

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements for the UK market. The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

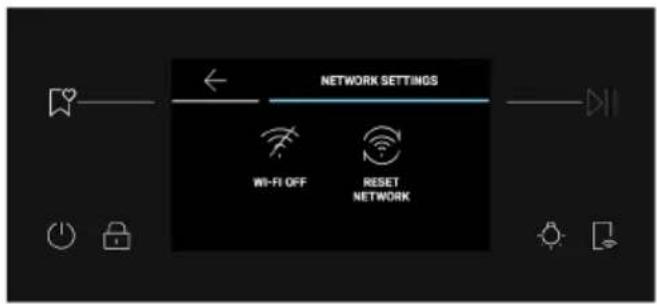

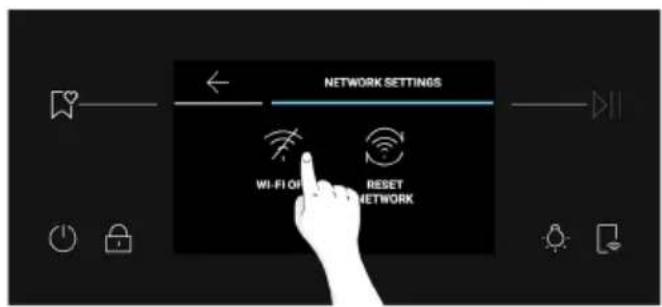

How to deactivate wireless network port

Press "Settings" on the Home Carousel, then press on "Network Settings". Toggle Wi-Fi ON to turn off the Wi-Fi.

FAVORITES CLEANING SETTINGS Collect your favorite clothing programs. Choose the cleaning mode. Personalize your own settings

SETTINGS SET TIME NETWORK NETWORK LANGUAGE

NETWORK SETTINGS Wi Fi O RESET NETWORK

NETWORK SETTINGS Wi-FI OFF RESET NETWORK

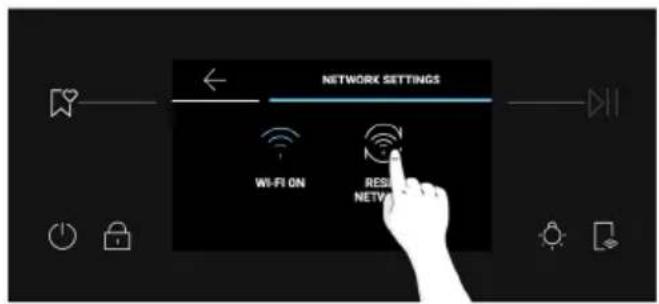

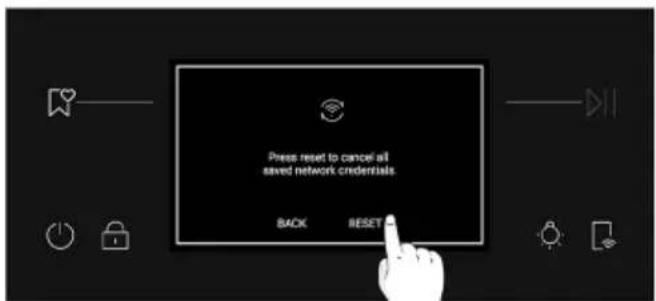

How to reset the network

1. Press Settings on the Home Carousel, then press Network Settings;
2. Press "Reset Network" (only enabled if the appliance has already been paired);
3. Confirm pop-up message by pressing on "Reset"

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RES NETWORK

Press reset to cancel all saved network credentials BACK RESET

HOW TO INTERACT WITH THE APP

Your appliance may be connected to your home wireless network and operated remotely using the app. Connect your appliance to ensure it stays up to date with the latest software and features.

NOTE

• Once the oven is turned on, the WIFI icons blinks for 30 minutes. During this period it's possible to enroll the product.
• Ensure your home Wi-Fi network is turned on.
• You will be given step by step guidance on both your appliance and mobile device.
• It may take up to 10 minutes to connect your oven.
• For further guidance and troubleshooting, please refer to the app.

Download on your smartphone.

Available on the App Store GET IT ON Google Play

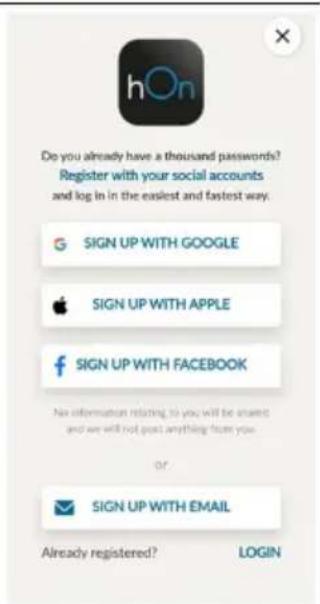

NEW USER REGISTRATION

• Click on "Register"
• You can register through social accounts or sign up with your personal email

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not point anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

QUICK PAIR ENROLLMENT

Step 1

- Select "Add appliance".

Hello USERNAME YOUR APPLIANCES ADD + Add appliance YOUR WIDGETS I never lesson darker sit out 100% Your NEWS NEW What functions do smart appliances have? How to live sustain home and reduce w

Step 2

- Allow your location permission.

Allow your location permission To enhance your experience, please allow location permission to hOn app in the next step. CONTINUE

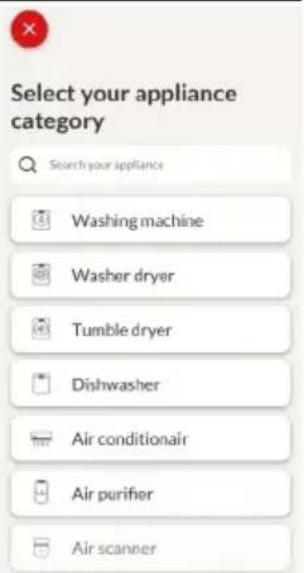

Step 3

- Select oven from the appliance category.

Select your appliance category Search your appliance Washing machine Washer dryer Tumble dryer Dishwasher Air conditionair Air purifier Air scanner

Step 4

- Turn on your appliance; if it is already on, turn it off and on again.

Turn OFF and then ON your appliance In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply. OK I DID IT

Step 5

• After turning on, the hOn app will start searching for your home appliance.

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correlly capture the signal.

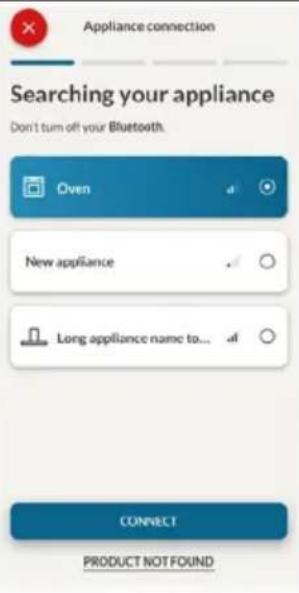

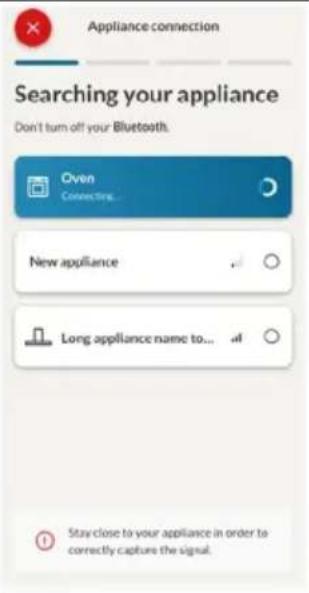

Step 6.1-6.2

- Select your home appliance, tap on "connect" and wait a few seconds.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

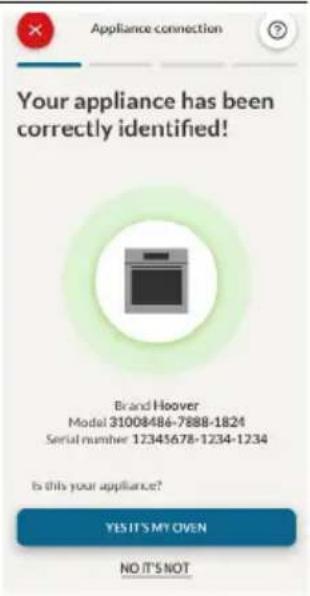

Step 7

- Your Oven will be found and you can control it through hOn.

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

REMOTE CONTROL

The Remote Control offers numerous advantages for users, enhancing convenience, efficiency, and the overall cooking experience, by giving the capability to control the product directly from both the appliance and hOn App.

This function allows you, through your device, to enjoy various features, such as: instant or scheduled start of recipes or cooking programs already available in the app both with the probe and without; real-time monitoring of the progress of your recipes; adjustment of the cooking parameters in use; management and monitoring of the cooking process through the Preci Probe; creation of customized recipes through the U-create function; and saving the recipes created directly on the product through the “Jolly function.”

The Remote Control can be activated exclusively when the product is enrolled.

You can also stop the cooking program remotely using the app by clicking the 'STOP' Button on the device display. The oven will automatically stop the cooking.

When Remote Control is ON, you can start/stop and monitor cooking programs and recipes both directly from the App and from the appliance. If the Remote Control is switched OFF after a cooking program has already started, the program can be stopped only from the oven.

NOTE: Remote Control is available for all cooking functions on the product, except for Grill + Fan and Supergrill programs.

How to activate Remote Control:

1. From Home Carousel, press in the bottom right corner;
2. "Remote Control ON" icon will be shown at the bottom of the screen;
3. Access the App, select a program and let the cooking start. During the process it is possible to control and change the program parameters from both product and App.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations So ox

How to deactivate Remote Control:

1. When Remote Control is active, press
   to switch it off.
2. "Remote Control ON" icon will disappear.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking Explore special way of cooking Get Inspired by our other preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking Explore special way of cooking. Get inspired by our chef preparations. So ox

Cooking 1H:10M LEFT ADO:15MN STOP Current programs PROGRAMS Conventional 250°C In 30m 10 (Profile:324) Difficulty Profile:LEFT EDIT DETAILS →

NOTE: If the user stops the cooking in progress from the oven, simultaneously the stopped cooking will be seen in the App.

OVER THE AIR UPDATE (OTA)

The oven is provided with an over the air update function that will ensure the product software maintenance and it is recommended every time to guarantee the updated oven functionality, which is enabled as soon as the product is enrolled in app. When an update is available and the oven is connected, you will be notified through a pop-up message on the display.

The OTA process will be done in 2 steps.

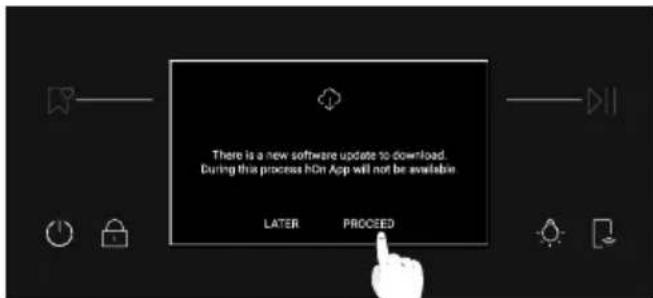

1. SOFTWARE DOWNLOAD – During this process, that may take around 2 hours, it is possible to use the oven to cook but hOn App will not be available.

- By selecting "Proceed", the update will start downloading and the Wi-Fi icon with a blue arrow will remain visible until the end of download. To switch off the display during this time, remote control shall be activated before pressing ON/OFF button, otherwise the download process will be interrupted.

There is a new software update to download. During this process HOn App will not be available. LATER PROCEED

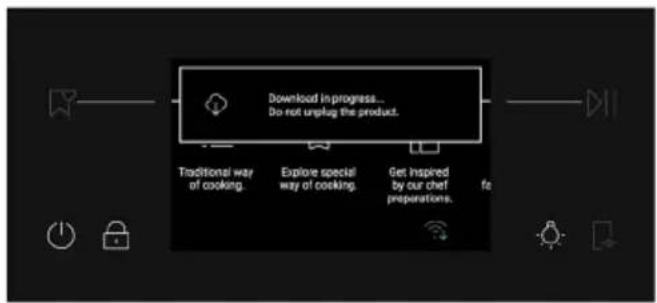

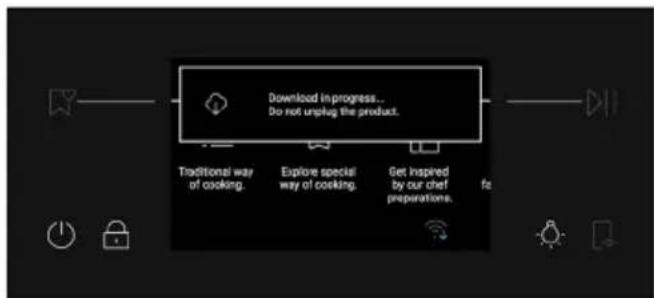

Download in progress... Do not unplug the product. Traditional way of cooking Explore special way of cooking. Get inspired by our chef preparisons.

- By selecting "Later", it is possible to start the process by entering "Software Updates" in the Settings menu.

SETTINGS SET POWER SOFTWARE UPDATES RESET TO FACTORY

1. INSTALLATION During this process, that may take around 2 hours, it is possible to use the oven to cook but hOn App will not be available.

- by tapping "Proceed", the update will be installed.

Download completed. Install updates LATER PROCEED

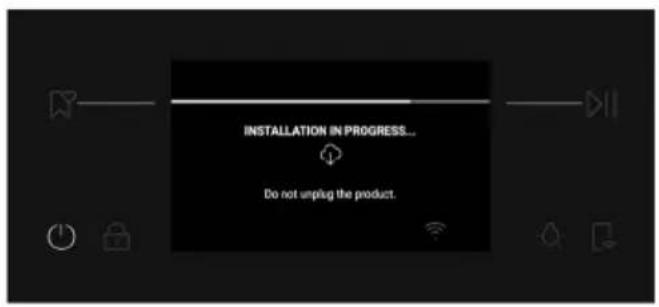

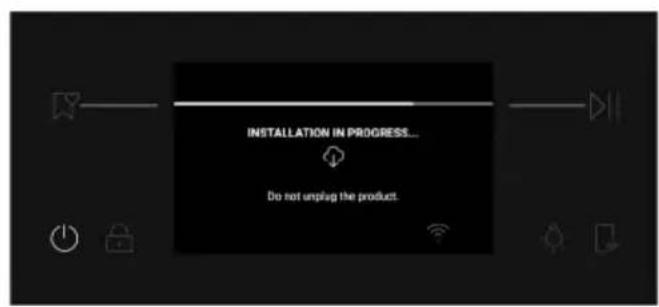

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

- By selecting "Later", it is possible to start the process by entering "Software Updates" in the Settings menu.

SETTINGS SET POWER SOFTWARE UPDATES RESET TO UPDATES FACTORY

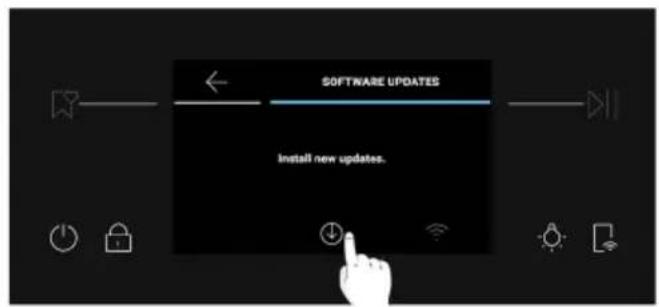

SOFTWARE UPDATES Install new updates.

3.1. INFORMATION TO START

When you first turn on the oven, you might notice some smoke. Don't worry, just wait for the smoke to clear before using the oven.

How door works

During the pyrolytic cleaning process, the oven door remains locked at all times. If it's not locked, the oven will display error code 24 and pause the cleaning function.

How illumination works

The oven cavity is illuminated by one or more light bulbs, typically activated each time a cooking function begins.

For ovens equipped with a door switch (see below), the light automatically turns on when the door is opened.

For ovens equipped with lamp button, it can also be used to activate the lighting.

If the oven door remains open for more than 10 minutes, the lights will automatically turn off.

During pyrolytic cleaning process light remains off. *

How cooling fan works

The cooling fan is responsible for dissipating the heat, keeping the oven and its surroundings from getting too hot, as well as protecting kitchen appliances from the effects of high temperatures. For this reason, the cooling fan remains audible for a period of time even after the oven is turned off. It operates during and after cooking cycle in relation to the internal temperature of the oven.

When the cooling fan is operational, it usually generates a gentle humming or whirring noise. You may also notice a warm airflow emanating from the gap between the oven door and the control panel.

During pyrolytic cleaning and when door is locked, cooling fan is switched on. *

During ECO function the light will remain off.

(*only for pyro ovens)

How status bar works

The status bar, based on the set programs, simplifies monitoring of temperature and time. Specifically, for functions involving preheating, it displays the temperature increase during this phase. In cooking programs and the pyrolytic cleaning function, it shows the countdown of cooking time and the cleaning cycle, respectively.

3.2. FIRST USAGE

When the appliance is switched on for the first time, the initial step is to select the language, set time of day, choose between 13 ampere or 16 ampere.

First, a welcome message will appear on the display. To continue, press

WELCOME Set your oven to start cooking.

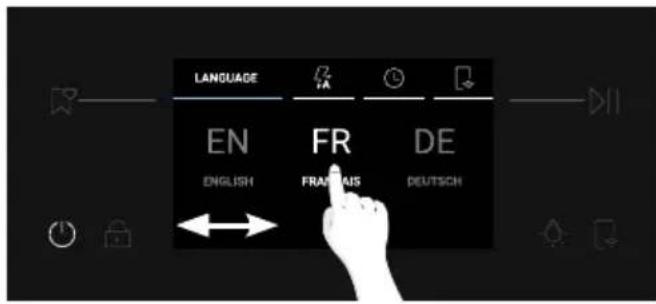

- SELECT THE LANGUAGE: A carousel menu will be shown. Scroll the carousel horizontally to select the desired language. Tap on the language of choice to go to the next step.

LANGUAGE EN FR DE ENGLISH FRANNAIS DEUTSCH

- SET AMPERAGE: By default, the oven is set to work with higher power suitable for households with more than 3 kW (16 A). If your home has lower power, you can change this setting to 13 A. This setting affects how quickly the oven heats up. Choosing the higher option (16A) means it heats up faster (because the power absorption is increased). On the display, you'll see two choices: 13A and 16A. Press on the desired amperage to select it and go to the next step.

EN AMPERE 13 AMPERE 16 AMPERE

- SET THE TIME: The display will show the preset time '0:00' in the preset 24h time format. To change the time format, press 12h / 24h on the left side of the screen. To set the time, scroll the numbers vertically. If you selected the 12h time format, also press on AM / PM to select the time of day. To confirm your choice, press on √.

EN 13A CLOCK 12 h 0 : 00 24 h 1 01

EN 13A CLOCK 12 h 8 24 9 25 24 h 10

EN 13A CLOCK 12 h 8 24 9 : 25 24 h 10 26 AM PM

EN 13A CLOCK 12 h 8 24 24 h 9 : 25 10 26

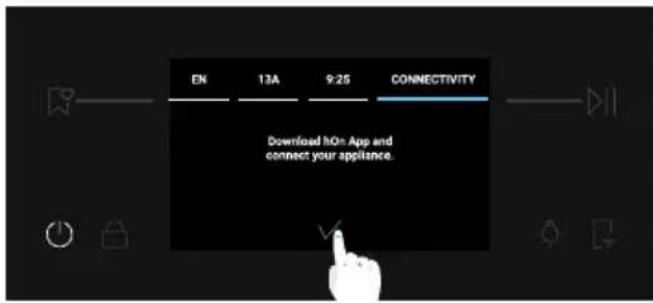

After adjusting the initial settings, a pop-up message about pairing information will appear. Press to confirm and go to the Home carousel menu.

EN 13A 9:25 CONNECTIVITY Download NO: App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cr

ADDITIONAL SETTINGS

Brightness and Sound levels can be adjusted by the user in the Settings section.

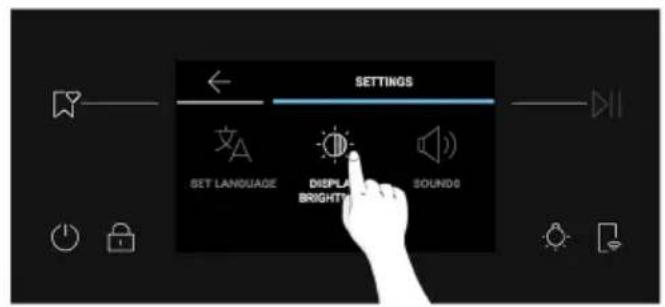

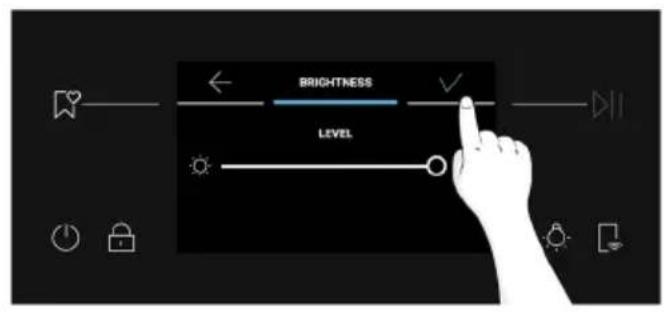

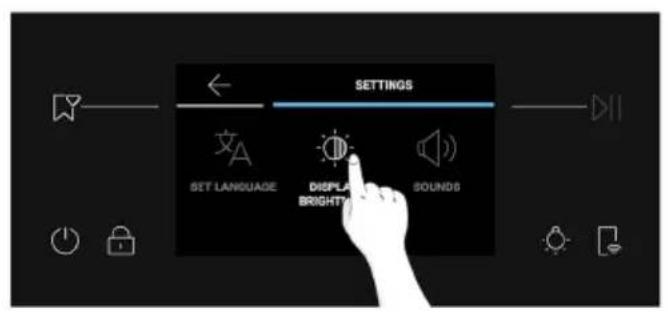

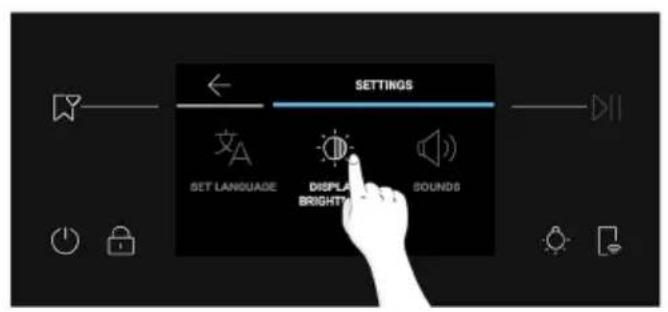

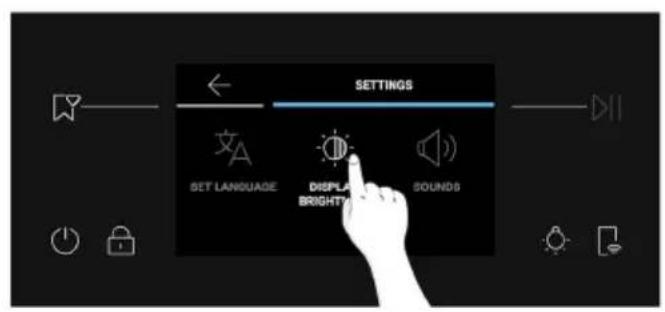

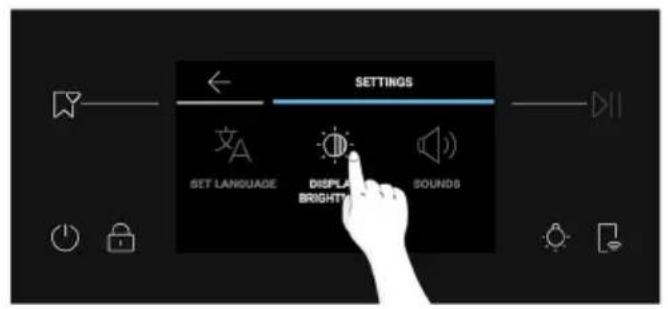

- BRIGHTNESS: From the Home carousel, press "Settings". Scroll the Settings menu horizontally and press on "Display Brightness". Scroll the slider horizontally to adjust brightness. Press √ to confirm.

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your over settl

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

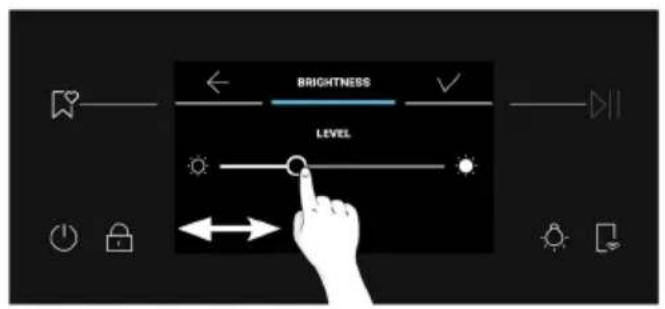

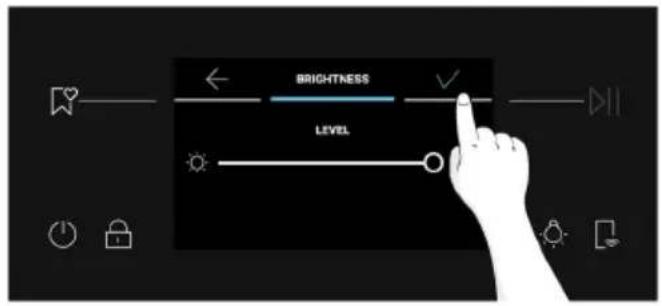

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

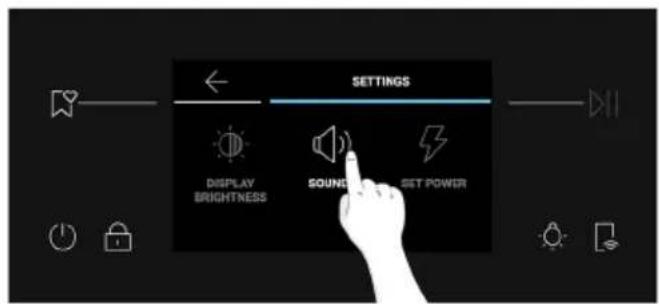

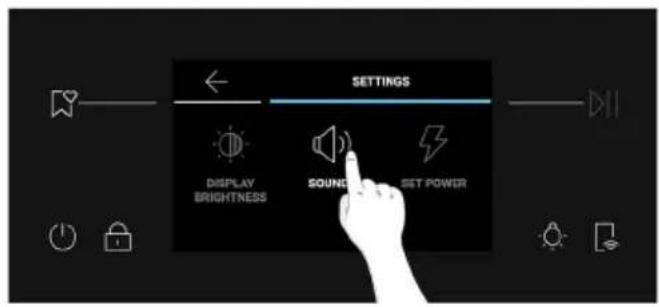

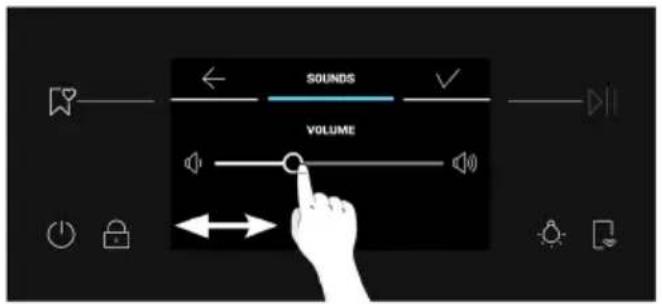

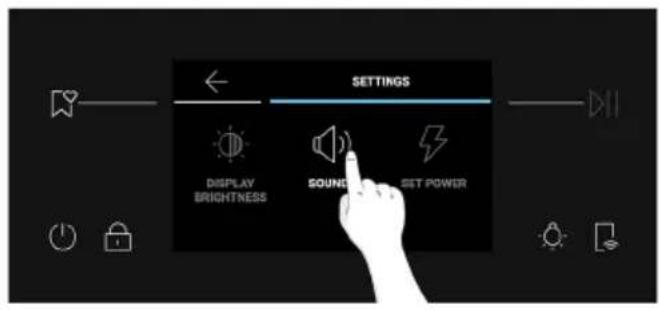

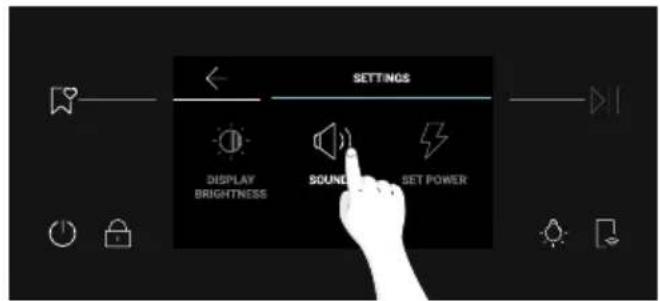

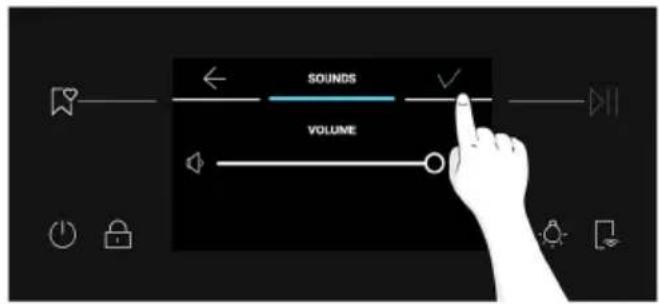

- SOUND: From the Home carousel, press "Settings". Scroll the Settings menu horizontally and press on "Sounds". Scroll the slider left and right to adjust the sound volume. Press √ to confirm.

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalizing your own settings.

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

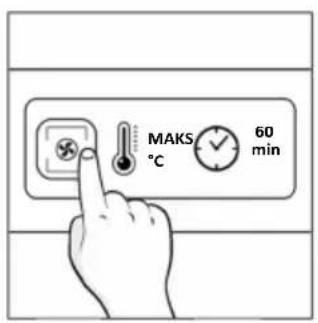

3.3. PRELIMINARY CLEANING

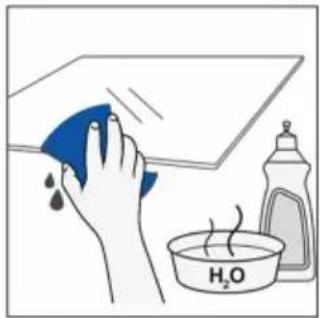

Clean the oven before using it for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H2O (no text or symbols)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open cabinet (no text or symbols)

4. OPERATION OF PRODUCT

4.1. HOW THE PRODUCT WORKS

SWITCHING ON/OFF THE OVEN

To switch the oven ON/OFF, long press the ON/OFF button.

Pure graphical interface element with hand cursor and control buttons, no text or symbols present

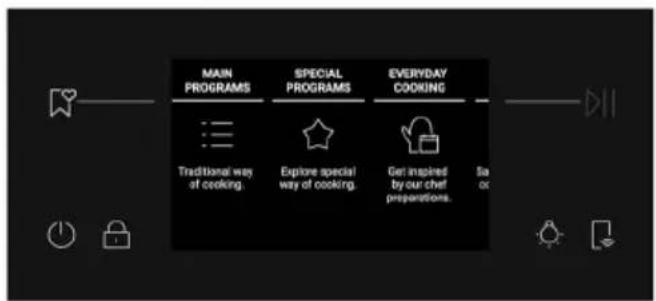

SET COOKING FUNCTION

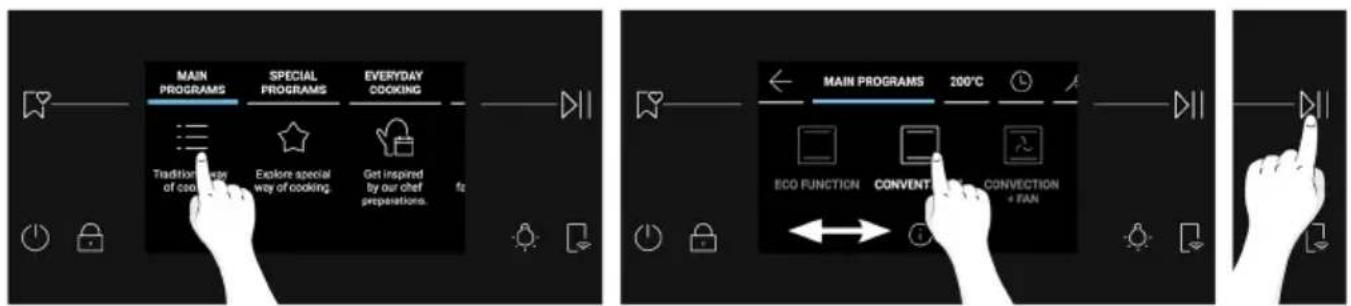

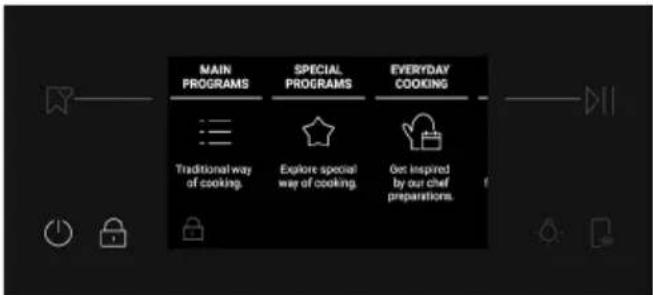

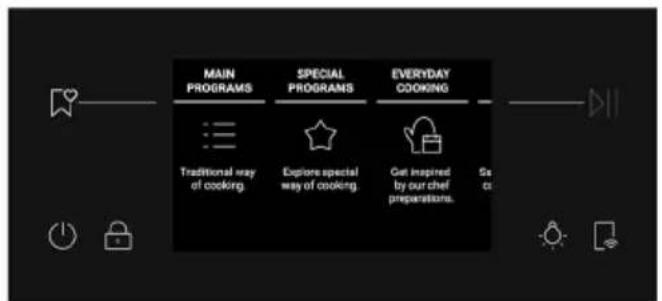

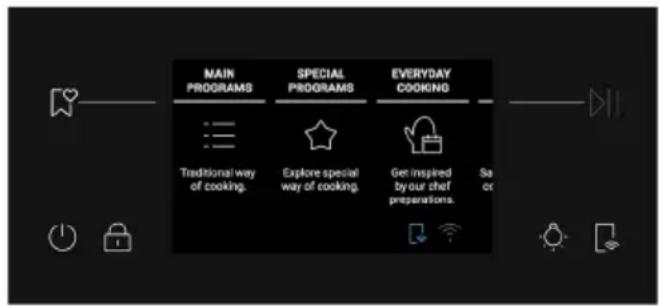

To select a cooking function, press "Main Programs" from the Home carousel menu. Scroll the carousel horizontally until you reach the desired function. Press ▷|| to start cooking at the default temperature for the selected cooking function.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition way of cooking. Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVECTION + FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION + FAN

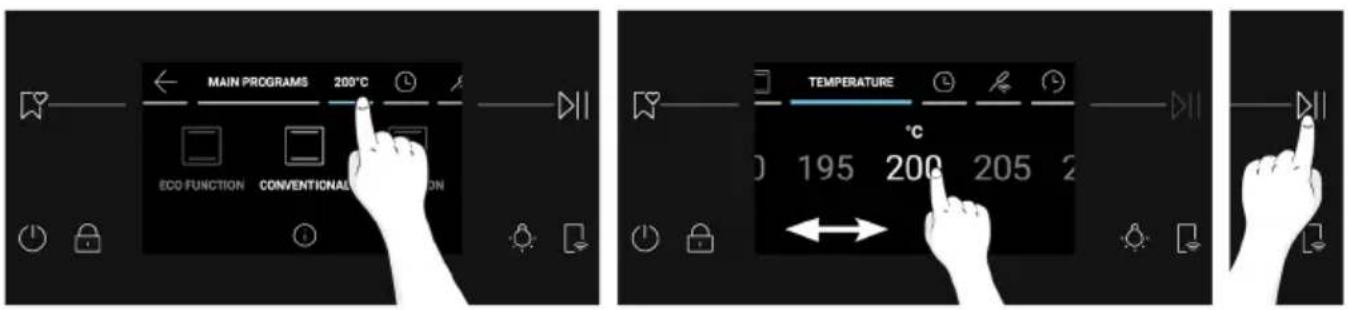

SET TEMPERATURE

Press the temperature indicated next to "Main Programs" on the carousel. Scroll horizontally to select the desired temperature. Press ▷|| to confirm your choice.

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL TEMPERATURE °C 195 200 205 2

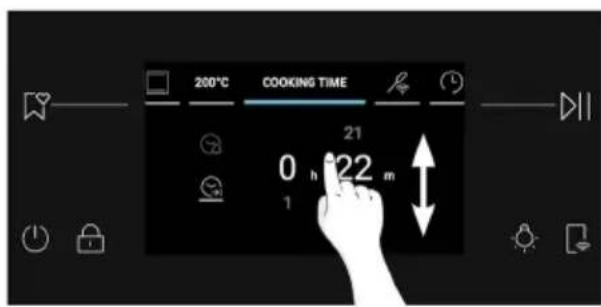

TIME MENU

Access the Time menu by pressing ⏻ Cooking Time on the carousel.

The user can enter the following settings:

a. Minute Minder

This function allows the user to set a reminder for the cooking time. After pressing ⏻ Cooking Time on the carousel, the 🔒 Minute Minder icon is switched on by default. Scroll the numbers vertically to adjust the time, then press ▷ to confirm.

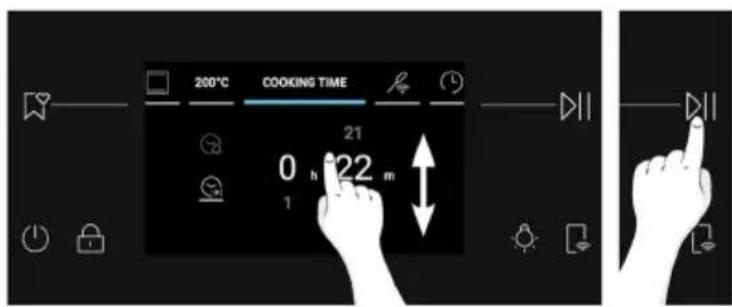

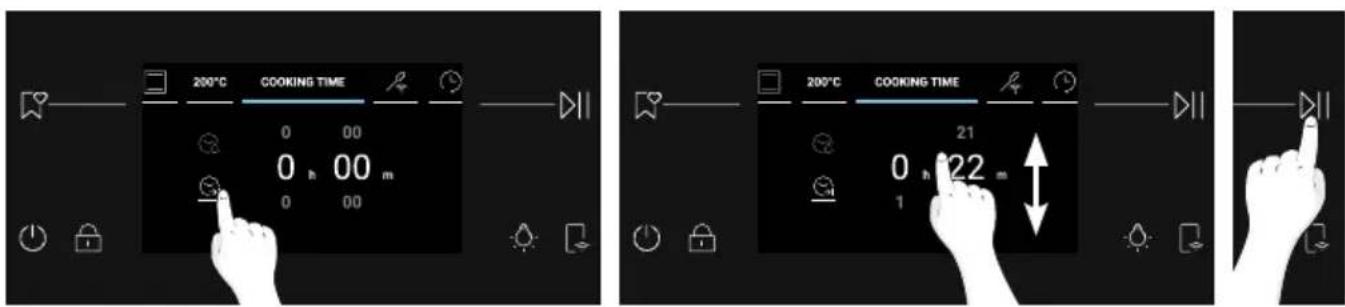

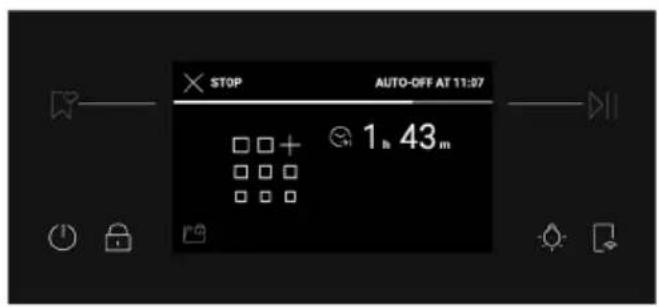

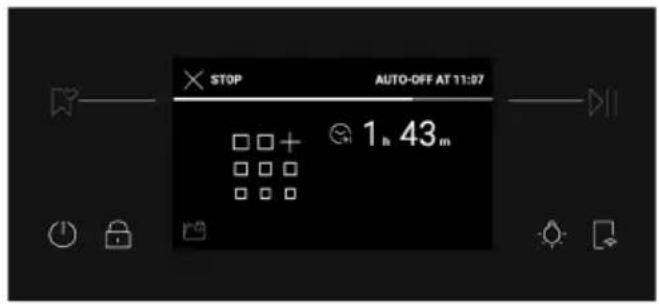

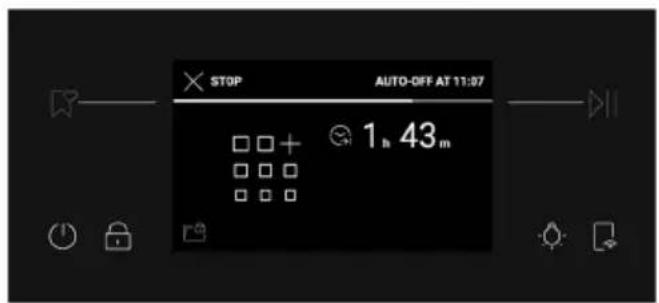

b. Auto-Off

Auto-Off makes the oven automatically turn off after the set reminder. This function is switched off by default and needs to be activated on demand by the user.

Press ⚙ to activate Auto-Off. Adjust the time by scrolling vertically, then press 📋 to proceed.

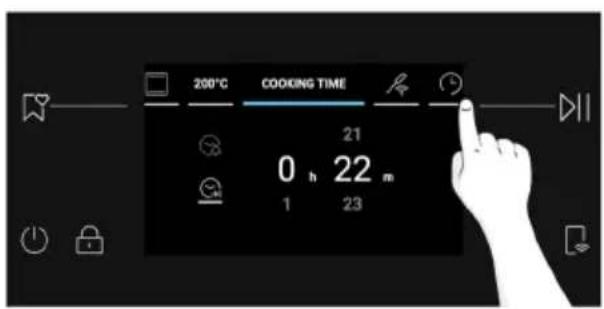

c. Delay Start

Press ⏻ to set Delay Start. Scroll vertically to set the desired time, then press ▷to confirm.

NOTE: Delay Start is activable only after setting Cooking Duration and it is not available when the Preci Probe is set. When using Delay Start, the cooking duration will be automatically converted to Auto-Off.

ADDITIONAL FUNCTIONS

LIGHT

To switch the cavity light ON/OFF, press

NOTE: The cavity light is OFF by default during general navigation processes. While a process such as cooking or cleaning is ongoing, the light will be switched ON by default.

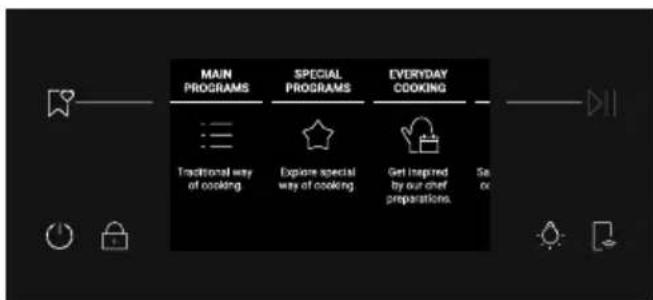

CHILD LOCK

This function allows you to lock the screen to prevent any unwanted use by minors. To activate the screen lock, long press 🔒. A pop-up message will be shown for a few seconds. When Child Lock is on, all the buttons will be disabled except for ON/OFF and Child Lock.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking Explore special way of cooking Get inspired by our chef preparations So c

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

To unlock the screen, long press 📋 again. A pop-up message will be shown for a few seconds, or you can tap anywhere on the screen to hide it. The display will unlock and resume to the previous screen.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking Explore special way of cooking Get inspired by our chef preparations. So or

4.2. COOKING FUNCTIONS

FAST PREHEATING OPTION

The fast preheat is always recommended by a message on the display and starts automatically. When the fast preheat starts the option “skip” appears. If “skip” is selected, the desired cooking function starts and the food can be inserted with cold oven. The Fast Preheat will activate a combination of fan and heating elements regardless of the chosen cooking function; the lamp will be turned OFF until the oven reaches the desired temperature to save energy.

4.2.1. MAIN PROGRAMS

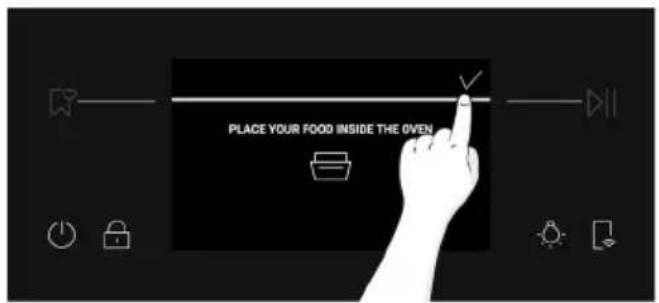

NOTE: for functions that require preheating, ensure all accessories are removed during this phase. Follow instructions in the table below for what regards preheating.

“YES” means that fast preheating is automatically activated and can be skipped; “NO” means that preheat is not available and foods must be inserted with cold oven.

When a cooking program ends you can add 5 more minutes of cooking time or save it to favorites menu or return to home screen.

* Tested in accordance with the EN 60350-1 for the purpose of energy consumption declaration and energy class.
**Use with the door closed.

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	PRECIPROBE available	Suggestions
	*ECO	190 °C 150-220 °C	L3/L4 NO NO			IDEAL FOR: cooking meat, fish or vegetablesThis function allows to save energy during cooking keeping the food moist and tender. Cavity lamp is switched off
	*Conventional	200°C 30-250°C	L2/L3 YES YES			IDEAL FOR: cakes, breads, biscuits,on one level.
	Multi-Level	160°C 50-250°C	L3 (one tray) L3+L6 (two trays)L2+L4+L6(three trays)	YES YES		IDEAL FOR: cakes, biscuits and pizzas on one or more levels. Ideal to cook different foods.
	Convection + Fan	175°C 50-250°C	L2/L3 YES YES			IDEAL FOR: roasts, casseroles, vegetables or pies with moist fillings.
	**Grill	L5 L1-L5 L6/L7	NO YES			IDEAL FOR: small quantities of sausages or steak. Use with the door closed
	**Super Grill	L5 L1-L5	L7 for thin food, L5 for thicker food.	NO YES		IDEAL FOR: big quantities of sausages, steaks and toast bread. The entire area below the grill element becomes hot. Use with the door closed. Turn food two thirds of the way through cooking (If necessary).
	**Grill + Fan	200°C 150-250°C	L4/L5 YES YES			IDEAL FOR: whole pieces of meat (roasts) or gratinated foods. Use with the door closed. Slide the drip tray under the shelf to collect juices. Turn food over halfway through cooking if needed.
	Bottom heating + fan	170°C 50-230°C	L2/L3 YES YES			IDEAL FOR: salty cakes or foods with liquid toppings on one level
[B8GH]	Bottom heating	170°C 50-230°C	L1/L2 YES YES			IDEAL FOR: stews and gentle cooking on one level

4.2.2. SPECIAL FUNCTIONS

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	PRECIPROBE available	Suggestions
	Pizza 300	300 °C200-300 °C	L2/L3 NO			IDEAL TO: cook all pizza types, without the need of preheating. Use lower heating for frozen pizza, and 300° for round fresh pizza.
	Dehydration	55°C45-65°C	L4 NO			IDEAL TO: dehydrate portions of vegetables and fruits. For a better result, cut slices thinly, and place them on a single layer without overlap.
	Keep Warm 65°C L3 NO					IDEAL TO: maintain the food warm
	Yogurt 40°C L4 NO					IDEAL TO: prepare yogurts enabling a correct fermentation process
	Leavening 40°C L3 NO					IDEAL FOR: pizza and bread dough leavening, position meals on the third level
	MULTICOOKING	200 °C150-250 °C	L1+L3+L5+L7 YES			IDEAL TO: simultaneously cook different dishes of a full meal on different levels without mixing odors. Position food on all levels available after preheating. Take out each dish separately, depending on whether the cooking temperature has been reached.
	Air fry	200 °C150-250 °C	L3/L4 NO			IDEAL TO: prepare frozen, pre-fried and breaded meals. Thanks to the dedicated accessory, hot air covers food evenly.

Save recipes as Favorites:

You can save a recipe in the Favorites menu directly from the oven, at the end of any cooking program, by pressing “Save in Favorites” on the display. This button will be shown after the “Enjoy Your Plate” message.

Favorite recipes can be later accessed from the Favorites menu.

230°C 30 m + 5 MINUTES SAVE IN FAVORITE HOME

How to access Favorites menu from the oven:

Press 📊 on the display. Alternatively, scroll the Home carousel until you reach Favorites and press on it. The Favorites menu will be displayed, and you can scroll through the previously saved recipes. The recipes saved directly from the oven will be shown first; the recipes saved through the Jolly function will be shown at the end of the carousel. Once you have reached the desired recipe, press ⚠️ to let the cooking start.

a SPECIAL PROGRAMS Everyday COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

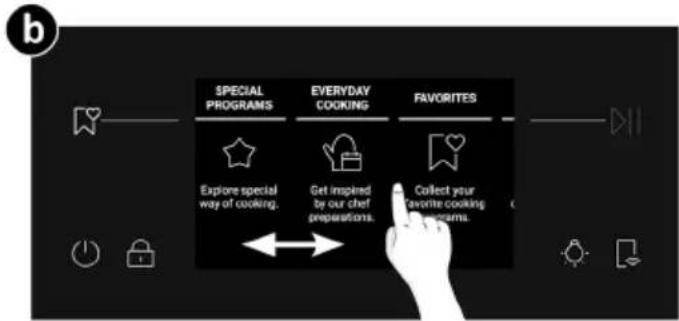

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking PROGRAMS.

FAVORITES 40 m € 180°C 35 m € 200°C 50 m € 130°C

NOTE: Settings like Cooking Duration and Temperature cannot be changed for recipes saved as Favorites. If you click on the recipe in the Favorites menu, a pop-up message will appear. Press "OK" to go back to the carousel, or press || to confirm your choice and let the cooking start.

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

Jolly function (Maximum 5 recipes)

Thanks to the Jolly function, this product offers a fully customizable experience, allowing you to store your personalized recipes directly on the oven. You can execute these recipes as often as you like, even without the need to log into the app.

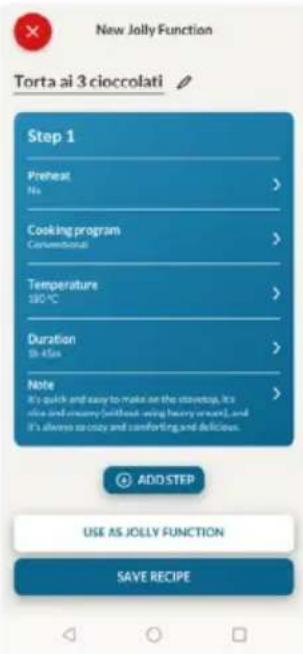

New Jolly Function Torta ai 3 cioccolati Step 1 Frencat No > Cooking program Conventional > Temperature 100°C > Duration 5th-45m > Note It's quick and easy to make an ice cream. It's rice and creating jillness using beauty cream, and it's always so busy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

How to Set the Jolly Function:

To set the Jolly function on your oven, open the app's recipe section, select the recipe you want to use, and click 'Use As Jolly Function'. From this point onward, you can launch it from the product even without interaction with the app.

How to edit the Jolly function:

To edit a Jolly function, go to the app's recipe section and select the card of the recipe designated as a Jolly function. Tap the "edit" button to customize the recipe and modify the previously set settings.

A pop-up message will inform you that to save the newly modified Jolly function, you must remove the previous one. If you confirm, the previous Jolly function will be deleted, and the new parameters will be saved on the product and will be visible in the app.

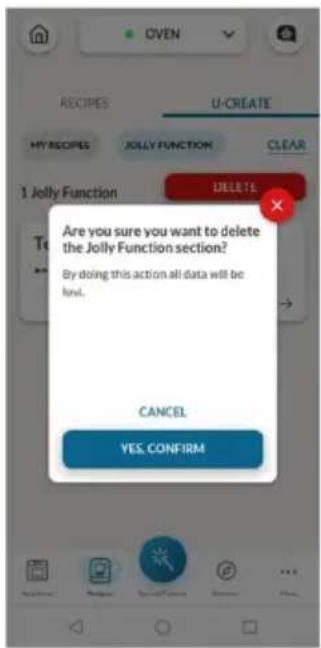

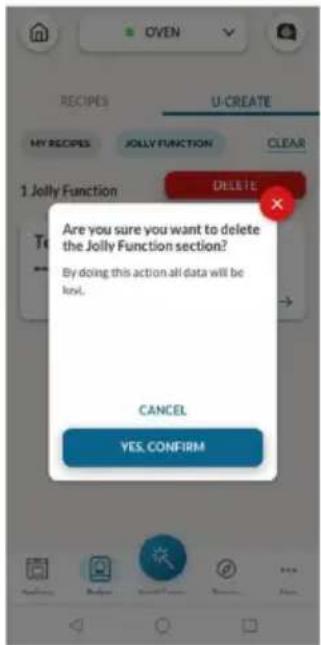

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be lose.

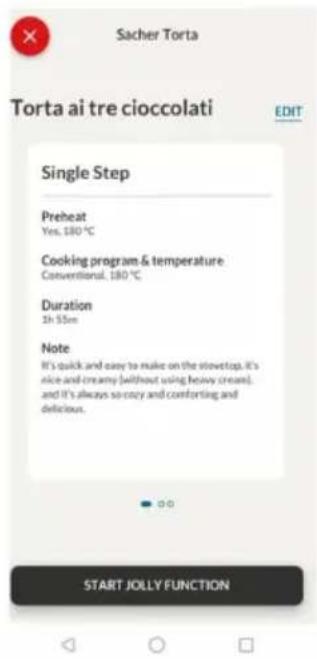

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 100 °C Cooking program & temperature Conventional, 180 °C Duration In $5m Note It's quick and easy to make on the stovestop, it's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

How to Delete the Jolly Function:

To remove the Jolly function from the oven's user interface, access the app's recipe section.

By tapping on the card of the recipe designated as a Jolly function, it's possible to delete it by clicking the red button 'delete button'.

A pop-up will confirm the operation, asking for your confirmation. If you proceed, the Jolly function saved on the oven will be removed, and it will no longer be available in the app.

The recipes saved through Jolly function can be seen in the Favorites menu on the oven.

WIRELESS PRECI PROBE (available depending on the model)

How to use the probe:

1. From the Home carousel, press
2. Press "Connect" to match the Preci Probe with the oven.
3. The oven will start searching for the Preci Probe. At this time, make sure the Preci Probe is fully charged and close to the oven.
4. Once the Preci Probe is detected, select it by pressing on its icon on the display. will appear at the bottom left of the display.

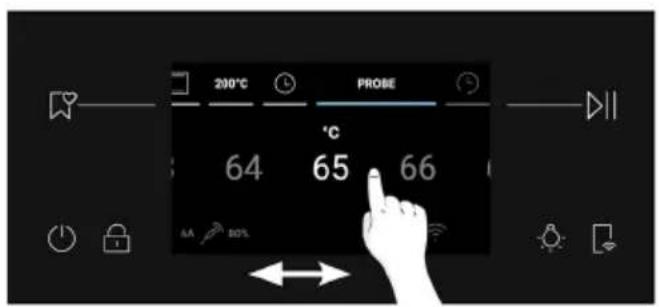

5. Select the desired target temperature by scrolling left and right, then press to confirm your choice. Fast Preheating starts.
6. A pop-up message will appear: insert the Preci Probe into the food and place it in the oven, then press √ to let the cooking start. When cooking stops, an "Enjoy your plate" message will be shown for a few seconds. Before taking the food out of the oven, be sure to remove the Preci Probe from the food carefully.

NOTE: When using the probe, there's no need to set a cooking timer; it will automatically stop once the desired temperature is reached.

TEMPERATURE °C 0 195 200 25 2

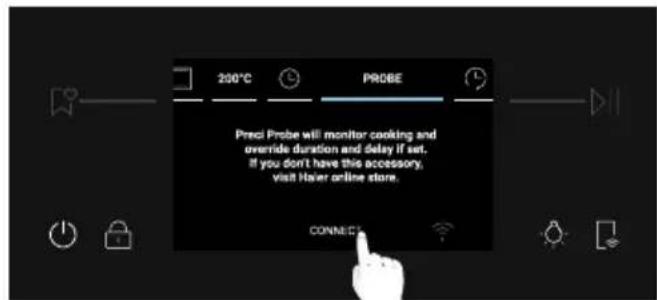

200°C PROBE Preci Probe will monitor cooking and override duration and delay if set. If you don't have this accessory, visit Haier online store. CONNECT

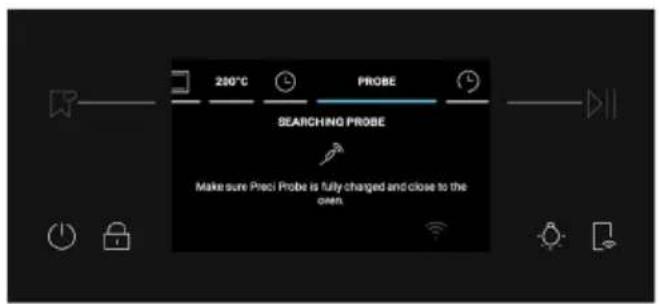

200°C PROBE SEARCHING PROBE Make sure Proct Probe is fully charged and close to the own

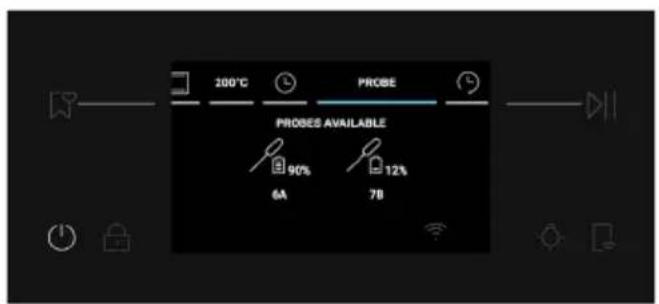

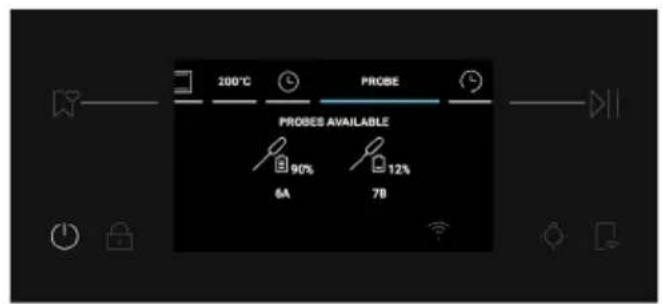

200°C PROBE PROBES AVAILABLE 90% 6A 12% 7B

200°C PROBE °C 64 65 66 6A 50%

FAST PREHEATING 200°C

PLACE YOUR FOOD INSIDE THE OVEN

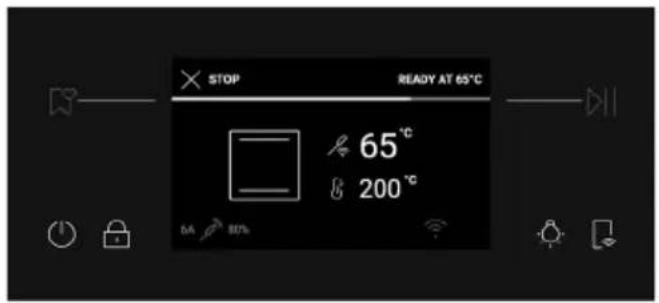

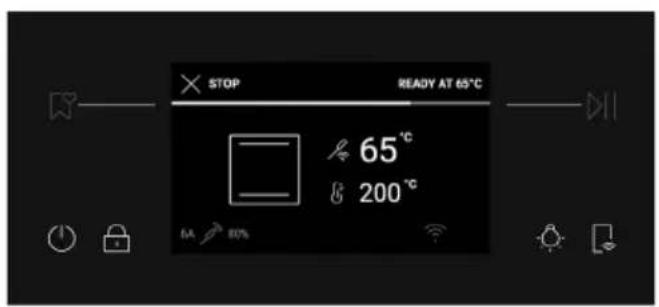

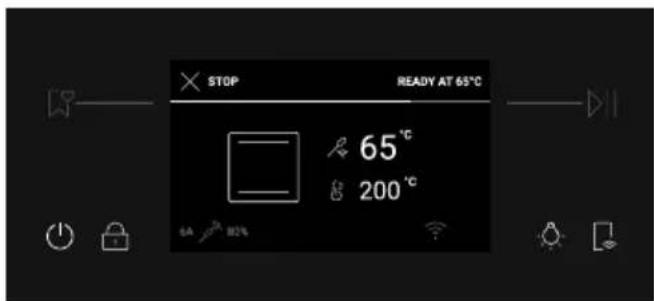

STOP READY AT 65°C 65 °C 200 °C

ENJOY YOUR PLATE 5A 80%

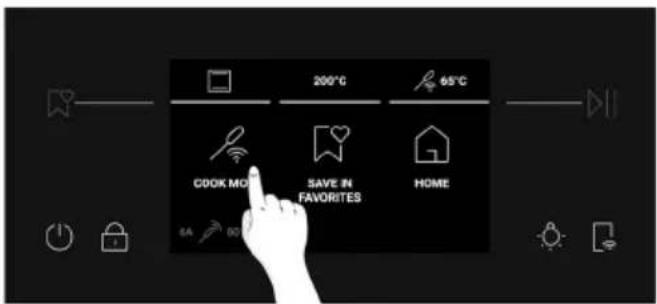

If you wish to cook your food more, press “Cook more” on the display and set a new target temperature for the Preci Probe.

200°C 45°C COOK MO SAVE IN FAVORITES HOME 6A 60

Cooking tips

The Probe is equipped with a single measuring point. Insert it entirely into the food with the metal tip positioned at the centre of the food. Place this point as close as possible to the thickest (coldest) part of the food to accurately monitor the cooking process.

Simple line drawing of a pencil and a chicken with a knife, showing a change from the drawing to the outline (no text or symbols)

The Probe can be used with manual functions (Conventional, Conventional + Fan, Grill, Super grill, Grill + Fan, and Multilevel), with FOOD COOKING CATEGORIES (Meat, Fish and Vegetables) and Gentle cooking.

Food category Suggested core T°C Suggested positioning
Roast beef 45°C		Diagonally in the thickest part. For cylindrical shape foods (i.e. beef roasts) place the tip as close as possible to the geometric center
Roasted meats 55 °C / 60 °C / 65 °C
Poultry 83-85°C Into the thickest part of the breast
Fish (whole/steaks) 65°C Diagonally in the thickest part
Bread/casseroles 90°C		Close to the geometric center of the food

4.2.3. MULTI STEP FEATURE

The multi step feature allows to maintain previously set cooking parameters (temperature and time) while changing function during cooking.

Multi-step recipes can be created on hOn App through the U-Create function and saved on the oven. The user can start the Multi-step recipe from the Favorites menu.

The user can save the Multi-step recipe as a Jolly Function to store it in the Favorites menu on the oven, or save it on hOn to start it remotely from the App.

Step 1. From the U-Create section of the App, press "Create Recipe".

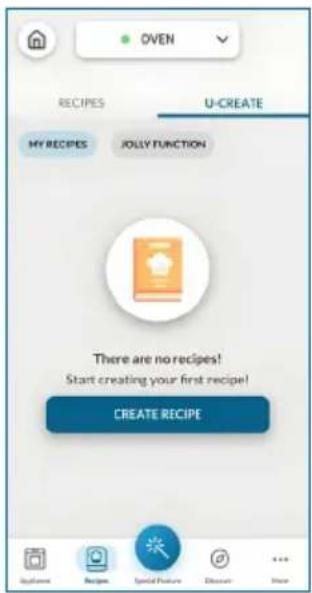

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

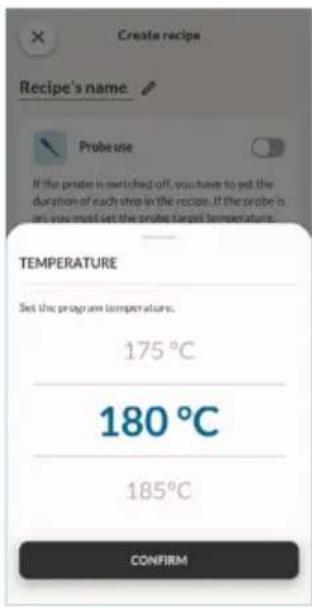

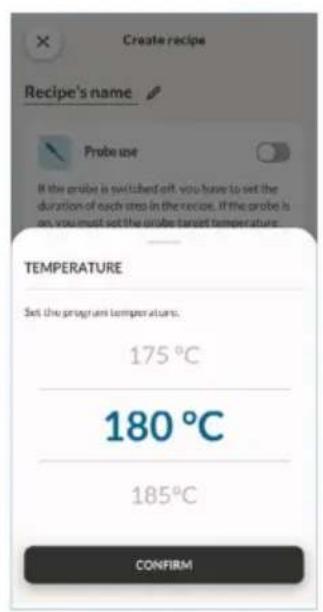

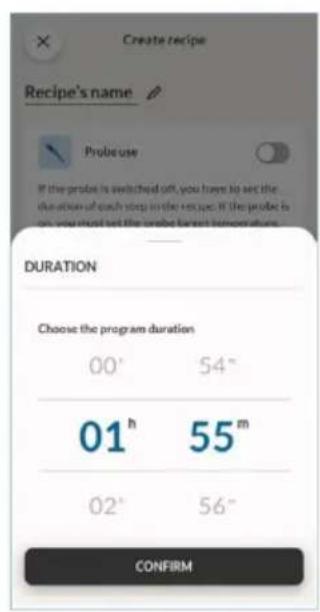

Step 2. Edit the recipe's name and choose the parameters for the first step of the recipe.

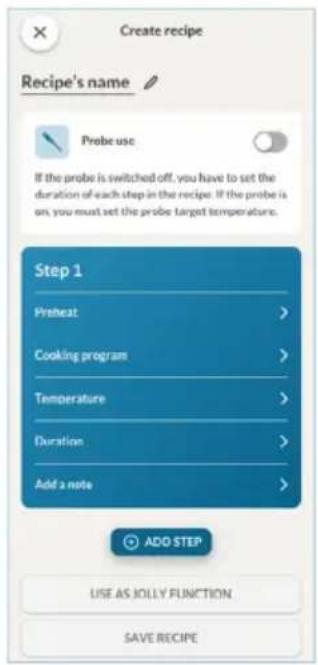

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADD STEP USE AS JOLLY FUNCTION SAVE RICIP

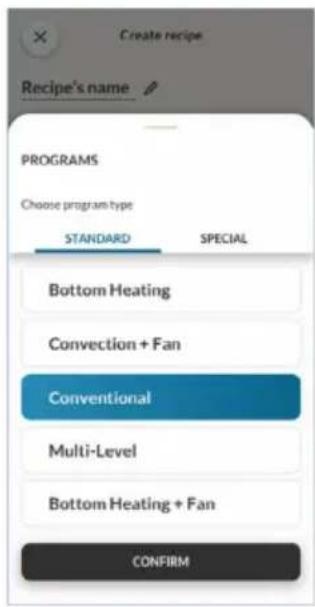

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the dotation of each step in the recipe. If the probe is on, you must set the probe target temperature. TEMPERATURE Set the program temperature. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of such sleep in the recipe. If the probe is on, you must set the probe and not be more than 5. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Step 3. After customizing the first step, press "Add step" to add another cooking function to the recipe and customize its parameters.

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100°C > Duration 2h 45m > Note It's quick and easy to make on the slowdown, it's nice and creamy/without using heavy creamL and It's always so noisy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Step 4. Save the recipe on the app to start it from hOn remotely, or save it as a "Jolly Function" to find it in the Favorites menu directly on the oven.

Create recipe Torta ai 3 cioccolati Step 1 Cooking program Conventional Duration 200°C Duration 1h 5pm Note It's quick and easy to make on the stovetop. It's rice and creamy (without using heavy cream), and It's always so crazy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

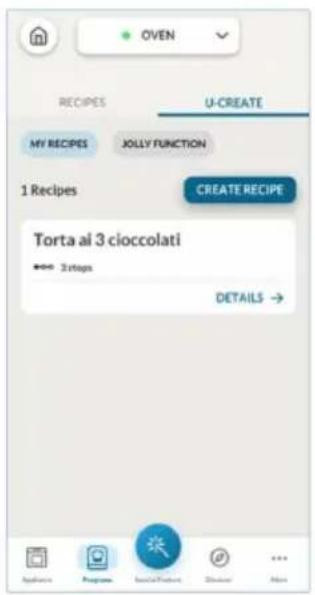

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta ai 3 cioccolati + 3 steps DETAILS → Appliances Regulator Social Features Discover Help

4.2.4. HOW TO USE THE CAMERA (available depending on the model)

The bionic vision camera works with the Bionic Vision function available on the App. The camera can recognize the food and set the related parameters to cook it properly. You can monitor the status of the cooking process directly from the App.

The camera isn't available during pre-heating, Eco, and Pyrolysis functions.

To use the camera, the Remote Control must be active.

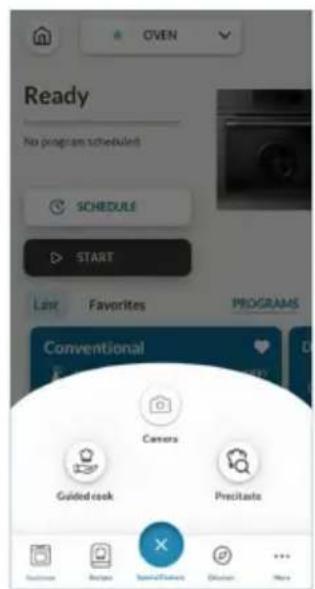

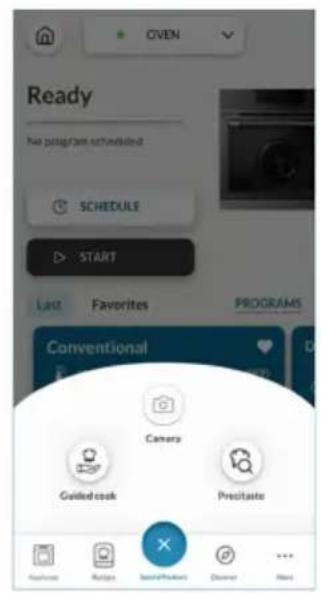

Step 1. On the App, press "Special Feature", then select "Bionic Vision" and press "Start Now".

Check 'Bionic Vision Recipes' to discover which foods are recognized by Bionic Vision and make sure to replicate the suggested layout of the food.

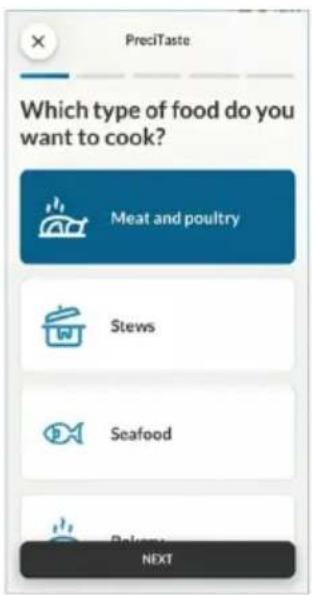

Step 2. Select the food category that you want to cook, then press "Next" to confirm.

Which type of food do you want to cook? Bread & Pasta Sweet Bakery Savoury Tarts & Pies Pizza & Focaccia NEXT

Step 3. After the Bionic Vision recipe is launched from the App, pre-heating will start. To start this function, the oven cavity must be empty.

17:01 Bionic Vision Pre-heating in progress Wait for pre-heating... Before putting in the food, you have to wait for the preheating process to exit. You can also access the display screen and browse freely; you will receive a notification when pre-heating is finished. GO TO DASHBOARD

Step 4. Before inserting the food, wait for the preheating process to finish. Make sure to accurately replicate the proposed layout of the food items to ensure optimal recognition.

Please note that the food should be placed on a tray with baking paper on level 3 of the oven cavity.

Close the oven door to enable the food to be detected. The oven will recognize the food through the camera and set the appropriate parameters. After receiving confirmation from the user, the cooking process starts automatically. During this process, “Bionic Vision in Progress” will be shown on the oven display.

17:09 M Bionic Vision Food analysis I am analysing the food. Wait a few seconds please...

17:10 M Bionic Vision Recipe found Frozen thin pizza BionicVision Function Cooking Time 13 minutes Temperature 200 °C INCORRECT RECIPE LAUNCH PROGRAMME

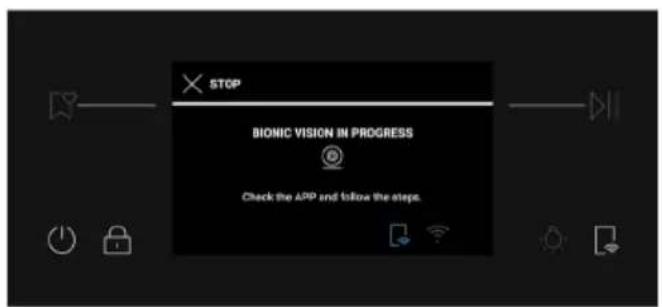

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps

Step 5. When cooking ends, an "Enjoy Your Plate" message will be shown on the display. The cooking time can be extended should you prefer your food more cooked.

ENJOY YOUR PLATE

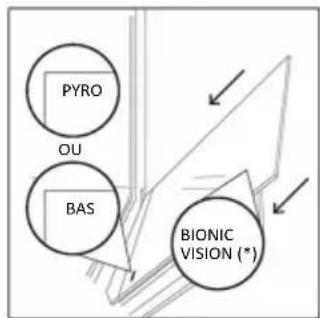

NOTE: Before operating the camera, make sure that the glass in the camera's range is clean to guarantee a clear view.

5. COOKING GUIDELINES

5.1. GENERAL COOKING TABLE

Category Recipe	N°of levels	Cooking program	T°C Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Sweet bakery	Small cakes /Muffins	1	Conventional Multilevel	175°C 160°C	Baking tray L3
		2 Multilevel 150°C		Y	Baking + Deeper trays	L3+L6 30-40
		3 Multilevel 140°C Baking trays L2+L4+L6 40-50
	Sponge cakes (26 cm ∅)	1	Conventional Multilevel	170°C 150°C	Metal grid + Cake tin	L2 L3
		2 Multilevel 150°C		Y	Metal grids + Cake tin	L3+L6 50-60
	Biscuits/Shortbreads	1	Conventional Multilevel	150°C 150°C	Baking tray L3
		2 Multilevel 140°C Baking trays L3+L6 35-45
		3 Multilevel 140°C Baking trays L2+L4+L6 35-40
	Choquettes	1 Multilevel 190°C		Y	Baking tray L3	25-35
		2 Multilevel 170°C Baking tray L3+L6 25-35
	Yorkshire pudding	1 Conventional 200°C	Y	Baking tray	L3 20-30
	Meringues	1	Multilevel	90°C	Y	Baking tray
	Macaron	1	Conventional	150°C	Y	Baking tray
	Apple pie	1 Conventional 185°C	Y		Metal grid + Cake tin	L2 60-70
		1 Multilevel 170°C	Y		Metal grid + Cake tin	L3 65-75
	Tarte tatin 1	Conventional 170°C	Y		Metal grid + Cake tin	L2 40-60
	Chocolate souffle	1 Conventional 200°C	Y		Baking tray + molds	L3 10-15
	Cheesecake 1	Conventional 150°C	Y		Metal grid + Cake tin	L2 50-65
	Frozen croissants	1 Conventional 180°C		L5 27-35	Baking tray L3	20-25
		2 Multilevel 180°C Baking trays L2+L4+L6 30-40
		3 Multilevel 160°C Baking trays L2+L4+L6 30-40
	Strudel, frozen	1 Conventional 210°C	Y	Baking tray	L3 30-45
Breads and Flatbreads	Toast bread	1	Supergrill	05	Metal grid	L7
	Focaccia	1	Conventional	200°C	Y	Baking tray
	Bread, whole 1	Conventional 200°C	Y Baking tray L3 35-50

Category Recipe		N° of levels	Cooking program	T°C Preheat		Cooking accessory	Shelf position	Cooking time after preheating* (min)
Savory pies and casseroles	Salty cakes / Quiches (26 cm ∅)	1 Convection+Fan 180°C			Y	Metal grid + Quiche tin	L3 45-60
		2 Multilevel 180°C				Metal grid + Quiche tin	L2+L5 50-70
	Cheese souffle	1 Conventional 200°C Y Baking tray L3 20-35
	Lasagna, fresh	1 Conventional 200°C Y				Metal grid + ovenproof dish	L3 40-60
	Lasagna, frozen	1 Convection+Fan 180°C Y				Metal grid + ovenproof dish	L3 45-55
	Cannelloni, frozen	1 Convection+Fan 180°C Y				Metal grid + ovenproof dish	L3 45-55
	Baked pasta 1	Grill+Fan 200°C Y				Metal grid + ovenproof dish	L4 20-30
Pizza	Pizza, fresh (Tray)	1	Conventional Pizza	250°C 300°C	YN	Baking tray	L2/L3	15-20 18-25
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 25-35
	Pizza, fresh (Round)	1	Conventional Pizza	250°C 300°C	YN	Baking tray	L2/L3	8-10 15-20
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 30-40
	Pizza, frozen (thin crust)	1	Conventional Pizza	220°C 200°C	YN	Metal grid	L3 10-15
		2 Multilevel 200°C Y		Metal grid L2+L5 15-25
		3 Multilevel 180°C Y		Metal grid L2+L4+L6 25-35
Meat & Poultry	Roasted whole chicken (1-1.2kg)	1 Grill+Fan 220°C Y				Metal grid Place baking tray at L1	L4 40-60
	Chicken thighs	1	Air fry	220°C	N	Air fry tray**	L4	30-50
	Roasted duck	1 Grill+Fan 200°C Y				Metal grid + Ovenproof dish	L3 50-60
Category Recipe	N°of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Meat & Poultry	Rooster 1 Grill+Fan 220°C Y				Metal grid Place baking tray at L1	L4 20-40
	Roasted Turkey	1 Grill+Fan 200°C Y			Metal grid + Ovenproof dish	L3 50-60
	Pork ribs (1000-1200g)	1 Conventional 200°C Y			Metal grid + Ovenproof dish	L3 80-100
	Sausages 1 Supergrill 04 Y Metal grid		L5 40-50
	Roast beef (500g)	1 Grill+Fan 220°C Y Baking tray		L3 20-40
	Meatloaf (1000-1500g)	1 Conventional 180°C Y Baking tray		L3 40-50
	Roasted chicken with potatoes	1 Grill+Fan 200°C Y	Deeper tray L4 45-50
Fish and Seafood	Grilled seafood	1 Supergrill 04 N	Metal grid L5		15-30
	Frozen fish sticks	1 AirFry	200°C	N	Air fry tray**	L4	20-25
	Baked fish	1 ECO	200°C	N	Metal grid Place baking tray at L1	L3 40-60
Vegetables	Vegetable gratin	1 ECO	200°C	N	Metal grid + Ovenproof dish	L3 80-90
	Frozen french fries (300-500g)	1 AirFry	220°C	N	Air fry tray**	L4	18-25
	Potato gratin	1 Grill+Fan 200°C Y			Metal grid + Ovenproof dish	L4 15-25
	Roasted potatoes	1 Conventional 200°C Y Baking tray		L4 30-50

Cooking times may vary according to consumer's recipe and ingredients.

*if preheating required

** Depending on the oven model.

NOTE: For cooking cakes, quiches and other recipes that require a mold or a container on 2 levels, place them staggered: the upper tray on the left side and the lower tray on the right side.

5.2. EVERYDAY COOKING TABLE

Food category menu allows to cook a variety of recipes, thanks to dedicated cooking programs tailored to each category needs.

After selecting the food category and the recipe, you will be able to select the amount of trays to cook simultaneously or the food weight range (according to selected category). The default time and temperature are shown and can be edited by pressing the dedicated icons on the display. Cooking temperature can be set within a limited range.

Fast preheat option is recommended and activated by default, but can be skipped.

When a cooking program ends you can add 5 more minutes of cooking time or save it to favorites menu or return to home screen.

Symbol Food Category Recipe Serving range Preci Probe available
	Pasta, bread & Pizza	Round pizza 1 to 3 trays No
		Focaccia 1 to 2 trays No
		Frozen pizza 1 to 3 trays No
		Fresh lasagna 1 to 2 trays Yes
		Cannelloni 1 to 2 trays Yes
		Frozen Lasagna & Cannelloni	1 to 2 trays No
		Bread 1 to 2 trays Yes
	Meat & Poultry	Roast Pork	500-1500g	Yes
		Roasted Beef
		Pot Roast
		Deboned thigh of lamb
		Roast Chicken
		Stuffed Chicken
		Meatloaf
	Fish	Fish Fillet	200-1200g	Yes
		Whole, oven baked		Yes
		Grilled fish		No
		Salt baked fish		No
		Frozen fish		No
	Savoury tarts & Pies	Savoury puff pastries	1 to 3 trays	No
		Soufflè	1 to 2 trays
		Savoury tart	1 to 2 trays
		Vegetable flan	1 to 2 trays
Symbol Food Category Recipe Serving range Preciprobe available
	Vegetables	Baked potatoes	500-1200g No
		Vegetable au gratin
		Vegetables en papillote
		Grilled vegetables
		Stuffed vegetables
	Sweet Bakery	Butter biscuits 1 to 4 trays		No
		Frozen croissants 1 to 4 trays
		Fruit tart 1 to 2 trays
		Mille-Feuille 1 to 2 trays
		Muffins 1 to 3 trays
		Sponge cakes 1 to 2 trays
		Strudel 1 to 3 trays
		Leavened cake 1 to 2 trays
		Leavened cake with diced fruits	1 to 2 trays

6. CARE & CLEANING

6.1. GENERAL RECOMMENDATIONS

Regular cleaning can extend the lifecycle of your appliance. Wait for the oven to cool before carrying out manual cleaning.

• After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.
- Do not line the oven walls with aluminum foil or single-use protection available from stores. Aluminum foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides.

- In order to prevent excessive dirt of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little.

- In addition to the accessories supplied with the oven, we advise you only use dishes and baking molds resistant to very high temperatures.

6.2. CLEANING THE OVEN

6.2.1. INSIDE THE OVEN: cleaning functions

Scroll the home carousel horizontally and press Cleaning to access the Cleaning menu.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our other operations. So or

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our other preparations. Collect your favorite cooking programs. Choose to cleaning more. Pr

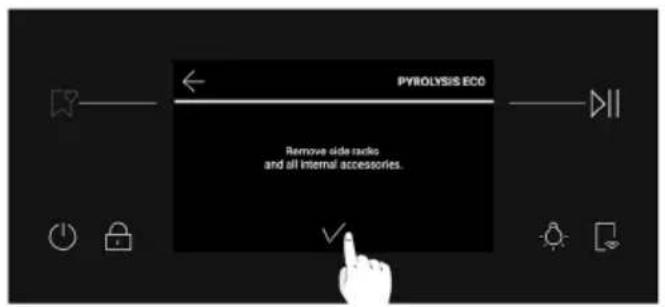

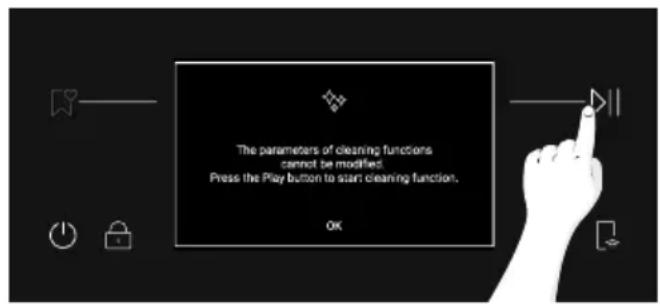

Scroll the Cleaning carousel to view the different functions. For any function, press ⓘ to read its description and the suggested use.

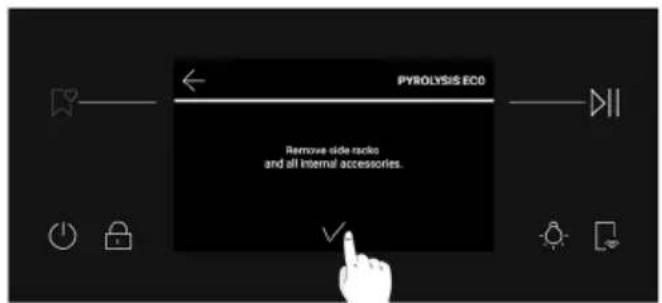

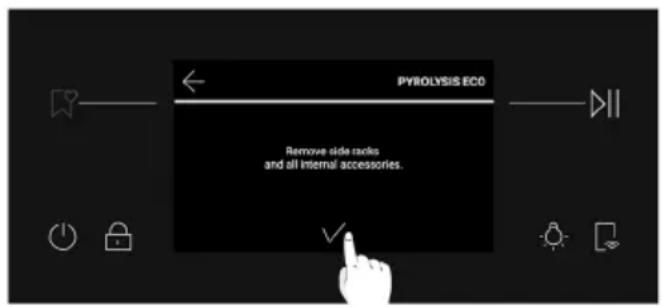

CLEANING HYDROCLEAN ECO PYROLYSIS ECO PYROLYSIS PLUS

i to read its

You can choose among the following cleaning options:

PYROLYSIS (depending on the model)

This process relies on the chemical process bearing the same name, which involves the decomposition of complex substances through the application of heat treatment.

Once initiated, it automatically locks the oven door and swiftly elevates the temperature to a searing 410^ C.

At the end of the cleaning cycle, all that remains within the cavity is a minimal deposit of dust, easily wiped away with a damp cloth.

There are two Pyrolysis cleaning functions to choose from:

Pyrolysis eco

Cleans a moderately stained oven. Operates for a period of 90 minutes.

How it works:

1. From the Cleaning carousel, scroll until you reach Pyrolysis Eco.

A pop-up message will appear. Press ▷ to proceed, or press "OK" to go back.

1. Press ▷|| to proceed.
2. A pop-up message will appear. Remove all internal accessories and side racks from the oven. Tap the √ when you are done.
3. The cleaning process starts. During this time and during the following cooling phase, the door will be locked and the 📋 will appear on the display.
4. When the appliance has cooled down, the door unlocks and a pop-up message will appear. At this time, you can open the door and clean the inner surfaces of the oven with a cloth.

CLEANING HYDROCLEAN DECO PYROLYSIS ECO PYROLYSIS PLUS

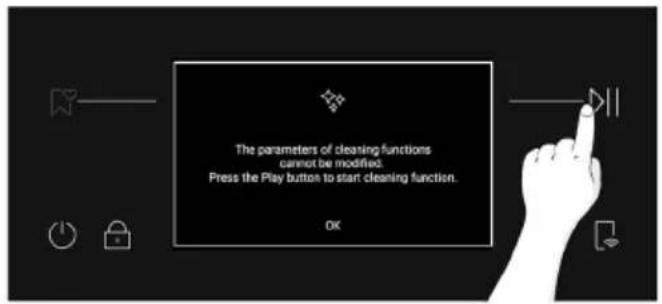

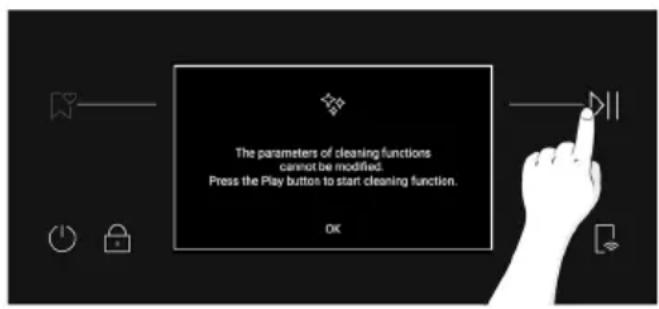

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

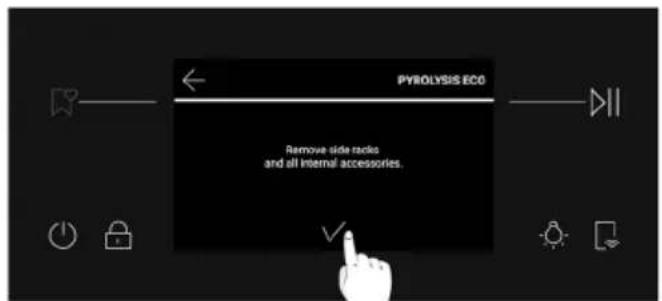

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 □ ECO 1 h 20 m

Pyrolysis plus

Cleans a heavily stained oven. Operates for a period of 120 minutes.

How it works:

1. From the Cleaning carousel, scroll until you reach Pyrolysis Plus.
   A pop-up message will appear. Press ▷ to proceed, or press "OK" to go back.
2. Press ▷|| to proceed.
3. A pop-up message will appear. Remove all internal accessories and side racks from the oven. Tap √ when you are done.
4. The cleaning process starts. During this time and during the following cooling phase, the door will be locked and the ☐ will appear on the display.
5. When the appliance has cooled down, the door unlocks and a pop-up message will appear. At this time, you can open the door and clean the inner surfaces of the oven with a cloth.

CLEANING ECD PYROLYSIS ECO PYROLYSIS PLUS HYDRDCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:07 1 h 43 m

HYDROCLEAN

The Hydroclean function is designed to effortlessly tackle light dirt and provide a quick and eco-friendly solution for cleaning your oven cavity using the power of steam.

How it works:

1. From the Cleaning carousel, scroll until you reach Hydroclean. If you press on the function, a pop-up message will appear. Press ▷II to proceed, or press "OK" to go back.

2. Press ▷|| to proceed.

3. A pop-up message will ask you to add 100 ml of water in the lower part of the cavity. When you are done, press √

4. The cleaning process starts. Do not open the door during this time.

5. When the cleaning process is over, a pop-up message will appear and you can open the oven door. The screen will resume to the Home carousel.

CLEANING PYROLYSIS PLUS HYDROCLEA PYROLYSIS ECO

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

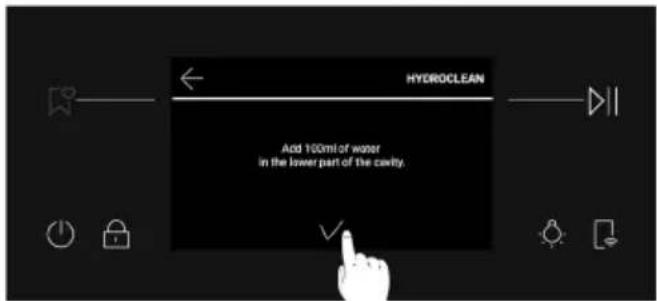

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14m

NOTE: All cleaning functions can be interrupted at any time by pressing the Stop button in the top left corner. After interrupting the Pyrolysis Eco and Pyrolysis Plus functions, the door will stay locked until the appliance has cooled down. A pop-up message will appear when the door is unlocked.

6.2.2. OUTSIDE THE OVEN: removal and cleaning the glass door

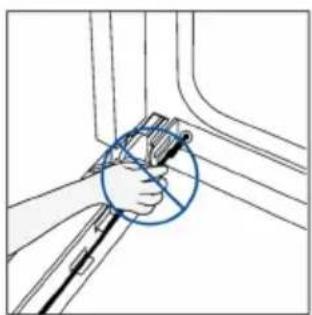

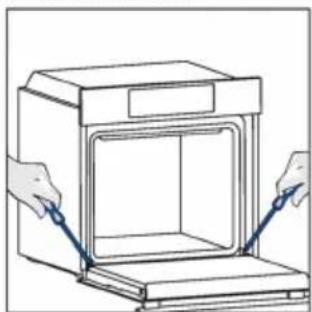

1. Position the door at 90°. Rotate the hinge locking tabs outward from the oven.

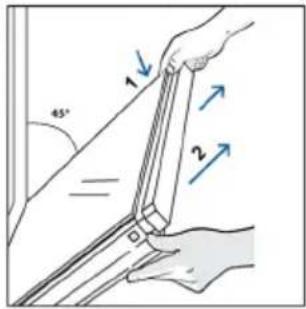

2. Position the door at 45°. Simultaneously press the two buttons on both the sides of the door's lateral shoulders and pull towards yourself to remove the upper glasses' door cover.

3. Very carefully remove the oven glass, starting with the inner one. During the procedure, firmly hold the glass with both hands and place them on a cushioned flat surface (e.g., on a fabric).

4. ⚠ WARNING: the inner and middle glasses must not hit the camera (*) during their removal or insertion.

5. ⚠ WARNING: The outer glass is not removable.

6. ⚠ WARNING: The camera (*) shall not be detached, forced, opened or removed during cleaning operations

* only if present

Line drawing of hands operating a small oven with blue tool pins (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

45° 1 2

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand holding a rectangular object with a star-like pattern and an exclamation mark (no text or symbols present)

Hand holding a diagonal line with a blue circle highlighting the construction detail (no text or symbols)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

1. ⚠ WARNING: the camera shall be prevented from coming into contact with any detergents during cleaning operations.

2. Clean the glass using a soft cloth and suitable cleaning products.

3. Insert the glass panels, making sure that the "LOW-E / PYRO" label is correctly readable and positioned on the lower left side of the door, near the left-side hinge. This way, the printed label on the first glass will remain on the inside of the door. Make sure that the "Bionic Vision" text appears as shown here, so that it is correctly readable when the oven door is open.

4. Reattach the upper glasses' door cover by pushing it inwards until you hear a click from the two side buttons.

5. Then, bring the door back to 90^ and rotate the hinge locking tabs inward towards the inside of the oven.

6. ⚠ WARNING: The camera (*) connectors shall not be disconnected during cleaning operations.

* only if present

Diagram showing a hand using a tool to press or install a component, with no visible text or symbols.

Pure diagram of a mechanical component with no text, numbers, or symbols

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and beaker (no text or symbols)

PYRO OR LOW-E BIONIC VISION (*)

Simple line drawing of a window frame with an open panel and directional arrows indicating movement (no text or symbols)

Line drawing of a kitchen oven with two hands inserting a blue tool into the opening (no text or symbols)

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

Simple line drawing of a hand holding a small object, with a blue circle highlighting the object (no text or symbols)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

6.3 CLEANING OF ACCESSORIES

Ensure that you clean the accessories thoroughly after every use and dry them using a towel. For persistent residues, consider soaking the accessories in a mixture of water and soap for approximately 30 minutes before giving them a second wash.

CLEANING OF SIDE RACKS:

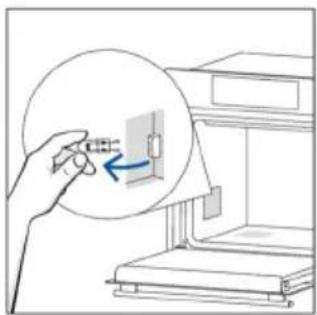

1. Remove the side racks by first pulling the front part in the direction of the arrow and detaching the rear part from the screws.
2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.

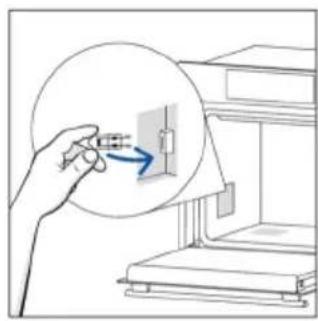

3. After the cleaning process install the side racks in reverse order: positioning the rear part between the screws and push the front part in the direction of the arrow.

Line drawing of a vertical ladder structure with multiple parallel bars, no text or symbols present

Diagram of a wall-mounted rack with a directional arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a 70-degree angle indicator (no text or symbols on the panel itself)

H₂O

Hand placing a transparent panel with black connectors into a room, showing a 50-degree angle indicator (no text or symbols on the panel itself)

Diagram of a vertical panel with horizontal lines and arrows indicating direction (no text or symbols)

6.4 MAINTENANCE

COMPONENTS REPLACEMENT

Changing the bulb on top:

1. Disconnect the oven from mains supply.
2. Remove the lamp's glass cover.

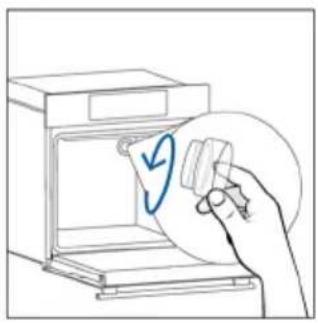

3. Disassemble the bulb.
4. Replace the bulb with a new one of the same type.

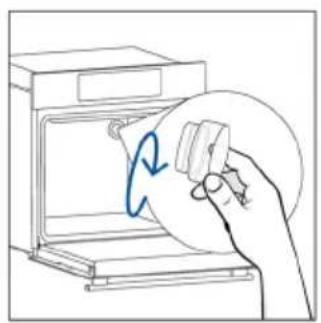

5. Relocate the lamp's glass cover.
6. Reconnect the oven from mains supply.

Step 1

Safety warning diagram showing a plug with fuse and warning symbol, alongside an OFF button labeled 'OFF'

Step 2

Hand holding a circular object with a blue checkmark inside an oven (no text or symbols visible)

Step 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open refrigerator (no text or symbols)

Step 4

Illustration of a hand holding a circular object inside a washing machine, with an upward arrow indicating motion (no text or symbols)

Step 5 Step 6

Line drawing of a hand holding a circular object inside an oven, with no visible text or symbols

Electrical diagram showing a plug, warning symbol with lightning, and ON/OFF switch components

Line drawing of a washing machine with two circular insets showing internal components (no text or symbols)

This product contains one or more light sources of energy efficiency class G (Lamp)

* In case of issues with this lamp, contact the customer service.

Changing the lateral bulb:

1. Disconnect the oven from mains supply.

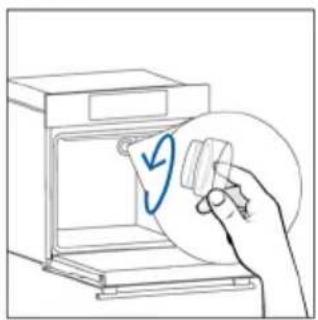

2. Use a flat-head screwdriver by positioning it to the side of the protective glass and gently apply pressure to remove it.
3. Carefully grasp the bulb from its base.
4. Insert the new one.
5. Reinstall the protective glass by pressing it gently until it's locked into position.
6. Reconnect the oven from mains supply.

Step 1

Electrical hazard warning diagram showing a plug with fuse and safety symbol

Step 2

Illustration of a hand using a tool to adjust or install a small object on a device (no text or symbols visible)

Step 3

Illustration of a hand inserting a small component into a storage unit (no text or symbols visible)

Step 4

Illustration of a hand interacting with a device inside a circular frame (no text or symbols)

Step 5

Diagram of a mechanical assembly with an inset showing a component labeled 'A' (no text or symbols present)

Step 6

Electrical safety warning diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

This product contains one or more light sources of energy efficiency class G (Lamp)

6.5 DEMO MODE

1. From the Home Carousel, select Settings.
2. Once in the Settings menu, long press 🔒 and 🔒 at the same time.

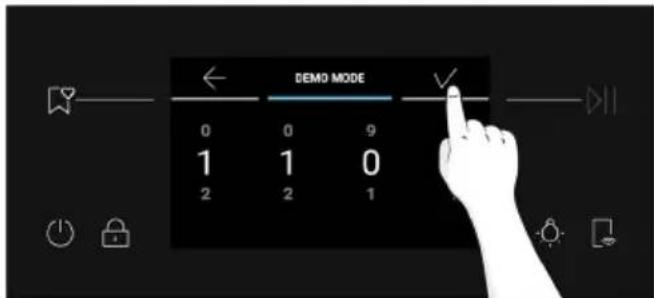

3. Scroll the numbers vertically to enter the password 1100, then press
4. The display will resume to the Home Carousel in Demo Mode.
5. To exit the Demo Mode, repeat the same steps.

FAVORITES COOLING SETTINGS Collect your favorite coloring programs. Choose the cleaning mode. Personalized your own settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

7. TROUBLESHOOTING

If, during oven use, an error occurs, the display will show the code "ER" followed by two digits, which will identify the error.

Proceed by turn off the oven and un-plug it, wait for a few minutes, and then reconnect it.

If the error disappears, you can resume using the oven. If it doesn't, call customer service and communicate the code (ERXX) you see on the display.

Error

ERXX

Smoke

Diagram illustrating a chemical process with a downward arrow and a hand cleaning a kitchen appliance, labeled H20.

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. APPLIANCE DISPOSAL

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be re-used). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials.

Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

– the WEEE should not be treated as domestic waste;

– the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

8.2. SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it.

Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the “delayed cooking” programme makes energy saving simpler, moving the cooking process to start at the reduced tariff time slot.

Back view Side view

min. 560 600 min. 560x45 560÷8

550 568 548 20 9 478,5 575

Isometric line drawing of a multi-level refrigerator with internal compartments and a door (no text or symbols)

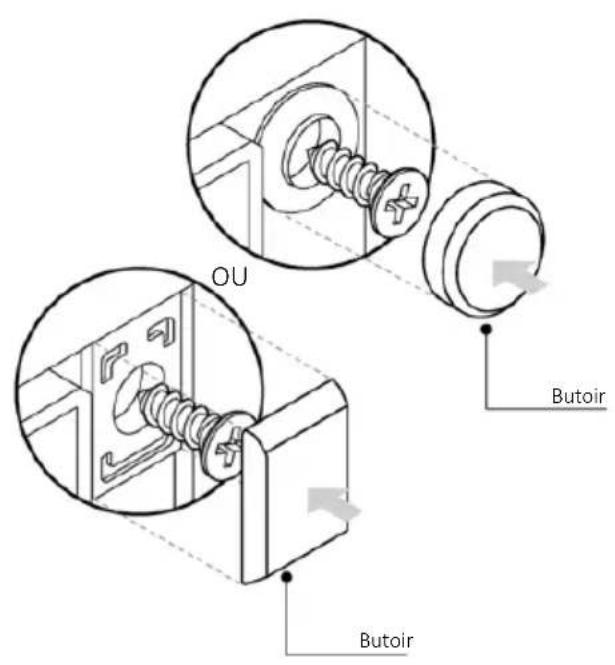

OR Bumper Bumper

BIENVENUE

Simple illustration of a blue-handled pen with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a multi-tiered oven with numbered parts for identification

2.2. ACCESSOIRES

Grille métallique

Line drawing of a rectangular appliance with 'STOP' labels on both sides (no text or symbols on the diagram itself)

Blank white image with no visible content, text, or symbols

Illustration of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

3D diagram of a rectangular tray with internal geometric patterns, placed inside an oven (no text or symbols)

Line drawing of a multi-tiered storage rack unit (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on top, placed inside a rack (no text or symbols)

Line drawing of a kitchen sink with a bowl, a round pan, and a wall-mounted rack (no text or symbols)

Simple line drawing of a pen or stylus with a pointed tip and handle (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid and base tray (no text or symbols)

Simple line drawing of a kitchen appliance with a circular button and directional arrow (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings.

SETTINGS SET TIME NETWORK NETWORK LANGUAGE

NETWORK SETTINGS WI-FI OFF RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi Connection RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

COMMENT INTERAGIR AVEC L'APPLICATION

Available on the App Store GET IT ON Google Play

INSCRIPTION D'UN NOUVEL UTILISATEUR

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you of SIGN UP WITH EMAIL Already registered? LOGIN

APPAIRAGE RAPIDE

Étape 1

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second.com 2 bottles there is a second row Add appliance YOUR WIDGETS Lower prices dollar sit est How to Care YOUR NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

Étape 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

Étape 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Étape 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes, no text or symbols present.

Étape 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Étape 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connects... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Étape 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

CONTRÔLE À DISTANCE

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

Cooking SH 10M LEFT ADD 1 MIN STOP Current programs PROGAMS Conventional 200°C 50.30m 111 Pricet (1996) Efficiency Pricet (2017) EDIT DETAILS →

There is a new software update to download. During this process HOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. for

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

FR 23

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

PARAMÈTRES SUPPLÉMENTAIRES

FAVORITES CLEANING SETTINGS Collect your favorite colouring programs. Choose the cleaning mode. Personalizing your own settings.

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalizes just oven semi

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. NETTOYAGE PRÉLIMINAIRE

Illustration of a kitchen sink with a hand cleaning the interior, water bath, and a bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a kitchen oven with steam rising, next to a window (no text or symbols)

4. FONCTIONNEMENT DU PRODUIT

4.1. FONCTIONNEMENT DU PRODUIT

MISE EN MARCHE/ARRÊT DU FOUR

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition way of cooking. Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVECTION = FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION = FAN

RÉGLER LA TEMPÉRATURE

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVE + PA

200°C COOKING TIME 21 0 h 22 m 1

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 0 h 22 m 1

c. Départ différé

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cx

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

4.2. FONCTIONS DE CUISSON

OPTION DE PRÉCHAUFFAGE RAPIDE

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking PROGRAMS.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 500 °C > Duration 3h-45s > Note It's quick and easy to make on the starting. It's size and size (without using heavy amounts), and It's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be last. CANCEL YES CONFIRM

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In 35m Note It's quick and easy to make on the situstop, it's nice and creamy (without using heavy cream), and it's always so-copy and comforting and delicious. START JOLLY FUNCTION

Simple line drawing of a pen and a bread roll with food items, no text or symbols present

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name: Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is set, you must set the probe target temperature. TEMPERATURE Set this program temperature: 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Preview use If the probe is switched off, you have to set the duration of each vcp in the recipe. If the probe is on you must set the probe latest times there. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100°C > Duration 2h-45m > Note > It's quick and easy to make on the stewart. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta ai 3 cioccolati Step 1 Cooking program Conventional > Duration 200 °C > Duration 1h 50m > Note It's quick and easy to make on the staveup, it's rice and creamy defined using heavy cream, and it's always so crazy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta ai 3 cioccolati * * * 3 stops DETAILS → Appliances Programs Service/Supports Decision Help

17:24 Clear Ready File prepware unimplied DELAY START START Timer Last Favorite Enter/Install People this pizza Camera Mouse Video Guided cooking minutes Multi-Label

Start a cooking session with Bionic Vision Check "Bionic Vision Recipes" to discover which foods are recognized by Bionic Vision and make sure to replicate the suggested layout of the food. START NOW Latest recipes(2) BIONIC VISION RECIPES Frozen thin pizza Frozen thin pizza DETAILS → DETAILS →

Which type of food do you want to cook? Bread & Pasta Sweet Bakery Savoury Tarts & Pies Pizza & Focaccia NEXT

17:01 Bionic Vision Pre-heating in progress Wait for pre-heating... Before putting in the food, you have to wait for the preheating process to end. You can also access the display screen and browse freely; you will receive a notification when pre-heating is finished. GO TO DASHBOARD

17:09 M Bionic Vision Food analysis I am analysing the food. Wait a few seconds please...

17:10 04 Bionic Vision Recipe found Frozen thin pizza BionicVision-function Cooking Time 13 minutes Temperature 200 °C INCORRECT RECIPE LAUNCH PROGRAMME

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. Se

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose it cleaning man. Pr

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Pyrolyse plus

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:37 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Illustration of hands operating a small oven with blue tool handles (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand holding a star-shaped object with an arrow, next to a warning triangle (no text or symbols)

Hand holding a diagonal line through a window frame, with a blue circle highlighting the intersection area (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

Illustration of a hand holding a tool near a mechanical bracket (no text or symbols)

Simple line drawing of a folded paper or sheet with a small inset image, no text or symbols present.

H₂O

PYRO OU BAS BIONIC VISION (*)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of hands operating a cabinet with blue arrows indicating force or movement (no text or symbols)

Simple line drawing of a hand holding a tool near a wall, with no text or symbols present.

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Line drawing of a hand holding a tool near a window (no text or symbols)

6.3. NETTOYAGE DES ACCESSOIRES

Line drawing of a vertical ladder-like structure with multiple parallel bars, no text or symbols present

Diagram of a door with horizontal ladders and a curved arrow indicating rotation (no text or symbols)

Hand placing a rectangular panel with black connectors, showing a blue arrow indicating direction (no text or symbols)

H₂O

Hand holding a wall-mounted device with a 20% angle indicator (no text or symbols on the device itself)

Diagram of a vertical ladder structure with directional arrow indicating rotation (no text or symbols)

6.4. ENTRETIEN

REMPLACEMENT DES COMPOSANTS

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Étape 2

Line drawing of a hand inserting a circular object into an oven (no text or symbols)

Étape 3

Illustration of a hand holding a circular object with a downward arrow, next to an open refrigerator (no text or symbols)

Étape 4

Illustration of a hand inserting a circular component into a washing machine (no text or symbols)

Étape 5

Line drawing of a hand holding a circular object with a blue arrow, inside an oven (no text or symbols)

Étape 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Line drawing of a washing machine with two circular components and a magnified view of the lid (no text or symbols)

Safety warning diagram showing a plug with fuse and a circuit breaker, including a warning symbol and directional arrows.

Étape 2

Illustration of a hand using a tool to clean or store items, with a magnified view showing a small object inside (no text or symbols)

Étape 3

Illustration of a hand inserting a small object into a machine (no text or symbols present)

Étape 4

Illustration of a hand inserting a component into a device (no text or symbols visible)

Étape 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Étape 6

Safety warning diagram showing a plug connected to an ON panel with a warning symbol and directional arrows

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So

7. DÉPANNAGE

Diagram illustrating a chemical process with an airfoil emitting vapor, showing before and after cleaning the oven with a water bottle labeled H20.

8. PROTECTION DE L'ENVIRONNEMENT ET ÉLIMINATION

8.1. ÉLIMINATION DE L'APPAREIL

Isometric line drawing of a multi-level refrigerator with shelves and drawers (no text or symbols)

OU Butoir Butoir

BENVENUTI

Simple illustration of a blue pen with a black downward arrow pointing to it (no text or symbols)

Diagram of an oven with numbered parts for identification

2.2. ACCESSORI

Griglia metallica

Line drawing of a rectangular appliance with 'STOP' labels on both sides (no text or symbols on the diagram itself)

Empty white rectangle with a thin black border (no text or symbols)

Illustration of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

Line drawing of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object, no text or symbols present

Simple line drawing of a pen or stylus (no text or symbols)

Line drawing of a rectangular appliance with internal grating and lid, placed on a shelf (no text or symbols)

Simple line drawing of a kitchen appliance with a circular button and directional arrow (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK NETWORK LANGUAGE

NETWORK SETTINGS WI-FI OFF RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalized your oven settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

COME INTERAGIRE CON L'APP

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything less you. 01 SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Add appliance Your WIDGETS Lower your door sit eat How to Care YOUR NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

Passo 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

Passo 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Passo 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button and surrounding icons, no text or symbols present.

Passo 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Passo 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Passo 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COCKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

Cooking SH 10M LEFT ADD 1 MIN STOP Current programs PROGAMS Conventional 200°C 50.30m 111 Pricet (1996) Efficiency Pricet (2017) EDIT DETAILS →

There is a new software update to download. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. for

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

IT 23

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

ALTRE IMPOSTAZIONI

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalizing our own settings.

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programa. Choose the cleaning mode. Personalizing just oven semi

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. PULIZIA PRELIMINARE

Simple line drawing of a kitchen sink with a hand cleaning the interior, water bath, and a bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a steam rising from a chimney next to a cabinet (no text or symbols)

4. USO DEL PRODOTTO

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition way of cooking. Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVECTION = FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION = FAN

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVEI + FA

200°C COOKING TIME 21 0 h 22 m 1

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 21 0 h 22 m 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So on

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

FAVORITES 40 m 6 180°C 35 m 6 200°C 50 m 6 130°C

The parameters of a saved cooking cannot be modified. Press the Play buttons to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180 °C > Duration 9h AEs > Note It's quick and easy to make on the stewart, it's noise and crazy (without using heavy cream), and It's always so busy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In $5m Note It's quick and easy to make on the stovetop, it's rice and creamy (without using heavy cream), and it's always so-czy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be know. CANCEL YES, CONFIRM

200°C PROBE Preci Probe will monitor cooking and override duration and delay if set. If you don't have this accessory, visit Haier online store. CONNECT

280°C PROBE SEARCHING PROBE Make sure Pixel Probe is fully charged and close to the own.

200°C PROBE PROBES AVAILABLE 90% 6A 12% 7B

200°C PROBE °C 64 65 66 AA 80%

SKIP FAST PREHEATING 200°C

PLACE YOUR FOOD INSIDE THE OVEN

STOP READY AT 65°C 65°C & 200°C 64% 80%

ENJOY YOUR PLATE 64 80%

Simple line drawing of a pencil and a bread roll with a knife, showing a step from writing to adding food (no text or symbols)

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is is, you must set the probe target temperature. TEMPERATURE Set the program temperature. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Preview use If the probe is switched off, you have to set the duration of my history in the recipe. If the probe is on you must set the probe target between them. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 2h-45m > Note > It's quick and easy to make on the tabletop. It's nice and creamy without using heavy cream, and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta al 3 cioccolati Step 1 Cooking program Conventional > Duration 250 °C > Duration 1h 55m > Note It's quick and easy to make on the staveup, it's nice and creative toothcut using heavy cream, and it's always so cozy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati * * * 3 stops DETAILS → Appliatria Programm Special Features Dinocent Alon

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Protein NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 100 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef conceptions. So cx

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose the cleaning in Pr

CLEANING HYDROCLEAN ECO PYROLYSISECO PYROLYSISEPLUS

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Pirolisi Plus

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:07 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Line drawing of a door opening with two hands holding blue tools (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand pressing a star-shaped object on a table with an exclamation mark (no text or symbols present)

Hand holding a hand crossed out of a window frame, no text or symbols present

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

Diagram showing a hand holding a cable with a magnified inset (no text or symbols)

Simple line drawing of a rectangular object with internal lines and a small arrow, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and a bowl labeled H₂O (no text or symbols on the main image)

PYRO OPPURE LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a door opening with hands holding blue clips (no text or symbols)

Simple line drawing of a mechanical component with a blue tool and downward arrow, no text or symbols present.

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Illustration of a hand holding a tool near a vehicle (no text or symbols visible)

6.3. PULIZIA DEGLI ACCESSORI

Safety warning diagram showing a plug with fuse and a switch labeled 'OFF' with warning symbol

Passo 2

Line drawing of a hand holding a circular object with a blue checkmark inside, next to an open oven (no text or symbols)

Passo 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open appliance (no text or symbols)

Passo 4

Illustration of a hand holding a circular object with an arrow pointing upward, next to an open kitchen appliance (no text or symbols)

Passo 5

Hand holding a circular object with a blue arrow indicating rotation (no text or symbols)

Passo 6

Electrical warning diagram showing a plug connected to an ON panel with a warning symbol and directional arrows

Diagram of a washing machine with two circular components and a magnified view of the lid (no text or symbols)

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Passo 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing a blue arrow (no text or symbols)

Passo 3

Illustration of a hand inserting a small component into a machine (no text or symbols)

Passo 4

Illustration of a hand holding a tool near a device with an arrow indicating direction (no text or symbols present)

Passo 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Passo 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

FAVORITES COLLECT YOUR FAVORITE COOKING PROGRAMS. CLEANING Choose the cleaning mode. SETTINGS Personalize your open set

SETTINGS SET TIME NETWORK SETTING 文 SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

7. RISOLUZIONE DEI PROBLEMI

Diagram illustrating a chemical process with an airbag emitting vapor and a clean oven, showing environmental change.

8.1. SMALTIMENTO DELL'ELETTRODOMESTICO

Isometric line drawing of a multi-level refrigerator with shelves and drawers, no text or symbols present

Simple illustration of a blue-handled pen with a downward arrow pointing to it (no text or symbols)

Diagram of a multi-tiered oven with numbered parts for identification

2.2. ZUBEHÖR

Metallrost

STOPP STOPP

Empty white rectangle with black border (no text or symbols)

3D line drawing of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

3D wireframe diagram of a rectangular tray with internal compartments, placed on an oven (no text or symbols)

Line drawing of a multi-tiered storage rack or rack unit (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and internal grid lines, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object on the wall (no text or symbols)

Simple line drawing of a pen with a handle and pointed tip (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid and tray, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen appliance with a circular label and directional arrow (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalized our own settings

SETTINGS SET TIME NETWORK NETWORK NETWORK LANGUAGE

NETWORK SETTINGS Wi-FI ON RESER NETV

Press reset to cancel all saved network credentials. BACK RESET

SO INTERAGIEREN SIE MIT DER APP

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank sea.ovid rig 2 bottles there is a second row Add appliance YOUR WIDGETS Learn space dollar sit out New to Can YOUR NEWS What functions do smart appliances have? How to live sustain: home and reduce w

Schritt 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

Schritt 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Schritt 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes (no text or symbols)

Schritt 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Schritt 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connective... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Schritt 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

APP-BEDIENUNG

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Cooking 1H 10M LEFT ADD 5 MIN STOP Current programs PROGRAMS Conventional 250°C 3h 30m 111 Protein (ONE) Efficiency Protein (OFT) EDIT DETAILS →

OVER THE AIR UPDATE (OTA)

There is a new software update to download. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. for

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

EN 13A 9:25 CONNECTIVITY Download hOn App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize our own settings

SETTINGS SET LANGUAGE DISPLAY BRIGHTY SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programa. Choose the cleaning mode. Personalizes just oven semi

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H20 (no text or symbols on main elements)

MAX °C 60 min

Simple line drawing of a kitchen oven with steam rising from the chimney, next to a window (no text or symbols)

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition way of cooking. Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVECTION = FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION = FAN

EINSTELLEN DER TEMPERATUR

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVEI + FA

200°C COOKING TIME 21 0 h 22 m 1

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 21 0 h 22 m 1

c. Startverzögerung

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. Se cc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chief preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

4.2. GARFUNKTIONEN

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking PROGRAMS.

FAVORITES 40 m 8 180°C 35 m 8 200°C 50 m 8 130°C

The parameters of a saved cooking cannot be modified. Press the Play buttons to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180°C > Duration 5h 45s > Note It's quick and easy to make on the stavetop, its size and size (without using heavy onion), and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In $5m Note It's quick and easy to make on the stovetop, it's rice and creamy (without using heavy cream), and it's always so-czy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be know. CANCEL YES CONFIRM

Simple line drawing of a pen and a bread roll with arrows indicating process (no text or symbols)

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. TEMPERATURE Set the program temperature: 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the rescue. If the probe is on your hand set the probe latest temperature. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat Any > Cooking program Conventional > Temperature 100°C > Duration 2h-4h Note > It's quick and easy to make on the stewart. It's nice and creamy (without using heavy crease), and it's always, so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta ai 3 cioccolati Step 1 Cooking program Conventional > Duration 250 °C > Duration 1h 15pm > Note It's quick and easy to make on the stewstop, it's nice and creative gift/heat using heavy cereal, and it's always so crazy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati * * * 3 stops DETAILS → Appliatria Programm Special Features Dinocent Alon

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 100 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef conceptions. Se cc

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose it cleaning ma Pi

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side ranks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:07 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Line drawing of a door opening with two hands holding blue tools (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand pressing a star-shaped object on a table, with an exclamation mark and triangular warning symbol (no text or labels)

Hand holding a hand crossed out of a window frame, no text or symbols present

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

Illustration of a hand holding a tool near a mechanical bracket (no text or symbols)

Simple line drawing of a folded paper or sheet with a small inset image, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and a bowl labeled H₂O (no text or symbols on the main image)

PYRO ODER LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a cabinet with two hands inserting blue clips into the opening (no text or symbols)

Simple line drawing of a mechanical component with a blue tool and arrow indicating direction (no text or symbols)

Simple line drawing of a hand holding a small object, no text or symbols present

Line drawing of a hand holding a tool near a window, with no visible text or symbols

* sofern vorhanden

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Schritt 2

Line drawing of a hand inserting a circular object into an oven (no text or symbols)

Schritt 3

Illustration of a hand holding a circular object with a downward arrow, next to an open refrigerator (no text or symbols)

Schritt 4

Illustration of a hand inserting a circular component into a washing machine (no text or symbols)

Schritt 5

Line drawing of a hand holding a circular object with a blue arrow, inside an oven (no text or symbols)

Schritt 6

Electrical warning symbol and electrical circuit diagram showing a plug, warning sign, and ON/OFF switch

Line drawing of a washing machine with two circular components and a magnified view of the lid (no text or symbols)

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Schritt 2

Illustration of a hand using a tool to clean or store items, with a magnified view showing a small object inside (no text or symbols)

Schritt 3

Illustration of a hand inserting a small component into a printer (no text or symbols present)

Schritt 4

Illustration of a hand holding a small electronic component inside a device (no text or symbols visible)

Schritt 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Schritt 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

7. FEHLERBEHEBUNG

Diagram illustrating a chemical process with a downward arrow and a hand cleaning a kitchen oven, labeled with 'H20' in the corner.

Isometric line drawing of a multi-level refrigerator with shelves and drawers, no text or symbols present

Simple line drawing of a pen with a blue handle and black arrow pointing downward (no text or symbols)

Diagram of an oven with numbered parts for identification

2.2. ACCESORIOS

Rejilla metálica

DETENER DETENER

3D line drawing of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

3D diagram of a rectangular tray with internal geometric patterns, placed inside an oven (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal and vertical metal racks (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on top, placed inside a rack (no text or symbols)

Line drawing of a kitchen sink with a bowl, a round bed, and a side shelf (no text or symbols)

Simple line drawing of a pen with a handle and pointed tip (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen appliance with a circular button and directional arrow (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

FAVORITES COLECT YOUR favorite cooking programs. CLEANING Choose the cleaning mode. SETTINGS Personalize your oven settings.

SETTINGS SET TIME NETWORK NETWORK LANGUAGE

NETWORK SETTINGS WI-FI OF RESET NETWORK

NETWORK SETTINGS WI-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORKS SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalize your oven settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything how you -01 SIGN UP WITH EMAIL Already registered? LOGIN

REGISTRO RÁPIDO PARA EMPAREJAMIENTO

Paso 1

Hello USERNAME YOUR APPLIANCES ADD Add appliance 2 bottles there is a second row Virtual Wine Bank second row + Your WIDGETS Lower space door sit out From to Care Your NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

Paso 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

Paso 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Paso 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button and surrounding geometric shapes, no text or symbols present.

Paso 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Paso 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connective... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Paso 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Cooking SH 10MUST ADD 5 MIN STOP Current programs PROGRAMS Conventional 200°C 30.50m 111 Printout (24K) Efficiency Product (26F) EDIT DETAILS →

There is a new software update to download. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. to

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

ES 23

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

CONFIGURACIONES ADICIONALES

FAVORITES COLLECT YOUR FAVORITES COOKING PROGRAMS. CLEANING Choose the cleaning mode. SETTINGS Personnelize your over settlers.

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalizes just oven setup

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. LIMPIEZA PRELIMINAR

Illustration of a kitchen sink with a hand cleaning the interior and a water bottle labeled H20 (no text or symbols on main objects)

°C MÁX. 60 min

Simple line drawing of a kitchen appliance with smoke rising from the chimney and a cabinet on the side (no text or symbols)

User interface screenshot showing navigation buttons and a hand cursor pointing at a button

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition Way of cooking Explore special way of cooking. Get inspired by our chef prepensions. ECONVENTION CONVECTION = PAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION = PAN

AJUSTAR TEMPERATURA

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVE + FA

200°C COOKING TIME 21 0 h 22 m 1

b. Apagado automático

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 21 0 h 22 m 1

c. Inicio diferido

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ex

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180 °C > Duration 9h45s > Note It's quick and easy to make on the stewart, it's noise and crazy (without using heavy cream), and It's always so busy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In $5m Note It's quick and easy to make on the stovetop, it's rice and creamy (without using heavy cream), and it's always so-easy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be know. CANCEL YES, CONFIRM

200°C PROBE Preci Probe will monitor cooking and override duration and delay if eat. If you don't have this accessory, visit Haier online store. CONNECT

250°C PROBE SEARCHING PROBE Make sure Preci Probe is fully charged and close to the own.

200°C PROBE PROBES AVAILABLE 90% 6A 12% 7B

200°C PROBE °C 64 65 66 AA BOS

SKIP FAST PREHEATING 200°C

PLACE YOUR FOOD INSIDE THE OVEN

STOP READY AT 65°C 65 °C 200 °C 64 80%

ENJOY YOUR PLATE 5A 80%

Simple line drawing of a pen and a bread roll with food items, no text or symbols present

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is set, you must set the probe target temperature. TEMPERATURE Set the program temperature. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Preview use If the probe is switched off, you have to set the duration of my history in the recipe. If the probe is on your most set the probe turned between days. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat Any > Cooking program Conventional > Temperature 100°C > Duration 2h-4h Note > It's quick and easy to make on the stewart. It's nice and creamy (without using heavy crease), and it's always, so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta ai 3 cioccolati Step 1 Cooking program Conventional > Duration 200 °C > Duration 1h 55m > Note It's quick and easy to make on the stawstop, it's nice and creamy method using heavy cream, and it's always so crazy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati *** 3 stops DETAILS → Appliatria Programm Isonia/Fastani Dinanzi Alon

OVEN Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 250°C 1h 30m Fast Preheat (OFF) Profile (OFF) EDIT DETAILS → Accessories Properties Special Features Disorder Finish

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camers Guided cook Precitrate Customize Broadcast Specialization Clustion None

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef QUinoa with olives and sun-dried... DETAILS → DETAILS → 000

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 100 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. Se

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose the cleaning man. Pr

CLEANING HYDROCLEAN ECO PYROLYSISECO PYROLYSISEPLUS

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Pirólisis Plus

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:07 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Illustration of hands operating a small oven with blue tool handles (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand holding a star-shaped object with an exclamation mark and warning symbol, alongside a triangular warning triangle.

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

Diagram showing a hand holding a tool with a blue circle highlighting the tool area, alongside a mechanical component (no text or symbols present)

Simple line drawing of a rectangular object with internal lines and a dashed outline, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle labeled H₂O (no text or symbols on the main subject)

PYRO O LOW-E BIONIC VISION (*)

Pure technical line drawing of a structural component with no text or symbols

Line drawing of a door opening with two hands adjusting the lid (no text or symbols)

Simple line drawing of a tool interacting with a wall-mounted device (no text or symbols)

Line drawing of a hand holding a tool with a blue circle highlighting the no-handled part (no text or symbols present)

Illustration of a hand holding a tool near a vehicle (no text or symbols visible)

6.3. LIMPIEZA DE ACCESORIOS

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Paso 2

Line drawing of a hand inserting a circular object into an oven (no text or symbols)

Paso 3

Illustration of a hand holding a circular object with a downward arrow inside, next to an open refrigerator (no text or symbols)

Paso 4

Illustration of a hand inserting a circular component into a washing machine (no text or symbols)

Paso 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Paso 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF indicators

Diagram of a washing machine with two circular components and a magnified view showing internal structure (no text or symbols)

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and downward arrow.

Paso 2

Illustration of a hand using a tool to clean or store items, with a magnified view showing a small object inside (no text or symbols)

Paso 3

Illustration of a hand inserting a small component into a machine (no text or symbols)

Paso 4

Illustration of a hand inserting a component into a device (no text or symbols visible)

Paso 5

Diagram of a mechanical assembly with an inset showing a component labeled 'K' (no text or symbols present)

Paso 6

Safety warning diagram showing a plug connected to an ON panel with a warning symbol and directional arrows

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your own settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

Diagram illustrating a chemical process with an airfoil and a cleaning oven, showing environmental hazard and product labels.

Isometric line drawing of a multi-level refrigerator with shelves and drawers, no text or symbols present

O Paragolpes Paragolpes

ΚΑΛΩΣΗΡΘΑΤΕ

Simple illustration of a blue-handled tool with a downward arrow pointing to it (no text or symbols)

Diagram of an oven with numbered parts for identification

2.2. E≡APTHMATA

Μεταλλική σχάρα

Empty white rectangle with black border (no text or symbols)

3D line drawing of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

3D diagram of a rectangular tray with internal geometric pattern, placed inside a rack (no text or symbols)

Line drawing of a multi-tiered storage rack or shelf unit (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and internal grid lines, placed inside a rack (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object on the wall (no text or symbols)

Simple line drawing of a pen or stylus (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen appliance with a circular arrow indicating airflow or motion (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settle

SETTINGS SET TIME NETWORKS SETTING LANGUAGE SET LANGUAGE

NETWORK SETTINGS Wi-Fi Connection RESET NETWORK

NETWORK SETTINGS Wi-FI OFF RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalizes our own settings.

SETTINGS SET TIME NETWORK NETWORK LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESIGN NETWORK

Press reset to cancel all saved network credentials. BACK RESET

Available on the App Store GET IT ON Google Play

ΕΓΓΡΑΦΗ ΝΕΟΥ ΧΡΗΣΤΗ

hOn Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be secret and we will not past anything from you OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS I never ignore color sit out New! Live Care YOUR NEWS What functions do smart appliances have? How to live sustain home and reduce w.

Βήμα 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

Βήμα 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Βήμα 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button and surrounding geometric shapes, no text or symbols present.

Βήμα 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Βήμα 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connective... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Βήμα 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

THΛΕΧΕΙΡΙΣΜΟΣ

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COCKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Cooking 1H 10M LEFT ADD 5 MIN STOP Current programs PROGRAMS Conventional 250°C 3h 30m 111 Product (DME) Efficiency Probe (DFT) EDIT DETAILS →

There is a new software update to download. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. for

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

EL 25

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

ΠΡΟΣΘΕΤΕΣ ΡΥΘΜΙΣΕΙΣ

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings.

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H20 (no text or symbols on main elements)

MEG. 60 λεπ.

Simple line drawing of a kitchen oven with swirling smoke rising from the chimney, next to an open door (no text or symbols)

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition way of cooking Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVECTION = FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION = FAN

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL COIVE + 5x

200°C COOKING TIME 0 h 21 1 22 m ↑↓

b. Αυτόματο σβήσιμο

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 0 h 22 m 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cz

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ot

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat %> Cooking program Conventional Temperature 500 °C Duration In 45m Note It's quick and easy to make an entire step, it's close and crazy (without, using heavy ground, and it's always so noisy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In $mn Note It's quick and easy to make on the slovetop, it's nice and creamy (without using heavy cream), and it's always so-coty and comforting and delicious. START JOLLY FUNCTION

OVEN RECOPIES U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Holly Function section? By doing this action all data will be last. CANCEL YES CONFIRM

200°C PROBE Preci Probe will monitor cooking and override duration and delay if set. If you don't have this accessory, visit Haier online store. CONNECT

230°C PROBE SEARCHING PROBE Make sure Preci Probe is fully charged and close to the own.

200°C PROBE PROBES AVAILABLE 90% 12% 6A 7B

200°C PROBE °C 64 65 66 SA 80%

SKIP FAST PREHEATING 200°C

PLACE YOUR FOOD INSIDE THE OVEN

STOP READY AT 65°C 65 °C 8 200 °C GA 80%

ENJOY YOUR PLATE 64 80%

Simple line drawing of a pen and a bread roll with a knife, showing a step from writing to adding food (no text or symbols)

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. TEMPERATURE Set the program temperature: 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on your hand set the probe for all home share. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 500 °C > Duration 2h-45m > Note > It's quick and easy to make on the stewart. It's nice and creamy (without using heavy cream), and it's always as easy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta ai 3 cioccolati Step 1 Cooking program Connections Duration 200°C Duration 1h 55m Note It's quick and easy to make on the stewartep, it's rice and creamy hatch using heavy cream, and It's always so crazy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati * 3 steps DETAILS →

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Poultry NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 100 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef conceptions. Se ×

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose it cleaning man. Pr

CLEANING HYDROCLEAN ECO PYROLYSISECO PYROLYSISEPLUS

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Πυρόλυση Plus

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:57 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Line drawing of hands operating a small oven with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand pressing a star-shaped object on a tray, with an exclamation mark and warning triangle (no text or symbols)

Illustration of a hand holding a tool with a blue prohibition symbol (no text or labels)

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

Diagram showing a hand holding a tool with a blue circle highlighting the tool area, alongside a mechanical component (no text or symbols present)

Simple line drawing of a rectangular object with internal lines and a dashed outline, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and a bowl labeled H₂O (no text or symbols on main objects)

PYRO H LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a door opening with two hands adjusting the lid (no text or symbols)

Simple line drawing of a mechanical component with a blue tool and arrow indicating direction (no text or symbols)

Line drawing of a hand using a tool to mark a point, with no text or symbols present

Illustration of a hand holding a tool near a vehicle window, with no visible text or symbols

6.3. ΚΑΘΑΡΙΣΜΪΟΣ ΕΞΑΡΤΗΜΪΑΤΩΝ

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Βήμα 2

Line drawing of a hand inserting a circular object into an oven (no text or symbols)

Βήμα 3

Illustration of a hand holding a circular device with a blue arrow pointing to it, next to an open refrigerator (no text or symbols)

Βήμα 4

Illustration of a hand inserting a circular component into a washing machine (no text or symbols)

Βήμα 5

Line drawing of a hand holding a circular object with a blue arrow, next to an open oven (no text or symbols)

Βήμα 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Line drawing of a washing machine with two circular components and a magnified inset showing internal structure (no text or symbols)

Safety warning diagram showing a plug connected to an electrical outlet with a warning symbol and downward arrow.

Βήμα 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing a blue arrow (no text or symbols)

Βήμα 3

Illustration of a hand inserting a component into a machine (no text or symbols)

Βήμα 4

Illustration of a hand inserting a component into a device (no text or symbols visible)

Βήμα 5

Diagram of a mechanical assembly with an inset showing a component labeled 'K' (no text or symbols present)

Βήμα 6

Electrical warning diagram showing a plug, safety symbol, and ON/OFF switch with directional arrows

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your overn setti

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ci

Diagram illustrating a chemical process with a blue smokestack emitting vapor and a cleaner in a microwave oven, accompanied by a water bottle labeled H20.

Isometric line drawing of a multi-level refrigerator with drawers and shelves (no text or symbols)

2. PRODUCTINTRODUCTIE

4. WERKING VAN HET PRODUCT

ALGEMENE WAARSCHUWINGEN

INSTALLATIEWAARSCHUWINGEN

Simple illustration of a blue-handled pen with a downward arrow pointing to it (no text or symbols)

2. PRODUCTINTRODUCTIE

2.1. OVERZICHT VAN HET PRODUCT

Diagram of an oven with numbered parts for identification

2.2. ACCESSOIRES

Metalen rooster

Line drawing of a rectangular appliance with 'STOP' labels on both sides (no text or symbols on the diagram itself)

Blank white image with no visible content, text, or symbols

3D line drawing of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

3D diagram of a rectangular tray with internal geometric pattern, placed inside an oven (no text or symbols)

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and internal grid lines, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object on the wall (no text or symbols)

Simple line drawing of a pen with a handle and pointed tip (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen appliance with a circular arrow indicating airflow or motion (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SET LANGUAGE

NETWORK SETTINGS WI-FI OFF RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORKS SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalize your oven settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

INTERACTIE MET DE APP

Available on the App Store GET IT ON Google Play

REGISTRATIE NIEUWE GEBRUIKER

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we ask not post anything from you. OF SIGN UP WITH EMAIL Already registered? LOGIN

SNELLE KOPPELING

Stap 1

Hello USERNAME YOUR APPLIANCES ADD Virtual Wine Bank second row 2 bottles there is a second row Add appliance YOUR WIDGETS Lowers in your door sit out How to Care YOUR NEWS HOW What functions do smart appliances have? How to live sustain: home and reduce w.

Stap 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

Stap 3

- Selecteer 'Oven' in de apparaatcategorie.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Stap 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button and surrounding geometric shapes, no text or symbols present.

Stap 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Stap 6.1–6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connects... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Stap 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

Cooking 1H 10M LEFT ADD 5 MIN STOP Current programs PROGRAMS Conventional 250°C 3h 30m 111 Product (DME) Efficiency Probe (DFT) EDIT DETAILS →

There is a new software update to download. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. for

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

NL 23

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

AANVULLENDE INSTELLINGEN

FAVORITES CLEANING SETTINGS Collect your favorite costing programs. Choose the cleaning mode. Personalized our own settings

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programa. Choose the cleaning mode. Personalizes your oven semi

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. VOORAFGAANDE REINIGING

Illustration of a kitchen sink with a hand cleaning the interior, water being washed in a basin (no text or symbols)

MAX. °C 60 min.

Simple line drawing of a steam rising from a chimney to a cabinet (no text or symbols)

4. WERKING VAN HET PRODUCT

4.1. HOE HET PRODUCT WERKT

DE OVEN AAN-/UITZETTEN

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition rate of cooking. Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVENTION CONVECTION = PAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION = PAN

DE TEMPERATUUR INSTELLEN

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVEI + FA

200°C COOKING TIME 21 0 h 22 m 1

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 21 0 h 22 m 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

4.2. KOOKFUNCTIES

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparisons. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking PROGRAMS.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180°C > Duration 5h 45s > Note It's quick and easy to make on the stewartep, its size and size (without using heavy onion), and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In $5m Note It's quick and easy to make on the stovetop, it's rice and creamy (without using heavy cream), and it's always so-czy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be know. CANCEL YES CONFIRM

200°C PROBE Preci Probe will monitor cooking and override duration and delay if set. If you don't have this accessory, visit Haier online store. CONNECT

230°C PROBE SEARCHING PROBE Make sure Pedi Probe is fully charged and close to the open.

100°C PROBE PROBES AVAILABLE 90% 6A 12% 7B

200°C PROBE °C 64 65 66 AA 80%

SKIP FAST PREHEATING 200°C

PLACE YOUR FOOD INSIDE THE OVEN

STOP READY AT 65°C 65 °C 8 200 °C 64 80%

ENJOY YOUR PLATE 5A 92%

Simple line drawing of a pen and a bread roll with arrows indicating transformation (no text or symbols)

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. TEMPERATURE Set the program temperature. 175 °C 180 °C 185 °C CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the route. If the probe is on, you must set the probe latest temperature. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 12-45 m > Note > It's quick and easy to make on the tabletop. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta ai 3 cioccolati Step 1 Cooking program Conventional > Duration 200 °C > Duration 1k 55m > Note It's quick and easy to make on the staveup, it's nice and creamy defined using heavy cream, and it's always so crazy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta ai 3 cioccolati * * * 3 stops DETAILS → Applieme Program Service Tools Diluted Help

OVEN Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 250°C 1h 30m First Preheat (OFF) Profile (OFF) EDIT DETAILS → Features Features Specialization Distance High

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided cook Picnicate Customize Recipes Special Datasets Clutter More

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. > START NOW Last recipes (5) ALL RECIPES Jumper and beer- braised beef QUinoa with olives and sun-dried... DETAILS → DETAILS → 000

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Poultry NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 180 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef conceptions. So cc

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose the cleaning item. Pr

CLEANING HYDROCLEAN ECO PYROLYSISECO PYROLYSISEPLUS

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Pyrolyse plus

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:07 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Line drawing of hands operating a small oven with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand pressing a star-shaped object on a mechanical component with an exclamation mark (no text or symbols present)

Diagram showing a hand holding a tool with a blue prohibition symbol (no text or labels present)

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, next to a rectangular frame (no text or symbols)

Diagram showing a hand holding a cable with a magnified inset (no text or symbols)

Simple line drawing of a folded paper or sheet with a dashed outline and internal lines, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bath labeled H₂O (no text or symbols on the main image)

PYRO OF LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a cabinet with two hands operating it, showing internal opening and exterior panel (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

Simple line drawing of a hand holding a small object, no text or symbols present

Line drawing of a hand holding a tool near a vehicle (no text or symbols)

6.3. SCHOONMAKEN VAN ACCESSOIRES

Line drawing of a vertical ladder-like structure with multiple parallel bars, no text or symbols present

Diagram of a door with horizontal ladders and a curved arrow indicating rotation (no text or symbols)

Hand placing a rectangular panel with black connectors, showing alignment and movement (no text or symbols)

H₂O

Hand holding a wall-mounted device with a 20% angle indicator (no text or symbols on the device itself)

Diagram of a vertical ladder structure with directional arrow indicating rotation (no text or symbols)

6.4. ONDERHOUD

VERVANGING VAN ONDERDELEN

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Stap 2

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Stap 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open refrigerator (no text or symbols)

Stap 4

Illustration of a hand holding a circular device with a pointer, next to an open appliance (no text or symbols)

Stap 5

Line drawing of a hand holding a circular object with a blue arrow, inside an oven (no text or symbols)

Stap 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Diagram of a washing machine with two circular components and a magnified view showing internal structure (no text or symbols)

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Stap 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing a blue arrow (no text or symbols)

Stap 3

Illustration of a hand inserting a small component into a machine (no text or symbols)

Stap 4

Illustration of a hand holding a tool near a device with a blue arrow pointing to it (no text or symbols present)

Stap 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Stap 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

FAVORITES Collect your favorite cooking programs. CLEANING Choose the cleaning mode. SETTINGS Personalized your own setting

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

7. PROBLEMEN OPLOSSEN

Diagram illustrating a chemical process: before and after cleaning a kitchen appliance, showing a warning symbol and action.

8.1. VERWIJDERING VAN APPARATEN

Isometric line drawing of a multi-level refrigerator with shelves and drawers, no text or symbols present

Diagram of an oven with numbered parts for identification

2.2. ACESSÓRIOS Grade metálica

PARAR PARAR

3D rendering of a rectangular tray or container with internal compartments, placed on an inclined shelf (no text or symbols)

3D line drawing of a rectangular tray with internal geometric patterns, placed inside an oven (no text or symbols)

Line drawing of a multi-tiered storage rack unit with no text or symbols

Technical line drawing of a rectangular tray with internal grid pattern (no text or symbols)

Technical line drawing of a kitchen sink with a bowl and a circular object on the wall (no text or symbols)

Simple line drawing of a pen with a pointed tip and handle (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen appliance with a circular arrow indicating airflow or motion (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven setting

SETTINGS SET TIME NETWORKS SETTING SET LANGUAGE

NETWORK SETTINGS WI-FI OFF RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORKS SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

Como repor a rede

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalize your own settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not put anything that you. OR SIGN UP WITH EMAIL Already registered? LOGIN

Hello USERNAME YOUR APPLIANCES ADD + Add appliance YOUR WIDGETS Lower room door sit out Your NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

Passo 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

Passo 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Passo 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button and surrounding icons, no text or symbols present.

Passo 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Passo 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Passo 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

Como desativar o controlo remoto:

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COCKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

Cooking SH 10M LEFT ADD 1 MIN STOP Current programs PROGAMS Conventional 200°C 50.30m 111 Pricetax (1996) Efficiency Pricetax (2017) EDIT DETAILS →

There is a new software update to download. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. for

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYGAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize our over settings.

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalizes just oven semi

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. LIMPEZA PRELIMINAR

Illustration of a kitchen sink with a hand cleaning the interior, water being washed in a bowl (no text or symbols)

MÁX °C 60 min

Simple line drawing of a steam rising from a chimney to a cabinet (no text or symbols)

User interface screenshot with navigation buttons and a hand cursor pointing at a black screen

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition way of cooking. Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVENTION CONVECTION + FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION + FAN

REGULAR A TEMPERATURA

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 21 0 h 22 m 1

c. Atraso de inicio

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparisons. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180 °C > Duration 18 kFle > Note It's quick and easy to make an the stovetop. It's wise and empty (without using heavy amount), and It's always so easy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be know. CANCEL YES, CONFIRM

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 15pm Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

200°C PROBE Preci Probe will monitor cooking and override duration and delay if set. If you don't have this accessory, visit Haier online store. CONNECT

230°C PROBE SEARCHING PROBE Make sure Prici Probe is fully charged and close to the own.

200°C PROBE PROBES AVAILABLE 90% 6A 12% 7B

200°C PROBE °C 64 65 66 SA 80%

SKIP FAST PREHEATING 200°C

PLACE YOUR FOOD INSIDE THE OVEN

STOP READY AT 65°C 65°C & 200°C 6A 80%

ENJOY YOUR PLATE 54 80%

Simple line drawing of a pen and a bird-like shape with bones, no text or symbols present

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name: Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is set, you must set the probe target temperature. TEMPERATURE Set this program temperature: 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Preview use If the probe is switched off, you have to set the duration of my video in the recipe. If the probe is on you must set the probe latest times after. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 12-45 m > Note > It's quick and easy to make on the tabletop. It's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta ai 3 cioccolati Step 1 Cooking program Conventional > Duration 200 °C > Duration 1k 55m > Note It's quick and easy to make on the stavebox, it's nice and creamy defined using heavy cream, and it's always so crazy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta ai 3 cioccolati * * * 3 stops DETAILS → Applieme Programme Service/Support Discount Help

OVEN Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 250°C 1h 30m First Preheat (OFF) Profile (OFF) EDIT DETAILS → Features Features Specialization Distance High

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camers Guided cook Precitrate Customer Recipes Special Colors Clutter More

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef QUinoa with olives and sun-dried... DETAILS → DETAILS → 000

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Poultry NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 100 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef conceptions. Se cc

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose the cleaning meal. Pre 12

CLEANING HYDROCLEAN ECO PYROLYSIE ECO PYROLYSIE PLUS

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Pirólise Plus

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:57 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Line drawing of hands operating a small oven with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand pressing a star-shaped object on a tray, with an exclamation mark and warning triangle (no text or symbols)

Illustration of a hand holding a tool with a blue prohibition symbol (no text or labels)

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

Diagram showing a hand holding a cable with a magnified inset (no text or symbols)

Simple line drawing of a rectangular object with internal lines and a small arrow, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and a bowl labeled H₂O (no text or symbols on main objects)

PYRO OU LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a door opening with two hands adjusting the lid (no text or symbols)

Simple line drawing of a mechanical component with a blue tool and downward arrow, no text or symbols present.

Simple line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols)

Line drawing of a hand holding a tool near a window, with no visible text or symbols

6.3. LIMPEZA DOS ACESSÓRIOS

Line drawing of a vertical ladder-like structure with multiple parallel bars, no text or symbols present

Diagram of a door with horizontal ladders and a curved arrow indicating rotation (no text or symbols)

Hand placing a rectangular panel with black connectors, showing alignment and movement (no text or symbols)

H₂O

Hand holding a wall-mounted device with a 20% angle indicator (no text or symbols on the device itself)

Diagram of a vertical ladder structure with directional arrow indicating rotation (no text or symbols)

6.4. MANUTENÇÃO

Safety warning diagram showing a plug and fuse with hazard symbol and OFF button

Passo 2

Line drawing of a hand holding a circular object with a blue checkmark inside, next to an open appliance (no text or symbols)

Passo 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open appliance (no text or symbols)

Passo 4

Illustration of a hand holding a circular object with an arrow pointing upward, next to an open kitchen appliance (no text or symbols)

Passo 5

Line drawing of a hand holding a circular object with a blue arrow, inside an oven (no text or symbols)

Passo 6

Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Diagram of a microwave oven with two circular insets showing internal components (no text or symbols)

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Passo 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing a blue arrow (no text or symbols)

Passo 3

Illustration of a hand inserting a small component into a machine (no text or symbols)

Passo 4

Illustration of a hand holding a tool near a device with a blue arrow pointing to it (no text or symbols present)

Passo 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Passo 6

Electrical warning diagram showing a plug, warning symbol with lightning, and ON/OFF switch symbols on a diagonal line

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So c

Diagram illustrating a chemical process with an airfoil emitting vapor, showing before and after cleaning the oven with a water bottle labeled H20.

Isometric line drawing of a multi-level refrigerator with shelves and drawers, no text or symbols present

OU Rodapé Rodapé

VITAJTE

Illustration of a blue-handled pen with a black downward arrow pointing to it (no text or symbols)

Diagram of an oven with numbered parts for identification

2.2. PRÍSLUŠENSTVO

Kovový rošt

Line drawing of a rectangular kitchen appliance with 'STOP' labels on both sides (no text or symbols on the appliance itself)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Illustration of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object on the wall (no text or symbols)

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

Line drawing of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Simple line drawing of a pen with a pointed tip and handle (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen appliance with a circular label and motion arrow (no text or symbols)

Simple line drawing of a mechanical device with a lever and cable, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings.

SETTINGS SET TIME NETWORK NETWORK LANGUAGE A SET LANGUAGE

NETWORK SETTINGS WI-FI OFF RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

Ako resetovat' siet'

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalize your oven settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

AKO KOMUNIKOVAŤ S APLIKÁCIOU

Available on the App Store GET IT ON Google Play

REGISTRÁCIA NOVÉHO POUŽÍVATELA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you OR SIGN UP WITH EMAIL Already registered? LOGIN

RÝCHLE PÁROVANIE

Krok 1

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second now 2 bottles there is a second now Add appliance YOUR WIDGETS Lower glass door sit out How to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Krok 2

• Povol'te lokalizáciu zariadenia.

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

Krok 3

• Vyberte rúru z kategórie spotrebičov.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Krok 4

- Zapnite spotrebič. Ak už je zapnutý, vypnite ho a znova zapnite.

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes (no text or symbols)

Krok 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Krok 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Krok 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

DIAL'KOVÉ OVLÁDANIE

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Cooking SH 10M LEFT ADD 54MHz STOP Current programs PROGAMS Conventional 200°C 30.30m 111 Prevalent (304E) (Off-injury) Probe (OFF) EDIT DETAILS →

There is a new software update to downloaded. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. fo

Download completed. Install updates LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

ĎALŠIE NASTAVENIA

FAVORITES COLLECT YOUR favorite cooking programs. CLEANING CHOOSE THE cleaning mode. SETTINGS PERSONAL FOR over setting

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programa. Choose the cleaning mode. Personalizes just oven semi

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. PREDBEŽNÉ ČISTENIE

Simple line drawing of a kitchen sink with a hand cleaning the interior, water bath, and a bottle nearby (no text or symbols)

MAX °C 60 min

Simple line drawing of a steam rising from an oven to a cabinet (no text or symbols)

4. OBSLUHA SPOTREBIČA

4.1. FUNGOVANIE SPOTREBIČA

ZAPNUTIE/VYPNUTIE RÚRY

User interface control panel with navigation buttons and a hand cursor pointing to a button

NASTAVTE FUNKCIU PRÍPRAVY JEDLA

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition Way of cooking Explore special way of cooking Get inspired by our chef preparations. ECONVENTION CONVENTION CONVECTION + FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION + FAN

NASTAVENIE TEPLOTY

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVE + FA

200°C COOKING TIME 21 0 h 22 m 1

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 0 h 22 m 1

c. Odložený štart

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef! preparations. Since

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chief preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

4.2. FUNKCIE PRÍPRAVY JEDLA

MOŽNOSŤ RÝCHLEHO PREDHRIEVANIA

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

FAVORITES 40 m 8 180°C 35 m 8 200°C 50 m 8 130°C

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180 °C > Duration 10 kFts > Note It's quick and easy to make an the stovetop. It's wise and empty (without using heavy enough), and It's always so easy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Ako nastavit funkciu Jolly:

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be know. CANCEL YES, CONFIRM

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 15pm Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

Simple line drawing of a pen writing on a bone-shaped object, no text or symbols present

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name: Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is is, you must set the probe target temperature. TEMPERATURE Set the program temperature. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Preview use If the probe is switched off, you have to set the duration of my history in the recipe. If the probe is on you must set the probe target between them. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 2h-45m > Note > It's quick and easy to make on the tabletop. It's nice and creamy without using heavy cream, and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Krok 4. Uložte recept v aplikácii, aby ste ho mohli spustit z hOn na dialku, alebo ho uložte ako „Funkciu Jolly“, aby ste ho našli v ponuke Oblúbené priamo na rúre.

Create recipe Torta al 3 cioccolati Step 1 Cooking program Conventional > Duration 250 °C > Duration 1h 55m > Note It's quick and easy to make on the staveup, it's rice and create baffle using heavy crustal, and It's always so cozy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati * * * 3 stops DETAILS → Appliatria Programm Special Features Dinamar Alon

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Pobiotics NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 100 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef conceptions. So ←→

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose the cleaning man. Pr

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side radios and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Pyrolýza plus

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:07 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Illustration of hands operating a small oven with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand pressing a star-shaped object into a rectangular frame with an exclamation mark (no text or symbols present)

Hand holding a hand crossed out of a window frame, no text or symbols present

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

Illustration of a hand holding a tool near a mechanical bracket (no text or symbols)

Simple line drawing of a folded paper or sheet with a dashed outline and arrow, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a water bath with a bottle and label 'H₂O' (no text or symbols on main objects)

PYRO ALEBO LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a double-bowel oven with two hands inserting a blue clip (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Line drawing of a hand holding a tool inside a vehicle (no text or symbols)

6.3. ČISTENIE PRÍSLUŠENSTVA

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Krok 2

Line drawing of a hand inserting a circular object into an oven with a blue checkmark (no text or symbols)

Krok 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open appliance (no text or symbols)

Krok 4

Illustration of a hand holding a circular object with an arrow pointing upward, next to an open kitchen appliance (no text or symbols)

Krok 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Krok 6

Electrical warning diagram showing a plug connected to an ON panel with a warning symbol and directional arrows

Diagram of a microwave oven with two circular insets showing internal components (no text or symbols)

Safety warning diagram showing a plug on a line with a warning symbol and an OFF button

Krok 2

Illustration of a hand using a tool to clean or store items, with a magnified view showing a small object inside (no text or symbols)

Krok 3

Illustration of a hand inserting a component into a machine (no text or symbols)

Krok 4

Illustration of a hand interacting with a wall-mounted electrical component, showing a blue arrow pointing to the component (no text or symbols present)

Krok 5

Diagram of a printer with a magnified inset showing a paperclip (no text or symbols present)

Krok 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your open sett

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ct

7. RIEŠENIE PROBLÉMOV

Diagram illustrating a chemical process with an air mask emitting vapor, showing before and after states of cleaning or dust removal.

8. OCHRANA ŽIVOTNÉHO PROSTREDIA A LIKVIDÁCIA SPOTREBIČA

8.1. LIKVIDÁCIA SPOTREBIČA

Isometric line drawing of a multi-level refrigerator with shelves and drawers, no text or symbols present

ALEBO Nárazník Nárazník

WITAMY

Illustration of a blue pen with a black downward arrow pointing to it (no text or symbols)

Diagram of an oven with numbered parts for identification

2.2. AKCESORIA

Kratka metalowa

Line drawing of a rectangular appliance with 'STOP' labels on both sides (no text or symbols on the diagram itself)

3D line drawing of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

3D diagram of a rectangular tray with internal geometric pattern, placed inside an oven (no text or symbols)

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on the side, placed inside an oven (no text or symbols)

Line drawing of a kitchen appliance with a bowl, tray, and wall (no text or symbols)

Simple line drawing of a pen with a handle and pointed tip (no text or symbols)

Diagram of a rectangular appliance with a grid-patterned lid, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen appliance with a circular arrow indicating airflow or motion (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven setting.

SETTINGS SET TIME NETWORKS SETTING SET LANGUAGE

NETWORK SETTINGS WI-FLOW RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

Jak resetować sieć

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

JAK KORZYSTAĆ Z APLIKACJI

Available on the App Store GET IT ON Google Play

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything less you. 01 SIGN UP WITH EMAIL Already registered? LOGIN

SZYBKA REJESTRACJA PAROWANIA

Krok 1

Hello USERNAME YOUR APPLIANCES Add Add appliance Nin Virtual Wine Bank second row 2 bottles there is a second row YOUR WIDGETS Lower you are door sit out New You News What functions do smart appliances have? How to live sustain: home and reduce w.

Krok 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

Krok 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Krok 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button and surrounding icons, no text or symbols present.

Krok 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Krok 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Krok 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Cooking 1H 10M LEFT ADD 5 MIN STOP Current programs PROGRAMS Conventional 250°C 3h 30m 111 Protein (ONE) Efficiency Protein (OFT) EDIT DETAILS →

There is a new software update to download. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. for

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

PL 23

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

DODATKOWE USTAWIENIA

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalizing our even settings.

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H20 (no text or symbols on main elements)

MAKS °C 60 min

Simple line drawing of a chimney with steam rising, next to an open door (no text or symbols)

4. DZIAŁANIE PRODUKTU

4.1. JAK DZIAŁA PRODUKT

WŁĄCZANIE/WYŁĄCZANIE PIEKARNIKA

User interface control panel with navigation buttons and a hand cursor pointing to a button

USTAW FUNKCJĘ GOTOWANIA

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition way of cooking Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVENTION CONVECTION + FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION + FAN

USTAW TEMPERATURE

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVE + FA

200°C COOKING TIME 21 0 h 22 m 1

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 21 0 h 22 m 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef! preparations. Se cc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chief preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

4.2. FUNKCJE GOTOWANIA

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180°C > Duration 5h 45s > Note It's quick and easy to make on the stewart. It's size and size (without using heavy amount), and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be know. CANCEL YES, CONFIRM

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In 30m Note It's quick and easy to make on the stovetop. It's rice and creamy (without using heavy cream), and it's always so-copy and comforting and delicious. START JOLLY FUNCTION

200°C PROBE Preci Probe will monitor cooking and override duration and delay if eat. If you don't have this accessory, visit Haier online store. CONNECT

230°C PROBE SEARCHING PROBE Make sure Prici Probe is fully charged and close to the own.

200°C PROBE PROBES AVAILABLE 90% 6A 12% 7B

200°C PROBE °C 64 65 66 AA 80%

FAST PREHEATING 200°C

PLACE YOUR FOOD INSIDE THE OVEN

STOP READY AT 65°C 65°C 200°C GA 80%

ENJOY YOUR PLATE 5A 90%

Simple line drawing of a pencil and a bird-like shape with bones, no text or symbols present

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name: Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is is, you must set the probe target temperature. TEMPERATURE Set the program temperature. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Preview use If the probe is switched off, you have to set the duration of my history in the recipe. If the probe is on you must set the probe target between them. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 2h-45m > Note > It's quick and easy to make on the tabletop. It's nice and creamy without using heavy cream, and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta al 3 cioccolati Step 1 Cooking program Conventional > Duration 250 °C > Duration 1h 55m > Note It's quick and easy to make on the staveup, it's rice and create baffle using heavy cream, and It's always so cozy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati * * * 3 stops DETAILS → Appliatria Programm Special Features Diplinari Alon

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 250°C 1h 30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → 900 Accessories Repair Special Features Examiner Home

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided cook Pre Italian Accessories Recipes Special Features Browser Help

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. > START NOW Last recipes (5) ALL RECIPES Juniaper and beer- traised beef! QUinoa with olives and sun-dried... DETAILS → DETAILS → 0.0

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 100 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. Se

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose it cleaning ma Pi

CLEANING HYDROCLEAN ECO PYROLYSISECO PYROLYSISEPLUS

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all Internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Pyroliza Plus

CLEANING ECO PYROLYSISEC PYROLYSISEPLUS HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:57 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Illustration of hands operating a small oven with blue tool handles (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand holding a star-shaped object with an arrow, next to a warning triangle (no text or symbols)

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, next to a window frame (no text or symbols)

Illustration of a hand holding a tool near a mechanical bracket (no text or symbols)

Simple line drawing of a folded paper or sheet with a small inset image, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a bowl with a water bottle, no text or symbols present

PYRO LUB LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a door opening with two hands adjusting the lid (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

Simple line drawing of a hand holding a small object, with no text or symbols present.

Line drawing of a hand holding a tool near a window, with no visible text or symbols

6.3. CZYSZCZENIE AKCESORIÓW

Safety warning diagram showing a plug and fuse with hazard symbol and OFF button

Krok 2

Line drawing of a hand holding a circular object with a blue checkmark inside, next to an open oven (no text or symbols)

Krok 3

Illustration of a hand holding a circular device with a blue arrow pointing to it, next to an open appliance (no text or symbols)

Krok 4

Illustration of a hand holding a circular device with an arrow pointing upward, next to a washing machine (no text or symbols)

Krok 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Krok 6

Electrical diagram showing a plug, warning symbol, and ON/OFF switch with directional arrows

Diagram of a microwave oven with two circular insets showing internal components (no text or symbols)

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Krok 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing a blue arrow (no text or symbols)

Krok 3

Illustration of a hand inserting a small component into a machine (no text or symbols)

Krok 4

Illustration of a hand holding a small object inside a circular frame, with an arrow pointing to a rectangular component (no text or symbols present)

Krok 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Krok 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize our open settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ct

7. ROZWIĄZYWANIE PROBLEMÓW

Diagram illustrating a chemical process with a blue smokestack emitting vapor and a hand cleaning a clean air container, alongside a water bottle labeled H20.

8. OCHRONA ŚRODOWISKA I UTYLIZACJA ODPADÓW

8.1. UTYLIZACJA URZĄDZENIA

Isometric line drawing of a multi-level refrigerator with shelves and drawers, no text or symbols present

LUB Zderzak Zderzak

VÍTEJTE

Simple illustration of a blue-handled pen with a downward arrow pointing to it (no text or symbols)

Diagram of an oven with numbered parts for identification

2.2. PŘÍSLUŠENSTVÍ

Kovový rošt

ZARAZKA ZARAZKA

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl, a round hole, and a side shelf (no text or symbols)

Line drawing of a multi-tiered storage rack unit (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and internal grid lines, placed on a shelf (no text or symbols)

Simple line drawing of a pen with a handle and pointed tip (no text or symbols)

Line drawing of a microwave oven with a grating tray and ventilation slots (no text or symbols)

Simple line drawing of a door with a circular arrow pointing to the lid (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with a connecting rod (no text or symbols)

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SET LANGUAGE

NETWORK SETTINGS WI-FI OFF RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

Jak resetovat sít'

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalize your own settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

JAK KOMUNIKOVAT S APLIKACÍ

Available on the App Store GET IT ON Google Play

REGISTRACE NOVÉHO UŽIVATELE

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you OR SIGN UP WITH EMAIL Already registered? LOGIN

RYCHLÉ PÁROVÁNÍ S REGISTRACÍ

Krok 1

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second now 2 bottles there is a second now Add appliance YOUR WIDGETS Lower glass door sit out How to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

Krok 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

Krok 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Krok 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button and surrounding geometric shapes, no text or symbols present.

Krok 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Kroky 6.1–6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Krok 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

Cooking SH 10M LEFT ADD 54MN STOP Current programs PROGRAMS Conventional 200°C 30.50m 30 P Indust 10kV Efficiency Protein OFFI EDIT DETAILS →

There is a new software update to downloaded. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. for

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

DALŠÍ NASTAVENÍ

FAVORITES COLLECT YOUR FAVORITES CLEANING Choose the cleaning mode. SETTINGS Personalize your oven settings.

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalizatour even settings

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. PŘEDBĚŽNÉ ČIŠTĚNÍ

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle nearby (no text or symbols)

MAX. °C 60 min

Line drawing of a kitchen oven with swirling smoke rising from the chimney, next to a cabinet (no text or symbols)

4. OVLÁDÁNÍ SPOTŘEBIČE

4.1. JAK TENTO VÝROBEK FUNGUJE

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition rate of cooking. Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVECTION + FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION + FAN

NASTAVENÍ TEPLOTY

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVE + FA

200°C COOKING TIME 21 0 h 22 m 1

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 0 h 22 m 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cx

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

interface is now unlocked.

4.2. FUNKCE PEČENÍ

MOŽNOST RYCHLÉHO PŘEDEHŘEVU

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking PROGRAMS.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180 °C > Duration 10 kFts > Note It's quick and easy to make an the stovetop. It's wise and empty (without using heavy enough), and It's always so easy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be know. CANCEL YES, CONFIRM

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 15m Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

200°C PROBE Preci Probe will monitor cooking and override duration and delay if eat. If you don't have this accessory, visit Haier online store. CONNECT

230°C PROBE SEARCHING PROBE Make sure Prici Probe is fully charged and close to the own.

200°C PROBE PROBES AVAILABLE 90% 6A 12% 7B

200°C PROBE °C 64 65 66 AA 80%

FAST PREHEATING 200°C

PLACE YOUR FOOD INSIDE THE OVEN

STOP READY AT 65°C 65°C 200°C GA 80%

ENJOY YOUR PLATE 64 80%

Simple line drawing of a pen and a bread roll with arrows indicating transformation (no text or symbols)

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name: Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is is, you must set the probe target temperature. TEMPERATURE Set the program temperature. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Preview use If the probe is switched off, you have to set the duration of my history in the recipe. If the probe is on you must set the probe target between them. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 2h-45m > Note > It's quick and easy to make on the tabletop. It's nice and creamy without using heavy cream, and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta al 3 cioccolati Step 1 Cooking program Conventional > Duration 250 °C > Duration 1h 55m > Note It's quick and easy to make on the staveup, it's rice and create baffle using heavy crustal, and It's always so cozy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati * * * 3 stops DETAILS → Appliatria Programm Special Features Diplinari Alon

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Protein NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 180 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef operations. So cc

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose the cleaning meal. Pr

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Pyrolýza Plus

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:57 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Illustration of hands operating a small oven with blue tool handles (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand pressing a star-shaped object on a tray, with an exclamation mark and triangular warning symbol (no text or labels)

Hand holding a hand crossed out of a window frame, no text or symbols present

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Simple line drawing of a folded paper or sheet with a small inset image, no text or symbols present.

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle labeled H₂O (no text or symbols on the main image)

PYRO NEBO LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of hands operating a portable oven with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue tool and arrow indicating direction (no text or symbols)

Simple line drawing of a hand holding a small object with a blue circle highlighting the symbol (no text or labels)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Krok 2

Line drawing of a hand inserting a circular object into an oven with a blue checkmark (no text or symbols)

Krok 3

Illustration of a hand holding a circular object with a blue arrow pointing downward, next to an open appliance (no text or symbols)

Krok 4

Illustration of a hand holding a circular device with an arrow indicating rotation (no text or symbols)

Krok 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Krok 6

Electrical warning diagram showing a plug connected to an ON panel with a warning symbol and directional arrows

Diagram of a washing machine with two circular components and a magnified view showing internal structure (no text or symbols)

Electrical diagram showing a plug connected to an ON/OFF switch with warning symbol and directional arrows

Krok 2

Illustration of a hand using a tool to clean or inspect a small object inside a machine (no text or symbols visible)

Krok 3

Illustration of a hand inserting a component into a machine (no text or symbols)

Krok 4

Illustration of a hand inserting a component into a device, with no visible text or symbols

Krok 5

Diagram of a printer with a magnified view showing a 3D object (no text or symbols present)

Krok 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize our open settl

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

7. ŘEŠENÍ PROBLÉMŮ

Diagram illustrating a chemical process with an airfoil and a cleaning oven, showing environmental hazard and product inspection.

8. OCHRANA ŽIVOTNÍHO PROSTŘEDÍ A LIKVIDACE

8.1. LIKVIDACE SPOTŘEBIČE

Isometric line drawing of a multi-level refrigerator with shelves and drawers, no text or symbols present

Illustration of a blue-handled pen with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of an oven with numbered parts for identification

2.2. ACCESORII

Grilaj metallic

OPRIRE OPRIRE

Empty white rectangle with black border (no text or symbols)

Line drawing of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

3D diagram of a rectangular tray with internal geometric pattern, placed inside an oven (no text or symbols)

Line drawing of a multi-tiered storage rack unit (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and internal striped pattern, placed inside a rack (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object on the wall (no text or symbols)

Simple line drawing of a pen with a handle and pointed tip (no text or symbols)

Technical line drawing of a rectangular appliance with internal grating and ventilation slots, mounted on an oven (no text or symbols)

Simple line drawing of a desk with a chair and a speech bubble showing sound waves (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalize your oven settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

MODUL DE INTERACTIUNE CU APLICATIA

Available on the App Store GET IT ON Google Play

ÎNREGISTRAREA UNUI NOU UTILIZATOR

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything less you. 01 SIGN UP WITH EMAIL Already registered? LOGIN

ÎNREGISTRAREA RAPIDĂ A ASOCIERILOR

Pasul 1

Hello USERNAME YOUR APPLIANCES Add Add appliance YOUR WIDGETS Lower your door sit out Help YOUR NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

Pasul 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

Pasul 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Pasul 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button and surrounding icons, no text or symbols present.

Pasul 5

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

Pasul 6.1-6.2

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

Pasul 7

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COCKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

Cooking SH 10M LEFT ADD 1 MIN STOP Current programs PROGAMS Conventional 200°C 50.30m 111 Pricetax (1996) Efficiency Pricetax (2017) EDIT DETAILS →

There is a new software update to downloaded. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get Inspired by our chef preparations. for

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

RO 23

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

SETĂRI SUPLIMENTARE

FAVORITES COLLECT YOUR favorite cooking programs. CLEANING CHOOSE the cleashing mode. SETTINGS PERSONAL RUN over setting

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programa. Choose the cleaning mode. Personalizes just oven semi

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. CURĂȚAREA PRELIMINARĂ

Simple line drawing of a kitchen sink with a hand cleaning the interior, water being washed in a bowl (no text or symbols)

MAX °C 60 min.

Simple line drawing of a steam rising from a chimney to a cabinet (no text or symbols)

4. UTILIZAREA PRODUSULUI

4.1. CUM FUNCȚIONEAZĂ PRODUSUL

PORNIREA/OPRIREA CUPTORULUI

User interface control panel with navigation buttons and a hand cursor pointing to a button

SETATI FUNCTIA DE GĂTIT

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition way of cooking Explore special way of cooking Get inspired by our chef preparations. ECONVENTION CONVENTION CONVECTION = PAN

TEMPERATURA SETATĂ

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVE + FA

200°C COOKING TIME 21 0 h 22 m 1

b. Oprire automată

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 0 h 22 m 1

c. Amânare pornire

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef! preparations. So cc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chief preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

4.2. FUNCȚII DE GĂTIT

OPTIUNE DE PREÎNCĂLZIRE RAPIDĂ

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking PROGRAMS.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play buttons to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180 °C > Duration 18 kFle > Note It's quick and easy to make an the stovetop. It's wise and empty (without using heavy amount), and It's always so easy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be know. CANCEL YES, CONFIRM

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 15pm Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

Simple line drawing of a pen and a bread roll with a knife, showing a step from writing to adding food (no text or symbols)

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name: Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is is, you must set the probe target temperature. TEMPERATURE Set the program temperature. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Preview use If the probe is switched off, you have to set the duration of my history in the recipe. If the probe is on you must set the probe target between them. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 2h-43 m > Note > It's quick and easy to make on the tabletop. It's nice and creamy without using heavy cream, and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta al 3 cioccolati Step 1 Cooking program Conventional > Duration 250 °C > Duration 1h 55m > Note It's quick and easy to make on the staveup, it's rice and create baffle using heavy cream, and It's always so cozy and comforting and delicious Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati * * * 3 stops DETAILS → Appliatria Programm Special Features Diplinari Alon

OVEN Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 250°C 1h 30min First Preheat (OFF) Profile (OFF) EDIT DETAILS → Features Features Specialization Distance High

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided cook Picnights ×

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniaper and beer- braised beef QUinoa with olives and sun-dried... DETAILS → DETAILS → 000

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Protein NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 100 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef conceptions. So cc

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose the cleaning item. Pr

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Piroliză Plus

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:07 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Illustration of hands operating a small oven with blue tool handles (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand holding a rectangular object with star patterns and an exclamation mark (no text or symbols present)

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

Diagram showing a hand holding a cable with a magnified inset (no text or symbols)

Simple line drawing of a rectangular object with internal lines and a small arrow, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and a bowl labeled H₂O (no text or symbols on the main image)

PYRO SAU LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of hands operating a portable oven with blue tool tips (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

Simple line drawing of a hand holding a tool, no text or symbols present

Line drawing of a hand holding a tool near a vehicle (no text or symbols)

6.3. CURĂȚAREA ACCESORIILOR

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Pasul 2

Line drawing of a hand inserting a circular object into an oven (no text or symbols)

Pasul 3

Illustration of a hand holding a circular device with a downward arrow, next to an open washing machine (no text or symbols)

Pasul 4

Illustration of a hand inserting a circular component into a washing machine (no text or symbols)

Pasul 5

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

Pasul 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF indicators

Diagram of a washing machine with two circular components and a magnified view showing internal structure (no text or symbols)

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

Pasul 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing a blue arrow (no text or symbols)

Pasul 3

Illustration of a hand inserting a small component into a machine (no text or symbols)

Pasul 4

Illustration of a hand holding a small object inside a circular frame, with an arrow pointing to a rectangular component (no text or symbols present)

Pasul 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Pasul 6

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your open settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

7. DEPANARE

Diagram illustrating a chemical process with an airfoil and a cleaning oven, showing environmental hazard and product inspection.

8. PROTECTIA MEDIULUI ŞI ELIMINAREA PRODUSULUI

8.1. ELIMINAREA APARATULUI

Isometric line drawing of a multi-level refrigerator with shelves, drawers, and a drawer (no text or symbols)

Illustration of a blue-handled pen with a black downward arrow pointing to it (no text or symbols)

Diagram of a multi-level oven with numbered compartments and labeled parts

2.2. TARTOZÉKOK

Fémrács

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Line drawing of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object on the wall (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal shelves and a central rack (no text or symbols)

Line drawing of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Simple line drawing of a pen with a handle and pointed tip (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid and base, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen counter with a circular arrow indicating airflow or motion (no text or symbols)

Simple line drawing of a mechanical device mounted on a rectangular base (no text or symbols)

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings.

SETTINGS SET TIME NETWORK NETWORK LANGUAGE 文 A

NETWORK SETTINGS WI-FI OF RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settle

SETTINGS SET TIME NETWORKS SET LANGUAGE

NETWORK SETTINGS Wi-Fi Connection RESET NETWORK

NETWORK SETTINGS Wi-FI OFF RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalizing our own setting.

SETTINGS SET TIME NETWORK LANGUAGE NETWORK LANGUAGE

NETWORK SETTINGS Wi-FI ON RESET NETV

Press reset to cancel all saved network credentials. BACK RESET

AZ ALKALMAZÁSSAL VALÓ INTERAKCIÓ MÓDJA

Available on the App Store GET IT ON Google Play

ÚJ FELHASZNÁLÓ REGISZTRÁLÁSA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. G SIGN UP WITH GOOGLE i SIGN UP WITH APPLE f SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you: or ✓ SIGN UP WITH EMAIL Already registered? LOGIN

GYORS PÁROSÍTÁS

1. lépés

Hello USERNAME YOUR APPLIANCES ADD Add appliance YOUR WIDGETS Lower quick door sit est New YOUR NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

2. lépés

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

3. lépés

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4. lépés

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue power button and surrounding geometric shapes, no text or symbols present.

5. lépés

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1-6.2. lépés

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. lépés

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COCKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So

Cooking SH 10M LEFT ADD 54MN STOP Current programs PROGAMS Conventional 200°C 30.30m 30 Pulsure 200k Efficiency Protect OFF EDIT DETAILS →

There is a new software update to downloaded. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. for

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

TOVÁBBI BEÁLLÍTÁSOK

FAVORITES COLLECT YOUR FZeeling CLOANING Choose the cleaning mode. SETTINGS Personality is up over settings.

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programa. Choose the cleaning mode. Personalizing just oven semi

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

Simple line drawing of a kitchen sink with a hand cleaning the interior, water bath, and a bottle nearby (no text or symbols)

MAX. °C 60 perc

Simple line drawing of a kitchen oven with steam rising, next to a window (no text or symbols)

4. A TERMÉK MÜKÖDÉSE

4.1. A TERMÉK MÜKÖDÉSE

A SÜTŐ BE-/KIKAPCSOLÁSA

User interface screenshot with navigation buttons and a hand cursor pointing at a button

SÜTÉSI FUNKCIÓ BEÁLLÍTÁSA

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition was of cooking. Explore special way of cooking. Get inspired by our chef prepensions. ECONVENTION CONVECTION = FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION = FAN

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chief preparations. So

Interface is now locked. Lang press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

4.2. SÜTÉSI FUNKCIÓ

GYORS ELÓMELEGÍTÉSI OPCIÓ

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking PROGRAMS.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180 °C > Duration 9h AEs > Note It's quick and easy to make on the stewart, it's noise and crazy (without using heavy cream), and It's always so busy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In $5m Note It's quick and easy to make on the stovetop, it's rice and creamy (without using heavy cream), and it's always so-crazy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be know. CANCEL YES CONFIRM

Simple line drawing of a pen and a bread roll with a knife, showing a step from writing to adding food (no text or symbols)

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name. Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. TEMPERATURE Set the probe are temperatures. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of my today in the recipe. If the probe is on, you must set the probe targeted between them. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 2h-43 m > Note > It's quick and easy to make on the tabletop. It's nice and creamy without using heavy cream, and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta al 3 cioccolati Step 1 Cooking program Conventional > Duration 250 °C > Duration 1h 55m > Note It's quick and easy to make on the staveup, it's rice and create baffle using heavy cream, and It's always so cozy and comforting and delicious Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati * * * 3 stops DETAILS → Appliatria Programm Special Features Diplinari Alon

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 100 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature; CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef conceptions. Se cc

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose it cleaning man. Pr

CLEANING HYDROCLEAN ECO PVROLYSIS ECO PVROLYSIS PLUS

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Pirolízis plusz

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:07 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Illustration of hands operating a small oven with blue tool handles (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand pressing a star-shaped object on a wooden panel, with an exclamation mark and warning triangle (no text or symbols)

Hand holding a hand crossed out of a window frame, no text or symbols present

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

* csak ha van

Diagram showing a hand holding a tool with a blue circle highlighting the tool area (no text or symbols present)

Simple line drawing of a folded paper or sheet with a dashed-line pattern on the top surface (no text or symbols)

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bath labeled H₂O (no text or symbols on the main image)

PYRO VAGY LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a double door with hands operating it, no text or symbols present

Line drawing of a hand holding a small object with a blue circle highlighting it, no text or symbols present

Simple line drawing of a mechanical component with a blue tool and arrow indicating direction (no text or symbols)

Illustration of a hand holding a tool near a vehicle (no text or symbols visible)

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

1. lépés


Line drawing of a hand inserting a circular object into an oven (no text or symbols)

1. lépés


Illustration of a hand holding a circular device with a downward arrow, next to an open washing machine (no text or symbols)

1. lépés


Illustration of a hand inserting a circular component into a washing machine (no text or symbols)

1. lépés


Line drawing of a hand holding a circular object with a blue arrow, inside an oven (no text or symbols)

1. lépés


Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Line drawing of a washing machine with a circular component and a magnified inset showing a handle (no text or symbols)

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

1. lépés


Illustration of a hand using a tool to clean or store items, with a magnified inset showing a blue arrow (no text or symbols)

1. lépés


Illustration of a hand holding a small object inside a circular frame, with an arrow indicating direction (no text or symbols present)

1. lépés


Illustration of a hand inserting a cable into a device inside a circular frame (no text or symbols)

1. lépés


Diagram of a mechanical device with a magnified inset showing a component (no text or symbols)

1. lépés


Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

FAVORITES COLLECT YOUR FAVORITE COOKING PROGRAMS. CLEANING Choose the cleaning mode. SETTINGS Personalize your open set

SETTINGS SET TIME NETWORK SETTING 文 SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

7. HIBAELHÁRÍTÁS

Diagram illustrating a chemical process with an airfoil and a cleaning oven, showing environmental hazard and cleaning steps.

Isometric line drawing of a multi-level refrigerator with shelves and drawers, no text or symbols present

Illustration of a blue-handled pen with a black downward arrow pointing to it (no text or symbols)

Diagram of an oven with numbered parts for identification

2.2. DODATKI

Kovinska rešetka

Line drawing of a rectangular kitchen appliance with 'STOP' labels on both sides (no text or symbols on the appliance itself)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Illustration of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a circular object on the wall (no text or symbols)

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

Line drawing of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Simple line drawing of a pen with a pointed tip and handle (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen appliance with a circular arrow indicating airflow or motion (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with a connecting rod (no text or symbols)

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK NETWORK LANGUAGE

NETWORK SETTINGS WI-FI OFF RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

Kako ponastaviti omrežje

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalize your own settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

KAKO UPORABLJATI APLIKACIJO

Available on the App Store GET IT ON Google Play

REGISTRACIJA NOVEGA UPORABNIKA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. G SIGN UP WITH GOOGLE i SIGN UP WITH APPLE f SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you OF SIGN UP WITH EMAIL Already registered? LOGIN

VPIS S HITRO SEZNANITVIJO

1. korak

- Izberite »Dodaj aparat«.

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second now 2 bottles there is a second now Add appliance YOUR WIDGETS Lower quicks dolor sit est How to live sustain: home and reduce w. YOUR NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

2. korak

• Dajte dovoljenje za lokacijo.

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

3. korak

- Izberite pečico v kategorijah aparatov.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4. korak

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue power button and surrounding geometric shapes, no text or symbols present.

5. korak

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1–6.2 korak

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. korak

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

DALJINSKO UPRAVLJANJE

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

Cooking SH 10N LEFT ADD 5 MIN STOP Current programs PROGAMS Conventional 200°C 30.50m Elevancy Protect OFF! EDIT DETAILS →

i OPOMBA: Če uporabnik ustavi kuhanje v teku prek pečice, bo istočasno ustavljeno kuhanje prikazano v aplikaciji.

POSODOBITEV PO ZRAKU (OTA)

There is a new software update to downloaded. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. fe

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

DODATNE NASTAVITVE

FAVORITES COLLECT YOUR favorite cooking programs. CLEANING CHOOSE the cleaning mode. SETTINGS PERSONAL FOR ON OVEN SETTLEMENTS

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programa. Choose the cleaning mode. Personalizing just oven semi

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. PREDHODNO ČIŠČENJE

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H20 (no text or symbols on main elements)

MAKS °C 60 min

Simple line drawing of a kitchen oven with steam rising from the chimney, next to a window (no text or symbols)

User interface control panel with navigation buttons and a hand cursor pointing to a button

NASTAVITEV FUNKCIJE KUHANJA

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition Way of cooking Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVENTION CONVECTION + FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION + FAN

NASTAVITEV TEMPERATURE

Pritisnite temperaturo, ki je navedena poleg »Glavnih programov« na vrtljivem gumbu. Pomaknite se vodoravno, da izberete želeno temperaturo. Za potrditev izbire pritisnite ▶||

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL TEMPERATURE 195 200 205 2 ←→

MENI ZA ČAS

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef! preparations. Se cc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

4.2. FUNKCIJE KUHANJA

MOŽNOST HITREGA PREDGRETJA

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparisons. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking PROGRAMS.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180 °C > Duration 9h AEs > Note It's quick and easy to make on the stewartop, it's noise and crazy (without using heavy cream), and It's always so easy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Kako nastaviti funkcijo Jolly:

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In $5m Note It's quick and easy to make on the stovetop, it's rice and creamy (without using heavy cream), and it's always so-crazy and comforting and delicious. START JOLLY FUNCTION

ARE you sure you want to delete the Jolly Function section? By doing this action all data will be know. CANCEL YES CONFIRM

200°C PROBE Predict Probe will monitor cooking and override duration and delay if set. If you don't have this accessory, visit Haier online store. CONNECT

230°C PROBE SEARCHING PROBE Make sure Prici Probe is fully charged and close to the own

200°C PROBE PROBES AVAILABLE 90% 6A 12% 7B

200°C PROBE °C 64 65 66 SA 80%

SKIP FAST PREHEATING 200°C

PLACE YOUR FOOD INSIDE THE OVEN

STOP READY AT 65°C 65°C & 200°C 6A 80%

ENJOY YOUR PLATE 6A 90%

Če želite hrano kuhati dlje, na zaslonu pritisnite » 🚫 Kuhaj dlje« in nastavite novo ciljno temperaturo za sondo Preci Probe.

200°C 65°C COOK MO SAVE IN FAVORITES HOME SA 90

Nasveti za kuhanje

Simple line drawing of a pen and a bird-like shape with two blue handles, no text or symbols present

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

1. korak Uredite ime recepta in izberite parametre za prvi korak recepta.

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name. Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. TEMPERATURE Set the probe are temperatures. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of my today in the recipe. If the probe is on, you must set the probe targeted between them. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat Any > Cooking program Conventional > Temperature 100°C > Duration 2h-4h Note > It's quick and easy to make on the stewart. It's nice and creamy (without using heavy crease), and it's always, so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta ai 3 cioccolati Step 1 Cooking program Conventional > Duration 250 °C > Duration 1h 15pm > Note It's quick and easy to make on the stewstop, it's nice and creative gift/heat using heavy cereal, and it's always so crazy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati * * * 3 stops DETAILS → Appliatria Programm Special Features Diplinari Alon

4.2.4. NAČIN UPORABE KAMERE (na voljo glede na model)

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 250°C 1h 30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → 900 Accessories Repair Special Features Editor Home

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided cook Produce

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. > START NOW Last recipes (5) ALL RECIPES Juniaper and beer- traised beef QUinoa with olives and sun-dried... DETAILS → DETAILS → 0.0

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Protein NEXT

1. korak Ko v aplikaciji zaženete recept Preci Taste, se začne predgrevanje. Če želite zagnati to funkcijo, mora biti prostor za peko prazen.

PreciTaste Remaining time 04.59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 180 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef conceptions. So cx

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose to cleaning in Pr

CLEANING HIVROCLEAN DEC0 PVROLYSIS ECO PVROLYSIS PLUS

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

Piroliza plus

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:57 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Illustration of hands operating a small oven with blue tool handles (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand pressing a star-shaped object on a table with an exclamation mark (no text or symbols present)

Hand holding a hand crossed out of a window frame, no text or symbols present

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Simple line drawing of a rectangular object with internal lines and a small inset image, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and a bowl labeled H₂O (no text or symbols on main objects)

PYRO ALI LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a cabinet with two hands operating it, no text or symbols present

Simple line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

Simple line drawing of a hand holding a small object, with no text or symbols present.

Line drawing of a hand holding a tool near a window, with no visible text or symbols

6.3. ČIŠČENJE DODATKOV

Line drawing of a vertical ladder-like structure with multiple horizontal bars, no text or symbols present

Diagram of a wall-mounted rack with a directional arrow indicating rotation (no text or symbols)

Hand holding a transparent shelf with a blue arrow indicating direction (no text or symbols)

H₂O

Hand holding a wall-mounted device with a 20-degree angle indicator (no text or symbols on the device itself)

Diagram of a vertical panel with horizontal bands and a blue arrow indicating rotation (no text or symbols)

6.4. VZDRŽEVANJE

ZAMENJAVA DELOV

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

1. korak


Line drawing of a hand inserting a circular object into an oven (no text or symbols)

1. korak


Illustration of a hand holding a circular device next to a washing machine (no text or symbols)

1. korak


Illustration of a hand inserting a device into an oven with a blue arrow indicating the process (no text or symbols present)

1. korak


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. korak


Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Line drawing of a washing machine with a circular component and a magnified inset showing a brush tip (no text or symbols)

Safety warning diagram showing a plug on a line with a warning symbol and an OFF button

1. korak


Illustration of a hand using a tool to clean or store items, with a magnified view showing a small object inside (no text or symbols)

1. korak


Illustration of a hand inserting a small component into a machine (no text or symbols)

1. korak


Illustration of a hand interacting with a wall-mounted electrical component, showing a blue arrow pointing to the component (no text or symbols present)

1. korak


Diagram of a printer with a magnified view showing a 3D object (no text or symbols present)

1. korak


Safety warning diagram showing a plug connected to an ON panel with a warning symbol and directional arrows

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalized or open settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

7. ODPRAVLJANJE TEŽAV

Diagram illustrating a chemical process with an airfoil and a cleaning machine, showing environmental hazard and cleaning steps.

8.1. ODSTRANJEVANJE APARATA

Isometric line drawing of a multi-level refrigerator with drawers and shelves (no text or symbols)

ALI Odbijač Odbijač

DOBRO DOŠLI

Illustration of a blue pen with a black downward arrow pointing to it (no text or symbols)

- Ne izlažite metalni deo Preci Probe direktno toploti koju proizvodi pećnica.

- Nemojte koristiti Preci Probe u drugim uređajima već samo u ugrađenoj pećnici.

Diagram of an oven with numbered parts for identification

2.2. DODATNA OPREMA

Metalna rešetka

Line drawing of a rectangular kitchen appliance with 'STOP' labels on both sides (no text or symbols on the appliance itself)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Pleh za pečenje je idealan za postizanje ravnomernog potamnjivanja sa donje strane, što ga čini savršenim za kolače i peciva zbog svog plitkog, ravnog dizajna. Pored toga, ako se postavi ispod rešetke za kuvanje može pomoći u sakupljanju curenja i sprečava prljanje pećnice.

1. Kontrolni panel
2. Brojevi pozicija polica
3. Rešetke
4. Plehovi
5. Poklopac ventilatora
6. Vrata pećnice
7. Bočne žičane rešetke (ako su deo opreme: samo za ravnu šupljinu)
8. Teleskopske vodice
9. Kamera
10. Serijski broj i QR kod

Empty white rectangle with black border (no text or symbols)

Illustration of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Dublji pleh je idealan za recepte prema kojima se dodaju tečnosti ili slojevi, kao što su čuveč ili pečenja. Njegova dubina je posebno dizajnirana da osigura željenu ujednačenost hrane pripremljene u njemu.

Teleskopske vođice (samo ako su deo opreme\*)

Line drawing of a kitchen sink with a bowl and a circular object on the wall (no text or symbols)

Line drawing of a two-tiered storage rack unit with horizontal and vertical metal supports (no text or symbols)

Postavljene na obe strane unutrašnjosti pećnice, bočne rešetke su dizajnirane za postavljanje pleha za pečenje i rešetki tokom kuvanja.

i NAPOMENA: 6 ili 7 nivoa u zavisnosti od modela.

Dvostruki pleh – režim PARA

Technical line drawing of a rectangular tray with a grid pattern on the side, placed inside a rack (no text or symbols)

Simple line drawing of a pen with a pointed tip and handle (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid, placed inside an oven (no text or symbols)

Konveksni oblik je pogodan za pravljenje roštilja u pećnici na visokoj temperaturi (220°), omogućavajući rezultat roštiljanja čak i kod kuće sa malo dima zahvaljujući dejstvu ceđenja masti na dno posude.

Šarke za lagano zatvaranje/otvaranje

(samo ako su deo opreme*)

Simple line drawing of a window with a circular arrow pointing to the upper portion of the window (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with a cable, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK NETWORK LANGUAGE

NETWORK SETTINGS WI-FI OFF RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

Ovim putem, Candy Hoover Group Srl izjavljuje da je radio-oprema u skladu sa Direktivom 2014/53/EU i relevantnim zakonskim zahtevima (za tržište VB). Celokupan tekst izjave o usaglašenosti dostupan je na sledećoj internet adresi: www.candy-group.com

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

Kako resetovati mrežu

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalize your oven settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

KAKO DA OSTVARITE INTERAKCIJU SA APLIKACIJOM

Available on the App Store GET IT ON Google Play

REGISTRACIJA NOVOG KORISNIKA

• Kliknite na „Registrujte se“
• Registrujte se pomoću naloga na društvenim mrežama ili ličnom imejl adresom

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. G SIGN UP WITH GOOGLE i SIGN UP WITH APPLE f SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you or ✓ SIGN UP WITH EMAIL Already registered? LOGIN

PRIJAVLJIVANJE ZA BRZO UPARIVANJE

1. korak

Hello USERNAME YOUR APPLIANCES ADD + Add appliance YOUR WIDGETS Lower image door sit out How to Care YOUR NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

2. korak

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a white circle with light blue border (no text or symbols)

CONTINUE

3. korak

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4. korak

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue power button and surrounding geometric shapes, no text or symbols present.

5. korak

- Nakon uključivanja, aplikacija hOn počinje da traži vaš kućni uređaj.

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1-6.2. korak

- Izaberite kućni uređaj, dodirnite „Povezati“ i sačekajte nekoliko sekundi.

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. korak

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So oc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

Cooking SH 10M LEFT ADD 1 MIN STOP Current programs PROGAMS Conventional 200°C 50.30m 111 Pricet (1996) Efficiency Pricet (2017) EDIT DETAILS →

There is a new software update to downloaded. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. for

- Odabirom opcije „Kasnije“ moguće je započeti proces unošenjem opcije „Ažuriranja softvera“ u meni Podešavanja.

SETTINGS SET POWER SOFTWARE UPDATES RESET TO FACTORY

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

- Odabirom opcije „Kasnije“ moguće je započeti proces unošenjem opcije „Ažuriranja softvera“ u meni Podešavanja.

SETTINGS SET POWER SOFTWARE UPDATES RESET TO FACTORY

SOFTWARE UPDATES Install new updates.

3.1. INFORMACIJE VEZANE ZA POČETAK

Kada prvi put uključite pećnicu, možda ćete primetiti dim. Ne brinite, pre upotrebe pećnice samo sačekajte da se dim raščisti.

WELCOME Set your oven to start cooking.

- IZABERITE JEZIK: Prikazaće se karusel meni. Listajte karusel horizontalno da biste izabrali željeni jezik. Dodirnite željeni jezik da biste prešli na sledeći korak.

LANGUAGE EN FR DE ENGLISH FRAUUS DEUTSCH

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

DODATNA PODEŠAVANJA

Nivoi osvetljenosti i jačine zvuka mogu se podesiti od strane korisnika u odeljku Podešavanja.

- OSVETLJENOST: Na karuselu početnog ekrana pritisnite „Podešavanja“. Listajte meni Podešavanja horizontalno i pritisnite „Osvetljenost Displeja“. Pomerajte klizač horizontalno da biste podesili osvetljenost. Pritisnite √ za potvrdu.

FAVORITES COLLECT YOUR favorite cooking programs. CLEANING CHOOSE the cleaning mode. SETTINGS Personnel is run over setting.

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

- ZVUK: Na karuselu početnog ekrana pritisnite „Podešavanja“. Listajte meni Podešavanja horizontalno i pritisnite „Zvukovi“. Pomerajte klizač ulevo i udesno da biste podesili jačinu zvuka. Pritisnite za potvrdu.

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalizes just oven semi

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. PRELIMINARNO ČIŠĆENJE

Očistite pećnicu pre prve upotrebe. Obrišite spoljne površine vlažnom mekom krpom. Operite svu dodatnu opremu i obrišite unutrašnjost pećnice rastvorom tople vode i tečnosti za pranje. Podesite praznu pećnicu na maksimalnu temperaturu i ostavite je uključenu oko 1 sat, to će ukloniti sve preostale mirise novog uređaja.

Simple line drawing of a washing machine with a hand cleaning it, water being washed in a beaker labeled H20 (no text or symbols on the machine itself)

MAKS 60 min °C

Simple line drawing of a cabinet with swirling smoke rising, next to an open door (no text or symbols)

4.1. KAKO PROIZVOD RAD

UKLJUČIVANJE/ISKLJUČIVANJE PEĆNICE

Da biste UKLJUČILI/ISKLJUČILI pećnicu, dugo pritisnite dugme za UKLJUČIVANJE/ISKLJUČIVANJE.

User interface control panel with navigation buttons and a hand cursor pointing to a button

PODEŠAVANJE FUNKCIJE KUVANJA

Da biste izabrali funkciju kuvanja, pritisnite „Glavni programi“ u karusel meniju početnog ekrana. Listajte karusel horizontalno dok ne pronađete željenu funkciju. Pritisnite Đ|| da biste započeli kuvanje na podrazumevanoj temperaturi za izabranu funkciju kuvanja.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition way of cooking Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVECTION + FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION + FAN

PODEŠAVANJE TEMPERATURE

Pritisnite temperaturu naznačenu pored „Glavni programi“ na karuselu. Pomerajte horizontalno da biste izabrali željenu temperaturu. Pritisnite ĐII da biste potvrdili svoj izbor.

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL TEMPERATURE 195 200 205 2 °C

MENI VREME

Pristupite meniju Vreme pritiskom na Vreme kuvanja na karuselu.

Korisnik može da unese sledeća podešavanja:

a. Minutni podsetnik

Ova funkcija omogućava korisniku da podesi podsetnik za vreme kuvanja. Nakon pritiska na dugme Vreme kuvanja na karuselu, ikona Minutni podsetnik se uključuje. Listajte brojeve vertikalno da biste podesili vreme, a zatim pritisnite za potvrdu.

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVE + FA

200°C COOKING TIME 21 0 h 22 m 1

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 0 h 22 m 1

c. Odlaganje početka

Pritisnite 📊 da biste podesili Odlaganje početka. Listajte vertikalno da biste podesili željeno vreme, a zatim pritisnite 🌐 za potvrdu.

200°C COOKING TIME 21 0 h 22 m 1 23

200°C 22 m DELAY START 8 24 START AT 9 :25 10 ×

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. Se or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

4.2. FUNKCIJE KUVANJA

OPCIJA BRZOG PREDGREVANJA

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking PROGRAMS.

FAVORITES 40 m 8 180°C 35 m 8 200°C 50 m 8 130°C

The parameters of a saved cooking cannot be modified. Press the Play buttons to start cooking. OK

Funkcija Jolly (maksimalno 5 recepata)

Zahvaljujući Jolly funkciji, ovaj proizvod nudi potpuno prilagodljivo iskustvo, omogućavajući vam da svoje personalizovane recepte čuvate direktno u pećnici. Ove recepte možete da obavljate koliko god često želite, čak i bez potrebe da se prijavljujete u aplikaciju.

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 180 °C > Duration 10 kFes > Note It's quick and easy to make an the stovetop. It's wise and empty (without using heavy enough), and It's always so easy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Kako da podesite funkciju Jolly:

Da biste podesili funkciju Jolly na pećnici, otvorite odeljak sa receptim u aplikaciji, izaberite recept koji želite da koristite i kliknite na „Koristi kao Jolly funkciju“. Od tog trenutka, možete je pokrenuti iz proizvoda čak i bez interakcije sa aplikacijom.

Kako da izmenite funkciju Jolly:

Da biste izmenili funkciju Jolly, idite u odeljak recepta u aplikaciji i izaberite karticu recepta koja je označena kao funkcija Jolly. Dodirnite dugme „izmeni“ da biste prilagodili recept i izmenili prethodno postavljena podešavanja.

OVEN U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1 Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be leni. CANCEL YES, CONFIRM

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration 1h 15pm Note It's quick and easy to make on the stovetop, it's nice and creamy (without using heavy cream), and it's always so crazy and comforting and delicious. START JOLLY FUNCTION

Simple line drawing of a pen and a bread roll with arrows indicating transformation (no text or symbols)

Sonda se može koristiti sa ručnim funkcijama (Konvencionalno, Konvekcija + ventilator, Roštilj, Super grill, Roštilj + ventilator i Više nivoa), sa KATEGORIJAMA KUVANJA HRANE (meso, riba i povrće) i Gentle Cooking.

Kategorija hrane	Predložena T °C sredine	Predloženo pozicioniranje
Pečena govedina	45 °C	Dijagonalno u najdebljem delu.Za namirnice cilindričnog oblika (kao što je goveđe pečenje), postavite vrh što bliže geometrijskom centru
Pečeno meso 55 °C / 60 °C / 65 °C
Živinsko meso	83-85 °C	U najdeblji deo grudi
Riba (cela/odresci)	65 °C	Dijagonalno u najdebljem delu
Hleb/musaka	90 °C	Blizu geometrijskog centra hrane

4.2.3. FUNKCIJA U VIŠE KORAKA

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

1. korak Izmenite naziv recepta i izaberite parametre za prvi korak recepta.

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is is, you must set the probe target temperature. TEMPERATURE Set the program temperature. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Preview use If the probe is switched off, you have to set the duration of my history in the recipe. If the probe is on you must set the probe target between them. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

1. korak Nakon prilagođavanja prvog koraka, pritisnite „Dodaj korak“ da biste receptu dodali još jednu funkciju kuvanja i prilagodili njene parametre.

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 2h-45m > Note > It's quick and easy to make on the tabletop. It's nice and creamy without using heavy cream, and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Korak 4. Sačuvajte recept u aplikaciji da biste ga pokrenuli na daljinu ili ga sačuvajte kao „funkciju Jolly“ da biste ga pronašli u meniju Omiljeni programi direktno u pećnici.

Create recipe Torta al 3 cioccolati Step 1 Cooking program Conventional > Duration 250 °C > Duration 1h 55m > Note It's quick and easy to make on the staveup, it's nice and creative toothcut using heavy cream, and it's always so cozy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati * * * 3 stops DETAILS → Appliatria Programm Special Features Diplinari Alon

4.2.4. KAKO KORISTITI KAMERU (dostupno u zavisnosti od modela)

OVEN Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 250°C 1h 30m First Preheat (OFF) Profile (OFF) EDIT DETAILS → Features Features Specialization Distance Window

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided cook Picnicate Customize Recipes Special Datasets Clutter More

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. > START NOW Last recipes (5) ALL RECIPES Jumper and beer- braised beef QUinoa with olives and sun-dried... DETAILS → DETAILS → 000

1. korak Izaberite kategoriju hrane koju želite da kuvate, a zatim pritisnite „Dalje“ da biste potvrdili.

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood Protein NEXT

1. korak Nakon pokretanja recepta Preci Taste iz aplikacije, počeće prethodno zagrevanje. Da biste pokrenuli ovu funkciju, šupljina pećnice mora da bude prazna.

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

1. korak Nakon faze prethodnog zagrevanja, hrana se može staviti u šupljinu. Zatvorite vrata pećnice kako biste omogućili da se hrana detektuje. Rerna će prepoznati hranu kroz kameru i podesiti odgovarajuće parametre. Tokom ovog procesa, na ekranu rerne će se prikazati „Bionic Vision in Progress“ (Bionički vid u toku). Nakon dobijanja potvrde od korisnika, proces kuvanja počinje automatski.

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 100 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. Se

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose the cleaning man. Pi

Listajte karusel Čišćenje da biste videli različite funkcije. Za bilo koju funkciju, pritisnite ⓘ da biste pročitali njen opis i predloženu upotrebu.

CLEANING 000 000 HYDROCLEAN ECO PYROLYSIS ECO PYROLYSIS PLUS

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 □ ECO 1 h 20 m

Pyrolysis Plus

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:57 1 h 43 m

HYDROCLEAN

Funkcija Hydroclean je dizajnirana da se bez napora uhvati u koštac sa laganom zaprljanošću i pruži brzo i ekološki prihvatljivo rešenje za čišćenje unutrašnjosti pećnice pomoću snage pare.

Kako funkcioniše:

1. Listajte karusel Čišćenje dok ne dodete do Hydroclean. Ako pritisnete na funkciju, pojaviće se iskačuća poruka. Pritisnite ĐII da nastavite ili pritisnite „U REDU“ da biste se vratili.
2. Pritisnite da nastavite.
3. Iskačuća poruka će vas zamoliti da dodate 100 ml vode u donji deo šupljine. Kada završite, pritisnite √
4. Postupak čišćenja počinje. Ne otvarajte vrata tokom ovog perioda.
5. Kada se proces čišćenja završi, pojaviće se iskačuća poruka i moći ćete da otvorite vrata pećnice. Ekran će se vratiti na karusel početnog ekrana.

CLEANING PYROLYSIS PLUS HYDROCLEA ECO PYRLOSYSIS ECO

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

NAPOMENA: Sve funkcije čišćenja mogu se prekinuti u bilo kom trenutku pritiskom na dugme Stop u gornjem levom uglu. Nakon prekida funkcija Pyrolysis Eco i Pyrolysis Plus, vrata će ostati zaključana dok se uređaj ne ohladi. Iskačuća poruka će se pojaviti kada se vrata otključaju.

6.2.2. SPOLJAŠNJOST PEĆNICE: uklanjanje i čišćenje staklenih vrata

1. Postavite vrata na 90°. Okrenite jezičke za zaključavanje šarki iz pećnice prema spolja.

2. Postavite vrata na 45°. Istovremeno pritisnite dva dugmeta sa obe strane bočnih strana vrata i povucite prema sebi da biste uklonili poklopac gornjih stakala.

3. Veoma pažljivo uklonite staklo pećnice, počevši od unutrašnjeg stakla. Tokom postupka, čvrsto držite staklo obema rukama i stavite ga na mekanu ravnu površinu (npr. na tkaninu).

4. ▲ UPOZORENJE: unutrašnja i srednja stakla ne smeju udariti u kameru (*) tokom njihovog uklanjanja ili umetanja.

5. UPOZORENJE: Spoljašnje staklo se ne može ukloniti.

6. ▲ UPOZORENJE: Kamera (*) se ne sme odvajati, nasilno otvarati ili uklanjati tokom čišćenja

* samo ako postoji

Illustration of hands operating a small oven with blue tool handles (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand holding a rectangular object with star patterns and an exclamation mark (no text or symbols present)

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

1. ▲ UPOZORENJE: treba sprečiti da kamera dođe u kontakt sa bilo kojim deterdžentom tokom čišćenja.
2. Očistite staklo mekom krpom i odgovarajućim sredstvima za čišćenje.
3. Umetnite staklene ploče, vodeći računa da oznaka „LOW-E/ PYRO“ bude ispravno čitljiva i postavljena na donjoj levoj strani vrata, u blizini leve šarke. Na taj način će štampana etiketa na prvom staklu ostati na unutrašnjoj strani vrata. Uverite se da se tekst „Bionic Vision“ (Bionički vid) pojavljuje kao što je prikazano ovde, tako da bude ispravno čitljiv kada su vrata rerne otvorena.
4. Ponovo pričvrstite poklopac vrata gornjeg stakla tako što ćete ga gurati prema unutra dok ne čujete klik dva bočna dugmeta.
5. Zatim vratite vrata na 90° i okrenite jezičke za zaključavanje šarki prema unutrašnjosti pećnice.
6. ▲ UPOZORENJE: Priključci kamere (*) se ne smeju isključivati tokom čišćenja.

* samo ako postoji

Illustration of a hand holding a tool near a mechanical bracket (no text or symbols)

Simple line drawing of a folded paper or sheet with a small inset image, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a bowl with a water bottle, no text or symbols present

PYRO ILI LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Illustration of hands operating a small oven with blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

Simple line drawing of a hand holding a small object, with no text or symbols present.

Line drawing of a hand holding a tool near a window, with no visible text or symbols

6.3. ČIŠĆENJE DODATNE OPREME

Obavezno temeljno očistite dodatnu opremu nakon svake upotrebe i osušite je peškirom. Za tvrdokorne naslage, natopite dodatnu opremu u mešavini vode i sapuna oko 30 minuta pre nego što je ponovo operete.

ČIŠĆENJE BOČNIH NOSAČA:

1. Uklonite bočne držače tako što ćete prvo povući prednji deo u smeru strelice i odvojiti zadnji deo od vijiaka.

2. Da biste očistili žičane nosače, stavite ih u mašinu za pranje sudova ili koristite vlažni suđer i obavezno ih posle osušite.

3. Nakon postupka čišćenja postavite bočne nosače obrnutim redosledom: postavite zadnji deo između vijiaka i gurnite prednji deo u smeru strelice.

Line drawing of a vertical ladder-like structure with multiple horizontal bars, no text or symbols present

Diagram of a wall-mounted rack with a directional arrow indicating rotation (no text or symbols)

Hand holding a transparent shelf with a blue arrow indicating direction (no text or symbols)

H₂O

Hand holding a wall-mounted device with a 20-degree angle indicator (no text or symbols on the device itself)

Diagram of a vertical panel with horizontal bands and a blue arrow indicating rotation (no text or symbols)

6.4. ODRŽAVANJE

ZAMENA KOMPONENTI

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

1. korak


Line drawing of a hand inserting a circular object into an oven (no text or symbols)

1. korak


Illustration of a hand holding a circular device with a downward arrow, next to an open refrigerator (no text or symbols)

1. korak


Illustration of a hand inserting a device into a washing machine with a blue arrow indicating the process (no text or symbols present)

1. korak


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. korak


Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Line drawing of a washing machine with a circular component and a magnified inset showing a brush tip (no text or symbols)

Ovaj proizvod sadrži jedan ili više izvora svetlosti energetske efikasnosti klase G (lampa)
* U slučaju problema sa ovom lampom, obratite se korisničkoj službi.

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

1. korak


Illustration of a hand using a tool to clean or store items, with a magnified inset showing a blue arrow (no text or symbols)

1. korak


Illustration of a hand holding a small object inside a circular frame, with an arrow indicating direction (no text or symbols present)

1. korak


Illustration of a hand inserting a cable into a device inside a circular frame (no text or symbols)

1. korak


Diagram of a machine with a magnified inset showing a component (no text or symbols)

1. korak


Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalized or open settl

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ct

7. REŠAVANJE PROBLEMA

Diagram illustrating a chemical process with a smokestack emitting vapor and a cleaner emitting liquid, accompanied by a warning symbol.

8. ZAŠTITA ŽIVOTNE SREDINE I ODLAGANJE NA OTPAD

8.1. ODLAGANJE UREĐAJA NA OTPAD

Isometric line drawing of a multi-level refrigerator with drawers and shelves (no text or symbols)

ILI Odbojnik Odbojnik

SVEIKI

Illustration of a blue-handled pen with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of an oven with numbered parts for identification

2.2. PRIEDAI

Metalinès grotelès

Line drawing of a rectangular kitchen appliance with 'STOP' labels on both sides (no text or symbols on the appliance itself)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Illustration of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl, a round hole, and a side shelf (no text or symbols)

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

Line drawing of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Simple line drawing of a pen with a pointed tip and handle (no text or symbols)

Line drawing of a rectangular appliance with internal grating and lid, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen appliance with a circular arrow indicating airflow or motion (no text or symbols)

Simple line drawing of a mechanical device with a lever and cable, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK NETWORK LANGUAGE

NETWORK SETTINGS WI-FI OFF RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORKS SETTING LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalize your own settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

KAIP NAUDOTIS PROGRAMÈLE

Available on the App Store GET IT ON Google Play

NAUJO NAUDOTOJO REGISTRACIJA

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have: a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

SPARČIOJO SUSIEJIMO REGISTRACIJA

1 veiksmas

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank SECOND NEW 2 bottles there is a second new Add appliance YOUR WIDGETS Lower glass door sit out NEW YOUR NEWS What functions do smart appliances have? How to live sustain: home and reduce w.

2 veiksmas

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

3 veiksmas

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4 veiksmas

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button and surrounding geometric shapes, no text or symbols present.

5 veiksmas

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1–6.2 veiksmai

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connects... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7 veiksmas

Appliance connection Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

NUOTOLINIO VALDYMO FUNKCIJA

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COCKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So ac

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Cooking SH 10M LEFT ADD 1 MIN STOP Current program PROGRAMS Conventional 250/°C 30.50m 3.0 Protein (LONE) Efficiency Protein (OPE) EDIT DETAILS →

There is a new software update to download. During this process hOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. fe

Download completed. Install updates. LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

PAPILDOMI NUSTATYMAI

FAVORITES COLLECT YOUR favorite cooking programs. CLEANING CHOOSE the cleaning mode. SETTINGS PERSONAL FOR over settlements.

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programa. Choose the cleaning mode. Personalizes just oven semi

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. PARENGIAMIEJI VALYMO DARBAI

Simple line drawing of a kitchen sink with a hand cleaning the interior, water being washed in a bowl (no text or symbols)

MAKS °C 60 min.

Simple line drawing of a kitchen oven with steam rising from the chimney and a cabinet on the side (no text or symbols)

4. GAMINIO VEIKIMAS

4.1. KAIP GAMINYS VEIKIA

ORKAITĖS IJUNGIMAS / IŠJUNGIMAS

User interface screenshot with navigation buttons and a hand cursor pointing at a button

MAISTO RUOŠIMO FUNKCIJOS NUSTATYMAS

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition rate of cooking. Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVENTION CONVECTION ←→ MAIN PROGRAMS 200°C

TEMPERATÜROS NUSTATYMAS

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVEI + PA

200°C COOKING TIME 21 0 h 22 m 1

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 0 h 22 m 1

c. Uždelsta pradžia

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. Soor

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chief preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chief preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS Special PROGRAMS Everyday COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

4.2. MAISTO RUOŠOS FUNKCIJOS

GREITOJO |KAITINIMO PARINKTIS

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Can inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play button to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Consumptional > Temperature 200 °C > Duration 5h-4.5m > Note It's quick and easy to make the covershop, it's blue and creamy (without using heavy armrest), and It's always so busy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In 55m. Note It's quick and easy to make on the stovetop. It's nice and creamy (without using heavy cream), and it's always so cozy and comforting and delicious. START JOLLY FUNCTION

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1. Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be key. CANCEL YES, CONFIRM

Simple line drawing of a pen and a bread roll with a knife, showing a step from writing to adding food (no text or symbols)

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is is, you must set the probe target temperature. TEMPERATURE Set the program temperature. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Preview use If the probe is switched off, you have to set the duration of my history in the recipe. If the probe is on you must set the probe target between them. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM

Create recipe Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 100 °C > Duration 2h-43 m > Note > It's quick and easy to make on the tabletop. It's nice and creamy without using heavy cream, and it's always so crazy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Torta al 3 cioccolati Step 1 Cooking program Conventional > Duration 250 °C > Duration 1h 55m > Note It's quick and easy to make on the staveup, it's nice and creative toothcut using heavy cream, and it's always so cozy and comforting and delicious. Step 2 Cooking program USE AS JOLLY FUNCTION SAVE RECIPE

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION 1 Recipes CREATE RECIPE Torta al 3 cioccolati * * * 3 stops DETAILS → Appliatria Programm Special Features Diplinari Alon

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional 250°C 1h:30m Fast Preheat (OFF) Probe (OFF) EDIT DETAILS → 900 Accessories Repair Special Features Discover Help

Ready No program scheduled SCHEDULE START Last Favorites PROGRAMS Conventional Camera Guided cook Pricitate Accessories Updates QuickMeasures Discover Here

PreciTaste Start a cooking session with PreciTaste This feature allows, thanks to a special intelligence, to recognize recipes stored inside the oven. START NOW Last recipes (5) ALL RECIPES Juniiper and beer- braised beef QUinoa with olives and sun-dried... DETAILS → DETAILS → 0.00

PreciTaste Which type of food do you want to cook? Meat and poultry Stews Seafood NEXT

PreciTaste Remaining time 04:59 Pre-heating in progress Wait pre-heat... Before inserting the food you have to wait for the preheat process to end. You can also go to the dashboard and browse freely, when pre-heating is over you will receive a notification. GO TO DASHBOARD

PreciTaste Food analysis I am analyzing the food. Wait a few seconds...

PreciTaste Recipe found Honey Garlic Glazed Salmon Preci Bake Function Cooking time 25 minutes Temperature 180 °C Probe By cooking this recipe with the probe, the duration may change according to the target temperature. CHECK OTHER RECIPES LAUNCH PROGRAM

STOP BIONIC VISION IN PROGRESS Check the APP and follow the steps.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef conceptions. So cc

EVERYDAY COOKING FAVORITES CLEANING Get inspired by our chef preparations. Collect your favorite cooking programs. Choose the cleaning in Pr

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS ECO Remove side racks and all internal accessories.

STOP AUTO-OFF AT 10:45 ECO 1 h 20 m

„Pyrolysis Plus“

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

PYROLYSIS PLUS Remove side racks and all internal accessories.

STOP AUTO-OFF AT 11:07 1 h 43 m

HYDROCLEAN

The parameters of cleaning functions cannot be modified. Press the Play button to start cleaning function. OK

HYDROCLEAN Add 100ml of water in the lower part of the cavity.

STOP AUTO-OFF AT 9:39 14 m

Illustration of hands operating a small oven with blue tool handles (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

1 2 45°

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand pressing a star-shaped object on a table with an exclamation mark (no text or symbols present)

Hand holding a hand crossed out of a window frame, no text or symbols present

Line drawing of a hand holding a blue circle with a diagonal line intersecting it, against a plain background (no text or symbols)

Illustration of a hand holding a tool near a mechanical bracket (no text or symbols)

Simple line drawing of a folded paper or sheet with a small inset image, no text or symbols present.

Illustration of a hand cleaning a blue cloth over a plate with a water bottle and a bowl labeled H₂O (no text or symbols on the main image)

PYRO ARBA LOW-E BIONIC VISION (*)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a cabinet with two hands inserting blue clips into the opening (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

Simple line drawing of a hand holding a small object, with no text or symbols present.

Line drawing of a hand holding a tool near a window, with no visible text or symbols

6.3. PRIEDU VALYMAS

Diagram of a vertical panel with multiple horizontal bars, no text or symbols present

Diagram of a door with horizontal ladders and a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a wall-mounted device with a blue arrow indicating direction (no text or symbols)

H₂O

Hand placing a wall-mounted device into a cabinet, with a 20% angle indicator and blue directional arrow (no text or symbols)

Diagram of a vertical panel with horizontal bands and a blue arrow indicating rotation (no text or symbols)

6.4. PRIEŽIŪRA

KOMPONENTŲ KEITIMAS

Safety warning diagram showing a plug connected to an electrical switch with a warning symbol and 'OFF' label

2 veiksmas

Line drawing of a hand inserting a circular object into an oven (no text or symbols)

3 veiksmas

Illustration of a hand holding a circular object with a downward arrow inside, next to an open refrigerator (no text or symbols)

4 veiksmas

Illustration of a hand inserting a device into an oven with a blue arrow indicating the process (no text or symbols present)

5 veiksmas

Line drawing of a hand holding a circular object with a blue arrow, next to an open oven (no text or symbols)

6 veiksmas

Diagram showing electrical connections with a plug, warning symbol, and ON/OFF switch symbols

Line drawing of a washing machine with a circular component and a magnified inset showing a brush tip (no text or symbols)

Safety warning diagram showing a plug connected to an ON/OFF switch with hazard symbol and directional arrows

2 veiksmas

Illustration of a hand using a tool to clean or inspect a small object inside a machine (no text or symbols visible)

3 veiksmas

Illustration of a hand inserting a component into a machine (no text or symbols)

4 veiksmas

Illustration of a hand interacting with a wall-mounted electrical component, showing a blue arrow pointing to the component (no text or symbols present)

5 veiksmas

Diagram of a printer with a magnified inset showing a paperclip (no text or symbols present)

6 veiksmas

Electrical warning symbol and circuit diagram showing a plug, ON panel, and warning sign with lightning symbol

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalized or open settings

SETTINGS SET TIME NETWORK SETTING 文 SET LANGUAGE

DEMO MODE 9 9 9 9 0 0 0 0 1 1 1 1

DEMO MODE 0 0 9 1 1 0 2 2 1

7. TRIKČIŲ ŠALINIMAS

Diagram illustrating a chemical process with an air mask emitting vapor, showing before and after states of cleaning or dust removal.

8. APLINKOS APSAUGA IR ATLIEKŲ ŠALINIMAS

8.1. PRIETAISO ŠALINIMAS

Isometric line drawing of a multi-level refrigerator with shelves, drawers, and a drawer (no text or symbols)

ARBA Buferis Buferis

TERE TULEMAST!

Illustration of a blue-handled pen with a black downward arrow pointing to it (no text or symbols)

Diagram of an oven with numbered parts for identification

2.2. TARVIKUD

Metallrest

Line drawing of a rectangular appliance with horizontal slats and labeled 'STOP' (no text or symbols on the diagram itself)

Diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

3D line drawing of a rectangular tray or container with internal compartments, placed on an open shelf (no text or symbols)

Line drawing of a kitchen sink with a bowl, a round pan, and a side shelf (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal and vertical metal racks (no text or symbols)

Line drawing of a rectangular tray with a grid pattern inside, placed on a shelf (no text or symbols)

Simple line drawing of a pen with a handle and pointed tip (no text or symbols)

Line drawing of a rectangular appliance with a grid-patterned lid, placed inside an oven (no text or symbols)

Simple line drawing of a kitchen appliance with a circular arrow indicating airflow or motion (no text or symbols)

Simple line drawing of a mechanical device with a lever and cable, no text or symbols present

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK NETWORK LANGUAGE

NETWORK SETTINGS WI-FI OFF RESET NETWORK

NETWORK SETTINGS Wi-FI ON RESET NETWORK

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs Choose the cleaning mode. Personalize your oven settings

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi RESET NETWORK

NETWORK SETTINGS Wi-Fi OFF RESET NETWORK

Võrgu lähtestamine

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the clearing mode. Personalize your own settings.

SETTINGS SET TIME NETWORK SETTING SET LANGUAGE

NETWORK SETTINGS Wi-Fi ON RESET NETWORK

Press reset to cancel all saved network credentials BACK RESET

KUIDAS RAKENDUSEGA SUHELDA?

Available on the App Store GET IT ON Google Play

UUE KASUTAJA REGISTREERIMINE

Welcome! Sign in to enter in your home page ENTER REGISTER Are you new to hOn? Click below to learn about our products TRY DEMO hOn Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way. SIGN UP WITH GOOGLE SIGN UP WITH APPLE SIGN UP WITH FACEBOOK No information relating to you will be shared and we will not post anything from you. OR SIGN UP WITH EMAIL Already registered? LOGIN

KIRÜHENDAMINE

1. samm

Hello USERNAME YOUR APPLIANCES Add Virtual Wine Bank second now 2 bottles there is a second now Add appliance YOUR WIDGETS Lower glass door sit out How to Care YOUR NEWS NEW What functions do smart appliances have? How to live sustain: home and reduce w.

2. samm

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

Simple location pin icon inside a circular frame (no text or symbols)

CONTINUE

3. samm

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

4. samm

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes (no text or symbols)

5. samm

Appliance connection Searching your appliance Don't turn off your Bluetooth. On app is looking for your appliance... 00:00:40 Stay close to your appliance in order to correctly capture the signal.

6.1–6.2. samm

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven New appliance Long appliance name to... CONNECT PRODUCT NOT FOUND

Appliance connection Searching your appliance Don't turn off your Bluetooth. Oven Connecting... New appliance Long appliance name to... Stay close to your appliance in order to correctly capture the signal.

7. samm

Your appliance has been correctly identified! Brand Hoover Model 31008486-7888-1824 Serial number 12345678-1234-1234 Is this your appliance? YES IT'S MY OVEN NO IT'S NOT

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COCKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Cooking 3H 10N LEFT ADD 1 MIN STOP Current programs PROGAMS Conventional 200°C 3h 30min 311 Peltheat OFFE Efficiency Probe OFFI EDIT DETAILS →

There is a new software update to download. During this process iOn App will not be available. LATER PROCEED

Download in progress... Do not unplug the product. Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. for

Download completed. Install updates LATER PROCEED

INSTALLATION IN PROGRESS... Do not unplug the product.

INSTALLATION IN PROGRESS... Do not unplug the product.

WELCOME Set your oven to start cooking.

EN 13A 9:23 CONNECTIVITY Download On App and connect your appliance.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

LISASÄTTED

FAVORITES COLLECT YOUR FAVORITES CLEANING Choose the cleaning mode. SETTINGS Personalize your oven settings.

SETTINGS SET LANGUAGE DISPLAY BRIGHT SOUNDS

BRIGHTNESS LEVEL

BRIGHTNESS LEVEL

FAVORITES CLEANING SETTINGS Collect your favorite cooking programs. Choose the cleaning mode. Personalizes just oven setup

SETTINGS DISPLAY BRIGHTNESS SOUND SET POWER

SOUNDS VOLUME

SOUNDS VOLUME

3.3. EELNEV PUHASTAMINE

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H20 nearby (no text or symbols on main elements)

MAX °C 60 min

Simple line drawing of a cabinet with swirling smoke and a door (no text or symbols)

4. TOOTE KASUTAMINE

4.1. KUIDAS TOODE TOIMIB

AHJU SISSE-/VÄLJALÜLITAMINE

Ahju SISSE/VÄLJA lülitamiseks vajutage pikalt nuppu SISSE/VÄLJA.

Pure graphical interface element with no text, numbers, or symbols

KÜPSETUSFUNKTSIOONI SEADISTAMINE

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Tradition way of cooking. Explore special way of cooking. Get inspired by our chef preparations. ECONVENTION CONVECTION CONVECTION × FAN MAIN PROGRAMS 200°C ECO FUNCTION CONVENTION CONVECTION × FAN

TEMPERATUURI SEADISTAMINE

MAIN PROGRAMS 200°C ECO FUNCTION CONVENTIONAL CONVE + FA

200°C COOKING TIME 0 h 21 1 22 m

200°C COOKING TIME 0 00 0 h 00 m 0 00

200°C COOKING TIME 0 h 22 m 1

c. Viitstart

200°C 22 m Delay START 8 24 START AT 9 :25 10 X

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So cc

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

Interface is now locked. Long press the lock button to deactivate.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations.

Interface is now unlocked.

MAIN PROGRAMS SPECIAL PROGRAMS EVERYDAY COOKING Traditional way of cooking. Explore special way of cooking. Get inspired by our chef preparations. So or

4.2. TOIDUVALMISTAMISE FUNKTSIOONID

KIIRE EELSOOJENDUSE VÕIMALUS

a SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking programs.

b SPECIAL PROGRAMS EVERYDAY COOKING FAVORITES Explore special way of cooking. Get inspired by our chef preparations. Collect your favorite cooking PROGRAMS.

FAVORITES 40 m 180°C 35 m 200°C 50 m 130°C

The parameters of a saved cooking cannot be modified. Press the Play buttons to start cooking. OK

New Jolly Function Torta ai 3 cioccolati Step 1 Preheat No > Cooking program Conventional > Temperature 50 °C > Duration 5h 45s > Note It's quick and easy to make on the stewart. It's wise, and crazy (without using heavy or hard), and it's always so easy and comforting and delicious. ADD STEP USE AS JOLLY FUNCTION SAVE RECIPE

RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION CLEAR 1. Jolly Function DELETE Are you sure you want to delete the Jolly Function section? By doing this action all data will be low. CANCEL YES, CONFIRM

Sacher Torta Torta ai tre cioccolati EDIT Single Step Preheat Yes, 180 °C Cooking program & temperature Conventional, 180 °C Duration In 35m Note It's quick and easy to make on the stovetop, it's rice and creamy (without using heavy cream), and it's always so-crazy and comforting and delicious. START JOLLY FUNCTION

200°C PROBE Preci Probe will monitor cooking and override duration and delay if eat. If you don't have this accessory, visit Haier online store. CONNECT

230°C PROBE SEARCHING PROBE Make sure Prici Probe is fully charged and close to the open.

200°C PROBE PROBES AVAILABLE 90% 6A 12% 7B

200°C PROBE °C 64 65 66 AA 80%

FAST PREHEATING 200°C

PLACE YOUR FOOD INSIDE THE OVEN

STOP READY AT 65°C 65°C 200°C GA 80%

ENJOY YOUR PLATE 64 80%

Simple line drawing of a pen and a bird-like shape with two blue handles, no text or symbols present

OVEN RECIPIES U-CREATE MY RECIPES JOLLY FUNCTION There are no recipes! Start creating your first recipe! CREATE RECIPE

Create recipe Recipe's name Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. Step 1 Preheat > Cooking program > Temperature > Duration > Add a note > ADO STEP USE AS JOLLY FUNCTION SAVE RECIPE

Create recipe Recipe's name PROGRAMS Choose program type STANDARD SPECIAL Bottom Heating Convection + Fan Conventional Multi-Level Bottom Heating + Fan CONFIRM

Create recipe Recipe's name. Probe use If the probe is switched off, you have to set the duration of each step in the recipe. If the probe is on, you must set the probe target temperature. TEMPERATURE Set the probe are temperatures. 175°C 180°C 185°C CONFIRM

Create recipe Recipe's name Probe vat If the probe is switched off, you have to set the duration of my today in the recipe. If the probe is on, you must set the probe targeted between them. DURATION Choose the program duration 00° 54° 01 h 55 m 02° 56° CONFIRM
