H43S81FUX - TV HAIER - Free user manual and instructions

Product type	LED TV
Screen size	43 inches
Resolution	Ultra HD (3840 x 2160 pixels), HDR compatible
Audio technology	Dolby Audio
Connectivity	4x HDMI (including 1 eARC/ARC), 1x USB, 1x LAN Ethernet, 1x optical output, 1x AV input (CVBS), 1x antenna (ANT/CABLE), 1x satellite (13/18V 500mA), 1x CI interface
Smart features	Google TV, built-in Google Assistant, Netflix, Prime Video, YouTube, YouTube Music
Remote control	Bluetooth remote control with microphone, dedicated Netflix, Prime Video, YouTube buttons
Power supply	AC, 50/60 Hz
Power consumption	Approximately 70 W (estimate for 43 inches)
Dimensions (without stand)	Approximately 97 x 57 x 8 cm (estimate)
Weight (without stand)	Approximately 7.5 kg (estimate)
Wall mounting	Compatible with VESA 200x200 or 300x300 (check), M6 x 10 mm screws (4 pieces), torque 8 kgf.cm
Cleaning	Unplug, use a soft dry cloth, do not use water or chemical products
Safety	Auto-off, surge protection, tip-over warning, ventilation distances (10 cm top, 20 cm sides, 15 cm back, 3 mm bottom)
General information	Manufactured under Dolby license, HDMI compatible, designed for temperate climates, European energy class (EPREL: 2269070)

Frequently Asked Questions - H43S81FUX HAIER

How to turn on the Haier H43S81FUX TV?

Press the POWER button on the remote control or the power button located at the bottom of the TV. Make sure the power cord is plugged into a working power outlet.

How to connect an antenna or cable to the TV?

Plug the antenna cable or cable TV cable into the ANT/CABLE (ANT IN) jack on the back of the TV. For satellite, use the SATELLITE jack (13/18V 500mA).

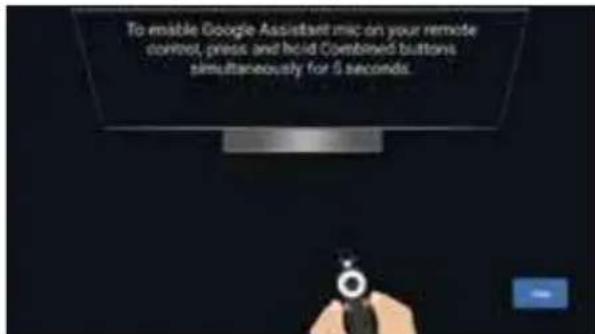

How to use the Bluetooth remote control?

The remote can be used in Bluetooth mode after pairing. During initial setup, the TV will ask you to enter a pairing code displayed on the screen. Follow the on-screen instructions to pair the remote.

How to install batteries in the remote control?

Remove the cover of the compartment on the back of the remote. Insert two AAA batteries (1.5 V) respecting the polarities (+ and -). Close the cover.

How to clean the TV screen?

First unplug the TV. Use a soft dry cloth to gently wipe the screen. Never use water, solvents, or chemical products. Avoid pressing on the screen.

How to mount the TV on the wall?

Remove the stand then attach a VESA-compatible wall mount (screws M6 x 10 mm, four pieces, torque 8 kgf.cm). Respect the minimum distances: 10 cm above, 20 cm on the sides, 15 cm at the back, 3 mm at the bottom. The wall mount is not included.

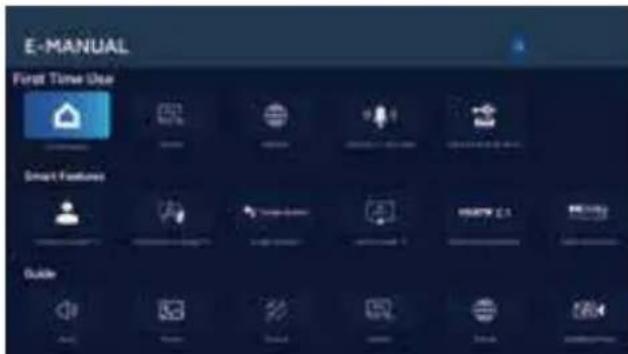

How to access the electronic manual (E-Manual)?

Press the HOME button on the remote. On the home screen, navigate to the Apps tab and select E-Manual. You will find comprehensive guides there.

What to do if the TV does not turn on?

Check that the power cord is properly connected to a working outlet. Test with another device. If the TV still does not turn on, unplug it for one minute and then plug it back in. If the problem persists, contact a qualified technician.

How to connect an external device via HDMI?

Plug the HDMI cable from the device (DVD player, game console, etc.) into one of the HDMI ports on the back of the TV. Press the Sources button on the remote and select the corresponding HDMI input.

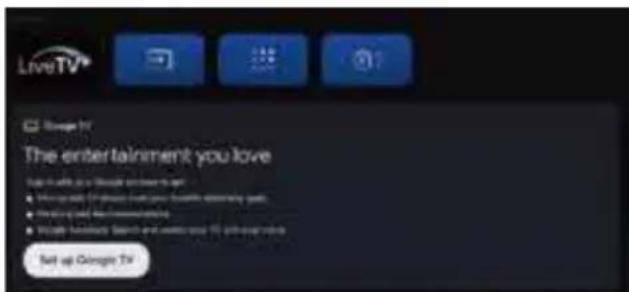

How to set up Google TV for the first time?

At the first power-on, the setup wizard appears. Follow the on-screen instructions to select the language and region. Sign in with your Google account to access apps and recommendations.

USER MANUAL H43S81FUX HAIER

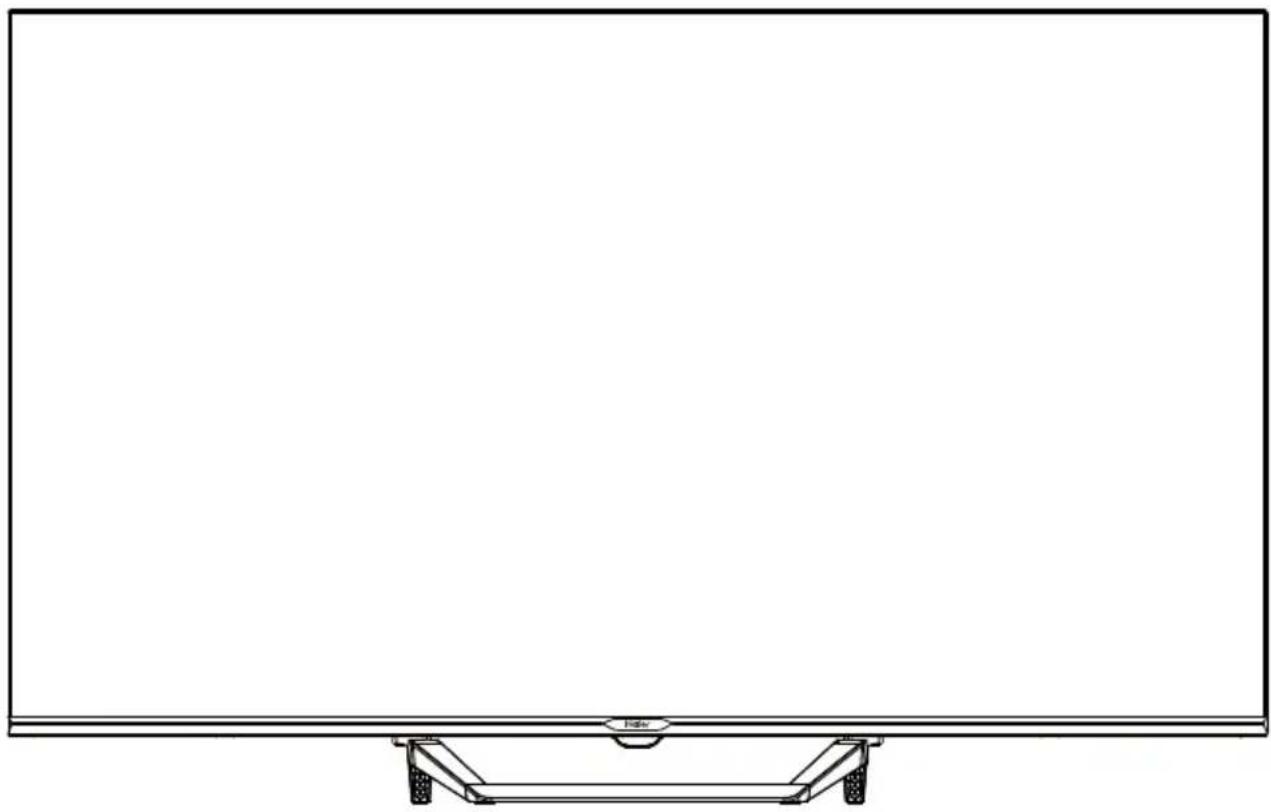

Line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Illustration in this guide are provided for reference only and may differ from actual product appearance.

Product design and specification may be changed without notice.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this product near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the instructions.
8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lighting storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles, should be placed on the apparatus.
17) Attention should be drawn to the environmental aspects of battery disposal.
18) The use of apparatus in moderate climate.
19) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
20) Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

*Actual product may vary in appearance from above image*

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions provided in the user manual given with this unit.

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING:

The batteries shall not be exposed to excessive heat such as radiators, fire or the like.

This symbol indicates AC voltage.

This symbol indicates DC voltage.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

EU Battery Regulation

This symbol on the battery(ies) or on the packaging indicates that the battery(ies) provided with this product shall not be treated as household waste. Instead, please separate battery(ies) from other types of waste and recycle it(them) through your local recycling system to protect environment and health.

The chemical symbol for lead (Pb) is added under this symbol if the battery(ies) contains more than 0.004 % lead. For more detailed information about recycling of this battery(ies), please contact your local authority or the shop where you purchased the product or battery(ies).

Caution:

A display may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.
• ALWAYS use furniture that can safely support the television set.
- ALWAYS ensure the television is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the television or its controls.
• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.
- NEVER place the television set in an unstable location.
- NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the display to a suitable support.
- NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.
- NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television set or furniture on which the television set is placed.

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

Dolby Audio

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

H43S80FUX

European Energy Label EPREL registration number: 2268609

https://eprel.ec.europa.eu/qr/2268609

H43S81FUX

European Energy Label EPREL registration number: 2269070

https://eprel.ec.europa.eu/qr/2269070

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Simple line drawing of a monitor with a cross symbol crossed out, next to a rope tied to a cloth (no text or symbols)

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Do not trap the power supply cord under the television receiver.

Computer monitor displaying three prohibition symbols (no text or labels)

If you are going to clean the product, unplug the TV, use soft fabric, no water, never chemicals.

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it falls.

Illustration of a woman running away from a computer screen next to a circular object with a flag (no text or symbols)

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television.

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Note: the use of apparatus in moderate climates.

Note: This product uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may by a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

IMPORTANT: Do not apply pressure to the screen display area which may compromise the integrity of the display. The manufacturer's warranty does not cover user abuse or improper installations.

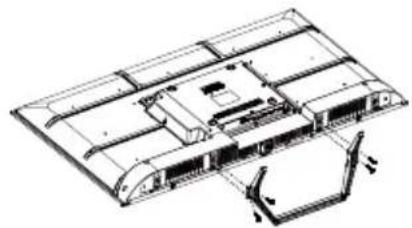

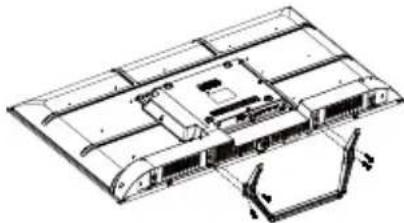

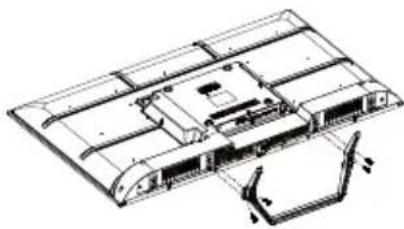

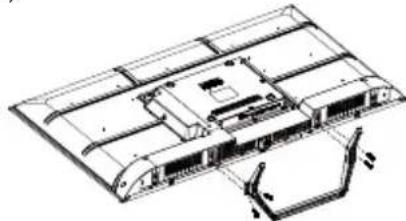

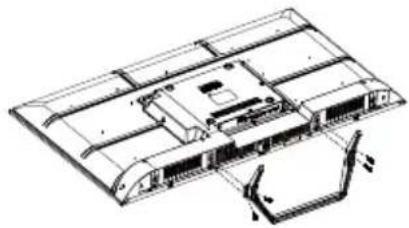

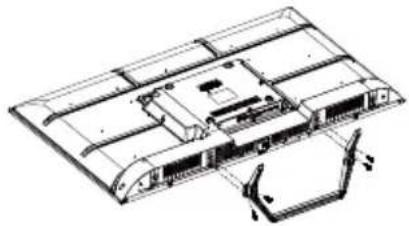

ATTACHING THE STAND

IMPORTANT: The stand of the TV must be assembled prior to usage.

1. Place the TV unit face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the TV.
2. Fix the stand to the base. (Diagram 1)
3. Fix the base group to the bottom of the TV with 4 screws. (Diagram 2)

Simple line drawing of three abstract geometric shapes (no text or symbols)

1

Isometric line drawing of a multi-level building or warehouse layout with no visible text or symbols

2

PREPARING YOUR LED TV FOR WALL MOUNTING

We suggest that you keep your TV at least 2.36 inches (60 mm) from the wall to prevent cable interference. Before mounting your TV on the wall, you need to remove the stantand.

For your safety, please use only with a UL listed wall mount bracket with minimum weight of the TV without stand.

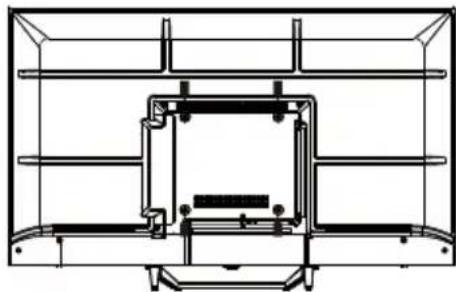

To attach a wall mount bracket to your TV:

1. Remove the screws holding your TV to the stand.

2. Remove the stand from your TV.

3. Secure the wall mount bracket to the back of your TV using four screws. Follow the instructions of the user manual that came with the wall mount bracket to install.

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTE

The wall mount bracket are not included.

1. Fix the wall mount screws (M6 x 10mm/4pcs) into the rear side of the LED TV, using the torque of 8kgf,cm.

TURNNING ON THE TV

1. Install the stand and place the TV on a solid surface.

NOTE

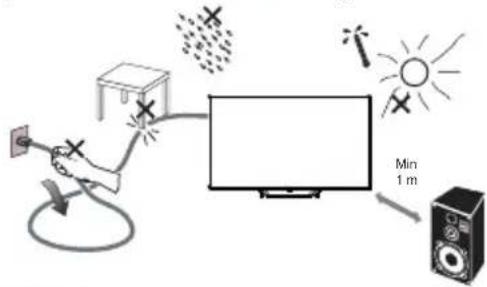

• Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover.
  • To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity.

• Avoid heat, direct sunlight and exposure to rain or water.
  The equipment shall not be exposed to dripping or splashing.

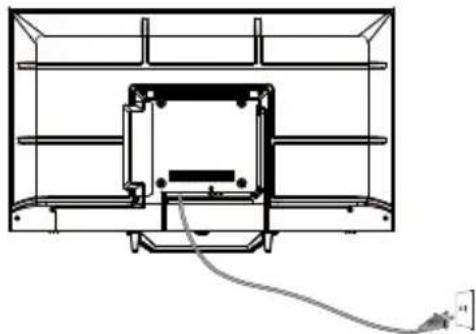

• Connect the antenna cable or cable TV cable to the ANT IN aerial socket on the back of the TV set.

• Power: Plug the cord into a working power outlet.

Technical line drawing of a mechanical assembly with a cable and connection point (no text or symbols)

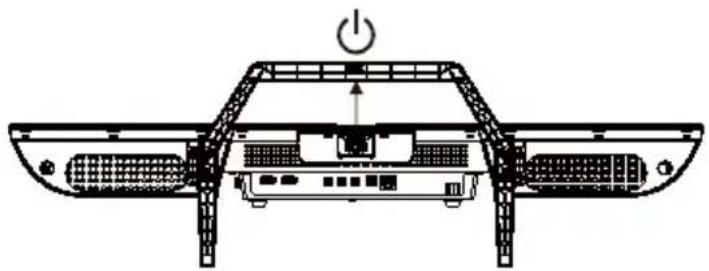

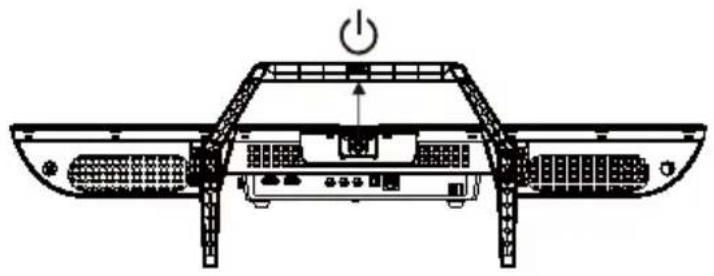

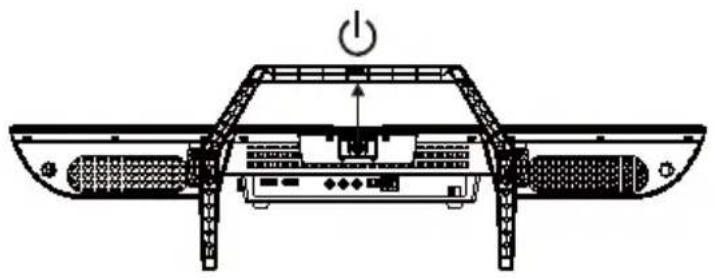

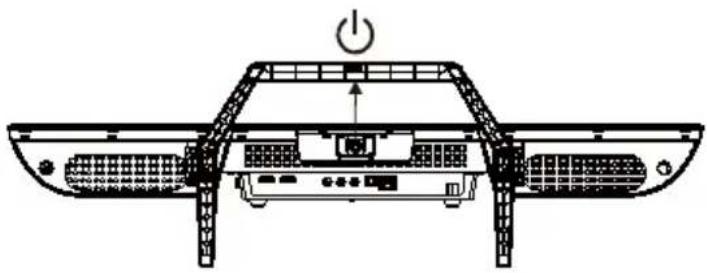

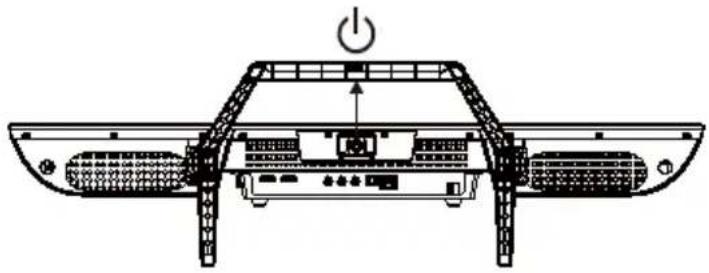

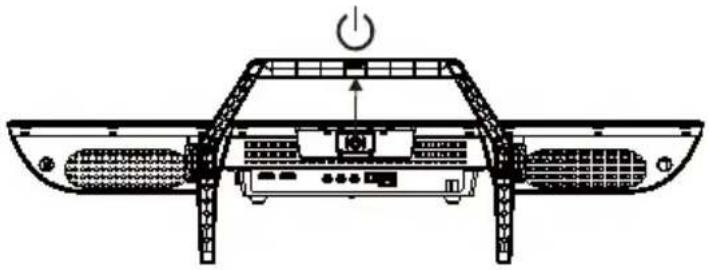

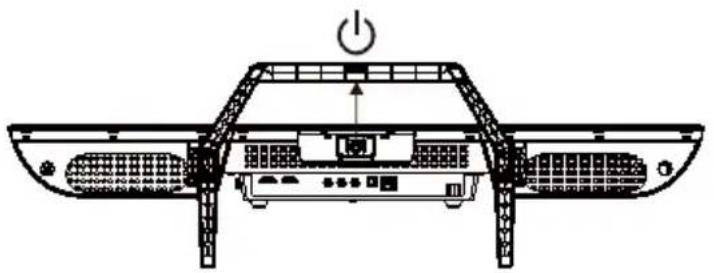

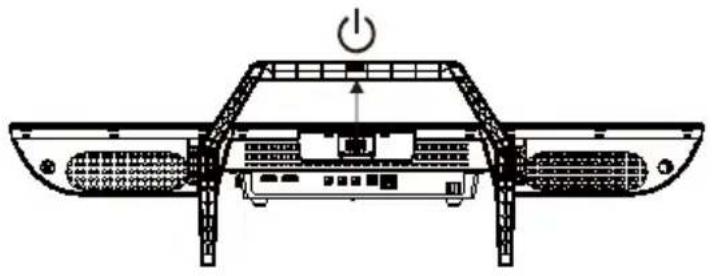

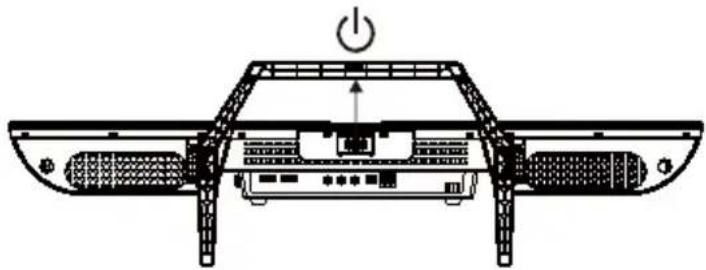

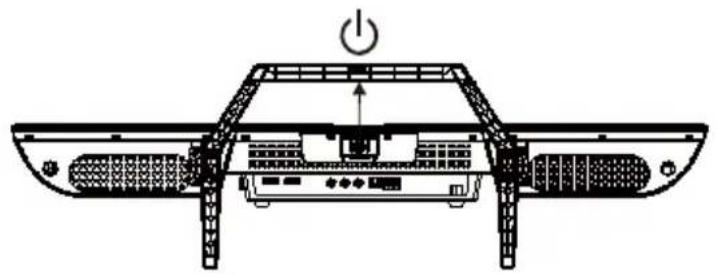

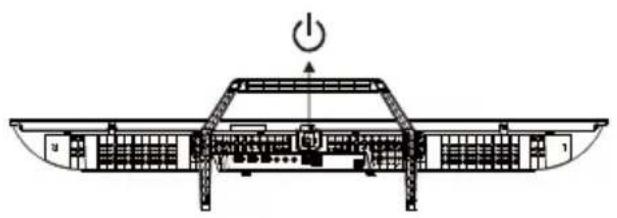

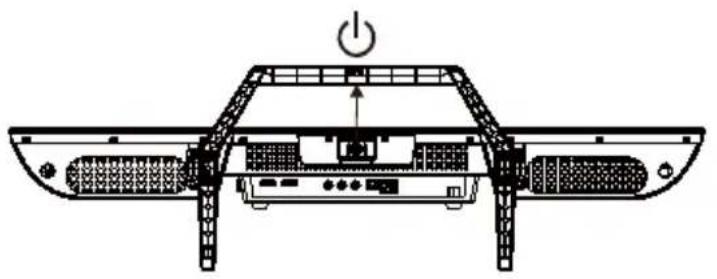

1. Turn the TV on: Press ⏻ on the remote control or POWER button at the bottom of the TV.
2. Battery Remove the cover of the battery compartment. Insert the 2 batteries (Type AAA 1.5V).

BUTTON CONTROL

Technical line drawing of a mechanical or electronic device with no visible text, numbers, or symbols.

ACCESSORIES

Remote Control - 1 pcs

User's Manual - 1 pcs

Quick Start Guide - 1 pcs

Base Group - 1 pcs

Base Screws - 4 pcs

Warranty Card - 1 pcs

CE Leaflet - 1 pcs

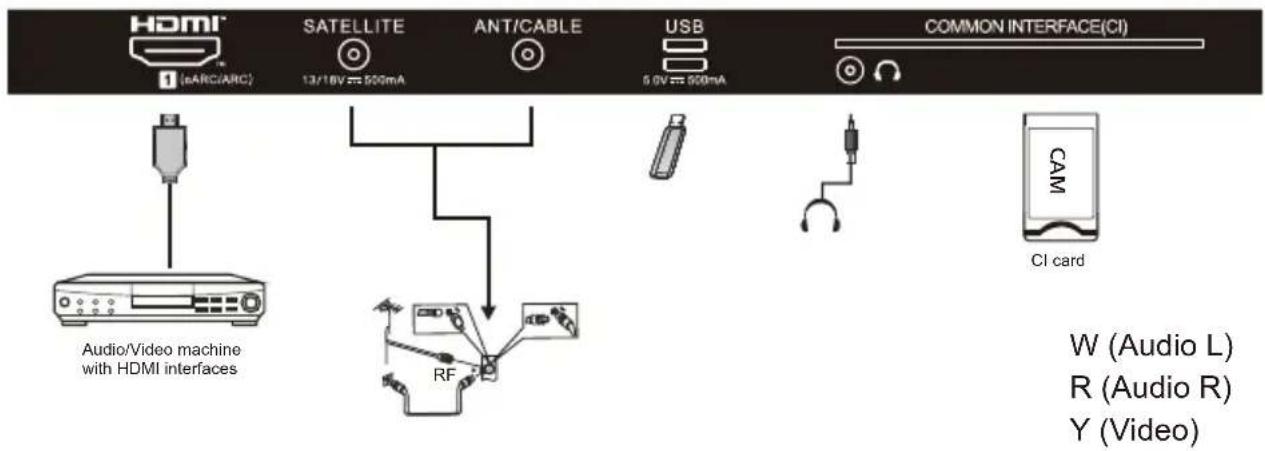

REAR AV Connections(SIDE)

All the terminals are(from left to right):

HDMI1(eARC/ARC), SATELLITE, ANT IN(ANTENNA/CABLE), USB, HEADPHONE, COMMON INTERFACE(CI).

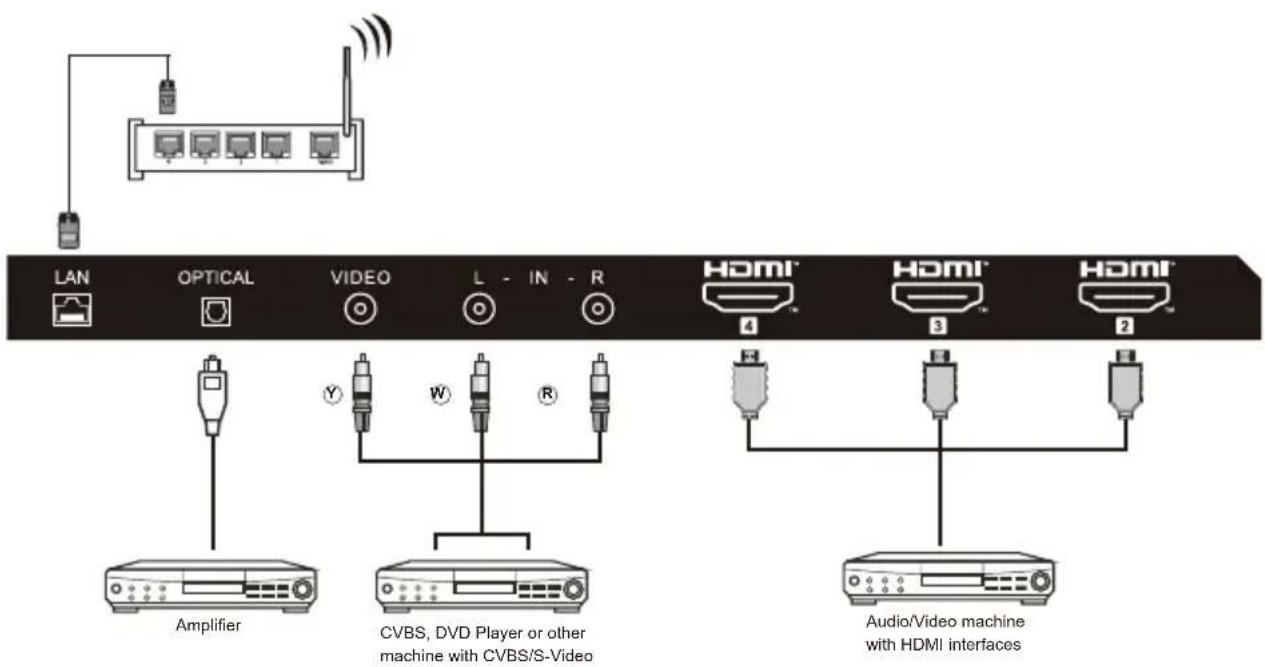

REAR AV Connections

All the terminals are(from left to right):

LAN, OPTICAL, AV IN adapter, HDMI4, HDMI3, HDMI2.

AV EQUIPMENT

This TV provides one group of AV for convenient connection to VCR, DVD or other video equipment. Please refer to the owner's manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows.

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc

Note:

Sometimes it will not support in different device because the device supplies nonstandard signal.

#	Item	Descriptions
1	Power	Press to turn the TV on or off. When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.
2		Press to open the input source list.
3	●●●●	Press to open Soft Keyboard.
4	0~9 number	Press to enter a TV channel number.
5	-/--	It is used to enter channel numbers with various digit counts, e.g. 1 – 11 – 111.
6		Press to open the Google Assistant.
7		Press to open user account page.
8	OK	Enter the selected option or perform the selected operation.

#	Item	Descriptions
9	▲▼◀▶	Press to navigate the on-screen menu.
10	←	Return to the previous menu.
11		Press to open the Home Page.
12	MENU≡	Press to open or close the on-screen menu.
13	VOL+/VOL-	Press VOL+ or VOL- to adjust volume level.
14	TEXT	Press to select the teletext mode.
15	SUBTITLE	Open or close subtitle.
16		Press to reverse playback in multimedia & Timeshift mode.
17		Switch to the previous file when the audio or video is playing.
18	II (Pause)	Press to pause in multimedia mode&Timeshift mode.
19	●(REC)	Press to record the TV program you are watching in DTV mode.
20	NETFLIX	Press to open the NETFLIX.
21	prime video	Press to prime video for viewing online TV shows and films(internet connection required).
22	YouTube	Press to open the YouTube.
23	Coloured buttons	Implement the relevant operations according to the prompt at the botton of the menu in the text.
24		Press to open the mute.
25	MEDIA	Press to open multimedia player.
26	INFO	Press to display the channel information.
27		Press to open the settings menu.
28		Press to display electronic programme guide in TV mode.
29	CH-/CH-	Press CH^ or CH▼ to change TV channels.
30	EXIT	Exit menu or operation.
31	AUDIO	Press to select Mono, Nicam, Stereo for ATV channel, Audio language for DTV channels.
32	▶▶(forward)	Press to fast forward in multimedia &Timeshift mode.
33	▶(play)	Press to play in multimedia mode &Timeshift mode.
34		Switch to the next file when the audio or video is playing.
35	FAV	Quickly add the current channel to the favorite Show list or remove it from the favorite list under ATV and DTV.
36		Press to stop multimedia playback, REC & Timeshift mode.
37		Press to open the Live TV.
38		Press to open the app list.
39	YouTube Music	Press to open the YouTube Music.

INITIAL SETUP

The first time you turn on your TV, the setup wizard will guide you through setting up basic settings. Please according to the Text Tip to First Time Setup.

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV.

Press ▲/▼ to select the system language and press OK to confirm the language.

Press ▲/▼ to select the region/country of your device and press OK to confirm. Complete the TV initialization settings according to the guide prompt.

Note: The picture is only for reference.

- Once in the user interface, you can switch from basic TV to Google TV settings

Press ▲/▼ to select the "Set up Google TV" of your device and press OK to complete the setup.

Use your Google Account Sign in. Follow the Google Guide.

E-Manual

E-Manual is built into your TV and can be displayed on the screen. To learn more about your TV features, access your E-Manual by referring to the following. E-Manual may be available depending on the region or model.

1. Press HOME button to access the home page.
2. Press UP/DONW/LEFT/RIGHT and OK button to select and enter "E-Manual" in "Apps".

Note: The picture is only for reference.

Line drawing of a flat-screen monitor with a stand at the bottom (no text or symbols)

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross symbol crossed out, next to a rope tied to a cloth (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand (no text or symbols)

Computer monitor displaying three prohibition symbols (no text or labels)

Cartoon illustration of a person holding a crossed-out monitor with a 'X' symbol, no text or symbols present

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a woman running away from a computer screen next to a circular object with a flag (no text or symbols)

Three abstract mechanical bracket shapes arranged vertically (no text or symbols)

1

Architectural line drawing of a multi-level building facade with structural elements (no text or labels)

2

PREPARAR EL TELEVISOR LED PARA INSTALAR- LO EN LA PARED

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTA

NOTA

Technical line drawing of a mechanical assembly with a cable and power outlet (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

ACCESORIOS

Line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross symbol crossed out, next to a rope tied to a cloth (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Computer monitor displaying three prohibition symbols (no text or labels)

Cartoon illustration of a person holding a crossed-out monitor with a 'X' symbol, no text or symbols present

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Illustration of a woman running away from a computer screen next to a circular object with a flag (no text or symbols)

Three mechanical bracket components with no visible text or symbols

1

Architectural line drawing of a multi-level building complex with no visible text or symbols

2

PREPARAR A TV LED PARA MONTAGEM NA PAREDE

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTA

NOTA

Technical line drawing of a mechanical assembly with a cable and connector (no text or symbols)

CONTROLO DE BOTÕES

Technical line drawing of a vehicle chassis with overhead power button and control panel (no text or symbols)

ACESSÓRIOS

Telecomando - 1 unid.

Line drawing of a flat-screen monitor with a stand at the bottom (no text or symbols)

Illustration of a computer monitor with arrows indicating light and a crossed-out hand symbol (no text or labels)

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol crossed out, no text or symbols present.

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three prohibition symbols (no text or labels)

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a person running away from a computer screen next to a broken circular object (no text or symbols)

Three mechanical bracket components arranged vertically (no text or symbols visible)

1

Isometric line drawing of a building facade with structural elements and a curved structure at the bottom (no text or symbols)

2

Technical line drawing of a mechanical assembly with no visible text or symbols

ΣΗΜΕΙΩΣΗ

Technical line drawing of a mechanical assembly with no visible text or symbols

ΛΕΙΤΟΥΡΓΙΑ ΠΛΗΚΤΡΩΝ

Technical line drawing of a mechanical or electronic device with no visible text, numbers, or symbols.

E3APTHMATA

Line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Illustration of a computer monitor with an electrical circuit breaker symbol (no text or labels)

Simple line drawing of a monitor with a cross symbol crossed out, next to a rope tied to a cloth (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three prohibition symbols (no text or labels)

Simple line drawing of a geometric object with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a woman running away from a computer screen next to a circular object with a flag (no text or symbols)

Three mechanical bracket components arranged vertically (no text or symbols visible)

1

Isometric line drawing of a multi-level building structure with no visible text or symbols

2

PREPARAZIONE DEL TELEVISORE A LED PER IL MONTAGGIO A PARETE

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTA

NOTA

Technical line drawing of a mechanical assembly with no visible text or symbols

CONTROLLO TASTO

Technical line drawing of a mechanical device with no visible text or symbols

ACCESSORI

Telecomando - 1 pz.

Line drawing of a flat-screen monitor with a stand (no text or symbols)

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross symbol crossed out, next to a rope tied to a cloth (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three prohibition symbols (no text or labels)

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a person running away from a computer screen next to a circular object with a flag (no text or symbols)

Three mechanical bracket components arranged vertically (no text or symbols visible)

1

Technical line drawing of a mechanical assembly or enclosure with no visible text or symbols

2

PRÉPARER VOTRE TÉLÉVISEUR LED POUR INSTALLATION MURALE

Technical line drawing of a mechanical assembly or enclosure with no visible text, numbers, or symbols.

REMARQUE

REMARQUE

Technical line drawing of a mechanical assembly with a cable and power outlet (no text or symbols)

BOUTON DE CONTRÔLE

Architectural cross-section diagram of a multi-level building with structural framework and central loading symbol (no text or labels)

ACCESSOIRES

Line drawing of a flat-screen monitor with a stand at the bottom (no text or symbols)

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross symbol crossed out, next to a rope tied to a cloth (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three prohibition symbols (no text or labels)

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a woman running away from a computer screen next to a circular object with a flag (no text or symbols)

Three mechanical bracket components arranged vertically (no text or symbols visible)

1

Architectural line drawing of a multi-level building facade with internal compartments and structural elements (no text or labels)

2

Technical line drawing of a mechanical assembly with no visible text or symbols

HINWEIS

HINWEIS

Technical line drawing of a mechanical assembly with internal components and a cable (no text or symbols)

TASTENSTEUERUNG

Technical line drawing of a mechanical device with no visible text or symbols

ZUBEHÖR

Line drawing of a flat-screen monitor with a stand at the bottom (no text or symbols)

Illustration of a computer monitor with an electrical circuit breaker and a crossed-out cable (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a rope tied to a cloth (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three prohibition symbols (no text or labels)

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a woman running away from a computer screen next to a circular object with a flag (no text or symbols)

Three mechanical bracket components arranged vertically (no text or symbols visible)

1

Architectural line drawing of a multi-level building facade with internal structural elements (no text or labels)

2

Technical line drawing of a mechanical assembly or enclosure with no visible text, numbers, or symbols.

ЗАБЕЛЕЖКА

NOTE

Technical line drawing of a mechanical assembly with a cable and connector (no text or symbols)

УПРАВЛЕНИЕ С БУТОНИ

Technical line drawing of a mechanical or electronic device with no visible text, numbers, or symbols.

АКСЕСОАРИ

Line drawing of a flat-screen monitor with a stand at the bottom (no text or symbols)

Simple line drawing of a monitor with a cross mark and a curtain, no text or symbols present

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a fan, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three circular icons with prohibition symbols (no text or labels)

Cartoon illustration of a person on a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer screen with a computer monitor nearby (no text or symbols)

Three mechanical bracket components (no text or symbols visible)

1

Architectural line drawing of a multi-level building structure with no visible text or symbols

2

TV'NIZI DUVARA MONTAJ IÇIN HAZIRLAMAK

Technical line drawing of a mechanical assembly with no visible text or symbols

NOT

Technical line drawing of a mechanical assembly with a cable and connector (no text or symbols)

1. TV'yi açın:

TUŞ KONTROLÜ

Technical line drawing of a mechanical device with no visible text or symbols

AKSESUARLAR

Uzaktan Kumanda - 1 adet

Kilavuzu - 1 adet

Line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Ilustracije u ovom vodiču navedene su samo kao referenca i mogu da se razlikuju u odnosu na stvarni izgled proizvoda.

Dizajn i specifikacije proizvoda mogu biti promenjene bez prethodne najave.

Illustration of a computer monitor with an antenna and a crossed-out cable, no text or symbols present

Ovaj TV prijemnik koristi visoki napon pri radu. Ne uklanjajte leđa sa televizora. Servisiranje prepustite kvalifikovanim serviserima.

Simple line drawing of a monitor with a cross symbol crossed out, next to a curtain and a rope (no text or symbols)

Da biste smanjili rizik od požara ili strujnog udara, ne izlažite TV kiši ili vlazi.

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Ne ispuštajte i ne gurajte predmete u proreze i otvore na leđima TV-a. Ne prosipajte tečnost na televizor.

Simple line drawing of a computer monitor with a stand and ventilation duct (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Nemojte da uštinete kabl za napajanje televizorom.

Computer monitor displaying three circular icons with prohibition symbols, no readable text or labels

Ako želite da očistite proizvod, isključite ga iz struje i koristite meku tkaninu. Ne koristite vodu i hemikalije.

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric object with intersecting lines and a vertical line, no text or symbols present.

Illustration of a person running away from a computer monitor next to a circular object with a broken ring (no text or symbols)

Ako nećete koristiti televizor duže vreme, preporučujemo da mu izvučete utikač iz napajanja.

Technical line drawing of a mechanical assembly with no visible text or symbols

NAPOMENA

Zidni nosač se ne isporučuje uz TV.

1. Fiksimajte zavrtnje zidnog nosača (M6 x 10 mm / 4 kom) na u leđa TV-a momentom pritezanja od 8 kgf,cm.

UKLJUČIVANJE TV-a

1. Montirajte stalak i stavite TV na stabilnu površinu.

NAPOMENA

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Uključite televizor: Pritisnite 🚙na daljinskom upravljaču ili taster POWER na bočnoj kontrolnoj tabli TV-a.
2. Daljinski upravljač: Uklonite poklopac odeljka za baterije. Umetnite 2 baterije (tip AAA 1,5 V).

UPRAVLJANJE PREKO TASTERA

Technical line drawing of a mechanical assembly with no visible text or symbols

DODATNI PRIBOR

Ova funkcija se koristi za kôd za uparivanje daljinskog upravljača. Kad se kôd unese, možete da koristite Bluetooth daljinski upravljač za upravljanje TV-om.

Pritiskanjem dugmadi ▲/▼ odaberite jezik sistema, pa pritisnite OK da potvrdite.

Pritisnite ▲/▼ da biste odabrali zemlju ili region uređaja i pritisnite OK da biste potvrdili.

Napomena: Slika služi samo kao referenca.

- Kada uđete u korisnički interfejs, možete da pređete sa osnovnih podešavanja TV-a na Google TV.

Prijavite se pomoću svog Google naloga. Pratite Google vodič.

E-priručnik

E-priručnik je ugrađen u TV i može da se prikaže na ekranu. Da biste saznali više o funkcijama vašeg TV-a, otvorite e-priručnik na sledeći način.

Napomena: Slika služi samo kao referenca.

Line drawing of a flat-screen monitor with a stand at the bottom (no text or symbols)

Illustration of a computer monitor with an X symbol indicating no text or symbols, surrounded by lightning bolts (no readable text)

Simple line drawing of a window frame with a diagonal X mark and a hanging curtain (no text or symbols)

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a fan, emitting steam (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Computer monitor displaying three prohibition symbols (no text or labels)

Cartoon illustration of a person on a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a person running away from a computer screen next to a broken phone icon (no text or symbols present)

Technical line drawings of two views of a mechanical assembly (no text or symbols)

PRZYGOTOWANIE TELEWIZORA DO MONTAŻU NA ŚCIANIE

Technical line drawing of a mechanical assembly with no visible text or symbols

UWAGA

UWAGA

Technical line drawing of a mechanical assembly with no visible text or symbols

STEROWANIE PRZYCISKAMI

Technical line drawing of a mechanical or electronic device with no visible text, numbers, or symbols.

AKCESORIA

Line drawing of a flat-screen monitor with a stand at the bottom (no text or symbols)

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross symbol crossed out, next to a rope tied to a cloth (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three prohibition symbols (no text or labels)

Cartoon illustration of a person holding a crossed-out monitor with a 'X' symbol, no text or symbols present

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a person running away from a computer screen with a circular object nearby (no text or symbols)

Three mechanical bracket components shown in line drawing style (no text or symbols)

1

Isometric line drawing of a multi-level building or warehouse layout with structural elements (no text or labels)

2

Technical line drawing of a mechanical assembly with no visible text or symbols

ПРИМИТКА

NOTE

Technical line drawing of a mechanical assembly with no visible text or symbols

КНОПКА КОНТРОЛЮ

Technical line drawing of a mechanical assembly with no visible text or symbols

АКСЕСУАРИ:

Line drawing of a flat-screen monitor with a stand at the bottom (no text or symbols)

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross symbol crossed out, next to a rope tied to a cloth (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three circular icons with prohibition symbols (no text or labels)

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a person running away from a computer screen with a circular object nearby (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ПРИМЕЧАНИЕ

ПРИМЕЧАНИЕ

Technical line drawing of a mechanical assembly with a cable and power outlet (no text or symbols)

Technical line drawing of a vehicle chassis with overhead power button and control panel (no text or symbols)

ПРИНАДЛЕЖНОСТИ

Line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross symbol crossed out, next to a rope tied to a cloth (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three circular icons with prohibition symbols (no text or labels)

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Illustration of a woman running away from a computer screen next to a circular object with a flag (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTĂ

NOTE

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Porniti televizorul:

CONTROL BUTON

Technical line drawing of a mechanical assembly with no visible text or symbols

ACCESORII

Telecomandă - 1 buc

Manual de utilizare - 1 buc
