Accessoires

Thank you for buying a BRANDT product and for your confidence in our company.

This product has been designed and manufactured for you considering your lifestyle and your requirements, so that it meets your expectations in the best way possible. We have invested it with our expertise, spirit of innovation and all the enthusiasm which has driven us for more than 60 years.

So that we are always able to satisfy your requirements as well as possible, our customer service is available, ready to listen and answer all your questions or suggestions

You can also visit our website www.brandt.com where you will find our latest innovations as well as additional useful information.

BRANDT is happy to support you daily and hopes you will enjoy your purchase to the full.

Important: Before starting your machine, please read this guide for installation and use carefully in order to familiarise yourself with how it operates quickly.

CONTENTS

1) FOR THE USER'S ATTENTION.... 15

a) Safety Instructions.... 15
b) Technical Data: 17
c) Environmental Protection.... 18

2) INSTALLING YOUR APPLIANCE 19

a) Description of your appliance.... 19
b) Assembling your appliance safely 20

3) USING YOUR VACUUM CLEANER....20

a) Instructions 20
b) Charging the vacuum cleaner 21
c) Care....21

4) PROBLEM-SOLVING 22

1) FOR THE USER'S ATTENTION

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY AND KEEP FOR FUTURE USE

This appliance is intended to be used for domestic and other related applications, such as:

• staff kitchen areas in shops, offices and other professional environments;
• farms;
• use by guests in hotels, motels and other residential environments;
• environments such as bed and breakfast accommodation.
• Keep these instructions with your appliance. If you sell this appliance to another person second-hand, make sure you give the new owner these instructions. Please read these instructions before installing and using your appliance. They are written for your safety and that of others.

a) Safety Instructions

Installation

The appliance should only be used with the power supply that is provided.

The appliance should only be powered using a very low safety voltage, in line with that which is indicated on the appliance.

Check that the power supplied is 220-240V.

Use

This appliance may be used by children aged 8 and over and by people with reduced physical, sensory or mental capacities or without experience or knowledge, if they are properly supervised or if they have been given instructions about using the appliance safely and if they have understood the risks involved.

Keep the appliance and its lead out of reach of children under the age of 8.

Children must not play with the appliance.

Do not vacuum wet surfaces, water, liquids, or products or materials that are flammable.

Do not vacuum very ultra fine substances (ashes, cement...).

Do not use the appliance without a filter, as you risk damaging the motor.

Do not clean or use the vacuum near anywhere that is very hot.

If there is an unusual noise, a smell, smoke or any other sign of deterioration during use, turn the appliance off and unplug it. Do not try to repair it.

Maintenance

- Cleaning and maintenance by the user should not be carried out by children without supervision.

- The power cable's plug should be removed from the socket before cleaning the appliance or undertaking maintenance work.

- If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or any other similarly qualified person to avoid any dangers.

- Clean the filters when they are clogged.

- This product is guaranteed by your distributor. For more details please refer to the guarantee conditions provided by your distributor.

Specific instructions applicable to batteries

Adapter model	ZD012A350040EU
Adapter input	100-240V 50Hz 0.5A
Adapter output	35VDC / 400mA

• WARNING: To recharge the battery, only use the removable power unit provided with the appliance.
• This appliance contains batteries that cannot be replaced.

Charging operation

To charge the vacuum cleaner, turn off the unit and place it on its charging base. Then plug the adapter into an electrical outlet and wait 4h30 for a full charge.

Non-compliant use

- The manufacturer denies all responsibility in the event of non-compliant use.

b) Technical Data:

Model	ASB20B/ ASB20R/ ASB20W
Power supply	100-240 V~50 Hz
Energy consumption	350W
Dimensions mm (HxWxD)	1100 x 260x 160mm
Net weight	2,70kg

c) Environmental Protection

This appliance's packaging is recyclable. Recycle it, disposing of it in the relevant local recycling containers in order to help protect the environment.

Your appliance also contains various recyclable materials. Therefore, it is stamped with this logo to indicate that used appliances should not be mixed with other waste. The manufacturer will organise to have your appliance recycled under the best possible conditions, complying with the applicable European directive related to electrical and electronic waste. Contact your local council or your retailer to find out where the points for the collection of used appliances nearest to your home are.

Thank you for your help in protecting the environment.

2) INSTALLING YOUR APPLIANCE

a) Description of your appliance

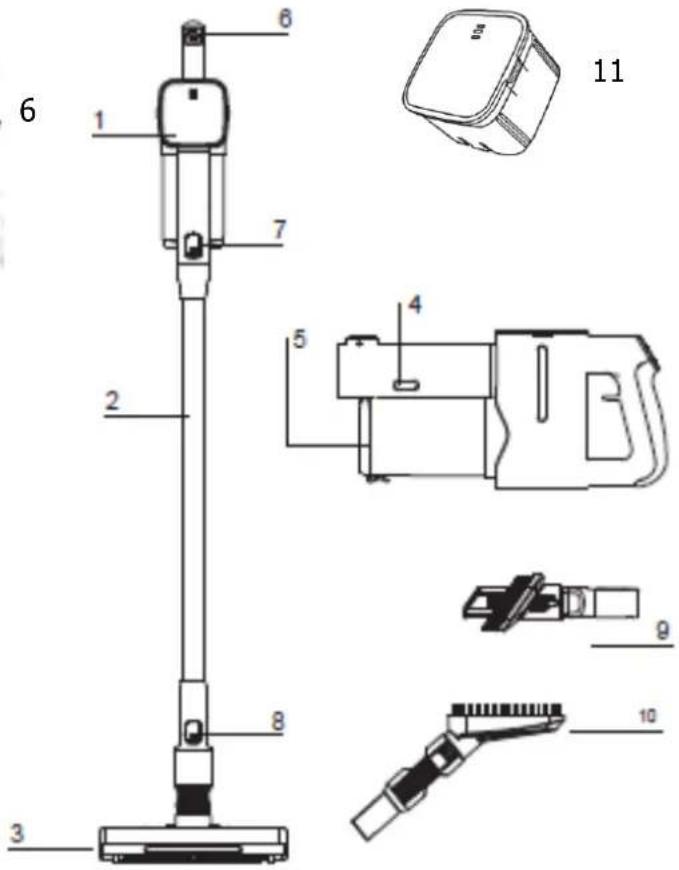

Technical diagram of a hair dryer with numbered parts and exploded view, including front panel, internal components, and cable assembly.

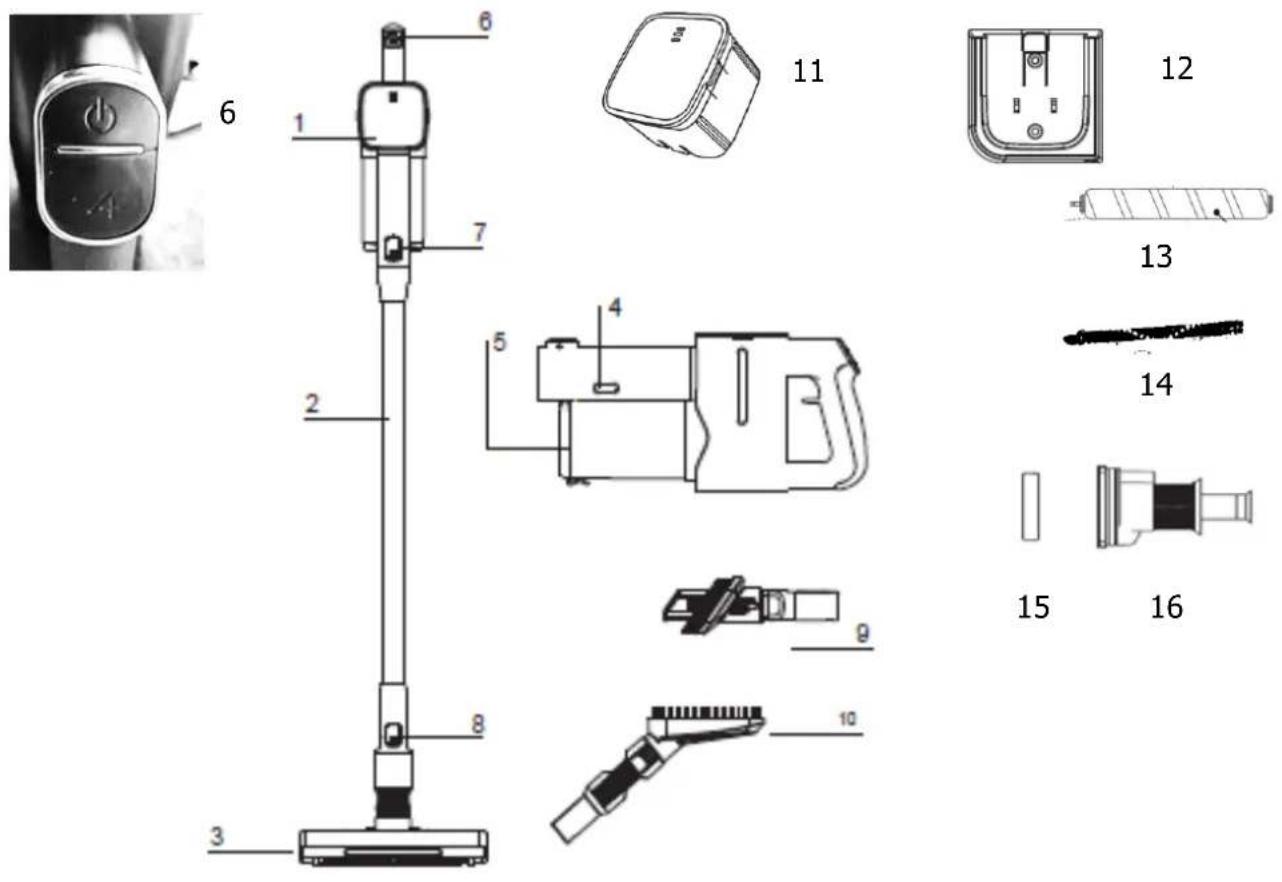

1. Engine block
2. Tube
3. Motor-driven brush with LED lighting
4. Dust bin locking button
5. Dust bin
6. On/Off/Speed selector button
7. Tube/pipe locking button

8. Motor-driven brush locking button

9. 2-in-1 suction nozzle

10. Furniture brush
11. Battery
12. Wall-mounted charging cradle
13. Soft roller
14. Hard bristle roller
15. Fabric filter
16. Engine filter

b) Assembling your appliance safely

Before assembly, verify that all of the appliance's components are present.

The appliance must not be connected to an electrical socket when assembling.

Assembly of the motor-driven brush and tube

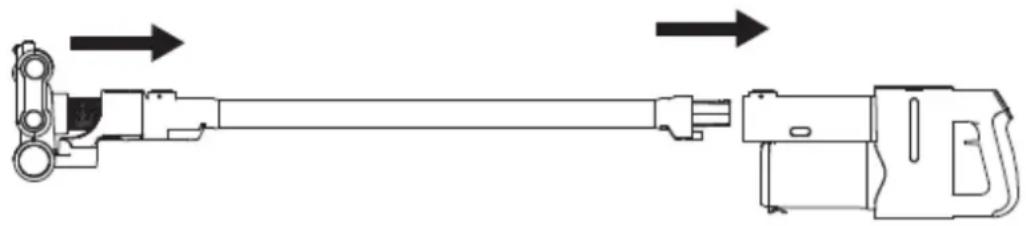

Insert the motor-driven brush into the tube until you hear a "click". To remove it, hold the brush and press the button (diagram 1).

Insert the tube into the compartment until you hear a "click". To remove it, hold the tube and press the button (diagram 2).

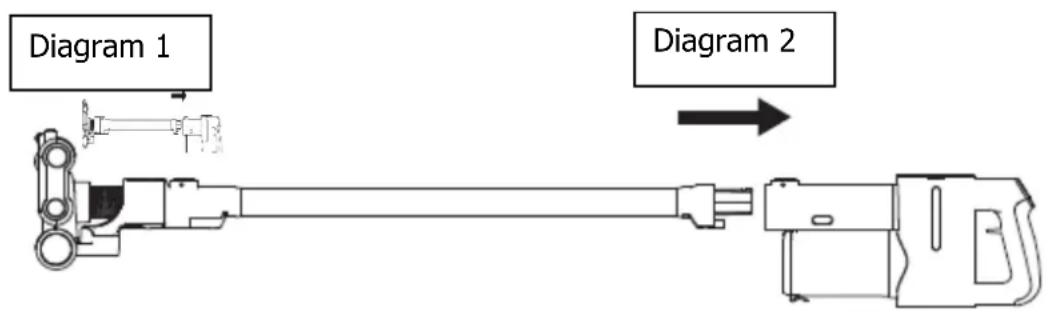

Diagram 1 Diagram 2

Assembly of accessories

The 2-in-1 suction nozzle and the furniture brush can be inserted instead of the tube or the motor-driven brush.

1. When the battery is fully charged, the appliance can be used. 3 light signals on the battery will come on.

Ensure that it has been charged for 5 hours prior to using for the first time.

1. Using the vacuum cleaner:

2. press the button ⏻ on the handle of the appliance for speed 1

3. then press the central button “-/+” for the second speed
4. press the central button "-/+" to return to speed 1
5. press the Power button to stop the appliance.

The brush vacuum cleaner has a brush fitted with LED lighting which makes it possible to see dust and dirt in dark places.

1. When the light signals go off, switch off the vacuum cleaner to recharge it.

b) Charging the vacuum cleaner

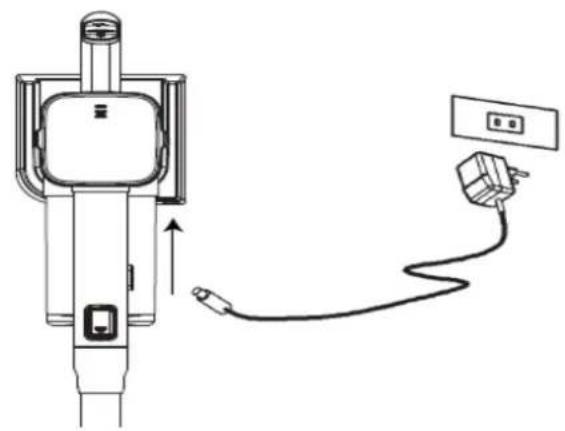

Switch off the vacuum cleaner and put the body of the appliance in the charging base, then plug the adapter into an electrical socket. It takes 5 hours for a full charge.

Diagram of a device with a cable and power outlet, showing no text or symbols

Suggestion: in the event of a long period without using the vacuum cleaner, charge the appliance at least once per week.

1. It is not recommended to remove the battery from its position when charging the appliance. Charging must only take place as indicated above.

2. The battery must not be removed from its position when charging the appliance.

3. The battery's performance (vacuuming time, charging time) may decrease after 500 cycles.

c) Care

• Cleaning the dust bin and the filters

Technical line drawing of a mechanical device with exploded view and assembly process (no text or symbols)

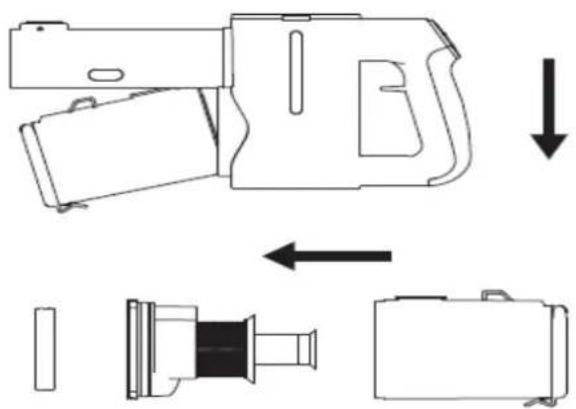

1. Press the dust bin locking button and remove the dust bin.
2. Lift up the filters and empty the dust bin.
3. Clean the filters with water and leave to dry.
4. Carefully put the filters back in the dust bin.
5. Put the dust bin back in the vacuum cleaner.

• Cleaning the rotary brush

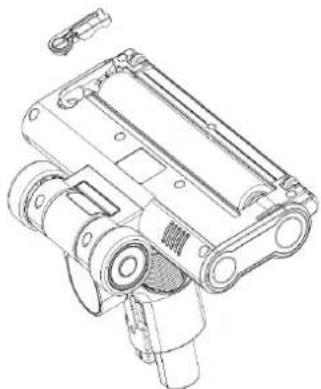

1. Turn the screw located under the brush to unlock it (see illustration).
2. Open the brush fastening part.
3. Remove the pivoting part of the rotary brush and clean it.
4. Put the rotary brush back.
5. Turn the screw located under the brush to lock it again.

Technical line drawing of a mechanical device with no visible text or symbols

4) PROBLEM-SOLVING

Problem	Possible reason	Action
The engine does not start.	-Plug not plugged correctly into the socket.-Damaged plug-Appliance switched off	-Correctly plug in the plug.-Verify the plug.-Switch on the appliance.
The vacuum power has decreased.	-Appliance obstructed-Filters need to be cleaned-Dust bin not in place-Filters are obstructed-The battery has reached 500 cycles and is weak	-Remove the source of obstruction.-Clean the filters.-Close the dust bin.-Clean the filters-Change the battery.
Impossible to close the dust bin.	Filters not in place	Put the filters back in place and try again.
