Supremo FM6 850W - PC Power Supply ENDORFY - Free user manual and instructions

Product type	PC ATX Power Supply
Brand	ENDORFY
Model	Supremo FM6 850W
Rated power	850 W
Form factor	Standard ATX
Dimensions (L x W x H)	150 x 140 x 86 mm
Weight	Approximately 2 kg
Wiring type	Fully modular
Fan	135 mm, thermal control
Input voltage	100-240 V AC, 50-60 Hz
80 PLUS certification	Gold
Protections	OVP / UVP / OCP / OPP / SCP / SIP
Main connectors	1x ATX 24-pin, 2x EPS 4+4-pin, 4x PCIe 6+2-pin, 8x SATA, 4x Molex
Intended use	Indoors, normal humidity
Maintenance	Clean with a dry cloth only
Spare parts	Not user-serviceable
Warranty	According to manufacturer's conditions, void if opened
General information	Do not expose to water, do not open the case

Frequently Asked Questions - Supremo FM6 850W ENDORFY

What is the power of the Supremo FM6 850W?

This model delivers a continuous power of 850 watts, sufficient for high-end gaming and professional configurations.

Is this power supply compatible with my ATX motherboard?

Yes, it complies with the standard ATX form factor and includes a 24-pin main connector compatible with all recent ATX motherboards.

Is the cabling modular?

Yes, the ENDORFY Supremo FM6 850W is fully modular: you only connect the necessary cables, which facilitates storage and improves airflow.

Which cables are included?

The bundle includes: 1 ATX 24-pin cable, 2 EPS 4+4-pin cables, 4 PCIe 6+2-pin cables, 8 SATA cables, 4 Molex cables, and a power cord.

Is the fan quiet?

Yes, it is equipped with a 135 mm thermal control fan that spins slowly at low load, offering near-silent operation.

What safety protections are included?

The power supply includes protections: OVP (overvoltage), UVP (undervoltage), OCP (overcurrent), OPP (overpower), SCP (short circuit), and SIP (surge inrush current).

Can I use this power supply outdoors?

No, this device is designed for indoor use with normal air humidity only.

How to clean the power supply?

Use a clean, dry cloth to clean the exterior. Never touch the device with wet hands and do not clean the interior.

Where can I find spare parts?

The power supply contains no user-serviceable parts. In case of a problem, contact ENDORFY technical support or return the product to the service center.

What to do if the power supply is damaged?

If the case is damaged or the product has been dropped, unplug immediately and contact ENDORFY support. Do not use a damaged product.

USER MANUAL Supremo FM6 850W ENDORFY

Front view of a black CPU socket with ventilation fan and grid patterns (no visible text or symbols)

EY7A012

More at

www.endorfy.com

Designed by ENDORFY

COOLING SP.Z.O.O.

UL.SOKOŁOWSKA 24

05-806 SOKOŁÓW, POLSKA

TEL.[phone]

MADE IN CHINA

We are all technology heroes

ENDORFY.COM/KNOWLEDGE-BASE

Icon depicting a document with a gear symbol, no text or symbols present

Blue curved arrow pointing right, no text or symbols present

SCAN THE QR CODE

QR code image containing encoded data, no visible human-readable text

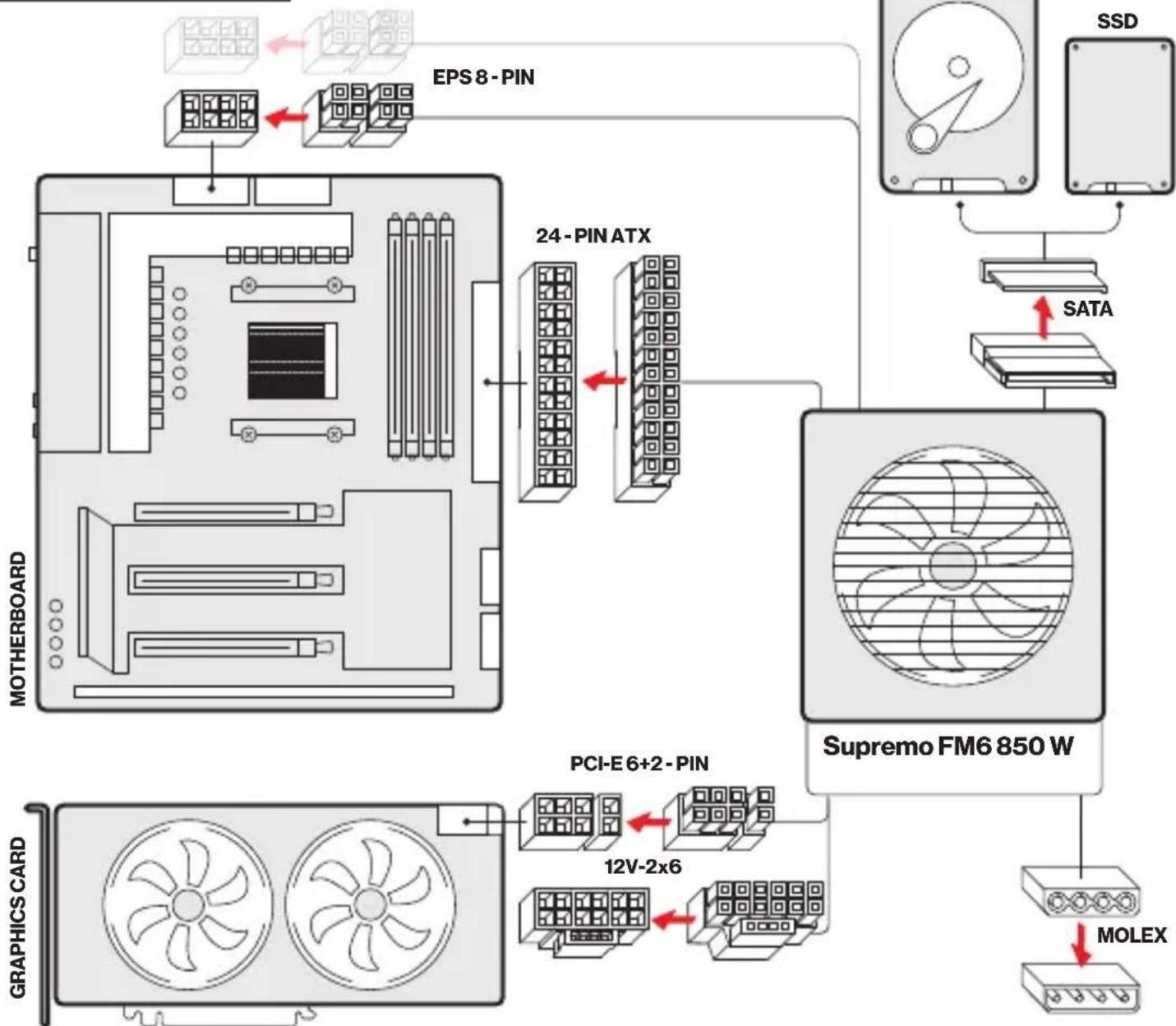

CONNECTING THE PSU
        B
        C
        D
        E
        F
        G
        H
        I
    end

POWER OUTPUT

AC input 100-240 VAC, 13.0-6.5 A, 50-60 Hz

DC output	+12 V	+3.3 V	+5 V	-12 V	+5 VSB
Max current	70 A	20 A	20 A	0.3 A	3 A
Max combined power	840 W	100 W		3.6 W	15 W
	850 W

ErP Lot 6 Ready. Low power C6/C7 sleep state compatible. Active PFC.

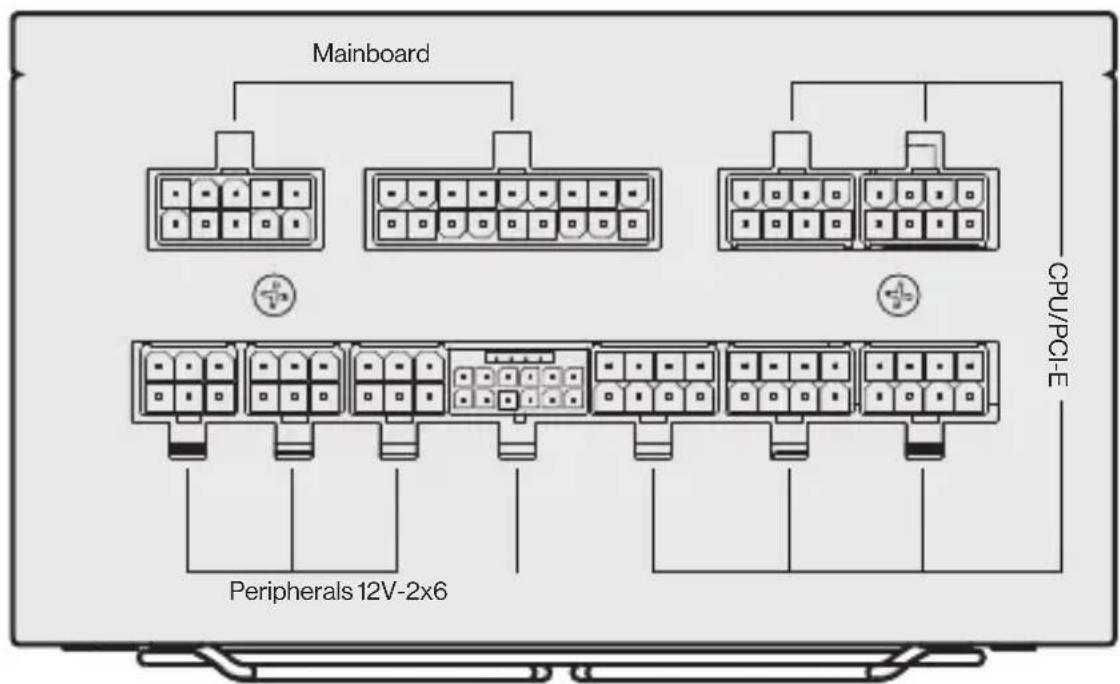

MODULAR INTERFACE

Mainboard CPU/PCI-E Peripherals 12V-2x6

Supremo FM6 850 W

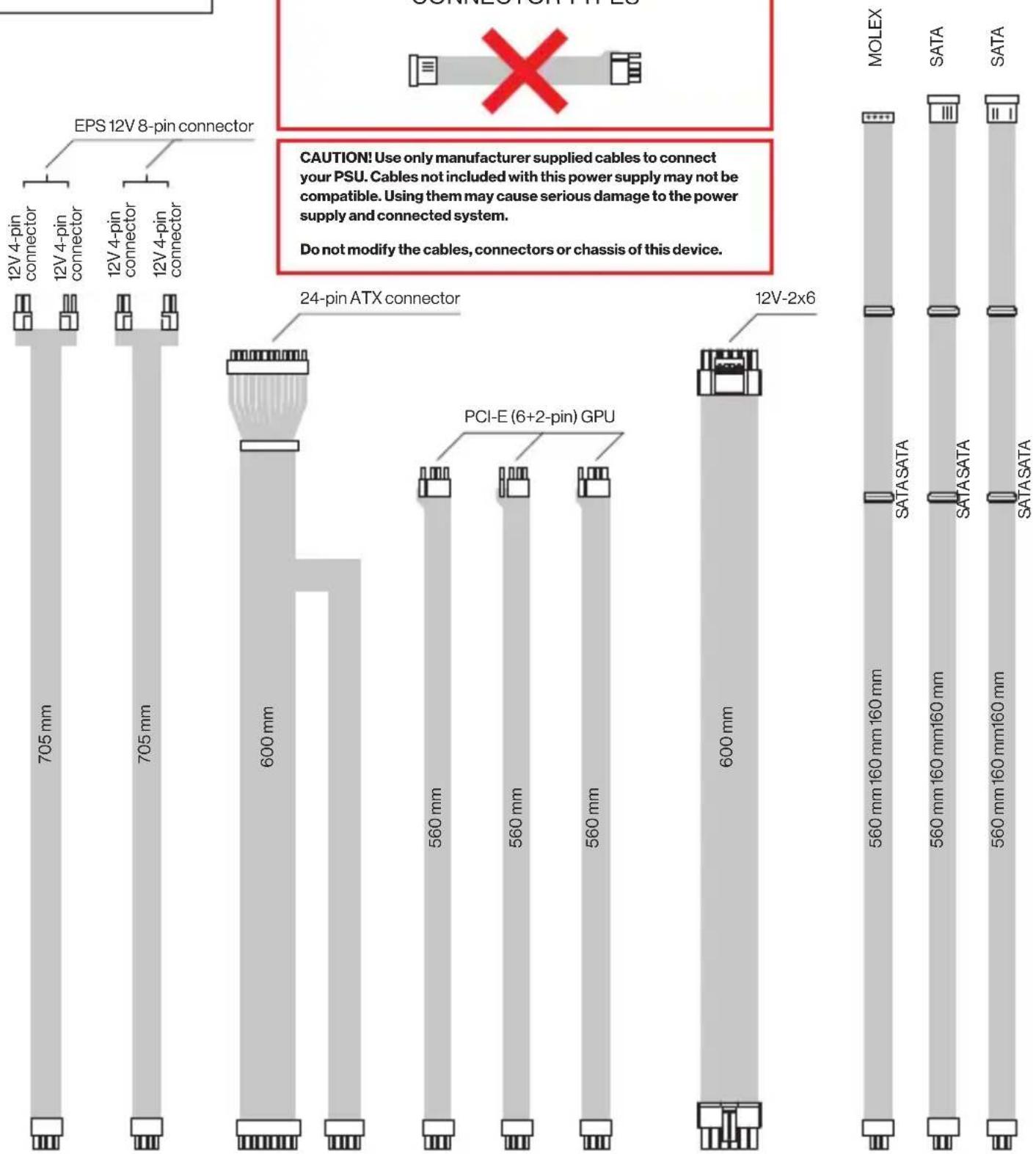

INCLUDED CABLING

EPS 12V 8-pin connector 705 mm 705 mm 600 mm 24-pin ATX connector PCI-E (6+2-pin) GPU 560 mm 560 mm 560 mm 600 mm 12V-2x6 MOLEX SATA SATA SATA SATA 560 mm 160 mm 160 mm 560 mm 160 mm 160 mm 560 mm 160 mm 160 mm SATA SATA

DO NOT USE ADAPTERS TO OTHER CONNECTOR TYPES

Diagram showing a red 'X' symbol crossed by two document icons, indicating cancellation or error.

CAUTION! Use only manufacturer supplied cables to connect your PSU. Cables not included with this power supply may not be compatible. Using them may cause serious damage to the power supply and connected system.

Do not modify the cables, connectors or chassis of this device.

AUX 12V-2x6 POWER CONNECTION

Technical line drawing of a mechanical assembly with no visible text or symbols

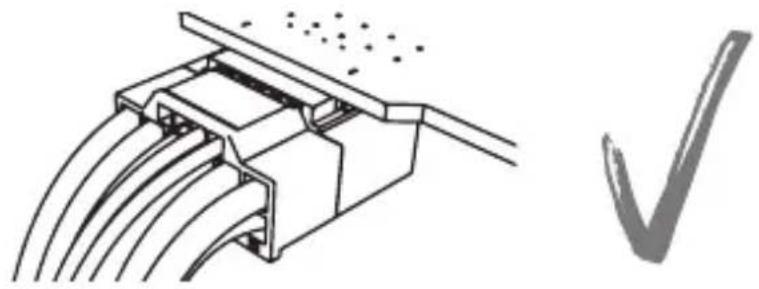

Faces of the plug and the receptacle must meet.Plug in the video

Technical illustration of a mechanical connector with multiple wires and a checkmark symbol (no text or labels)

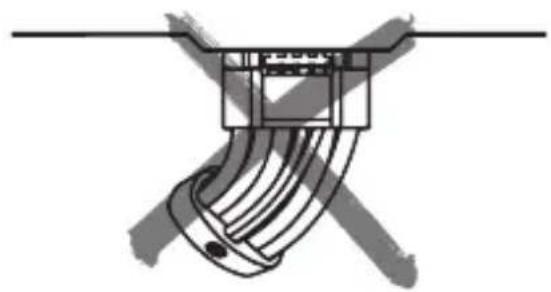

Do not bend the cable horizontally:

Pure mechanical component diagram without any text, numbers, or symbols

Pure electrical connector diagram without any text, numbers, or symbols

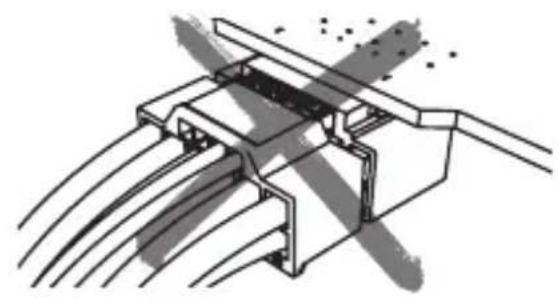

Make sure to plug all the connectors all the way in, until the outer surfaces meet.

Do not bend the cable in tight radius.

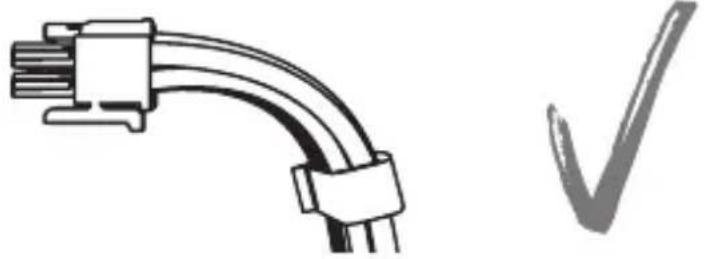

Included cable ties can be moved along the cable.

This cable is configured to advertise 600 W available power to the video card. Actual power available is limited by the capabilities of the connected power supply. You must follow the video card manufacturer's recommendations for power supply capacity.

1. The product should be used as intended. Incorrect use may damage the product and be dangerous to your health.
2. Make sure that the product is in good working order before using it.
3. The warranty does not cover mechanical damage to the product.
4. This device is intended for indoor use, under normal humidity conditions. Do not use it outdoors.
5. Do not install and use the device within reach of children.
6. To prevent damage from condensation, allow the device to warm up to ambient temperature before use.
7. Clean only with a dry, clean cloth. Do not handle with wet hands.
8. No user-serviceable components inside. Return to authorized service center for repairs.
9. Opening the device or modifying it will void the warranty.
10. Do not use the product near liquids or in places where it may be directly exposed to liquids. If the device comes into contact with any liquids, immediately disconnect it from the power source.
11. In the event of a malfunction, disconnect it from the power source immediately and contact ENDORFY Technical Support.
12. Do not discard electrical and electronic equipment together with other household waste.
13. The end user is responsible for correct disposal of unnecessary or faulty electrical equipment by returning it to the collection point or to the seller. Contact local authorities or the store where you purchased the product for additional information.
14. CAUTION! Use only manufacturer supplied cables to connect your PSU. Cables not included with this power supply may not be compatible. Using them may cause serious damage to the power supply and connected system.
15. Do not open the power supply case. Hazardous voltage levels inside may be present even after disconnecting the power supply from its power source.
16. Do not modify the cables, connectors or chassis of this device.
17. This device requires adequate ventilation. Do not cover ventilation openings. Do not insert objects into openings.
18. Do not install this device near heating devices.
19. Do not install or remove the power supply unit while it is connected to the mains.

The above symbol means that, according to applicable regulations, this product and its battery (if included) should not be disposed of with other household waste. At the end of its life, the product should be taken to a special collection point designated by the relevant local authorities. The separate collection and recycling of products and batteries helps to save natural resources and ensures that the recycling process is safe for human health and the environment.
