Brand	Rowenta
Model	Powerline RH7648
Vacuum cleaner type	Canister vacuum with bag
Suction power	Variable (power control)
Bag type	Hyperfiltration bag (ref. ZR0050)
Bag capacity	Not specified
Filtration	Microfilter (ref. ZR0050) or HEPA filter cassette (ref. RS-RH5024)
Bag full indicator	Yes
Included accessories	2-position nozzle, parquet nozzle, upholstery nozzle, crevice nozzle, mini Turbo Brush*, maxi Turbo Brush*, extension wand, transport strap*
Power cord length	Not specified
Power supply	Mains, voltage according to installation
HEPA filter maintenance	Cleanable by tapping, replace every 6 months
Microfilter maintenance	Replace every 5 bag changes
Warranty	Household use only, warranty void if used improperly
Weight	Not specified
Dimensions	Not specified
Safety standards	Complies with Low Voltage and Electromagnetic Compatibility directives
Spare parts and repairability	Repairs by Authorized Service Center only, original parts recommended

Frequently Asked Questions - Powerline RH7648 ROWENTA

How to change the bag of the Rowenta Powerline RH7648 vacuum cleaner?

Press the door opening button (7) to open the bag compartment (9). Remove the full bag by pulling the cardboard tab. Discard it. Insert a new hyperfiltration bag (ref. ZR0050) by pushing the tab until it clicks. Close the door. The bag full indicator (6) should turn off.

How often should the HEPA filter be replaced?

The HEPA filter cassette (ref. RS-RH5024) should be replaced approximately every 6 months, depending on usage frequency. You can clean it by tapping it over a trash bin between replacements.

What to do if suction power decreases?

First check if the bag is full or saturated: replace if necessary. Also check that the filters (microfilter or HEPA) are not clogged; clean or replace them. Make sure no accessory or tube is blocked. Finally, the power control (3) should be set to an appropriate position (max for floors, min for delicate fabrics).

How to clean the HEPA filter?

Turn off and unplug the vacuum. Open the filter compartment (4) and remove the HEPA filter cassette. Gently tap it over a trash bin to remove dust. Replace the cassette ensuring it is properly engaged, then close the cover. This cleaning is only for the HEPA cassette; do not wash it with water.

What types of filters are compatible with this vacuum?

The Rowenta Powerline RH7648 accepts either a microfilter (ref. ZR0050) or a HEPA filter cassette (ref. RS-RH5024). Both filters are located in the same housing (5) and are interchangeable. Use only genuine Rowenta filters.

How to use the power control?

The power control (3) is on the handle. In Max position, suction is maximum for hard floors and carpets. In Min position, power is reduced for delicate fabrics like curtains or sofas. Adjust it according to the surface to clean.

What does the red bag full indicator mean?

The bag full indicator (6) turns red when the bag is full or saturated with fine dust. This indicates that the bag needs to be replaced. If the indicator remains red after changing the bag, check that the bag is properly installed and that the filters are not clogged.

What accessories are included with the vacuum?

Depending on the version, the vacuum may include: a 2-position nozzle (smooth floors/carpets), a parquet nozzle, an upholstery nozzle, a crevice nozzle, a mini Turbo Brush, a maxi Turbo Brush, an extension wand, and a transport strap. Consult the manual for the exact list.

What are the essential safety instructions?

Never vacuum liquids, hot substances, ashes or sharp debris. Do not immerse the appliance in water. Keep it out of reach of children under 8 years old. Always unplug the appliance before maintenance. Do not use the vacuum if the cord is damaged; have it repaired by an Authorized Service Center.

Where can I find spare parts or get my vacuum repaired?

For spare parts (bags, filters, accessories), contact Rowenta Consumer Service at 0 810 623 623 or by email at [e-mail]. Repairs must be carried out by an Authorized Rowenta Service Center to ensure your safety and preserve the warranty.

USER MANUAL Powerline RH7648 ROWENTA

Exterior view of a power lister vacuum cleaner (no signage or text visible on body)

italiano

DESCRIZIONE 1

GARANZIA 1

CLEANING AND MAINTENANCE 10

ADVICE AND PRECAUTIONS 11

WHAT TO DO IF... 12

español

DESCRIPCIÓN 13

GARANTÍA 13

fig. 1

Illustration of a hand using a tool to lift a button into a device (no text or symbols present)

fig. 2

Illustration of a person using a vacuum cleaner on a tiled floor (no text or symbols)

fig. 3

Illustration of hands using a tool to adjust a mechanical component (no text or symbols present)

fig. 4

Simple line drawing of a car on a tiled floor with diagonal lines (no text or symbols)

fig. 5

fig. 6

Hand holding a plug inserted into an electrical outlet socket, with a black arrow pointing to the socket (no text or symbols present)

fig. 7

fig. 8

Illustration of a hand adjusting a circular button labeled '①' with an arrow indicating rotation (no text or symbols beyond the label)

fig. 9

fig. 10

Illustration of a hand holding a coiled cable with a spring, no text or symbols present

fig. 11

Diagram of a mechanical joint or connector with a hand holding a tool, showing motion direction (no text or symbols)

fig. 12

Illustration of a hand operating a mechanical component with arrows indicating motion (no text or symbols)

fig. 13

Mechanical assembly diagram showing a component being inserted into a housing, with an inset close-up of the component (no text or symbols visible)

fig. 14

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

fig. 15

fig. 16

Mechanical component diagram showing a wheel assembly with an arrow indicating direction (no text or symbols)

fig. 17

Diagram of a mechanical component with a highlighted section and arrow indicating direction (no text or symbols)

fig. 18

Diagram of a mechanical device with two circular components and a bracket, showing alignment or assembly (no text or symbols)

fig. 19

Illustration of a hand cleaning a car's seatbelt (no text or symbols)

fig. 20

DESCRIZIONE

Vista esplosa

1 Handle
2 On/Off button
3 Power variator
4 Air exit grid
5 HEPA* filter cassette (ref. RS-RH5024) or microfilter* (ref. ZR0050)
6 Full bag indicator
7 Door opening button
8 Bag compartment door
9 Bag compartment

Zoom on cord rewind

10 Cord

Zoom on back of product

11 Hooks for transport strap*

Accessories\*

12 2-position fitting (smooth floors - carpeting)
13 Parquet nozzle
14 Upholstery nozzle
15 Mini turbo brush*
16 Maxi turbo brush*
17 Crevice tool
18 Extension
19 Hyperfiltration bag (ref. ZR0050)
20 Transport strap*

WARRANTY

• This appliance is for household use only; in the event of inappropriate or non-recommended use, no liability can be accepted and the warranty is cancelled.
• Read the instructions for use carefully before using the appliance for the first time: utilisation not complying with the instructions for use will relieve Rowenta of any liability.

SAFETY ADVICE

For your safety, this appliance complies with applicable standards (Low voltage directions, electromagnetic compatibility, the environment, ...) Read your instructions for use carefully and keep them safe.

1 • Conditions of use

Your vacuum cleaner is an electrical appliance: it must be used under normal conditions of use. Use and store it out of reach of children. Do not allow it to run unsupervised. Do not hold the suction fitting or the end of the hose near the eyes or ears.

Do not use on moist surfaces, or to suck up any liquids, hot substances, ultra-fine substances (plaster, cement, ash...), large or sharp items of waste (glass), harmful products (solvents, descalers...), aggressive products (acids, cleaners ...), inflammable and explosive products (based on petrol or alcohol).

Never place the appliance in water, do not spray water on it and do not store it outside. Do not use it after it has been dropped and does not function normally or has signs of visible damage. In that event do not open it but send it to an authorised Service Centre or contact a Rowenta customer service centre (addresses are on the last page).

This appliance is not designed for use by persons (including children), whose physical, sensory or mental capacities are impaired, or by persons devoid of experience or knowledge, unless they are supervised by a person responsible for their safety, surveillance or have received prior instructions in the use of the appliance. It is necessary to supervise children to ensure that they do not play with the appliance.

This appliance may be used by children aged 8 or over, and by persons lacking

appropriate knowledge and experience or whose physical, sensory or mental capacities are limited, provided that they are supervised, have received instruction in the safe use of the appliance, and are fully aware of the risks involved. Children must not be allowed to play with the appliance. Home cleaning and maintenance of the appliance must not be carried out by children unless they are aged 8 or over and are supervised. Always keep the appliance and power cord out of reach of children under 8 years.

2 • Electrical supply

Ensure that the voltage at which your vacuum cleaner operates is the voltage installed on your premises. Disconnect the appliance by pulling out the plug without pulling the cord: immediately after use, before any change of accessory, every cleaning, servicing or change of filter.

Do not use it if the cord is damaged. The cord winding assembly and the cord of your vacuum cleaner must be replaced by an approved Service Centre because special tools are needed for carrying out any repair in order to avoid danger.

3 • Repairs

Repairs must only be carried out by specialists and using original spare parts. Repairing the appliance oneself may endanger the user and cancels the warranty.

Let us take part in protecting the environment!

① Your appliance contains numerous reusable or recyclable materials.
take it to collection point or in its absence, to an approved service centre for disposal.

BEFORE USE

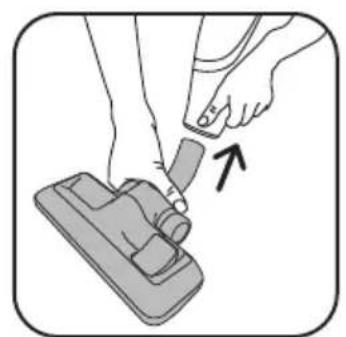

1 • Assemble your vacuum cleaner (fig. 1) - (fig. 2)

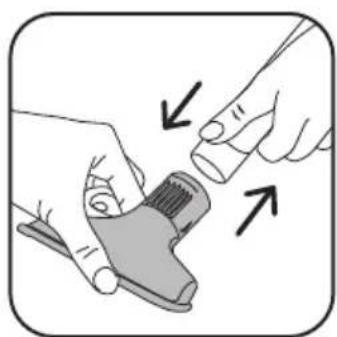

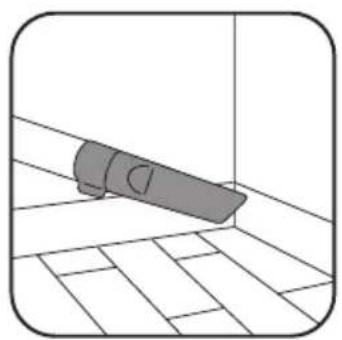

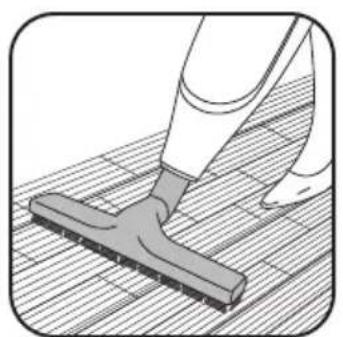

2 • Select the right accessory* (fig. 2) - (fig. 3) - (fig. 4) - (fig. 5)

VACUUMING

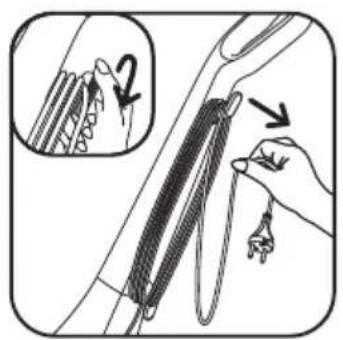

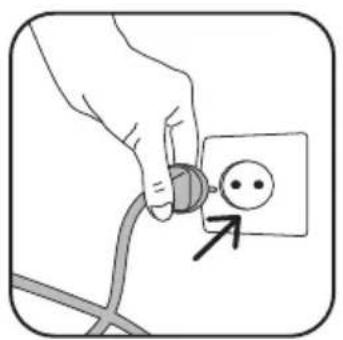

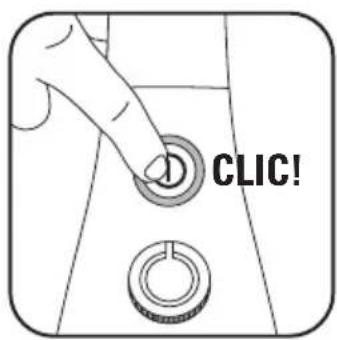

3 • Switch on your vacuum cleaner (fig. 6) - (fig. 7) - (fig. 8)

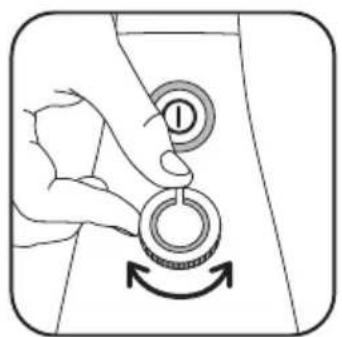

4 • Set the vacuum power (fig. 9)

Max: Floors

Min: Furniture, delicate fabrics...

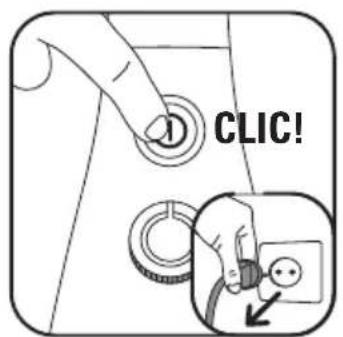

5 • Switch off your vacuum cleaner (fig. 10)

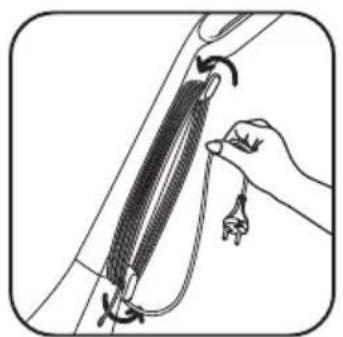

STORAGE (fig. 11)

CLEANING AND MAINTENANCE

The air we breathe contains particles, which may cause allergies; the larvae and waste of mites, moulds, pollen, smoke and animal residues (hair, skin, saliva, urine). The finest particles penetrate into the respirator where they may cause inflammation and completely alter the respiratory function.

HEPA filters (high efficiency particulate air filters, namely high efficiency filters for air-borne particle filters) make it possible to hold back the finest particles. Thanks to the HEPA filter, spent air in the room is cleaner than vacuumed air.

IMPORTANT

Always switch off and disconnect your vacuum cleaner before servicing or cleaning. Check and clean regularly your whole vacuum cleaner and the different filters.

ATTENTION

Never use your vacuum cleaner without the filtration system (microfilter and filter).

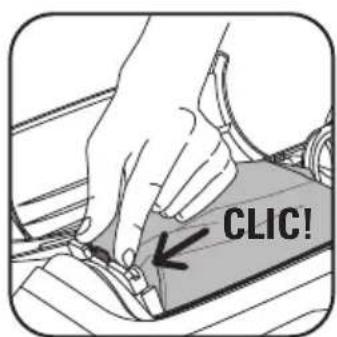

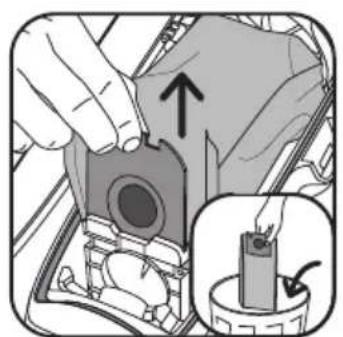

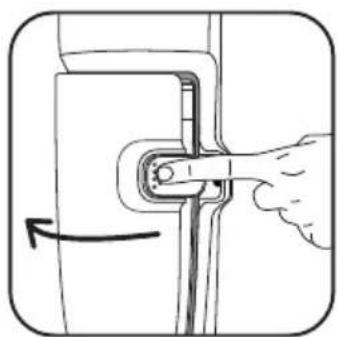

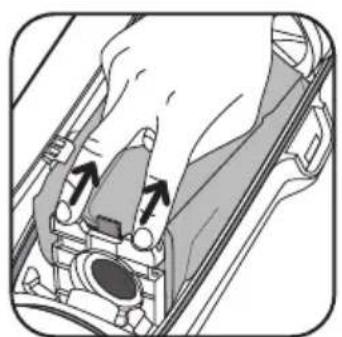

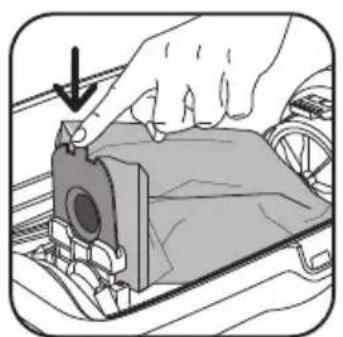

1 • Change the bag (ref ZR0050)

The bag fill indicator (6) tells you that the bag is full or saturated with fine dust. If the power of the vacuum is low with the power set on maximum, replace the bag. (fig. 12) - (fig. 13) - (fig. 14) - (fig. 15) - (fig. 16)

2 • Change the microfilter\* (ref: ZR0050)

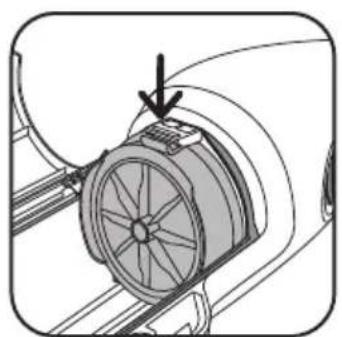

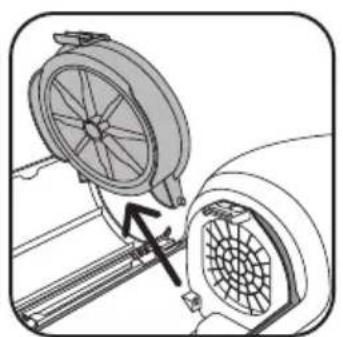

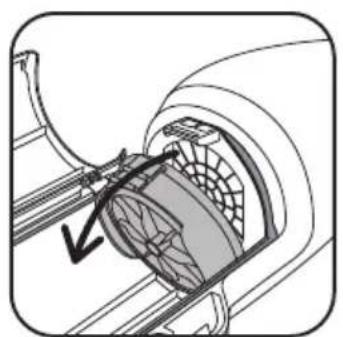

• Remove the microfilter*. (fig. 17) - (fig. 18) - (fig. 19)
• Dispose of the microfilter* into a waste bin replace it with a new microfilter (ref. ZR0050).

Important: Change the microfilter* ZR0050 01 after every 5 changes of the bag.

3 • Change the HEPA filter cassette HEPA\* (ref: RS-RH5024)

• Remove the HEPA filter cassette*. (fig. 17) - (fig. 18) - (fig. 19)
• Dispose of the cassette into a waste bin.
• Lock the new HEPA filter cassette* (ref: RS-RH5024) into its compartment

Important: Replace the HEPA filter cassette RS-RH5024 every six months (depending on frequency of us

4 • Clean the HEPA filter cassette\* (ref: RS-RH5024)

- Remove the HEPA filter cassette*. (fig. 17) - (fig. 18) - (fig. 19)

- Tap the HEPA filter cassette* over a waste bin.

- Reposition the HEPA filter cassette* (ref: RS-RH5024) in its compartment and ensure its correct positioning before re-closing the cover.

Attention! This cleaning is restricted to the HEPA filter cassette * RS-RH5024

5 • Clean your vacuum cleaner

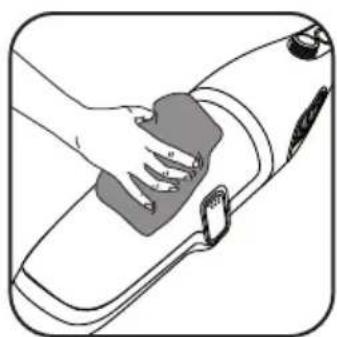

Wipe the body of the appliance and the accessories with a soft damp cloth and then dry. (fig. 20)

ADVICE AND PRECAUTIONS

• Before every cycle of use, the cord must be fully unwound.
• Do not enter corners and do not pass over sharp shards.
• Do not move the vacuum cleaner by pulling the cord, but use the carrying handle.

• Do not lift the appliance by the cord.

• If you are using an extension cable, ensure that it is in perfect condition and matches the power of your vacuum cleaner.

• Do not unplug the appliance by pulling the cord.
• Stop and disconnect your vacuum cleaner after each utilisation cycle.
• Only use dry accessories and original Rowenta bags.
• Verify that all filters are in place.
• Never use without bag and filter.
  • In case of difficulty in obtaining bags and filters for the vacuum cleaner, contact Rowenta Consumer Service on 0845 302 1454

WHAT TO DO IF...

IMPORTANT

When your vacuum cleaner is not working as it should be and before any verification, stop it by using the stop/start pushbutton and unplug.

Your vacuum cleaner will not start or does not suck.	·The appliance is not receiving current: Check that it is correctly connected.·An accessory or the tube is blocked: Unblock the accessory or the pipe.·The cover is badly closed or cannot be closed: Check the position/or the presence of the bag and re-close the cover.
Your vacuum cleaner has less suction power, makes a noise, and whistles.	·An accessory or the tube is partially blocked: Unblock the accessory or the tube.·The bag is full or saturated with fine dust: Replace the bag.·The micro filter* or the HEPA filter* is saturated: Change the micro filter or clean the HEPA filter if 6 months of use have elapsed, otherwise change it following instructions in the notice.·The power control is in minimum position: Increase the power using the power control (except when cleaning fine fabrics).·The suction fitting is difficult to move: Reduce the power using the power control.
The bag fill indicator remains on red.	·The bag is full: Replace the bag.

If a problem persists, take your vacuum cleaner to the nearest approved Rowenta Service Centre. See the list of approved Rowenta Service Centres or contact Rowenta Customer Service: 0845 302 1454
