USER MANUAL ILCE-7C SONY

https://www.sony.net/SonyInfo/Support/

SONY®

5-063-136-12(1)

α7c

α7C

E-mount

"Help Guide" (Web manual)

Refer to "Help Guide" for in-depth instructions on the many functions of the camera.

https://rd1.sony.net/help/ilc/2020/h_zz/

Interchangeable Lens Digital Camera/Startup Guide EN

Appareil photo à objectif interchangeable/Guide de démarrage FR

Digitalkamera mit Wechselobjektiv/Einführungsanleitung DE

Cámara Digital de Lentes Intercambiables/Guía de inicio ES

Fotocamera digitale con obiettivo intercambiabile/Guida di avvio IT

Câmara Digital de Objetivas intercambiáveis/Guia de inicio PT

Digitale camera met verwisselbare lens/Beknopte gids NL

Aparat cyfrowy z wymiennymi obiektywami/Przewodnik uruchamiania PL

Цифровой фотоаппарат со сменным объективом/Руководство по началу работы RU

Цифрова камера зі змінним об'єктивом/Посібник із початку роботи UA

Digitalkamera med utbytbart objektiv/Startguide SE

Digitaalinen kamera vaihdettavalla objektiivilla/Aloitusopas FI

Digitalkamera med utskiftbart objektiv/Startveiledning NO

Digitalkamera med udskifteligt objektiv/Startvejledning DK

5063136120

ILCE-7C

About the manual for this camera

This guide describes the necessary preparations to start using the product, basic operations, etc. For details, refer to the "Help Guide" (web manual).

QR code image containing encoded data, no visible human-readable text

"Help Guide" (Web manual)

https://rd1.sony.net/help/ilc/2020/h_zz/

ILCE-7C Help Guide

Simple line drawing of a laptop and smartphone (no text or symbols)

Looking for valuable information, such as essential points on shooting

This website introduces convenient functions, ways of usage, and setting examples.

Refer to the website when you set up your camera.

QR code image containing encoded data, no visible human-readable text

Tutorials

https://www.sony.net/tutorial/ilc/7c/

Preparations

Checking the supplied items

The number in parentheses indicates the number of pieces.

• Camera (1)
• Rechargeable battery pack NP-FZ100 (1)
• USB Type-C® cable (1)

• Shoulder strap (1)
  • Body cap (1) (attached to the camera)

• Shoe cap (1) (attached to the camera)

• Startup Guide (this manual) (1)
  • Reference Guide (1)

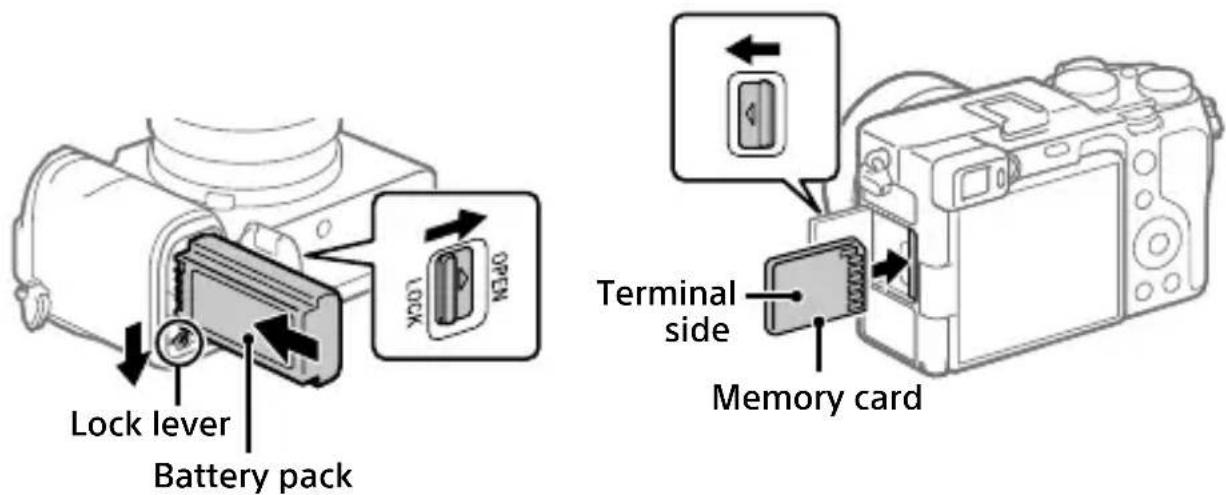

Inserting the battery pack (supplied)/memory card (sold separately) into the camera

Open the battery cover and the memory card cover, insert the battery/memory card, and close the covers.

Lock lever Battery pack 1 OPEN Terminal side Memory card

Battery pack

Make sure that the battery pack is facing in the correct direction, and insert it while pressing the battery lock lever.

Memory card

Insert the memory card with the terminal side facing as illustrated.

This camera is compatible with SD memory cards. For details on the compatible memory cards, refer to the "Help Guide."

When you use a memory card with this camera for the first time, format the card using the camera in order to stabilize the performance of the memory card.

Note

- Formatting erases all data, including protected images and registered settings (M1 to M4). Once erased, this data cannot be restored. Save valuable data to a computer, etc. before formatting.

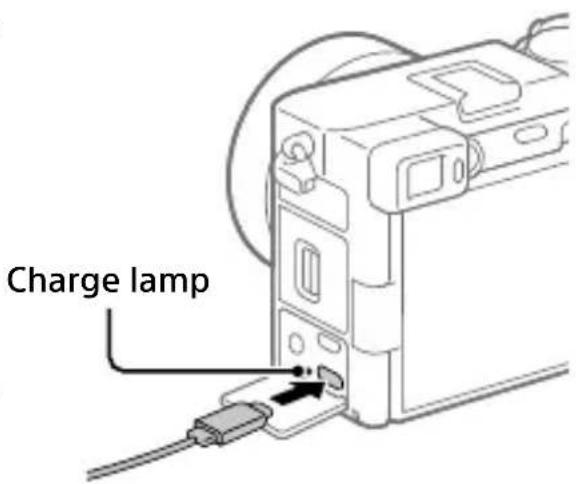

Charging the battery pack

1 Turn the power off.

If the camera is turned on, the battery pack will not be charged.

2 Using the USB Type-C cable (supplied), connect the USB Type-C terminal on the camera to an external power source, such as a commercially available USB AC adaptor or mobile battery.

The charge lamp will light up when charging starts. When the charge lamp turns off, charging is completed.

Charge lamp

- When you use an AC adaptor, use one with a rated output of 1.5 A or higher.

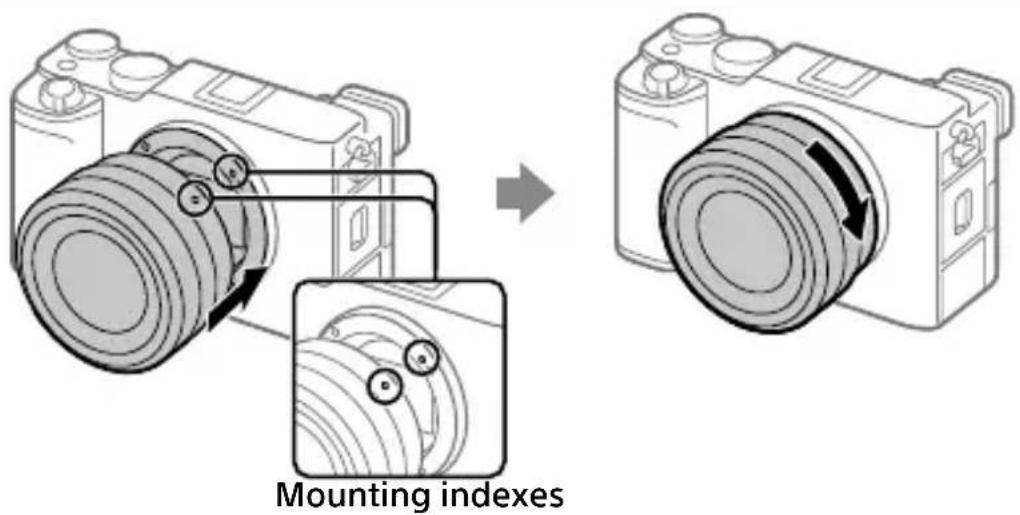

Attaching a lens

Mounting indexes

1 Remove the body cap from the camera and the rear lens cap from the rear of the lens.
2 Mount the lens by aligning the two white index marks (mounting indexes) on the lens and camera.
3 While pushing the lens lightly toward the camera, turn the lens slowly in the direction of the arrow until it clicks into the locked position.

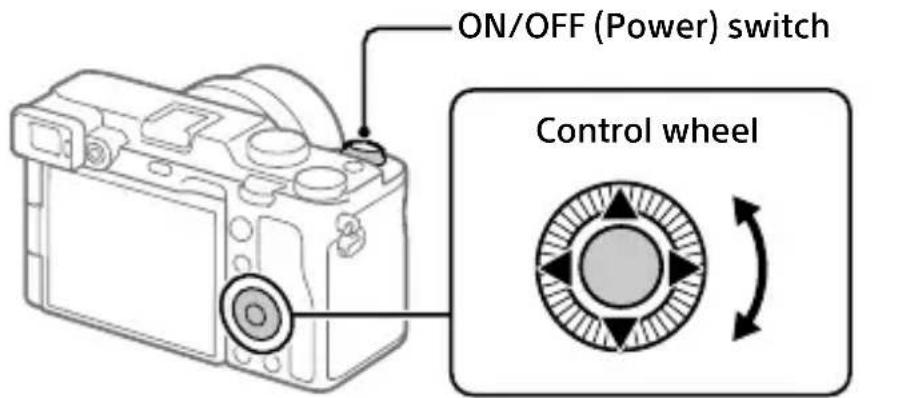

Setting the language and the clock

ON/OFF (Power) switch Control wheel

Select items : ▲/▼/◄/►/▽ Confirm : Center button

1 Set the ON/OFF (Power) switch to "ON" to turn on the camera.
2 Select the desired language and then press the center of the control wheel.
3 Make sure that [Enter] is selected on the screen and then press the center button.
4 Select the desired geographic location and then press the center button.
5 Set [Daylight Savings], [Date/Time], and [Date Format], and then select [Enter] and press the center button.

If you want to reconfigure the date/time or the area setting at a later point, select MENU → ⚙(Setup) → [Date/Time Setup] or [Area Setting].

Shooting

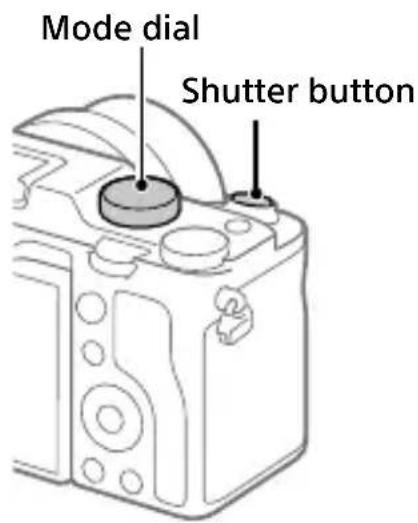

Shooting still images

1 Select the desired shooting mode by turning the mode dial.
2 Press the shutter button halfway down to focus.
3 Press the shutter button all the way down.

Mode dial Shutter button

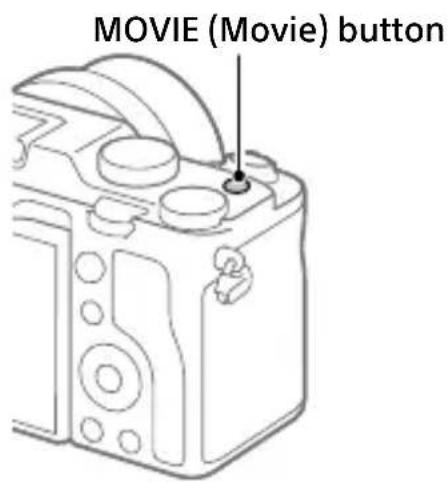

Shooting movies

1 Press the MOVIE (Movie) button to start recording.

Movie recording can be started from any shooting mode in the default setting.

2 Press the MOVIE button again to stop recording.

MOVIE (Movie) button

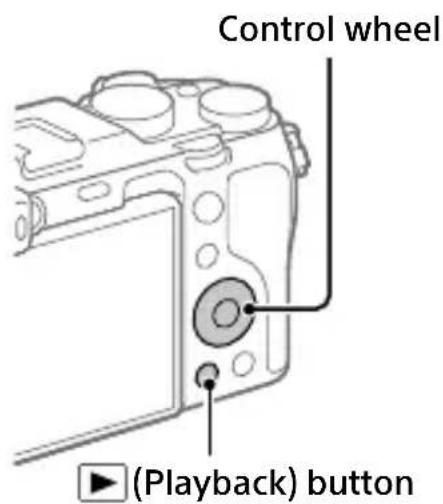

Viewing

1 Press the (Playback) button to switch to the playback mode.

2 Select an image with the control wheel.

You can move to the previous image/ next image by pressing the left/right side of the control wheel.

To start playing back a movie, press the center button on the control wheel.

Control wheel (Playback) button

EN

Transferring images to a smartphone

You can transfer images to a smartphone by connecting the camera and a smartphone via Wi-Fi.

1 : Install Imaging Edge Mobile on your smartphone.

To connect the camera and your smartphone, Imaging Edge Mobile is required.

Install Imaging Edge Mobile to your smartphone in advance.

If Imaging Edge Mobile is already installed on your smartphone, be sure to update it to the latest version.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

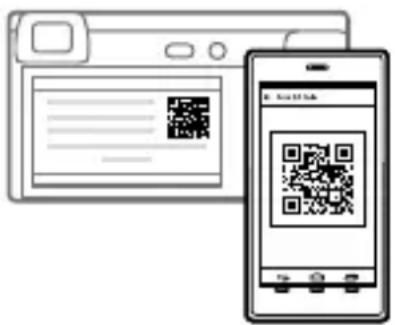

2 Connect the camera and your smartphone using the QR Code.

① MENU → (Network) → [Send to Smartphone Func.] → [Send to Smartphone] → [Select on This Device] → images to transfer. If you want to select images on the smartphone, select [Select on Smartphone].

② : Launch Imaging Edge Mobile on your smartphone, follow the instructions on the screen to select the camera, and then select [Scan QR Code].

③ : Scan the QR Code displayed on the camera using your smartphone.

Two digital devices: a browser displaying a QR code and a smartphone displaying a QR code with text.

3 The selected images will be transferred.

When transferring images after the first time, launch Imaging Edge Mobile, select the camera, and then follow the instructions on the screen of your smartphone.

For details on how to connect to a smartphone, refer to the following support sites:

https://www.sony.net/dics/iem02/

• For details on other connection methods, types of images that can be transferred, or how to use the smartphone as a remote commander to operate the camera, refer to the "Help Guide."
• The Wi-Fi functions introduced in this manual are not guaranteed to operate on all smartphones or tablets.
• The Wi-Fi functions of this camera are not available when connected to a public wireless LAN.

Editing movies on a smartphone

You can edit recorded movies by installing the Movie Edit add-on to your smartphone.

For details on installation and use, refer to the following URL:

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

Managing and editing images on a computer

EN

By connecting the camera to a computer using a USB cable or inserting the camera's memory card into the computer, you can import recorded images to the computer.

You can perform remote shooting from a computer, and adjust or develop RAW images recorded with the camera by using the software suite Imaging Edge Desktop.

For details on the computer software, refer to the following URL. https://www.sony.net/disoft/

Notes on use

Refer to "Precautions" in the "Help Guide" as well.

Notes on handling the product

• This camera is designed to be dust-and moisture-resistant, but is not waterproof or dust-proof.
• Do not leave the lens or the viewfinder exposed to a strong light source such as sunlight. Because of the lens's condensing function, doing so may cause smoke, fire, or a malfunction inside the camera body or the lens. If you have to leave the camera exposed to a light source such as sunlight, attach the lens cap to the lens.
• When you shoot with backlighting, keep the sun sufficiently far away from the angle of view. Otherwise, the sunlight may enter the focus inside the camera and cause smoke or fire. Even if the sun is slightly away from the angle of view, it may still cause smoke or fire.
• Do not directly expose the lens to beams such as laser beams. That may damage the image sensor and cause the camera to malfunction.
• Do not look at sunlight or a strong light source through the lens when it is detached. This may result in unrecoverable damage to the eyes or cause a malfunction.
• This camera (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this camera close to persons who use such medical devices. Consult your doctor before using this camera if you use any such medical device.
• Do not leave the device parts within the reach of infants. It may cause an accident or injury.

Notes on the monitor and electronic viewfinder

• The monitor and electronic viewfinder are manufactured using extremely high-precision technology, and over 99.99% of the pixels are operational for effective use. However, there may be some small black dots and/or bright dots (white, red, blue or green in color) that constantly appear on the monitor and electronic viewfinder. These are imperfections due to the manufacturing process and do not affect the recorded images in any way.
• When shooting with the viewfinder, you may experience symptoms such as eyestrain, fatigue, motion sickness, or nausea. We recommend that you take a break at regular intervals when you are shooting with the viewfinder.
• If the monitor or electronic viewfinder is damaged, stop using the camera immediately. The damaged parts may harm your hands, face, etc.

Notes on continuous shooting

During continuous shooting, the monitor or viewfinder may flash between the shooting screen and a black screen. If you keep watching the screen in this situation, you may experience uncomfortable symptoms such as feeling of unwellness. If you experience uncomfortable symptoms, stop using the camera, and consult your doctor as necessary.

Notes on recording for long periods of time or recording 4K movies

• The camera body and battery may become warm with use – this is normal.

• If the same part of your skin touches the camera for a long period of time while using the camera, even if the camera does not feel hot to you, it may cause symptoms of a low-temperature burn such as redness or blistering. Pay special attention in the following situations and use a tripod, etc.

• When using the camera in a high temperature environment

• When someone with poor circulation or impaired skin sensation uses the camera
• When using the camera with [Auto Power OFF Temp.] set to [High]

Notes on using a tripod

Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

Sony lenses/accessories

Using this unit with products from other manufacturers may affect its performance, leading to accidents or malfunction.

Warning on copyrights

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

Notes on location information

If you upload and share an image tagged with a location, you may accidentally reveal the information to a third party. To prevent third parties from obtaining your location information, set

[Location Info. Link Set.] to [Off] before shooting images.

Notes on discarding or transferring this product to others

Before discarding or transferring this product to others, be sure to perform the following operation to protect private information.

- Select [Setting Reset] [Initialize].

Notes on discarding or transferring a memory card to others

Executing [Format] or [Delete] on the camera or a computer may not completely delete the data on the memory card. Before transferring a memory card to others, we recommend that you delete the data completely using data deletion software. When discarding a memory card, we recommend that you physically destroy it.

Note on network functions

When you use network functions, unintended third parties on the network may access the camera, depending on the usage environment. For example, unauthorized access to the camera may occur in network environments to which another network device is connected or can connect without permission. Sony bears no responsibility for any loss or damage caused by connecting to such network environments.

Note on the 5 GHz band for wireless LAN

When using the wireless LAN function outdoors, set the band to 2.4 GHz by following the procedure below. (WW850128 only)

- MENU → (Network) → [Wi-Fi Settings] → [Frequency Band]

How to turn off wireless network functions (Wi-Fi, etc.) temporarily

When you board an airplane, etc., you can turn off all wireless network functions temporarily using [Airplane Mode].

How to turn on or off Wi-Fi function

- Select MENU → (Network) → [Ctrl w/ Smartphone] → [Ctrl w/ Smartphone] → [On] or [Off]. - Select MENU → (Network) → [PC Remote Function] → [PC Remote] → [On] or [Off].

How to turn on or off Bluetooth function

Select MENU → (Network) → [Bluetooth Settings] → [Bluetooth Function] → [On] or [Off].

For Customers in the U.S.A.

For question regarding your product or for the Sony Service Center nearest you, call 1-800-222-SONY (7669).

Supplier's Declaration of Conformity

Trade Name : SONY

Model: WW850128

Responsible Party : Sony Electronics Inc.

Address : 16535 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For Customers in Europe

The power delivered by the charger must be between min 2.5 Watts required by the radio equipment, and max 7.5 Watts in order to achieve the maximum charging speed.

Deactivating the power management function will increase the energy consumption of the product.

For Customers in the UK

STATEMENT OF COMPLIANCE

1. Model No.: ILCE-7C

2. Name and address of the manufacturer's authorised representative: Sony Europe B.V., The Heights, Brooklands, Weybridge, Surrey KT13 0XW, United Kingdom

3. This statement of compliance is issued under the sole responsibility of the manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan

4. Object of the statement: Interchangeable Lens Digital Camera
5. The object of the statement described above is in compliance with the applicable security requirements in Schedule 1 of S.I. 2023 No. 1007 (Product Security)
6. Where applicable, references to the relevant standards used in relation to which compliance is declared:
7. Defined support period for security updates: 2025-12-31
8. Additional information: Note(s):

Signed for and on behalf of: Sony Europe B.V.

Abstract line drawing of a stylized insect-like figure with curved strokes (no text or symbols)

Kris De Pauw
Vice President

Weybridge, 2024-03-18

Sony Europe B.V.

Registered Office: The Heights,

Brooklands, Weybridge, Surrey, KT13 0XW,

United Kingdom · Incorporated in the

Netherlands No. 71682147

The support period for security updates can be found on the page linked below. The date given in this document is as of the time of release.

https://compliance.sony.co.uk

Specifications

Camera

[System]

Camera Type: Interchangeable Lens Digital Camera

Lens: Sony E-mount lens

[Image sensor]

Image format: 35 mm full frame (35.6 mm × 23.8 mm), CMOS image sensor

Effective pixel number of camera: Approx. 24 200 000 pixels

Total pixel number of camera: Approx. 25 300 000 pixels

[Electronic Viewfinder]

Type: 1.0 cm (0.39 type) Electronic Viewfinder

[Monitor]

7.5 cm (3.0 type) TFT drive, touch panel

[General]

Rated input: 7.2 V—, 2.9 W

Operating temperature: 0 to 40°C (32 to 104°F)

Storage temperature: -20 to 55°C (-4 to 131°F)

Dimensions (W/H/D) (Approx.):

124.0 × 71.1 × 59.7 mm

124.0 × 71.1 × 53.5 mm

(from grip to monitor)

5 × 27 / 8 × 23 / 8 in.

5 × 27/8 × 21/8 in.

(from grip to monitor)

Mass (Approx.): 509 g (1 lb 2.0 oz) (including battery pack, SD memory card)

[Wireless LAN]

WW850128 (see name plate on the bottom of camera)

Supported format: IEEE 802.11 a/b/g/n/ac

Frequency band: 2.4 GHz/5 GHz

WW384063 (see name plate on the bottom of camera)

Supported format: IEEE 802.11 b/g/n

Frequency band: 2.4 GHz

[Eco and energy saving]

Power consumption (Off mode): Not available

Power consumption (Standby mode/EN Low power mode): 0.5 W

Power consumption (Networked standby mode): 2.0 W (Bluetooth) / 2.0 W (all terminals and networks connected)

Low power mode activated: Within 20 minutes (default)

Networked standby mode activated: Within 20 minutes (default)

Rechargeable battery pack NP-FZ100

Rated voltage: 7.2 V ---

Recommended USB AC adaptor

Input: 100-240 V, 50/60 Hz

Output: 5 V 7-1.5 A or more

Design and specifications are subject to change without notice.

Trademarks

• XAVC S and XAVC S registered trademarks of Sony Corporation.
- USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.
- Android and Google Play are trademarks or registered trademarks of Google LLC.
- Wi-Fi, the Wi-Fi logo and Wi-Fi Protected Setup are registered trademarks or trademarks of the Wi-Fi Alliance.
• QR Code is a trademark of Denso Wave Inc.
- In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the ^TM or ^® marks may not be used in all cases in this manual.

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

https://www.sony.net/

EN

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Tutoriels

https://www.sony.net/tutorial/ilc/7c/

Préparatifs

Diagram showing a camera with lens and adjustment mechanism, no text or symbols present

Repères de montage

Bouton (Lecture)

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Two digital QR codes displayed side by side: one with a web interface and the other on a smartphone.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

Batterie rechargeable NP-FZ100

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

ILCE-7C Hilfe

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Tutorials

https://www.sony.net/tutorial/ilc/7c/

Vorbereitungen

Diagram showing a camera with lens assembly before and after rotation, illustrating the process (no text or symbols present)

Ansetzindexe

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface and a smartphone displaying a QR code, both displayed with icons.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Tutoriales

https://www.sony.net/tutorial/ilc/7c/

Preparativos

Diagram showing a camera with lens and adjustment mechanism, no text or symbols present

Índices de montura

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface and a smartphone displaying a QR code, both displayed alongside a browser window.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

Dimensiones (An/Al/Pr) (Aprox.):

124,0 × 71,1 × 59,7 mm

124,0 × 71,1 × 53,5 mm

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

ILCE-7C Guida

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Tutorial

https://www.sony.net/tutorial/ilc/7c/

Preparazioni

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface and a smartphone displaying a QR code, both displayed with icons.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

IT

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Tutoriais

https://www.sony.net/tutorial/ilc/7c/

Preparativos

Diagram showing a camera body being adjusted to form a circular component, with no text or symbols present.

Índices de montagem

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface and a smartphone displaying its own QR code.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

2,0 W (Bluetooth) / 2,0 W (todos os PT terminais e redes ligados)

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

ILCE-7C Helpgids

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Zelfstudiematerialen

https://www.sony.net/tutorial/ilc/7c/

Voorbereidingen

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface and a smartphone displaying a QR code, both displayed with icons.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

NL

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Samouczki

https://www.sony.net/tutorial/ilc/7c/

Przygotowania

Diagram showing a camera with lens and adjustment mechanism, no text or symbols present

Wskaźniki mocowania

Line drawing of a digital camera with no text or symbols

Oglądanie obrazów

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface and smartphone displaying a separate QR code.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Учебные материалы

https://www.sony.net/tutorial/ilc/7c/

Подготовка

Diagram showing a camera with lens adjustment before and after, illustrating the process (no text or symbols present)

Метка крепления

Line drawing of a mechanical device with no visible text or symbols

Просмотр

1 Нажмите кнопку

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface and smartphone displaying a separate QR code.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

ILCE-7C Довідка

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Навчальні посібники

https://www.sony.net/tutorial/ilc/7c/

Підготовка

Diagram showing a camera with lens and adjustment mechanism, no text or symbols present

Line drawing of a mechanical device with no visible text or symbols

Перегляд

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

UA

Illustration showing a QR code payment interface and smartphone displaying a separate QR code.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

ILCE-7C Hjälpguide

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Handledning

https://www.sony.net/tutorial/ilc/7c/

Förberedelser

Diagram showing a camera with lens adjustment before and after, illustrating the process (no text or symbols present)

Monteringsmärken

MOVIE (film)-knapp

Uppspelning

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Illustration showing a QR code payment interface and a smartphone displaying a QR code, both connected to a browser window.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

ILCE-7C Käyttöopas

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Opetusohjelmat

https://www.sony.net/tutorial/ilc/7c/

Valmistelut

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

FI

Two digital QR codes displayed side by side: one with a web interface and the other on a smartphone.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

QR code image containing encoded data, no visible human-readable text

"Hjelpeveiledning" (Internett-håndbok)

https://rd1.sony.net/help/ilc/2020/h_zz/

ILCE-7C Hjelpeveiledning

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Veiledninger

https://www.sony.net/tutorial/ilc/7c/

Forberedelser

Kontrollere leverte deler

Tallet i parentes angir antall deler.

• Kamera (1)
  • Oppladbart batteri NP-FZ100 (1)
• USB Type-C®-kabel (1)
• Skulderrem (1)

• Kamerahusdeksel (1) (festet til kameraet)

• Deksel til tilbehørssko (1) (festet til kameraet)

• Startveiledning (denne håndboken) (1)
  • Referanseveiledning (1)

Sette inn batteriet (inkludert) / minnekortet (selges separat) i kameraet

Diagram showing a camera with lens and adjustment mechanism, no text or symbols present

Fatningsindekser

Line drawing of a digital camera with lens and buttons (no text or symbols)

Vise

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

NO

Two digital QR codes displayed on separate devices: one with a web interface and the other with a smartphone.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/

Administrere og redigere bilder på en datamaskin

Du kan importere bilder til datamaskinen ved å koble kameraet til en datamaskin med en USB-kabel eller sette inn kameraets minnekort i datamaskinen.

Nominell spenning: 7,2 V ---

Anbefalt USB- vekselstrømadapter

Inngang: 100 - 240 V, 50/60 Hz

QR code image containing encoded data, no visible human-readable text

https://rd1.sony.net/help/ilc/2020/h_zz/

Simple line drawing of a laptop and smartphone (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Vejledninger

https://www.sony.net/tutorial/ilc/7c/

Forberedelser

MOVIE (Film)-knap

Visning

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/iem/

Two digital devices: a web browser displaying a QR code and a smartphone displaying a QR code.

QR code image containing encoded data, no visible human-readable text

https://www.sony.net/mead/
