USER MANUAL ST-ES-500B Stamony

Diagram of a two-hole black safe with labeled parts: open and closed, showing internal components like door, keypad, and control panel.

Labeled diagram of a refrigerator interior showing key components including controls, keypad, and speaker.

Description of the parameter	Value of the parameter
Product name	ELECTRONIC SAFE
Model	ST-ES-500B
Dimensions (Width x Depth x Height) [mm]	350 x 366 x 500
Weight [kg]	18.15
Type of lock	Electronic with combination + traditional
Power/battery type	4x1.5 V AA
Wall thickness [mm]	2
Protective door thickness [mm]	4
Storage compartment dimensions (Width x Depth x Height) [mm]	345 x 330 x 495

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Please read the instructions before use.
	Recyclable product.
	For indoor use only.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or severe personal injury or death.

The term "unit" or "product" in the warnings and in the description of the instructions refers to the ELECTRONIC SAFE

2.1. Safety

a) CAUTION - THREAT TO LIFE! When cleaning or using the unit, never immerse it in water or other liquids.
b) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
c) Only the manufacturer's service department may repair the product. Do not carry out repairs yourself!

d) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.
e) Keep the packaging and small assembly parts out of the reach of children.
f) Keep the unit away from children and animals.
g) The unit is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the unit.
h) The unit is not a toy. Children should be watched to ensure that they do not play with the unit.

Please note! Keep children and other bystanders safe while operating the unit.

2.2. Safe use of the unit

a) Keep the unit out of the reach of children.
b) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
c) To ensure the designed operational integrity of the unit, do not remove factory-installed covers or loosen screws.
d) When transporting or moving the unit from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the unit is used.
e) Do not tamper with the unit to alter its performance or design.
f) Keep the unit away from sources of fire and heat.

CAUTION! Although the unit has been designed to be safe, with adequate safeguards, and despite the additional safety features provided for the user, there is still a slight risk of accident or injury with the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

The unit is not intended for use in banking businesses or for storing sharp weapons.

The unit is designed to keep items out of the reach of the public.

It is equipped with an electronic lock with a code.

The user is responsible for any damage resulting from misuse.

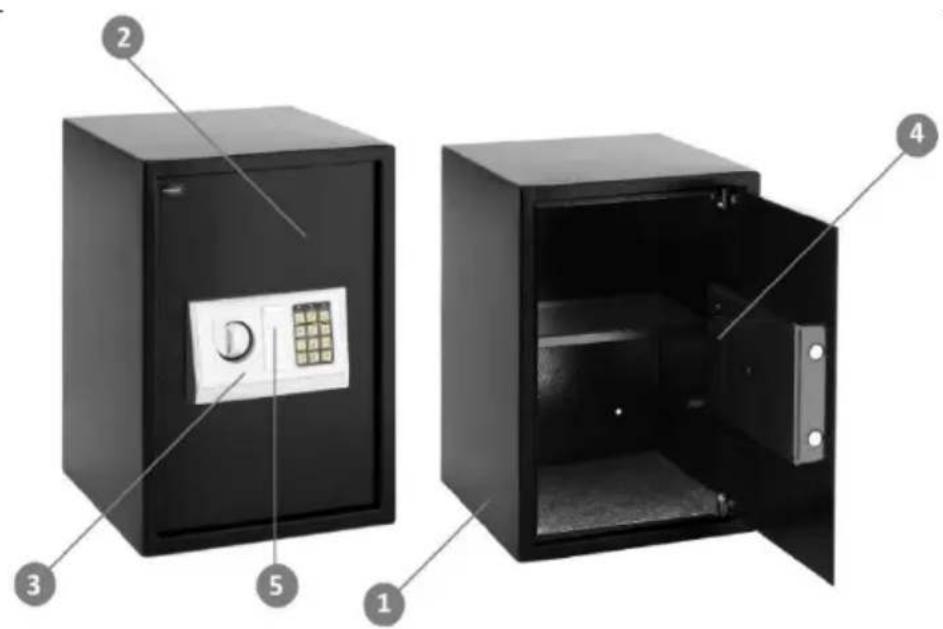

3.1. Description

Diagram of a black safe with labeled parts including door, control panel, and open door

1 - Housing
2 - Door
3 - Control panel
4 - Battery door with cover
5 - Keyhole cover

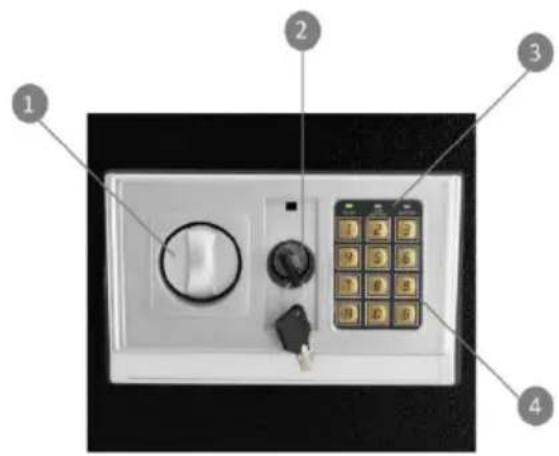

UNIT CONTROL PANEL

Labeled diagram of a portable alarm box with numbered components and control panel

1 - Door knob
2 - Emergency key hole
3 - Indicator lights (green, red, yellow)
4 - Lock buttons panel

3.2. Preparation for operation

POSITIONING OF THE UNIT

Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons of

impaired mental, sensory and intellectual functions. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

ASSEMBLY OF THE UNIT

The unit has mounting holes in the back wall, which allows to fix it to a wall or to the ground. Mounting is done with the use of raw plugs.

3.3. Working with the unit

3.3.1 OPENING THE SAFE WITH A KEY, CLOSING IT

a) To open the safe, place the emergency key between the door knob and the lock button panel.

The lock hole is located under the cap. Then turn the supplied key counterclockwise and the door knob clockwise.

b) Closing the door of the safe and turning the door knob counterclockwise will lock the safe.

CAUTION! Never store emergency keys inside the safe!

If the combination is missing and/or the battery is dead, the unit cannot be opened!

3.3.2 BATTERY INSTALLATION, PROGRAMMING AND CHANGING THE COMBINATION

a) To install the power supply remove the battery compartment cover on the inside of the door and insert batteries (4x 1.5V AA).

Cover the hole.

b) Programming of the combination is done with the safe door open.

Press the red button, located on the inside of the door, by the battery compartment.

A yellow indicator light will illuminate on the control panel. Within 30 seconds, enter the code and confirm it using button "A" or "B". Determine the digit string using the lock button panel.

c) To change the safe's code, repeat the steps required to program the combination.

CAUTION! The correct combination of encryption contains from 3 to 8 digits!

3.3.3 OPENING THE SAFE USING THE ENCRYPTION CODE

a) Using the lock's pushbutton panel, enter the encryption code and confirm with "A" or "B".

The green indicator light will illuminate.

Within 5 seconds unlock the door by turning the knob and pulling it towards you.

3.3.4 BATTERY REPLACEMENT

a) If the green and red indicator lights are simultaneously lit when the safe is in use, the batteries are about to run out and must be replaced.

CAUTION! When entering the combination code, each digit of the combination is confirmed by flashing the yellow indicator light and a short beep.

CAUTION! If, after entering the code, the control panel displays a constantly flashing yellow indicator light with a beep, this means that the entered combination is incorrect!

To change the combination you must repeat all steps of programming the combination!

CAUTION! After entering the wrong combination three times the lock is temporarily locked for 20 seconds (the combination cannot be re-entered)! In case of three consecutive attempts to enter the wrong combination the temporary lockout will be extended up to 5 minutes! After waiting the specified time you will be able to make another attempt to enter the code.

CAUTION! In case the code is missing or the power supply is exhausted, the safe can be opened with additional emergency keys!

3.4. Cleaning and maintenance

a) Use only non-corrosive cleaning agents for cleaning the surfaces.

b) Store the unit in a dry and cool place protected from moisture and direct sunlight.

c) Do not spray the unit with a stream of water or immerse it in water.
d) Make sure that no water enters through the ventilation openings in the casing.
e) Use a soft cloth for cleaning.
f) Do not leave the batteries in the unit when it will not be used for a long time.

INSTRUCTIONS FOR SAFE DISPOSAL OF RECHARGEABLE BATTERIES AND BATTERIES.

The units are equipped with AA 1.5V batteries.

Disassemble used batteries from the unit following the same procedure as for their installation.

Hand the batteries over to the entity responsible for disposal of these materials.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this unit are recyclable according to their marking. You will be making an important contribution to protecting our environment by reusing, recycling or otherwise disposing of used units.

Your local administration will provide you with information about the appropriate disposal point for used units.
