RMD 10.5XT - Fridge DOMETIC - Free user manual and instructions

USER MANUAL RMD 10.5XT DOMETIC

Technical line drawing of a rectangular industrial cabinet or enclosure with a coiled spring (no text or symbols)

RMD10.5

Absorber refrigerator

Operating manual....14

© 2021 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

NOTICE

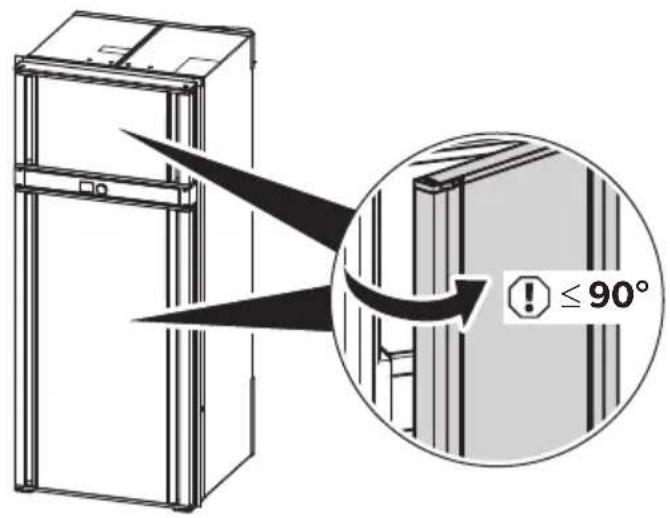

≤ 90°

Technical line drawing of a refrigerator interior showing internal compartments and doorways (no text or labels)

Technical diagram showing two views of a device with directional arrows and a 'CLICK' button, likely illustrating a system or control mechanism.

Diagram of a refrigerator interior with labeled food items and a control panel showing food categories like refrigerant, oven, and kitchen.

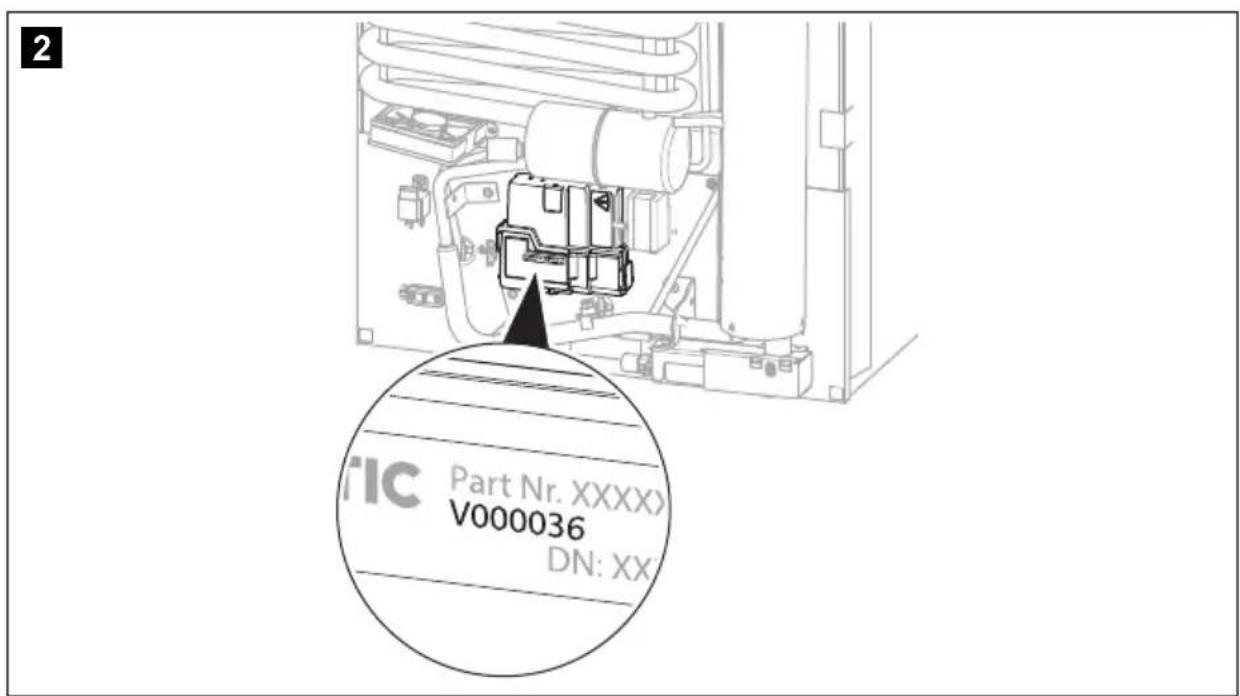

2 IC Part Nr. XXXX) V000036 DN: XX

3 1 2

5
RMD 10.5S, RMD 10.5XS

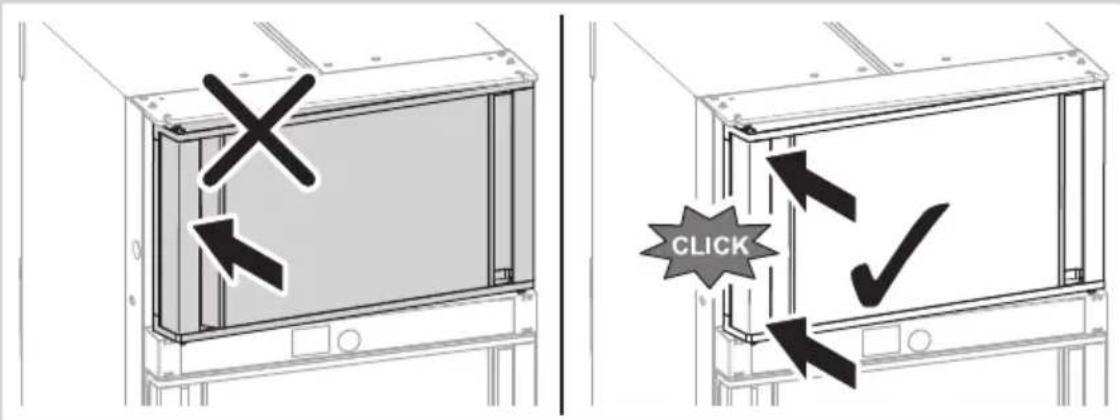

CLICK 1. 2. 1. CLICK

6
RMD 10.5S, RMD 10.5XS


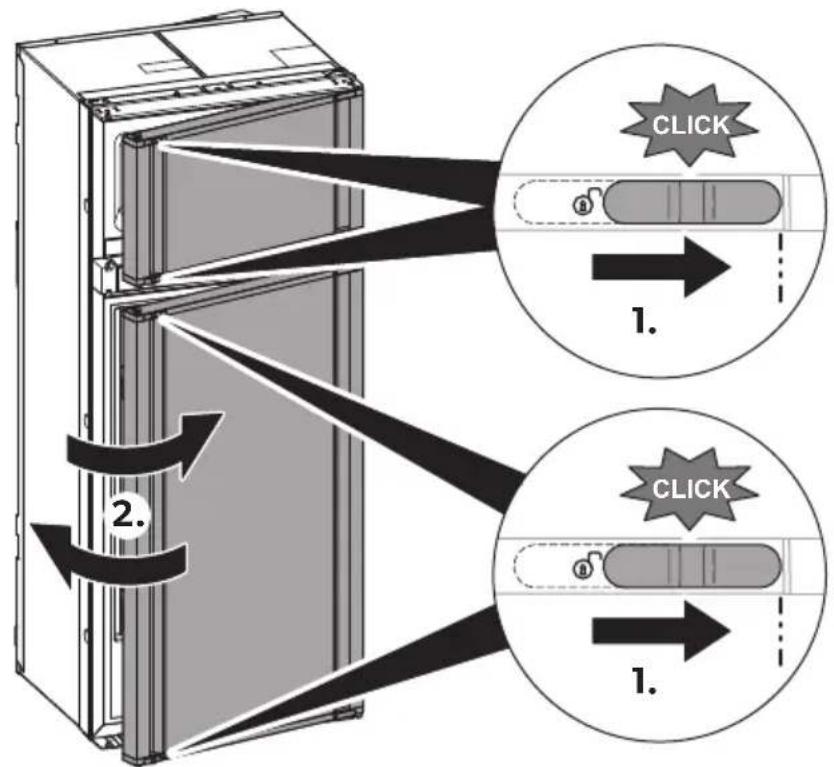

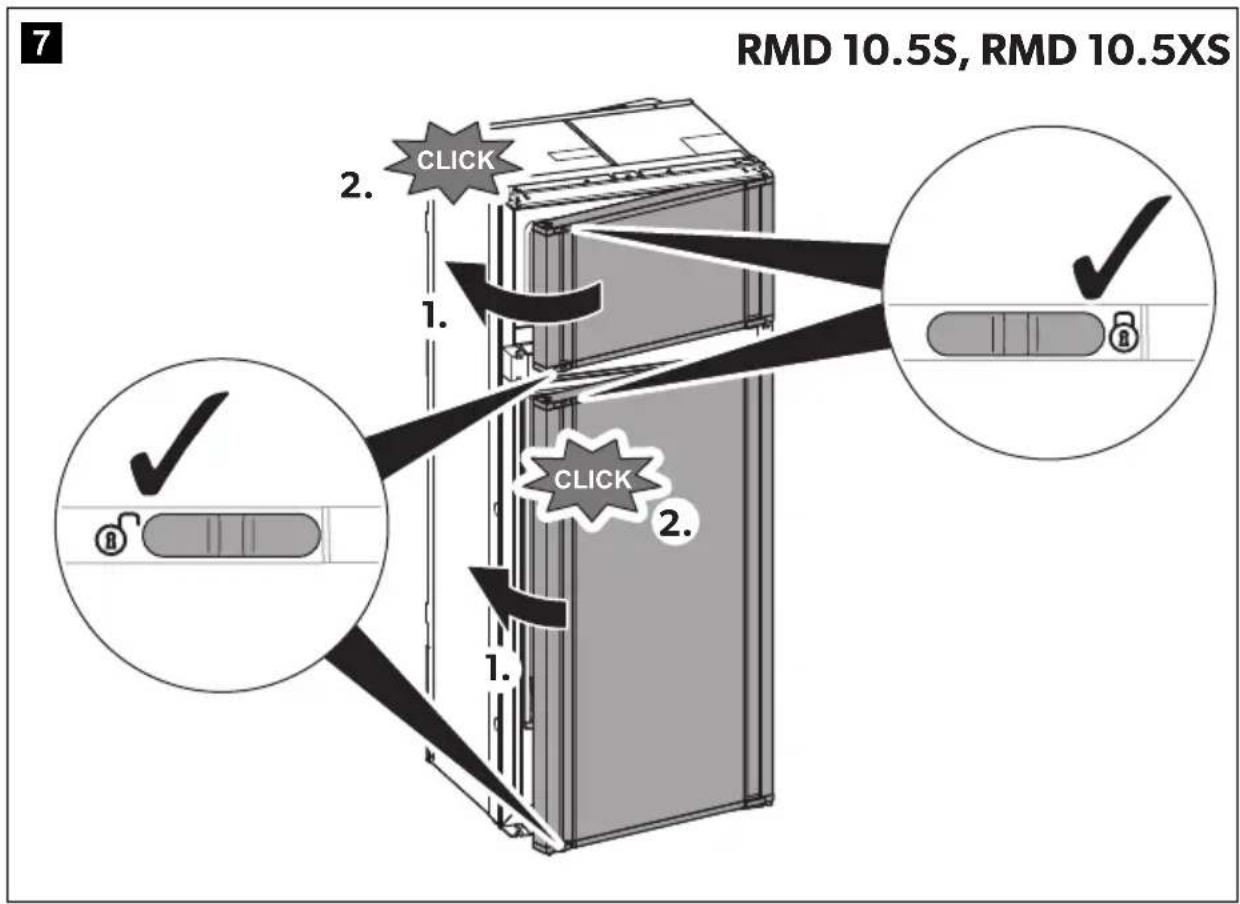

RMD 10.5S, RMD 10.5XS 7 2. CLICK 1. CLICK 2. 1. ✓

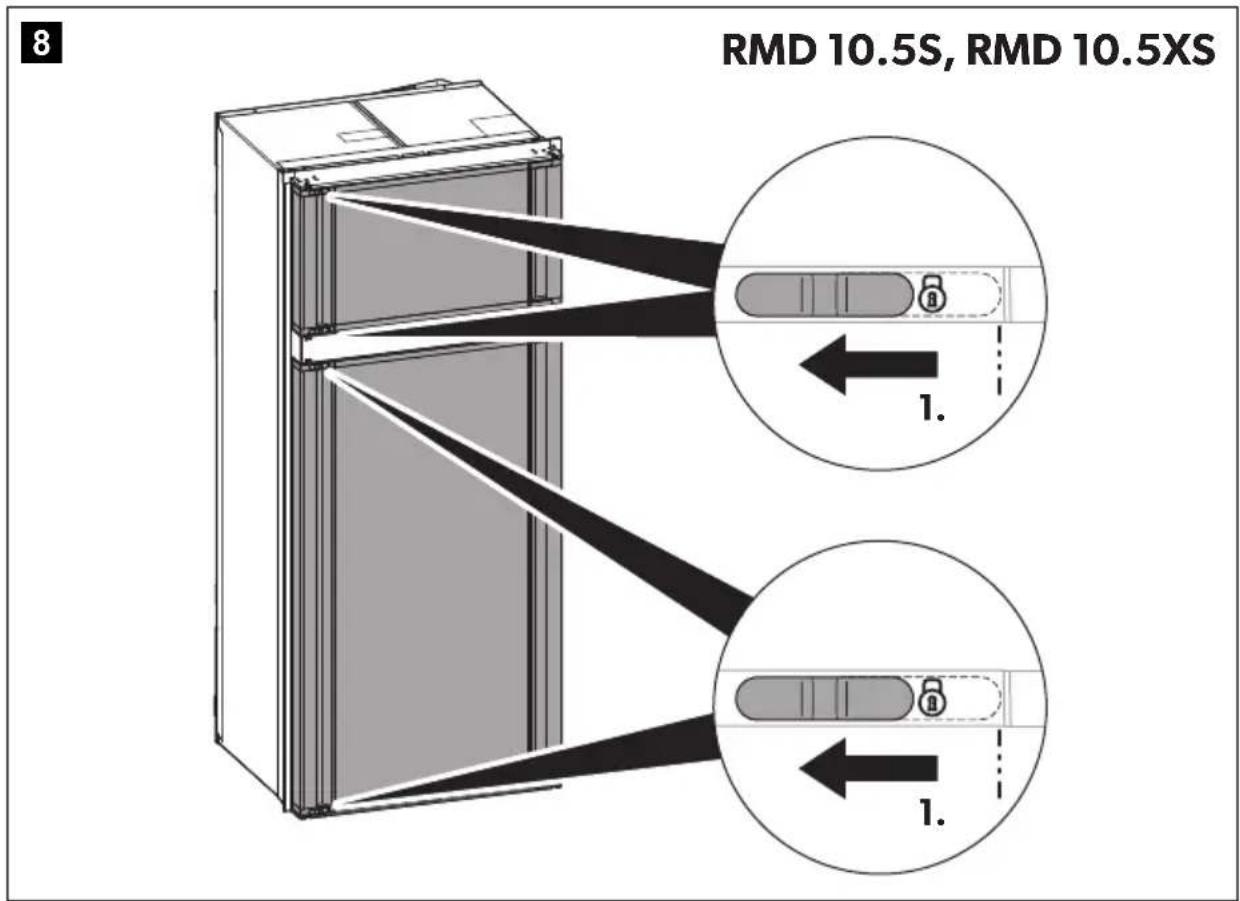

RMD 10.5S, RMD 10.5XS 8

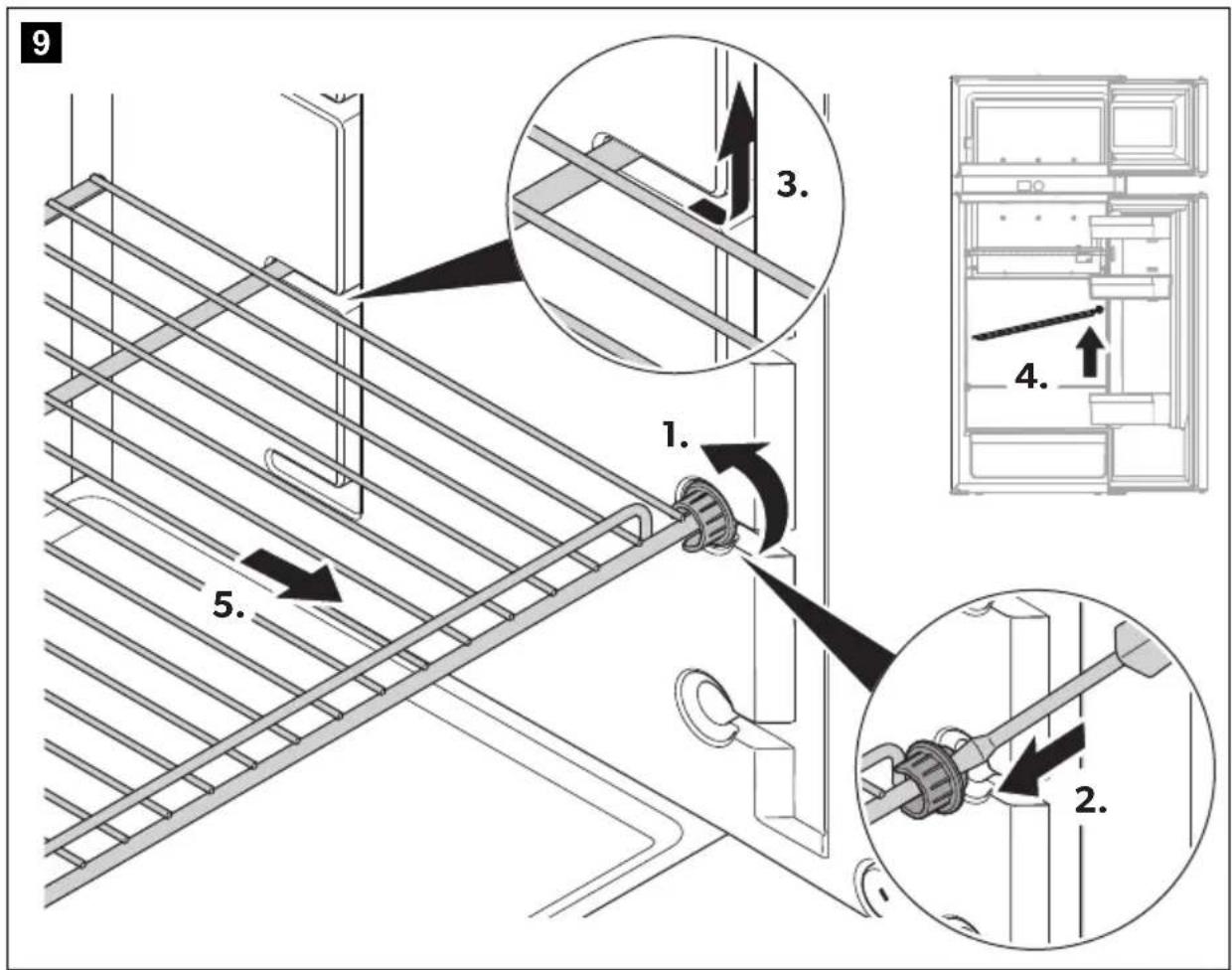

9 1. 2. 3. 4. 5.

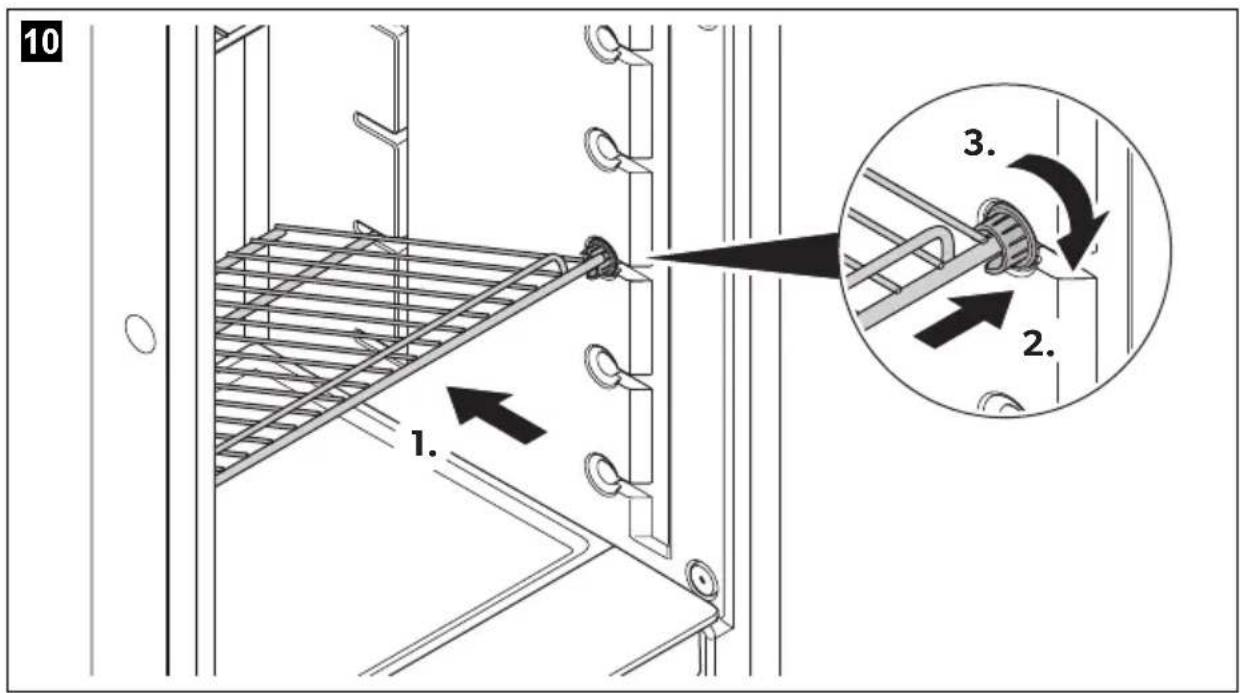

10 1. 2. 3.

11 1. 2. 3.

12

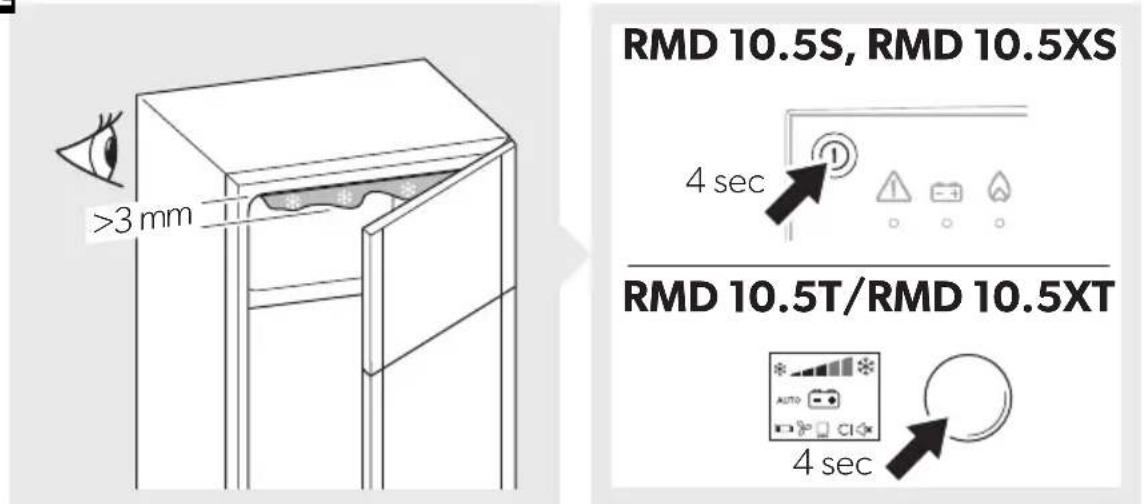

RMD 10.5S, RMD 10.5XS 4 sec RMD 10.5T/RMD 10.5XT 4 sec

Diagram illustrating a fire extinguisher operation with warning and safety symbols, showing steps to remove fire from a bottle.

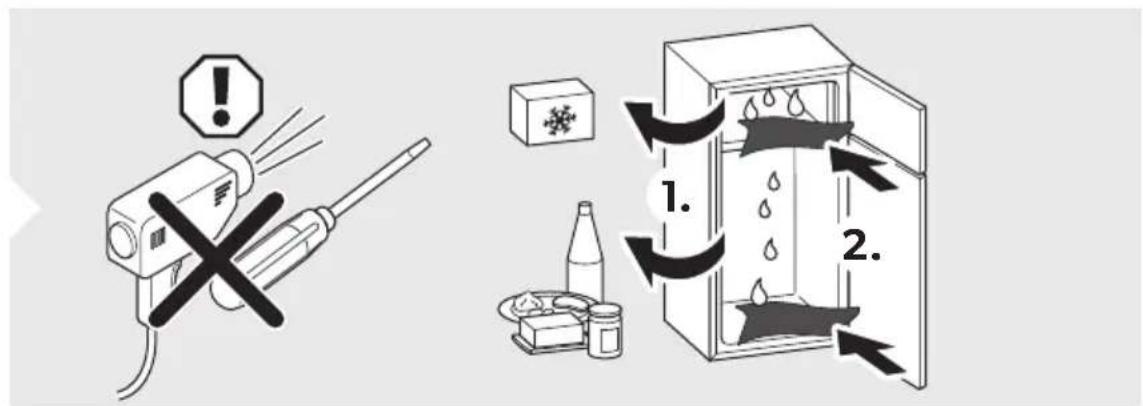

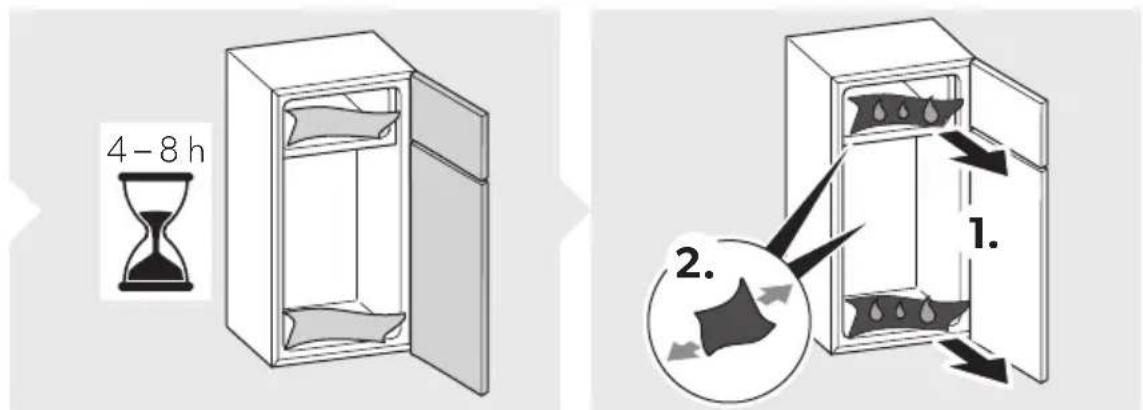

4-8 h 1. 2.

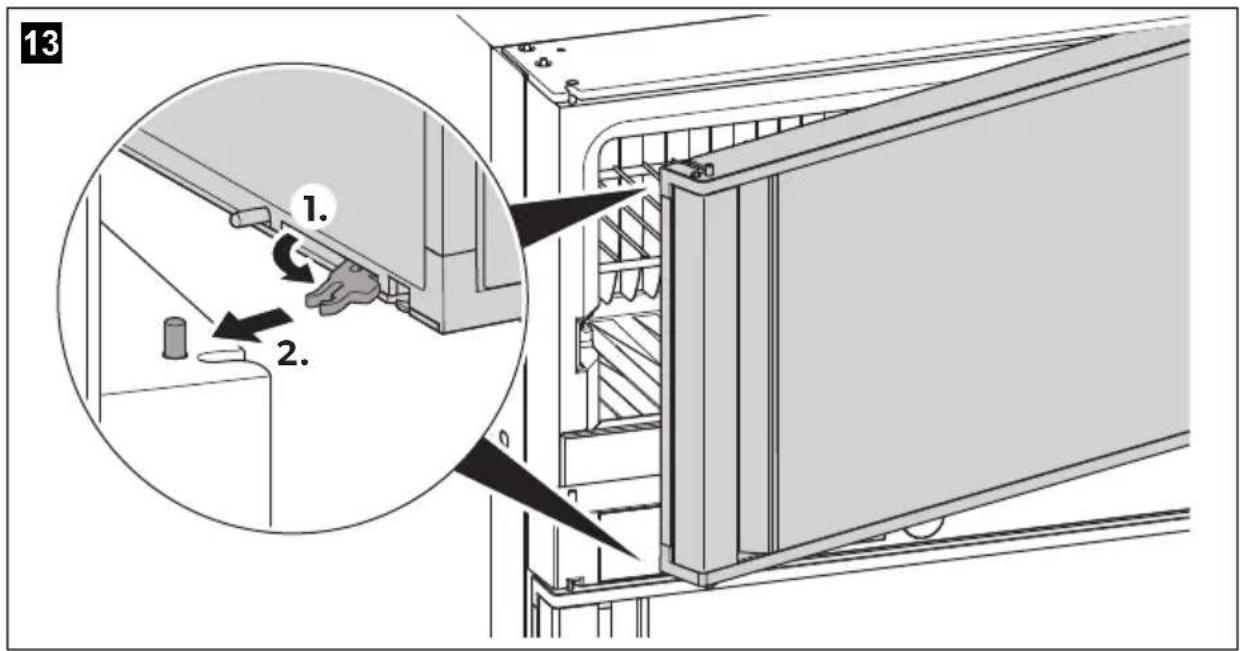

13 1. 2.

14 2x 2. 1. 3. 4. 6x 6x

15

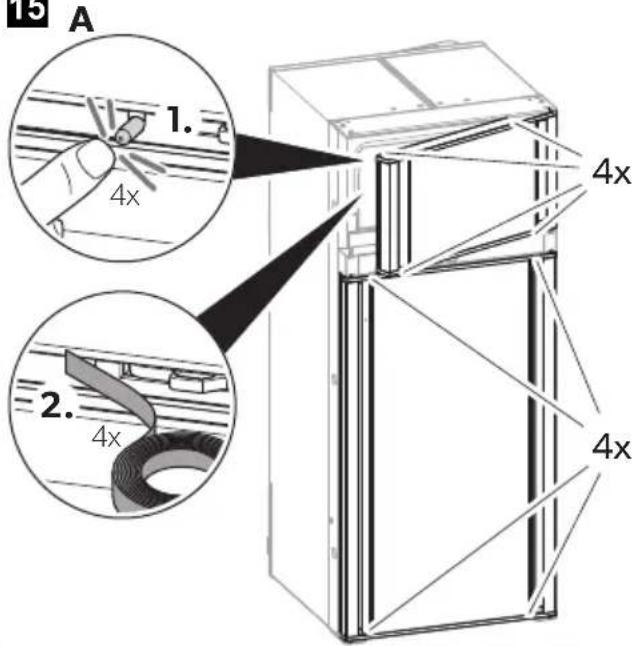

15 A 1. 4x 2. 4x 4x 4x

RMD 10.5(X), RMD 10.5(X)T

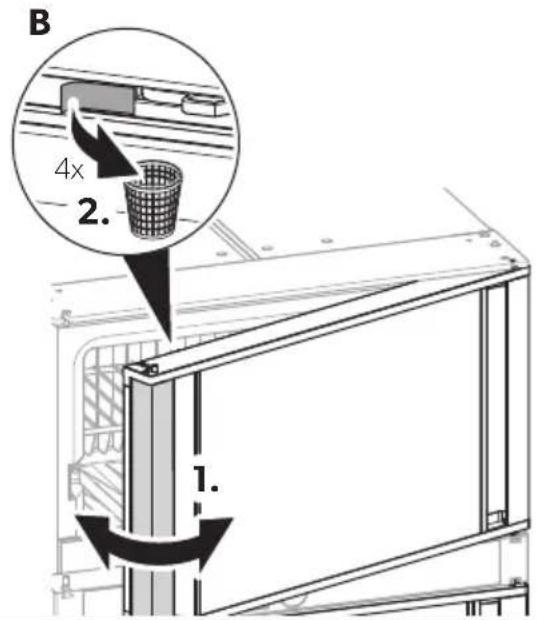

B 4x 2. 1.

16

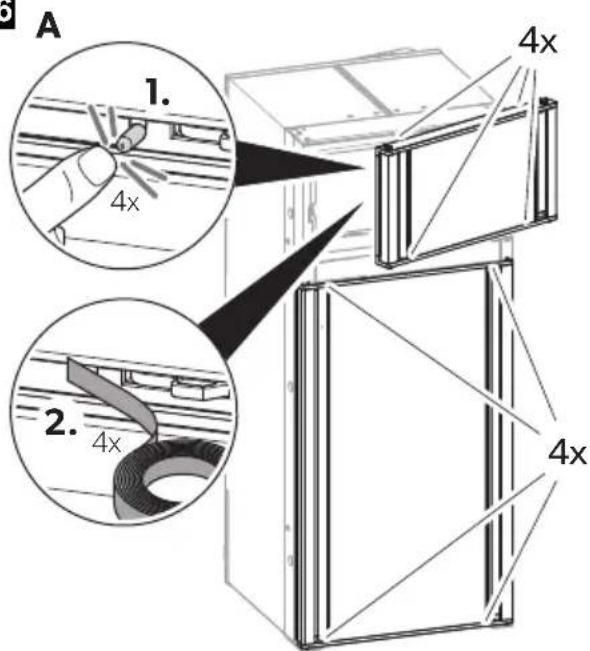

A 1. 4x 2. 4x 4x

RMD 10.5(X), RMD 10.5(X)T

B 1. 2. 1.

C 4x 1. 2.

17

A

12 V 230 V - / -

B

Diagram of a snowflake inside a rectangular frame with bidirectional arrows indicating rotation (no text or symbols)

C

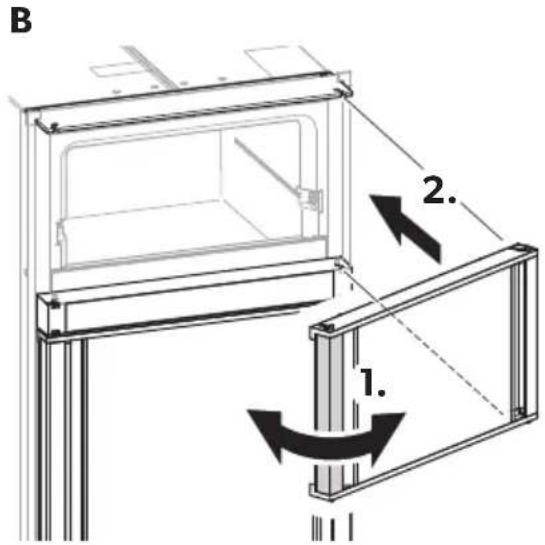

Diagram showing three steps of a door panel installation: opening, pressing down, and closing with a grating.

D

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

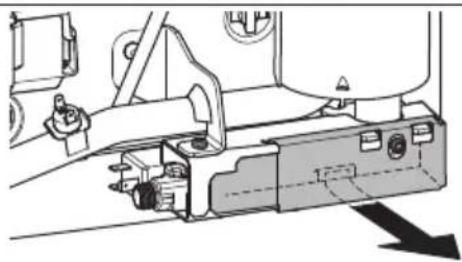

E

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

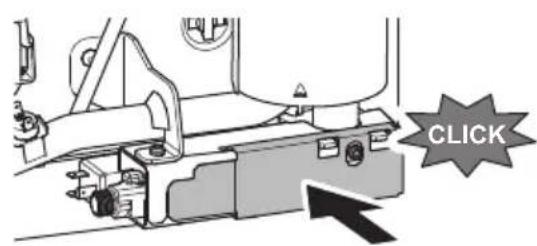

F

CLICK

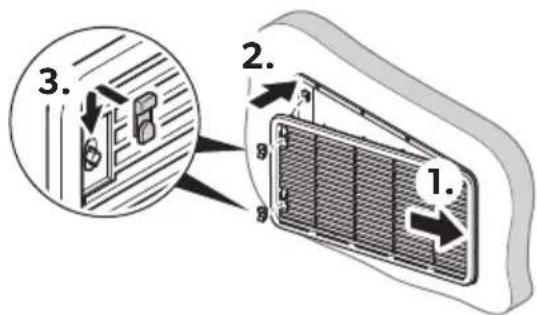

G

1. 2. 3.

Line drawing of a double refrigerator with a side panel and frontrest (no text or symbols)

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit dometic.com.

Table of contents

1 Explanation of symbols....14
2 Safety instructions....15
3 Accessories....18
4 Intended use ....18
5 Technical description ..... 19
6 Using the refrigerator 22
7 Troubleshooting....31
8 Cleaning and maintenance.... 36
9 Warranty 37
10 Disposal.... 37
11 Technical data 38

1 Explanation of symbols

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

2 Safety instructions

2.1 General safety

WARNING! Failure to obey these warnings could result in death or serious injury.

Electrocution hazard

• Installation and removal of the device may only be carried out by qualified personnel.
• Do not operate the device if it is visibly damaged.
• This device may only be repaired by qualified personnel. Improper repairs can result in considerable danger or damage to the device.

Fire hazard

- The refrigerant in the refrigerant circuit is highly flammable. In the event of any damage to the refrigerant circuit (smell of ammonia):

• Switch off the device.
• Avoid naked flames and sparks.
• Air the room well.

Explosion hazard

- Do not store any explosive substances, such as spray cans with propellants, in the device.

Health hazard

- This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.

- Cleaning and user maintenance may not be carried out by unsupervised children.

- Children must be supervised to ensure that they do not play with the device.

NOTICE! Damage hazard

• Keep the condensation opening clean at all times.
• The device lighting may only be replaced by a service agent.
• Do not use a high-pressure cleaner near the ventilation grill when cleaning the vehicle.
• Attach the winter covers of the ventilation grille (accessories) when the vehicle is cleaned from the outside or not used for a prolonged period of time.

2.2 Safe operation

CAUTION! Failure to obey these cautions could result in minor or moderate injury.

Risk of injury

• Close and lock the device door before beginning a journey.
• The cooling aggregate at the back of the device becomes very hot during operation. Protect yourself from coming into contact with hot parts when removing ventilation grills.

NOTICE! Damage hazard

• Do not use electrical devices inside the device.
• Ensure that the ventilation openings are not covered.

2.3 Safety when operating with gas

WARNING! Failure to obey these warnings could result in death or serious injury.

Explosion hazard

• Only operate the device at the pressure shown on the type plate. Only use pressure controllers with a fixed setting which comply with the national regulations.
• While driving only operate the device with gas if the vehicle manufacturer allows the operation of the gas system while driving (see vehicle's manual).
• Check the national requirements for operating the device with gas during driving.

- Never operate the device with gas:

• At petrol stations
• In parking garages
• On ferries

- While transporting the caravan or mobile home with a transport vehicle or tow truck

- Never use a naked flame to check the device for leaks.

- In case of gas odor:

• Close the gas supply cock and the valve on the cylinder.
• Open all windows and leave the room.
• Do not press an electric switch.
• Put out any naked flames.
  – Have the gas system checked by a specialist.

NOTICE! Damage hazard

- Only use propane or butane gas, not natural gas (see rating plate).

NOTE

- Ignition problems may occur at altitudes above 1000 m. Switch to a different energy source.

2.4 Safety when operating

CAUTION! Failure to obey these cautions could result in minor or moderate injury.

Health hazard

• Make sure that you only put items in the device which may be chilled at the selected temperature.
• Opening the door for long periods can cause significant increase of the temperature in the compartments of the device.
• Food may only be stored in its original packaging or in suitable containers.
• Store raw meat and fish in suitable containers in the device, so that it is not in contact with or drip onto other food.
• If the device is left empty for long periods:
• Switch off the device.
• Defrost the device.
• Clean and dry the device.
• Leave the door open to prevent mould developing within the device.

Risk of injury

• The device door or the freezer door can completely detach from the device if used incorrectly. Push the doors closed until you hear a clear click at the top and bottom.
• Do not lean on the open device door.

NOTICE! Damage hazard

• If the door is not locked correctly on the opposite side, push on that side at the top and the bottom until it locks in place.
• Only store heavy objects such as bottles or cans in the device door, in the vegetable compartment or on the bottom shelf.

NOTE

• Ask your vehicle manufacturer if the battery management of your vehicle shuts down the devices to protect the battery.
• Put the device door and the freezer door into the winter position if you are not going to use the device for a longer period of time. This prevents mold from forming.
• For ambient temperatures of +15 °C to +25 °C, select the average temperature setting.

3 A c c e s s o r i

Description

Winter cover LS300 for the ventilation grill

Optional Fan Kit REF-FANKIT

Note: The Fan Kit can only be installed in refrigerators with software version 36 or higher (fig. 2, page 4).

Optional Battery Pack R10-BP for stand-alone gas operation

Optional ∅2,5/5,5 mm connector for stand-alone gas operation with a 9 V--- powerbank

4 Intended use

The device is suitable for:

• Installation in caravans and motor homes
• Cooling, deep-freezing and storing food

The device is not suitable for:

• Storing medications
• Storing corrosive substances or substances that contain solvents
• Quick-freezing food

This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

5 Technical description

The refrigerator is an absorber refrigerator and is designed for operation

• on a 12 V DC power supply
• on an AC power supply
• with liquefied gas (propane or butane)

The refrigerator has an automatic operating mode that selects the most economical connected type of energy. The refrigerator unit operates silently.

5.1 Control and display elements

RMD10.5T and RMD10.5XT

The TFT display has the following operating and display elements (fig. 1 A, page 4):

Symbol Description
	Cooling capacity indicator
	Operating with AC power
	Operating with DC power
	Operating with gas
	Automatic mode:In automatic mode the refrigerator automatically selects the most economical operating mode according to the following priority:AC powerDC powerGas
	Battery:Symbol lights up when the battery packs (optional) are inserted and the device is in stand-alone gas mode.
	Fan (optional):Symbol lights up when die fan function is activated.
	Frame heater:Symbol lights up when the frame heater is on. The frame heater of the ice compartment reduces condensation.
[WDXY]	Symbol lights up when the refrigerator is connected to the CI bus.
[Z5ZA]	Dim TFT displayAfter 30 seconds, the brightness of the display is reduced to the set level.
[SKZY]	Beep off:Error messages and warnings are not signaled acoustically.Door left open for a longer period is signaled acoustically.Beep on:Error messages, warning messages and door left open are signaled acoustically.
	Confirm selection and return to the main menu.

RMD10.5, RMD10.5X, RMD10.5S, RMD10.5XS

The LED display has the following operating and display elements (fig. 1 B, page 4):

Symbol Description
1	ON/OFF button
	Fault indication
	Operating with DC power
	Operating with gas
	Operating with AC power
A	Automatic mode
	Temperature indication
	Energy selection button
	Temperature selection button

6 Using the refrigerator

NOTE

• Before starting your new refrigerator for the first time, clean it inside and outside with a damp cloth for hygienic reasons.
• When using the refrigerator for the first time, there may be a mild odor which will disappear after a few hours. Air the living space well.
• Park the vehicle so that it is level, especially when starting up and filling the refrigerator before setting off on a journey.

- The cooling performance can be affected by: - the ambient temperature (e.g. when the vehicle is exposed to direct sunlight) - the amount of food to be refrigerated - how often you open the door

6.1 Tips for using the refrigerator optimally

• Do not store goods in the refrigerator for the first 12 hours of operation.
• Protect the interior of the vehicle from warming up excessively (e.g. sunshades in the windows, air conditioner).
• Protect the refrigerator from direct sunlight (e.g. sunshades in the windows).

6.2 Operating in low outdoor temperatures

NOTICE!

In AC operation and DC operation, install both winter covers. In gas mode or automatic mode, install only the lower winter cover. This prevents heat from building up and the fumes from the refrigerator can be extracted properly.

NOTE

Cold air can restrict the performance of the cooling unit. Attach the winter covers if you experience a reduced cooling capacity at low ambient temperatures.

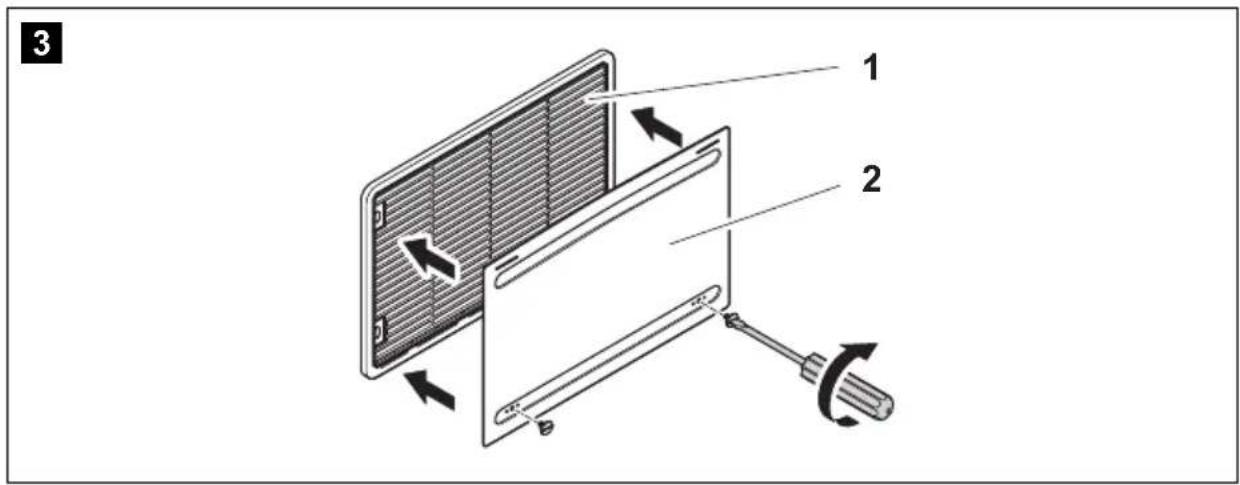

▶ Install the WA 300 winter covers (accessory) as shown in fig. 3, page 5.

6.3 Operation at high ambient temperatures

At high ambient temperatures in combination with high levels of humidity, condensation may form on the ice compartment frame. The ice compartment is equipped with a frame heater to reduce condensation on the frame of the ice compartment.

The frame heater is switched on continuously in the following operating modes:

• A C o p e r a t i o n
• DC operation (when the engine of the vehicle is running)

Only RMD10.5T, RMD10.5XT

In gas operation, the frame heater can be switched on manually.

6.4 Switching on the refrigerator

▶ Press for 2 seconds
- RMD10.5T, RMD10.5XT: control knob
- RMD10.5, RMD10.5X, RMD10.5S, RMD10.5XS: ① button

√ The refrigerator starts with the last selected settings.

6.5 Switching off the refrigerator

▶ Press for 4 seconds
- RMD10.5T, RMD10.5XT: control knob
- RMD10.5, RMD10.5X, RMD10.5S, RMD10.5XS: ① button

√ A beep sounds and the refrigerator switches off.

6.6 Operating the refrigerator (RMD10.5T and RMD10.5XT)

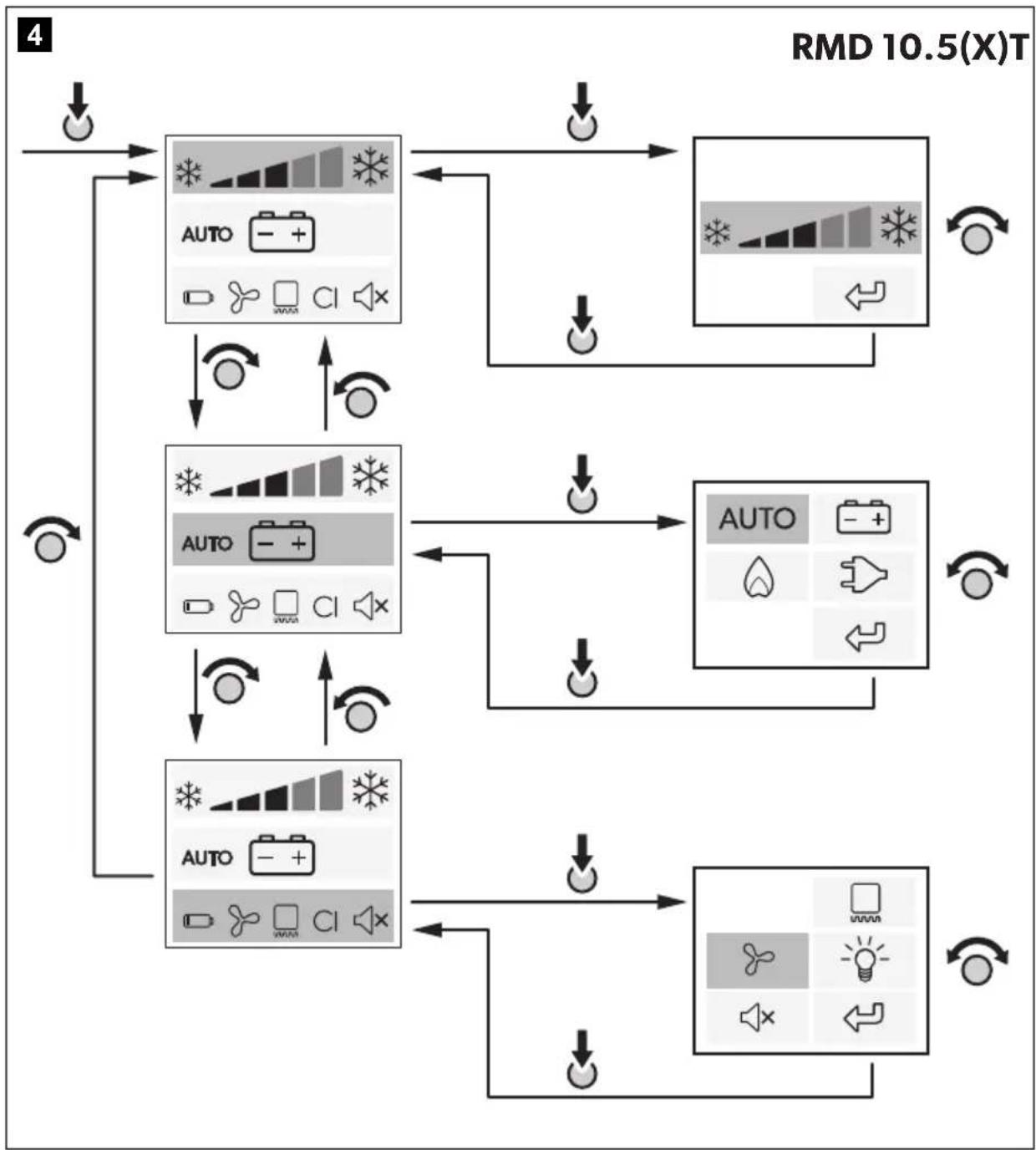

Menu navigation: fig. 4, page 5

▶ Press the control knob to activate the TFT display.

The main menu is divided into three lines:

Main menu Details menu

Cooling capacity menu

Main menu Details menu

Operating mode menu

Settings menu

▶ Turn the control knob to select the desired detail menu.
▶ Press the control knob to open the selected detail menu.
▶ Turn the control knob to navigate through the detail menu.
√ Selected settings are displayed in blue.
√ Press the control knob to choose the selected setting.
▶ Confirm the selection with

6.7 Operating the refrigerator (RMD10.5, RMD10.5X, RMD10.5S, RMD10.5XS)

Control

▶ Repeatedly press MODE, until the LED indicates the desired operating mode.
▶ Repeatedly press ^8 , until the desired temperature level is set.

6.8 Tank stop mode

WARNING!

Turn off the refrigerator or select a different operating mode if refueling takes longer than 15 minutes.

If the vehicle's ignition is switched off, the refrigerator will switch to tank stop mode for safety reasons. This blocks gas operation for 15 minutes. After that, the refrigerator automatically switches back to regular, automatic mode.

In tank stop mode

• RMD10.5T, RMD10.5XT: the symbol 📋 is displayed
• RMD10.5, RMD10.5X, RMD10.5S, RMD10.5XS: the LED flashes

6.9 Stand-alone gas operation (accessory)

WARNING!

In stand-alone gas mode, the refrigerator must be switched off manually during refueling.

NOTE

• When no AC or DC power is connected, there is a load on the batteries even when the refrigerator is off.
• Remove the batteries when the refrigerator is not in use (risk of leakage).
• If your vehicle manufacturer has installed the ∅2,5/5,5 mm connector, ask the manufacturer about the connection point for the 9 V--- powerbank.

For stand-alone gas mode, the optional battery packs must be installed or the optional ∅2,5/5,5 mm connector must be plugged into a 9 V== powerbank. This makes connecting to AC or DC power unnecessary.

When using 12 batteries (type AA), the refrigerator can be operated in stand-alone gas mode for 2 to 3 days.

Please note the following special features for stand-alone gas mode:

• The refrigerator interior lighting remains switched off.
• The display turns off 2 seconds after the last activity.
• The display switches on briefly every 15 seconds. This indicates that the refrigerator is on.
• If there is a pending error message, the display switches on permanently.

Stand-alone gas mode is indicated

• RMD10.5T, RMD10.5XT: by the symbols 🏠 and 📄
• RMD10.5, RMD10.5X, RMD10.5S, RMD10.5XS: flashing of LED every 15 seconds

The batteries of the battery packs must be replaced

• RMD10.5T, RMD10.5XT: when the error "E 14" is displayed
• RMD10.5, RMD10.5X, RMD10.5S, RMD10.5XS: when the error / is displayed

6.10 Fan operation (optional)

For fan operation the optional fan must be installed.

When switching on the device, the fan is switched on for a short time (function test). During the device's operation the fan only switches on:

• When the ambient temperature is above 32^ C .
• When the set cooling temperature is not reached within 2 hours.
  • RMD10.5T, RMD10.5XT: When the fan function is activated.

NOTE

RMD 10.5T, RMD 10.5XT: In delivery state, the fan function is activated.

RMD10.5, RMD10.5X, RMD10.5S, RMD10.5XS: The fan function is always activated and can not be deactivated.

RMD10.5T, RMD10.5XT

The fan operation is indicated by the symbol ✿

6.11 Setting the cooling capacity

NOTE

For ambient temperatures of +15 °C to +25 °C, select the average cooling capacity.

▶ Set the cooling capacity:

- RMD10.5T, RMD10.5XT: Select the desired temperature level in the cooling capacity menu.

- RMD10.5, RMD10.5X, RMD10.5S, RMD10.5XS: Repeatedly press until the desired temperature level is selected.

6.12 Using the refrigerator door/ice compartment door (RMD10.5, RMD10.5X, RMD10.5T, RMD10.5XT)

CAUTION! – Beware of injury

• The refrigerator door or ice compartment door can completely detach from the device if used incorrectly.
• Do not lean on the open refrigerator door.

NOTE

If the door is not locked correctly on the opposite side, carefully push on the top and bottom of the door on that side until it locks into place.

Closing and locking the refrigerator door/ice compartment door

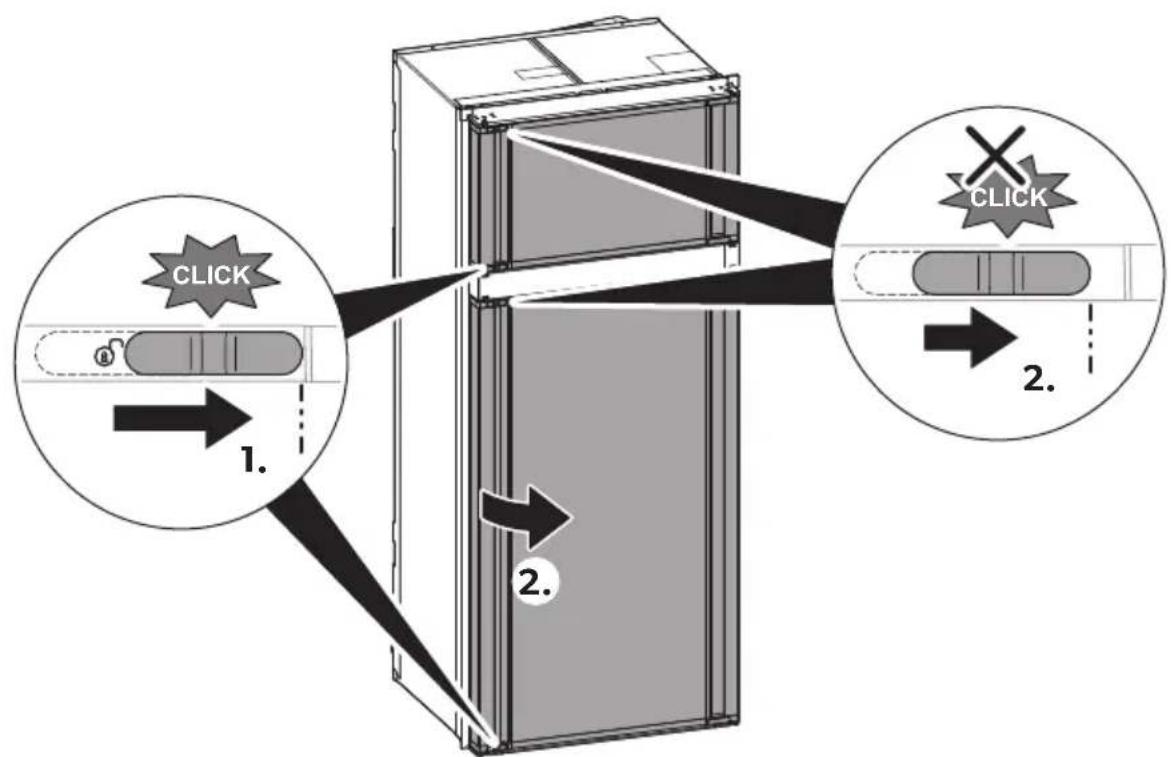

▶ Press the door shut until you hear it clearly click at the top and bottom.
√ The door is now closed and locked.

6.13 Using the refrigerator door (RMD10.5S, RMD10.5XS)

Releasing the refrigerator door

▶ Release the refrigerator door as shown (fig. 5, page 6).
√ The refrigerator door is easy to open and close but will not be secured when closed.

Securing the refrigerator door at the top automatically

▶ Release and open the refrigerator door as shown (fig. 6, page 6).
√ The refrigerator door is automatically secured at the top after closing (fig. 7, page 7).

Securing the refrigerator door before starting to drive

▶ Secure the refrigerator door as shown (fig. 8, page 7).

6.14 Notes on storing food

CAUTION! – Health hazard!

• Please check if the cooling capacity of the refrigerator is suitable for the food you want to cool.
• Opening the door for long periods can cause significant increase of the temperature in the compartments of the refrigerator.
• Store raw meat and fish in suitable containers in the refrigerator, so that raw meat and fish is not in contact with or drip onto other food.
• Food may only be stored in its original packaging or in suitable containers.
• The ice compartment is suitable for making ice cubes and for keeping frozen food. It is not suitable for freezing previously unfrozen food.
• If the refrigerator is exposed to a room temperature of below +10 °C for a prolonged period of time, an even temperature of the ice compartment cannot be guaranteed. This can lead to an increase in the ice compartment temperature and the stored goods may defrost.

NOTICE!

• The maximum weight per door shelf is 6 kg. The maximum weight for the entire door is 7.5 kg.
• Store heavy objects such as bottles or cans only in the refrigerator door, in the lower storage compartment or on the bottom shelf.
• Do not keep carbonated drinks in the ice compartment.

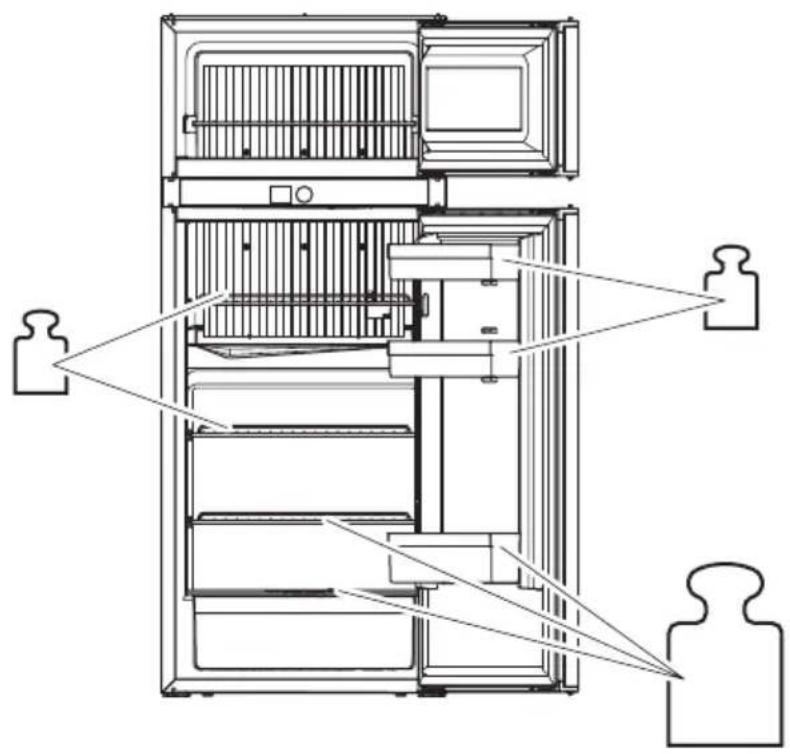

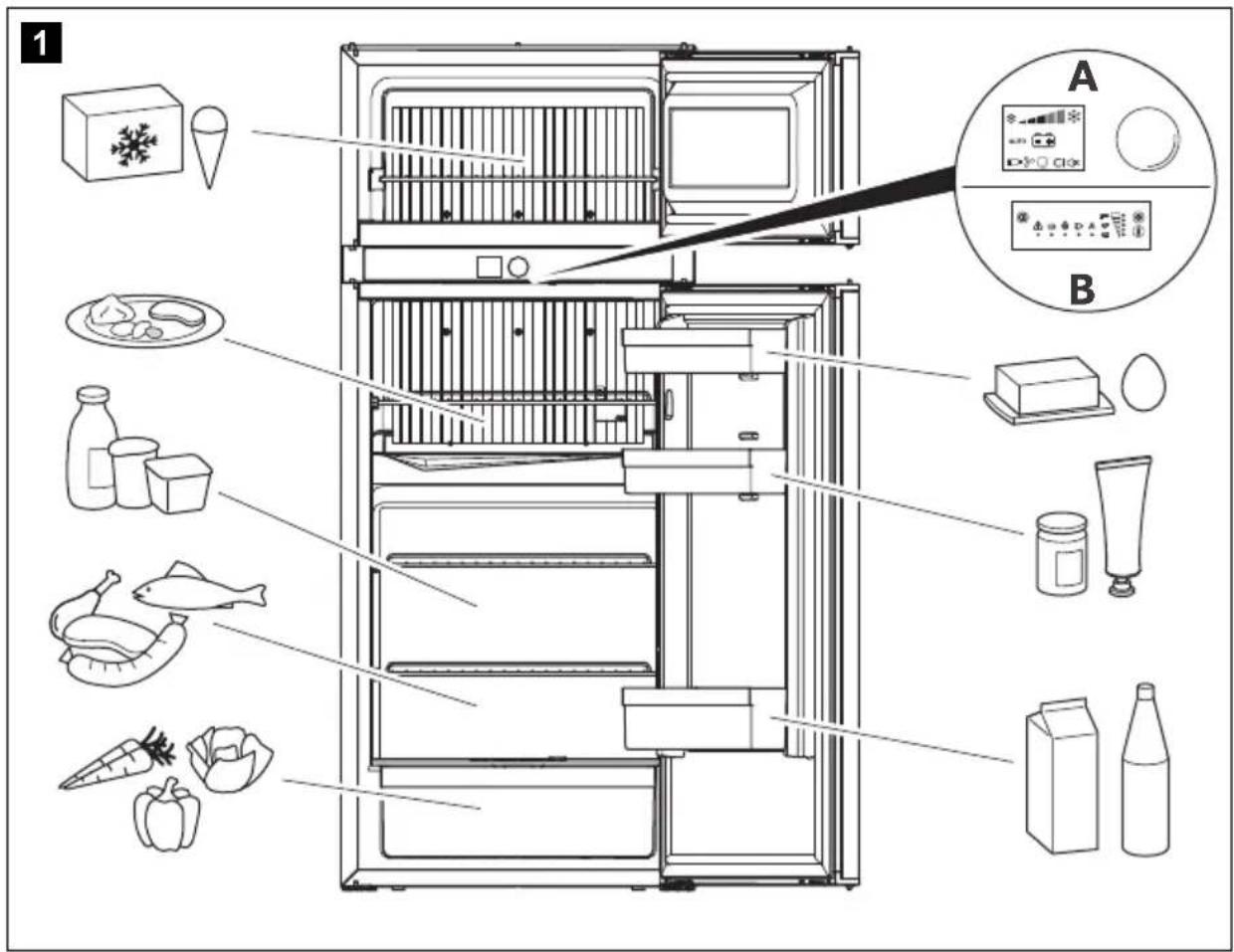

▶ Store food as shown in fig. 1, page 4.

Using the VG fresh base (only RMD10.5T, RMD10.5XT)

NOTICE!

The maximum load capacity of the VG fresh base is 5.5 kg.

Using the slider in the VG fresh base, the humidity in the vegetable compartment below can be regulated:

Goods to be cooled Optimal humidity Slider position

Vegetables		High ▶ Close the slider.
Fruit		Low ▶ Open the slider.

6.15 Positioning the shelves

WARNING! Children beware!

All shelves are fixed in place to prevent children from climbing inside the refrigerator.

• Only remove the shelves for cleaning purposes.
• Refit the shelves and lock them in place.

▶ Remove the shelf as shown (fig. 9, page 8).
▶ Re-assemble the shelf in the reverse order.

Positioning the shelf at an angle for wine bottles

NOTICE!

While driving, the shelf in the angled position must not be filled.

▶ Change the position of the shelf as shown (fig. 10, page 8).

Removing and inserting the VG-Fresh base (only RMD10.5T, RMD10.5XT)

▶ Proceed as shown (fig. 11, page 9).

6.16 Defrosting the refrigerator

NOTICE!

Do not use mechanical tools or a hair dryer to remove ice or loosen frozen items.

NOTE

Over time, frost builds up on the cooling fins inside the refrigerator. If this layer of frost is about 3 mm thick, you should defrost the refrigerator.

▶ Proceed as shown (fig. 12, page 10).

6.17 Positioning the refrigerator door in the winter position

CAUTION!

The winter position must not be used while driving.

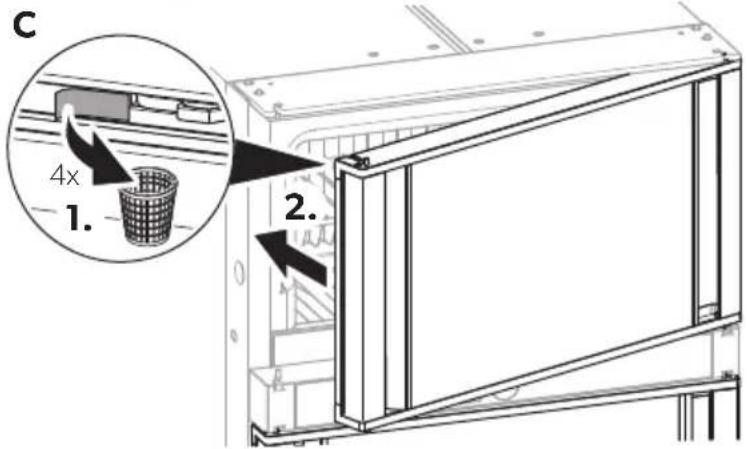

Put the refrigerator door and the ice compartment door into the winter position if you are not going to use the refrigerator for a longer period of time. This prevents mold from forming.

▶ Defrost the refrigerator (chapter "Defrosting the refrigerator" on page 29).
▶ At the top and bottom of the door in the area of the locking mechanism, pull the hook all the way out (fig. 13, page 11).
▶ Press against the refrigerator door.
√ The protruding pin snaps into the hook.

Open the door in winter mode as follows:

▶ Pull the door toward you.
▶ Push in the protruding hooks at the top and bottom of the door.

6.18 Optional battery packs

If the vehicle's own 12 V DC battery power supply is unavailable or if the power supply is cut off while the appliance is in operation, the electronic control unit automatically switches over to the internal battery power (if batteries are inserted).

The compartments for the battery packs (not included in scope of delivery) are located on the right and left under the central divider between the main compartment and the freezer compartment. A total of 12 AA batteries are needed.

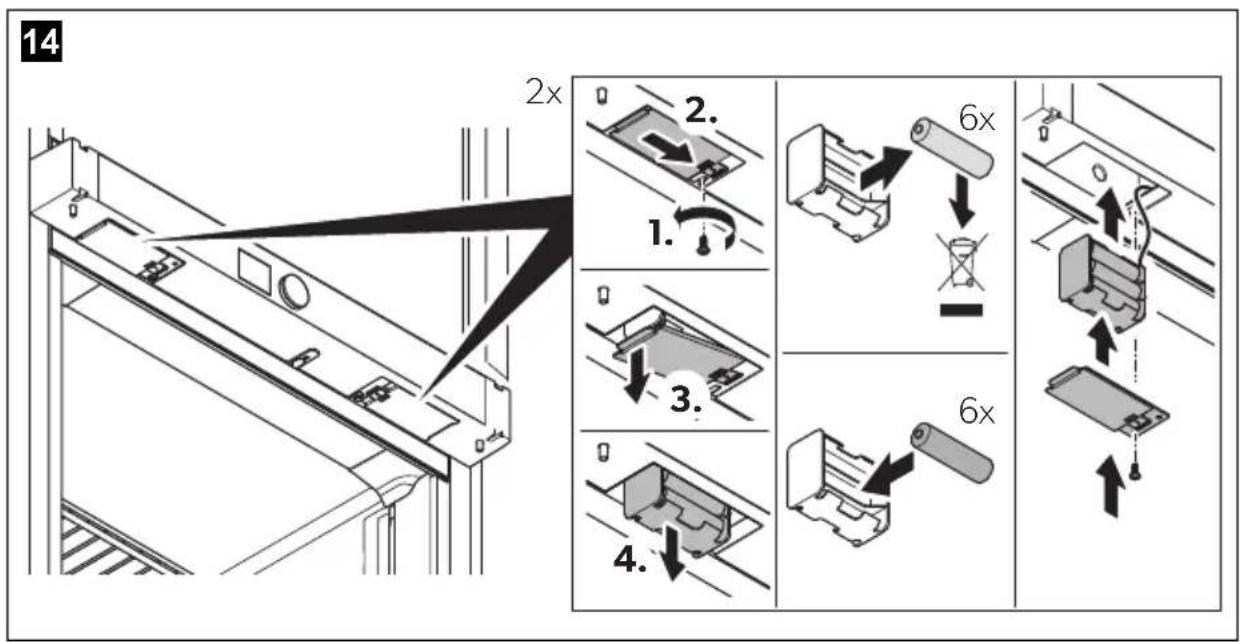

▶ Proceed as shown in fig. 14, page 11 to insert the batteries.

7 Troubleshooting

NOTE

To safely operate 12 V consumer units in the caravan while driving, it must be ensured that the towing vehicle provides sufficient voltage. On some vehicles, the battery management system may automatically switch off the consumer units to protect the battery. Ask your vehicle manufacturer for more information.

Fault Possible cause Suggested remedy

With AC operation: The refrigerator does not work.	The fuse in the AC power supply is defective.	Replace the fuse.
	The vehicle is not connected to the AC power supply.	Connect the vehicle to the AC power supply.
	The AC heating element is defective.	Contact an authorized customer service.
With DC operation: The refrigerator does not work.	The fuse in the DC supply is defective.	The fuse on the relay must be replaced.Contact an authorized customer service.
	The vehicle fuse has blown. Replace the vehicle fuse. (Please refer to the operating manual of your vehicle.)
	The vehicle battery is discharged. Test the battery and charge it.
	The ignition is not turned on. Switch on the ignition.
	The DC heating element is defective.	Contact an authorized customer service.
With gas operation: The refrigerator does not work.	The gas cylinder is empty. Replace the gas cylinder.
	The gas valve is closed. Twist the valve open.
	Air is in the supply line. Switch the refrigerator off and on again. Repeat the procedure three or four times if necessary.If available, switch on the stove and repeat the process with the refrigerator if necessary.
In automatic mode: The refrigerator is being operated with gas although it is connected to the AC mains.	The mains voltage is too low. The refrigerator changes to AC power supply automatically as soon as the mains voltage is sufficient again.

Fault Possible cause Suggested remedy

The refrigerator is not adequately cooling.	The ventilation around the cooling unit is not sufficient.	Check that the ventilation grill is not obstructed.
	The evaporator is iced up. Check whether the refrigerator door closes properly. Make sure that the refrigerator seal fits correctly and is not damaged. Defrost the refrigerator.
	The temperature is set too high. Set a lower temperature.
	The ambient temperature is too high.	Remove the ventilation grill for a while so that warm air can escape quicker.
	Too much food was placed in the refrigerator at once.	Remove an item of food.
	Too much warm food at once was placed in the refrigerator.	Remove the warm food and leave it to cool down before putting it in again.
	The refrigerator has not been operating for very long.	Check the temperature again after four or five hours.

7.1 Fault messages and signal tones

All faults are indicated with a warning symbol, a fault ID and a beep. The beeping lasts for 2 minutes and is repeated every 30 minutes until the error has been rectified.

If multiple faults occur, the display shows the last fault. The underlying faults are displayed after the last fault has been confirmed.

RMD10.5T, RMD10.5XT: Faults are indicated by a fault code with a warning symbol ( ) in the middle of the TFT display.

RMD10.5, RMD10.5X, RMD10.5S, RMD10.5XS: In the event of a fault, the LED warning symbol (⚠️) in the display lights up continuously and the LEDs flash according to the fault.

WARNING type fault messages

All faults of the WARNING type are reset automatically once the fault has been rectified.

RMD10.5T,RMD10.5XT	RMD10.5,RMD10.5X,RMD10.5S,RMD10.5XS:	Fault Solution
W01		Defective temperature sensor in the refrigerator compartment	Contact an authorized customer service.
W05 AC power not connected orAC voltage < 190 V			Connect the refrigerator to AC or select a different energy type, e.g. gas or DC.
W06 DC power not connected Connect the refrigerator to DC orselect a different energy type, e.g. gas or AC.
W11 DC overvoltage (> 16 V) Reduce the DC supply voltage.
	A	Tank stop mode: Gas operation is blocked for 15 minutes.	Wait 15 minutes or switch to another operating mode.
[KBHT]W10+ beep	Beep The door is opened for more than 2 minutes.		Close the door.

ERROR type fault messages

All faults of the ERROR type must be reset manually:

▶ RMD10.5T, RMD10.5XT: Press the control knob for 2 seconds.
▶ RMD10.5, RMD10.5X, RMD10.5S, RMD10.5XS: Press ① for 2 seconds.

√ A beep sounds.

√ The error has been reset.

RMD10.5T,RMD10.5XT	RMD10.5,RMD10.5X,RMD10.5S,RMD10.5XS	Fault Solution
E03 No connection between power module and display			Contact an authorized customer service.
E07 No cooling capacity in gas mode			Check if the device is at an angle and adjust it if necessary.Reset the error.Contact customer service if this error occurs again.
E08 No cooling power in AC mode			Check if the device is at an angle and adjust it if necessary.Reset the error.Contact customer service if this error occurs again.
E09 No cooling power in DC mode			Check if the device is at an angle and adjust it if necessary.Reset the error.Contact customer service if this error occurs again.
E12 Gas valve check error Gas operation is not possible.			Reset the error.Contact customer service if this error occurs again.
E13 Internal communication error Gas operation not possible.			Reset the error.Contact customer service if this error occurs again.
E14 In stand-alone gas mode:		The battery charge of the battery packs is too low	Insert new batteries and then reset the error.
E50 Gas lock after 2 ignition attempts			Ignition not possible.The gas cylinder is empty. Replace the gas cylinder.Reset the error.
E51 Gas lock, internal error in the power module [ZSTG]			Reset the error.Contact customer service if this error occurs again.
E52 Ground contact, gas valve Reset the error.			Contact customer service if this error occurs again.
E53 Ground contact, ignition electrode			Reset the error.Contact customer service if this error occurs again.

Refrigerator door/ice compartment door does not close

NOTE

If the door no longer closes, then the door handle is blocked on the opened side.

▶ Remove the door handle blockage as shown (fig. 15, page 12).

Refrigerator door/ice compartment door has completely detached from the device

CAUTION! – Beware of injury

The door can completely detach from the device if the locking pin has been tampered with or is twisted.

▶ Insert the door as shown (fig. 16, page 12).

8 Cleaning and maintenance

WARNING!

Always disconnect the refrigerator from the energy supply before you clean and service it.

NOTICE!

For cleaning, never use sharp cleaning agents or hard or pointed tools to remove ice or to loosen objects which have frozen in place.

▶ Clean the refrigerator regularly and when it gets dirty using a damp cloth.
▶ Make sure that no water drips into the seals. This can damage the electronics.
▶ Wipe the refrigerator dry with a cloth after cleaning.
▶ Check the condensate drain regularly.

Clean the condensate drain when necessary. If it is blocked, the condensate collects on the bottom of the refrigerator.

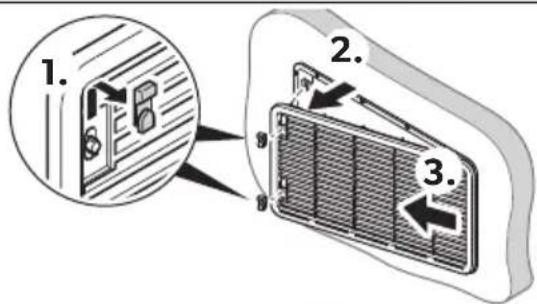

▶ Make sure that the ventilation grills in the outer wall of the motorhome or caravan and the refrigerator roof ventilator are free from dust and pollutants. This ensures that the heat generated during operation can be dispersed, the refrigerator is not damaged and the cooling capacity is not reduced.

8.1 Cleaning the gas burner

WARNING!

• Allow the burner to cool down before cleaning it.
• Do not modify the gas equipment.

NOTE

• Dirt in the gas burner is indicated by poor ignition or deflagrations.
• The manufacturer recommends also cleaning the burner after not being used for a longer period and at least once a year.
• When using liquefied petroleum gas, the cleaning interval, depending on the degree of pollution, is reduced to half yearly or quarterly.

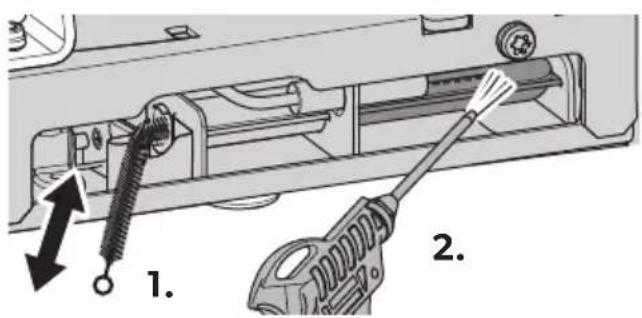

▶ Proceed as shown (fig. 17, page 13).

8.2 Maintenance

WARNING!

Work on gas and electrical installations may only be performed by qualified technicians.

▶ Have the gas system and connected flues inspected before initial operation and then every two years by an authorized professional to ensure they comply with the national safety requirements.
▶ Keep a record of any maintenance performed.

9 W a r r a n t y

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see dometic.com/dealer) or your retailer.

For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

10 Disposal

NOTE

Only have the device removed and disposed of by a specialist.

Protect the environment!

Do not dispose of any batteries with general household waste.

Return defective or used batteries to your retailer or dispose of them at collection points.

11 Technical data

	RMD10.5(T)	RMD10.5X(T)	RMD10.5XS RMD	10.5S
Connection voltage: 230 V~/50 Hz
Capacity
Gross capacity:	153 l	177 l	177 l	153 l
Refrigerator compartment:	124 l	142 l	142 l	124 l
Ice compartment:	29 l	35 l	35 l	29 l
Total net capacity:	147 l	171 l	171 l	147 l
Power consumption:	250 W (230 V~)170 W (12 V=)
Energy consumption:	4,4 kWh/24 h (230 V~)
Gas consumption: 580 g/24 h
Climate class: SN
Dimensions H x W x D:	1245 x 523 x 550 mm	1245 x 523 x 605 mm	1245 x 523 x 605 mm	1245 x 523 x 550 mm
Weight:	40 kg	41,5 kg	40,5 kg	39 kg
Inspection/certification:

For the current EU declaration of conformity for your device please refer to the respective product page on dometic.com or contact the manufacturer directly (see dometic.com/dealer).

5 Description technique

WAARSCHUWING-type foutmeldingen

dometic.com/sales-offices
