Warnings and symbols usedThe following warnings are used in the user manual, short manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		Only use the product in dry indoor rooms.
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.		Protection class IIThe product has a double insulation and does not require a safety connection to electrical earth.
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Alternating current/voltage
			Hertz (mains frequency)
			Watts
	NOTE: This symbol in combination with “Note” provides additional useful information.		Danger - Risk of electric shock!
CE	CE mark indicates conformity with relevant EU directives applicable for this product.		Safety informationInstructions for use

DESK FAN

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended to produce a cooling airflow. Any other use not mentioned in these instructions may cause a damage to the product or create a serious risk of injury. This product is only intended for private household use, not for commercial purposes.

The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1 Base unit with grille lock nut
1 Stand
1 Front grille with screw and nut
1 Rear grille with locking elements
1 Blade lock nut
1 Blade

● Description of parts

1 Front grille
2 Blade lock nut
3 Blade
4 Grille lock nut
5 Rear grille
6 Oscillation knob
7 Base unit

8 Stand
9 Screw and nut
10 Clip
11 Locking clips, 2×
12 Screw hole

- Technical data

Input voltage 220–240 V\~, 50–60 Hz

Power consumption 40 W

Protection class II/回

Description Symbol Value Unit
Maximum fan flow rate	F 36.3	8 m	^3 /min
Fan power input	P 39.1	W
Service value SV	0.93 (m		^3 /min)/W
Standby power consumption	P_SB	-	W
Off power consumption	P_OFF	0	W
Fan sound power level	L_WA	57.39 dB(A)
Maximum air velocity	C	3.35 meters/sec
Measurement standard for service value	EN IEC 60879:2019
Contact details for obtaining more information	OWIM GmbH & Co. KG Stiftsbergstraße 1 74167 Neckarsulm GERMANY www.owim.com

Safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with this instruction manual the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

⚠️ DANGER! Risk of suffocation! Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

■ Cleaning and user maintenance shall not be made by children without supervision.

■ Children shall not play with the product.

Electrical safety

⚠ WARNING! Risk of injury! Switch the product off and disconnect it from the power supply before cleaning work and when not in use.

⚠ WARNING! Risk of electric shock! Ensure the rated voltage shown on the rating label corresponds with the voltage of the power supply.

⚠ WARNING! Risk of electric shock! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Operation

⚠️ CAUTION! Risk of injury! Never use the product without the safety grille or with a damaged safety grille.

⚠️ CAUTION! Risk of injury! During use, keep hands, hair, clothing and utensils away from the safety grille to avoid injuries and damage of the product.

- Only use the product in dry indoor rooms. - Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.

Before use

Unpacking

☐ Remove the packaging. Check if all parts are complete.

Assembly

Fig. Step

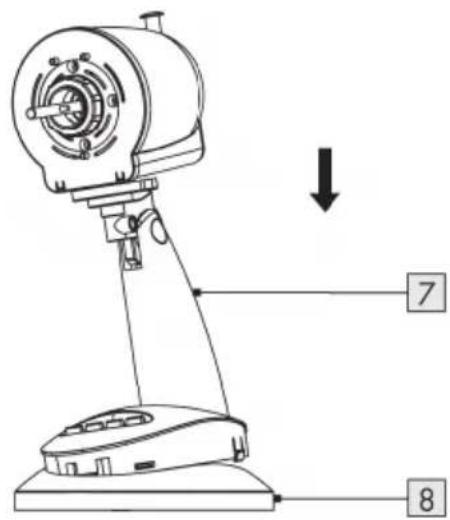

A+B	Place the stand 8 on a flat, stable ground.Push the base unit 7 onto the stand 8.

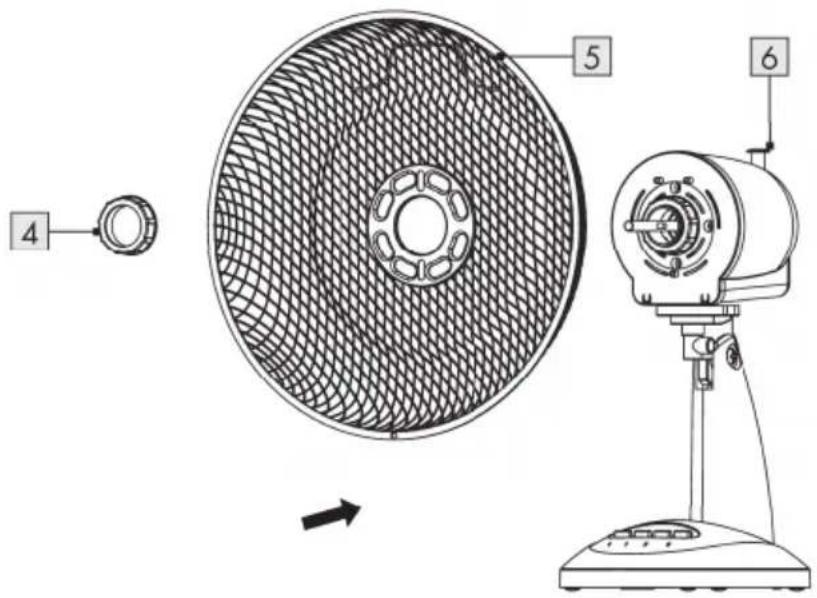

C	Remove the grille lock nut 4 from the drive shaft.Place the rear grille 5 on the drive shaft of the base unit 7.Secure the rear grille 5 with the grille lock nut 4.

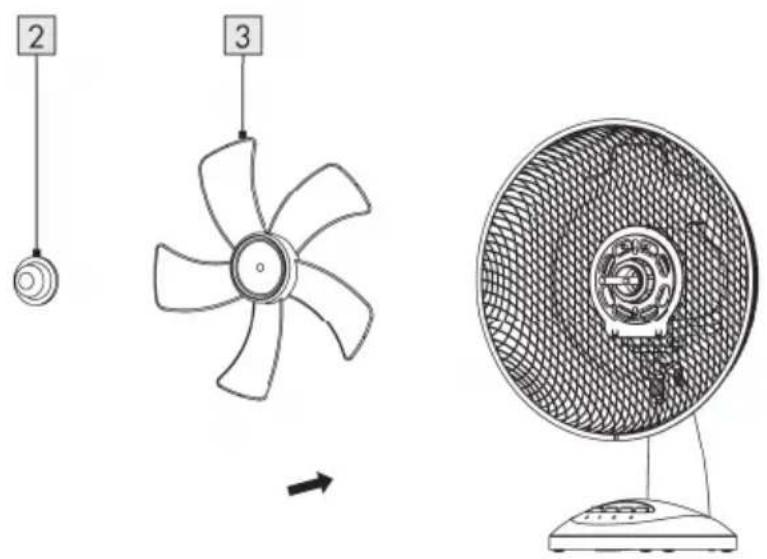

D	Place the blade 3 on the drive shaft of the base unit 7.Secure the blade 3 with the blade lock nut 2.

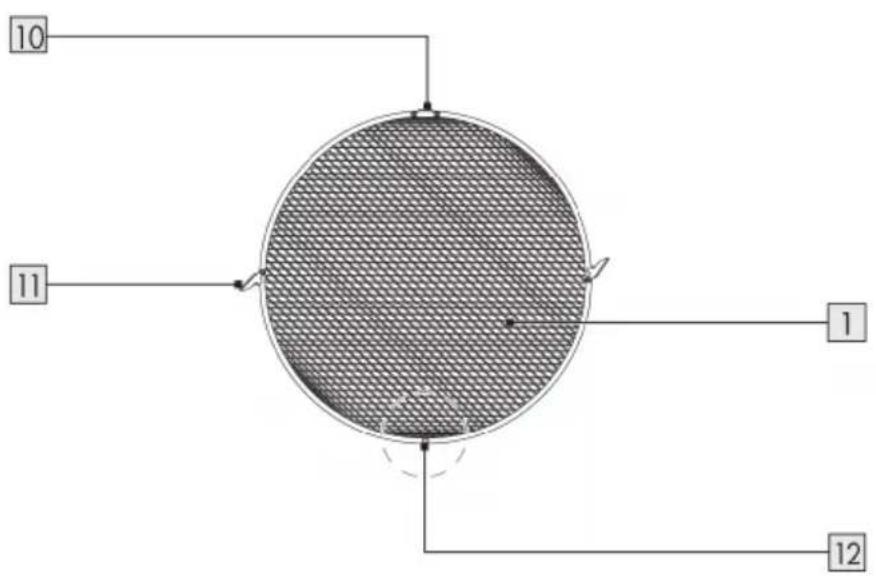

E	Open the locking clips 11 on the front grille 1. Align the screw holes 12 on the bottom side of front grille 1 and rear grille 5. Make sure the clip 10 is well positioned.

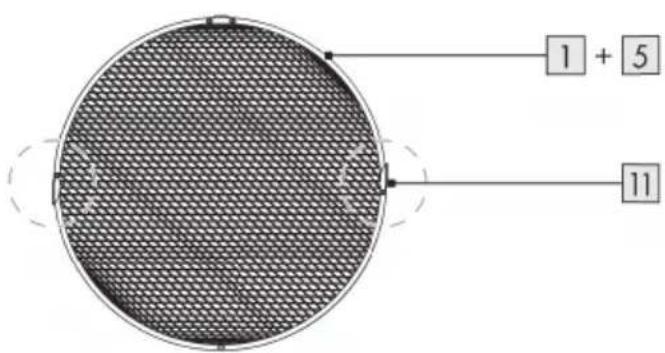

F	Secure the front grille 1 by pressing down the locking clips 11 on the rear grille 5.

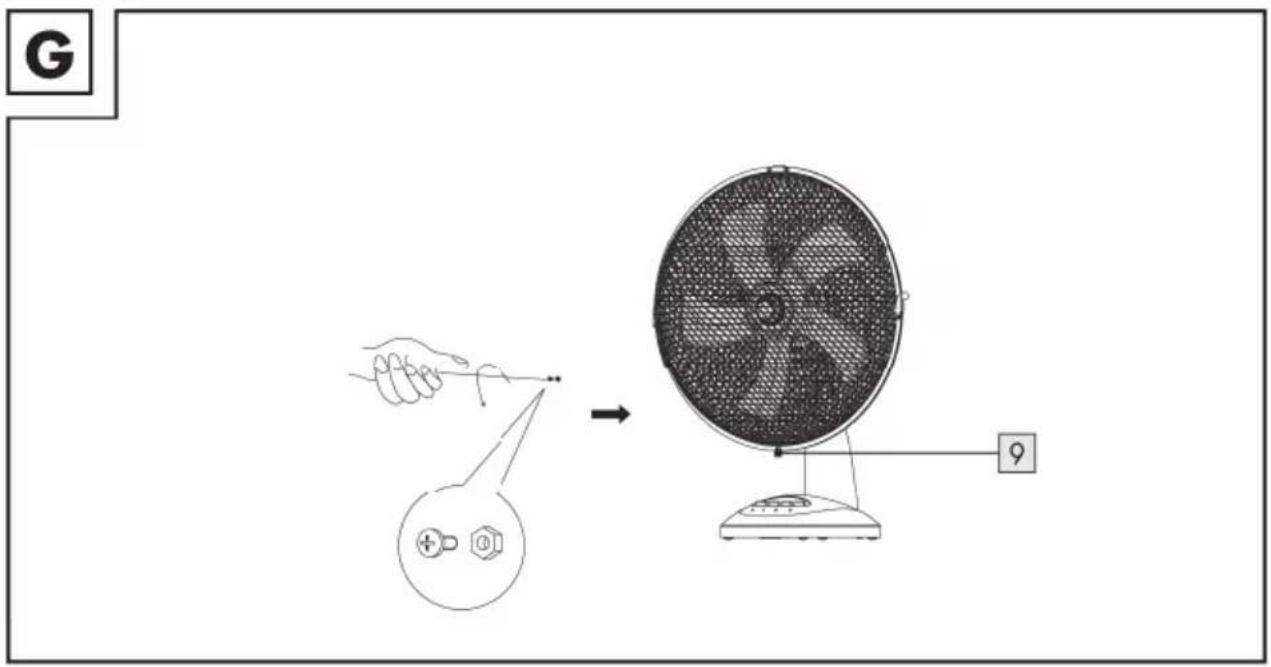

G	Lock the front grille 1 and the rear grille 5 with the screw and nut 9.

Operation

1. Place the product on a flat, stable ground.

2. Connect the power plug to a suitable power supply.

□ Turning the product on/off: Press one of the speed selection buttons.

Speed Function
0	Turn off the product
1	Low speed
2	Medium speed
3	High speed

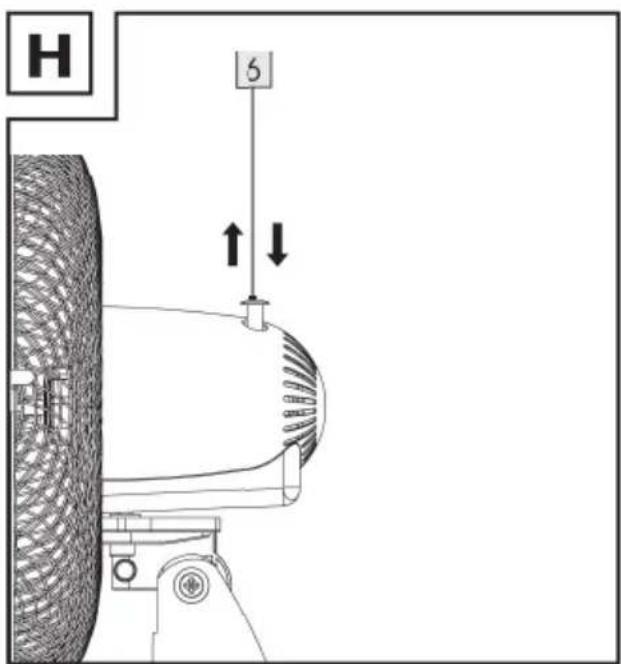

☐ Oscillation: Turn on the oscillation mode by pressing down the oscillation knob 6. To stop the oscillation at a desired position, pull up the oscillation knob 6 (Fig. H).

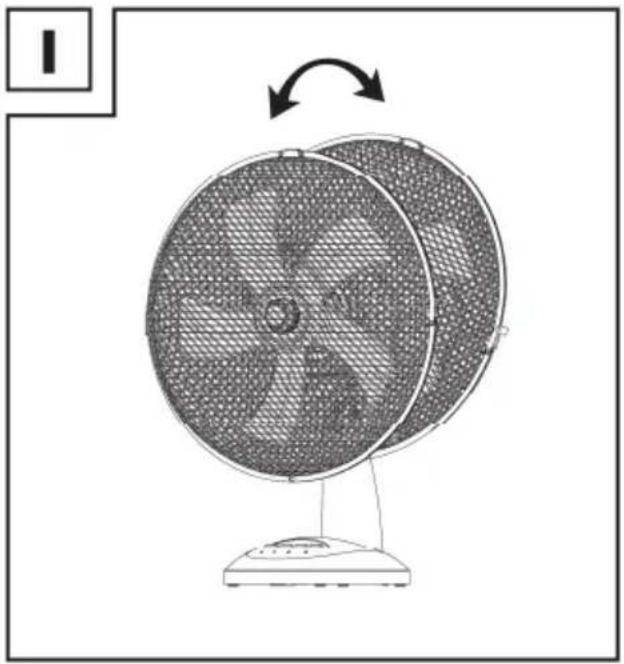

□ Tilt level: The fan's tilt level can be adjusted by hand (Fig. 1).

● Cleaning and care

WARNING! Do not immerse the electrical parts of the product in water or other liquids. Never hold the product under running water.

Do not allow any water or other liquids enter the product's interior.

Do not use abrasives, harsh cleaning solutions or hard brushes for cleaning.

Do not remove either front grille 1 or rear grille 5 under any circumstances.

Before cleaning, switch off and unplug the product from the power supply.

□ Clean the product with a slightly moistened cloth.

□ Clean the front grille 1 and the rear grille 5 by using a vacuum cleaner and a damp cloth only.

Storage

☐ When not in use, store the product in its original packaging.

☐ Store the product in a dry, secure location away from children.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Product:

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 446371_2307) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]
