USER MANUAL SS-18715 Sogo

SOGO 25W PRODUCT

PD 3.0 25W CARGADOR USB-C RÁPIDO USB-C FAST CHARGER CHARGEUR RAPIDE USB-C CARREGADOR RÁPIDO USB-CA USB-CSCHNELLES LADEGERÄT CARICATORE VELOCE USB-C

ref. SS-18710

Home CC RoHS 2015/863/EU

Simple diagram of a device with a central vertical bar and a dashed line pointing to it, labeled with number 1 (no text or symbols on the diagram itself)

Simple line drawing of a plug, cable, and electronic components (no text or symbols)

A. QC 3.0 + PD 3.0 GaN30W Ultra fast dual port charger
B. Type c technology: can output power maximum 30W and Qualcomm quick charge 3.0 technology
C. Qualcomm quick charge 3.0 technology Up to 5x faster than standard chargers, can charge compatible devices to 80 % in just 35 minutes.
D. Backwards compatible with all versions of Qualcomm quick charge technology (1.0, 2.0 & 3.0).
E. Also can charge all type of devises including non-quick charging devises.
F. Elegant, durable and heat resistant.
G. Overload, Overvoltage, Overheated and short circuit protection.

1.2 Accessories

• 30 W dual port fast charger
- User manual

2. Appearance description

2.1 Technical parameters

• Input power: 100-240V\~50/60Hz 0,8 A Max.
• Type C Power Output: 5V = 3A, 9V = 3A, 12V = 2.5A, 15V = 2A, 20V = 1.5A(30Wmax)
• PPS power output: 3.3V-11V =3A, 3.3V\~16V=2A (30W Max.)
• Type USB power output: 5V =3A, 9V =2A 12V=1,5 A (18W)
• Dual power output: 5V =3,6 A (18W)
• Charging power Max. 30W

2.2 Protection

- Short circuit protection system: To stop continue device charging, this device is equipped with short circuit protection system, which automatically activates and wall charger stops charging the device to protect the device.

• Over Voltage Protection: This wall charger is equipped with Over voltage protection system, so when the standard voltage increases up to 20%, then this protection system activate automatically and charger stop charging the device.

2.3 Material

Plastic housing: PC + fireproof material

Appearance and interface

Simple line drawing of a rounded rectangle with a central vertical bar and a dashed line pointing to it, labeled with number ① (no text or symbols on the diagram itself)

Simple line drawing of a plug, cable, and electronic components (no text or symbols)

3. Operational instructions

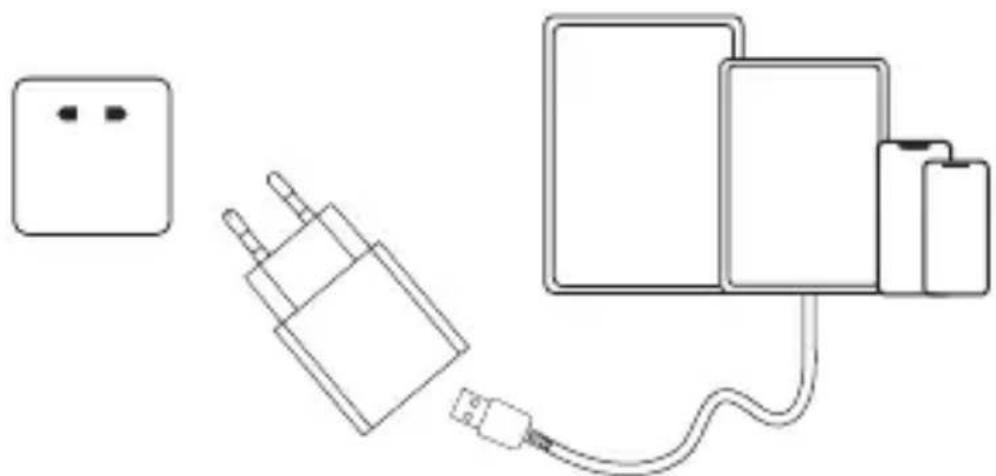

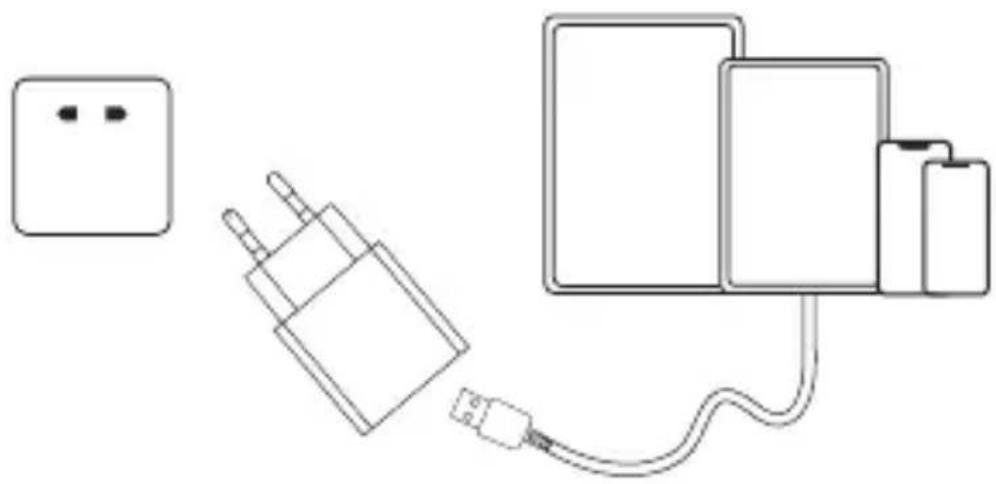

• As shown in above picture, connect your EU plug 25W, PD 3.0 Wall charger to alternating current AC 100-240V to start working. Without loading, its internal consumption is about 0.3mA
  • Type C PD 25 Output support: PD 3.0, Apple 2.4A, Samsung 9V/2A, DCP 1.5, QC 2.0; QC 3.0, AFC, FCP, PPS.
• There is smart IC integrated in each charging port, which identify charging current automatically, so there is not any need to distinguish charging port for Samsung/Apple etc. this is the best technology to realize real intelligent charging at full speed.

Note: this device is suitable to use in AC 100-240V constant alternating current, if higher or lower voltage is suitable.

Simple line drawing of a device with a central button and a dashed line pointing to it, labeled with number ① (no text or symbols on the diagram itself)

Simple line drawing of a plug, cable, and electronic components (no text or symbols)

Simple line drawing of a rectangular object with a central vertical bar and a dashed line pointing to it, labeled with number ① (no text or symbols on the object itself)

Simple line drawing of a plug, cable, and electronic components (no text or symbols)

Simple diagram of a device with a central button and an arrow pointing to it, labeled with number ① (no text or symbols on the diagram itself)

Simple line drawing of a plug, cable, and electronic components (no text or symbols)

Simple line drawing of a rounded rectangle with a central vertical oval shape and a dashed line pointing to the bottom-right corner, marked with circled number 1 (no text or symbols on the diagram itself)

Simple line drawing of a plug, cable, and electronic components (no text or symbols)
