OPT1845

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E’ importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și operarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımını yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradené | Подлежи на технически модификации | Є ob’єктом для технічних змін | Teknik değişikliğe tabidir.

Safety, performance, and dependability have been given top priority in the design of your cordless pole hedge trimmer.

INTENDED USE

The cordless pole hedge trimmer is intended only for outdoor use in dry and well-illuminated conditions.

The product is designed for home or domestic use. The product is intended to cut and trim hedges, shrubs, and similar vegetation. The product is not intended for cutting hedges, shrubs, and similar vegetation with diameters greater than its cutting capacity.

Do not use the product for any other purpose.

GENERAL PRODUCT SAFETY WARNINGS

⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re, and/or serious injury.

Save all warnings and instruction for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) product or battery-operated (cordless) product.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  ■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

POLE HEDGE TRIMMER SAFETY WARNINGS

- Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

- Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any

power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.

• When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.
• When clearing jammed material or servicing the unit, make sure all power switches are off and the battery pack is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.

- Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a “live” wire may make exposed metal parts of the hedge trimmer “live” and could give the operator an electric shock.

- Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.

■ Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

■ To reduce the risk of electrocution, never use the extended-reach hedge trimmer near any electrical power lines. Contact with or use near power lines may cause serious injury or electric shock resulting in death.

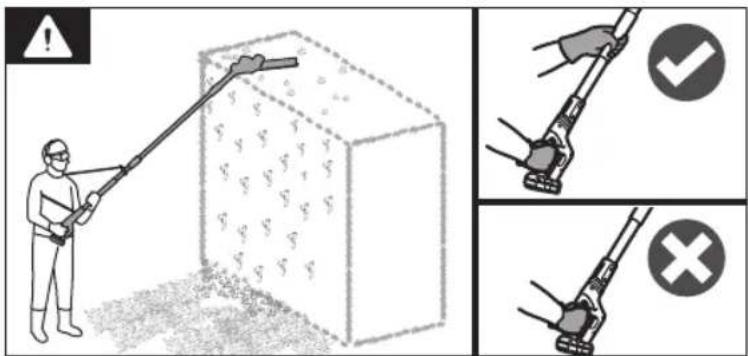

■ Always use two hands when operating the extended-reach hedge trimmer. Hold the extended-reach hedge trimmer with both hands to avoid loss of control.

■ Always use head protection when operating the extended-reach hedge trimmer overhead. Falling debris can result in serious personal injury.

ADDITIONAL SAFETY WARNINGS

• Check the hedges and bushes for foreign objects, such as wire fences and hidden wiring.
  ■ While operating the product, always hold it firmly with both hands by the two handles.
  ■ Use the product only at ground level and not on any other unstable support.
• Inspect the product before each use. Check for loose fasteners, etc. Make sure that all guards and handles are properly and securely attached. Replace any damaged parts before use. Check for battery pack leaks.
• Do not operate the product in poor lighting. The operator requires a clear view of the work area to identify potential hazards.
  ■ The use of hearing protection reduces the ability to hear warnings (shouts or alarms). The operator must pay extra attention to what is going on in the working area.
  ■ Turn off the product, remove the battery pack, and allow both to cool down. Make sure that all moving parts have come to a complete stop:
• before adjusting the working position of the cutting means
• before servicing
  • before clearing a blockage
• before checking, cleaning, or working on the product
  • before changing accessories

• before leaving the product unattended
- before checking for damage after striking a foreign object
• before performing maintenance
- whenever the product starts to vibrate abnormally

- Do not force the product through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace.

If the product is dropped, suffers heavy impact, or begins to vibrate abnormally, immediately turn off the product and inspect it for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an authorised service centre.

■ Do not wear multiple belt or shoulder harnesses.

■ Operate the product only in temperatures between 0^ C and 40^ C.

■ Store the product in a location where the ambient temperature is between 0°C and 40°C.

■ Injuries may be caused, or aggravated, by prolonged use of the product. When using any product for prolonged periods, ensure to take regular breaks.

ADDITIONAL BATTERY SAFETY WARNINGS

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the tool, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.
- Charge the battery pack in a location where the ambient temperature is between 10°C and 38°C.
■ Store the battery pack in a location where the ambient temperature is between 0°C and 40°C.
■ Use the battery pack in a location where the ambient temperature is between 0°C and 40°C.

TRANSPORTATION AND STORAGE

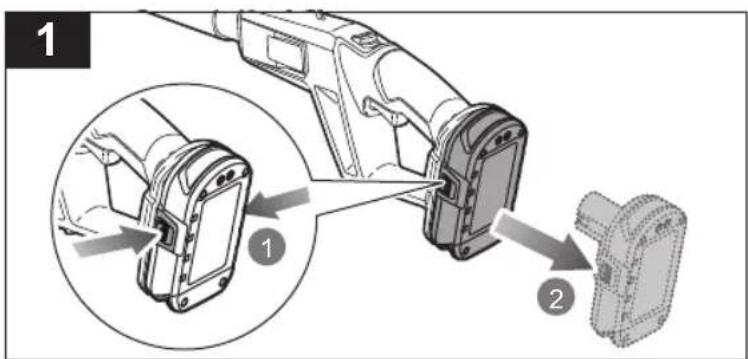

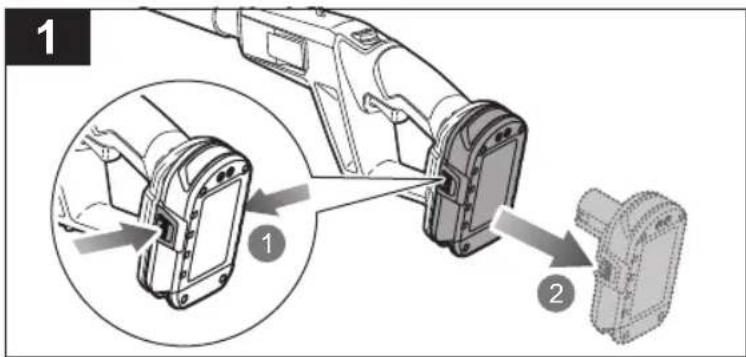

■ Turn off the product, remove the battery pack, and allow both to cool down before storing or transporting.

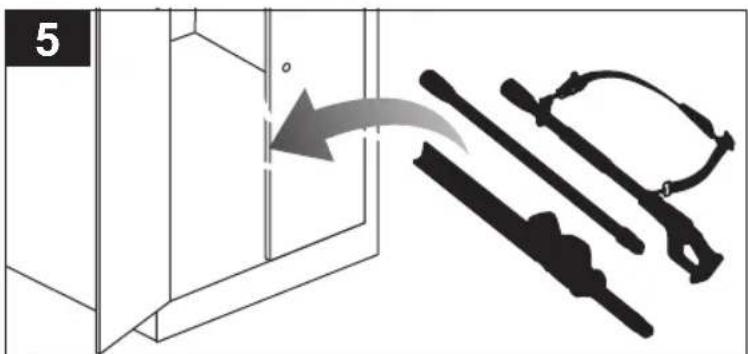

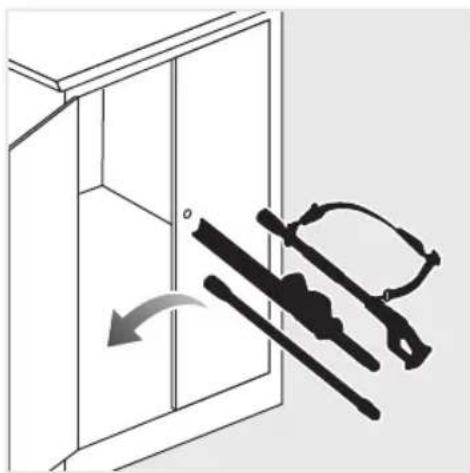

■ Remove all foreign materials from the product. Store the product in a cool, dry, and well-ventilated area that is inaccessible to children. For extra safety, store the battery pack separately from the product. Keep the product away from corrosive agents, such as garden chemicals and deicing salts. Do not store the product outdoors.

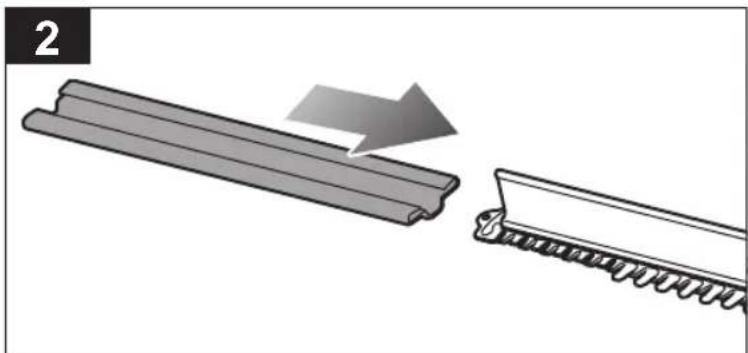

■ Fit the blade cover before storing the product or during transportation.
■ For transportation, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

- Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.

■ Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only.

■ The blades are extremely sharp. To prevent personal injury, exercise extreme caution when cleaning, lubricating, fitting, or removing the blade cover.

■ Remove the battery pack before adjusting, maintaining, or cleaning the product.

- You may make adjustments and repairs described in this manual. For other repairs, have the product serviced by an authorised service centre only.

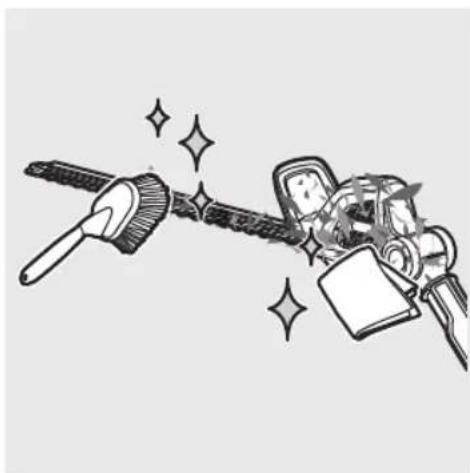

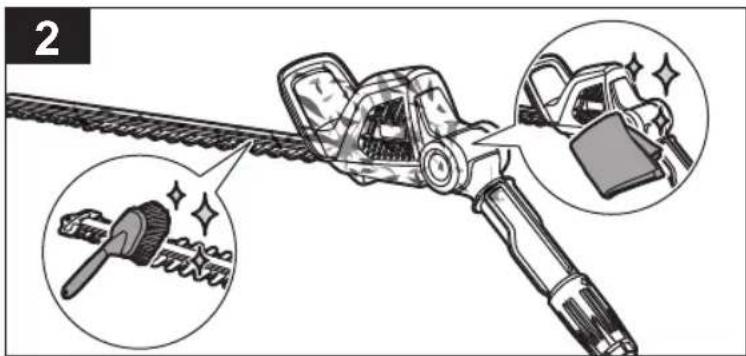

■ After each use, clean the plastic parts with a soft, dry cloth.

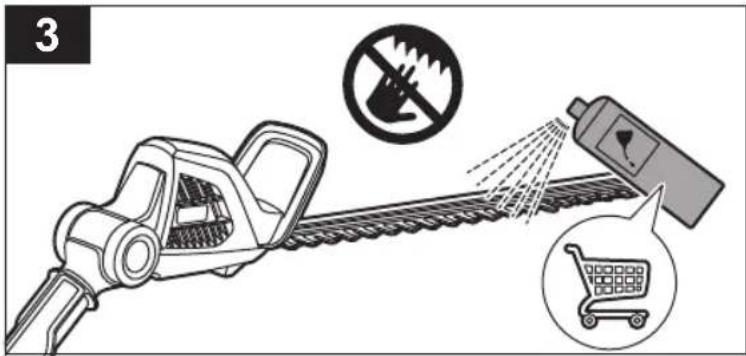

■ After each use, clean the debris from the blades with a stiff brush, and then carefully apply a rust preventative lubricant before refitting the blade protector. The manufacturer recommends using rust preventative lubricant spray to apply an even distribution and reduce the risk of personal injury from contact with the blades. For information about a suitable spray product, check with an authorised service centre.

- Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure that the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

KNOW YOUR PRODUCT

See page 106.

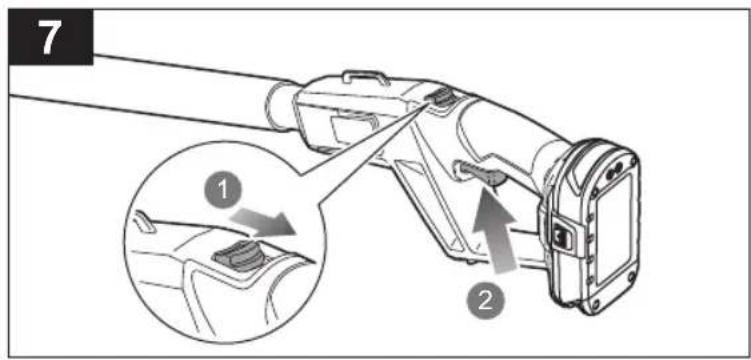

1. Trigger release
2. On/Off trigger
3. Front hand grip
4. Harness hanger

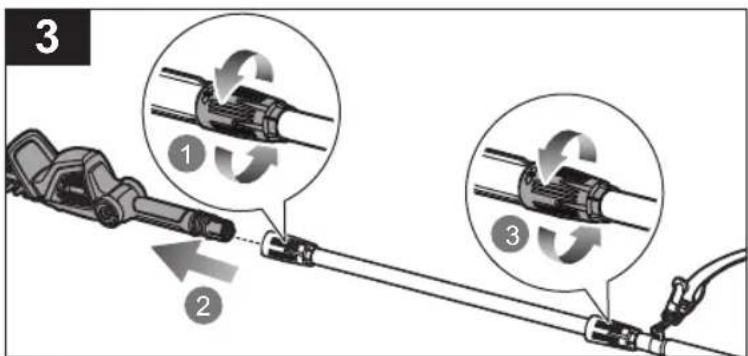

5. Shaft coupling
6. Extension pole
7. Harness
8. Blade cover

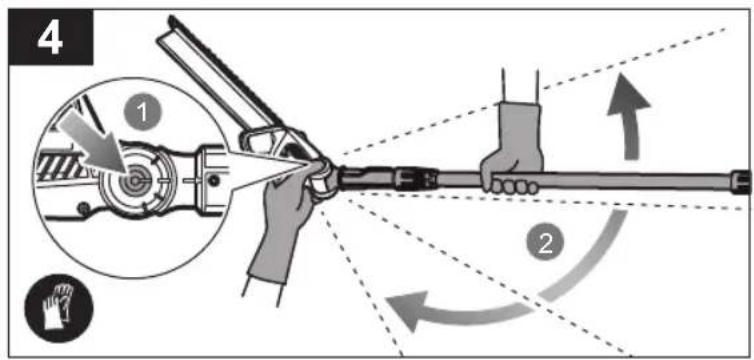

9. Pivoting button
10. Blade

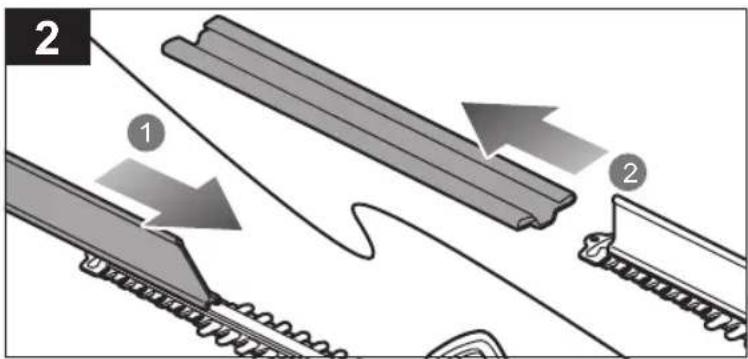

11. HEDGESWEEP debris sweeper
12. Operator's manual
13. Battery pack
14. Charger

SYMBOLS ON THE PRODUCT

Safety alert

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Wear eye, ear, and head protection.

Wear non-slip safety footwear when using the product.

Wear non-slip, heavy duty gloves.

Do not expose the product to rain or damp conditions.

To prevent serious injury, do not touch cutting blades.

Keep suffi cient distance away from electrical power lines.

Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

European Conformity Mark

EurAsian Conformity Mark

Ukraine Conformity Mark

British Conformity Mark

Guaranteed sound power level

SYMBOLS IN THIS MANUAL

Parts or accessories sold separately

Note

Warning

SYMBOLES APPLIQUÉS SUR LE PRODUIT

Alerte de sécurité

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 106.

SYMBOLE AUF DEM PRODUKT

Sicherheitswarnung

ALGEMENE PRODUCTVEILIGHEIDSWAARSCHUWINGEN

SYMBOLER PÅ PRODUKTET

Sikkerheds Varsel

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

Säkerhetsvarning

KJENN PRODUKTET DITT

Se side 106.

SYMBOLER PÅ PRODUKTET

Sikkerhetsalarm

SYMBOLER I DENNE MANUALLEN

SEADME ÜLDISED OHUTUSJUHISED

DODATNA VARNOSTNA OPOZORILA

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 106.

1. Západka plynovej páčky
2. Hlavný spínač
3. Predné držadlo
4. Vešiak postroja
5. Spojka hriadel'a
6. Predlžovacia tyč
7. Postroj
8. Kryt ostria
9. Otočné tlačidlo
10. Ostrie
11. Zmeták úlomkov HedgeSweep
12. Návod na obsluhu
13. Batéria
14. Nabíjačka

SYMBOLY NA PRODUKTE

Výstražná značka

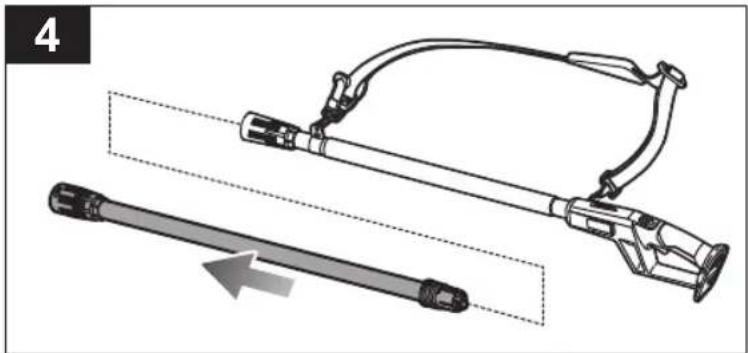

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

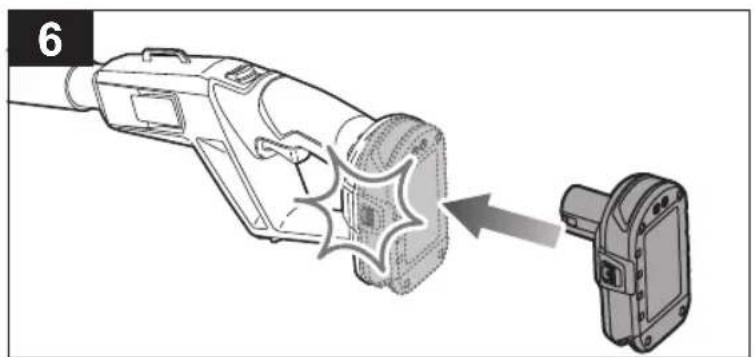

6 ① ②

Diagram illustrating a manual tool with labeled parts and process steps, including magnified views and annotations.

Illustration of a mechanical tool cutting through a material with arrows indicating direction (no text or symbols)

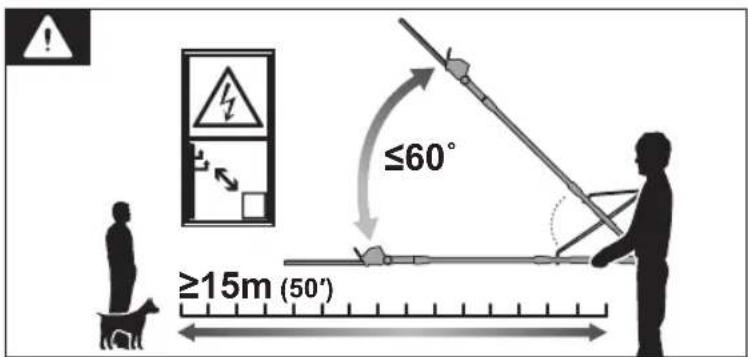

≥15m (50°) ≤60°

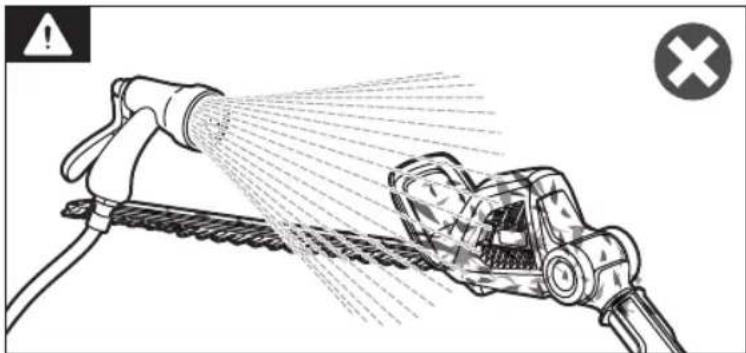

Safety warning illustration showing a person spraying a safety device with warning symbols and three labeled correct and incorrect handling.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating assembly steps

2 1 2

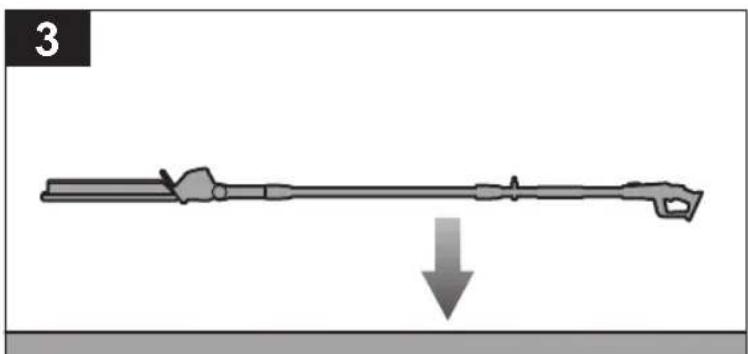

Diagram of a lever mechanism with a downward arrow indicating force or motion (no text or symbols present)

4 1 2

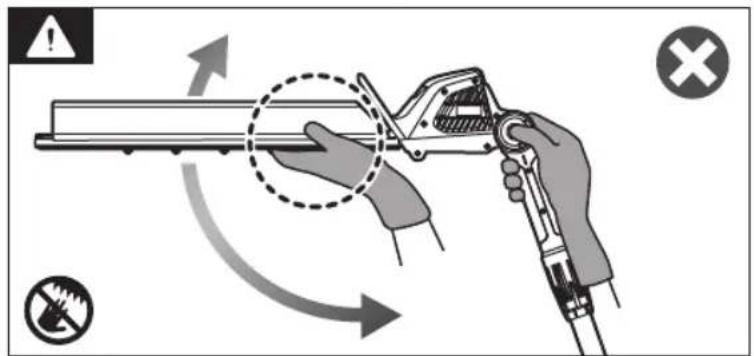

Safety warning illustration showing hand operating a tool with circular motion arrows and warning symbols

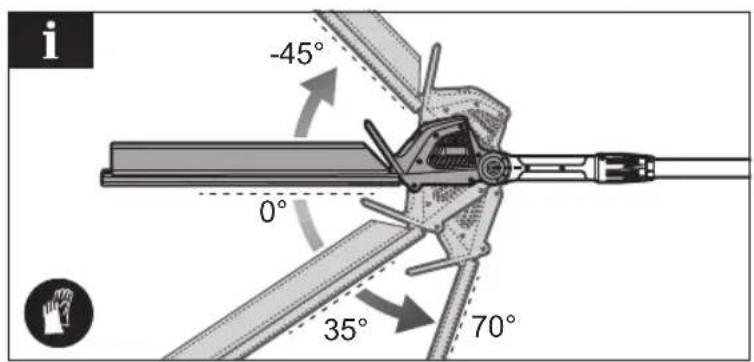

-45° 0° 35° 70°

Diagram showing a mechanical component being processed into a rack, with no visible text or symbols.

Diagram of a handheld device with an arrow indicating process, no text or symbols present

7 ① ②

8

Illustration of a cleaning brush and cleaning tool with sparkles (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations indicating component identification

2

Illustration of a spray gun spraying water onto a mechanical component, with warning symbols (no text or labels)

3

Diagram showing a cabinet with a double door and two black metal tools, one with a curved arrow indicating rotation (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating assembly steps

Diagram showing a mechanical component being cut with an arrow, next to a separate piece of saw (no text or symbols present)

3 1 2 3

Technical illustration of a mechanical device with a lever and handle, showing a change in length (no text or symbols present)

5

English Français Deutsch Español Italiano
Product specifications	Caractéristiques produit	Produkt-Spezifikationen	Características del producto	Caratteristiche del prodotto
Cordless pole hedge trimmer Taille-haies sans-fil sur perche Kabellosen teleskopheckenschere			Cortasetos de altura inalámbrico	Tagliasiepi telescopico senza cavi
Model	Modèle	Modell	Modelo	Modello
Rated voltage	Tension nominale	Nennspannung	Tensión nominal	Voltaggio nominale
No-load speed	Vitesse de rotation à vide	Leerlaufgeschwindigkeit	Velocidad sin carga	Velocità senza carico
Blade length	Longueur de la lame	Messerlänge	Longitud de la cuchilla	Lunghezza lama
Cutting capacity	Capacité de coupe	Schnittbreile Durchmesser	Capacidad de corte	Capacità di taglio
Vibration level (in accordance with EN 62841-1 and EN 62841-4-2 ANNEX I)	Niveau de vibration (selon l'Annexe I de la norme EN 62841-1; EN 62841-4-2)	Vibrationsgrad (gemäß Anhang I von EN 62841-1; EN 62841-4-2)	Nivel de vibración (de acuerdo con el Anexo I de EN 62841-1; EN 62841-4-2)	Livello vibrazioni (secondo quanto disposto dall'Allegato I della Direttiva EN 62841-1; EN 62841-4-2)
Front handle	Poignée avant	Vorderer Handgriff	Mango delantero	Manico anteriore
Rear handle	Poignée arrière	Hinterer Handgriff	Mango trasero	Manico posteriore
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
Noise emission level (in accordance with EN 62841-1 and EN 62841-4-2 ANNEX I)	Niveau de vibration (selon l'Annexe I de la norme EN 62841-1; EN 62841-4-2)	Schallenergiepegel (gemäß Anhang I von EN 62841-1; EN 62841-4-2)	Nivel de emisión de ruido (de acuerdo con el Anexo I de EN 62841-1; EN 62841-4-2)	Livello di emissione rumore (secondo quanto disposto dall'Allegato I della Direttiva EN 62841-1; EN 62841-4-2)
A-weighted sound pressure level	Niveau de pression sonore pondéré-A	A-bewerteter Schalldruckpegel	Nivel de presión acústica ponderada en A	Livello di pressione sonora pesato A
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
A-weighted sound power level	Niveau de puissance sonore pondéré A	A-bewerteter Schalleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
Weight without battery pack	Poids sans la batterie	Gewicht ohne Akku	Peso (sin la batería)	Peso (senza batterie)

Battery and charger	Batterie et chargeur	Akku und Ladegerät	Bateria y cargador	Batteria e caricatore
Model	Modèle	Modellnummer	Modelo	Modello
Battery pack	Batterie	Akku	Bateria	Batteria
Weight	Poids	Gewicht	Peso	Peso
Charger	Chargeur	Ladegerät	Cargador	Caricatore
Weight	Poids	Gewicht	Peso	Peso
Compatible battery packs	Packs Batterie Compatibles	Kompatible Akkus	Paquetes de batería compatibles	Gruppo batterie compatibili
Compatible chargers	Chargeur compatible	Passendes Ladegerät	Cargador compatible	Caricatore compatibile
Model	Modèle	Modellnummer	Modelo	Modello
Battery pack	Batterie	Akku	Bateria	Batteria
Weight	Poids	Gewicht	Peso	Peso
Charger	Chargeur	Ladegerät	Cargador	Caricatore
Weight	Poids	Gewicht	Peso	Peso
Compatible battery packs	Pacts Batterie Compatibles	Kompatible Akkus	Paquetes de batería compatibles	Gruppo batterie compatibili
Compatible chargers	Chargeur compatible	Passendes Ladegerät	Cargador compatible	Caricatore compatibile
NOTE: Visit your local special orders desk or contact RYOBI customer service for replacement parts.	REMARQUE: Pour obtenir des pièces de rechange, consultez le bureau local chargé des commandes spéciale ou le service client RYOBI.	HINWEIS: Wenden Sie sich an Ihren örtlichen Kundendienst oder kontaktieren Sie den RYOBI-Kundendienst, um Ersatzteile zu erhalten.	NOTA: Visite su servicio local de pedidos especiales o póngase en contacto con el Servicio de atención al cliente de RYOBI para obtener piezas de recambio.	NOTA: Recarsi presso il banco ordini speciali di zona oppure contattare l'assistenza clienti RYOBI per i pezzi di ricambio.

Nederlands Português Dansk Svenska
Productgegevens Características do aparelho Produktspecifikationer Produktspecifikationer
Snoerloze telescopische heggeschaar	Cortador de sebes sem fios	Ledningsfri stanghækkeklipper	Kabelfria häcksax på stav
Model	Modelo	Model	Modell	OPT1845
Toegekende spanning	Tensão nominal	Mærkespænding	Spanning	18 V d.c.
Snelheid zonder lading	Velocidade sem carga	Tomgangshastighed	Hastighet utan belastning	1350/min
Snijbladlengte	Comprimento da låmina	Knivlængde	Bladets längd	45 cm
Snijcapaciteit	Capacidade de corte	Skærekapacitet	Trimningskapacitet	18 mm
Trillingsniveau (in overeenstemming met bijlage I van EN 62841-1; EN 62841-4-2)	Nivel de vibração (em conformidade com o Anexo I de EN 62841-1; EN 62841-4-2)	Vibrationsniveau (iht. bilag I til EN 62841-1; EN 62841-4-2)	Vibrationsnivå (enligt Annex I i EN 62841-1; EN 62841-4-2)
Voorste handvat	Pega frontal	Forhåndtag	Främre handtag	1,17 m/s^2
Achterste handvat	Pega traseira	Baghåndtag	Bakre handtag	1,25 m/s^2
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mätt	1,5 m/s^2
Geluidsemissieniveau (in overeenstemming met bijlage I van EN 62841-1; EN 62841-4-2)	Nivel de emissão de ruído (em conformidade com o Anexo I de EN 62841-1; EN 62841-4-2)	Støjemissionsniveau (iht. bilag I til EN 62841-1; EN 62841-4-2)	Bullerutsläppsnivå (enligt Annex I i EN 62841-1; EN 62841-4-2)
A-gewogen geluidsdrukniveau	Nivel de pressão sonora ponderada A	A-vægtet lydtryksniveau A-vägd ljudtrycksnivå		84,8 dB(A)
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mätt	1,8 dB
A-gewogen geluidsniveau Nivel de potência sonora ponderada A	A-vægtet lydeffektniveau	A-vägd ljudeffektsnivå		92,8 dB(A)
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mätt	1,8 dB
Gewicht (zonder batterij)	Peso (sem a bateria)	Vægt (uden batteri)	Vikt (utan batteri)0	4,2 kg

Accu en oplader	Bateria e carregador	Batteri og oplader	Batteri och batteriladdare
Model	Modelo	Model	Modell	RPT184520	OPT1845
Accu	Bateria	Batteri	Batteri	RB18L20	-
Gewicht	Peso	Vægt	Vikt	0,45 kg	-
Lader	Carregador	Oplader	Batteriladdare	RC18120	-
Gewicht	Peso	Vægt	Vikt	0,4 kg	-
Compatibele accupacks	Baterias Compatíveis	Kompatible batterier	Kompatibla batteripaket	RB18..
Compatibele oplader	Carregador compativel	Kompatibel oplader	Kompatibel laddare	BCL1418.., BCS618.., RC18..
Model	Modelo	Model	Modell	RPT184515
Accu	Bateria	Batteri	Batteri	RB18L15
Gewicht	Peso	Vægt	Vikt	0,42 kg
Lader	Carregador	Oplader	Batteriladdare	BCL14181H
Gewicht	Peso	Vægt	Vikt	0,63 kg
Compatibele accupacks	Baterias Compatíveis	Kompatible batterier	Kompatibla batteripaket	RB18..
Compatibele oplader	Carregador compativel	Kompatibel oplader	Kompatibel laddare	BCL1418.., BCS618.., RC18..
OPMERKING: Bezoek de lokale verkoopspecialisten of neem contact op met de klantenservice van RYOBI voor vervangende onderdelen.	NOTA: Visite o seu ponto de encomendas especiais local ou contacte o Apoio ao cliente da RYOBI para obter peças de substituição.	BEMÆRK: Besøg din lokale specialbutik eller kontakt RYOBI kundeservice for reservedele.	OBS: Besök ditt lokala kontor för specialbeställningar eller kontakta RYOBI-kundservice för reservdelar.

Suomi Norsk	Русский Polski Čeština
Tuotteen tekniset tiedot	Produktspesifikasjoner	Характеристики изделия	Parametry techniczne	Technické údaje produktu
Langattoman versipensasleikkurisi	Elektriske hekklipper Бесnprowadного штанового триммера-кустореза		Bezprzewodowych noży do żywopłotu na wysięgniku	Bezdrátového plotostřihu s dlouhým dosahem
Malli	Modell	Модель	Model	Model
Nimellisjännite	Nominell spenning	Номинальное напряжение	Napięcie znamionowe	Jmenovité napěti
Nopeus ilman kuormaa	Tomgangshastighet	Холостая скорость	Prędkość obrotowa bez obciążenia	Rychlost naprázdno
Terän pituus	Bladlengde	Длина режущего полотна	Długość ostrza	Délka žací lišty
Leikkauskapasiteetti	Klippekapasitet	Сокращение вместимости	Szerokość cięcia	Rezací kapacita
Tärinätaso (standardin EN 62841-1; EN 62841-4-2 liitteen I mukaisesti)	Vibrasjonsnivá (iht. tillegg I i EN 62841-1; EN 62841-4-2)	Уровень вибрации (в соответствии с Приложением I стандарта EN 62841-1; EN 62841-4-2)	Poziom wibracji (zgodnie z aneksem I normy EN 62841-1; EN 62841-4-2)	Úroveň vibrací (v souladu s přilohou I normy EN 62841-1; EN 62841-4-2)
Etukädensija	Fremre håndtak	Передняя ручка (280 mm / 330 mm)	Przedni uchwyt	Přední rukojeť
Takakädensija	Bakre håndtak	Задняя ручка	Tylny uchwyt	Zadní rukojeť
Mittausten epätarkkuus	Usikkerhet ved máling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
Melutaso (standardin EN 62841-1; EN 62841-4-2 liitteen I mukaisesti)	Støyutslipsnivá (iht. tillegg I i EN 62841-1; EN 62841-4-2)	Уровень шума (в соответствии с Приложением I стандарта EN 62841-1; EN 62841-4-2)	Poziom emisji hałasu (zgodnie z aneksem I normy EN 62841-1; EN 62841-4-2)	Hladina emise hluku (v souladu s přilohou I normy EN 62841-1; EN 62841-4-2)
A-painotettu äänenpainetaso A-vektet lydtrykknivá Уровень А-взвешенного звукового давления			A-ważony poziom ciśnienia hałasu	Hladina akustického výkonu vážená funkcí A
Mittausten epätarkkuus	Usikkerhet ved máling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
A-painotettu äänenteho	A-vektet lydeffektnivá	Уровень А-взвешенной звуковой мощности	A-ważony poziom mocy akustycznej	Hladina akustického tlaku vážená funkcí A
Mittausten epätarkkuus	Usikkerhet ved máling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
Paino (ilman akkua)	Vekt (uten batteri)	Вес (без батарей)	Masa (bez akumulatora)	Hmotnost (bez baterie)

Akku ja laturi	Batteri og lader	Аккумуляторная батарея и зарядное устройство	Akumulator i ładowarka Nabiječka	a baterie
Malli	Modell	Модель	Model	Model
Akku	Batteri	Аккумулятор	Akumulator	Baterie
Paino	Vekt	Вес	Masa	Hmotnost
Laturi	Lader	Зарядное устройство	Ładowarka	Nabiječka
Paino	Vekt	Вес	Masa	Hmotnost
Yhteensopivat akut	Kompatible batteripakker	Совместимая аккумуляторная батарея	Pasujące akumulatory	Kompatibilni akumulátory
Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	Zgodna ładowarka	Kompatibilni nabiječka
Malli	Modell	Модель	Model	Model
Akku	Batteri	Аккумулятор	Akumulator	Baterie
Paino	Vekt	Вес	Masa	Hmotnost
Laturi	Lader	Зарядное устройство	Ładowarka	Nabiječka
Paino	Vekt	Вес	Lada	Hmotnost
Yhteensopivat akut	Kompatible batteripakker	Совместимая аккумуляторная батарея	Pasujące akumulatory	Kompatibilni akumulátory
Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	Zgodna ładowarka	Kompatibilni nabiječка
HUOMAUTUS: Kun tarvitset varaosia, käy paikallisissa toimipisteessä tai ota yhteyttä RYOBI-asiakaspalveluun.	MERK: Besøk den lokale spesialbestillingsskranken eller ta kontakt med RYOBI kundeservice for reservedeler.	ПРИМЕЧАНИЕ: Для приобретения запасных деталей обращайтесь в региональную службу специальных заказов или в клиентскую службу RYOBI.	UWAGA: W celu uzyskania części zamiennych należy odwiedzić lokalny dział zamówień specjalnych lub skontaktować się z Działem Obsługi Klienta firmy RYOBI.	POZNÁMKA: Náhradní díly objednávejte přes místního dodavatele nebo se obraťte na oddělení zákaznických služeb RYOBI.

Magyar Română Latviski Lietuviškai
Termék műszaki adatai Specificațiile produsului Produkta specifikacijas Gaminio techninės savybės
Akkumulátoros teleszkópos sõvényvágó	De tuns gardul viu fără cablu Bezvadu dzivžoga trimeri Belaides gyvatvorių žirkles
Típus	Model	Modelis	Modelis	OPT1845
Nėvleges feszültsėg	Tensiunea nominală	Nominālais spriegums	Nominali įtampa	18 V d.c.
Üresjárati fordulatszám	Viteză fără sarcină	Greitis be apkrovimo	Greitis be apkrovimo	1350/min
Kės hossza	Lungimea lamei	Asmeņu garums	Geležtės ilgis	45 cm
Vágási teljesítmény	Lungimea de tăiere	Griešanas dzilums	Pjovimo talpa	18 mm
Vibrácios szint (az EN 62841-1; EN 62841-4-2 I függelėke szerint)	Nivel de vibrație (în conformitate cu Anexa I a EN 62841-1; EN 62841-4-2)	Vibrácijas līmenis (saskaņā ar direktivas EN 62841-1; EN 62841-4-2 I pielikumu)	Vibracijos lygis (pagal EN 62841-1; EN 62841-4-2 standarto I priedą)
Elūlsō fogantyū	Mâner anterior	Priekšējais rokturis	Priekinė rankena	1,17 m/s^2
Hátsó fogantyū	Mânerul principal	Aizmugurējais rokturis	Galinė rankena	1,25 m/s^2
Mérės bizonytalansąga	Nesiguranța măsurătorii	Mērijuma nenoteiktība	Matavimo paklaïda	1,5 m/s^2
Hangkibocsátási szint (az EN 62841-1; EN 62841-4-2 I függelėke szerint)	Nivel emisie zgomot (în conformitate cu Anexa I a EN 62841-1; EN 62841-4-2)	Trokšņu emisijas līmenis (saskaņā ar direktivas EN 62841-1; EN 62841-4-2 I pielikumu)	Skleidžiamo triukšmo lygis (pagal EN 62841-1; EN 62841-4-2 standarto I priedą)
A-súlyozott hangnyomásszint	Nivel de presiune acustică ponderatā A	A-līmeņa skaņas spiediena līmenis	A-svertinis garso galios lygis	84,8 dB(A)
Mérės bizonytalansąga	Nesiguranța măsurătorii	Mērijuma nenoteiktība	Matavimo paklaïda	1,8 dB
A-súlyozott hangteljesítményszint	Nivel de putere acustică ponderatā A	A-līmeņa skaņas jaudas līmenis	A-svertinis akustinis lygis	92,8 dB(A)
Mérės bizonytalansąga	Nesiguranța măsurătorii	Mērijuma nenoteiktība	Matavimo paklaïda	1,8 dB
Tõmeg (akkumulátor nélkül)	Greutate (fără acumulator)	Svars (bez baterijas)	Svoris (be akumuliatorinės baterijos)	4,2 kg

Akkumulátor és töltö	Bateria și încărcătorul	Akumulators un lădëtăjs	Akumuliatorius ir jkroviklis
Tipus	Model	Modelis	Modelis	RPT184520	OPT1845
Akkumulátor Acumulator	Akumulators Baterija	RB18L20			-
Tõmeg	Greutate	Svars	Svoris	0,45 kg	-
Tõltö	Încărcător	Lădëtăjs	|jkroviklis	RC18120	-
Tõmeg	Greutate	Svars	Svoris	0,4 kg	-
Kompatibilis akkumulátorok	Acumulatori compatibili Savietojami akumulatoru komplekti		Suderinami baterijos paketai	RB18..
Kompatibilis töltö	Încărcător compatibil	Saderîgs lădëtăjs	Suderinamas jkroviklis	BCL1418.., BCS618.., RC18..
Tipus	Model	Modelis	Modelis	RPT184515
Akkumulátor Acumulator	Akumulators Baterija		RB18L15
Tõmeg	Greutate	Svars	Svoris	0,42 kg
Tõltö	Încărcător	Lădëtăjs	|jkroviklis	BCL14181H
Tõmeg	Greutate	Svars	Svoris	0,63 kg
Kompatibilis akkumulátorok	Acumulatori compatibili Savietojami akumulatoru komplekti		Suderinami baterijos paketai	RB18..
Kompatibilis töltö	Încărcător compatibil	Saderîgs lădëtăjs	Suderinamas jkroviklis	BCL1418., BCS618.., RC18..
MEGJEGYZÉS:Cserealkatrészekért látogassa meg a helyi különleges rendelések pultot vagy lépjen kapcsolatba a RYOBI ügyfélszolgálatával.	NOTĂ: Vizitați reprezentanța dvs. locală de vânzări sau contactași Serviciul Asistență Clienti RYOBI pentru piese de schimb.	PIEZIME: Rezerves daļas meklėjiet jūsu vietėjā īpašo pasūtījumu centrā vai sazinieties ar RYOBI Klientu apkalpošanas dienestu.	PASTABA: Jei prireiktų keičiamujų dalių, nuvykite i vietos specialiųų užsakymų biurą arba kreipkitės i RYOBI klientų aptamavimo tarnybą.

The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.

The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may significantly increase the exposure levels over the total working period. An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is running idle. These conditions may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organising work patterns.

FR AVERTISSEMENT

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.

2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.nyobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.

3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance – any product that has been altered or modified

– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed

– any damage caused by non-observance of the instruction manual

– any product not displaying the CE approval mark on the rating plate

– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries

– any product connected to improper power supply (amps, voltage, frequency)

– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)

– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

- normal wear and tear spare parts

– inappropriate use, overloading of the tool

- use of non-approved accessories or parts

- Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.

– Any periodic adjustments to or maintenance cleaning of carburettors

Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.

2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.

3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey, Russia, and the United Kingdom. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

Any request or issue with the product can be addressed to your local authorised service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH, Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and product type printed on the label.

FR RYOBI® CONDITIONS D'APPLICATION DE LA GARANTIE

EN DECLARATION OF CONFORMITY

Cordless pole hedge trimmer

Brand: RYOBI | Model number ^1 | Serial number range ^2

We declare under our sole responsibility that the product mentioned below fulfills all the relevant provisions of the following European Directives, European Regulations and harmonised standards ^3

Measured sound power level.... 92.8 dB(A)

Guaranteed sound power level.... 95 dB(A)

Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC.

Authorised to compile the technical file: ^4

FR DÉCLARATION DE CONFORMITÉ

SV KONFORMITETSDEKLARATION

Vice President, Quality – Asia

^4 Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

Manufacturer: Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare as the manufacturer under our sole responsibility that the product mentioned below

Cordless pole hedge trimmer

Brand: RYOBI

Model number: RPT184515 / RPT184520 / OPT1845

Serial number range: 47579601000001 - 47579601999999

fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597 (as amended), S.I. 2016/1091 (as amended), S.I. 2001/1701 (as amended), S.I. 2012/3032 (as amended) and that the following designated standards have been used:

BS EN 62841-1:2015, BS EN 62841-4-2:2019,

BS EN 55014-1:2017+A11:2020, BS EN 55014-2:2015,

BS EN IEC 63000:2018

Measured sound power level: 92.8 dB(A)

Guaranteed sound power level. 95 dB(A)

Conformity assessment method to S.I. 2001/1701 Schedule 8 (as amended)

Todd Chipner

Vice President, Quality – Asia

Authorised to compile the technical file:

Techtronic Industries (UK) Ltd

Fieldhouse Lane

Marlow Bucks SL7 1HZ

UK

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.

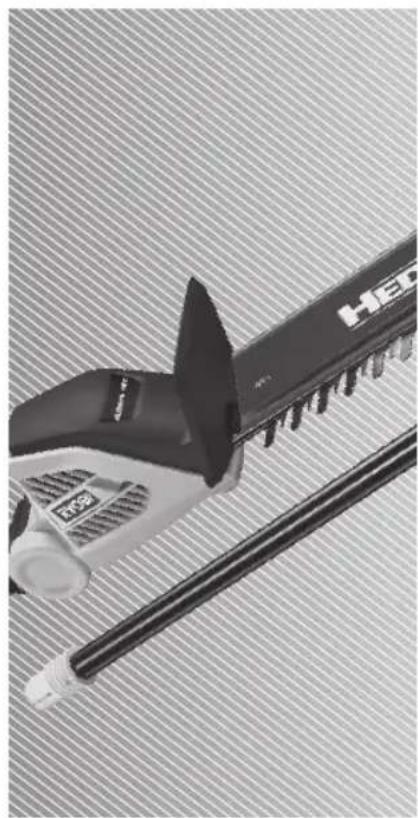

Three vertical panels with diagonal striped patterns, no text or symbols present

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

Techtronic Industries (UK) Ltd

Fieldhouse Lane

Marlow Bucks SL7 1HZ

UK

961480271-01
