USER MANUAL Kappa 6120M INFINITY

Infinity Kappa 6, Kappa 8, and Kappa 10 marine speaker - Owner's Manual

Your Infinity product has been designed to provide you with the performance and ease of operation you would expect from Infinity.

ABOUT THE MANUAL

This manual describes general installation guidelines. However, please note that proper installation of marine audio components requires qualified experience. If you do not have the knowledge and tools to successfully perform this installation, we strongly recommend consulting an authorized Infinity dealer about your installation options. Keep all instructions and sales receipts for reference.

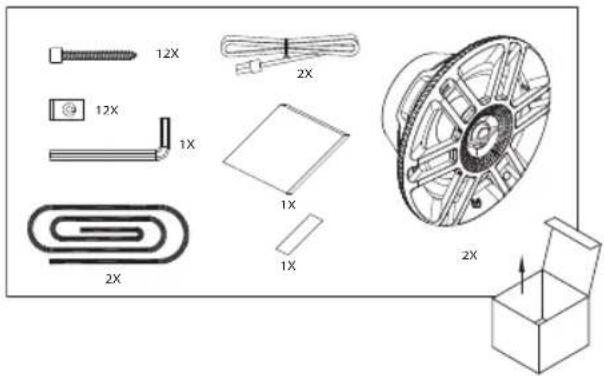

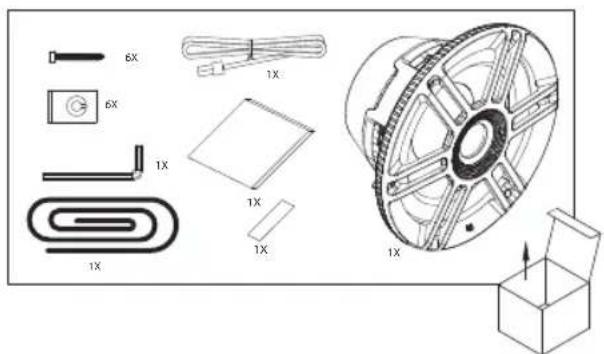

WHAT'S IN THE BOX

Kappa 6

12X 12X 1X 2X 1X 1X 2X 2X

Kappa 8

Exploded view diagram of electronic components with labeled parts and dimensions

Kappa 10

EN

6X 6X 1X 1X 1X 1X 1X 1X 1X 1X

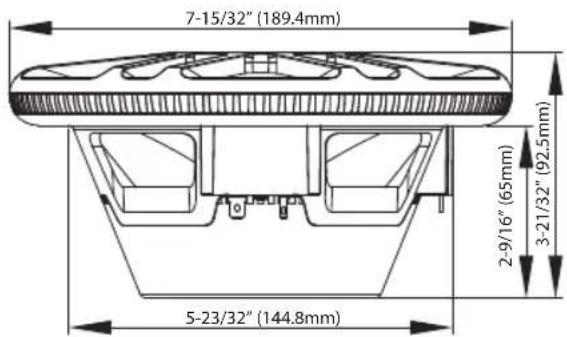

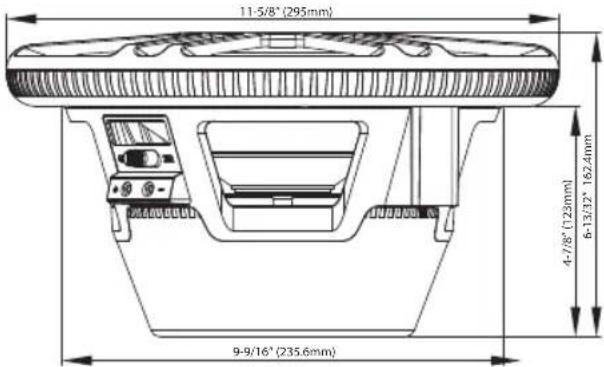

DIMENSIONS

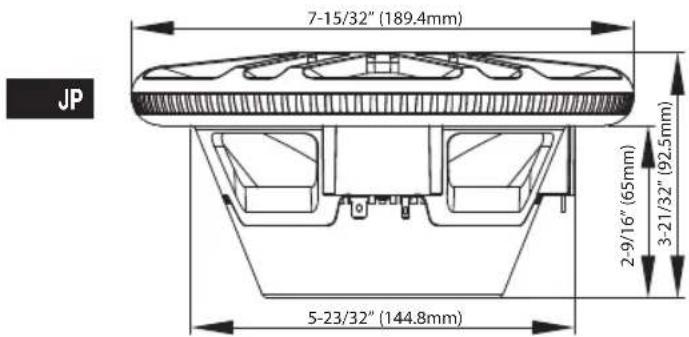

Kappa 6

7-15/32" (189.4mm) 2-9/16" (65mm) 3-21/32" (92.5mm) 5-23/32" (144.8mm)

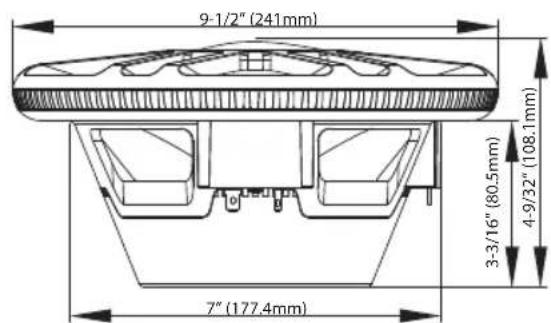

Kappa 8

9-1/2"(241mm) 4-9/32"(108.1mm) 3-3/16"(80.5mm) 7"(177.4mm)

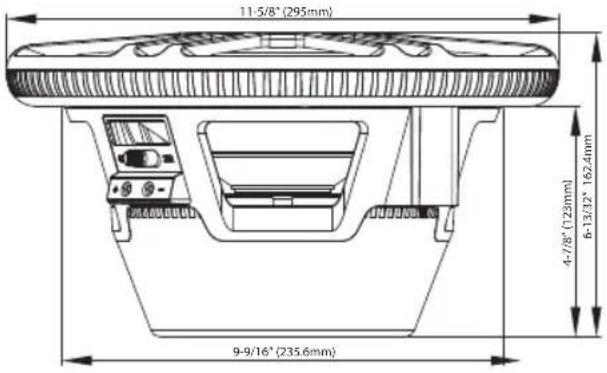

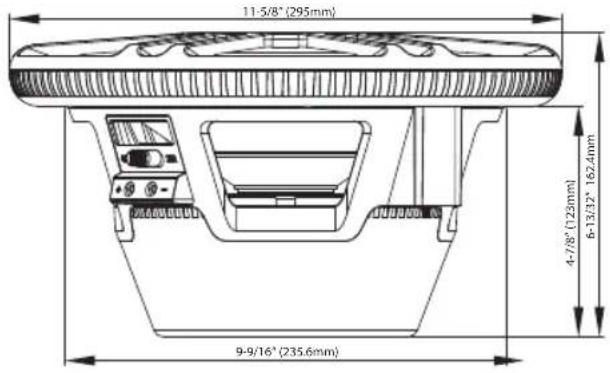

Kappa 10

11-5/8" (295mm) 4-7/8" (123mm) 6-13/32" (162.4mm) 9-9/16" (235.6mm)

SPEAKER SIGNAL WIRING

To send signal to the Infinity marine speaker, connect the positive (+) and negative (-) speaker wires to the appropriate speaker outputs of your source unit or amplifier. Be sure to observe proper polarity.

RGB

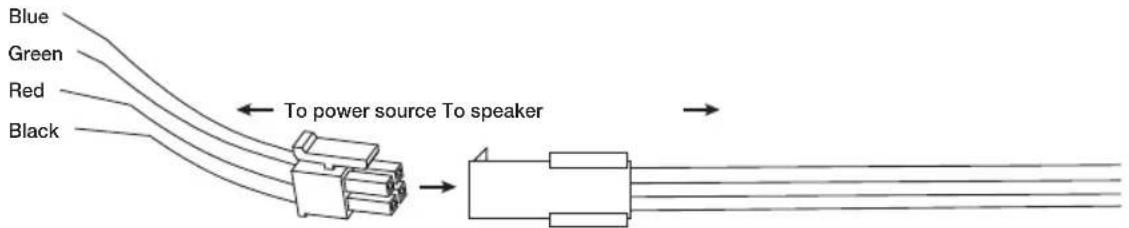

SPEAKER LED WIRING

To provide power for the LEDs, plug the 24-gauge black (+), blue, green, and red LED wires from the speaker into the included female connector, then run the wires from the female connector to your compatible 12-volt power source or light controller (sold separately). If using a separate controller, be sure to connect each wire to the proper output.

Blue Green Red Black To power source To speaker

If hardwiring the LEDs directly to your power source, you can choose the color of the LEDs by connecting the black wire to the positive (+) terminal, and the appropriate R, G, and/or B single wire or combination of wires to the negative (-) terminal.

There are 7 possible colors, depending on the wiring configuration you choose:

Wire connected to positive (+12V) terminal	Wire connected to negative (-) terminal	Color produced
Black	Red Red
	Green Green
	Blue Blue
	Red + Green Yellow
	Red + Blue Purple
	Blue + Green Aquamarine
	Red + Blue + Green White

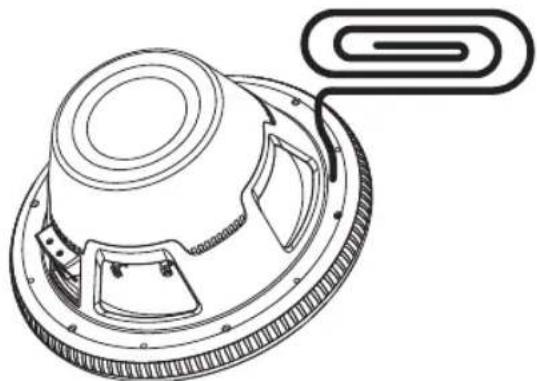

APPLYING FOAM SEAL

To help seal your installation against water, and to provide an airtight acoustic seal, apply the self-adhesive foam seal to the speaker frame.

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

EN

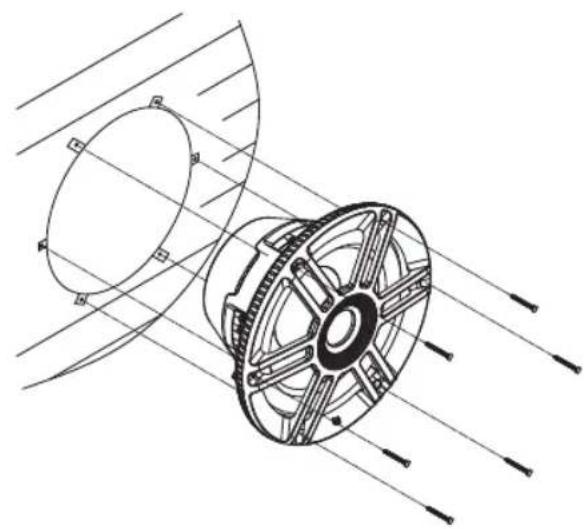

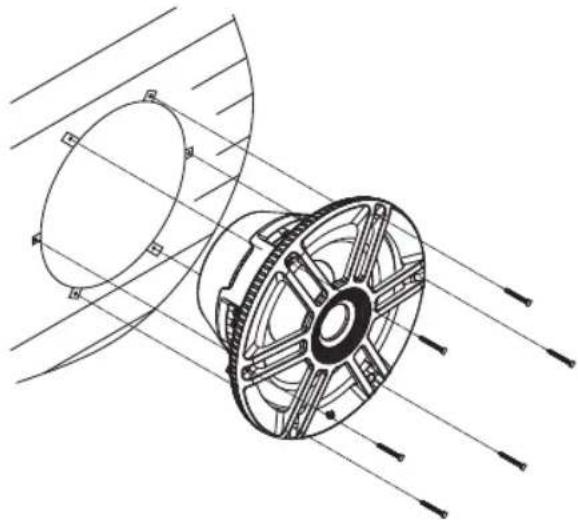

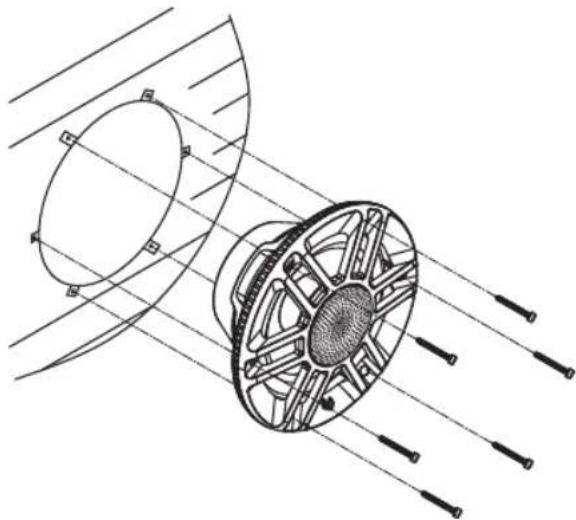

MOUNTING THE SPEAKER

Use the included screws to mount the speaker to the location. Use the included speed clips if necessary to provide a secure mount.

NOTE: Use caution when cutting and using screws with fiberglass to prevent scratches and cracks.

Kappa 6 and Kappa 8
Kappa 10

Technical line drawing of a mechanical component with internal gear and external force arrows (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

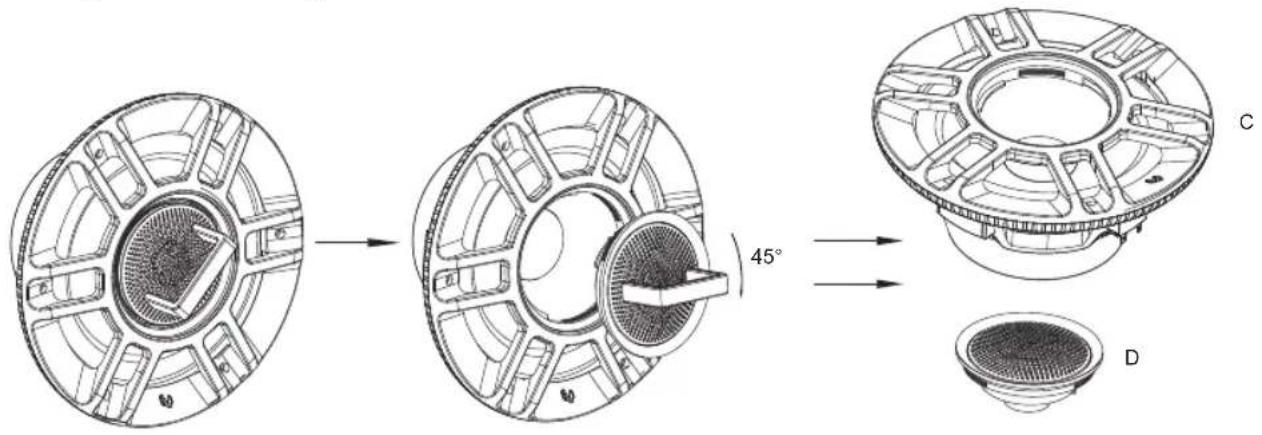

REMOVING THE TWEETER FOR SEPARATE MOUNTING (KAPPA 8 ONLY)

Use the included 2-pin tool to remove the tweeter from the woofer housing. Place the pins of the tool in the holes of the tweeter grille and rotate 45 degrees clockwise to loosen and remove.

Technical diagram showing a 45-degree angular assembly of a mechanical component with labeled parts C and D.

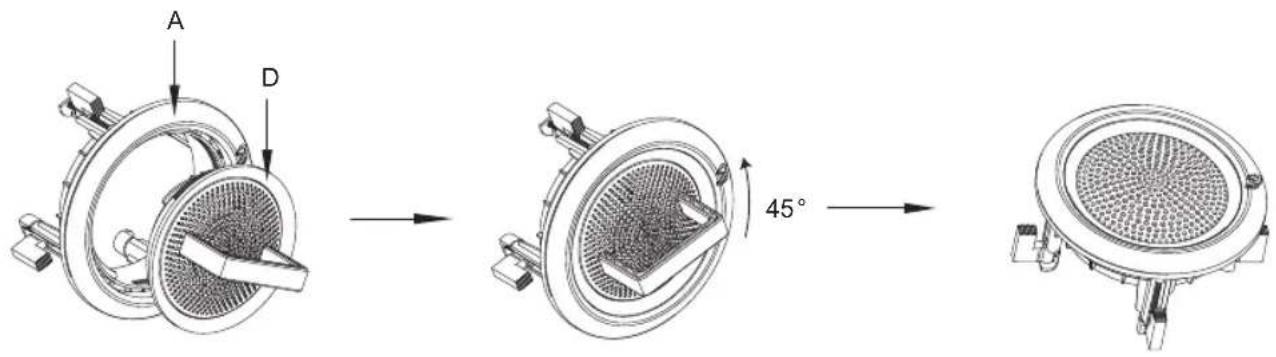

FLUSH-MOUNTING THE TWEETER

Place the tweeter in the mounting bracket and use the tool to secure by turning 45 degrees counter-clockwise.

A D 45°

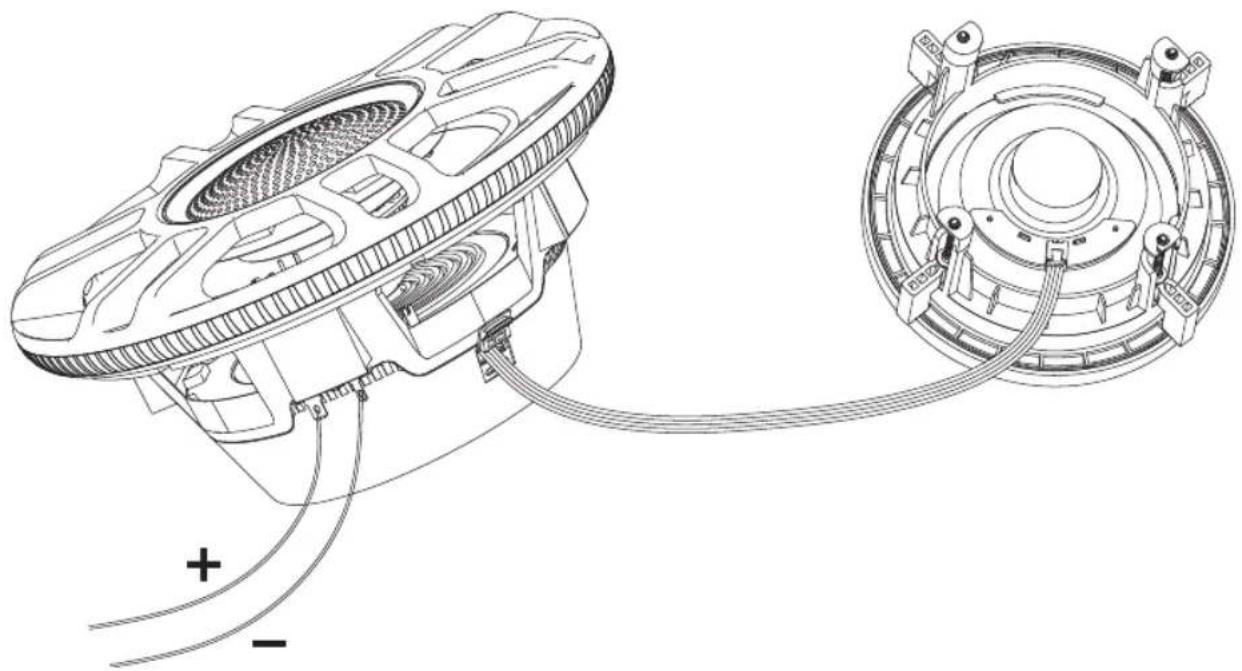

To transmit audio signal to the tweeter, make sure the woofer and tweeter are connected with the included cable.

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

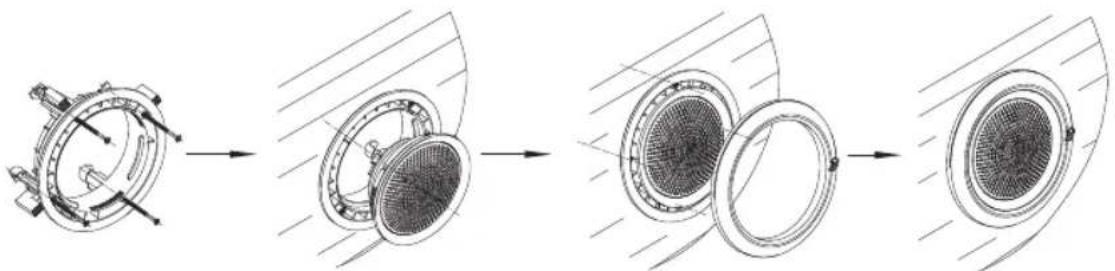

Place the tweeter in the mounting location, then turn each setscrew clockwise to tighten mounting brackets. Use caution so as not to overtighten. Snap the included outer ring over the mounting bracket to hide the setscrews.

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Specifications	Kappa 6 Kappa	8 Kappa 10
Continuous power handling	100W 200W 300W
Peak power handling 300W	500W 900W
Frequency response 40Hz –	25kHz 30Hz – 22kHz 20Hz – 2kHz
Nominal impedance 3 Ohms*	3 Ohms* 2 or 4 Ohms (use		switch to select)
Sensitivity 92dB 92dB 89dB
External diameter	7-15/32" (189.4mm)	9-1/2" (241mm)	11-5/8" (295mm)
Mounting cutout diameter	5-23/32" (144.8mm)	Woofer: 7" (177.4mm)Tweeter bracket: 4-9/16"(115.9mm)	9-9/16" (235.6mm)
Total depth	3-21/32" (92.5mm)	4-9/32" (108.1mm)	6-13/32"(162.4mm)
Mounting depth	2-9/16" (65mm)	3-3/16" (80.5mm)	4-7/8" (123mm)

EN

*NOTE: Because of the woofer's low impedance, do not wire two or more in parallel to an amplifier; doing so can result in overheating and damage to the amplifier.

MERCI POUR VOTRE ACHAT ...

Exploded view diagram of mechanical components with labeled parts and dimensions

Kappa 10

6X 6X 1X 1X 1X 1X 1X 1X 1X 1X

DIMENSIONS

Kappa 6

7-15/32" (189.4mm) 2-9/16" (65mm) 3-21/32" (92.5mm) 5-23/32" (144.8mm)

Kappa 8

9-1/2" (241mm) 3-3/16" (80.5mm) 4-9/32" (108.1mm) 7" (177.4mm)

Kappa 10

11-5/8" (295mm) 4-/8" (123mm) 6-13/32" 162.4mm 9-9/16" (235.6mm)

CÂBLAGE DU SIGNAL DU HAUT-PARLEUR

Technical line drawing of a mechanical component with a curved handle and flange (no text or symbols)

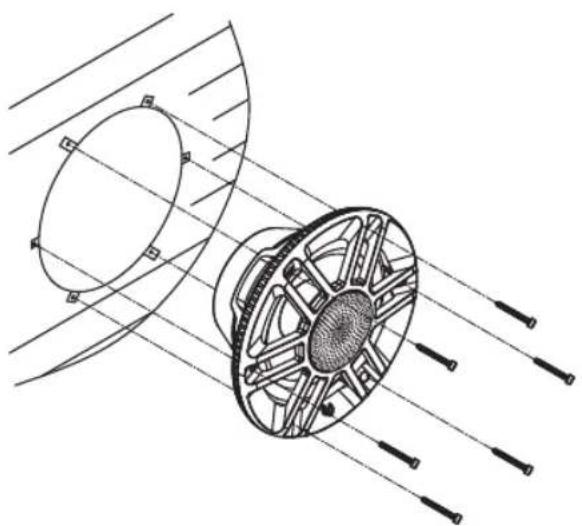

MONTAGE DU HAUT-PARLEUR

Kappa 6 and Kappa 8
Kappa 10

Technical line drawing of a mechanical component with internal gear and alignment lines (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

DÉPOSE DU TWEETER POUR UN MONTAGE SÉPARÉ (KAPPA 8 UNIQUEMENT)

Technical diagram showing a 45-degree angular assembly of a mechanical component with labeled parts C and D.

MONTAGE AFFLEURANT DU TWEETER

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Exploded view diagram of mechanical components with labeled parts and dimensions

Kappa 10

6X 6X 1X 1X 1X 1X 1X 1X 1X 1X

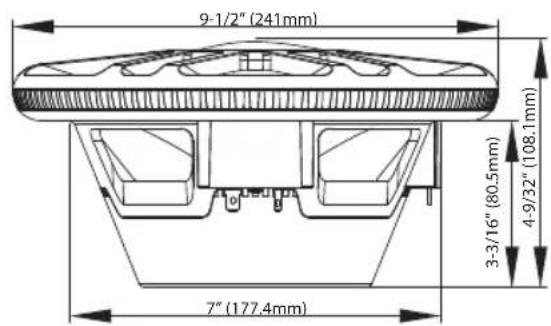

DIMENSIONES

Kappa 6

7-15/32" (189.4mm) 2-9/16" (65mm) 3-21/32" (92.5mm) 5-23/32" (144.8mm)

Kappa 8

9-1/2" (241mm) 3-3/16" (80.5mm) 4-9/32" (108.1mm) 7" (177.4mm)

Kappa 10

11-5/8" (295mm) 4-7/8" (123mm) 6-13/32" (162.4mm) 9-9/16" (235.6mm)

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

MONTAJE DEL ALTAVOZ

Technical line drawing of a mechanical component with internal gear and external force arrows (no text or symbols)

Technical line drawing of a mechanical component with internal gears and shafts, no text or symbols present

RETIRADA EL ALTAVOZ DE AGUDOS PARA SU MONTAJE SEPARADO (SOLO KAPPA 8)

Technical diagram showing a 45-degree angular assembly of a mechanical component with labeled parts C and D.

MONTAJE DEL ALTAVOZ DE AGUDOS EMPOTRADO

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Exploded view diagram of mechanical components with labeled parts and dimensions

Kappa 10

6X 6X 1X 1X 1X 1X 1X 1X 1X 1X

尺寸

Kappa 6

7-15/32" (189.4mm) 2-9/16" (65mm) 3-21/32" (92.5mm) 5-23/32" (144.8mm)

Kappa 8

9-1/2" (241mm) 3-3/16" (80.5mm) 4-9/32" (108.1mm) 7" (177.4mm)

Kappa 10

11-5/8" (295mm) 4-7/8" (123mm) 6-13/32" (162.4mm) 9-9/16" (235.6mm)

扬声器信号设置

Technical line drawing of a mechanical component with a curved handle and circular base (no text or symbols)

安装扬声器

Technical line drawing of a mechanical component with internal gear and external guide rails (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

Technical diagram showing a 45-degree angular assembly of a mechanical component with labeled parts D and C.

嵌装高音扬声器

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Four-step diagram showing a mechanical assembly or assembly process, with no visible text, numbers, or symbols.

规格	Kappa 6 Kappa	8 Kappa 10
连续功率承受能力	100W 200W 300W
峰值功率承受能力	300W 500W 900W
频率响应	40Hz - 25kHz 30Hz	-22kHz 20Hz - 2kHz
标称阻抗	3 Ohms* 3 Ohms* 2 或 4 Ohms		(使用开关选择)
灵敏度	92dB 92dB 89dB
外径	7-15/32” (189.4mm)	9-1/2” (241mm) 11-5/8” (295mm)
安装切口直径	5-23/32” (144.8mm)	低音扬声器:7” (177.4mm)高音扬声器支架:4-9/16” (115.9mm)	9-9/16” (235.6mm)
总深度	3-21/32” (92.5mm)	高音扬声器支架:4-9/16” (115.9mm)	6-13/32”(162.4mm)
安装深度	2-9/16” (65mm)	3-3/16” (80.5mm)	4-7/8” (123mm)

Exploded view diagram of electronic components with labeled parts and dimensions

Kappa 10

6X 6X 1X 1X 1X 1X 1X 1X 1X 1X

CHT

尺寸

Kappa 6

7-15/32" (189.4mm) 2-9/16" (65mm) 3-21/32" (92.5mm) 5-23/32" (144.8mm)

Kappa 8

9-1/2" (241mm) 3-3/16" (80.5mm) 4-9/32" (108.1mm) 7" (177.4mm)

Kappa 10

11-5/8" (295mm) 4-7/8" (123mm) 6-13/32" (162.4mm) 9-9/16" (235.6mm)

喇叭訊號接線

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

安装喇叭

Technical line drawing of a mechanical component with internal gear and external guide rails (no text or symbols)

Technical line drawing of a mechanical component with internal gears and motion lines (no text or symbols)

Technical diagram showing a 45-degree angular assembly of a mechanical component, labeled with parts C and D.

嵌装高音喇叭

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Diagram showing a mechanical assembly process with four sequential steps, no text or symbols present.

規格	Kappa 6 Kappa	8 Kappa 10
連續的功率處理	100W 200W 300W
峰值的功率處理	300W 500W 900W
頻率回應	40Hz - 25kHz 30Hz	-22kHz 20Hz - 2kHz
標稱阻抗	3 歐姆* 3 歐姆* 2 或 4 歐姆		(使用開關選擇)
靈敏度	92dB 92dB 89dB
外徑	7-15/32” (189.4mm)	9-1/2” (241mm) 11-5/8” (295mm)
安裝開孔直徑	5-23/32” (144.8mm)	低音喇叭:7” (177.4mm)高音喇叭托架:4-9/16” (115.9mm)	9-9/16” (235.6mm)
總深度	3-21/32” (92.5mm)	4-9/32” (108.1mm)	6 - 1 3 / 3 2 ” (1 6 2 . 4 mm )
安裝深度	2-9/16” (65mm)	3-3/16” (80.5mm)	4-7/8” (123mm)

Exploded view diagram of mechanical components with labeled parts and dimensions

Kappa 10

6X 6X 1X 1X 1X 1X 1X 1X 1X 1X

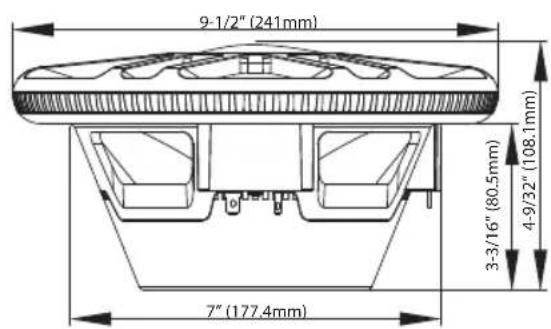

DIMENSI

Kappa 6

7-15/32" (189.4mm) 2-9/16" (65mm) 3-21/32" (92.5mm) 5-23/32" (144.8mm)

Kappa 8

9-1/2" (241mm) 3-3/16" (80.5mm) 4-9/32" (108.1mm) 7" (177.4mm)

Kappa 10

11-5/8" (295mm) 4-7/8" (123mm) 6-13/32" 162.4mm 9-9/16" (235.6mm)

PEMASANGAN KABEL SINYAL SPEAKER

Technical line drawing of a mechanical component with a curved handle and flange (no text or symbols)

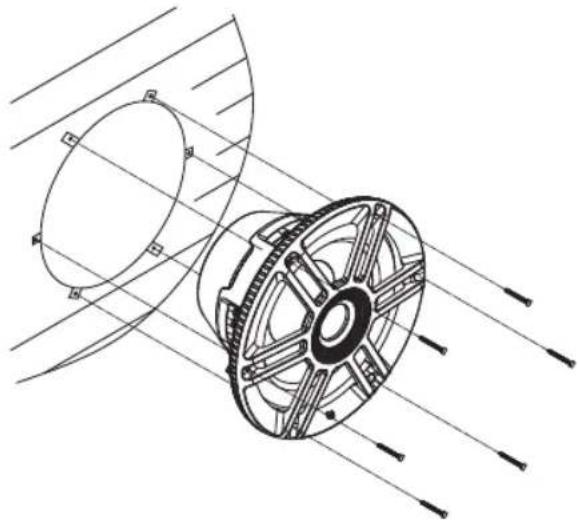

MEMASANG SPEAKER

Technical line drawing of a mechanical component with internal gear and external force arrows (no text or symbols)

Technical line drawing of a mechanical component with internal gears and shafts, no text or symbols present

MELEPAS TWEETER UNTUK PEMASANGAN TERPISAH (KAPPA 8 SAJA)

Technical diagram showing a 45-degree angular assembly of a mechanical component with labeled parts C and D.

MEMASANG-BENAMKAN TWEETER

Technical line drawing of a speaker assembly with labeled components (ID and +/-), showing internal structure and wiring connections (no text or symbols beyond labels)

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Spesifikasi	Kappa 6 Kappa	8 Kappa 10
Penanganan daya kontinu 1	100W 200W 300W
Penanganan daya puncak 3	300W 500W 900W
Respon frekuensi 40Hz – 25kHz 30Hz – 22kHz 20Hz – 2kHz
Impedansi nominal 3 Ohm* 3 Ohm* 2 or 4 Ohms (use switch to select)
Sensitivitas 92dB 92dB 89dB
Diameter eksternal	7-15/32" (189,4mm)	9-1/2" (241mm)	11-5/8" (295mm)
Diameter potongan dudukan	5-23/32" (144,8mm)	Woofer: 7" (177,4mm)Braket tweeter: 4-9/16"(115,9mm)	9-9/16" (235,6mm)
Kedalaman total	3-21/32" (92,5mm)	4-9/32" (108,1mm)	6-13/32"(162,4mm)
kedalaman dudukan	2-9/16" (65mm)	3-3/16" (80,5mm)	4-7/8" (123mm)

Exploded view diagram of electronic components with labeled parts and dimensions

Kappa 10

6X 6X 1X 1X 1X 1X 1X 1X 1X 1X

寸法

Kappa 6

7-15/32" (189.4mm) JP 2-9/16" (65mm) 3-21/32" (92.5mm) 5-23/32" (144.8mm)

Kappa 8

9-1/2" (241mm) 3-3/16" (80.5mm) 4-9/32" (108.1mm) 7" (177.4mm)

Kappa 10

11-5/8" (295mm) 4-7/8" (123mm) 6-13/32" 362.4mm 9-9/16" (235.6mm)

スピーカーの信号配線

Technical line drawing of a mechanical component with a curved handle and circular base (no text or symbols)

スピーカーの取り付け

Technical line drawing of a mechanical component with internal structure and projection lines (no text or symbols)

Kappa 10

Technical line drawing of a mechanical component with internal gear and shafts, no text or symbols present

Technical diagram showing a 45-degree angular assembly of a mechanical component, labeled with parts C and D.

ツイーターの埋込取り付け

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Four-step diagram showing a mechanical assembly or assembly process, with no visible text, numbers, or symbols.

12X 12X 1X 2X 2X 2X 2X 1X 1X 1X 2X

Kappa 10

6X 6X 1X 1X 1X 1X 1X 1X 1X

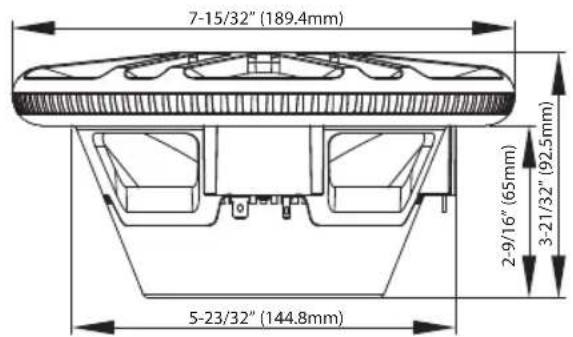

치수

Kappa 6

7-15/32" (189.4mm) 2-9/16" (65mm) 3-21/32" (92.5mm) 5-23/32" (144.8mm)

Kappa 8

9-1/2" (241mm) 3-3/16" (80.5mm) 4-9/32" (108.1mm) 7" (177.4mm)

Kappa 10

11-5/8" (295mm) 4-7/8" (123mm) 6-13/32" (162.4mm) 9-9/16" (235.6mm)

스피커 신호 배선

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

스피커 장착

Technical line drawing of a mechanical component with internal structure and alignment lines (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

Technical illustration of a mechanical component showing three stages: top, side, and close-up views with 45° angle标注 (no text or symbols present)

트워터 수평 장착

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Four-step diagram showing a mechanical assembly or assembly process, with no visible text, numbers, or symbols.
