CBCS6909A - Range hood CIARRA - Free user manual and instructions

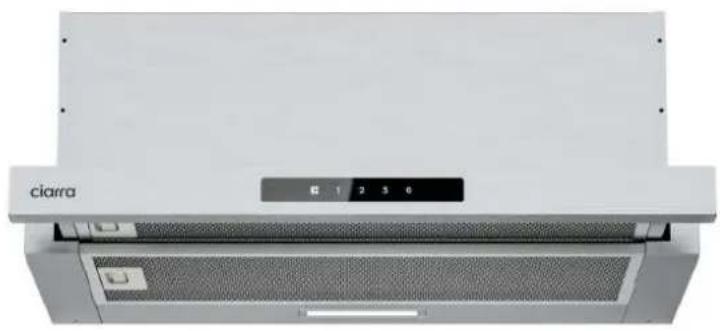

Product type	Extractor hood
Brand	CIARRA
Model	CBCS6909A
Dimensions (W x D x H)	599 x 280–400 x 200 mm
Power supply	220–240 V ~ 50 Hz
Motor power	85 W
Lighting power	1 W (LED)
Number of speeds	3 (low, medium, high)
Control type	Electronic touch
Grease filter	Dishwasher safe
Charcoal filter	Replaceable (every 2–4 months)
Recommended installation height	65–75 cm above the cooktop
Extraction mode	Extraction or recirculation
Exhaust duct diameter	150 mm
Lighting type	Rectangular LED, 2 brightness levels
Safety features	Automatic motor shut-off in case of overheating, mandatory grounding
Installation	Wall-mounted or under cabinet
Material	Stainless steel (painted finish available)
LED lamp	Replaceable (specific model)

Frequently Asked Questions - CBCS6909A CIARRA

How to install the CIARRA CBCS6909A extractor hood?

Installation must be carried out by a qualified technician. Two methods are possible: wall mounting (method 1) or under cabinet (method 2). Observe safety distances: 650 mm above an electric hob, 750 mm above a gas cooker. Before installation, disconnect the appliance and remove the protective film.

What is the recommended installation height?

The optimal height is 65 to 75 cm between the cooktop and the hood. For a gas cooker, a minimum of 750 mm is required; for an electric hob, 650 mm.

How to clean the grease filters?

The grease filters can be cleaned in the dishwasher at high temperature without detergent. Remove them by pressing the latch and pulling the slide. Clean them regularly to prevent grease buildup.

How often should the charcoal filter be replaced?

The charcoal filter should be replaced every 2 to 4 months depending on usage. If you frequently fry food, replace it more often. It is not washable or reusable.

What to do if the hood does not turn on?

First check the power supply: make sure the hood is plugged in and the outlet works (test with another appliance). If the problem persists, contact CIARRA customer service.

How to replace the LED lamp?

Turn off the hood and unplug it. Remove the grease filters. Push the LED lamp holder out of the frame or lift it with a flat-head screwdriver. Disconnect the connector and replace with an LED lamp of the same model. Screw back and reassemble the filters.

The hood is noisy, what to do?

Check that no debris is stuck inside. Make sure the adhesive tape on the non-return flap has been removed. If the noise persists, the motor may be defective; contact CIARRA customer service.

How to switch from extraction mode to recirculation mode?

For recirculation mode, install the charcoal filters (supplied) by turning them clockwise. No exhaust duct is required. For extraction mode, use the included 150 mm aluminum hose.

How to use the touch controls?

Press the ON/OFF button for 2 seconds to turn on. Use the keys 1 (low speed), 2 (medium) and 3 (high). The light key toggles between 2 brightness levels. The hood goes into standby after 60 seconds of inactivity.

What to do in case of a grease fire on the cooker?

Smother the flames with a lid or metal baking sheet. Never use water. Turn off the cooker and evacuate if necessary. Call the fire brigade if the fire is not controlled. Use a Class ABC fire extinguisher only if trained.

USER MANUAL CBCS6909A CIARRA

Exterior view of a modern kitchen fan with 'ciarra' branding on top (no other text or symbols visible)

Front view of a Ciarra air conditioner unit with control panel and indicator lights (no visible text or symbols on the device itself)

Model Number:

CBCS6906D

CBCB6906D

CBCS6909A

CBCB6909A

ciarra

Make life easier

Dear customer:

Thank you so much for your purchase, please read this instruction manual carefully before installation & use.

If you have any question, please contact us at:

E-mail: [e-mail]

ENGLISH	INSTALLATION AND USER'S MANUAL	Page3-23
DEUTSCH	BENUTZERHANDBUCH&INSTALLATION SANLEITUNG	Seite24-46
FRANÇAIS	MANUEL DE L'UTILISATEUR ET D'INSTALLATION	Page47-69
ITALIANO	INSTALLAZIONE E MANUALE DELL'UTENTE	Pagina70
ESPAÑOL	MANUAL DE USUARIO E INSTRUCCIONES DE INSTALACIÓN	Página71
NEDERLANDS	INSTALLATIE- EN GEBRUIKERSHANDLEIDING	Pagina72
SVENSKA	INSTALLATION- OCH BRUKSANVISNING	Sida73
POLSKI	INSTRUKCJA INSTALACJI I UŻYTKOWANIA	Strona74

CONTENTS

Safety----3-4

Specifications----5

Before Using the Cooker Hood ----6

Prepare for Installation ----7

Installation----8-16

Install the Hood----8-14

Carbon Filter Installation----15-16

Operation----17-18

Cleaning and Maintenance----19-21

Grease Filter----19

Carbon Filter----19

Stainless Steel Cleaning 19

Painted Finish Cleaning----19

LED Replacement----20-21

Troubleshooting----22

Environmental Protection----23

!WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
■ Before servicing or cleaning unit, unplug or disconnect the cooker hood from the power supply.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.
■ When cutting or drilling into a wall or ceiling, do not damage electrical wiring and other hidden utilities.
■ Ducted fans must always be vented to the outdoors.
■ Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust air.
■ This unit must be grounded.
■ When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.
■ Clean cooker hood frequently. Grease should not be allowed to accumulate on fans, filters or in exhaust ducts.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN – You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels — This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:

a) You own a Class ABC extinguisher and you know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.

CAUTION

■ For indoor use only.
■ For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
■ To avoid motor bearing damage and noisy and/or unbalanced fan blade, keep drywall spray, construction dust, etc. off cooker hood.
- Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
- Always follows the cooking equipment manufacturer's requirements regarding the ventilation needs.
■ To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
■ When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
■ Please read specification label on product for further information and requirements.

CBCS6906D

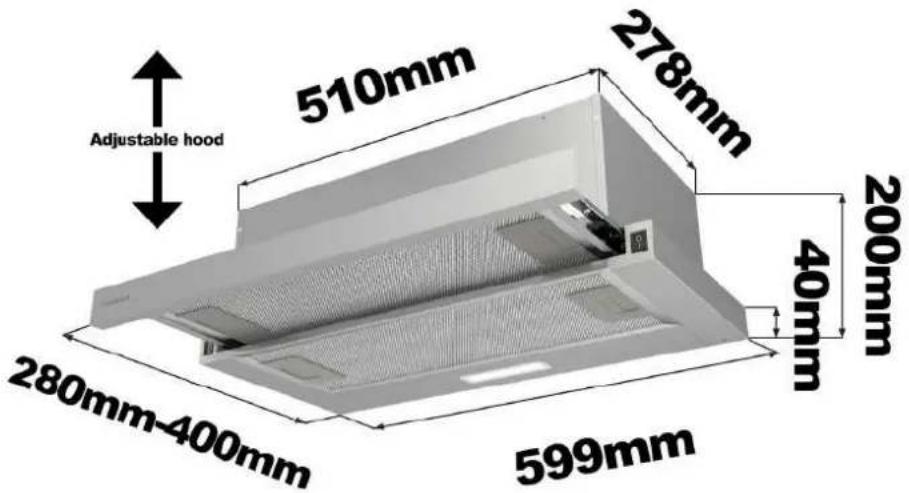

Adjustable hood 510mm 278mm 200mm 40mm 280mm-400mm 599mm

CBCS6909A

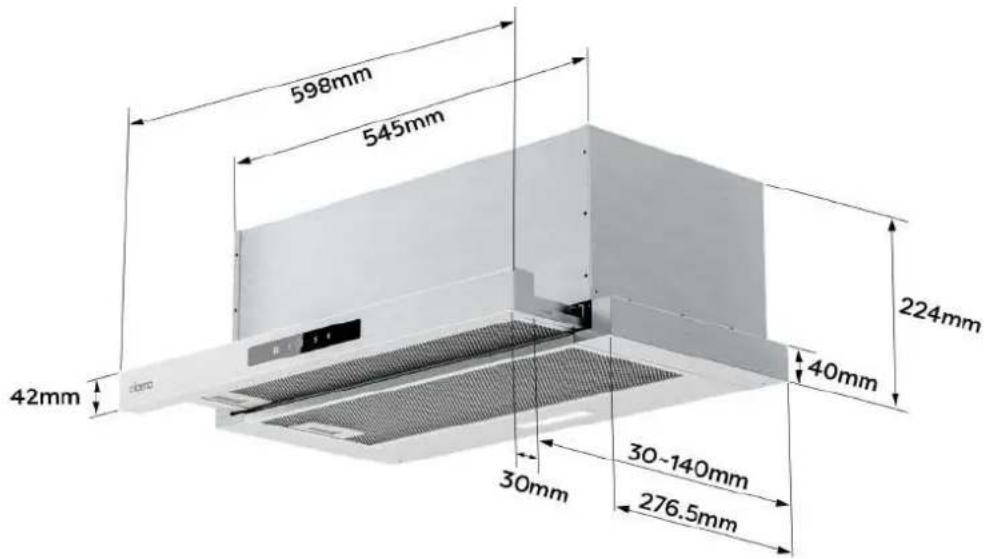

598mm 545mm 224mm 40mm 42mm 30mm 30-140mm 276.5mm

SKU	CBCS6906D CBCB6906D	CBCS6909A CBCB6909A
Voltage	220V-240V~50Hz
Power of Motor	1×40W	1×85W
Power of lamps	1×1.5W	1×1 W
Appliance Dimension	599*280~400*200mm (W x D x H)	598*307~417*224mm (W x D x H)
Note: The manufacturer reserves the right to change any technological improvement or modification without prior notice.

Before Using the Cooker Hood

CAUTION: Before proceeding to the installation, check if items are missing or damaged, contact the manufacturer.

Observe all governing codes and ordinances. Have a qualified technician install the cooker hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The manufacturer declines all responsibility for improper installation and does not accept responsibility for appliance warranty in the event of damage caused by incorrect installation.

COMPONENTS:

Part 1: Wall Plug X 4

Part 2: 4*20mm Screws X 6

Part 3: 4*30mm Screws X 4

Part 4: 4*8mm Screws X 2

Part 5: Aluminum Exhaust Pipe X1

Part 7: Installation Manual X 1

Part 8: 1:1 Installation Diagram X1

Part 9: Cooker Hood Body X 1

Part 10: Back Bracket X1

Part 11: Carbon Filter X 2

Part 6: Cable Ties X 2

YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION

1. Protective Gloves

2.Spirit Level Ruler

3.Measuring Tape

1. Double Sided Tape or Tape

5.Cross-Head Screwdriver Set

1. Electric drill and 8mm drill

Prepare for Installation

Prepare for Installation:

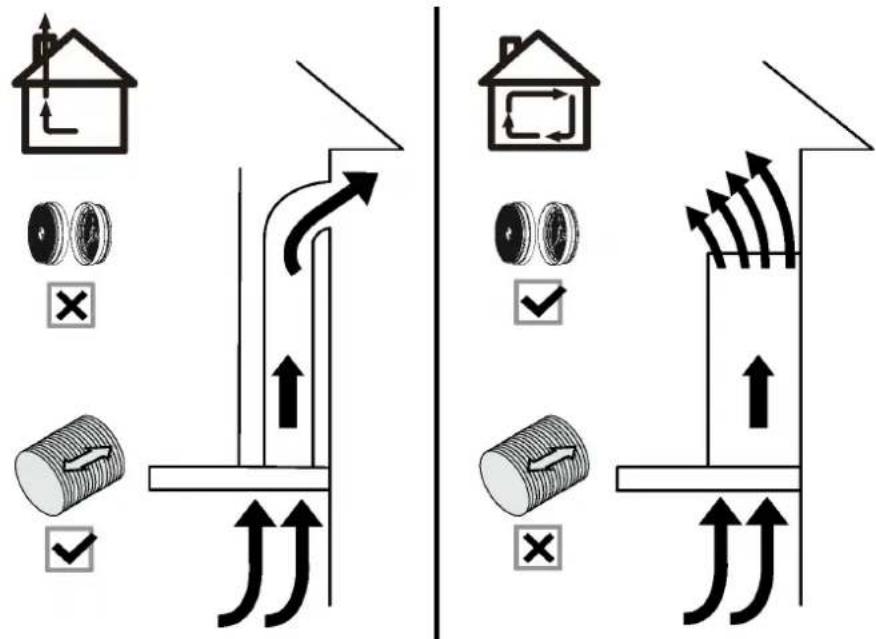

a) Ventilation Mode

Recirculation Mode: Recirculating with carbon filter (required), the smells and odors can be filtered and vented through the top vented hole and the exhaust pipe is not required.

Extraction Mode: You can install the 1.5m long and 150mm diameter aluminum exhaust pipe for extracting, which is included in the installation kit.

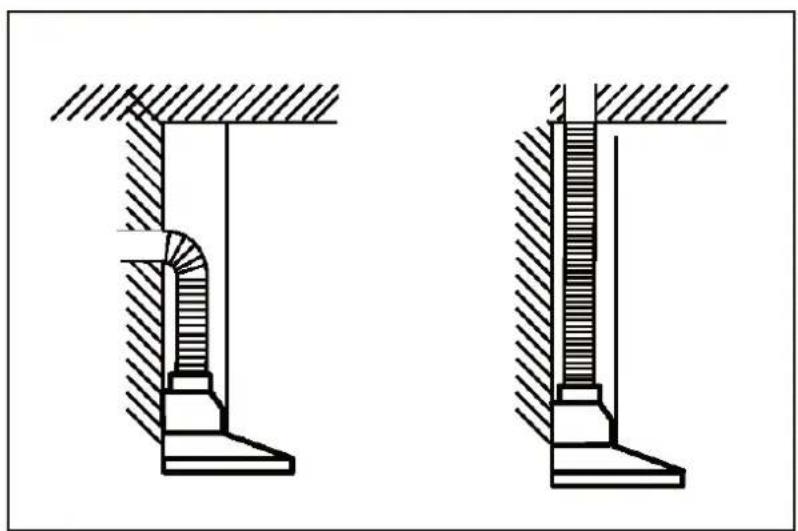

Diagram illustrating airflow or traffic flow between a house and a pipeline, with checkmarks indicating failure or rejection points.

b) When possible, use at least 60cm straight runs before any turns.

Larger duct work may be required for best performance with longer duct runs.

Technical line drawing of two mechanical components with hatched areas indicating material (no text or symbols)

c) Before installation, don't connect the power.

Install the Hood (Extraction) :

1. Remove all protective poly film from the hood and/or parts.

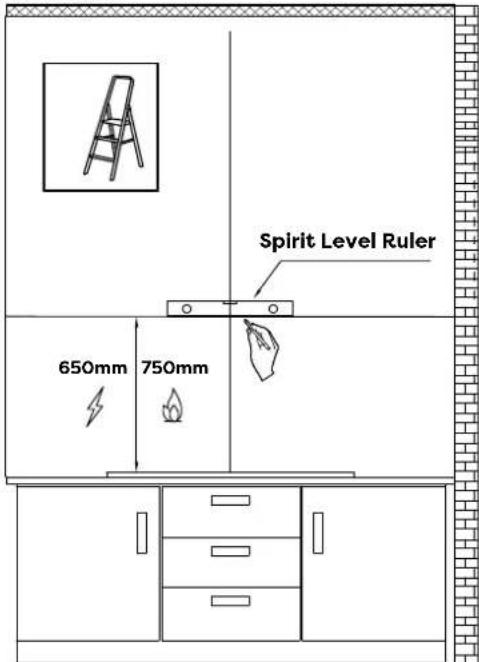

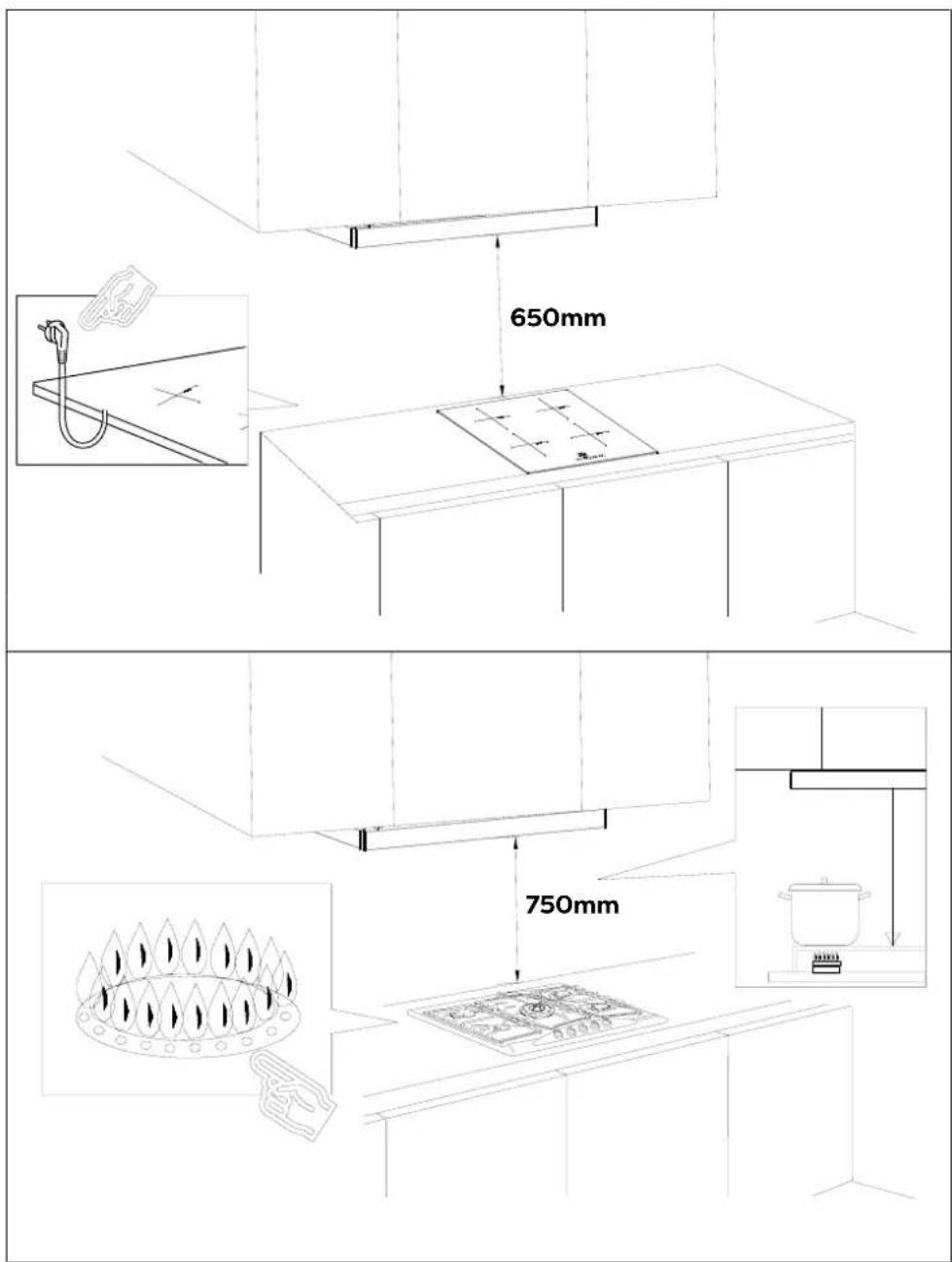

2. Recommend installation height: 65\~75cm above the cooktop for best extraction.

◆ Required height over gas hob: 750mm;
◆ Required height over electric hob: 650mm.

650mm 750mm

1. This product can be installed in two different ways. If the cooker hood is installed on the wall, please follow Way 1.

Way 1:

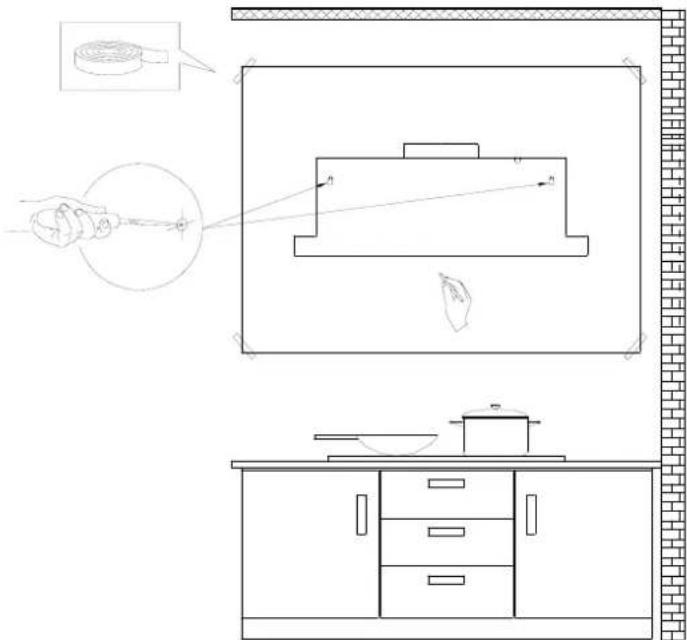

1) First use a pencil to mark the installation position on the wall, then use a Measuring Tape to measure the height from the stove surface to the hood (the center point of aluminum grease filter) and use a Spirit Level Ruler to maintain the level, then use a pencil to draw a horizontal line along the level.

Spirit Level Ruler 650mm 750mm

2) Poke the 2 perforated positions on the 1:1 Installation Diagram, then align with the button line of the hood on the Installation Diagram with the horizontal line on the wall, then tape the Installation Diagram to the wall, and use a pencil to mark the perforated positions on the wall in the corresponding positions.

Technical diagram showing a kitchen setup with labeled components and an inset image of a lamp or camera.

Installation

3) Remove the Installation Diagram, drill the holes that have been marked on the wall with an Electric Drill (8mm drill), and hammer the Wall Plug into the wall. Insert the two wall plugs with 4 * 30mm screws, do not lock too tight them first, and leave a gap of no less than

5\~10mm;

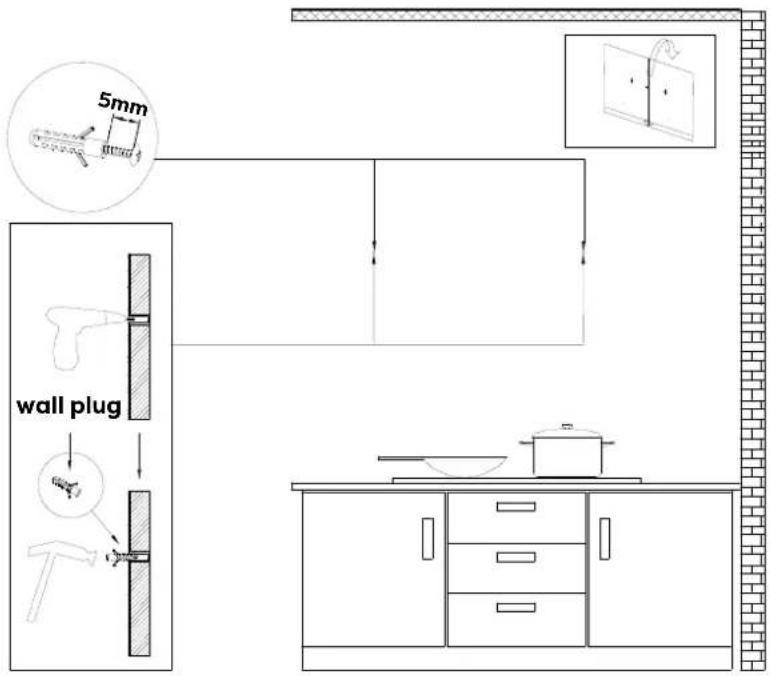

5mm wall plug

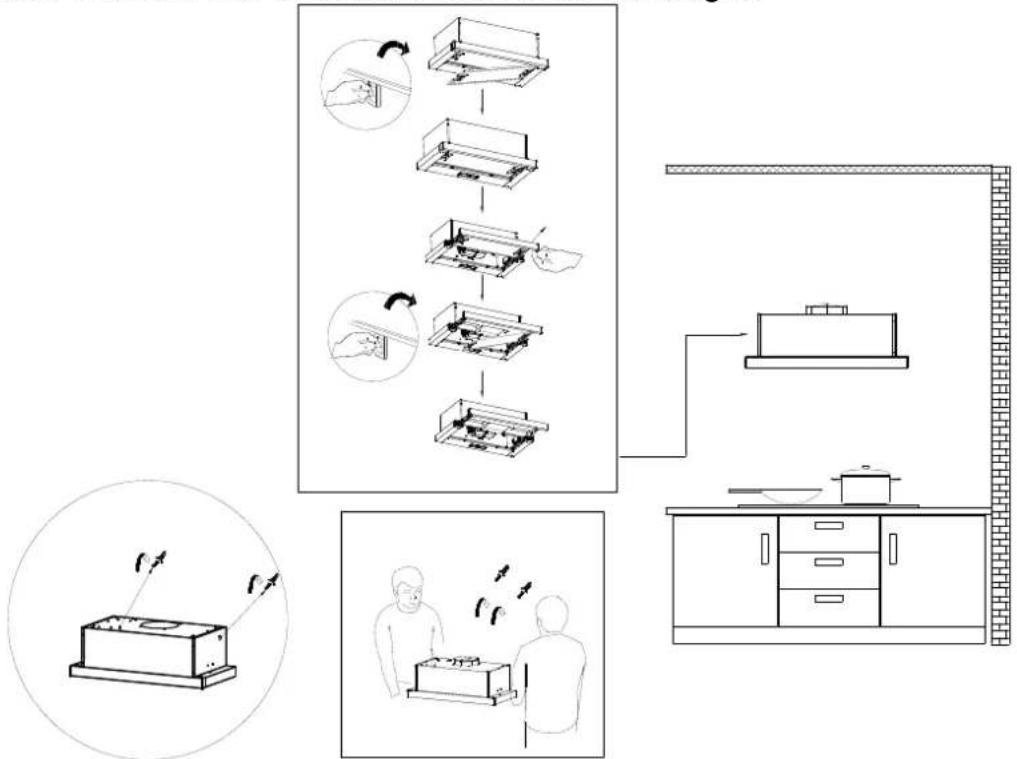

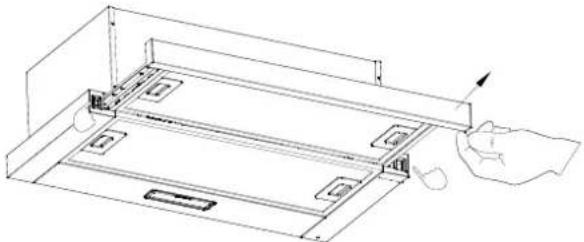

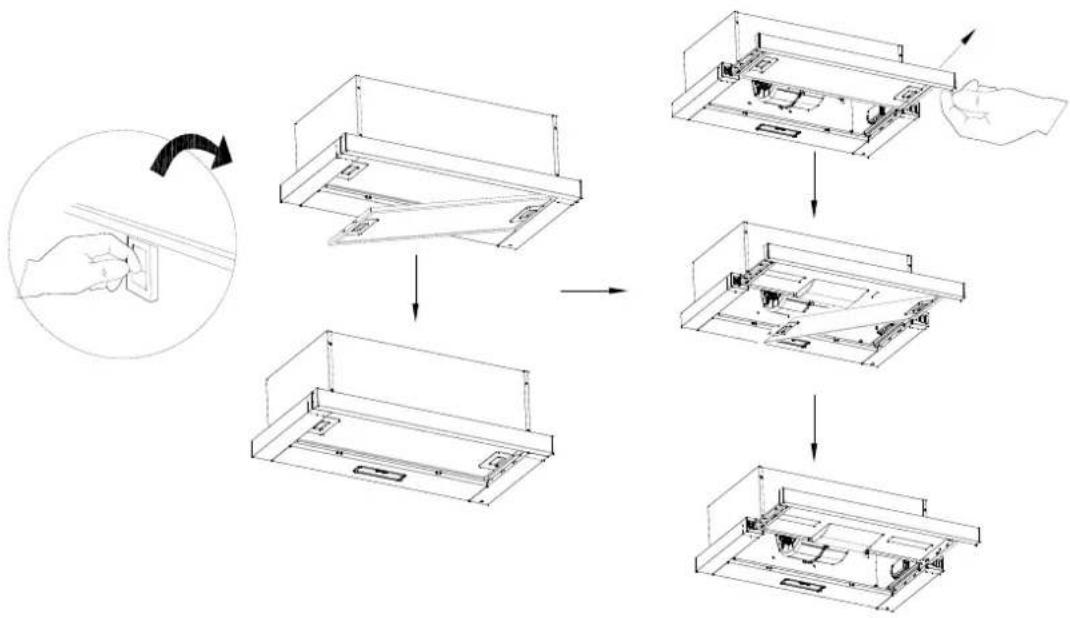

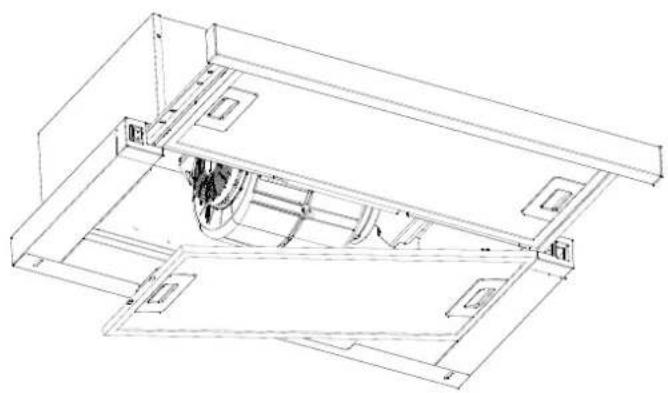

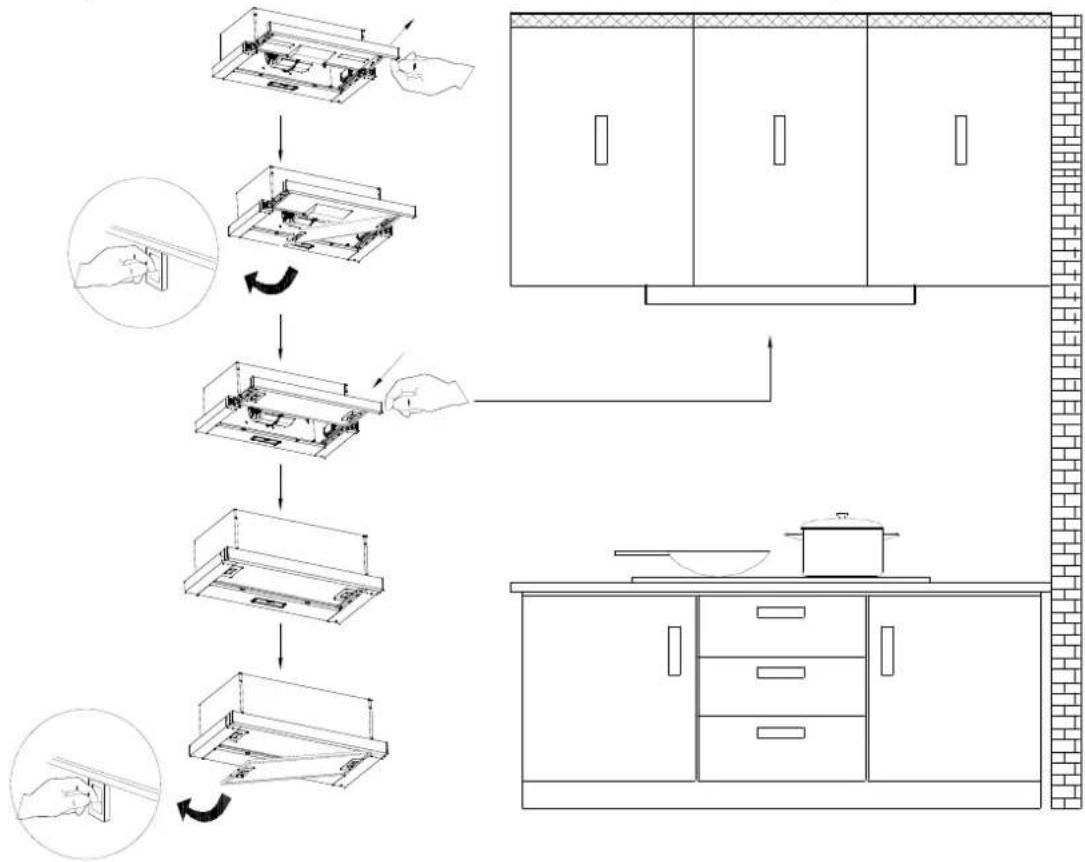

4) Press the lock on the left of the grease filter and pull it downward. Pull out the slide and detach the other grease filter. Then put the cooker hood onto the two screws and lock the screws tight.


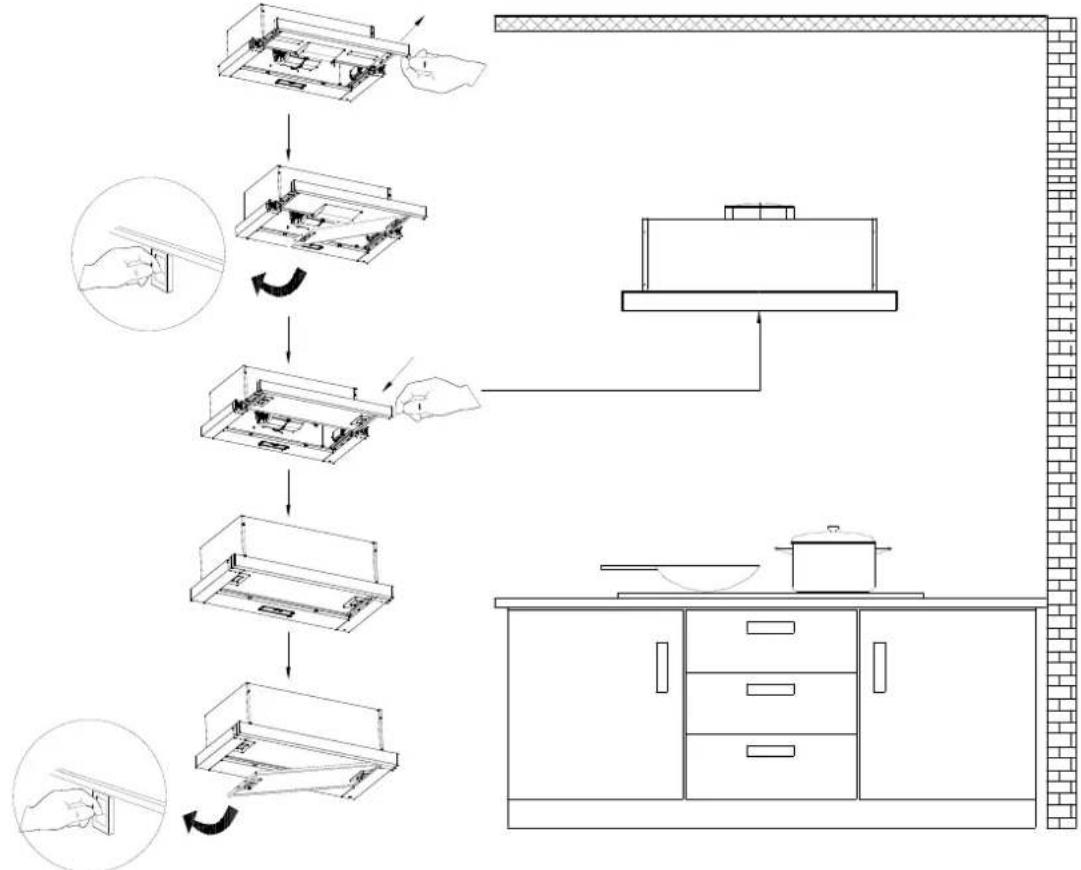

5) Pull out the slide and install the grease filter back on the slide, then push it into the cooker hood and install the other grease filter.


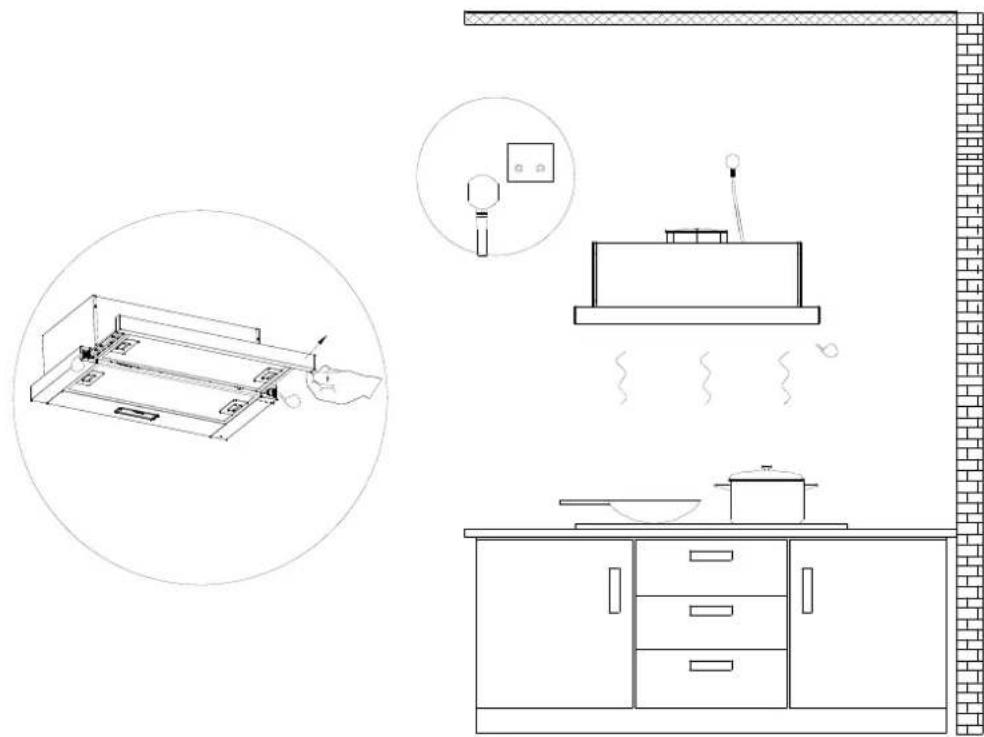

6) Connect the power and pull out the slide. Then turn the LED lights on/off to test whether the functions are working properly.

Line drawing of a kitchen setup with kitchen equipment, fan, and oven (no text or symbols)

Installation

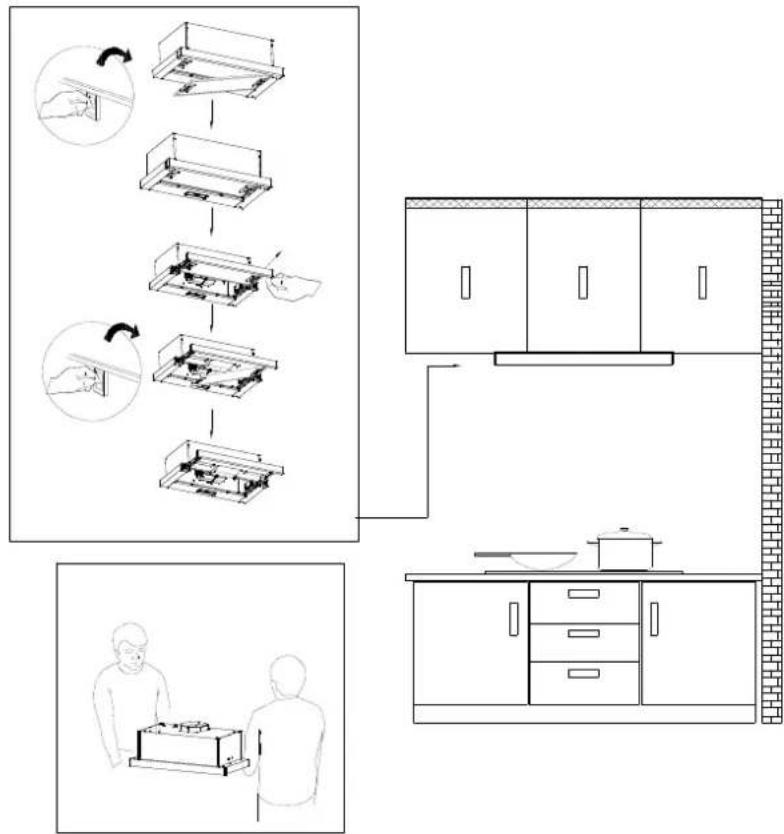

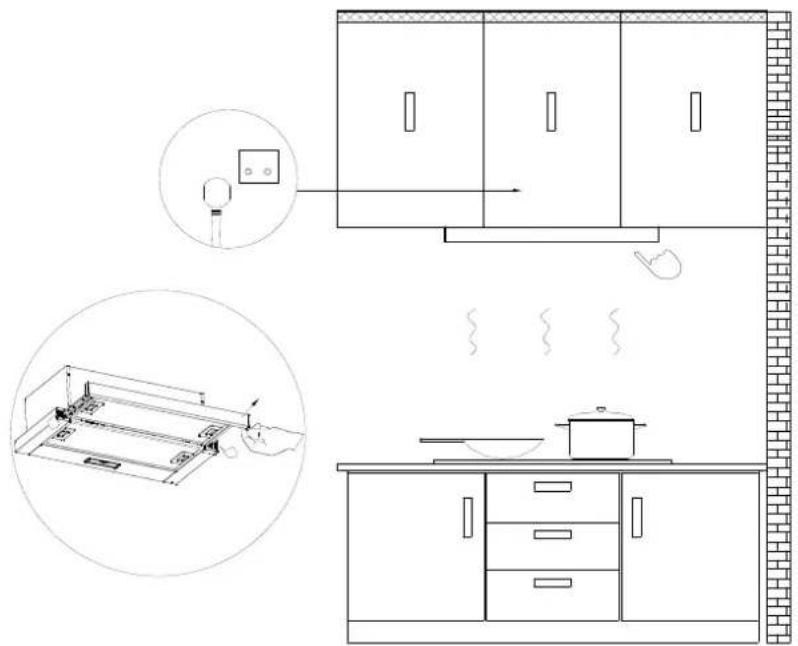

1. If the cooker hood is installed at the bottom of the cabinet, please follow Way 2 below.

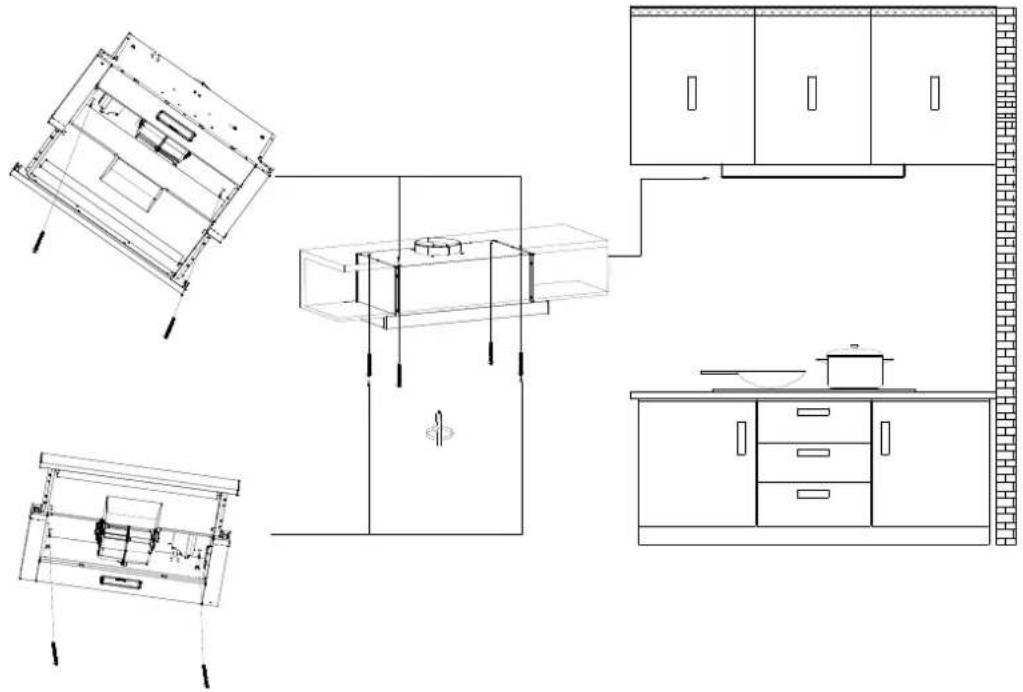

Way 2:

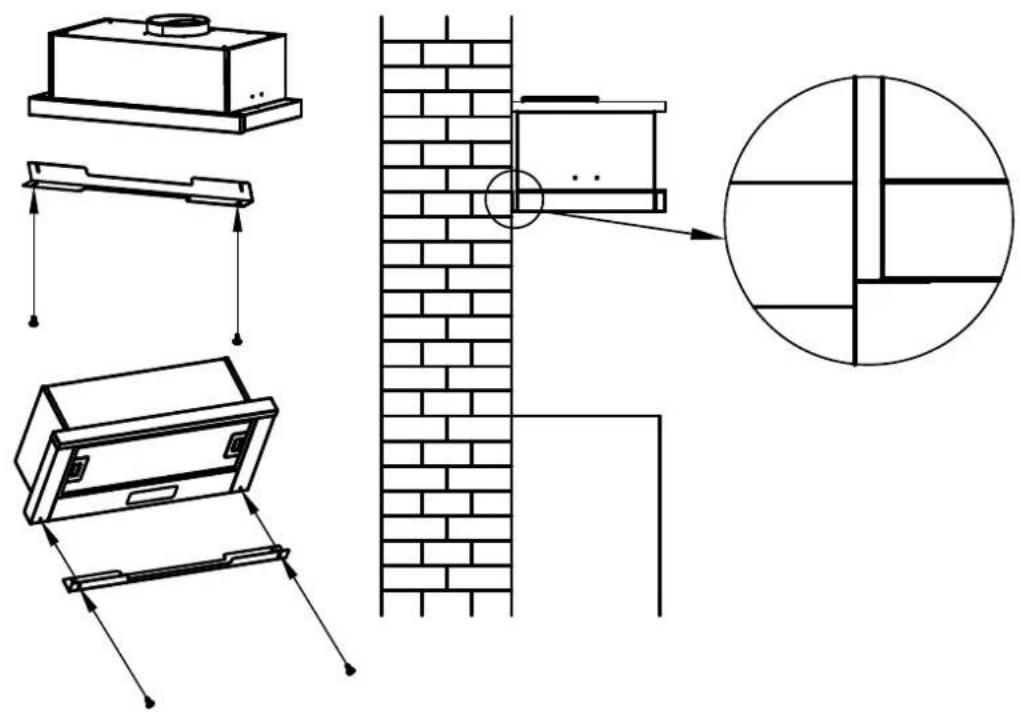

1) Use the drilling tool to open a 165mm diameter air pipe hole and a power cord hole at the bottom of the cabinet according to the installation diagram.

650 120 Ø168 H1.1

2) Press the lock on the left of the grease filter and pull it downward. Pull out the slide and detach the other grease filter. Then put the cooker hood under the cabinet.

3) Align the air ventilation port of the cook hood with the cabinet ventilation hole at the bottom, pass the power cord through the power hole, and then use four 4 * 20mm screws to lock into the corresponding position of the cabinet to fix the cook hood.

Architectural floor plan showing room layouts and furniture layout (no text or labels)

4) If there is a gap between the hood and the wall, you can install the Back Bracket, as shown in the figure, use two 4*8 screws to fix the back Bracket on the hood, and adjust the position of the back Bracket to the wall according to the actual situation.

Technical diagram showing installation of a cabinet and lock system with an inset magnified detail view

Installation

5) Pull out the slide and install the grease filter back on the slide, then push it into the cooker hood and install the other grease filter.

6) Connect the power and pull out the slide. Then turn the LED lights on/off to test whether the functions are working properly.

Line drawing of a kitchen interior layout with appliances and fixtures (no text or symbols)

NOTE:

Make sure you remove the tape on the damper and check if the damper opens and closes freely, otherwise it make noises, and the cooker hood will be shaking.

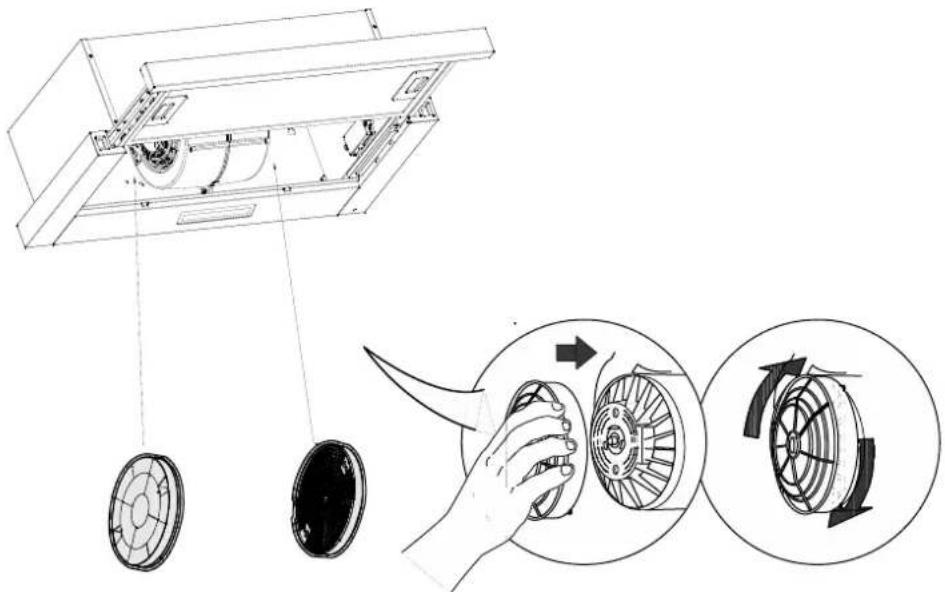

Carbon Filter Installation (Recirculation):

1. Carbon filter can be used to trap odors. In order to install the carbon filter, the grease filter should be detached first. Pull out the slide and remove the grease filter.

Technical line drawing of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

1. Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side. If replacement, please turn it in anti-clockwise direction.

Technical diagram illustrating the installation of a fan blade assembly with labeled components and directional arrows indicating motion.

Installation

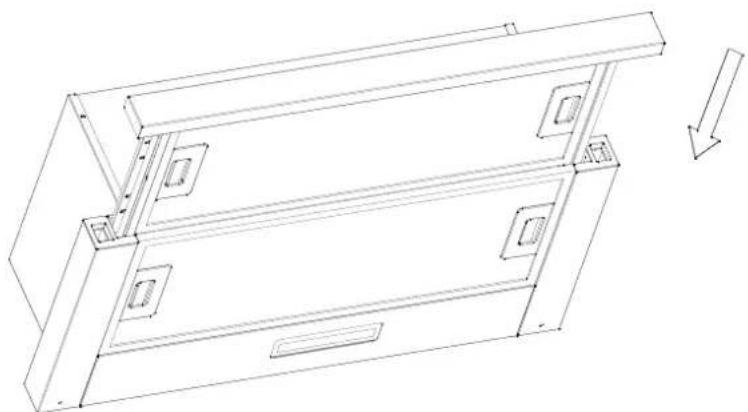

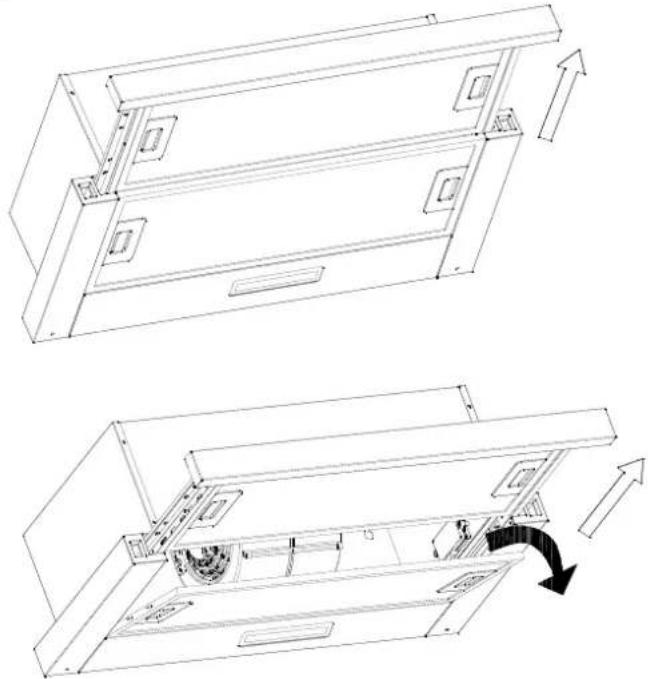

1. Install the grease filter back and push the slide back in the cooker hood.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical cabinet or rack assembly with mounting holes and a downward arrow indicating motion (no text or symbols present)

NOTE:

Make sure the carbon filter is securely locked.
When the carbon filter is installed, the suction of the cooker hood will be reduced.
The carbon filter should be changed every 2-4 months depending on the conditions of use.

Always turn your hood on before you begin cooking to establish an airflow in the kitchen.

Let the blower run for a few minutes to clear the air after you turn off the hood. This will help to keep the entire kitchen clean and fresh.

Mechanical Rocker button

Operate the hood as follows:

It just appear in TELESCOPIC MODEL. You need to pull out the slide before usage.

Technical line drawing of a mechanical device with a hand operating the component (no text or symbols)

Light button

On the left side of hood.

Speed button

On the right side of hood.

“=”: high speed level.

“-”: Low speed level.

“o”: Off

Operation

Always turn your hood on before you begin cooking to establish an airflow in the kitchen.

Electronic button

Operate the hood as follows:

1 2 3

STANDBY MODE

After plug in, When the buzzer makes a sound and all the indicator lights will be turned on for 1S then go out, the cooker hood will enter the standby mode. The [ ] button indicator light continues to flash regularly. If there is no operation for 60s, the hood will go into sleep mode; If you need to operate, press any button briefly to start up the cooker hood.

ON/OFF button

Press and hold this button for 2 seconds to turn on the power, briefly press to turn off the power.

1 Low Speed button

For air ventilation with barely no noise; or simmering with very little smoke and steam.

2 Medium Speed button

For your everyday cooking purpose.

3 High Speed button

High-Speed for stir-fry or cooking with lots of smoke and grease produced.

Light button

Press once, turn on the LED light in level 1, Press for the second time, turn on the LED light in level 2, increase brightness; Press for the third time, turn off the LED light.

Proper maintenance of the Cooker Hood will assure proper performance of the unit. Before cleaning unit, unplug or disconnect the cooker hood from the power supply.

GREASE FILTERS

The grease filters should be cleaned frequently. Can be cleaned in dishwasher under high temperature without using any detergent.

CARBON FILTER

The carbon filter should be changed every 2-4 months depending on the conditions of use. Replace more often if your cooking style generates lots of greases, such as stir frying. These filters are not washable and cannot be reused. Refer to installation instructions included with a carbon filter.

STAINLESS STEEL CLEANING

Do:

• Regularly clean it with a cloth or rag soaked with warm water and mild soap or liquid dish detergent.
• You may also use a specialized household stainless steel cleaner.

Don't:

• Use any steel or stainless-steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Let plaster dust or any other construction residues reach the hood. During construction/ renovation, cover the cooker hood to make sure no dust sticks to the stainless-steel surface.

Avoid when choosing a detergent:

● Any cleaners that contain bleach will attack stainless steel.
- Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
- Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

PAINTED FINISH CLEANING:

Clean with warm water and mild detergent only. If discoloration occurs, use a finish polish such as automotive polish. (DO NOT use a rough abrasive cleaner or porcelain cleaner.)

Cleaning and Maintenance

LED REPLACEMENT

■ Rectangle LED lamp:

Simple geometric diagram of two nested rounded rectangles (no text or symbols)

CAUTION :

Before cleaning or repairing and replacing accessories, please make sure to shut down the power before operation, so as to avoid electric shock, damage to human body and even endanger life safety!

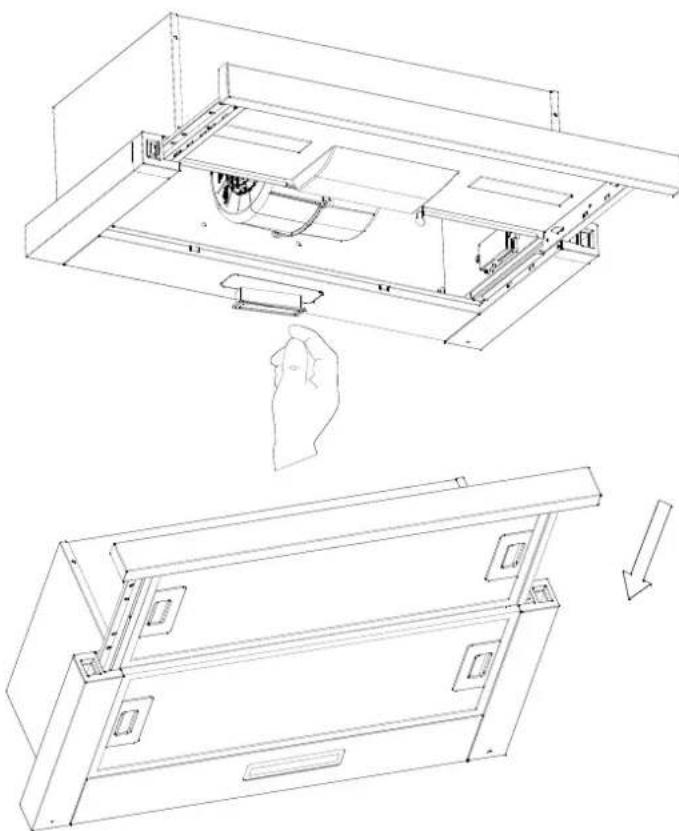

1. Turn off the hood and unplug the power outlet. Detach the grease filter in order for you to replace the LED lamp.


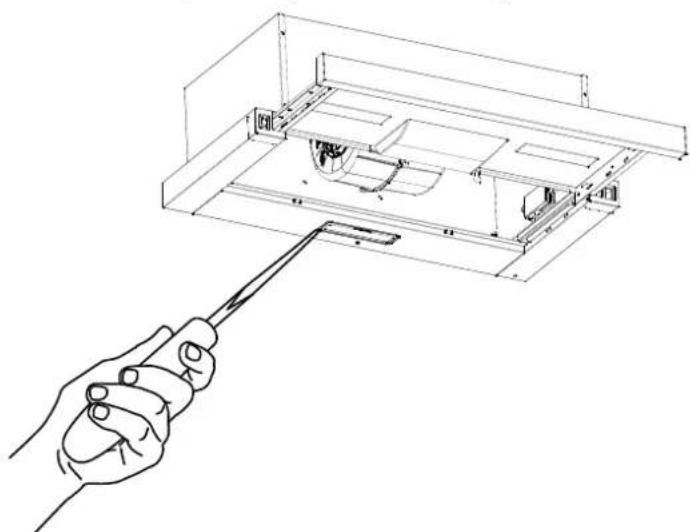

1. Push the LED lamp holder out from the cabinet by hand, or use slotted screwdriver to prize up the LED lamp around the edges.

Line drawing of a hand holding a screwdriver inside a technical enclosure (no text or symbols)

Cleaning and Maintenance

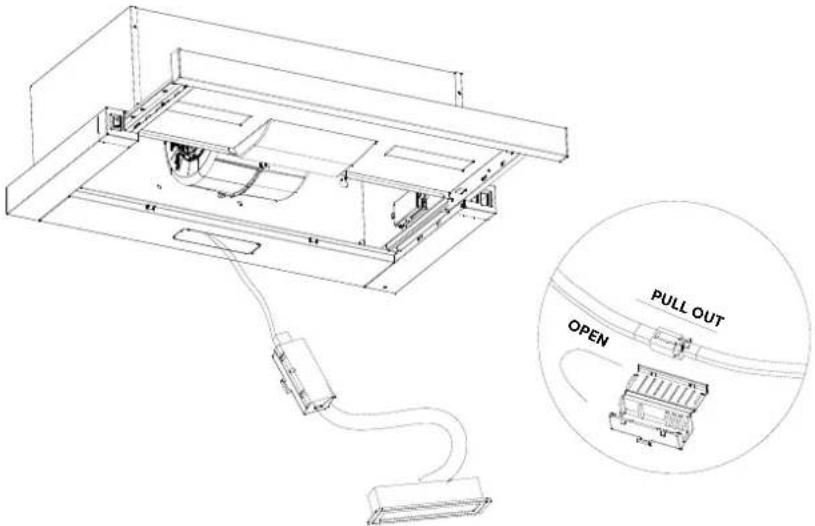

1. Pull out the LED lamp and the wire together. Open the power protection cover and pull out the plug.

PULL OUT OPEN

1. Turn the power on and test all blower and light functions to ensure they are operating properly.

Insert the new LED light gently into the light socket, please make sure you aim at the grooves on the lighting panel when installing.

Push the LED light in until it is flushed with the light panel.

Put the grease filter back on, you are good to go.

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows a folded panel (no text or symbols)

Troubleshooting

Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

ciarra

Make life easier

Adjustable hood 510mm 278mm 200mm 40mm 280mm-400mm 599mm

CBCS6909A

598mm 545mm 224mm 40mm 42mm 30mm 30-140mm 276.5mm

Diagram illustrating airflow or traffic flow between buildings, showing directional arrows and checkmarks for incorrect direction.

Technical diagram showing two mechanical assembly views with hatched sections (no text or labels)

Technical diagram showing a kitchen interior with a magnified view of a lamp, a close-up of the lamp, and a kitchen appliance with a bowl.

Installation

Line drawing of a kitchen interior with kitchen equipment and a cabinet, no text or symbols present

Installation

Technical diagram showing wall-mounted home improvement components with magnified detail view

Line drawing of a kitchen interior layout with appliances and fixtures, including a mounted appliance and a microwave oven (no text or symbols)

Hinweis:

Technical line drawing of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

Technical diagram illustrating the installation of a fan or fan assembly with labeled components and directional arrows indicating motion.

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

HINWEISE:

Technical line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

Licht ein/aus

Simple rectangular outline with rounded corners, no text or symbols present

Line drawing of a hand using a screwdriver to lift a mechanical component inside a housing (no text or symbols)

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows exterior view with mounting brackets (no text or symbols)

Adjustable hood 510mm 278mm 200mm 40mm 280mm-400mm 599mm

CBCS6909A

598mm 545mm 224mm 40mm 42mm 30mm 30-140mm 276.5mm

Part 2: 4*30mm Vis X 6

Part 3: 4*30mm Vis X 4

Part 9: Corps de hotte X1

Part 4: 4*8mm Vis X 2

Diagram illustrating two scenarios of a roof drainage system with directional arrows and icons for vehicle maintenance.

Technical drawing of two mechanical components with hatched areas indicating material sections (no text or symbols)

Installer la hotte (Evacuation):

Technical diagram showing a kitchen interior with labeled components and an inset image of a kitchen fixture.

Montage

Line drawing of a kitchen interior with kitchen equipment, fan, and oven (no text or symbols)

Montage

    H["Person Hand Pull"] --> I["Box with Cover"]
    I --> J["Room 1"]
    J --> K["Room 2"]
    K --> L["Room 3"]
    L --> M["Room 4"]
    M --> N["Room 5"]
    N --> O["Room 6"]
    O --> P["Room 7"]
    P --> Q["Room 8"]
    Q --> R["Room 9"]
    R --> S["Room 10"]

Architectural floor plan showing room layouts and furniture layout (no text or labels)

Technical diagram showing wall-mounted home improvement components with magnified detail view

Montage

Line drawing of a kitchen interior layout with appliances, fixtures, and a cabinet (no text or symbols)

REMARQUE:

Technical line drawing of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

Technical diagram illustrating the installation of a fan-shaped device with internal components and airflow direction indicators.

Montage

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical cabinet or rack assembly with mounting holes and a downward arrow indicating motion (no text or symbols present)

REMARQUES:

Technical line drawing of a mechanical device with a hand operating the component (no text or symbols)

Bouton de lumière

Simple rectangular outline with rounded corners, no text or symbols present

AVERTISSEMENT:

Line drawing of a hand holding a screwdriver inside a technical enclosure (no text or symbols)

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows exterior view with mounting brackets (no text or symbols)

Dépannage

QR code image with a central logo, likely linking to a digital resource or website.

ciarra

Make life easier

Estimado cliente:

QR code image with a central logo, likely linking to a digital resource or website.

ciarra

Make life easier

Geachte klant:

QR code image with a central logo, likely linking to a digital resource or website.

ciarra

Make life easier

Kära kund:

QR code image with a central logo, likely linking to a digital resource or website.

ciarra

Make life easier

Drogi kliencie:

QR code image with a central logo, likely linking to a digital resource or website.
