Welcome to Electrolux! Thank you for choosing our appliance.

Get usage advice, brochures, troubleshooting, service and repair information:

www.electrolux.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION...... 111
2. SAFETY INSTRUCTIONS.... 113
3. INSTALLATION....115
4. PRODUCT DESCRIPTION....118
5. BEFORE FIRST USE....119
6. DAILY USE....120
7. HINTS AND TIPS....125
8. CARE AND CLEANING.... 127
9. TROUBLESHOOTING.... 128
10. TECHNICAL DATA.... 130
11. ENERGY EFFICIENCY....130
12. ENVIRONMENTAL CONCERNS....131

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- This appliance is for cooking purposes only.

- This appliance is designed for single household domestic use in an indoor environment.

- This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

- Smoke is an indication of overheating. Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid.

- WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Danger of fire: Do not store items on the cooking surfaces.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use the appliance before installing it in the built-in structure.
• Do not use water spray and steam to clean the appliance.
  • After use, switch off the hob element by its control and do not rely on the pan detector.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. In case the appliance is connected to the mains directly using junction box, remove the fuse to disconnect the appliance from power supply. In either case contact the Authorised Service Centre.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

WARNING!

Risk of injury or damage to the appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.

• Follow the installation instructions supplied with the appliance.

• Keep the minimum distance from other appliances and units.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Seal the cut surfaces of the cabinet with a sealant to prevent moisture from causing swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance next to a door or under a window. This prevents hot cookware from falling from the appliance when the door or the window is opened.
  • Each appliance has cooling fans on the bottom.

- If the appliance is installed above a drawer:

- Do not store any small pieces or sheets of paper that could be pulled in, as they can damage the cooling fans or impair the cooling system.

- Keep a distance of minimum 2 cm between the bottom of the appliance and parts stored in the drawer.

- Remove any separator panels installed in the cabinet below the appliance.

2.2 Electrical Connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to a socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation.

Make sure that there is access to the mains plug after the installation.

• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• Do not change the specification of this appliance.
• Remove all the packaging, labelling and protective film (if applicable) before first use.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to "off" after each use.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the appliance is in operation.
• When you place food into hot oil, it may splash.
• Do not use aluminum foil or other materials between the cooking surface and the cookware, unless otherwise specified by the manufacturer of this appliance.

- Use only accessories recommended for this appliance by the manufacturer.

WARNING!

Risk of fire and explosion.

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
  • Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

• Do not keep hot cookware on the control panel to avoid the risk of burns.
• Do not put a hot pan cover on the glass surface of the hob.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Cookware made of cast iron or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

2.4 Care and cleaning

- Clean the appliance regularly to prevent the deterioration of the surface material.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

• Switch off the appliance and let it cool down before cleaning.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects, unless otherwise specified.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your local authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3.1 Before the installation

Before you install the hob, write down the information below from the rating plate. The rating plate is on the bottom of the hob.

Serial number ....

3.2 Built-in hobs

Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards.

3.3 Connection cable

• The hob is supplied with a connection cable.
• To replace the damaged mains cable, use the cable type: H05V2V2-F which withstands a temperature of 90 °C or higher. A single wire must have a minimal cross section in accordance with the table below. Speak to your local Service Centre. The connection cable may only be replaced by a qualified electrician.

WARNING!

All electrical connections must be made by a qualified electrician.

CAUTION!

Connections via contact plugs are forbidden.

CAUTION!

Do not drill or solder the wire ends. It is forbidden.

CAUTION!

Do not connect the cable without cable end sleeve.

One-phase connection

1. Remove the cable end sleeve from black and brown wires.
2. Remove a part of the insulation of the brown and black cable ends.
3. Connect the ends of black and brown cables.
4. Apply a new wire end sleeve on the shared wire's end (special tool required).

N L1 L2

220-240 V~400V2N~ N L

Two-phase connection: 400 V2N\~ One-phase connection: 220 - 240 V\~

5x1,5 mm ^2 or 4x2,5 mm ^2 5x1,5 mm ^2 or 3x4 mm ^2

Green - yellow Green - yellow

N Blue and blue N Blue and blue

L1 Black L Black and brown

L2 Brown

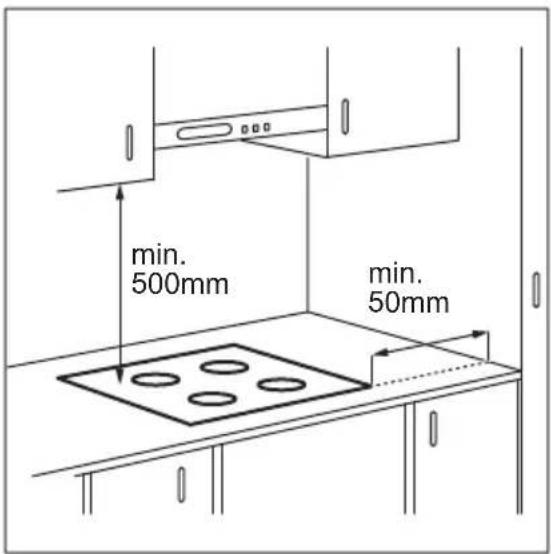

3.4 Assembly

If you install the hob under a hood, please see the installation instructions of the hood for the minimum distance between the appliances.

If the appliance is installed above a drawer, the hob ventilation can warm up the items stored in the drawer during the cooking process.

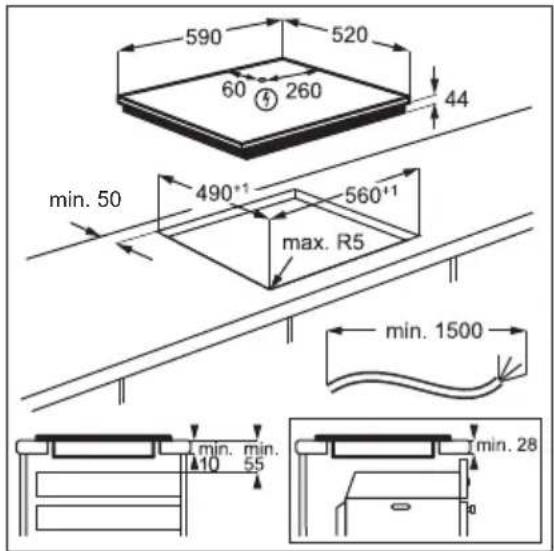

590 520 60 260 44 min. 50 490°1 560°1 max. R5 min. 1500 min. min. 10 55 min. 28

Find the video tutorial "How to install your Electrolux Induction Hob - Worktop installation" by typing out the full name indicated in the graphic below.

YouTube

www.youtube.com/electrolux www.youtube.com/aeg

How to install your Electrolux Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

4.1 Cooking surface layout

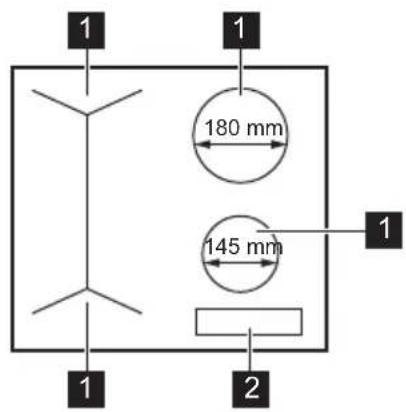

1 1 180 mm 145 mm 1 2

1 Induction cooking zone
2 Control panel

4.2 Control panel layout

1 6 7 14 0 1 3 5 8 10 14 P :99: 0 1 3 5 8 10 14 P 14 14 0 1 3 5 8 10 14 P - + 0 1 3 5 8 10 14 P 14 12 9

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

	Sensor field	Function Comment
1	➊	On / Off To activate and deactivate the hob.
2	➁	Lock / Child Safety Device To lock / unlock the control panel.
3	||	Pause To activate and deactivate the function.
4	➂	Bridge To activate and deactivate the function.
5	- Heat setting display To show the heat setting.
6	- Timer indicators of cooking zones	To show for which zone you set the time.
7	- Timer display	To show the time in minutes.
8		Hob ^2 Hood To activate and deactivate the manual mode of the function.
9		- To select the cooking zone.
10	+/-	- To increase or decrease the time.
11	P	PowerBoost To activate the function.
12	- Control bar To set a heat setting.

4.3 Heat setting displays

Display Description
0	The cooking zone is deactivated.
1 - 14	The cooking zone operates.
u	Pause operates.
A	Automatic Heat Up operates.
P	PowerBoost operates.
E + digit	There is a malfunction.
≡ / ∇ □	OptiHeat Control (3 step Residual heat indicator): continue cooking / keep warm / residual heat.
L	Lock / Child Safety Device operates.
F	Incorrect or too small cookware or no cookware on the cooking zone.
-	Automatic Switch Off operates.

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 Power limitation

Power limitation defines how much power is used by the hob in total, within the limits of the house installation fuses.

The hob is set to its highest possible power level by default.

To decrease or increase the power level:

1. Deactivate the hob.
2. Press and hold for 3 seconds. The display comes on and goes off.

3. Press and hold for 3 seconds. or b appears.

4. Press .P72 appears.

5. Press / of the timer to set the power level.

Power levels

Refer to "Technical data" chapter.

CAUTION!

Make sure that the selected power fits the house installation fuses.

- P72 — 7200 W

• P15 — 1500 W
• P20 — 2000 W
• P25 — 2500 W
• P30 — 3000 W
• P35 — 3500 W
• P40 — 4000 W
• P45 — 4500 W
• P50 — 5000 W
• P60 — 6000 W

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 Activating and deactivating

Touch for 1 second to activate or deactivate the hob.

6.2 Automatic Switch Off

The function deactivates the hob automatically if:

• all cooking zones are deactivated,
- you do not set the heat setting after you activate the hob,
- you spill something or put something on the control panel for more than 10 seconds (a pan, a cloth, etc.). An acoustic signal sounds and the hob deactivates. Remove the object or clean the control panel.
- the hob gets too hot (e.g. when a saucepan boils dry). Let the cooking zone cool down before you use the hob again.
- you use incorrect cookware. The symbol F comes on and the cooking zone deactivates automatically after 2 minutes.
- you do not deactivate a cooking zone or change the heat setting. After some time comes on and the hob deactivates.

The relation between the heat setting and the time after which the hob deactivates:

Heat setting The hob deactivates after

1-3

6 hours

4 - 7 5 hours

8 - 9 4 hours

10 - 14 1.5 hour

6.3 The heat setting

To set or change the heat setting:

Touch the control bar at the correct heat setting or move your finger along the control bar until you reach the correct heat setting.

14 0 1 3 8 10 14 P

6.4 OptiHeat Control (3 step Residual heat indicator)

WARNING!

As long as the indicator is there is a risk of burns from heat.

The induction cooking zones produce the heat necessary for the cooking process directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.

The indicators appear when a cooking zone is hot. They show the level of the residual heat for the cooking zones you are currently using:

• continue cooking,
• keep warm,
• residual heat.

The indicator may also appear:

• for the neighbouring cooking zones even if you are not using them,
- when hot cookware is placed on cold cooking zone,
- when the hob is deactivated but the cooking zone is still hot.

The indicator disappears when the cooking zone has cooled down.

6.5 Using the cooking zones

Place the cookware in the centre of the selected zone. Induction cooking zones adapt to the dimension of the bottom of the cookware automatically.

For optimal heat transfer use cookware with bottom diameter similar to the size of the cooking zone (i.e. the maximum cookware diameter value in "Technical data" > "Cooking zones specification"). Make sure that the cookware is suitable for induction hobs. For more information on cookware types refer to "Hints and tips".

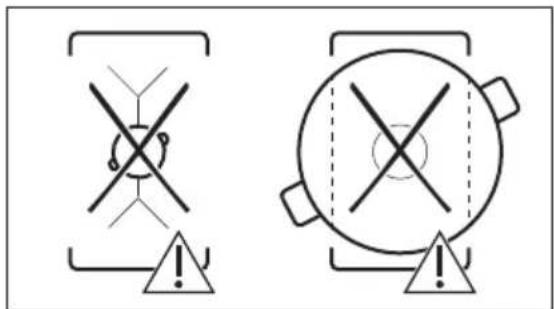

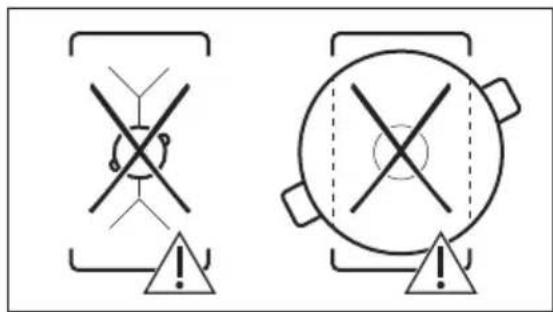

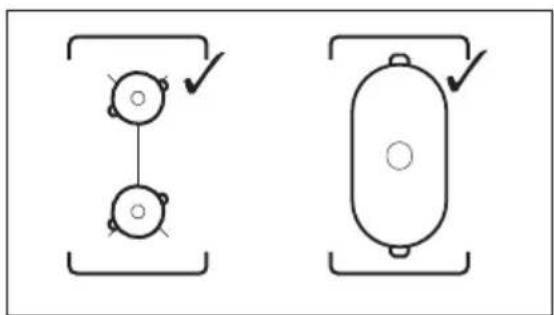

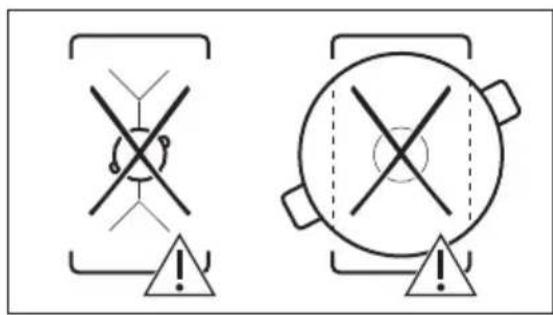

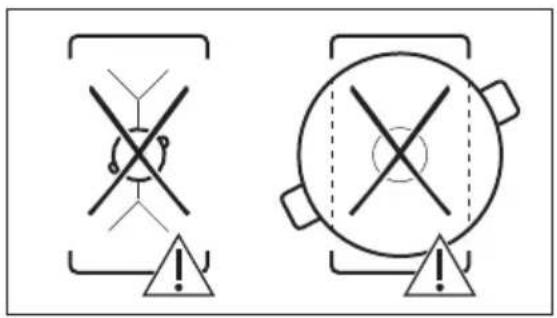

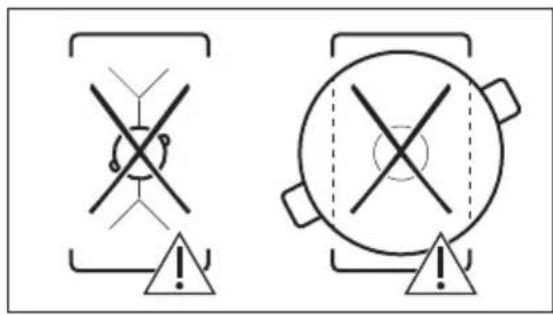

You can cook with large cookware placed on two cooking zones at the same time. The cookware must cover the centres of both zones but not go beyond the area marking. If the cookware is located between the two centres, Bridge function will not be activated.

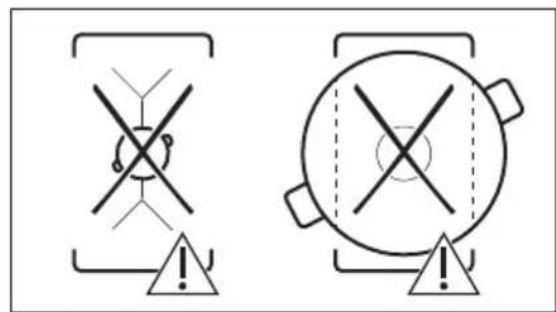

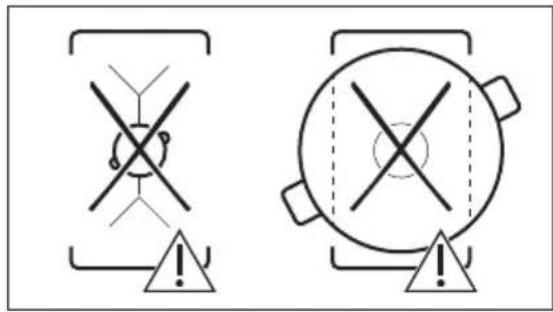

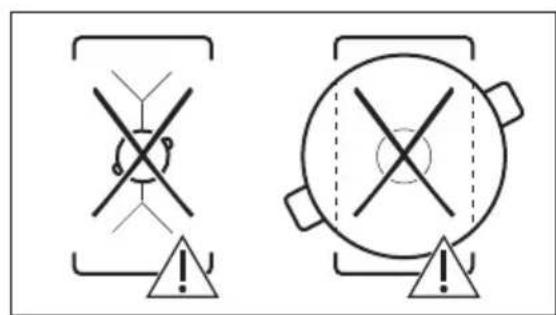

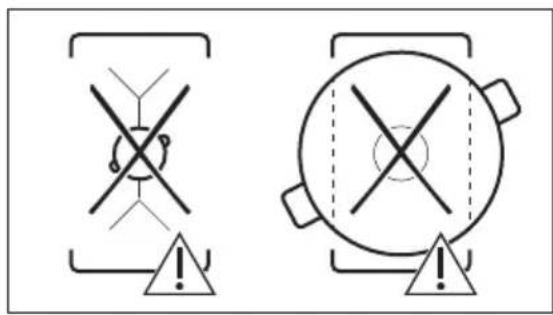

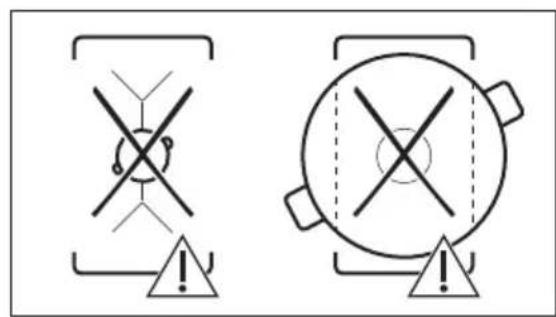

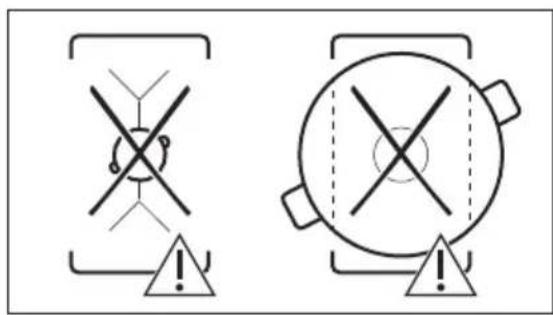

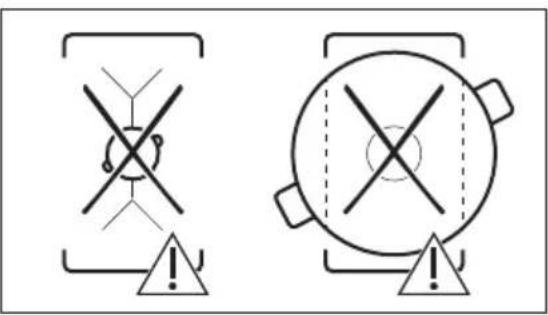

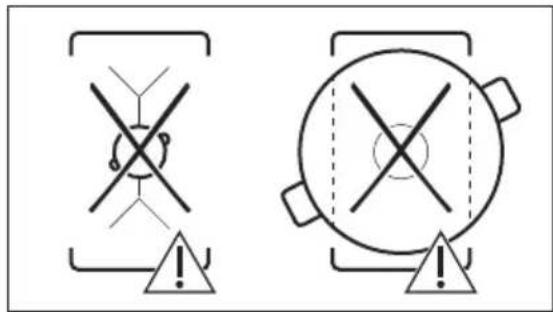

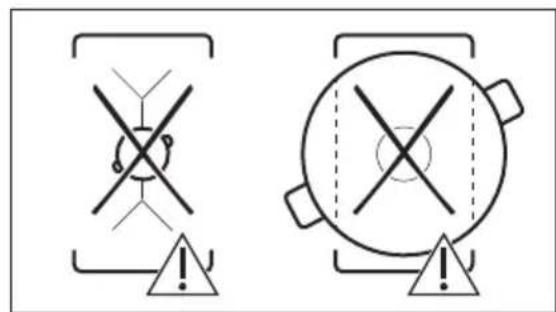

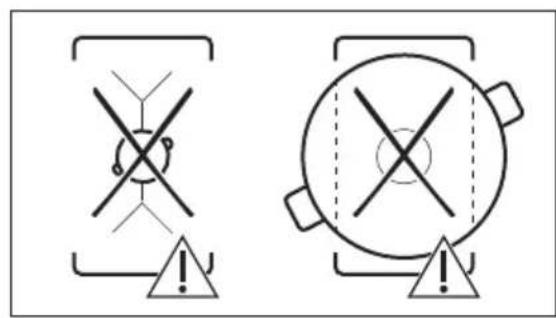

Two schematic diagrams showing mechanical or electrical components with no text or symbols

Two warning symbols with cross and triangle markings, one containing a crossed-out circle and the other a large circle with an 'X' inside.

6.6 Bridge

The function operates when the pot covers the centres of the two zones. For more information on the correct placement of cookware refer to "Using the cooking zones".

This function connects two left side cooking zones and they operate as one.

First set the heat setting for one of the left side cooking zones.

To activate the function: touch ■] To set or change the heat setting touch one of the control sensors.

To deactivate the function: touch ■The cooking zones operate independently.

6.7 Automatic Heat Up

Use the function to get a desired heat setting in a shorter time. When the function is on, the cooking zone operates at the highest heat setting in the beginning and then continues to operate at the desired heat setting.

To activate the function the cooking zone must be cold.

To activate the function for a cooking

zone: touch P (P comes on). Immediately touch a desired heat setting. After 3 seconds A comes on.

To deactivate the function: change the heat setting.

6.8 PowerBoost

This function makes more power available to the induction cooking zones. The function can be activated for the induction cooking zone only for a limited period of time. After this time the induction cooking zone automatically sets back to the highest heat setting.

i

Refer to "Technical data" chapter.

To activate the function for a cooking zone: touch P comes on.

To deactivate the function: change the heat setting.

6.9 Timer

- Count Down Timer

You can use this function to set the length of a single cooking session.

First set the heat setting for the cooking zone, then set the function.

To set the cooking zone: touch repeatedly until the indicator of a cooking zone appears.

To activate the function: touch + of the timer to set the time (00 - 99 minutes). When the indicator of the cooking zone starts to flash, the time counts down.

To see the remaining time: touch ⓣ to set the cooking zone. The indicator of the cooking zone starts to flash. The display shows the remaining time.

To change the time: touch ⓣ to set the cooking zone. Touch + or .

To deactivate the function: touch to set the cooking zone and then touch. The remaining time counts down to 00. The indicator of the cooking zone disappears.

i

When the countdown ends, an acoustic signal sounds and 00 flashes. The cooking zone deactivates.

To stop the sound: touch ⏻

- CountUp Timer

You can use this function to monitor how long the cooking zone operates.

To set the cooking zone: touch ⚙️ repeatedly until the indicator of a cooking zone appears.

To activate the function: touch of the timer. UP appears. When the indicator of the cooking zone starts to flash, the time counts up. The display switches between UP and the counted time (in minutes).

To see how long the cooking zone

operates: touch ⚠️ to set the cooking zone. The indicator of the cooking zone starts to flash. The display shows how long the zone operates.

To deactivate the function: touch and then touch for . The indicator of the cooking zone disappears.

- Minute Minder

You can use this function when the hob is activated and the cooking zones do not operate. The heat setting display shows ☐.

To activate the function: touch and then touch for of the timer to set the time. When the time finishes, an acoustic signal sounds and 00 flashes.

To stop the sound: touch ⏻

i

The function has no effect on the operation of the cooking zones.

6.10 Pause

This function sets all operating cooking zones to the lowest heat setting.

When the function operates, all other symbols on the control panels are locked.

The function does not stop the timer functions.

1. To activate the function: press ||.

u comes on. The heat setting is lowered to 1.

1. To deactivate the function: press . || The previous heat setting appears.

6.11 Lock

You can lock the control panel while cooking zones operate. It prevents an accidental change of the heat setting.

Set the heat setting first.

To activate the function: touch 🔊 L comes on for 4 seconds. The Timer stays on.

To deactivate the function: touch 🔍 The previous heat setting comes on.

i

When you deactivate the hob, you also deactivate this function.

6.12 Child Safety Device

This function prevents an accidental operation of the hob.

To activate the function: activate the hob with Ⓐ. Do not set any heat setting. Touch 📋 for 4 seconds. 📁 comes on. Deactivate the hob with Ⓐ

To deactivate the function: activate the hob with ①Do not set any heat setting. Touch for 4 seconds. comes on. Deactivate the hob with ①

To override the function for only one cooking time: activate the hob with ① L comes on. Touch for 4 seconds. Set the heat setting in 10 seconds. You can operate the hob. When you deactivate the hob with the function operates again.

6.13 OffSound Control (Deactivating and activating the sounds)

Deactivate the hob. Touch for 3 seconds. The display comes on and goes out. Touch for 3 seconds. or comes on. Touch of the timer to choose one of the following:

- the sounds are off - the sounds are on

To confirm your selection wait until the hob deactivates automatically.

When the function is set to ☐ you can hear the sounds only when:

• you touch ①
• Minute Minder comes down
• Count Down Timer comes down
• you put something on the control panel.

6.14 Power management

If multiple zones are active and the consumed power exceeds the limitation of the power supply, this function divides the available power between all cooking zones (connected to the same phase). The hob controls heat settings to protect the fuses of the house installation.

• Cooking zones are grouped according to the location and number of the phases in the hob. Each phase has a maximum electricity loading (3700 W). If the hob reaches the limit of maximum available power within one phase, the power of the cooking zones will be automatically reduced.
• The heat setting of the cooking zone selected last is always prioritised. The remaining power will be divided between the previously activated cooking zones in reverse order of selection.
• The heat setting display of the reduced zones changes between the initially selected heat setting and the reduced heat setting.
• Wait until the display stops flashing or reduce the heat setting of the cooking zone selected last. The cooking zones will continue operating with the reduced heat setting. Change the heat settings of the cooking zones manually, if necessary.

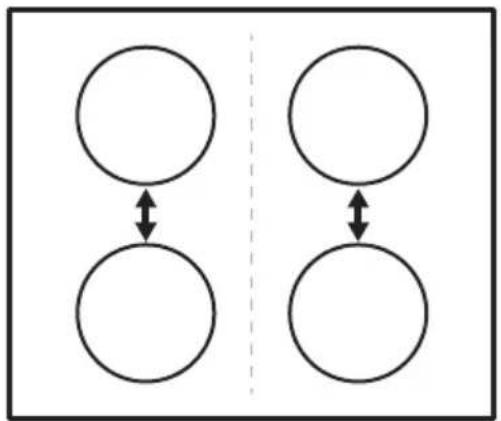

Refer to the illustration for possible combinations in which power can be distributed among the cooking zones.

6.15 Hob ^2 Hood

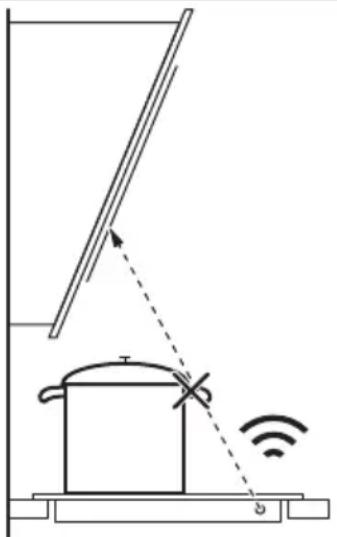

It is an advanced automatic function which connects the hob to a special hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan from the hob manually.

For most of the hoods the remote system is originally activated. In case it is deactivated, activate it before you use the function. For more information refer to hood user manual.

Operating the function automatically To operate the function automatically set the automatic mode to H1 – H6. The hob is originally set to H5. The hood reacts whenever you operate the hob. The hob recognizes temperature of the cookware automatically and adjusts the speed of the fan.

Automatic modes

Automat- ic light		Boiling1)	Frying2)
H0 Off Off Off
H1 On Off Off
H2 3)	On Fan speed	1	Fan speed
			1
H3 On Off Fan speed			1

Automat- ic light	Boiling1)	Frying2)
H4 On Fan speed	1	Fan speed 1
H5 On Fan speed	1	Fan speed 2
H6 On Fan speed	2	Fan speed 3

1) The hob detects the boiling process and activates fan speed in accordance with automatic mode.

2) The hob detects the frying process and activates fan speed in accordance with automatic mode.

3) This mode activates the fan and the light and does not rely on the temperature.

Changing the automatic mode

1. Deactivate the hob.
2. Press for 3 seconds. The display comes on and goes off.
3. Press for 3 seconds.
4. Press a few times until comes on.
5. Press of the timer to select an automatic mode.

To operate the hood directly on the hood panel deactivate the automatic mode of the function.

When you finish cooking and deactivate the hob, the hood fan may still operate for a certain period of time. After that time the system deactivates the fan automatically and prevents you from accidental activation of the fan for the next 30 seconds.

Operating the fan speed manually

You can also operate the function manually.

To do that press when the hob is active. This deactivates automatic operation of the function and allows you to change the fan speed manually. When you press you raise the fan speed by one. When you reach an intensive level and press again you will set fan speed to 0 which deactivates the hood

To activate automatic operation of the function, deactivate the hob and activate it again.

Activating the light

You can set the hob to activate the light automatically whenever you activate the hob. To do so set the automatic mode to H1 – H6.

The light on the hood deactivates 2 minutes after deactivating the hob.

7. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

7.1 Cookware

For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly.

Use the induction cooking zones with suitable cookware.

• To prevent overheating and improve the performance of the zones, the cookware must be as thick and flat as possible.
- Ensure cookware bases are clean and dry before placing on the hob surface.
• Always be careful no to slide or rub the cookware on the edges and corners of the glass as it may chip or damage the glass surface.

Cookware material

• correct: cast iron, steel, enamelled steel, stainless steel, multi-layer bottom (with a correct marking from a manufacturer).
• not correct: aluminium, copper, brass, glass, ceramic, porcelain.

Cookware is suitable for an induction hob if:

• water boils very quickly on a zone set to the highest heat setting.
- a magnet pulls on to the bottom of the cookware.

Cookware dimensions

• Induction cooking zones adapt to the dimension of the bottom of the cookware automatically. Refer to "Technical data" > "Cooking zones specification" for correct cookware dimensions. Place the cookware in the centre of the selected cooking zone.
• The efficiency of a cooking zone is related to the diameter of the cookware. For optimal heat transfer use cookware with bottom diameter similar to the size of the cooking zone (i.e. the maximum cookware diameter value in "Technical data" > "Cooking zones specification").

- Cookware with a diameter smaller than the size of a given cooking zone receives only part of the power generated by the cooking zone which results in slower heating.

- For both safety reasons and optimal cooking results, do not use cookware larger than indicated in "Cooking zones specification". Avoid keeping cookware close to the control panel during the cooking session. This might impact the functioning of the control panel or accidentally activate hob functions.

Refer to "Technical data".

7.2 Noises during operation

The noises are normal and do not indicate any malfunction. Cookware noises may vary depending on the cookware material and the power level.

Cookware-related noises:

• cracking noise: cookware is made of different materials (a sandwich construction).
• whistling sound: you use a cooking zone with a high power level and the cookware is made of different materials (a sandwich construction).
• humming: you use a high power level.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.

Hob-related noises:

• rhythmic sound: cookware is detected.

7.3 Öko Timer (Eco Timer)

To save energy, the heater of the cooking zone deactivates before the count down timer sounds. The difference in the operation time depends on the heat setting level and the length of the cooking operation.

7.4 Simplified cooking guide

The correlation between the heat setting of a zone and its consumption of power is not linear. When you increase the heat setting, it is not proportional to the increase of the consumption of power. It means that a cooking zone with the medium heat setting uses less than a half of its power.

The data in the table is for guidance only.

Heat setting Use to: Time		(min)	Hints
- 1	Keep cooked food warm. as neces-sary		Put a lid on the cookware.
1 - 3 Hollandaise sauce; melt: butter, choco-late, gelatine.		5 - 25 Mix from time to time.
2 - 3 Solidify: fluffy omelettes, baked eggs. 10 - 40 Cook with a lid on.
3 - 5 Simmer rice and milk-based dishes,heat up ready-cooked meals.		25 - 50 Add at least twice as much liquid as rice, mix milk dishes halfway through the procedure.
5 - 7 Stew vegetables, fish, meat. 20 - 45 Add a few tablespoons of water.			Check the water amount during the process.
7 - 9 Steam potatoes and other vegetables. 20 - 60 Cover the bottom of the pot with 1-2cm of water. Check the water level during the process. Keep the lid on the pot.
7 - 9 Cook larger quantities of food, stews and soups.		60 - 150 Up to 3 l of liquid plus ingredients.
9 - 12 Gentle fry: escalope, veal cordon bleu,cutlets, rissoles, sausages, liver, roux,eggs, pancakes, doughnuts.		as neces-sary	Turn over when needed.
12 - 13 Heavy fry, hash browns, loin steaks,steaks.		5 - 15 Turn over when needed.
14 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
P	Boil large quantities of water. PowerBoost is activated.

7.5 Hints and tips for Hob ^2 Hood

When you operate the hob with the function:

• Protect the hood panel from direct sunlight.
• Do not spot halogen light on the hood panel.
• Do not cover the hob control panel.
• Do not interrupt the signal between the hob and the hood (e.g. with the hand, a cookware handle or a tall pot). See the picture.

The hood pictured below is for illustration purpose only.

Diagram of a roof-mounted air conditioner system with a sloped metal frame and a pot, showing signal waves (no text or symbols)

Other remotely controlled appliances may block the signal. Do not use any such appliances near to the hob while Hob ^2 Hood is on.

Cooker hoods with the Hob ^2 Hood function

To find the full range of cooker hoods which work with this function refer to our consumer website. The Electrolux cooker hoods that work with this function must have the symbol 📞.

8. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

8.1 General information

• Clean the hob after each use.
  • Always use cookware with a clean base.
• For both daily cleaning of the glass surface and the post-installation cleaning and removal of any residual glue, use only a mildly abrasive cleaning milk and an anti-scratch, delicate sponge. Depending on the degree of soiling, clean the glass surface with small circular movements and moderate pressure. Wipe the glass surface dry with a microfibre cloth.

WARNING!

Do not use the classic yellow and green sponge as the aluminium particles on its hard layer may damage and discolour the glass.

Using cleaning tools different than the recommended ones will not be effective and may damage or discolour the glass surface.

• Always use a scraper recommended for hobs with a glass surface. Use the scraper only as an additional tool for cleaning the glass after the standard cleaning procedure.

WARNING!

Do not use knives or any other sharp, metal tools to clean the glass surface.

8.2 Cleaning the glass surface of the hob

- Remove immediately: melted plastic, plastic foil, salt, sugar and food with sugar, otherwise, the dirt can cause damage to the hob. Take care to avoid burns. Use a special hob scraper on the glass surface at an acute angle and move the blade on the surface.

- Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a mildly abrasive cleaning milk and an anti-scratch, delicate sponge (see General information). After cleaning, wipe the hob dry with a microfibre cloth.

- Persistent marks and stains: apply moderate pressure and scrub the surface with an anti-scratch, delicate sponge (see General information) and a mildly abrasive cleaning milk until the stains are no longer visible.

9. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

9.1 What to do if...

Problem Possible cause Remedy
You cannot activate or operate the hob.	The hob is not connected to an elec-trical supply or it is connected incor-rectly.	Check if the hob is correctly connected to the electrical supply.
The fuse is blown. Make sure that the fuse is the cause of		the malfunction. If the fuse is blown again and again, contact a qualified electrician.
You did not set the heat setting for 10 seconds.		Activate the hob again and set the heat setting in less than 10 seconds.
You touched 2 or more sensor fields at the same time.		Touch only one sensor field.
Pause operates. Refer to "Pause".
There is water or fat stains on the control panel.		Clean the control panel.
You can hear a constant beep noise.	The electrical connection is incor-rect.	Disconnect the hob from the electrical supply. Ask a qualified electrician to check the installation.
An acoustic signal sounds and the hob deactivates. An acoustic signal sounds when the hob is deactivated.	You put something on one or more sensor fields.	Remove the object from the sensor fields.
The hob deactivates. You put something on the sensor field 1		Remove the object from the sensor field.
Residual heat indicator does not come on.	The zone is not hot because it operated only for a short time or the sensor is damaged.	If the zone operated sufficiently long to be hot, speak to an Authorised Service Centre.
Hob ^2 Hood does not work. You covered the control panel. Remove the object from the control panel.
You use a very tall pot which blocks the signal.		Use a smaller pot, change the cooking zone or operate the hood manually.
Automatic Heat Up does not operate.	The highest heat setting is set. The highest heat setting has the same power as the function.
The zone is hot. Let the zone become sufficiently cool.
The heat setting changes between two levels.	Power management operates. Refer to "Daily use".
The control panel becomes hot to the touch.	The cookware is too large or you put it too close to the control panel.	Put large cookware on the rear zones, if possible.
There is no sound when you touch the panel sensor fields.	The sounds are deactivated. Activate the sounds. Refer to "Daily use".
L comes on.	Child Safety Device or Lock operates.	Refer to "Daily use".
F comes on.	There is no cookware on the zone. Put cookware on the zone.
The cookware is unsuitable. Use cookware suitable for induction		hobs. Refer to "Hints and tips".
The diameter of the bottom of the cookware is too small for the zone.		Use cookware with correct dimensions. Refer to "Technical data".
Heating up takes a long time. Cookware is too small and receives only a part of the power generated by the cooking zone.		For optimal heat transfer use cookware with bottom diameter similar to the size of the cooking zone (i.e. the maximum cookware diameter value in "Technical data" > "Cooking zones specification").
E and a number come on.	There is an error in the hob. Deactivate the hob and activate it again after 30 seconds. If comes on again, disconnect the hob from the electrical supply. After 30 seconds, connect the hob again. If the problem continues, speak to an Authorised Service Centre.

9.2 If you cannot find a solution...

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Give also three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes

on. Make sure, you operated the hob correctly. If not the servicing by a service technician or dealer will not be free of charge, also during the warranty period. The information about guarantee period and Authorised Service Centres are in the guarantee booklet.

10. TECHNICAL DATA

10.1 Rating plate

Model EIV63443CT PNC 949 599 528 00

Typ 61 B4A 01 AA 220 - 240 V / 400 V 2N, 50 - 60 Hz

Induction 7.2 kW Made in: Germany

Ser.Nr. 7.2 kW

ELECTROLUX

10.2 Cooking zones specification

Cooking zone Nominal power (maximum heat setting) [W]	PowerBoost [W]	PowerBoost maximum duration [min]	Cookware diameter [mm]
Left front 2300 3200 10 125 - 210
Left rear 2300 3200 10 125 - 210
Right front 1400 2500 4 125 - 145
Right rear 1800 2800 10 145 - 180
The power of the cooking zones can be different in some small range from the data in the table. It changes with the material and dimensions of the cookware.For optimal heat transfer and cooking results use cookware with bottom diameter similar to		the size of the cooking zone (i.e. the maximum cookware diameter value in the table). Do not use cookware larger than the diameter of the cooking zone.

11. ENERGY EFFICIENCY

11.1 Product Information according to EU Ecodesign Regulation

Model identification EIV63443CT
Type of hob Built-In Hob
Number of cooking zones 4
Heating technology Induction
Diameter of circular cooking zones (∅)	Left front	21.0 cm
	Left rear	21.0 cm
	Right front	14.5 cm
	Right rear	18.0 cm
Energy consumption per cooking zone (EC electric cooking)	Left front	179.3 Wh/kg
	Left rear	178.4 Wh/kg
	Right front	183.2 Wh/kg
	Right rear	184.9 Wh/kg

Energy consumption of the hob (EC electric hob) 181.5 Wh/kg

IEC / EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance.

The energy measurements referring to the cooking area are identified by the markings of the respective cooking zones.

11.2 Energy saving

You can save energy during everyday cooking if you follow the hints below.

• When you heat up water, use only the amount you need.
• If it is possible, always put the lids on the cookware.
• Put the cookware directly in the centre of the cooking zone.
• Use the residual heat to keep the food warm or to melt it.

11.3 Product Information for power consumption and maximum time to reach applicable low power mode

Power consumption in off mode 0.3 W

Maximum time needed for the equipment to automatically reach the applicable low power mode 2 min

12. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

How to install your Electrolux Induction Hob - Worktop installation

4. TOOTE KIRJELDUS

4.1 Keeduala paigutus

1 1 180 mm 145 mm 1 2

Two schematic diagrams showing circular components connected by lines, with checkmarks indicating alignment or adjustment (no text or symbols)

Warning symbols for safety or hazard detection, showing crossed warning signs and triangular warning symbols with exclamation marks.

6.6 Bridge

i

Diagram of a smart heating or monitoring system with a pot, antenna, and wireless signal icon (no text labels)

Two schematic diagrams showing a pulley system with circular components and directional arrows, no text or symbols present.

Two safety warning symbols: crossed-out cross symbol and circular warning symbol with exclamation mark

6.6 Bridge

Diagram of a smart air lift or control system with a tank, sensor, and signal icon (no text labels)

• οδού δρυσβό, συγ κημακή ψδρος ∂ταδρονδος ∂τηξυμδομπδού υξιμόν γύσωσκόςεος οδοζμάδευού δουσμόδεω, φυγχύσθοσκός πος ολερίδυ σροσμπόσης γύξυδού.
• ζυδημόσος δηθμόσομπός ροχβού δοσεξιός ξυδημόσος.
• Assays form of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system of the system.

3. მონტაეი

⚠️ გარითისება!

الس∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠∠

How to install your Electrolux Induction Hob - Worktop installation

4. 36mm2000000000000000000000000000000000

Two schematic diagrams showing mechanical or electrical components with circular elements and directional arrows, no text or symbols present.

Two safety warning symbols: crossed cross symbol and triangular warning triangle, both with exclamation marks.

6.6 Bridge

i

bān lān gān lān gān gān gān gān gān gān gān

- CountUp Timer

sā gǔyǎjīn lǐ gādmyǔjìd sāgāndmōn lùfādmol dàdǎbāngjān lǐ bǎgāndmōz nǐmbol dāyǎsmòu dàmbānqīmǎnbānuzol.

bān lān mān mān mān: āngkōm

i

ay6jouu shzouo ouzmgb s m j3u usjdmou dmdgugdou gmgbdou dydsmdsg.

6.10 35796s

( \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup ) ( \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup \text{g} \cup ) ( \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = ) ( \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = \text{g} = ) ( \text{g} = \text{g} = -\frac{\text{g}}{\text{g}} = -\frac{\text{g}}{\text{g}} = -\frac{\text{g}}{\text{g}} = -\frac{\text{g}}{\text{g}} = -\frac{\text{g}}{\text{g}} = -\frac{\text{g}}{\text{g}} = -\frac{\text{g}}{\text{g}} = -\frac{\text{g}}{\text{g}} = 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5

1. grades:

Uzbekistan 1-309.

1. axy6j0n1 yxj0z0ngdou3n: xu7f0m0n m0ms3u || gubgbyr0ndu 3sndg0m h0m0z0ds.

6.11 மெற்றை335

6.13 OffSound Control (bāgān lù gādāmān 3s qos hāmān 3s)

gsdmcmgom fyns. ddgbom b dsou dsbdomg. g3msb o6m3gds cos omodgds. ddgbom c dsou dsbdomg. s gshgbgds. ddgbom g5m0dgm+ ddg0g0g0s5 g6m-g7m0u slsmh0zsg:

- 61 - 6200 g5000000 - 6300 h5000000 05300 s5h03b0u 05150s5g5000000, 05200s500s l5b3d f7m6s s3g5m4s8m6s 053f8o30m60s.

Diagram of a simple electrical setup with a pot, wires, and an antenna (no text or symbols)

i

( \varphi_{\text{H}} \cup \mathfrak{G} \cup \mathfrak{B} \cup \mathfrak{N} \cup \mathfrak{M} \cup \mathfrak{S} \cup \mathfrak{Q} \cup \partial \cup \mathfrak{m} \cup \mathfrak{Z} \cup \mathfrak{P} \cup \mathfrak{D} \cup \mathfrak{U} \cup \mathfrak{z} \cup \mathfrak{S} ) ( \partial \cup \mathfrak{F} \cup \mathfrak{m} \cup \mathfrak{D} \cup \mathfrak{m} \cup \mathfrak{m} \cup \mathfrak{D} \cup \mathfrak{g} \cup \mathfrak{d} \cup \mathfrak{s}, \partial \cup \mathfrak{J} \cup \mathfrak{s} \cup \mathfrak{D} \cup \mathfrak{m} \cup \mathfrak{s}, ) ( \varphi_{\text{H}} \cup \mathfrak{m} \cup \mathfrak{m} \cup \mathfrak{m} \cup \mathfrak{m} \cup \mathfrak{b} \cup \mathfrak{n} \cup \mathfrak{b} \cup \mathfrak{s} \cup \mathfrak{n} . ) ( f_{\text{H}} = 0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,) ( \cup \cup \mathfrak{b} = 0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,) ( s_{\text{H}} = 1.5,1.5,1.5,1.5,1.5,1.5,1.5,1.5,1.5,1.5,1.5,1.5,1.5,1.5,1.5,1.5,1.5,) ( Hob^{2}Hood h_{\text{H}} = 768979999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888846666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333327777777777777777777777777777777777777777777777777777777777777777777777777777777777777777777744444444444444444444444444444444444444444444444444444444444444444444444444444444444444422222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222221111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111

### ### ###### Hob ^2 Hood ### ####### sd ### ####### ### ###### #### ####### gs#m30#ou ##mnn slum##odgb#ou usbs3s## gmbm3o j#zomos h36b usmd6dsmgdm 30dusoglu. Electrolux-ou

8.1 6m3500 n62m6d50s

mg 3 mdg 6 g 9 d 8 y 5 m 1 u 3 s 6 b gs 6 u 6 g 3 s 3 g 7 d 8 y 5 m 0 u 5 f 6 d 8 b 6 p 0 bgm 1 u 5 f 6 y 5 m 0 d 8 o 5 u 5 d 8 m 0 g 6 ds 6 s 6 n_6 _6 s 6 3_4_2_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_5_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_5_6_6_6_6_5_6_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_4_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_6_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5_5, n_12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,

11.2 borough borough borough3300

How to install your Electrolux Induction Hob - Worktop installation

Two schematic diagrams showing mechanical or electrical components with no text or symbols

Two warning symbols with cross and triangle signs, one containing a crossed-out circle and the other a filled circle with an 'X' inside.

6.6 Bridge

6.15 Hob ^2 Hood

Diagram of a cooking pot with a lever and sensor signal, no text or symbols present

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

How to install your Electrolux Induction Hob - Worktop installation

4. TERMÉKLEÍRÁS

Two schematic diagrams showing mechanical or electrical components with circular elements and directional arrows, no text or symbols present.

Two warning symbols with cross and triangle signs, one containing a crossed-out circle and the other a filled circle with an exclamation mark.

6.6 Bridge

Diagram of a mechanical setup with a lever and a tank, showing signal transmission and wireless signal (no text or symbols)

How to install your Electrolux Induction Hob - Worktop installation

Two schematic diagrams showing mechanical or electrical components with circular elements and directional arrows, no text or symbols present.

Warning symbols for safety symbols, including crossed-out and uncorrected warning signs with exclamation marks

6.6 Bridge

Diagram of a smart heating or monitoring system with a pot, antenna, and wireless signal icon (no text labels)

How to install your Electrolux Induction Hob - Worktop installation

4. ОНИМ СИПАТТАМАСЫ

Two schematic diagrams showing a belt drive system with two pulleys and a central cylinder, each marked with checkmarks (no text or symbols present)

Two safety warning symbols: crossed-out cross symbol and warning triangle with exclamation mark

6.6 Bridge

6.15 Hob ^2 Hood

Diagram of a cooking pot with a lever and Wi-Fi signal, no text or symbols present

How to install your Electrolux Induction Hob - Worktop installation

4. PRODUKTA APRAKSTS

Two schematic diagrams showing a pulley system with circular components and directional arrows, no text or symbols present.

Two warning symbols with cross and triangle signs, one containing a crossed-out circle and the other a filled circle with an exclamation mark.

6.6 Bridge

i

Diagram of a cooking pot with a lever and sensor signal, no text or symbols present

How to install your Electrolux Induction Hob - Worktop installation

4. GAMINIO APRAŠYMAS

Two schematic diagrams showing mechanical or electrical components with circular elements and directional arrows, no text or symbols present.

Two warning symbols with cross and triangle indicators, one containing a crossed-out circle and the other a filled circle with an 'X' symbol.

6.6 Bridge

i

Diagram of a cooking pot with a lever and sensor signal, no text or symbols present

Tipas 61 B4A 01 AA 220 - 240 V / 400 V 2N, 50–60 Hz

Indukcija 7.2 kW Pagaminta: Vokietija

Serijos nr. 7.2 kW

ELECTROLUX

How to install your Electrolux Induction Hob - Worktop installation

4. ОПИС НА ПРОИЗВОДОТ

Safety warning symbols for two vehicle accident scenarios, one with crosshair and warning triangle, the other with crosshair and warning triangle.

6.6 Bridge

6.15 Hob ^2 Hood

Simple line drawing of a roof-mounted device with a lamp and wireless signal icon (no text or symbols)

i

How to install your Electrolux Induction Hob - Worktop installation

4. OPIS PRODUKTU

Two schematic diagrams showing mechanical or electrical components with circular elements and directional arrows, no text or symbols present.

Two safety warning symbols: crossed-out cross symbol and triangular warning triangle with exclamation mark

6.6 Bridge

i

6.15 Hob ^2 Hood

Diagram of a roof-mounted electrical enclosure with a roof-mounted panel and signal icon (no text or symbols)

How to install your Electrolux Induction Hob - Worktop installation

6.5 Utilizar as zonas de cozedura

Two schematic diagrams showing mechanical or electrical components with circular elements and directional arrows, no text or symbols present.

Two warning symbols with cross and triangle indicators, one containing a central circle with 'P' and an exclamation mark, the other showing a circular target with cross and an exclamation mark.

6.6 Bridge

Diagram of a smart heating or monitoring system with a pot, antenna, and wireless signal icon (no text labels)

How to install your Electrolux Induction Hob - Worktop installation

4. DESCRIEREA PRODUSULUI

Two schematic diagrams showing mechanical or electrical components with circular elements and directional arrows, no text or symbols present.

Two warning symbols with cross and triangle indicators, one containing a crossed-out circle and the other a filled circle with an exclamation mark.

6.6 Bridge

6.14 Management putere

Diagram of a smart room setup with a ladder, a pot, and wireless signal icon (no text or symbols)

How to install your Electrolux Induction Hob - Worktop installation

4. ОПИСАНИЕ ПРИБОРА

Two schematic diagrams showing a mechanical or electrical component with circular elements and directional arrows, no text or symbols present.

Two safety warning symbols: crossed-out cross symbol and circular warning symbol with exclamation mark

6.6 Bridge

Diagram of a smart heating setup with a pot, antenna, and wireless signal icon (no text or symbols)

How to install your Electrolux Induction Hob - Worktop installation

4. ОПИС ПРОИЗВОДА

Two schematic diagrams showing mechanical or electrical components with circular elements and directional arrows, no text or symbols present.

Warning symbols for safety and hazard detection, showing crossed warning signs and triangular warning symbols

6.6 Bridge

i

Diagram of a smart air lift or control system with a tank, sensor, and signal icon (no text labels)

How to install your Electrolux Induction Hob - Worktop installation

4. OPIS VÝROBKU

Two schematic diagrams showing mechanical or electrical components with directional arrows, no text or symbols present.

Two warning symbols with cross and triangle indicators, one containing a crossed-out circle and the other a filled circle with an exclamation mark.

6.6 Bridge

i

Diagram of a cooking setup with a pot, ladder, and Wi-Fi signal (no text or symbols)

i

N Modra in modra N Modra in modra

L1 Črna L Črna in rjava

L2 Rjava

3.4 Montaža

How to install your Electrolux Induction Hob - Worktop installation

4. OPIS IZDELKA

4.1 Postavitev kuhalne površine

Two schematic diagrams showing mechanical or electrical components with circular elements and directional arrows, no text or symbols present.

Two warning symbols with cross and triangle indicators, one containing a crossed-out circle and the other a large circle with an 'X' inside.

6.6 Bridge

Diagram of a roof-mounted structure with a sloped roof and a pot, showing signal transmission (no text or symbols)

How to install your Electrolux Induction Hob - Worktop installation

Two schematic diagrams showing mechanical or electrical components with circular elements and directional arrows, no text or symbols present.

Two warning symbols with cross and triangle signs, one containing a crossed-out circle and the other a filled circle with an exclamation mark.

6.6 Bridge

i

Simple line drawing of a roof-mounted structure with a sloped roof and a pot, connected to a wall-mounted platform with wireless signal icon (no text or symbols)

8. LIMPIEZA Y MANTENIMIENTO

ADVERTENCIA!

How to install your Electrolux Induction Hob - Worktop installation

4. ОПИС ВИРОБУ

Two simple diagrammatic shapes: a vertical rectangle with two circles connected by a line and a rounded rectangle with a central circle, both with checkmarks indicating direction (no text or symbols)

Safety warning symbols for two electrical hazard zones, one with crossed-out lines and warning symbol, the other with crosshair and warning symbol.

6.6 Bridge

i

6.15 Hob²Hood

Diagram illustrating a smart air filtration setup with a pot, sensor, and signal detection symbol

i
