USER MANUAL CM42PL Summit

Write Model and Serial Numbers here:

Model

Serial No.

Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www.Summitappliance.com

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB regulations.

However, we are required by California Law to provide the following disclosure statement in every product sold in California.

"This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited Substances' for that specific end-use, in accordance with California Code of Regulations, title 17, section 95374. This disclosure statement has been reviewed and approved by Felix Storch, Inc. and Felix Storch, Inc. attests, under penalty of perjury, that these statements are true and accurate."

This product does not use any refrigerants on the 'List of Prohibited Substances"

Icon Type Meaning
!	WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of fire / flammable materials
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly

CONTENTS

1 SAFETY INSTRUCTIONS 1

1.1 General SafetyWarnings 1
1.2 InstallationWarnings 6
1.3 During Usage.. 6

2 DESCRIPTION OF THE APPLIANCE 8

3 USING THE APPLIANCE 8

3.1 Thermostat Setting 8
3.2 Temperature SettingsWarnings 9
3.3 Summer / Winter Mode 9
3.4 Accessories 10
3.4.1 Ice Tray (In some models) 10

4 FOOD STORAGE 10

5 CLEANING AND MAINTENANCE 10

5.1 Defrosting 10

6 SHIPMENT AND REPOSITIONING 11

6.1 Transportation and Changing Positioning 11
6.2 Reversing the Door Swing 11
6.3 Instructions for Reversing the Door Swing 12

7 TIPS FOR SAVINGENERGY 14

8 TROUBLESHOOTING 15

9 LIMITED WARRANTY 16

1 SAFETY INSTRUCTIONS

1.1 General SafetyWarnings

Read this user manual carefully.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the instructions.
If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and

natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and domestic applications such as:

• staff kitchen areas in shops, offices and other working environments.
  -farm houses and by clients in hotels, motels and other residential type environments.
  -bed and breakfast type environments;
  -catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 10 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 6500 ft.

• WARNING: The refrigeration system is under high pressure. Do not tamper with it. Contact qualified service personal before disposal.

• CAUTION: To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer Or Refrigerator.
• WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer:
• • Take off the doors.
• • Leave the shelves in place so that children may not easily climb inside.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

To prevent food contamination, please follow these instructions:

• Keeping the door open for extended periods can significantly raise the temperature inside the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator to prevent them from coming into contact with or dripping onto other foods.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold growth.

1.2 InstallationWarnings

Before using your fridge freezer for the first time, please consider the following points:

The operating voltage for your fridge freezer is 115-127 V at 60Hz.
- The plug must be accessible after installation.
- Your fridge freezer may emit an odor when first operated. This is normal, and the odor will fade as it cools.
- Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualified electrician.
- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
- The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
- We do not accept responsibility for any damages that occur due to ungrounded usage.
- Place your fridge freezer where it will not be exposed to direct sunlight.
- Your fridge freezer must never be used outdoors or exposed to rain.
- Your appliance must be at least 20 inches away from stoves, gas ovens and heater cores, and at least 2 inches away from electrical ovens.
- If your fridge freezer is placed next to a deep freezer, there must be at least 1 inch between them to prevent humidity forming on the outer surface.
- Do not cover the body or top of fridge freezer with lace. This will affect the performance of your fridge freezer.

• Clearance of at least 6 inches is required at the top of your appliance. Do not place anything on top of your appliance.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).
• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge freezer after cleaning.
• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.
• When the product is operating, the side panels may become noticeably warm. This is normal.
• Install the plastic distance guide(s) on the

condenser (black vanes at the rear of the appliance) by turning it 90^ (as shown in the figure) to prevent the condenser from touching the wall.

• The distance between the appliance and back wall must be a maximum of 3 inches.

1.3 During Usage

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is intended for adult use only. Do not allow children to play with the appliance or hang from the door.

• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

• Do not place glass bottles or cans in the ice-making compartment, as they may burst when the contents freeze.

• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it, as it may cause frostbite or cuts.
• Do not touch frozen goods with wet hands.
  Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

Old and Out-of-Order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of Your Old Appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation.

The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be canceled and our company will not be responsible for any losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

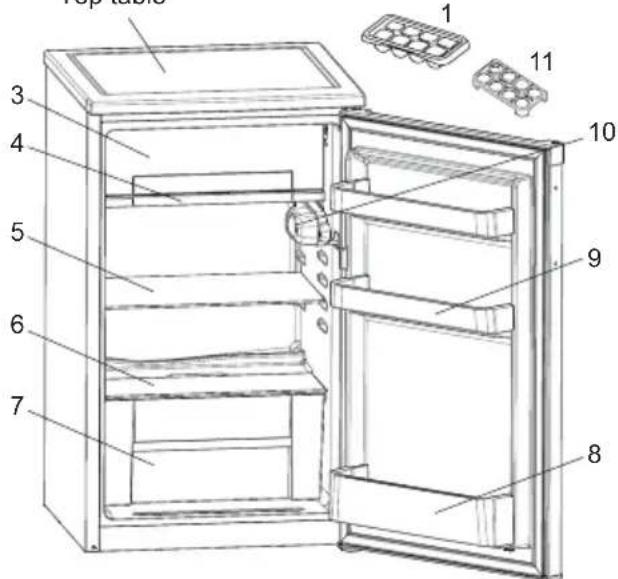

2 DESCRIPTION OF THE APPLIANCE

Top table

This presentation is only for

information about the parts of the

appliance. Parts may vary according to the appliance model.

1) Ice box tray
2) Plastic ice scraper
3) Ice-making compartment
4) Drain tray
5) Refrigerator shelf
6) Crisper cover
7) Crisper
8) Bottle shelf
9) Door shelves
10) Thermostat box
11) Egg holder

• In some models

3 USING THE APPLIANCE

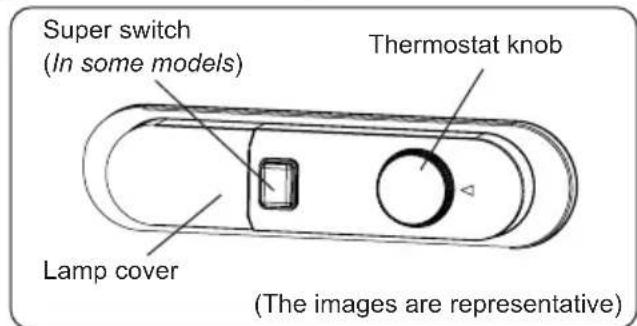

3.1 Thermostat Setting

The thermostat automatically regulates the temperature in the refrigerator and freezer compartments. To adjust the refrigerator temperature, rotate the knob to a higher setting, such as 1 to 3, 1 to 5, or Super Freeze (SF). (Maximum numbers on the thermostat vary by model.)

Important note: Do not try to rotate the

knob beyond position 1, it will stop your appliance from working.

Thermostat Settings:

1-2: For short-term storage of food
3-4: For long-term storage of food
5: Maximum cooling position. The appliance will work longer. If required, change the temperature setting.

If device has Super Freeze (SF) Mode:

(not available on all models)

Turn the knob to SF to quickly freeze fresh food. In this position, the freezer compartment will operate at lower temperatures.

Once your food is frozen, return the thermostat knob to its normal setting. If you don't change the SF position, the appliance will automatically revert to the last used thermostat setting after a certain time, as indicated in the note.

If the thermostat switch is set to SF when the appliance is first started, it will automatically switch back to the thermostat-3 position after the specified time in the note.

3.2 Temperature SettingsWarnings

• Your appliance is designed to operate within the ambient temperature ranges specified by the climate class on the information label. Operating your fridge outside these temperature ranges may reduce cooling efficiency.
• Adjust the temperature based on the frequency of door openings, the amount of food stored inside, and the ambient temperature of the location.
• When the appliance is first turned on, allow it to run for 24 hours to reach the optimal operating temperature. During this period, do not open the door or place a large quantity of food inside.
• A 5-minute delay function is implemented to protect the compressor when connecting or disconnecting from the main, or during a power interruption. The appliance will resume normal operation after this delay.

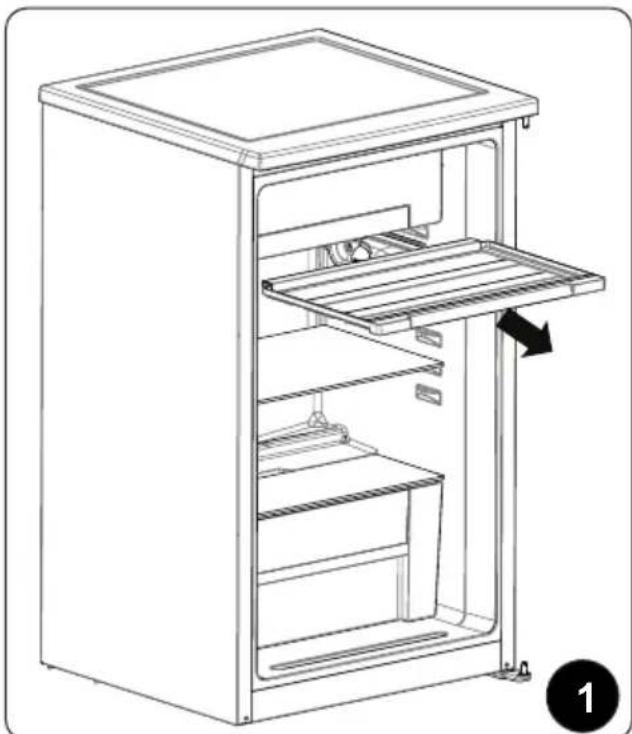

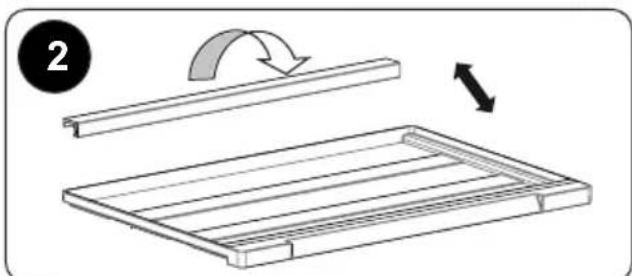

3.3 Summer / Winter Mode

The drain tray flap allows the cold air flow inside your refrigerator to be adjusted according to a high or low ambient temperature.

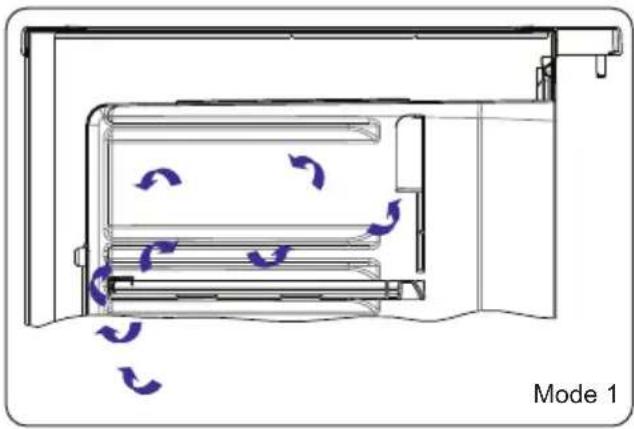

Summer Mode (Mode 1)

The bottom compartment in the refrigerator will be much cooler.

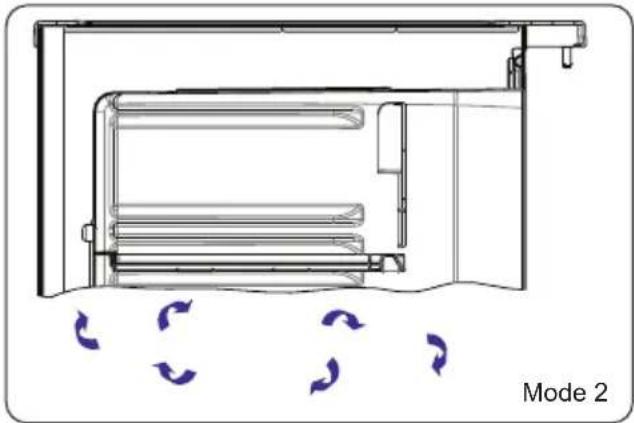

Winter Mode (Mode 2)

The bottom compartment in the refrigerator will not be as cool as Mode 1.

While defrosting, winter mode should be used.

3.4 Accessories

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

3.4.1 Ice Tray (In some models)

• Fill the ice tray with water and place in the freezer compartment.
  After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.

4 FOOD STORAGE

The fridge compartment is used for the short-term storage of fresh food and drinks. The ice-making compartment is not suitable for storing frozen food. Do not freeze food in this area.

Bottles can be stored in the bottle holder or bottle rack in the door. Raw meat must be stored on the shelf close to the icemaking compartment in a polyethylene bag.

Warm food and drink must be allowed to cool at room temperature before being placed in the refrigerator.

5 CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.
Do not wash your appliance by pouring water on it.
Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the main supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.
• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.
• Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

The power supply must be disconnected during cleaning.

5.1 Defrosting

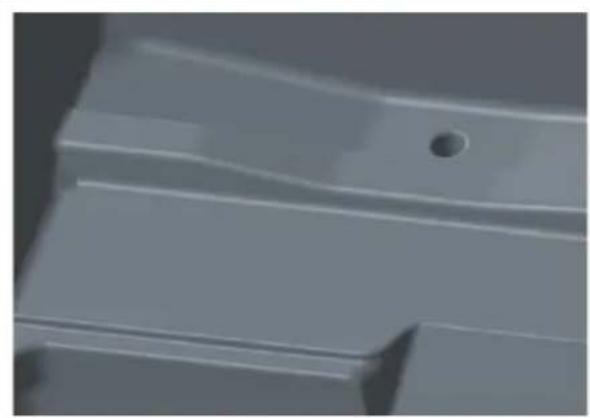

Note: The hole at the bottom of the refrigerator at the back is closed and has no effect on the cooling system.

Defrosting the Ice-Making Compartment

Excessive frost will affect the performance of the refrigerator. The icemaking compartment must be defrosted at least twice a year, or whenever the frost exceeds 0.2 inches in thickness.

For this:

• Check the Drain Tray Flap: Ensure that the Drain Tray Flap is properly in place.
• Activate Winter Mode: Turn on Winter mode. After defrosting, set to the previous mode depending on the ambient temperature.
• Prepare the Freezer: The day before defrosting, set the thermostat dial to position '5' to freeze the food completely. During the defrosting process, keep frozen food well-wrapped and store it in a cool place, as the inevitable temperature rise can shorten its storage life. Consume these foods within a short period.
• Power Off: Switch the refrigerator off at the socket outlet and disconnect the main plug.
• Leave the Door Open: Keep the freezer door open. To speed up the defrosting process, you can place one or more bowls of warm water in the freezer compartment.

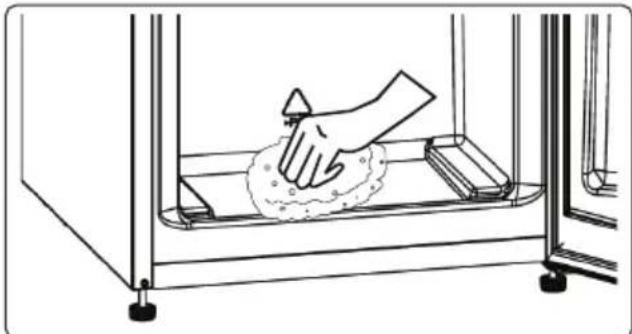

• Clean Up: Once defrosting is complete, dry the interior of the unit and the Dripping Tray using a sponge or clean cloth. Finally, set the thermostat knob back to position '5'.

Replacing LED Lighting

To replace any of the LEDs, please contact the nearest Authorized Service Center.

Note: The numbers and location of the LED strips may change according to model.

6 SHIPMENT AND REPOSITIONING

6.1 Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

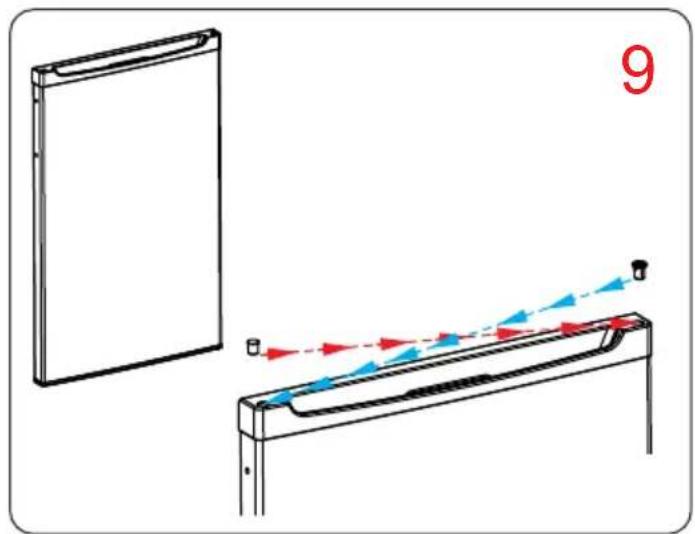

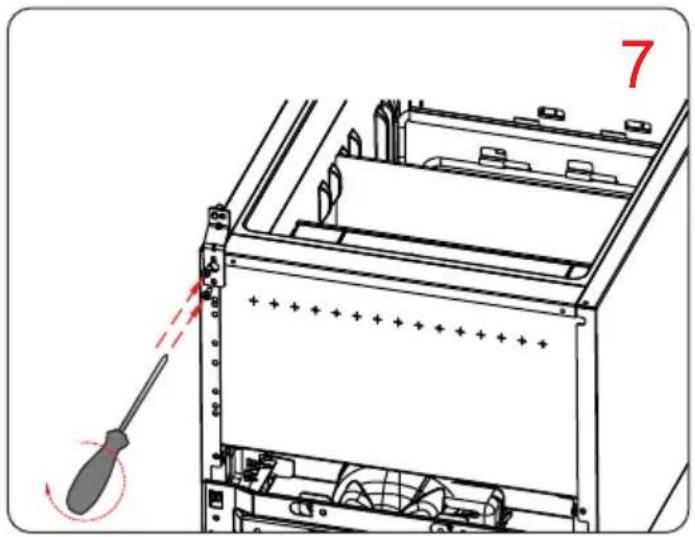

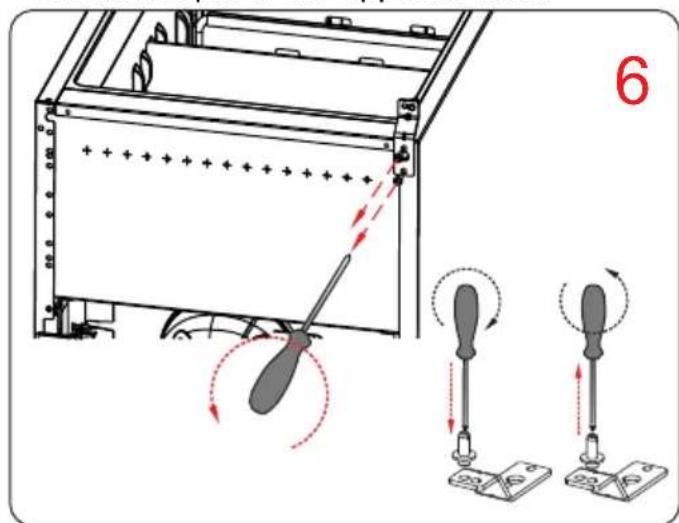

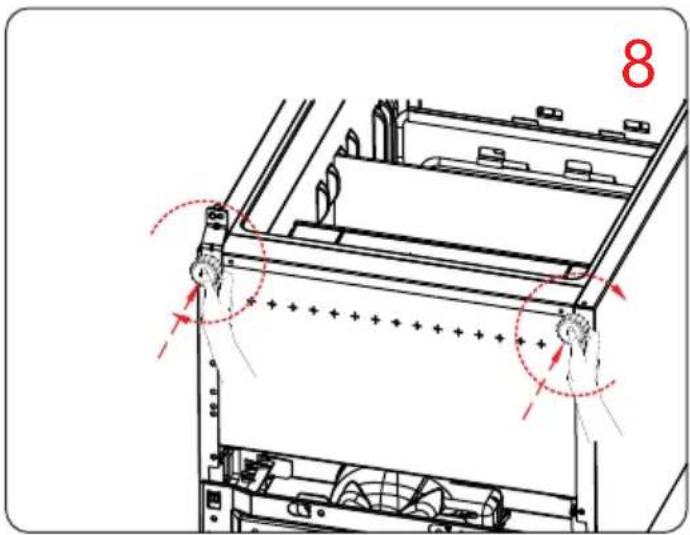

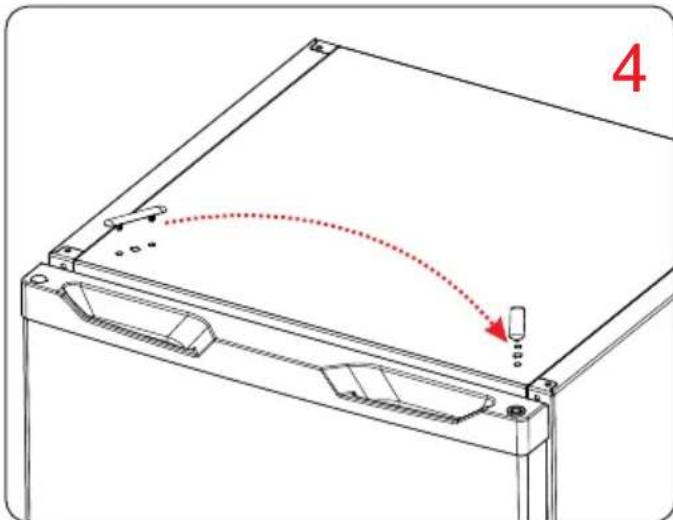

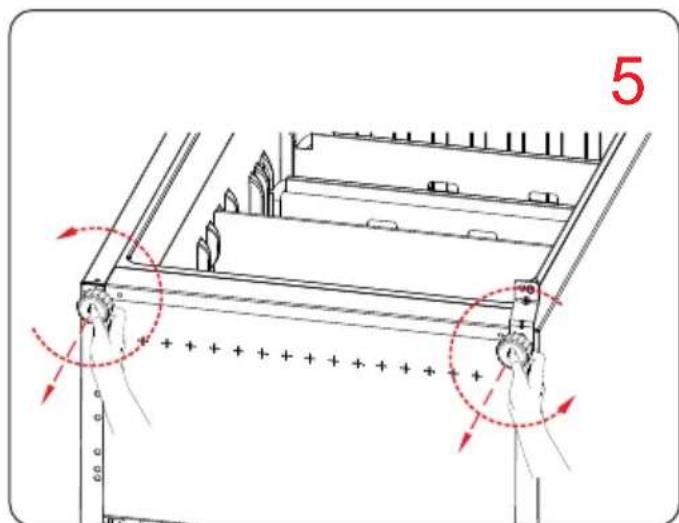

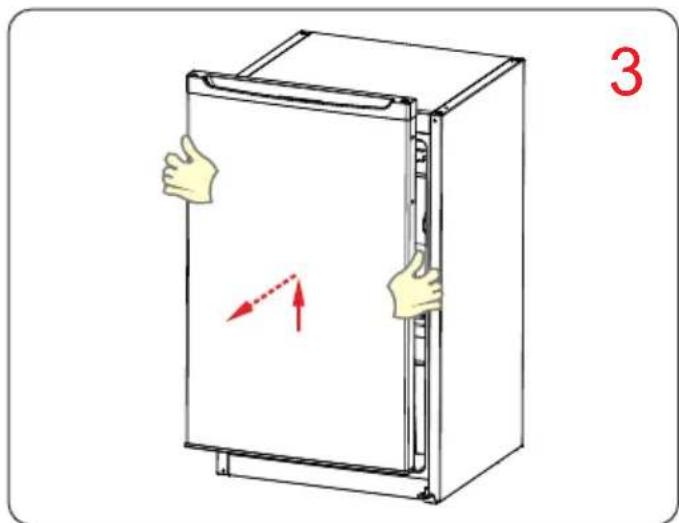

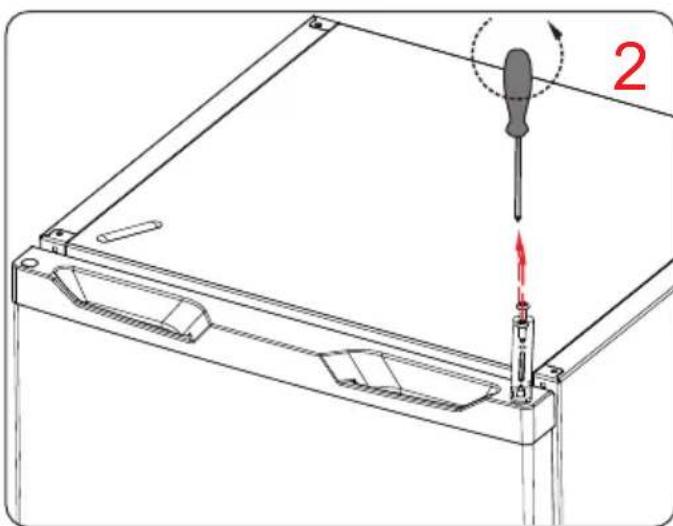

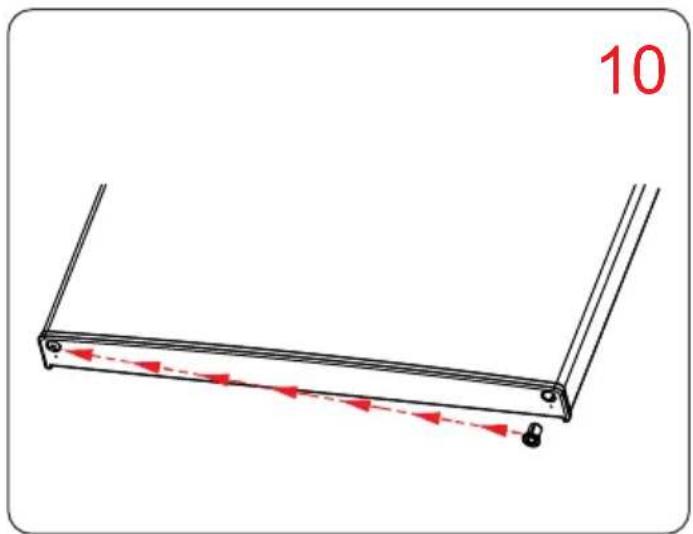

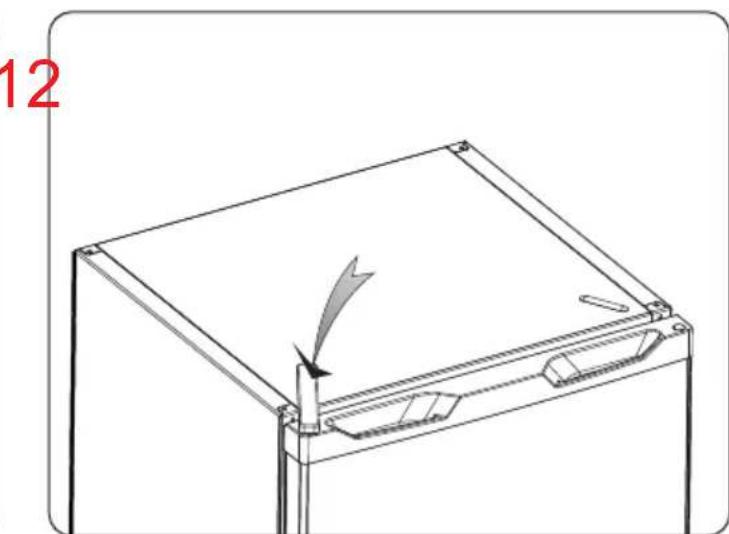

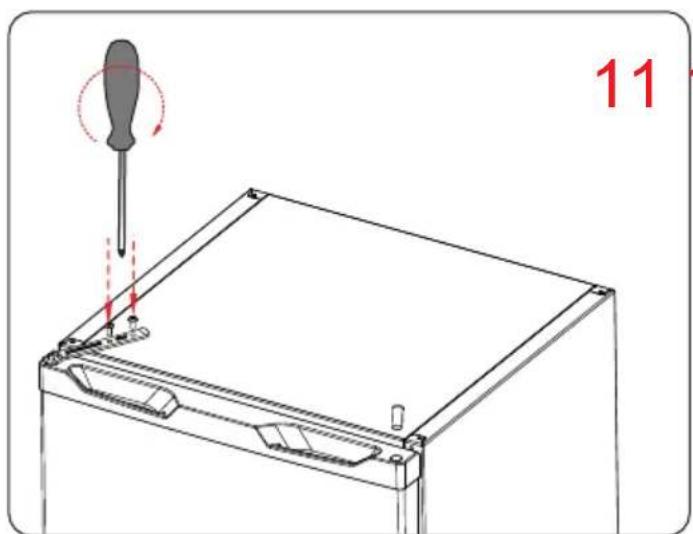

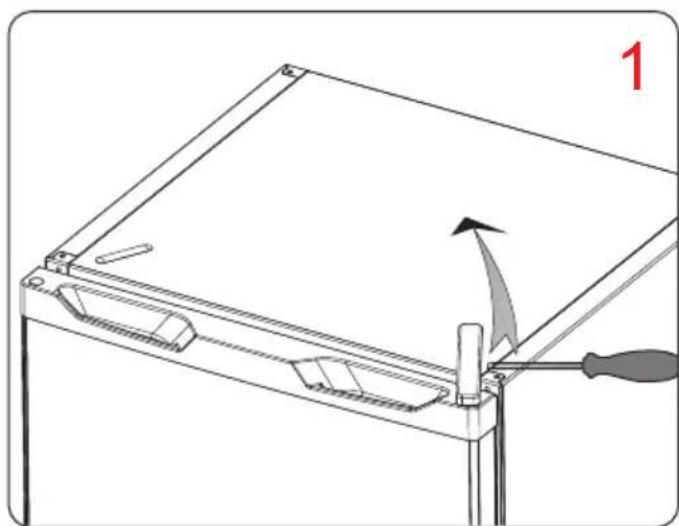

6.2 Reversing the Door Swing

Front Handles: You cannot reverse the door if the handles are installed on the front of the appliance.

Side Handles or No Handles: You can reverse the door on models that have side handles or no handles at all.

Non-Reversible Doors: If your appliance's door is not reversible, please contact the nearest Authorized Service Center for assistance.

6.3 Instructions for Reversing the Door Swing

1. Remove the top hinge cover.

1. Lift the door off the bottom hinge.

1. Unscrew both feet.

1. Unscrew the top hinge and set aside.

1. Switch the plastic hole cover to the opposite side.

1. Unscrew the bottom hinge and switch the pin to the opposite hole.

1. Attach the bottom hinge to the opposite side.

1. Switch the top door cap cover to the opposite side of the door.

1. Reattach the door and ensure it sits on the pin then attach the top hinge.

2. Reattach the feet.

1. Repeat with the bottom door cap.

1. Switch the hinge cover to the opposite side. Ensure it snaps into place.

7 TIPS FOR SAVING ENERGY

Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
- Allow warm food and drinks to cool down before placing them inside the appliance.
- Thaw frozen food in the refrigerator compartment. The cold from the food will help maintain a cool temperature in the fridge to conserving energy. Thawing outside the appliance can waste energy.
- Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
- Avoid keeping the doors open for extended periods or opening them too frequently. Doing so allows warm air to enter the appliance, causing the compressor to activate more often than necessary.
- Keep the covers of the different temperature compartments (such as the crisper and chiller if available) closed.
- The door gasket must be clean and pliable. In case of wear, replace the gasket.
The product can be used without ice maker flap. Energy consumption is declared according to this option.

Recommendations

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.
• If you will not use your appliance for a long time (e.g. in summer holidays) unplug it. Clean your appliance according to chapter cleaning and leave the door open to prevent humidity and smell.
• The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasis that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

8 TROUBLESHOOTING

If you are experiencing a problem with your appliance, please check the following before contacting the after-sales service.

PROBLEM	POSSIBLE CAUSES	SOLUTION
Your appliance is not operating	There is no power.	Verify that the power supply to the building is active. Contact your utility provider if there are outages.
	The plug is not correctly placed in the socket.	Carefully unplug the device and then plug it back in, ensuring it's fully seated in the socket.
	The socket is defective.	Try plugging another working appliance into the same socket.
	The plug fuse or the mains fuse has blown.	If issues persist or if you're unsure about any step, contact a qualified electrician for further diagnosis and repair.
The appliance performs poorly	The appliance is overloaded.	Remove items that are not essential. Ensure there's enough space for air to circulate around the food.
	The appliance door is not closed properly.	Make sure there are no food items or containers blocking the door from closing fully.
		Examine the rubber gasket around the door for any tears, dirt, or damage. Clean it with warm, soapy water, and ensure its sealing tightly against the fridge.
	There is dust on the condenser.	Use a vacuum with a brush attachment to gently remove dust and debris from the coils. Be careful not to damage the coils. Always unplug the fridge before cleaning the condenser.
	There is not enough space near the rear and side walls.	Refer to your fridge's manual for recommended clearance distances. Remove any furniture, appliances, or items that may be blocking the fridge's ventilation.
Your appliance is operating noisily. Some common noises inclue:		It's normal for the appliance to make noise. If the sounds persist or seem abnormal, consider contacting technical support for a thorough inspection.
Cracking noise	During automatic defrosting. Or when the appliance is cooled or warmed (due to expansion of appliance material).
Short cracking noise	When the thermostat switches the compressor on/off.
Motor noise Indica	ates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.
Bubbling noise and splash occur	Due to the flow of the refrigerant in the tubes of the system.
Water flowing noise D	Due to water flowing to the evaporation container. This noise is normal during defrosting.
Air blowing noise In	some models during normal operation of the system due to the circulation of air.
The edges of the appliance in contact with the door joint are warm	Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor, this is normal.	This is normal. If the issue persists, consider contacting technical support to check for potential insulation issues or other underlying problems.
There is a build-up of humidity inside the appliance	The appliance door is opened frequently. Humidity of the room enters the appliance when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high.	Limit the number of times the door is opened and ensure it is closed securely each time. Make sure all food is packed securely, and ensure containers are dry before placing them in the appliance.
The door does not open or close properly	There is food or packaging preventing the door from closing.	Check for any food or packaging blocking the door and rearrange or remove items to ensure it closes securely. Regularly organize the fridge to prevent future obstructions.
	The door joints are broken or torn.	Replace any broken or torn door joints to ensure a proper seal and maintain refrigerator efficiency.
	Your appliance is not on a level surface.	Adjust the appliance's feet to ensure it is on a level surface for optimal performance.

If you have checked the information above and you still need help with your appliance, call our Customer Service facility at 800-932-4267 (Ext. 513) between 9:00 AM and 5:00 PM ET or visit our website summitappliance.com/support at any time. We will do our best to answer your questions.

LIMITED WARRANTY

ONE-YEAR LIMITED WARRANTY

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards, and are not covered from damage during handling or breakage.

5-YEAR COMPRESSOR WARRANTY

1. The compressor is covered for 5 years.
2. Replacement does not include labor.

ITEMS WARRANTYOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and re installation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTY; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTYOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTYES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTYY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP) which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www.Summitappliance.com

SUMMIT

For parts and accessory ordering, troubleshooting and helpful hints, visit:

www.Summitappliance.com/support

RéFRIGÉRATEUR COMPACT

Modèles:

CM41W

CM42PL

LCM41W

LCM40

SCMD4W

SCMD4

Read this user manual carefully.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

Remarques :

www.Summitappliance.com/support

52525485
