ESM1 - Waffle Maker Essentiel B - Free user manual and instructions

USER MANUAL ESM1 Essentiel B

Red portable grill with black handle and green button (no visible text or symbols)

Notice d'utilisation / User guide / Instrucciones de uso / Bedienungsanleitung / Gebruiksaanwijzing

Technical diagram of a four-part electric motor or battery housing with labeled components and internal structure views.

	FR EN NL DE ES

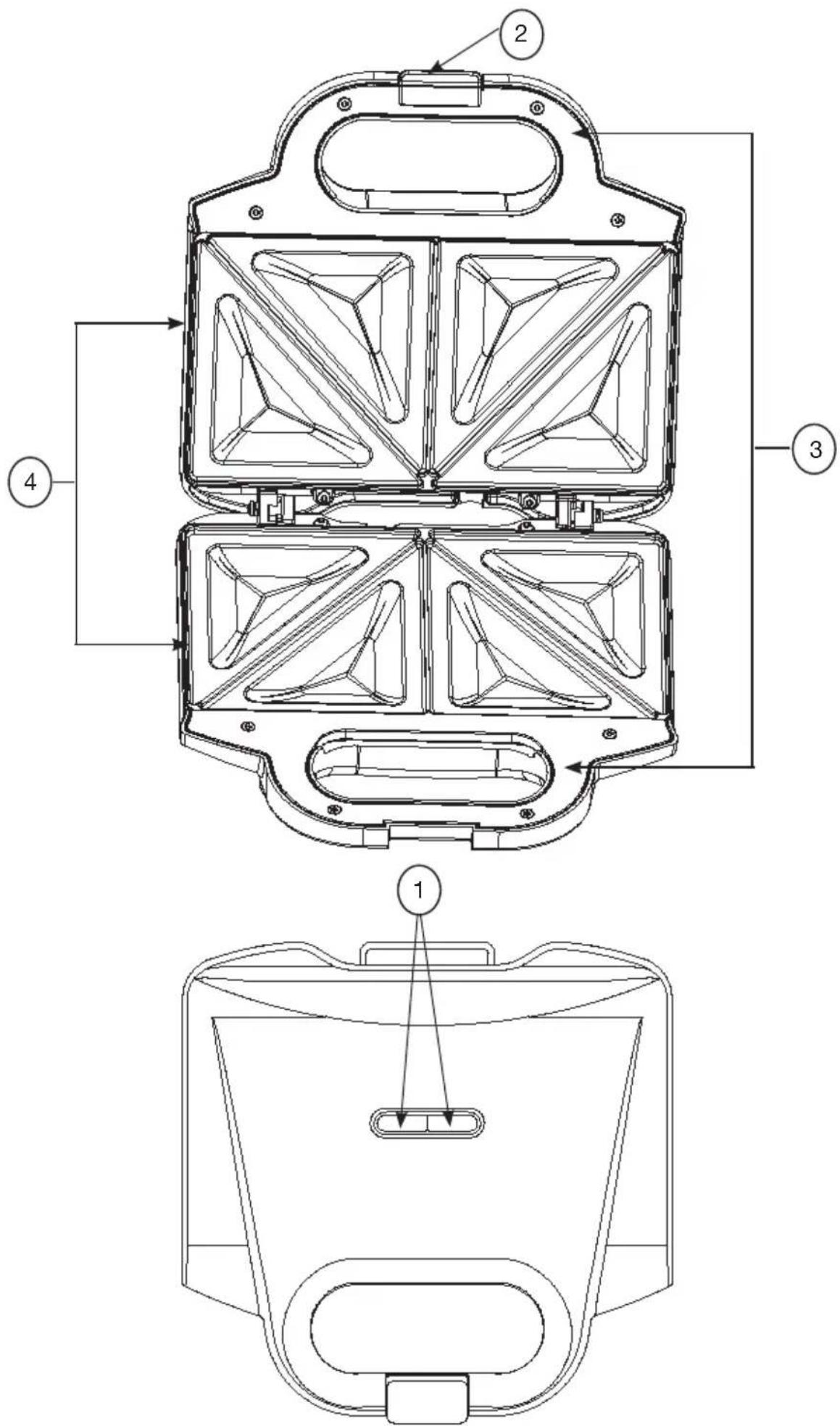

1	Témoins lumineux : Rouge : mise sous tension Vert : Prêt-à-cuire	Indicator lights: Red: power on Green: Ready to cook	Controlelam-pjes: Rood: onder spanning brengen Groen: Klaar voor gebruik	Leuchtan-zeigen: Rot: Einges-chaltet Grün: Bereit-schaft	Indicadores luminosos: Rojo: conexión al suministro eléctrico Verde: Listo para cocinar
2	Loquet Latch Klepje Verschluss Pestillo
3	Poignées Handles Handgrepen Griffe Asas
4	Plaques chauffantes	Hot plates Verwarmings-platen		Heizplatten Placas de cocción

• Power: 700 W max
• "triangle sandwich" moulds
• Fixed hot plates with a non-stick coating
• Power on and "ready-to-cook" indicator lights
- Cord storage
- Store easily in a vertical position

use

Getting started

1. Unpack the appliance.
2. Put it on a flat, stable, heat-resistant surface.
3. Wipe the hot plates with a soft, dry cloth. Be careful not to let water get inside the appliance. Rinse with clean water and thoroughly dry using a soft cloth.

Important! Do not put the appliance in water (the hot plates are not removable).

When using it for the first time, pour a little oil on the hot plates. Wipe off the excess with some kitchen towel.

There may be a slight odour and a little smoke when the appliance is used for the first time. This is normal and does not affect the appliance. It will soon stop.

Use

Important! The appliance gets hot when it is on and can cause burns. Do not touch the hot surfaces of the appliance (hot plates): use the handles.

• Unwind the power cable and then, plug it into the power socket. The red LED lights up. The appliance then begins to preheat. The appliance must remain closed.
• Preheating takes about 3 minutes. The green "ready-to-cook" light lights up when the plates are at the correct temperature.
• Open the appliance and place the sandwich on the lower hot plate.
• Be careful not to overfi ll the sandwiches with ingredients resulting in excess fi lling fl owing out onto the trays during cooking (this would make cleaning more diffi cult).

- Close the appliance and lock the latch. The green "ready-to-cook" light turns on and off alternately during cooking. Cooking begins.

- Leave to cook for 5 minutes, or according to your personal taste. After 4 minutes, the sandwiches will be nicely toasted.

- When the sandwiches are done, remove the latch and open the appliance using the handle.

When opening the appliance, be careful of the smoke that comes out.

- Remove the sandwiches with a plastic or wooden spatula

Do not use sharp or metallic objects as they can damage the non-stick coating of the hot plates.

- When you have fi nished using the appliance, unplug it from the mains power and leave it open until it has completely cooled down.

Please note: Don't forget your sandwiches in the appliance! The food will get burnt and the overheating of the appliance could cause a fire!

maintenance and cleaning

Unplug the appliance from the power socket and wait for it to cool down completely before cleaning. Never immerse the appliance, power cord or plug in water or any other liquid. Do not run water directly over the hot plates.

Do not put any part of this appliance in the dishwasher.

Never use scouring powder or an abrasive pad as this can damage the coating.

Cleaning

Remove food residue with some kitchen towel or a non-abrasive sponge.

Then, use a non-abrasive sponge soaked in hot water mixed with a mild detergent (e.g. washing-up liquid) to clean the hot plates. Wipe with some kitchen towel or a soft cloth. Wipe the body of the appliance with a soft cloth or a slightly dampened sponge.

Product Information for power consumption and maximum time to reach applicable low power mode
Power consumption in off mode	NA
Power consumption in standby	NA
The maximum time needed to automatically reach the applicable low power mode or condition	NA
Power consumption in network standby if all wired network ports are connected and all wireless network ports are activated	NA

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and

recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

\* Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

Art. 8009636 Ref. ESM1

FABRIQUÉ EN R.P.C. / Made in China / Fabricado en R.P.C. / Hergestellt in VR China / Gefabriceerd in VRC.

SOURCING & CREATION Avenue de la Motte 59810 Lesquin - FRANCE [e-mail]
