USER MANUAL EC3250b Essentiel B

Convecteur mobile Mobile convector heater Convector portátil Mobiler Konvektor Mobiele convector

EC3250b, EC3250n

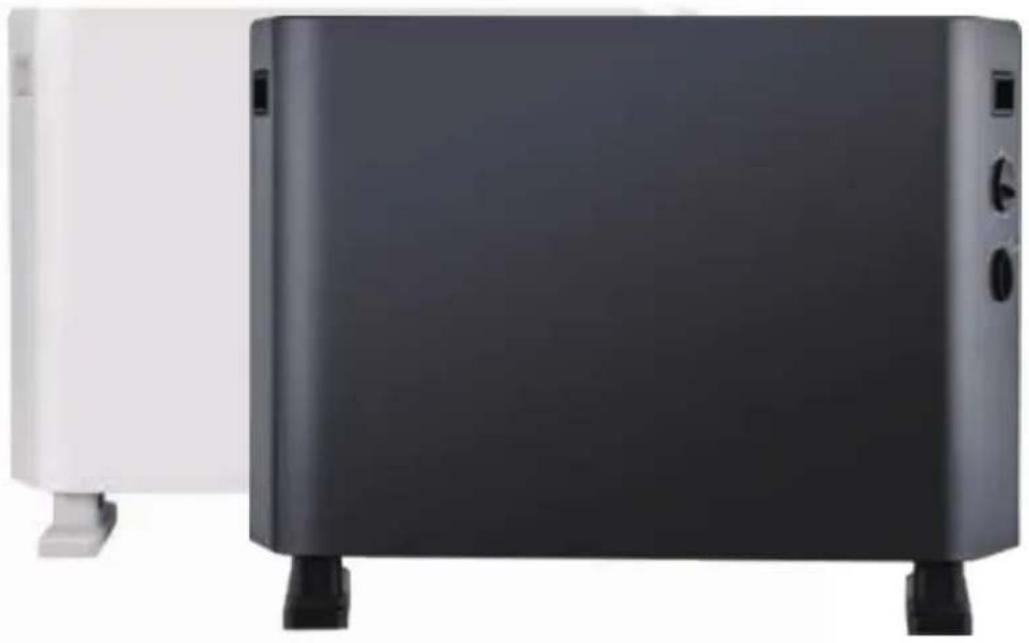

Exterior view of a modern electric heater with black and white casing (no visible text or symbols)

To help you get the best out of your purchase

This product may only be used in well-insulated rooms or occasionally.

Prohibition sign with a crossed-out document icon and diagonal line, indicating no text or information.

MISE EN GARDE : NE PAS COUVRIR.

Line drawing of a plug with two pins and a screw base (no text or symbols)

Technical line drawing of a mechanical assembly with two mounting brackets and a textured base (no text or symbols)

utilisation

Circular diagram with diagonal line and triangle, labeled 'MAX' at bottom (no text or symbols within the diagram itself)

Utilisation

We thank you for purchasing an Essentiel b brand product. We pay special attention to the RELIABILITY, EASE OF USE and DESIGN of our products.

We hope that you will be pleased with this mobile convection heater.

instructions

READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP THEM FOR FUTURE REFERENCE.

WARNING: To avoid any risk of fire, electric shock or injury when using an electrical appliance, always observe the basic safety precautions listed below.

Intended Use

• This appliance has been designed for space heating and is intended for domestic or similar use. It should not be used for any other purpose.
• This appliance is not suitable for use in a damp environment such as a bathroom.
• Do not install near a bathtub, shower, washbasin or swimming pool.
• This appliance is intended for private domestic use only and is not suitable for commercial or professional use.
• Do not use this appliance for any purpose other than that for which it was designed.

- Use the appliance only as described in the instructions. Any other use may result in accidents.

Prohibition sign with crossed-out document and magnifying glass symbol, commonly used to indicate no text or document.

CAUTION: DO NOT COVER. To avoid

overheating, do not cover the heater.

Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- This appliance may be used by children ages 8 and up, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with this appliance. Cleaning and user maintenance should not be carried out by children without adult supervision.

• WARNING: Parts of this product may become very hot and cause burns. Special care should be taken in the presence of children and vulnerable persons.
• The heater should not be placed directly underneath an electrical outlet.
• For mounting instructions for the legs, please refer to the user's manual.
  • Children must not play with this appliance.
• Remove all packaging materials before using the appliance. Keep the packaging materials out of the reach of children, as these materials may constitute a hazard.
• Check that the supply voltage indicated on the rating plate corresponds to the voltage in your home.
• Do not open the enclosure under any circumstances. Do not insert fingers or foreign objects into the openings of the heater and do not block the ventilation openings.

• Do not use this heater with a programmer, timer, separate remote control or any other device that switches the heater on automatically, as there is a risk of fire if the heater is covered or placed incorrectly.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use this heater if it has been dropped.
• Do not use the heater if it shows visible signs of damage.
• Use this mobile convection heater on a level and stable surface.
• CAUTION: Do not use this heater in small rooms when occupied by persons unable to leave the room alone unless constant supervision is provided.
• CAUTION: To reduce the risk of fire, keep textiles, curtains, or other flammable materials at least 1 m away from the air outlet.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never place the appliance near a source of radiant heat or directly below an electrical outlet.
• Never use the appliance to dry clothes.
• Never switch on the appliance if the cord or plug is damaged. Consult a service centre authorised by the manufacturer or an electrician for assistance.

• The most common cause of overheating is the accumulation of dust in the air vents of the appliance. Clean the appliance regularly (see section "Cleaning").

• To avoid the risk of burns, never touch the hot surfaces of the appliance.

• Use the appliance on a horizontal surface. Never use the appliance at an angle or on its side.
• Unwind the power cord completely before each use.
• The appliance should never be used with an extension cord.
  • Always unplug the appliance when not in use.
• The power cord must not come into contact with the appliance's hot surfaces.
• Never slide the power cord under a carpet or rug.
• Keep it out of high-traffic areas.
• Never twist, tie or wrap the power cord around the appliance as this may damage it.
• Never store the appliance while it is still hot.
• Never leave your appliance unattended when in operation.
• Do not use this appliance outdoors or on wet surfaces.
• Never allow liquids to spill into the appliance.

• To avoid the risk of electric shock, never immerse the cable, plug or appliance in water or any other liquid.

• Never touch the appliance with wet hands.

• Thermal safety: If the appliance overheats, a safety mechanism will automatically shut it off. In this event, unplug the appliance from the power outlet and plug it back in after it has cooled down.
• If your appliance no longer works, take it to the service department of your retailer, where it will be checked and repaired. Users should never attempt repairs themselves.

- Grounding: this appliance is equipped with a grounded plug. It must be plugged into a properly installed wall socket that is connected to the mains supply in

Line drawing of a plug with a bulb and screw base (no text or symbols)

accordance with current standards and equipped with an earth connection.

• WARNING: Improper use of the grounded plug may result in a risk of electric shock.
• If there is a short-circuit, the ground connection reduces the risk of electric shock, by allowing the current to be discharged via the ground wire.

• For any issues concerning grounding or electrical connection, please consult a qualified electrician.

• Do not use this heater if it has been dropped.

• Do not use if there are visible signs of damage to the heater.
• Use this heater on a horizontal and stable surface, or fix it to the wall, as applicable.
• WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

Product information

Model reference(s): EC3250b, EC3250n - MOBILE CONVECTION HEATER
Feature Symbol Value Item Feature Item
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Rated heat output	P_rat	1,900 kW		manual thermal load control with integrated thermostat	no
Minimum heat output (typical)	P_min	0	kW	manual thermal load control with information on room and/or outdoor temperature	no
Maximum continuous heat output	P_max,c	1,900 kW		electronic thermal load control with information on room and/or outdoor temperature information	no
Auxiliary power consumption fan-controlled heat output no
At rated heat output	el_max	0.000 kW		Heat output/room temperature control type (select one type only)
At minimum heat output	el_min	0.000 kW		single-stage heat output control, no room temperature control	no
In standby mode el SB	0.000	W		two or more manual stages control, no room temperature control	no
				room temperature control with mechanical thermostat	yes
				electronic room temperature control	no
				electronic room temperature control and daily programmer	no
				electronic room temperature control and weekly programmer	no
				Other control options (select one or more)
				room temperature control with presence detector	no
				room temperature control with open window sensor	no
				remote control option	no
				adaptive activation control	no
				activation time limit	no
				black globe sensor	no
Contact details		Sourcing & Creation, Avenue de la Motte 59810 Lesquin - FRANCE

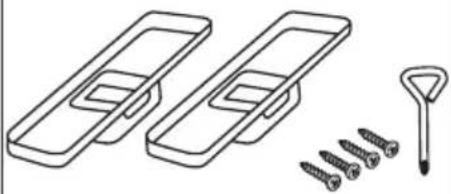

Package contents

Unpack the device and lay it on the polystyrene protections or on a carpet.

• the appliance	• mounting kit	• instructions

Check that the appliance and the power cord have not been damaged during transport. Do not use the heater if it is damaged. During installation, make sure the appliance is unplugged.

Technical characteristics

Model EC3250b, EC3250n
Rated Voltage 220-240 V~
Rated Frequency 50-60 Hz
Rated Power	1,800-2,000 W (2 heating levels: 1,250 W and 2,000 W)Adjustable thermostatTurbo function
Protection Class I
IP Rating IPX0
Dimensions (LxHxD) (mm) 570x430x230 mm
Weight (kg) Net weight: 3.0 kg, gross weight: 3.7 kg
Power cord 1.30 m

assembly

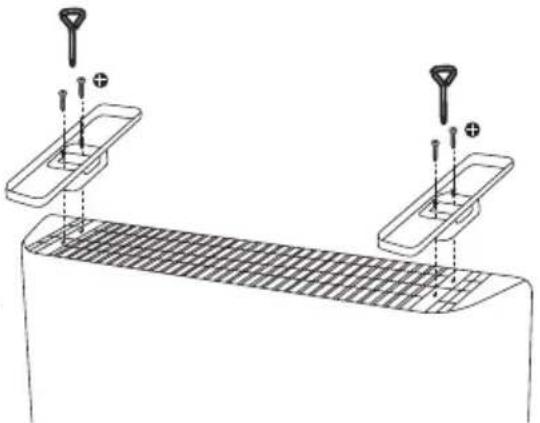

Mounting the legs

Caution: The appliance must be unplugged from the power output before it can be installed. Keep all plastic bags out of the reach of children or animals.

1. Remove the appliance and the individual parts from the packaging. Note: Before using your convection heater for the first time, you must assemble the two supplied feet.
2. Place the convector on a flat, level surface.
3. Turn the appliance upside down.
4. Place and secure each leg with the screws provided (an installation wrench is provided for this purpose) on each side of the appliance.
5. Turn the appliance right side up.
6. Your appliance is stable and ready for use.

Notes:

• You should never use your convection heater if the legs have not been assembled.
• Unplug the appliance from the mains after each use.

using the appliance

Technical line drawing of a mechanical assembly with two vertical supports and a textured base (no text or symbols)

First-time use

When use for the first time, your appliance may emit a slight odor. This is normal. Therefore, allow for sufficient ventilation. This smell is temporary and will fade quickly.

Power levels

The power levels are indicated by the symbols "I" and "II".

• To set the output power to 1,250 W, put the selector switch on the "I" symbol.
• To set the output power to 2,000 W, put the selector switch on the "II" symbol.
• To set the output power to 1,250 W with turbo function, put the selector switch on the "I" symbol.
• To set the output power to 2,000 W with turbo function, put the selector switch on the "II" symbol.
• To switch off the mobile convection heater, set the selector switch to the "0" symbol.

Setting the thermosta t

1 0 II △ II

Minimum safety temperature.

Circular diagram with diagonal line and triangle, labeled 'MAX' at bottom (no text or symbols within the diagram itself)

MAX Maximum temperature.

• The temperature can be adjusted with the thermostat.
• Turn the thermostat knob to the maximum temperature < MAX >.

Use

1. Place the appliance on a flat, stable and dry surface.
   NOTE: Do not move, tilt and/or tip the appliance during operation.
2. The power control switch should be in the "O" position.
3. Unwind the power cord completely.
4. Plug the power cord into an electrical outlet.
5. Select one out of the 4 positions on the power selector to start the heater.
6. Set the desired temperature by turning the thermostat control knob.
7. To turn off the appliance, return the 2 selector switches to their initial positions ("O" and "") then unplug the appliance.

cleaning

• IMPORTANT: Always disconnect the power source before cleaning or servicing the appliance.
• WARNING: Allow the appliance to cool completely before handling and cleaning it.
• Warning: Never use detergents, chemicals or solvents as they may damage the plastic parts.
  • To avoid any risk of fire and/or electric shock, do not spill water or any other liquid into the appliance.
• Use a soft, dry cloth to remove dust and clean the outer surfaces of the appliance.
• For a thorough cleaning, you may use a soft cloth slightly moistened with water and a mild detergent (such as washing-up liquid). Then dry thoroughly with a soft cloth before restarting the appliance.
• Clean the ventilation grilles of the appliance regularly.
• Make sure that no water enters the appliance through the ventilation grilles.
• If you are not going to use the appliance for a long period of time, unplug it from the power outlet.

handling/moving the appliance

• Always unplug the power cord from the wall socket and allow the appliance to cool down before handling or moving it.
• When moving or handling your mobile convection heater, grasp it by the plastic side handles.
  • Always transport the appliance horizontally.

Prohibition sign with a crossed-out document icon and a diagonal line, indicating no text or information.

ADVERTENCIA: NO CUBRIR. Para

Line drawing of a plug with two pins and a side socket (no text or symbols)

Technical line drawing of a mechanical component with two mounting brackets and a textured base (no text or symbols)

Primer uso

I 0 I* II II*

Circular diagram with diagonal line and triangle, labeled 'MAX' at bottom (no text or symbols within the diagram itself)

Uso

Prohibition sign with a crossed-out document icon and a diagonal line, indicating no text or information.

ACHTUNG: NICHT ABDECKEN. Um

Line drawing of a plug with two pins and a coiled base (no text or symbols)

Technical line drawing of a mechanical component with two mounting brackets and a textured base (no text or symbols)

Erstverwendung

Circular diagram with diagonal line and triangle, labeled 'MAX' at bottom (no text or symbols within the diagram itself)

Verwendung

Prohibition sign with a crossed-out document icon and a diagonal line, indicating no text or information.

WAARSCHUWING: NIET AFDEKKEN.

Line drawing of a plug with a bulb and screw base (no text or symbols)

Technical line drawing of a mechanical assembly with two mounting brackets and a textured base (no text or symbols)

gebruik

Eerste gebruik

Circular diagram with diagonal line and triangle, labeled 'MAX' at bottom (no text or symbols within the diagram itself)

Gebruik

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Mobile convector heater EC3250b, EC3250n

Convector portátil EC3250b, EC3250n

Mobiler Konvektor EC3250b, EC3250n

Mobiele convector EC3250b, EC3250n

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type

of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

Creative Commons license icons including a glass, 'CE', a person with recycling symbol, and a trash bin with recycling symbol
