USER MANUAL EMC 4 Essentiel B

Black and white photo of a KAM coffee maker with various spices and a wooden spoon, no visible text or symbols.

Notice d'utilisation / User guide / Bedienungsanleitung / Gebruiksaanwijzing

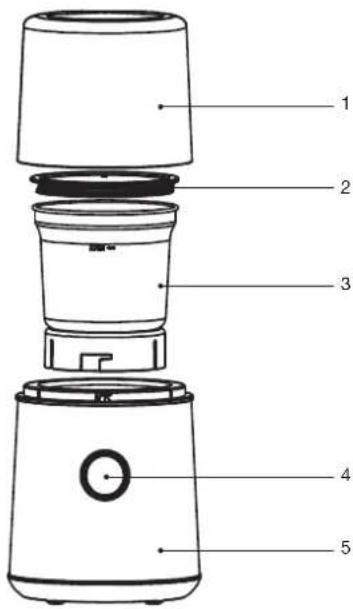

Exploded view diagram of a blender with numbered parts labeled 1 to 5

	FR EN DE NL
1	Bol de mesure et de verrouillage	Measuring and locking bowl	Mess- und Sperrschüssel	Maat- en sluitkom
2	Couvercle du moulin à grains	Grain mill cover	Deckel der Getreidemühle	Deksel voor graanmolen
3	Moulln à grains (capacité 80 g)	Grain mill (80 g capacity)	Getreidemühle (Kapazität 80 g)	Graanmolen (capaciteit 80 g)
4	Bouton marche/ arrêt	On/Off button Aan/Luit-knop Ein/Aus Knopf
5	Bloc moteur Motor bloc Motorblock Motorblok

* Valeurs indicatives approximatives.

You have just purchased a product from the Essentiel b brand, and we thank you for doing so. We pay particular attention to the RELIABILITY, EASE OF USE and DESIGN of our products.

We hope you will be completely satisfied with this coffee grinder.

precautions for use

Please read these instructions carefully before using the appliance and keep them for future reference.

• This multi-function coffee grinder is intended for household use only.
• Do not use it for any purpose other than grinding coffee beans, almonds, nuts, pepper, spices, cereals, garlic, herbs etc.
• Before plugging in your appliance, make sure the voltage in your home matches that shown on the device's rating plate.

• Always plug your appliance into an easily accessible power socket.
- Never immerse the coffee grinder in water or any other liquid. Never place it in the dishwasher.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.
- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
- Children must be supervised if they are cleaning and maintaining the appliance.
- Children must not use the appliance as a toy.

• WARNING: Risk of injury in case of improper use.
• Do not use the grinder with wet hands.
• Do not use this appliance outdoors, and store it in a dry place.
• When unplugging the power cord, always pull it by the plug; do not pull on the cable itself.
• Do not let the power cord hang over the edge of a table or worktop, and make sure it does not come into contact with hot surfaces.
• Do not place the grinder near a heat source and keep it away from water, humidity and frost.
  • Do not use this appliance:
• if the power plug or cord is damaged,
• if it malfunctions,
• if the appliance has been damaged in any way.

Take the appliance to your local store's after-sales department. Do not carry out any repairs on the grinder yourself.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use the coffee grinder continuously for more than 1 minute. Allow a break of at least three minutes between each use.
• Do not remove the removable transparent cover until the blades have stopped rotating.
• Do not overload the appliance. Proceed in several stages.

• Do not operate the appliance empty (without any coffee beans inside).
  • Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

• To clean surfaces in contact with food, please refer to the "Cleaning" section of this manual.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

Your multifunction coffee grinder grinds coffee beans, as well as almonds, nuts, pepper, spices, cereals, garlic, herbs, etc.

Functional characteristics

• Power: 200 W
• Power supply: 220 - 240 V\~ 50-60 Hz
• Capacity of the bean container: 80 grams
- On/off push button
- Steel blade
- Safety device: the mill only works if the bowl is locked on the motor unit ( 🔍 ).
• Maximum continuous use time: 1 minute
• Minimum pause time between uses: 3 minutes

Product Information for power consumption and maximum time to reach applicable low power mode

Power consumption in off mode 0.1 W
Power consumption in standby mode N/A
The maximum time needed to automatically reach the applicable low power mode or condition	0 min
Power consumption in network standby if all wired network ports are connected and all wireless network ports are activated	N/A

use

1. Before use, make sure the bean grinder is empty and clean. Wipe it with a soft, dry cloth, taking care of the blades.
2. Remove the measuring bowl from the motor unit. To do this, turn it anticlockwise until the locking notch is below the symbol 2 Lift the bowl.

3. Then remove the transparent cover and pour the required quantity of coffee or condiments (almonds, nuts, pepper, spices, cereals, garlic, herbs, etc.) into the bean grinder.

4. Do not pour in more than 80g of coffee beans, otherwise the beans will not be ground correctly.
   • The maximum quantity of food products must not exceed the MAX level!

5. Replace the transparent cover on the bean container.

6. Place the measuring bowl back on the motor unit and turn it clockwise this time until the locking notch is located below the symbol 🔒.

- The appliance is only operational if the measuring bowl is correctly locked onto the motor unit.

1. NOW, press the On/Off button to start grinding. We recommend you press the On/Off button repeatedly until the coffee beans or condiments are ground to the level you require. We also recommend you shake the grinder lightly so that all the beans are ground evenly and prevent particles from sticking to the bottom of the container.
2. The grinding level of the coffee varies depending on the quantity of coffee beans and grinding time. The longer the coffee is ground, the fi ner the coffee powder will be. Shorter grinding times produce coarser coffee powder.

Time in seconds* Grinding level
20 - 25s Coarse
25 - 30s Medium
30 - 35s Fine

* Approximate indicative values.

NOTE: Also, always follow the grinding degree indicators given in the user manual for your coffee machine.

1. Release the On/Off button once the required grinding level is reached, and wait until the blade comes to a stop.
2. Unlock the bowl and remove the lid. You can now remove your ground coffee or condiments using a spoon.
3. Do not use the coffee grinder continuously for more than 1 minute. Be sure to let the grinder cool down for at least 3 minutes between each use.
4. The appliance won't start if the bean container isn't installed and locked correctly.
5. To preserve the aroma of your coffee, it's best to grind it just before preparing it.

cleaning

- Unplug the appliance from the power socket before cleaning.

- Do not immerse the motor unit in water or any other liquid.

• Clean the body of the appliance (motor unit) with a soft, slightly damp cloth (with water and a mild detergent, if necessary). Be careful not to let water get inside the motor unit.
• Do not use abrasive cleaning products, as they may damage the surface of the appliance.
• You can clean the bowl and transparent lid with a soft sponge and warm soapy water. Do not place them in the dishwasher.
• Clean the bean container with a small soft-bristled brush to remove any remaining coffee particles (especially between the blades and motor shaft).

Be careful not to cut yourself if you have to handle the blades.

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Garantie® 2 ans/years Warranty^

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

Umweltschutz

Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

In unseren Labors getestet

Customer Relations Department / Kundenservice / Klantenafdeling

Avenue de la Motte

CS 80137

59811 Lesquin cedex

Art. 8011583

Réf. EMCM1

FABRIQUÉ EN R.P.C. / MADE IN

CHINA / HERGESTELLT IN VR CHINA / GEFABRICEERD IN VRC.

SOURCING & CREATION

Avenue de la Motte

59810 Lesquin - FRANCE

[e-mail]
