Model 81000A

80 lb. Spreader

WARNING

Carefully Read These Instructions Before Use

016313 R1220

WARNING

WARNING: IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN PRODUCT FAILURE OR INJURIES. FOR SAFE USE OF THIS PRODUCT YOU MUST READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING.

Do not allow anyone to operate the broadcast spreader without proper instructions. Do not permit children to operate the broadcast spreader. Wear protective eyewear and gloves when handling and applying lawn and garden chemicals. Read the chemical label instructions and warnings for handling and applying the chemicals you plan to spread – application settings provided are only a guideline.

Auger is designed to work in forward motion. Excessive reverse motion could cause binding. If resistance is felt while pulling spreader backwards, stop and clear salt from auger.

Assembly Instructions

Approximate assembly time is 5-10 minutes

Suggested Tools:

Wrench and/or Ratchet Set

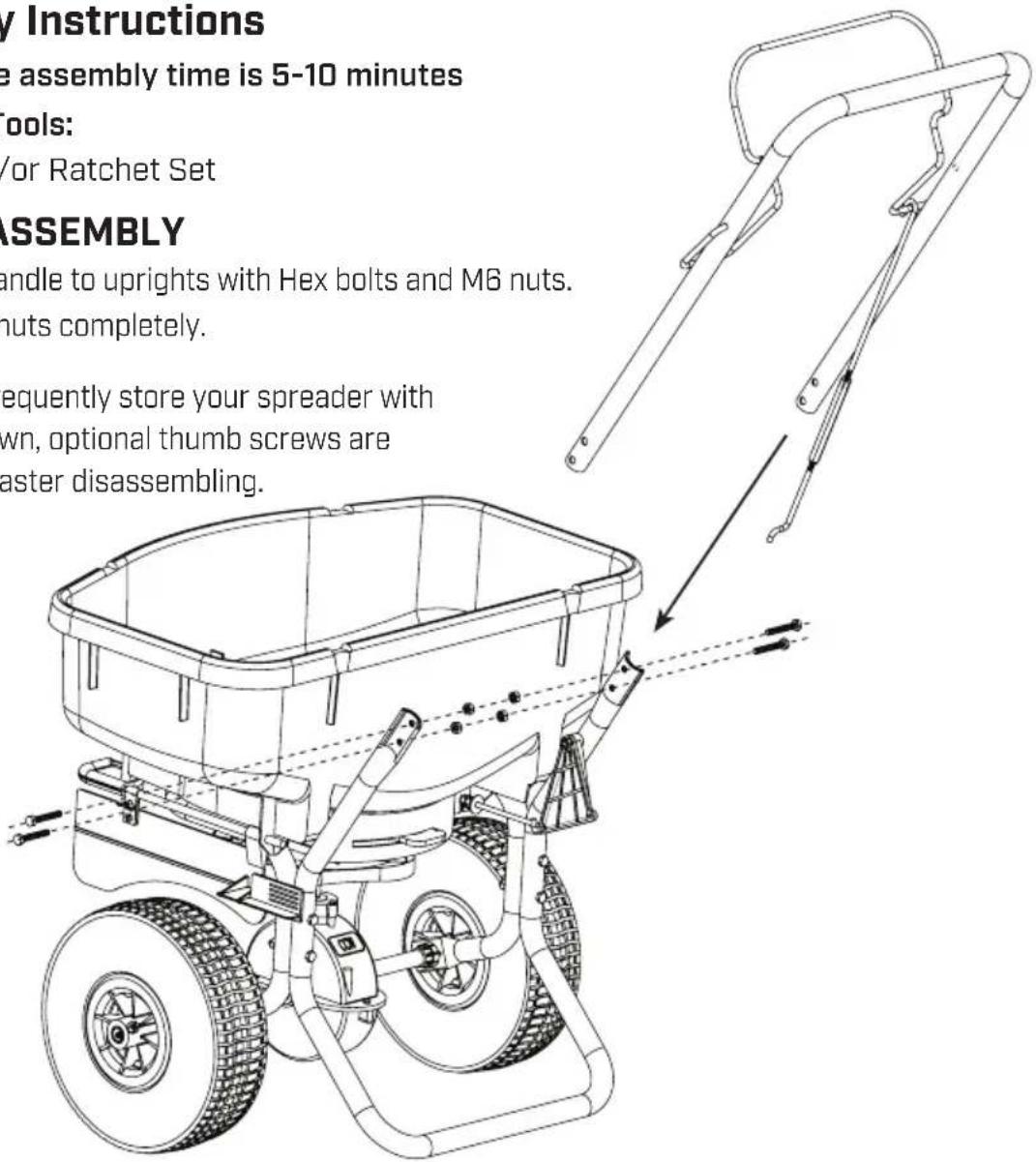

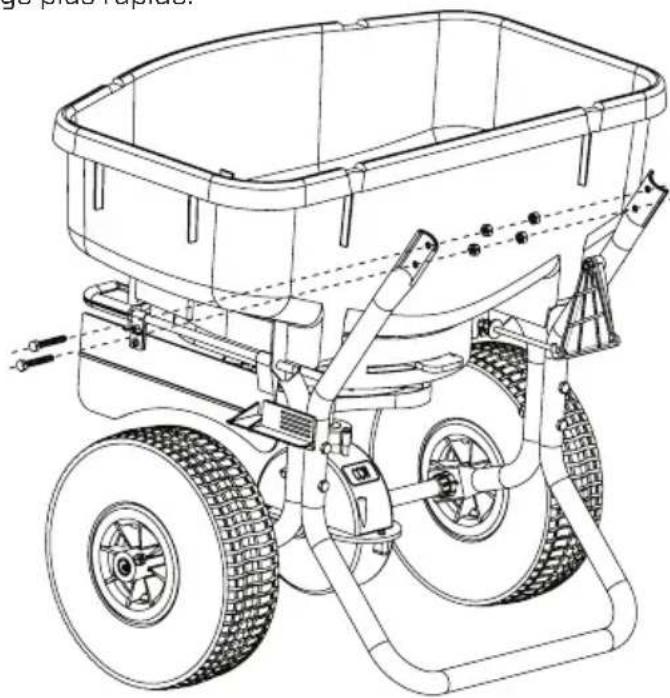

HANDLE ASSEMBLY

• Assemble handle to uprights with Hex bolts and M6 nuts.
  • Tighten M6 nuts completely.

Note: If you frequently store your spreader with the handle down, optional thumb screws are provided for faster disassembling.

y Instructions e assembly time is 5-10 minutes Tools: /or Ratchet Set ASSEMBLY handle to uprights with Hex bolts and M6 nuts. nuts completely. sequently store your spreader with wn, optional thumb screws are aster disassembling.

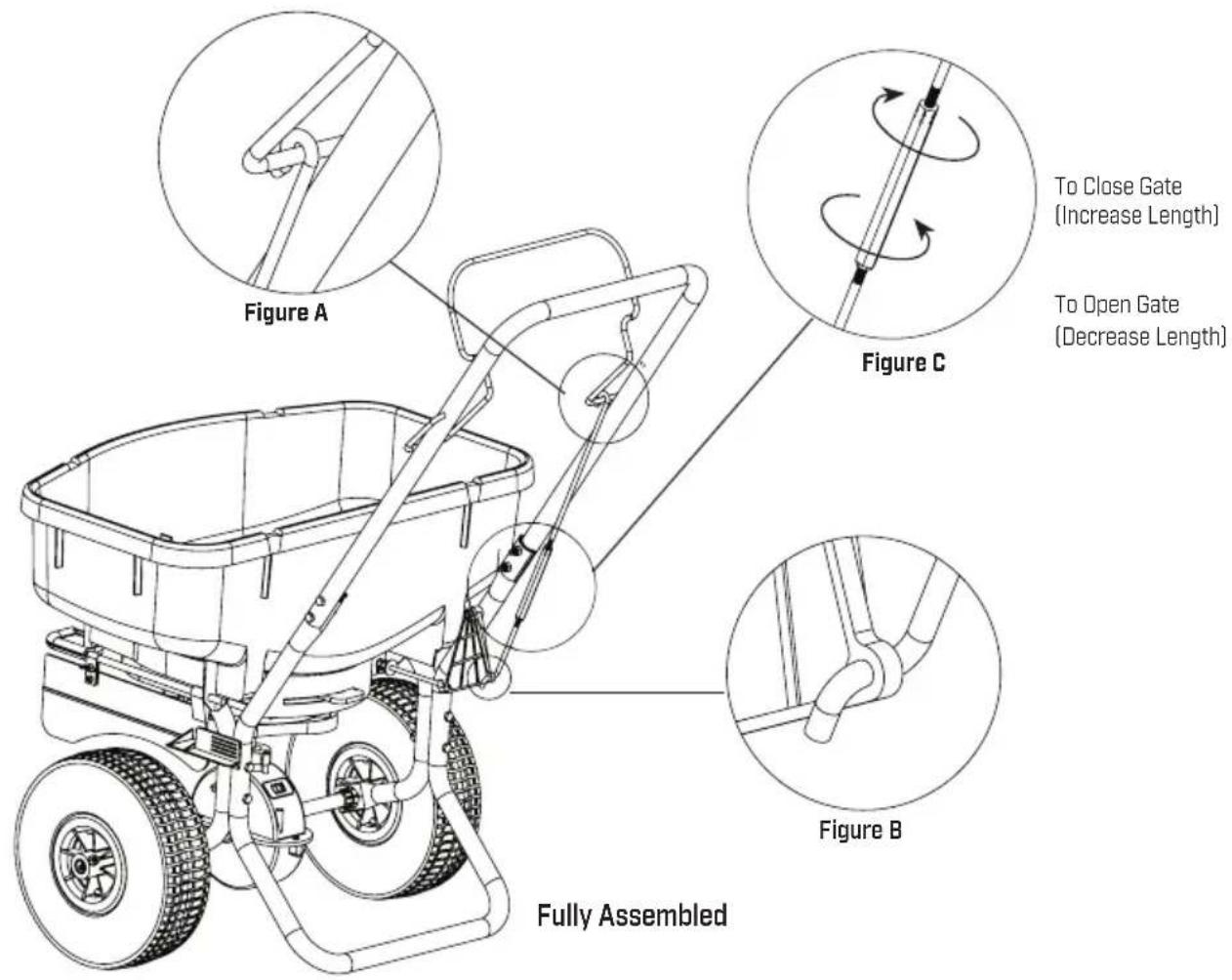

• Assemble linkage to bail assembly (Fig. A).
• Assemble linkage to rotate link (Fig. B).
• Rotate the turnbuckle to adjust the gate (Fig. C).

Bail Position for adjusting Gate:

1) Bail must be in rest position for Gate Closed.
2) Bail must be depressed for Gate Open.

Figure A Figure C To Close Gate (Increase Length) To Open Gate (Decrease Length) Figure B Fully Assembled

AUGER ASSEMBLY

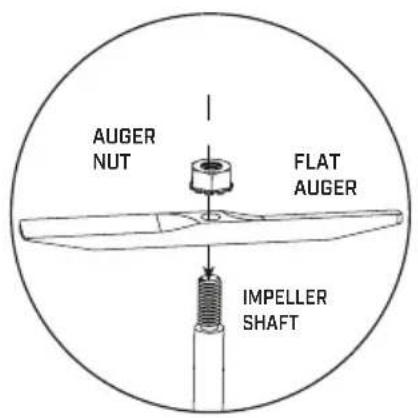

FLAT AUGER ASSEMBLY

Thread auger clockwise onto impeller shaft. Screw auger retaining nut into auger hole with M6 socket driver. Tighten completely with wrench to secure.

Choose flat auger for general turf applications.

• Fertilizers
• Herbicides
• Pesticides
• Grass Seed
• Free-Flowing Material

AUGER NUT FLAT AUGER IMPELLER SHAFT

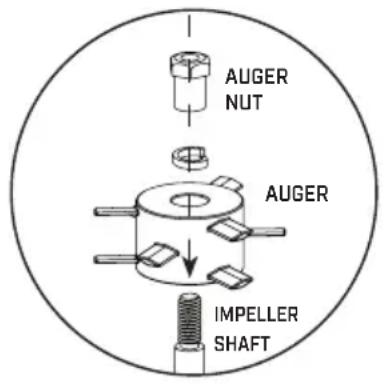

SPIKED AUGER ASSEMBLY

Thread auger clockwise onto impeller shaft. Insert auger nut. Tighten with 10 mm wrench. Do not over tighten.

Choose spiked auger for use with dense materials that have a tendency to clump or have a higher moisture content.

• Ice Melt- Calcium Chloride
• Lawn Mineral Supplement

CAUTION: This spreader is NOT recommended for use with rock salt.

AUGER NUT AUGER IMPELLER SHAFT

GENERAL OPERATING INSTRUCTIONS

• Be sure gate control is in the closed position. Do not hold bail down when filling. If gate is not fully closed see Figure C for adjustment.
• Determine appropriate setting for material being used by reading the suggested setting on the material's bag. Be sure to read the instructions on the bag/box of the material you're spreading to identify accurate setting needed).
• To begin spreading, start walking [about 3 mph pace] and pull the bail system down to open gate.
• To stop spreading simply let go of the bail and the gate will close.

Simple line drawing of a bird perched on a curved surface with three small lobes (no text or symbols)

Not Fully Closed

Simple line drawing of a bird perched on a curved surface with three black spots (no text or symbols)

Fully Closed

BAFFLE OPERATING INSTRUCTIONS

• Adjust baffle by hand to block distribution accordingly.
• Use wing nuts to adjust tension on baffles.

NOTE: To avoid overapplication- using the baffle in the down position will disperse product in greater amounts directly below the deflection point. Adjust the gate setting to apply less than the intended amount when using baffle. Consult fertilizer/seed manufacture's coverage information.

STORAGE AND MAINTENANCE

• When finished spreading empty hopper of any remaining material.
• Use garden hose to wash down the spreader after each use.
• Be careful not to direct the spray directly onto the gear box.
• It is recommended that you DO NOT use a power washer on your spreader.
• Allow to dry before storing.

To fold down handle:

• Simply remove the bottom two bolts on the handle
• Loosen two M6 Hex nuts and fold down handle
• Replace two bottom bolts
• Tighten M6 Hex nuts completely

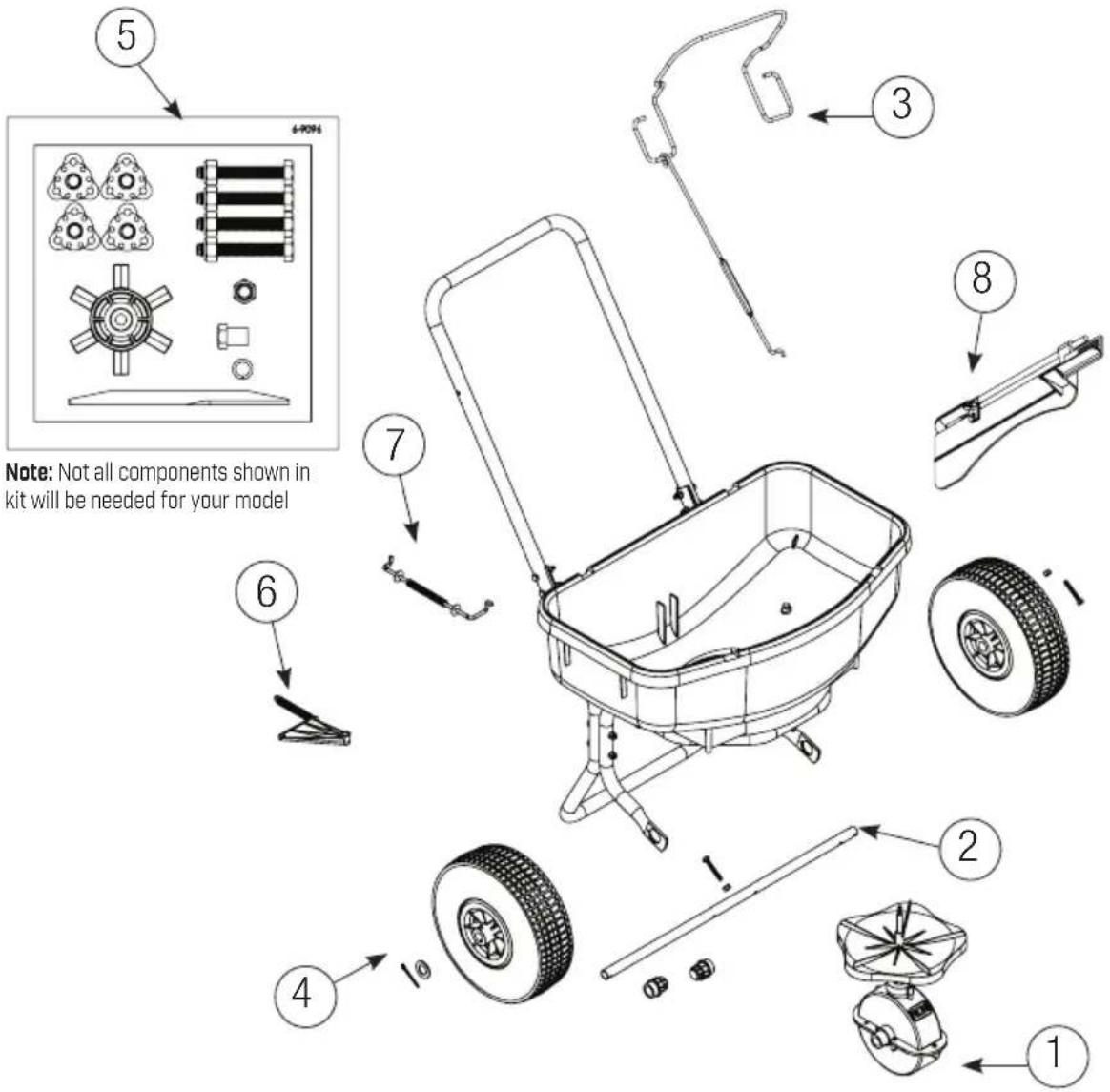

Replacement Parts

5 4-90% Note: Not all components shown in kit will be needed for your model 3 7 6 8 2 1 4 1

REF NO. PART NO. QTY DESCRIPTION

1 6-9041 1 Gear Box Assembly
2 6-9042 1 Drive Shaft w/2 bearings
3 6-9120 1 Bail Assembly
4 6-9044 1 Wheels w/ hardware & instructions
5 6-9096 1 Hardware Blister with auger
6 6-9121 1 Rotate Link
7 6-9046 1 Lower Link Kit
8 6-8326 1 Single Baffle
* 6-9000 1 Rain Cover

* Part Not Shown

APPLICATION CHART

All Season Residential & Professional General Application Guidelines

SCOTTS	2	2.5	3	3.25	3.5	4	4.75	5	5.5	6	7	8	9	10	11	12	13	14	15
CHAPIN	2	2.5	3	3.25	3.5	4	4.75	5	5.5	8	7	8	9	10	11	12	13	14	15

All Season Residential & Professional General Application Guidelines

Weed Control	5-6
Fertilizer	6-8
Grass Seed-Overseeding	8-10
Grass Seed-New lawn	10-13
Salt & Ice-Melt	14-15

For detailed information on how to calibrate your Chapin spreader: visit https://youtu.be/d-RPp8qrM1M

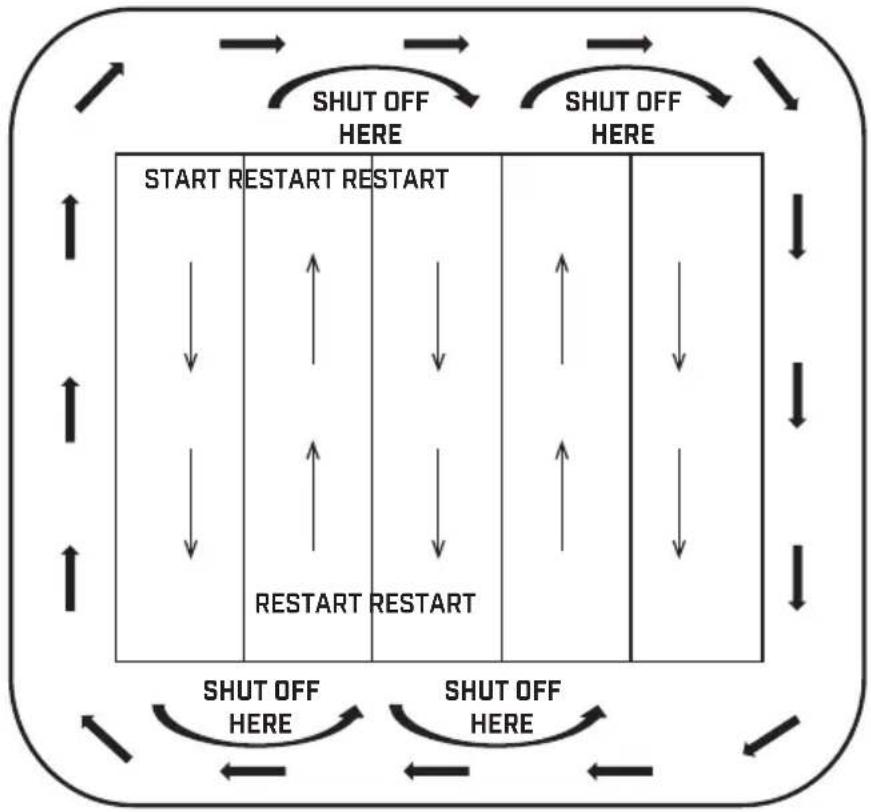

SAMPLE SPREAD PATTERN

Black and white illustration of a CHAPIN push-type tool with wheels and handle (no text or symbols on the device itself)

Chapin International, Inc

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458 www.chapinmfg.com
