USER MANUAL Ideal Workstation 4S The Galley

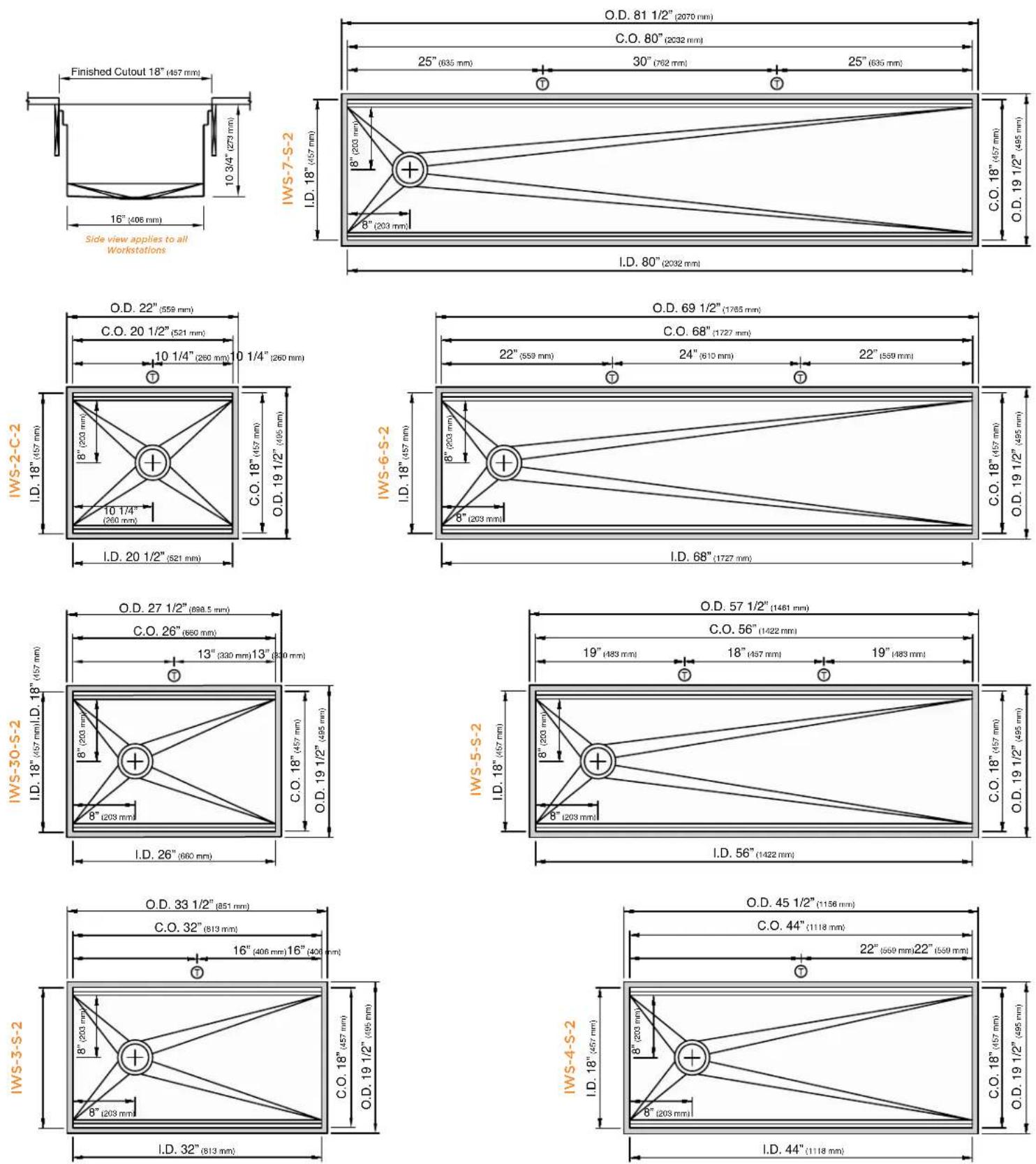

Finished Cutout 18" (457 mm) 10 3/4" (273 mm) 16" (406 mm) Side view applies to all Workstations

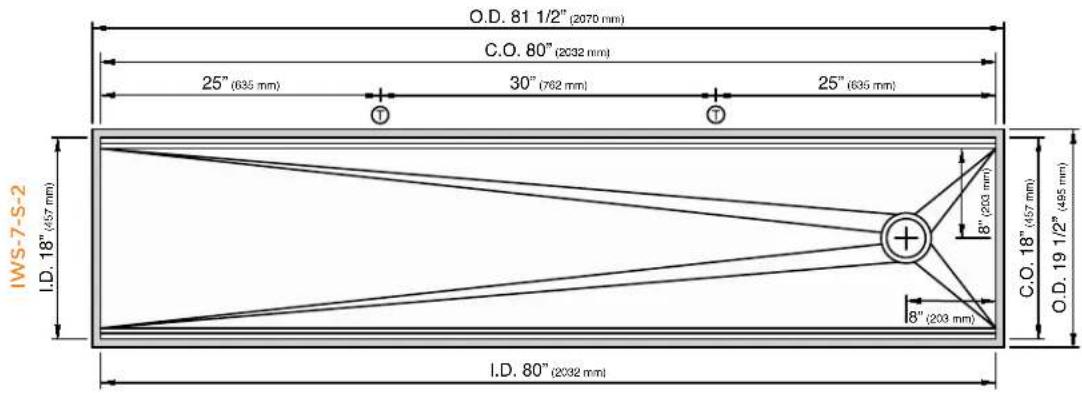

O.D. 81 1/2" (2076 mm) C.O. 80" (2032 mm) 25" (635 mm) 30" (762 mm) 25" (635 mm) I.WS-7-S-2 I.D. 18" (457 mm) I.D. 80" (2092 mm) C.O. 18" (457 mm) 8" (203 mm) 8" (203 mm) O.D. 19 1/2" (495 mm)

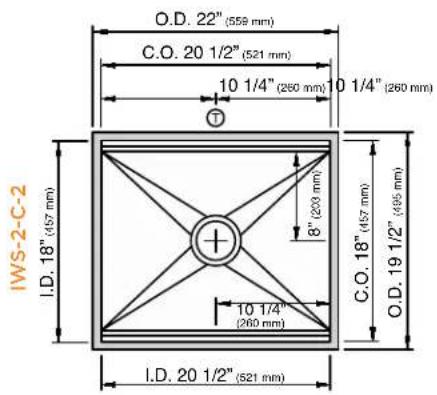

O.D. 22" (558 mm) C.O. 20 1/2" (521 mm) 10 1/4" (260 mm) 10 1/4" (260 mm) IWS-2-C-2 I.D. 18" (457 mm) 8" (200 mm) 10 1/4" (260 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm) I.D. 20 1/2" (521 mm)

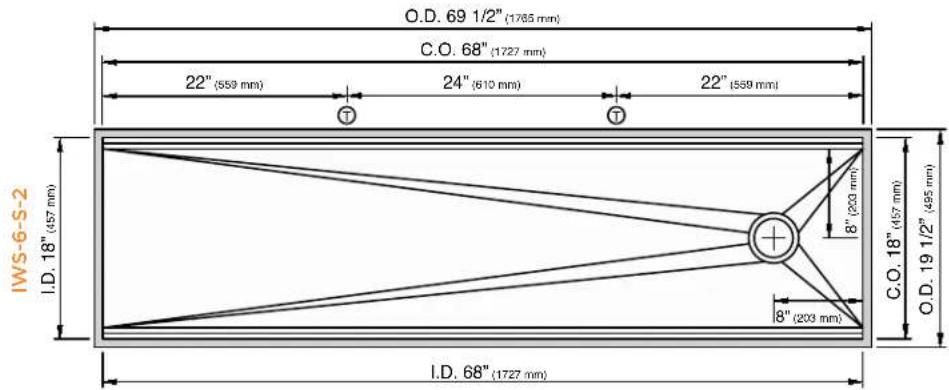

O.D. 69 1/2" (1785 mm) C.O. 68" (1727 mm) 22" (559 mm) 24" (610 mm) 22" (559 mm) I.W.S-6-S-2 I.D. 18" (457 mm) I.D. 68" (1727 mm) 8" (203 mm) 8" (203 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

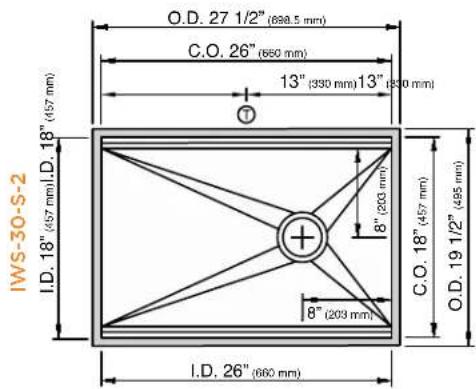

IWS-30-S-2 I.D. 18" (457 mm) I.D. 18" (457 mm) O.D. 27 1/2" (698.5 mm) C.O. 26" (650 mm) 13" (350 mm) 13" (350 mm) 8" (203 mm) 8" (203 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm) 8" (203 mm) I.D. 26" (660 mm)

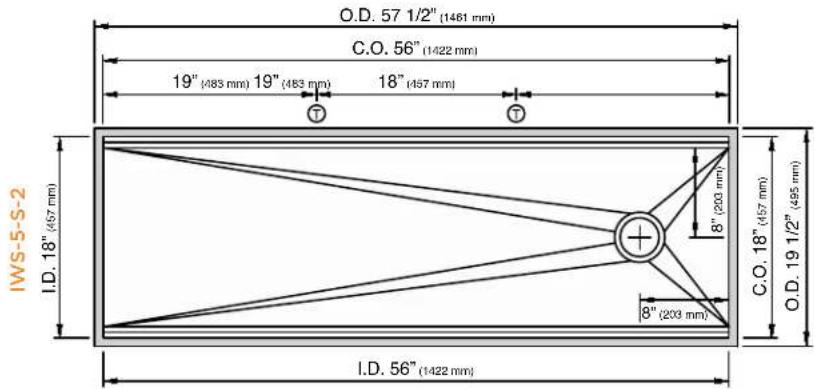

O.D. 57 1/2" (1461 mm) C.O. 56" (1422 mm) 19" (483 mm) 19" (483 mm) 18" (457 mm) I.D. 18" (457 mm) I.D. 56" (1422 mm) 8" (203 mm) 8" (203 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

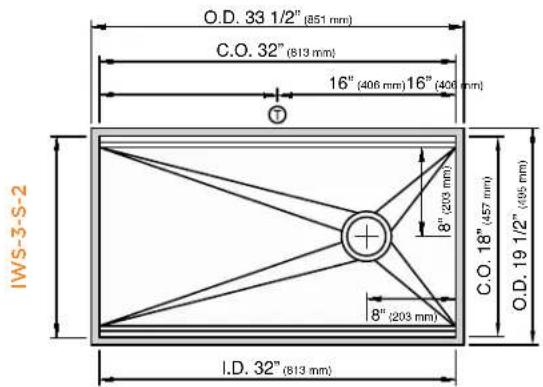

O.D. 33 1/2" (851 mm) C.O. 32" (813 mm) 16" (406 mm) 16" (406 mm) T IWS-3-S-2 8" (203 mm) 8" (203 mm) C.O. 18" (457 mm) O.D. 19 1/2" (405 mm) 8" (203 mm) I.D. 32" (813 mm)

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (559 mm)22" (559 mm) I.W.S-4-S-2 I.D. 18" (457 mm) 8" (203 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm) 8" (203 mm) I.D. 44" (1118 mm)

SUGGESTED GALLEY TAP PLACEMENT GUIDE

Suggested maximum inside corner radius of countertop cutout 3/8"

① Galley Tap 1 3/8" minimum to 1 1/2" maximum hole diameter

Center Tap hole diameters 2" behind cutout

Note: Galley Hot & Cold Tap requires a minimum 8" clearance to center if installed to the right of the Galley Tap

Note: Tap Placements are for right hand or left hand drain orientation

Call 800.375.4255 or email [e-mail] for additional guidance on Tap and Tap Accessory placements

Workstations ^2

Left Hand Drain Orientation

SUGGESTED GALLEY TAP PLACEMENT GUIDE

Suggested maximum inside corner radius of countertop cutout 3/8"

① Galley Tap 1 3/8" minimum to 1 1/2" maximum hole diameter

Center Tap hole diameters 2" behind cutout

Note: Galley Hot & Cold Tap requires a minimum 8" clearance to center if installed to the right of the Galley Tap

Note: Tap Placements are for right hand or left hand drain orientation

Call 800.375.4255 or email [e-mail] for additional guidance on Tap and Tap Accessory placements

Work&WashStations ^2

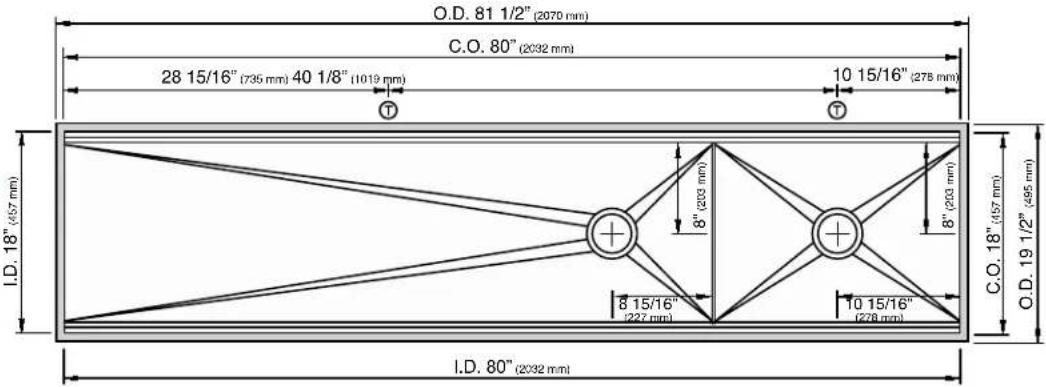

Right Hand Drain Orientation

Finished Cutout 18" (457 mm) 10 3/4" (23 mm) 16" (406 mm) Side view applies to all Work&WashStations

IWW-7-D-2

O.D. 81 1/2" (2070 mm) C.O. 80" (2032 mm) 28 15/16" (735 mm) 40 1/8" (1019 mm) 10 15/16" (275 mm) I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) 8 15/16" (227 mm) 10 15/16" (278 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm) I.D. 80" (2032 mm)

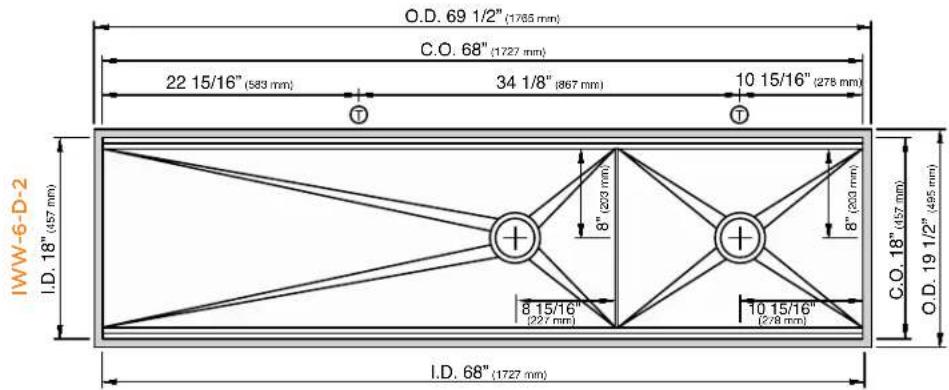

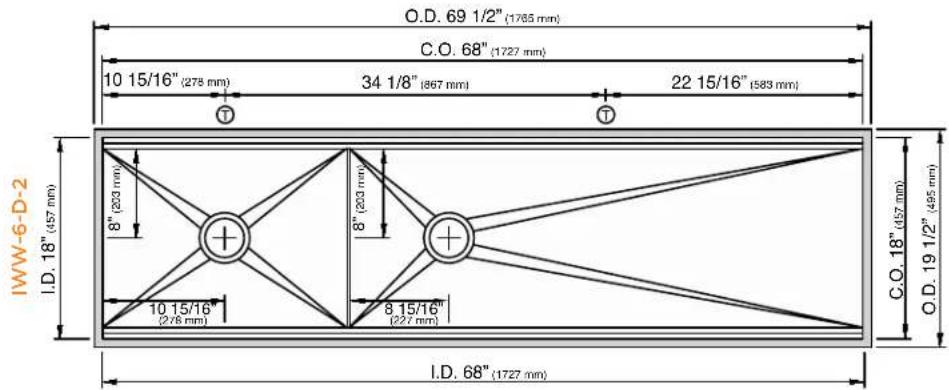

O.D. 69 1/2" (1785 mm) C.O. 68" (1727 mm) 22 15/16" (583 mm) 34 1/8" (867 mm) 10 15/16" (278 mm) I.WW-6-D-2 I.D. 18" (457 mm) I.D. 68" (1727 mm) 8" (203 mm) 8" (203 mm) 8 15/16" (227 mm) 10 15/16" (278 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

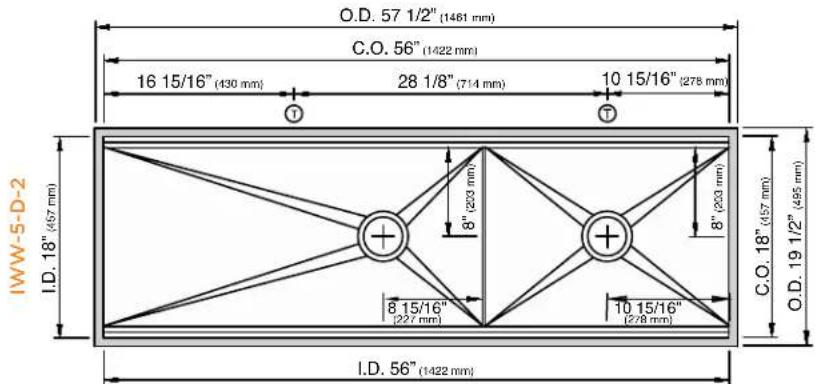

O.D. 57 1/2" (1461 mm) C.O. 56" (1422 mm) 16 15/16" (130 mm) 28 1/8" (714 mm) 10 15/16" (278 mm) I.WW-5-D-2 I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) 8 15/16" (227 mm) 10 15/16" (278 mm) I.D. 56" (1422 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

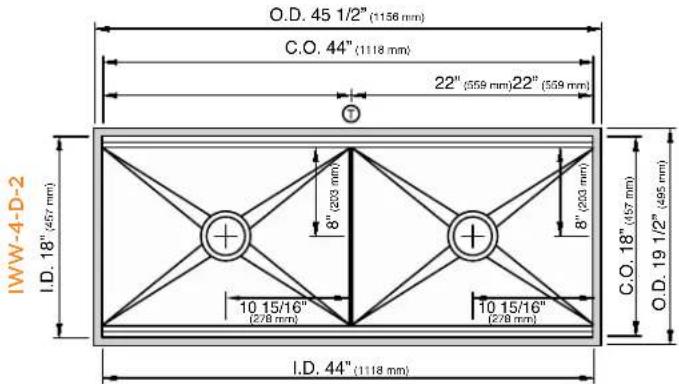

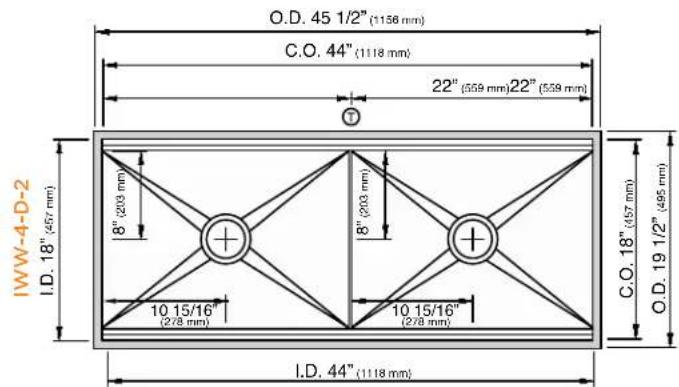

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (559 mm)22" (559 mm) 7 I.W.W-4-D-2 I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) 10 15/16" (2/8 mm) 10 15/16" (2/8 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm) I.D. 44" (1118 mm)

Work&WashStations ^2

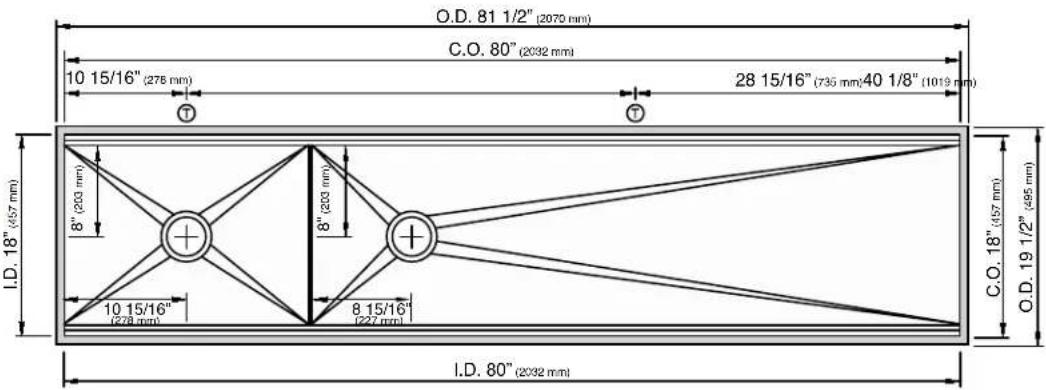

Left Hand Drain Orientation

Finished Cutout 18" (457 mm) 10 3/4" (23 mm) 16" (406 mm) Side view applies to all Work&WashStations

IWW-7-D-2

O.D. 81 1/2" (2070 mm) C.O. 80" (2032 mm) 10 15/16" (276 mm) 28 15/16" (735 mm)40 1/8" (1019 mm) I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) 10 15/16" (276 mm) 8 15/16" (227 mm) I.D. 80" (2032 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

O.D. 69 1/2" (1785 mm) C.O. 68" (1727 mm) 10 15/16" (278 mm) 34 1/8" (867 mm) 22 15/16" (583 mm) I.WW-6-D-2 I.D. 18" (457 mm) 8" (203 mm) 10 15/16" (278 mm) 8.15/16" (227 mm) I.D. 68" (1727 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

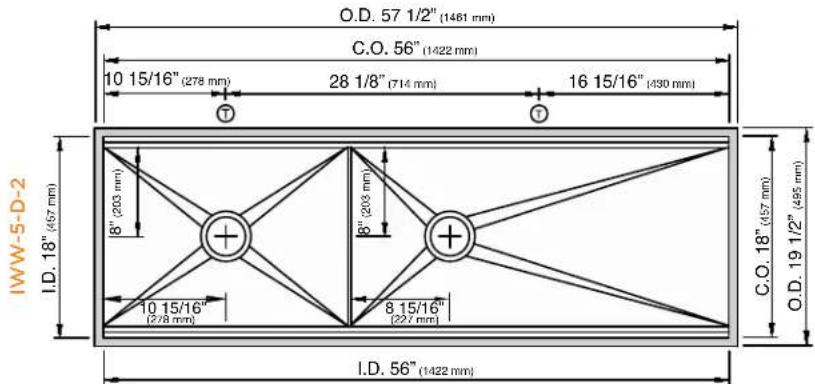

O.D. 57 1/2" (1461 mm) C.O. 56" (1422 mm) 10 15/16" (278 mm) 28 1/8" (714 mm) 16 15/16" (430 mm) I.WW-5-D-2 I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) 10 15/16" (278 mm) 8.15/16" (227 mm) I.D. 56" (1422 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (559 mm) 22" (559 mm) I.WW-4-D-2 I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) 10 15/16" (2/8 mm) 10 15/16" (2/8 mm) I.D. 44" (1118 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

BarStations ^2 and WashStations ^2

Right Hand Drain Orientation

Finished Cutout 18" (457 mm) 10 3/4" (2/3 mm) 16" (406 mm)

Side view applies to all BarStations and WashStations

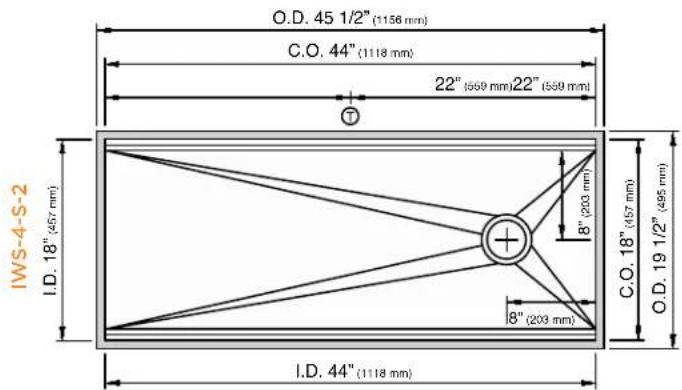

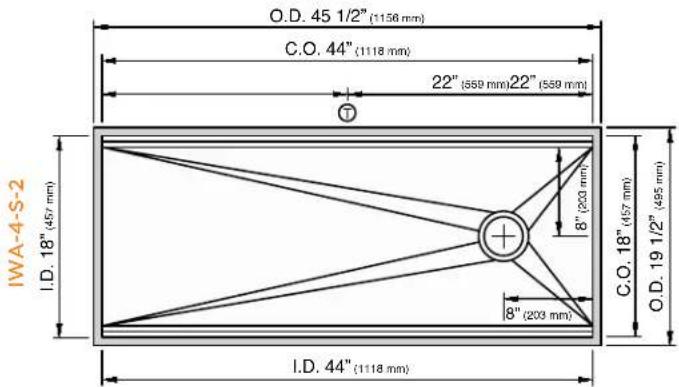

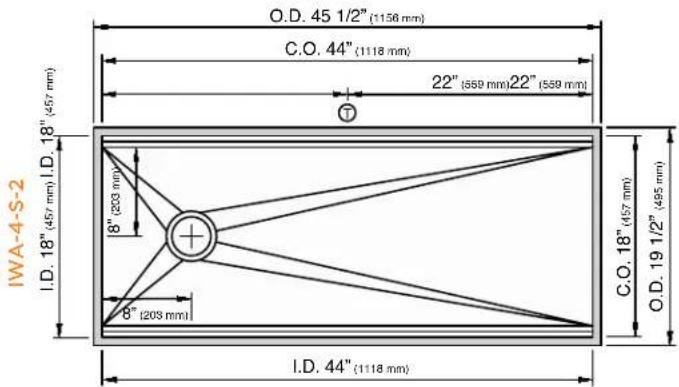

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (569 mm)22" (559 mm) I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) 10.15/16" (276 mm) 10.15/16" (276 mm) I.D. 44" (1118 mm) C.O. 18" (457 mm) O.D. 19 1/2" (485 mm)

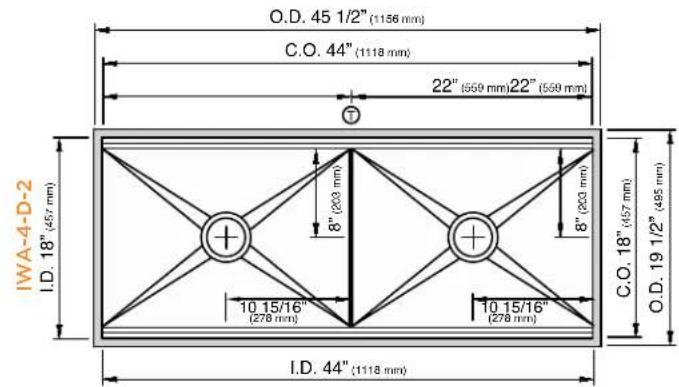

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (559 mm)22" (559 mm) I.D. 18" (457 mm) 8" (203 mm) I.D. 44" (1118 mm) C.O. 18" (457 mm) 8" (203 mm) O.D. 19 1/2" (495 mm)

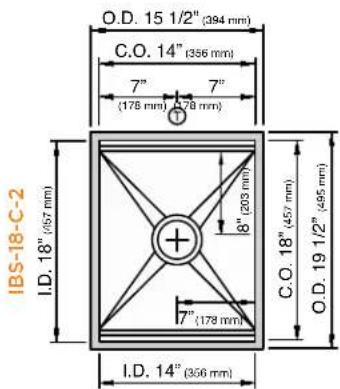

O.D. 15 1/2" (394 mm) C.O. 14" (356 mm) 7" (178 mm) 7" (203 mm) 8" (203 mm) 7" (179 mm) I.D. 16" (457 mm) I.D. 14" (356 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

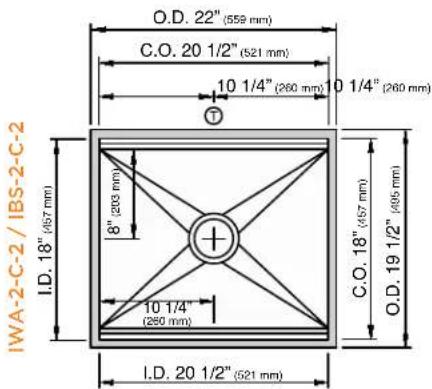

IWA-2-C-2 / IBS-2-C-2 O.D. 22" (559 mm) C.O. 20 1/2" (521 mm) 10 1/4" (260 mm) 0 1/4" (260 mm) T 8" 10 1/4" (260 mm) C.O. 18" (457 mm) (405 mm) O.D. 19 1/2" (457 mm) I.D. 18" (457 mm) I.D. 20 1/2" (521 mm)

O.D. 33 1/2" (851 mm) C.O. 32" (813 mm) 16" (406 mm)16" (406 mm) T IWA-3-S-2 I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm) I.D. 32" (813 mm)

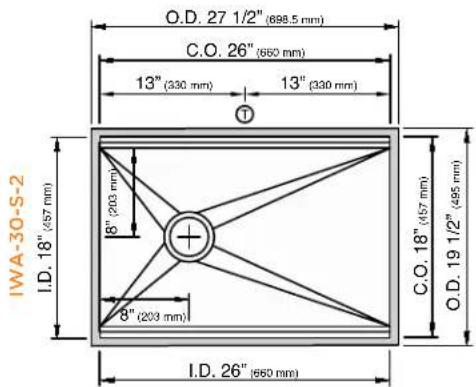

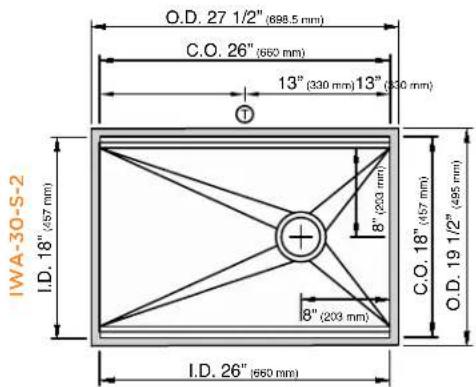

O.D. 27 1/2" (698.5 mm) C.O. 26" (660 mm) 13" (330 mm) 13" (330 mm) IWA-30-S-2 I.D. 18" (457 mm) 8" (203 mm) C.O. 18" (457 mm) 8" (203 mm) O.D. 19 1/2" (495 mm) I.D. 26" (660 mm)

SUGGESTED GALLEY TAP PLACEMENT GUIDE

Suggested maximum inside corner radius of countertop cutout 3/8"

① Galley Tap 1 3/8" minimum to 1 1/2" maximum hole diameter

Center Tap hole diameters 2" behind cutout

Note: Galley Hot & Cold Tap requires a minimum 8" clearance to center if installed to the right of the Galley Tap

Note: Tap Placements are for right hand or left hand drain orientation

Call 800.375.4255 or email [e-mail] for additional guidance on Tap and Tap Accessory placements

BarStations ^2 and WashStations ^2

Left Hand Drain Orientation

Finished Cutout 18" (457 mm) 10 3/4" (23 mm) 16" (406 mm)

Side view applies to all BarStations and WashStations

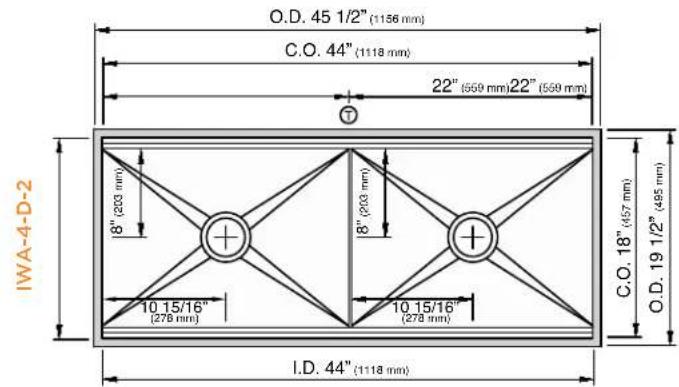

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (559 mm)22" (559 mm) IWA-4-D-2 8" (203 mm) 8" (203 mm) 10.15/16" (276 mm) 10.15/16" (278 mm) C.O. 18" (457 mm) O.D. 19 1/2" (485 mm) I.D. 44" (1118 mm)

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (559 mm)22" (559 mm) I.D. 18" (457 mm) I.D. 18" 8" (203 mm) 8" (203 mm) I.D. 44" (1118 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

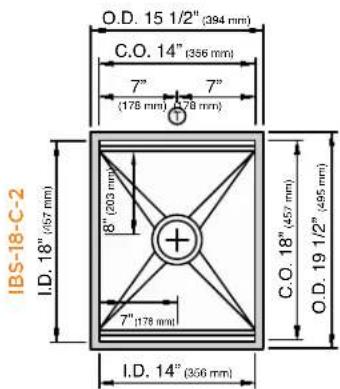

O.D. 15 1/2" (394 mm) C.O. 14" (356 mm) 7" (178 mm) 7" (78 mm) IBS-18-C-2 I.D. 16" (457 mm) 8" (203 mm) + 7" (178 mm) I.D. 14" (356 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

IWA-2-C-2 / IBS-2-C-2 O.D. 22" (559 mm) C.O. 20 1/2" (521 mm) 10 1/4" (260 mm) 0 1/4" (260 mm) T 8" (203 mm) 10 1/4" (250 mm) I.D. 18" (457 mm) C.O. 18" (457 mm) O.D. 19 1/2" (405 mm) I.D. 20 1/2" (521 mm)

O.D. 33 1/2" (851 mm) C.O. 32" (813 mm) 16" (406 mm)16" (406 mm) T IWA-3-S-2 I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) I.D. 32" (813 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

O.D. 27 1/2" (698.5 mm) C.O. 26" (660 mm) 13" (330 mm) 13" (330 mm) I.D. 18" (457 mm) 8" (203 mm) + 8" (203 mm) I.D. 26" (660 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

SUGGESTED GALLEY TAP PLACEMENT GUIDE

Suggested maximum inside corner radius of countertop cutout 3/8"

① Galley Tap 1 3/8" minimum to 1 1/2" maximum hole diameter

Center Tap hole diameters 2" behind cutout

Note: Galley Hot & Cold Tap requires a minimum 8" clearance to center if installed to the right of the Galley Tap

Note: Tap Placements are for right hand or left hand drain orientation

Call 800.375.4255 or email [e-mail] for additional guidance on Tap and Tap Accessory placements

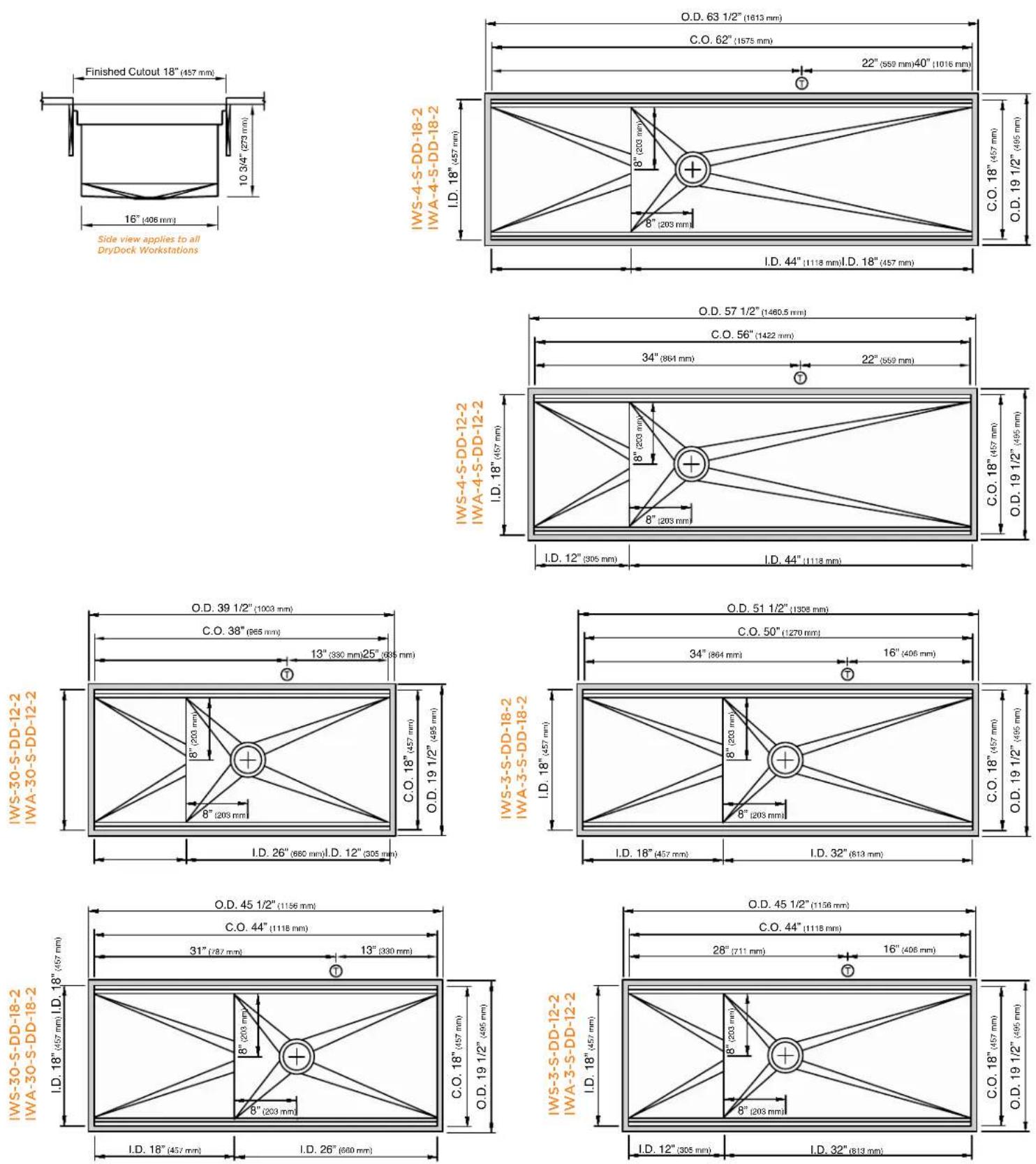

Workstations ^2 /WashStations ^2 + DryDock.

Right Hand Drain Orientation

SUGGESTED GALLEY TAP PLACEMENT GUIDE
Suggested maximum inside corner radius of countertop cutout 3/8"
① Galley Tap 1 3/8" minimum to 1 1/2" maximum hole diameter
Center Tap hole diameters 2" behind cutout
Note: Galley Hot & Cold Tap requires a minimum 8" clearance to center if installed to the right of the Galley Tap
Note: Tap Placements are for right hand or left hand drain orientation

Call 800.375.4255 or email [e-mail] for additional guidance on Tap and Tap Accessory placements

Workstations ^2 /WashStations ^2 + DryDock.

Left Hand Drain Orientation

SUGGESTED GALLEY TAP PLACEMENT GUIDE

Suggested maximum inside corner radius of countertop cutout 3/8"

① Galley Tap 1 3/8" minimum to 1 1/2" maximum hole diameter

Center Tap hole diameters 2" behind cutout

Note: Galley Hot & Cold Tap requires a minimum 8" clearance to center if installed to the right of the Galley Tap

Note: Tap Placements are for right hand or left hand drain orientation

Call 800.375.4255 or email [e-mail] for additional guidance on Tap and Tap Accessory placements

IMPORTANT

1. Please note: Unlike typical undermount kitchen sink installations, The Galley Workstation is installed in the cabinet prior to the counter being templated. A wood support frame will need to be constructed and mounted inside the base cabinet(s) and recessed down 1/16" from the top of the cabinet(s).
2. Leave the installation instructions tray affixed to The Galley Basin until the countertop has been templated, and leave the basin braces affixed to the Basin's tiers until the countertop has been installed and silicone has cured for a minimum of one hour.
3. The Workstation and Tap require a minimum of 22 1/2" inside the cabinet. For 24" deep inset cabinets installed against a wall, the cabinet must be pulled 1" away from the wall.
4. For countertops with a laminated or built-up decorative front edge, construct the wood support frame to finish 1/16" below the underside of the countertop cutout area.

Inspect The Galley Basin for any damage prior to installation. For any questions or concerns please contact us immediately at 800.375.4255 or [e-mail].

Please refer to all local plumbing and building codes prior to installation.

Tools

DRILL

CIRCULAR SAW

LEVEL

TAPE MEASURE

WOOD SCREWS

CLAMPS (OPTIONAL)

(4) 3/4" X 5-1/2" HARDWOOD BOARDS
(OR ANY SIZE A CARPENTER DEEMS TO BE MOST EFFECTIVE)

CLOTH

2" PAINTERS TAPE

100% CLEAR SILICONE

SPRAY BOTTLE

Before You Begin

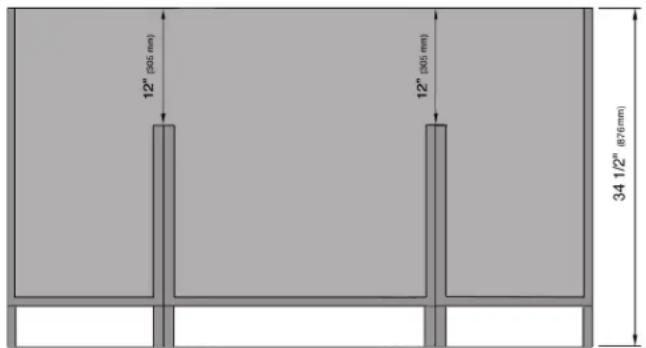

12" (605 mm) 12" (605 mm) 34 1/2" (876mm)

If your cabinet(s) have been built to accommodate your Galley Workstation, proceed to Step One. If you are joining two or more cabinets together to house the Galley Workstation, you will need to trim the bulkheads to create an 12" clearance for the Basin.

1. CONSTRUCT SUPPORT STRUCTURE

a) A wood support frame (cleat system) will need to be built and installed into the cabinet(s). This frame will support the weight of The Galley Workstation. NOTE: Clips are NOT to be used.
b) Construct the support frame so that the inside dimensions of the frame are 1/4" larger than the Basin's inside width and length dimensions. Please refer to pages 1-8 for your Galley dimensions.

NOTE: For a Galley Workstation + DryDock, the support frame must be built with 3/4" x 3" boards so that there is no interference with any undercounter appliances.

2. ATTACH THE SUPPORT FRAME TO THE INTERIOR WALLS OF THE CABINET

\*\*IMPORTANT\*\*

Place the support frame into the cabinet flush with the front of the cabinet. This will ensure that there is the minimum 2-3/4" plumbing space from the back of the frame to the cabinet wall needed.

The support frame must be installed 1/16" lower than the top of the cabinet.

NOTE: Use a level to ensure that the support frame is installed level in the cabinet. Once installed, the top of the Basin Flanges will be flush with the top of the cabinet.

Attach the support frame to the interior walls of the cabinet.

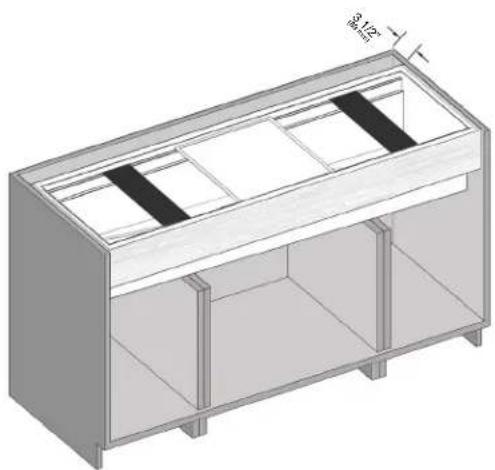

3. INSTALL THE WORKSTATION BASIN

a) Carefully place The Galley Basin into the cabinet by resting the flanges on the support frame. All four flanges should rest on the support frame.
b) Use a level to ensure that the flanges are level. The top of the flanges should be flush with the top of the cabinet.
c) Position the Basin so that it is perfectly square within the cabinet.

3D technical drawing of a cabinet or enclosure with internal compartments and mounting feet (no text or symbols)

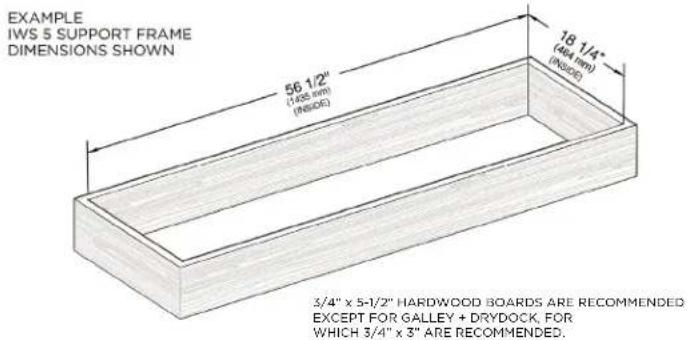

EXAMPLE IWS 5 SUPPORT FRAME DIMENSIONS SHOWN 56 1/2" (1455 mm) (NS/DC) 18 1/4" (4x4 mm) (NS/DC) 3/4" x 5-1/2" HARDWOOD BOARDS ARE RECOMMENDED EXCEPT FOR GALLEY + DRYDOCK, FOR WHICH 3/4" x 3" ARE RECOMMENDED.

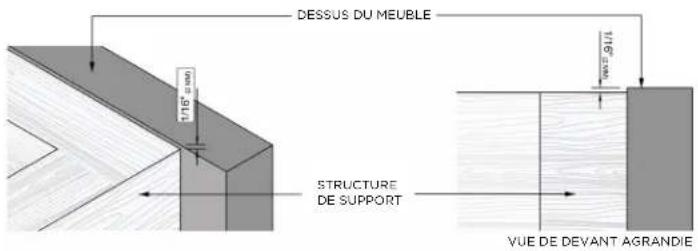

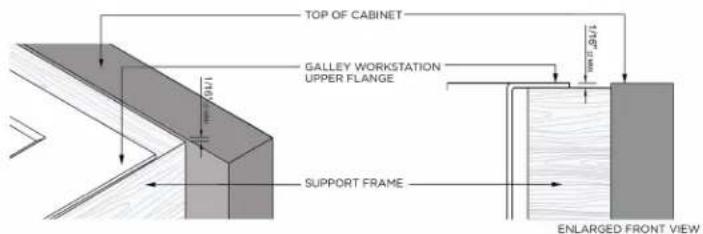

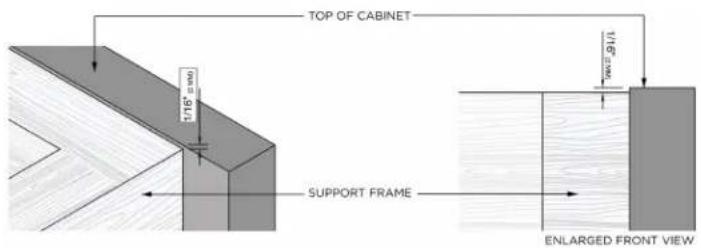

TOP OF CABINET 1/16" SUPPORT FRAME 1/16" ENLARGED FRONT VIEW

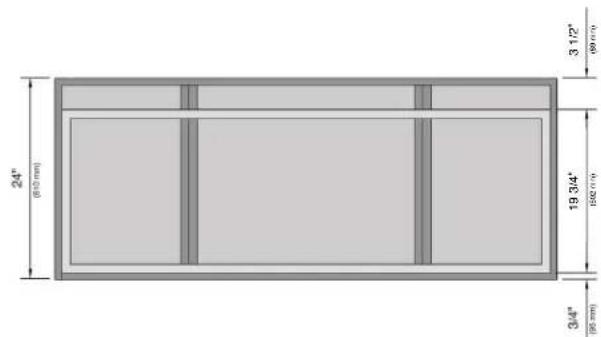

24" (650 mm) 3 1/2" (90 mm) 19 3/4" (95 mm) 3/4"

TOP OF CABINET GALLEY WORKSTATION UPPER FLANGE SUPPORT FRAME ENLARGED FRONT VIEW

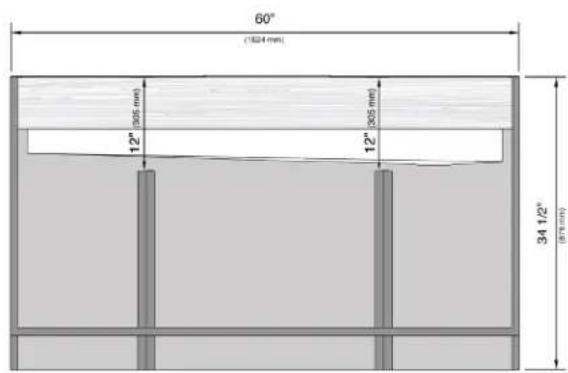

60° (1824 mm) 305 mm 12° 305 mm 12° 34 1/2" (975 mm)

YOU ARE NOW READY FOR THE COUNTERTOP FABRICATOR

Countertop Installation

Use the white template tray affixed to The Galley Basin flanges as your guide for the front to back, and left to right cutout. Refer to pages 1-8 for your overall cutout dimensions or refer to the drawing on the template tray.

NOTE:

The suggested maximum corner radius is 3/8".

*Please refer to countertop manufacturer's warranted minimums*

The front to back cutout dimension must always be cut exactly at 18" to ensure that all Culinary Tools work properly on the Basin tiers. The left to right dimension should be cut exactly to the specs outlined in pages 1-8.

STEP 1

Tape off the interior edge of the Basin along the perimeter of the flange. This tape will catch any excess caulking that is produced when the countertop is installed.

STEP 2

Apply a heavy, even bead of silicone to the Basin's exposed flange.

STEP 3

Before setting the countertop in place, make sure the Basin is perfectly square in the cabinet. Set the countertop and position it properly. The countertop cutout should be flush with all four sides of the Basin, confirmed with a zero reveal.

STEP 4

Once the countertop has been set and the zero reveal confirmed, remove the excess silicone that is on the taped flanges with a wet rag.

STEP 5

Wait approximately one hour and remove tape and Basin braces. This will leave clean and even lines of silicone along the Basin flanges.

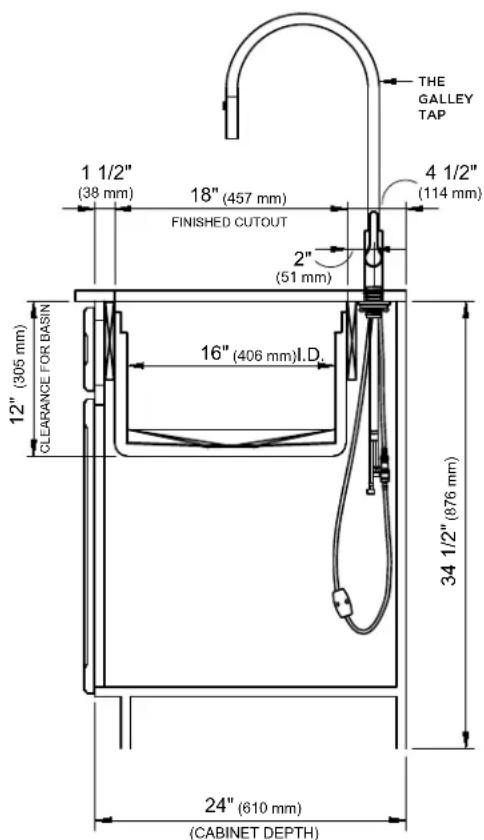

THE GALLEY TAP 1 1/2" (38 mm) 18" (457 mm) 4 1/2" (114 mm) FINISHED CUTOUT 2" (51 mm) 16" (406 mm)I.D. 12" (305 mm) CLEARANCE FOR BASIN 34 1/2" (876 mm) 24" (610 mm) (CABINET DEPTH)

The Galley Workstation Limited Lifetime Warranty

1. GALLEY WORKSTATION LIMITED LIFETIME WARRANTY - Seller provides a Limited Lifetime Warranty. Seller warrants its stainless steel sink, installed in a residential application, to be free from manufacturing defects in materials and workmanship under normal residential usage. This Limited Lifetime Warranty is subject to the warranty conditions and limitations as set forth below.
2. WARRANTY CONDITIONS AND LIMITATIONS - Seller's warranty is non-transferable and is strictly limited to products correctly installed using our installation instructions and used in a residential environment. This warranty is limited to defects or damages resulting from normal residential use and does not cover surface corrosion, (chemical or natural, including exposure to salt air, sea spray, acid rain, or environmental chemicals), scuffs or scratches, misuse, abnormal or abusive use, dents, deformations caused by the impact of any object, improper installation, care and/or maintenance, commercial use, environmental factors causing damage, shipping or freight damage, or commons signs of normal wear and tear, (scratching, staining and alkaline etching of the finish over time due to use, cleaning practices or water or atmospheric conditions, are not manufacturing defects but are indicative of normal wear and tear however, these symptoms are easy to remedy). This limited warranty is null and void if the Product has been repaired, altered, or modified other than by Seller or under Seller's supervision. The Seller is not responsible for labor charges, installation or other incidental or consequential costs. In no event shall the liability of Seller exceeds the purchase price of the product. If the product is installed outside of North America, Seller warrants product to be free from defects in material and workmanship for one (1) year from the date the product is installed, with all other terms of this warranty applying except duration. If the product has not been purchased from Seller or from an Authorized Dealer or Distributor of the Seller, this warranty is null and void.
3. CULINARY TOOLS - The Culinary Tools are not covered under warranty. If a defect is found in normal residential use, Seller will, at its election, repair, replace or make appropriate adjustment. Natural Golden Bamboo and American Black Walnut Culinary Tools should not have prolonged exposure to direct sunlight or be stored outdoors in a humid environment.
4. CARE AND MAINTENANCE - For care and maintenance instructions of all Galley products, please refer to the Use and Care section on thegalley.com.
5. WARRANTY CLAIMS - These warranties are in effect for Seller's Products purchased on January 1st, 2015 and thereafter. For warranty claims, please contact your Authorized Galley Dealer, or you may write to:

The Galley, LLC.

Attn: Warranty Claims

12626 South Memorial Drive

Bixby, OK 74008

Please include the original receipt with a description of the problem, model number, store, date of purchase, your name, address and telephone number.

THE GALLEY®

Corporate Headquarters

The Galley, LLC

12626 South Memorial Drive

Bixby, OK 74008

800.375.4255

thegalley.com

THE GALLEY®

Guía de Instalación

Ideal Workstations ^2 , Work&WashStations ^2 , Workstations ^2 /WashStations ^2 con DryDock, BarStations ^2 y WashStations ^2

Workstations ^2

O.D. 45 1/2" (1158 mm) C.O. 44" (1118 mm) 22" (559 mm)22" (559 mm) I.D. 18" (457 mm) 8" (203 mm) 10 15/16" (2/8 mm) 10 15/16" (2/8 mm) I.D. 44" (1118 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

Work&WashStations ^2

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (559 mm)22" (559 mm) I.WW-4-D-2 I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) 10 15/16" (2/8 mm) 10 15/16" (2/8 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm) I.D. 44" (1118 mm)

BarStations ^2 y WashStations ^2

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (559 mm)22" (559 mm) I.D. 18" (457 mm) 8" (203 mm) I.D. 44" (1118 mm) 8" (203 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

O.D. 15 1/2" (394 mm) C.O. 14" (356 mm) 7" (176 mm) 7" 8" (203 mm) 8" 7" (179 mm) I.D. 16" (457 mm) I.D. 14" (356 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

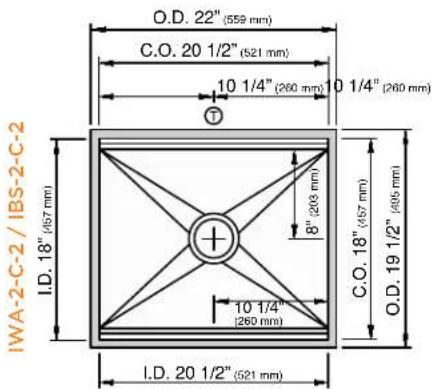

IWA-2-C-2 / IBS-2-C-2 O.D. 22" (559 mm) C.O. 20 1/2" (521 mm) 10 1/4" (260 mm) 0 1/4" (260 mm) T 8" 10 1/4" (260 mm) C.O. 18" (457 mm) (405 mm) O.D. 19 1/2" (457 mm) I.D. 18" (457 mm) I.D. 20 1/2" (521 mm)

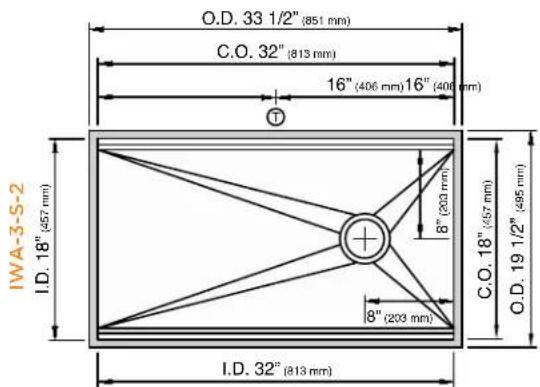

O.D. 33 1/2" (851 mm) C.O. 32" (813 mm) 16" (406 mm)16" (406 mm) T IWA-3-S-2 I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm) I.D. 32" (813 mm)

O.D. 27 1/2" (698.5 mm) C.O. 26" (660 mm) 13" (330 mm) 13" (330 mm) IWA-30-S-2 I.D. 18" (457 mm) 8" (203 mm) C.O. 18" (457 mm) 8" (203 mm) O.D. 19 1/2" (495 mm) I.D. 26" (660 mm)

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (559 mm)22" (559 mm) I.D. 18" (457 mm) I.D. 18" 8" (203 mm) 8" (203 mm) I.D. 44" (1118 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

O.D. 15 1/2" (394 mm) C.O. 14" (356 mm) 7" (178 mm) 7" (178 mm) I.BS-18-C-2 I.D. 16" (457 mm) 8" (203 mm) + 7" (178 mm) I.D. 14" (356 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

IWA-2-C-2 / IBS-2-C-2 O.D. 22" (559 mm) C.O. 20 1/2" (521 mm) 10 1/4" (260 mm) 0 1/4" (260 mm) T 8" (203 mm) 10 1/4" (250 mm) I.D. 18" (457 mm) C.O. 18" (457 mm) O.D. 19 1/2" (405 mm) I.D. 20 1/2" (521 mm)

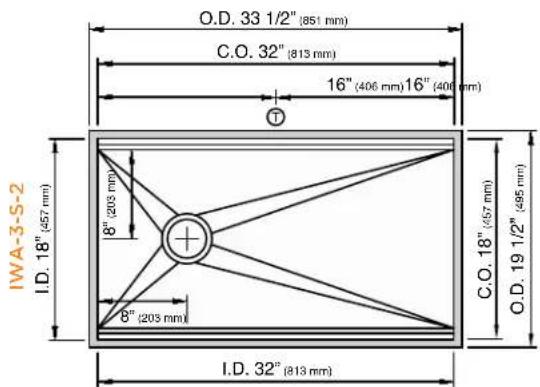

O.D. 33 1/2" (851 mm) C.O. 32" (813 mm) 16" (406 mm)16" (406 mm) T IWA-3-S-2 I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) I.D. 32" (813 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

O.D. 27 1/2" (698.5 mm) C.O. 26" (660 mm) 13" (330 mm) 13" (330 mm) I.D. 18" (457 mm) 8" (203 mm) + 8" (203 mm) I.D. 26" (660 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

3D technical drawing of a rectangular cabinet or enclosure with internal compartments and mounting feet (no text or symbols)

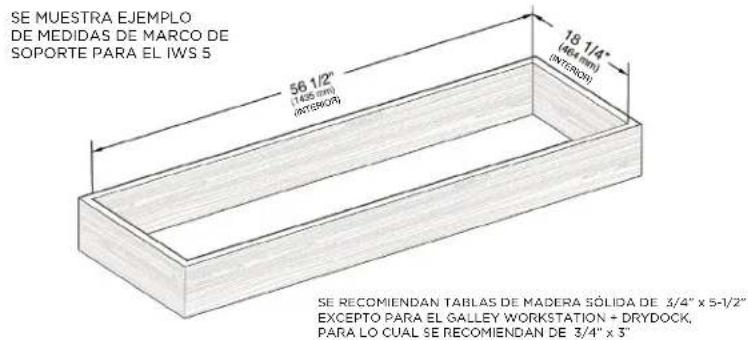

SE MUESTRA EJEMPLO DE MEDIDAS DE MARCO DE SOPORTE PARA EL IWS 5 56 1/2" (1405 mm) (807350.0g) 18 1/4" (4064 mm) (NYDERDO) SE RECOMIENDAN TABLAS DE MADERA SÓLIDA DE 3/4" x 5-1/2" EXCEPTO PARA EL GALLEY WORKSTATION + DRYDOCK, PARA LO CUAL SE RECOMIENDAN DE 3/4" x 3"

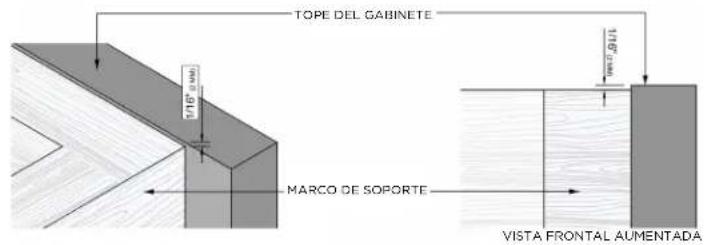

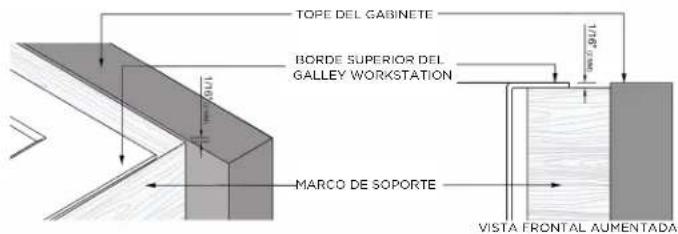

TOPE DEL GABINETE MARCO DE SOPORTE VISTA FRONTAL AUMENTADA

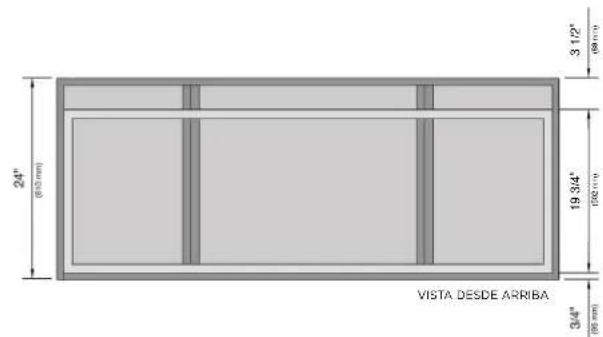

24" (60 mm) 3 1/2" (80 mm) 19 3/4" (90 mm) VISTA DESDE ARRIBA 3/4" (85 mm)

TOPE DEL GABINETE BORDE SUPERIOR DEL GALLEY WORKSTATION MARCO DE SOPORTE 1/18" mm VISTA FRONTAL AUMENTADA

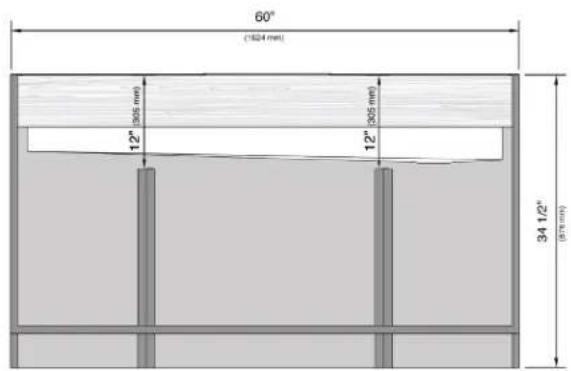

60° (1824 mm) 305 mm 12" 305 mm 12" 34 1/2" (974 mm)

Attn: Warranty Claims

12626 South Memorial Drive

Bixby, OK 74008

12626 South Memorial Drive

Bixby, OK 74008

800.375.4255

thegalley.com

THE GALLEY®

O.D. 45 1/2" (1158 mm) C.O. 44" (1118 mm) 22" (559 mm)22" (559 mm) I.D. 18" (457 mm) 8" (203 mm) 10 15/16" (2/8 mm) 10 15/16" (2/8 mm) I.D. 44" (1118 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

Work&WashStations ^2

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (559 mm) 22" (559 mm) I.WW-4-D-2 I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) 10 15/16" (2/8 mm) 10 15/16" (2/8 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm) I.D. 44" (1118 mm)

BarStations ^2 et WashStations ^2

O.D. 45 1/2" (1156 mm) C.O. 44" (1118 mm) 22" (559 mm)22" (559 mm) I.D. 18" (457 mm) I.D. 18" 8" (203 mm) 8" (203 mm) I.D. 44" (1118 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

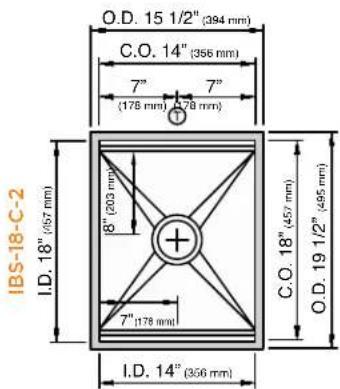

O.D. 15 1/2" (394 mm) C.O. 14" (356 mm) 7" (178 mm) 7" (78 mm) IBS-18-C-2 I.D. 18" (457 mm) 8" (203 mm) + 7" (178 mm) I.D. 14" (356 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

IWA-2-C-2 / IBS-2-C-2 I.D. 18" (457 mm) 8" (200 mm) 10 1/4" (260 mm) 10 1/4" (260 mm) C.O. 20 1/2" (521 mm) O.D. 22" (559 mm) 10 1/4" (260 mm) 0 1/4" (260 mm) C.O. 18" (457 mm) (405 mm) O.D. 19 1/2" 10 1/4" (260 mm) I.D. 20 1/2" (521 mm)

O.D. 33 1/2" (851 mm) C.O. 32" (813 mm) 16" (406 mm)16" (406 mm) T IWA-3-S-2 I.D. 18" (457 mm) 8" (203 mm) 8" (203 mm) I.D. 32" (813 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm)

IWA-30-S-2 I.D. 18" (457 mm) 8" (203 mm) 13" (330 mm) 13" (330 mm) C.O. 26" (660 mm) O.D. 27 1/2" (898.5 mm) C.O. 18" (457 mm) O.D. 19 1/2" (495 mm) 8" (203 mm) I.D. 26" (660 mm)

GUIDE DE PLACEMENT SUGGÉRÉ POUR LE GALLEY TAP

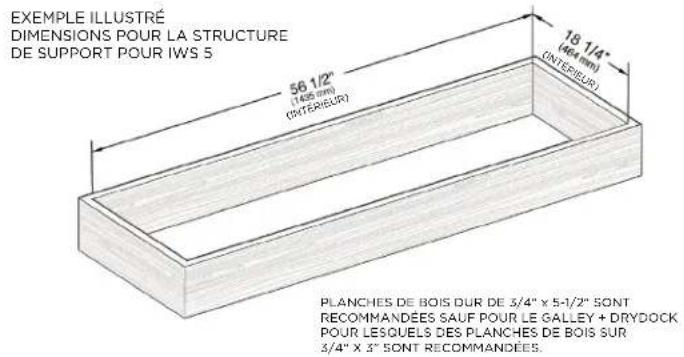

(4) PLANCHES DE BOIS DUR DE 3/4" X 5-1/2"

(OU TOUTE AUTRE TAILLE QUE LE CHARPENTIER JUGE LA PLUS EFFICACE)

LINGE

3D technical drawing of a rectangular cabinet or enclosure with internal compartments and mounting feet (no text or symbols)

EXEMPLE ILLUSTRÉ DIMENSIONS POUR LA STRUCTURE DE SUPPORT POUR IWS 5 56 1/2" (105 mm) (INTÉRIEUR) 18 1/4" (404 mm) (INTÉRIEUR) PLANCHES DE BOIS DUR DE 3/4" x 5-1/2" SONT RECOMMANDEES SAUF POUR LE GALLEY + DRYDOCK POUR LESQUELS DES PLANCHES DE BOIS SUR 3/4" x 3" SONT RECOMMANDEES.

DESSUS DU MEUBLE 1/16 mm STRUCTURE DE SUPPORT YUE DE DEVANT AGRANDIE

24" (60 mm) 3 1/2" (90 mm) 19 3/4" (95 mm) 3/4"

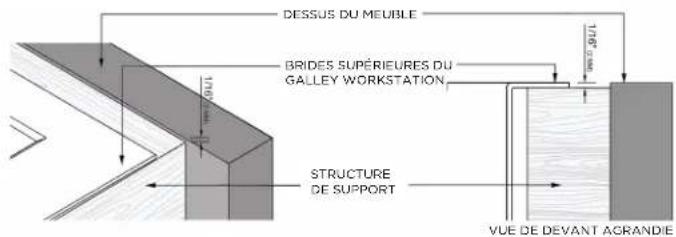

DESSUS DU MEUBLE BRIDES SUPÉRIEURES DU GALLEY WORKSTATION STRUCTURE DE SUPPORT 100" mm VUE DE DEVANT ACRANDIE

60° (1824 mm) 305 mm 12" 305 mm 12" 34 1/2" (974 mm)

VOUS ÊTES MAINTENANT PRÊTS POUR L'INSTALLATION DU COMPTOIR

Attn: Warranty Claims

12626 South Memorial Drive

Bixby, OK 74008

12626 South Memorial Drive

Bixby, OK 74008

800.375.4255

thegalley.com
