Product type	Ultrasonic humidifier and aroma diffuser
Brand	Sogo
Model	SS-21721
Dimensions	160 x 160 x 220 mm
Power supply	DC 24V / 0.5A (power adapter included)
Power	10 W
Water tank capacity	400 ml
Maximum autonomy	Up to 12 hours
Main functions	Ultrasonic humidification, aroma diffusion, auto shut-off, timer (1h/3h/6h), two steam modes (standard/strong)
LED lighting	7 colors with adjustable intensity, automatic mode and night light
Timer	1h / 3h / 6h
Auto shut-off	Yes, in case of low water level
Maintenance and cleaning	Unplug the device, empty water, clean the tank with a damp cloth. Do not pour water through the air outlet.
Safety	Automatic shut-off when water runs out, use only with the provided adapter, do not use without water, keep out of reach of children
Compliance	Low Voltage Directive 2014/35/EU, EMC 2014/30/EU, RoHS 2015/863/EU, Ecodesign 2009/125/EC
Country of origin	Made in P.R.C.

Frequently Asked Questions - SS-21721 Sogo

How to start the Sogo SS-21721 humidifier?

Connect the power adapter to the DC port of the device, then plug it into the wall outlet. Press the Mist button once to turn on the diffusion. The indicator becomes green in standard mode.

How to set the timer?

Press the Timer button repeatedly to select 1h, 3h or 6h. After 6h, the device continues without time limit until water runs out.

How to change the LED colors?

Press the Light button. The first press activates automatic cycling through 7 colors. Subsequent presses allow fixing a specific color (from 3 to 16 presses). A long press of 1 second turns off the light.

Why is my humidifier not producing steam?

Check that the water level is correct (between minimum and maximum) and that the steam chip is not dirty. Make sure the top cover and base are properly closed. Always use the provided adapter.

How to clean the humidifier?

Turn off and unplug the device. Open the top cover and empty the water. Clean the tank with a clean, damp cloth. Never pour water through the air outlet. Let it dry before reuse.

Can I use essential oils with this humidifier?

Yes, it is an aroma diffuser. Add a few drops of essential oil to the water tank before starting the device. Only use oils suitable for ultrasonic diffusers.

What is the water tank capacity and autonomy?

The tank has a capacity of 400 ml. In standard mode, autonomy can reach up to 12 hours. It varies according to the chosen steam mode.

The humidifier stops by itself, is this normal?

Yes, the device has automatic safety shut-off when the water level is too low. Refill the tank and restart.

Can I use the humidifier without water?

No, never operate the device without water. This could damage the ultrasonic chip and cause overheating risk. Always fill the tank to the maximum level.

Where to find Sogo after-sales service?

You can contact after-sales service by email: [e-mail], or by phone at 0034902222161. Also visit the website www.sogosat.com.

USER MANUAL SS-21721 Sogo

Caution: please read and preserve these important instructions

Thank you for choosing our Ultrasonic Humidifier & Aroma Diffusor. The correct use of it with the help of this manual gives you a long lasting service and also convert your living place into a cool and relaxing place.

This aroma difusor is a perfect ally to give you the feelings of being close to the nature. It not only helps you in aromatherapy, but also makes you feel relaxed and helps you to create a friendly ambience for doing yoga and meditation.

Further in dry air areas, it is the perfect machine to use in your room to humidify the air and to prevent the problems in breathing as well as the negative effects on the human skin.

IMPORTANT:

1. Always read the instruction book carefully before use.
2. This manual can be downloaded from our website, www.sogo.com
3. Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR USER

• Do not pull the plug when your hands are wet.
• Unplug the appliance during filling and cleaning.
• Do not operate the appliance without water.
• Always keep it on a hard and stable surface, away from heat sources and leaving enough free space around it.
• Do not cover it with anything unless if it is

stored for a long time without using.

• Keep away from the electrical appliances like computer, TV and everything which can be damaged by water.
• Use only clean water at room temperature to fill the water tank.
• Do not wash the water tank directly under running water.
• The product is with auto off function at the time of low water level in tank.
• Keep the product out of the reach of children.
• This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instructions concerning use of the appliance in a safe way and understands the hazards involved.
• Children shall not play with the appliance.
• Cleaning and maintenance shall not be made by children without supervision.
• This appliance is only to be used with the detachable cord provided by the manufacturer.
• The use of accessories not recommended or sold by the manufacturer may result in electric shock or injury to the persons and can damage the appliance.

SPECIFICATION

Model no. SS-21721
Size 160x160x220mm
Input DC24V / 0.5A
Power 10W
Water tank capacity 400ml

IMPORTANT FEATURES

• Ultrasonic Humidifier & Aroma Diffusor
• Suitable for use in living room, bedroom, office, to give a relaxing ambience, while doing yoga, for doing aroma therapy etc
• Silent working due to ultrasonic technology
• Sets a beautiful ambience in the room where it is used by humidifying the air, distributing a pleasant smell and giving soothing light as per your desired settings
• Big capacity water tank of 400ml, which can last up to 12 hours
• 7 Colorful LED mood light options, it can fix one color you like or auto-changing. The intensity of the light can be made from bright to dim. Can use it as a night lamp too
• Timer setting: 1h/3h/6h
• Mist mode control: standard mist/strong mist
• Auto-off when water runs out

KNOW YOUR AROMA DIFFUSOR

1. Mist outlet
2. The cover
3. Water tank cover
4. Air inlet
5. Air outlet
6. Water tank
7. Mist chip
8. Mist button
9. Bottom case
10. Air inlet
11. DC socket
12. The adaptor

BEFORE START USING

1. Make sure the machine is not connected to the main power supply.
2. Open the aroma diffusor and take out the top cover.

1. Add few drops of aromatic oil into the water reservoir along with water.

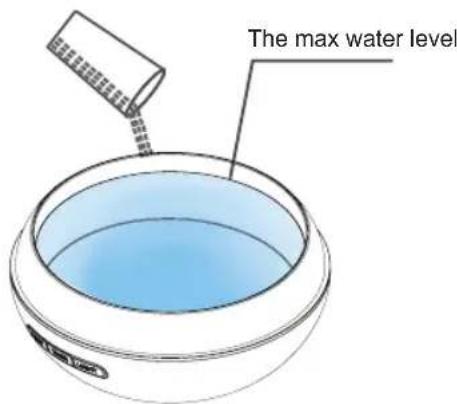

1. Fill the water tank with water up to Max. sign (400ml)

1. Close the top cover and make sure it is completely fixed and tighten up.

Note: Do not operate the unit on a soft desktop or it will block the air inlet.

INSTRUCTION FOR USE

Connect the unit into the main power supply with the help of the provided AC power adaptor and press the mist button. The unit will start shooting fine particles of water into the air to humidify the surrounding zones and also diffuses the fragrance.

OPERATION OF THE FUNCTION SWITCHES

Buttons Press Instructions
Mist 1 time	ON, indicator lights up in Green colour
	2 time With strong mist fuction, indicator light turns Red
	3 time OFF
Timer 1 time	Continue works for 1 hour
	2 time Continue works for 3 hour
	3 time Continue works for 6 hour
	4 time Continue working until the water runs out
Light 1 time	Changes the light automatically
	2 time To fix the colours of the light
	3-16 time To choose the colours you like
	17 time To switch off the light
	Press for 1 S To switch off the light

Note: The lights are independent part of this unit, and you can choose 7 colourful LED lights without using the Mist.

Attention: Do not shake, move or add water while your fragrance unit is working.

CLEANING AND MAINTENANCE

1. Switch off and unplug the unit. 2. Open the top cover

1. Drain the water out from this direction

1. Use the clean or damp cloth to clean the water tank.

TROUBLE SHOOTING

Problems Solution
Not working	The unit is not connected with the power supply properly.
	Water level is either too low or too high from the recommended water level
	Always use the AC adaptor provided by supplier
No Mist	Water level is either too low or too high from the recommended level
	Mist chip is dirty
	Make sure the top cover and base are connected and closed properly.

KENNEN SIE IHREN AROMADIFFUSOR

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L., NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034902222161
