USER MANUAL SS-21720 Sogo

Wooden SOGO humid air conditioner with control panel (no visible text or symbols on body)

HUMIDIFICADOR ULTRASÓNICO Y DIFUSOR DE AROMA ULTRASONIC HUMIDIFIER & AROMA DIFUSOR HUMIDIFICATEUR ULTRASONIQUE ET DIFUSEUR D'ARÔME UMIDIFICADOR ULTRASSÔNICO E DIFUSOR DE AROMA ULTRASCHALLBEFEUCHTER UND AROMADIFFUSOR UMIDIFICATORE AD ULTRASUONI E DIFUSORE DI AROMI

Caution: please read and preserve these important instructions

Simple line drawing of a conical object with a handle and stem (no text or symbols)

Illustration of a container with liquid being poured into it, no text or symbols present

Simple line drawing of a bag and a ring with a handle, no text or symbols present

Diagram showing a flask with internal components and a connected electrical component, likely illustrating a circuit or measurement setup.

Diagram showing two laboratory flasks with liquid levels and a red prohibition symbol on the right flask.

LIMPIEZA Y MANTENIMIENTO

Technical diagram showing a bottle-like container with inlet/outlet labels and a connected electrical component with directional arrows.

Two line drawings of objects: a conical flask and a circular ring (no text or symbols)

Diagram of a circular ring with internal curved lines and directional arrows, no text or symbols present

1. Drene el agua

Line drawing of a frying pan with a handle and lid (no text or symbols)

Thank you for choosing our Ultrasonic Humidifier & Aroma Diffusor. The correct use of it with the help of this manual gives you a long lasting service and also convert your living place into a cool and relaxing place.

This aroma difusor is a perfect ally to give you the feelings of being close to the nature. It not only helps you in aromatherapy, but also makes you feel relaxed and helps you to create a friendly ambience for doing yoga and meditation.

Further in dry air areas, it is the perfect machine to use in your room to humidify the air and to prevent the problems in breathing as well as the negative effects on the human skin.

IMPORTANT:

1. Always read the instruction book carefully before use.
2. This manual can be downloaded from our website, www.sogo.com
3. Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR USER

• Do not pull the plug when your hands are wet.
• Unplug the appliance during filling and cleaning.
• Do not operate the appliance without water.
  • Always keep it on a hard and stable surface, away from heat sources and leaving enough free space around it.
• Do not cover it with anything unless if it is

stored for a long time without using.

• Keep away from the electrical appliances like computer, TV and everything which can be damaged by water.
• Use only clean water at room temperature to fill the water tank.
• Do not wash the water tank directly under running water.
• The product is with auto off function at the time of low water level in tank.
• Keep the product out of the reach of children.
• This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instructions concerning use of the appliance in a safe way and understands the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and maintenance shall not be made by children without supervision.
• This appliance is only to be used with the detachable cord provided by the manufacturer.
• The use of accessories not recommended or sold by the manufacturer may result in electric shock or injury to the persons and can damage the appliance.

SPECIFICACIÓN

Model no. SS-21720
Size 160x160x220mm
Input DC24V / 0.5A
Power 10W
Water tank capacity 400ml

IMPORTANT FEATURES

• Ultrasonic Humidifier & Aroma Diffusor
- Suitable for use in living room, bedroom, office, to give a relaxing ambience, while doing yoga, for doing aroma therapy etc
- Silent working due to ultrasonic technology
- Sets a beautiful ambience in the room where it is used by humidifying the air, distributing a pleasant smell and giving soothing light as per your desired settings
• Big capacity water tank of 400ml, which can last up to 12 hours
- 7 Colorful LED mood light options, it can fix one color you like or auto-changing. The intensity of the light can be made from bright to dim. Can use it as a night lamp too
• Timer setting: 1h/3h/6h
- Mist mode control: standard mist/strong mist
• Auto-off when water runs out

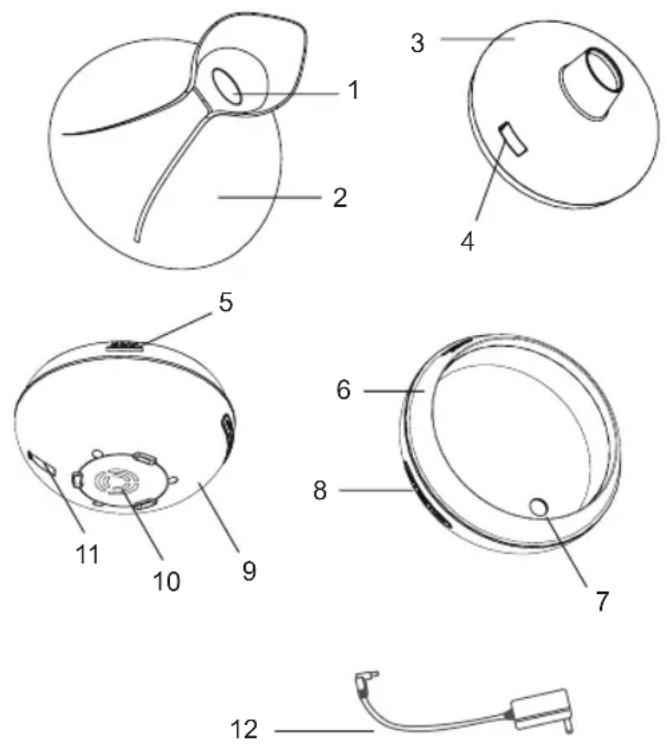

KNOW YOUR AROMA DIFFUSOR

1. Mist outlet
2. The cover
3. Water tank cover
4. Air inlet
5. Air outlet
6. Water tank
7. Mist chip
8. Mist button
9. Bottom case
10. Air inlet
11. DC socket
12. The adaptor

BEFORE START USING

Line drawings of two abstract objects: a conical object with a loop and a ring-shaped object (no text or symbols)

1. Make sure the machine is not connected to the main power s
2. Open the aroma diffusor and take out the top cover.

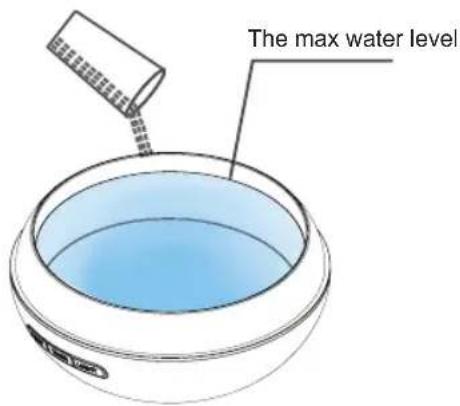

The max water level

1. Fill the water tank with water up to Max. sign (400ml)

Illustration of a container with liquid being poured into it, no text or symbols present

1. Add few drops of aromatic oil into the water reservoir along with water.

Simple line drawing of a bag and a ring with a downward arrow (no text or symbols)

1. Close the top cover and make sure it is completely fixed and tighten up.

Note: Do not operate the unit on a soft desktop or it will block the air inlet.

INSTRUCTION FOR USE

Connect the unit into the main power supply with the help of the provided AC power adaptor and press the mist button. The unit will start shooting fine particles of water into the air to humidify the surrounding zones and also diffuses the fragrance.

MIST TIMER LIGHT

Diagram showing a flask with internal components and a connected electrical component, likely illustrating a circuit or measurement setup.

OPERATION OF THE FUNCTION SWITCHES

Buttons Press Instructions
Mist 1 time	ON, indicator lights up in Green colour
	2 time With strong mist fuction, indicator light turns Red
	3 time OFF
Timer 1 time	Continue works for 1 hour
	2 time Continue works for 3 hour
	3 time Continue works for 6 hour
	4 time Continue working until the water runs out
Light 1 time	Changes the light automatically
	2 time To fix the colours of the light
	3-16 time To choose the colours you like
	17 time To switch off the light
	Press for 1 S To switch off the light

Note: The lights are independent part of this unit, and you can choose 7 colourful LED lights without using the Mist.

Attention: Do not shake, move or add water while your fragrance unit is working.

Two laboratory flask illustrations with Chinese labels indicating chemical conditions or solutions.

CLEANING AND MAINTENANCE

Technical diagram showing a flask with internal components and a connected electrical component with directional arrows.

1. Switch off and unplug the unit. 2. Open the top cover

Two line drawings of objects: a conical flask and a circular ring (no text or symbols)

Diagram of a circular mechanical or electrical component with internal winding and directional arrows (no text or symbols)

1. Drain the water out from this direction

Line drawing of a cooking pan with a handle and lid (no text or symbols)

1. Use the clean or damp cloth to clean the water tank.

TROUBLE SHOOTING

Problems Solution
Not working	The unit is not connected with the power supply properly.
	Water level is either too low or too high from the recommended water level
	Always use the AC adaptor provided by supplier
No Mist	Water level is either too low or too high from the recommended level
	Mist chip is dirty
	Make sure the top cover and base are connected and closed properly.

Simple line drawing of a conical object with a handle and stem (no text or symbols)

Illustration of a container with liquid being poured into it, no text or symbols present

Simple line drawing of a bag and a ring with a handle, no text or symbols present

Simple line drawing of a vase with a side panel and a vertical wall-mounted device (no text or symbols)

FONCTIONNEMENT DES COMMUTATEURS DE FONCTION

Technical diagram showing a bottle-like container with inlet/outlet labels and a connected electrical component with directional arrows.

Simple line drawing of a conical object with a looped handle and central stem (no text or symbols)

Diagram of a circular mechanical or electrical component with internal winding and directional arrows (no text or symbols)

1. Vidangez l'eau

Line drawing of a frying pan with a handle and lid (no text or symbols)

Simple line drawing of a conical object with a handle and stem (no text or symbols)

Illustration of a container with liquid being poured into it, no text or symbols present

Simple line drawing of a bag and a ring with a handle, no text or symbols present

Diagram showing a flask with internal components and a connected electrical component, likely illustrating an electrical or mechanical setup.

Diagram showing two laboratory flasks with liquid levels and a red prohibition symbol on the right flask.

Technical diagram showing a bottle-like container with inlet/outlet labels and a connected electrical component with directional arrows.

Simple line drawing of a conical object with a looped handle and central stem (no text or symbols)

Diagram of a circular mechanical or electrical component with internal winding and directional arrows (no text or symbols)

1. Drene a água

Line drawing of a cooking pan with a handle and lid (no text or symbols)

KENNEN SIE IHREN AROMADIFFUSOR

Line drawings of two objects: a conical object with a handle and a ring-shaped object (no text or symbols)

Illustration of a container with liquid being poured into it, no text or symbols present

Simple line drawing of a bag and a ring with a handle, no text or symbols present

Simple line drawing of a vase with a side panel and a wall-mounted electrical component (no text or symbols)

Diagram showing a flask with internal components and a connected electrical component, labeled with 'WET' and 'NO. NO'.

Simple line drawings of a bag and a ring, with an upward arrow indicating direction (no text or symbols)

Diagram of a circular mechanical or electrical component with internal winding and directional arrows (no text or symbols)

Line drawing of a frying pan with a handle and lid (no text or symbols)

Simple line drawing of a conical object with a handle and stem (no text or symbols)

Illustration of a container with liquid being poured into it, no text or symbols present

Simple line drawing of a bag and a ring with a handle, no text or symbols present

Diagram showing a flask with internal components and a vertical wall-mounted sensor or device, with directional arrows indicating flow or interaction.

Diagram showing two laboratory flasks with liquid levels and a red prohibition symbol on the right flask.

Technical diagram showing a bottle-like container with inlet/outlet labels and a connected electrical component with directional arrows.

Simple line drawing of a conical object with a looped handle and central stem (no text or symbols)

Diagram of a circular mechanical or electrical component with internal winding and directional arrows (no text or symbols)

1. Scaricare l'acqua

Line drawing of a frying pan with a handle and lid (no text or symbols)

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2 46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
