USER MANUAL Gloria HPS-2.5-600 HAIER

official website NAHUI Nahui Intelligent APP

GLORIA

HPS-2.5-(350\~2400)

Energy storage controller system

QingDao Nahui Intelligent Technologies Co., Ltd.

Room 205-2, Building 4, No. 7 Keji 1st Road, Aoshanwei Street Office, Jimo District, Qingdao City, Shandong Province, P.R. China
[e-mail]
www.nahui-newenergy.com

If the product size and parameters are changed,

the latest information of our company shall

prevail without prior notice.

2024 10.15 A1.0

Multilingual manual QR code

Scan the QR code to download the user manual in other languages

White Haier air purifier device with control panel and external ports (no visible text or symbols on body)

EN

Installation Guide 01-08

1. Important Note 01
2. Packing Details 02
3. Product Size 02
4. Product Introduction 03
5. Installation Requirements 03
6. Installation Steps 04
7. System Connection 06
8. Check Before Power On 06
9. Test Operation Process 07
10. App Connection 07
11. Indicator Light Definition 08

DE

• This document will be updated from time to time due to product upgrade or other reasons. Under no circumstances may this document replace the User Manual and the safety instructions on the product.
• Before any operation, please read the User Manual and relevant standards and specifications carefully, which can be obtained on the website of www.nahui-newenergy.com.
• Please read the manual completely for all equipment operations, master the safety matters related to operation, and be familiar with local standards and relevant safety specifications of electrical systems.
• Please use insulating tools and wear personal protective equipment when operating.
• Failure to follow the requirements of this document and the User Manual for equipment related operations may cause casualties or equipment damage, and Haier will not assume any responsibility.

02/Packing Details

Name NameQuantity			Quantity
Energy storage controller system	1	Expansion bolt assembly M8*60	2
Wall bracket	1	Quick installation guide	1
3m PV extension cable	2	Installing positioning paper	1
1.5m AC Cable	1	Open-end wrench	1
Smart plug	1	Meter or Smart Meter	Optional

Warning Label On Energy Storage Controller System

	All external power connections must be disconnected before the maintenance operation of the energy storage controller system.		There is a high voltage after the energy storage is powered on, and there is still a residual voltage after the energy storage is powered off, which needs to be discharged to safe voltage.
	The temperature of the hot surface of the equipment may be higher than 60°C, so be careful of burns.		Read the instructions before operating the energy storage controller system.
[963C]	High-voltage danger, it is forbidden to connect and disconnect wires, disassemble the chassis and replace devices under live conditions.	[WOS2X]	Protective grounding.

03/Product Size

HPS-2.5-350, HPS-2.5-400,

HPS-2.5-600, HPS-2.5-800,

HPS-2.5-1000, HPS-2.5-1200,

HPS-2.5-1600, HPS-2.5-2000,

HPS-2.5-2400

510mm 190mm Haier 810mm

04/Product Introduction

(1) Display screen

(2) Photovoltaic input positive port

(3) Photovoltaic input negative port
(6) Wifi antenna
(10) External grounding point(9) Product nameplate

05/Installation Requirements

Be suitable for indoor, living room, balcony, garden, sunshade and other home places.

IP54 + 10°C - 10°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + 20°C + - IP54

Ensure the coverage of Wifi network signals.

2.4G

When installing, 50cm should be reserved in the left and right space to ensure the requirements of heat dissipation and safety isolation during installation.sunshade and other home places.

No tilt mounting. Ensure that there are no inflammable,

explosive and other dangerous goods around when installing the product.

06/Installation Steps

- Make sure to avoid the water and electricity lines in the wall before drilling to avoid danger! - Place the hanging plate vertically on the wall. It is recommended to select the hole position shown in the figure, mark the drilling position and drill the hole, and keep the drilling depth is greater than 60mm.

Step 1

Firstly, take the product out of the box.

(5) Grid Port

Step 3

According to the positioning paper template, place it on the wall, mark the installation hole position, and punch holes with an impact drill.

Hole spacing: 160mm

Step 2

When installing, it is necessary to ensure that the product is at least 50cm away from both sides of the wall, and heat dissipation is ensured. It should be installed in a waterproof, dry and ventilated environment.

Pigang 50cm50cm

Step 4

Use the vacuum cleaner to clean the dust in the hole, take out the expansion screw, plug the expansion nut into the hole, and use a rubber hammer to completely plug the expansion nut into the hole.

3D diagram of a rectangular panel with labeled components, set against a brick wall (no text or symbols)

EN/Installation Guide

EN/Installation Guide

Step 5
Install the wall bracket.

Diagram of a wall-mounted pulley system mounted on a brick wall, no text or symbols present

Step 6
Remove the four screws of the backboard on the back of the product, and be careful to save the screws.

3D architectural rendering of a fire extinguisher with a close-up inset showing internal components (no text or symbols)

Step 7
Connect the prepared PV+, PV- and AC wires to the corresponding positions of the product, ensure that the connection is undamaged, and then reinstall the backplane.

Diagram of a door with a blue arrow pointing to the interior panel, set against a brick wall background (no text or symbols)

Step 8
Align the mounting holes on the back of the product and insert them into the fixing bracket from top to bottom to ensure that the product can be placed on the ground, that is, the product is fixed and installed.

3D diagram of a door mechanism with a blue arrow indicating direction, against a brick wall background (no text or symbols)

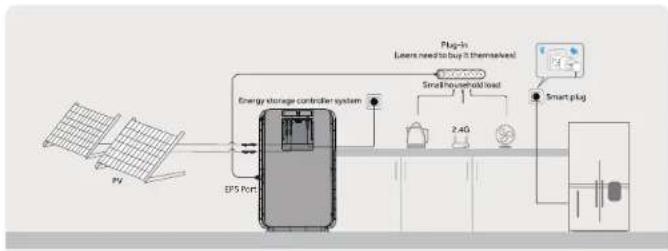

07/System Connection

• Before connecting to the power grid, first ensure that the grid voltage and frequency meet the requirements of the energy storage controller system. For detailed parameters, please refer to the "Technical Parameters" in the User Manual; otherwise, it is needed to contact the power company to solve it.
• Verify your country requirements if you need to obtain the access permission of the local power company to connect the energy storage controller system to the power grid;
• The power strip connected between EPS output port and Grid needs to be purchased by yourself.
• Before connecting the PV modules, to avoid any damage not covered by the warranty, please verify the configuration chosen respect the main parameters. Verify the power (Pmax) installed does not exceed 1200W, the sum of the current (Imp) of each parallel configured panel is less than 28A, and the sum of the voltage (Voc) of each serial configured panel is less than 150V.

08/Check Before Power On

Inspection items Acceptance standard

Equipment installed in place	The equipment is installed correctly, firmly and reliably.
Reasonable cable layout	The cable layout is reasonable and meets the user's requirements.
Binding tape	Tie the tape evenly, and leave no sharp corners at the cut.
Switch disconnected	The product start switch is in the off state, and the LED and LCD are in the off state.
Cable connected in place	DC, AC and Comm connection is correct, firm and reliable.
Backplate installation	Backboard is installed in and fixed with the 4 screws
The installation environment meets the requirements	The installation space is reasonable, the environment is clean and tidy, and there is no construction residue.

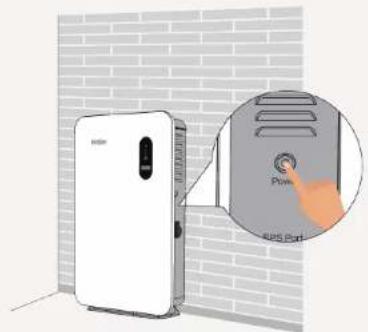

09/Test Operation Process

Step 1: Check that the external wiring harness is connected normally;

Step 2: When the button is in ON state, the light is green;

Step 3: When powered on for the first time, Observe whether the LCD screen are on and LED indicator is red.

Step 4: Perform the first commissioning using the dedicated app Nahui Intelligent.

Diagram showing a white air purifier connected to a wall-mounted device with a magnified inset highlighting the 'Pump' button.

10/App Connection

- Scan the QR code or enter the link to download the APP to the mobile phone, and register/log in according to the operation instructions;

- APP Android / iOS download address:

https://server-hr.shuoxd.com:8443/resources/od m/download-hr.html

* For more detailed contents of the App, please refer to the Nahui Intelligent User Manual.

Nahui Intelligent APP User Manual

11/Indicator Light Definition

- LED light + LCD screen is used as the human-machine interaction interface, and the LED indicator on the front panel of the inverter can indicate the current working state of the inverter.

Indicator		Color	Explanation
		Blue is always on	Discharging
		Blue is flicking	Charging
		Green is always on The system is upgrading
	[0082]	Red is always on	System failure or alarm

LCD indicator	Fault code
	Please refer to the User manual

Note:

• If the test operation fails, please refer to the "Fault Code" in the User Manual.
• Please refer to "Indicator Definition" in the User Manual for the indicator definition.
