Product Type	Portable Bluetooth Speaker
Brand	Sogo
Model	SS-8585
Dimensions	16 x 6 x 8 cm
Power Supply	DC 5V-1A via USB-C port
Battery Type	Built-in Li-ion, 2000 mAh, 3.7 V
Battery Life	2 to 10 hours depending on volume and lighting
Charging Time	4 hours
Bluetooth Version	V5.0
Bluetooth Range	10 meters
Output Power	2 x 4 W (8 W RMS)
Frequency Response	20 Hz – 20 kHz
Sensitivity	≥ 70 dB
Total Harmonic Distortion	≤ 1%
Max Micro SD / TF Card Capacity	64 GB
Bluetooth Pairing Name	SOGO SS-8585, SOGO SS-8586
Protection Rating	IPX6 (resistant to powerful water jets)
Main Functions	Bluetooth, TWS, hands-free, SOS, RGB lighting, micro SD card, rechargeable
Included Accessories	USB-C charging cable, instruction manual
Care and Cleaning	Soft dry or damp cloth, no abrasive cleaners
Repairability	No user-serviceable parts, built-in non-replaceable battery

Frequently Asked Questions - SS-8585 Sogo

How to connect my phone to the SS-8585 speaker?

Turn on the speaker, it automatically enters pairing mode. Enable Bluetooth on your phone and search for "SOGO SS-8585". Select this name to connect. Once connected, the lights blink rapidly.

How to use TWS function to pair two speakers?

Turn on both speakers (same model). Briefly press the power button on one of them twice. You will hear "TWS ON". Then connect your phone via Bluetooth, and both speakers will be paired in stereo.

How to charge the speaker and how long does it take?

Use the provided USB-C cable and a 5V-1A power adapter (not included). Plug the cable into the speaker, the red indicator lights up. Full charging takes about 4 hours. The light turns off when the battery is full.

Can I insert a Micro SD card? What is the maximum capacity?

Yes, insert a Micro SD (or TF) card into the slot under the silicone cover on the side. The maximum supported capacity is 64 GB. The speaker automatically switches to TF card mode.

What to do if the speaker does not connect via Bluetooth?

First, make sure the speaker is on and in pairing mode. On your phone, forget the device and search again. You can also reset the speaker by pressing the reset button (under the cover) with a paperclip.

How to activate the SOS function?

Press and hold the lighting button for 5 seconds. The speaker will emit a loud siren. To deactivate, press the same button again.

How to clean and maintain the speaker?

Use a soft, dry cloth. For stains, slightly dampen the cloth. Do not use abrasive cleaners, alcohol, or ammonia. Keep it away from sun, heat, and humidity.

What is the battery life depending on usage?

Variable battery life: 2h (max volume + lights on), 3h (50% volume + lights on), 8h (max volume + lights off), 10h (50% volume + lights off).

How to reset the speaker to factory settings?

Use a paperclip or a thin object to press the reset button located under the silicone cover on the side. This restores factory settings.

Is the speaker water-resistant?

Yes, it has an IPX6 rating, meaning it is resistant to powerful water jets. It should not be submerged.

USER MANUAL SS-8585 Sogo

Black SOGO portable electronic device with two circular vent holes and a cord (no visible text or symbols)

ALTAVOZ BLUETOOTH BLUETOOTH SPEAKER HAUT-PARLEUR BLUETOOTH ALTO-FALANTE BLUETOOTH BLUETOOTH LAUTSPRECHER ALTOPARLANTE BLUETOOTH

Simple line drawing of a rounded rectangular object with a textured handle (no text or symbols)

1. Important Notice p. 13
2. Safety Instruction for the User p. 13
   I. Restrictions p. 13-14
   II. Precautions while during the usage of product p. 14-15
3. Product Features p. 15
4. Technical Specifications p. 16
5. Product and accessories Information p. 16
6. Slots and Key functions p. 16-17
7. Bluetooth Speaker functions p. 17-20
8. Charging instructions p. 21
9. Cleaning and maintenance p. 21
10. Disposal of electronic goods p. 21
11. Declaration of conformity p. 62
12. Disposal responsibility, Manufacturer and after sales service details p. 63

IMPORTANT NOTICE

• i Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. SAFETY INSTRUCTIONS FOR THE USER

I. Restrictions

• Never immerse the speaker or the charging cable-in water or any other liquid. In the event of the speaker falling in water take it to an authorized service agent for repair before reusing.
• Do not place or operate the speaker on or near hot surfaces (e.g., stove plates) or open flames.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or irreparable damage to the product.
• Do not use the speaker for any other purpose than described in this manual.
• Do not leave the speaker charging longer than recommended by the manufacturer, as this may damage the battery or the speaker itself.
• Do not use the speaker while in charge,

otherwise it may also damage the speaker.

• Do not drop, disassemble, deform, modify or insert any objects into this product as operating damage may result.
• Do not attempt to repair, modify or disassemble the product yourself. This product does not contain any user-serviceable components and may void the warranty.
• Do not clean the product with alcohol, ammonia based cleaners and abrasive cleaners.
• Do not place this product in to contact with any sharp objects as this may cause scratches and operating damage.
• Do not attempt to replace the product battery, it is built-in and is not user changeable.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children.

II. Precautions while during the usage of product

- Keep the speaker away from direct sun-light, fire, or other high voltage equipment.

- WARNING: the device might get warm during charging. Always ensure the speaker is turned off when you plug and unplug the device. If the device is not turned off you might damage the speaker or injure yourself.

- Observe all signs and displays that require an electrical device or RF radio product to be switch off in designated areas.

• Dispose of the product and the product's battery in accordance with local laws and regulations.
• In case of speaker malfunction, or if it has been damaged in any manner, return it to the nearest authorized service facility for examination, repair or adjustment.

3. Product Features

• Wireless portable Bluetooth speaker with LED light
• Enjoy the musical beats with RGB colours lightning effects (Nine lighting effects and various colour changes)
• TWS music system in capable of working as stereo pair with another speaker (same model)
• Dual power protection, to protect the device and user
• SOS function for emergency usage
• With 2000mAh high power performing battery capacity to enjoy the music for long period of time
• Accessory: USB power cable with type c
• Protected against strong jets of water: IP6 Protection

4. Technical Specifications

Output power	2 x 4W, 8W RMS
Driver unit size	16 x 6 x 8 x cm
Sound sensibility	≥70dB
Frequency response	20Hz- 20Khz
Distortion	≤1%
Bluetooth version	V5.0
Bluetooth range	10 metres
Bluetooth pairing name	SOGO SS-8585, SOGO SS-8586
USB & TF max. memory supported	64 GB
Battery capacity	Built-in 2000mAh 3.7V
Battery type	Li-ion
Input Power	DC 5V-1A
Working time	2 – 10 hrs (Max)
Charging time	4 hrs
Charging Port	Type C
Slot	Micro SD card (64GB)
Connection	Bluetooth

Note: the playing time depends on the volume and LED light usage.

1. If the volume is max and lights are turned off the playing time is 8H
2. If the volume is 50% and lights are turned off the playing time is 10H
3. If the volume is max and lights are turned on the playing time is 2H
4. If the volume is 50% and lights are turned on the playing time is 3H

5. Product and accessories Information

This box contains 1 unit of Bluetooth speaker, 1 instruction manual and type C charging cable.

Bluetoothspeaker*1 Type C charging cable*1 Instruction*1

Simple line drawing of a rounded rectangular object with a small attached element (no text or symbols)

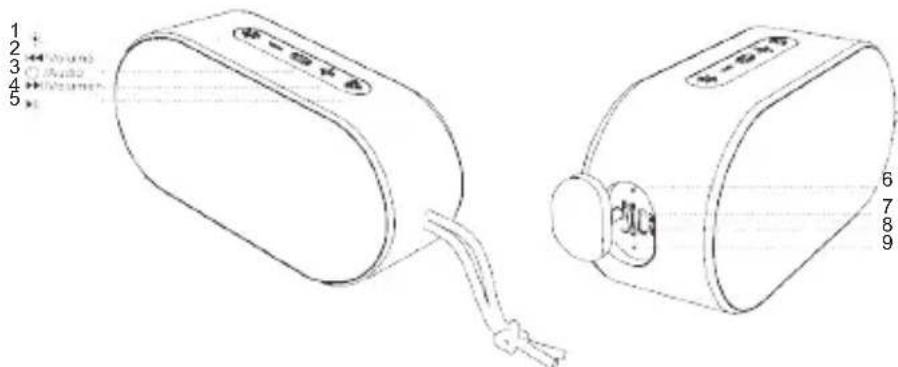

6. Slots and Key functions

1. Light Button
2. Volume"-" / previous song 6. Charging indicator
3. On/Off 7. Charging port
4. Volume"+" / Next song 8. Micro SD card (TF card)

5. Play/Pause 9. Reset Key

6. Light key: This speaker has an attractive function of flashing lights automatically following the musical beats. With the help of light button the lighting function can be set as per need and as per choice. The same button works for the SOS function as well.

7. Volume "-" / previous song: This button can be used to decrease the volume and to move from a song to the previous song from the song list. To change the volume, press the "-" button once, it decreases the volume and in order to decrease it more, keep pressing it gradually. To move on the previous song hold the button and press it longer (long press) and it will move to previous song and the same way, keep pressing the button until you get the desired song from the play list.

8. On/Off: This button is simply use to on and off the devise.

9. Volume”+” / Next song : This button can be used to increase the volume and to move from a song to the next song from the song list. To change the volume, press the “+” button once, it increases the volume and in order to decrease it more, keep pressing it gradually. To change to the next song, hold the button and press it longer (long press) and it will move to next song and the same way, keep pressing the button until you get the desired song from the play list.

10. Play/Pause: This button is located on the top part of the speaker. With the help of this button you play the music and by pressing the same button music can be paused at any point.

11. Charging indicator: This speaker has the charging indicator, which indicates the charging situation of speaker. It is located on lateral side, behind the silicone cover. When the charging cable is being connected to the speaker and other side with the wall outlet with the help of charging adaptor, the charging indicator turns on and once the battery gets fully charged it turns off.

12. Charging port: This speaker has type C charging port to charge the speaker. Also this units has charging cable with type C included.

13. Micro SD card (TF card): This speaker support the Micro SD card of 64 GB capacity. Micro SD card slot as well is located on to the lateral side behind silicone cover.

14. Reset Key: This speaker has reset button as well, which is located on to the lateral side behind the silicone cover. This button helps to change the speaker setting on to the factory setting.

7. Bluetooth Speaker functions

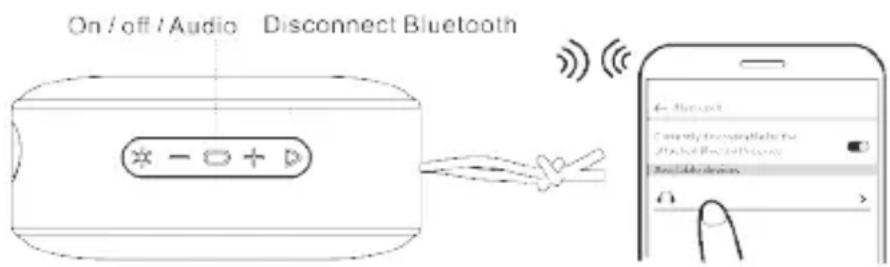

1) Bluetooth connect

How to connect the electronic device with Bluetooth speaker SS-8585?

1. Long press

To connect your electronic device, turn on the speaker and the speakers automatically enters into pairing mode, also turn on the Bluetooth mode of your electronic device and make sure it will be visible to all the nearby devices.

Search for the Bluetooth pairing name SOGO SS-8585 on your device screen and once it appears press it to connect with the speaker and wait until connected.

Once your device is connected to the speaker, the lights start to move fast. Now you can play any music or song on your device to listen through the Bluetooth speakers.

2. Short press ×1

Audio switch mode (Micro SD card or TF card mode): This speaker works in 2 mode, among one is Bluetooth mode and other is Audio switch mode or Micro SD card or TF card mode

The Bluetooth mode is default mode and when the speaker doesn't have any memory card it works only in the default mode, but when the speaker has memory card inserted, than you can choose the mode in between through the power button. By pressing it for short period of time(short press), you can change in either mode.

1. & : In order to disconnect your Bluetooth device, press the "+" and "-" buttons together (short press) and your device will disconnected with the speaker.

To connect it again, press the "+" and "-" buttons together (short press) and your device will connected again with the speaker.

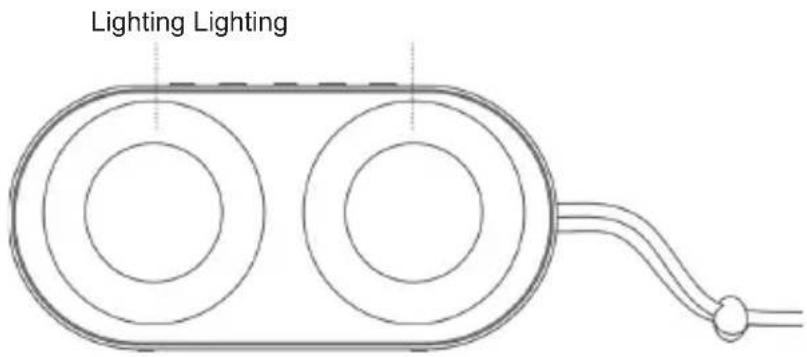

2) Light mood

1. Lighting effect switch

Short press x1

The default Light colour is multiple colours moving rings. The rings continue moving with the changing colours. While pressing the first time the single colour rings appears and keep changing colours automatically. Pressing the button again the single colour rings revolves and constantly changes the colour, so this way there are multiple coloured rings options which keep changing and flashes as per music beat. Also you can turn off the light by keep pressing until it turns off on its own.

2. SOS Function

This Speaker has SOS function for any type of emergency situation, in the SOS function the speakers start to emit a loud siren noise. To turn on the SOS function make press the light button for 5 seconds and to turn off press it again.

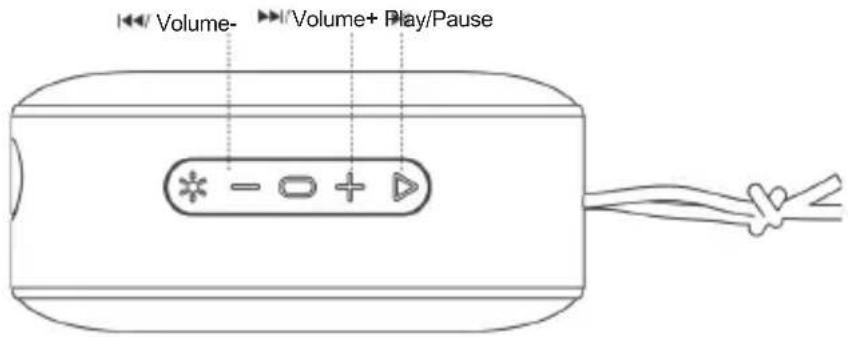

3) Music control

The song and music can be control by the help of “+”, “-” and play, button. “+” and “-” are used to increase and decrease volume of the speaker and the same button can be used to move to the previous and next song of the song list.

The play button can be used to play the song and pause it anytime.

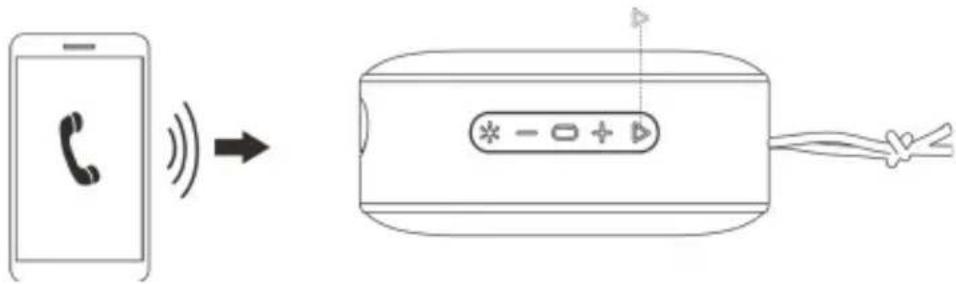

4) Hands free function

The very first time although the mobile can be connected with the speaker, but it has not activated the hands-free button, and you might not hear the incoming ring tone through the speaker. So, in order to activate the button, your device must be connected with the speaker and when you get a call, receive it manually using the device. Once you receive or accept it manually, that is the time when your hands free function activates.

Also you can activate the hands free function with the play button, so when your device is connected with the speaker and you receive any call, press the Play button located on the top part of the speaker and the same time hands free will be activated.

5) TWS Function

How to connect 2 speakers at a time?

In order to use TWS function need 2 same model speakers with same Bluetooth paring name.

First we will turn on both of the speakers and speakers will automatically enters into the Bluetooth mode, need to short press the power button two times in any of the speaker and we will hear a prompt sound of "TWS ON", it means both of the speakers are connected to each other.

Now need to turn on the Bluetooth mode of the mobile or device that we want to connect and once the device find the Bluetooth pairing name of speaker SS-8585, will connect them with by pressing the connect button and both of the speaker automatically connect to the device and will be ready to start to

play the music.

To disable the TWS function need to short press the power button for two time and the function will be disabled with prompt voice "TWS OFF".

Note:

1. Make sure both speaker must be of the same model and same Bluetooth pairing name.
2. Once the device has been added to the TWS function, by the next time speakers will connect automatically.
3. During TWS mode, functions can be operated by any speaker.

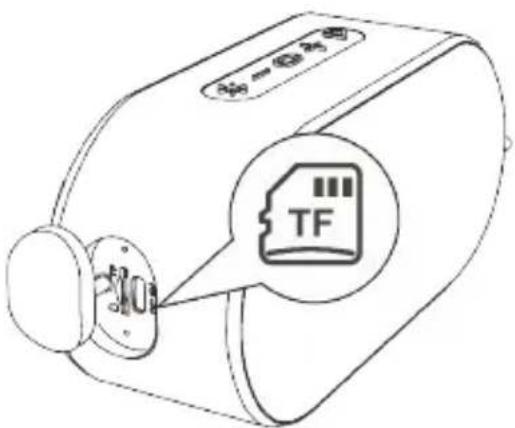

6) Memory card function

short press x1

Audio switch mode

To use the speaker with Micro SD or TF card, first remove the lateral silicone cover and insert the TF card in card slot; speaker automatically enter into TF card mode and with the help of Play and "+" and "-" button you can enjoy your saved music. To enter into Bluetooth mode again, press the same ON/Off button.

Note: This speaker enters automatically into the TF card mode while inserting the card. To change it into bluetooth mode need to press the power button.

8. Charging instructions

Technical line drawing of a mechanical device with a circular component and a handle, no visible text or symbols

This unit has been provided with an USB - Type C charging cable, to charge the speaker connect the speaker with charging adaptor and plug in to the wall outlet. You can use any charging adaptor including which you use to charge your mobile phone. Once you connect the charging cable to the speaker, the Red light will turn on, it means the unit is charging and once the battery get charged completely, the Red light turns off.

Note:

1. This unit is not included USB charging adaptor, but any USB charging adaptor can be used including your common mobile phone charging adaptor.

2. To increase the battery life and smooth working, it is recommended to charge full, once in a month.

9. Cleaning and maintenance

While cleaning the product, just use soft or dry cloth and in case of severe stains use the damp cloth.

Do not use abrasive cleaners, as it can damage the paint, plastic or even the speaker itself.

Keep it away from sun light and do not keep it in hot and humid atmosphere. Make sure to remove the power adaptor cable and keep it in cool and dry place.

10. Disposal of electronic goods

DISPOSAL OF BATTERY OPERATED UNITS

Do not dispose the battery operated units as normal rubbish, always these should be recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

INDICE

Simple line drawing of a cylindrical device with a handle and label (no text or symbols on the object itself)

Line drawing of a device with a lock and handle, no text or symbols present

Simple line drawing of a rounded rectangular object with a handle, resembling a battery or device (no text or symbols)

Line drawing of a device with a handle and circular button, no text or symbols present

Simple line drawing of a rounded rectangular object with a tassel, resembling a battery or device (no text or symbols)

Technical line drawing of a mechanical device with a circular component and a button, no text or symbols present.

Simple line drawing of a rectangular object with a curved handle and label (no text or symbols)

Line drawing of a portable electronic device with a circular button and a handle, no text or symbols present.

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU RED Directive 2014/53/ EU related to Health and Safety from usage of Radio spectrum in household electronic equipment.

Electromagnetic Compatibility Directive 2014/30/EU.

Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Designed by:

SOGO based on European quality standards

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain

Product manufactured in P.R.C

After-sales service: www.sogosat.com

[e-mail] / 0034 902 222 161
