USER MANUAL SS-18465 Sogo

Black SOGO solar heating unit with coiled heat sink and control knobs (no visible text or symbols)

SS-18455

SS-18460

SS-18465

Radiador De Aceite

Oil Filled Radiator

Caution: please read and preserve these important instructions

ref. SS-18455

SS-18460

SS-18465

1. AVISO IMPORTANTE:

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

Safety instructions for the user

When using your oil heater basic safety precautions should always be observed, including the following:

1. This appliance should not be used by children younger than 8 years of age and by people with reduced physical, sensor and mental capabilities, as well as by people with insufficient experience and knowledge unless they are supervised or instructed in safe operation of the appliance and understand the related risk.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Connect the appliance to single phase AC supply of the voltage specified on the rating plate.
4. In order to avoid overheating, do not cover the heater.
5. Never leave the heater unattended while it is in use. Always turn the product to the OFF position and unplug it from the

electrical outlet when not in use.

1. Extreme caution is necessary when any heater is used by or near children, invalids or elderly person and whenever the heater is left operating and unattended.
2. The heater must not be located immediately below an electrical socket outlet.
3. Do not run cord under carpeting and do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area and where it will not be tripped over.
4. Do not operate the heater with a damaged cord or plug, or after the heater malfunctions, has been dropped, or damaged in any manner.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to avoid a hazard.
6. Avoid the use of an extension cord as this may overheat and cause a risk of fire.
7. Use the heater in a well-ventilated area. Do not insert or allow objects to enter any ventilation or exhaust opening. To prevent a possible fire, do not block air intakes or exhaust openings in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked. Use the heater on flat, dry surfaces only.
8. Do not place this heater near flammable materials, surfaces or substances, as there may be a risk of fire. Keep the above flammable materials, surfaces or

substances at least 1m from the front of the product and keep them away from the sides and rear. 14. Do not use the heater in any areas where petrol, paint or other flammable liquids are stored e.g. Garages or workshops as there are hot, arcing or sparking parts inside the heater.

1. Don't use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Never locate the heater where it may fall into bathtub or other water container.

2. This heater is hot when in use. To avoid burns and personal injury, do not let bare skin touch hot surfaces. If provided, use handles when moving the product.

3. Be sure that no other appliances are in use on the same electrical circuit as your product as an overload can occur.

4. This heater is filled with a precise quantity of special oil.

5. Repair requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leakage.

6. Regulations concerning the disposal of oil when scrapping the appliance have to be followed.

7. The heater should not be used in a room, of which the floor area is less than 5 M2.

8. The cord shouldn't be placed nearby the hot surface of the appliance.

9. NOTE: It is normal when the heaters are turned on for the first time or when they are turned on after having not been used for a long period of time the heaters may have noise inside. This will disappear when the heater has been switched on for a short while.

10. Children under 3 year of age should be kept away from the appliance unless they are under constant supervision.

11. Children from 3 to 8 years of age are allowed to operate the on/off button ONLY, provide that the appliance is installed and ready for operation and such children have been supervised and instructed in safe operation of the appliance and they understand all related risks.

12. Children from 3 to 8 years of age MUST NOT: connect the plug to power sockets, make adjustment, clean it or carry out user maintenance operations.

13. You must never move the appliance by pulling it by its electric cord. You must never use the electric cord for moving of other objects.

14. Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

15. Place the electric cord in such a way that it does not hamper the movement of people and not to be stepped on! You must use approved connection blocks, which are

suitable for the appliance, i.e. there is a sign of compliance.

1. The electric cord must not be in touch with the hot parts of the appliance.
2. Do not use the heater for laundry drying.
3. Do not use this heater in small rooms when they are occupied by persons not capable of leaving rooms on their own, unless constant supervision is provided.
4. These model heaters are provided with the moving wheels, make sure to fix it before using it.
5. Cleaning and use maintenance shall not be made by children without supervision.

WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

WARNING: In order to avoid overheating, do not cover the heater

TECHNICAL SPECIFICATION

MODEL NO.: SS-18455

VOLTAGE / FREQUENCY: 220 - 240V\~ 50Hz

POWER: 1.500 W

MODEL NO.: SS-18460

VOLTAGE / FREQUENCY: 220 - 240V\~ 50Hz

POWER: 2000W

MODEL NO.: SS-18465

VOLTAGE / FREQUENCY: 220 - 240V\~ 50Hz

POWER: 2500W

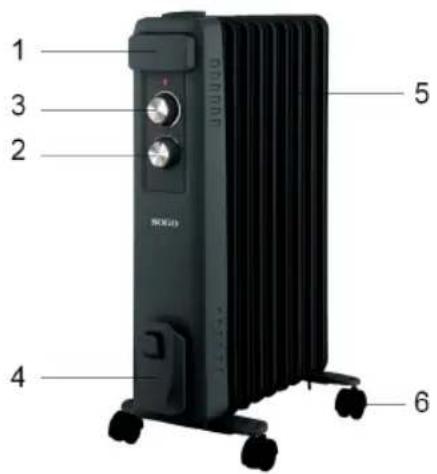

PARTS DESCRIPTION

1. Carry handle
2. Power switch
3. Thermostat knob
4. Cord storage
5. Radiant fins
6. Castor

1 2 3 4 5 6

ASSEMBLY INSTRUCTIONS

The heater is packaged with the feet unattached. You must attach them before operating the heater.

WARNING: Do not operate without feet attached. Do operate the heater only in upright position (feet on the bottom, controls on the top), any other position could create a hazardous situation.

1. Place the radiator body upside-down on a scratch-free location, make sure it is stable and will not fall.

2. Screw off the wing nuts from the U-shaped bolt provided, attach the U-shaped bolt to the U facing flange between first and second fins. (near the front cover).

3. To attach the castor mounting plate to the radiator body, you should insert the threaded ends of the U bolt in the holes on the castor mounting plate.

4. Screw the wing nuts back to the U bolt and fasten the wing nut properly.

Note: do not over tighten, which may cause the damage to radiator flange.

1. Repeat 2, 3 and 4 on the rear of radiator for mounting of the rear castors.

Note: the rear castors must be mounted between the last 2 fins.

Remark: Only for model SS-18455, fit the front wheels assembly at the bottom of front panel by two screws(see Fig 5), the other wheels assembly same as point 2, 3 and 4.

INSTRUCTIONS FOR USE

1. Before using the heater, make sure that it is on it is placed on a flat and stable surface, damage may occur on an incline or declined surface.
2. Set all the controls to OFF position and insert the plug into a socket-outlet with well grounded. make sure that plug filts firmly
3. Rotate the thermostat knob clockwise to MAX position and switch the heater to low, medium and high
4. When your room reaches the desired temperature, now slowly rotate the thermostat knob counter clockwise until the pilot light goes out. The thermostat can now be left at this setting. As soon as the room temperature has dropped below the set temperature, the unit will switch it self on automatically until the set temperature has been reached again. In this way the room temperature remains constant with the most economical use of electricity.
5. If you want to change the room temperature setting, rotate the thermostat knob clockwise to raise the temperature, or counter clockwise to lower it.
6. This heater includes an overheat protection system that shuts off the heater when parts of the heater are getting excessively hot.
7. To completely shut the heater off, turn all the controls to OFF, and remove plug from the socket-outlet.

Tip-over protection

This heater is protected with a safety switch that turns off the appliance automatically when the heater falls over, or is at an excessive angle from the horizontal. This helps prevent accidents, and the heater will resume operation when it is put back upright.

Overheat protection

This heater is protected with overheat protection that switches off the appliance automatically in case of severe overheating. In this case, unplug the appliance, wait about 30 minutes for it to cool and remove any possible cause of overheating, eg. something covering the heater. Check for damage to the appliance, the cord and the plug. If there is no damage, plug the unit back in and switch it on as described above. If the heater still does not turn on, please contact Customer Service for assistance.

MAINTENANCE

1. Always remove the plug from the socket-outlet and allow the radiator to cool down before clean the heater.
2. Wipe radiator with a soft damp (not wet) cloth. WARNING:
   Do not immerse the heater in water. Do not use any cleaning chemicals such as detergents and abrasives. Do not allow the interior to get wet as this could create a hazard.
3. To store away the heater, wind the cable round bobbin and store the heater in a clean dry place.
4. In case of malfunction or doubt, do not try to repair the radiator yourself, it may result in a fire Hazard or electric shock.

1. IMPORTANT:

Information requirement for the electric local space heaters

Model identifier(s): SS-18455
Item Symbol Value Unit Item	Unit
Heat output Type of heat input, for electric storage				local space heaters only (select one)
Nominal heat output	Pnom 1.5 kW			manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative) Pmin 0.6 kW				manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c 1.5 kW			electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption			kW	fan assisted heat output	No
At nominal heat output	elmax N/A kW			Type of heat output/room temperature control (select one)
At minimum heat output	elmin N/A kW			single stage heat output and no room temperature control	No
In standby mode	eISB 0 kW			Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Sanysan Appliances S.L. C/Barcas 2,2 46002, Valencia, Spain.

Information requirement for the electric local space heaters

Model identifier(s): SS-18460
Item Symbol Value Unit Item	Unit
Heat output Type of heat input, for electric storage				local space heaters only (select one)
Nominal heat output	Pnom 2.0 kW			manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative) Pmin 0.8 kW				manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c 2.0 kW			electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption			kW	fan assisted heat output	No
At nominal heat output	elmax N/A kW			Type of heat output/room temperature control (select one)
At minimum heat output	elmin N/A kW			single stage heat output and no room temperature control	No
In standby mode	eISB 0 kW			Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Sanysan Appliances S.L. C/Barcas 2,2 46002, Valencia, Spain.

Information requirement for the electric local space heaters

Model identifier(s): SS-18465
Item Symbol Value Unit Item	Unit
Heat output Type of heat input, for electric storage				local space heaters only (select one)
Nominal heat output	Pnom 2.5 kW			manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative) Pmin 1.0 kW				manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c 2.5 kW			electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption			kW	fan assisted heat output	No
At nominal heat output	elmax N/A kW			Type of heat output/room temperature control (select one)
At minimum heat output	elmin N/A kW			single stage heat output and no room temperature control	No
In standby mode	eISB 0 kW			Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Sanysan Appliances S.L. C/Barcas 2,2 46002, Valencia, Spain.

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
