USER MANUAL PHY-FS_02 Physa

A B C D E F G H I

Diagram showing a device before and after assembly, with labeled components and directional arrow

Diagram showing a device with lock mechanism and 90-degree angle annotation

Diagram illustrating the step-by-step assembly of a steam fan with labeled parts including STEAM, OZONE, and thermometer.

Diagram showing three sequential steps of a handheld device with motion arrows, no text or symbols present.

Pure electrical circuit symbols without any text or labels

5% vinegar. 95% water 3-6 hrs

Diagram of a robotic arm and a bucket pouring liquid, showing motion flow (no text or symbols)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

TECHNICAL DATA

Parameter description Parameter value
Product name	Facial steamer
Model	PHY-FS_02
Rated voltage [V~] / frequency [Hz]	230 / 50
Rated power [W]	750
Protection class	I
Dimensions [width x depth x height; mm]	520 x 710 x 1510
Weight [kg]	2.98
Water reservoir capacity [L]	0.7
Timer [min]	0-30
Height adjustment [cm]	78-95

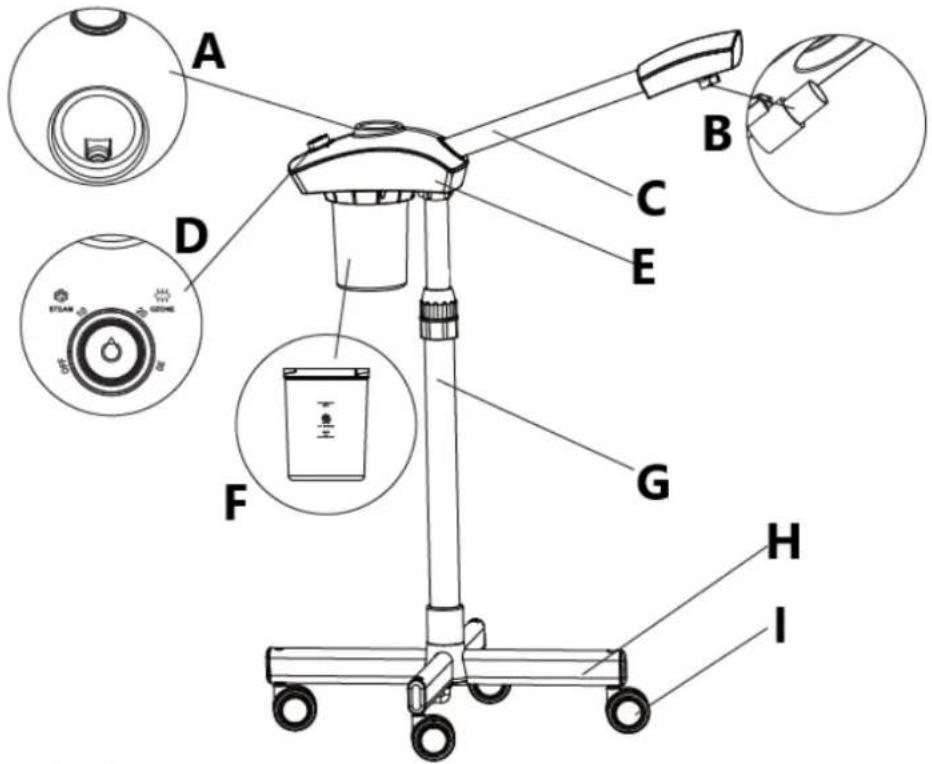

DEVICE DESCRIPTION

A B C D E F G H I

A. Water filling opening
B. Aroma-emitting tube
C. Spraying pipe
D. Steamer on/off switch with timer knob
E. Steamer
F. Water reservoir
G. Telescopic pole
H. Base

I. Castors

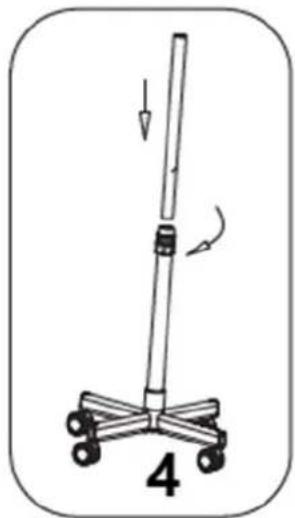

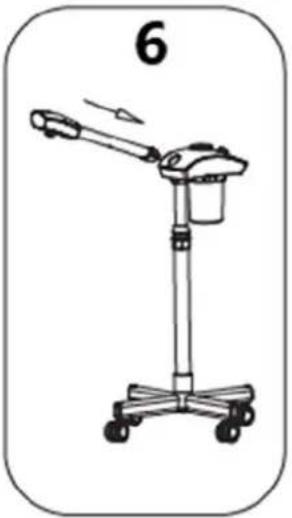

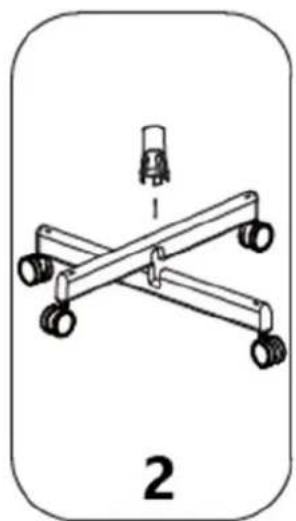

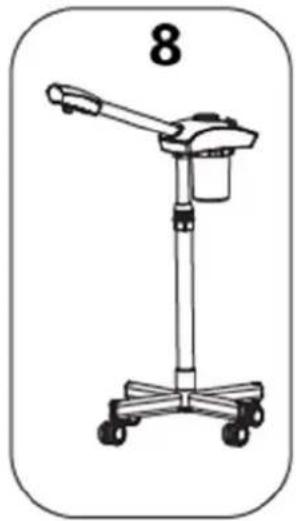

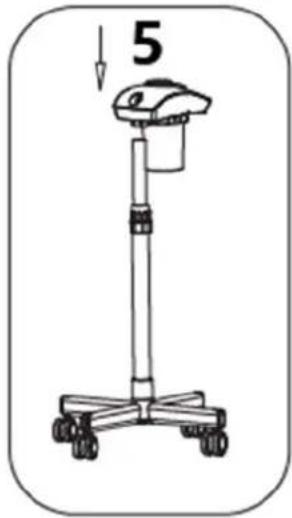

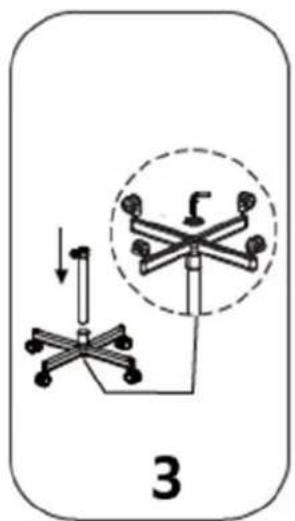

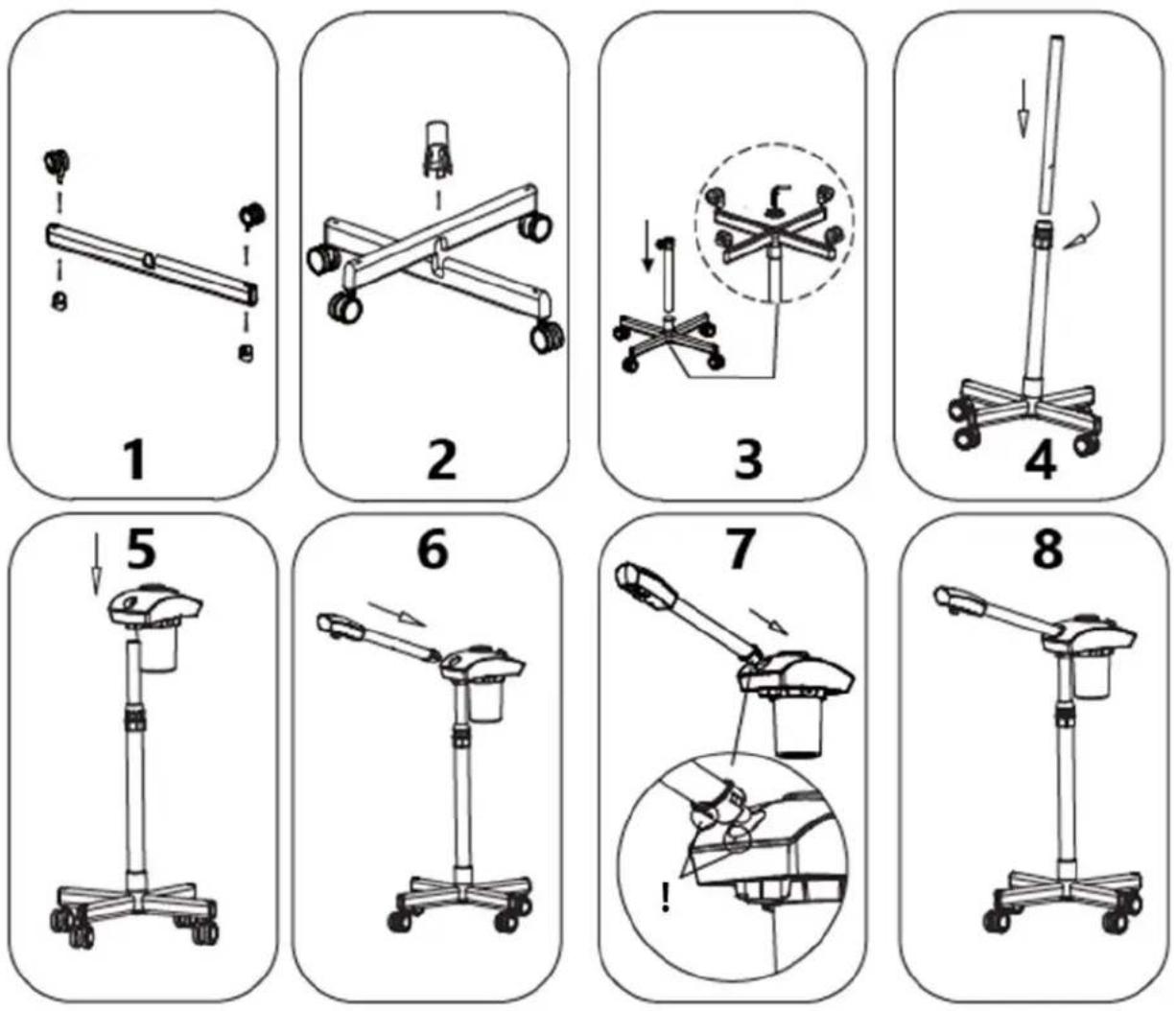

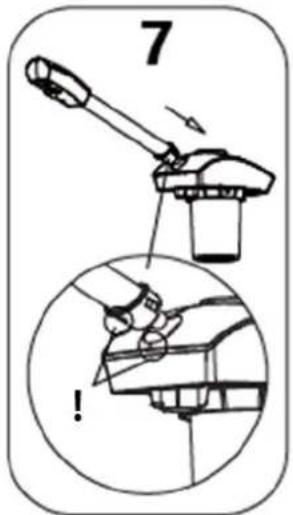

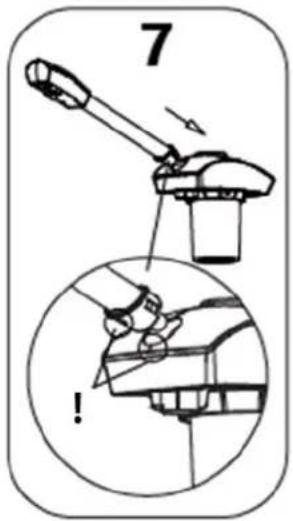

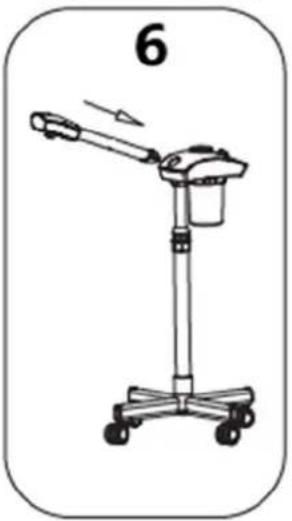

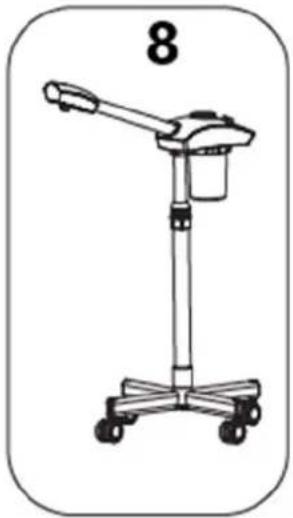

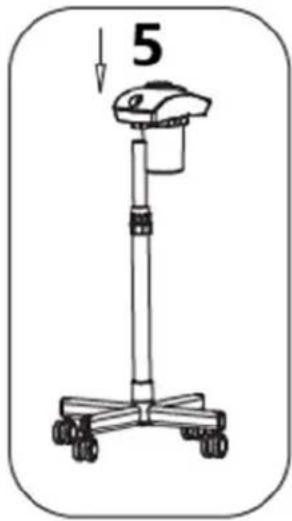

ASSEMBLY

OPERATION TIPS

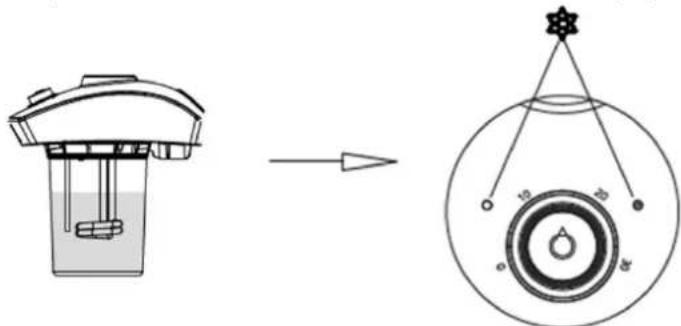

1. Water-level sensing system

For safety purposes this device is equipped with a water-level sensing system. When there is not enough water in the water reservoir, the unit will shut off automatically and the indicator lights for steam and ozone will start to blink. To turn on the steamer again, please refill the water reservoir with clean water, then press the on/off button and the unit will start working again.

Diagram showing a device before and after transformation, with labeled components and directional arrow

1. Suitable water-type

This steamer works with almost all types of clean water, such as purified water, distilled water, mineral water, tap water and etc. However for the best performance and proper maintaining of this unit, please use purified or distilled water.

WARNING: do not add any additives or essential oils into the water. Doing so may damage the unit or cause injure to users!

DEVICE USE

1. Plug the power cord to the mains.

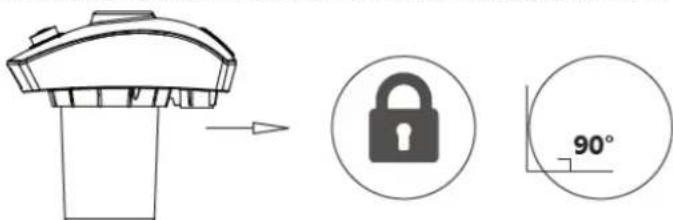

2. Check and make sure the water reservoir is fixed securely and aligned:

Diagram showing a device with an arrow pointing to a lock icon, alongside a 90-degree angle measurement.

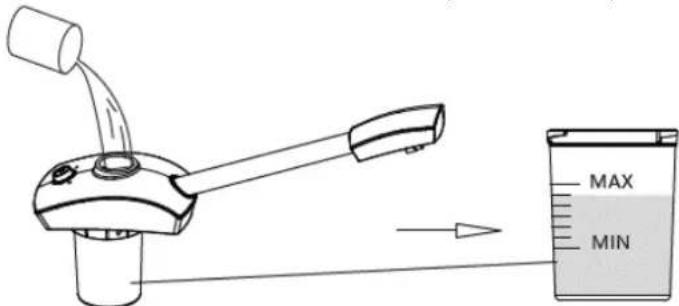

1. Fill the water reservoir through the top opening on the steamer with clean water. Make sure the water level is between the MAX and MIN marks (do not overfill!):

MAX MIN

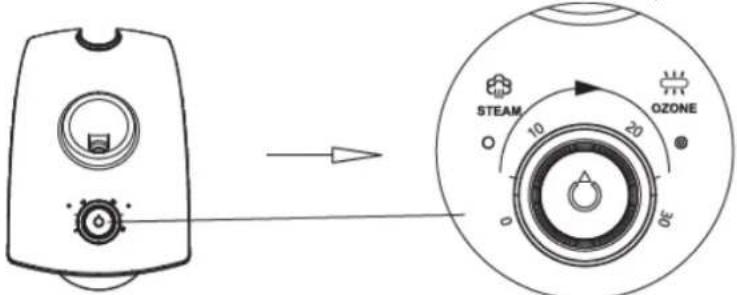

1. Turn the timer knob clockwise to set the desired operation time (up to 30 min.): NOTE: the unit will NOT turn on when the timer is on the OFF position.

STEAM OZONE 10 20 35

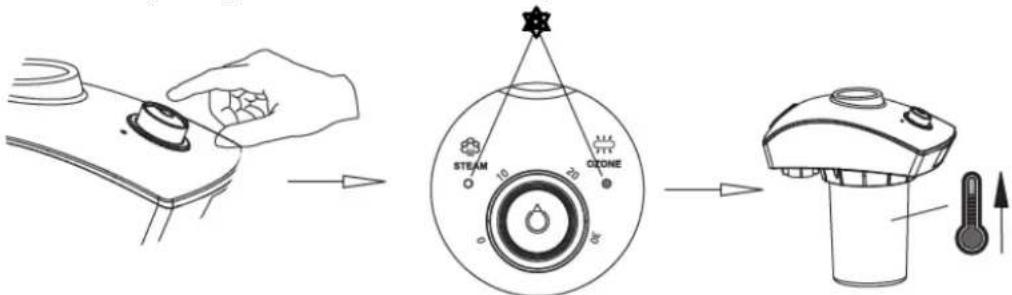

1. Press the on/off-button to turn on the unit. The unit will start to heat the water. The steam will start to spray in about 5 minutes when the water boils (time may vary depending on volume and temperature of filled water). The light indicators of function in operation are on:

Diagram illustrating the step-by-step assembly of a steam fan with labeled parts including STEAM, OZONE, and temperature sensor.

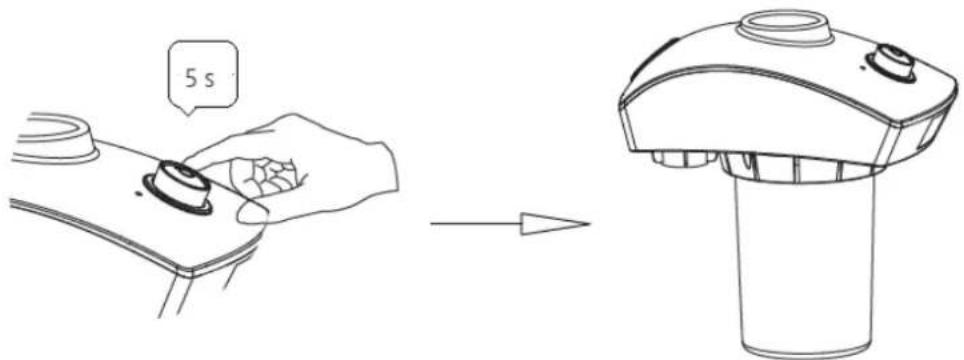

1. The ozone can be controlled individually. Press and hold the on/off-button for 5 seconds and the ozone light will turn on or off:

5 s

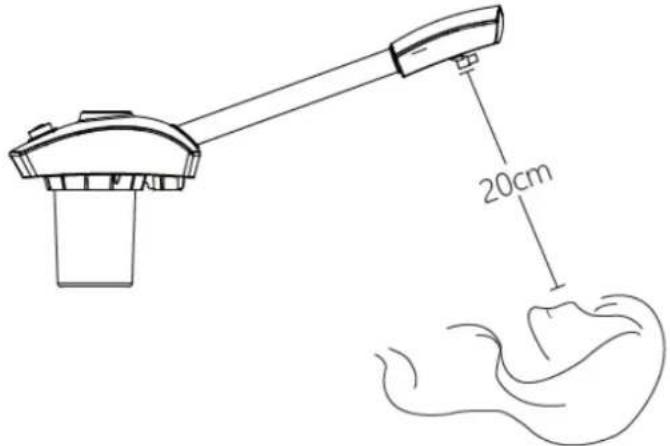

1. When the steam comes out from the spray pipe, get it close to the treated person's face. The ideal distance between the spray nozzle and the face is about 20 cm. CAUTION: don't get too close to the skin to avoid burning!

20cm

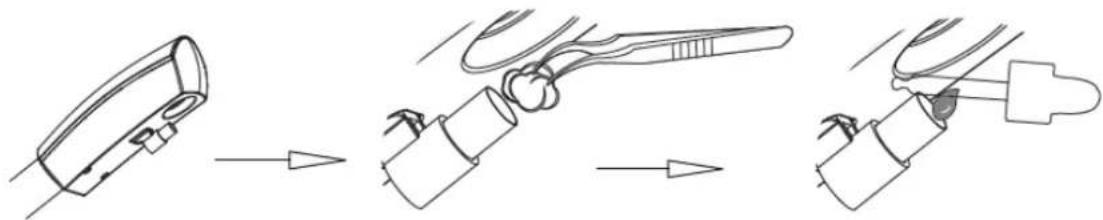

1. Aroma therapy function: put a piece of cotton into the aroma tube and drop some essential oils on the cotton. The aroma will be brought out when the steam sprays:

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

CAUTIONS AND MAINTENANCE

a) Do not place the device upside down or tilt it when it is in operation; use it only on a level surface.
b) Do not start the device without water.
c) Do not use additives in the water.
d) Do not touch the water tank when it is hot!
e) Make sure to drain the water if the device will be left unused for a longer time.
f) Clean the water reservoir every 1-2 months (depending on usage frequency) – unplug the device and let the water completely cool of in it. Unscrew the reservoir form the steamer body and wash it with clean water and mild detergents only. After fully dried reinstall it to the steamer.

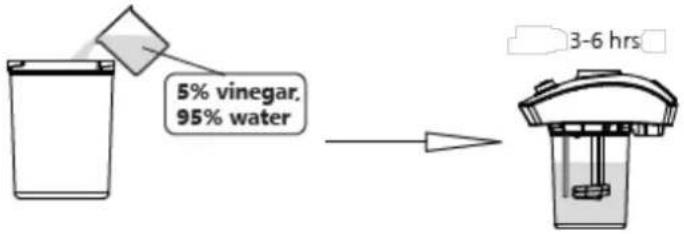

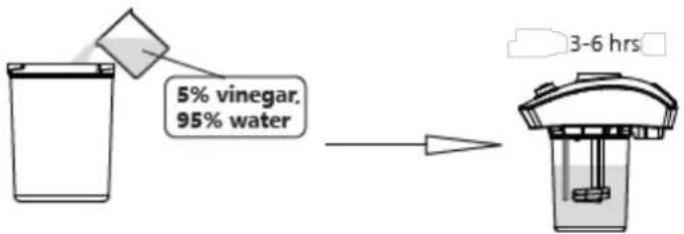

g) If the heating pipe is incrusted, clean it with 5% vinegar solution:

• Unplug the unit and make sure the water jar is NOT HOT.

Pure electrical circuit components without any text or symbols

- Immerse the heating pipe into 5% vinegar solution (5% vinegar, 95% clean water) and let it stay for 3-6 hours, the incrusting will come off gradually.

5% vinegar. 95% water 3-6 hrs

- Remove the water jar from main body by turning it anti-clockwise and pour out the vinegar solution.

Diagram of a mechanical device with rotating arm and curved base, showing motion direction (no text or symbols)

- Rinse the heating pipe in the water reservoir with clean water.

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

A B C D E F G H I

Simple line drawing of a lever with weights and a handle, labeled '1' at bottom (no text or symbols on the diagram itself)

Diagram of a four-wheeled cart with wheels and a small component, labeled '2' (no text or symbols on the diagram itself)

Diagram of a mechanical device with rotating components and a dashed circle highlighting a central component (no text or symbols)

Simple line drawing of a vertical pole with a curved arrow indicating motion, labeled '4' at the base (no text or symbols on the diagram itself)

Line drawing of a medical or office stand with a labeled scale and arrow (no text or symbols on the device itself)

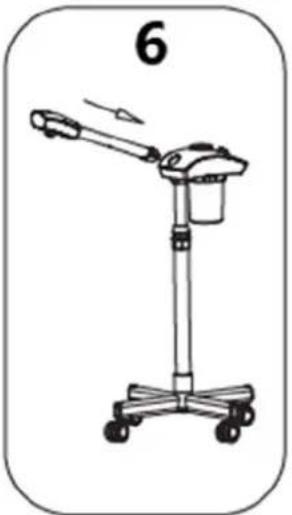

Line drawing of a medical or surgical device with a stand and wheels, labeled with the number 6 (no text or symbols on the device itself)

7 !

Line drawing of a medical or laboratory device with a vertical stand and wheels, labeled with number 8 (no text or symbols on the device itself)

WSKAZÓWKI DOTYCZĄCE DZIAŁANIA

Diagram showing a device before and after assembly, with labeled parts and directional arrow indicating process.

Diagram showing a device with lock and 90-degree angle annotation, alongside its symbolic diagram.

Diagram illustrating the step-by-step assembly of a steam fan with labeled parts including STEAM, ozone, and thermometer.

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

Pure electrical circuit symbols without any text or labels

5% vinegar. 95% water 3-6 hrs

Diagram of a robotic arm interacting with a tilted container, showing motion arrows (no text or symbols)

UTYLIZACJA URZĄDZEŃ ZUŻYTYCH

A B C D E F G H I

Simple line drawing of a lever with weights and a fulcrum, labeled '1' (no text or symbols on the diagram itself)

Diagram of a four-wheeled cart with wheels and a small container, labeled '2' (no text or symbols on the diagram itself)

Diagram of a mechanical device with rotating components and a dashed circle highlighting a central component (no text or symbols)

Line drawing of a vertical pole-mounted device with a curved arrow indicating motion, labeled '4' (no text or symbols on the device itself)

Line drawing of a medical or office stand with a labeled scale and arrow (no text or symbols on the device itself)

Line drawing of a medical or surgical device with a stand and wheels, labeled with the number 6 (no text or symbols on the device itself)

7 !

Line drawing of a medical or laboratory stand with a labeled number 8 (no text or symbols on the device itself)

PROVOZNÍ TIPY

Diagram showing a device component before and after assembly, with labeled parts and directional arrow

1. Vhodný typ vody

Diagram showing a device with lock and 90-degree angle annotation, illustrating the process from left to right.

Diagram illustrating the step-by-step assembly of a steam valve mechanism, showing hand positioning, dial indicator, and temperature sensor.

Diagram showing three sequential steps of a handheld device with arrows indicating motion (no text or symbols)

UPOZORNĚNÍ A ÚDRŽBA

Pure electrical circuit symbols without any text or labels

5% vinegar. 95% water 3-6 hrs

Diagram of a robotic arm interacting with a tilted container, showing motion arrows (no text or symbols)

LIKVIDACE POUŽITÉ ZAŘÍZENÍ

A B C D E F G H I

Simple line drawing of a lever with weights and a fulcrum, labeled '1' (no text or symbols on the diagram itself)

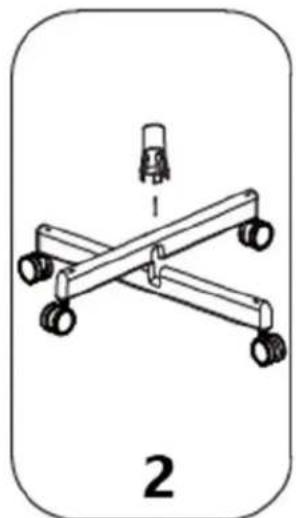

Simple line drawing of a four-wheeled cart with wheels, no text or symbols present

Diagram of a mechanical device with a rotating shaft and circular component, labeled '3' (no text or symbols on the diagram itself)

Line drawing of a vertical pole-mounted device with a curved arrow indicating rotation, labeled '4' (no text or symbols on the device itself)

Line drawing of a medical or laboratory stand with a labeled component (no text or symbols on the device itself)

Line drawing of a medical or surgical device with a stand and arrow, labeled '6' (no text or symbols on the device itself)

7 !

Line drawing of a medical or laboratory device with a stand and wheels (no text or symbols)

CONSEILS D'UTILISATION

Diagram showing a device component before and after assembly, with labeled parts and directional arrow

Diagram showing a device with lock and 90-degree angle annotation, alongside its symbolic representation.

Diagram illustrating the step-by-step installation of a steam fan with labeled parts including STEAM, ozone, and thermometer.

Diagram showing three-step assembly of a handheld device with motion arrows (no text or symbols)

PRÉCAUTIONS ET ENTRETIEN

Pure electrical circuit symbols without any text or labels

5% vinegar. 95% water 3-6 hrs

Diagram of a mechanical device with directional arrows indicating motion or flow, no text or symbols present

ÉLIMINATION DES APPAREILS USAGÉS

A B C D E F G H I

Simple line drawing of a lever with weights and a handle, labeled '1' at bottom (no text or symbols on the diagram itself)

Diagram of a four-wheeled cart with wheels and a small component, labeled '2' (no text or symbols on the diagram itself)

Diagram of a mechanical device with rotating components and a dashed circle highlighting a central component (no text or symbols)

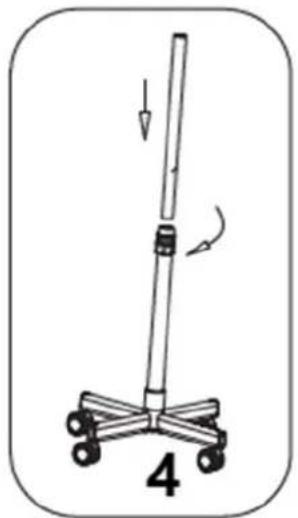

Simple line drawing of a vertical pole with a curved arrow indicating motion, labeled '4' at the base (no text or symbols on the diagram itself)

Line drawing of a medical or office stand with a labeled scale and arrow (no text or symbols on the device itself)

Line drawing of a medical or surgical device with a stand and wheels, labeled with the number 6 (no text or symbols on the device itself)

7 !

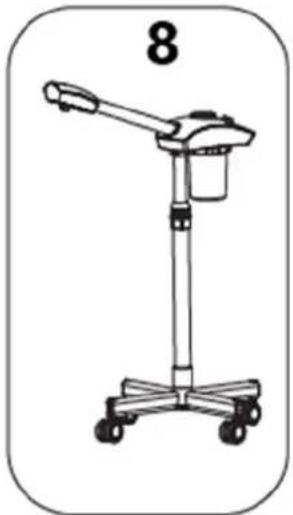

Line drawing of a medical or laboratory device with a vertical stand and wheels, labeled with the number 8 (no text or symbols on the device itself)

SUGGERIMENTI PER L'USO

Diagram showing a device before and after transformation, with labeled components and directional arrow

Diagram showing a device with lock mechanism and 90-degree angle annotation

Diagram illustrating the step-by-step assembly of a steam control device with labeled parts including STEAM, COZONE, and thermometer.

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

Pure electrical circuit components without any text or symbols

5% vinegar. 95% water 3-6 hrs.

Diagram of a mechanical device with rotating arm and curved handle, showing motion direction (no text or symbols)

Diagram illustrating a cleaning or cleaning process with labeled components and water drop symbol

SMALTIMENTO DEI DISPOSITIVI USATI

A B C D E F G H I

Simple line drawing of a lever with weights and a handle, labeled '1' at bottom (no text or symbols on the diagram itself)

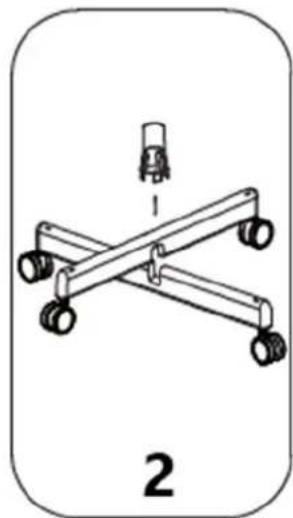

Diagram of a four-wheeled cart with wheels and a small component, labeled '2' (no text or symbols on the diagram itself)

Diagram of a mechanical device with rotating components and a dashed circle highlighting a central component (no text or symbols)

Simple line drawing of a vertical pole with a curved arrow indicating motion, labeled '4' at the base (no text or symbols on the diagram itself)

Line drawing of a medical or office stand with a labeled scale and arrow (no text or symbols on the device itself)

Line drawing of a medical or surgical device with a stand and wheels, labeled with number 6 (no text or symbols on the device itself)

7 !

Line drawing of a medical or laboratory device with a vertical stand and wheels, labeled with number 8 (no text or symbols on the device itself)

Diagram showing a device before and after assembly, with labeled parts and directional arrow

Diagram showing a device with lock mechanism and 90-degree angle annotation

Diagram illustrating the step-by-step assembly of a remote control device, showing hand positioning, valve dial with STEAM and ozone labels, and temperature sensor.

Diagram showing three sequential steps of a handheld device with motion arrows, no text or symbols present.

Pure electrical circuit components without any text or symbols

5% vinegar. 95% water 3-6 hrs

Diagram of a robotic arm and a bucket pouring liquid, showing motion direction (no text or symbols)

Diagram illustrating a cleaning or water treatment process with labeled components and water flow indicators

A B C D E F G H I

Simple line drawing of a lever with weights and a handle, labeled '1' at bottom (no text or symbols on the diagram itself)

Diagram of a four-wheeled cart with wheels and a small component, labeled '2' (no text or symbols on the diagram itself)

Diagram of a mechanical device with rotating components and a dashed circle highlighting a central component (no text or symbols)

Simple line drawing of a vertical pole with a curved arrow indicating motion, labeled '4' at the base (no text or symbols on the diagram itself)

Line drawing of a medical or office stand with a labeled scale and arrow (no text or symbols on the device itself)

Line drawing of a medical or surgical device with a stand and wheels, labeled with the number 6 (no text or symbols on the device itself)

7 !

Line drawing of a medical or laboratory device with a vertical stand and wheels, labeled with number 8 (no text or symbols on the device itself)

ÜZEMELTETÉSI TIPPEK

Diagram showing a device with internal components before and after transformation, labeled with Chinese text.

1. Megfelelő víztípusú

Diagram showing a device with lock and 90-degree angle annotation, illustrating the process from left to right.

Diagram illustrating the step-by-step assembly of a remote control device, showing hand positioning, temperature measurement, and sensor placement.

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

Pure electrical circuit components without any text or symbols

5% vinegar. 95% water 3-6 hrs

Diagram of a mechanical device with rotating arm and curved base, showing motion direction (no text or symbols)

HASZNÁLT ESZKÖZÖK ÁRTALMATLANÍTÁSA

A B C D E F G H I

Diagram showing a device with internal components before and after assembly, including a circular component with internal structure (no text or symbols)

1. Passende vandtype

Diagram showing a device with lock and 90-degree angle annotation, alongside its schematic diagram.

Diagram illustrating the step-by-step assembly of a steam fan with labeled parts including STEAM, OZONE, and temperature sensor.

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

FORSIGTIGHEDSREGLER OG VEDLIGEHOLDELSE

Pure electrical circuit components without any text or symbols

5% vinegar. 95% water 3-6 hrs

Diagram of a mechanical device with lever and load, showing motion direction (no text or symbols)

BORTSKAFFELSE AF BRUGTE ENHEDER

A B C D E F G H I

Diagram showing a device before and after assembly, with labeled components and directional arrow

1. Sopiva vesityyppi

Diagram showing a device with lock and 90-degree angle annotation, alongside its schematic diagram.

Diagram illustrating a water pump system with labeled MAX and MIN volumes, showing flow direction and component placement.

Diagram illustrating the step-by-step assembly of a steam valve mechanism, showing hand positioning, dial indicator, and temperature sensor.

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

VAROITUKSET JA HUOLTO

Pure electrical circuit components without any text or symbols

5% vinegar. 95% water 3-6 hrs

Diagram of a robotic arm interacting with a tilted rectangular object, showing motion arrows (no text or symbols)

KÄYTETTYJEN LAITTEIDEN HÄVITTÄMINEN

APPARAATBESCHRIJVING

A B C D E F G H I

Diagram showing a device before and after assembly, with labeled components and directional arrow

1. Geschikt watertype

Diagram showing a device with an arrow pointing to a lock icon, alongside a 90-degree angle measurement.

Diagram illustrating the step-by-step assembly of a remote control device, showing hand positioning, thermal measurement, and temperature adjustment.

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

VOORZORGSMAATREGELEN EN ONDERHOUD

Pure electrical circuit components without any text or symbols

5% vinegar. 95% water 3-6 hrs

Diagram showing a mechanical device interacting with a container, illustrating fluid flow or motion (no text or symbols)

Diagram illustrating a cleaning or water treatment process with labeled components and water flow indicators

AFVOEREN VAN GEBRUIKTE APPARATEN

A B C D E F G H I

Diagram showing a device before and after assembly, with labeled parts and directional arrow

1. Egnet vanntype

Diagram showing a device with lock and 90-degree angle annotation, alongside its schematic diagram.

Diagram illustrating a water pump system with labeled MAX and MIN volumes, showing flow direction and component placement.

Diagram illustrating the step-by-step assembly of a remote control device, showing hand positioning, temperature measurement, and cooling mechanism.

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

FORHOLDSREGLER OG VEDLIKEHOLD

Pure electrical circuit components without any text or symbols

5% vinegar. 95% water 3-6 hrs

Diagram of a robotic arm and a bucket pouring liquid, showing motion flow (no text or symbols)

- Skyll varmerøret i vannbeholderen med rent vann.

KASSERING AV BRUKTE ENHETER

A B C D E F G H I

Diagram showing a device before and after assembly, with labeled parts and directional arrow

1. Lämplig vattentyp

Diagram showing a device with an arrow pointing to a lock icon, alongside a 90-degree angle measurement.

Diagram illustrating the step-by-step assembly of a steam fan with labeled parts including STEAM, OZONE, and temperature sensor.

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

FÖRSIKTIGHET OCH UNDERHÅLL

Pure electrical circuit components without any text or symbols

5% vinegar. 95% water 3-6 hrs

Diagram of a mechanical device with rotating arm and curved base, showing motion direction (no text or symbols)

KASSERING AV ANVÄNDA ENHETER

A B C D E F G H I

Simple line drawing of a lever with weights and a handle, labeled '1' at bottom (no text or symbols on the diagram itself)

Diagram of a four-wheeled cart with wheels and a small component, labeled '2' (no text or symbols on the diagram itself)

Diagram of a mechanical device with rotating components and a dashed circle highlighting a central component (no text or symbols)

Simple line drawing of a vertical pole with a curved arrow indicating motion, labeled '4' at the base (no text or symbols on the diagram itself)

Line drawing of a medical or office stand with a labeled scale and arrow (no text or symbols on the device itself)

Line drawing of a medical or surgical device with a stand and wheels, labeled with the number 6 (no text or symbols on the device itself)

7 !

Line drawing of a medical or laboratory device with a vertical stand and wheels, labeled with number 8 (no text or symbols on the device itself)

DICAS DE OPERAÇÃO

Diagram showing a device before and after assembly, with labeled components and directional arrow

Diagram showing a device with lock and 90-degree angle measurement, alongside its schematic diagram.

Diagram illustrating the step-by-step assembly of a remote control device, showing hand positioning, temperature reading, and thermal application.

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

Pure electrical circuit components without any text or symbols

5% vinegar. 95% water 3-6 hrs.

Diagram of a mechanical device with rotating arm and load, showing motion direction (no text or symbols)

A B C D E F G H I

Diagram showing a device before and after assembly, with labeled components and directional arrow

1. Vhodný typ vody

Diagram showing a device with lock and 90-degree angle annotation, illustrating the process from left to right.

1. Naplňte nádržku na vodu cez horný otvor na naparovači čistou vodou. Uistite sa, že hladina vody je medzi značkami MAX a MIN (neprepĺňajte!):

MAX MIN

Diagram illustrating the step-by-step assembly of a remote control device, showing hand positioning, thermal reading, and temperature sensor placement.

Diagram showing three sequential steps of a handheld device with arrows indicating motion (no text or symbols)

UPOZORNENIA A ÚDRŽBA

A B C D E F G H I

Simple line drawing of a lever with weights and a fulcrum, labeled '1' (no text or symbols on the diagram itself)

Diagram of a four-wheeled cart with wheels and a small object above it, labeled '2' (no text or symbols on the diagram itself)

Diagram of a mechanical device with a rotating shaft and circular component, labeled '3' (no text or symbols on the diagram itself)

Line drawing of a vertical pole-mounted device with a curved arrow indicating rotation, labeled '4' (no text or symbols on the device itself)

Line drawing of a medical or laboratory stand with a labeled component (no text or symbols on the device itself)

Line drawing of a medical or surgical device with a stand and arrow indicator (no text or symbols)

7 !

Line drawing of a medical or laboratory device with a vertical stand and wheels (no text or symbols)

Diagram showing a device component before and after assembly, with labeled parts and directional arrow

Diagram showing a device with lock and 90-degree angle annotation, alongside its symbolic representation.

Diagram illustrating the step-by-step installation of a steam fan with labeled parts including STEAM, ozone, and thermometer.

Diagram showing three-step assembly of a handheld device with motion arrows (no text or symbols)

Pure electrical circuit symbols without any text or labels

5% vinegar. 95% water 3-6 hrs

Diagram of a mechanical device with directional arrows indicating motion or flow, no text or symbols present

ИЗХВЪРЛЯНЕ НА ИЗПОЛЗВАНИ УСТРОЙСТВА

A B C D E F G H I

Simple line drawing of a lever with weights and a handle, labeled '1' at bottom (no text or symbols on the diagram itself)

Diagram of a four-wheeled cart with wheels and a small component, labeled '2' (no text or symbols on the diagram itself)

Diagram of a mechanical device with rotating components and a dashed circle highlighting a central component (no text or symbols)

Simple line drawing of a vertical pole with a curved arrow indicating motion, mounted on a four-wheeled base (no text or symbols)

Line drawing of a medical or office stand with a labeled component (no text or symbols on the device itself)

Line drawing of a medical or surgical device with a stand and wheels, labeled with the number 6 (no text or symbols on the device itself)

7 !

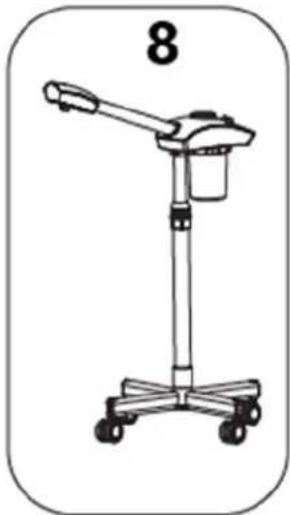

Line drawing of a medical or laboratory device with a vertical stand and wheels, labeled with number 8 (no text or symbols on the device itself)

Diagram showing a device before and after assembly, with labeled parts and directional arrow

Diagram showing a device with lock mechanism and 90-degree angle annotation

Diagram illustrating a water filtration or injection process with labeled MAX and MIN volumes and a pump mechanism.

Diagram illustrating the step-by-step assembly of a remote control device, showing hand positioning, temperature reading, and usage mechanism.

Three-step diagram showing a handheld device being processed with wires, no text or symbols present

Pure electrical circuit symbols without any text or labels

5% vinegar. 95% water 3-6 hrs.

Diagram of a mechanical device with lever and load, showing motion direction (no text or symbols)

A B C D E F G H I

A. Otvor za punjenje vode
B. Cijev za emitiranje aroma
C. Cijev za prskanje
D. Prekidač za uključivanje/isključivanje kuhala na pari s gumbom za mjerenje vremena
E. Parobrod
F. Rezervoar za vodu
G. Teleskopski stup
H. Baza

I. Kotačići

SKUPŠTINA

SAVJETI ZA RAD

Diagram showing a device before and after transformation, with labeled components and directional arrow

1. Prikladna vrsta vode

Ovaj aparat za paru radi s gotovo svim vrstama čiste vode, kao što su pročišćena voda, destilirana voda, mineralna voda, voda iz slavine itd. Međutim, za najbolju izvedbu i pravilno održavanje ove jedinice koristite pročišćenu ili destiliranu vodu.

UPOZORENJE: u vodu nemojte dodavati nikakve aditive ili eterična ulja. To može oštetiti jedinicu ili uzrokovati ozljede korisnika!

KORIŠTENJE UREĐAJA

Diagram showing a device with lock mechanism and 90-degree angle annotation

1. Napunite čistom vodom rezervoar za vodu kroz gornji otvor na aparatu za paru. Provjerite je li razina vode između oznaka MAX i MIN (nemojte preliti!):

MAX MIN

Diagram illustrating the step-by-step assembly of a steam fan with labeled parts including STEAM, OZONE, and temperature sensor.

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

OPREZ I ODRŽAVANJE

Pure electrical circuit symbols without any text or labels

5% vinegar. 95% water 3-6 hrs

- Uklonite posudu za vodu s glavnog tijela okretanjem suprotno od kazaljke na satu i izlijte otopinu octa.

Diagram of a robotic arm interacting with a tilted container, showing motion arrows (no text or symbols)

ZBRINJAVANJE KORIŠTENIH UREĐAJA

Nemojte odlagati ovaj uređaj u sustave komunalnog otpada. Predajte ga mjestu za prikupljanje i recikliranje električnih i električnih uređaja. Provjerite simbol na proizvodu, priručniku s uputama i pakiranju. Plastika koja se koristi za izradu uređaja može se reciklirati u skladu s oznakama. Odabirom recikliranja dajete značajan doprinos zaštiti našeg okoliša.

Obratite se lokalnim vlastima za informacije o vašem lokalnom pogonu za recikliranje.

A B C D E F G H I

Diagram showing a device before and after assembly, with no visible text or symbols

1. Tinkamas vandens tipas

Diagram showing a device with lock and 90-degree angle annotation, alongside its symbolic diagram.

Diagram illustrating the step-by-step assembly of a steam fan with labeled parts including STEAM, OZONE, and temperature sensor.

Three-step diagram showing a tool being processed from a device, with no visible text or symbols.

ATSARGIAI IR PRIEŽIŪRA

Pure electrical circuit symbols without any text or labels

5% vinegar. 95% water 3-6 hrs

Diagram of a robotic arm interacting with a tilted container, showing motion arrows (no text or symbols)

PANAUDOTŲ PRIETAISŲ IŠMETIMAS

A B C D E F G H I

Diagram showing a device before and after assembly, with labeled components and directional arrow

1. Tip de apă potrivit

Diagram showing a device with lock and 90-degree angle annotation, illustrating the process from left to right.

Diagram illustrating the step-by-step assembly of a steam fan with labeled parts including STEAM, OZONE, and temperature sensor.

Diagram showing three sequential steps of a handheld device with arrows indicating motion (no text or symbols)

Pure electrical circuit symbols without any text or labels

5% vinegar. 95% water 3-6 hrs

Diagram of a robotic arm interacting with a tilted container, showing motion arrows (no text or symbols)

ELIMINAREA DISPOZITIVELOR UTILIZATE

A B C D E F G H I

Simple line drawing of a lever with weights and a handle, labeled '1' (no text or symbols on the diagram itself)

Diagram of a four-wheeled cart with wheels and a small container, labeled '2' (no text or symbols on the diagram itself)

Diagram of a mechanical device with rotating components and a dashed circle highlighting a central axis (no text or symbols)

Line drawing of a vertical pole-mounted device with a curved arrow indicating motion, labeled '4' (no text or symbols on the device itself)

Line drawing of a medical or office stand with a labeled scale and arrow (no text or symbols on the device itself)

Line drawing of a medical or surgical device with a stand and wheels, labeled with the number 6 (no text or symbols on the device itself)

7 !

Line drawing of a medical or laboratory stand with a labeled number 8 (no text or symbols on the device itself)

NASVETI ZA DELOVANJE

1. Sistem za zaznavanje nivoja vode

Diagram showing a device component before and after assembly, with labeled parts and directional arrow

1. Primerna vrsta vode

Diagram showing a device with lock and 90-degree angle annotation, alongside its schematic diagram.

Diagram illustrating the step-by-step assembly of a steam fan with labeled parts including STEAM, OZONE, and temperature gauge.

1. Ozon je mogoče nadzorovati individualno. Pritisnite in držite gumb za vklop/izklop 5 sekund in ozonska lučka se bo vklopila ali ugasnila:

5 s

Three-step diagram showing a device being processed from a tool, with no visible text or symbols.

PREVIDNOST IN VZDRŽEVANJE

a) Naprave ne postavljajte na glavo in je ne nagibajte, ko deluje; uporabljajte samo na ravni površini.

b) Naprave ne zaženite brez vode.

Pure electrical circuit components without any text or symbols

- Grelno cev potopite v 5 % raztopino kisa (5 % kisa, 95 % čiste vode) in pustite 3-6 ur, da se bo skorja postopoma odstranila.

5% vinegar. 95% water 3-6 hrs.

- Odstranite posodo za vodo z glavnega ohišja tako, da jo obrnete v nasprotni smeri urinega kazalca, in izlijete raztopino kisa.

Diagram of a mechanical device with rotating arm and curved base, showing motion direction (no text or symbols)

- Ogrevalno cev v zbiralniku vode sperite s čisto vodo.

ODSTRANJEVANJE RABLJENIH NAPRAV

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
