USER MANUAL AW30TL2HFA HAIER

FanTurbo Cool Heat Dry Temp + Swing Swing << > Temp - Health Quiet Extra Function Sleep F/C Confirm/Cancel Lock Light Reset Haier

TABLE OF CONTENTS

SAFETY INFORMATION 4

REMOTE CONTROL FEATURES AND SETTINGS ....5

TROUBLESHOOTING TIPS 9

LIMITED WARRANTY 10

Record Keeping

Thank you for purchasing this Haier product. This installation manual will help you get the best performance from your new remote

For future reference, record the model and serial number located on the label on the inside of your remote, and the date of purchase.

Staple your proof of purchase to this manual to aid in obtaining warranty service if needed.

To register your new Haier Duct Free System go to https://www.haierductless.com/product-registration and input the model/serial number information on this page. To receive a 10-year compressor and parts warranty, registration is required within 60 days of installation.

Model number

Serial number

Date of purchase

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

• Use this appliance only for its intended purpose as described in this Owner's Manual.
• This heat pump must be properly installed in accordance with the Installation Instructions before it is used.
• Turn the unit OFF and unplug your heat pump before cleaning the air filter.

- GE Appliances does not support any servicing of the heat pump. We strongly recommend that you do not attempt to service the heat pump yourself.

- For your safety...do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

- These R410A heat pump systems require contractors and technicians use tools, equipment and safety standards approved for use with this refrigerant. DO NOT use equipment certified for R22 refrigerant only.

⚠ WARNING

Keep batteries away from children.

- This remote controller contains batteries. If a new or used battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children.

- If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

- The cells shall be disposed of properly, including keeping them away from children.

• Even used cells may cause injury.

Remote Control

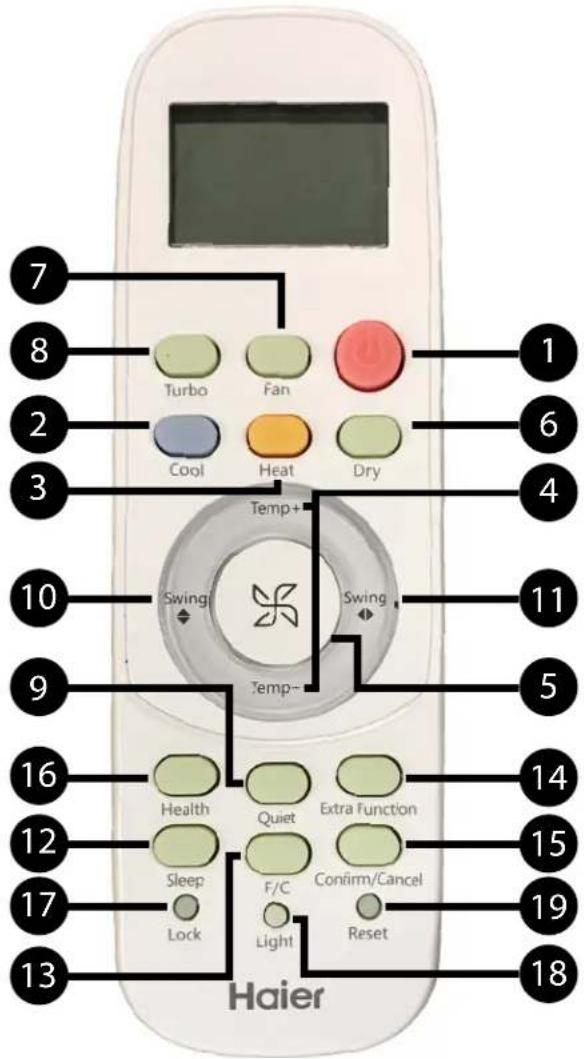

7 8 Turbo Fan 1 2 Cool Heat Dry 3 Temp+ 4 10 Swing Swing 11 9 Temp- 5 16 Health Quiet Extra Function 14 12 Sleep F/C Confirm/Cancel 15 17 Lock Light Reset 19 Haier 18

1. Power Button

Press the ON/OFF button on the remote control to start or stop the unit.

2. COOL Button

In COOL mode, the unit operates in cooling. When FAN is set to AUTO, the heat pump automatically adjusts the fan speed according to the room temperature. The will be displayed during COOL mode.

3. HEAT Button

In HEAT mode, warm air will blow out after a short period of the time due to cold-air prevention function. When FAN is set to AUTO, the heat pump automatically adjusts the fan speed according to room temperature. The Qwill be displayed during HEAT mode.

4. Temperature +/- Buttons

Temp + : Every time the button is pressed, the temperature setting increases. Temp - : Every time the button is pressed, temperature setting decreases. The operating temperature range is 60°F-86°F (16°C-30°C).

5. FAN SPEED Button

FAN SPEED: For each press the fan speed changes as follows:

Remote control:

6. DRY Button

DRY mode is used to reduce humidity. In DRY mode, when room temperature becomes lower than temp. setting +2°F, unit will run intermittently at LOW speed regardless of FAN setting. The Ⓚwill be displayed during DRY mode.

7. FAN MODE Button

FAN mode circulates air only; there is no temperature adjustment available. Use the fan speed button (5) to adjust fan speed from low, medium to high. Auto, Turbo and Quiet are not available.

8. TURBO Button

The TURBO function is used for fastest air flow in Heating or Cooling modes. Control will display the TURBO icon [UP ARROW] on the bottom right side of the remote display. Pressing the TURBO button again or the FAN SPEED button will turn TURBO off.

9. Quiet Button

The QUIET function switches the fan to the lowest speed. The control will display the QUIET icon [DOWN ARROW] on the bottom left side of the remote display. Pressing the QUIET button again or the FAN SPEED button will turn QUIET off.

10. Louver UP/DOWN Button

Press the LOUVER UP/DOWN button to choose the position of the horizontal airflow louvers.

Status display of air flow

COOL/DRY:

HEAT:

NOTE:

- It is advisable not to keep the vertical louver in the downward position for an extended period of time in COOL or DRY mode, otherwise condensate water may form on the louver.

- When turning the unit on, the remote control will automatically return the louver to the previous set swing position. When turning the unit off, the louver will rotate to the full open position prior to closing.

Remote Control Features and Settings

11. Louver SIDE/SIDE Button (select models)

- Press the LOUVER SIDE/SIDE button to choose the position of the vertical airflow louvers.

Status display of air flow

COOL/DRY/HEAT/FAN

NOTE:

• When humidity levels are high, condensate water may occur at the air outlet if all vertical louvers are adjusted to far left or right.
• When turning the unit on, the remote control will automatically return the louver to the previous set position.

12. SLEEP Button

- This SLEEP function automatically adjusts the set temperature of the heat pump to provide a comfortable sleeping environment. SLEEP function only available in COOL, HEAT and AUTO mode. The unit will exit SLEEP function in the event of pressing SLEEP button again, tuning off the unit with remote controller or shutting down the whole system from power outlet. If no other command chosen during SLEEP function, the unit will shut off itself after 8 hours of run time. During SLEEP function, the fan speed can be adjusted to the desired comfort level. The control logics for SLEEP function will follow as below charts for different modes:

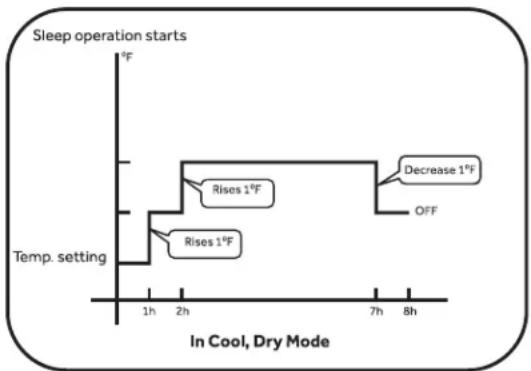

1. COOL or DRY modes


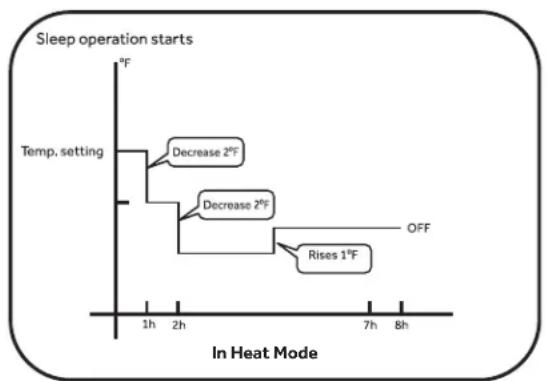

1. Heat Mode

13. Fahrenheit/Celcius Button

- Press F/C to toggle remote and unit display temperature between Fahrenheit and Celsius.

14. EXTRA FUNCTION Button

- Press the EXTRA FUNCTION button to view all other operations. Press CONFIRM/CANCEL to select and save the chosen operation. If no button is pressed for 10 seconds, the remote will exit EXTRA FUNCTION mode.

A) Refresh air ⬤Feature not available on this series.
B) A-B selection - This will allow you to control two separate units with a single remote control. Note: This feature would be setup at the time of installation by the contractor.
C) Auto mode 📋 The heat pump will automatically select Cool, Heat, or Fan operation according to set temperature. When FAN is set to AUTO the heat pump automatically adjusts the fan speed according to room temperature.
D) Upper and Lower louver lock.

1. Upper louver lock will lock the horizontal louver in the top position. Commonly used during cooling.
2. Lower louver lock will lock the horizontal louver in the lower position. Commonly used during heating.
3. To unlock the louver press EXTRA FUNCTION button until either a single louver icon or oscillate icon .

Note: When the louver is locked, the position cannot be changed with the LOUVER UP/DOWN button.

E) Timer ON/OFF: Sets a countdown timer until the unit is turned ON/OFF. TEMP+/TEMP- button is pressed with the length of time increment/decrement in 0.5 hour between 0-12 hours, and 1 hour increment/decrement between 12-24 hours.
1. When the remote is set to ON, the system will turn off until the countdown timer ends. Then the indoor unit will turn on and operate in mode, temperature setting and fan speed that was displayed when timer was set.
2. When the remote is set to OFF, the system will remain ON until the countdown timer ends.
F) 50°F Heating sets the system to maintain 50°F. This is used to prevent freezing during long unoccupied periods of time.

A 50°F

15. Confirm/Cancel Button

- Saves and exits the EXTRA FUNCTION selection.

16. HEALTH Button

- Feature is not Available

17. LOCK Button

• Used to lock buttons and LCD display.

Remote Control Features and Settings

18. LIGHT Button

The indoor display panel will show indoor set temperature by default. Press this button once, it will display the room temperature. Press this button twice within 3 seconds, it will turn off the indoor display panel. Press again to go back to display indoor set temperature.

19. RESET Button

If the remote control is not functioning properly, use a pen point or a similar object to depress this button to reset the remote.

Emergency Operation and Maintenance

Emergency Operation

• Use this operation only when the remote control is defective or lost.
• When the emergency operation switch is pressed, the unit beeps once, which indicates the start of this operation.
• The unit will run automatically in the following modes:

Room temperature	Designated temperature	Timer mode	Fan speed	Operation mode
Above 73°F	79°F	No	AUTO	COOL
Below 73°F	73°F	No	AUTO	HEAT

emergency operation switch **emergency operation switch

** This image only applies to AW09TE2VHA, AW07TC2HDA, AW09TC2HDA, AW12TC2HDA, AW18TC2HDA, AW24TC2HDA, AW18TE2HDA, AW24TE2HDA & AW12TE2VHA models.

- During emergency operation, it is not possible to change the temperature or fan speed. It is also not possible to operate in timer or dry modes.

Inserting the Batteries

1. Remove the battery cover
2. Insert 2 AAA batteries as illustrated noting battery polarity
3. Reinstall the battery cover.

NOTE:

• The distance from the remote control to the receiver should be less than 23 feet with no obs
- If the remote control display is weak or the operating distance has diminished, the batteries may need to be replaced.
- Remote control malfunctions can sometimes be corrected by removing the batteries from the remote for a few minutes and then reinstalling them.
- Remove the batteries from the remote control if the unit will not be in use for an extended period of time. If any segments of the display remain active after battery removal, press the reset button

Diagram of a battery pack with labeled parts and directional arrows indicating movement or assembly.

Optimizing Performance

Close doors and windows during operation

Do not block the air inlet or outlet

Wipe the cabinet using a soft and dry cloth. For serious stains, use a neutral detergent diluted with water. Wring the water out of the cloth before wiping down the unit. Then wipe off the detergent completely.

Cleaning the Front Cover

1. Open the front cover by pulling it upward
2. Remove the Filter:

Gently push up on the filter's center tab until it is released from the stopper, and remove the filter in a downward motion.

1. Clean the filter:
   Use a vacuum cleaner to remove dust, or wash the filter with water. After washing, dry the filter completely.
2. Attach the filter:
   Attach the filter so that the "FRONT" label is facing outward. Make sure that the filter is securely attached behind the holding tabs. If the filter is not attached correctly the unit may not achieve maximum efficiency.
3. Close the front cover.

For additional troubleshooting tips, see the full owner's manual at GEAppliances.com.

	Problem Cause and Solution
Normal Performance Inspection	The system does not restart immediately	When the unit is stopped, it will not restart again for 3 minutes to protect the system.When electricity is disconnected then reconnected, the protection circuit will be active for 3 minutes to protect the heat pump.
	Noise is heard	During unit operation or a sudden stop, a swishing or gurgling noise may be heard. The first 2-3 minutes after the unit has started is when the noise could be noticeable. This noise is generated by refrigerant flowing in the system.During unit operation, a cracking noise may be heard. This noise is sometimes generated by the casing expanding or shrinking due to temperature changes.If the airflow is creating a loud noise during unit operation, the air filter may be too dirty.
	Odors The system circulates	odors lingering in the airstream, such as the smell of furniture, paint, and/or cigarettes.
	Mist or steam is blowing out	During COOL or DRY mode, the indoor unit may blow out mist or steam. This is due to the sudden cooling of the indoor air.
	In DRY mode, fan speed cannot be changed	In DRY mode, when the room temperature becomes lower than the set temperature by 2°F, the unit will run intermittently at LOW speed regardless of FAN setting.
Items to look for		Is there a power failure?Is the circuit breaker off?Is the fuse blown?
	Poor Cooling	Is the air filter dirty?Is there anything blocking the inlet and/or outlet?Is the temperature set correctly?Are there any doors or windows open?Is there any direct sunlight shining through the window during the cooling operation?Are there too many heat sources or too many people in the room during cooling operation?

LIMITED WARRANTY

For warranty detail please refer to installation manual.

Notes

Table des matières

CONSIGNES DE SÉCURITÉ ....12

RÉGLAGES ET FONCTIONS DE LA TÉLÉCOMMANDE ....13

FONCTIONNEMENT D'URGENCE ET ENTRETIEN 15

CONSEILS DE DÉPANNAGE 16

GARANTIE LIMITÉE 17

Room temperature	Designated temperature	Timer mode	Fan speed	Operation mode
Above 73°F	79°F	No	AUTO	COOL
Below 73°F	73°F	No	AUTO	HEAT

emergency operation switch Beef *Emergency operation switch Beef

** Cette image s'applique uniquement aux modèles AW09TE2VHA, AW07TC2HDA, AW09TC2HDA, AW12TC2HDA, AW18TC2HDA, AW24TC2HDA, AW18TE2HDA, AW24TE2HDA et AW12TE2VHA

Insertion des piles

Diagram of a remote control panel with labeled components and directional arrows indicating movement or force

Close doors and windows during operation

Do not block the air inlet or outlet

Wipe the cabinet using a soft and dry cloth. For serious stains, use a neutral detergent diluted with water. Wring the water out of the cloth before wiping down the unit. Then wipe off the detergent completely.

Room temperature	Designated temperature	Timer mode	Fan speed	Operation mode
Above 73°F	79°F	No	AUTO	COOL
Below 73°F	73°F	No	AUTO	HEAT

** Esta imagen solo se aplica a los modelos AW09TE2VHA, AW07TC2HDA, AW09TC2HDA, AW12TC2HDA, AW18TC2HDA, AW24TC2HDA, AW18TE2HDA, AW24TE2HDA y AW12TE2VHA

Diagram of a battery pack with labeled parts and directional arrows indicating movement or assembly.

Close doors and windows during operation

Do not block the air inlet or outlet

Wipe the cabinet using a soft and dry cloth. For serious stains, use a neutral detergent diluted with water. Wring the water out of the cloth before wiping down the unit. Then wipe off the detergent completely.

If you have a problem with this product, please call 1-877-337-3639 for the name and telephone number of the nearest authorized service center.

DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE
