Model SPX3000-QW2

Form No. SJ-SPX3000-QW2-880E-M (Y)

IMPORTANT!

Safety Instructions

All Operators Must Read These Instructions Before Use

⚠ WARNING! This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
⚠️CAUTION! This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
⚠️DANGER! This indicates a hazardous situation, which, if not avoided, will result in death or serious injury.

General Safety

WARNING! This appliance is not intended for use by children or by unassisted, unsupervised persons whose physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.

Before starting up your machine, please check it carefully for any defects. If you find any, do not start up your machine. Instead, contact your authorized Snow Joe ^® + Sun Joe ^® dealer or call the All Season Power customer service center at 1-866-225-9723.

⚠ WARNING! When using the pressure washer, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. These include:

• Know your product – Know how to stop the machine and bleed pressure quickly. Thoroughly familiarize yourself with the controls.
• Keep bystanders away – All visitors and pets should be kept a safe distance away from the work area.
• Use the right product – Do not use this machine for any job except that for which it is intended.
• Dress properly – Do not wear loose clothing or jewelry. They can get caught in moving parts. Protective rubber gloves and non-slip footwear are recommended when working outdoors.
• Slippery surfaces – Exercise caution to avoid slipping or falling. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.

• Stay alert – Watch what you are doing. Use common sense. Do not operate the pressure washer when you are tired, or under the influence of alcohol or drugs.

• Do not overreach – Keep proper footing and balance at all times.

• Avoid unintentional starting – Do not carry a plugged-in machine with your finger on the trigger. Make sure the switch is off before plugging in the machine.
• Do not abuse the cord – Never carry the machine by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.
• Use safety glasses – Also use safety footwear, snug-fitting clothing, protective gloves, hearing and head protection.
• Check the water temperature – This pressure washer is only meant to pump cold water. NEVER connect it to a hot water supply as it will significantly reduce the life of the pump.
• Store indoors – NEVER store the pressure washer outdoors or where it could freeze. The pump could be seriously damaged.
• Ground Fault Circuit Interrupter (GFCI) – This Product Is Provided With A Class A Ground Fault Circuit Interrupter Built Into The Power Cord Plug. If Replacement Of The Plug Or Cord Is Needed, Use Only Identical Replacement Parts.
• Inspect electrical cords – The insulation of the power cord should be perfectly intact. If the power cord is damaged or shows any signs of wear or tear, do not use the pressure washer. Contact your authorized Snow Joe® + Sun Joe® dealer or call the All Season Power customer service center at 1-866-225-9723.

⚠ WARNING! Do not use this appliance without reading this instruction manual.

⚠ WARNING! This appliance has been designed for use with cleaning agents that are recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the safety of the appliance.

⚠ WARNING! Do not use the appliance within range of persons unless they are wearing protective clothing.

⚠ WARNING! Risk of injection or injury – Do not direct discharge stream at persons.

WARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself.

- Do not direct the jet at yourself or others in order to clean clothes or footwear.

If you have any questions or comments, please call the

All Season Power customer service department at:

1-866-225-9723

SAVE THESE INSTRUCTIONS

• Disconnect the tool – Disconnect from the electrical power supply before performing any maintenance task.
• Keep children away – This high-pressure electric power washer must not be used by children or untrained personnel.
• To ensure safety, use only original replacement parts from the manufacturer or those approved by the manufacturer.

⚠ WARNING! Water that has flowed through backflow preventers is considered to be non-potable.

⚠ WARNING! During cleaning, maintenance or when replacing parts, the machine must be disconnected from its power source by removing the plug from the socket outlet.

WARNING! High-pressure hoses, fittings, and couplings are important for the safe operation of the appliance. Use only hoses, fittings, and couplings recommended by the manufacturer.

• Check for damaged parts – Do not use the appliance if the supply cord or other important parts of the appliance are damaged (e.g. safety devices, high-pressure hoses, trigger gun).
• This high-pressure electric power washer must not be used at temperatures below 32°F (0°C).

⚠ WARNING! Power cords on drums should always be completely unwound to prevent the cord from overheating.

• Power cord connections should be kept dry and off the ground.
• If the power cord is damaged, do not use the appliance. Contact your authorized Snow Joe® + Sun Joe® dealer or call the All Season Power customer service center at 1-866-225-9723.
• Keep the machine on a stable, flat surface during operation, handling, transportation, and storage. Sudden overturn of the machine can cause bodily injury.
• In the event of an accident or breakdown, switch off the machine immediately. (If contact with detergent occurs, rinse with an abundance of clean water.)

Electrical Safety

ATTENTION: If there are problems with the electrical mains, short voltage drops may appear when starting the equipment. This can, in turn, influence other equipment (e.g. cause a lamp to blink). If the MAINS-IMPEDANCE Zmax < 0.335 OHM, such disturbances are not expected. (If you require assistance, contact your local supply authority for further information.)

⚠ WARNING! Electrical Shock Hazard – Before starting up your machine, please check it carefully for any defects. If you find any, do not start up your machine and contact your distributor.

The following should be observed when connecting the high-pressure electric power washer to the electric supply:

- The electric supply to this appliance should include either a residual current device that will interrupt the supply if the

leakage current to the earth exceeds 30 mA for 30 ms or a device that will interrupt the earth circuit (GFCI).

IMPORTANT: Only use water without any impurities. If there is a risk of running sand into the inlet water (i.e. from your own well), an additional filter should be installed.

Safety Devices

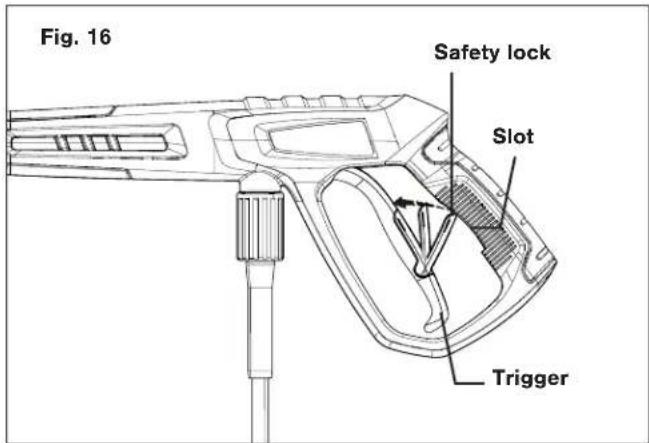

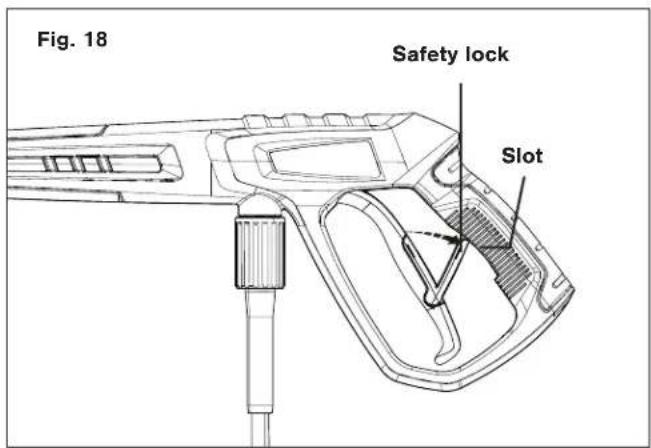

The spray gun features a safety lock. When the lock is activated, the spray gun cannot be operated.

• Thermal sensor – A thermal sensor protects the motor against overloading. If the thermal sensor is activated and the power is cut off, wait for a while until the motor is cool and restart the unit.
• Double insulation – In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe® + Sun Joe® dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words “Double Insulation” or “Double Insulated.” The symbol □square within a square) may also be marked on the appliance.

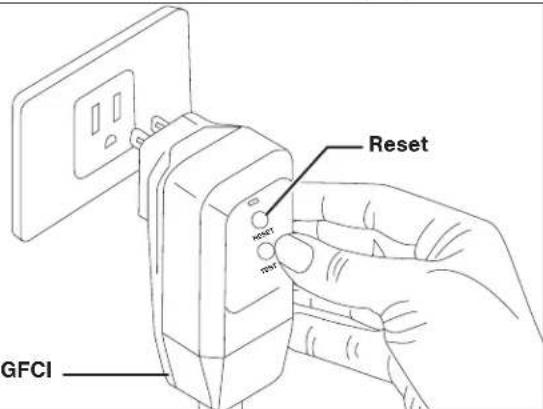

- Ground fault circuit interrupter (GFCI) protection – This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.

- It is not recommended to use an extension cord with this pressure washer. The unit comes standard with a 35 ft GFCI power cord. Using an extension cord may cause a drop in line voltage, resulting in loss of power and overheating.

- To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). The appliance plug will only fit into a polarized outlet one way. If the appliance plug does not fit fully into the outlet, reverse the plug. If the plug still does not fit, make sure that you are using the correct polarized wall outlet. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, power cord receptacle, or power cord plug in any way.

- Do not abuse the cord. Never pull the pressure washer by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.

⚠ WARNING! To reduce the risk of electrocution:

• Inspect cord before using.
• Do not use if cord is damaged.

• Keep all connections dry and off the ground.

• Do not touch plug with wet hands.

• Keep cord away from heat and sharp edges.
• Do not spray electrical apparatus and wiring.

Risk of explosion

• Do not spray flammable liquids.
• Do not use acids, bases, solvents, or any flammable material in this product. These substances can cause physical injuries to the operator and irreversible damage to the machine.

Additional safety instructions

• High-pressure: keep clear of nozzle.
- Injection hazard: equipment can cause serious injury if the spray penetrates the skin.
- Do not point the gun at anyone or at any part of the body.
• In case of skin penetration, seek medical aid immediately.
- Before servicing, cleaning, or removing any parts, shut off the power and relieve pressure.
- This machine is not suitable for connection to the potable water mains.

Product Description

Purpose

- This electric high pressure washer is intended for residential use only. It is designed for medium-to-heavy duty cleaning jobs on boats, motorcycles, RVs, ATVs, trailers, decks, barbecues, siding, patio furniture, and more.

Areas of application

• Never use the machine in potentially explosive areas under any circumstances!
• The operating temperature must be between 32^ (0°C) and 104^ (40°C).
• The machine consists of an assembly with a pump, which is encased in a shock-absorbing housing. To provide the operator with an optimal working position, the machine is equipped with a spray wand and a non-slip handle grip, whose shape and configuration comply with applicable regulations.
• Do not cover or modify the spray wand or the spray nozzle in any way.
• The high-pressure electric power washer is designed to be used with cold water; higher temperatures can damage the pump.
• Do not use water that is dirty, gritty, or contains any chemical products, as such impurities could impair operation and shorten the life of the machine.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Symbols Descriptions Symbols Descriptions
	READ THE OPERATOR'S MANUAL- Read, understand, and follow all instructions in the user manual before attempting to assemble and operate.		SAFETY ALERT - Indicates a precaution, a warning, or a danger.
	WEAR EYE AND HEARING PROTECTION - For protection against injury, wear ear defenders and safety goggles.		WARNING! Do not expose the unit to rain or wet conditions. Keep dry.
	Wear protective gloves and non-slip footwear when using the machine and handling debris.		Always keep the power cable away from heat sources, oils or sharp edges. Immediately remove plug from mains if the cable is damaged, frayed or entangled.
			WARNING! Turn the machine OFF and disconnect from the power supply before inspecting, cleaning, changing accessories or conducting any other maintenance task.
	WARNING! Electrical shock hazard.		To reduce the risk of injury, user must keep all bystanders at least 49 ft (15 m) away.
	Store indoors. Never store the pressure washer outdoors. If the pump freezes, permanent damage may occur.		Machine not suitable for connection to the potable water mains.
	Double Insulation - When servicing, use only identical replacement parts.

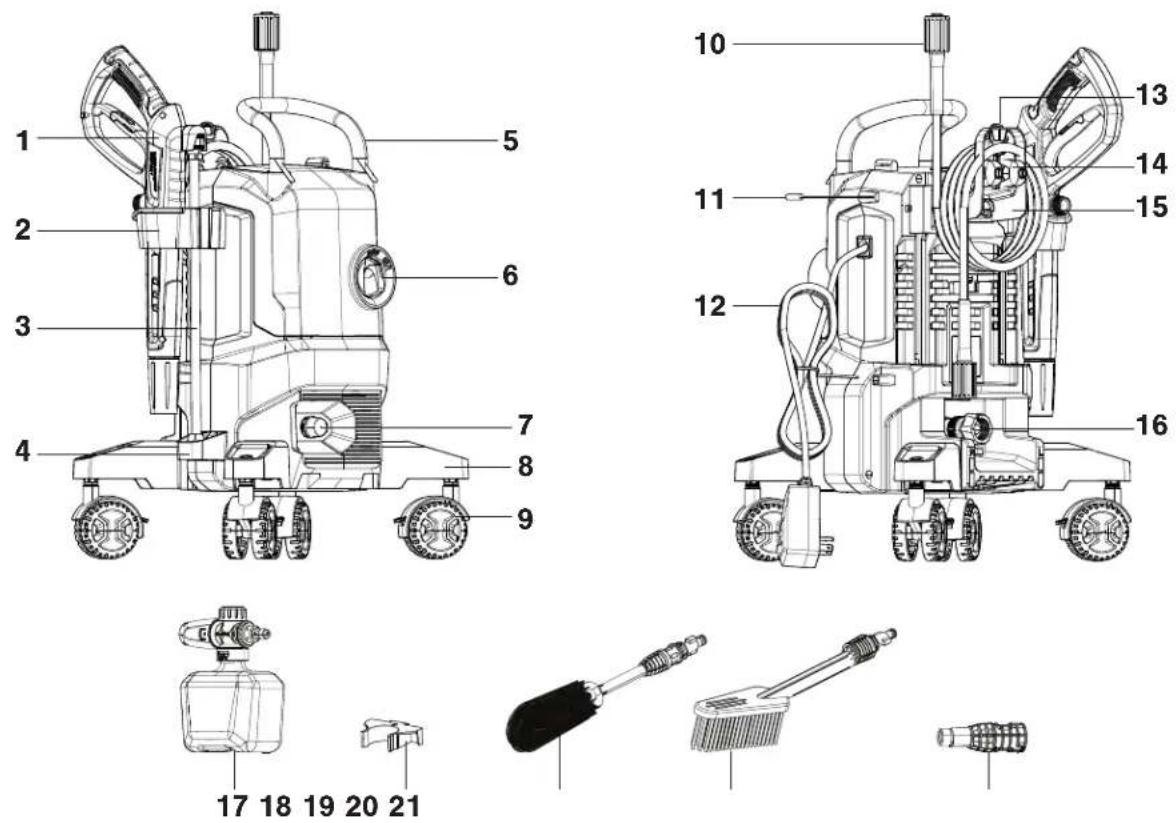

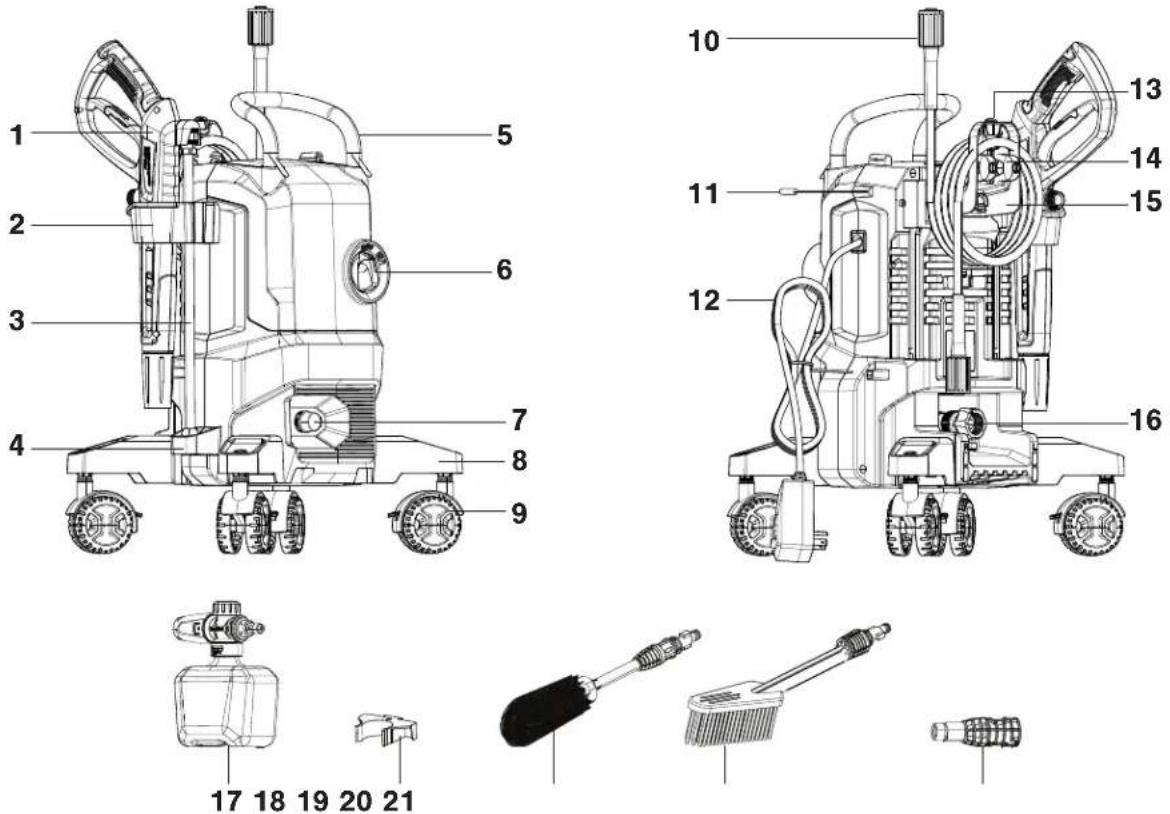

Know Your Electric Pressure Washer

Read the owner's manual and safety instructions carefully before operating the Electric Pressure Washer. Compare the illustration below to the unit in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.

1. Trigger gun
2. Trigger gun holder
3. Stainless steel lance
4. Spray wand protector
5. Top handle
6. On/Off switch

7. Water outlet (high-pressure hose connection)

8. Roller bracket

9. Wheels
10. High-pressure hose
11. Cord holder
12. Power cord with GFCI

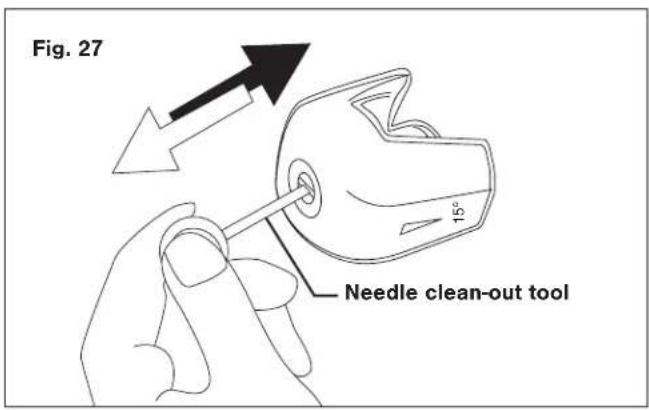

13. Needle clean-out tool
14. Quick-connect nozzles

15. High-pressure hose holder

16. Water inlet (garden hose connection)

17. Foam cannon bottle
18. Foam cannon bottle holder
19. Wheel + rim brush
20. Utility bristle brush
21. Transfer adapter

Technical Data

Rated Voltage 120V AC | 60 Hz

Motor....14.9-amp

Quick-Connect Nozzles.... 15° | 25° | 40°

High-pressure Hose Length 20 ft (6 m)

Max Water Inlet Temperature....104°F (40°C)

Max Water Inlet Pressure....0.7MPa/101 PSI

Rated Pressure....2200 PSI

Rated Flow....1.1 GPM (4.2 L/min)

Power Cord Length 35 ft (10.7 m)

Foam Cannon Capacity....18.6 fl oz (550 ml)

Net Weight....24 lbs (10.9 kg)

Unpacking

Carton Contents

• Electric pressure washer
- Top Handle
• High-pressure hose holder
- Spray wand protector
- Trigger gun holder
- Roller bracket (4)
- 3.5 x 13 screws (2)
- 4.8 x 20 screws (4)
• Stainless steel lance
- Trigger gun
- Quick-Connect nozzles (15°, 25° & 40°)
- Needle clean-out tool (included with manual packet)
• High-pressure hose
• Garden hose adapter (female coupler)
- Foam cannon bottle
- Foam cannon bottle holder
- Wheel + rim brush
• Utility bristle brush
- Transfer adapter
- Manual

1. Carefully remove the electric pressure washer and check to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the All Season Power customer service center at 1-866-225-9723.

NOTE: Do not discard the shipping carton and packaging materials until you are ready to use the pressure washer. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage.

IMPORTANT! The equipment and packaging materials are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

WARNING! Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

Assembly

Tools required: Phillips head screwdriver

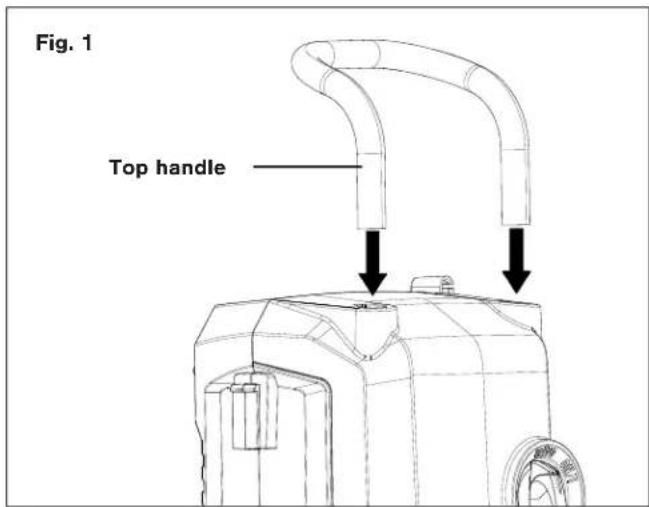

1. Push the top handle in position on the top of the pressure washer (Fig. 1).

Fig. 1 Top handle

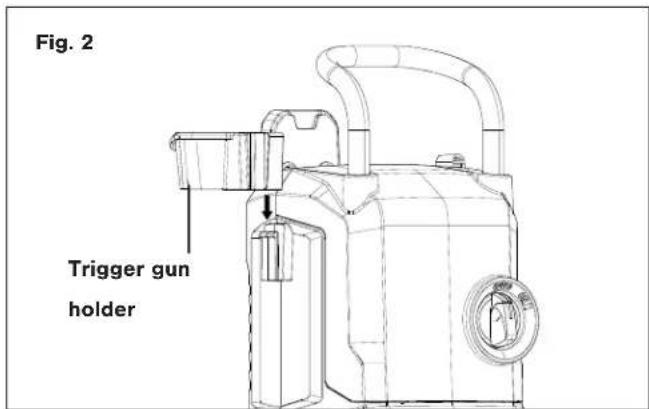

1. Slide the trigger gun holder into position (Fig. 2).


Fig. 2 Trigger gun holder

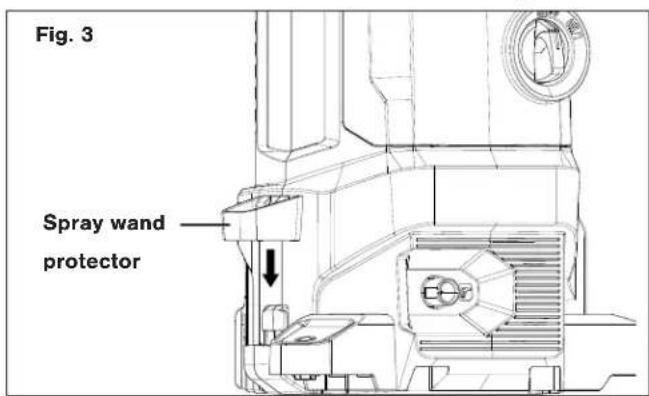

1. Slide the spray wand protector into position (Fig. 3).


Fig. 3 Spray wand protector

1. Attach the high-pressure hose holder and secure using the two additional screws provided, as shown (Fig. 4).

Fig. 4 High-pressure hose holder screws

1. Attach the roller bracket and secure using the additional screws provided, as shown (Fig. 5).

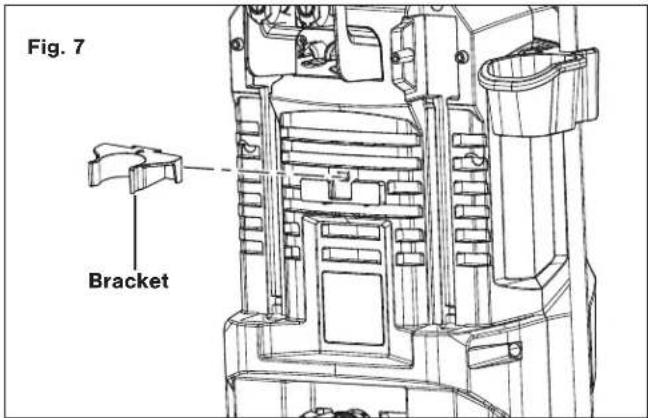

2. Attach the bracket to the back of the machine (Fig. 7).


Fig. 7 Bracket

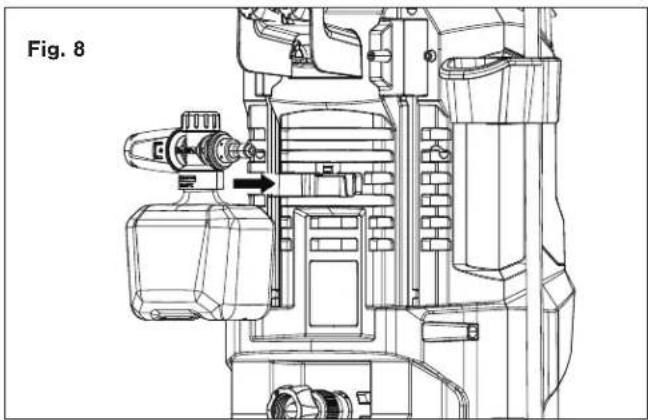

1. Attach the Foam cannon to the back bracket (Fig. 8).

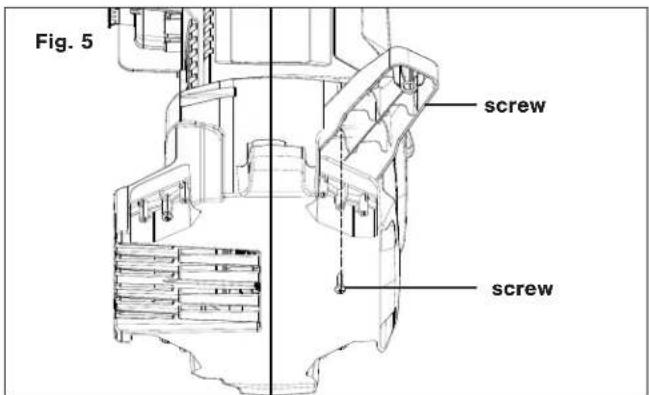

Fig. 5 screw screw

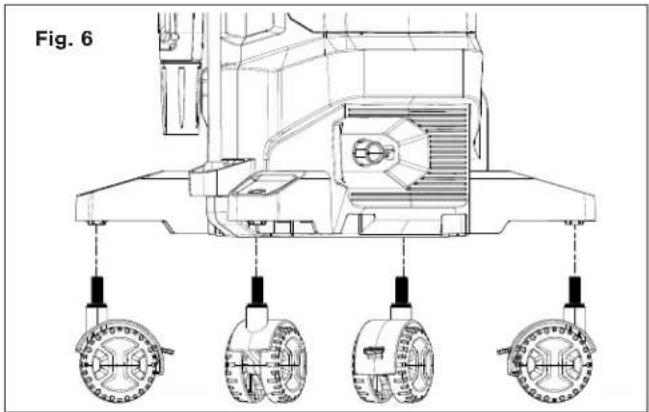

1. Attach the Wheels into the roller bracket and tighten securely (Fig. 6).

Technical line drawing of a mechanical assembly with no visible text or symbols

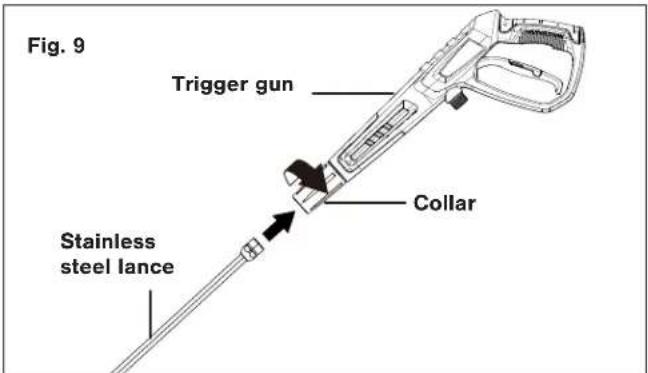

1. Fit the stainless steel lance into the trigger gun and rotate the collar until the two parts are completely locked (Fig. 9).

Technical line drawing of a mechanical assembly with three circular components and suspended parts (no text or symbols)

NOTE: Avoid towing the pressure washer across any obstacles exceeding 1.2 inches in height. Do not drag the pressure washer down any steps taller than 2 inches.

Fig. 9 Trigger gun Collar Stainless steel lance

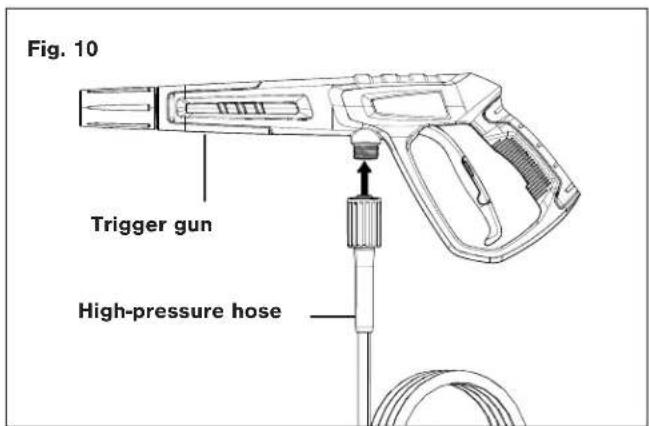

1. Connect the high-pressure hose to the trigger gun (Fig. 10).

Fig. 10 Trigger gun High-pressure hose

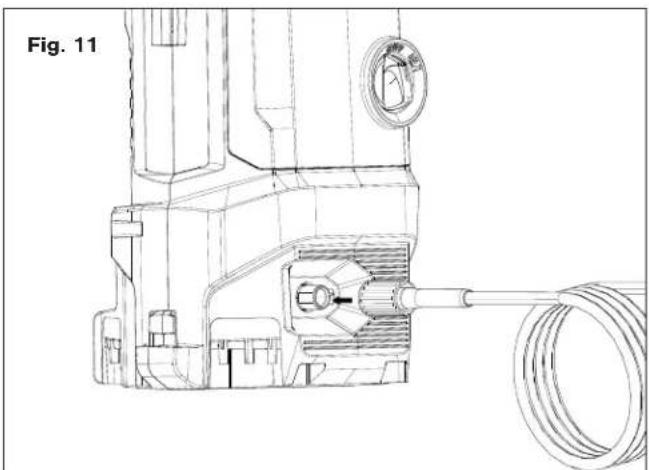

1. Connect the other end of high-pressure hose to the water outlet on the washer and tighten securely (Fig. 11).

Technical line drawing of a mechanical device with a coiled cable and adjustment knob (no text or symbols)

WARNING! Keep hose away from sharp objects. Bursting hoses may cause injury. Examine hoses regularly and replace if damaged. Do not attempt to mend a damaged hose.

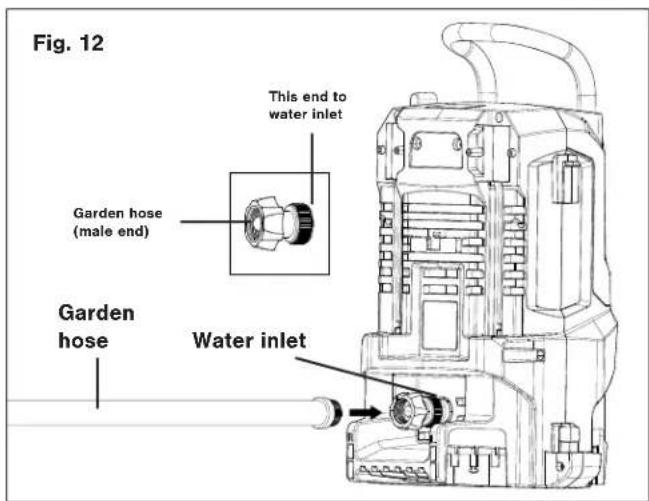

1. Connect the garden hose adapter (female coupler) to the water inlet of the pressure washer, then thread your garden hose (male end) into the garden hose adapter (Fig. 12). The garden hose must have an internal diameter of at least 1/2 in. (13 mm) and must be reinforced. The water supply must be at least equal to the washer delivery capacity.

NOTE: The machine is not suitable for connection to the potable water main.

Fig. 12 This end to water inlet Garden hose (male end) Garden hose Water inlet

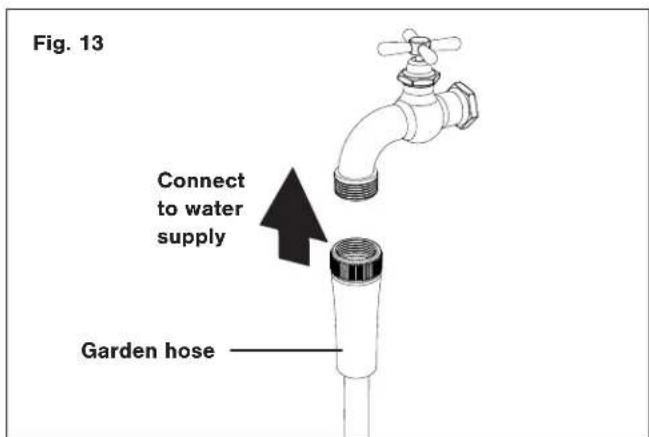

1. Connect the other end of the garden hose to the water supply (Fig. 13).

Fig. 13 Connect to water supply Garden hose

WARNING! Do not connect to potable water system.

⚠ WARNING! If connection is made to a potable water system, the system shall be protected against backflow.

WARNING! The intake water temperature must not exceed 104°F/40°C. The water supply must not exceed 0.7 MPa.

CAUTION! The washer must only be used with clean water; use of unfiltered water containing corrosive chemicals will damage the washer.

CAUTION! To prevent damage to the appliance, do not allow it to operate dry. Before starting the appliance, make sure that it has proper and stable supply of water.

Operation

Using the Pressure Washer

⚠️IMPORTANT! This pressure washer is equipped with a micro-switch sensitive to water flow. This Total Stop System (TSS) senses water flow in the pump. When the trigger is released, water stops flowing through the pump. The TSS then automatically turns the motor off to protect the pump from overheating, thus saving energy and prolonging pump life.

1. Position the washer as CLOSE as possible to the water supply.

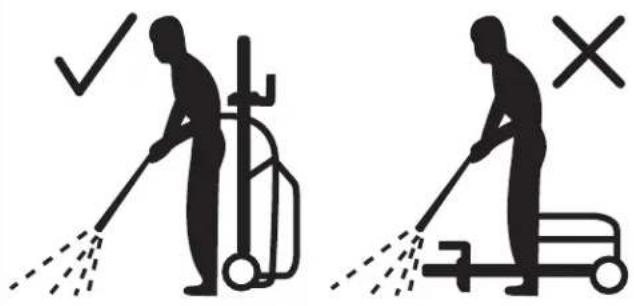

2. The washer must be used on a secure and stable surface in a standing, upright position (Fig. 14).

Fig. 14

Two pictograms showing a person cleaning a vehicle with check and cross symbols indicating compliance or rejection.

1. Make sure the unit is switched off before plugging the unit into the power outlet.
2. Check that the electrical supply voltage and frequency (Volt/Hz) correspond to those specified on the rating plate. If the power supply is correct, you may now plug the pressure washer into the power outlet (Fig. 15).

Fig. 15

Reset GFCI

NOTE: The GFCI may need to be reset when first plugged into the electric outlet. Press the "Reset" button until the power light indicator on the GFCI illuminates when plugged in.

1. Turn the water supply tap on completely.
2. Make sure the safety lock is down and in its original position, then press the trigger for a few seconds until water flow is steady. This will allow air to escape and discharge any residual pressure in the hose (Fig. 16).

Fig. 16 Safety lock Slot Trigger

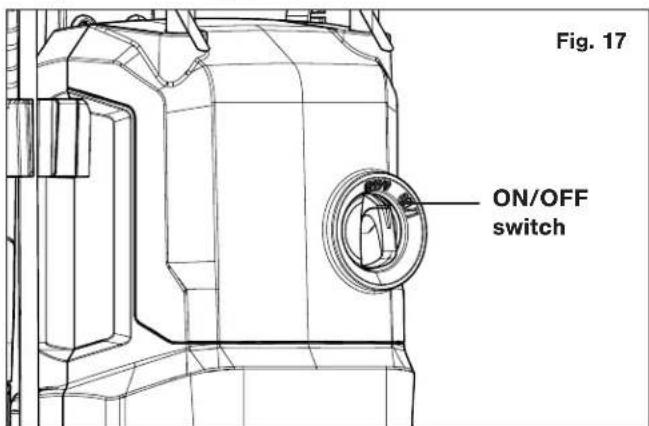

1. Turn the ON/OFF switch to the ON (I) position to start the pressure washer (Fig. 17).


Fig. 17 ON/OFF switch

1. When re-starting the motor, always keep the trigger pressed.

NOTE: The motor only runs when the trigger is operated and shuts off when the trigger is released.

Using Nozzles

Before beginning any cleaning task, determine the best nozzle for the job. Each of the nozzles has a different spray pattern.

1. Use the 15^ fan-tip nozzle (yellow) for intense cleaning jobs on hard surfaces. Applications include stripping paint, removing oil stains, grease, heavy mildew stains, and rust from steel. This nozzle should only be used in areas that can withstand the high-pressure from this nozzle.
2. Use the 25^ fan-tip nozzle (green) to clean home siding, brick patios, wood decks, driveways, or sidewalks. When using this nozzle, test a small area first to avoid surface damage.
3. Use the 40^ wide-spray tip nozzle (gray) to clean items such as cars, trucks, boats, patio furniture, or lawn equipment.

CAUTION! NEVER change nozzles without locking the safety lock on the trigger handle.

WARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself.

This electric pressure washer is equipped with three (3) Quick-Connect nozzles that easily snap onto the Quick-Connect collar of the stainless steel lance.

To connect a nozzle to the spray wand:

1. Turn off the pressure washer and shut off the water supply. Pull the trigger to release water pressure.
2. Engage the safety lock on the trigger handle by pushing up on the safety lock until it clicks into the slot (Fig. 18).

Fig. 18 Safety lock Slot

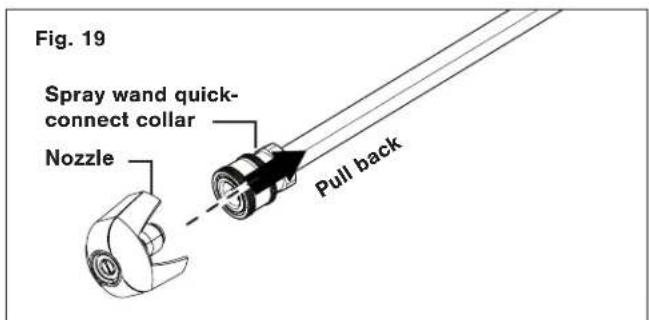

1. Pull back the brass Quick-Connect collar and insert the desired nozzle into the collar. Release the collar and the nozzle will click into place (Fig. 19).

Fig. 19 Spray wand quick- connect collar Nozzle Pull back

To disconnect a nozzle from the spray wand once the cleaning job is complete:

1. Turn off the pressure washer and shut off the water supply. Pull the trigger to release water pressure.
2. Engage the safety lock on the trigger handle.
3. Remove the nozzle by disconnecting it while pulling back the brass Quick-Connect collar.

WARNING! Do not make changes to the nozzle while the trigger is engaged. Doing so could result in damage to the pressure washer or injury to the user.

Working with Detergents

When cleaning with the pressure washer, some cleaning tasks can be solved with water alone, but for most tasks cleaning with detergent allows for more effective dirt removal.

WARNING! Use only detergents specifically designed for use with pressure washers, such as Sun Joe® HOUSE + DECK WASH (SPX-HDC1G), Sun Joe® SNOW FOAM AUTO WASH (SPX-FCS1G), or Sun Joe® HEAVY DUTY CLEANER (SPX-APC1G). DO NOT USE household detergents, acids, alkaline solutions, bleaches, solvents, flammable material, or industrial-grade solutions. These could damage the pressure washer.

1. Remove the foam spray nozzle, fill the foam cannon bottle with detergent designet specifically for use with pressure washers, and secure the cap back into place (Fig. 20).

NOTE: Many detergents may require mixing prior to use. Prepare the cleaning solution as instructed on the solution bottle.

Technical line drawing of a mechanical device with a cylindrical container and a pressure regulator, labeled Fig. 20 (no text or symbols on the diagram itself)

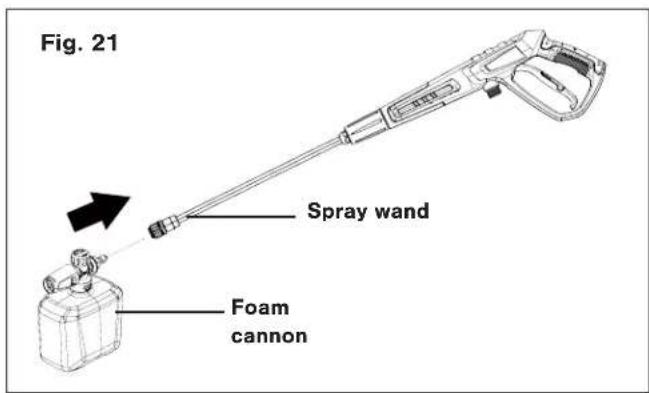

1. To connect the foam cannon, pull back the brass Quick-Connect collar on the spray wand and insert the foam cannon into the collar. Release the collar and the foam cannon will click into place (Fig. 21).

Fig. 21 Spray wand Foam cannon

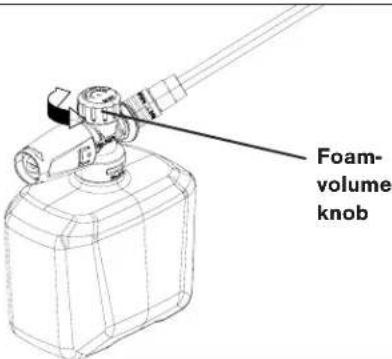

1. Turn the foam-volume knob on the foam cannon to vary the amount of foam (Fig. 22).

Fig. 22

Foam- volume knob

1. Turn on the pressure washer. Pull the trigger to operate the unit. The liquid detergent will automatically mix with water and be discharged through the nozzle.
2. Apply detergent from the bottom to the top of the dry surface to be cleaned. Applying detergent in this manner will dissolve dirt most effectively.

NOTE: Wetting the surface first is not recommended as it dilutes the detergent and reduces its cleaning ability.

CAUTION! Always test the detergent in an inconspicuous area before use.
6. Allow the detergent to remain on the surface for a short time before rinsing. Do not allow the detergent to dry on the surface.

⚠️CAUTION! Damage may occur to painted surfaces if the detergent is allowed to dry on the surface. Wash and rinse a small section at a time. Avoid working on hot surfaces or in direct sunlight.

Rinsing with the Pressure Washer

1. Turn off the pressure washer and shut off the water supply.
2. Pull the trigger to release water pressure.
3. Engage the safety lock on the trigger handle by pushing down on the safety lock on the handle (Fig. 18).
4. Pull back on the Quick-Connect collar and pull out the foam cannon to release it.
5. Snap the 15° fan-tip nozzle (green) onto the Quick-Connect collar until it clicks into place (Fig. 19).
6. Start from the top and work your way down, making sure to overlap your strokes.

IMPORTANT! NEVER USE:

• Bleach, chlorine products, and other corrosive chemicals
• Liquids containing solvents (e.g. paint thinners, gasoline, oils)
  • Tri-sodium phosphate products
  • Ammonia products
• Acid-based products

These chemicals will harm the unit and will damage the cleaning surface.

Using the Wheel + Rim Brush

The Sun Joe ^® wheel + rim brush safely cleans wheels and rims. Compatible with all Sun Joe ^® SPX series pressure washers.

1. If not already done, detach your spray wand from your trigger gun.

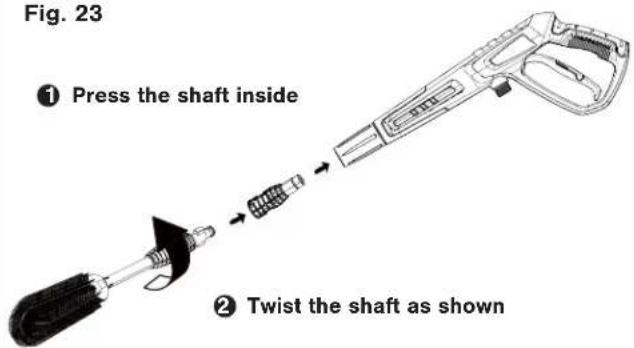

2. Take the wheel + rim brush and align the two tabs with the inside of the transfer adapt (Fig. 23).

Fig. 23

Fig. 23 ① Press the shaft inside ② Twist the shaft as shown

1. Once aligned, push the wheel + rim brush into the transfer adapt, twist counterclockwise to lock into place.

Using the Feather Bristle Pressure Washer Utility Brush

The Sun Joe® feather bristle pressure washer utility brush safely cleans painted, topcoat, and delicate surfaces. Compatible with all Sun Joe® SPX series pressure washers.

1. If not already done, detach your spray wand from your trigger gun.
2. Take the utility brush and align the two tabs with the inside of the transfer adapt (Fig. 24).

Fig. 24

Fig. 24 Locking tab Utility brush

1. Once aligned, push the utility brush into the transfer adapt, twist counterclockwise to lock into place.

Shutting down

1. Turn the switch to the OFF (0) position and unplug the power cord from the outlet.
2. Turn off the water source.
3. Hold the trigger to release water pressure.
4. Disconnect the garden hose from the water inlet on the unit.
5. Disconnect the high-pressure hose connection on the trigger gun handle.
6. Release the trigger and engage the gun safety lock.

⚠ WARNING! Turn off the water supply and squeeze the trigger to depressurize the unit. Failure to do so could result in personal injury due to discharge of high-pressure water.

Taking a break

If you are taking a break of five minutes or more between cleaning tasks:

1. Engage the gun safety lock on the back.
2. Turn the switch to the OFF (0) position.
3. Unplug the power cord from the outlet.

Storage

⚠️CAUTION! Always store your pressure washer in a location where the temperature will not fall below 32^ F ( 0^ C). The pump in this machine is susceptible to permanent damage if it freezes. FREEZE DAMAGE IS NOT COVERED BY THE WARRANTY.

• Store the pressure washer indoors in a dry, covered area where it is not subject to adverse weather conditions.
• It is important to store this product in a frost-free area.
• Always empty water from the hoses, the pump, and the foam cannon bottle (if using) before storing.

⚠️CAUTION! The use of a pump protector is recommended to prevent cold weather damage during storage over the winter months.

Winterizing + long-term storage

If you must store your pressure washer in a location where the temperature falls below 32^ F ( 0^ C), you can minimize the chance of damage to your machine by utilizing the following procedure:

• Disconnect all water connections.
• Turn on the pressure washer for a few seconds until the remaining water in the pump exits. Turn off immediately.
• Do not allow the high-pressure hose to become kinked.
• Store the machine and accessories in a room that does not reach freezing temperatures.
• Do not store near a furnace or other sources of heat that may dry out the pump seals.

- Operate the pressure washer with non-corrosive/non-toxic anti-freeze, a pump saver, or a pump protector before storing for the winter.

⚠ WARNING! Before reusing, completely flush the unit out with clear water. Anti-freeze products can damage paintwork, so you must ensure there is no anti-freeze left in the system before using it again.

Maintenance

⚠️CAUTION! Before working on the pressure washer, disconnect the plug from the power supply socket.

Clean the Adapter Filter and the Nozzle

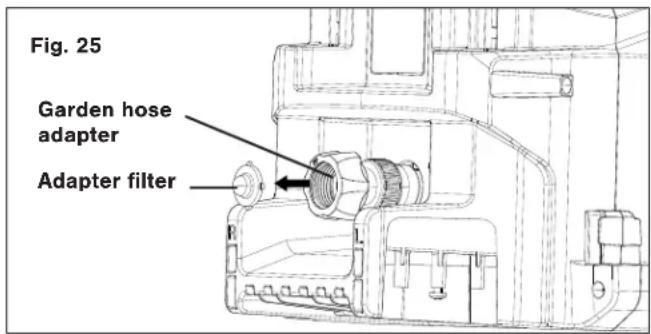

1. To ensure good performance, check and clean the adapter filter (Fig. 25). Remove the filter and rinse with warm water to prevent any foreign matter from clogging the pump (Fig. 26).

Fig. 25 Garden hose adapter Adapter filter

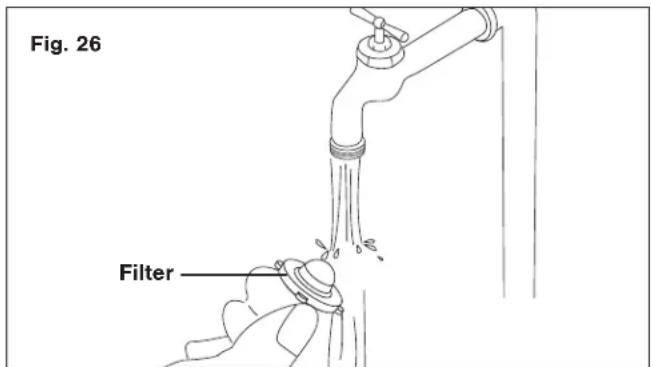

Fig. 26 Filter

1. Clean the nozzle with the needle clean-out tool provided (Fig. 27). Remove the nozzle from the spray wand; remove any dirt from the nozzle hole and rinse.

Fig. 27 Needle clean-out tool

Disposal

Recycling the Pressure Washer

• Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities.
• Contact your local government agency for information regarding the collection systems available.
• If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

Service + Support

If your Sun Joe ^® SPX3000-QW2 electric pressure washer requires service or maintenance, please call the All Season Power customer service center at 1-866-225-9723.

Model + Serial Numbers

When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product: S P X 3 0 0 0 - Q W 2 Model #: Serial #:

Troubleshooting

• Disconnect the unit from the electrical power supply before carrying out maintenance on the machine or when checking that its parts are in proper working order.
• To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues.

Problems Possible Cause Possible Solution
Machine refuses to start	Power failure/machine not plugged into a working receptacle.Defective socket.Tripped circuit breaker.	Check to make sure machine is plugged into a working outlet.Check the power cord and reset the GFCI. Try a different outlet.Switch off any other machines that are using the same circuit.
Fluctuating pressure	Pump sucking air.Valves dirty, worn out, or stuck.Pump seals worn out.	Check the hoses and connections are airtight.Clean or replace valves/seals.Please call the All Season Power customer service center at 1-866-225-9723 for assistance.
Machine stops	Incorrect mains voltage.Thermal sensor activated.Nozzle partially blocked.	Check that the mains voltage corresponds to specification on the model tag.Let the washer cool down for 5 minutes, then restart.Clean the nozzle.
Machine pulsating	Air in inlet hose.Inadequate supply of water.Nozzle partially blocked.Water filter blocked.Hose kinked.	Allow machine to run by holding the trigger until regular working pressure resumes.Check that the water supply corresponds to the specifications required.WARNING! Avoid using long, thin hoses (minimum 1/2 in. diameter).Clean the nozzle.Clean the water inlet filter.Straighten out the hose to remove any kinks/blockages.
Machine often starts and stops by itself	Pump/spray gun is leaking.Trigger mechanism is broken.	Please call the All Season Power customer service center at 1-866-225-9723 for assistance.
Machine starts, but no water comes out	Pump/hoses or accessories frozen.No water supply.Water inlet filter blocked.Nozzle blocked.	Wait for pump/hoses or accessories to thaw.Connect inlet water.Clean the water inlet filter.Clean the nozzle.

Optional Accessories

WARNING! ALWAYS use only authorized Snow Joe ^® + Sun Joe ^® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this electric pressure washer. Contact All Season Power if you are unsure whether it is safe to use a particular replacement part or accessory with your pressure washer. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

Accessories Item Model
1	Sun Joe® House + Deck All-Purpose Pressure Washer Rated Concentrated CleanerSun Joe® Premium Snow Foam Pressure Washer Rated Car Wash Soap + CleanerSun Joe® All-Purpose Heavy Duty Pressure Washer Rated Cleaner + Degreaser	SPX-HDC1GSPX-FCS1GSPX-APC1G

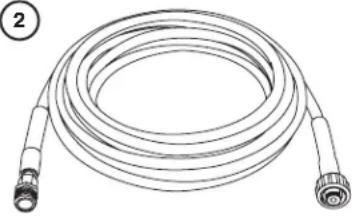

	25-Foot Medium-duty Extension Hose for SPX Pressure Washer Series	SPX-25H

Sun Joe's complete line of premium pressure washer accessories and attachments make it easy to get your dirty work done, and also help you get the most out of your model! SHOP ONLINE now at shopjoe.com

NOTE: Accessories are subject to change without any obligation on the part of All Season Power to provide notice of such changes. Accessories can be ordered online at shopjoe.com or via phone by contacting the All Season Power customer service center at 1-866-225-9723.

ALL SEASON POWER CUSTOMER PROMISE

ABOVE ALL ELSE, All Season Power LLC (“All Season Power”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , Aqua Joe ^® , or Auto Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

All Season Power warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of delivery of the Product to the original, end-user purchaser when purchased from All Season Power or from one of All Season Power's authorized sellers with proof of purchase. Because All Season Power is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, All Season Power will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

All Season Power strongly encourages you to register your Product. You can register online at shopjoe.com/register, or by printing and mailing in a registration card available online from our website, or by calling our Customer Service Department at 1-866-225-9723, or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow All Season Power to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by All Season Power to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at shopjoe.com/support or by calling 1-866-225-9723.

CERTIFIED AUTHENTIC

Keep your warranty intact. Only use CERTIFIED AUTHENTIC Snow Joe ^® , Sun Joe ^® , Aqua Joe ^® + Auto Joe ^® replacement parts + accessories. Use of any other parts + accessories will void the warranty. Genuine parts + accessories can be found and purchased online at shopjoe.com/support by entering the model number of your product.

14.9 A HIDROLAVADORA ELÉCTRICA

Technical line drawing of a mechanical cleaning or maintenance device with wheels and control panel (no text or symbols)

© 2025 All Season Power, LLC.

Snow Joe ^® , Sun Joe ^® , Aqua Joe ^® , Auto Joe ^® y Power Joe ^® son

New Castle, DE 19720

Read the owner's manual and safety instructions carefully before operating the Electric Pressure Washer. Compare the illustration below to the unit in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with three circular components and connecting rods (no text or symbols)

Technical line drawing of a mechanical device with a coiled cable and housing (no text or symbols)

Safety compliance illustration showing two methods: one using a lift gun and the other using a cart with a checkmark.

Technical line drawing of a mechanical device with a cylindrical container and attached tubing (no text or symbols)

Technical line drawing of a cleaning or cleaning industrial machine with wheels and control panel (no text or symbols)

MERCI POUR VOTRE ACHAT!

SCANNEZ ENREGISTREZ EN LIGNE AUJOURD'HUI

ACTIVEZ VOTRE
RECEVEZ EN
RENDEZ-VOUS SUR LE SITE

Fig. 7 Support

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with three labeled components (no text or symbols present)

Technical line drawing of a mechanical device with a coiled cable and adjustment knob (no text or symbols)

Safety compliance illustration showing two methods: one using a pump gun and another using a cart, both with checkmark and cross symbols.

Technical line drawing of a mechanical device with a cylindrical component and tubing, labeled Fig. 20 (no text or symbols on the diagram itself)

1. Once aligned, push the wheel + rim brush into the transfer adapt, twist counterclockwise to lock into place.
