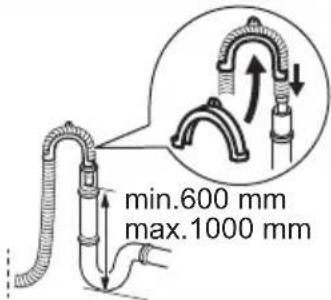

min.600 mm max.1000 mm

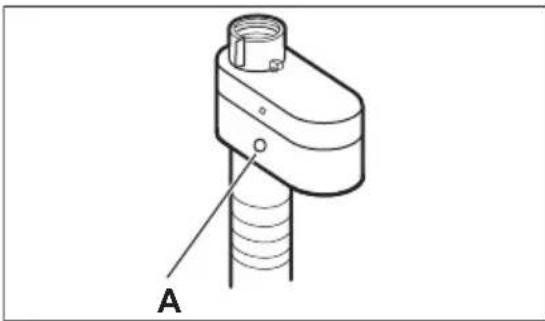

Diagram showing a hose with a connector and a magnified view highlighting the connector's detail.

Simple line drawing of an electrical plug with a socket and power outlet, no text or symbols present

Line drawing of an open refrigerator drawer with compartments and a lid (no text or symbols)

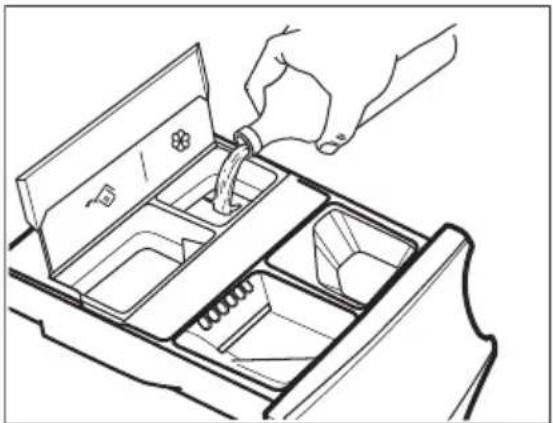

AutoDose reservoir was verzachter.

SET AutoPass

Line drawing of a hand inserting a tray into an open drawer with a handle, showing internal compartments and a scroll (no text or symbols)

Line drawing of a hand inserting a plastic into a drawer with internal compartments (no text or symbols)

Line drawing of a hand inserting a plastic bag into a drawer with compartments (no text or symbols)

Diagram showing hand holding a device with 'Analog' label and directional arrow indicating process flow

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

12.5 Over-the-air-update

Medical warning diagram showing a catheter with an exclamation mark and a cross symbol, likely indicating an injection or dislocation procedure.

LET OP!

Line drawing of a hand holding a small object near a curved surface (no text or symbols)

Illustration of hands assembling a mechanical device into a drawer (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a refrigerator interior showing internal compartments and a highlighted section (no text or symbols)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an arrow indicating force (no text or symbols present)

Top-down architectural diagram of a building with roof, windows, and central structures (no text or labels)

Line drawing of a washing machine handle with water spilling out (no text or symbols)

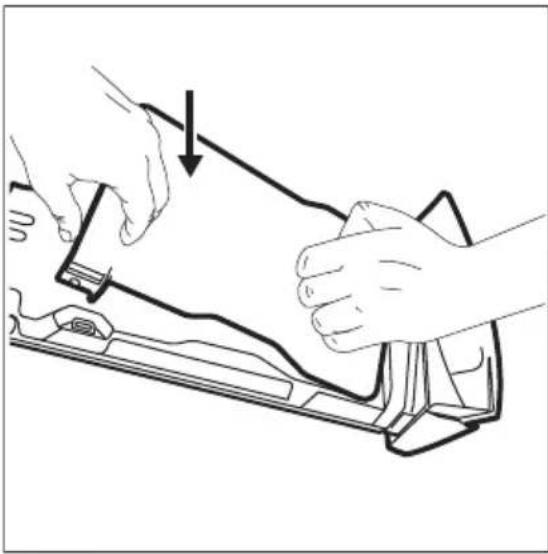

LET OP!

Technical line drawing of a mechanical component with an arrow indicating rotation or assembly (no text or symbols present)

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

LET OP!

Line drawing of a hand pressing down on a mechanical component with arrows indicating force or movement (no text or symbols)

WAARSCHUWING!

Line drawing of a refrigerator interior with an inset close-up showing internal components (no text or symbols)

WAARSCHUWING!

Line drawing of a hand inserting a component into a device casing (no text or symbols)

Line drawing of a hand using a tool to insert or install a textured material inside a rectangular frame (no text or symbols)

Diagram showing a hand operating a car dashboard with a close-up of the wheel (no text or symbols present)

Line drawing of a hand pouring liquid into a container with a coiled spring (no text or symbols)

Diagram illustrating car crash detection with labeled components and directional arrows indicating collision or movement

Line drawing of a faucet with water flowing out, creating splashes from the drain (no text or symbols)

Diagram showing mechanical assembly with labeled parts 1 and 2, indicating a valve or connector assembly.

Diagram illustrating a medical procedure with labeled parts and directional arrows, showing fluid flow or movement.

Diagram illustrating three-step tool application steps for a valve assembly, labeled 1 to 3.

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

15. PROBLEEMOPLOSSING

WAARSCHUWING!

Line drawing of a hand pressing down on a washing machine wheel (no text or symbols)

Diagram showing a hand operating a tool inside a circular device with an arrow indicating direction (no text or symbols present)

Fijne was 2.0 kg Delicate stoffen zoals acryl, viscose en polyester.

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

Line drawing of a hand holding a car seatbelt, no text or symbols present

Welcome to AEG! Thank you for choosing our appliance.

In our drive to be sustainable, we are reducing paper assets and provide full user manuals online. Access your full user manual at aeg.com/manuals

Get usage advice, brochures, troubleshooting, service and repair information at aeg.com/support

Buy accessories, consumables, and original spare parts for your appliance at aeg.com/shop

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......63
2. SAFETY INSTRUCTIONS...... 65
3. PRODUCT DESCRIPTION 67
4. TECHNICAL INFORMATION ...... 69
5. INSTALLATION 69
6. CONTROL PANEL 74
7. DIAL AND BUTTONS .... 77
8. SETTINGS 80
9. BEFORE FIRST USE....81
10. THE AUTODOSE TECHNOLOGY (AUTODOSING) 82
11. PROGRAMMES 89
12. Wi-Fi - CONNECTIVITY SETUP 95
13. DAILY USE 97
14. CARE AND CLEANING 102
15. TROUBLESHOOTING 109
16. CONSUMPTION VALUES.... 114
17. QUICK GUIDE 115
18. ENVIRONMENTAL CONCERNS....119

1. ⚠ SAFETY INFORMATION

Before beginning the installation and use of this chance, carefully read the supplied instructions.

The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for washing domestic-type, machine-washable laundry only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

• Do not change the specification of this appliance.

• The appliance maximum load is 10.0 kg. Do not exceed the maximum load of each programme (refer to the “Programmes” chapter).

• The operating water pressure at the water entry point from the outlet connection must be between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa).
• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.
• The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

2.1 Installation

The installation must comply with relevant national regulations.

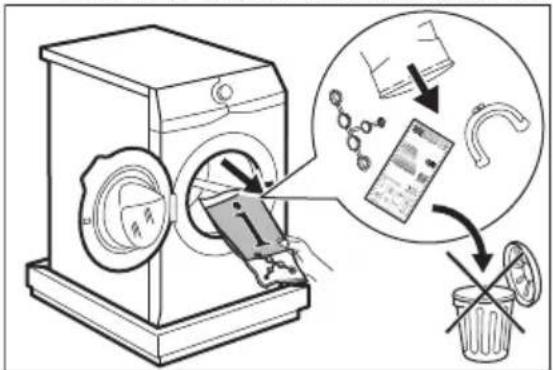

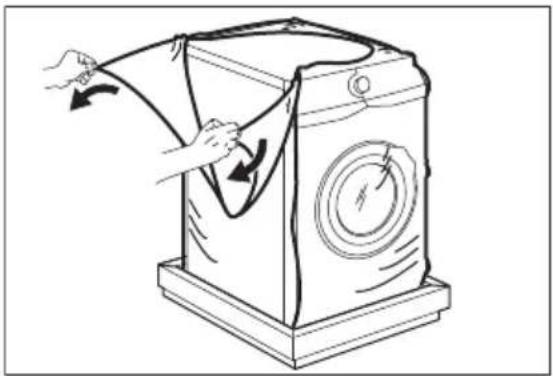

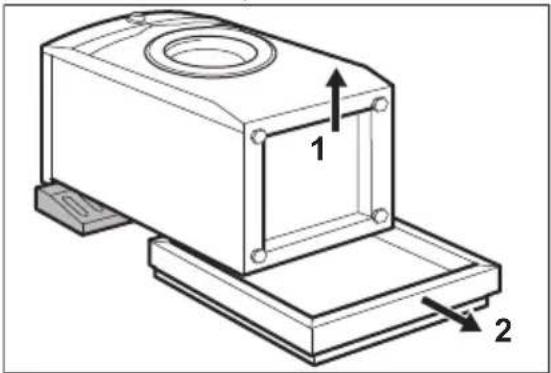

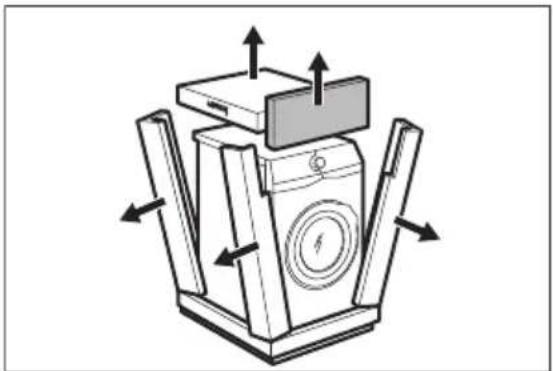

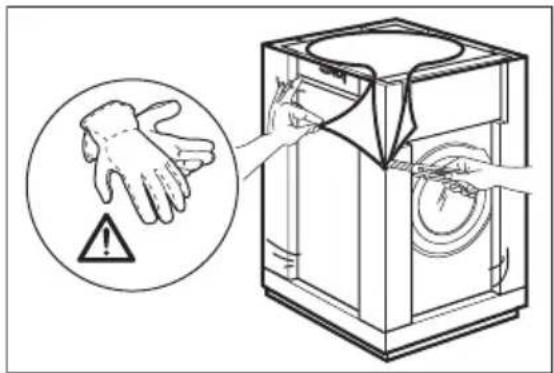

• Remove all the packaging and the transit bolts including rubber bush with plastic spacer.

• Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.

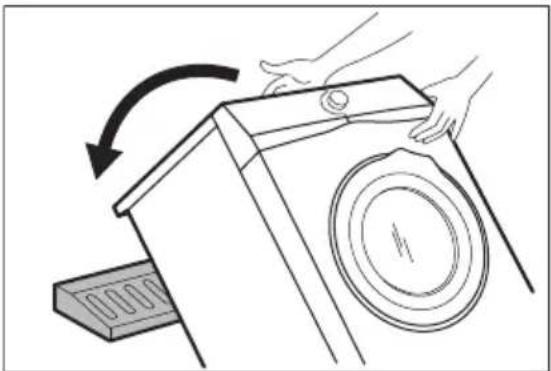

  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Follow the installation instructions supplied with the appliance.

• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature can be less than 0^ or where it is exposed to the weather.
• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.
• Make sure that there is air circulation between the appliance and the floor.

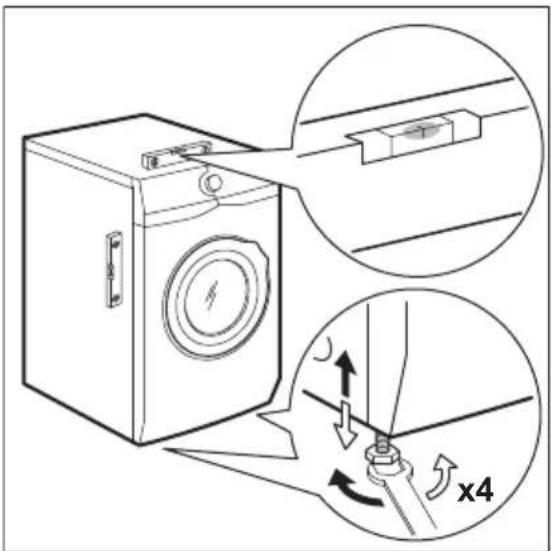

• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.

• Do not install the appliance directly above a floor drain.

• Do not spray water on the appliance and do not expose it to excessive humidity.
• Do not install the appliance where the appliance door cannot be fully opened.
• Do not put a closed container to collect possible water leakage under the appliance. Contact the Authorised Service Centre to ensure which accessories can be used.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• WARNING: This appliance is designed to be installed / connected to a grounding connection in the building.

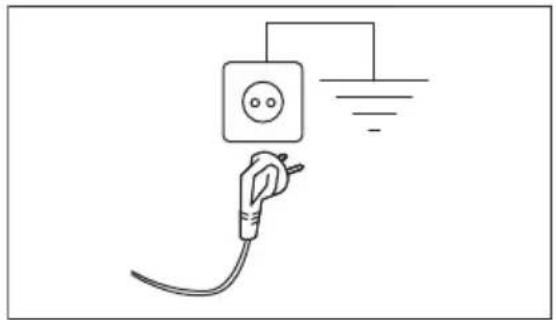

  • Always use a correctly installed shockproof socket.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not touch the mains cable or the mains plug with wet hands.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Water connection

• The inlet water shall not exceed 25^ .
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.

• Ensure that there are no visible water leaks during and after the first use of the appliance.

• Do not use an extension hose if the inlet hose is too short. Contact the Authorised Service Centre for the replacement of the inlet hose.

• When unpacking the appliance, It is possible to see water flowing from the drain hose. This is due to the testing of the appliance with the use of water in the factory.

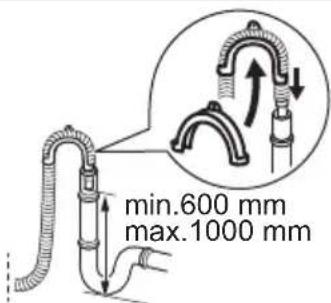

• You can extend the drain hose to maximum 400 cm. Contact the Authorised Service Centre for the other drain hose and the extension.
• Make sure that there is access to the tap after the installation.

2.4 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Follow the safety instructions on the detergent packaging.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the appliance. Prewash such fabrics by hand before loading them into the appliance.
• Do not use laundry fragrances to avoid the risk of damaging plastic and rubber parts of the appliance.
• Do not touch the glass door while a programme operates. The glass can get hot.
• Make sure that all metal objects are removed from the laundry.

2.5 Internal lighting

WARNING!

Risk of injury.

• Visible LED radiation, do not look directly into the beam.
  • To replace the internal lighting, contact the Authorised Service Centre.

2.6 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Please note that self-repair or non-professional repair can have safety consequences and might void the guarantee.
- The following spare parts are available for at least 10 years after the model has been discontinued: motor and motor brushes, transmission between motor and drum, pumps, shock absorbers and springs, washing drum, drum spider and related ball bearings, heaters and heating elements, including heat pumps, piping and related equipment including hoses, valves, filters and aquastops, printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software, door, door hinge and seals, other seals, door locking assembly, plastic peripherals such as detergent dispensers. The duration may be longer in your country. For further information, please visit our website.
- Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.

- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains electrical and water supplies.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

3.1 Special features

Your new washing machine meets all modern requirements for an effective treatment of laundry with low water, energy and detergent consumption and proper care of fabric.

• The Wi-Fi connection and Remote Start enable you to start a cycle, to interact with your washing machine and to check the washing cycle status in remote control.

• The PowerCare technology has been designed to protect the fabric fibres thanks to different pre-mixing phases that dissolves first the detergent and then fabric softener in the water before they are distributed in the laundry. So every fibre is reached and cared for.

• The ProSense technology detects the laundry load size defining the programme duration in 30 seconds. The washing programme is tailored to the laundry load and the type of fabric without consuming more time, energy and water than necessary.

• The steam has a quick and easy way to refresh the clothes. The gentle steam programmes remove odours and reduce creases in dry fabrics so they need little ironing.
  The Plus Steam option, finishes every cycle with gentle steam that relaxes the fibres and reduces fabric creasing. Ironing will be easier!

• The Stains option pre-treats stubborn stains optimizing the effectiveness of the stain remover.

• The AutoDose technology automatically dispenses the right amount of detergent according to the load; the drawer has two integrated tanks (detergent + softener or second detergent type) and two additional chambers for detergent and additives manual load. It gaves the highest use flexibility.

- The AEGSteam Fragrance, thanks to the steam programmes offers the perfect solution for refreshing even the most delicate garments without washing. Use the delicate fragrance exclusively developed by AEG to add a pleasant feeling of "just-washed" garment to the removing odours and wrinkles action.

3.2 Appliance overview

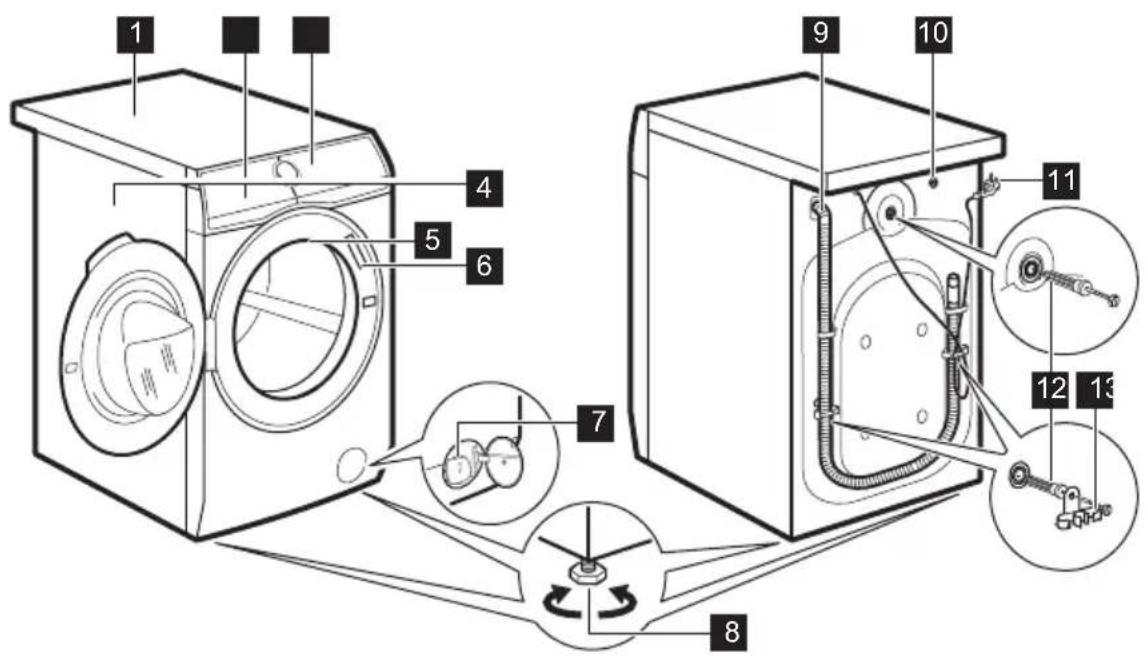

Technical diagram of a washing machine with numbered components and labeled parts in Chinese

1 Worktop

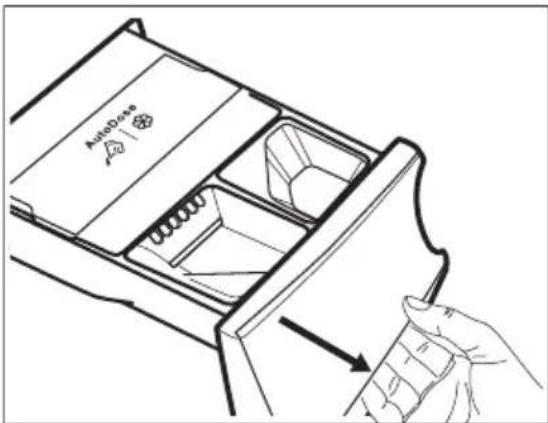

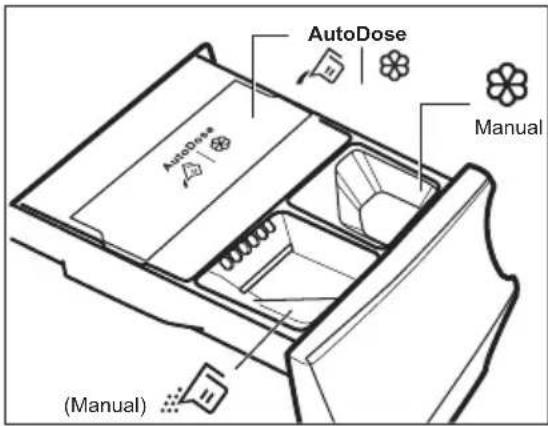

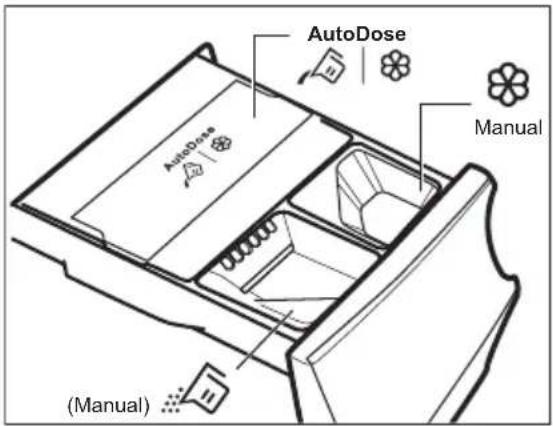

2 Detergent dispenser with AutoDose tanks and manual compartments
3 Control panel
4 Door handle
5 Internal light
6 Rating plate
7 Drain pump filter

8 Feet for levelling the appliance
9 Drain hose
10 Inlet hose connection
11 Mains cable
12 Transit bolts
13 Hose support

Mod. xxxxxxxxx Prod.No: 010000000 b0 000V - 00Hz 0000 W COA Ser.No: 00000000 B C D EA

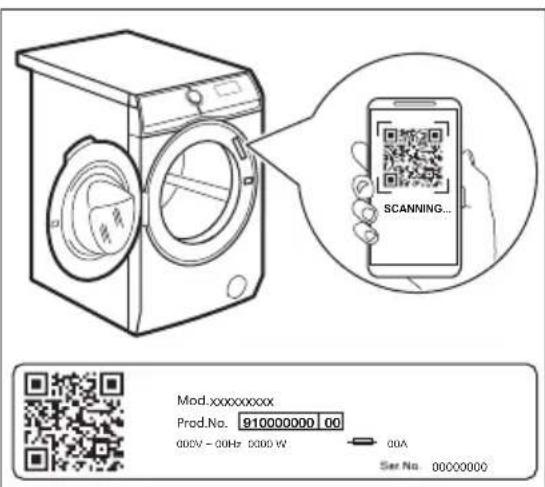

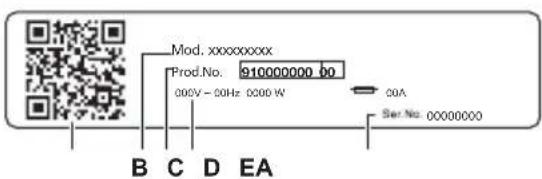

The rating plate reports:

A. QR code
B. Model name
C. Product number
D. Electrical ratings
E. Serial number

Scan the QR code with the camera to download our App from the app store on your smart device and follow the required steps. Register your product and get the most out of it.

• Access your appliance details, documentation and articles on how to use the best features (User Manual also available at aeg.com/manuals)
  • Get usage advice, troubleshooting, service and repair information (also available at aeg.com/support)
  • Buy accessories, Consumable and Original Spare parts for your appliance (also available at aeg.com/shop)

4. TECHNICAL INFORMATION

Dimension Width/ Height/ Total depth 59.7 cm /84.7 cm /63.6 cm
Electrical connection Voltage		230 V
	Overall power	2100 W
	Fuse	10 A
	Frequency	50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture		IPX4
Water supply pressure Minimum		0.5 bar (0.05 MPa)
	Maximum	10 bar (1.0 MPa)
Water supply 1)		Cold water
Maximum Load Cotton 10.0 kg

1) Connect the water inlet hose to a water tap with a 3/4" thread.

5. INSTALLATION

WARNING!

Refer to Safety chapters.

5.1 Unpacking

WARNING!

Remove all the packaging and the transit bolts before installing the appliance.

WARNING!

Read all the installation instructions before proceeding.

WARNING!

Use the gloves.

1. Remove the external film. If necessary, use a cutter.

Diagram illustrating hand protection and washing machine operation, showing hand gesture and warning symbol

1. Remove the cardboard top and the other packaging materials.

Diagram of a washing machine with directional arrows indicating motion or force (no text or symbols)

1. Remove the internal film.


Line drawing of a washing machine with hands holding fabric, showing a circular dial and base (no text or symbols)

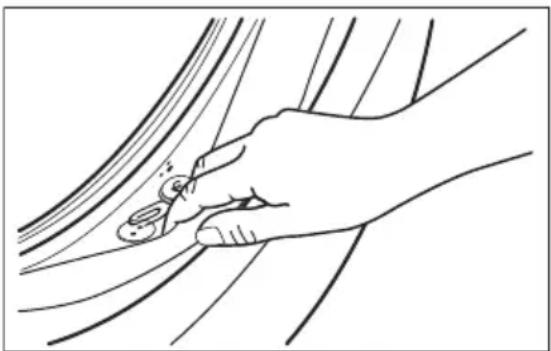

1. Open the door, remove the piece from the door seal and all the items from the drum.


Diagram illustrating a washing machine operation with labeled components and actions, including a magnified view of the device's internal structure.

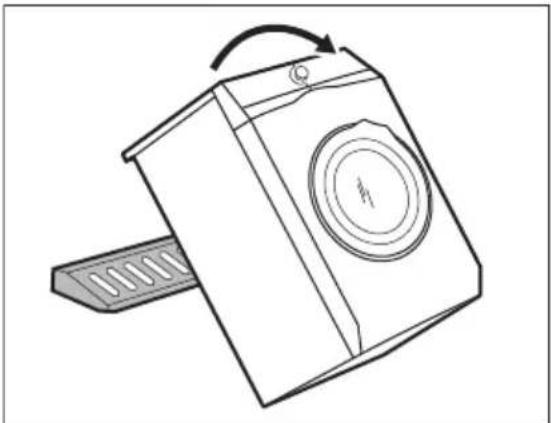

1. Carefully put the appliance down on its rear side.
2. Put the front packaging element on the floor under the appliance.

i

Make sure not to damage the hoses.

Line drawing of a hand placing a large fan into a washing machine with a circular vent, showing mechanical components and a base (no text or symbols)

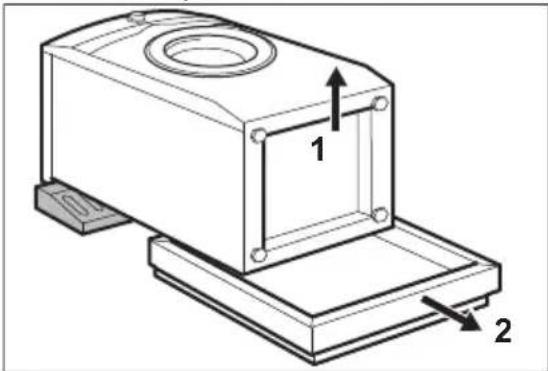

1. Remove the protection from the bottom.


Technical line drawing of a mechanical component with labeled parts 1 and 2 (no text or symbols beyond labels)

1. Pull up the appliance in vertical position.


Line drawing of a washing machine with a handle and circular button, showing a curved arrow indicating rotation (no text or symbols)

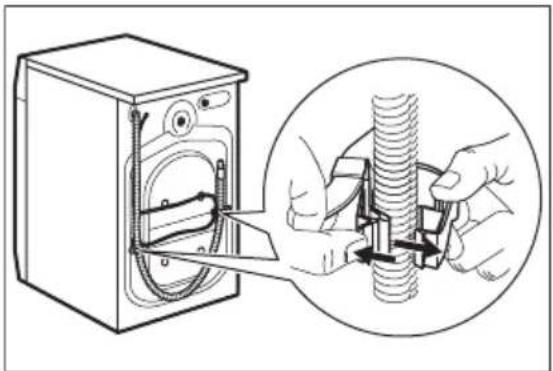

1. Remove the power supply cable and the drain hose from the hose holders.

i

It is possible to see water flowing from the drain hose. This is due to the testing with water of the appliance in factory.

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

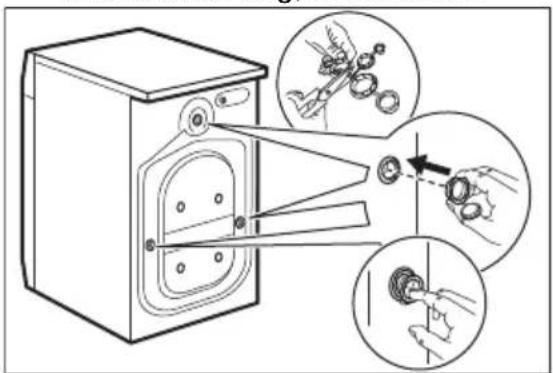

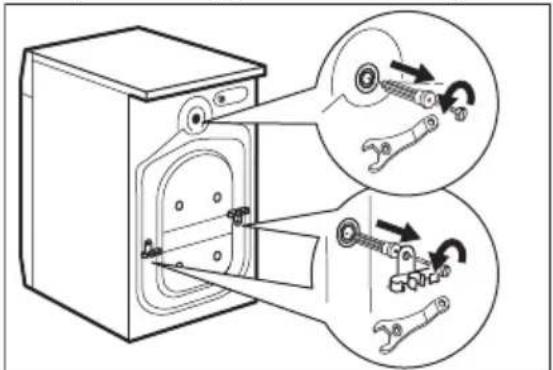

1. Remove the three bolts by using the spanner supplied with the appliance.

Diagram illustrating the internal mechanism of a washing machine with labeled parts and directional arrows indicating motion.

1. Pull out the plastic spacers.

2. Put the plastic caps, that you find in the user manual bag, in the holes.

Diagram illustrating a washing machine operation with three circular insets showing different tool positions and a close-up of the mechanism.

We recommend that you keep the packaging and the transit bolts for any movement of the appliance.

5.2 Positioning and levelling

1. Install the appliance on a flat hard floor.

Make sure that carpets do not stop the air circulation below the appliance. Make sure that the appliance does not touch the wall or other units.

1. Loosen or tighten the feet to adjust the level.

WARNING!

Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

Diagram showing a washing machine with labeled parts and a magnified view of the component being adjusted for four times.

The appliance must be level and stable.

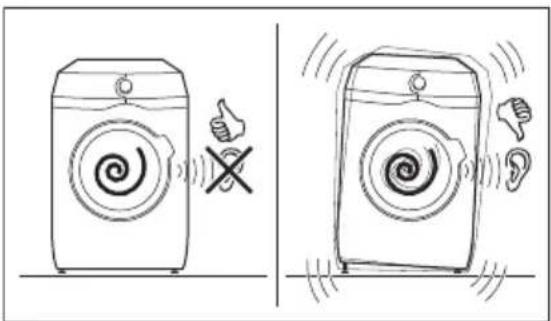

A correct adjustment of the appliance level prevents the vibration, noise and the movement of the appliance when in operation.

Illustration comparing two washing machines, one with a 'X' mark and thumbs-down gesture, the other showing a 'P' with sound waves.

5.3 Wooden Floor installation

If you install the appliance in a wooden floor please make sure to use fixing plates to secure appliance feet.

Read carefully the instructions supplied with the accessory.

5.4 The inlet hose

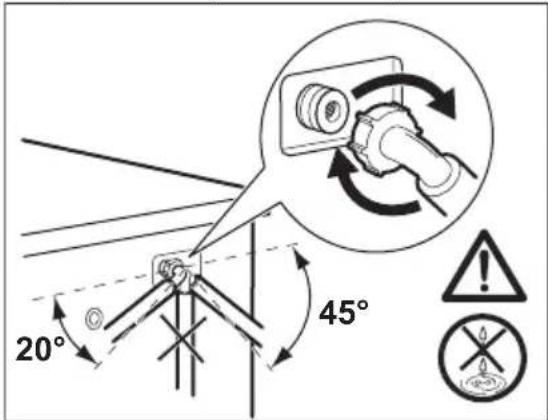

1. Connect the water inlet hose to the back of the appliance if needed. Usually, it is

already installed at the factory.

✓ °20° 4°45°

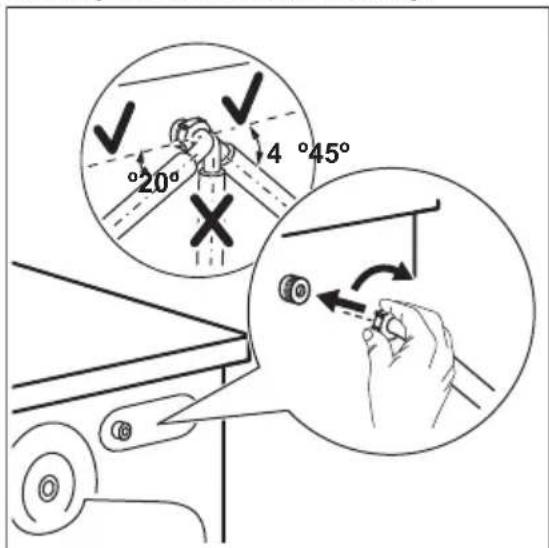

1. Position it toward left or right depending on the position of the tap. Make sure that the inlet hose is not in vertical position.
2. If necessary, loose the ring nut to set it in the correct position
3. Connect the water inlet hose to the cold water tap with 3/4" thread.

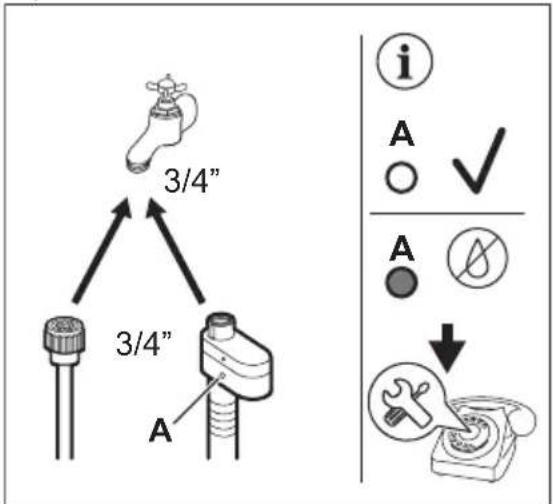

Some model can contain inlet hose with water stop device. It prevents any leaks in the hose because of its natural ageing. The sector in the window shows this fault A. If this occurs, close the water tap and contact the authorized service center for information to replace the hose.

3/4" 3/4" A i A ✓ A ✓ ↓

WARNING!

The inlet water shall not exceed 25^ C.

CAUTION!

Make sure that there are no leaks from the couplings.

Do not use an extension hose if the inlet hose is too short. Contact the service centre for information on inlet hose replacement.

5.5 Water-stop device

The inlet hose has a water stop device. This device prevents water leaks in the hose because of its natural ageing.

The red sector in the window «A» shows this fault.

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

If this occurs, close the water tap and contact the authorized service centre to replace the hose.

5.6 Water drainage

The drain hose should be positioned at a height of not less than 60 cm and not more than 100 cm from the floor.

You can extend the drain hose to maximum 400 cm. Contact the authorized service centre to buy the other drain hose and the extension.

It is possible to connect the drain hose in different ways:

(*) min.600 mm max.1000 mm

(*) Subject to change without notice.

• Connect the drain hose to the spigot and tighten it with a clamp.
• Position the hose directly to a built-in drain pipe in the room wall and tighten it with a clamp.

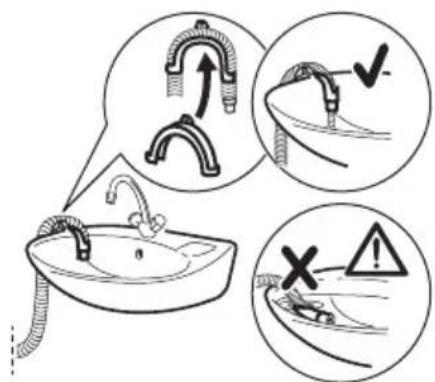

• Without the plastic hose guide, to a sink spigot - put the drain hose in the spigot and tighten it with a clamp.
• To a stand pipe with vent hole - insert the drain hose directly into a drain pipe or stand pipe.
• The drain hose can be bent into U shape and put around the plastic guide. On the edge of a sink - fasten the guide to the water tap or to the wall.

i

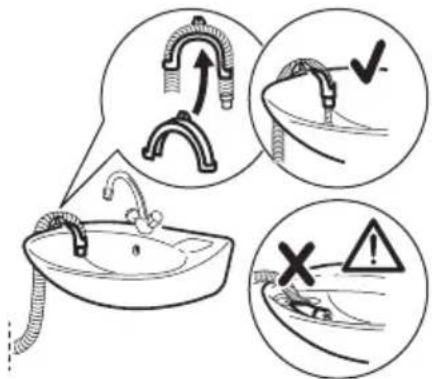

Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

i

Make sure that the plastic guide cannot move when the appliance drains and the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance.

i

The end of the drain hose must always be ventilated, i.e. the inner diameter of the drain pipe (min. 38 mm - min. 1.5") must be larger than the external diameter of the drain hose.

5.7 Electrical connection

At the end of installation you can connect the mains plug to the mains socket.

The rating plate and the 'Technical Data' chapter indicate the necessary electrical ratings. Make sure that they are compatible with the mains power supply.

Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances may also be in use.

Connect the appliance to an earthed socket.

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

The power supply cable must be easily accessible after installing the appliance.

For any electrical work required to install this appliance, contact our Authorised Service Centre.

The manufacturer does not accept any responsibility for damage or injury through failure to comply with the above safety precaution.

6. CONTROL PANEL

6.1 Control panel description

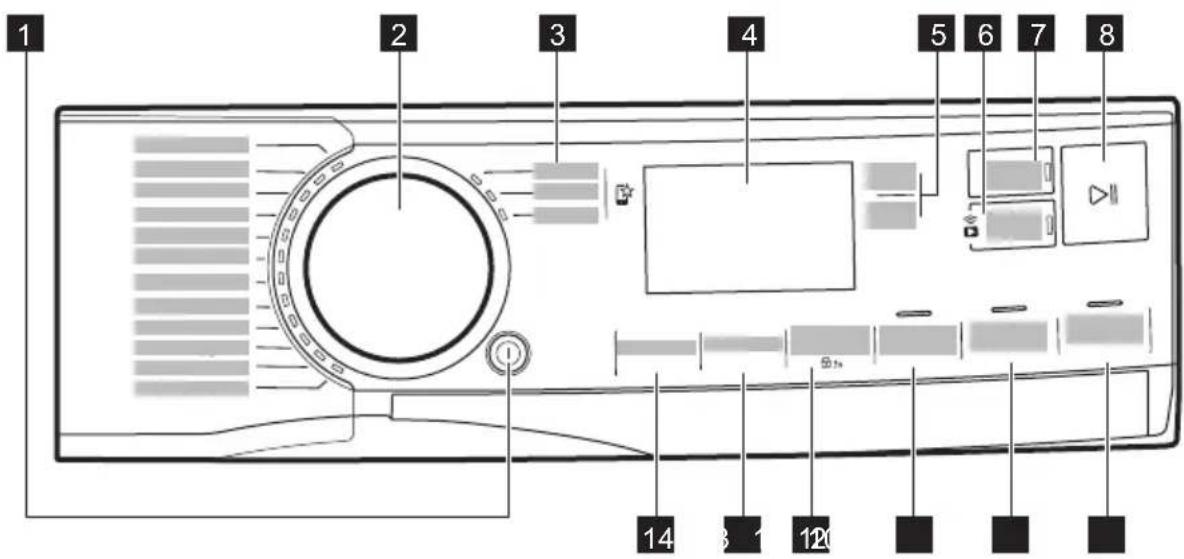

1 2 3 4 5 6 7 8 14 3 1 120

i

The options are not selectable with all washing programmes. Check the compatibility between options and washing programmes in the "Options compatibility with programmes" paragraph in the "Programmes" chapter. An option can exclude another one, in this case the appliance doesn't allow you to set the incompatible options together. Make sure the screen and touch buttons are always clean and dry.

1 On/Off push button ①
2 Programme dial
3 Favourite programmes
4 Display
5 AutoDose Liquid Detergent and Fabric Softener touch buttons

6 Wi-fi connection and Remote Start touch button 📋
7 Finish In touch button
8 Start/Pause touch button ▷||
9 Plus Steam touch button
10 Extra Rinse touch button
11 Time Save touch button

12 Stains/Prewash touch button and permanent Child Lock option 3s
13 Spin touch button

14 Temperature touch button

6.2 Display

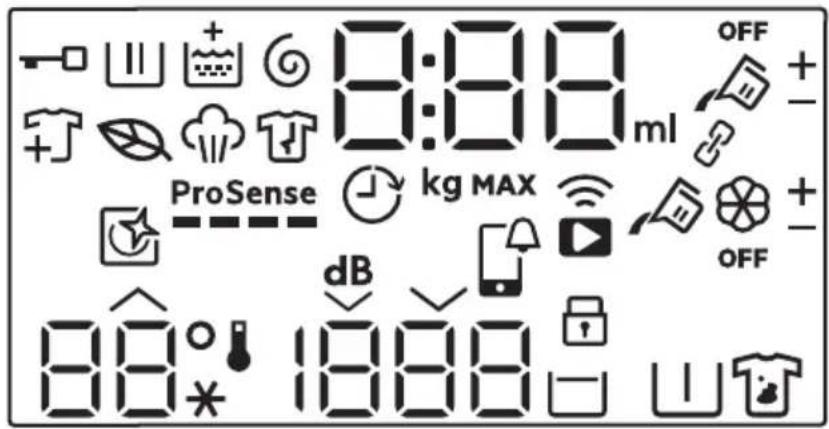

8:88 ml OFF ProSense kg MAX OFF dB 88* 18:88

	Door locked indicator.
	Washing phase indicator. It flashes during pre-wash and wash phase.
	Rinsing phase indicator. It flashes during rinse phase.
	Spinning and draining phase indicator. It flashes during spin and drain phase.
	Steam phase indicator.
	Anti-crease phase indicator.
	Leaf Icon turns on to indicate when the cycles and options selected have a low energy consumption profile.
	Add garments indicator: it lights on when the programme starts and the user can still pause the appliance and add more laundry.
	Extra Rinse indicator.
ProSense	ProSense indicator.
	Finish In indicator.
000	The digital indicator can show:• Programme duration (e. g. ).240
	iThe time shown when the programme is set could not correspond to effective duration and change after ProSense phase.
	• Maximum load.• Finish in time (e. g. or 30' 2h• Cycle end ().0• Warning code (e.g. ).E20• Liquid detergents and softener quantity indicator:88ml. Refer to "The AutoDose technology (Autodosing)" chapter.• Indication of total operating hours of the appliance. Refer to the 'Operating hours counter' section in the 'Settings' paragraph for more details.• When working with the APP:, (access point), (update). Please refer to the chapter 'Wi-FI - Connectivity setup'.
888	Maximum load indicator. The value is shown for three seconds after programme selection, alternated with cycle duration.
MAX	Maximum laundry indicator. It blinks if the laundry amount exceeds the declared load.
	AutoDose liquid detergent tank indicator. When it lights, appliance automatically doses the detergent.
	These indicators will appear next to and when increasing or decreasing the automatic detergent or softener dosage.
OFF	AutoDose status indicator. It lights when AutoDose function for additives is disable.
A V	These indicators appears when setting the automatic detergent or softener dosage. (refer to "The AutoDose technology (Autodosing)" chapter)
	This indicator reminds to run a cleaning cycle.
	APP notification to check.
	Remote connection indicator.Wi-Fi connection indicator.
	Child safety lock indicator.
88°--+	The Temperature area:Temperature indicatorCold water indicator
1888---	The spin area:Spin speed indicatorNo Spin indicator. Spin phase is off.
dB	Extra Silent indicator.
	Rinse hold indicator.
	Pre-wash indicator.
	Stain indicator.
Indicators for options downloadable via App only
	Linked mode indicator. It lights when both AutoDose tanks are linked and filled with the same detergent. AutoDose function for softener is disable: the indicator disappears and the display shows two liquid detergent tank indicators. Access the app to activate this mode.
+	These indicators will appear next to and when increasing or decreasing the automatic detergent or softener dosage. Access the app to activate this mode.

7. DIAL AND BUTTONS

7.1 On/Off ①

Pressing this button for a few seconds allows to activate or deactivate the appliance. Two different tunes sound while switching the appliance on or off.

As the Stand-by function automatically deactivates the appliance to decrease the energy consumption in a few cases, you may need to activate the appliance again.

The default selected programme, at machine switch on, is always the Eco 40-60 programme, also after wake up from standby.

For more details, refer to Stand-by paragraph in Daily Use chapter.

7.2 Programme dial

By rotating the programme dial it is possible to select the desired programme.

7.3 Favourite programmes

These selector positions are available after the appliance have been connected to Wi-Fi.

The favourite programmes can be set and saved via App only choosing from the available ones which are divided into the three categories indicated on the control panel.

Once the favourite programmes have been set, you can select one of them via App or by turning the programme dial to relevant position: the relevant led comes on and the information on the display are updated accordingly.

The favourite programmes can be cancelled through the related App command or pressing the Factory Default key combination.

7.4 Introduction

The options/functions are not selectable with all washing programmes. Check the compatibility between options/functions and washing programmes in the "Programme Chart". An option/function can exclude another one, in this case the appliance doesn't allow you to set the incompatible options/functions together. Make sure the screen and touch buttons are always clean and dry.

7.5 AutoDose Liquid Detergent and Fabric Softener

By means of this buttons you can:

- : activate and deactivate the automatic detergent loading.

• : activate and deactivate the automatic fabric softener loading.

Refer to "The AutoDose Technology (Autodosing)" chapter for more details.

7.6 Remote start

A quick touch of this button activates the Remote Start function that allows you to start, pause and stop the appliance remotely.

The related led comes on and the related icon appears on display.

If you set a programme via App and it does not match with the knob position, APP text appears alternating with programme duration.

Press and hold this button for longer time to provide two other functions:

• hold it down for 3 seconds as long as a click sounds: the Wi-Fi is turned on and off.
• hold it down for 10 seconds as long as a double beep sounds and --- appears on the display: to reset the Network Credentials.

7.7 Finish In

Set this option as last after programme and other options selection, otherwise it can be cancelled if you change some setting.

This option allows choosing the time within which a programme should terminate. The programme end can be postponed by one 1 hour every button touch until 24 hours maximum.

The display shows the normal programme duration alternatively with the set programme end time (expressed in hours 0h). The minimum selectable time corresponds to rounded up hour of the maximum duration of a programme (e.g. if the cycle duration lasts

3:15 hours, the minimum selectable time will be 4h).

After programme start, the door is locked and the appliance starts the ProSense phase. When load estimation ends, on the display the icon of running phase blinks and the time digit counts down in steps of one hour and in steps of 1 minute during the last hour.

7.8 Start/Pause ▷∥

Touch the Start/Pause button to start, pause the appliance or interrupt a running programme.

7.9 Plus Steam

This option adds a steam phase followed by a short anti-crease phase at the end of the washing programme.

The steam phase reduces fabric creasing and facilitates the fabric ironing.

The Plus Steam option achieves good results with a small load because steam better penetrates the laundry if there is more space. For this reason, the programme maximum load combined with this option is 2 kg (approximately 8 - 10 shirts).

When setting the Plus Steam option, the maximum load drops to 2 kg in the display and programme time is adjusted accordingly.

The indicator blinks in the display during steam phase.

This option can affect the programme duration.

When the programme stops the display shows a zero, the indicator is steady on.

The anti-crease phase starts, the indicator is blinking, and the Start/Pause led remains lit. The drum performs smooth movements for about 30 minutes to keep the steam benefit.

To interrupt the anti-crease phase, you can:

• Press the On/Off button for a few seconds to activate or the deactivate the appliance.
• Turning the programme dial in another position.

When the anti-crease movements stop and the door unlocks, the appliance proposes again the previous set programme.

i

A small laundry load helps to reach better results.

7.10 Extra Rinse

With this option you can add a few rinses to the selected washing programmes and optimise the fabric softener distribution and improve the fabric softness.

It is suggested when you use the fabric softener.

Useful for people allergic to detergents and in areas where the water is soft.

This option increases the programme duration.

The button indicator comes on.

7.11 Time Save

With this option you can decrease the programme duration.

• If your laundry is normally or lightly soiled, it may be advisable to shorten the washing programme. Touch this button once to decrease the duration.
• In case of smaller load, touch this button twice to set an extra quick programme. In this case, the temperature 95^ is not selectable.

The LED of the button is on and the display shows the set programme duration.

i

This option can also be used to shorten the steam programme duration.

7.12 Stains/Prewash

Press this button repeatedly to activate one of the two options or both. The relevant indicator comes on in the display.

- Strains

By setting this option, the indicator + appears close to detergent symbol, and the appliance will automatically dose an extra amount of detergent when automatic detergent tank is enabled. If automatic detergent tank is Off, it is possible to run this option as in traditional appliance by filling detergent or additive in the manual compartment.

i

If you press detergent tank button while Stains option is active, AutoDose function is switched off, but Stains option still remains active in manual mode.

- Prewash

Use this option to add a pre-wash phase at 30 °C before the washing phase. This option is recommended for heavily soiled laundry, especially if containing sand, dust, mud and other solid particles.

i

When selecting a pre-wash phase and AutoDose is active, the appliance will automatically dose the detergent. When AutoDose is switched off, put the detergent/additive in a dosing ball inside the drum.

i

The options can increase the programme duration.

7.13 Spin

When you set a programme, the appliance automatically selects the default spin speed.

Touch this button repeatedly to: - Change the spin speed.

i

The display shows only the spin speeds available for the set programme.

- Activate the Rinse Hold option.

The water of the last rinse is not drained out to prevent the fabrics from creasing. The washing programme ends with water in the drum and the final spin phase is not performed.

The display shows the indicator □ The drum turns regularly to reduce creasing.

The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door.

Touch Start/Pause button: the appliance performs the spinning phase and drains the water.

- Activate the Extra silent option.

All spinning phases (intermediate spin and final spin) are suppressed and the programme ends with water in the drum.

This helps to reduce creasing.

As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available. In some programmes the rinses are performed with more water.

The display shows the indicator dB The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door.

Touch the Start/Pause button: the appliance performs only the draining phase.

- No Spin. - - -

Set this option to deactivate all spin phases. The display shows the indicator ---. The appliance performs the only draining phase of the selected washing programme. Set this option for very delicate fabrics. The rinses phase uses more water for some washing programmes

i

The appliance empties the water out automatically after approximately 18 hours.

7.14 Temperature

When you select a washing programme, the appliance automatically proposes a default temperature.

Touch this button repeatedly until the desired temperature value appears on the display.

When the display shows the indicators × and -, the appliance does not heat the water.

8. SETTINGS

8.1 Introduction

i

When pressing a key combination, do not tilt your fingers downwards. The sensors of the underneath buttons are sensitive and may interfere with your choice.

8.2 Acoustic signals

This appliance is provided with different acoustic signals, that operate when:

• You activate the appliance (special short tune).

• You deactivate the appliance (special short tune).

• You touch the buttons (click sound).

• You make a wrong selection (3 short sounds).
• The programme is completed (sequence of sounds for about 2 minutes).
• The appliance has a malfunction (sequence of short sounds for about 5 minutes).
• When a laundry overload is detected during ProSense phase (a double sound played one).

To activate/deactivate this option, hold down the Extra Rinse button until a beep or a double beep sounds.

If you deactivate this function, the acoustic signals stops playing at the end of the programme only.

8.3 Child Lock

With this option you can prevent children from playing with the control panel.

To activate/deactivate this option, hold down the Stains/Prewash button until comes on/ goes off on the display.

The appliance will default to this option after you switch it off.

8.4 Permanent Extra Rinse

With this option you can permanently have an extra rinse phase, if available with selected cycle, when you set a new programme.

- To activate/deactivate this option touch the Extra Rinse and the Time Save push buttons simultaneously until the indicator above the Extra Rinse push button and the corresponding icon on the display come on/go off.

Press the Extra Rinse button to deactivate the function on a single cycle execution without removing the permanent option.

8.5 Operating Hours Counter

It is possible to visualise the total operating time of the appliance in hours, starting from

9. BEFORE FIRST USE

During installation or before first use you may observe some water in the appliance. This is a residual water left in the appliance after a full functional test in the factory to ensure the appliance is delivered to customers in perfect working order and is no cause for concern.

the first switching on. This value will count operating time of the cycles (does not include pauses, delayed start time). To visualise this value, proceed as follows:

1. Switch the appliance on by pressing the On/Off button.
2. Press and hold the Extra Rinse and Plus Steam buttons for some seconds.
3. After 3 seconds the total hours operated by the appliance are shown in the display: e.g. 1276 hours, the display shows the text Hr for 2 seconds, 12 (thousands and hundreds) for 2 seconds and 76 (tens and units).
4. To exit this mode, press any button.

If the procedure does not work (due to timeout or wrong keys combination), switch the appliance off and repeat sequence from the beginning.

8.6 Factory Defaults

This function allows to restore the factory default options. To activate this option follow steps below:

1. Switch the appliance on by pressing On/Off① button.
2. Press and hold the Stains/Prewash and Time Save buttons for some seconds.

3. The display will show for about 5 seconds.

4. Make sure that all transit bolts have been removed from the appliance.

5. Make sure that the electrical power is available and the water tap is open.
6. Make sure to fill the AutoDose tanks with liquid detergent and fabric softener ✿. Refer to "AutoDose basic setting" paragraph in "The AutoDose technology" chapter.
7. Pour 2 litres of water inside the drum.

This action activates the drain system.

1. Set and start a programme for cotton at the highest temperature without any laundry in the drum.

This removes all possible dirt from the drum and the tub.

10. THE AUTODOSE TECHNOLOGY (AUTODOSING)

Read this chapter carefully.

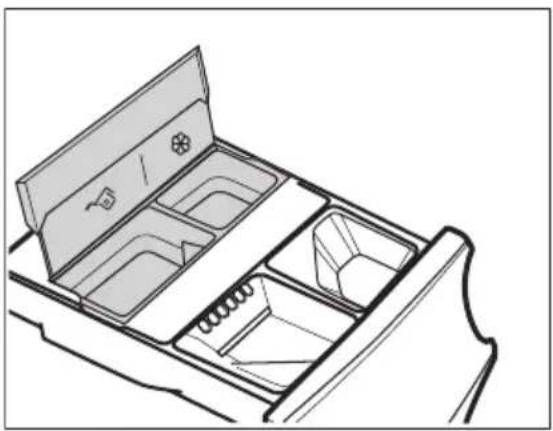

10.1 Introduction

Right detergent and fabric softener dosage takes better care of the laundry and ensuring good wash performances.

Too much detergent damages your clothes and too little doesn't ensure good wash performances.

This appliance is equipped with an auto dosing system able to automatically provide the right detergent and fabric softener dosage to preserve the fabric integrity and colour brightness.

Line drawing of an open refrigerator drawer with compartments and a lid (no text or symbols)

AutoDose liquid detergent tank.

AutoDose fabric softener tank.

The appliance is pre-set by the factory to suit most users habits.

Once started the programme, the appliance will automatically release the right amount of detergent and softener according to the real fabric load, if AutoDose is activated and the indicators 📋 and/or 🌿 are visible on the display.

In some programmes, AutoDose is

deactivated (the indicators and/or are not displayed and the display shows OFF) because there are garments requiring special detergents or treatments. If this is the case, pour the detergent and other treatments in the proper manual filling compartment. Please refer to "AutoDose and options compatibility with programmes" in "Programmes" chapter.

Further explanations on AutoDose and activation of advanced settings are available downloading the APP.

10.2 Detergent dispenser with AutoDose tanks and manual compartments

When using detergent and any other treatments, always follow the instructions that you find on the packaging of the detergent products. We recommend not to exceed the maximum indicated level in each compartment (MAX

If both AutoDose tanks are enabled in the set programme, liquid detergent and fabric softener are automatically loaded.

If one of the AutoDose tank or both are disabled (OFF) in the set programme, proceed by manually filling in the proper manual compartment.

AutoDose AutoDose Manual (Manual)

- AutoDose tanks for liquid detergent and fabric softener.

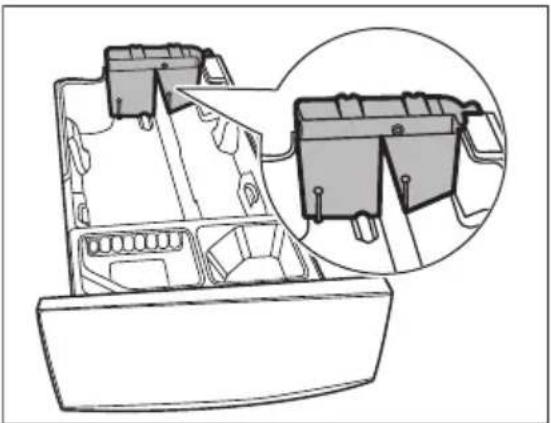

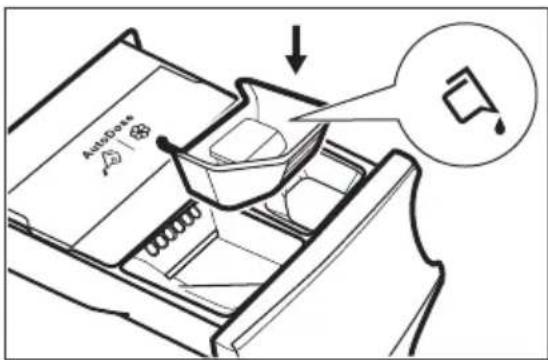

WARNING!

Do not put powder detergent in the AutoDose compartment.

- Manual compartment for washing phase: powder or liquid detergent.

When using liquid detergent, make sure that the special container for liquid detergent is inserted. Refer to the "Manual filling the detergent and additives" paragraph in this chapter. The liquid detergent container is supplied inside the drum.

AutoDrive ✓ | 88

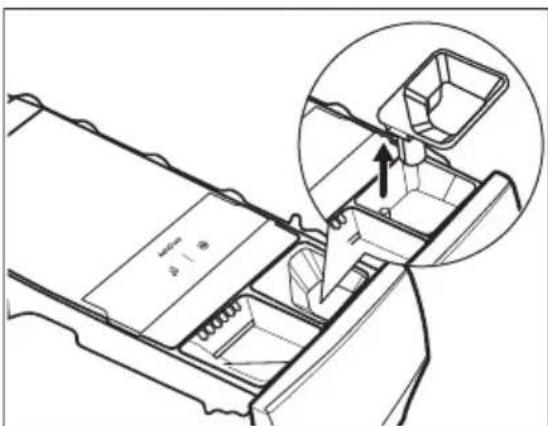

- Manual Manual compartment for liquid additives (fabric softener, fabric conditioner, starch).

• MAX Maximum level for detergent/additives quantity.

10.3 AutoDose basic setting

The factory pre-set doses for a large load are 90 ml for detergent tank and 25 ml for fabric softener tank: the optimal configuration to meet majority of use condition. The appliance will use these settings to calculate the precise dosage for each wash based on load size.

However, under extreme conditions (very soft or very hard water) and particular type of detergent (such as super compact), we recommend to adjust the pre-set dosage by following the indication given on detergent and fabric softener container: e.g when using super compact detergent you may need to reduce the pre-set dosage considerably.

If the washing results are not satisfying or there is too much foam during washing, you may need to change the factory setting. Read in the paragraph 'AutoDose configuration mode' how to change the basic setting, but before:

1. Identify the water hardness level.

Check the water hardness level in your area. The levels are generally indicated as: soft, medium and hard.

If necessary, please contact your local water authority to check the water hardness in your area.

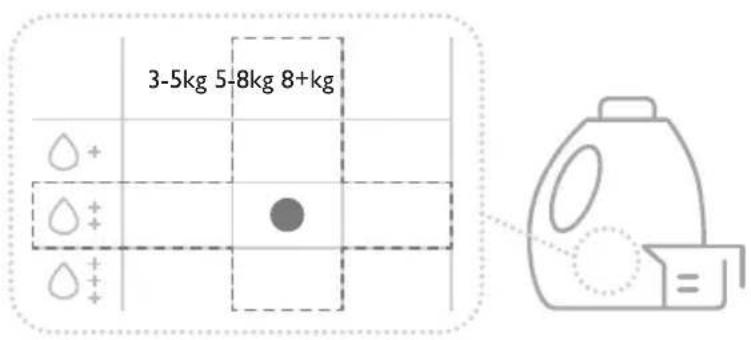

1. Identify the customized detergent dosage.

Check the label in the detergent/fabric softener container and identify the quantity to use. For the detergent the suggested quantity of detergent is the combination of three different factors:

• Water hardness level (see the following table);

- Normal soil level;

- Rated capacity of the appliance (e.g. maximum load capacity 10.0 kg). If the rated capacity on the detergent container label refers to lower capacity appliances, the customized dosage should be increased by 20% referring to the proposed dosage.

As example for a machine with rated capacity 8 kg, medium water, normal soil level the dosage is recognised by the crossing in the detergent label dosages.

3-5kg 5-8kg 8+kg

Water hardness levels

Levels Water hardness range
	^^1)	^^2)	^^3)	mmol/l ppm
Soft <15 <8 <10 <1.4 <140
Medium ^4)	15 - 25 8 - 14 0 - 17 1.5 - 2.5 150 - 250
Hard >25 >14 >17 >2.5 >250

1) French degrees
2) German degrees
3) English degrees
4) Factory setting, able to satisfy most of the use conditions.

10.4 AutoDose configuration mode

Enter the AutoDose configuration mode before proceeding with any programme setting. The configuration mode may cancel temporary settings.

1. Press the On/Off button for a few seconds to activate the appliance.
2. Wait about 10 seconds for appliance internal check.

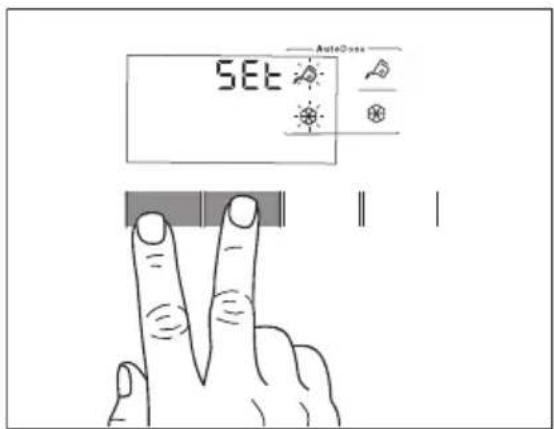

3. To enter in configuration mode, hold pressed the Temperature and the Spin buttons simultaneously for a few seconds until SET and the blinking detergent tank and softener tank indicators appear in the display. After 10 seconds without interacting with control panel the appliance exits the configuration mode.

SET AutoDose

1. Touch related tank buttons to toggle function off and on. The display shows OFF when a tank is disabled or shows tank indicator when it is enabled.

AutoDose 2:50 40 1200 OFF

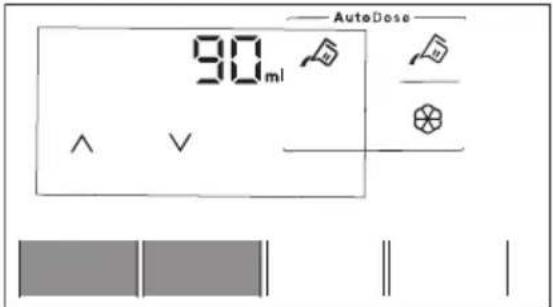

1. To set basic dosage touch related tank buttons until default dosage laundry product and two arrows on bottom of display appear. Touch the Temperature button repeatedly to decrease the dosage and the Spin button to increase it: minimum step is 1 ml (each single step) or 10 ml (when button is hold pressed).

AutoDose 90ml

1. After about 10 seconds the display returns to the programme information screen or hold pressed the Temperature and the Spin buttons again to exit immediately.

10.5 Filling the detergent and additives on AutoDose system

i

Please read "Detergents and other treatments" in "Hints and tips" chapter.

i

We recommend that you do not exceed the maximum indicated level (MAX

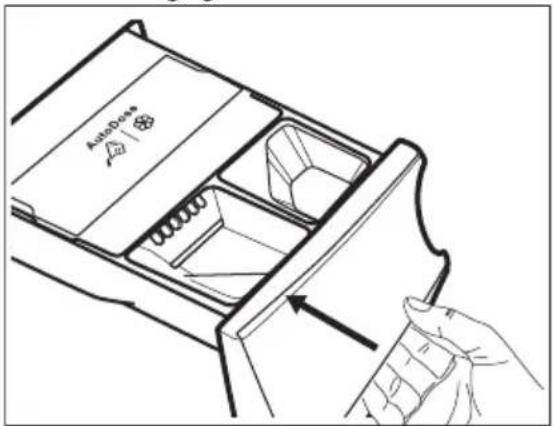

1. Open the detergent dispenser.

AutoBox

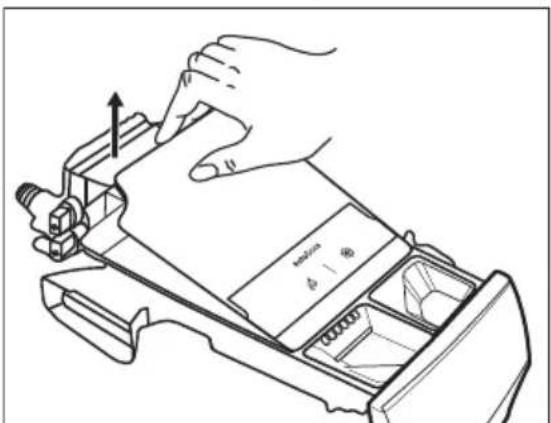

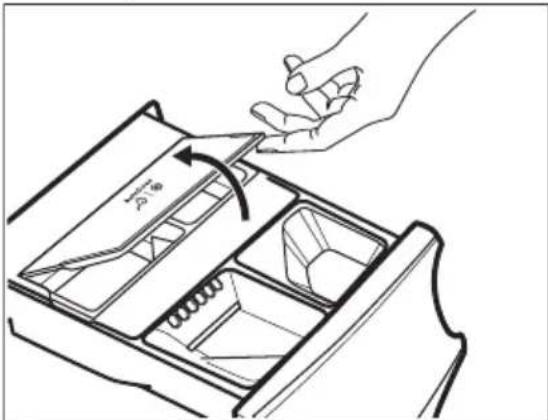

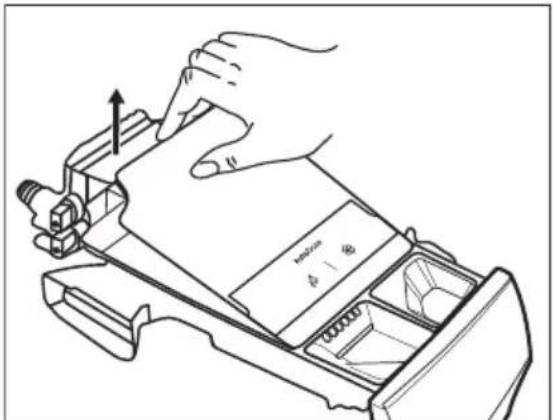

1. Lift up the AutoDose cover lid.

Line drawing of a hand inserting a tray into an open drawer with a handle (no text or symbols)

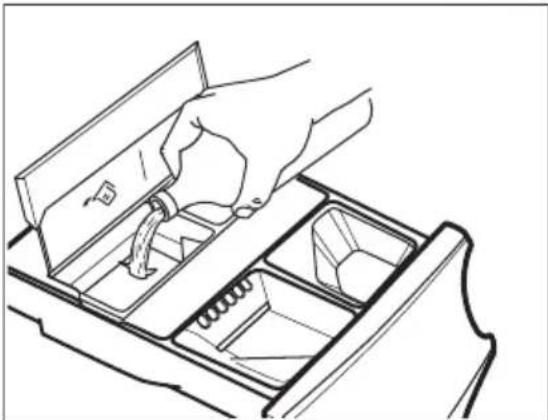

1. Gently pour only liquid detergent in the AutoDose detergent tank. Fill up to the maximum indicated level MAX.

Line drawing of a hand inserting a component into a drawer with internal compartments (no text or symbols)

1. Gently pour only liquid softener in the AutoDose fabric softener tank Fill up to the maximum indicated level MAX.

Line drawing of a hand inserting a plastic bag into a drawer with internal compartments (no text or symbols)

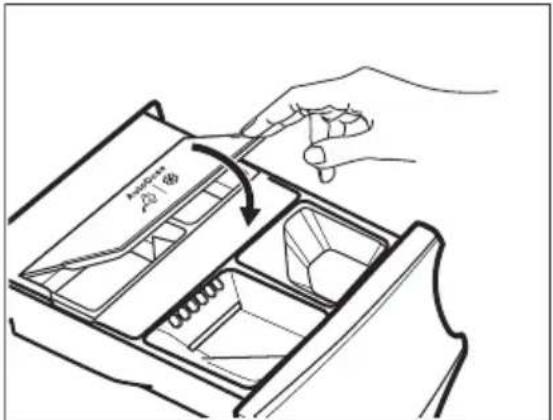

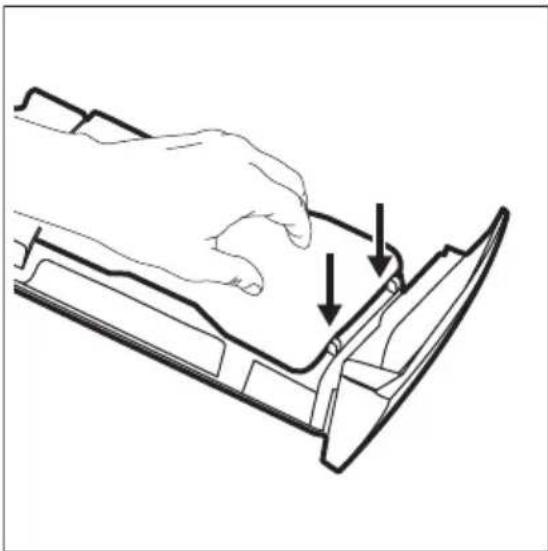

1. Lower down the AutoDose cover lid.


Diagram showing a hand using a tool to adjust or remove a device into a drawer with labeled components and directional arrow.

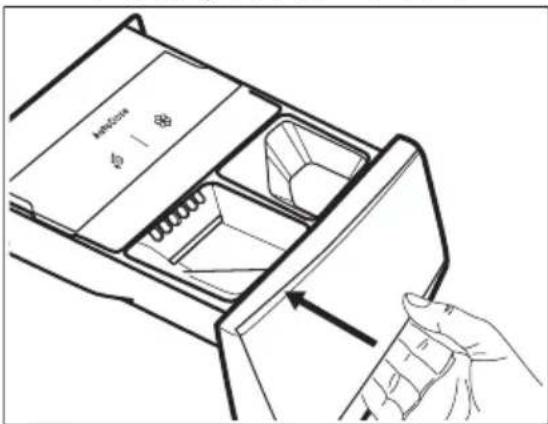

1. Gently close the detergent dispenser, till click engagement.


AutoDrive® 451 80

10.6 AutoDose low level indication

Do not refill the AutoDose tanks unless appliances indicates that one or both tanks are empty.

When the activated tank reaches a low level of detergent, related indicator blinks slowly and continuously on the display.

It will stop blinking when the compartment is refilled.

If tank is not refilled, once a programme has started, the indicator will stop blinking and stay steadily lit. Once the programme is finished, it will start blinking again.

Unless AutoDose is turned OFF, if a compartment has reached low level, the set dosage for that compartment will be shown by the display for a few seconds each time the drawer is opened, to remind refill is needed.

If in both tanks detergent level is low, both indicators blink, but only the set dosage for detergent will be displayed.

If the tanks are filled before the appliance is powered on for the first time, the AutoDose indicator will not blink.

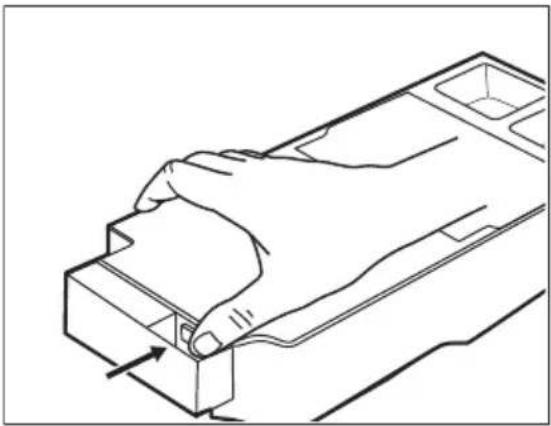

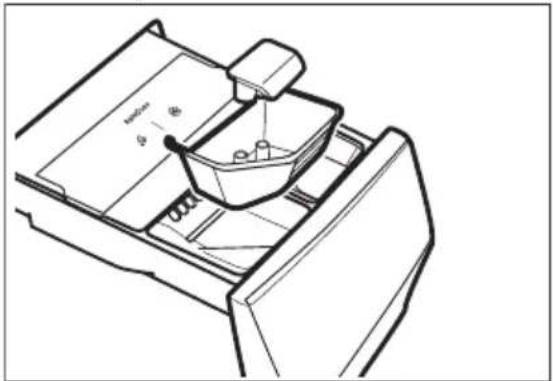

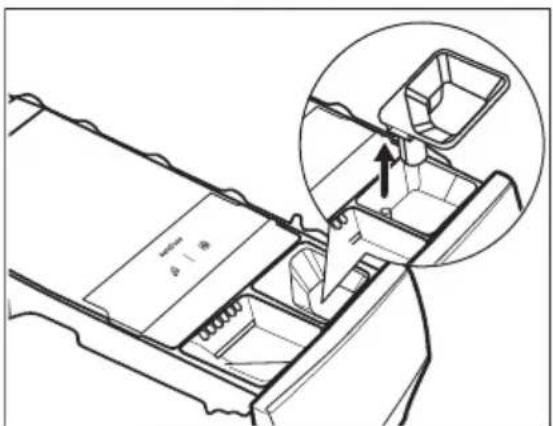

CAUTION!

The tanks refill must be carried out with the same brand and type of detergent/ fabric softener/additive used before, otherwise clean the tanks before refilling.

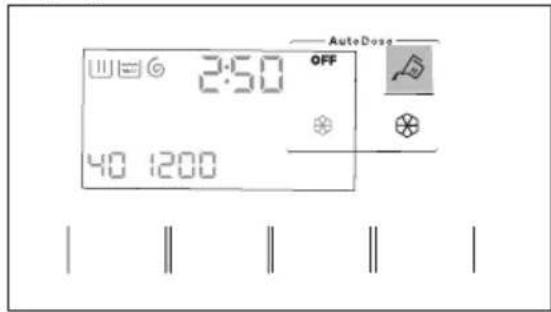

10.7 Switching from AutoDose to manual dosing

It is possible to disable AutoDose function for one or both tanks by pressing related button symbol.

Example:

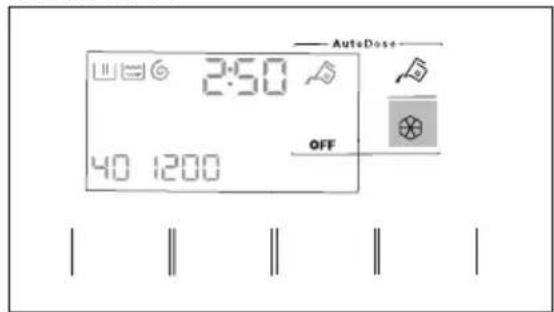

- To switch Fabric Softener tank off, press the softener button until the display shows OFF.

AutoDose 2:50 40 1200 OFF

- If you need to use different detergent than ones present in AutoDose tanks, you could switch Detergent tank off by

pressing the detergent button until the display shows OFF.

2:50 40 1200 AutoDose OFF

10.8 Deactivating the AutoDose

If you want to use the machine ONLY manually, you can deactivate the Autodose functionality. Once you have entered the AutoDose configuration mode by a long press of Temperature and the Spin buttons:

1. Tap on the detergent 📋 button or the softener ⚙ button until display shows OFF : the AutoDose is excluded completely for related tank or both.

OFF OFF AutoDose OFF

1. After about 10 seconds the display returns to the programme information screen.

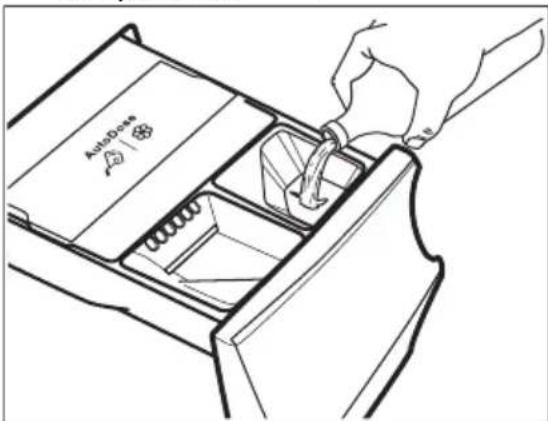

10.9 Manual filling the detergent and additives

You may need to use a different detergent or fabric softener than the ones used in the AutoDose tanks. First, make sure that the AutoDose tanks are disabled and then pour the detergent and/or other treatments in the manual compartments.

Do not exceed the maximum indicated level (MAX

1. Open the detergent dispenser.

AutoBox

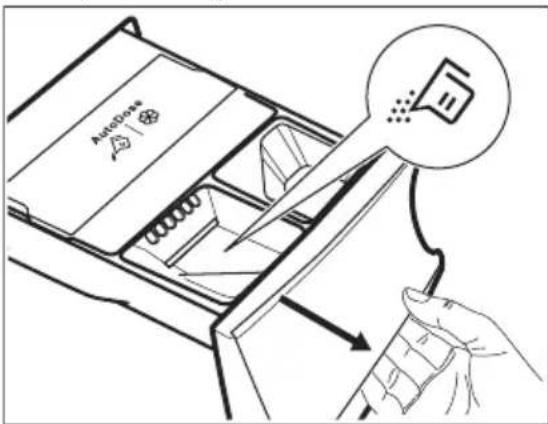

1. Put the powder detergent in the compartment. When using liquid detergent, refer to "Manual filling the liquid detergent".

AutoDose

1. If desired, pour the fabric softener in the compartment Manual.

AutoDress 20

1. Gently close the detergent dispenser, till click engagement.

AutoBox

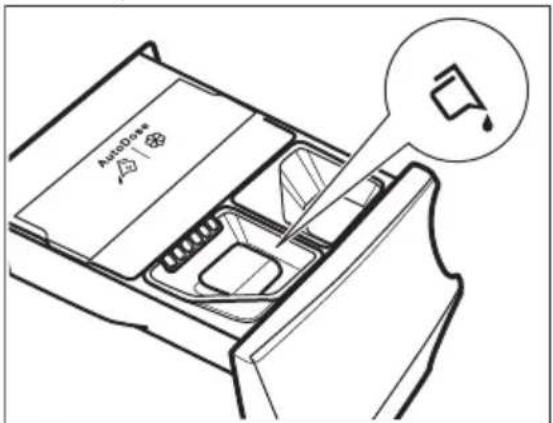

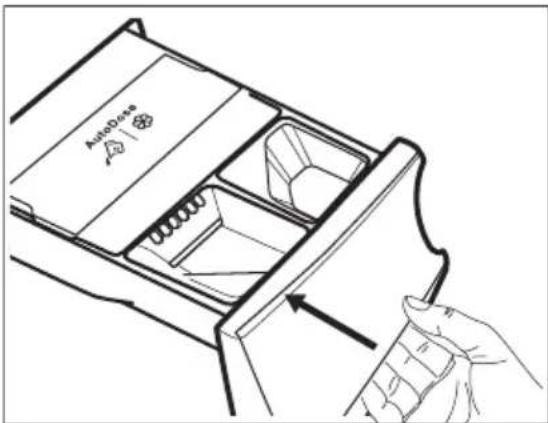

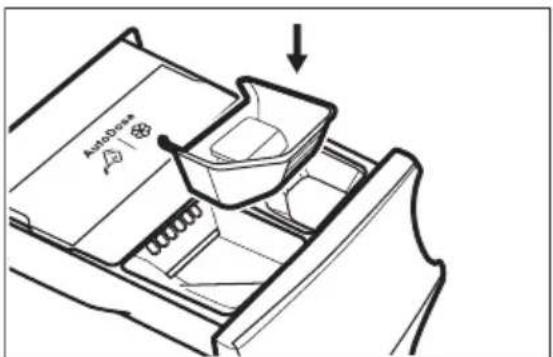

Manual filling the liquid detergent

1. Insert the container for liquid detergent.

AutoDrive 188

1. Pour the liquid detergent in the compartment

AutoDose

1. Gently close the detergent dispenser, till click engagement.

AutoBox

If the machine has not been used for more than 4 weeks with filled tanks, detergent/softener can become viscous or dry out. It is needed to clean the drawer as indicated in 'Care and Cleaning' chapter.

10.10 Drawer open indication

When a programme is running, the detergent drawer must always be closed.

A sensor in the drawer detects if the drawer is open (or not properly closed) while the programme is running. In such case, the appliance will immediately be paused.

If you press the Start/Pause ▷|| button, an error sound is generated and everything in the display will turn off except the AutoDose indicators remain lit for a few seconds. Then the display returns to the previous paused state.

This will happen even if the user turned AutoDose off.

To restart the programme, ensure the drawer is properly closed and press Start/Pause ▷ II button.

11. PROGRAMMES

11.1 The app and additional hidden programmes

Our app provides you with a wide choice of additional hidden programmes. Connect the appliance to the app and you will be able to choose the programme that suits your needs most.

You can also memorize any of the hidden cycles in the favourite programme positions. To select the programme from the appliance directly refer to the "Favourite programmes" paragraph in "Dial and buttons" chapter.

Programme names are subject to change depending on market requirements without notice.

In the App you can find a complete description of each programme.

Sportswear	Bed Linen	Denim	Machine Clean
Daily Training	Curtains	Silk	1 Item Fast
Down Jackets	Pillow	Baby	Anti-Allergy Vapour
Soccer/Rugby	Towels	Linen	Easy Iron
Skiing Gear	Duvet	Business Shirts
Running Shoes	Pet Hair	Steam Cashmere

11.2 Programme Chart

The programmes are described in this chart following the order of the selector dial from the top to the bottom.

Washing programmes

Programme Programme description
PowerClean 59min	Cotton and mixed synthetic fabrics. Ideal to wash your daily load in a short time, for a better clothes care and good cleaning already at 30°C.
	iThe standard program duration has been developed on a laundry load of 5 kg. If you wash a smaller or a bigger load, the washing time automatically decreases or increases ensuring perfect results.
Eco 40-60	Low energy cycle for cottons. Decreases temperature and extends time to reach good washing results.
Cottons	White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetics	Synthetic items or mixed fabric items. Normal soil.
Delicates	Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normal soil.
Wool	Machine washable wool, hand washable wool and other fabrics with «hand washing» care symbol1).
20min 3kg	Cotton and synthetic items lightly soiled or worn only once.
Steam	Cotton, synthetic and mixed items. Special steam cycle without washing that can be used to prepare your dried laundry for ironing or refreshing garments worn once. This programme reduces creases, odours and relaxes the fibres. Do not use any detergent.When the programme is completed, quickly remove the laundry from the drum2). If necessary, remove stains by washing or using localized stain removal. Steam programmes do not perform any hygienic cycle. Do not set a Steam programme with these types of items:Items that are not suitable for tumble drying.Items with label "Dry clean only".
[YXT]Outdoor	Do not use fabric softener and make sure that there is no softener residue in the detergent dispenser.Outdoor clothing, technical, sport fabrics, waterproof and breathable jackets, shell jackets with a removable fleece or inner insulation. The recommended laundry load is 2.0 kg. This programme can also be used as water repellent restoring phase, specifically tailored for treating clothes with a hydrophobic coating. To perform the water repellent restoring phase, proceed as follows:Pour the washing detergent in the compartment.Pour a special water repellency restorer for fabric in the drawer compartment for fabric softener Manual.Reduce the laundry load to 1.0 kg.
	To further improve the water repellent restoring action, dry the laundry in a tumble dryer by setting the Outdoor drying programme (if available and if the garment care label permits tumble drying).
[KG83]Hygiene	White cotton items. This high-performance wash programme combined with steam vapour, removes more than 99,99% of bacteria and viruses3) keeping the temperature above 60°C throughout the washing phase; with an additional action on the fibers thanks to a vapour phase, an enhanced rinsing phase ensures a proper removal of detergent and micro-organism residues. This programme ensures also a proper reduction of pollens/allergenic items.
Rinse	All fabrics, except woollens and very delicate fabrics. Programme for rinsing and spinning the laundry. The default spin speed is the one used for cotton programmes. Reduce the spin speed accordingly to the type of laundry. If necessary, set the Extra Rinse option to add rinses. With a low spin speed the appliance performs delicate rinses and a short spin.
Spin/Drain	To spin the laundry and to drain the water in the drum. All fabrics, except woollens and delicate fabrics.

1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.

2) If you set a Steam programme with dried laundry, at the end of the cycle the laundry can be humid. Line dry the items for about 10 minutes. This programme does not remove particularly intense odour.

3) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

1) According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.
Programme temperature, maximum spin speed and maximum load

Programme Default temperature	Temperature range	Reference spin speed Spin speed range	Maximum load
PowerClean 59min	30 °C60 °C - 30 °C	1600 rpm1600 rpm - 400 rpm	8.0 kg
Eco 40-60	- 1)2)	1600 rpm1600 rpm - 400 rpm	10.0 kg
Cottons	40 °C95 °C - Cold	1600 rpm1600 rpm - 400 rpm	10.0 kg
Synthetics	30 °C60 °C - Cold	1200 rpm1200 rpm - 400 rpm	5.0 kg
Delicates	30 °C40 °C - Cold	800 rpm1200 rpm - 400 rpm	2.0 kg
Wool	40 °C40 °C - Cold	1200 rpm1200 rpm - 400 rpm	3.0 kg
20min 3kg	30 °C40 °C - 30 °C	1200 rpm1600 rpm - 400 rpm	3.0 kg
Steam	-- 2.0 kg
Outdoor	30 °C40 °C - Cold	1200 rpm1200 rpm - 400 rpm	2.0 kg ^3) 1.0 kg ^4)
Hygiene	60 °C	1600 rpm1600 rpm - 400 rpm	10.0 kg
Programme Default temperature Temperature range		Reference spin speed Spin speed range	Maximum load
Rinse	-	1600 rpm1600 rpm - 400 rpm	10.0 kg
Spin/Drain	-	1600 rpm1600 rpm - 400 rpm	10.0 kg

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

2) The temperature of this programme is not visible on the display and it is automatically set.
3) Washing programme.
4) Washing programme and water repellent phase.

11.3 Steam programmes

The Steam programmes can be used for reducing wrinkles and odours on garments (such as cottons, synthetics, mixed fabrics, including delicates) that just need to be refreshed, in a short time, avoiding washing.

The fabric fibres are relaxed and afterwards ironing becomes effortless. When the cycle is completed, quickly remove the laundry from the drum.

The cycle duration can be reduced till 15 minutes by means of the Time Save option.

DO NOT set this mode with the following type of items:

• Items that are not suitable for tumble drying.
• Items with label "Dry clean only".

Do not use any detergent!

The Steam programmes do not remove particularly intense odour and do not perform any hygienic cycle.

After the steam treatment the laundry can be humid. Hang items out for a few minutes.

The fragrance (AEG Steam Fragrance)

The AEGSteam Fragrance allows you to refresh even your delicate clothes, removing wrinkles and adding freshness with a gentle fragrance developed exclusively by AEG. By refreshing your garments with steam, rather than running full wash cycles, you will keep your clothes looking and feeling new longer. You can even safely use the fragrance with Cashmere and Steam programmes - if they are available - for delicate fabrics like cashmere and wool. When treating smaller load reduce the fragrance dosage and the cycle duration: in only fifteen minutes, your clothes will regain that "just washed" feeling.

Read carefully the instructions supplied with the fragrance.

DO NOT:

• Tumble dry the garments treated with fragrance. Its benefit would evaporate.
• Use the fragrance with different purposes than those here described.
• Use the fragrance on new garments. New garments may contain residual finishing compounds which are not compatible with it.

The fragrance is available on AEG web shop or by authorised dealer.

11.4 Woolmark Premium Wool Care - Green

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

The wool wash cycle of this machine has been tested and approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine.

M2304

11.5 Options compatibility with programmes

Additional programmes and settings are available downloading the APP.

PowerClean 59min

Eco 40-60

Cottons

Synthetics

Delicates

Wool

20min 3kg

Steam

Outdoor

Hygiene

Rinse

Spin/Drain

AutoDose

AutoDose Detergent

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ □ Rinse Hold

■ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ ▢ 空気を発行する。

dBExtra Silent

■■■

---No Spin

■1)

Stains2)

■■

■

Prewash

■■

Time Save3)

■■■

■

Extra Rinse ■

■■■

■■■

Plus Steam ■

■■

■

Finish In ■

■■

■

■

■

■

■

1) If you set the No Spin option, the appliance performs draining only.2) This option is not available with temperature lower than 40 °C.3) If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully load the appliance, however the washing results can be less satisfactory.Suitable detergents for washing programmes

Programme Universal powder1)

Liquid Univer-sal

Liquid for col-oureds

Delicates woollens

Special

PowerClean59min

--▲▲-- --

Eco 40-60 ▲▲▲ -- --

Cottons ▲▲▲ -- --

Synthetics ▲▲▲ -- --

Delicates -- -- ▲▲

Wool -- -- ▲▲

20min 3kg -- ▲▲ -- --

Outdoor -- -- ▲▲

Programme Universal powder1)

Liquid Univer-sal

Liquid for col-oureds

Delicates woollens

Special

Hygiene ▲ ▲ -- -- ▲

1) At temperature higher than 60 °C the use of powder detergent is recommended.

▲ = Recommended -- = Not recommended

12. ⓤWI-FI - CONNECTIVITY SETUP

This chapter describes how to connect the smart appliance to the Wi-Fi network and to link it to mobile devices.

By this functionality you can receive notifications, control and monitor your appliance from your mobile devices.

The Wi-Fi functionality is off as factory default setting.

To connect the appliance to enjoy the full range of features and services you need:

• Wireless network at home with internet connection enabled.
• Mobile device connected to wireless network.

Wi-Fi module parameters

Frequency

2.412 - 2.472 GHz for European market

Protocol IEEE 802.11b/g/n

Max Power <20 dBm

Encryption WPA, WPA2, WPA3

12.1 QR code on rating plate

Mod.xxxxxxxxx Prod.No. 910000000 00 00CV - 00Hz 5000 W SCANNING... 00A Ser No. 00000000

QR code can be used in two ways:

• Scan the QR code with the built-in camera app to download our app from the App store on your smart device and follow the required steps.
• Pairing your smart device with appliance to simplify the process. Scan the QR code with QR code scanner built-in our app.

12.2 Installing and configuring the App

The App allows you to control your laundry through a mobile device. It contains a large number of programmes, useful features and product information tailored perfectly to the appliance. It's personalized laundry care - all from your mobile device.

When connecting the appliance to the application, stand near it with your mobile device.

Make sure that your mobile device is connected to the wireless network.

1. Go to the App Store on your smart device or scan QR code (see 'QR code on rating plate' paragraph).
2. Download and install our app.
3. Start the application. Select the country and language and login with Your email and password. If you do not have an account, create a new one following the instructions in the App.
4. Follow the instructions on the App for the appliance registration and configuration.

12.3 Configuring the appliance wireless connection

1. Press the On/Off button for a few seconds to activate the appliance. Wait about 10 seconds before proceeding with wireless configuration.
2. Select a programme by turning the programme dial.
3. Press and hold the Remote Start button for a few seconds until a 'click' sounds. Release the button. Appears on the display for 5 seconds and the indicator starts blinking.
   The wireless module begins starting up.

Make sure that you APP is ready for connection.

1. After about 10 seconds, (Access Point) appears on the display.

The access point will be open for about 5 minutes.

1. Configure the App on your smart device and follow the instructions to connect the appliance to your Wi-Fi network.
2. If the connectivity is configured, when the programme information screen returns, the indicator is on the display.

40°1200

Every time you switch the appliance on, the appliance takes about 10 seconds to connect to the network automatically. When the indicator stops blinking the connection is ready.

To switch the wireless connection off, press and hold the Remote Start button for a few seconds until the first acoustic signal. Release the button. Appears on the display for 5 seconds.

If you switch the appliance off and on again, the wireless connection is automatically off.

To remove the wireless credentials, press and hold the Remote Start button for a few seconds until the second acoustic signal sounds. Symbol appears on the display for a few seconds.

12.4 Remote Start

The Remote Start enables you to start a cycle in remote control.

i

The Remote Control activates automatically when you press the Start/Pause button to start the programme, but it is also possible to start a washing programme remotely. This function is deactivated when door is open.

When the App is installed and the wireless connection is complete, you can activate the Remote Start:

1. Touch the Remote Start button and the indicator APP blinks on the display for a few seconds.

1. Touch the Start/Pause button to activate the Remote Start before the indicator stops blinking.

The indicators and appear on the programme summary screen and the door is locked. Now it is possible to start the programme remotely.

i

When touching the Start/Pause button after the indicator stops blinking, the Remote Start is not activated, but the set programme starts.

13. DAILY USE

!

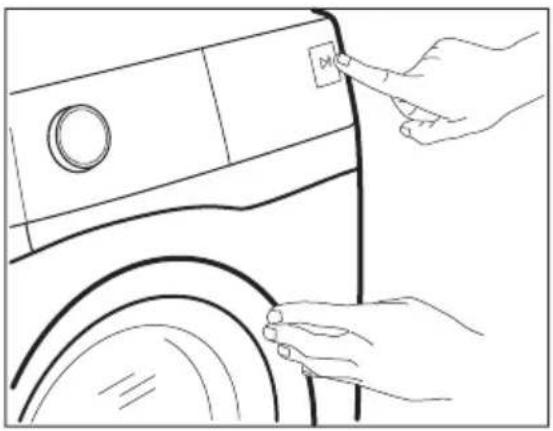

WARNING!

Refer to Safety chapters.

To remove the Remote Start, tap on the Remote Start button and confirm by pressing the Start/Pause button.

12.5 Over-the-air update

The App may propose an update for your appliance.

If a programme is running, the App notifies that the update will start at the end of the programme.

During the update, the appliance shows UPd in the display.

Do not switch off or unplug the appliance during update.

The appliance will be usable again at the end of the update, without any notification about successful update.

If an error occurs, the appliance shows Err in the display: just press any buttons or turn the knob to return to normal use.

12.6 Wi-Fi Always On

The Wi-Fi Always On function is available in the App.

This function keeps the appliance connected to the network even when the appliance is turned off.

The indicator ≈ goes on and off intermittently.

It is possible to turn the appliance on by pressing the On/Off button or through the App.

i

The Wi-Fi Always On function may affect your energy consumption.

13.1 Activating the appliance

1. Connect the mains plug to the mains socket.

2. Open the water tap.

3. Press the On/Off button for a few seconds to activate the appliance.

A short tune sounds. The appliance automatically proposes a default programme. The relevant indicator illuminates.

The display shows the default programme, Eco 40-60, cycle duration, the maximum load (for a few seconds), the default temperature, the default spin speed and the indicators of the phases making up the programme.

13.2 Loading the laundry

• Open the appliance door.
• Shake the items before you put them in the appliance.
• Put the laundry in the drum, one item at a time.

Make sure not to put too much laundry in the drum.

- Close the door firmly.

Medical warning diagram showing a catheter with an exclamation mark and a cross symbol, likely indicating a medical or diagnostic hazard.

CAUTION!

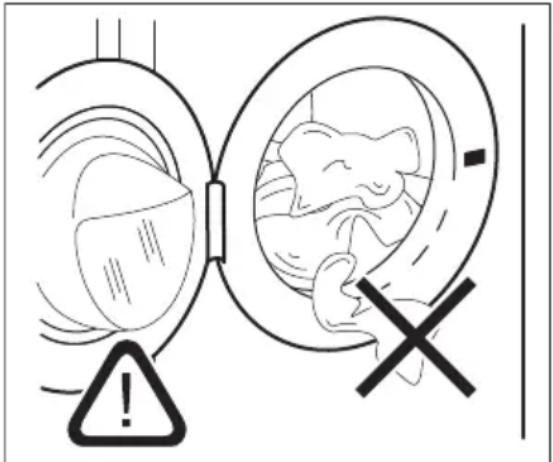

• Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.
• Washing heavily oiled, greasy stains or using fragrances perfume could cause damage rubber parts of the appliance.

13.3 Using detergent and other treatments

If both AutoDose tanks are enabled in the set programme, detergent and fabric softener are automatically loaded.

If one of the AutoDose tank or both are disabled (OFF) in the set programme,

proceed by manually filling the product in the proper compartment.

13.4 Setting a programme

i

If you wish to change the automatic detergent or fabric softener dosage, enter the AutoDose configuration mode before proceeding with any programme setting. The configuration mode may cancel temporary settings. Please refer to "AutoDose configuration mode" paragraph in "The AutoDose Technology (Autodosing)" chapter.

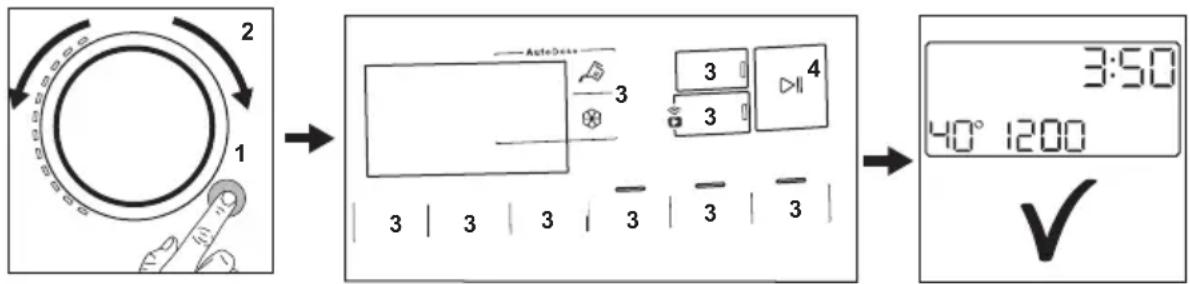

1. Turn the programme dial to select the desired washing programme. The related programme indicator comes on.

The Eco 40-60 is the default proposed programme when the appliance is turned on, the one to which the information of the energy label relates.

The indicator of the Start/Pause button flashes.

The display shows an indicative programme duration, the maximum declared load for the set programme (only for a few seconds), the default temperature, the default spin speed and the washing phase indicators (when available).

1. To change the temperature and/or the spin speed, touch the related buttons.
2. If desired, set one or more options by touching the related buttons. The related indicators come on in the display and the given information changes accordingly.

i

In case a selection is not possible an acoustic signal sounds.

13.5 Starting a programme

WARNING!

Make sure that the detergent dispenser is firmly closed, otherwise programme won't start.

Touch the Start/Pause button to start the programme.

The related indicator stops flashing and stays on.

The programme starts, the door is locked.

The display shows the indicator :

The drain pump can operate shortly before the appliance fills water.

13.6 Starting a programme with the Finish In option

1. Touch this repeatedly until the display shows the desired time within the programme should end. The indicator comes on.
2. Touch the Start/Pause button. The drum starts rotating to perform the ProSense estimation, if foreseen in the selected programme.
3. The appliance starts the countdown to the end of the programme and the programme will start at the right moment for ending at the time set through this option.

To change or cancel this option:

1. Switch the appliance off by means of the On/Off① button.
2. Switch the appliance on again.
3. Set the programme again.

13.7 The ProSense load detection

ProSense

The programme duration in the display is referred to a medium/high load.

After setting a washing programme, the ProSense icon lights up on the display if the programme supports it.

After touching the Start/Pause button, the ProSense starts the laundry load detection:

1. The appliance detects the load in the first 30 seconds: the indicator flashes, the bars under the Icon move back and forth and the drum rotates shortly.

2. When the drum stops rotating, the display shows the new programme duration, that could increase or decrease, adjusted accordingly the load detected, the number of bars indicates the load in quarter (from 1 to 4, 4 bars in case of overload), the maximum declared load indicator comes on again. After further 30 seconds, the water filling starts.

In case of drum overload, the maximum declared load indicator

comes on again with the MAX indicator blinking. In this case, during these 30 seconds, it is possible to pause the appliance and remove the exceeding garments.

Once removed the exceeding garments, touch the Start/Pause ▷ II button to start the programme again. The ProSense phase can be repeated up to three times (see point 1).

Important! If the laundry amount will not be reduced, the washing programme starts anyway, despite the overload. In this case, it will be not possible to guarantee the best washing results.

About 20 minutes after the programme start, the programme duration could be adjusted again depending on the capacity of water absorption of the fabrics.

The ProSense detection is carried out with complete washing programmes only (no skipping phase selected).

The ProSense is not available with some programmes, such as Wool, programmes with short cycles and without washing phase.

In certain programmes the duration of cycle could be the same for different load size, but water and energy consumption are anyway tailored made to achieve best results.

13.8 Programme phase indicators

When the programme starts the indicator of the running phase flashes and the other phase indicators are steady on.

E.g. the washing or pre wash phase is

running:

When the phase ends the relevant indicator stops flashing and is steady on. The next phase indicator starts flashing.

E.g. the rinse phase is running:

If you select the Plus Steam the steam phase indicators come on.

The steam phase is running:

The anti-crease phase is running:

13.9 Interrupting a programme and changing the options

When the programme is running, you can change only some options:

1. Touch the Start/Pause button. The related indicator flashes.

2. Change the options. The given information in the display changes accordingly.

3. Touch the Start/Pause button again. The washing programme continues.

13.10 Cancelling a running programme

1. Press the On/Off button to cancel the programme and to deactivate the appliance.
2. Press the On/Off button again to activate the appliance.

Now, you can set a new washing programme.

If the ProSense phase is already carried out and the water filling is already started, the new programme starts without repeating the ProSense phase.

The water and the detergent are not drained out in order to avoid waste. The display shows the maximum duration of the programme, updating it about 20 minutes after the starting of the new programme.

13.11 Opening the door - Adding garments

While a programme or the delay start operates, the appliance door is locked.

If the temperature and level of the water in the drum are too high and/or the drum still rotates you cannot open the door.

You can easily open the door for adding or removing some items when the icon is lighted on.

1. Touch the Start/Pause ▷|| button. In the display the related door lock indicator goes off.
2. Open the appliance door. If necessary, add or remove the items.
3. Close the door and touch the Start/Pause ▷|| button.

The programme or the delay start continues. When the icon + goes off, the door can be opened when the programme is complete. You may also set a spinning or draining programme/option and then press Start/Pause button. If the spin and drain programmes are not available in the programme dial, they can be set via App.

13.12 End of the programme

When the programme has finished, the appliance stops automatically. The acoustic signals operate (if they are active).

In the display all washing phase indicators become steady and the time area shows

The indicator of the Start/Pause button goes off.

The door unlocks and the indicator →0 goes off.

1. Press the On/Off button to deactivate the appliance.
   After five minutes from the end of the programme, the energy saving function automatically deactivates the appliance.

i

When you activate the appliance again, it proposes Eco 40-60 as default programme. Turn the programme dial to set a new cycle.

1. Remove the laundry from the appliance.
2. Make sure that the drum is empty.
3. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours.
4. Close the water tap.

13.13 Draining water out after end of cycle

If you have chosen a programme or an option that does not empty out the water of the last rinse, the programme is completed, but:

• The display shows the indicator, the option indicator or and the door locked indicator: The indicator of the running phase flashes.

- The drum still turns at regular intervals to prevent the creases in the laundry.

- The door stays locked.

- You must drain the water to open the door:

1. If necessary, touch the Spin button to decrease the spin speed proposed by the appliance.

2. Touch the button: • If you have set, the appliance drains the water and spins.

- If you have set, the appliance only drains the water.

The option indicator or goes off, while the indicator flashes and then goes off.

1. When the programme is completed and the door locked indicator → goes off, you can open the door.

2. Press the On/Off button a few seconds to deactivate the appliance.

i

In any case, the appliance empties the water out automatically after approximately 18 hours.

13.14 Stand-by option

The Stand-by function automatically deactivates the appliance to decrease the energy consumption when:

• You do not use the appliance for 5 minutes before you touch the Start/Pause ▷|| button.
  Press the On/Off button to activate the appliance again.
  • After 5 minutes from the end of the washing programme.
  Press the On/Off ^① button to activate the appliance again. The appliance proposes Eco 40-60 as default programme.
  Turn the programme dial to set a new cycle.

i

If you set a programme or an option that ends with water in the drum, the Stand-by function doesn't deactivate the appliance to remind you to drain the water.

i

If the Wi-Fi Always On function is active, only the indicator goes on and off intermittently.

14. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

14.1 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly open to get air circulation and dry the humidity inside the appliance.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispens- Twice a year er and AutoDose tanks

Clean drain pump filter Twice a year

Clean the inlet hose and Twice a year the valve filter

14.2 Removing foreign objects

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. Refer to "Door seal with double lip trap", "Cleaning the drum", "Cleaning the drain pump" and "Cleaning the inlet hose and the valve filter" paragraphs. Be careful with curtains. Remove the hooks and put the curtains in a washing bag or pillowcase. If necessary, please contact the Authorised Service Centre.

14.3 External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces.

Do not use a scouring pads or any scratching material.

CAUTION!

Do not use alcohol, solvents or chemical products.

CAUTION!

Do not clean the metal surfaces with chlorine-based detergent.

14.4 Descaling

If the water in your area is hard or medium hard, we recommend that you use a water softener for washing machines (descaling occasionally).

Regularly examine the drum to check for limescale.

Always follow the instructions that you find on the packaging of the product.

14.5 Maintenance wash

The repeated and prolonged use of low temperature and short programmes can cause detergent deposits, fluff residues, bacterial growth and biofilm formation inside the drum and the tub. This could generate bad odours and mildew.

To eliminate these deposits and hygienize the inner part of the appliance, run a maintenance wash at least once a month:

1. Remove all laundry from the drum.
2. Deactivate AutoDose function for detergent and softener.
3. Run a cotton programme with the highest temperature with a small quantity of powder detergent or, if available, run the Machine Clean programme.

14.6 Door seal

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a car seatbelt, no text or symbols present

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

Always obey the instructions that you find on the packaging of the product.

14.7 Cleaning the drum

Regularly examine the drum to prevent unwanted deposits.

Rust deposits in the drum may occur due to rusting foreign body in the washing or tap water containing iron

Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product. Do not clean the drum with acidic descaling products, scouring products containing chlorine or iron or steel wool.

For a thorough clean:

1. Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product.

1. Remove all laundry from the drum.

2. Deactivate AutoDose function for detergent and softener.

3. Run a short cotton programme at high temperature with empty drum and with a small quantity of powder detergent or, if available, run the Machine Clean programme. If your appliance can be connected to Wi-Fi, the special programme Machine Clean is also downloadable through the APP.

4. Add a manually small quantity of powder detergent or a specific product into the empty drum, in order to rinse out any left residues.

Occasionally, at the end of a cycle the display may show the icon this is a recommendation to perform the “drum cleaning”. Once the drum cleaning has been performed, the icon disappears.

14.8 Cleaning the detergent dispenser and the AutoDose tanks

CAUTION!

If you change detergent type as brand, concentration, and thickness, then it is suggested to clean the detergent drawer.

Before cleaning, make sure that the all compartments are empty.

To prevent possible deposits of dried detergent, clotted fabric softener, formation of mould in the detergent dispenser and/or clotted liquid additives in the AutoDose tanks, every two months carry out the following cleaning procedure how explained in the following diagrams:

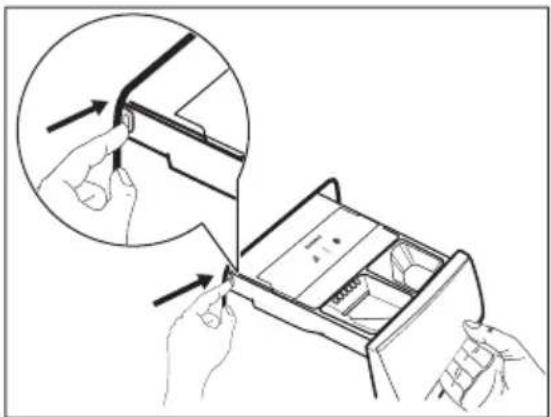

1. Open the detergent dispenser. Press the catch as indicated in the picture and pull the detergent dispenser out.

Illustration of hands assembling a device into a drawer with an inset showing the cable being inserted (no text or symbols present)

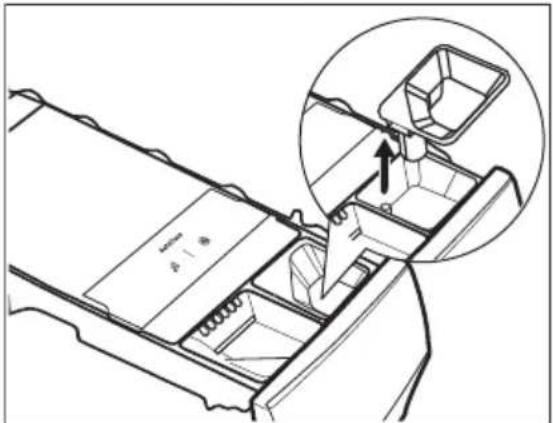

1. Remove the insert for the softener and, if inserted, the container for liquid detergent.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a car interior showing internal compartments and a highlighted component (no text or symbols)

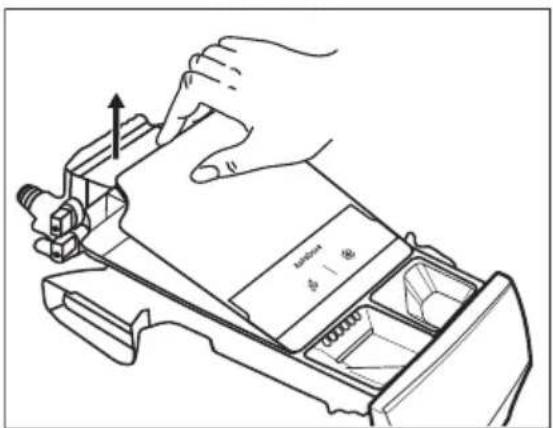

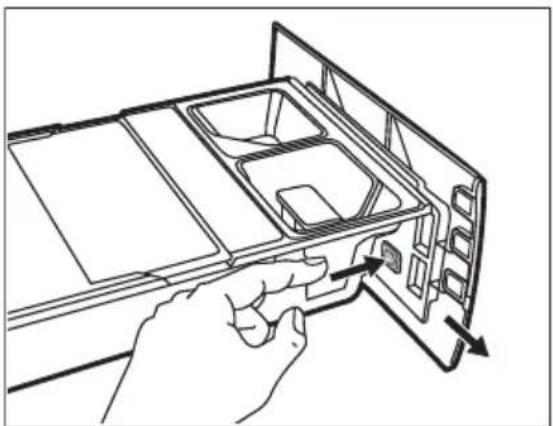

1. Press the catch on the back as indicated in the picture and lift up the top cover to remove it.

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an arrow indicating force (no text or symbols)

1. To remove any detergent residue or if you place a wrong additives in the tanks, empty the drawer in a basin or in suitable containers to collect the liquid.

Architectural cross-section diagram of a building with trees and roof (no text or labels)

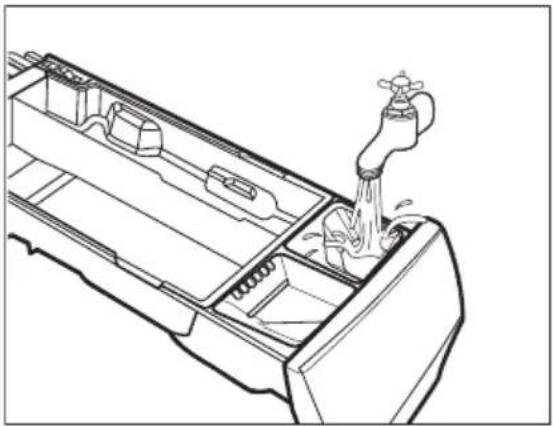

1. Wash the drawer and all inserts under running water or clean it with a damp cloth.

Line drawing of a hand washing a water bottle into a multi-compartment container (no text or symbols)

CAUTION!

Do not use sharp or metal brushes and sponges. Do not wash drawer in a dish washer.

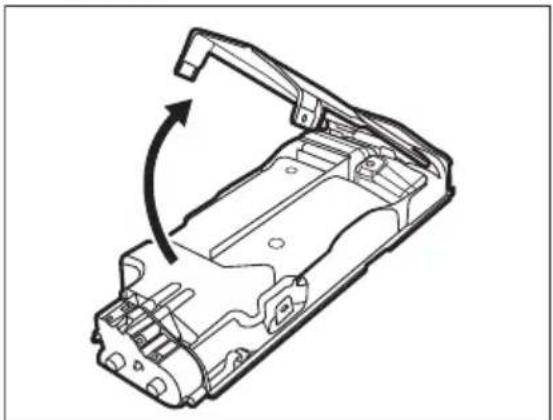

1. Turn the dispenser up side down and open the bottom cover as indicated in the picture.

Technical line drawing of a mechanical component with an arrow indicating rotation or assembly (no text or symbols present)

1. Make sure that all detergent residue is removed from the conveyor. Use only soft damp clothes.

2. Put bottom cover back to its position by aligning its holes on drawer hooks as indicated in the picture. Close it till "click" sound.

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

CAUTION!

Press the bottom cover as indicated in the picture. Make sure that it is closed properly.

Line drawing of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

WARNING!

Do not clean with any sharp and metal brushes or any tools, pumps or sensors allocated on the back of the detergent drawer. If necessary, use only soft damp clothes.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

WARNING!

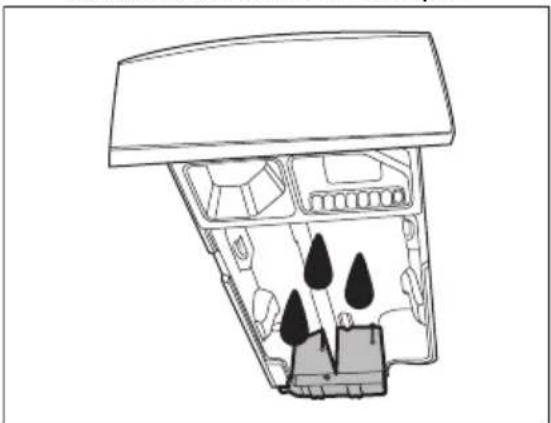

If some residues remain on the back area of tanks, soak detergent drawer in a warm water. Do not use tools to clean it. Before soaking, remove the handle by pressing red button and slide the handle as indicated in the picture.

Line drawing of a hand inserting a device into a tray (no text or symbols)

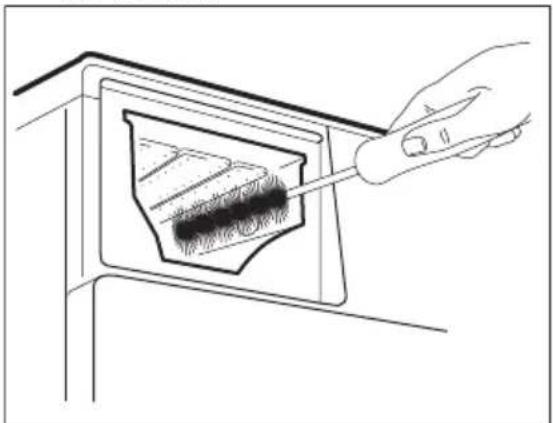

1. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

Line drawing of a hand using a tool to insert or mark a textured object inside a rectangular frame (no text or symbols)

1. Reassembly the drawer as follows: a. Place the handle if was disassembled.

b. Place the bottom cover and press till "click" sound.
c. Place the top cover on the tanks compartment and press till "click" sound.
d. Replace components on manual compartment.

1. Insert the detergent dispenser into the guide rails and gently close it till "click" sound. Run the rinsing programme without any clothes in the drum.

Window 1

To restore the functionality, refill tanks with detergent and softener.

14.9 Cleaning the drain pump filter

WARNING!

Disconnect the mains plug from the mains socket.

Regularly check the drain pump filter and make sure that it is clean.

Clean the drain pump filter if:

• The appliance does not drain the water.
• The drum does not turn.
• The appliance makes an unusual noise because of the blockage of the drain pump.

• The display shows the alarm code E21.

WARNING!

• Do not remove the filter while the appliance operates.
• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down

Proceed as described in following diagrams to clean the pump filter:

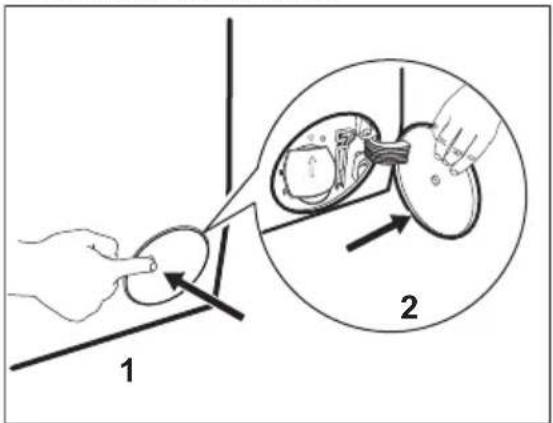

1. Open the pump cover.

1 2

1. Place a suitable bowl below the drain pump access to collect the water that flows out.
2. Open the chute downwards. Always keep a rag nearby to dry up any water spillages when removing the filter.

Diagram showing a hand operating a car wheel assembly with a magnified inset (no text or symbols)

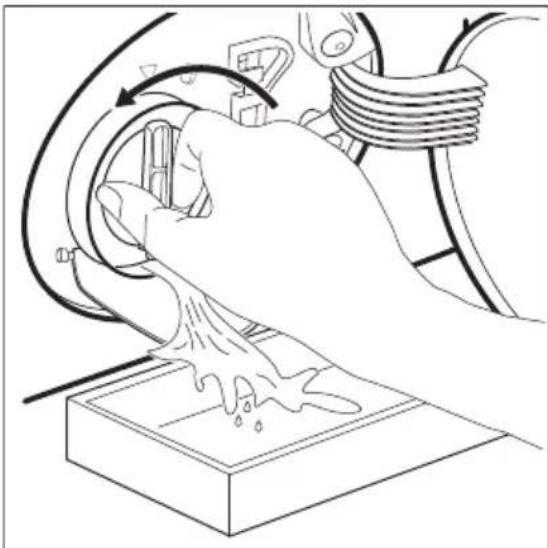

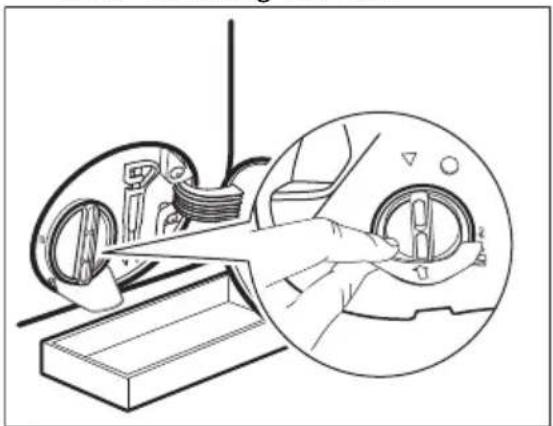

1. Turn the filter 180 degrees in anti-clockwise direction to open it, without removing. Let the water flow out.

Line drawing of a hand pouring liquid into a container with a coiled tube (no text or symbols)

1. When the bowl is full of water, turn the filter back and empty the container.
2. Repeat the steps 4 and 5 until the water stops to flow out.

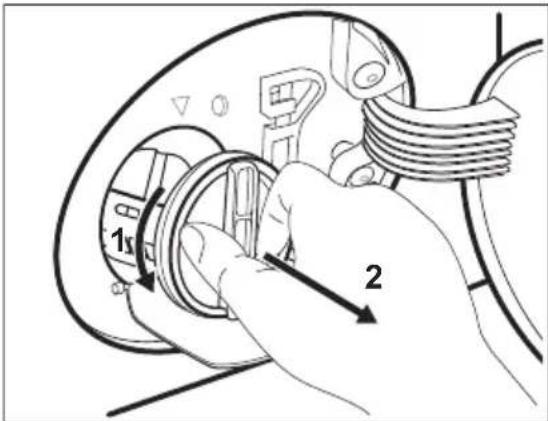

3. Turn the filter anti-clockwise to remove it.

1s 2

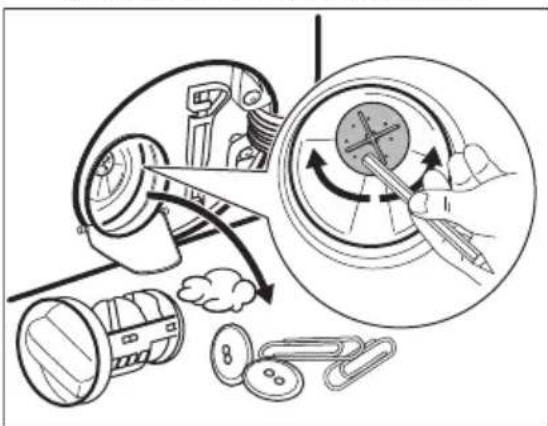

1. If it is necessary, remove fluff and objects from the filter recess.
2. Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre.

Illustration of mechanical components and a circular component with arrows indicating motion (no text or symbols)

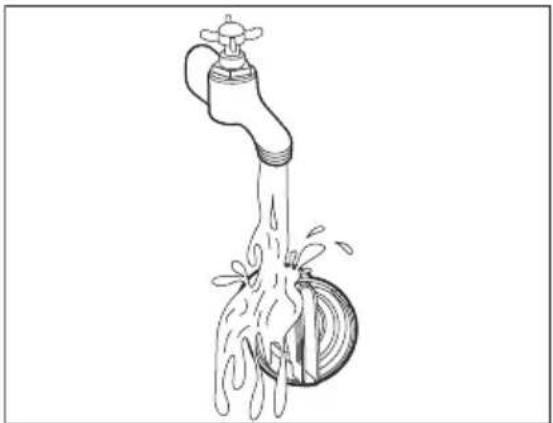

1. Clean the filter under the water tap.

Line drawing of a faucet releasing water into a circular container (no text or symbols)

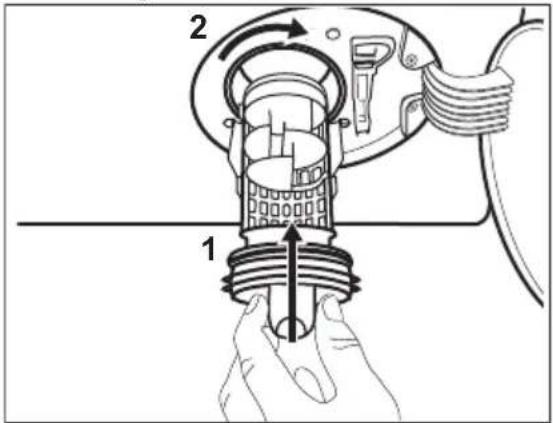

1. Put the filter back into the special guides by turning it clockwise. Make sure that you tighten the filter correctly to prevent leakages.

Diagram showing mechanical assembly with labeled parts 1 and 2, indicating a valve or connector mechanism.

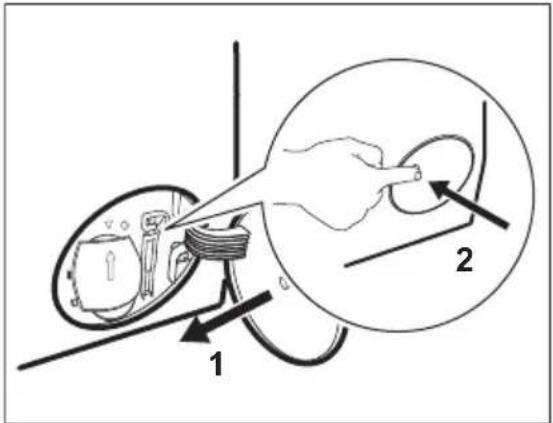

1. Close the pump cover.

Diagram illustrating a medical procedure with labeled parts and directional arrows, likely for surgery or catheter placement.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

a. Put 2 litres of water in the main wash compartment of the detergent dispenser.

b. Start the programme to drain the water.

14.10 Cleaning the inlet hose and the valve filter

It is recommended to clean both the filters of the inlet hose and valve twice a year to remove any deposit, collected over the time. Proceed as described in following diagrams to clean filters:

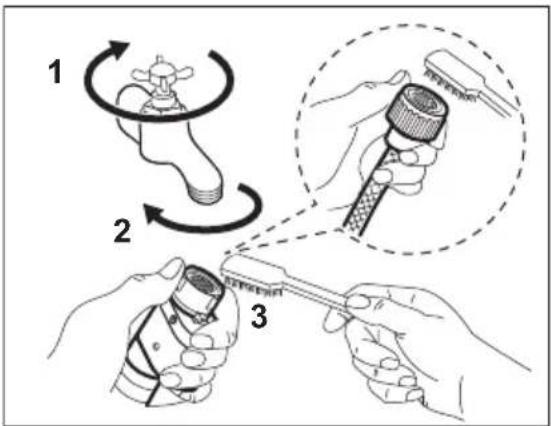

1. Remove the inlet hose from the tap and clean the filter.

Diagram illustrating three-step hairpin tool application: rotation, folding, and cutting steps

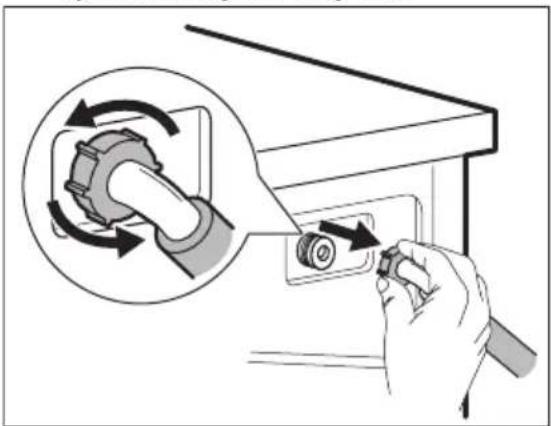

1. Remove the inlet hose from the appliance by loosening the ring nut.

Hand holding a device with a magnified inset showing rotational components (no text or symbols)

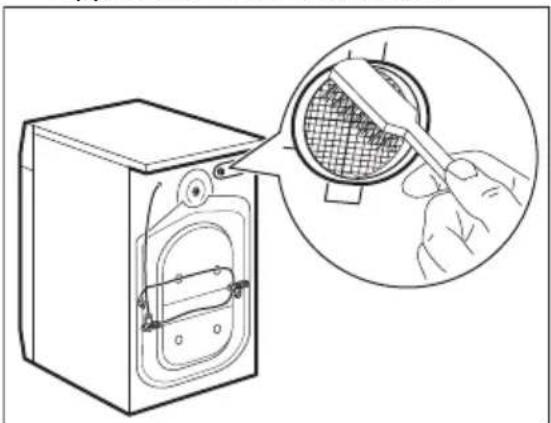

1. Clean the valve filter on the back of the appliance with a toothbrush.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to filter or clean material inside (no text or symbols)

1. When you reconnect the hose to the back of the appliance, turn it left or right (not in

vertical position) depending on the position of your water tap.

20° 45°

14.11 Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump' paragraph. If necessary, clean the pump.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

1. Put 2 litres of water in the main wash compartment of the detergent dispenser.

2. Start the programme to drain the water.

14.12 Frost precautions

If the appliance is installed in an area where the temperature can reach the values around 0^ C or drop below, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in a container and let the water flow out of the hose.
4. Empty the drain pump. Refer to the emergency drain procedure.
5. When the drain pump is empty, install the inlet hose again.

WARNING!

Make sure that the temperature is higher than 0 °C before you use the appliance again.

The manufacturer is not responsible for damages caused by low temperatures.

15. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

15.1 Alarm Codes and Possible failures

The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables).

WARNING!

Deactivate the appliance before carrying out any check.

With some problems, the display shows an alarm code and the Start/Pause Button may flash continuously:

i

If the appliance is overloaded, remove some items from the drum and/or keep pressed the door while touching the Start/Pause button until the indicator stops flashing (see the picture below).

Line drawing of a hand pressing down on a washing machine (no text or symbols)

Problem Possible solution
E11The appliance does not fill with water properly.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the inlet hose has no kinks, damages or bends.Make sure that the connection of the water inlet hose is correct.Make sure that the filter of the inlet hose and the filter of the valve are not clogged. Refer to 'Care and cleaning'.
E21The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Make sure that the connection of the drain hose is correct.Set the drain programme if you set a programme without drain phase. If the drain programme is not available in the programme dial, it can be set via App.Set the drain programme if you set an option which ends with water in the tub.
E41The appliance door is open or not closed correctly.	Make sure that the door is properly closed.
E91Internal fail. No communication between electronic elements of the appliance.	The programme was not finished properly or the appliance stopped too early.Switch the appliance off and on again.If the alarm code appears again, contact the Authorised Service Centre.

EH I: Frequency of power supply is out of range.

EH2: Supply voltage is too high.

EH3: Supply voltage is too low.

EF3

The anti-flood device is on.

- Disconnect the appliance and close the water tap. Contact the Authorised Service Centre.

If the display shows other alarm codes, deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre. In case of different problem with the appliance check the table below for possible solutions.

Problem Possible solution

The programme does not start.	Make sure that the mains plug is connected to the mains socket.Make sure that the appliance door is closed.Make sure that there is no damaged fuse in the fuse box.Make sure that the Start/Pause has been touched.If the delay start is set, cancel the setting or wait for the end of countdown.Make sure that the detergent dispenser is firmly closed.Deactivate the Child Lock function if it is on.Check the position of the knob on the selected programme.
The appliance fills with water and drains immediately.	Make sure that the drain hose is in the correct position. The hose may be positioned too low. Refer to "Installation instruction".
The spin phase does not operate or the washing cycle lasts longer than usual.	Set the spin programme. If the drain programme is not available in the programme dial, it can be set via App'.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems.
There is water on the floor.	Make sure that the couplings of the water hoses are tight and there is not water leakages.Make sure that the water inlet hose and the drain hose have no damages.Make sure you use the correct detergent and the correct quantity of it.
You cannot open the appliance door.	Make sure that a washing programme that ends with water in tub, has not been selected.Make sure that the washing programme is finished.Set the drain or the spin programme if there is water in the drum. If the spin and drain programmes are not available in the programme dial, they can be set via App.Make sure that the appliance receives electrical power.This problem may be caused by a failure of the appliance. Contact the Authorised Service Centre.If you need to open the door, please read carefully "Emergency door opening".Make sure that the Remote Start Mode is not activated. Deactivate it.

Problem Possible solution

The display does not show the wireless indicator	·Check the wireless signal.·Make sure that the wireless connection is on. Refer to paragraph "Configuring the washing machine wireless connection" in "Wi-Fi - Connectivity setup" chapter.·Check your home network and router.·Restart the router.·Contact your wireless service provider if there are further problems with the wireless network.
The App cannot connect to the appliance.	·Check the wireless signal.·Check if your smart device is connected to the wireless network.·Check your home network and router.·Restart the router.·Contact your wireless service provider if there are problems with the wireless network.·The appliance, the smart device, or both, need to be configured again because a new router has been installed or the router configuration has been changed.
The App cannot frequently connect to the appliance.	·Make sure that the wireless signal reaches the appliance. Try to move the home router as near the appliance as possible or consider purchasing a wireless range extender.·Make sure the wireless signal is not disrupted by microwave. Turn the microwave off. Avoid using the microwave and the remote control at the same time.
The display shows UPdAll buttons are inactive, except the the On/Off.1	·The appliance is downloading any available updates. Wait until the update process is complete. If you deactivate the appliance during update, it resumes when you activate the appliance again.
The appliance makes an unusual noise and vibrates.	·Make sure the levelling of the appliance is correct. Refer to "Installation instruction".·Make sure that the packaging and/or the transit bolts are removed. Refer to "Installation instruction".·Add more laundry in the drum. The load may be too small.
The programme duration increases or decreases during programme execution.	·The ProSense Technology is able to adjust the programme duration according to the type and the laundry load size. Refer to "The ProSense Technology load detection" in "Daily Use" chapter.
The washing results are not satisfactory.	·Increase the detergent quantity or use a different detergent.·Use special products to remove the stubborn stains before you wash the laundry.·Make sure that you set the correct temperature.·Decrease the laundry load.·When using AutoDose tanks, make sure that they are not empty.·When using AutoDose tanks, verify the pre-set detergent/fabric softener dosage. Refer to "Basic setting" paragraph in "The AutoDose Technology" chapter.·Make sure that you have cleaned the AutoDose tanks before using different brand and type of detergent, fabric softener or other additives.

Problem Possible solution

Too much foam in the drum during the washing cycle.	Reduce the quantity of detergent or the number of tablets or single-dose detergents.When using AutoDose tanks, verify the pre-set detergent/fabric softener dosage. Refer to "Basic setting" paragraph in "The AutoDose Technology" chapter.
The detergent/fabric softener level does not decrease in the AutoDose tanks after washing.	This is normal: tanks are quite large and detergent consumption may be not so evident.
The drum light does not go on.	Make sure that the LED lamp is not burned. To replace it, contact the Authorised Service Centre.

After the check, activate the appliance. The programme continues from the point of interruption.

If the problem occurs again, contact the Authorised Service Centre.

The necessary data for the service centre are on the rating plate.

15.2 Emergency door opening

In case of power failure or functioning failure the appliance door remains locked. The washing programme continues when the power is restored. If the door remains locked in case of failure, it is possible to open it using the emergency unlock function.

Before opening the door:

CAUTION!

Risk of burns! Make sure that the water temperature is not too high and the laundry is not hot. If necessary, wait until they cool down.

CAUTION!

Risk of injury! Make sure that the drum is not rotating. If necessary, wait until the drum stops rotating.

Make sure that the water level inside the drum is not too high. If necessary, proceed with an emergency drain (refer to «Emergency drain» in «Care and cleaning» chapter).

To open the door, proceed as follows:

1. Press the On/Off button to switch the appliance off.
2. Disconnect the mains plug from the mains socket.
3. Open the filter flap.

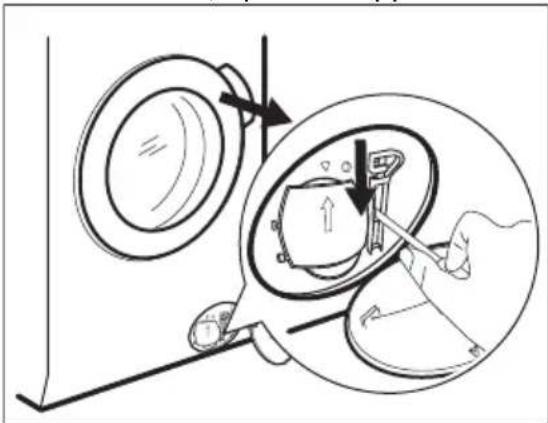

4. Pull the emergency unlock trigger downward once. Pull it downward once again, keep it tensed and, in the meanwhile, open the appliance door.

Diagram showing a hand using a tool to adjust or install a device inside a circular frame, with no visible text or symbols.

1. Take out the laundry and then close the appliance door.
2. Close the filter flap.

16. CONSUMPTION VALUES

16.1 Comment

i

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

i

Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme.

16.2 According to Commission Regulation Eu 2019/2023

Eco 40-60 pro-gramme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Full load 10.0 0.395 72.0 03:58 44.00 25.0 1550
Half load 5.0 0.325 52.0 02:59 44.00 25.0 1550
Quarter load 2.5 0.235 35.0 02:15 45.00 25.0 1550

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.

2) Maximum spin speed.

Power consumption in different modes

Off (W)	Stand-by (W)	Delay start (W)	Networked standby (W)
0.50	0.50	4.00	2.001)

Time to Off/Standby mode is 15 minutes maximum.
1) The energy consumption of the connected function is approximately 17.5 kWh per year. To disconnect this function, please refer to the chapter 'Wi-fi - Connectivity setup'.

16.3 Common programmes

i

These values are indicative only.

Programme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Cottons 3)95°C	10.0 3.450 95.0 04:05 44.00 85.0 1600
Cottons 60°C	10.0 2.350 90.0 03:55 44.00 55.0 1600
Cottons 4)20°C	10.0 0.500 90.0 03:00 44.00 20.0 1600
Synthetics 40°C	5.0 0.950 65.0 02:45 35.00 40.0 1200
Delicates 5)30°C	2.0 0.350 55.0 01:05 35.00 30.0 1200
Wool 30°C	3.0 0.500 80.0 01:15 30.00 30.0 1200

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.
2) Reference indicator of the spin speed.
3) Suitable for washing heavily soiled textiles.
4) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.
5) It also performs as quick washing cycle for lightly soiled laundry.

17. QUICK GUIDE

17.1 Daily use

• Connect the mains plug to the mains socket.
• Open the water tap.
• Push the On/Off button to turn the appliance on (1).
• Turn the programme dial to set the desired programme (2).
• Set the desired options by means of the corresponding touch buttons (3).
• Put the laundry in the drum, one item a time without exceeding the maximum

suggested load. Close the door and make sure that no laundry stays between the seal and the door.

- When using AutoDose tanks, the detergent and fabric softener are uploaded automatically. Make sure that tanks are not empty.

When using manual compartments, pour the detergent and other treatments in the proper compartment.

AutoDose AutoDose Manual (Manual)

i

When using a liquid detergent in manual compartment, insert the container for liquid detergent.

• To start the programme, touch the Start/Pause button (4).
• The appliance starts.
- At the and of the programme, remove the laundry.
- Push the On/Off button to turn the appliance off.

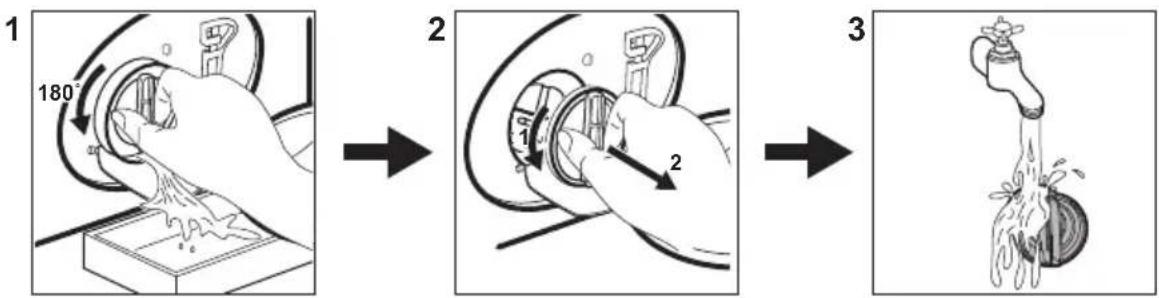

17.2 Cleaning the drain pump filter

Clean the filter regularly and, especially, if the alarm code appears on the display.

17.3 Programmes

Programmes Load Product description
PowerClean 59min 8.0 kg	Cotton and synthetic items. This programme ensures a good washing performance in a short time.The standard program duration has been developed on a laundry load of 5 kg. If you wash a smaller or a bigger load, the washing time automatically decreases or increases ensuring perfect results.
Eco 40-60 10.0 kg	Low energy cycle for cottons. Decreases temperature and extends time to reach good washing results.
Cottons 10.0 kg	White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetics 5.0 kg Synthetic items or mixed fabric items.
Delicates 2.0 kg Delicate fabrics such as acrylics, viscose, polyester items.

Programmes Load Product description

Wool

3.0 kg Machine washable wool, hand washable wool and delicates.

20min 3kg 3.0 kg Cotton and synthetic lightly soiled items or once worn items.

Steam

2.0 kg Cotton and synthetic items that need to de-wrinkle.

Outdoor

2.0 kg1)

1.0 kg2)

Modern outdoor sporting garments.

Hygiene

10.0 kg

White cotton items. This programme removes more than 99,99% of bacteria and viruses 3). It also ensure a proper reduction of allergens.

All fabrics, except woollens and very delicate fabrics. Programme for rinsing and spinning.

Spin/Drain 10.0 kg

To spin the laundry and to drain the water in the drum. All fabrics, except woollens and delicate fabrics.

1) Washing programme.
2) Washing programme and water repellent phase.
3) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

Loading the appliance to the maximum capacity indicated for each programmes

helps to reduce energy and water consumption.

Suitable detergents for washing programmes

Programme	Universal powder1)	Liquid Universal	Liquid for coloureds	Delicates woollens	Special
PowerClean 59min	-- ▲ ▲ -- --
Eco 40-60 ▲ ▲ ▲ -- --
Cottons ▲ ▲ ▲ -- --
Synthetics ▲ ▲ ▲ -- --
Delicates -- -- -- ▲ ▲
Wool -- -- -- ▲ ▲
20min 3kg -- ▲ ▲ -- --
Outdoor -- -- -- ▲ ▲
Hygiene ▲ ▲ -- -- ▲

1) At temperature higher than 60 °C the use of powder detergent is recommended.
▲ = Recommended
-- = Not recommended

17.4 Detergent type and quantity.

- Use only detergents and other treatments specially made for washing machines. First, follow these generic rules:

- powder detergents (also tablets and single-dose detergents) for all types of fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization,

– liquid detergents (also single-dose detergents), preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

- Do not mix different types of detergents.

- Use less detergent if:

• you are washing a small load,
  – the laundry is lightly soiled,
  – there is large amounts of foam during washing.

- When using detergent tabs or pods, always put them inside the drum, not in the detergent dispenser and follow the manufacturer's recommendations.

Insufficient detergent may cause:

• unsatisfactory washing results,
  • the wash load to turn grey,
• greasy clothes,
• mould in the appliance.

Excessive detergent may cause:

• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.

17.5 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly open to get air circulation and dry the humidity inside the appliance.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispens- Twice a year er and AutoDose tanks

Clean drain pump filter Twice a year

Clean the inlet hose and Twice a year the valve filter

Regularly examine the drum to check for limescale. We recommend to run a cycle with empty drum and a descaling product occasionally.

Removing foreign objects

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. If necessary, please contact the Authorised Service Centre.

Door seal

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a tool over a curved surface (no text or symbols)

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

If it is necessary, remove fluff and objects from the filter recess.

17.6 Configuring the appliance wireless connection

1. Press the On/Off button for a few seconds to activate the appliance. Wait about 10 seconds before proceeding with wireless configuration.
2. Select a programme by turning the programme dial.
3. Press and hold the Remote Start button for a few seconds until a 'click' sounds. Release the button. Appears on the display for 5 seconds and the indicator starts blinking.

The wireless module begins starting up.

Make sure that you APP is ready for connection.

1. After about 10 seconds, (Access Point) appears on the display.

The access point will be open for about 5 minutes.

1. Configure the App on your smart device and follow the instructions to connect the appliance to your Wi-Fi network.
2. If the connectivity is configured, when the programme information screen returns, the indicator is on the display.

Every time you switch the appliance on, the appliance takes about 10 seconds to connect to the network automatically. When the indicator stops blinking the connection is ready.

To switch the wireless connection off, press and hold the Remote Start button for a few seconds until the first acoustic signal. Release the button. Appears on the display for 5 seconds.

If you switch the appliance off and on again, the wireless connection is automatically off.

To remove the wireless credentials, press and hold the Remote Start button for a few seconds until the second acoustic signal sounds. Symbol — appears on the display for a few seconds.

18. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

Technical diagram of a washing machine with numbered parts and labeled components

Diagram illustrating hand protection and cleaning process with warning symbol and labeled components

Diagram of a washing machine with directional arrows indicating motion or force (no text or symbols)

Line drawing of a hand opening a clothes machine with fabric, showing fabric being folded (no text or symbols)

Diagram illustrating a washing machine operation with labeled components and a recycling bin, accompanied by explanatory text.

Line drawing of a hand placing a circular component into a washing machine, with an arrow indicating rotation (no text or symbols)

1. Retirez la protection du bas.

Technical line drawing of a mechanical component with labeled parts 1 and 2 (no text or symbols beyond labels)

Line drawing of a washing machine with a side panel and circular button (no text or symbols)

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

Diagram illustrating the installation of a washing machine with wrench and wrench tools, showing mechanical assembly steps.

Diagram illustrating a washing machine operation with labeled parts and hand positions, showing mechanical assembly steps.

i

Diagram showing a washing machine with labeled parts and a magnified view of the component being adjusted.

Illustration comparing two types of washing machines, one with a 'X' symbol and the other showing sound waves and a 'P' with a 'X' and sound waves.

Diagram illustrating correct and incorrect ways to change a tool, with magnified views showing angle measurements (20°, 4°, 45°) and directional arrows.

3/4" 3/4" A i A ✓ A ✓ ↓

AVERTISSEMENT!

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Diagram illustrating a bathroom sink with a shopping cart and a close-up of the sink's handle, showing a product or fixture.

Diagram illustrating three safety warning signs: first to switch, second to switch, and third to avoid it.

min.600 mm max.1000 mm

Diagram showing a hose with a connector and a magnified view highlighting the connector's detail.

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

Line drawing of a drawer with open lid and internal compartments (no text or symbols)

SET Auto+0.000 11

Line drawing of a hand inserting a tray into an open drawer with a handle (no text or symbols)

Line drawing of a hand inserting a drawer into a drawer with internal compartments (no text or symbols)

Line drawing of a hand inserting a plastic bag into a drawer with internal compartments (no text or symbols)

AutoDock √201

Line drawing of a hand inserting a car into a drawer with a logo, no text or symbols present

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

Medical warning diagram showing a catheter and an eye with a warning symbol and cross mark

ATTENTION!

Line drawing of a hand holding a tool near a car wheel (no text or symbols)

Line drawing of hands assembling a device into a drawer with an inset showing hand positioning (no text or symbols)

Line drawing of a mechanical device with a container and handle (no text or symbols)

Technical line drawing of a car interior showing a door, drawer, and compartment with an inset view of a plastic tray (no text or symbols)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an arrow indicating force (no text or symbols)

Top-down line drawing of a small building interior with roof, windows, and central plants (no text or symbols)

Line drawing of a hand washing a water bottle into a plastic container (no text or symbols)

ATTENTION!

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols present)

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

ATTENTION!

Line drawing of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

AVERTISSEMENT!

Technical line drawing of a device interior with a magnified inset showing internal components (no text or symbols)

AVERTISSEMENT!

Line drawing of a hand inserting a plastic tray into an open device (no text or symbols)

Line drawing of a hand using a tool to insert or mark a textured object inside a rectangular frame (no text or symbols)

Diagram showing a hand operating a car dashboard with a close-up of the wheel (no text or symbols present)

Line drawing of a hand pressing down on a mechanical component with a spring and rope (no text or symbols)

Diagram illustrating mechanical assembly and tool path (no text or symbols)

Line drawing of a faucet releasing water into a circular pipe (no text or symbols)

Diagram showing mechanical assembly with labeled parts 1 and 2, indicating a valve or connector assembly.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, showing components like a valve and a magnified inset.

Illustration showing three-step instructions for using a tool to adjust a faucet, with numbered steps and magnified views.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

Line drawing of a hand pressing down on a washing machine wheel (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a hand holding a tool near a car window (no text or symbols)

Technical diagram of a washing machine with numbered parts and labeled components

Diagram illustrating hand protection and cleaning process with warning symbol and labeled components

Diagram of a mechanical device with arrows indicating forces or motion, no text or symbols present

Line drawing of a washing machine with hands adjusting its fabric (no text or symbols)

Diagram illustrating a washing machine operation with labeled components and a recycling bin, showing steps to clean or reduce the machine.

Line drawing of a hand placing a circular component into a washing machine with a side panel (no text or symbols)

Technical diagram of a mechanical device with labeled components and directional arrows

Line drawing of a washing machine with a side panel and arrow indicating rotation (no text or symbols)

Illustration of a washing machine with a magnified inset showing hands adjusting the screw (no text or symbols present)

Diagram illustrating the installation of a washing machine with mechanical components, showing close-ups of wrenching tools and lock mechanism.

Diagram illustrating a washing machine operation with three circular insets showing different hand positions and tool tips.

Diagram showing a washing machine with labeled parts and a magnified view of the component being adjusted for four times.

Illustration comparing two washing machines with symbols indicating sound and noise, showing a 'X' mark and speech bubbles.

3/4" 3/4" A i A ✓ A ✓ ↓

WARNUNG!

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

Line drawing of a drawer with open lid and internal compartments (no text or symbols)

Line drawing of a hand inserting a plastic into a drawer with an arrow indicating the process (no text or symbols present)

Line drawing of a hand inserting a plastic into a drawer with internal compartments (no text or symbols)

Line drawing of a hand inserting a plastic bag into a drawer with internal compartments (no text or symbols)

Line drawing of a hand inserting a device into a drawer with a logo, no text or symbols present

WOOL HAND WASH SAFE WOOLMARK WOOL CARE

Medical warning diagram showing a catheter and an eye with a warning symbol and X mark

VORSICHT!

Line drawing of a hand holding a car seatbelt, no text or symbols present

Illustration of hands assembling a mechanical device with an inset showing the process (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a car interior drawer with an inset showing a mechanical component (no text or symbols)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an arrow indicating force (no text or symbols present)

Top-down line drawing of a small building interior with trees and pathways (no text or symbols)

Line drawing of a hand washing a water bottle into a multi-compartment container (no text or symbols)

VORSICHT!

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols present)

Illustration of hands using a tool to adjust or install a component, with an arrow indicating the process (no text or symbols present)

VORSICHT!

Line drawing of a hand pressing down on a mechanical component with arrows indicating force or movement (no text or symbols)

WARNUNG!

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

WARNUNG!

Line drawing of a hand inserting a component into a device casing (no text or symbols)

Line drawing of a hand using a tool to insert or mark a rectangular object with internal patterns (no text or symbols)

Diagram showing a hand operating a car wheel assembly with a magnified inset (no text or symbols)

Illustration of a hand pouring liquid into a container with a coiled tube, no text or symbols present

Illustration of a mechanical device with rotating components and a magnified view of the wheel (no text or symbols)

Line drawing of a faucet releasing water into a circular pipe (no text or symbols)

Diagram showing a mechanical assembly with labeled parts 1 and 2, indicating a component being handled or assembled.

Diagram illustrating a medical procedure with labeled parts and directional arrows, showing a hand holding a device.

Diagram illustrating three-step tool application steps for a valve mechanism, showing hand positioning and tool path.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

Line drawing of a hand pressing down on a washing machine wheel (no text or symbols)

Diagram showing a hand holding a tool inside a circular device with an arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a car tire, no text or symbols present

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

The software in this product contains components that are based on free and open source software. AEG gratefully acknowledges the contributions of the open software and robotics communities to the development project.

To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, please visit: http://aeg.opensoftwarerepository.com (folder NIUS)
