Welcome to AEG! Thank you for choosing our appliance.

In our drive to be sustainable, we are reducing paper assets and provide full user manuals online. Access your full user manual at aeg.com/manuals

Get usage advice, brochures, troubleshooting, service and repair information at aeg.com/support

Buy accessories, consumables, and original spare parts for your appliance at aeg.com/shop

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......44
2. SAFETY INSTRUCTIONS...... 46
3. PRODUCT DESCRIPTION 48
4. TECHNICAL INFORMATION ....50
5. INSTALLATION .... 50
6. CONTROL PANEL 55
7. DIAL AND BUTTONS ....57
8. SETTINGS 60
9. BEFORE FIRST USE....61
10. PROGRAMMES 62
11. DAILY USE 66
12. CARE AND CLEANING 71
13. TROUBLESHOOTING 75
14. CONSUMPTION VALUES....79
15. QUICK GUIDE 81
16. ENVIRONMENTAL CONCERNS....83

1. ⚠ SAFETY INFORMATION

Before beginning the installation and use of this chance, carefully read the supplied instructions.

The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for washing domestic-type, machine-washable laundry only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Do not change the specification of this appliance.

• The appliance maximum load is 10.0 kg. Do not exceed the maximum load of each programme (refer to the “Programmes” chapter).

• The operating water pressure at the water entry point from the outlet connection must be between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa).

• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.
• The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

2.1 Installation

The installation must comply with relevant national regulations.

• Remove all the packaging and the transit bolts including rubber bush with plastic spacer.
• Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Follow the installation instructions supplied with the appliance.

• Do not install or use a damaged appliance.

• Do not install or use the appliance where the temperature can be less than 0^ or where it is exposed to the weather.

• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.
• Make sure that there is air circulation between the appliance and the floor.
• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.
• Do not install the appliance directly above a floor drain.
• Do not spray water on the appliance and do not expose it to excessive humidity.
• Do not install the appliance where the appliance door cannot be fully opened.
• Do not put a closed container to collect possible water leakage under the appliance. Contact the Authorised Service

Centre to ensure which accessories can be used.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• WARNING: This appliance is designed to be installed / connected to a grounding connection in the building.
  • Always use a correctly installed shockproof socket.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not touch the mains cable or the mains plug with wet hands.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Water connection

• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks during and after the first use of the appliance.
• Do not use an extension hose if the inlet hose is too short. Contact the Authorised Service Centre for the replacement of the inlet hose.

• When unpacking the appliance, It is possible to see water flowing from the drain hose. This is due to the testing of the appliance with the use of water in the factory.

• You can extend the drain hose to maximum 400 cm. Contact the Authorised Service Centre for the other drain hose and the extension.

• Make sure that there is access to the tap after the installation.

2.4 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Follow the safety instructions on the detergent packaging.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the appliance. Prewash such fabrics by hand before loading them into the appliance.
• Do not use laundry fragrances to avoid the risk of damaging plastic and rubber parts of the appliance.
• Do not touch the glass door while a programme operates. The glass can get hot.
• Make sure that all metal objects are removed from the laundry.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Please note that self-repair or non-professional repair can have safety consequences and might void the guarantee.
- The following spare parts are available for at least 10 years after the model has been discontinued: motor and motor brushes, transmission between motor and drum, pumps, shock absorbers and springs, washing drum, drum spider and related ball bearings, heaters and heating elements, including heat pumps, piping and related equipment including hoses, valves, filters and aquastops, printed circuit boards, electronic displays, pressure switches, thermostats and

sensors, software and firmware including reset software, door, door hinge and seals, other seals, door locking assembly, plastic peripherals such as detergent dispensers. The duration may be longer in your country. For further information, please visit our website.

• Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications

and are not suitable for household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains electrical and water supplies.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

3.1 Special features

Your new washing machine meets all modern requirements for an effective treatment of laundry with low water, energy and detergent consumption and proper care of fabric.

• The ProSense technology detects the laundry load size defining the programme duration in 30 seconds. The washing programme is tailored to the laundry load and the type of fabric without consuming more time, energy and water than necessary.
• The steam has a quick and easy way to refresh the clothes. The gentle steam programmes remove odours and reduce creases in dry fabrics so they need little ironing.
  The Plus Steam option, finishes every cycle with gentle steam that relaxes the

fibres and reduces fabric creasing. Ironing will be easier!

• The Hot&COLD connection allows you to use up to 50% less energy by connecting your washing machine to the centrally heated warm water supply or green systems such as solar heated boilers. A new way to save energy and to care for the environment.
• The ElectroluxSteam Fragrance, thanks to the steam programmes offers the perfect solution for refreshing even the most delicate garments without washing. Use the delicate fragrance exclusively developed by Electrolux to add a pleasant feeling of "just-washed" garment to the removing odours and wrinkles action.

3.2 Appliance overview

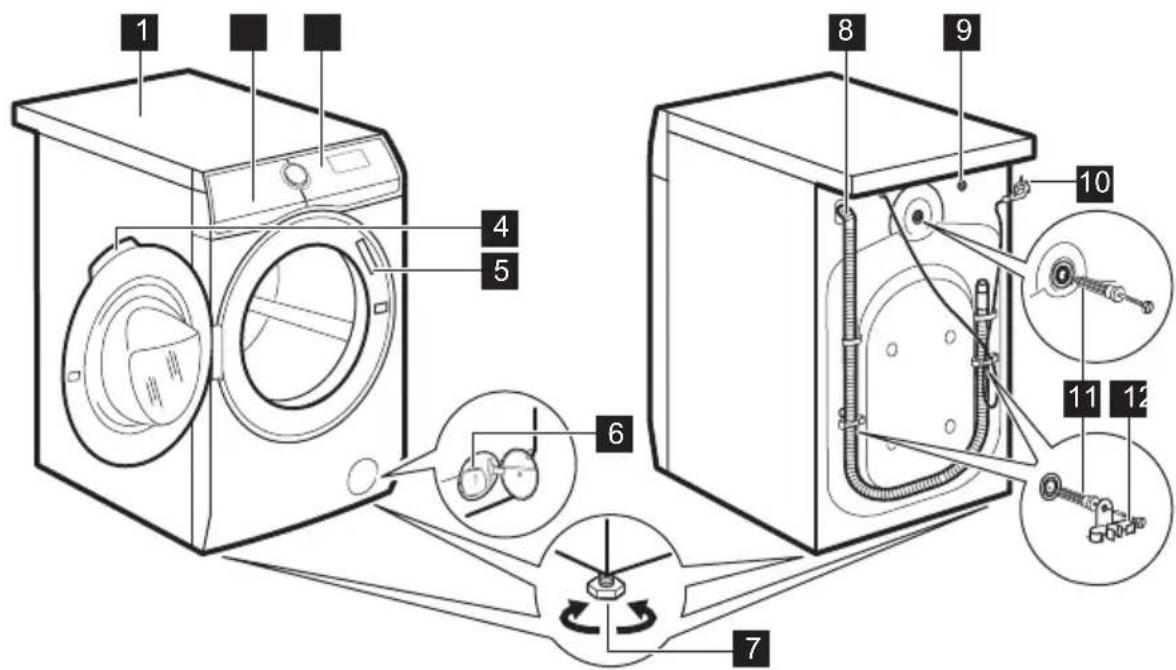

Diagram of a washing machine with numbered parts and internal components, likely for assembly or maintenance instructions.

1 Worktop
2 Detergent dispenser
3 Control panel
4 Door handle
5 Rating plate
6 Drain pump filter
7 Feet for levelling the appliance

8 Drain hose
9 Inlet hose connections
10 Mains cable
11 Transit bolts
12 Hose support

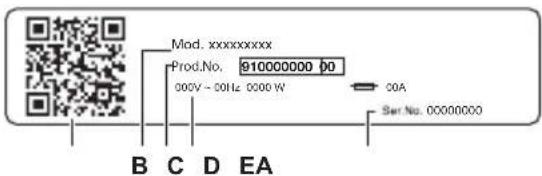

Mod. xxxxxxxxx Prod.No. 910000000 00 000V - 50Hz 0000 W COA Set No. 00000000 B C D EA

The rating plate reports:

A. QR code
B. Model name
C. Product number
D. Electrical ratings
E. Serial number

Scan the QR code on the appliance to register your product and get the most out of it.

• Access your appliance details, documentation and articles on how to use the best features (User Manual also available at aeg.com/manuals)
  • Get usage advice, troubleshooting, service and repair information (also available at aeg.com/support)
  • Buy accessories, Consumable and Original Spare parts for your appliance (also available at aeg.com/shop)

4. TECHNICAL INFORMATION

Dimension Width/ Height/ Total depth 59.7 cm /84.7 cm /63.6 cm
Electrical connection Voltage		230 V
	Overall power	2100 W
	Fuse	10 A
	Frequency	50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture		IPX4
Water supply pressure Minimum		0.5 bar (0.05 MPa)
	Maximum	10 bar (1.0 MPa)
Water supply 1)		Cold water Hot water 2)
Maximum Load Cotton 10.0 kg

1) Connect the water intel hoses to a water tap with a 3/4" thread.
2) Make sure that the hot water temperature of your domestic system is not higher than 60 °C.

The appliance also works by connecting the only cold water pipe.

5. INSTALLATION

WARNING!

Refer to Safety chapters.

5.1 Unpacking

WARNING!

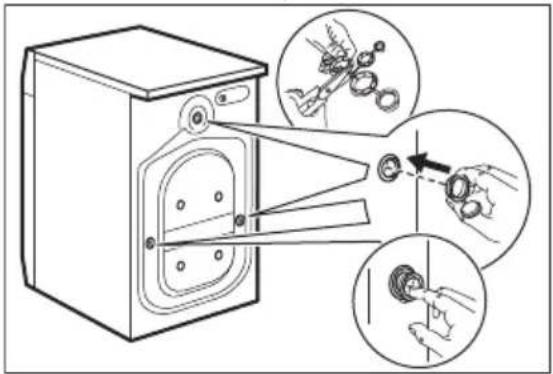

Remove all the packaging and the transit bolts before installing the appliance.

WARNING!

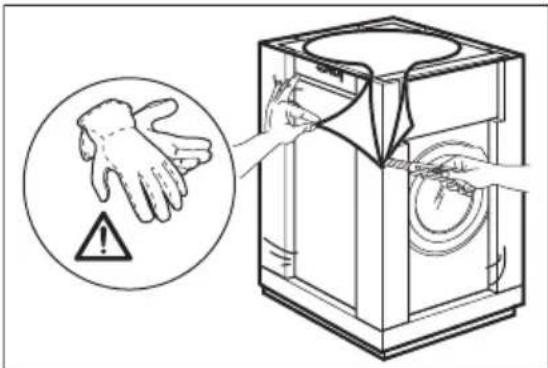

Use the gloves.

1. Remove the external film. If necessary, use a cutter.

Diagram illustrating hand protection and safety warning, showing hand holding a warning symbol with an exclamation mark.

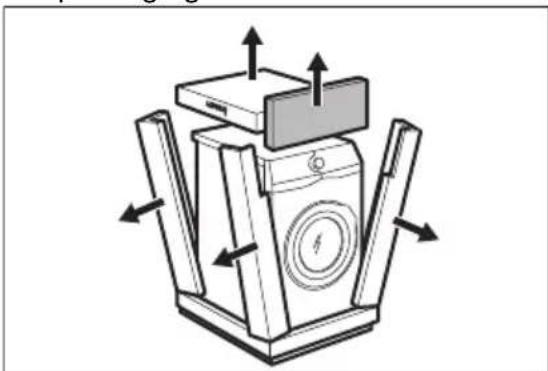

1. Remove the cardboard top and the other packaging materials.

Diagram of a washing machine with directional arrows indicating motion or force (no text or symbols)

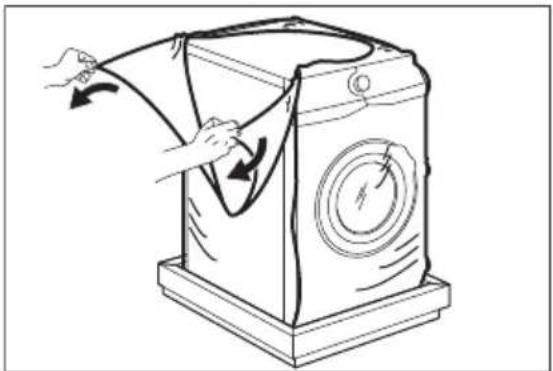

1. Remove the internal film.

Line drawing of a washing machine with hands adjusting its fabric (no text or symbols)

1. Open the door, remove the piece from the door seal and all the items from the drum.

Diagram illustrating a washing machine operation with labeled components and actions, including a magnified view of the device's internal structure.

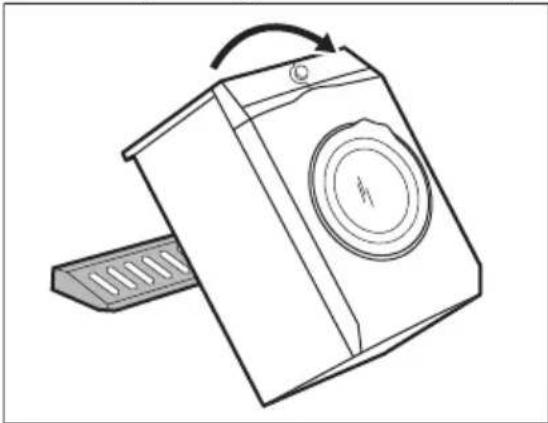

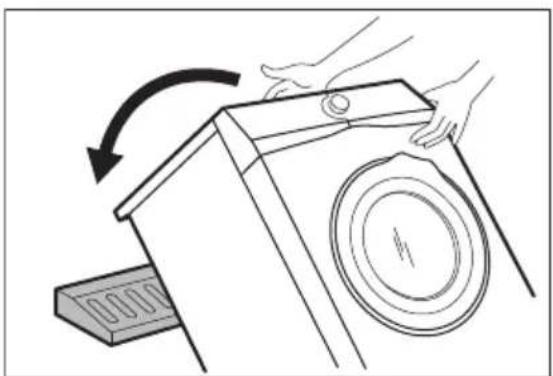

1. Carefully put the appliance down on its rear side.
2. Put the front packaging element on the floor under the appliance.

i

Make sure not to damage the hoses.

Line drawing of a hand placing a circular component into a washing machine, with an arrow indicating rotation (no text or symbols)

1. Remove the protection from the bottom.

Technical diagram of a mechanical device with labeled components and directional arrows

1. Pull up the appliance in vertical position.

Line drawing of a washing machine with a rack and handle, no text or symbols present

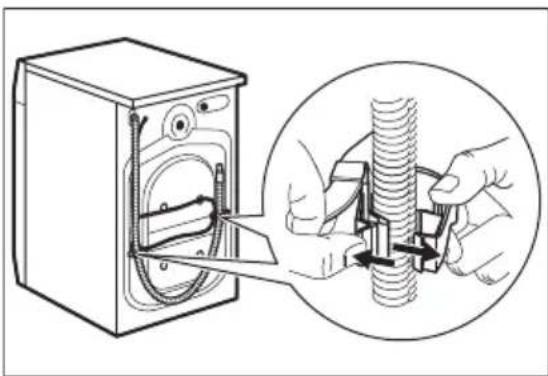

1. Remove the power supply cable and the drain hose from the hose holders.

i

It is possible to see water flowing from the drain hose. This is due to the testing with water of the appliance in factory.

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

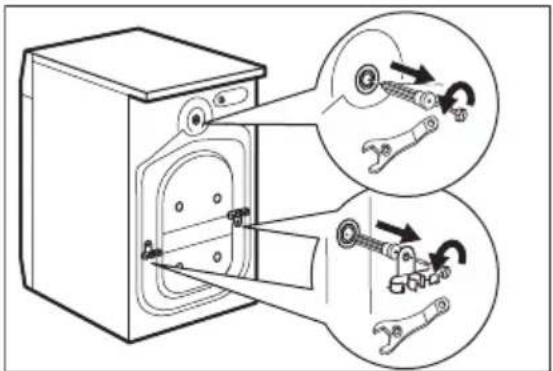

1. Remove the three bolts by using the spanner supplied with the appliance.

Diagram illustrating the internal mechanism of a washing machine, showing tool placement and disassembly steps with magnified insets.

1. Pull out the plastic spacers.
2. Put the plastic caps, that you find in the user manual bag, in the holes.

Diagram illustrating a sewing process with three steps: cutting, holding, and cutting with a sewing machine.

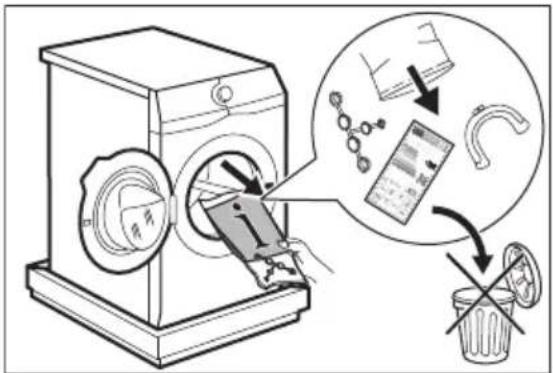

We recommend that you keep the packaging and the transit bolts for any movement of the appliance.

5.2 Positioning and levelling

1. Install the appliance on a flat hard floor.

Make sure that carpets do not stop the air circulation below the appliance. Make sure that the appliance does not touch the wall or other units.

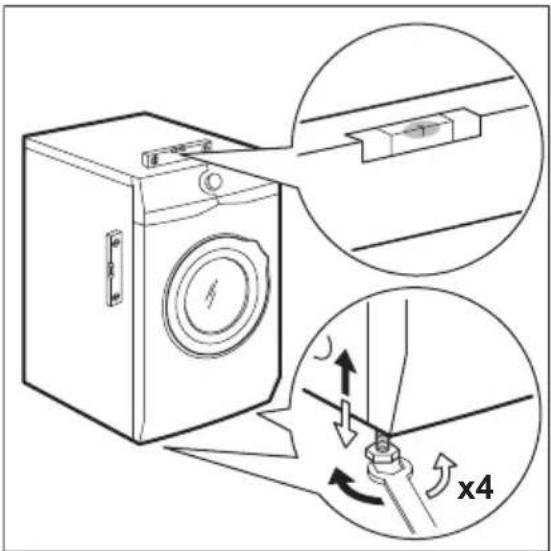

1. Loosen or tighten the feet to adjust the level.

WARNING!

Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

Diagram showing a washing machine with labeled parts and a magnified view of the component being adjusted for 4x speed.

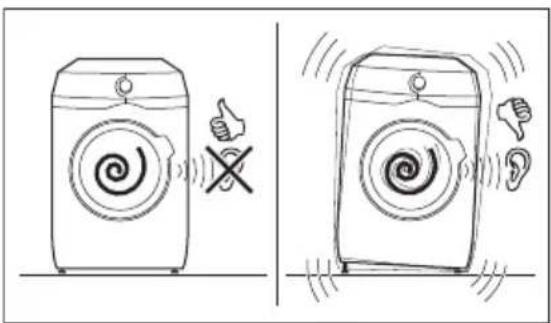

The appliance must be level and stable.

A correct adjustment of the appliance level prevents the vibration, noise and the movement of the appliance when in operation.

When the appliance is installed on a plinth or a tumble dryer is stacked on the washing machine, use the accessories described in chapter 'Accessories'. Read carefully the instructions supplied with the appliance and with the accessory.

Illustration showing a speaker emitting sound waves with a 'X' symbol and a 'O' symbol, alongside a second image of a speaker emitting sound waves with a 'P' symbol.

5.3 Wooden Floor installation

If you install the appliance in a wooden floor please make sure to use fixing plates to secure appliance feet.

Read carefully the instructions supplied with the accessory.

5.4 The inlet hoses

The appliance has two connections for the inlet hoses on the back side, one for the hot water and the other for the cold water.

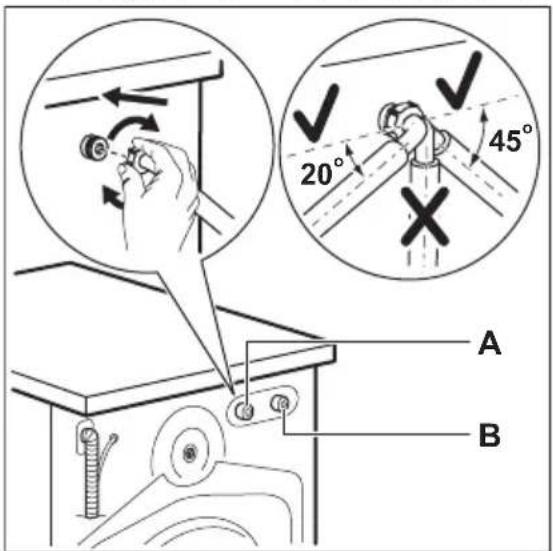

1. Connect the COLD water inlet hose to the appropriate connection (A) on the back of the appliance.
2. Connect the HOT water inlet hose to the appropriate connection (B) on the back of the appliance. Refer to the picture.

A B 20° 45°

1. Position them toward left or right depending on the position of the water tap.

Make sure that the inlet hoses are not in vertical position.

1. If necessary, loose the ring nut to set them in the correct position.

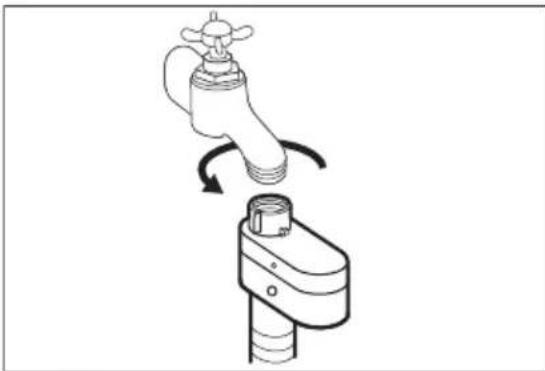

2. Connect the other end of the COLD water inlet hose to the cold water tap with 3/4" thread.
3. Connect the other end of the HOT water inlet hose to the hot water tap with 3/4" thread. Make sure to tight the ring nuts to prevent leaks.

Diagram of a faucet being adjusted to a mechanical device (no text or symbols present)

Do not use an extension hose if the inlet hoses are too short. Contact the authorized service centre for the replacement of the inlet hoses.

5.5 Water-stop device

The inlet hose has a water stop device. This device prevents water leaks in the hose because of its natural ageing.

The red sector in the window «A» shows this fault.

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

If this occurs, close the water tap and contact the authorized service centre to replace the hose.

5.6 Water drainage

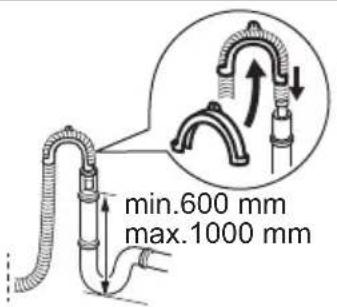

The drain hose should be positioned at a height of not less than 60 cm and not more than 100 cm from the floor.

You can extend the drain hose to maximum 400 cm. Contact the authorized service centre to buy the other drain hose and the extension.

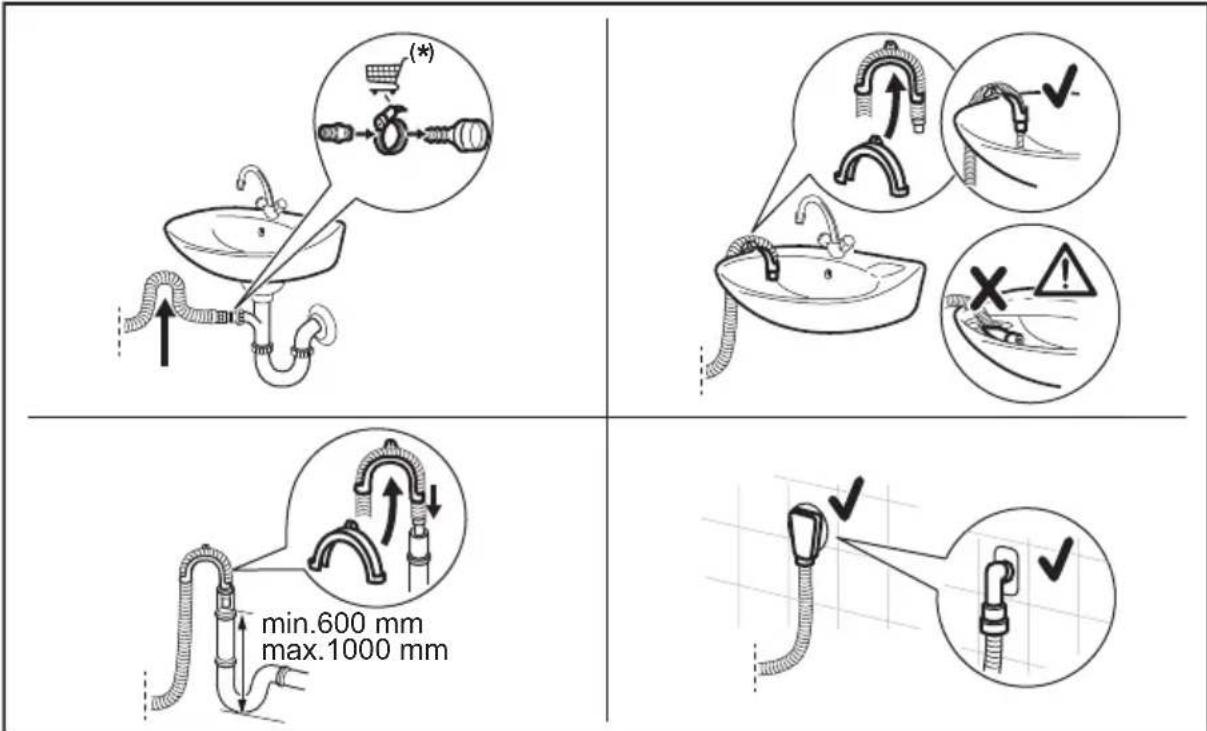

It is possible to connect the drain hose in different ways:

(*) min.600 mm max.1000 mm

(*) Subject to change without notice.

• Connect the drain hose to the spigot and tighten it with a clamp.
• Position the hose directly to a built-in drain pipe in the room wall and tighten it with a clamp.
• Without the plastic hose guide, to a sink spigot - put the drain hose in the spigot and tighten it with a clamp.
• To a stand pipe with vent hole - insert the drain hose directly into a drain pipe or stand pipe.
• The drain hose can be bent into U shape and put around the plastic guide. On the edge of a sink - fasten the guide to the water tap or to the wall.

i

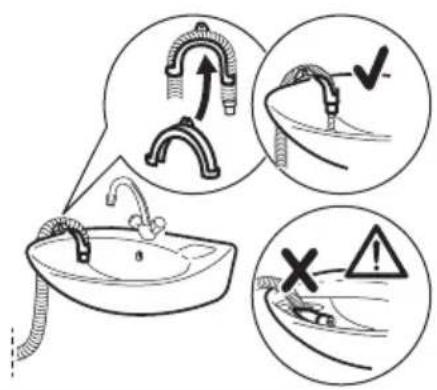

Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

i

Make sure that the plastic guide cannot move when the appliance drains and the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance.

i

The end of the drain hose must always be ventilated, i.e. the inner diameter of the drain pipe (min. 38 mm - min. 1.5") must be larger than the external diameter of the drain hose.

5.7 Electrical connection

At the end of installation you can connect the mains plug to the mains socket.

The rating plate and the 'Technical Data' chapter indicate the necessary electrical ratings. Make sure that they are compatible with the mains power supply.

Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances may also be in use.

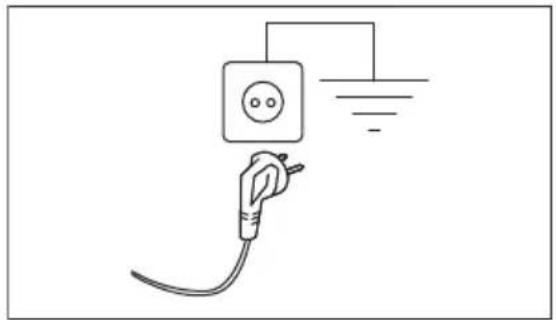

Connect the appliance to an earthed socket.

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

The power supply cable must be easily accessible after installing the appliance.

For any electrical work required to install this appliance, contact our Authorised Service Centre.

The manufacturer does not accept any responsibility for damage or injury through failure to comply with the above safety precaution.

6. CONTROL PANEL

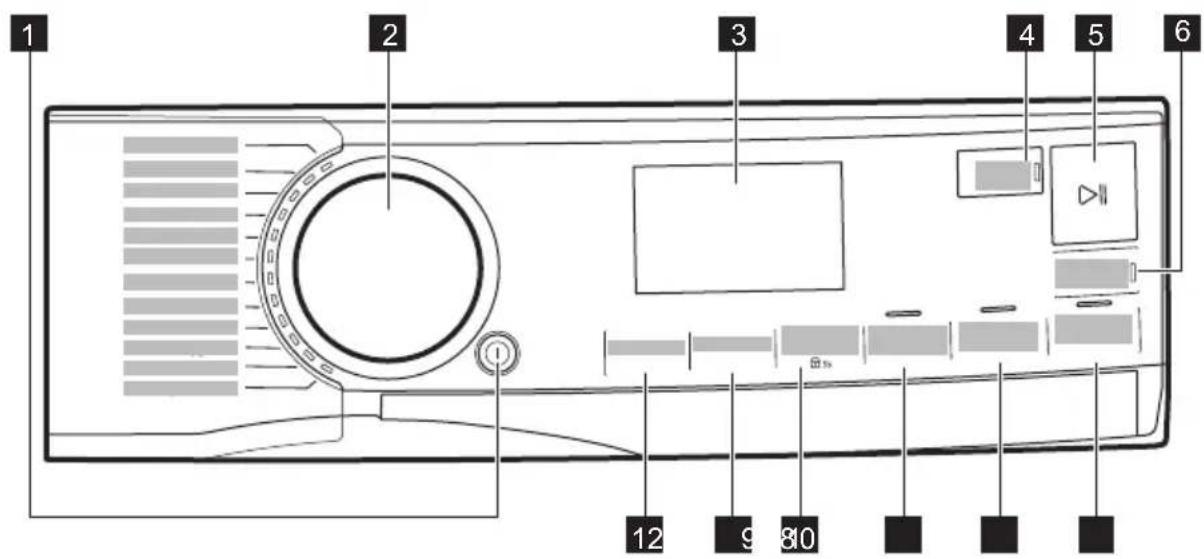

6.1 Control panel description

1 2 3 4 5 6 12 9 80

i

The options are not selectable with all washing programmes. Check the compatibility between options and washing programmes in the "Options compatibility with programmes" paragraph in the "Programmes" chapter. An option can exclude another one, in this case the appliance doesn't allow you to set the incompatible options together. Make sure the screen and touch buttons are always clean and dry.

1 On/Off push button ①
2 Programme dial
3 Display
4 Finish In touch button
5 Start/Pause touch button ▷||
6 Hot & Cold touch button
7 Plus Steam touch button

8 Extra Rinse touch button
9 Time Save touch button
10 Stains/Prewash touch button and permanent Child Lock option 3s
11 Spin touch button
12 Temperature touch button

6.2 Display

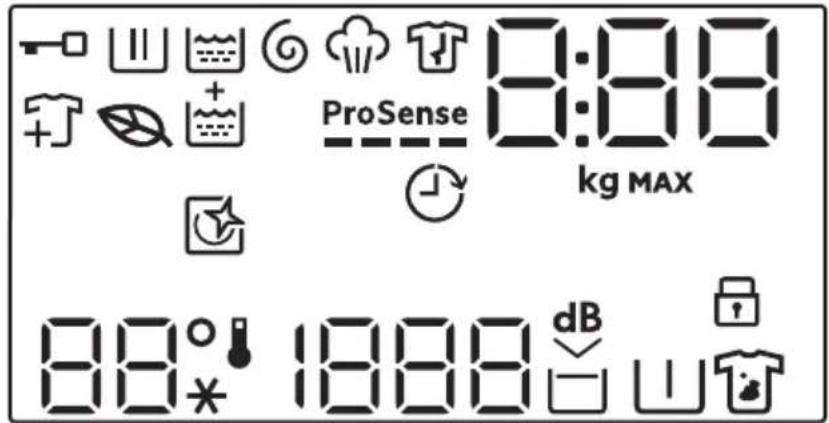

ProSense 8:88 kg MAX 88* 1888 dB

	Door locked indicator.
	Washing phase indicator. It flashes during pre-wash and wash phase.
	Rinsing phase indicator. It flashes during rinse phase.
	Spinning and draining phase indicator. It flashes during spin and drain phase.
	Steam phase indicator.
	Anti-crease phase indicator.
	Leaf Icon turns on to indicate when the cycles and options selected have a low energy consumption profile.
	Add garments indicator: it lights on when the programme starts and the user can still pause the appliance and add more laundry.
	Extra Rinse indicator.
ProSense	ProSense indicator.
	Finish In indicator.
0:00	The digital indicator can show:• Programme duration (e. g. ).240
	iThe time shown when the programme is set could not correspond to effective duration and change after ProSense phase.
	• Maximum load.• Finish in time (e. g. .30" 2h• Cycle end ().0• Warning code (e.g. ).620• Indication of total operating hours of the appliance. Refer to the 'Operating hours counter' section in the 'Settings' paragraph for more details.
888	Maximum load indicator. The value is shown for three seconds after programme selection, alternated with cycle duration.
MAX	Maximum laundry indicator. It blinks if the laundry amount exceeds the declared load.
	This indicator reminds to run a cleaning cycle.
	Child safety lock indicator.
88°---	The Temperature area:Temperature indicatorCold water indicator
1888---	The spin area:Spin speed indicatorNo Spin indicator. Spin phase is off.
dB	Extra Silent indicator.
	Rinse hold indicator.
	Pre-wash indicator.
	Stain indicator.
	Hot water filling indicator.

7. DIAL AND BUTTONS

7.1 On/Off ①

Pressing this button for a few seconds allows to activate or deactivate the appliance. Two different tunes sound while switching the appliance on or off.

As the Stand-by function automatically deactivates the appliance to decrease the

energy consumption in a few cases, you may need to activate the appliance again.

The default selected programme, at machine switch on, is always the Eco 40-60 programme, also after wake up from standby.

For more details, refer to Stand-by paragraph in Daily Use chapter.

7.2 Programme dial

By rotating the programme dial it is possible to select the desired programme.

7.3 Introduction

i

The options/functions are not selectable with all washing programmes. Check the compatibility between options/functions and washing programmes in the "Programme Chart". An option/function can exclude another one, in this case the appliance doesn't allow you to set the incompatible options/functions together. Make sure the screen and touch buttons are always clean and dry.

7.4 Finish In

i

Set this option as last after programme and other options selection, otherwise it can be cancelled if you change some setting.

This option allows choosing the time within which a programme should terminate. The programme end can be postponed by one 1 hour every button touch until 24 hours maximum.

The display shows the normal programme duration alternatively with the set programme end time (expressed in hours 0h). The minimum selectable time corresponds to rounded up hour of the maximum duration of a programme (e.g. if the cycle duration lasts 3:15 hours, the minimum selectable time will be 4h).

After programme start, the door is locked and the appliance starts the ProSense phase. When load estimation ends, on the display the icon of running phase blinks and the time digit counts down in steps of one hour and in steps of 1 minute during the last hour.

7.5 Start/Pause ▷∥

Touch the Start/Pause button to start, pause the appliance or interrupt a running programme.

7.6 Hot & Cold

If you set one of the programs beside the icon and also the indicator lights on the display.. The hot water connection is active.

The appliance fills with hot and cold from your domestic hydraulic system.

To wash with cold water only, touch this button to deactivate the hot water filling. The corresponding button indicator goes off and the indicator disappears from the display.

i

We recommend that you deactivate the hot water connection to remove blood, egg and red wine stains from the laundry.

i

The highest hot water temperature allowed is 60 °C.

7.7 Plus Steam

This option adds a steam phase followed by a short anti-crease phase at the end of the washing programme.

The steam phase reduces fabric creasing and facilitates the fabric ironing.

The Plus Steam option achieves good results with a small load because steam better penetrates the laundry if there is more space. For this reason, the programme maximum load combined with this option is 2 kg (approximately 8 - 10 shirts).

When setting the Plus Steam option, the maximum load drops to 2 kg in the display and programme time is adjusted accordingly.

The indicator 🌿 blinks in the display during steam phase.

This option can affect the programme duration.

When the programme stops the display shows a zero □ the indicator is steady on.

The anti-crease phase starts, the indicator is blinking, and the Start/Pause led remains lit. The drum performs smooth movements for about 30 minutes to keep the steam benefit.

To interrupt the anti-crease phase, you can:

• Press the On/Off ① button for a few seconds to activate or the deactivate the appliance.
• Turning the programme dial in another position.

When the anti-crease movements stop and the door unlocks, the appliance proposes again the previous set programme.

A small laundry load helps to reach better results.

7.8 Extra Rinse

With this option you can add a few rinses to the selected washing programmes and optimise the fabric softener distribution and improve the fabric softness.

It is suggested when you use the fabric softener.

Useful for people allergic to detergents and in areas where the water is soft.

This option increases the programme duration.

The button indicator comes on.

7.9 Time Save

With this option you can decrease the programme duration.

- If your laundry is normally or lightly soiled, it may be advisable to shorten the washing programme. Touch this button once to decrease the duration.

- In case of smaller load, touch this button twice to set an extra quick programme. In this case, the temperature 95^ is not selectable.

The LED of the button is on and the display shows the set programme duration.

This option can also be used to shorten the steam programme duration.

7.10 Stains/Prewash

Press this button repeatedly to activate one of the two options or both.

The relevant indicator goes on in the display.

- Stains

Select this option to add an anti-stain phase to a programme in order to treat heavily soiled or stained laundry with stain remover.

Pour the stain remover into compartment

The stain remover will be added in the appropriate phase of the washing programme.

This option is not available with a temperature lower than 40 °C.

- Prewash

Use this option to add a pre-wash phase at 30 °C before the washing phase.

This option is recommended for heavily soiled laundry, especially if containing sand, dust, mud and other solid particles.

The options can increase the programme duration.

7.11 Spin

When you set a programme, the appliance automatically selects the default spin speed.

Touch this button repeatedly to:

- Change the spin speed.

i

The display shows only the spin speeds available for the set programme.

- Activate the Rinse Hold option.

The water of the last rinse is not drained out to prevent the fabrics from creasing. The washing programme ends with water in the drum and the final spin phase is not performed.

The display shows the indicator □ The drum turns regularly to reduce creasing.

The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door.

Touch Start/Pause button ▶ the appliance performs the spinning phase and drains the water.

- Activate the Extra silent option.

All spinning phases (intermediate spin and final spin) are suppressed and the programme ends with water in the drum. This helps to reduce creasing. As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available. In some programmes the rinses are performed with more water.

The display shows the indicator ▼ The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door.

Touch the Start/Pause button: the appliance performs only the draining phase.

- No Spin .---

Set this option to deactivate all spin phases. The display shows the indicator

- - - . The appliance performs the only draining phase of the selected washing programme. Set this option for very delicate fabrics. The rinses phase uses more water for some washing programmes

i

The appliance empties the water out automatically after approximately 18 hours.

7.12 Temperature

When you select a washing programme, the appliance automatically proposes a default temperature.

Touch this button repeatedly until the desired temperature value appears on the display.

When the display shows the indicators and -, the appliance does not heat the water.

8. SETTINGS

8.1 Introduction

i

When pressing a key combination, do not tilt your fingers downwards. The sensors of the underneath buttons are sensitive and may interfere with your choice.

8.2 Setting

FUNC-TIONS	BUTTONS DESCRIPTION
Child lock Stains/Prewash This option prevent children from playing with the control panel. Press and hold the button until comes on/off on the display.
Acoustic signals	Extra Rinse With this option it is possible to activate or deactivate the acoustic signals. Press and hold the button simultaneously for about 2 seconds.
Extra Rinse	Extra Rinse	Time Save	This option permanently set an extra rinse phase, if available with selected cycle, when is selected a new programme. Touch key combinations simultaneously for about 2 seconds until the indicator above the Extra Rinse push button and the corresponding icon on the display come on/go off
			iPress the Extra Rinse button to deactivate the function on a single cycle execution without removing the permanent option.
Hours Counter	Extra Rinse	Plus Steam	With this option it is possible to check the total operating time of the appliance by proceed as follows: Touch key combinations simultaneously for about 2 seconds. After 3 seconds the total hours operated by the appliance are shown in the display: e.g. 1276 hours, the display shows the text Hr for 2 seconds, 12 (thousands and hundreds) for 2 seconds and 76 (tens and units). To exit this mode, press any button.
Factory Reset	Stains/ Prewash	Time Save	This function allows to restore the factory default options. To activate this option follow steps below: Touch key combinations simultaneously for about 2 seconds. The display will show for about 5 seconds.

9. BEFORE FIRST USE

During installation or before first use you may observe some water in the appliance. This is a residual water left in the appliance after a full functional test in the factory to ensure the appliance is delivered to customers in perfect working order and is no cause for concern.

1. Make sure that all transit bolts have been removed from the appliance.

2. Make sure that the electrical power is available and the water tap is open.

3. Pour 2 litres of water into the detergent compartment marked by 🐎

This action activates the drain system.

1. Pour a small quantity of detergent into the compartment marked by ☐☐☐

2. Set and start a programme for cotton at the highest temperature without any laundry in the drum.

This removes all possible dirt from the drum and the tub.

10. PROGRAMMES

10.1 Programme Chart

i

The programmes are described in this chart following the order of the selector dial from the top to the bottom.

i

The icon 🖼 indicates the programs where the Hot & Cold option is available.

Washing programmes

Programme Programme description
Eco 40-60	Low energy cycle for cottons. Decreases temperature and extends time to reach good washing results.
MixLoad 69min	Cotton and mixed synthetic fabrics. Ideal to wash your daily load in a short time, for a better clothes care and good cleaning already at 30°C.The standard program duration has been developed on a laundry load of 5 kg. If you wash a smaller or a bigger load, the washing time automatically decreases or increases ensuring perfect results.
Cottons	White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetics	Synthetic items or mixed fabric items. Normal soil.
Wool	Machine washable wool, hand washable wool and other fabrics with «hand washing» care symbol1).
Hygiene	White cotton items. This high-performance wash programme combined with steam vapour, removes more than 99,99% of bacteria and viruses2) keeping the temperature above 60°C throughout the washing phase; with an additional action on the fibers thanks to a vapour phase, an enhanced rinsing phase ensures a proper removal of detergent and micro-organism residues. This programme ensures also a proper reduction of pollens/allergenic items.
Machine Clean	Maintenance cycle with hot water to clean and freshen the drum and to remove residue that may cause odour. Before running this cycle, remove all items from the drum. In the washing phase compartment of the detergent dispenser, put the flap of the compartment in upward position. Pour a cup of chlorine bleach or a washing machine cleaner in the washing phase compartment of the detergent dispenser. DO NOT use both together3).
Delicates	Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normal soil.
20min 3kg	Cotton and synthetic items lightly soiled or worn only once.
Steam	Cotton, synthetic and mixed items. Special steam cycle without washing that can be used to prepare your dried laundry for ironing or refreshing garments worn once. This programme reduces creases, odours and relaxes the fibres. Do not use any detergent.When the programme is completed, quickly remove the laundry from the drum4). If necessary, remove stains by washing or using localized stain removal. Steam programmes do not perform any hygienic cycle. Do not set a Steam programme with these types of items:Items that are not suitable for tumble drying.Items with label "Dry clean only".
Rinse	All fabrics, except woollens and very delicate fabrics. Programme for rinsing and spinning the laundry. The default spin speed is the one used for cotton programmes. Reduce the spin speed accordingly to the type of laundry. If necessary, set the Extra Rinse option to add rinses. With a low spin speed the appliance performs delicate rinses and a short spin.
Spin/Drain	To spin the laundry and to drain the water in the drum. All fabrics, except woollens and delicate fabrics.

1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.

2) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

3) After the drum cleaning, run a further rinse cycle with empty drum and no detergent to remove any residue of bleach.

4) If you set a Steam programme with dried laundry, at the end of the cycle the laundry can be humid. Line dry the items for about 10 minutes. This programme does not remove particularly intense odour.

1) According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.
Programme temperature, maximum spin speed and maximum load

Programme Default temperature	Temperature range	Reference spin speed Spin speed range	Maximum load
Eco 40-60	40 °C1)	1400 rpm1400 rpm - 400 rpm	10.0 kg
MixLoad 69min	30 °C60 °C - 30 °C	1400 rpm1400 rpm - 400 rpm	8.0 kg
Cottons	40 °C95 °C - Cold	1400 rpm1400 rpm - 400 rpm	10.0 kg
Synthetics	40 °C60 °C - Cold	1200 rpm1200 rpm - 400 rpm	5.0 kg
Wool	40 °C40 °C - Cold	1200 rpm1200 rpm - 400 rpm	2.0 kg
Hygiene	60 °C	1400 rpm1400 rpm - 400 rpm	10.0 kg
Machine Clean	60 °C	1200 rpm1200 rpm - 400 rpm	-
Delicates	30 °C40 °C - Cold	800 rpm1200 rpm - 400 rpm	2.0 kg
20min 3kg	30 °C40 °C - 30 °C	1200 rpm1400 rpm - 400 rpm	3.0 kg
Steam	-- 2.0 kg
Rinse	-	1400 rpm1400 rpm - 400 rpm	10.0 kg
Spin/Drain	-	1400 rpm1400 rpm - 400 rpm	10.0 kg

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

10.2 Steam programmes

The Steam programmes can be used for reducing wrinkles and odours on garments (such as cottons, synthetics, mixed fabrics, including delicates) that just need to be refreshed, in a short time, avoiding washing.

The fabric fibres are relaxed and afterwards ironing becomes effortless. When the cycle is completed, quickly remove the laundry from the drum.

The cycle duration can be reduced till 15 minutes by means of the Time Save option.

DO NOT set this mode with the following type of items:

• Items that are not suitable for tumble drying.
• Items with label "Dry clean only".

Do not use any detergent!

The Steam programmes do not remove particularly intense odour and do not perform any hygienic cycle.

After the steam treatment the laundry can be humid. Hang items out for a few minutes.

The fragrance (Electrolux Steam Fragrance)

The ElectroluxSteam Fragrance allows you to refresh even your delicate clothes, removing wrinkles and adding freshness with a gentle fragrance developed exclusively by Electrolux. By refreshing your garments with steam, rather than running full wash cycles, you will keep your clothes looking and feeling new longer. You can even safely use the fragrance with Cashmere and Steam

programmes - if they are available - for delicate fabrics like cashmere and wool. When treating smaller load reduce the fragrance dosage and the cycle duration: in only fifteen minutes, your clothes will regain that "just washed" feeling.

Read carefully the instructions supplied with the fragrance.

DO NOT:

- Tumble dry the garments treated with fragrance. Its benefit would evaporate.

• Use the fragrance with different purposes than those here described.
• Use the fragrance on new garments. New garments may contain residual finishing compounds which are not compatible with it.

The fragrance is available on Electrolux web shop or by authorised dealer.

10.3 Woolmark Premium Wool Care - Blue

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

The wool wash cycle of this machine has been tested and approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine.

M2305

10.4 Options compatibility with programmes

Eco 40-60

MixLoad 69min

Cottons

Synthetics

Wool

Hygiene

Machine Clean

Delicates

20min 3kg

Steam

Rinse

Spin/Drain

Spin ■■■■■■■■■■■■■

□ Rinse Hold

■■■■■■■■■

dB Extra Silent

■■■

---. No Spin

■1)

Stains 2)

■■■

Prewash

■■

Time Save3)

■■

■■

Extra Rinse

■■■

■■

■

Plus Steam2)

■■■

■

Finish In

■■■

■■

■■

■■

■

1) If you set the No Spin option, the appliance performs draining only.2) This option is not available with temperature lower than 40 °C.3) If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully load the appliance, however the washing results can be less satisfactory.Suitable detergents for washing programmes

Programme Universal powder1)

Liquid Univer-sal

Liquid for col-oureds

Delicates woollens

Special

Eco 40-60 ▲▲▲ -- --

MixLoad 69min -- ▲▲ -- --

Cottons ▲▲▲ -- --

Synthetics ▲▲▲ -- --

Wool -- -- ▲▲

Hygiene ▲▲ -- --▲

Delicates -- -- ▲▲

20min 3kg -- ▲▲ -- --

1) At temperature higher than 60 °C the use of powder detergent is recommended.▲ = Recommended -- = Not recommended

11. DAILY USE

WARNING!

Refer to Safety chapters.

11.1 Activating the appliance

1. Connect the mains plug to the mains socket.

2. Open the water tap.

3. Press the On/Off button for a few seconds to activate the appliance.

A short tune sounds. The appliance automatically proposes a default programme. The relevant indicator illuminates.

The display shows the default programme, Eco 40-60, cycle duration, the maximum load (for a few seconds), the default temperature, the default spin speed and the indicators of the phases making up the programme.

11.2 Loading the laundry

• Open the appliance door.
• Shake the items before you put them in the appliance.
• Put the laundry in the drum, one item at a time.

Make sure not to put too much laundry in the drum.

- Close the door firmly.

Make sure not to put too much laundry in the drum. - Close the door firmly.

Medical warning diagram showing a catheter with an exclamation mark and a mouse inside a catheter, indicating no need for treatment.

CAUTION!

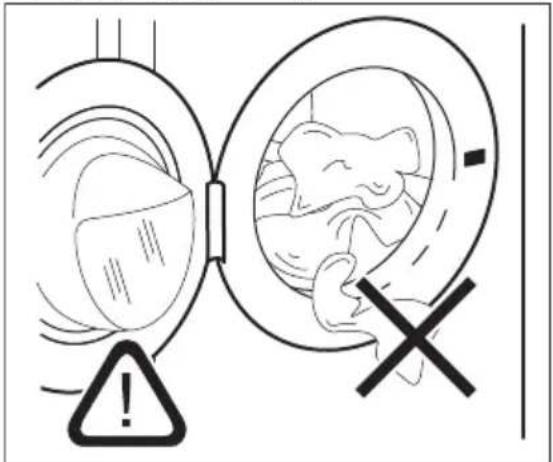

• Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.
• Washing heavily oiled, greasy stains or using fragrances perfume could cause damage rubber parts of the appliance.

11.3 Filling the detergent and additives

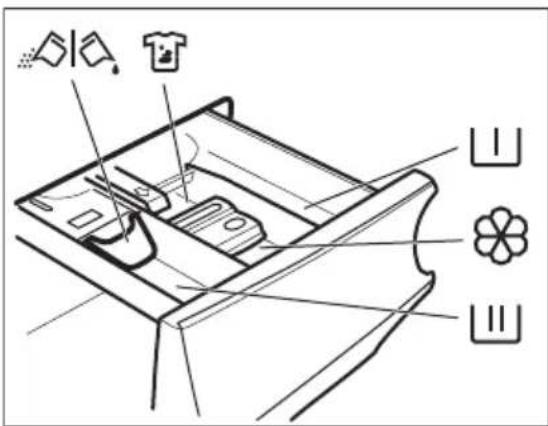

Technical diagram of a refrigerator interior with labeled parts and icons

Compartment for prewash phase an soak programme.

Compartment for washing phase.

Compartment for liquid additives (fabric conditioner, starch).

Maximum level for quantity of liquid additives.

Compartment for stain remover.

Flap for powder or liquid detergent.

Always follow the instructions that you find on the packaging of the detergent products, but we recommend that you do not exceed the maximum indicated level (MAX). This quantity will however guarantee the best washing results.

After a washing cycle, if necessary, remove any detergent residue from the detergent dispenser.

11.4 Check the position of the flap

1. Pull out the detergent dispenser until it stops.
2. Press the lever down to remove the dispenser.
3. To use powder detergent, turn the flap up.
4. To use liquid detergent, turn the flap down.

i

With the flap in the position DOWN:

• Do not use gelatinous or thick liquid detergents.
• Do not put more liquid detergent than the limit shown on the flap.
• Do not set the prewash phase.

• Do not set the delay start function.

• Measure out the detergent and the fabric conditioner.

• Carefully close the detergent dispenser.

Make sure that the flap does not cause a blockage when you close the drawer.

11.5 Setting a programme

1. Turn the programme dial to select the desired washing programme. The related programme indicator comes on.

The Eco 40-60 is the default proposed programme when the appliance is turned on, the one to which the information of the energy label relates.

The indicator of the Start/Pause button flashes.

The display shows an indicative programme duration, the maximum declared load for the set programme (only for a few seconds), the default temperature, the default spin speed and the washing phase indicators (when available).

1. To change the temperature and/or the spin speed, touch the related buttons.
2. If desired, set one or more options by touching the related buttons. The related indicators come on in the display and the given information changes accordingly.

i

In case a selection is not possible an acoustic signal sounds.

11.6 Starting a programme

Touch the Start/Pause button to start the programme.

The related indicator stops flashing and stays on.

The programme starts, the door is locked.

The display shows the indicator

i

The drain pump can operate shortly before the appliance fills water.

11.7 Starting a programme with the Finish In option

1. Touch this repeatedly until the display shows the desired time within the programme should end. The indicator comes on.
2. Touch the Start/Pause button.

The drum starts rotating to perform the ProSense estimation, if foreseen in the selected programme.

1. The appliance starts the countdown to the end of the programme and the programme will start at the right moment for ending at the time set through this option.

To change or cancel this option:

1. Switch the appliance off by means of the On/Off button.
2. Switch the appliance on again.
3. Set the programme again.

11.8 The ProSense load detection ProSense

i

The programme duration in the display is referred to a medium/high load.

After setting a washing programme, the ProSense icon lights up on the display if the programme supports it.

After touching the Start/Pause button, the ProSense starts the laundry load detection:

1. The appliance detects the load in the first 30 seconds: the indicator flashes, the bars under the Icon move back and forth and the drum rotates shortly.
2. When the drum stops rotating, the display shows the new programme duration, that could increase or decrease, adjusted accordingly the load detected, the number of bars indicates the load in

quarter (from 1 to 4, 4 bars in case of overload), the maximum declared load indicator comes on again. After further 30 seconds, the water filling starts.

i

In case of drum overload, the maximum declared load indicator

comes on again with the MAX indicator blinking. In this case, during these 30 seconds, it is possible to pause the appliance and remove the exceeding garments.

Once removed the exceeding

garments, touch the Start/PauseButton to start the programme again. The ProSense phase can be repeated up to three times (see point 1).

Important! If the laundry amount will not be reduced, the washing programme starts anyway, despite the overload. In this case, it will be not possible to guarantee the best washing results.

i

About 20 minutes after the programme start, the programme duration could be adjusted again depending on the capacity of water absorption of the fabrics.

i

The ProSense detection is carried out with complete washing programmes only (no skipping phase selected).

i

The ProSense is not available with some programmes, such as Wool, programmes with short cycles and without washing phase.

i

In certain programmes the duration of cycle could be the same for different load size, but water and energy consumption are anyway tailored made to achieve best results.

11.9 Programme phase indicators

When the programme starts the indicator of the running phase flashes and the other phase indicators are steady on.

E.g. the washing or pre wash phase is

running:

When the phase ends the relevant indicator stops flashing and is steady on. The next phase indicator starts flashing.

E.g. the rinse phase is running:

If you select the Plus Steam the steam phase indicators come on.

The steam phase is running:

The anti-crease phase is running:

11.10 Interrupting a programme and changing the options

When the programme is running, you can change only some options:

1. Touch the Start/Pause ▷|| button. The related indicator flashes.

2. Change the options. The given information in the display changes accordingly.

3. Touch the Start/Pause ▷|| button again. The washing programme continues.

11.11 Cancelling a running programme

1. Press the On/Off button to cancel the programme and to deactivate the appliance.

2. Press the On/Off button again to activate the appliance.

Now, you can set a new washing programme.

i

If the ProSense phase is already carried out and the water filling is already started, the new programme starts without repeating the ProSense phase.

The water and the detergent are not drained out in order to avoid waste. The display shows the maximum duration of the programme, updating it about 20 minutes after the starting of the new programme.

11.12 Opening the door - Adding garments

While a programme or the delay start operates, the appliance door is locked.

i

If the temperature and level of the water in the drum are too high and/or the drum still rotates you cannot open the door.

You can easily open the door for adding or removing some items when the icon is lighted on.

1. Touch the Start/Pause button.
   In the display the related door lock indicator goes off.
2. Open the appliance door. If necessary, add or remove the items.
3. Close the door and touch the Start/Pause ▷|| button.

The programme or the delay start continues. When the icon goes off, the door can be opened when the programme is complete, or set spinning or draining programme/option and than press Start/Pause button.

11.13 End of the programme

When the programme has finished, the appliance stops automatically. The acoustic signals operate (if they are active).

In the display all washing phase indicators become steady and the time area shows

The indicator of the Start/Pause button goes off.

The door unlocks and the indicator goes off.

1. Press the On/Off button to deactivate the appliance.

After five minutes from the end of the programme, the energy saving function automatically deactivates the appliance.

i

When you activate the appliance again, it proposes Eco 40-60 as default programme. Turn the programme dial to set a new cycle.

1. Remove the laundry from the appliance.

2. Make sure that the drum is empty.

3. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours.

4. Close the water tap.

11.14 Draining water out after end of cycle

If you have chosen a programme or an option that does not empty out the water of the last rinse, the programme is completed, but:

• The display shows the indicator ☐, the option indicator ☐ or and the door locked indicator. The indicator of the running phase flashes.

- The drum still turns at regular intervals to prevent the creases in the laundry.

• The door stays locked.

- You must drain the water to open the door:

1. If necessary, touch the Spin button to decrease the spin speed proposed by the appliance.

2. Touch the button:

3. If you have set ☐, the appliance drains the water and spins.

4. If you have set, the appliance only drains the water.

The option indicator □ or goes off, while the indicator ⓗ flashes and then goes off.

1. When the programme is completed and the door locked indicator goes off, you can open the door.

2. Press the On/Off button a few seconds to deactivate the appliance.

i

In any case, the appliance empties the water out automatically after approximately 18 hours.

11.15 Stand-by option

The Stand-by function automatically deactivates the appliance to decrease the energy consumption when:

• You do not use the appliance for 5 minutes before you touch the Start/Pause ▷||button.
  Press the On/Off ^① button to activate the appliance again.

• After 5 minutes from the end of the washing programme.

Press the On/Off button to activate the appliance again.

The appliance proposes Eco 40-60 as default programme.

Turn the programme dial to set a new cycle.

i

If you set a programme or an option that ends with water in the drum, the Stand-by function doesn't deactivate the appliance to remind you to drain the water.

12. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

12.1 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly open to get air circulation and dry the humidity inside the appliance.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year
Maintenance wash Once a month
Clean door seal Every two months
Clean drum Every two months
Clean detergent dispenser	Every two months
Clean drain pump filter Twice a year
Clean the inlet hose and the valve filter	Twice a year

12.2 Removing foreign objects

i

Make sure that pockets are empty and all loose elements are tied up before running your cycle. Refer to "The laundry load" in "Hints and tips".

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. Refer to "Door seal with double lip trap", "Cleaning the drum", "Cleaning the drain pump" and "Cleaning the inlet hose and the valve filter" paragraphs. If necessary, please contact the Authorised Service Centre.

12.3 External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces.

Do not use a scouring pads or any scratching material.

!

CAUTION!

Do not use alcohol, solvents or chemical products.

CAUTION!

Do not clean the metal surfaces with chlorine-based detergent.

12.4 Descaling

If the water in your area is hard or medium hard, we recommend that you use a water softener for washing machines (descaling occasionally).

Regularly examine the drum to check for limescale.

Always follow the instructions that you find on the packaging of the product.

12.5 Maintenance wash

The repeated and prolonged use of low temperature and short programmes can cause detergent deposits, fluff residues, bacterial growth and biofilm formation inside the drum and the tub. This could generate bad odours and mildew.

To eliminate these deposits and hygienize the inner part of the appliance, run a maintenance wash at least once a month:

1. Remove all laundry from the drum.
2. Run a cotton programme with the highest temperature with a small quantity of powder detergent or, if available, run the Machine Clean programme.

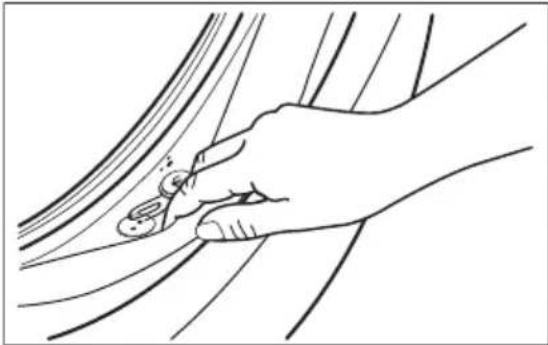

12.6 Door seal

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a car tire, no text or symbols present

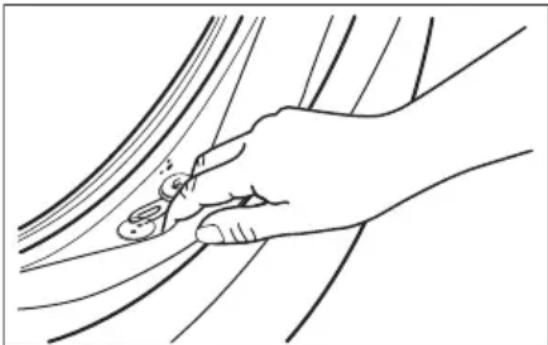

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

Always obey the instructions that you find on the packaging of the product.

12.7 Cleaning the detergent dispenser

To prevent possible deposits of dried detergent or clotted fabric softener and/or formation of mould in the detergent dispenser drawer, every two months carry out the following cleaning procedure how explained in the following diagrams:

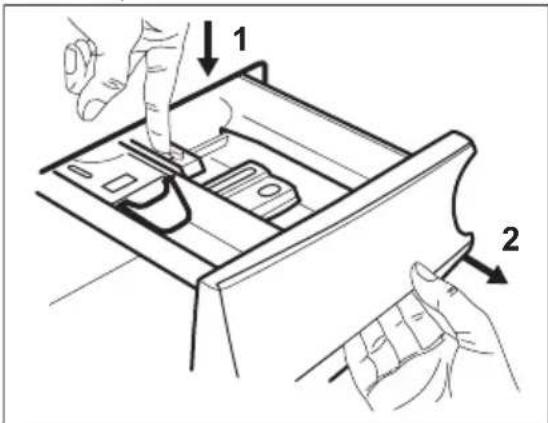

1. Open the drawer. Press the catch downwards as indicated in the picture and pull it out.

Technical diagram showing two hands operating a device with labeled parts and directional arrows indicating process flow.

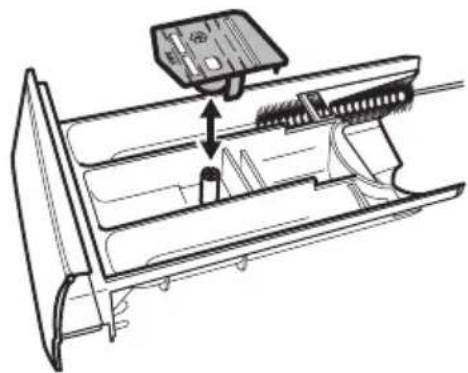

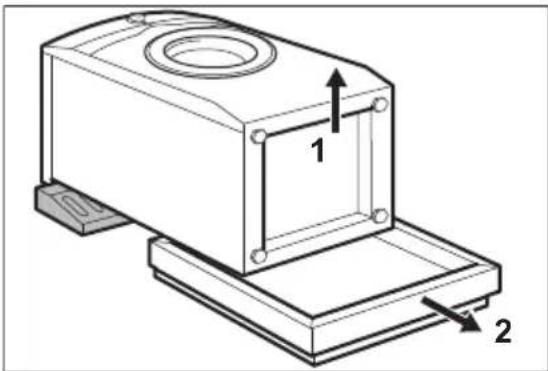

1. Remove the top part of the additive compartment to aid cleaning. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

Technical line drawing of a mechanical device with internal components and an upper panel (no text or symbols)

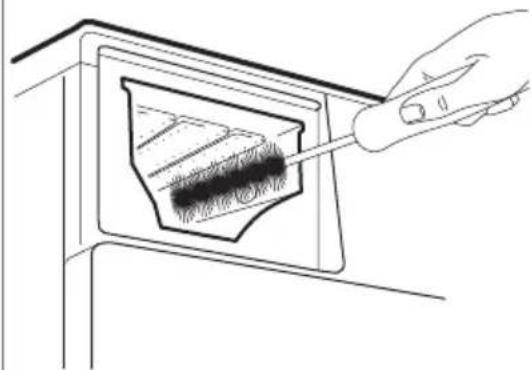

1. Flush the detergent drawer out under running warm water to remove any traces of accumulated detergent. After cleaning, replace the top part in its position.

Line drawing of a hand using a tool to clean or inspect a textured object inside a rectangular frame (no text or symbols)

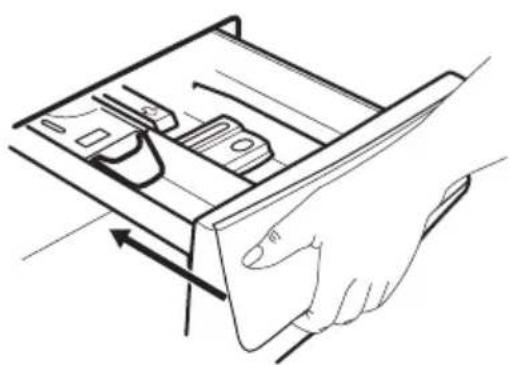

1. Insert the detergent drawer into the guide rails and close it. Run the rinsing programme without any clothes in the drum.

Line drawing of a hand holding a device with an arrow indicating direction (no text or symbols)

12.8 Cleaning the drain pump filter

WARNING!

Disconnect the mains plug from the mains socket.

Regularly check the drain pump filter and make sure that it is clean.

Clean the drain pump filter if:

• The appliance does not drain the water.
• The drum does not turn.
• The appliance makes an unusual noise because of the blockage of the drain pump.

• The display shows the alarm code .E20

WARNING!

• Do not remove the filter while the appliance operates.
• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down

Proceed as described in following diagrams to clean the pump filter:

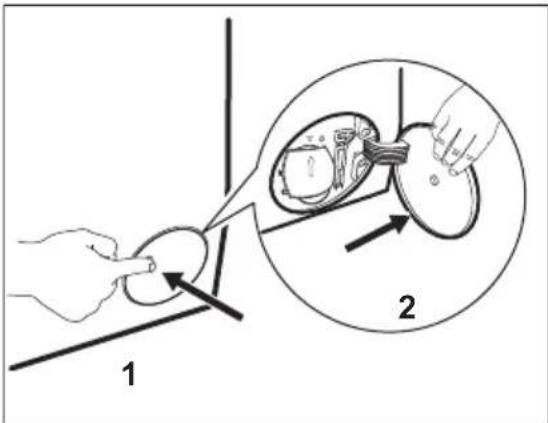

1. Open the pump cover.

1 2

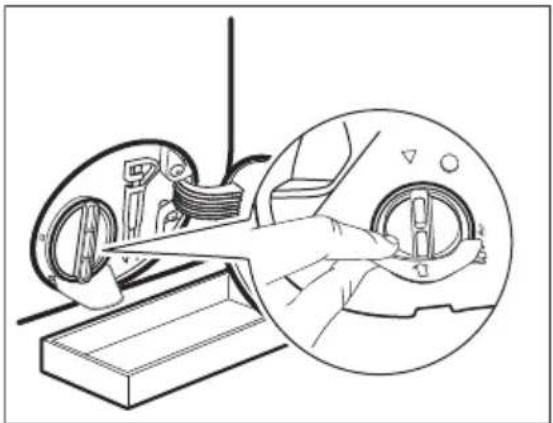

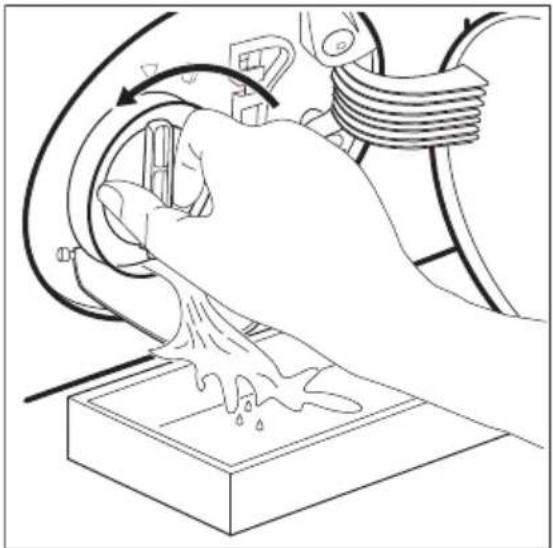

1. Place a suitable bowl below the drain pump access to collect the water that flows out.
2. Open the chute downwards. Always keep a rag nearby to dry up any water spillages when removing the filter.

Diagram showing a hand operating a car wheel switch mechanism, with no visible text or symbols

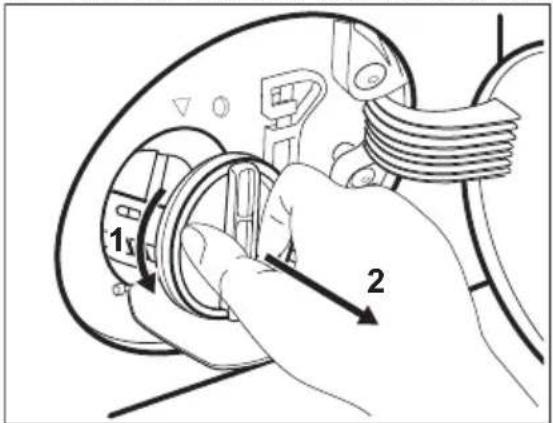

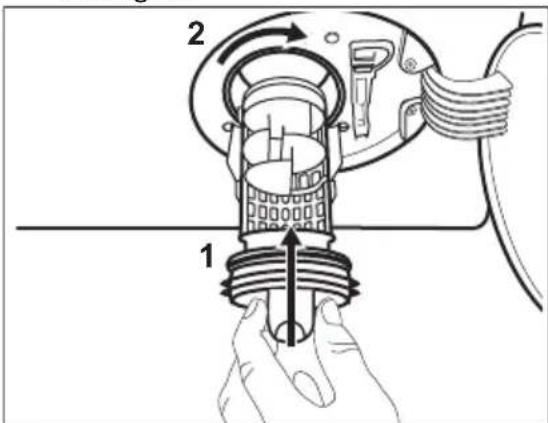

1. Turn the filter 180 degrees in anti-clockwise direction to open it, without removing. Let the water flow out.

Illustration of a hand pouring liquid into a mechanical component (no text or symbols)

1. When the bowl is full of water, turn the filter back and empty the container.
2. Repeat the steps 4 and 5 until the water stops to flow out.
3. Turn the filter anti-clockwise to remove it.

1s 2

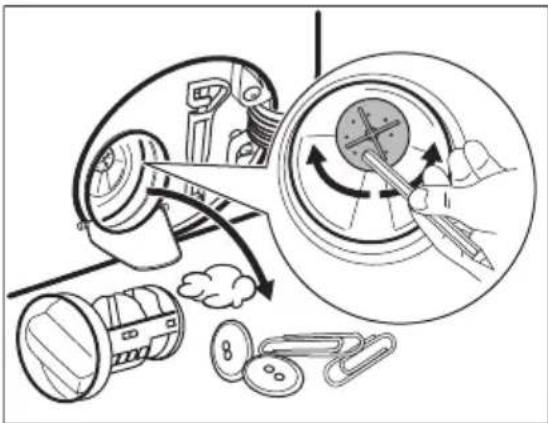

1. If it is necessary, remove fluff and objects from the filter recess.
2. Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre.

Illustration of mechanical components and a circular component with arrows indicating motion (no text or symbols)

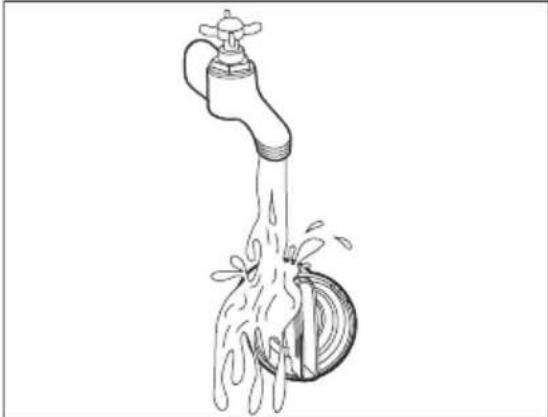

1. Clean the filter under the water tap.

Line drawing of a faucet with water spilling out from a circular pipe (no text or symbols)

1. Put the filter back into the special guides by turning it clockwise. Make sure that you tighten the filter correctly to prevent leakages.

Diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force

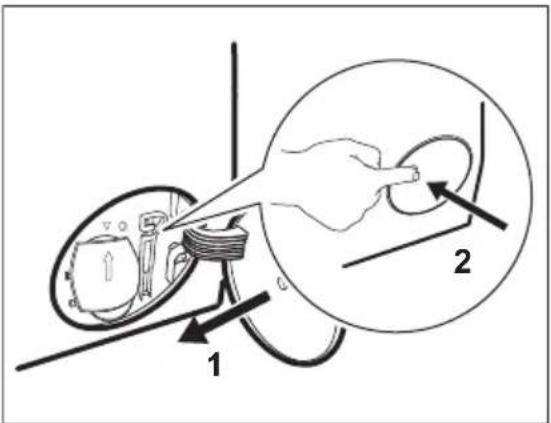

1. Close the pump cover.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, showing components like '1' and '2'.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

a. Put 2 litres of water in the main wash compartment of the detergent dispenser.
b. Start the programme to drain the water.

Cleaning the drum

Regularly examine the drum to prevent unwanted deposits.

Rust deposits in the drum may occur due to rusting foreign body in the washing or tap water containing iron

Clean the drum with special products for stainless steel.

i

Always follow the instructions that you find on the packaging of the product. Do not clean the drum with acidic descaling products, scouring products containing chlorine or iron or steel wool.

13. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

For a thorough clean:

1. Clean the drum with special products for stainless steel.

i

Always follow the instructions that you find on the packaging of the product.

1. Remove all laundry from the drum.

2. Add a manually small quantity of powder detergent or a specific product into the empty drum, in order to rinse out any left residues.

i

Occasionally, at the end of a cycle the display may show the icon this is a recommendation to perform the "drum cleaning". Once the drum cleaning has been performed, the icon disappears.

12.9 Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump' paragraph. If necessary, clean the pump.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

1. Put 2 litres of water in the main wash compartment of the detergent dispenser.
2. Start the programme to drain the water.

13.1 Alarm Codes and Possible failures

The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables).

WARNING!

Deactivate the appliance before carrying out any check.

With some problems, the display shows an alarm code and the Start/Pause Button may flash continuously:

If the appliance is overloaded, remove some items from the drum and/or keep pressed the door while touching the Start/Pause button until the indicator stops flashing (see the picture below).

Line drawing of a hand pressing down on a washing machine wheel (no text or symbols)

Problem Possible solution
E10The appliance does not fill with water properly.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the filters of the inlet hoses and the filters of the valves are not clogged. Refer to “Care and cleaning”.Make sure that the water inlet hoses has no kinks, damages or bends.Make sure that the connections of the water inlet hoses are correct.
E20The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Make sure that the connection of the drain hose is correct.Set the drain programme if you set a programme without drain phase.Set the drain programme if you set an option which ends with water in the tub.
E40The appliance door is open or not closed correctly.	Make sure that the door is properly closed.
E91Internal fail. No communication between electronic elements of the appliance.	The programme was not finished properly or the appliance stopped too early.Switch the appliance off and on again.If the alarm code appears again, contact the Authorised Service Centre.
EHOThe mains supply is unstable.	Wait until mains supply is stable.
EFOThe anti-flood device is on.	Disconnect the appliance and close the water tap. Contact the Authorised Service Centre.

If the display shows other alarm codes, deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre. In case of different problem with the appliance check the table below for possible solutions.

Problem Possible solution
The programme does not start.	Make sure that the mains plug is connected to the mains socket.Make sure that the appliance door is closed.Make sure that there is no damaged fuse in the fuse box.Make sure that the Start/Pause has been touched.If the delay start is set, cancel the setting or wait for the end of countdown.Deactivate the Child Lock function if it is on.Check the position of the knob on the selected programme.
The appliance fills with water and drains immediately.	Make sure that the drain hose is in the correct position. The hose may be positioned too low. Refer to "Installation instruction".
The spin phase does not operate or the washing cycle lasts longer than usual.	Set the spin programme.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems.
There is water on the floor.	Make sure that the couplings of the water hoses are tight and there is not water leakages.Make sure that the water inlet hose and the drain hose have no damages.Make sure you use the correct detergent and the correct quantity of it.
You cannot open the appliance door.	Make sure that a washing programme that ends with water in tub, has not been selected.Make sure that the washing programme is finished.Set the drain or the spin programme if there is water in the drum.Make sure that the appliance receives electrical power.This problem may be caused by a failure of the appliance. Contact the Authorised Service Centre.If you need to open the door, please read carefully "Emergency door opening".

Problem Possible solution

The appliance makes an unusual noise and vibrates.	Make sure the levelling of the appliance is correct. Refer to "Installation instruction".Make sure that the packaging and/or the transit bolts are removed. Refer to "Installation instruction".Add more laundry in the drum. The load may be too small.
The programme duration increases or decreases during programme execution.	The ProSense Technology is able to adjust the programme duration according to the type and the laundry load size. Refer to "The ProSense Technology load detection" in "Daily Use" chapter.
The washing results are not satisfactory.	Increase the detergent quantity or use a different detergent.Use special products to remove the stubborn stains before you wash the laundry.Make sure that you set the correct temperature.Decrease the laundry load.
Too much foam in the drum during the washing cycle.	Reduce the quantity of detergent or the number of tablets or single-dose detergents.
After the washing cycle, there are some detergent residues in the dispenser drawer.	Make sure that the flap is in the correct position (UP for powder detergent - DOWN for liquid detergent).Make sure you have used the detergent dispenser according the indications given in this user manual.

After the check, activate the appliance. The programme continues from the point of interruption.

If the problem occurs again, contact the Authorised Service Centre.

The necessary data for the service centre are on the rating plate.

13.2 Emergency door opening

In case of power failure or functioning failure the appliance door remains locked. The washing programme continues when the power is restored. If the door remains locked in case of failure, it is possible to open it using the emergency unlock function.

Before opening the door:

CAUTION!

Risk of burns! Make sure that the water temperature is not too high and the laundry is not hot. If necessary, wait until they cool down.

CAUTION!

Risk of injury! Make sure that the drum is not rotating. If necessary, wait until the drum stops rotating.

Make sure that the water level inside the drum is not too high. If necessary, proceed with an emergency drain (refer to «Emergency drain» in «Care and cleaning» chapter).

To open the door, proceed as follows:

1. Press the On/Off button to switch the appliance off.
2. Disconnect the mains plug from the mains socket.
3. Open the filter flap.

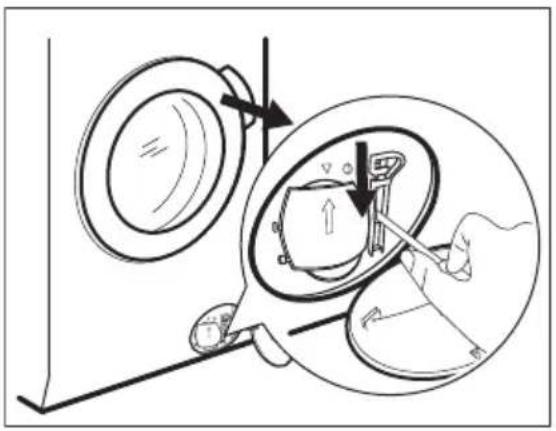

4. Pull the emergency unlock trigger downward once. Pull it downward once again, keep it tensed and, in the meanwhile, open the appliance door.

Diagram showing a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

1. Take out the laundry and then close the appliance door.
2. Close the filter flap.

14. CONSUMPTION VALUES

14.1 Comment

i

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

i

Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme.

14.2 According to Commission Regulation Eu 2019/2023

Eco 40-60 pro-gramme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Full load 10.0 0.475 70.0 03:58 53.00 27.0 1351
Half load 5.0 0.320 52.0 02:59 53.00 26.0 1351
Quarter load	2.5 0.185 34.0 02:30 54.00 24.0 1351

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.
2) Maximum spin speed.

Power consumption in different modes

Off (W) Stand-by (W) Delay start (W)

0.50 0.50 4.00

Time to Off/Standby mode is 15 minutes maximum.

14.3 Common programmes

These values are indicative only.

Programme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Cottons3)95°C	10.0 3.250 105.0 03:50 52.00 85.0 1400
Cottons60°C	10.0 2.200 100.0 03:40 52.00 55.0 1400
Cottons4)20°C	10.0 0.350 100.0 03:20 52.00 20.0 1400
Synthetics40°C	5.0 0.900 65.0 02:35 35.00 40.0 1200
Delicates5)30°C	2.0 0.350 55.0 01:05 35.00 30.0 1200
Wool30°C	2.0 0.300 70.0 01:15 30.00 30.0 1200

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.

2) Reference indicator of the spin speed.

3) Suitable for washing heavily soiled textiles.

4) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.

5) It also performs as quick washing cycle for lightly soiled laundry.

15. QUICK GUIDE

15.1 Daily use

• Connect the mains plug to the mains socket.
• Open the water tap.
• Push the On/Off button to turn the appliance on (1).
• Turn the programme dial to set the desired programme (2).
• Set the desired options by means of the corresponding touch buttons (3).

• Put the laundry in the drum, one item a time without exceeding the maximum suggested load. Close the door and make sure that no laundry stays between the seal and the door.

• Pour the detergent and other treatment in the proper compartment of the detergent dispenser.
  • To start the programme, touch the Start/Pause button (4).
  • The appliance starts.

• At the and of the programme, remove the laundry.
• Push the On/Off button to turn the appliance off.

15.2 Programmes

Programmes Load Product description
Eco 40-60 10.0 kg	Low energy cycle for cottons. Decreases temperature and extends time to reach good washing results.
MixLoad 69min 8.0 kg	Cotton and synthetic items. This programme ensures a good washing performance in a short time.The standard program duration has been developed on a laundry load of 5 kg. If you wash a smaller or a bigger load, the washing time automatically decreases or increases ensuring perfect results.
Cottons 10.0 kg	White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetics 5.0 kg Synthetic items or mixed fabric items.
Wool	2.0 kg Machine washable wool, hand washable wool and delicates.

Programmes Load Product description
Hygiene	10.0 kg	White cotton items. This programme removes more than 99,99% of bacteria and viruses 1). It also ensure a proper reduction of allergens.
Machine Clean - Maintenance cycle for drum cleaning.
Delicates 2.0 kg Delicate fabrics such as acrylics, viscose, polyester items.
20min 3kg 3.0 kg Cotton and synthetic lightly soiled items or once worn items.
Steam	2.0 kg Cotton and synthetic items that need to de-wrinkle.
Rinse 10.0 kg		All fabrics, except woollens and very delicate fabrics. Pro-gramme for rinsing and spinning.
Spin/Drain 10.0 kg		To spin the laundry and to drain the water in the drum. All fab-rics, except woollens and delicate fabrics.
1) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

Loading the appliance to the maximum capacity indicated for each programmes

helps to reduce energy and water consumption.

Suitable detergents for washing programmes

Programme	Universal powder1)	Liquid Universal	Liquid for coloureds	Delicates woollens	Special
Eco 40-60 ▲ ▲ ▲ -- --
MixLoad 69min -- ▲ ▲ -- --
Cottons ▲ ▲ ▲ -- --
Synthetics ▲ ▲ ▲ -- --
Wool -- -- -- ▲ ▲
Hygiene ▲ ▲ -- -- ▲
Delicates -- -- -- ▲ ▲
20min 3kg -- ▲ ▲ -- --

1) At temperature higher than 60 °C the use of powder detergent is recommended.
▲ = Recommended
-- = Not recommended

15.3 Detergent type and quantity.

- Use only detergents and other treatments specially made for washing machines. First, follow these generic rules:

– powder detergents (also tablets and single-dose detergents) for all types of

fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization, liquid detergents (also single-dose detergents), preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

- Do not mix different types of detergents.

• Use less detergent if:

– you are washing a small load,
– the laundry is lightly soiled,
– there is large amounts of foam during washing.

- When using detergent tabs or pods, always put them inside the drum, not in the detergent dispenser and follow the manufacturer's recommendations.

Insufficient detergent may cause:

• unsatisfactory washing results,
• the wash load to turn grey,
- greasy clothes,
- mould in the appliance.

Excessive detergent may cause:

• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.

15.4 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly open to get air circulation and dry the humidity inside the appliance.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispens- Every two months er

Clean drain pump filter Twice a year

Clean the inlet hose and Twice a year the valve filter

Regularly examine the drum to check for limescale. We recommend to run a cycle with empty drum and a descaling product occasionally.

Removing foreign objects

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. If necessary, please contact the Authorised Service Centre.

Door seal

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a car seatbelt, no text or symbols present

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

If it is necessary, remove fluff and objects from the filter recess.

16. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .Put the packaging in relevant containers to recycle it.

Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to

your local recycling facility or contact your municipal office.

Diagram of a washing machine with numbered parts and internal components, likely for assembly or maintenance instructions.

Diagram illustrating hand protection and washing machine operation, showing hand gesture and warning symbol

Diagram of a mechanical device with arrows indicating forces or motion, no text or symbols present

Line drawing of a washing machine with hands adjusting its fabric (no text or symbols)

Diagram illustrating a washing machine operation with labeled components and environmental impact indicators

Line drawing of a hand placing a circular component into a washing machine, with an arrow indicating rotation (no text or symbols)

1. Retirez la protection du bas.

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Line drawing of a washing machine with a side panel and arrow indicating rotation (no text or symbols)

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

Diagram illustrating the internal mechanism of a washing machine with labeled parts and directional arrows indicating assembly or repair.

Diagram illustrating a washing machine operation with three circular insets showing hand positioning and tool application steps.

Diagram showing a washing machine with labeled parts and a magnified view of the component being adjusted for four times.

Illustration comparing two washing machines with speech bubbles and a 'X' symbol, indicating sound or noise issues.

Diagram showing a faucet being lifted by a valve, with no text or symbols present.

i

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

Medical warning diagram showing a catheter and catheter with an exclamation mark, indicating a medical or surgical procedure.

ATTENTION!

Technical diagram of a refrigerator interior with labeled parts and icons

Line drawing of a hand holding a car tire, no text or symbols present

Technical diagram showing two hands operating a device with labeled parts and directional arrows indicating movement or assembly.

Technical line drawing of a mechanical device interior with internal components and a top component (no text or symbols)

Line drawing of a hand using a tool to insert or install a component, no text or symbols present

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Diagram showing a hand adjusting a car's wheel and dashboard components, with no visible text or symbols.

Illustration of a hand pouring liquid into a mechanical component (no text or symbols)

Diagram illustrating mechanical assembly and tool path with labeled parts and directional arrows

Line drawing of a faucet releasing water into a circular pipe (no text or symbols)

Diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, showing components like '1' and '2'.

Line drawing of a hand pressing down on a washing machine wheel (no text or symbols)

Diagram showing a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a hand holding a tool near a car wheel (no text or symbols)

Diagram of a washing machine with numbered parts and internal components, likely for assembly or maintenance instructions.

Diagram illustrating hand washing process with warning symbol and labeled components

Diagram of a washing machine with directional arrows indicating mechanical components (no text or symbols)

Line drawing of a washing machine with hands adjusting its fabric (no text or symbols)

Diagram illustrating a washing machine operation with labeled components and a recycling bin, showing steps to clean or reduce the machine.

Line drawing of a hand placing a circular component into a washing machine with a side panel (no text or symbols)

Line drawing of a washing machine with a side panel and arrow indicating rotation (no text or symbols)

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

Diagram illustrating the internal components of a washing machine with close-ups of wrench, wrench, and wrenching tools.

Diagram illustrating a washing machine operation with three circular insets showing different hand positions and tool tips.

Diagram showing a washing machine with labeled parts and a magnified view of the component being adjusted for four times.

Illustration comparing two types of washing machines, one with a 'no sound' check and the other with a 'no sound' and the other giving a thumbs-up.

Diagram of a faucet being adjusted to a mechanical device (no text or symbols present)

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Diagram illustrating a bathroom sink with a shopping cart and a close-up of the sink's handle, showing a hand holding a tool.

Diagram illustrating three steps of cleaning a sink with different valve configurations and warning signs

min.600 mm max.1000 mm

Diagram showing a hose with a connector and a magnified view highlighting the connector's detail.

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

8:88 ProSense 8:88 kg MAX 88* 1888 dB

WOOL HAND WASH SAFE WOOLMARK WOOL CARE

Medical warning diagram showing a warning sign with an exclamation mark and a cross symbol, alongside a magnified view of a patient inside the uterus.

VORSICHT!

Technical diagram of a refrigerator interior with labeled parts and icons for washing, coat, and accessories

Line drawing of a hand holding a small object near a car window (no text or symbols)

Diagram showing two hands operating a device with labeled parts, including component 1 and component 2.

Technical line drawing of a device interior with a component labeled 'B140' (no text or symbols on the diagram itself)

Line drawing of a hand using a tool to insert or mark a rectangular object with internal patterns (no text or symbols)

Line drawing of a hand inserting a device into a drawer with arrows indicating direction (no text or symbols)

Diagram showing a hand adjusting a car's wheel and dashboard components (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with a spring and rope (no text or symbols)

Diagram illustrating mechanical assembly with gears, pulleys, and a rotating component (no text or symbols)

Line drawing of a faucet releasing water into a circular pipe (no text or symbols)

Diagram showing mechanical assembly with labeled parts 1 and 2, indicating a valve or actuator mechanism.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, showing components like a valve and a hand holding a cable.

Line drawing of a hand pressing down on a washing machine wheel (no text or symbols)

Diagram showing a hand holding a tool inside a circular device with an arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a car seatbelt, no text or symbols present

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)
