USER MANUAL DL-775 Hatco

Register Online! (see page 2)

Simple line drawing of a vertical cylindrical object with a flanged base and top mount (no text or symbols)

Simple line drawing of a mechanical device with a cylindrical base and vertical shaft (no text or symbols)

Simple line drawing of a mechanical spring-loaded component with a conical base (no text or symbols)

Simple line drawing of a hanging lamp with a conical base and handle (no text or symbols)

Simple line drawing of a hanging lamp with a bulb and top handle (no text or symbols)

Simple line drawing of a conical lamp with a vertical rod and base (no text or symbols)

WARNING

Do not operate this equipment unless you have read and understood the contents of this manual! Failure to follow the instructions contained in this manual may result in serious injury or death. This manual contains important safety information concerning the maintenance, use, and operation of this product. If you're unable to understand the contents of this manual, please bring it to the attention of your supervisor. Keep this manual in a safe location for future reference.

English = p 2

ADVERTENCIA

Important Owner Information....2

Introduction......2

Important Safety Information....3

Model Description 4

Specifications 4

Electrical Rating Chart....4

Dimensions — Lamp Shade....5

Model Designation 6

Installation....7

General....7

Assembly 8

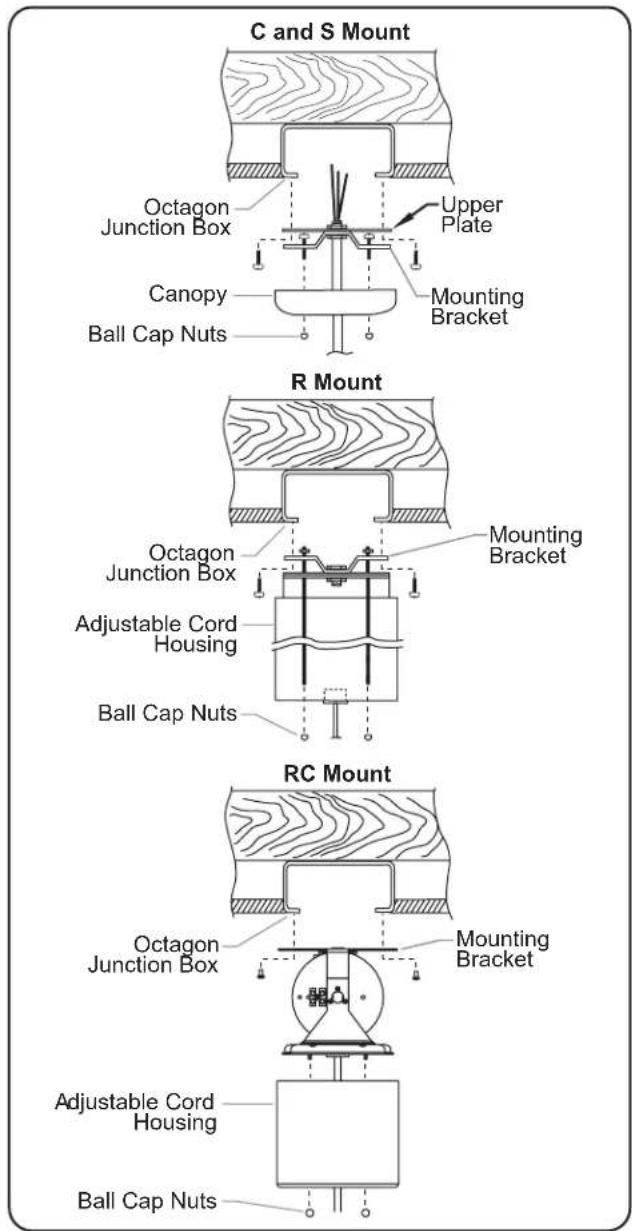

Installing C, S, R, and RC Mount Units....9

Installing TS Mount Units (UL Recognized) 9

Installing Track Mount Units (CT, ST, RT, and RCT)......10

Adjusting the Stem 12

Operation....13

General 13

Operating Retractable Units 13

Maintenance....14

General....14

Daily Cleaning 14

Replacing an Infrared Bulb....14

Options and Accessories 14

Troubleshooting Guide....15

Limited Warranty 16

Authorized Parts Distributors ....Back Cover

IMPORTANT OWNER INFORMATION

Record the model number, serial number, voltage, and purchase date of the unit in the spaces below (specification label located inside the lamp shade). Please have this information available when calling Hatco® for service assistance.

Model No. ____

Serial No.

Voltage

Date of Purchase

Register your unit!

Completing online warranty registration will prevent delay in obtaining warranty coverage. Access the Hatco website at www.hatcocorp.com, select the Support pull-down menu, and click on "Warranty".

Business

Hours: 7:00 AM to 5:00 PM Monday–Friday,

Central Time (CT)

(Summer Hours: June to September—

7:00 AM to 5:00 PM Monday–Thursday

7:00 AM to 4:00 PM Friday)

Telephone: [phone]

E-mail: [e-mail]

24 Hour 7 Day Parts and Service Assistance available in the United States and Canada by calling 414-671-6350.

Additional information can be found by visiting our web site at www.hatcocorp.com

INTRODUCTION

Hatco Decorative Lamps are designed to hold food at serving temperatures as well as enhance restaurant decor. Decorative Lamps provide light and supplemental heat. A “Luminaire” lamp (lighting only) is available for applications that do not require supplemental heat but would benefit from the style and focus of a Decorative Lamp.

Decorative Lamps are quality built to meet the demands of foodservice operations and provide years of trouble-free performance.

Hatco Decorative Lamps are products of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance, and optimum performance. Every unit is inspected and tested thoroughly prior to shipment.

This manual provides the installation, safety, and operating instructions for Decorative Lamps. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of a unit.

Safety information that appears in this manual is identified by the following signal word panels:

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.

WARNING

ELECTRIC SHOCK HAZARD:

• Unit must be installed by a qualified electrician. Installation must conform to all local electrical codes. Installation by unqualified personnel will void unit warranty and may lead to electric shock or burn, as well as damage to unit and/or its surroundings.
• Turn OFF power at mounting location before installation of unit.
• Failure to ground unit properly could result in serious personal injury or death.
• Turn OFF power at fused disconnect switch/circuit breaker and allow unit to cool before performing any cleaning, adjustments, or maintenance.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Unit is not weatherproof. Locate the unit indoors.
• Do not steam clean or use excessive water on unit.
• Do not install track system above a steam table or other steam generating appliance.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

FIRE HAZARD:

• Locate unit a minimum of 3" (76 mm) from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.
• DL standard watt lamps (250 W bulb) and DLL luminaire lamps (up to 100 W bulb) must have a minimum clearance of 16" (406 mm) above a combustible surface or 5" (127 mm) above a non-combustible safe distances are not maintained, discoloration or combustion could occur.
• DLH high watt lamps (375 W bulb) must have a minimum of 27" (686 mm) above a con surface or minimum clearance of 17" (432 mm) above a non-combustible surface. If safe distances are not maintained, discoloration or combustion could occur.
• Do not install a 375 W bulb into a DL standard watt lamp or a DLL luminaire lamp.

WARNING

Hatco Corporation is not responsible for actual food product serving temperature. It is the responsibility of the user to ensure that food product is held and served at a safe temperature.

Make sure all operators have been instructed on the safe and proper use of the unit.

This unit is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from unit.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 414-671-6350.

CAUTION

BURN HAZARD: Some exterior surfaces on unit will get hot. Use caution when touching these areas.

When installing track lighting systems, use only track assemblies approved by Hatco.

Track lighting systems are not intended for use with a power supply cord or convenience receptacle adapter.

The maximum capacity of track lighting systems is 20 A per circuit. Check fuses and circuits carefully before installing. The 20 A maximum includes all lights and appliances connected to circuit (120 V only, maximum 1920 W per any length track).

Use caution when drilling during track installation to avoid damaging buss bar insulators. If insulators are damaged, discard the section—Do not use.

For units not equipped with a Hatco-supplied switch, a qualified electrician must choose an appropriate switch for the application based on amperage and in-rush rating of the switch.

All canopy mount units are designed to fit a standard 4" (102 mm) octagonal junction box. Junction box must be anchored securely to building structure.

Multiple installations of Decorative Lamps must have a minimum clearance of 12" (305 mm) on center of shade between each unit.

surface. If

NOTICE

Damage to any countertop material caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact manufacturer of countertop material for application information.

Retractable models and track mounted units must be installed on a flat, horizontal ceiling or damage to unit could occur.

Do not let go of lamp fixture while cord is retracting. Damage to unit and/or bulb could occur.

NOTICE

Hatco® Decorative Lamps are designed and built to fit specific lighting systems. Do not use on any other track lighting system than what is supplied by Hatco.

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch the finish of the unit, marring its appearance and making it susceptible to soil accumulation.

NOTICE

Do not use ammonia-based cleaners on unit.

This unit is intended for commercial use only—NOT for household use.

MODEL DESCRIPTION

All Models

All Decorative Lamps are constructed of aluminum and steel and include heavy-duty mounting hardware. Each Decorative Lamp is available with an accessory bulb contained in a vented shade. The shade is available in powdercoated Designer colors, Gloss finishes, or Plated finishes.

DL Models (Standard Wattage)

Standard wattage models (DL) use a 250 W infrared bulb (bulb not included) and include a built-in I/O (on/off) switch located at the stem or canopy for independent control. DL units may be ordered with the optional remote switch (REM) or with no switch.

DLL Models (Luminaire)

Luminaire models (DLL) use up to a 100 W bulb (bulb not included) and include a built-in I/O (on/off) switch located at the stem or canopy for independent control. DLL units may be ordered with the optional remote switch (REM) or with no switch.

DLH Models (High Wattage)

High wattage models (DLH) use a 375 W infrared bulb (bulb not included) and are available with either the remote switch (REM) or with no switch.

CAUTION

For units NOT equipped with a Hatco-supplied switch, a qualified electrician must choose an appropriate switch for the application based on amperage and in-rush rating of the switch.

Accessories are available for the Decorative Lamps. Refer to the OPTIONS AND ACCESSORIES section in this manual for details.

NOTE: Some track features not offered through Hatco may be purchased directly from the track manufacturer or distributor.

SPECIFICATIONS

Electrical Rating Chart

Model Volts	Watts Amps
DL Series 120	V 250 W 2.1 A
DLH Series 120	V 375 W 3.1 A

Model Volts	Watts Amps
DLL Series 120	V 100 W 0.8 A

NOTE: The specification label is located inside the lamp shade. See the label for the serial number and verification of unit electrical information.

Dimensions — Lamp Shade

Lamp Shade Style	Width (A)	Height (B)
DL-400	6-1/8" (156 mm)	8-1/2" (216 mm)
DL-500	6-1/8" (156 mm)	8-1/2" (216 mm)
DL-600	6-1/4" (159 mm)	8-1/2" (216 mm)
DL-700	6-1/2" (165 mm)	8-1/2" (216 mm)
DL-725	9-1/2" (241 mm)	8-1/2" (216 mm)
DL-750	279 mm (11")	8-1/2" (216 mm)
DL-760	12-1/2" (318 mm)	8-1/2" (216 mm)

Lamp Shade Style	Width (A)	Height (B)
DL-775	10-1/2" (267 mm)	8-1/2" (216 mm)
DL-800	279 mm (11")	8-1/2" (216 mm)
DL-1100	6-1/2" (165 mm)	8-1/2" (216 mm)
DL-1400	7" (178 mm)	10-1/2" (267 mm)
DL-1500	6-11/16" (169 mm)	10-1/2" (267 mm)
DL-1600	8-1/2" (216 mm)	8-1/2" (216 mm)
DL-1700	7-1/2" (191 mm)	8-1/2" (216 mm)

Lamp Shade Style	Width (A)	Height (B)
DL-1800	9" (229 mm)	10-1/2" (267 mm)
DL-2100	6-1/8" (156 mm)	10-1/2" (267 mm)
DL-2200	7-3/4" (197 mm)	10-1/2" (267 mm)
DL-2300	11-1/2" (293 mm)	10-1/2" (267 mm)
DL-2400	279 mm (11")	8-1/2" (216 mm)

NOTE: The height dimension of the shade increases by 2"
(51 mm) when using a cord mounted unit (C, CT, R, RT,
RC, and RCT mounting styles).

DL-400 DL-500

DL-600

DL-700

DL-725

DL-750

DL-760

DL-775 DL-800

DL-1100

DL-1400

DL-1500

DL-1600

DL-1700

B A

DL-1800 DL-2100

DL-2200

DL-2300

B

DL-2400

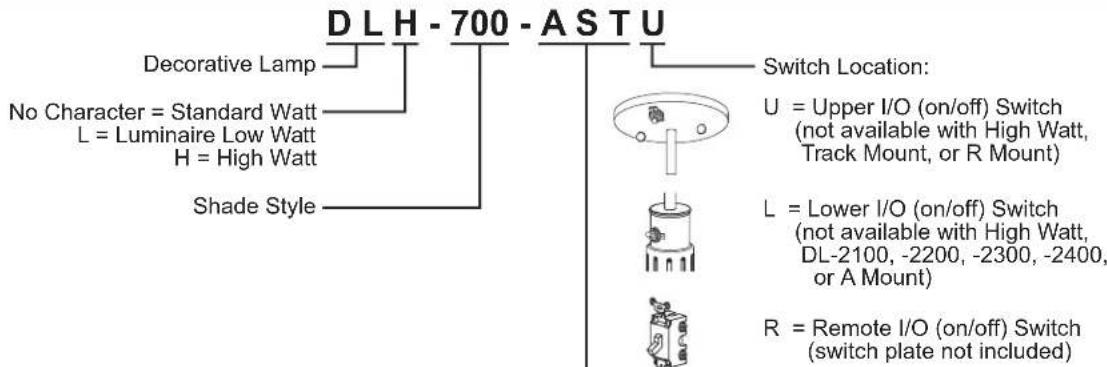

DLH - 700 - ASTU Decorative Lamp No Character = Standard Watt L = Luminaire Low Watt H = High Watt Shade Style Switch Location: U = Upper I/O (on/off) Switch (not available with High Watt, Track Mount, or R Mount) L = Lower I/O (on/off) Switch (not available with High Watt, DL-2100, -2200, -2300, -2400, or A Mount) R = Remote I/O (on/off) Switch (switch plate not included)

NOTE: The overall dimensions include an 8-1/2" (216 mm) shade. Add 2" (51 mm) for models with a 10-1/2" (267 mm) shade.
N = None (supplied by installer)

Mounting Style

RC Mount

Lamp mounts with retractable cord. Cord adjusts up-down from 26-5/8" (676 mm) to 72-5/8" (1845 mm).

26-5/8" (676 mm) to 72-5/8" (1845 mm)

RCT Mount

Lamp mounts with retractable cord to track adapter. Cord adjusts up-down from 29-7/8" (758 mm) to 75-7/8" (1927 mm).

29-7/8" (758 mm) to 75-7/8" (1927 mm)

R Mount

Lamp mounts with coiled retractable cord. Cord adjusts up-down from 31" (787 mm) to 69-1/2" (1765 mm).

31" (787 mm) to 69-1/2" (1765 mm)

RT Mount

Lamp mounts with coiled retractable cord. Cord adjusts up-down from 33-3/8" (848 mm) à 71-7/8" (1826 mm).

33-3/8" (848 mm) to 71-7/8" (1826 mm)

C Mount

Lamp mounts with cord to the canopy. Overall length from 17" (432 mm) to any length.

CT Mount

Lamp mounts with cord to track adapter. Overall length from 17" (432 mm) to any length.

S Mount

Lamp mounts with rigid stem to canopy. Overall length from 14" (356 mm) to 71" (1803 mm).

14" (356 mm) to 71" (1803 mm)

ST Mount

Lamp mounts with rigid stem to track adapter. Overall length from 17" (439 mm) to 71" (1803 mm).

17" (439 mm) to 71" (1803 mm)

AS Mount

Lamp mounts with an adjustable stem to canopy. Overall length from 16" (406 mm) to 73" (1854 mm).

16" (406 mm) to 71" (1854 mm)

AST Mount

Lamp mounts with an adjustable stem to track adapter. Overall length from 18" (457 mm) to 75" (1905 mm).

18" (457 mm) to 75" (1905 mm)

TS Mount

Lamp mounts with threaded stem to fixture above (fixture supplied by others). Threaded stem mount is available only as a UL recognized (UR) component.

General

Use the following information and procedures to install Decorative Lamps.

WARNING

ELECTRIC SHOCK HAZARD:

• Unit must be installed by a qualified electrician. Installation must conform to all local electrical codes. Installation by unqualified personnel will void the unit warranty and may lead to electric shock or burn, as well as damage to unit and/or its surroundings.
• Turn OFF power at mounting location before installation of unit.
• Do not install track system above a steam table or other steam generating appliance.
• Failure to ground unit properly could result in serious personal injury or death.
• Unit is not weatherproof. Locate unit indoors.

FIRE HAZARD:

• Locate unit a minimum of 3" (76 mm) from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.
• DL standard watt lamps (250 W bulb) and DLL luminaire lamps (up to 100 W bulb) must have a minimum clearance of 16" (406 mm) above a combustible surface or 5" (127 mm) above a non-combustible surface. If safe distances are not maintained, discoloration or combustion could occur.
• DLH high watt lamps (375 W bulb) must have a minimum of 27" (686 mm) above a con surface or minimum clearance of 17" (432 mm) above a non-combustible surface. If safe distances are not maintained, discoloration or combustion could occur.
• Do not install a 375 W bulb into a DL standard watt lamp or a DLL luminaire lamp.

CAUTION

Multiple installations of Decorative Lamps must have a minimum clearance of 12" (305 mm) on center of shade between each unit.

All canopy mount units are designed to fit a standard 4" (102 mm) octagonal junction box. Junction box must be anchored securely to building structure.

For units not equipped with a Hatco ^® -supplied switch, a qualified electrician must choose an appropriate switch for the application based on amperage and in-rush rating of the switch.

NOTICE

Damage to any countertop material caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact manufacturer of countertop material for application information.

1. Remove the decorative lamp assembly from the carton.
2. Remove tape and protective packaging from all surfaces of unit.
   NOTE: To prevent delay in obtaining warranty coverage, complete online warranty registration. See the IMPORTANT OWNER INFORMATION section for details.
3. Make sure the installation site provides the proper installation clearances for the unit (see below).

NOTE: For even heating, install multiple units a distance of 12" (305 mm) on center of shades.

NOTE: Decorative Lamps can be installed over a steam table. Follow the clearance requirements appropriate for the installation.

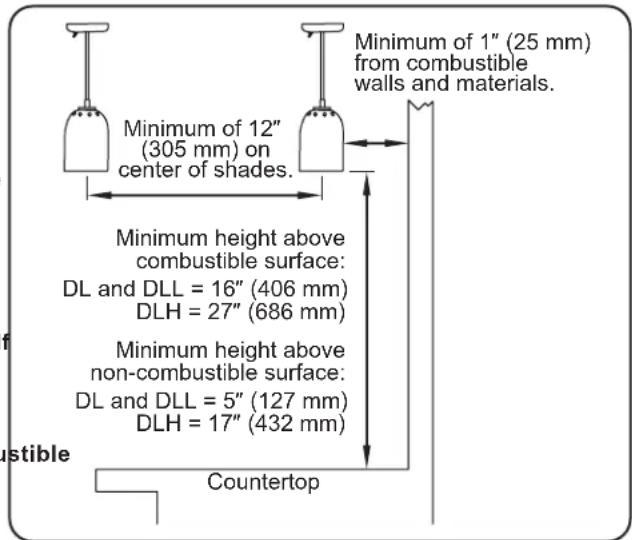

Minimum of 1" (25 mm) from combustible walls and materials. Minimum of 12" (305 mm) on center of shades. Minimum height above combustible surface: DL and DLL = 16" (406 mm) DLH = 27" (686 mm) Minimum height above non-combustible surface: DL and DLL = 5" (127 mm) DLH = 17" (432 mm) Countertop f ustible

Safe Mounting Distances

NOTE: The remote I/O (on/off) switch supplied by Hatco is capable of handling up to eighteen 100 W Luminaires, seven 250 W lamps, or five 375 W lamps.

Assembly

Models with Mounting Styles C, CT, R, RT, RC, and RCT are cord hung fixtures and are shipped fully assembled and ready for installation. All other models will require some assembly before mounting. Refer to the appropriate assembly procedure below for each mounting style.

NOTE: If the shade comes equipped with plastic nut and nipple in stem mounting hole, both nut and nipple must be removed before installing stem to shade.

WARNING

Turn OFF power at mounting location before installation of unit.

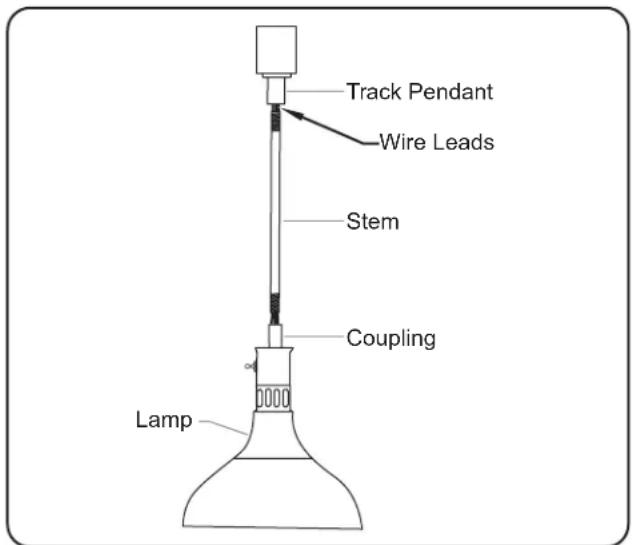

Assembling an ST Mount Unit

1. Remove the plastic caps covering each end of the stem, if present.
2. Feed the wire leads from the lamp through the stem.
3. Screw the stem into the coupling on the lamp. Tighten securely.
4. Open the track pendant side access panel and feed the wires up into the pendant enclosure.
5. Screw the stem into the track pendant and tighten securely. The stem should not rotate after it is tightened.
6. Following the instructions supplied with the pendant, connect together the white wire leads, connect together the black wire leads, and connect together the green ground wires using the provided wire nuts.

Track Pendant Wire Leads Stem Coupling Lamp

Assembling an ST Mount Unit

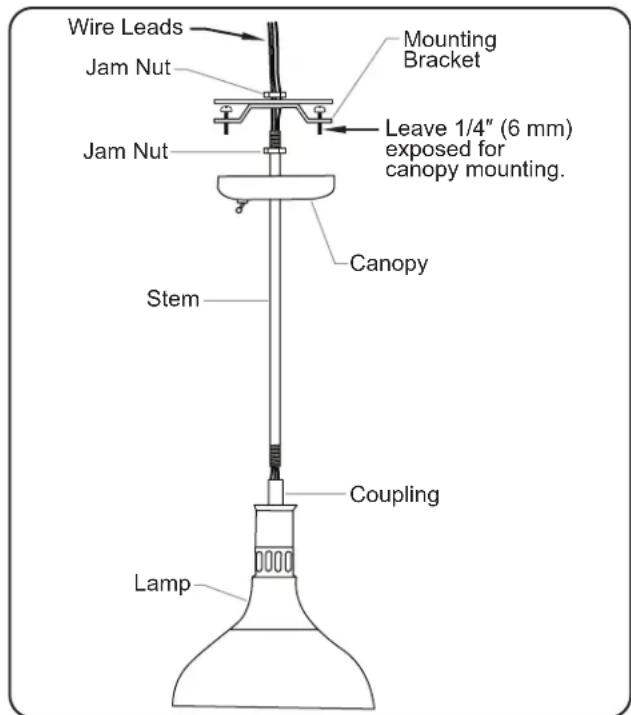

Assembling an S Mount Unit

1. Remove the plastic caps covering each end of the stem, if present.
2. Remove the two jam nuts from the stem.

NOTE: The jam nuts are installed on the stem for shipping purposes. Both jam nuts must be removed before assembling the unit. After assembly, both jam nuts will be on the canopy side of the stem.

1. Feed the wire leads from the lamp through the stem.

2. Screw the stem into the coupling on the lamp shade and tighten securely. If the unit is equipped with a pivot mount, straighten the pivot to help ease feeding the wires.

3. Place the canopy on the stem.

4. Thread one jam nut onto the stem and tighten until it bottoms out on the threads.

5. Place the mounting bracket on the stem until it rests on the jam nut.

6. Thread the second jam nut onto the stem and tighten it against the mounting bracket.

7. If the unit is equipped with an upper switch, connect the black wire from the lamp to one of the black wires on the switch. Use the included wire nut.

Wire Leads Jam Nut Mounting Bracket Jam Nut Leave 1/4" (6 mm) exposed for canopy mounting. Canopy Stem Coupling Lamp

Assembling an S Mount Unit

Installing C, S, R, and RC Mount Units

WARNING

Turn OFF power at mounting location before installation of unit.

NOTICE

Retractable models and track mounted units must be installed on a flat, horizontal ceiling or damage to unit could occur.

1. Mount the upper plate of the mounting bracket to a 4" (102 mm) octagon junction box using the two screws provided with the junction box. The junction box must be rated for fixtures weighing up to 50 pounds.

2. Make sure all power is OFF, and connect supply lead L1 to the black lamp lead. Connect neutral to the white lamp lead.

If the lamp is equipped with three wires, connect ground to the green lead. If lamp is equipped with two wires, make proper ground wire connections from junction box. Tuck excess wires into junction box.

1. Apply the supplied threadlocker to the ball cap nuts.

2. Slide the canopy cover or cord housing up until it rests against the ceiling and install the two ball cap nuts until snug to the ceiling.

NOTE: C Mount models feature a cord clamp for cord length adjustments. Cord clamps must be installed no closer than 1/2" (13 mm) from end of cord jacket. The screw must not be tightened more than flush with the outside of the cord clamp.

Installing TS Mount Units (UL Recognized)

WARNING

Turn OFF power at mounting location before installation of unit.

1. Drill a 7/16" (11 mm) hole through mounting fixture.
2. Pass wires from the lamp through hole in fixture.
3. Secure the lamp to the fixture with nut.
4. Make sure all power is OFF, and connect supply lead L1 to the black lamp lead. Connect neutral to the white lamp lead and the ground to the green lead.

C and S Mount Octagon Junction Box Upper Plate Canopy Ball Cap Nuts Mounting Bracket R Mount Octagon Junction Box Adjustable Cord Housing Ball Cap Nuts Mounting Bracket RC Mount Octagon Junction Box Mounting Bracket Adjustable Cord Housing Ball Cap Nuts

Mounting to a Junction Box

Installing Track Mount Units (CT, ST, RT, and RCT)

WARNING

ELECTRIC SHOCK HAZARD: Do not install track system above a steam table or other steam generating appliance.

CAUTION

The maximum capacity of track lighting systems is 20 A per circuit. Check fuses and circuits carefully before installing. The 20 A maximum includes all lights and appliances connected to circuit (maximum 1920 W per any length track).

Track lighting systems are not intended for use with a power supply cord or convenience receptacle adapter.

When installing track lighting systems, use only track assemblies approved by Hatco.

NOTICE

Hatco® Decorative Lamps are designed and built to fit specific lighting systems. Do not use on any other track lighting system than what is supplied by Hatco.

Retractable models and track mounted units must be installed on a flat, horizontal ceiling or damage to unit could occur.

The track system is to be supplied by a single branch circuit 120 V, 60 Hz, 20 A.

NOTE: A maximum of eighteen 100 W Luminaire units, seven 250 W lamp units, or five 375 W lamp units may be installed per each 120 V, 20 A track bar circuit. The Installer is responsible for properly sizing the supply circuit with the lamp load.

The standard track and cord color of Hatco track systems is black. White is available as an option.

Hatco provides track kits in four different lengths. For installations with multiple 4' sections, refer to the "Installing Track Sections" procedure:

• 4^(1219mm)
• 8' (2438 mm) track and and track connector. Track consists of two 4' (1219 mm) tracks.
• 12' (3658 mm) track and and track connector. Track consists of three 4' (1219 mm) tracks.
• 16' (4877 mm) track and track connector. Track consists of four 4' (1219 mm) tracks.

NOTE: Some track features not offered through Hatco may be purchased directly from the track manufacturer or distributor.

When installing or using this track system, the following basic safety precautions should always be followed:

• Read all of these installation instructions before installing the track system.
• Save these instructions and refer to them when additions to or changes in the track configuration are made.

• Do not install the track system in damp or wet locations, including above a steam table or steam generating appliance. Installation in these areas will void warranty.

• Do not install any part of a track system less than 5' (1524 mm) above the floor.

• Do not install any fixture assembly closer than 1" (25 mm) along the sides from any curtain or similar combustible material.
• Disconnect electrical power before adding to or changing the configuration of the track.
• Do not attempt to energize anything other than Hatco approved lighting fixtures on the track. To reduce the risk of fire and electric shock, do not attempt to connect power tools, extension cords, appliances, etc. to the track.

The track system must be mounted using the appropriate fasteners in the pre-drilled mounting holes at each end of the 4' (1219 mm) track(s).

If track requires field cutting, refer to the "Cutting Track to Special Lengths" procedure. If track does not require field cutting, proceed to "Installing the Track."

Installing the Track

Use the following procedure to install the track(s). Two or more people may be required for this procedure.

WARNING

Turn OFF power at mounting location before installation of unit.

NOTE: 8' (2438 mm), 12' (3658 mm), and 16' (4877 mm) tracks use multiple 4' (1219 mm) track sections and a track connector(s) for installation. Refer to "Installing Track Sections" for details.

NOTICE

Do not damage the special, smooth plastic finish piece on metal ceiling plate when determining location of proper knock out holes.

Retractable models and track mounted units must be installed on a flat, horizontal ceiling or damage to unit could occur.

1. Determine the live end of the track, and remove the end cap.
2. The live end fitting must be installed into the correct end of the track—make sure that the ground conductor on the fitting aligns with the ground conductor buss bar on the track. A groove along the side of the track indicates the ground conductor side.
3. Install the live end fitting completely into the live end of the track.
4. Make sure the live end fitting is pushed completely into the track, and tighten the set screw on the live end fitting.
5. Remove the screw from the live end fitting cover, and remove the cover. Pry out the fitting's knockout hole.
6. Install the provided mounting plate onto the junction box using the included screws.
7. Lift the track assembly to the ceiling, and center the live end fitting over the junction box while locating the attached track in the desired position. Mark the locations of the track mounting holes on the ceiling. Set the track assembly aside.

8. If track is to be mounted on a solid surface, use #8 screws (not supplied) instead of the toggle bolts.

9. Using a 1/2" bit, drill the mounting holes in the ceiling for the supplied toggle bolts.

10. Make the electrical connections from the junction box to the live end fitting.
    a. Cut and strip the wire leads (3/8" [10 mm] strip).
    b. Lift the track assembly near the ceiling, pull the wires through the knockout hole in the live end fitting, and connect the wires to the screw terminals in the fitting.

White "neutral" wire to silver terminal;

Black "hot" wire to brass terminal;

Ground wire to green ground terminal.

c. Push the excess wire back into the junction box.

1. Replace the cover on the live end fitting, and secure with the cover screw.
2. Slide the provided ceiling plate around the wires between the junction box and the live end fitting. Secure the ceiling plate to the mounting plate/junction box with the included screw.
3. Install the toggle bolts through the track mounting holes.
4. Reposition the track assembly, and install the track using the toggle bolts.

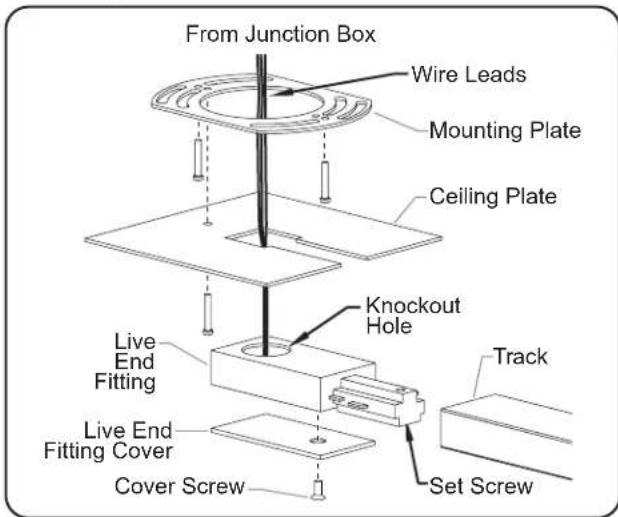

From Junction Box Wire Leads Mounting Plate Ceiling Plate Knockout Hole Live End Fitting Live End Fitting Cover Cover Screw Track Set Screw

Installing the Track

1. Install the lamp(s) in the desired location(s) along the track. To install the lamp(s):

a. Pull back the locking tab on the track pendant and insert the pendant into the track.
b. Rotate the pendant approximately 90^ until the pendant locks into position.

NOTE: Make sure the contact points on the track pendant will match up with the buss bars inside the track after rotating the pendant into position.

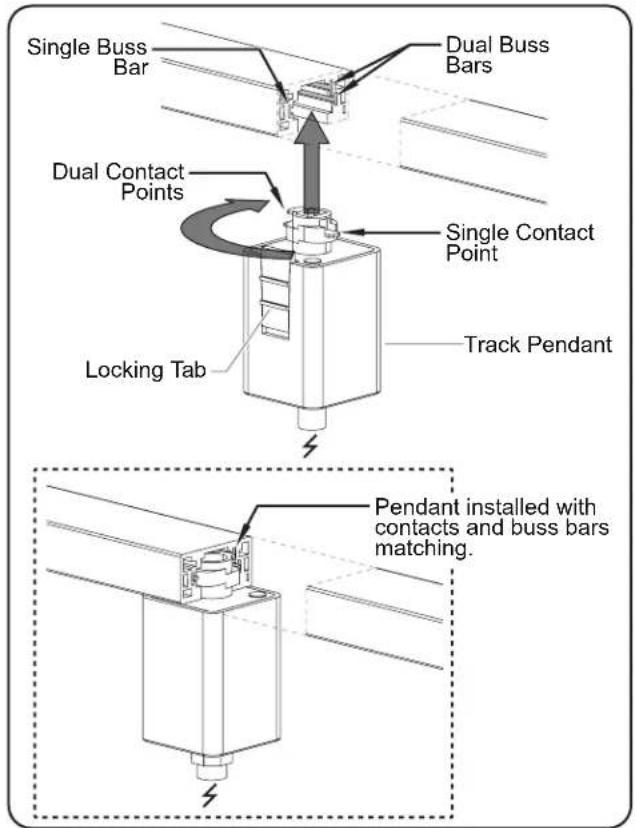

Single Buss Bar Dual Buss Bars Dual Contact Points Single Contact Point Locking Tab Track Pendant Pendant installed with contacts and buss bars matching.

Track Cutaways Showing Track Pendant Installation

Installing Track Sections

Perform the "Installing the Track" procedure for the first track section, then use the following procedure to install the remaining 4' track sections for 8', 12', and 16' track kits.

1. Remove the end cap from the installed track, and slide the track connector into the end of the track.

2. Make sure the ground conductor on the connector aligns with the ground conductor buss bar on the track.

3. Remove the end cap from the live end of the new track section, and slide the track onto the open end of the track connector.

- Make sure that the ground conductor buss bar on the new track aligns with the ground conductor on the connector.

1. Position and secure the new track section to the ceiling (refer to "Installing the Track" for details).

2. Tighten the two set screws on the track connector to secure the connection.

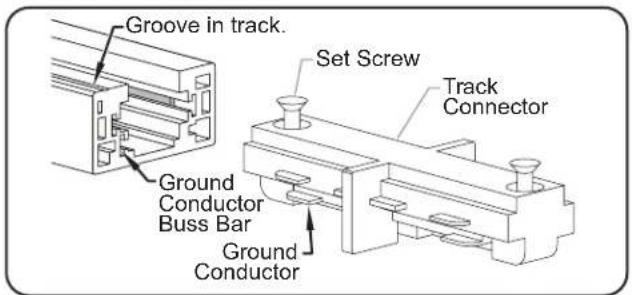

Groove in track. Set Screw Track Connector Ground Conductor Buss Bar Ground Conductor

Installing Track Sections

Cutting Track to Special Lengths

NOTE: Cutting should be done from the dead end of the track. Refer to "Installing the Track" to identify the dead end.

1. Remove the end cap from the dead end of the track, and push the copper buss bars and insulators flush with the live end of the track. Measure length from the live end and mark the cut line.
2. Using a hacksaw, cut to desired length. Be sure to allow 1/8" (3 mm) for the end cap, which must be reinstalled to the track end.
3. Remove all burrs from the track, insulators, and copper buss bars.
4. Push the copper buss bars into the insulators 1/2" (13 mm) from the end of the track.

NOTE: After completing the above step, the buss bar insulators should be flush with the track channel ends, and the copper buss bars should be cut back from each end of the track a minimum of 7/16" (11 mm) to a maximum of 1/2" (13 mm). If this is not the case, make appropriate modifications.

1. Reinstall the end cap and tighten the screw.

IMPORTANT NOTE:

After track has been field cut, make sure that each 4' (1219 mm) section or less in length has one mounting hole spaced a maximum of 6" (152 mm) from each track end section. Additional mounting holes may be drilled as needed.

If additional mounting hole openings in the track are required, follow this procedure to drill the holes:

1. Locate desired mounting hole locations on the inside center line of the track section.
2. Drill a 3/16" (5 mm) hole through the track channel.

CAUTION

Use caution when drilling during track installation to avoid damaging buss bar insulators. If insulators are damaged, discard the section—DO NOT use.

1. Remove all burrs and proceed to "Installing the Track".

Adjusting the Stem

Use the following procedure to change the length of an adjustable stem after installing the decorative lamp.

NOTE: Make sure lamp is at proper height before tightening set set screws. The set screws will scratch the stem surface, which is not covered under warranty.

1. Slide the stem up or down to the desired length.

WARNING

ELECTRIC SHOCK HAZARD: Tighten set screws securely (at least 12 ft-lbs.). Screws must penetrate paint and contact bare metal for grounding.

1. Secure the stem length using the included threadlocker and set screws. Tighten set screws securely (at least 12 ft-lbs.).

NOTE: Wiring might need to be trimmed in order to fit into the canopy after adjusting the stem length. Trimming wires will limit future adjustment of the stem.

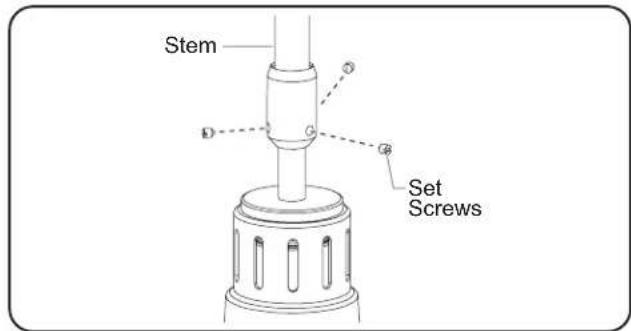

Stem Set Screws

Securing an Adjustable Stem

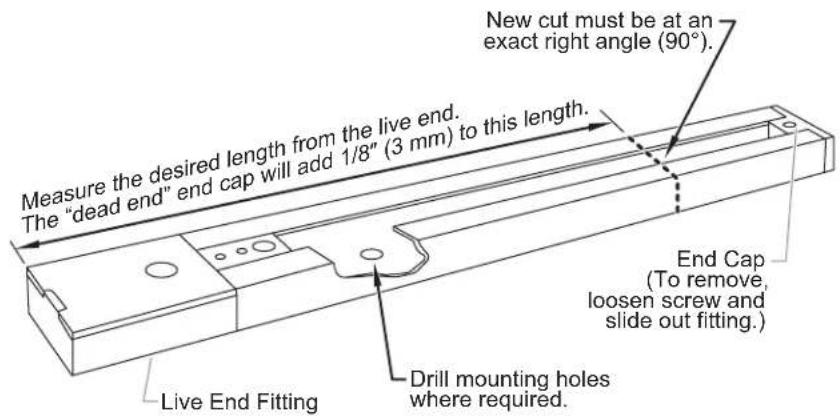

Measure the desired length from the live end. The "dead end" end cap will add 1/8" (3 mm) to this length. New cut must be at an exact right angle (90°). End Cap (To remove, loosen screw and slide out fitting.) Live End Fitting Drill mounting holes where required.

Cutting the Track to Special Lengths

General

Use the following procedures to operate a Decorative Lamp.

WARNING

Read all safety messages in the Important Safety Information section before operating this equipment.

Hatco® Corporation is not responsible for actual food product serving temperature. It is the responsibility of the user to ensure that food product is held and served at a safe temperature.

Startup

1. Move the I/O (on/off) Switch to the I (on) position. The lamp will illuminate.
2. Lamps are ready to provide lighting and supplemental heat to food product immediately.

CAUTION

BURN HAZARD: Some exterior surfaces on unit will get hot. Use caution when touching these areas.

U = Upper I/O (On/Off) Switch

L = Lower I/O (On/Off) Switch

R = Remote I/O (On/Off) Switch (switch plate not included)

I/O (On/Off) Switches

Shutdown

1. Move the I/O (on/off) Switch to the O (off) position. The lamp will shut off.

Operating Retractable 'R' and 'RT' Units

R and RT mount units are equipped with a retractable cord that allows the lamp height to be adjusted. The retractable cord can extend up to 40" (1016 mm). DO NOT extend the cord past 40" or the retractable cord will jam. Use the following procedures to lower and raise an R or RT mount unit.

NOTICE

Damage to retractable cords by pulling too far causing a jam or pulling too hard is NOT covered under warranty.

Lowering the Unit

1. Pull straight down on the lamp to extend the cord until the lamp reaches the desired height.
2. The retractable cord can extend up to 40" (1016 mm). DO NOT extend the cord past 40" or the retractable cord will jam.
3. Gently release the lamp. The lamp will raise slightly until the locking mechanism in the canopy engages to hold the lamp in position.

Raising the Unit

1. Pull straight down on the lamp slightly to release the locking mechanism. Hold the lamp for support and control as the cord retracts.

NOTICE

Do not let go of lamp fixture while cord is retracting. Damage to unit and/or bulb could occur.

1. Allow the cord to retract fully or stop the lamp at the desired height.
2. To lock the position of the lamp at a new height, pull down on the lamp slightly to re-engage the locking mechanism.

Releasing a Jammed Retractable Cord

Use the following procedure if the cord was pulled too far and is jammed. This procedure may take two people.

1. Holding the retractable cord housing securely, pull down on the top of the unit near the coupling with a quick, forceful jerk straight down.
2. When the retractable cord releases, hold the lamp for support and control as the cord retracts.

Operating Retractable 'RC' and 'RCT' Units

RC and RCT mount units are equipped with a retractable cord that allows the lamp height to be adjusted. The retractable cord can extend up to 45-7/8" (1165 mm). DO NOT extend the cord past 45-7/8" or the retractable cord will jam. Use the following procedures to lower and raise an RC or RCT mount unit.

NOTICE

Damage to retractable cords by pulling too far causing a jam or pulling too hard is NOT covered under warranty.

Lowering the Unit

1. Pull straight down on the lamp to extend the cord until the lamp reaches the desired height.
2. The retractable cord can extend up to 45-7/8" (1165 mm). DO NOT extend the cord past 45-7/8" or the retractable cord will jam.

Raising the Unit

1. Push straight up on the lamp to shorten the cord until the lamp reaches the desired height.

General

Hatco ^® Decorative Lamps are designed for maximum durability and performance, with minimum maintenance.

WARNING

ELECTRIC SHOCK HAZARD:

• Turn OFF power at fused disconnect switch/circuit breaker and allow unit to cool before performing any cleaning, adjustments, or maintenance.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 414-671-6350.

NOTICE

Clean unit daily to avoid malfunctions and maintain sanitary operation.

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch the finish of the unit, marring its appearance and making it susceptible to soil accumulation.

Do not use ammonia-based cleaners on unit.

OPTIONS AND ACCESSORIES

Infrared Bulbs

The following infrared bulbs are available for use in Hatco Decorative Lamps.

DLL (Luminaire [no heat])

40 W, 120 V, Clear Coated 02.30.265.00

DL (standard wattage)

250 W, 120 V, Red Coated 02.30.068.00

250 W, 120 V, Clear Coated 02.30.069.00

250 W, 120 V, Red Uncoated 02.30.070.00

250 W, 120 V, Clear Uncoated 02.30.071.00

DLH (high wattage)

375 W, 120 V, Clear Uncoated 02.30.093.00

375 W, 120 V, Clear Coated 02.30.097.00

Daily Cleaning

1. Move the I/O (on/off) Switch to the O (off) position and allow the unit to cool completely.
2. Wipe down the lamp shade with a clean, soft, water-dampened cloth. Stubborn stains can be removed with a mild, non-abrasive cleanser.

Replacing an Infrared Bulb

Each standard wattage Decorative Lamp (DL) holds one infrared bulb rated at 250 W. Each Luminaire Decorative Lamp (DLL) holds one bulb rated up to 100 W. Each high wattage Decorative Lamp (DLH) holds one infrared bulb rated at 375 W. If desired, 250 W bulbs also may be used in DLH units.

WARNING

FIRE HAZARD: Do not install a 375 W bulb into a DL standard watt lamp or a DLL Luminaire low watt unit.

1. To replace a bulb, move the I/O (on/off) Switch to the O (off) position and allow the bulb to cool completely.
2. Bulbs have a threaded base. Unscrew the bulb from the unit and replace with a new bulb.

NOTE: Refer to the OPTIONS AND ACCESSORIES section for replacement infrared bulbs available from Hatco.

Track Mount Kits

Track Mount Kits are available for track mount units (CT, ST, RT, and RCT mounting style) and can be ordered in 4' (1219 mm), 8' (2438 mm), 12' (3658 mm), or 16' (4877 mm) lengths. The color options are black or white. The track can be cut down in the field, if necessary.

NOTE: A maximum of eighteen 100 W Luminaire units, seven 250 W lamp units, or five 375 W lamp units may be installed per each 120 V, 20 A track bar circuit. The Installer is responsible for properly sizing the supply circuit with the lamp load.

NOTE: Non-track mount units cannot be retrofitted to become track mount units.

NOTE: Some track features not offered through Hatco may be purchased directly from the track manufacturer or distributor.

WARNING

This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.

WARNING

ELECTRIC SHOCK HAZARD: Turn OFF power at fused disconnect switch/circuit breaker and allow unit to cool before performing any cleaning, adjustments, or maintenance.

Symptom Probable	Cause Corrective Action
Unit is not working at all.	Unit not turned on.	Place I/O (on/off) Switch, if equipped, in the I (on) position.
	I/O (on/off) Switch not functioning. Cont	act Authorized Service Agent or Hatco for assistance.
	Bulb has burned out. Replace bulb.
Unit is turned on but there is no light.	No power to unit.	Check circuit breaker and reset as necessary.
	Switch is defective. Contact Authorized	Service Agent or Hatco for assistance.
	Bulb has burned out. Replace bulb.
Heat is inadequate. Unit mounted too high above target area.		Lower unit, putting effective heat closer to target.
		Excessive air movement around Decorative Lamp target area.
		Incorrect bulb wattage. Verify bulb wat	age and replace with the correct wattage bulb.WARNING! DO NOT exceed maximum bulb wattage rating on specification label.
		Incorrect power supply (low). Check po	wer supply to unit, making sure it matches rating on the unit. If power supply is incorrect, change to match rating on unit.
Heat is excessive.	Unit mounted too close to target area.	Check to see that installation is within specifications for type/ model. Increase mounting height if too close.
	Bulb wattage too high.	Check bulb wattage and replace with lower wattage bulb, if available.
	Voltage supply too high.	Check power supply to unit, making sure it matches rating on unit. If power supply is incorrect, change to match rating.
The Retractable cord is jammed and will not retract.	The retractable cord was pulled down too far and is stuck fully extended.	Release the jammed retractable cord. Refer to the “Releasing a Jammed Retractable Cord” procedure in the OPERATION section.
Control switches burn-out rapidly.	Switches used are not Hatco supplied.	Genuine Hatco components are specified to operate safely and properly in the environment in which they are used. Replace switches with Genuine Hatco Parts if switches are aftermarket or generic.

Troubleshooting Questions?

If you continue to have problems resolving an issue, please contact the nearest Authorized Hatco Service Agency or Hatco for assistance. To locate the nearest Service Agency, log onto the Hatco website at www.hatcocorp.com, select the Support pull-down menu, and click on "Find A Service Agent"; or contact the Hatco Parts and Service Team at:

Telephone: [phone]

e-mail: [e-mail]

WARRANTY, EXCLUSIVE REMEDY:

Hatco® Corporation (Seller) warrants that the products it manufactures (Products) will be free from defects in materials and workmanship under normal use and service and when stored, maintained, and installed in strict accordance with factory recommendations. Seller's sole obligation to the person or entity buying the Products directly from Seller (Customer) under this warranty is the repair or replacement by Seller or a Seller-authorized service agency, at Seller's option, of any Product or any part thereof deemed defective upon Seller's examination, for a period of: (i) the Warranty Duration from the date of shipment by Seller or (ii) the Warranty Duration from the date of Product registration in accordance with Seller's written instructions, whichever is later. The "Warranty Duration" shall mean the specific periods set forth below for specific Product components, or, to the extent not listed below, eighteen (18) months. Credit for Products or parts returned with the prior written permission of Seller will be subject to the terms shown on Seller's material return authorization form. PRODUCTS OR PARTS RETURNED WITHOUT PRIOR WRITTEN PERMISSION OF SELLER WILL NOT BE ACCEPTED FOR CREDIT. Expenses incurred by Customer in returning, replacing, or removing the Products will not be reimbursed by Seller. If the defect comes under the terms of the limited warranty, the Products will be repaired or replaced and returned to the Customer and the cost of return freight will be paid by Seller. The remedy of repair or replacement provided for herein is Customer's exclusive remedy. Any improper use, alteration, repairs, tampering, misapplication, improper installation, application of improper voltage, or any other action or inaction by Customer or others (including the use of any unauthorized service agency) that in Seller's sole judgment adversely affects the Product shall void this warranty. The warranty expressly provided herein may only be asserted by Customer and may not be asserted by Customer's customers or other users of the Products; provided, however, that if Customer is an authorized equipment dealer of Seller, Customer may assign the warranty herein to Customer's customers, subject to all of the limitations of these Terms, and in such case, the warranty shall be exclusively controlled by Seller in accordance with these Terms. THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF NONINFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE EXPRESSLY DISCLAIMED.

One (1) Year Parts and Labor PLUS One (1) Additional Year Parts-Only Warranty:

Conveyor Toaster Elements (metal sheathed) Drawer Warmer Elements (metal sheathed) Drawer Warmer Drawer Rollers and Slides Food Warmer Elements (metal sheathed) Display Warmer Elements (metal sheathed air heating) Holding Cabinet Elements (metal sheathed air heating) Heated Well Elements — HW, HWB, and HWBI Series (metal sheathed)

Two (2) Year Parts and Labor Warranty:

Induction Ranges Induction Warmers

One (1) Year Replacement Warranty:

TPT Pop-Up Toasters

One (1) Year Parts and Labor PLUS Four (4) Years Parts-Only Warranty:

3CS and FR Tanks

One (1) Year Parts and Labor PLUS Nine (9) Years Parts-Only Warranty:

Electric Booster Heater Tanks Gas Booster Heater Tanks

Ninety (90) Day Parts-Only Warranty:

Replacement Parts

Notwithstanding anything herein to the contrary, the limited warranty herein will not cover components in Seller's sole discretion such as, but not limited to, the following: coated incandescent light bulbs, fluorescent lights, heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light tubes, glass components, and fuses; Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack, or freezing.

WARRANTY REGISTRATION INSTRUCTIONS:

Product registration must be submitted within 90 days from the date of shipment from our factory to qualify for additional coverage. Registration may be submitted through the form on Seller's website, through the form accessible through the QR code on the Product (where available), or by calling Customer Service with the required information at: 414-671-6350.

LIMITATION OF LIABILITY:

SELLER WILL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY, OR SPECIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LOST PROFITS, COSTS OF SUBSTITUTE PRODUCTS, OR LABOR COSTS ARISING FROM THE SALE, USE, OR INSTALLATION OF THE PRODUCTS, FROM THE PRODUCTS BEING INCORPORATED INTO OR BECOMING A COMPONENT OF ANOTHER PRODUCT, OR FROM ANY OTHER CAUSE WHATSOEVER, WHETHER BASED ON WARRANTY (EXPRESSED OR IMPLIED) OR OTHERWISE BASED ON CONTRACT, TORT, OR ANY OTHER THEORY OF LIABILITY, AND REGARDLESS OF ANY ADVICE OR REPRESENTATIONS THAT MAY HAVE BEEN RENDERED BY SELLER CONCERNING THE SALE, USE, OR INSTALLATION OF THE PRODUCTS, EVEN IF SELLER IS AWARE OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL SELLER'S AGGREGATE LIABILITY ARISING OUT OF OR RELATED TO THIS AGREEMENT EXCEED THE TOTAL AMOUNTS PAID TO SELLER BY CUSTOMER FOR THE PRODUCTS WITHIN THE THREE (3) MONTH PERIOD IMMEDIATELY PRECEDING THE EVENT GIVING RISE TO CUSTOMER'S CLAIM. THE LIMITATIONS SET FORTH HEREIN REGARDING SELLER'S LIABILITY SHALL BE VALID AND ENFORCEABLE NOTWITHSTANDING A FAILURE OF ESSENTIAL PURPOSE OF THE LIMITED REMEDY SPECIFIED IN THESE TERMS.

Seller reserves the right to update these Terms at any time, at its sole discretion, which become binding upon the date of publishing. For the most current version of our full Terms of Sale, see our website at: https://www.hatcocorp.com/terms-of-sale

Introduction......17

Installation d u rail

Byassee Equipment Co

Phoenix

602-252-0402

CALIFORNIA

Industrial Electric

Commercial Parts & Service, Inc.

Huntington Beach 714-379-7100

Chapman Appl. Service

San Diego 619-298-7106

P & D Appliance

Commercial Parts & Service, Inc.

S. San Francisco 650-635-1900

COLORADO

Hawkins Commercial Appliance

Englewood 303-781-5548

FLORIDA

Whaley Foodservice Repair

Jacksonville 904-725-7800

Whaley Foodservice Repair

Orlando 407-757-0851

B.G.S.I./Heritage

Pompano Beach 954-971-0456

Comm. Appliance Service

Tampa 813-663-0313

GEORGIA

Heritage Service Group

Norcross 866-388-9837

HAWAII

Burney's Comm. Service, Inc.

Honolulu 808-848-1466

Food Equip Parts & Service

Honolulu 808-847-4871

ILLINOIS

Parts Town

Addison 708-865-7278

Eichenauer Elec. Service

Decatur 217-429-4229

Midwest Elec. Appl. Service

Elmhurst 630-279-8000

Cone's Repair Service

Moline 309-797-5323

IOWA

Goodwin Tucker Group

Des Moines 515-262-9308

KENTUCKY

Tech 24

Lexington 859-254-8854

Tech 24

Louisville 502-451-5411

LOUISIANA

Chandlers Parts & Service

Baton Rouge 225-272-6620

MARYLAND

Electric Motor Service

Baltimore 410-467-8080

MASSACHUSETTS

Ace Service Co., Inc.

Needham 781-449-4220

MICHIGAN

Bildons Appliance Service

Detroit 248-478-3320

Commercial Kitchen Service

Bay City 989-893-4561

Midwest Food Equip. Service

Grandville 616-261-2000

MISSOURI

General Parts

Kansas City 816-421-5400

Commercial Kitchen Services

St. Louis 314-890-0700

Kaemmerlen Parts & Service

St. Louis 314-535-2222

NEBRASKA

Anderson Electric

Omaha 402-341-1414

NEVADA

Burney's Commercial

Las Vegas 702-736-0006

Hi. Tech Commercial Service

N. Las Vegas 702-649-4616

NEW JERSEY

Jay Hill Repair

Fairfield 973-575-9145

Service Plus

Flanders 973-691-6300

NEW YORK

Alpro Service Co.

Maspeth 718-386-2515

Duffy's - AIS

Buffalo 716-884-7425

3Wire

Plattsburgh

Duffy's - AIS

Sauquoit 800-836-1014

J.B. Brady, Inc.

Syracuse 315-422-9271

NORTH CAROLINA

Authorized Appliance

Charlotte 704-377-4501

OHIO

Akron/Canton Comm. Svc. Inc.

Akron 330-753-6634

Tech 24

Cincinnati 513-772-6600

Commercial Parts and Service

Columbus 614-221-0057

Electrical Appl. Repair Service

Brooklyn Heights 216-459-8700

E. A. Wichman Co.

Toledo 419-385-9121

OKLAHOMA

Hagar Rest. Service, Inc.

Oklahoma City 405-235-2184

OREGON

General Parts Group

Portland 503-624-0890

PENNSYLVANIA

Elmer Schultz Services

Philadelphia 215-627-5401

FAST Comm. Appl. Service

Philadelphia 215-288-4800

AIS Commercial Parts and Service

Pittsburgh 412-809-0244

K & D Service Co.

Harrisburg 717-236-9039

Electric Repair Co.

Reading 610-376-5444

RHODE ISLAND

Marshall Electric Co.

Providence 401-331-1163

SOUTH CAROLINA

Whaley Foodservice Repair

Lexington 803-996-9900

TENNESSEE

Camp Electric

Memphis 901-527-7543

TEXAS

Armstrong Repair Service

Houston 713-666-7100

Cooking Equipment Specialist

Mesquite 972-686-6666

Commercial Kitchen Repair Co.

San Antonio 210-735-2811

UTAH

La Monica's Rest. Equip. Service

Murray 801-263-3221

VIRGINIA

Daubers

Norfolk

Daubers

Springfield

WASHINGTON

3Wire

Seattle 800-207-3146

WISCONSIN

A.S.C., Inc.

Madison 608-246-3160

A.S.C., Inc.

Milwaukee 414-543-6460

CANADA

ALBERTA

Key Food Equipment Service

Edmonton 780-438-1690

BRITISH COLUMBIA

Key Food Equipment Service

Vancouver 604-433-4484

Key Food Equipment Service

Victoria 250-920-4888

MANITOBA

Air Rite, Inc.

Winnipeg 204-895-2300

NEW BRUNSWICK

EMR Services, Ltd.

Moncton 506-855-4228

ONTARIO

R.G. Henderson Ltd.

Toronto 416-422-5580

Choquette - CKS, Inc.

Ottawa 613-739-8458

QUÉBEC

Choquette - CKS, Inc.

Montreal 514-722-2000

Choquette - CKS, Inc.

Québec City 418-681-3944

UNITED KINGDOM

Marren Group

Northants [phone]

HATCO CORPORATION

P.O. Box 340500

Milwaukee, WI 53234-0500 U.S.A.

414-671-6350

[e-mail]

www.hatcocorp.com

Register your unit online!

See IMPORTANT OWNER INFORMATION

section for details.
