USER MANUAL HZ900 Numatic

HZ 190,200,250,350,370,HZ 190,200,250,350,370,450,570,750,900,450,570,750,900Numatic

450, 570, 750, 900450, 570, 750, 900 HZD 450, 570, 750, 900HZD 450, 570, 750, 900

H H

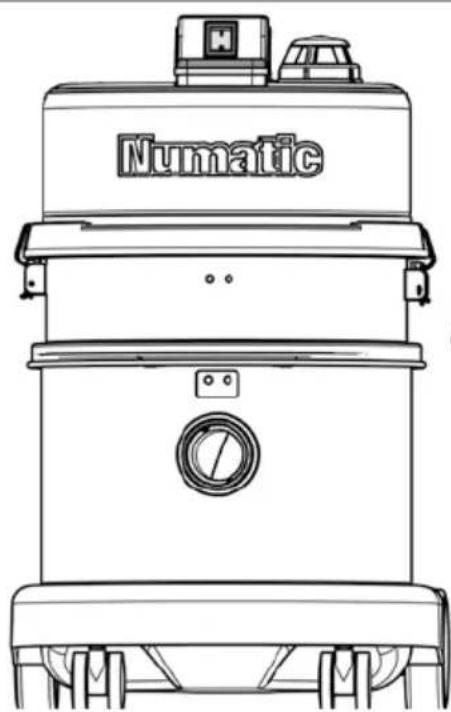

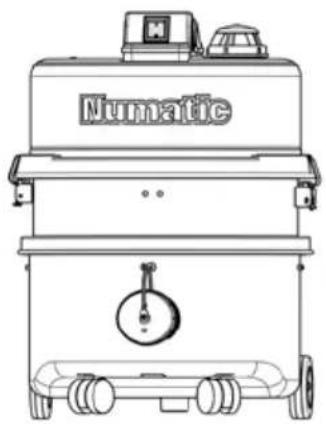

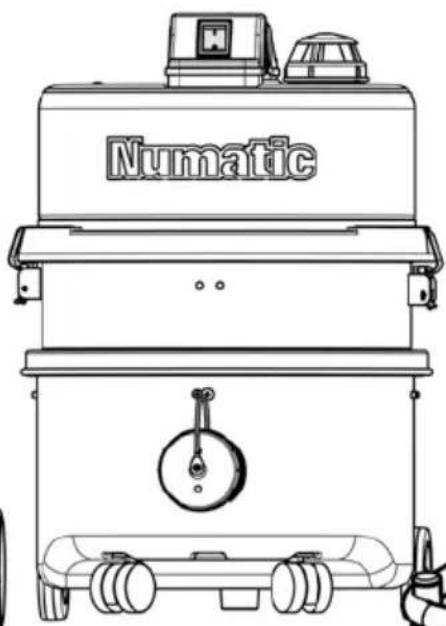

Line drawing of a Numatic industrial machine with control panel and fan (no text or symbols on the device itself)

Line drawing of a Numatic industrial machine with control panel and pump (no text or symbols on the device itself)

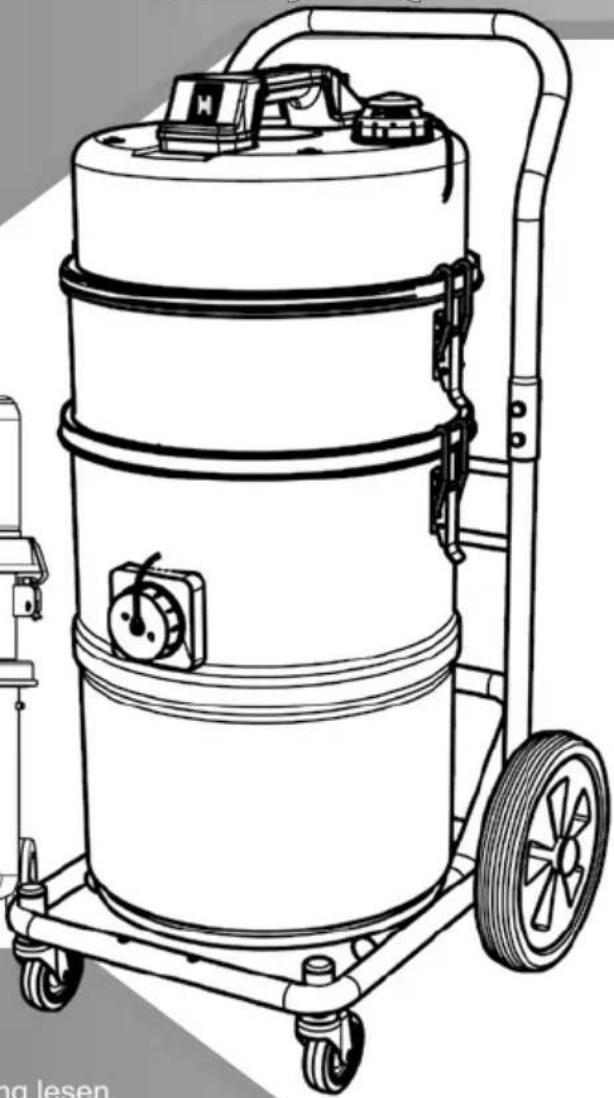

Line drawing of a cylindrical industrial dust collector with wheels and control panel (no text or symbols)

Original Instructions

CAUTION, Read instructions before using the machine.

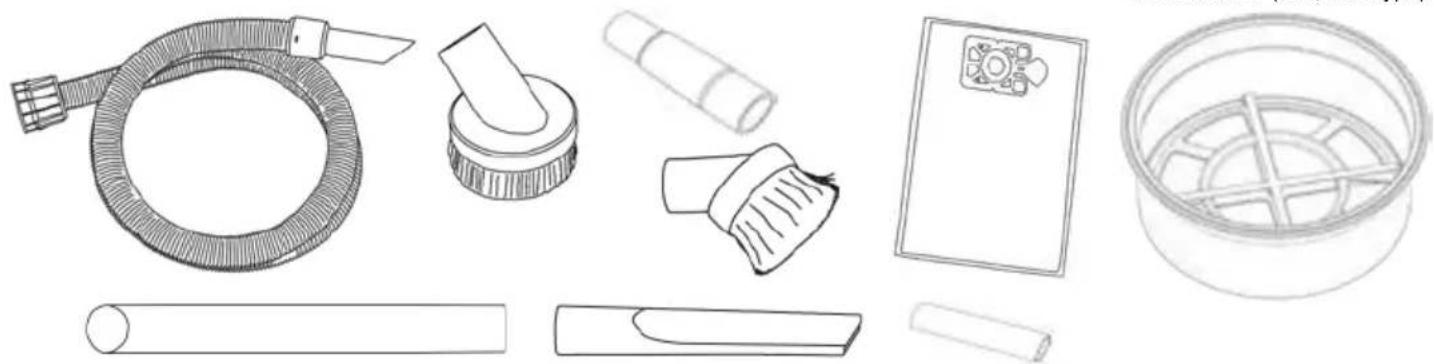

Line drawings of various household items including a hose, washer, lamp, and sink (no text or symbols)

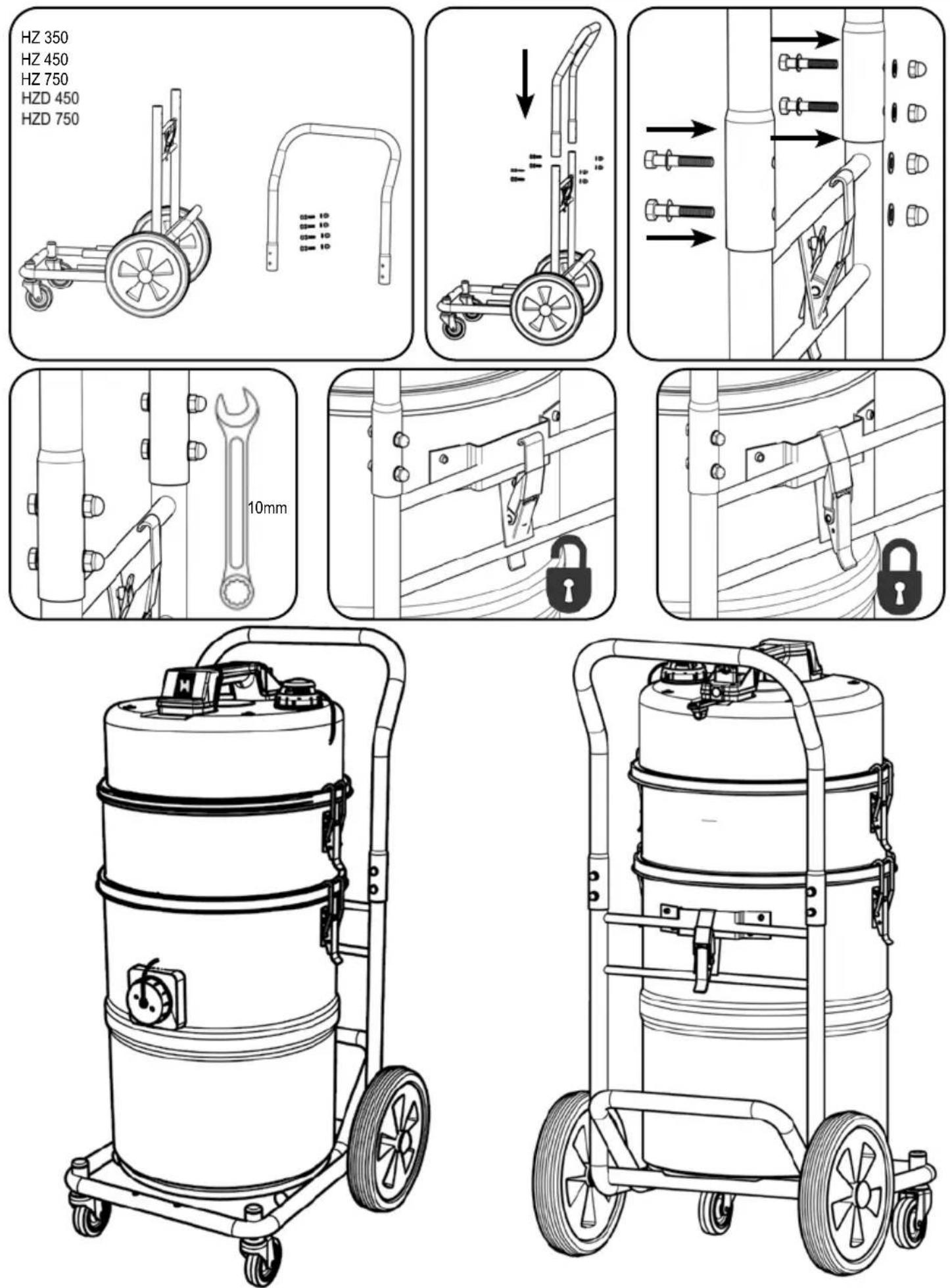

HZ Kits

607470 AA17 (190, 200, 250 Type)

902242 AA18 (350, 370 Type)

902243 AA19 (470, 570 Type)

902244 AA20 (750, 900 Type)

Line drawings of various household appliances and fixtures including a tool, hose, bulb, and fan (no text or labels)

Technical line drawing of a cylindrical industrial machine with wheels and control components (no text or symbols)

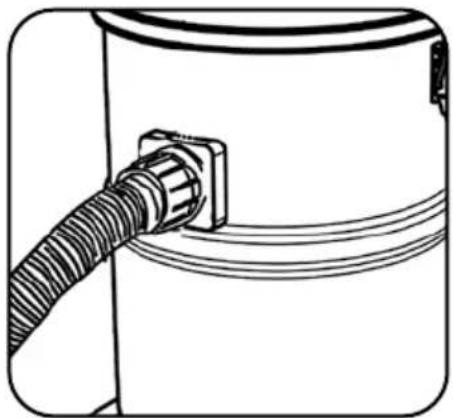

Technical line drawing of a cylindrical container with a coiled hose and connector (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

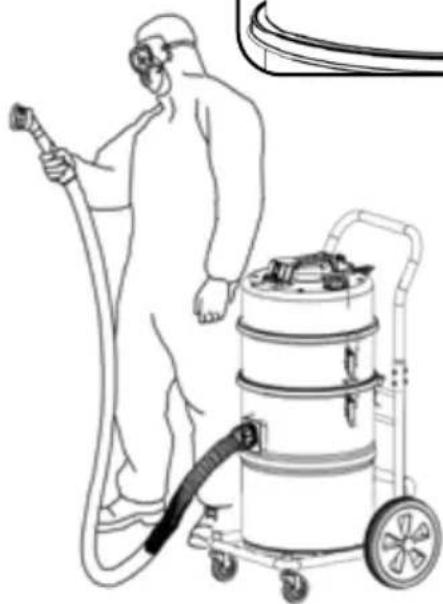

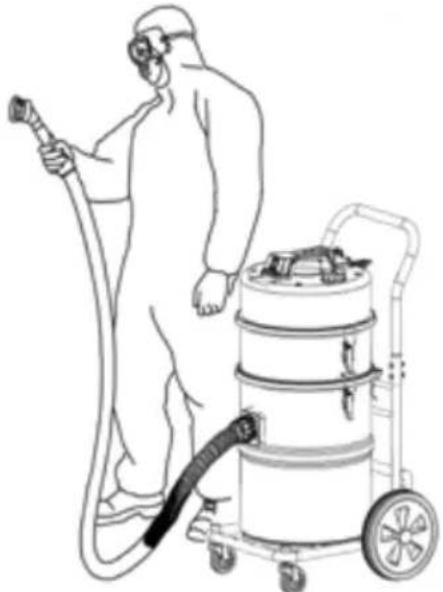

Line drawing of a person in full protective suit using a vacuum cleaner next to a cylindrical device (no text or symbols)

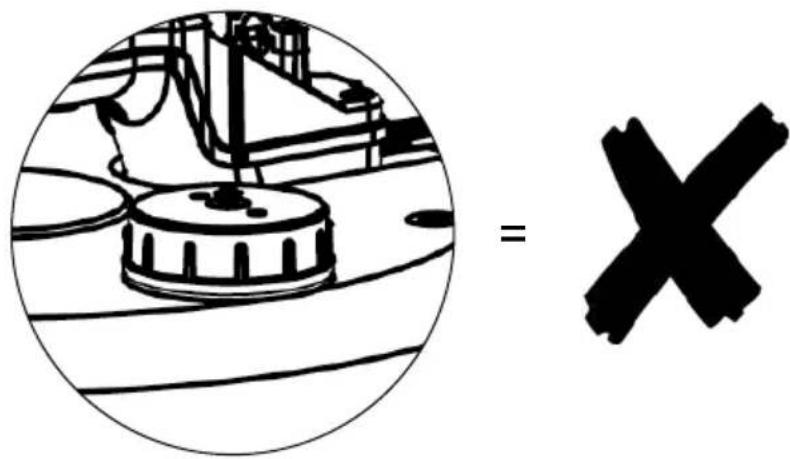

Diagram showing a mechanical device and a black X symbol, likely representing equivalence or comparison.

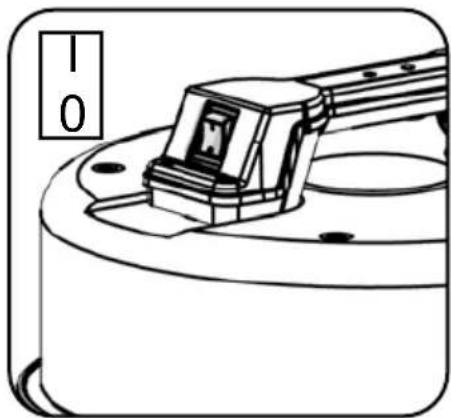

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a person in full protective suit using a vacuum cleaner with hoses and wheels (no text or symbols)

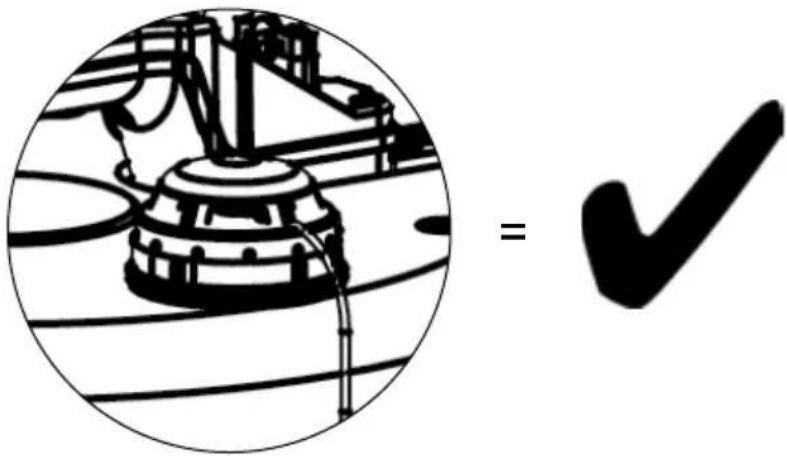

Diagram showing a mechanical device inside a circle with a checkmark symbol, likely indicating equivalence or confirmation.

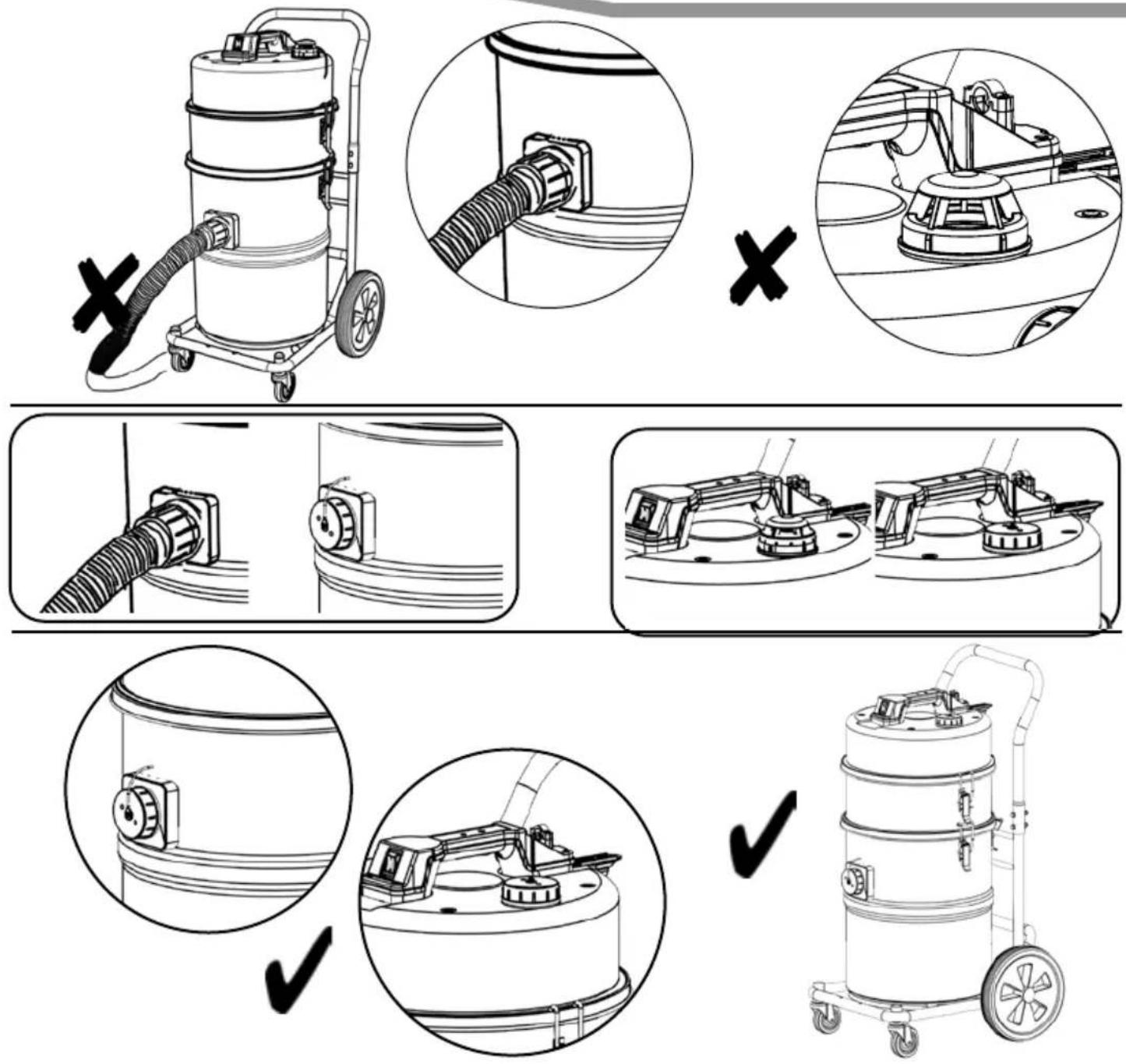

Moving the machine - Bewegen der Maschine - Déplacement de la machine - Verplaatsen van de machine - Deslocar a máquina - Spostamento della macchina - Desplazamiento de la máquina - Transportowanie maszyny - Flytta maskinen - Koneen liikuttaminen - Flytning af maskinen

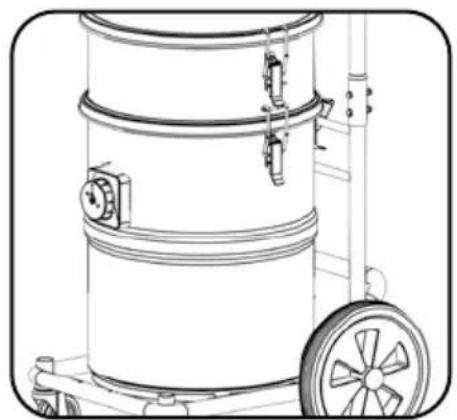

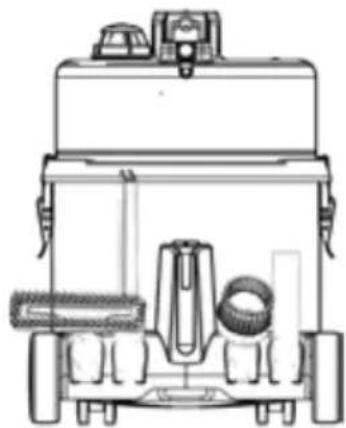

(370 Drum only) Tool Tidy - 370 Nur Trommel, Werkzeug in Ordnung - Cuve 370 uniquement, rangement des accessoires - 370 alleen stofbak, accessoirehouder - 370 apenas tambor, arrumação das ferramentas - 370 solo tamburo, strumento Tidy - Solo tambor 370, portaherramientas - Samodzielny bęben 370, zestaw Tool Tidy - 370 endast trumma, verktygssats - Vain 370-rumpu, säilytyspussi - Kun 370-tromle, værktøjsordner

Line drawing of a Numatic industrial machine with wheels and a central dial (no text or symbols)

Technical line drawing of a mechanical device with gears and wheels (no text or symbols)

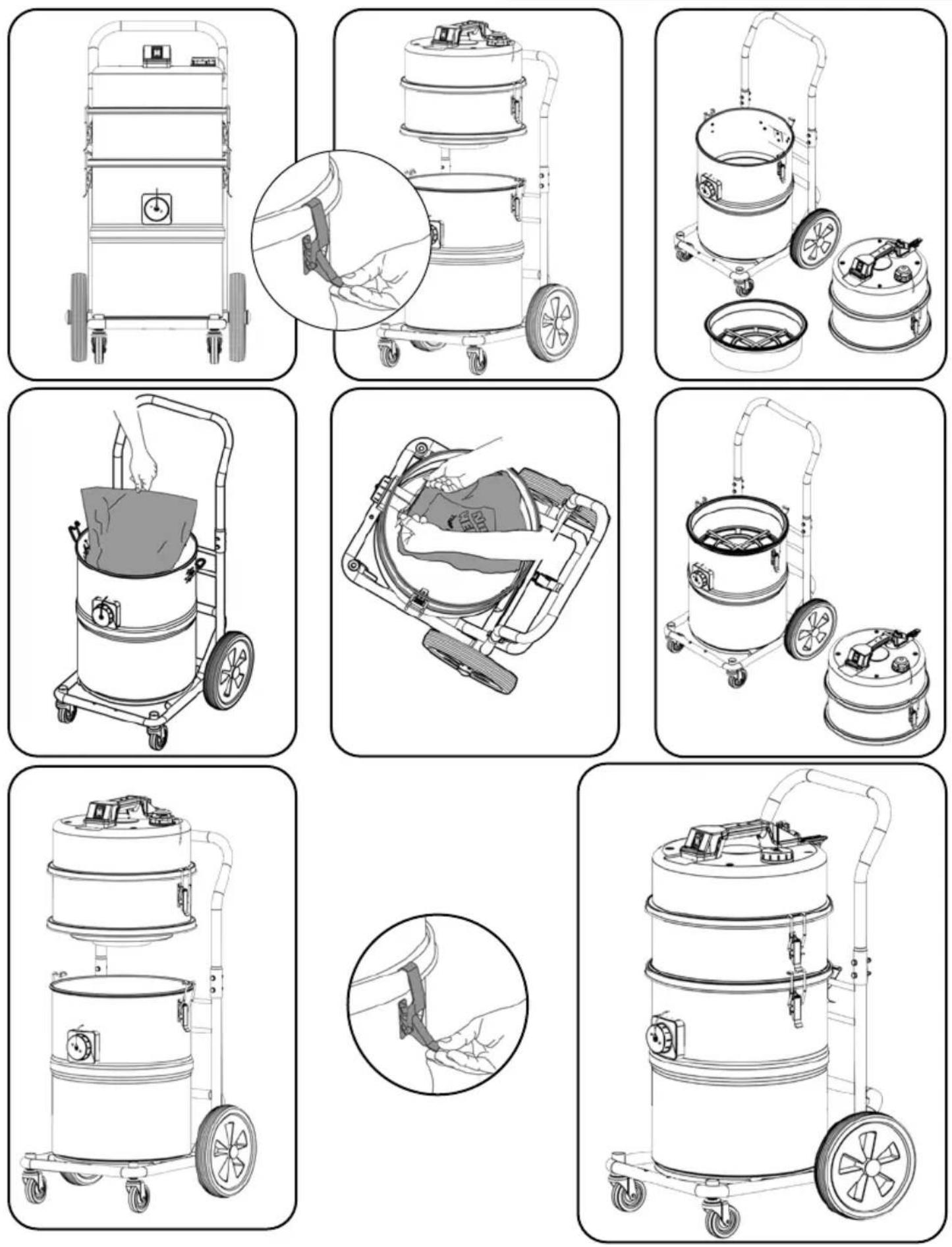

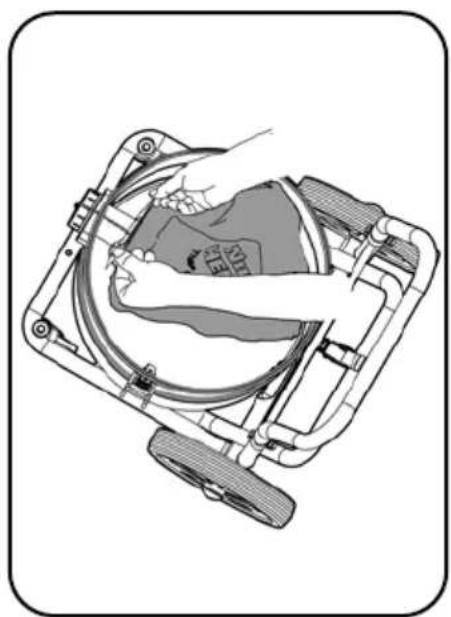

Changing the bag, Cleaning the filter - Wechseln des Beutels und Filterreinigung - Changement du sac, nettoyage du filtre - Vervangen van de zak, reinigen van de filter - Substituir o saco, limpar o filtro - Sostituzione del sacchetto, Pulizia del filtro - Cambio de la bolsa, limpieza del filtro - Wymiana worka, czyszczenie filtra - Byta påse, rengöra filtret - Pussin vaihto ja suodattimen puhdistus - Udskiftning af pose, rengöring af filter

Technical line drawing of a portable vacuum cleaner with three labeled parts (no text or symbols)

Illustration of a hand placing a cloth into a cylindrical container on a wheeled cart (no text or symbols)

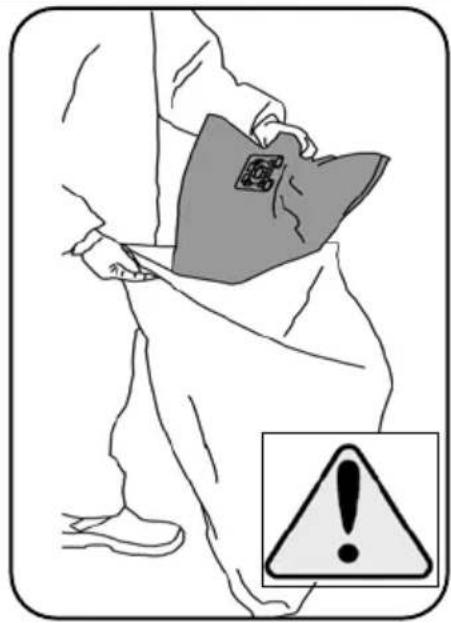

Illustration showing a person holding a bag with a warning symbol and an exclamation mark in the corner

Diagram of a mechanical device with hands operating it, showing internal components and no visible text or symbols.

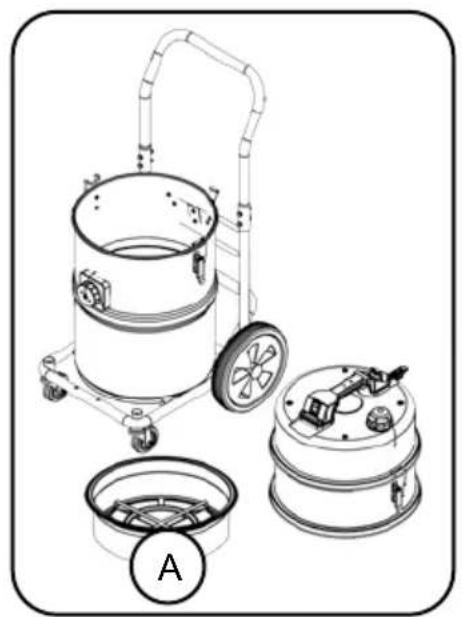

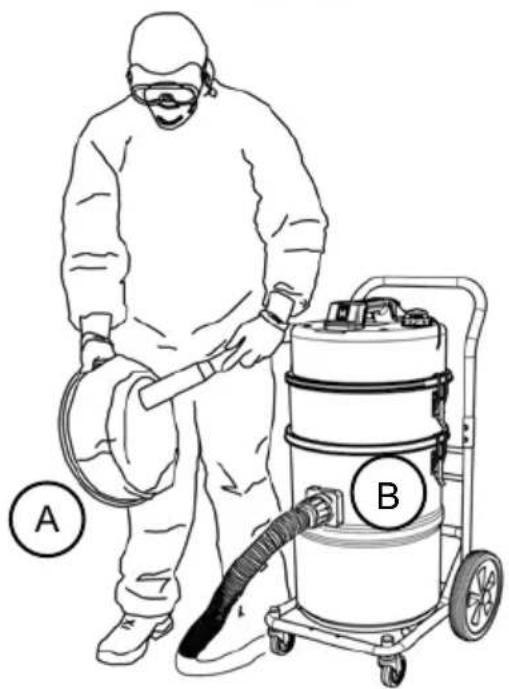

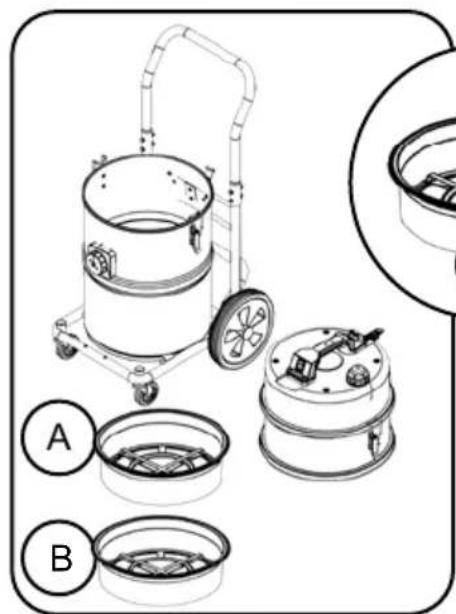

Technical line drawing of a vacuum cleaner with labeled parts A and B, showing internal components and assembly (no text or symbols beyond labels)

Technical line drawing of a vacuum cleaner with wheels and a circular inset showing a component labeled 'B' (no text or symbols on the device itself)

Illustration of a person in full protective suit disinfecting a water purifier with labeled parts A and B (no text or symbols on the diagram itself)

NON Interceptor Machines

Two technical line drawings of a speaker component with circular base and ring, shown from top and bottom views (no text or symbols)

Technical illustration of a mechanical component with concentric rings and a base (no text or symbols)

Technical illustration of a filter cartridge component (no text or symbols on the diagram itself)

Diagram of a mechanical component with three views: top view, side view, and bottom view (no text or symbols)

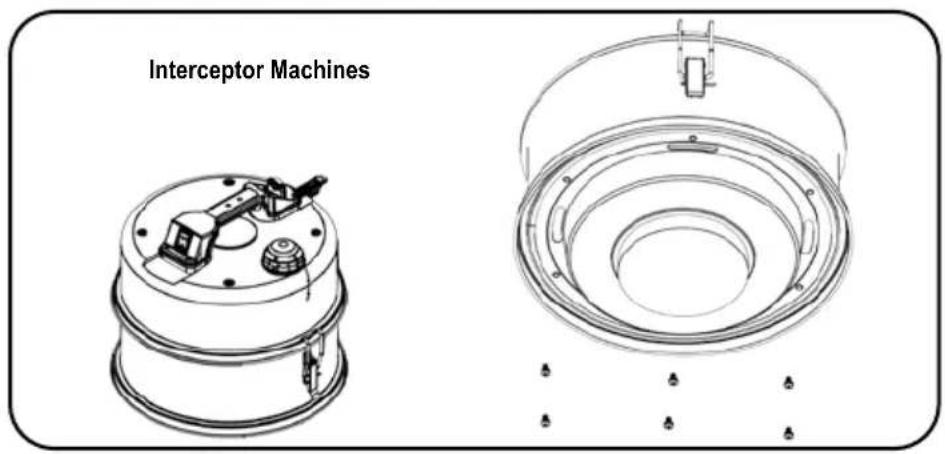

Interceptor Machines

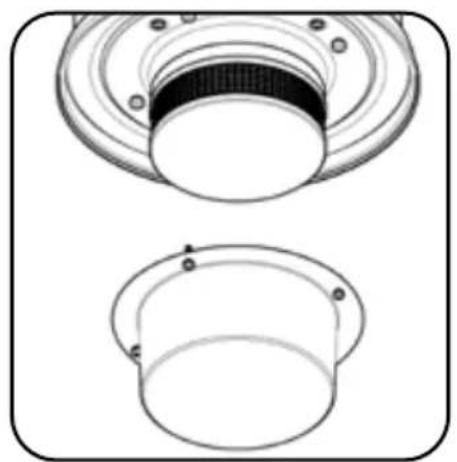

Technical line drawing of two circular mechanical components with internal features (no text or symbols)

Technical line drawing of a circular mechanical component with concentric rings and a separate inset showing a textured base (no text or symbols)

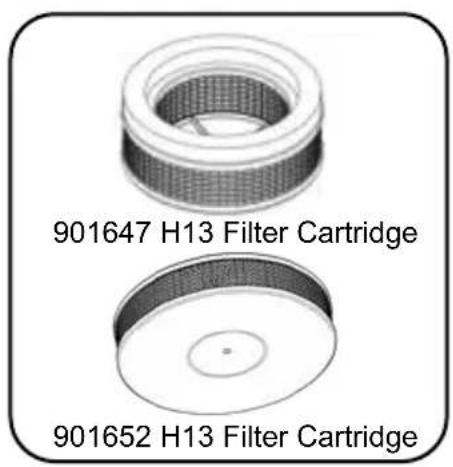

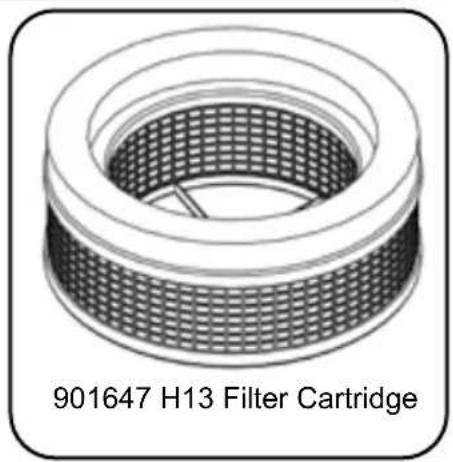

901647 H13 Filter Cartridge 901652 H13 Filter Cartridge

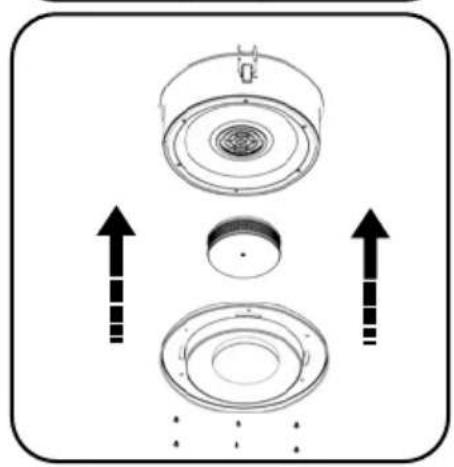

Diagram showing three circular components with upward arrows indicating flow or movement, no text or symbols present.

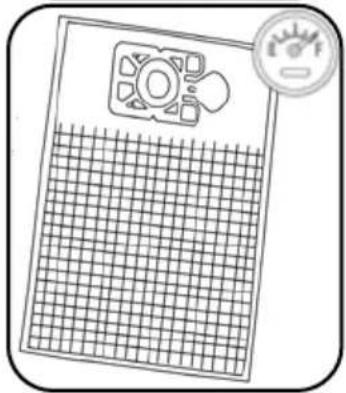

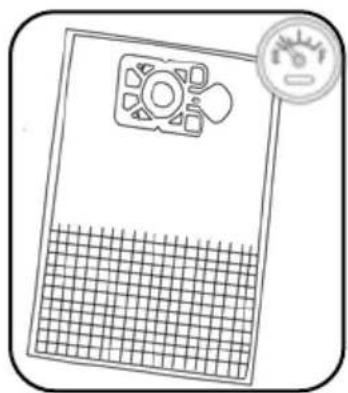

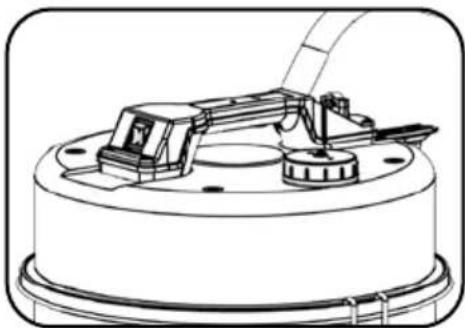

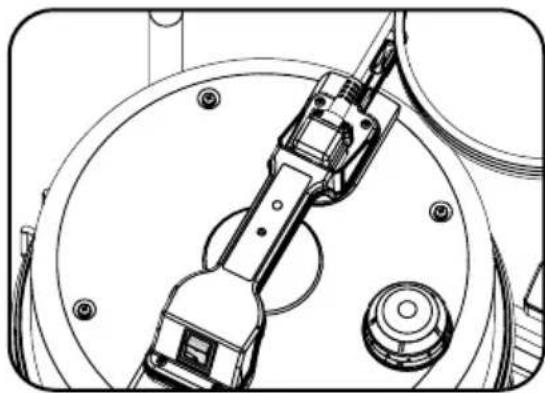

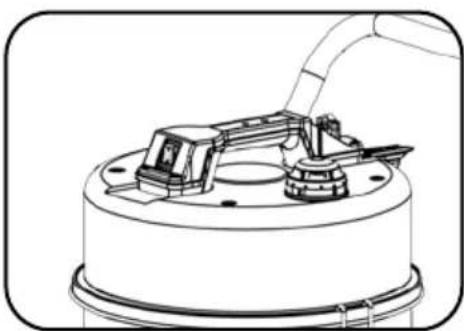

Simple line drawing of a device with a grid pattern and a circular gauge symbol (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Diagram of a grid-patterned device with a circular gauge showing temperature reading (no text or symbols on the device itself)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with a sun symbol above it, no text or labels present

Cause Solution
Dust caps still fitted Remove the caps.
Blocked hose Unblock the hose.
Bag full Remove and replace
Cloth filter clogged Remove and replace, clean dirty filter by vacuuming.
Hepa cartridge clogged Replace, seek advice from an instructed person or manufacturer.

Variant Simplex Duplex
Model HZ	190, 200, 250, 350,450, 570, 750, 900	HZD450, 570, 750, 900
Classification TYPE H TYPE H
Voltage 115 / 120 / 220 -240V 115 / 120 / 220 -240V
Frequency 50 - 60Hz 50 - 60Hz
Power rating 1000 W 1000 W x 2
Sound Pressure (LpA)Uncertainty (KpA)	65 dB (A)0.5 dB	67 dB (A)0.5 dB
Low flow operation	16L/sec ( 0.96m^3/min )	22L/sec ( 1.32m^3/min )
(NB 16L/sec corresponds to an airspeed of 20m/sec in a 32mm pipe)(NB 22L/sec corresponds to an airspeed of 20m/sec in a 38mm pipe)

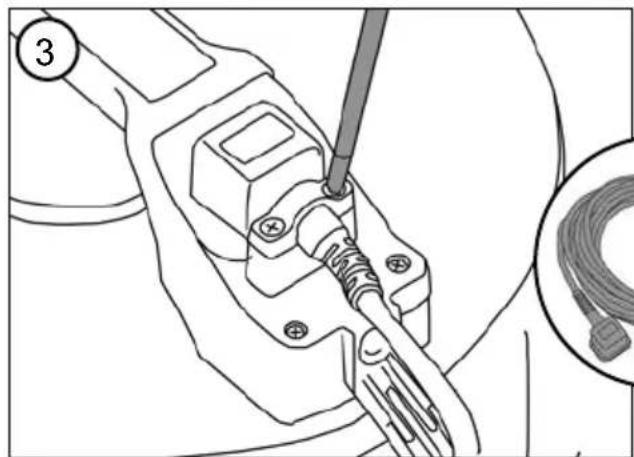

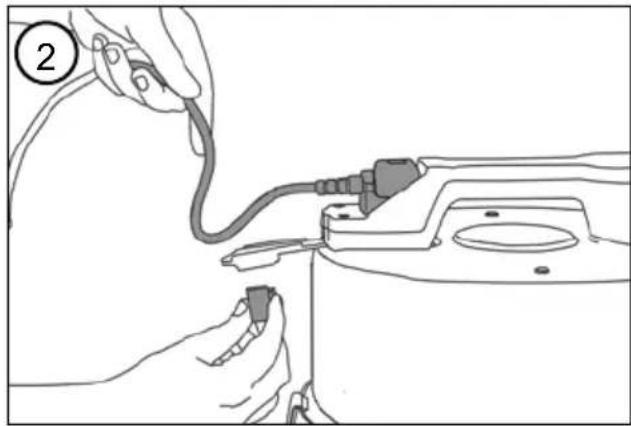

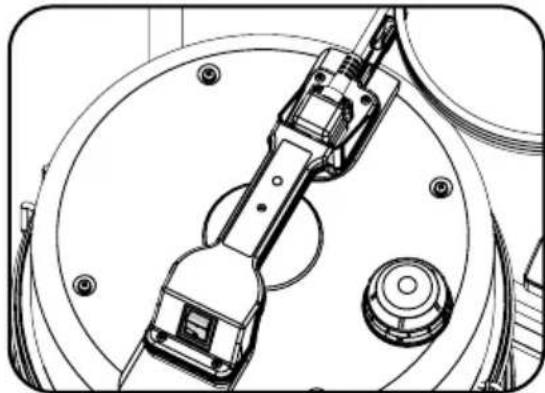

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

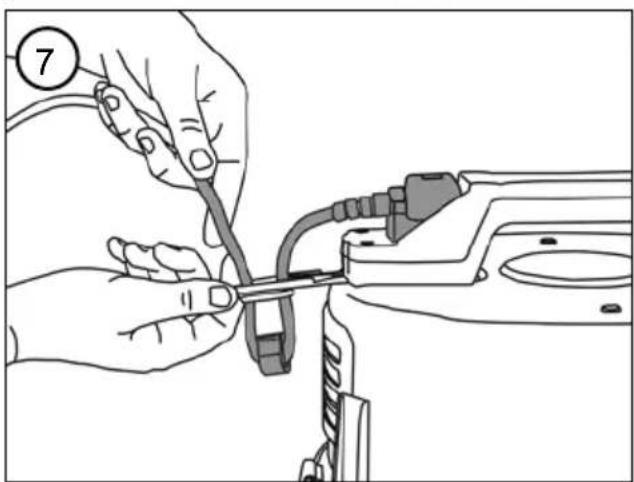

Line drawing of hands connecting a cable to a vehicle chassis (no text or symbols)

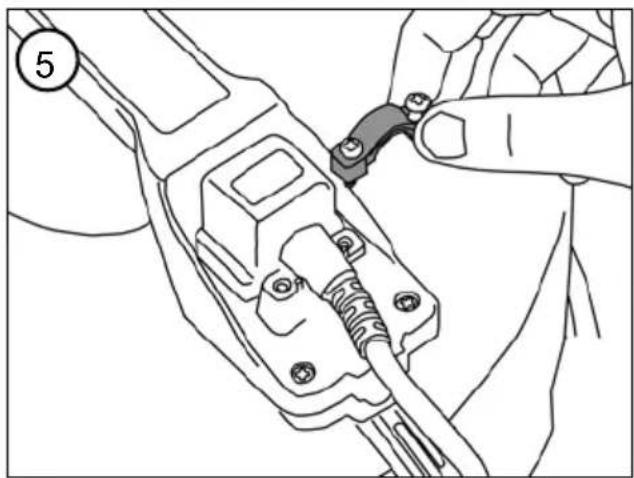

Technical line drawing of a mechanical clamp or connector with a screwdriver inserted, showing wiring and a cable (no text or symbols)

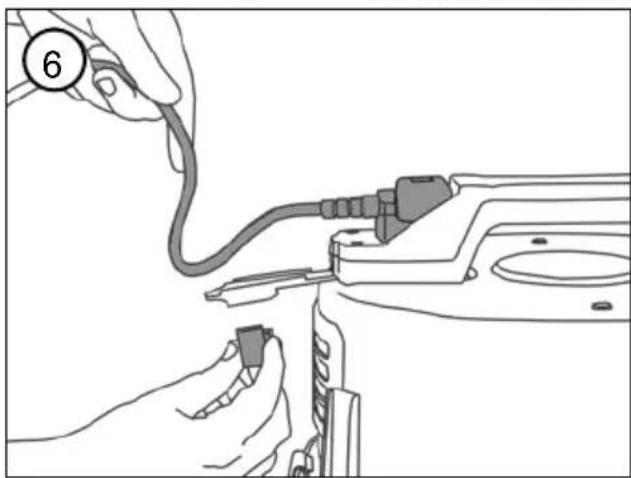

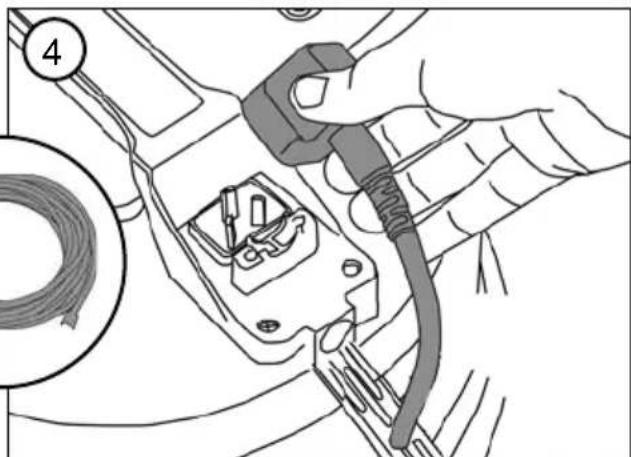

Hand holding a cable plug inserted into a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

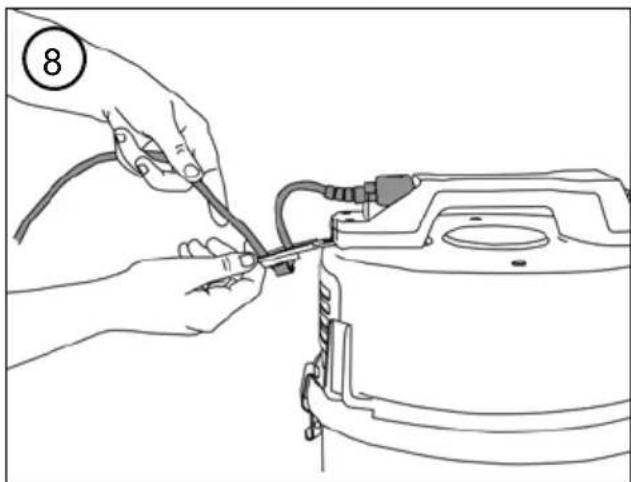

Line drawing of hands connecting a cable to a mechanical component (no text or symbols)

Illustration of hands using a tool to adjust or install a component, no text or symbols present

Line drawing of hands connecting a cable to a car engine component (no text or symbols)

Numatic ICLMTRONAL LTD. CHARTS, ENGLAND, TALEXIS 1 2 3 4 5 6 7 8 Type H Name and Address of EU Importers in Manual 10 S/N:********

(EN) About your machine

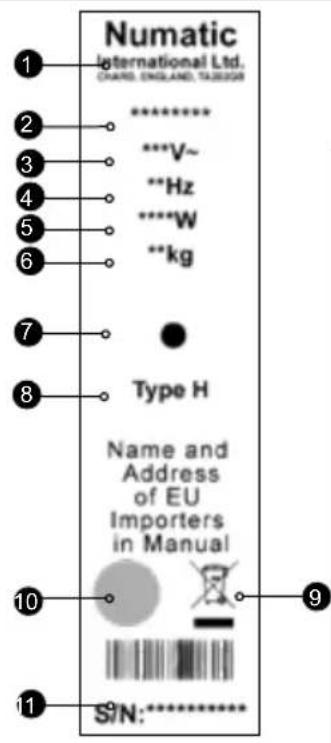

Rating Label

1	Company Name & Address
2	Model
3	Voltage / Alternating Current
4	Frequency
5	Rated Input Power
6	Weight
7	Flow Flow Indicator *(If applicable)
8	Type Hazardous
9	WEEE Logo
10	Approval Mark
11	Machine yr/wk Serial Number

Daily

Keep the machine clean, including hoses and tubes.

Ensure the bag and fi lter are fi tted.

Regularly examine the power cord.

Check dust bag frequently.

Check filters are clean.

Weekly - as daily and:-

Check for any worn or damaged parts and replace immediately.

Maintenance

WEEE Legislation (Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmentally - friendly recycling.

(Only for UK/EU Countries)

Do not dispose of vacuum cleaner into household waste! According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally - friendly manner.

Symbol of a trash bin crossed with two crossed lines, no text or labels present

PPE (personal protective equipment). That may be required for certain operations.

Ear Protection Safety Footwear Head Protection		Safety Gloves
Eye Protection Protective Clothing		Dust / Allergens Protection	Hi Viz Jacket Caution Floor Sign

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Safety Critical Components

Mains leads:

H05VV-F 10 m x 3 Core x 1.0 mm²

(115V) H05VV-F 10 m x 3 Core x 1.5 mm²

WARNING

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

As with all electrical equipment, care and attention must be exercised at all times during use, in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

This machine is for DRY USE only and must not be stored outside or used in wet conditions.

The machine shall be disconnected from the mains by removing the plug from the supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge.

Children should be supervised to ensure they do not play with the machine

This machine is not a toy.

CAUTION

Ensure that the fi ltration system fi tted to the machine is suitable for the material being collected.

This machine is for use indoors only.

This machine should be stored indoors only.

NOTES

This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices.

This product complies with the requirements of clause 20 of EN 60335-2-69 Stability and Mechanical Hazards.

DO

• Keep your machine clean.
• Keep filters clean.
• Use fi Iter bags, they will enhance performance and help keep machine clean.
• Use a Numatic Original fi Iter bag under fi ne dust conditions.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.
• Regularly examine the power cord. If damage is found such as cracking or ageing the power cord must be replaced by a qualified person using the correct Numatic original part.
• Change dust bag frequently
• Only use the brushes provided with the machine. The use of other brushes may impair safety.
• Only replace the power cord with the correct Numatic approved replacement part.

DO NOT

• Allow the rotating brush to come into contact with the supply cord (where rotating brushes are fitted).
• Pull on the cable to unplug the machine from the power supply.
• Use to suck up hot ashes or lighted cigarette ends.
• Use steam cleaners or pressure washers to clean the machine or use in the rain.
• Immerse in water for cleaning.
• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
• Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top filter of the machine. Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty.

IMPORTANT USER INFORMATION

Before use operators shall be provided with information, instruction and training for the use of the machine and the substances for which it is to be used, including the safe method of disposing of material collected.

The dust container has to be emptied when necessary, but also after every time used.

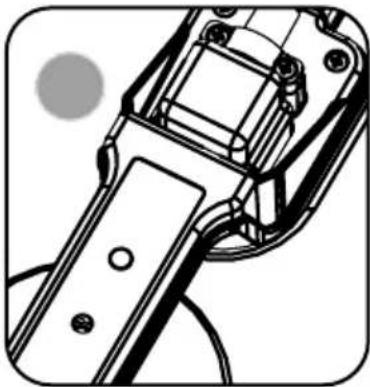

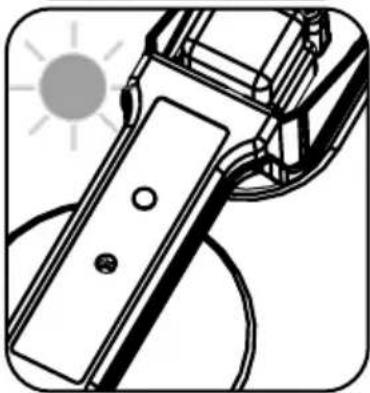

This vacuum cleaner has a lamp that illuminates when air velocity drops below a preset level, which indicates that the bag must be changed.

This machine is not suitable for connection with dust generating machines.

All filters including the bag must be undamaged and in correct position before this machine can be used safely.

CAUTION: This machine is for dry use only and is not to be used or stored outdoors in wet conditions.

Do not pick up glowing embers or dust or any other ignition hazard

Do not use the power cable as a method of moving the machine.

WARNING:

1. This machine must only be operated by suitably trained and authorised personnel.
2. This machine or its accessories must not be modified.
3. The machine must not be stored or used in a wet environment.
4. Do not allow the dust collection bag (NVM-2BH) to become so full as to reduce the effective pick-up of the vacuum. (Lamp will illuminate at preset air velocity levels < 16 m/s).
5. Only use the dust collection bag (NVM-2BH) once.
6. This machine must only be repaired by suitably trained and authorised personnel.
7. Only use genuine Numatic International Ltd spare parts, for repairs.
8. This machine must not be installed as a fixed extraction system or run unattended.
9. Do not re-use the essential fi Iter element after removal out of the machine.

Operators should observe any safety regulations appropriate to materials being handled.

This machine is for dry use only.

PREPARATION FOR USE

Unpack and identify each item of equipment from the delivery note.

Check that the details given match the information on the "rating plate" mounted on the head assembly.

WARNING: This machine contains dust hazardous to health. Emptying and maintenance operations, including removal of the dust collection means, must only be carried out by authorised personnel wearing suitable personal protection. Do not operate without the full filtration system fitted.

P/N 210990

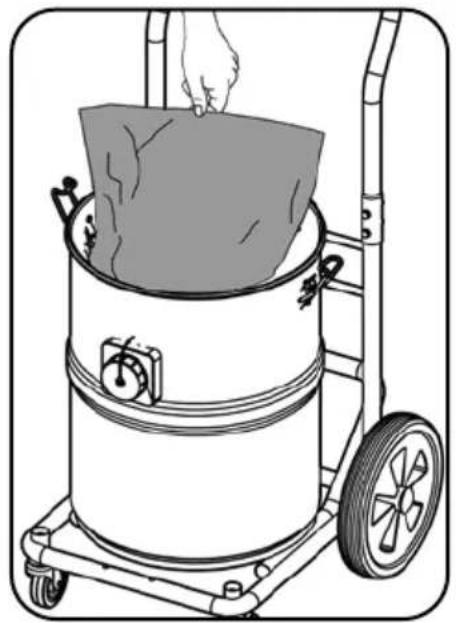

Installation / Removal / Disposal of the dust bag.

The dust bag holding the dust and debris must be removed and renewed by authorised personnel only, wearing appropriate personnel protective equipment, in a specified de-contamination area.

Never operate without the full fi ltration system in place.

Process of disposal:

Disconnect the hose, fi t the Dust Cap on the Hose Flange, un-clip the bottom two Toggle Clamps. Remove the cloth fi Iter (A) in the Drum. Remove the dust bag from the Hose Flange inside the drum and seal the Dust Bag hole. Place the Dust Bag inside an impervious plastic bag and seal the bag. Dispose of the plastic bag, depending on contamination, in an appropriate manner. Fit a new Dust Bag over the Hose Flange inside the drum assembly. Fit the cloth fi Iter (B), and the Head.

MAINTENANCE

All machine parts should be regarded as contaminated when removed from the hazardous area and appropriate action taken to prevent dust dispersal.

Disconnect from the power supply during cleaning, maintenance or when replacing parts.

Ensure the plug is removed from the Power socket outlet.

Maintenance must be carried out in a suitable non-hazardous area with facilities for cleaning the area after servicing, and with suitable ventilation.

Maintenance and cleaning work must always be carried out by competent authorised personnel equipped with suitable personal protection.

The cloth fi iter must be taken out and checked for degree of contamination, and damage to cloth or seals. If the cloth seal is found to be damaged or badly contaminated, you must replace. If only mildly contaminated, either wipe clean or wash with a mild detergent (ensure it is dry before replacing).

Items that can not be satisfactorily cleaned (e.g. filters) need to be disposed of in an impervious plastic bag and disposed of in accordance with current regulations. Replace the items that cannot be satisfactorily cleaned using approved manufacturer parts.

Regularly examine the supply cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use.

All parts of this vacuum are safety critical only replace with the genuine Numatic spare parts.

For user servicing, the machine must be dismantled, cleaned and serviced, as far as is reasonably practicable, without causing risk to maintenance staff and others.

Suitable precautions include decontamination before dismantling, provision for local fi Itered exhaust ventilation where the machine is dismantled, cleaning of the maintenance area and suitable personal protection.

In class H machines the outside of the machine should be decontaminated by vacuum cleaning methods and wiped clean or treated with a sealant before being taken out of the hazardous area and appropriate action taken to prevent dust dispersal. (HSE Risk Assessment needed).

A competent person shall perform a technical inspection at least annually, consisting of, for example, inspection of fi Iters for damage, air tightness of the machine and proper function of the control mechanism.

Also the fi ltration effi ciency should be tested at least annually, or more frequently as specifi ed in national requirements. The test methods that can be used to verify the machine's fi Iter effi ciency are specifi ed in EN 60335-2-69 Annex AA (AA22.201.2). If the test fails it should be repeated with a new essential fi Iter.

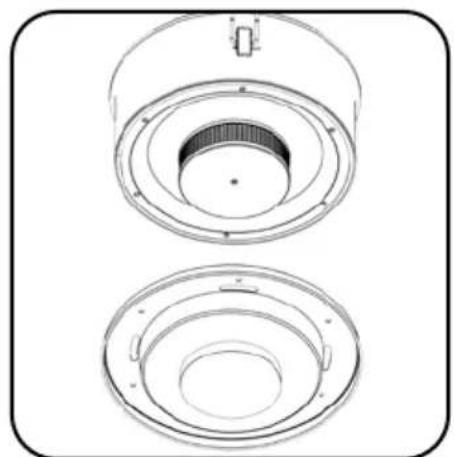

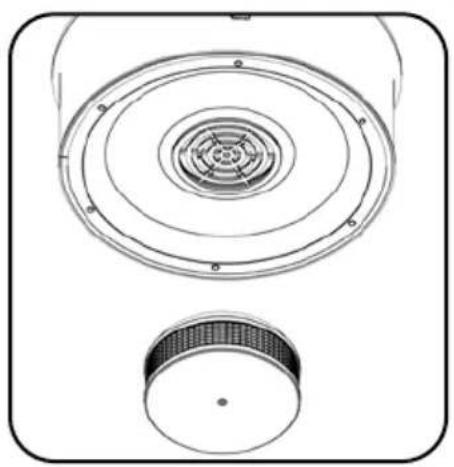

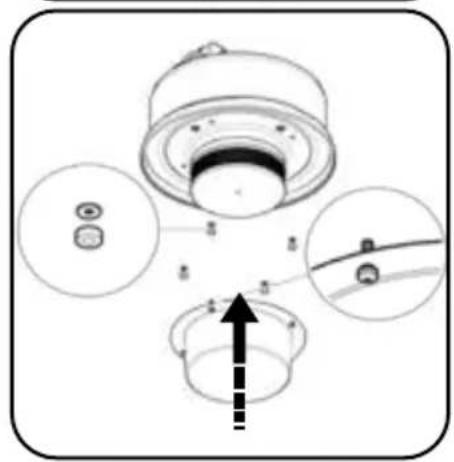

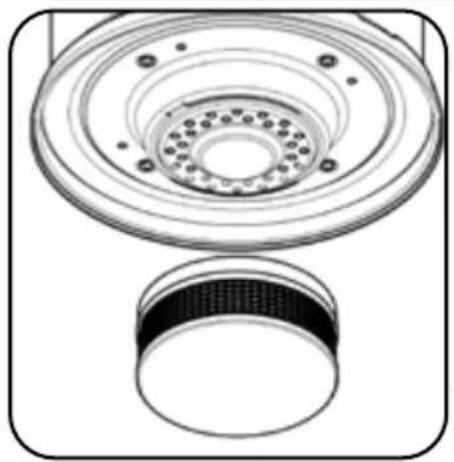

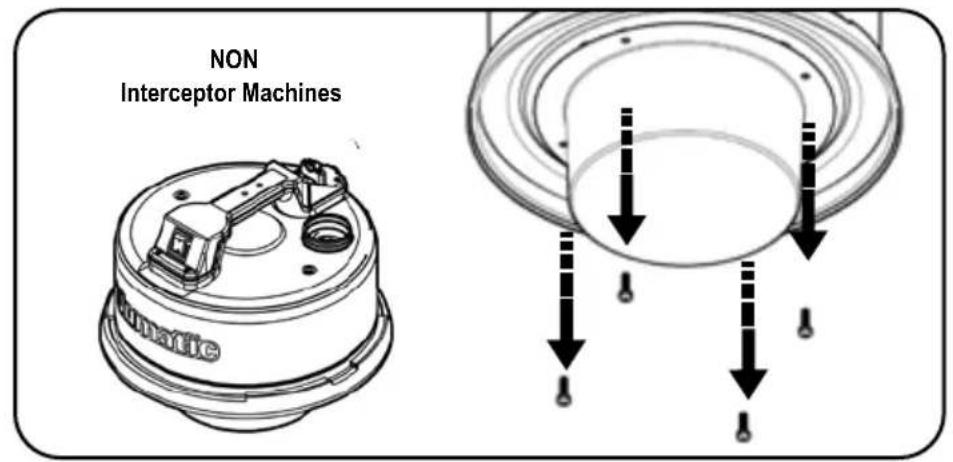

Replacing HEPA Fliters Process.

Remove the Head/Interceptor assembly and place in a safe area.

Unscrew the 4/6, M5 x 10 screws on the underside of the machine head/Interceptor which will expose the HEPA fi Iter.

Remove the contaminated HEPA fi Iter and place in a suitably impervious plastic bag and dispose of in accordance with current regulations.

Replace the HEPA fi Iter with an identical approved part

Re-assemble the machine in reverse order. (Screw torque 2.5Nm).

During this process please look carefully at all seals between mating parts and check for any damage.

If seals have been damaged, please contact the machine manufacturer to obtain an approved replacement part.

EN

Model Rated Motor Power (W)	Max Airflow (Motor Only) (m3/h)	Max Airflow (In Product) (m3/h)	Max Underpressure (hpa)	Max Sealed Suction (mm)	Capacity (L)	Weight (kg)	Size (mm)
HZ 190 1000 173 119 260	2500 8 10 340x340x400
HZ 200	1000	173	119	260	2500	9	11
HZ 250 1000 173 119 260	2500 8 13 340x340x455
HZ 350 1000 173 119 260	2500 14 15 385x365x845
HZ 370	1000	173	119	260	2500	15	11
HZ 450 1000 173 119 260	2500 20 26.5 510x500x940
HZ 570 1000 173 119 260	2500 23 18 415x415x746
HZ 750 1000 173 119 260	2500 35 23 510x510x960
HZ 900 1000 173 119 260	2500 40 28 490x800x880
HZD 450	1000 x 2	346	184	245	2500	20	29.5
HZD 570	1000 x 2	346	184	245	2500	23	20
HZD 750	1000 x 2	346	184	245	2500	35	25
HZD 900	1000 x 2	346	184	245	2500	40	30

Cleaning Range (European) = 26.8m Cleaning Range (South African) = 31.8m

Numatic replacement spare parts

908229	Roll of 10 bags	601144	65mm Soft Brush (NVA-44B)
602102	2.4M Hose (NVB-2B)	602159	38/32mm Adaptor (NVB-59B)
602160	305mm Crevice tool (NVM-60B)	604165	TriTex 12” Filter
602161	152mm Rubber Brush (NVM-61B)	604113	PermaTex 14” Filter
602923	305mm Stainless gulper (NVM-23B)	604311	MicroTex 12” Filter
901647	Bottom filter for HZ machines	604411	MicroTex 14” Filter
901652	Filter for all HZD machines	604151	Air Seperator
604015	NVM-1CH HepaFlo Bags Pack of 10	604017	NVM-3BH HepaFlo Bags Pack of 10
604016	NVM-2BH HepaFlo Bags Pack of 10	604019	NVM-4BH HepaFlo Bags Pack of 10
604027	NVM-3BM MicroFlo Bags Pack of 5	604024	NVM-4BM MicroFlo Bags Pack of 5
All machines to be restested after fitting replacement filter cartridge.

Numatic International Ltd. CHARD, ENGLAND, TA28358 1 2 3 4 5 6 7 8 Type H Name and Address of EU Importers in Manual 9 10 S/N:********

Produktplakette

Simple line drawing of a trash bin with no text or symbols

Numatic International Ltd. CHAIRS, ENGLAND, TAJ2009 1 2 3 4 5 6 7 8 Type H Name and Address of EU Importers in Manual 10 9 11 S/N:********

(FR) Sur la machine

Plaque signalétique

Simple line drawing of a trash bin with no text or symbols

Numatic International Ltd. CHAARD, ENGLAND, TAJ8028 1 2 3 4 5 6 7 8 Type H Name and Address of EU Importers in Manual 10 9 11 S/N:**********

Symbol of a trash bin crossed with a diagonal line and a solid black rectangle below (no text or labels)

Numatic International Ltd. CHARD, ENGLAND, TA28358 1 2 3 4 5 6 7 8 Type H Name and Address of EU Importers in Manual 9 10 S/N:********

Etiqueta energética

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Numatic International Ltd. CHARTS, ENGLAND, TA28358 1 2 3 4 5 6 7 8 Type H Name and Address of EU Importers in Manual 10 9 11 S/N:*******

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Numatic International Ltd. CHARGO, ENGLAND, TAJ8058 1 2 3 4 5 6 7 8 Type H Name and Address of EU Importers in Manual 9 10 11 S/N:********

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Numatic International Ltd. CHAARD, ENGLAND, TA28538 1 2 3 4 5 6 7 8 Type H Name and Address of EU Importers in Manual 10 9 11 S/N:**********

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Numatic International Ltd. CHARTS, SINGLAND, TAJ83GB 1 2 3 4 5 6 7 8 Type H Name and Address of EU Importers in Manual 10 S/N:********

Märkskylt

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Numatic International Ltd. CHARTS, ENGLAND, TAJ3508 1 2 3 4 5 6 7 8 Type H Name and Address of EU Importers in Manual 10 S/N:********

(FI) Koneen tiedot

Arvokilpi

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Numatic International Ltd. (CHARD, ENGLAND, TAJ8358) 1 2 3 4 5 6 7 8 Type H Name and Address of EU Importers in Manual 10 9 11 S/N:**********

Mærkat

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Position: Head of Technology

Numatic International Limited

Chard,

UKCA Declaration of Conformity
Manufacturer:	Numatic International LimitedChard Somerset TA20 2GBwww.numatic.co.ukNumatic
Product:	HZ, HZD
Description:	Vacuum Cleaner – Commercial – Dry
We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.
S.I. 2008: 1597	Supply of Machinery Regulations	EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A15:2021EN60335-2-69:2012EN62233:2008
S.I. 2016: 1091	EMC Regulations	EN55014-1:2017 + A11:2020EN55014-2:1997 + A1:2001 + A2:2008EN61000-3-2:2014EN61000-3-3:2013
S.I. 2012: 3032	RoHS Regulations
Authorised Signatory: Mr. Matthew Coles		Position: Head of TechnologyNumatic International Limited, Chard,Somerset, TA20 2GB, UK
Signed: Date: 2ndFebruary 2024

Numatic

numatic.com

Affi x Label Here

Numatic International Limited (Head Office)

Chard, Somerset TA20 2GB, UNITED KINGDOM

Tel: [phone] numatic.com

Numatic International GmbH

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic.de

Numatic International Denmark

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic-online.dk

Numatic International S.A.S

Numatic International BV

Numatic International (PTY) Ltd.

Cnr. 16th & Pharmaceutical Road, Randjes Park, Midrand 1685, SOUTH AFRICA

Tel: [phone] numatic.co.za

Numatic International ULDA

Rua Francisco da Silva Duarte, n°79,

4475-269 Santa Maria de Avioso, Castêlo da Maia, PORTUGAL

Tel: [phone] numatic.pt

NUMATIC INTERNATIONAL SPAIN, S.L.U.

Av. Baix Llobregat, 5-7, Ofi cina bajos 1 (Parc Negocis Mas Blau II),

08820 El Prat de Llobregat (Barcelona) SPAIN

Tel: [phone] numatic.es

Numatic International Italy S.R.L

Via Luigi Galvani, 2, Z.I. Talponedo, 33080 Porcia (PN), ITALY

Tel: [phone] numatic.it
