USER MANUAL DEU2450RR Sub-Zero

Designer Series Undercounter Refrigeration

Installation Guide

SPECIFICATIONS, INSTALLATION, AND MORE

Contents

3 Designer Series Undercounter Refrigeration
4 Opening Dimensions
5 Electrical Requirements
6 Plumbing Requirements
6 Preparation
7 Anti-Tip Bracket
7 90° Door Stop
8 Placement
8 Alignment
9 Water Line
10 Door Panel
12 Panel Installation
14 Completion

Features and specifications are subject to change at any time without notice. Visit subzero.com/specs for the most up-to-date information.

Important Note

To ensure this product is installed and operated as safely and efficiently as possible, take note of the following types of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially important.

CAUTION indicates a situation where minor injury or product damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in parentheses are millimeters unless otherwise specified.

IMPORTANT NOTE: Save these instructions for the local electrical inspector.

Product Information

Important product information, including the model and serial number, are listed on the product rating plate. The rating plate is located inside the cabinet, in the upper left area of the unit. Refer to the illustration below.

If service is necessary, contact Sub-Zero Factory Certified Service with the model and serial number. For the name of the nearest Sub-Zero Factory Certified Service or for questions regarding the installation, visit the Product Support section of our website, subzero.com, or call Sub-Zero Customer Care at 800-222-7820.

RATING PLATE

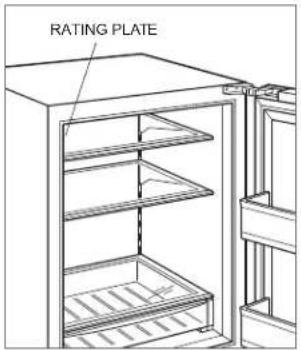

Rating plate location

Opening Dimensions

DESIGNER SERIES UNDERCOUNTER MODELS

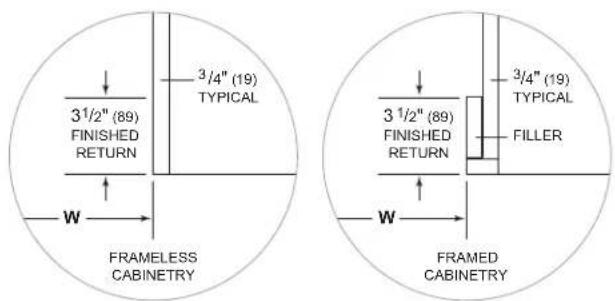

NOTE: 3 1/2" (89) finished returns will be visible and should be finished to match cabinetry.

3½" (89) FINISHED RETURN W FRAMELESS CABINETRY 3/4" (19) TYPICAL 3 ½" (89) FINISHED RETURN W 3/4" (19) TYPICAL FILLER FRAMED CABINETRY

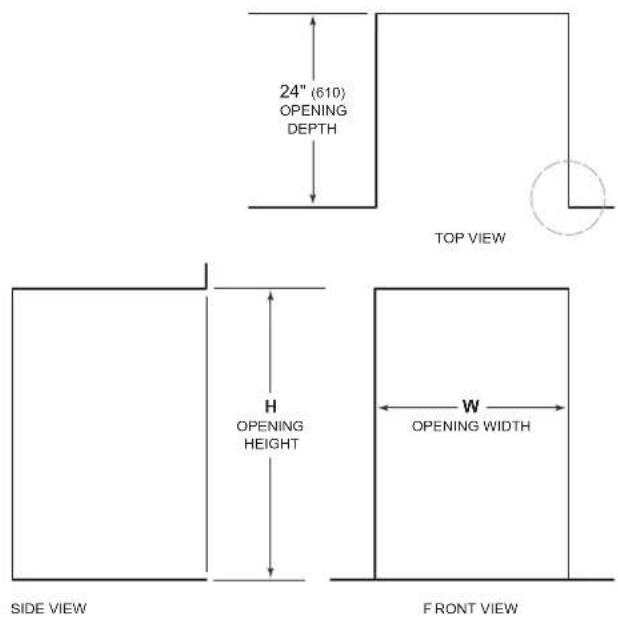

OPENING DIMENSIONS W H

24" Model (standard height) 24" (610) 34½" (876)
24" Model (ADA height) 24" (610) 32 ^1/2 " (826)
15" Model (standard height) 15" (381) 34 ^1/2 " (876)

The depth of each model is 2318 " (587). Allow for panel thickness when planning the finished opening depth. A minimum 312 " (89) finished return is required on all sides of the opening. Framed cabinets require additional finished filler material behind the face frame for a proper installation. Refer to the illustration.

DUAL INSTALLATION

If two units are installed side by side, a dual installation kit may be required. Installations without a custom filler strip require a dual installation kit. If a dual installation kit is not specified, a 2" (51) filler strip is recommended between the units. Dual installations without a filler strip can only be accomplished using two units with opposite hinges. Refer to the illustrations below.

Dual installation kits are available through an authorized Sub-Zero dealer. For local dealer information, visit the find a showroom section of our website, subzero.com. For questions regarding the installation, call Sub-Zero Customer Care at 800-222-7820.

DUAL OPENING WIDTH W

Two 15" Models 30" (762)

15" and 24" Models 39" (991)

Two 24" Models 48" (1219)

Dual installation kit required.

WITHOUT FILLER STRIP

Opposite hinges

FILLER STRIP

Same side hinges

Electrical Requirements

Installation must comply with all applicable electrical codes.

The electrical supply must be located within the shaded area shown in the illustration below. A separate circuit servicing only this appliance is required.

IMPORTANT NOTE: For indoor models, a ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

For the outdoor model, a ground fault circuit interrupter (GFCI) is required to reduce the risk of electrical shock.

The electrical outlet must be positioned with the grounding prong to the right of the thinner blades.

ELECTRICAL REQUIREMENTS

Electrical Supply 115 VAC, 60 Hz

Service 15 amp dedicated circuit

Receptacle 3-prong grounding-type

OPENING 5" (127) 2" (51) 33 4" (102) FLOOR

Electrical supply location

CAUTION

The outlet must be checked by a qualified electrician to be sure it is wired with the correct polarity. Verify the outlet is properly grounded.

WARNING

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING

Do not locate multiple portable socket-outlets, power strip, or portable power supplies at the rear of the appliance.

WARNING

Do not use an extension cord, two-prong adapter, or remove the power cord ground prong.

Plumbing Requirements

MODEL DEU2450CI

Installation must comply with all applicable plumbing codes.

For ease of installation, recess the water shut-off into the wall or place it in an adjacent cabinet. Locate the water supply line within the shaded area shown in the illustration below. Connect the water supply line to the house supply with an easily accessible shut-off valve. Do not use self-piercing valves.

An in-line filter is required when water conditions have a high sediment content.

A reverse osmosis system can be used provided there is constant water pressure of 35–120 psi (2.4–8.3 bar) supplied to the unit at all times. A copper line is not recommended for this application.

PLUMBING REQUIREMENTS

Water Supply Line 14 " OD copper, braided

stainless steel, or PEX tubing

Water Pressure 35–120 psi (2.4–8.3 bar)
Excess Water Line for Connection 5' (1.5 m)

OPENING 2" (51) 4" (102) 2" (51) AREA EXTENDS 1/2" (13) FORWARD ON FLOOR

Water supply location

Preparation

Uncrate the unit and inspect for damage. Remove and recycle packing materials. Do not discard the kickplate, anti-tip bracket, and hardware.

Remove the kickplate by extracting the two mounting screws. Refer to the illustration below.

SCREW

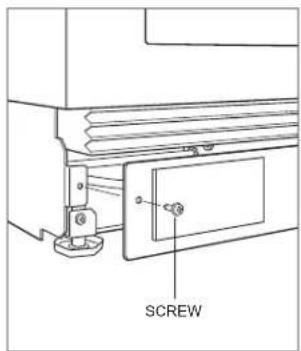

Kickplate removal

Anti-Tip Bracket

WARNING

To prevent the unit from tipping forward, the anti-tip bracket must be installed.

The anti-tip bracket should be attached to the wall behind the unit with the bracket flange located 14 " (6) above the top of the unit. Refer to the illustration below. Failure to properly position the anti-tip bracket will prevent proper engagement.

ANTI-TIP BRACKET 1/4" (6)

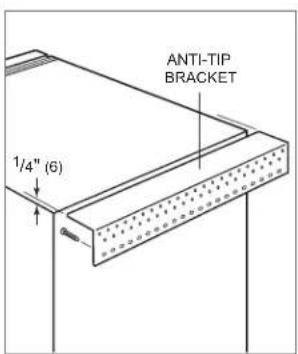

Anti-tip bracket

90° Door Stop

The door stop pins provided with the unit limit the door swing to 90°.

IMPORTANT NOTE: If a 90° door opening is desired, the pins must be installed prior to installing the unit into the opening.

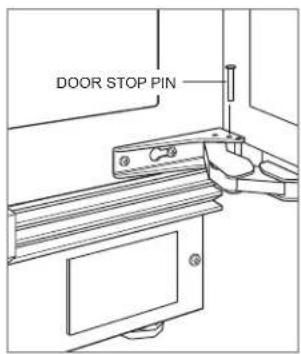

To install, open the door to approximately 80°. Insert one pin into each hinge. Refer to the illustration below.

DOOR STOP PIN

90° door stop

Placement

CAUTION

Before moving the unit into position, secure the door closed and protect any finished flooring.

WARNING

When positioning the appliance, ensure the supply cord is not trapped or damaged.

Use an appliance dolly to move the unit near the opening.

If the unit has been on its back or side, it must stand upright for a minimum of 24 hours before connecting power.

Plug the power cord into the grounded outlet. For model DEU2450CI, insert the water supply line into the hole on the back of the unit. Refer to the illustration below. Pull the excess water line forward as the unit is slid into the opening. Verify the anti-tip bracket is properly engaged.

HOLE FOR WATER LINE BACK OF UNIT

Water line (model DEU2450CI)

Alignment

LEVELING

Once the unit is in position, rotate the front legs clockwise to raise and counterclockwise to lower. Rear height adjustment can be made from the front. Using a Phillips drive, turn clockwise to raise the unit or counterclockwise to lower. Use the lowest torque setting when using a power drill. Do not turn the leveling legs by hand. Refer to the illustration below.

When the unit is properly leveled, door adjustments are less likely to be necessary.

IMPORTANT NOTE: Level the unit to the floor, not the surrounding cabinetry. This could affect the operation of the unit, such as door closing.

WARNING

To reduce the possibility of the unit tipping forward, the front leveling legs must be in contact with the floor.

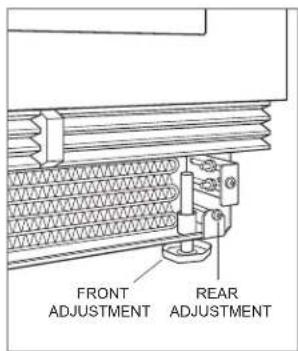

FRONT ADJUSTMENT REAR ADJUSTMENT

Leveling

Alignment

ANCHORING

CAUTION

If using a power drill to predrill holes or install screws, verify the drill chuck does not contact the units face frame.

Adjust the depth of the unit to fit flush with the surrounding cabinetry. Allow for panel thickness. Once aligned, verify the door opens properly, then install a #8 x 1/2" flat-decorative head screw in each bracket.

WARNING

To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

Line drawing of a cabinet or cabinet with a door, door lock, and shelf (no text or symbols)

Anchoring

Water Line

MODEL DEU2450CI

Under the unit, 14 " plastic tubing is connected to the unit with a preassembled 14 " compression connection. The water line fitting connection kit, provided with the unit, contains a 14 " compression union fitting for connection to the household water line.

Purge the water line prior to final connection to the unit. This will remove any debris that may be present in the tubing from installing the new water line. Connect the plastic tubing from the unit to the house water supply line with the fitting connection kit provided. Refer to the illustration below. Check all water line fittings for leaks.

IMPORTANT NOTE: Water lines cannot be exposed to freezing temperatures.

WARNING

Connect to potable water supply only.

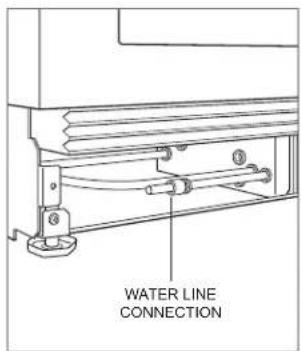

WATER LINE CONNECTION

Water line connection

Stainless Steel Panel

Stainless steel panels are available through an authorized Sub-Zero dealer. Stainless steel panels include a stainless steel kickplate cover. The outdoor model requires the use of a Sub-Zero stainless steel outdoor accessory panel. For local dealer information, visit the find a showroom section of our website, subzero.com.

Minimum 18 " (3) reveals are required.

Custom Panel

A custom door panel and handle hardware must be installed.

A 58 " (16) minimum to 34 " (19) maximum thick panel is required. The panel cannot exceed the maximum panel weight indicated in the chart below. The depth of each model is 2318 " (587). Allow for panel thickness when planning the finished opening depth.

Minimum 18 " (3) reveals are required.

PANEL WEIGHT MAX

24" Model 22 lb (10 kg)

15" Model 15 lb (7 kg)

Finish all sides of the custom panel. They will be visible when the door is open.

A D-style handle is recommended. Locate the door handle near the edge of the panel opposite the hinge and centered top to bottom. Stainless steel tubular and pro handles are available through an authorized Sub-Zero dealer. For local dealer information, visit the find a showroom section of our website, subzero.com.

Custom Panel

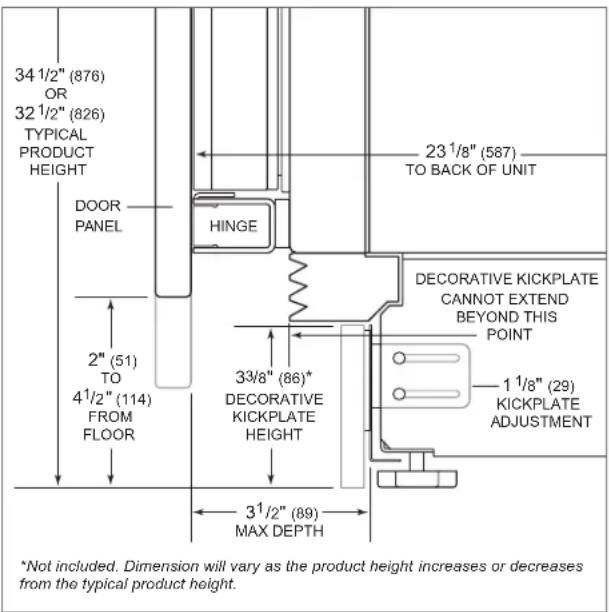

TOE KICK CLEARANCE

The height of the toe kick area can extend beyond the typical toe kick height, provided it does not exceed the dimensions in the illustration below. For questions regarding the installation, call Sub-Zero Customer Care at 800-222-7820.

34 1/2" (876) OR 32 1/2" (826) TYPICAL PRODUCT HEIGHT DOOR PANEL HINGE 23 1/8" (587) TO BACK OF UNIT 2" (51) TO 4 1/2" (114) FROM FLOOR DECORATIVE KICKPLATE CANNOT EXTEND BEYOND THIS POINT 33/8" (86)* DECORATIVE KICKPLATE HEIGHT 1 1/8" (29) KICKPLATE ADJUSTMENT 3 1/2" (89) MAX DEPTH *Not included. Dimension will vary as the product height increases or decreases from the typical product height.

Toe kick clearance (side view)

MAXIMUM DOOR OPENING

As the panel width and/or depth increases, so does the potential for panel interference. Interference may be minimized by using the 90^ door stop.

DOOR OPEN MAXIMUM 115° 3/8" (10) DOOR OPEN 90° 1/8" (3) REVEAL → ADJACENT CABINETRY DOOR CLOSED 3/4" (19) PANEL

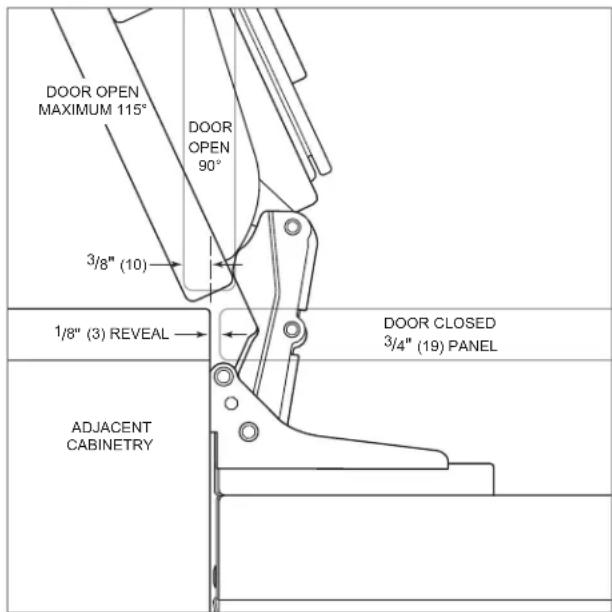

Maximum door opening (top view)

Panel Installation

DOOR PANEL INSTALLATION

Placement of the template must be adjusted for panels exceeding the typical dimensions.

Place the panel face down on a protected work surface. Position the template flush with the top and sides of the panel. Verify the correct side of the template is being used, then mark and drill pilot holes. Refer to the illustration below.

TOP OF DOOR PANEL TOP OF DOOR PANEL USE THIS SIDE ON ALL STANDARD HEIGHT DOORS FLIP TEMPLATE OVER FOR ADA HEIGHT DOORS RIGHT SIDE DOOR PANEL

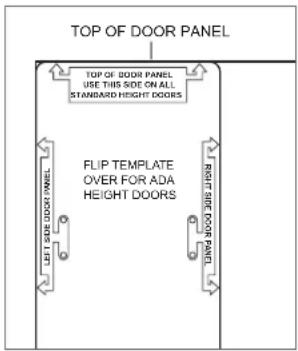

Door panel template

Use a Torx drive to partially insert a #8 x 1/2" screw into the second hole from the top on each side of the panel. The screws should be approximately 3/16" (4) proud of the panel and will support the weight of the panel during installation.

Align the support screws on the back of the panel with the slotted holes on both door mounting brackets. Refer to the illustration below. Opening the door slightly may help with alignment. Once the panel is supported by the screws, partially insert a #8 x 1/2" screw into the second hole from the bottom on each side of the panel, but do not tighten.

CAUTION

As reveals between cabinetry and the unit decrease, severe finger pinching can occur while the door is closing.

BACK OF PANEL

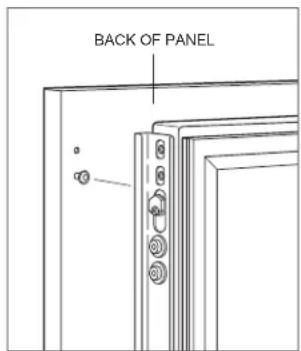

Door panel mounting

Panel Installation

DOOR PANEL ADJUSTMENT

Close the door. Make any necessary adjustments to align the panel and reveals.

For side-to-side adjustment, move the panel side to side, then install and tighten all mounting screws.

For up-and-down and in-and-out adjustments, slightly loosen the bracket screws. Depending on the level of adjustment required, it may be helpful to loosen all of the bracket screws which will allow for maximum adjustment.

Once the bracket screws are loosened, use a wrench to rotate the cams to make adjustments. After the adjustments have been made, tighten all bracket screws. Refer to the illustrations below.

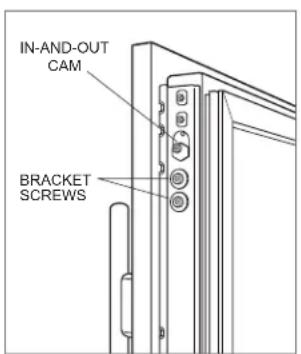

IN-AND-OUT CAM BRACKET SCREWS

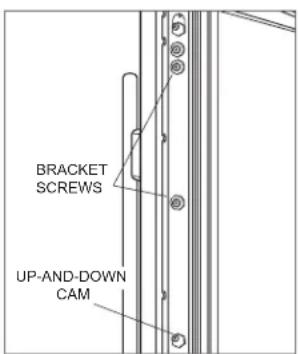

BRACKET SCREWS UP-AND-DOWN CAM

In-and-out adjustment Up-and-down adjustment

Completion

DOOR TRIM INSTALLATION

After the door panel has been adjusted, install the decorative side trim to the door. To install, start at the top and align the trim with the front and rear flanges on the bracket, then snap into place by pushing the trim toward the back of the panel. Once the top is secure, continue the installation downward until the remaining trim is completely secure. Refer to the illustration below.

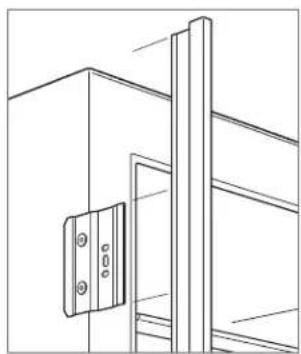

SIDE TRIM INSTALLATION

Install the decorative trim strip to the handle side of the unit. The side trim snaps over the brackets attached to the handle side of the unit. Refer to the illustration below.

Line drawing of a door mechanism with control buttons and a handle (no text or symbols)

Door side trim

Line drawing of a cabinet or cabinet with a door and mounting bracket (no text or symbols)

Unit side trim

KICKPLATE INSTALLATION

The kickplate must be removable for service. The floor cannot interfere with removal. Finger-tighten the adjustment bracket nuts. Refer to the illustration below. Make in-and-out adjustments, then wrench-tighten the bracket nuts. Install the kickplate with the provided screws.

A decorative kickplate can be attached to the factory-installed kickplate. The three rows of vented louvers cannot be covered. A decorative kickplate cannot be attached to the outdoor model.

To install a decorative kickplate, remove the paper backing from the magnets and attach the decorative kickplate to the magnets. The magnets allow the decorative kickplate to be removed if necessary.

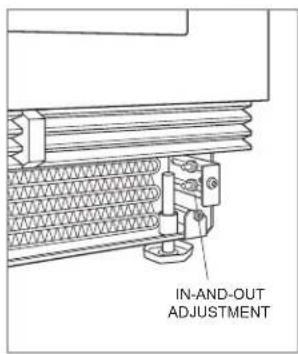

IN-AND-OUT ADJUSTMENT

Kickplate adjustment

MAGNET SCREW

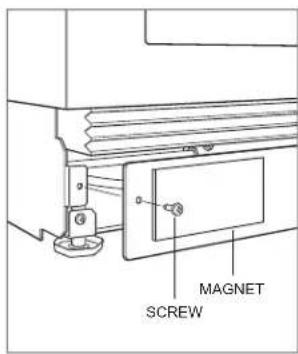

Kickplate installation

Completion

WARNING

Follow all city and state laws when storing, recycling, or discarding unused refrigerators and freezers.
