USER MANUAL CT470 Numatic

26A A26A 40A Original Instructions CAUTION, Read instructions before using the machine. The manufacturer's Original Radiation Reusability

Original Instructions

CAUTION, Read instructions before using the machine.

DRY PICK UP Instructions

UPHOLSTERY FLOOR TOOL Instructions

WET PICK UP Instructions

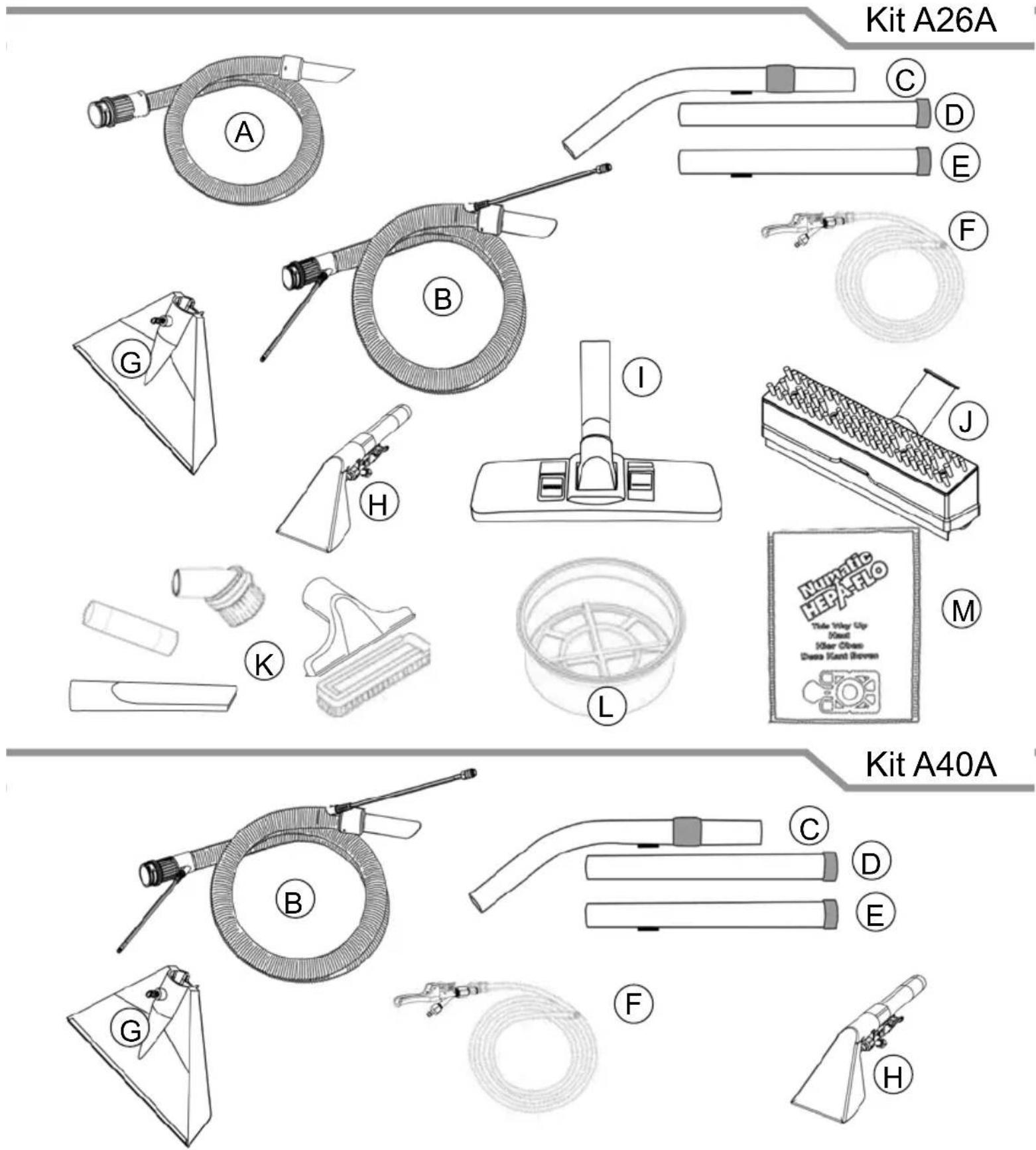

Kit A26A Kit A40A

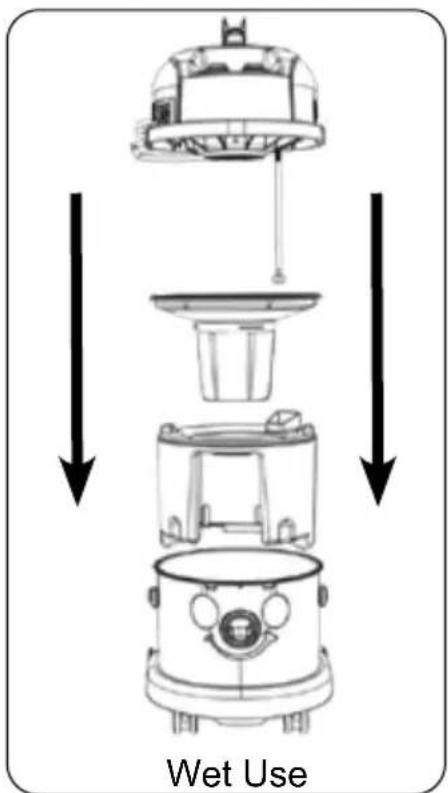

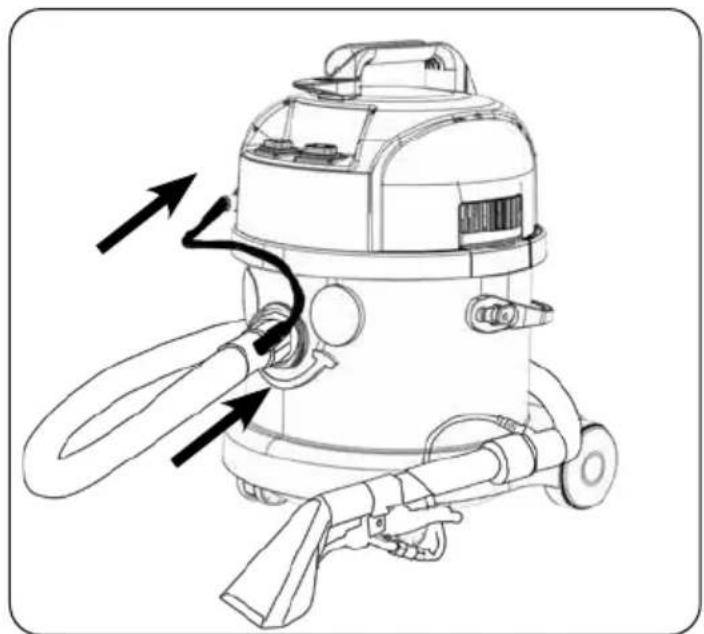

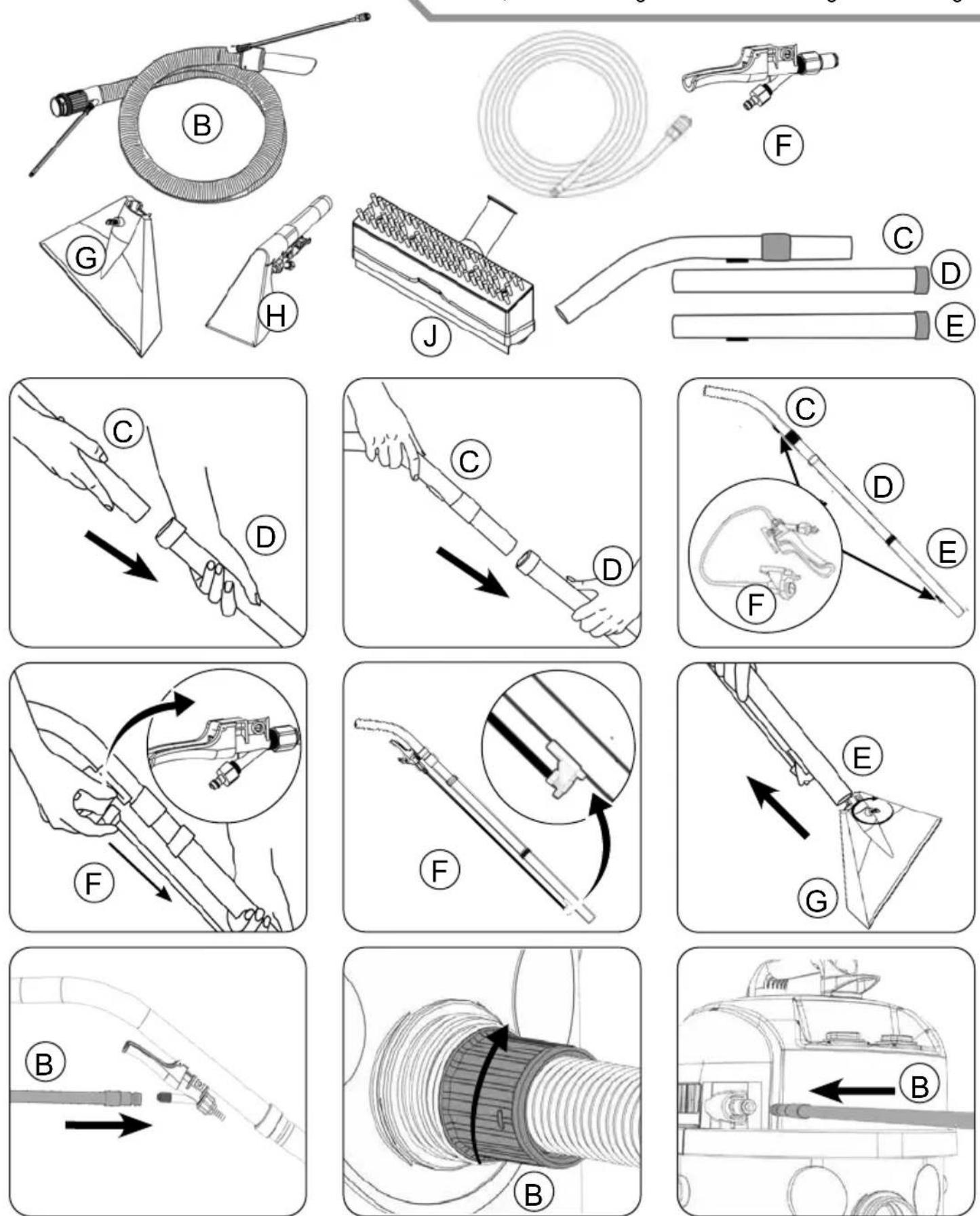

Wet / Assembling the machine for extraction use, Nass – Zusammenbau des Geräts vor der Extraktion, Humide - Montage de la machine pour l'extraction, Nat / De machine monteren voor extractie, A húmido/Montagem da máquina para utilização em extração, Umido/Assemblaggio dell'apparecchio per l'aspirazione, Húmedo: montaje de la máquina para uso de extracción, Na mokro / montaż urządzenia do użytkowania w celu czyszczenia natryskowego/zasysającego, Våt/montering av maskinen för extraheringsanvändning, Märkä / Koneen käyttöönotto vesi-imurointia ja painehuuhtelua varten, Våd / Samling af maskinen til brug med forlænger

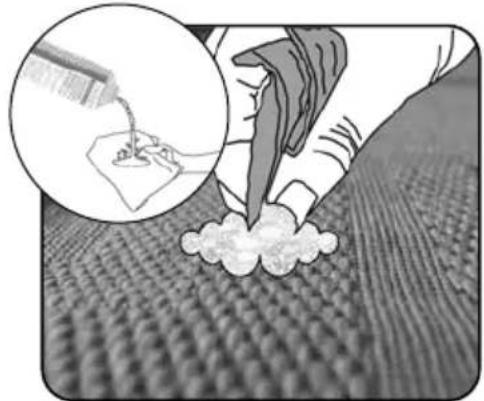

Illustration of a hand pouring liquid into a textured surface, with an inset showing the process (no text or symbols)

Black-and-white conceptual image showing a magnifying glass over granular material with an eye symbol and checkmark (no text or symbols present)

Black-and-white conceptual image showing an eye, a magnifying glass over granular material, and a large 'X' symbol (no text or symbols present)

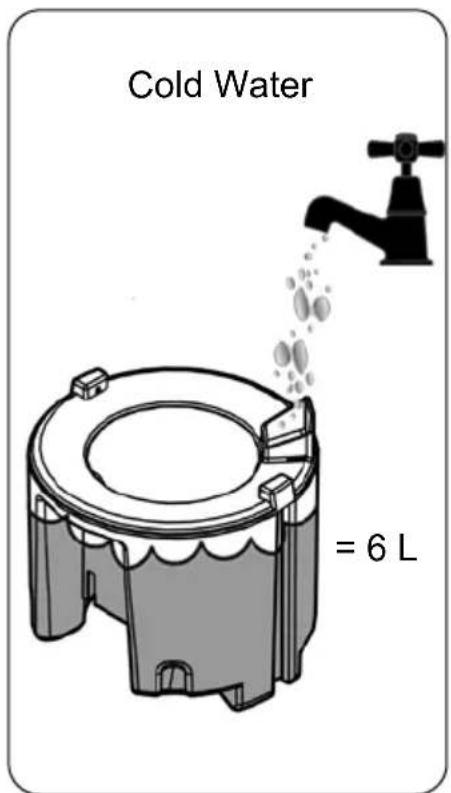

Cold Water = 6 L

Wet Use

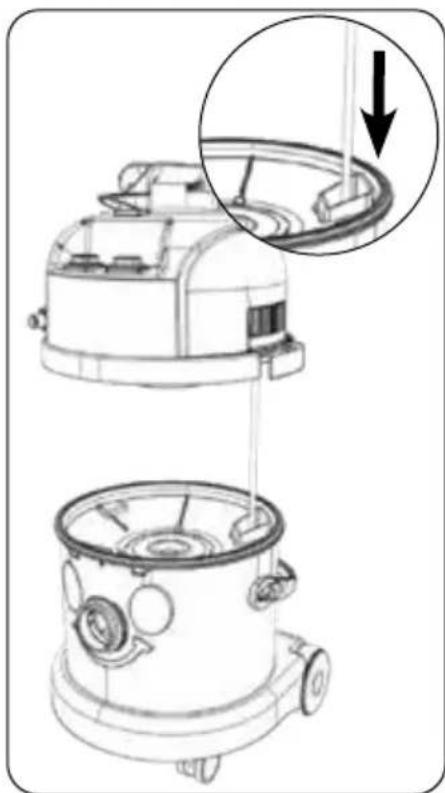

Technical line drawing of a vacuum cleaner with a magnified inset showing the component detail (no text or symbols)

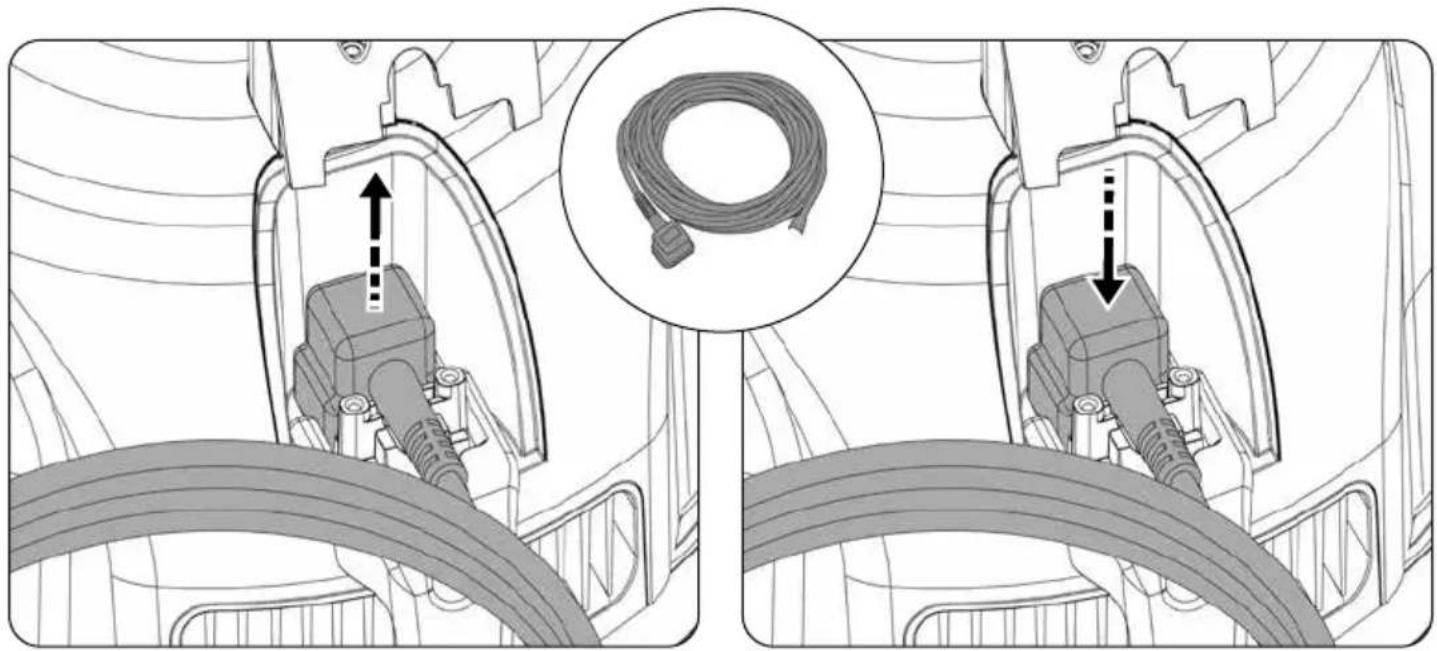

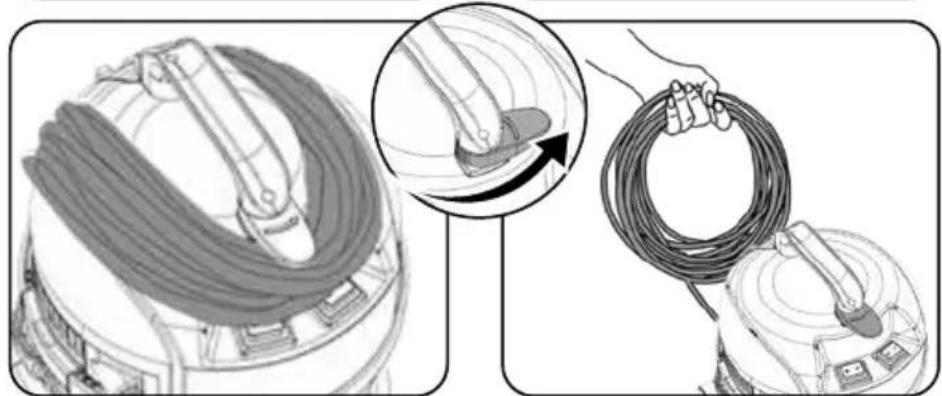

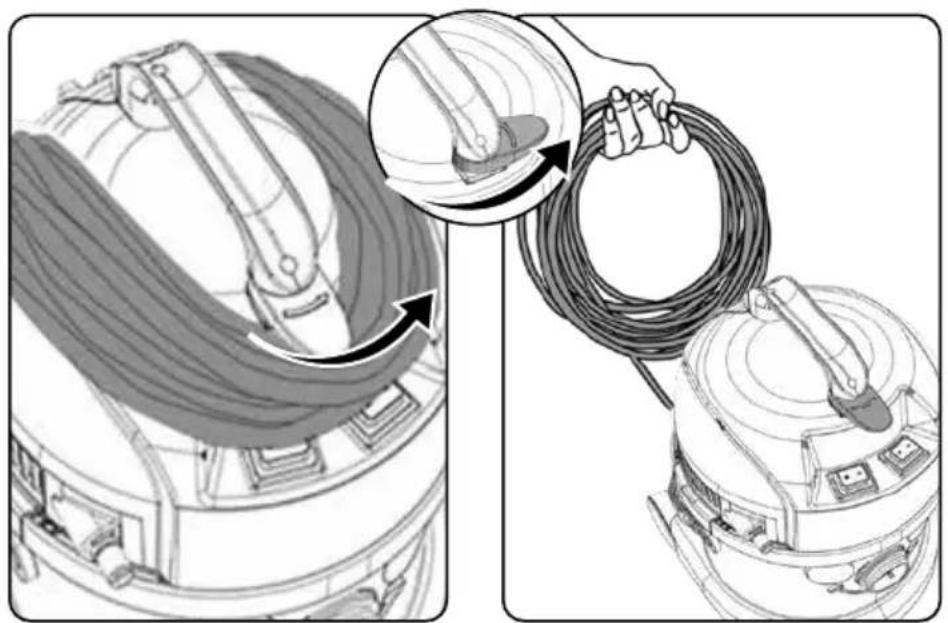

Illustration showing a hand holding a coiled cable and a device, with no visible text or symbols.

Line drawing of a person cleaning a large vacuum cleaner (no text or symbols present)

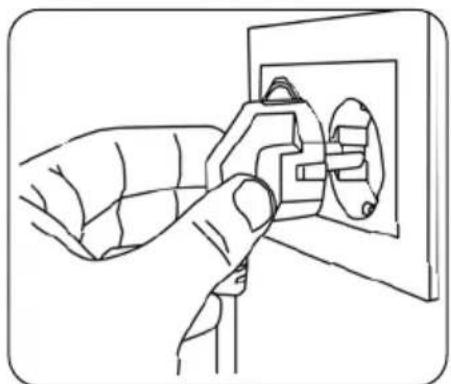

Line drawing of a hand inserting a plug into an electrical outlet (no text or symbols)

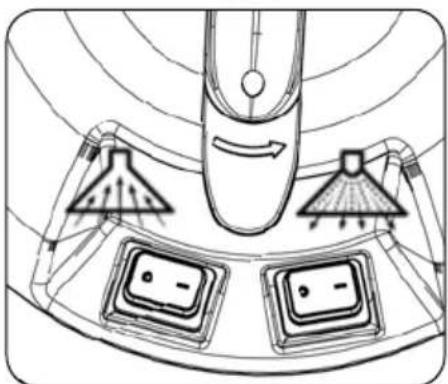

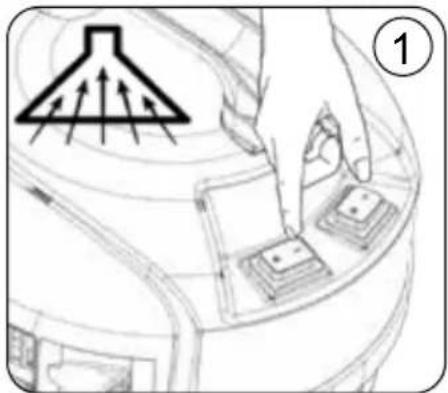

Diagram of a showerhead system with two square buttons and a central funnel (no text or labels)

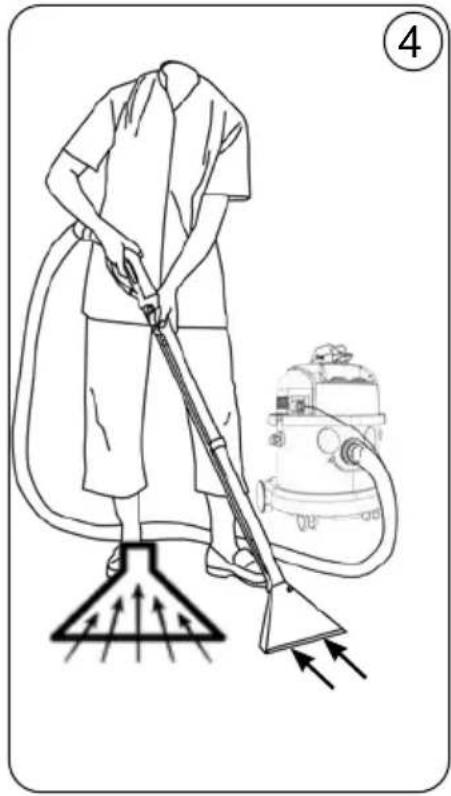

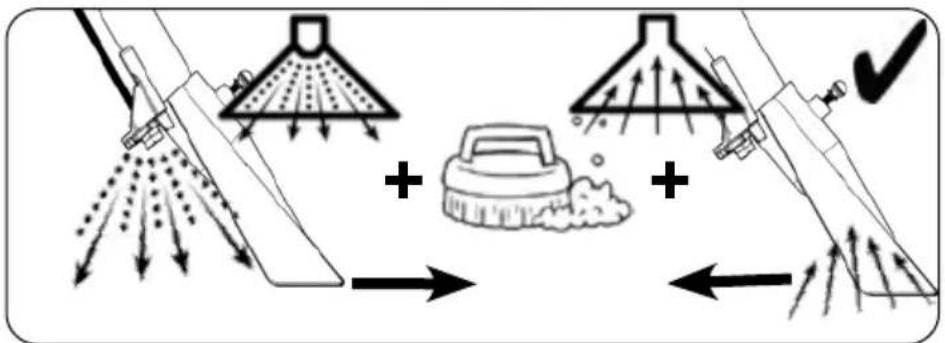

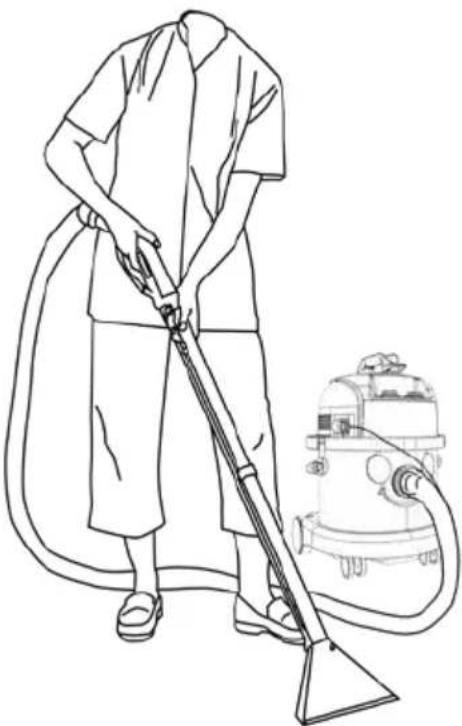

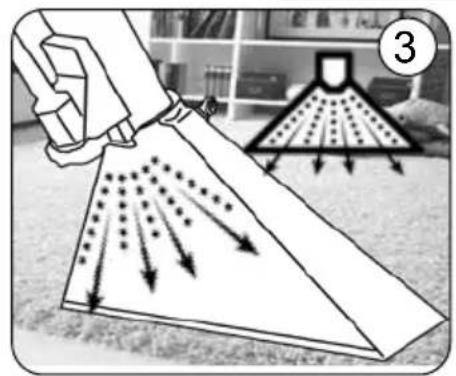

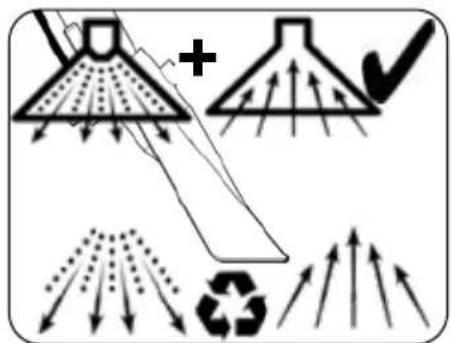

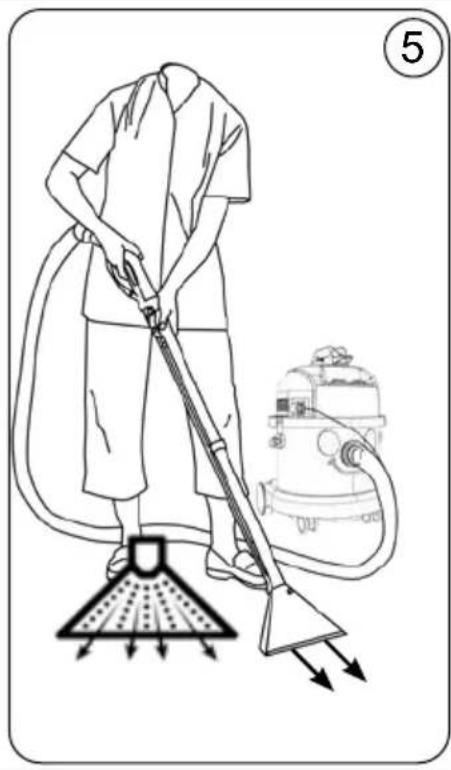

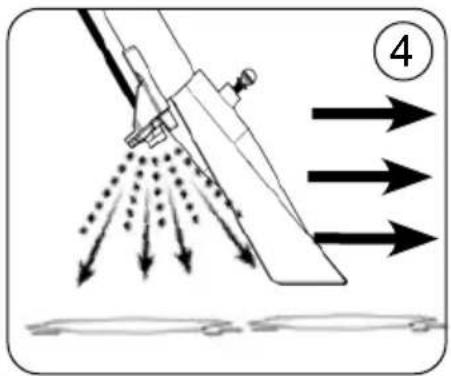

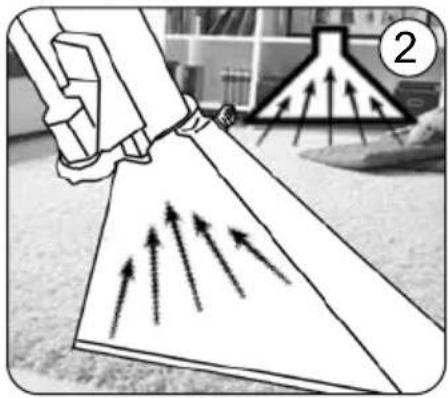

Carpet Cleaning, Teppichreinigung, Nettoyage des moquettes, Reinigen van tapijten, Limpeza de carpetes, Pulizia di tappeti, Limpieza de alfombras, Czyszczenie dywanów, Mattrengöring, Mattojen puhdistus, Tæpperens

Diagram showing a device with a triangular fan and labeled component, marked as figure 1

Diagram illustrating a hairdryer with arrows indicating light dispersion, labeled with number 3 in the corner.

Line drawing of a person cleaning a spray gun with a vacuum cleaner nearby (no text or symbols)

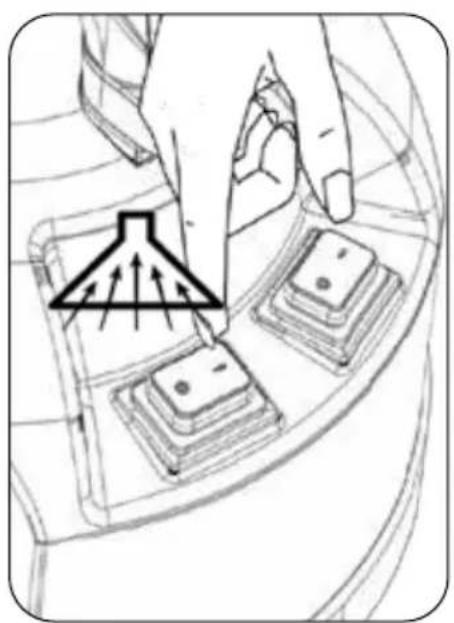

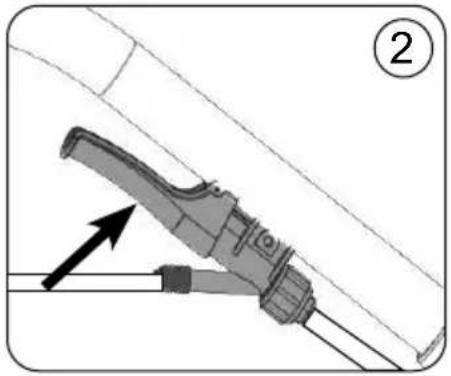

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

Diagram illustrating spray application with arrows and labeled parts, showing spray pattern and motion direction

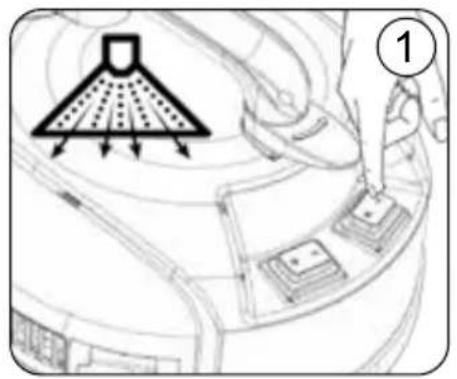

Diagram showing a hand pressing down on a device with a warning symbol and numbered label 1

Diagram of a mechanical device with directional arrows indicating motion or force, no text or symbols present

Line drawing of a person cleaning a spray gun with a vacuum cleaner nearby (no text or symbols)

Diagram illustrating a spray gun cutting through a surface with directional arrows, labeled with number 2

Diagram illustrating the process of cleaning a showerhead with spray and cleaning a brush, showing directional arrows and labeled components.

Diagram illustrating the impact of a showerhead on various environmental impacts, including radiation, dust removal, and recycling.

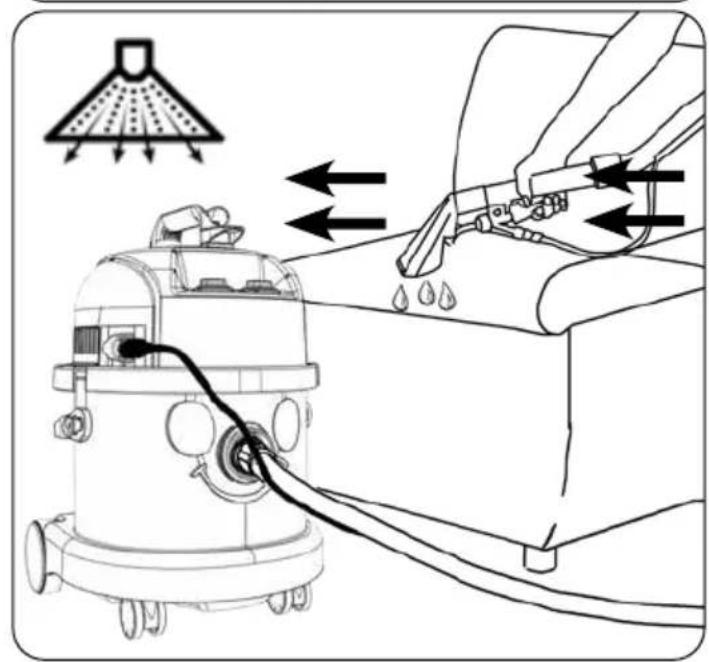

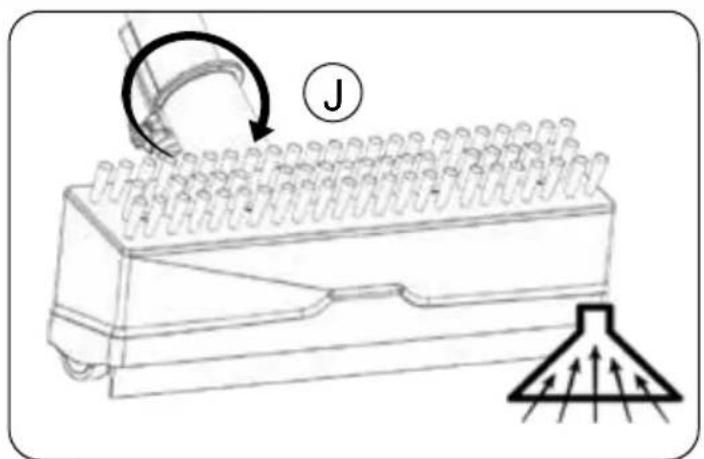

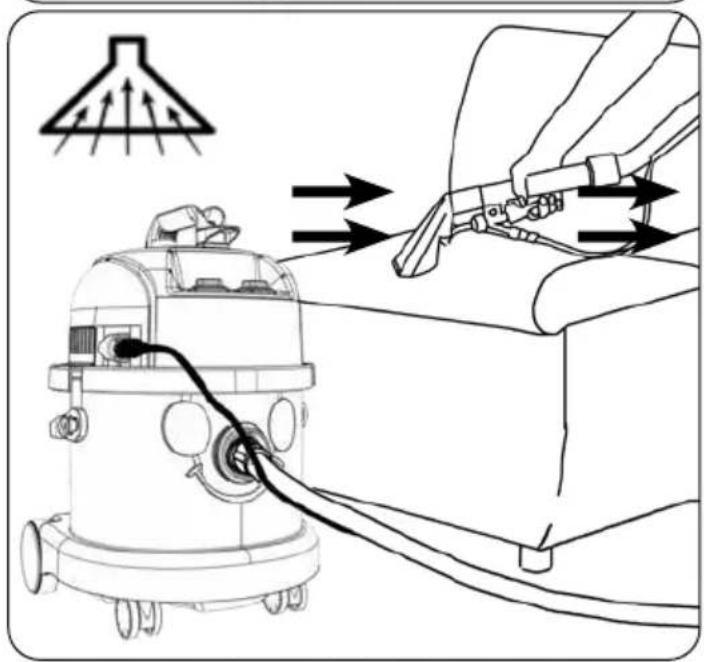

Upholstery Tool, Polsterdüse, Brosse à meubles, Bekleding handtool, Ferramenta para estofos, Attrezzo per tappezzeria, Accesorio para tapicerías, Ssawka do tapicerki, Verktyg för möbelklädsel, Verhoilutyökalu, Polstringsværktøj

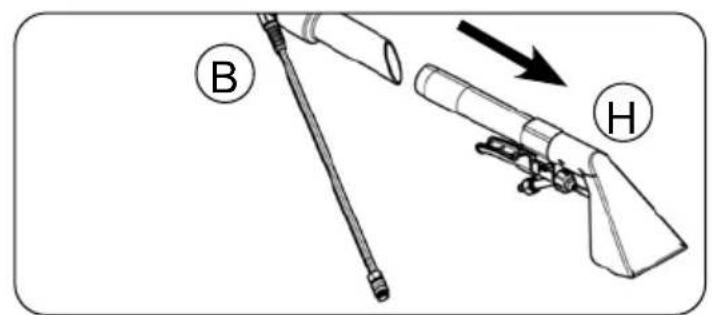

B H

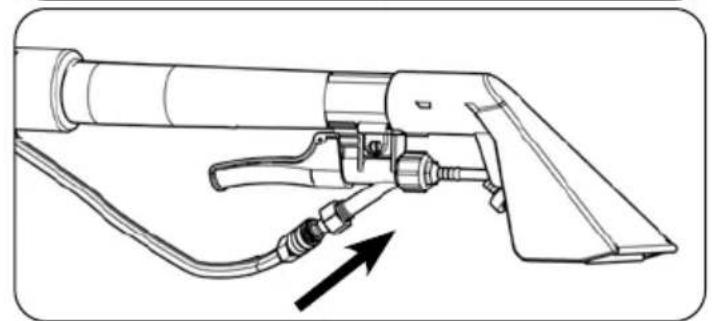

Technical line drawing of a mechanical device with hoses and a lever, showing no text or symbols

Diagram illustrating the procedure of a hair dryer with water spray and manual tool handling a device, accompanied by an illustrative diagram showing the showerhead and water droplets.

Line drawing of a vacuum cleaner with attached hose and belt, showing mechanical components and airflow direction (no text or symbols)

Diagram showing hair cleaning procedure with labeled components and directional arrows indicating flow or movement

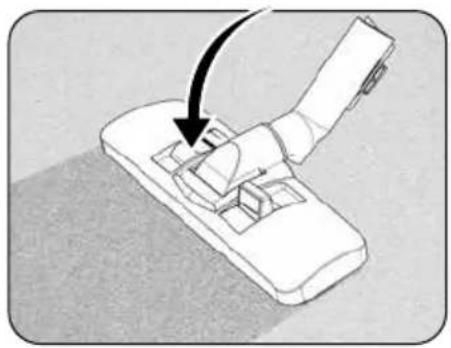

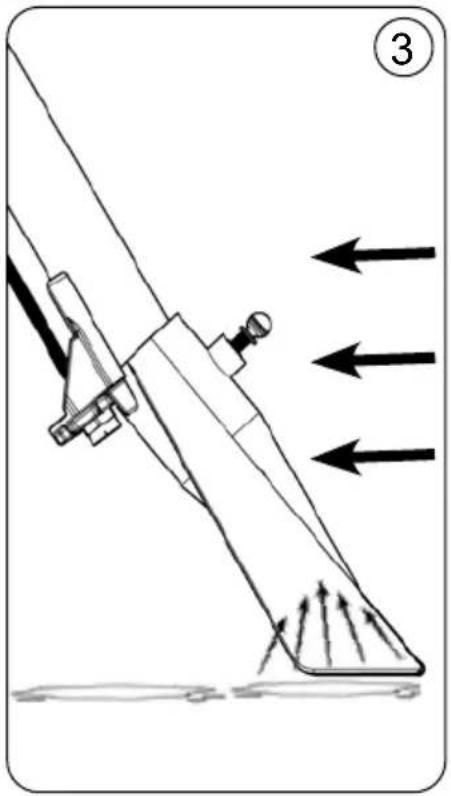

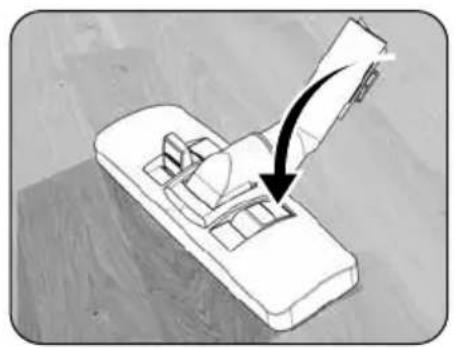

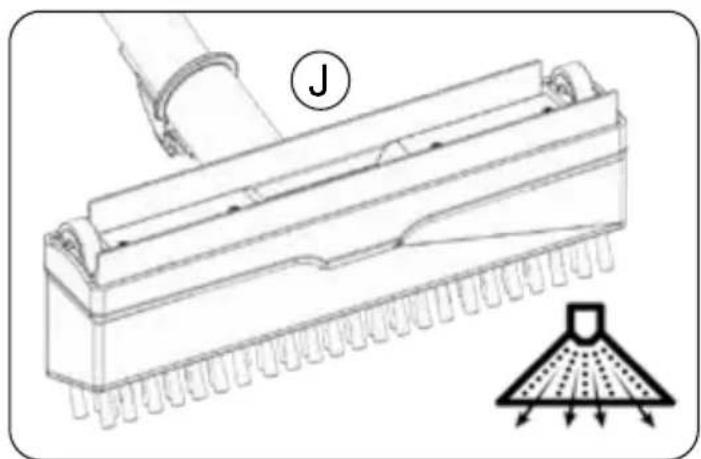

Hard Floor Cleaning, Hartbodenreinigung, Nettoyage de sols durs, Reinigen van harde vloeren, Limpeza de pavimentos duros, Pulizia di pavimenti duri, Limpieza de suelos, Czyszczenie twardych pokryć podłogowych, Rengöring av hårda golv, Kovien lattiapintojen puhdistus, Hårdt gulv

Technical line drawing of a mechanical component with a labeled section (J), showing internal structure and a schematic diagram below (no text or symbols)

Diagram illustrating a mechanical or fluid processing setup with labeled component J and directional arrows indicating flow or movement.

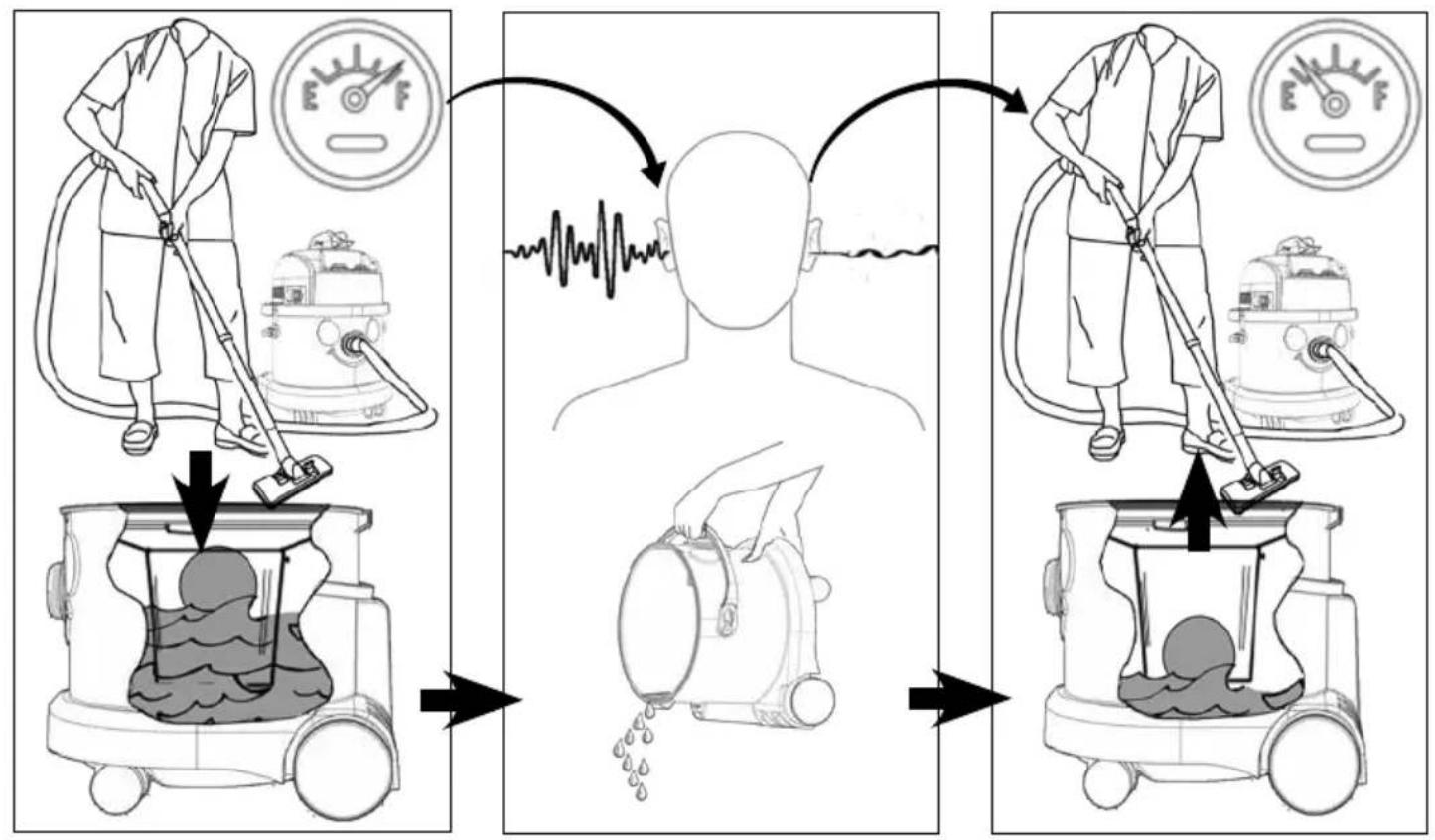

Emptying your machine, Entleeren des Geräts, Vidange de votre machine, Uw machine legen, Esvaziamento da máquina, Svuotamento dell'apparecchio, Vaciado de la máquina, Opróżnianie urządzenia, Tömma maskinen, Koneen tyhjentäminen, Tømning af maskinen

Cleaning the machine, Reinigung der Maschine, Nettoyage de la machine, De machine reinigen, Limpeza da máquina, Pulizia apparecchio, Limpieza de la máquina, Czyszczenie maszyny, Rengöra maskinen, Koneen puhdistus, Rengöring af maskinen

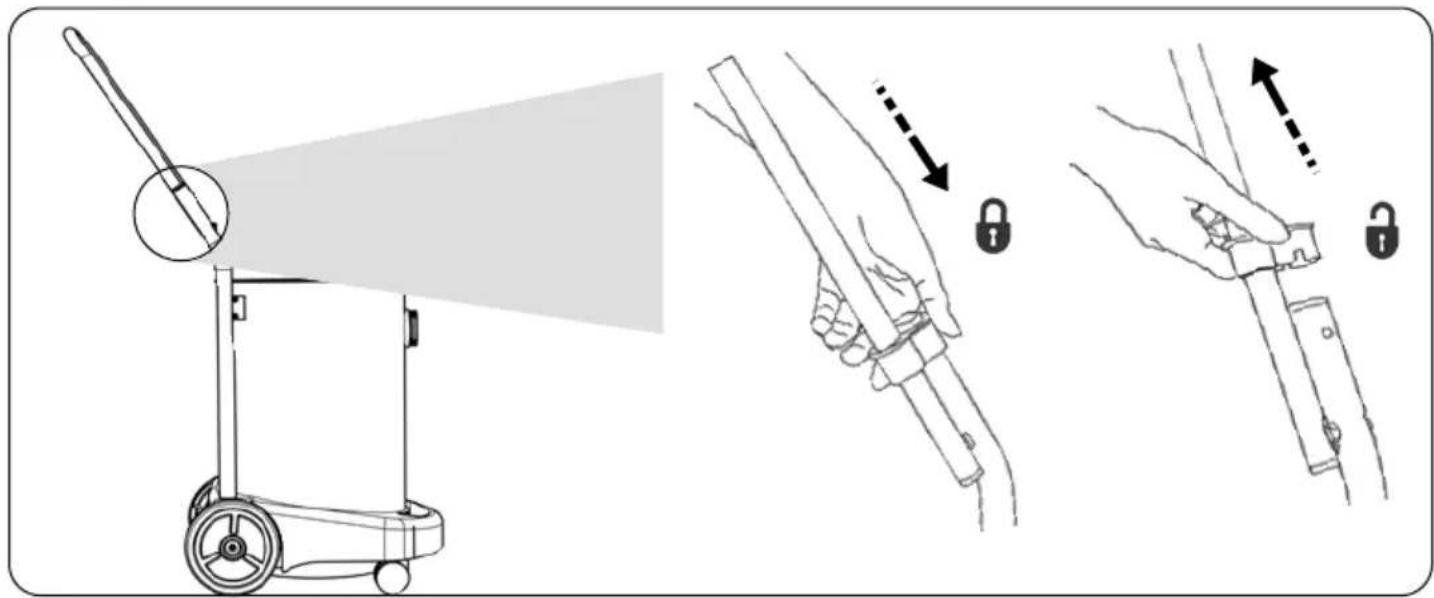

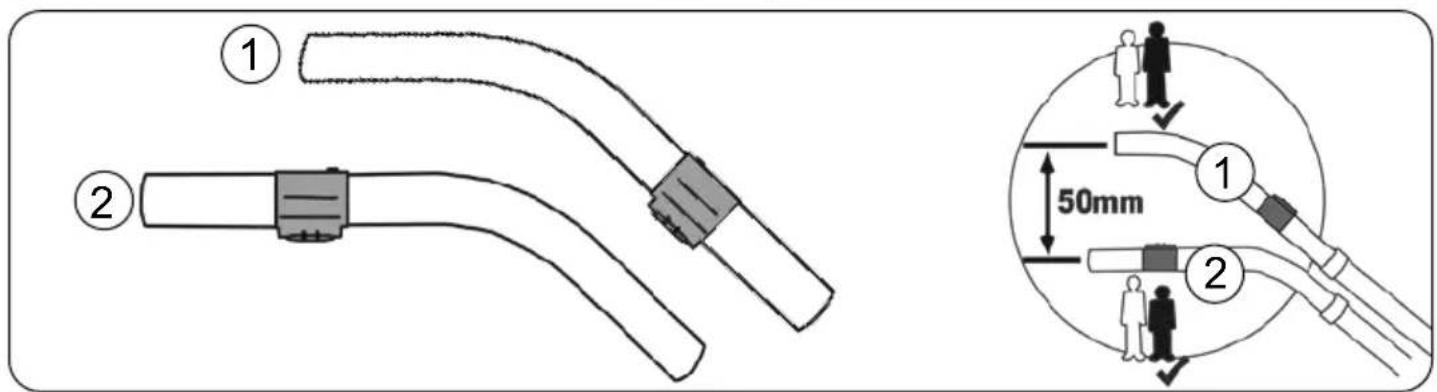

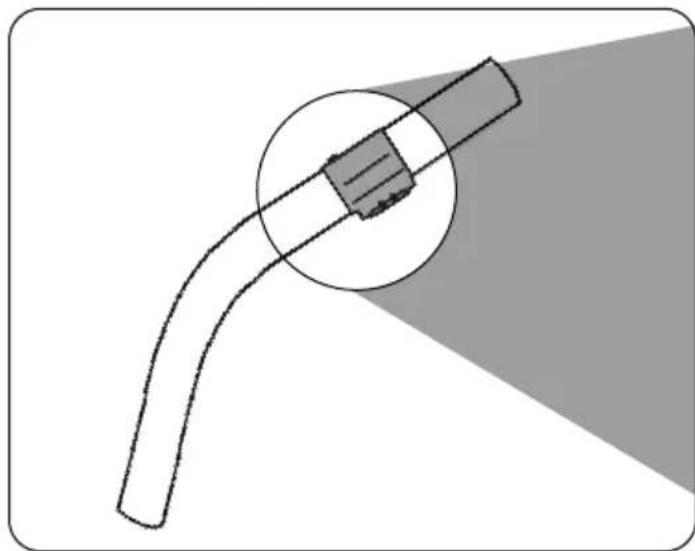

470 Handle Locking, 470 Griffverriegelung, 470 Verrouillage de la poignée, 470 Handvatvergrendeling, 470 Travamento do Punho, 470 Bloccaggio della maniglia, 470 Manija de bloqueo, 470 Blokada uchwytu, 470 Handtagslåsning, 470 Kahvan lukitus, 470 Händtagslås

Diagram illustrating three-step instructions for using a projector to adjust the lock mechanism, with labeled arrows and a magnified view.

Dry/Assembling the machine, Montage der Maschine, Montage de la machine, Machine samenstellen/opbouwen, Seco/Montagem da máquina. Montaggio, Ensamblaje, Na sucho / montaż urządzenia, Torr/Montering av maskinen, Kuiva / Koneen käyttöönotto, Tør / Samling af maskinen

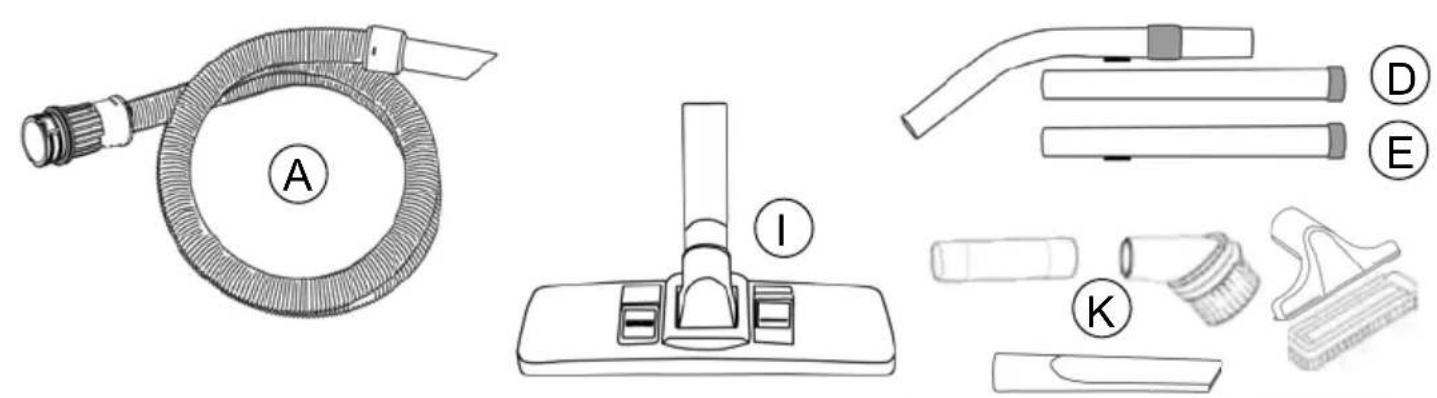

Technical diagram showing exploded view of a hair clip with labeled parts A, I, K, D, and E

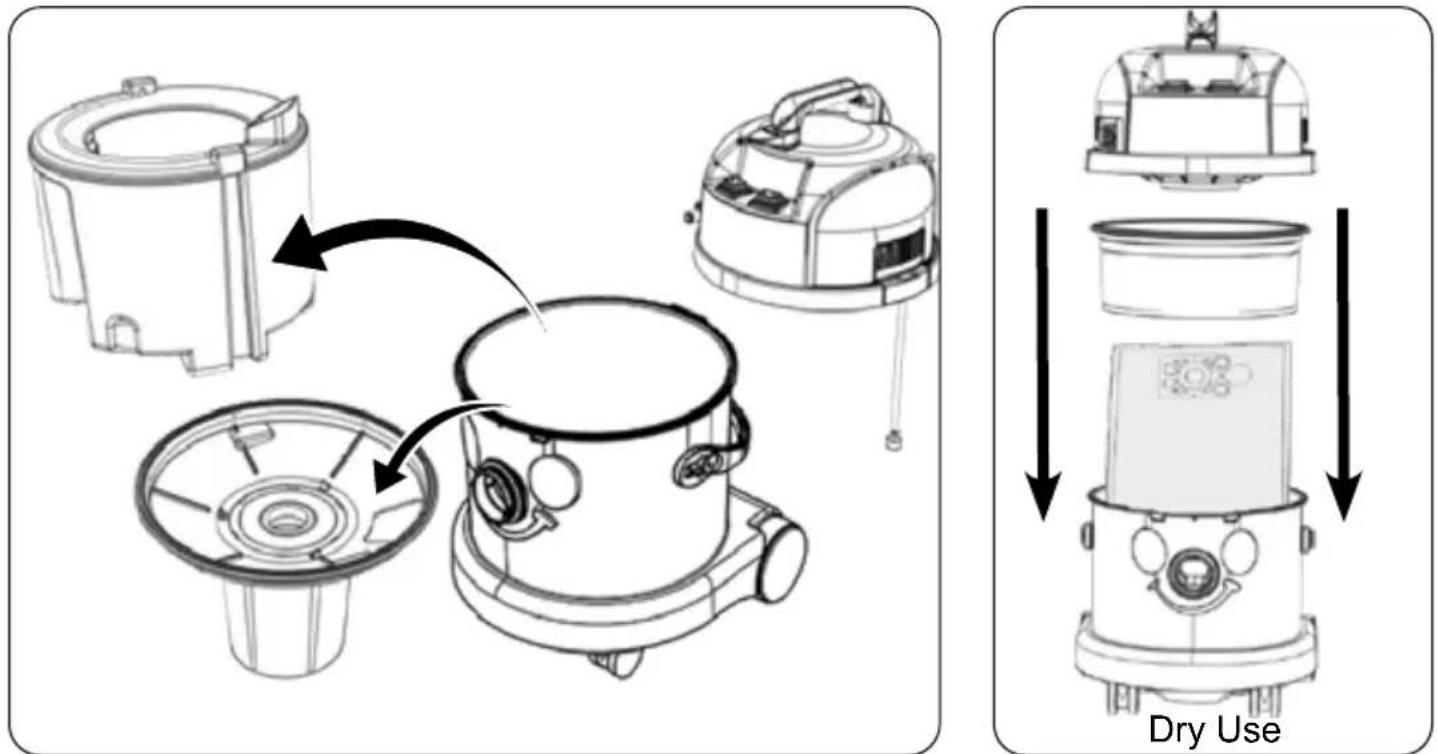

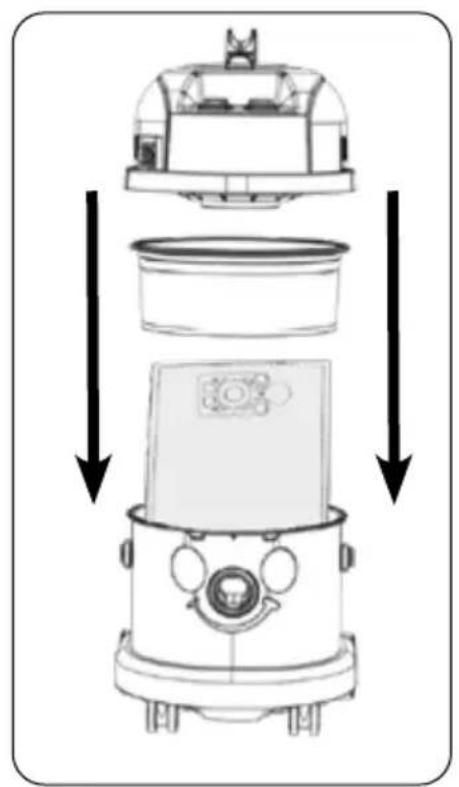

Dry Use

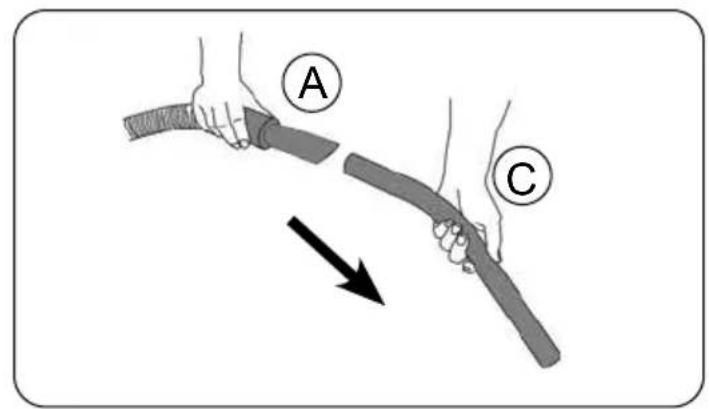

A C

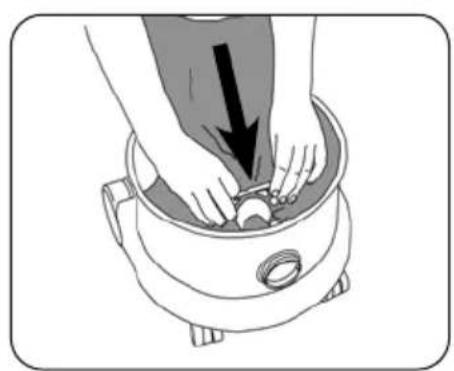

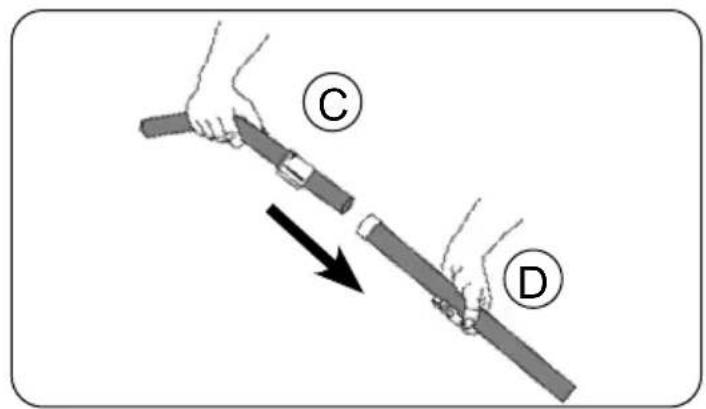

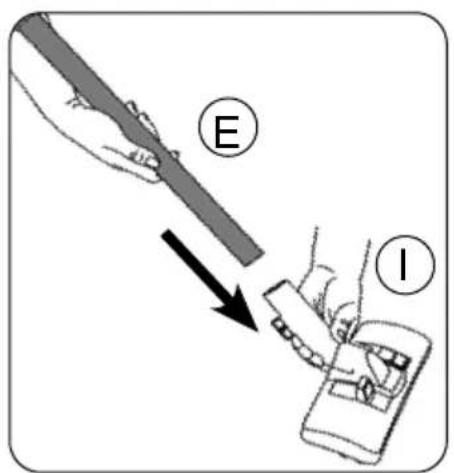

Diagram showing two hands holding a tool labeled C and D, with an arrow indicating direction of movement or change.

Technical diagram showing two pipe fittings with labeled components and a magnified inset illustrating 50mm width measurement.

E I

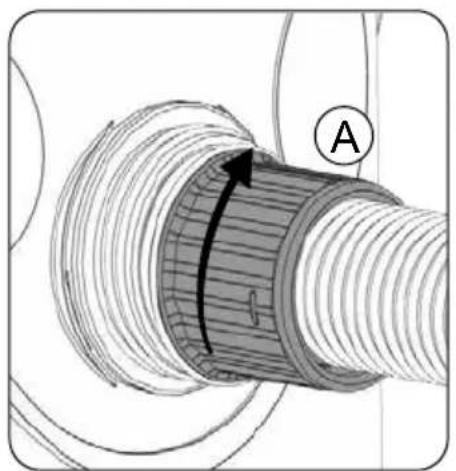

Technical diagram of a mechanical component with threaded ends and a labeled section (A), no readable text or symbols present.

Line drawing of a person cleaning a vacuum cleaner with a dust mask (no text or symbols)

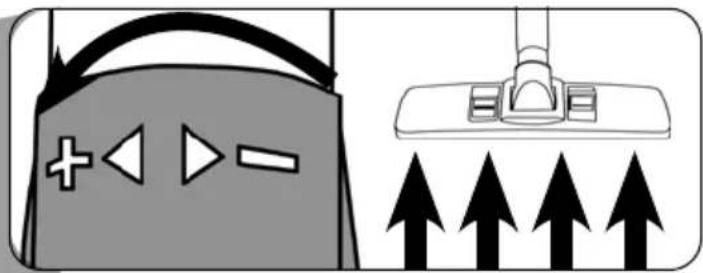

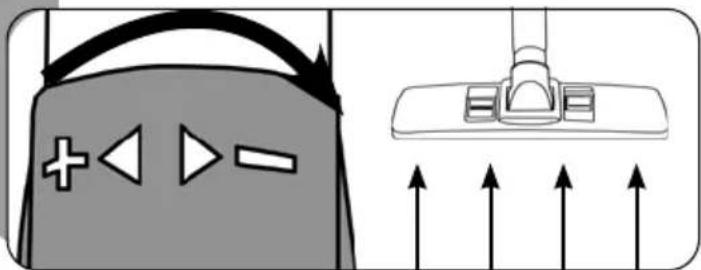

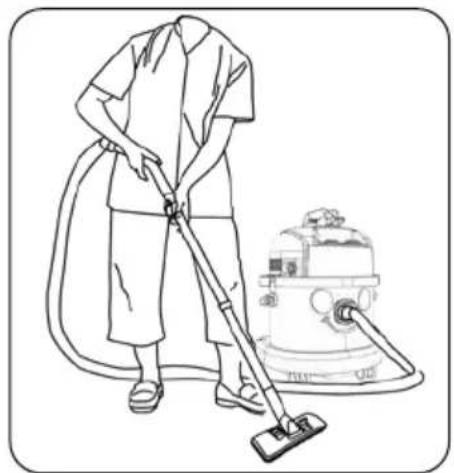

Dry/Using the machine, Arbeiten mit der Maschine, Utilisation de la machine, De machine gebruiken, Seco/Utilização da máquina, Uso dell'apparecchio, Utilización de la máquina, Na sucho / eksploatacja urządzenia, Torka/använda maskinen, Kuiva / Koneen käyttö, Tør drift

Illustration of a cable being handled with a hand, showing rope routing and mechanical components (no text or symbols)

Hand pressing down on a computer mouse with a triangular pointer and sound wave icons (no text or symbols)

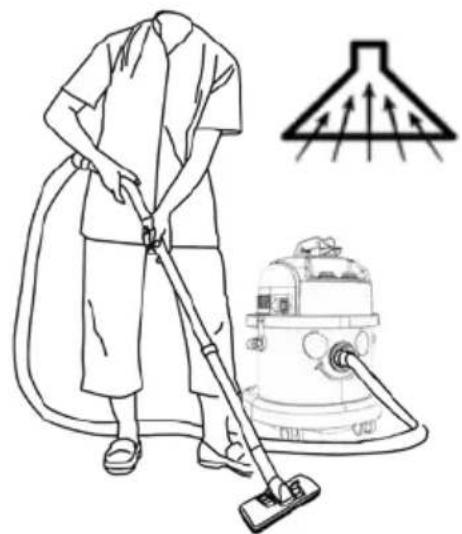

Line drawing of a person cleaning a vacuum cleaner with a dust flare symbol (no text or labels)

Diagram of a car interior with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a remote control device with a black arrow pointing to the handle (no text or symbols present)

Diagram of a curved pipe with a rectangular component inside, no text or symbols present

Diagram showing a bag with control buttons and directional arrows, and a cleaning or cleaning device with three upward arrows (no text or symbols)

Diagram showing a device with directional control buttons and an overhead device, illustrating navigation or system states.

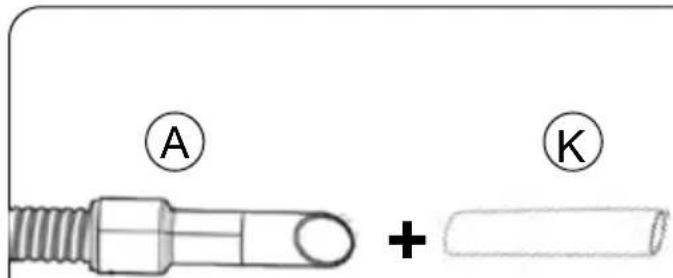

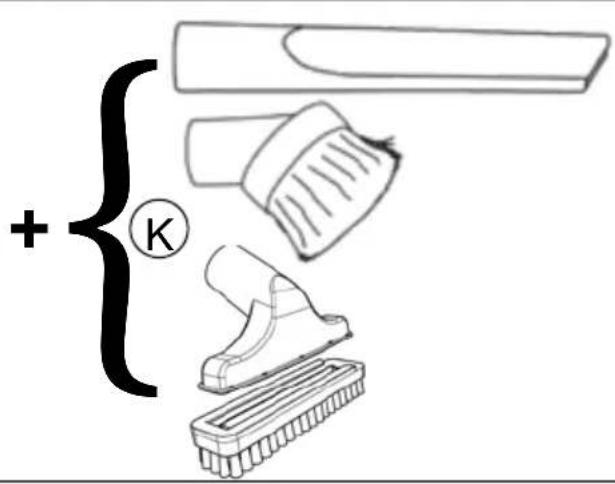

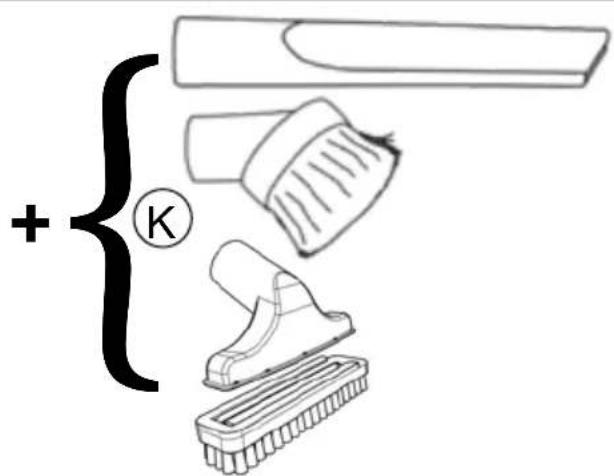

A + K

+ {K}

Simple line drawing of a cylindrical object with a labeled circle (E) at the top, no text or symbols present.

+ {K

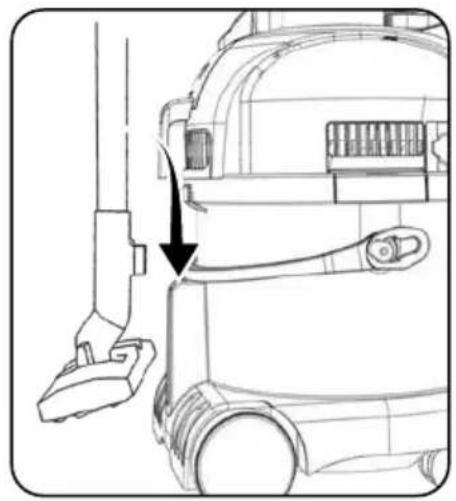

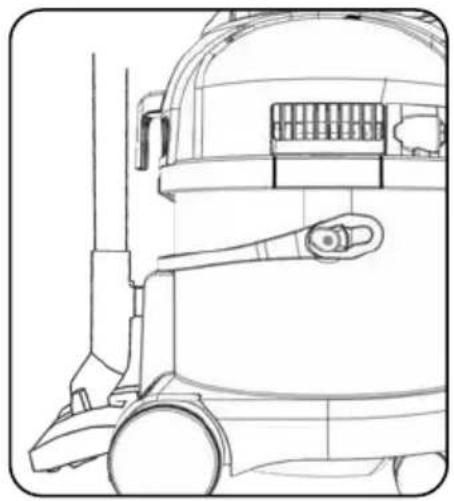

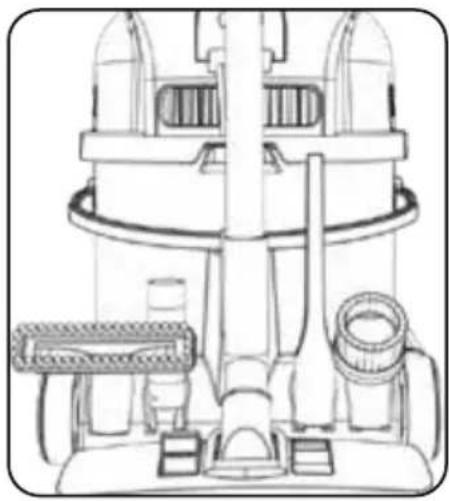

Wand Docking/Tool Tidy, Parkfunktion/Werkzeug in Ordnung, Système parcking/Rangement des accessoires, Parkeerstand/Accessoirehouder, Suporte do tubo/Arrumação das ferramentas, Inserzione asta/Strumento Tidy, Enganche de la tubería/Portaherramientas, Parkowanie sztywnej rury z ssawą/Zestaw narzędzi, Hänga fast munstycket /Verktygssats, Imuputken kiinnitysteline / Säilytyspussi, Rørholder/Værktøjsordner

Line drawing of a car interior showing a hand valve and seat, with an arrow indicating the direction (no text or symbols present)

Line drawing of a vacuum cleaner's side view showing front wheel, armrest, and control panel (no text or symbols)

Line drawing of a vacuum cleaner with attached circuit board and fan (no text or symbols)

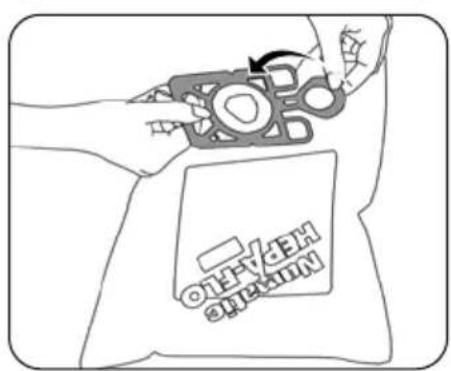

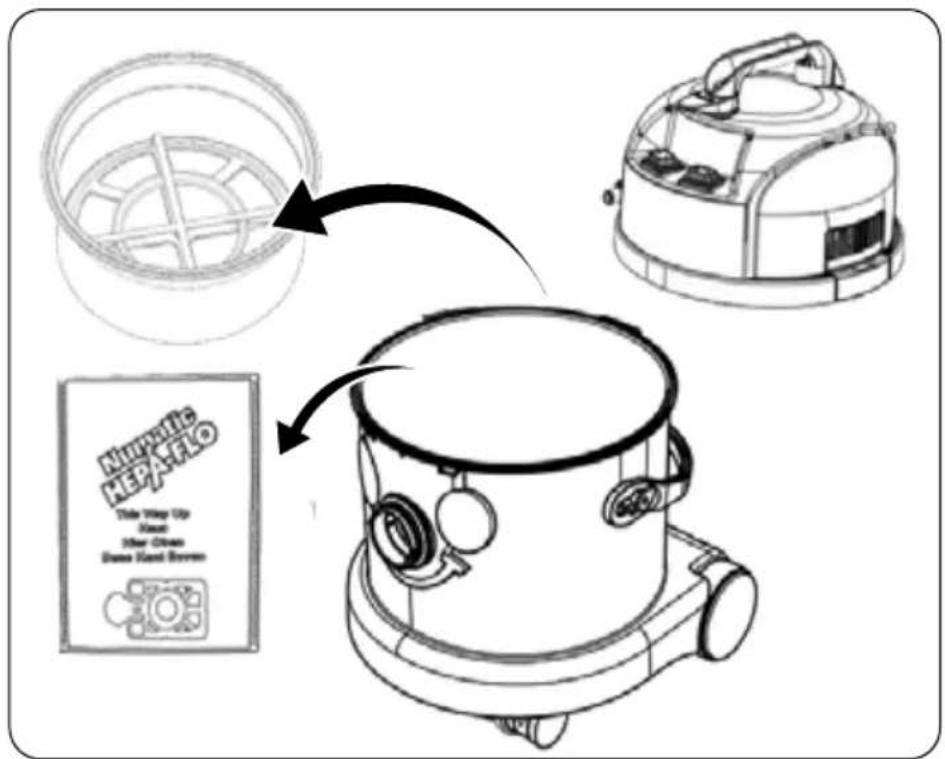

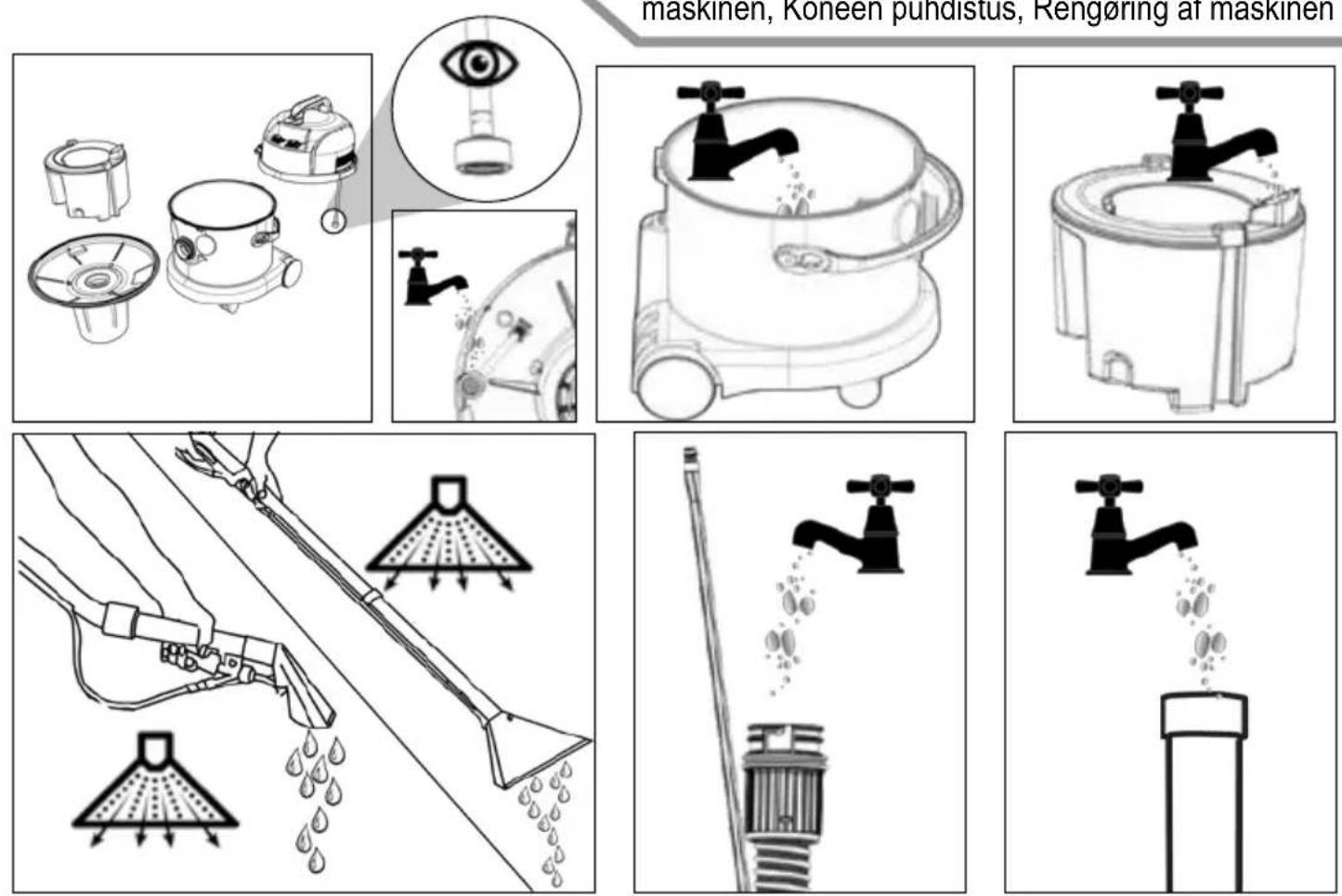

Cleaning the machine, Reinigung der Maschine, Nettoyage de la machine, De machine reinigen, Limpeza da máquina, Pulizia apparecchio, Limpieza de la máquina, Czyszczenie maszyny, Rengöra maskinen, Koneen puhdistus, Rengöring af maskinen

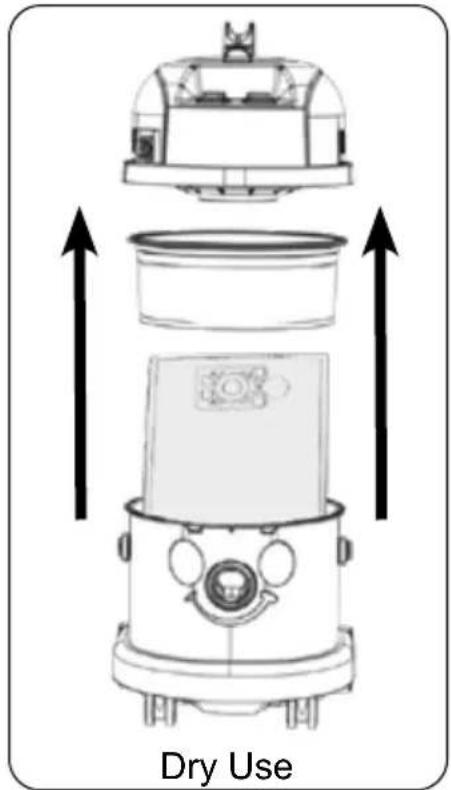

Dry Use

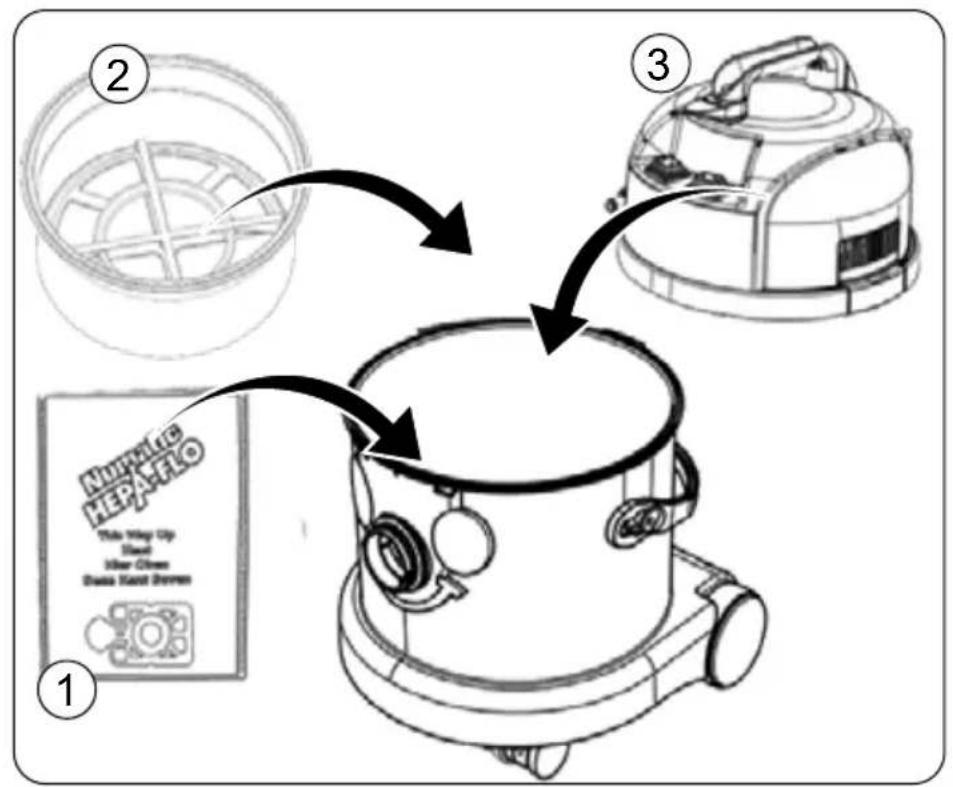

HePAFLO This Way Up Fast 30hr Clean Dance Good Brown

NEW REP ONLINE

Symbol of a person disposing of trash into a bin, enclosed in a circle (no text or numbers present)

Illustration of hands pouring liquid into a pot (no text or symbols)

Diagram of a vacuum cleaner with internal components and downward arrows indicating flow or assembly (no text or symbols)

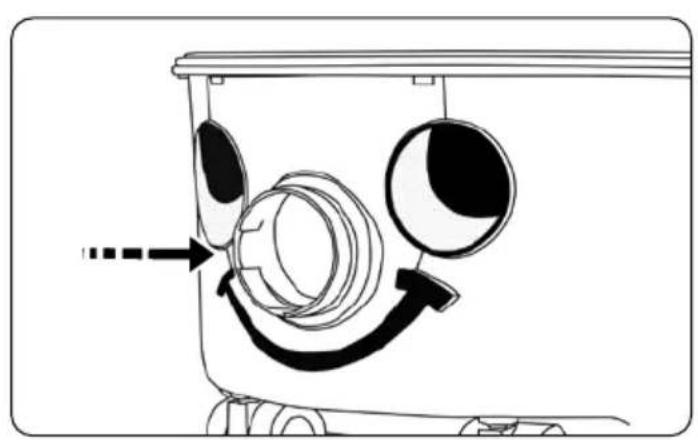

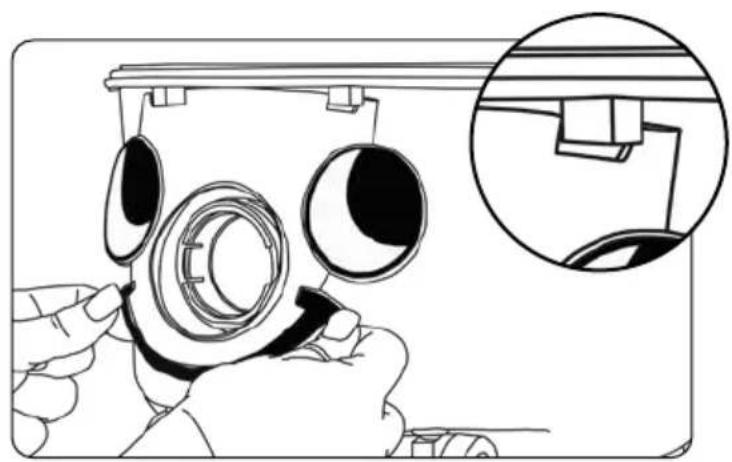

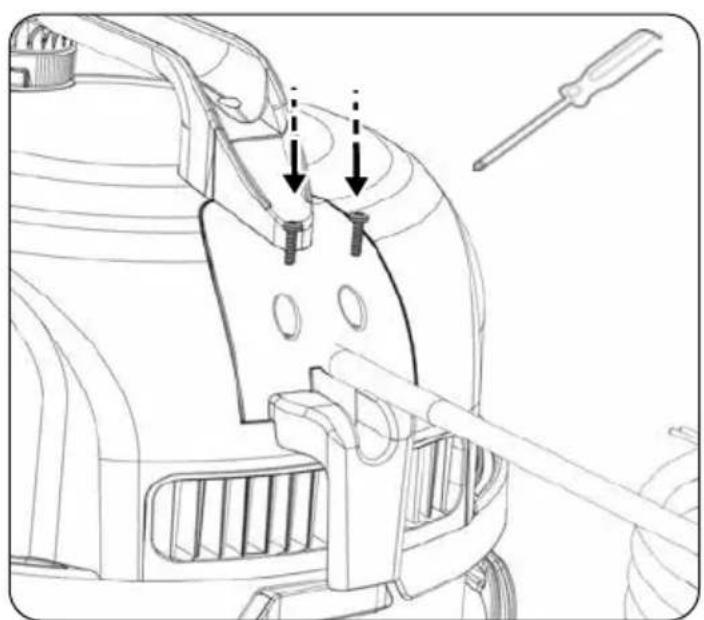

Fitting the Face, Aufstecken des Gesichts, Montage du visage, Het gezicht aanbrengen, Colocar a cara, Montaggio frontale, Montaje de la cara, Zakał danie obudowy, Montera ansiktet, Etupaneelin kokoaminen, Montering af hovedet

Illustration of a hand adjusting a mechanical component with an inset showing the detail of the assembly (no text or symbols present)

Illustration of a cartoon character with large eyes and a curved arrow, pointing to the ear (no text or symbols present)

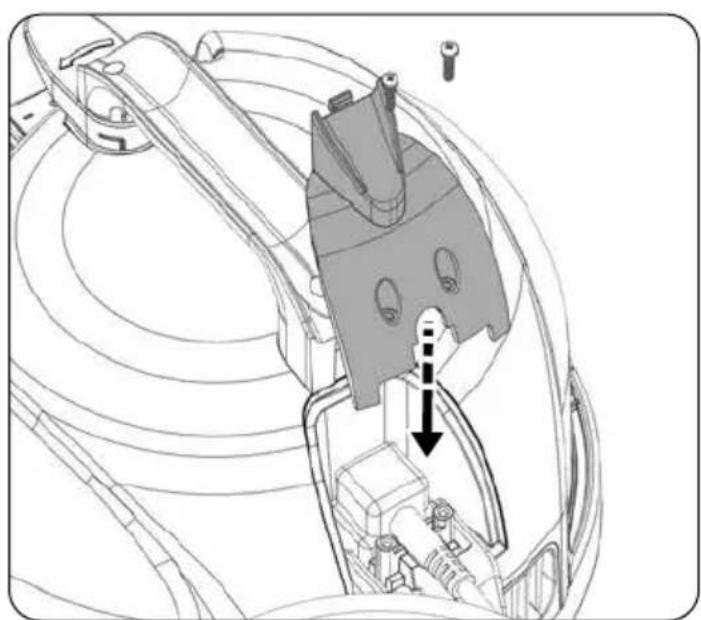

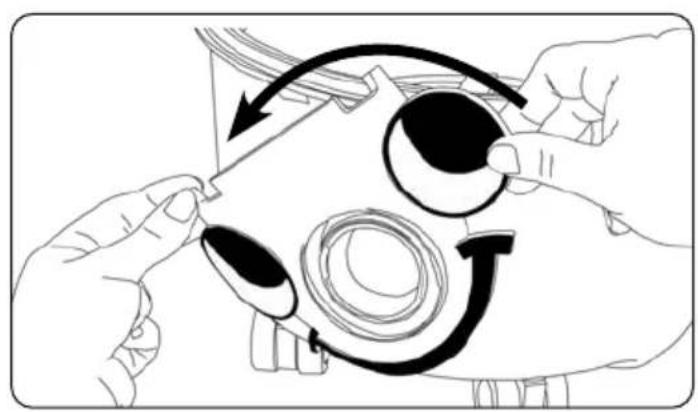

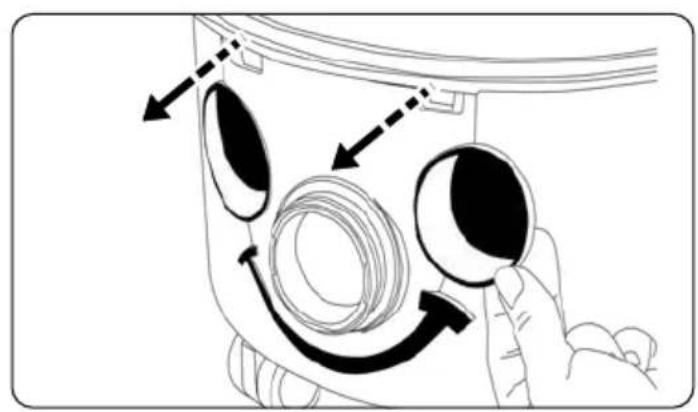

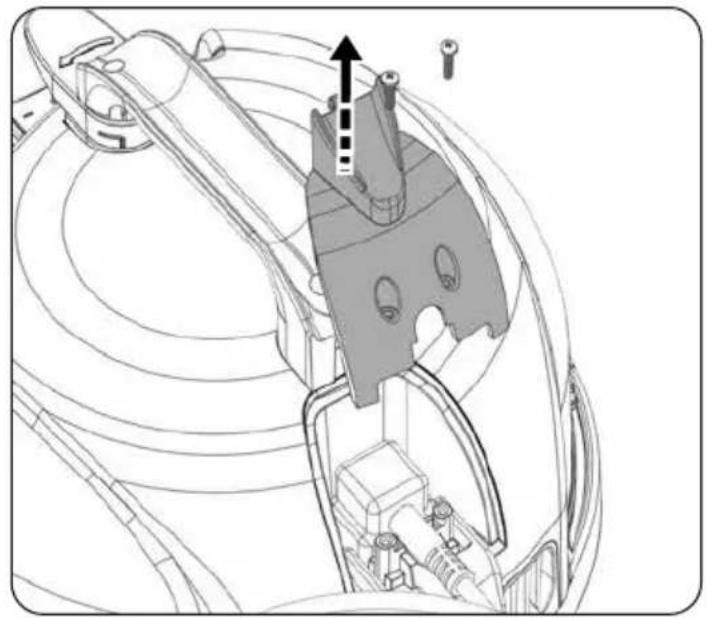

Removing the Face, Entfernen des Gesichts, Démontage du visage, Het gezicht verwijderen, Retirar a cara, Smontaggio frontale, Desmontaje de la cara, Zdejmowanie obudowy, Ta bort ansiktet, Etupaneelin irrottaminen, Afmontering af hovedet

Diagram of a device with eye control and rotation arrows, no text or symbols present

Illustration of hands adjusting a device with eye and spiral components (no text or symbols)

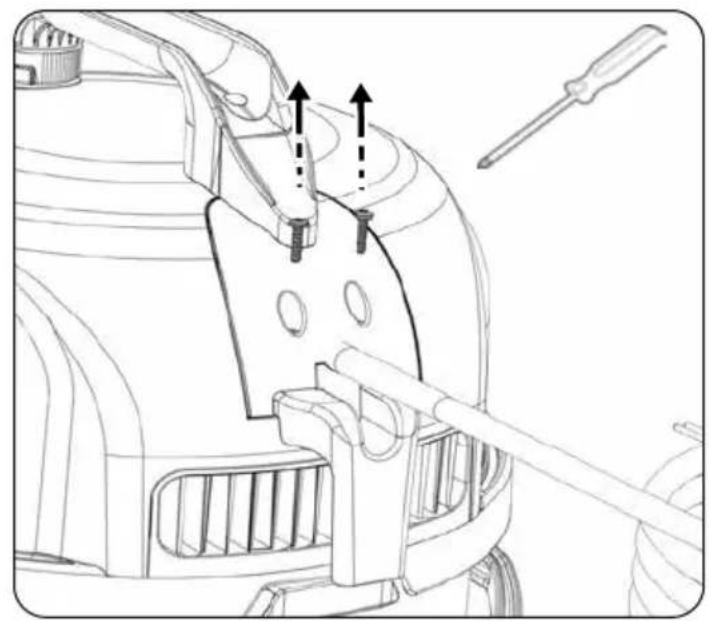

Technical line drawing of a car interior with screwdriver and tool, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing cable installation with two components and a magnified inset of the cable (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vehicle's internal components with screwdriver and adjustment arrows (no text or symbols)

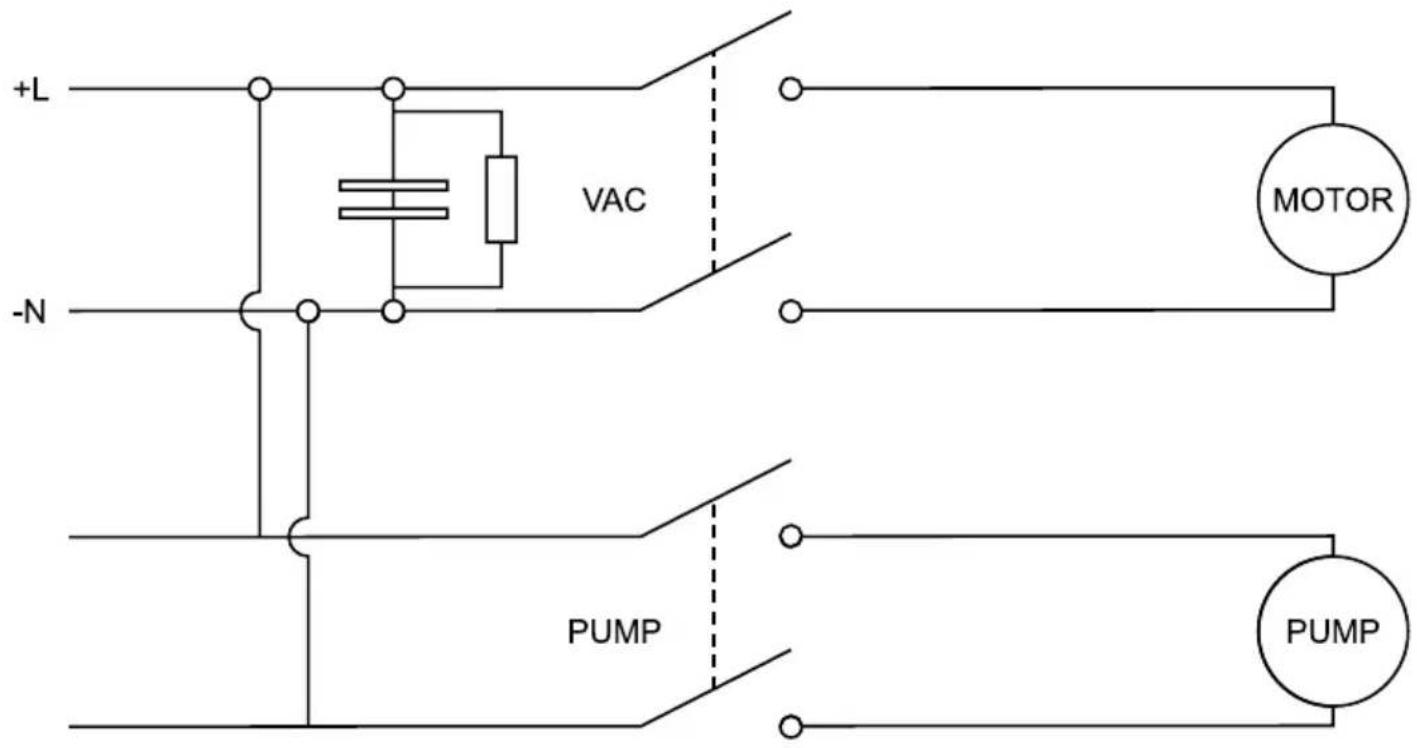

Schematic diagram, Schaltbild, Schéma, Principeschema, Diagrama esquemático, Schema apparecchio, Diagrama esquemático, Schemat ideowy, Schematiskt diagram, Kytkentäkaavio, Skematisk diagram

+L -V N VAC MOTOR PUMP PUMP

Spare Parts, Ersatzteile, Pièces détachées, Reserveonderdelen, Peças sobressalentes, Parti di ricambio, Repuestos, Części zamienne, Reservdelar, Varaosat, Reservedele

604016 3	70 / 380 (NVM 2BH) Pack of 10 bags
604018 4	70 (NVM 3AH) Pck of 10 bags
604165 TriTex Filter
236013 Plugged Cable (European)

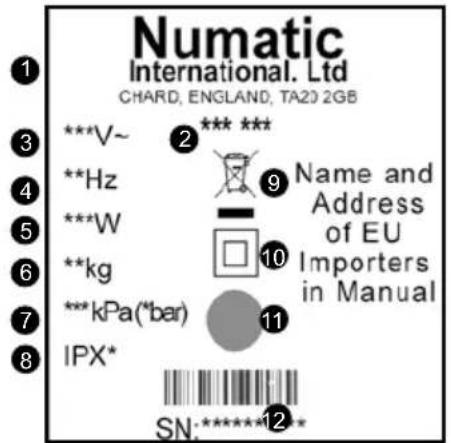

1 Company Name & Address

2 Model

3 Voltage/Alternating Current

4 Frequency

5 Rated Input Power

6 Weight

7 MAX Pressure

8 Ingress Protection

9 WEEE Logo

10 Protection Class 2 Symbol

11 Approval Mark

12 Machine yr/wk Serial Number

Rating Label

Numatic International. Ltd CHARD, ENGLAND, TA2D 2GB ***V~ **Hz ***W **kg ***kPa(*bar) IPX* SN:*****12*

WEEE Legislation (Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmentally - friendly recycling.

(Only for UK & EU Countries) Do not dispose of vacuum cleaner into household waste! According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally - friendly manner.

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

PPE (personal protective equipment) That may be required for certain operations.
Ear Protection Safety	Footwear Head Protection Safety Gloves
Eye Protection Protective Clothing		Dust / Allergens Protection	Hi Viz Jacket Caution	Floor Sign
Note: A risk assessment should be conducted to determine which PPE should be worn.

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone]

Daily

Keep the machine clean, including hoses and tubes.

Ensure the bag and fi lter are fi tted, (Dry use).

Empty dust bag if required.

Clean and check float safety valve for signs of damage.

Regularly examine the power cord.

Check filters are clean.

Weekly - as daily and:-

Check for any worn or damaged parts and replace immediately.

Mains leads:

WARNING

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

As with all electrical equipment, care and attention must be exercised at all times during use, in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

The machine shall be disconnected from the mains by removing the plug from the power supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not a toy.

This machine is not suitable for picking up hazardous or explosive dust. Contact your local distributor if you require a machine capable of performing these tasks.

If foam/liquid comes out of machine exhaust, switch off immediately. Allow the accumulated liquid to drain out through the machine exhaust, check the float assembly to ensure correct operation, empty the container if full of liquid, reassemble the machine.

Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head. This will be quickly discharged after which the machine should function normally.

Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content.

CAUTION

Ensure that the fi ltration system fi tted to the machine is suitable for the material being collected.

Clean the water level limiting device regularly and examine it for signs of damage.

This machine is for indoor use only.

This machine shall be stored indoors only.

Wet fi Iters and the interior part of the liquid container shall be dried before storage

When moving from one place to another, consider the weight of the machine.

NOTES

You must ensure that the fi ltration system fi tted to the machine is suitable for the material being collected.

This product complies with the requirements of IEC/EN 60335-2-68.

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 for Stability and Mechanical Hazards.

This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses.

If the vacuum cleaner stops working, remove the plug from the power supply before investigating where the fault lies.

The vacuum cleaner should be inspected after use for damage.

The power light will illuminate, when your machine is connected to a suitable power supply (where fitted).

DO

• Use a bag and filter at all times when using the 'dry' function
• Keep your machine clean
• Keep filters clean
• Regularly clean the water level limiting float safety valve and examine for signs of damage or correct operation
• Keep hoses and tubes clear
• Replace any worn or damaged parts immediately • Regularly examine the power cord, if damage is found, the power cord must be replaced by a special cord available from Numatic or its service agents • Regularly examine the power cord. If the supply cord is damaged, it must be replaced by the Numatic International Ltd, its service agent or similarly qualified persons in order to avoid a hazard • Fill the liquid reservoir only with the liquid recommended by the manufacturer
• Flush the system with clean water after use
• After use always inspect the machine for damage.

DON'T

• Use steam cleaners or pressure washers to clean the machine or use the machine in the rain • Immerse in water for cleaning
• Allow any inexperienced repairs. Call the experts - Use wet if float valve is not functioning or fitted
• Use to suck up hot ashes, or lighted cigarette ends
• Run the machine over the power cable during operation as a hazard may occur
• Pull on the cable to unplug the machine from the power supply • Walk over-wet carpets, upholstery or fabrics
• Walk on clean carpets until fully dry - Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet - Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top filter of the machine. Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty.

This machine can be used for dry pick up, wet pick up and cleaning carpet and upholstery

Spray extraction machines only

• Use only approved cleaning preparations.
• Use defoamer if necessary.

Use of detergents

When using any detergent with this machine, please ensure you have read the safety data on the container and you are familiar with the procedures to clear up spills, inhalation, skin and eye contact.

Fault Finding

If the vacuum cleaner stops working switch off and remove the plug from the power supply before investigating were the fault lies.

Mode	Fault Investigation	Action Action
Dry Mode	Vacuum will not pick up any debris	Inspect Floor Tool, wand and hose for blockages	Remove blockages
		Check if the dust bag is full	Follow instruction on how to replace the bag (page 11-12)
		Check to see if filter is blocked	Follow instruction on how to replace the filter (page 11-12)
Wet Mode	Vacuum will not pick up liquid	Inspect Floor Tool, wand and hose for blockages	Remove blockages
		Float Valve has operated (Pitch of motor has changed)	Follow instructions on how to empty dirty water (page 7)
	Vacuum stops spraying water/solution	Check to see if spray nozzle is blocked	Clear blockage with a pin
		Check water/solution level (pitch of motor has changed)	Follow Instructions on how to refill the solution tank (page 4)

Machine Data

Motor AirFlo Suction Cleaning Range Class
1000W 49	L/sec 2400mm	26.8m II
Capacity Dry	Capacity Wet	Solution Tank	Size (mm)	Sound Pressure (LpA) Uncertainty (KpA)	Weight
370: 15 L	370: 9 L	370: 6 L	370: 360x370x510	78.6 dB (A) (Dry)	370: 11 kg
380: 15 L	380: 9 L	380: 6 L	380: 360x370x510	78.7 dB (A) (Wet)	380: 11 kg
470: 27 L	470: 20 L	470: 15 L	470: 360x370x710	0.5 dB	470: 12 kg

Spray extraction machines only

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Snoer:

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

UKCA Declaration of Conformity
Manufacturer:	Numatic International LimitedChard Somerset NumaticTA20 2GBwww.numatic.co.uk
Product:	GVE, CT, CTT, HVW
Description:	Vacuum Cleaner – Commercial – Spray Extraction, Wet & Dry
We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.
S.I. 2008: 1597	Supply of Machinery Regulations	EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A15:2021EN60335-2-68:2012EN60335-2-69:2012EN62233:2008
S.I. 2016: 1091	EMC Regulations	EN55014-1:2017 + A11:2020EN55014-2:1997 + A1:2001 + A2:2008EN61000-3-2:2014EN61000-3-3:2013
S.I. 2012: 3032	RoHS Regulations
Authorised Signatory: Mr. Matthew Coles		Position: Head of TechnologyNumatic International Limited, Chard,Somerset, TA20 2GB, UK
Signed: Date: 2ndFebruary 2024

Numatic

numatic.com

Numatic International Limited (Head Office)

Chard, Somerset TA20 2GB, UNITED KINGDOM

Tel: [phone] numatic.com

Numatic International GmbH

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic.de

Numatic International Denmark

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic-online.dk

Numatic International S.A.S

Numatic International BV

Numatic International (PTY) Ltd.

Cnr. 16th & Pharmaceutical Road, Randjes Park, Midrand 1685, SOUTH AFRICA

Tel: [phone] numatic.co.za

Numatic International ULDA

Rua Francisco da Silva Duarte, n°79,

4475-269 Santa Maria de Avioso, Castêlo da Maia, PORTUGAL

Tel: [phone] numatic.pt

NUMATIC INTERNATIONAL SPAIN, S.L.U.

Av. Baix Llobregat, 5-7, Ofi cina bajos 1 (Parc Negocis Mas Blau II),

08820 El Prat de Llobregat (Barcelona) SPAIN

Tel: [phone] numatic.es

Numatic International Italy S.R.L

Via Luigi Galvani, 2, Z.I. Talponedo, 33080 Porcia (PN), ITALY

Tel: [phone] numatic.it

Specification subject to change without prior notice

numatic.com © Numatic International Limited
