USER MANUAL DO8154 DOMO

White vertical cylindrical device with grid pattern and 'DONC' label, no visible text or symbols on body

NL Handleiding Kolomventilator

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Technical diagram illustrating vehicle assembly and component installation steps, with labeled parts and directional arrows.

AFSTANDSBEDIENING

Line drawings of four different devices: remote, battery, two batteries, and a mobile phone (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

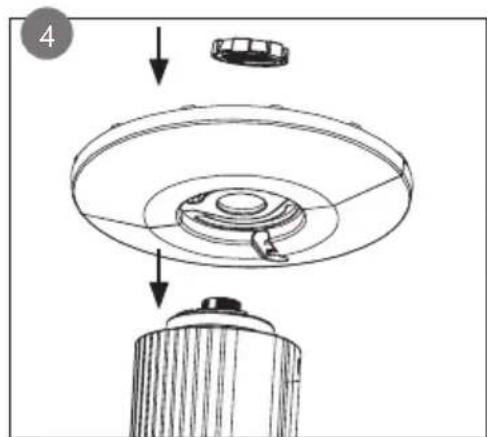

Technical diagram illustrating the assembly of a mechanical component with labeled parts and directional arrows.

TÉLÉCOMMANDE

Diagram showing four different types of devices: remote, battery, two batteries, and a mobile phone (no text or labels present)

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

Technical line drawing of a dual-circular mechanical component with internal structure (no text or symbols)

4

FERNSTEUERUNG

Diagram showing four different types of devices: remote, battery, two batteries, and a mobile phone (no text or labels present)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Do not insert any objects into the fan, as this may cause electric shock, injuries or damage to the appliance. Do not block or tamper with the fan when it is operating.
• Do not use this fan in any wet or humid areas. Do not place the fan too close to a bath tub or any other water container.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

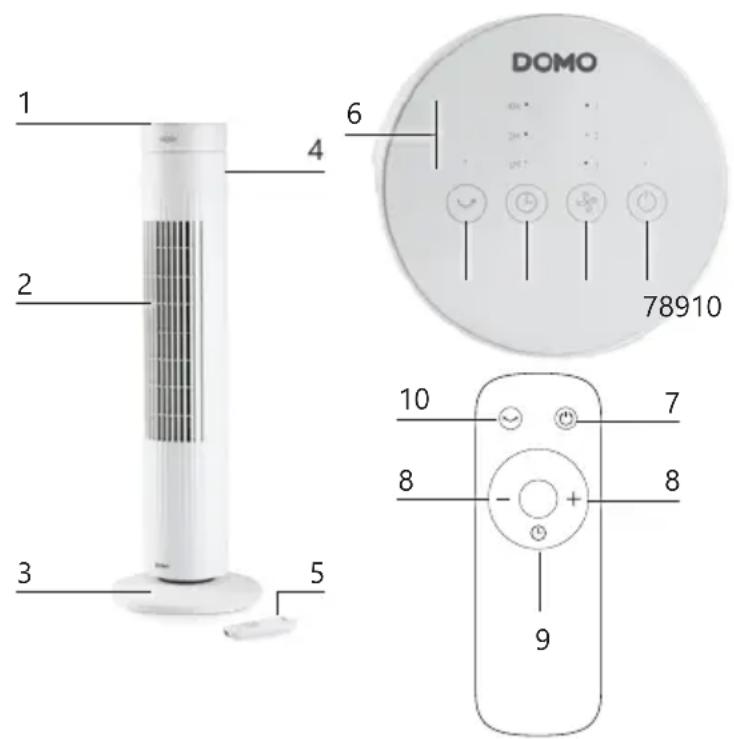

PARTS

1. Control panel
2. Air outlet
3. Base
4. Handle
5. Remote control

CONTROL PANEL/REMOTE CONTROL

1. Indicator lights
2. On/Off button
3. Fan speed
4. Timer
5. Oscillation

1 2 3 4 5 6 7 8 9 DOMO 78910

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Clean the outside of the device with a soft damp cloth.

ASSEMBLY

1. Turn the fan upside down and put it on a soft surface, so that the control panel can not get damaged.

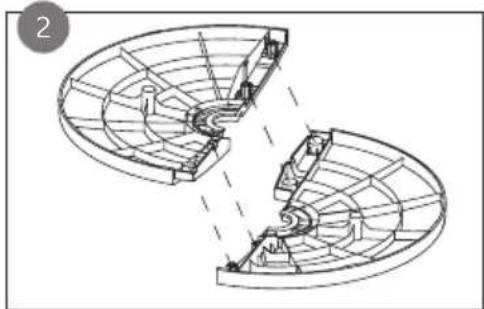

2. Click the 2 parts of the base together.
3. Make sure that the part of the base with the cord guide is situated at the back of the fan. Lead the cord through the cord guide.

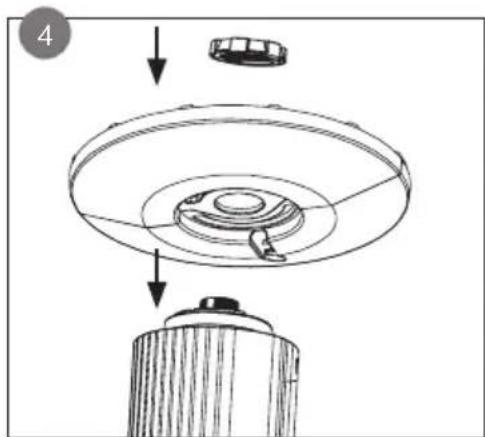

4. Place the base on the bottom of the fan. Use the included screw to attach the base to the fan.
5. Turn the fan upside down again. The appliance is now ready for use.

Technical line drawing of a mechanical component with internal structure and dashed alignment lines (no text or symbols)

4

REMOTE CONTROL

Insert two AAA batteries into the battery compartment on the back of the remote control. Batteries are not included.

The remote control has a range of 5 metres.

Diagram showing four different types of remote devices: a control, battery, two batteries, and a mobile phone (no text or labels present)

Do not mix old and new batteries in the remote control. Do not use two different types of batteries in the remote control.

⚠️ Remove the batteries from the remote, when you won’t use it for a longer period of time. (more than two months)

⚠️Recycle used batteries correctly.

USE

• Place the fan on a flat, stable surface.
• Plug the power cord into a socket. A beep indicates that the device is in standby mode.
• You can control the fan from the control panel or with the remote control. Each time a button is pressed, the device emits an audible signal and an indicator light lights up to indicate that the desired setting has been implemented.

ON/OFF BUTTON

Press this button to turn the device on or off. The corresponding indicator light lights up. The fan starts working at the lowest speed or at the last set speed. This can be seen from the indicator light that illuminates.

FAN SPEED

Press this button to set the speed as desired. Each press of the button will increase the speed. The fan has 3 speeds. The selected speed can be seen by means of the indicator light that illuminates.

1. Low speed
2. Medium speed
3. High speed

TIMER

Press the timer button to set the timer to a maximum of 7 hours. Each press of the button will increase the time. The selected time is indicated by the indicator light that illuminates.

• Press this button once to set the timer for 1 hour.
• Press this button twice to set the timer for 2 hours.
• Press this button three times to set the timer for 3 hours.
• Press this button four times to set the timer for 4 hours.
• Press this button five times to set the timer for 5 hours.
• Press this button six times to set the timer for 6 hours.
• Press this button seven times to set the timer for 7 hours.
• Press this button an eighth time to turn off the timer.

Afterwards, the fan switches itself off automatically.

OSCILLATION

Press this button to turn the oscillation on or off. With oscillation, the device rotates alternately to the left and to the right to distribute the air better.

CLEANING AND MAINTENANCE

• This fan requires very little maintenance. Never try to repair the fan yourself. If it is defective, have it checked and/or repaired by a qualified person.
• Prior to assembling the fan or cleaning it, remove the plug from the outlet.
• Keep the rear grill free of dust and other substances in order to allow free circulation of the air around the motor. Do not disassemble the fan to remove dust from the motor.
• You may clean the exterior of the machine with a soft moist cloth.
• Make sure that no water gets into the motor of the machine.

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The remote control is not working. • Replace the	batteries and pay attention to their polarity when inserting them.• The range is about 5 metres. Point the remote control towards the control panel.
The column fan is not stable (or at an angle). •	check that the cord is positioned in the recess of the base.• Check that the screw is screwed straight onto the base and is tightened sufficiently.

SPECIFICATIONS

Model DO8154
Voltage 220-240V~ 50Hz
Power 35W
Energy consumption standby-mode after 1 minute 0,21W

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Technical diagram illustrating a mechanical assembly process with labeled steps and component views

MANDO A DISTANCIA

Diagram showing four different types of devices: remote, battery, two batteries, and a mobile phone (no text or labels present)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

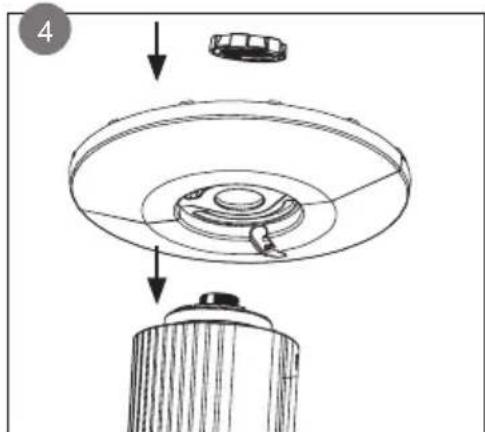

Technical diagram illustrating a mechanical assembly process with labeled steps and component views

TELECOMANDO

Diagram showing four different types of devices: remote, battery, two batteries, and a mobile phone (no text or labels present)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Technical line drawing of a dual-circular mechanical component with internal structural framework (no text or symbols)

4

DÁLKOVÉ OVLÁDÁNÍ

Diagram showing four different types of devices: remote, battery, two batteries, and a mobile phone (no text or labels present)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

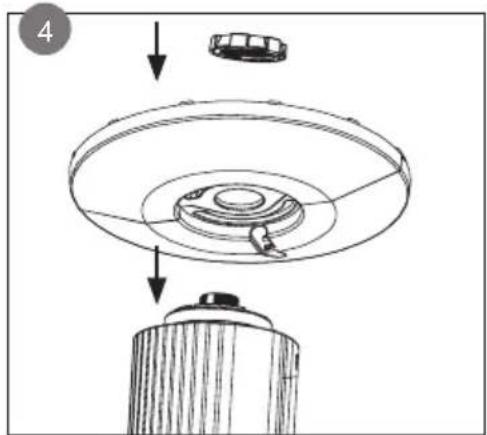

Technical line drawing of a dual-circular mechanical component with internal structure (no text or symbols)

4

DIAL'KOVÉ OVLÁDANIE

Diagram showing four different types of devices: remote, battery, two batteries, and a mobile phone (no text or labels present)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)
