Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Do not insert any objects into the fan, as this may cause electric shock, injuries or damage to the appliance. Do not block or tamper with the fan when it is operating.
• Do not use this fan in any wet or humid areas. Do not place the fan too close to a bath tub or any other water container.
• Do not use the fan in an area with high humidity, a temperature higher than 40^ , or a dusty environment.
• Do not point the fan at people for long periods, especially the elderly, children, or the sick.
• Do not hang or install this fan on a wall or ceiling.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

PARTS

1. Front grille
2. Cap
3. Fan blades
4. Nut
5. Rear grille
6. Motor
7. Two-piece tube
8. Base
9. Screw

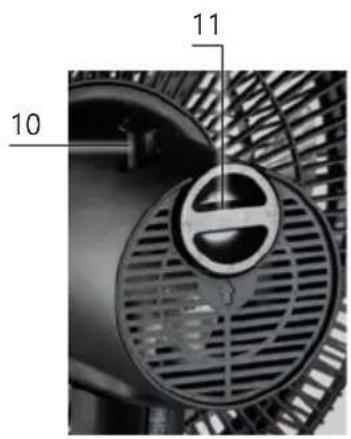

10. Oscillation button
11. Knob for setting speed

Exploded view diagram of a fan assembly with numbered parts for identification

10 11

7 8 9

BEFORE THE FIRST USE

- Remove all packaging materials and any promotional stickers.

INSTALL THE FAN

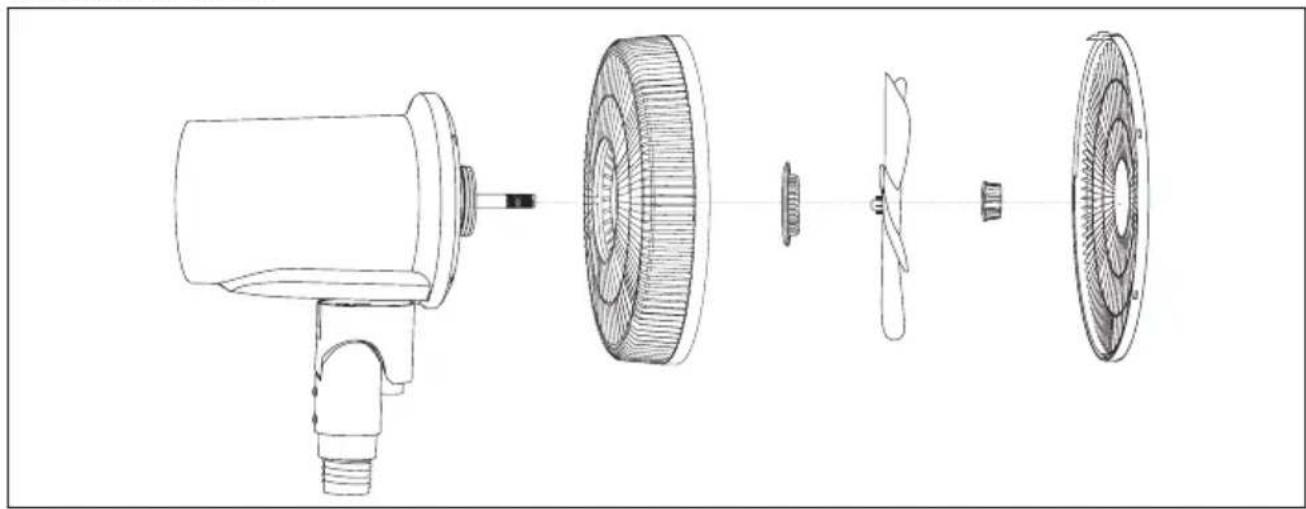

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

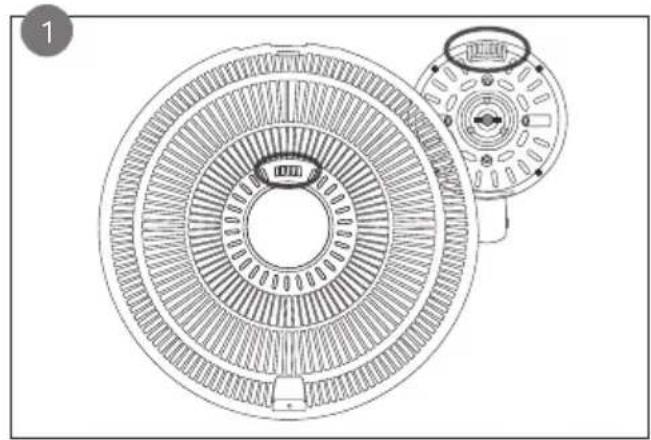

1. Place the rear grill on the motor, making sure that the groove in the grill corresponds to the tongue on the motor.

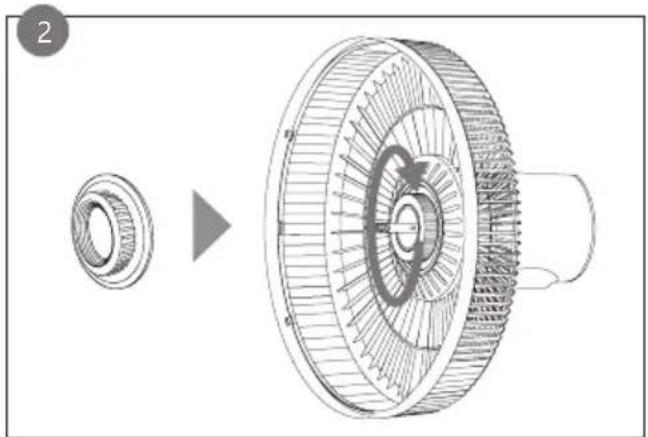

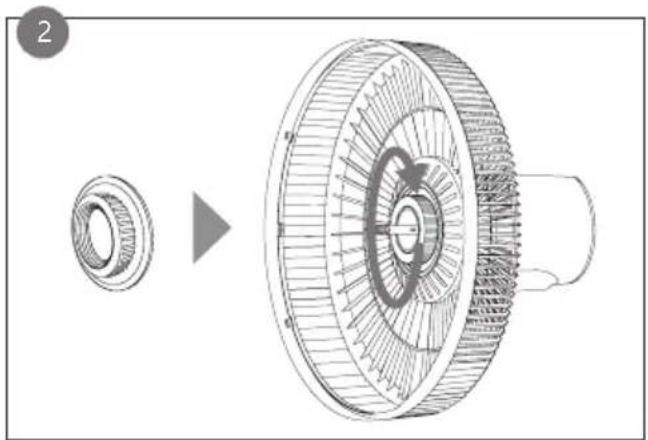

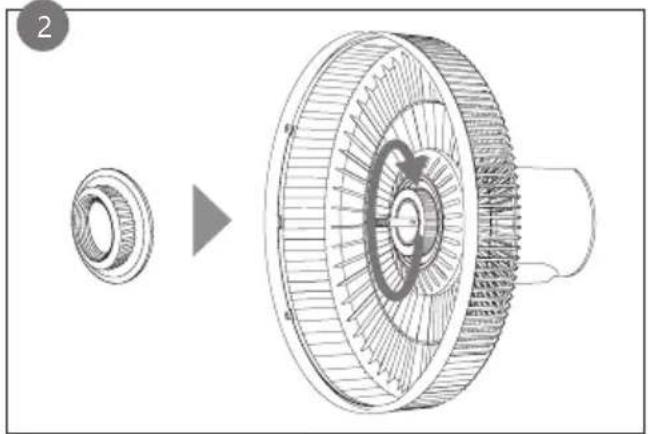

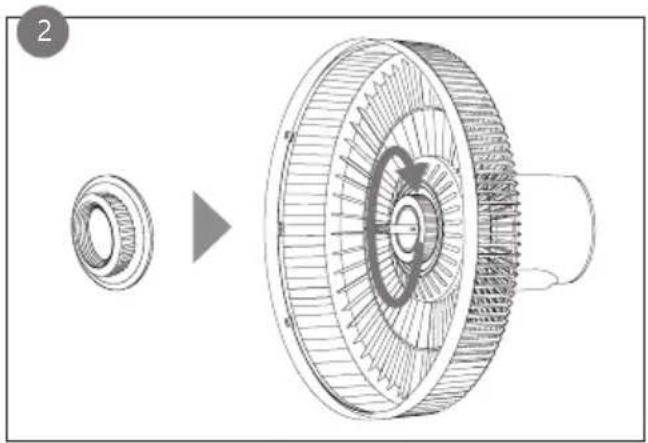

2. Secure the rear grille with the nut. Tighten in a clockwise direction.

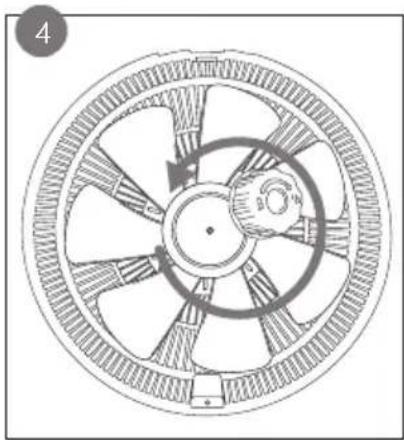

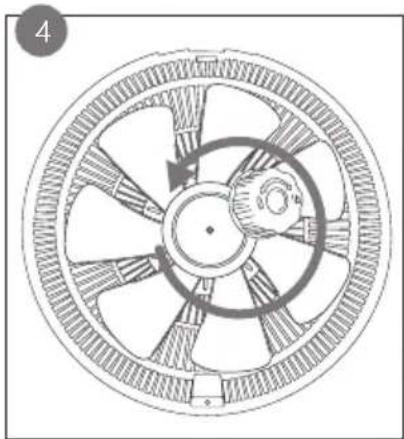

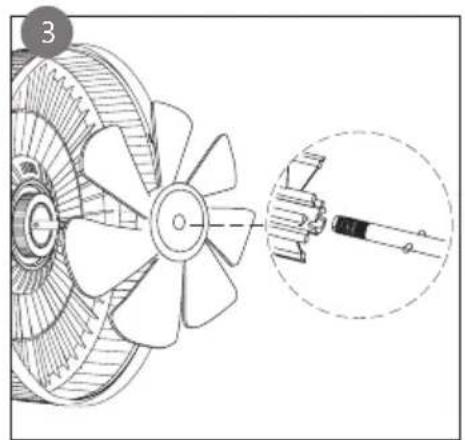

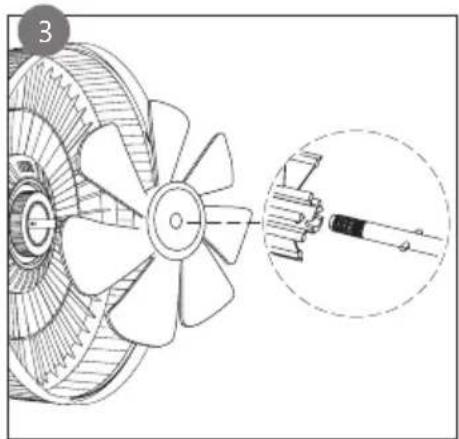

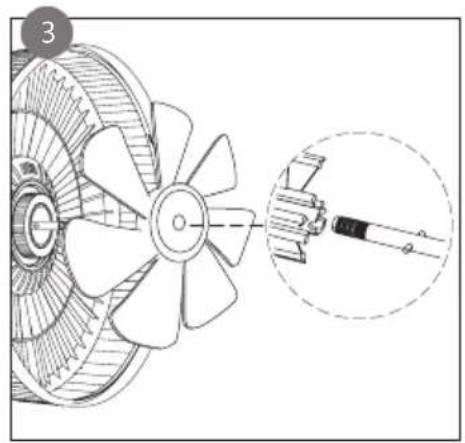

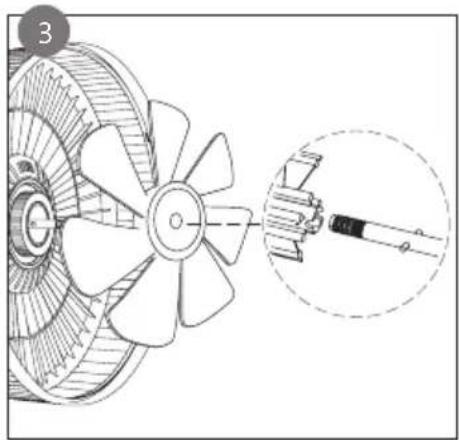

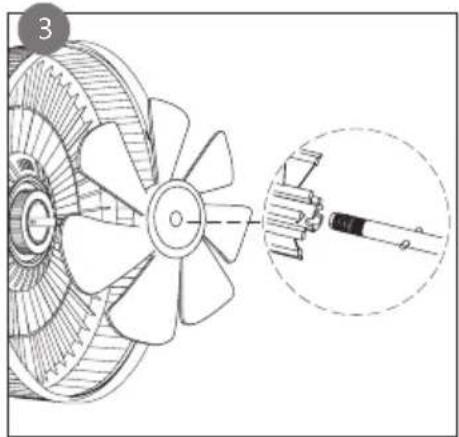

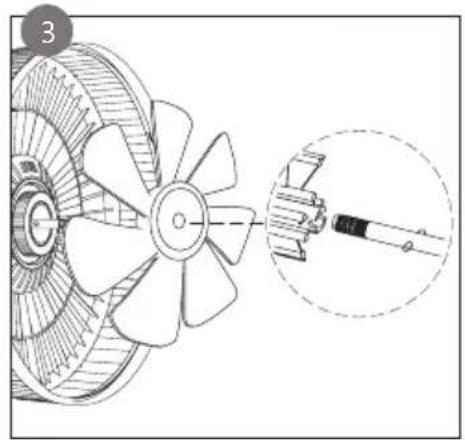

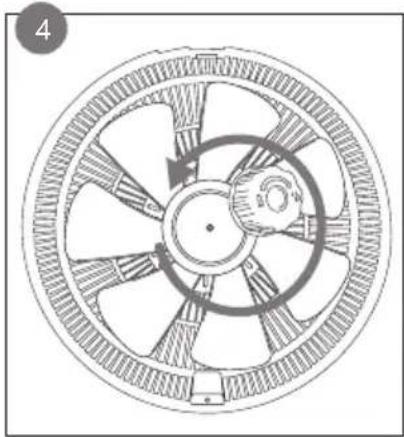

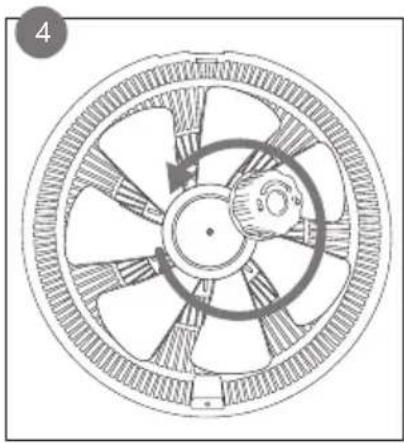

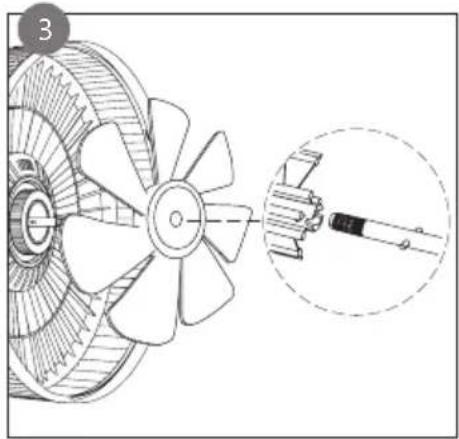

3. Place the fan blades on top of the unit so that the groove in the fan blades corresponds to the tongue on the motor.

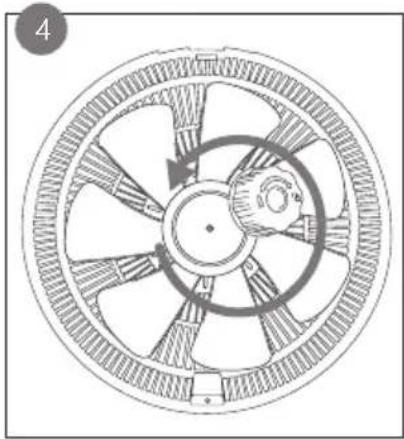

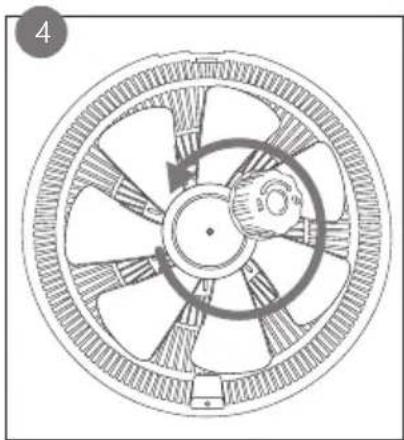

4. Secure the fan blades with the cap. Tighten anticlockwise.

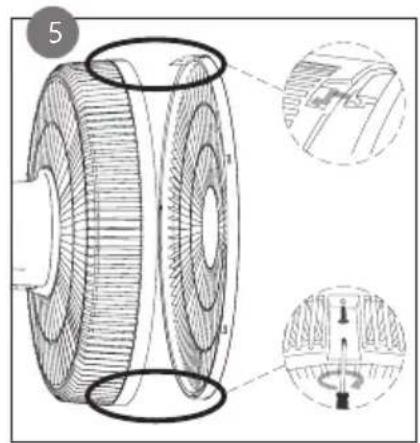

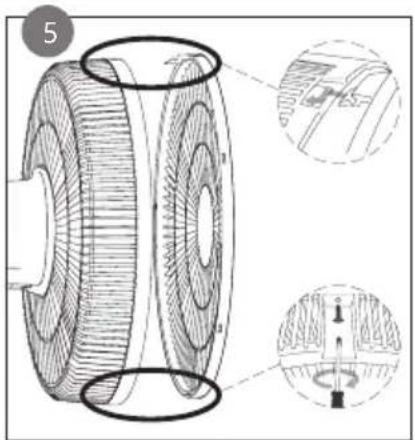

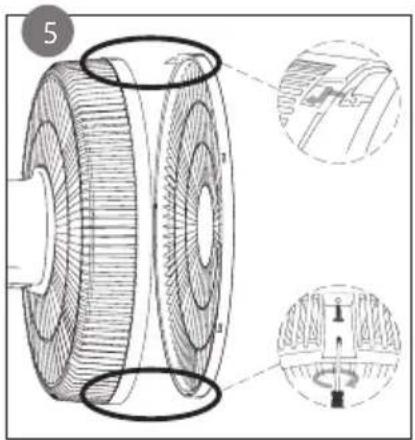

5. Place the grill on the fan so that the grill clicks on the rear grill. Screw the unit into place using the small screw at the bottom of the grill.

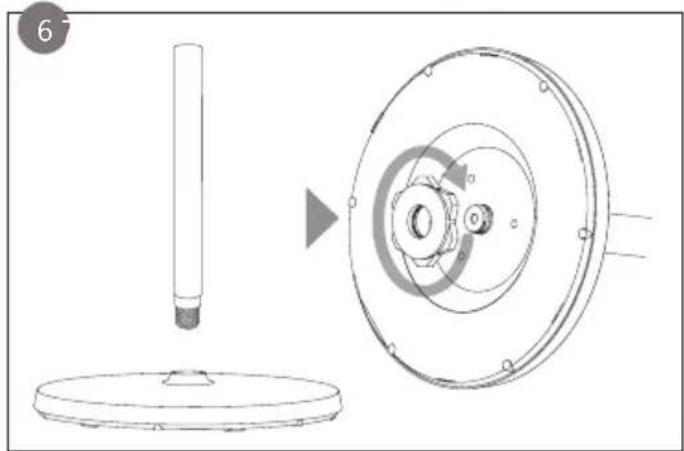

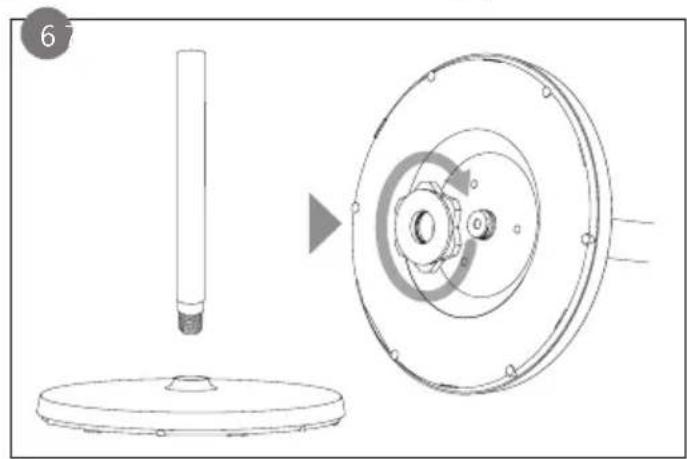

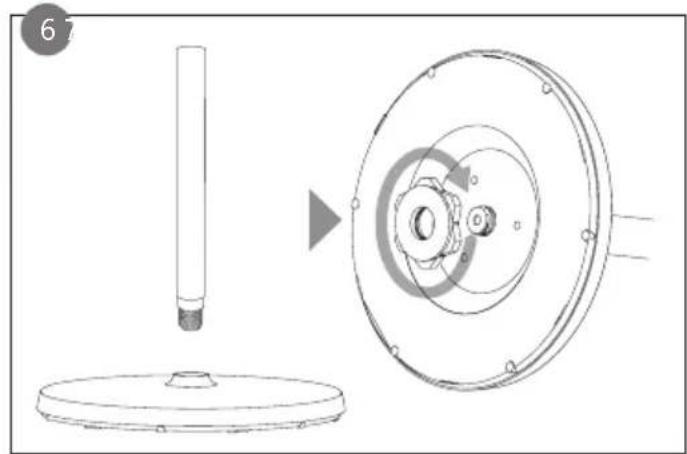

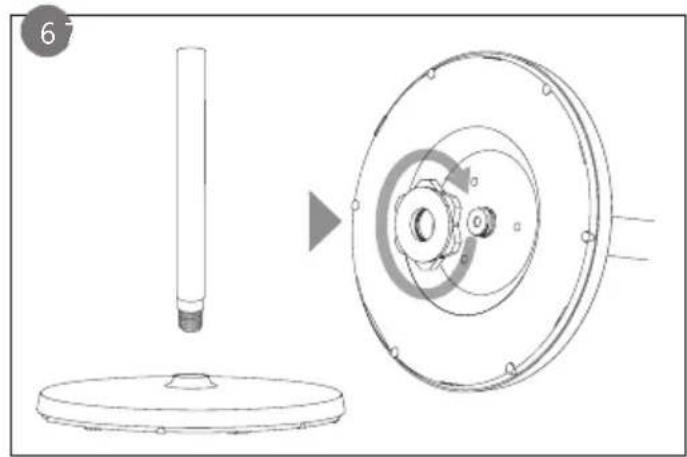

6. Insert 1 part of the tube into the hole provided in the base. Use the supplied screw to screw it into place on the underside of the base.
7. Screw the upper tube onto the lower tube.
8. Turn the motor section onto the tubes.

Technical line drawing of a circular mechanical component with concentric rings and mounting holes (no text or symbols)

Technical illustration of a mechanical gear assembly showing a whole and a detailed view of internal components (no text or symbols)

Technical illustration of a fan assembly with a close-up inset showing internal components (no text or symbols)

Technical line drawing of a circular mechanical fan or impeller assembly (no text or symbols)

Technical illustration of a mechanical component with cross-sectional views and dimension lines (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical shaft and flange, showing internal gear assembly (no text or symbols)

Simple line drawing of a vertical rod with a circular arrow indicating rotation around its base (no text or symbols)

Diagram of a mechanical device with rotating components and a circular arrow indicating rotation (no text or symbols)

USE

Put the plug in the socket. The button for the speed settings allows you to turn the fan on and off. There are 3 speeds to choose from (low - medium - high). To switch the appliance off again, turn the button back to 0.

OSCILLATION

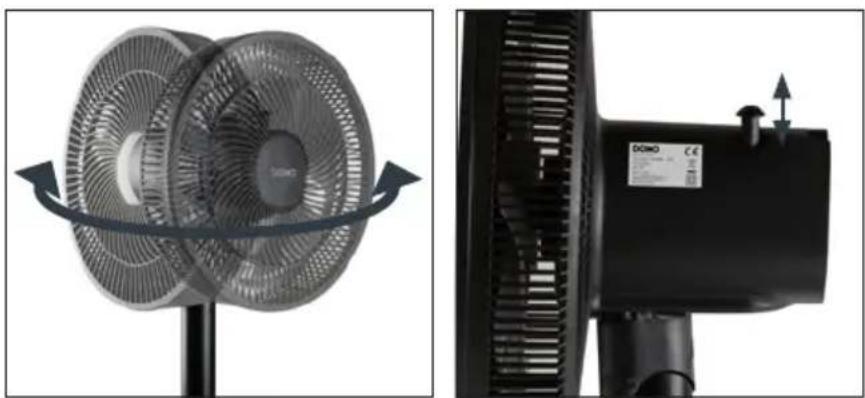

To allow the fan to oscillate, push in the oscillation button. To stop the fan from oscillating, pull the button up. When it is switched on, it will alternately turn to left and right to better spread the air.

Two views of a desktop fan with visible blades and a side-mounted power supply (no text or symbols)

DIRECTING THE AIR FLOW

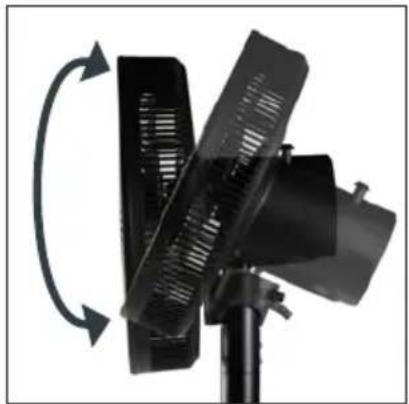

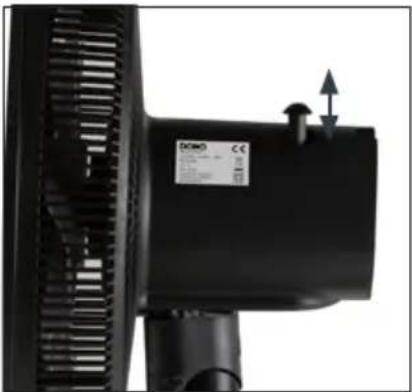

To adjust the ventilation direction up or down, push the fan head up or down.

Black studio lighting fixture with curved arrow indicating rotation (no text or symbols)

ADJUSTING THE HEIGHT

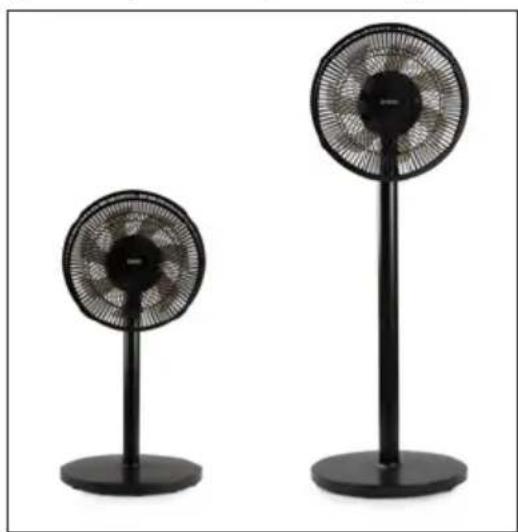

The height of the fan can be adjusted by removing the lower part of the tube.

Two black outdoor fan stand holders, one with a circular fan pattern and the other with a grid-patterned fan (no text or symbols visible)

CLEANING AND MAINTENANCE

• Before (dis)assembling or cleaning the fan, the dial must be turned to position 0 and the plug must be removed from the socket.
• Keep the rear grill free of dust and other substances in order to allow free circulation of the air around the motor. Do not disassemble the fan to remove dust from the motor.
• You may clean the exterior of the machine with a soft moist cloth.

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The fan is not working. • Check the plug is properly connected to a working socket.• Check that the fan blades are not blocked.Should this be the case, remove the obstacle.• Check the dial is turned to position 1, 2 or 3.

GUIDELINES

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection. The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Exploded view diagram of a fan assembly with numbered parts for identification

10 11

7 8 9

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical line drawing of a circular mechanical component with internal grooves and mounting holes (no text or symbols)

Technical illustration of a mechanical gear assembly showing a whole and a side view with internal components (no text or symbols)

Technical line drawing of a propeller with fan blades and internal blades, showing a close-up inset (no text or symbols)

Technical line drawing of a circular mechanical fan or impeller assembly (no text or symbols)

Technical illustration of a mechanical component with cross-sectional views and dimension lines (no text or symbols)

Technical diagram showing a mechanical assembly with a cylindrical component and a circular housing, no text or symbols present.

Simple line drawing of a vertical rod with a circular arrow indicating rotation around its base (no text or symbols)

Diagram of a mechanical device with rotating components and a circular arrow indicating rotation (no text or symbols)

USO

Two-panel image showing a fan with blades and a side-view of the same fan mounted on a stand, no visible text or symbols.

Black-and-white photo of a flat-screen TV or projector with directional arrows indicating rotation (no text or symbols)

AJUSTAR LA ALTURA

Two black outdoor fan stand holders, one with a circular fan pattern and the other with a grid-patterned fan (no text or symbols visible)

LIMPIEZA Y MANTENIMIENTO

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Exploded view diagram of a fan assembly with numbered parts for identification

7 8 9

PRIMA DELL'USO

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical line drawing of a circular mechanical component with concentric rings and a central hub (no text or symbols)

Technical line drawing of a mechanical gear assembly showing internal components and a close-up view (no text or symbols)

Technical line drawing of a fan with blades and a close-up inset showing internal components (no text or symbols)

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

Technical illustration of a mechanical component with cross-sectional views and dimension lines (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical shaft and circular housing, showing internal gear assembly (no text or symbols)

Simple line drawing of a vertical pole with a rotating arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a rotating shaft and base, no text or symbols present

UTILIZZO

Two views of a DQMO air conditioner fan and its side view showing internal blades and mounting bracket (no text or symbols visible)

Close-up of a black adjustable air conditioner unit mounted on a stand, with rotational arrows indicating rotation direction (no text or symbols visible)

Two black outdoor fan stand holders, one with a circular fan and the other with a grid-patterned fan (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Exploded view diagram of a mechanical component showing internal parts and assembly (no text or labels)

Technical line drawing of a mechanical clutch assembly (no text or symbols)

Technical line drawing of a mechanical gear assembly showing internal components and a close-up view (no text or labels)

Technical line drawing of a fan with blades and a close-up inset showing internal components (no text or symbols)

Technical line drawing of a circular mechanical fan or impeller assembly (no text or symbols)

Technical illustration of a mechanical component with cross-sectional views and dimension lines (no text or symbols)

Technical diagram showing a mechanical assembly with a cylindrical component and a circular housing (no text or symbols)

Simple line drawing of a vertical rod with a circular arrow indicating rotational motion (no text or symbols)

Diagram of a mechanical device with a rotating shaft and base, no text or symbols present

POUŽITÍ

Close-up of a dual-framed fan with visible blades and central hub, mounted on a stand (no text or symbols)

Close-up of a black office chair fan with ventilation grille and control panel, showing no visible text or symbols.

Close-up of a black office chair fan with directional arrows indicating rotation (no text or symbols)

NASTAVENÍ VÝŠKY

Two black outdoor fan stand holders, one with a circular fan and the other with a grid-patterned fan (no text or symbols visible)

ČIŠTĚNÍ A ÚDRŽBA

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Exploded view diagram of a fan assembly with numbered parts for identification

7 8 9

PRED PRVÝM POUŽITÍM

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical line drawing of a circular mechanical component with concentric rings and a separate inset showing internal structure (no text or symbols)

Technical line drawing of a mechanical gear assembly showing internal components and a close-up view (no text or symbols)

Technical illustration of a propeller with fan blades and internal components, shown with a close-up inset (no text or symbols)

Technical line drawing of a circular mechanical fan or impeller assembly (no text or symbols)

Technical diagram of a mechanical component with cross-sectional views and internal features (no text or labels)

Technical diagram showing a cylindrical component being inserted into a circular mechanical housing, with no visible text or symbols.

Simple line drawing of a vertical pole with a circular arrow indicating rotational motion (no text or symbols)

Diagram of a mechanical device with a cylindrical component and rotating circular motion arrows (no text or symbols)

POUŽITIE

Two views of a DOWO air conditioner fan with directional arrows indicating airflow or rotation (no text or symbols on the fan itself)

VERTIKÁLNE NASMEROVANIE VENTILÁCIA

Black photo of a flat-screen TV or DVD stand with a curved arrow indicating rotational motion (no text or symbols)

NASTAVENIE VÝŠKY

Two black outdoor fan stand holders, one with a circular fan and the other with a grid-patterned fan (no text or symbols visible)

ČISTENIE A ÚDRŽBA

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
