USER MANUAL KD-X35MBS JVC

MANUEL D'INSTRUCTIONS

RECEPTOR DE MEDIOS DIGITALES

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

B5A-2132-10 [K]

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

FCC NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

IC (Industry Canada) Notice

This device complies with Industry Canada's licence-exempt RSSs.

Operation is subject to the following two conditions:

(1) This device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Note de IC (Industrie Canada)

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

CAUTION

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person's body.

ATTENTION

The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software.

The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the "User") initially used the Product in which the "Licensed Software" is embedded.

The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the "Important Notice concerning the Software" to be provided separately below.

Article 1 General Provision

The Licensor shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) licensed to use the Licensed Software within the country of the User. (the country where the User bought the Product(hereinafter the "Country")

Article 2 License

1. The license granted under this Agreement shall be the right to use the Licensed Software in the Product.
2. The User shall not duplicate, copy, modify, add, translate or otherwise alter, or lease the Licensed Software and any related documents, whether in whole or in part.
3. The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.
4. The User shall use the Licensed Software according to the directions described in the operation manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software.

Article 3 Conditions for Grant of License

1. When the User transfers the Product, it may also transfer the license to use the Licensed Software embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.
2. The User shall not carry out reverse engineering, disassembling, decompiling or any other code analysis works in connection with the Licensed Software.

Article 4 Right pertaining to the Licensed Software

Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents.

Article 5 Indemnification of Licensor

1. Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.
2. The Licensor will offer no guarantee for the merchantability, convertibility and consistency with certain objective of the Licensed Software.

Article 6 Liability to Third Party

If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at its own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause.

Article 7 Confidentiality

The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor.

Article 8 Termination

In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event:

(1) when the User violated any provision of this Agreement; or

(2) when a petition has been filed against the User for an attachment,

provisional attachment, provisional disposition or any other compulsory execution.

Article 9 Destruction of the Licensed Software

If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination.

Article 10 Protection of Copyright

1. The copyright and all the other intellectual property rights relating to the Licensed Software shall belong to the Licensor and the Original Rightholder, and in no event shall they be under the ownership of the User.
2. The User shall, whenever it uses the Licensed Software, comply with any laws relating to the copyright and other intellectual property rights.

Article 11 Export Restriction

1. It is prohibited to export the Licensed Software and any related documents outside the country of the User (including transmission thereof outside the country of the User via Internet of other communication tools).
2. The User shall understand that the Licensed Software shall be subject to the export restrictions adopted by the country of User and any other countries.
3. The User shall agree that the software will be subject to any and all applicable international and domestic laws (including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities).

Article 12 Miscellaneous

1. In the event any part of this Agreement is invalidated by operation of law, the residual provisions shall continue in force.
2. Matters not stipulated in this Agreement or any ambiguity or question raised in the construction of this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User.
3. The Licensor and the User hereby agree that this Agreement is governed by the laws of Japan, and any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance.

Important Notice concerning the Software

-jansson

Copyright (c) 2009-2012 Petri Lehtinen [e-mail]

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

CONTENTS BEFORE USE

BEFORE USE 2

BASICS

3

GETTING STARTED 4

1	Cancel the demonstration
2	Set the clock and date
3	Set the basic settings

RADIO

5

USB/iPod/ANDROID

7

Pandora®

9

iHeartRadio®

10

Spotify

11

SiriusXM® Radio 12

BLUETOOTH®

15

AUX

23

AUDIO SETTINGS 23

DISPLAY SETTINGS 28

REFERENCES

29

Maintenance

More information

TROUBLESHOOTING

33

SPECIFICATIONS

36

INSTALLATION/ CONNECTION

37

IMPORTANT

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
• Please keep the manual in a safe and accessible place for future reference.

▲ WARNING

• Do not operate any function that takes your attention away from safe driving.
• Do not ingest the battery, Chemical Burn Hazard

The remote control supplied with this product contains a coin/button cell battery.

If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.
• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (89). Turn off the unit when parking at a low ceiling area.

Remote control (RM-RK52):

• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

How to read this manual

- Operations are explained mainly using buttons on the faceplate of KD-X350BTS.

- English indications are used for the purpose of explanation. You can select the display language from the menu. (5)

• [XX] indicates the selected items.
- (XX) indicates references are available on the stated page.

BASICS

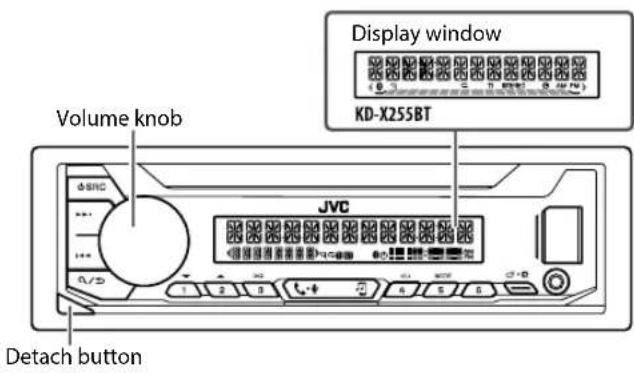

Faceplate

Volume knob JVC Display window KD-X255BT Detach button

Attach How to resetDetach

Reset the unit within 5 seconds after detaching the faceplate.

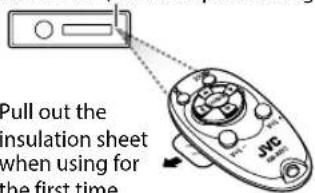

Remote control (RM-RK52)

This unit can be remotely controlled with an optionally purchased remote control.

Remote sensor (Do not expose to bright sunlight.)

Pull out the insulation sheet when using for the first time.

How to replace the battery

To On the faceplate On the remote control

Turn on the power	Press ⬆SRC.• Press and hold to turn off the power.	( Not available )
Adjust the volume Turn the volume knob. Press		VOL + or VOL -• Press and hold VOL + to continuously increase the volume to 15.
		Press the volume knob to mute the sound or pause playback.• Press again to cancel. The volume level returns to the previous level before muting or pause.
Select a source	• Press ⬆SRC repeatedly.• Press ⬆SRC, then turn the volume knob within 2 seconds.	Press ✗ to mute the sound or pause playback.• Press again to cancel. The volume level returns to the previous level before muting or pause.
Change the display information	Press ⬇⋯ repeatedly. (31, 32)	( Not available )

GETTING STARTED

JVC 5/7

1 Cancel the demonstration

When you turn on the power for the first time (or [FACTORY RESET] is set to [YES]), the display shows: "CANCEL DEMO" ▼PRESS" ▼VOLUME KNOB"

1 Press the volume knob.
[YES] is selected for the initial setup.
2 Press the volume knob again.
"DEMO OFF" appears.

2 Set the clock and date

1 Press and hold
2 Turn the volume knob to select [CLOCK], then press the knob.
3 Turn the volume knob to select [CLOCK ADJUST], then press the knob.
4 Turn the volume knob to make the settings, then press the knob.
Hour→Minute
5 Turn the volume knob to select [CLOCK FORMAT], then press the knob.
6 Turn the volume knob to select [12H] or [24H], then press the knob.

To adjust the clock

To set the date

7 Turn the volume knob to select [DATE SET], then press the knob.
8 Turn the volume knob to make the settings, then press the knob. Day → Month → Year

9 Press to exit.

To return to the previous setting item, press Q/⊃.

4 ENGLISH

3 Set the basic settings

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.

To return to the previous setting item, press Q/3.

Default: XX

SYSTEM
KEY BEEP	(Not applicable when 3-way crossover is selected.)ON: Activates the keypress tone. ; OFF: Deactivates.
SOURCE SELECT
AM SRC*	ON: Enables AM in source selection. ; OFF: Disables. (-6)
PANDORA SRC*	ON: Enables PANDORA in source selection. ; OFF: Disables. (-9)
IHEART SRC*	ON: Enables IHEARTRADIO in source selection. ; OFF: Disables. (-10)
SPOTIFY SRC*	ON: Enables SPOTIFY in source selection. ; OFF: Disables. (-1)
BUILT-IN AUX*	ON: Enables AUX in source selection. ; OFF: Disables. (-23)
F/W UPDATE
UPDATE SYSTEM
F/W UP xxxx	YES: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated).For details on how to update the firmware, visit
FACTORY RESET YES : Resets the settings to default (except the stored station). ;NO: Cancels.

* Not displayed when the corresponding source is selected.

GETTING STARTED

CLOCK
TIME SYNC	ON: The clock time is automatically set using the Clock Time (CT) data in FM Radio Broadcast Data System signal. ; OFF: Cancels.
CLOCK DISPLAY	ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels.
ENGLISH	Select the display language for menu and music information if applicable.
ESPA NOI	By default, ENGLISH is selected.

RADIO

JVC

"ST" or "STEREO" lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

1 Press repeatedly to select FM or AM.
2 Press (on the remote control) to search for a station automatically.

(or)

Press and hold (or press and hold on the remote control) until "M" flashes, then press repeatedly to search for a station manually.

Settings in memory

You can store up to 18 stations for FM and 6 stations for AM.

Store a station

While listening to a station....

Press and hold one of the number buttons (1 to 6). (or)

1 Press and hold the volume knob until "PRESET MODE" flashes.
2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and "MEMORY" appears.

Select a stored station

Press one of the number buttons (1 to 6). (or)

1 Press .Q/
2 Turn the volume knob to select a preset number, then press the knob.

ENGLISH

RADIO

Other settings

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press Q/3.

Default: XX

TUNER SETTING

RADIO TIMER

Turns on the radio at a specific time regardless of the current source.1 ONCE/DAILY/WEEKLY/OFF: Select how often the timer will be turned on.2 FM/AM/SIRIUS XM*1: Select the source.3 01 to 18 (for FM/SIRIUS XM)/01 to 06 (for AM): Select the preset station.4 Set the activation day *2 and time."∅" lights up when complete.Radio Timer will not activate for the following cases.The unit is turned off.[OFF]is selected for [AM SRC] in [SOURCE SELECT] after Radio Timer for AM is selected. (4)

SSM

SSM 01-06/SSM 07-12/SSM 13-18: Automatically presets up to 18 stations for FM. "SSM" stops flashing when the first 6 stations are stored. Select SSM 07-12/SSM 13-18 to store the following 12 stations.

IF BAND AUTO	____: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ;WIDE:Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.
MONO SET ON	: Improves the FM reception, but the stereo effect will be lost.;OFF: Cancels.
AREA N.AMERICA	____: For North/Central/South America, AM/FM intervals: 10 kHz/200 kHz.;S.AMERICA:For some South American countries, AM/ FM intervals: 10 kHz/50 kHz.;EUROPE:For any other areas, AM/FM intervals: 9 kHz/50 kHz.
PTY SEARCH*3	Select a PTY code (see below).If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

*1 For KD-X350BTS/KD-X35MBS: Selectable only when SiriusXM Vehicle Tuner is connected. (-42)

*2 Selectable only when [ONCE] or [WEEKLY] is selected in step 1.

*3 Only for FM source.

PTY code

NEWS INFORM (information), SPORTS, TALK, ROCK, CLS ROCK (classic rock), ADLT HIT (adult hits), SOFT RCK (softrock), TOP 40, COUNTRY, OLDIES, SOFT, NOSTALGA (nostalgia), JAZZ, CLASSICL (classical), R & B (rhythm and blues), SOFT R&B (soft rhythm and blues), LANGUAGE, REL MUSC (religious music), REL TALK (religious talk), PERSNLTY (personality), PUBLIC, COLLEGE, HABL ESP (Spanish talk), MUSC ESP (Spanish music), HIP HOP, WEATHER

USB/iPod/ANDROID

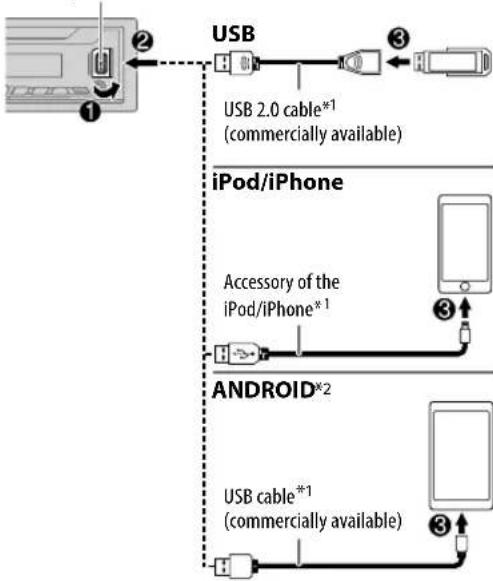

Start playback

The source changes automatically and playback starts.

USB input terminal

JVC

To On the faceplate On the remote control
Reverse/Fast-forward*3	Press and hold ◀◀/▶▶	Press and hold ◀/▶.
Select a file Press	◀◀/▶▶.	Press ◀/▶.
Select a folder*4	Press 2 Press▼	▲/▼
Repeat play*5	Press 4 repeatedly. TRACK REPEAT/FOLDER REPEAT/ALL REPEAT: MP3/WMA/AAC/WAV/FLAC file ONE REPEAT/ALL REPEAT/REPEAT OFF: iPod or ANDROID
Random play*5	Press 3 repeatedly. FOLDER RANDOM/ALL RANDOM/RANDOM OFF: MP3/WMA/AAC/WAV/FLAC file SONG RANDOM/ALL RANDOM/RANDOM OFF: iPod or ANDROID

*1 Do not leave the cable inside the car when not using.
* 2 When connecting an Android device, "Press [VIEW] to install JVC MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. For more information, visit http://www.jvc.net/cs/car/.
*3 For ANDROID: Applicable only when [AUTO MODE] is selected. (-8)
*4 Only for MP3/WMA/AAC/WAV/FLAC files. This does not work for iPod/ANDROID.
*5 For iPod/ANDROID: Applicable only when [HEAD MODE]/[AUTO MODE] is selected. (-8)

USB/iPod/ANDROID

Select control mode

While in iPod USB source, press 5rModeDly.

HEAD MODE: Control iPod from this unit.

IPHONE MODE: Control iPod using the iPod itself. However, you can still play/pause or file skip from this unit.

While in ANDROID source, press 5reBDEdly.

AUTO MODE: Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device.

AUDIO MODE: Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit.

Select music drive

While in USB source, press 5rspodedly.

Stored songs in the following drive will be played back.

- Selected internal or external memory of a smartphone (Mass Storage Class).

- Selected drive of a multiple drives device.

Settings to use JVC Remote application

JVC Remote application is designed to control the JVC car receiver's operations from the iPhone/iPod (via USB input terminal).

Preparation:

Install the latest version of JVC Remote application on your device before connecting. For more information, visit http://www.jvc.net/cs/car/.

You can make the settings in the same way as connection via Bluetooth. (-21)

Select a file from a folder/list

For iPod/ANDROID, applicable only when [HEAD MODE]/[AUTO MODE] is selected.

1 Press .Q/

2 Turn the volume knob to select a folder/list, then press the knob.

3 Turn the volume knob to select a file, then press the knob.

Quick search (applicable only for USB and ANDROID source)

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

Alphabet search (applicable only for iPod USB and ANDROID source)

You can search for a file according to the first character.

For iPod USB source

Press 2 ▲/1 ▼ or turn the volume knob quickly to select the desired character (A to Z, 0 to 9, OTHERS).

- Select "OTHERS" if the first character is other than A to Z, 0 to 9.

For ANDROID source

1 Press to enter character search.

2 Turn the volume knob to select the desired character.

^A^: Upper case letters (A to Z)

_A_: Lower case letters (a to z)

-0-: Numbers (0 to 9)

-OTHERS:- Character other than A to Z, 0 to 9

3 Press the volume knob to start searching.

• To return to the previous setting item, press Q/∅.

• To cancel, press and hold Q/⊃.

Pandora®

Preparation:

Install the latest version of the Pandora application on your device (iPhone/iPod touch), then create an account and log in to Pandora.

- Select [ON] for [PANDORA SRC] in [SOURCE SELECT]. (→4)

Start listening

1 Open the Pandora application on your device.
2 Connect your device to the USB input terminal.

USB input terminal ① ② Accessory of the iPod/iPhone*1 ③

3 Press repeatedly to select PANDORA.

Broadcast starts automatically.

To On the faceplate On the remote control

Playback/pause Press the volume knob.		Press
Skip a track	Press ▶▶. Press ▶.
Thumbs up or thumbs down*2	Press 2 Press▼	▲/▼

*1 Do not leave the cable inside the car when not using.

*2 If thumbs down is selected, the current track is skipped.

Create and store a new station

1 Press Q/→
2 Turn the volume knob to select [NEW STATION], then press the knob.
3 Turn the volume knob to select [FROM TRACK] or [FROM ARTIST], then press the knob.
A new station is created based on the current song or artist.
4 Press and hold one of the number buttons (3, 4, 5 or 6) to store.

To select a stored station: Press one of the number buttons (3, 4, 5 or 6).

Search for a registered station

1 Press Q/→
2 Turn the volume knob to select an item, then press the knob. [BY DATE]: According to the registered date [A-Z]: By alphabetical order
3 Turn the volume knob to select the desired station, then press the knob.

To cancel, press and hold Q/∅.

Bookmark current song information

Press and hold the volume knob.

"BOOKMARKED" appears and the information is stored to your device.

- The bookmark is available on your Pandora account but not on this unit.

iHeartRadio®

Preparation:

Install the latest version of iHeartAuto application on your device (iPhone/iPod touch), then create an account and log in to iHeartRadio.

- Select [ON] for [IHEART SRC] in [SOURCE SELECT]. (→4)

Start listening

1 Open the iHeartAuto application on your device.
2 Connect your device to the USB input terminal.

USB input terminal ① ② Accessory of the iPod/iPhone* ③

3 Press repeatedly to select IHEARTRADIO.

Broadcast starts automatically

* Do not leave the cable inside the car when not using.

To On the faceplate On the remote control

Playback/pause Press the volume knob.		Press
Skip a track forcustom station	Press ▶▶. Press ▶.
Thumbs up orthumbs down	Press 2 ▲/1 ▼. Press .	▲/▼
Create a new/custom station	Press and hold thevolume knob.	( Not available )
Scan for live station	1 Press 3 to startscanning.2 Press 3 again to listento the station.	( Not available )

Search and store a station

1 Press Q/→
2 Turn the volume knob to select a category, then press the knob.
3 Turn the volume knob to select the desired station, then press the knob.

When a city list appears, you can search cities in alphabetical order by turning the volume knob quickly.

To cancel, press and hold Q/⊃.

To store a station: Press and hold one of the number buttons (4, 5 or 6).

To select a stored station: Press one of the number buttons (4, 5 or 6).

Spotify

Preparation:

Install the latest version of the Spotify application on your device (iPhone/iPod touch), then create an account and log in to Spotify.

- Select [ON] for [SPOTIFY SRC] in [SOURCE SELECT]. (→4)

Start listening

1 Open the Spotify application on your device.

2 Connect your device to the USB input terminal.

USB input terminal ① ② Accessory of the iPod/iPhone* ③

3 Press repeatedly to select SPOTIFY.

Broadcast starts automatically

* Do not leave the cable inside the car when not using.

To On the faceplate On the remote control

Playback/pause Press the volume knob.		Press
Skip a track	Press | ^*1 / . Press	^*1 / .
Thumbs up or thumbs down ^*2	Press 2 Press	/
Start radio Press and hold 5. ( Not available )

To On the faceplate On the remote control

Repeat play*3	Press 4repeatedly.ALL REPEAT, ONE REPEAT*1,REPEAT OFF	( Not available )
Random play*3	Press 3repeatedly. *1ALL RANDOM, RANDOM OFF	( Not available )

*1 Available for premium account users only.
*2 This feature is available for tracks in Radio only. If thumbs down is selected, the current track is skipped.
*3 Available for tracks in Playlists only.

Save favorite song information

While listening to the Radio on Spotify...

Press and hold the volume knob.

"SAVED" appears and the information is stored to "Your Music" or "Your Library" on your Spotify account.

To unsave, repeat the same procedure.

"REMOVED" appears and the information is removed from "Your Music" or "Your Library" on your Spotify account.

Search for a song or station

1 Press Q/→
2 Turn the volume knob to select a list type, then press the knob.

The list types displayed differ depending on the information sent from Spotify.

3 Turn the volume knob to select the desired song or station, then press the knob.

You can browse through the list quickly by turning the volume knob quickly.

To cancel, press and hold Q/⊃.

SiriusXM® Radio (for KD-X350BTS/KD-X35MBS)

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit .

Preparation:

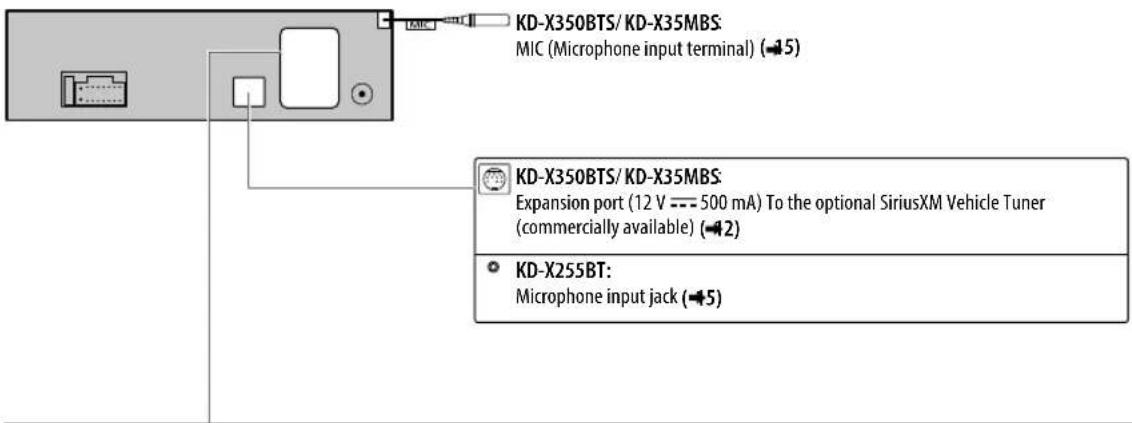

1 Connect the optional SiriusXM Vehicle Tuner (commercially available).

2 Check your Radio ID for activation.

The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Vehicle Tuner and its packaging.

The Radio ID does not include the letters I, O, S or F.

3 Activate the subscription.

For users in the U.S.A.:

Online: Go to

Phone: Call 1-866-635-2349

For users in Canada:

Online: Go to

Phone: Call 1-877-438-9677

4 Press repeatedly to select SIRIUS XM to start updating.

Start listening

1 Press repeatedly to select SIRIUS XM.

2 Press .Q/→

"Q" lights up.

3 Turn the volume knob to select a CATEGORY, then press the knob.

4 Turn the volume knob to select a category from the list, then press the knob.

If "ALL CHANNEL" is selected, all the available channels will be shown.

5 Turn the volume knob to select a channel, then press the knob. (or)

Press to search for a channel manually.

- Pressing and holding changes the channel rapidly.

If a locked channel or a mature channel is selected, a pass code input screen appears. Enter the pass code to receive the channel.(4)

Settings in memory

You can store up to 18 channels.

Store a channel

While listening to a channel....

Press and hold one of the number buttons (1 to 6). (or)

1 Press and hold the volume knob until "PRESET MODE" flashes.

2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and "MEMORY" appears.

Select a stored channel

Press one of the number buttons (1 to 6). (or)

1 Press .Q/→

2 Turn the volume knob to select PRESET, then press the knob.

3 Turn the volume knob to select a preset number, then press the knob. (or)

Press ▲/▼ on the remote control.

SiriusXM® Radio (for KD-X350BTS/KD-X35MBS)

SiriusXM Replay™

While listening to a channel....

1 Press the volume knob.

“C” lights up and the unit memorizes this paused position.

2 Press the volume knob to start Replay.

Replay starts from the paused position in step 1.

During Replay...

To On the faceplate On the remote control

Playback/pause Press the volume knob.		Press ✗.
Skip backward/forward	Press ◀◀/▶▶.	Press ◀/▶.
Rewind/Fast-forward Press and hold	◀◀/▶▶.	Press and hold ◀/▶.
Go to Live and exitReplay	Press and hold thevolume knob.	Press and hold ✗.
	1 Press .Q/⊃2 Turn the volume knobto select LIVE, thenpress the knob.

SmartFavorites and TuneStart™

User preset channels are initially assigned as the SmartFavorites channels. SmartFavorite channel is available with SXV200 or later SiriusXM tuner models. The SiriusXM Vehicle Tuner automatically buffers the broadcast audio content of the SmartFavorites channels in the background.

Using SXV200: This unit can assign a maximum of 6 SmartFavorites channels. If you try to assign the 7th channel, an error beep tone will be heard. Initially, preset channels 1 to 6 are assigned as SmartFavorites.

Using SiriusXM tuner models later than SXV200: This unit can assign a maximum of 18 SmartFavorites channels. Initially, all preset channels are assigned as SmartFavorites.

- “*” appears at the last character of the channel name for the SmartFavorites channels.

When you select a SmartFavorite channel, you can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content.

- Playback starts from the beginning of the song if [TUNE START] is set to [ON] (4) for most music channels stored as a SmartFavorite.

To On the faceplate

Select a stored SmartFavorite channel	Press one of the number buttons (1 to 6).
	1 Press .Q/32 Turn the volume knob to select PRESET, then press the knob.3 Turn the volume knob to select a preset number, then press the knob.
CancelSmartFavorites channels	1 Press .Q/32 Turn the volume knob to select PRESET, then press the knob.3 Turn the volume knob to select a preset number, then press and hold the knob." * " is removed from the last character.
ReassignSmartFavorites channels	Repeat steps 1 to 3 of cancelling SmartFavorites channels." * " appears at the last character.

SiriusXM® Radio (for KD-X350BTS/KD-X35MBS)

TuneScan™

You can get a short preview of the songs that you have missed on each of your SmartFavorites music channels or currently tuned music channel.

1 Press .Q/
2 Turn the volume knob to select TUNE SCAN, then press the knob. Scanning start for the first 6 seconds of the recorded music contents.
- To listen to the current song, press the volume knob to stop scanning. The unit continues playing the current song.
- To select the previous/next song, press ◀◀/▶▶.
- To cancel scanning, press and hold the volume knob. Playback returns to the channel before you entered TuneScan.

SiriusXM settings

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press Q/3.

Default: XX

SIRIUS XM

CHANNEL LOCK

To unlock settings:1 Turn the volume knob to select a number.2 Press it to move to the entry position.3 Repeat step 1 and 2 to enter the current pass code. (Initial pass code is 0000.)4 Press the volume knob to confirm.

CODE SET	1 Press the volume knob to enter [NEW CODE].2 Turn the volume knob to select a number.3 Press ▶ to move to the entry position.4 Repeat step2 and 3 to enter a new 4-digit pass code.5 Press the volume knob to confirm.6 Repeat step2 to 5 to reconfirm the pass code.• Make a note of the new pass code to enter channel lock settings for next time.
LOCK SETTING MATURE CH : Selects the SiriusXM-defined lock setting.;USER DEFINED: Selects the individual channels the user wants to lock.;OFF: Cancels.
CHANNEL EDIT*1	1 Turn the volume knob to select a category, then press the knob.2 Turn the volume knob to select a channel you want to lock, then press the knob."L" appears in front of the channel number.3 Press and hold ☑ exit
CHANNEL CLEAR*1	YES: Clears all the locked channels.;NO: Cancels.
TUNE START*2	ON: All qualified music channels in the SmartFavorites will start playback from the beginning of the song.;OFF: Cancels.
SIGNAL LEVEL	Shows the strength (NO SIGNAL/WEAK/GOOD/STRONG) of the current received signal.
BUFFER USAGE	Shows the memory usage (0% to 100%) for Replay buffer.
SXM RESET YES	: Resets stored channel and lock setting to default.;NO: Cancels.

*1 Displayed only when [USER DEFINED] is selected.
*2 Available only if the connected SiriusXM Vehicle Tuner is SXV200 or later that supports SmartFavorites.

BLUETOOTH®

BLUETOOTH — Connection

Supported Bluetooth profiles

• Hands-Free Profile (HFP)
• Advanced Audio Distribution Profile (A2DP)
  – Audio/Video Remote Control Profile (AVRCP)
• Serial Port Profile (SPP)
  – Phonebook Access Profile (PBAP)

Supported Bluetooth codecs

• Sub Band Codec (SBC)
• Advanced Audio Coding (AAC)

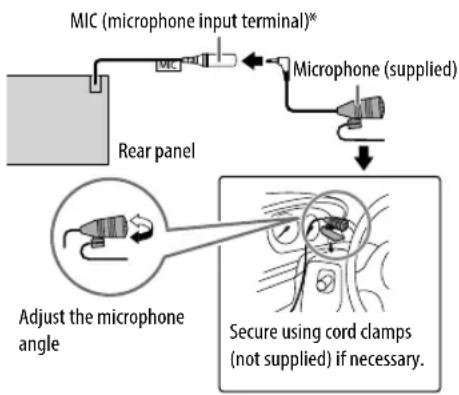

Connect the microphone

MIC (microphone input terminal)* Microphone (supplied) Rear panel Adjust the microphone angle Secure using cord clamps (not supplied) if necessary.

* For the location of the microphone input terminal/microphone input jack, refer to page 40.

Pair and connect a Bluetooth device for the first time

1 Press &tern on the unit.

2 Search and select "KD-X3 BTS"/"KD-X2 BT"/"KD-X3 MBS" on the Bluetooth device. "BT PAIRING" flashes on the display.

- For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.

3 Perform (A) or (B) depending on what appears on the display.

For some Bluetooth devices, pairing sequence may vary from the steps described below.

(A) "[Device Name]" → "XXXXXX" → "VOL - YES" "BACK - NO"

"XXXXXX" is a 6-digit passkey randomly generated during each pairing.

1 Ensure that the passkeys appear on the unit and Bluetooth device are the same.
2 Press the volume knob to confirm the passkey.
3 Operate the Bluetooth device to confirm the passkey.

(B) "[Device Name]" → "VOL - YES" → "BACK - NO"

1 Press the volume knob to start pairing.
2 • If "PAIRING" "PIN 0000" scrolls on the display, enter the PIN code "0000" into the Bluetooth device.

You can change to a desired PIN code before pairing. (19)

- If only "PAIRING" appears, operate the Bluetooth device to confirm pairing.

"PAIRING COMPLETED" appears when pairing is completed and "✗" will light up when the Bluetooth connection is established.

• This unit supports Secure Simple Pairing (SSP).
- Up to five devices can be registered (paired) in total.
- Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, 19 , [DEVICE DELETE].
- A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time.

However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (→ 20)

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.
• Refer to the instruction manual of the Bluetooth device for more information.

BLUETOOTH®

Auto Pairing

When you connect the iPhone/iPod touch/Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated.

Press the volume knob to pair once you have confirmed the device name.

Automatic pairing request is activated only if:
- Bluetooth function of the connected device is turned on.
- [AUTO PAIRING] is set to [ON]. (→9)
- JVC MUSIC PLAY application is installed on the Android device (7) and [AUTO MODE] is selected (8).

BLUETOOTH — Mobile phone

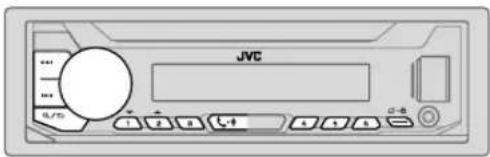

JVC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Receive a call

When there is an incoming call:

The buttons will blink in the color you have selected in [RING COLOR]. (47) KD-X255BT:

The buttons will blink in the blinking pattern you have selected in [RING ILLUMI]. (47)

- The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (47)

During a call:

The buttons stop blinking and illuminate in the color you have selected in [RING COLOR]. (-47) KD-X255BT:

The buttons stop blinking.

- If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected.

The following operations may differ or not available depending on the connected phone.

To On the faceplate On the remote control
First incoming call...

Answer a call	Press 📞 - 🔒 or the volume knob.	Press ▲/▼/◄/►.
Reject a call	Press and hold 📞 - 🔒 or the volume knob.	Press and hold ▲/▼/◄/►.
End a call	Press and hold 📞 - 🔒 or the volume knob.	Press and hold ▲/▼/◄/►.

BLUETOOTH®

To On the faceplate On the remote control
While talking on the first incoming call...
Answer another incoming call and hold the current call	Press 📁 - 🔒 or the volume knob.	( Not available )
Reject another incoming call	Press and hold 📁 - 🔒 or the volume knob.	( Not available )
While having two active calls...
End current call and activate held call	Press and hold 📁 - 🔒 or the volume knob.	Press and hold ▲/▼/◄/►.
Swap between the current call and held call	Press 📁 - 🔒.	( Not available )
Adjust the phone volume *1 [00] to [35] (Default: [15])	Turn the volume knob during a call.	Press VOL + *2 or VOL - during a call.
Switch between hands-free and private talk modes*3	Press During a call.	( Not available )

*1 This adjustment will not affect the volume of the other sources.
*2 Press and hold Vol continuously increase the volume to 15.
*3 Operations may vary according to the connected Bluetooth device.

Improve the voice quality

While talking on the phone....

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.

To return to the previous setting item, press Q/3.

Default: XX

MIC GAIN LEVEL -10 to LEVEL +10 (LEVEL -04): The sensitivity of the microphone increases as the number increased.

NR LEVEL LEVEL -05 to LEVEL+05 (LEVEL 00): Adjust the noise reduction level until the least noise is being heard during a phone conversation.

ECHO CANCEL LEVEL -05 to LEVEL +05 (LEVEL 00): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

Make the settings for receiving a call

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.

To return to the previous setting item, press Q/⊃.

Default: XX

SETTINGS
AUTO ANSWER	01 SEC_to 30 SEC: The unit answers incoming call automatically in the selected time (in seconds). ;OFF: Cancels.
RING COLOR KD-X350BTS /KD-X35MBS:COLOR 01 to COLOR 49 (COLOR 08): Selects the illumination color for the buttons as notification when there is an incoming call and during a call. ;OFF: Cancels.
RING ILLUMI KD-X255BT:BLINK 01 toBLINK 05 BLINK 02): Selects the blinking pattern for the buttons as notification when there is an incoming call. ;OFF: Cancels.
BATT/SIGNAL*	KD-X350BTS/KD-X35MBSAUTO: Shows the strength of the battery and signal when the unit detects a Bluetooth device and the Bluetooth device is connected. ;OFF: Cancels.

* Functionality depends on the type of the phone used.

ENGLISH

BLUETOOTH®

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode.

"(First device name)" appears.

• If two Bluetooth phones are connected, press again to switch to another phone.
  "(Second device name)" appears.

2 Turn the volume knob to select an item (see the following table), then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

To return to the previous setting item, press Q/3.

RECENT CALL	(Applicable only if the phone supports PBAP.)1 Press the volume knob to select a name or a phone number.“<” indicates call received, “>” indicates call made, “M” indicates call missed.“NO HISTORY” appears if there is no recorded call history or call number.2 Press the volume knob to call.
PHONEBOOK	(Applicable only if the phone supports PBAP.)1 Press 2 ▲/select the desired letter (A to Z, 0 to 9, and OTHERS).“OTHERS” appears if the first character is other than A to Z, 0 to 9.Turn the volume knob to select a name, then press the knob.Turn the volume knob to select a phone number, then press the knob to call.The phonebook of the connected phone is automatically transferred to the unit when pairing.This unit can display only non-accent letters. (Accent letters such as “U” is shown as “U”).
DIAL NUMBER	1 Turn the volume knob to select a number (0 to 9) or character ( ,#, +).2 Press I◀to move the entry position.Repeat stepsand 2 until you finish entering the phone number.3 Press the volume knob to call.
VOICE	Speak the name of the contact you want to call or the voice command to control the phone functions. (-Make a call using voice recognition)

Make a call using voice recognition

1 Press and hold to activate the connected phone.
2 Speak the name of the contact you want to call or the voice command to control the phone functions.
- Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.
- This unit also supports the intelligent personal assistant function of iPhone.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [RECENT CALL], [PHONEBOOK] or [DIAL NUMBER], then press the knob.
3 Turn the volume knob to select a contact or enter a phone number.
If a contact is selected, press the volume knob to show the phone number.
4 Press and hold one of the number buttons (1 to 6). "MEMORY P(selected preset number)" appears when the contact is stored.

To erase a contact from the preset memory, select [DIAL NUMBER] in step 2 and store a blank number.

Make a call from memory

1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1 to 6).
3 Press the volume knob to call.
"NO PRESET" appears if there is no contact stored.

BLUETOOTH®

Bluetooth mode settings

1 Press and hold 📋
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.
To return to the previous setting item, press Q/∅.

Default: XX

BT MODE

PHONE SELECT*	Selects the phone or audio device to connect or disconnect.
AUDIO SELECT*	“*” appears in front of the device name when connected.
	“▷” appears in front of the current playback audio device.

DEVICE DELETE

1 Turn the volume knob to select a device to delete, then press the knob.2 Turn the volume knob to select [YES] or [NO], then press the knob.

PIN CODE EDIT Changes the PIN code (up to 6 digits).

(0000)	1 Turn the volume knob to select a number.
	2 Press 1 to move the entry position.Repeat steps and 2 until you finish entering the PIN code.
	3 Press the volume knob to confirm.

RECONNECT ON

: The unit automatically reconnect when the last connected Bluetooth device is within range. ;OFF : Cancels.

AUTO PAIRING ON __: The unit automatically pair supported Bluetooth device (iPhone/iPod touch/Android device) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work. ; OFF: Cancels.

INITIALIZE YES

: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ;NO Cancels.

INFORMATION MY

BT NAME: Displays the unit name ("KD-X3 BTS"/"KD-X2 BT"*KD-X3 MBS")*,MY ADDRESS: Shows address of this unit.

* You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time.

Bluetooth compatibility check mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.

- Make sure there is no Bluetooth device paired.

1 Press and hold .←→ "BLUETOOTH" ↔ "CHECK MODE" appears. "SEARCH NOW USING PHONE" → "PIN IS 0000" scrolls on the display.

2 Search and select "KD-X3 BTS"/"KD-X2 BT"* "KD-X3*MBS" on the Bluetooth device within 3 minutes.

3 Perform (A), (B) or (C) depending on what appears on the display.

(A) "PAIRING" "XXXXXX" (6-digit passkey): Ensure that the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey.
(B) "PAIRING" → "PIN IS 0000": Enter "0000" on the Bluetooth device.
(C) "PAIRING": Operate the Bluetooth device to confirm pairing.

After pairing is successful, "PAIRING OK" → "[Device Name]" appears and Bluetooth compatibility check starts.

If "CONNECT NOW USING PHONE" appears, operate the Bluetooth device to allow phonebook access to continue.

"TESTING" flashes on the display.

BLUETOOTH®

The connectivity result flashes on the display. "PAIRING OK" and/or "HANDS-FREE OK"*1 and/or "AUD.STREAM OK"*2 and/or "PBAP OK"*3 : Compatible

*1 Compatible with Hands-Free Profile (HFP)
*2 Compatible with Advanced Audio Distribution Profile (A2DP)
*3 Compatible with Phonebook Access profile (PBAP)

After 30 seconds, "PAIRING DELETED" appears to indicate that pairing has been deleted, and the unit exits check mode.

- To cancel, press and hold ⓍSRC to turn off the power, then turn on the power again.

BLUETOOTH — Audio

While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices.

JVC 1 2 3 4 5

Audio player via Bluetooth

1 Press repeatedly to select BT AUDIO (or press SOURCE on the remote control).
- Pressing enters BT AUDIO directly.
2 Operate the Bluetooth audio player to start playback.

To On the faceplate On the remote control

Playback/pause Press the volume knob.		Press
Select group or folder Press	2 ▲/1 ▼. Press .	▲/▼
Reverse skip/Forward skip Press	|◀◀/▶▶|.	Press ◀/▶.
Reverse/Fast-forward Press and hold	|◀◀/▶▶|.	Press and hold ◀/▶.
Repeat play Press	4 ○repeatedly. TRACK REPEAT, ALL REPEAT, REPEAT OFF	( Not available )
Random play	Press 3 ×× repeatedly. GROUP RANDOM, ALL RANDOM, RANDOM OFF	( Not available )
Select a file from a folder/list Refer to “Select a file from a folder/list” on page 8.		( Not available )
Switch between connected Bluetooth audio devices	Press 5.*	( Not available )

* Pressing the "Play" key on the connected device itself also causes switching of sound output from the device. Operations and display indications may differ according to their availability on the connected device.

BLUETOOTH®

Settings to use JVC Remote application

JVC Remote application is designed to control the JVC car receiver's operations from the iPhone/iPod (via Bluetooth or via USB input terminal) or Android smartphone (via Bluetooth).

Preparation:

Install the latest version of JVC Remote application on your device before connecting. For more information, visit http://www.jvc.net/cs/car/.

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.

To return to the previous setting item, press Q/3.

Default: XX

REMOTE APP
SELECT	Select the device (IOS or ANDROID) to use the application.
IOS YES	: Selects iPhone/iPod to use the application via Bluetooth or connected via USB input terminal. ; NO: Cancels.If IOS is selected, select iPod BT source (or iPod USB if your iPhone/iPod is connected via USB input terminal) to activate the application.The connectivity of the application will be interrupted or disconnected if:– You change from iPod BT source to any playback source connected via the USB input terminal.– You change from iPod USB source to iPod BT source.
ANDROID YES	: Selects Android smartphone to use the application via Bluetooth. ; NO: Cancels.
ANDROID LIST*	Selects the Android smartphone to use from the list.

* Displayed only when [ANDROID] of [SELECT] is set to [YES].

STATUS

Shows the status of the selected device. IOS CONNECTED: You are able to use the application using the iPhone/ iPod connected via Bluetooth or USB input terminal. IOS NOT CONNECTED: No IOS device is connected to use the application. ANDROID CONNECTED: You are able to use the application using the Android smartphone connected via Bluetooth. ANDROID NOT CONNECTED: No Android device is connected to use the application.

Listen to iPhone/iPod via Bluetooth

You can listen to the songs on the iPhone/iPod via Bluetooth on this unit.

Press ⓍSRC repeatedly to select iPod BT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. (→)
• If you plug in an iPhone/iPod to the USB input terminal while listening to iPod BT source, the source automatically change to iPod USB. Press ⓍSRC to select iPod BT if the device is still connected via Bluetooth.

BLUETOOTH®

Internet radio via Bluetooth

You can listen to internet radio (Pandora, iHeartRadio and Spotify) on the iPhone/iPod touch/Android device via Bluetooth on this unit.

- Make sure the USB input terminal is not connected to any device.

Listen to Pandora

Preparation:

Select [ON] for [PANDORA SRC] in [SOURCE SELECT]. (→)

1 Open the Pandora application on your device.
2 Connect your device via Bluetooth connection. (45)
3 Press repeatedly to select PANDORA (for iPhone/iPod) or PANDORA BT (for Android device).

The source switches and broadcast starts automatically.

- You can operate Pandora in the same way as Pandora via USB input terminal. (-0)

Listen to iHeartRadio

Preparation:

Select [ON] for [IHEART SRC] in [SOURCE SELECT]. (→)

1 Open the iHeartAuto application on your device.
2 Connect your device via Bluetooth connection. (5)
3 Press repeatedly to select IHEARTRADIO.

The source switches and broadcast starts automatically.

- You can operate iHeartRadio in the same way as iHeartRadio via USB input terminal. (40)

Listen to Spotify

Preparation:

Select [ON] for [SPOTIFY SRC] in [SOURCE SELECT]. (→)

1 Open the Spotify application on your device.
2 Connect your device via Bluetooth connection. (15)
3 Press repeatedly to select SPOTIFY (for iPhone/iPod) or SPOTIFY BT (for Android device).

The source switches and broadcast starts automatically.

- You can operate Spotify in the same way as Spotify via USB input terminal. (11)

AUX AUDIO SETTINGS

Use a portable audio player

1 Connect a portable audio player (commercially available).

3.5 mm (1/8") stereo mini plug with "L" shaped connector (commercially available)

Auxiliary input jack Portable audio player

2 Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (→)
3 Press repeatedly to select AUX.
4 Turn on the portable audio player and start playback.

Use a 3-core plug head stereo mini plug for optimum audio output.

JVC 5/75 2-8

1 Press and hold .
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to e ^t .

To return to the previous setting item, press Q/3.

Default: XX

EQ SETTING
PRESET EQ	Select a preset equalizer suitable to the music genre. Select [USER] to use the settings made in [EASY EQ] or [PRO EQ].FLAT/DRVN 3/DRVN 2/DRVN 1/HARD ROCK/HIP HOP/JAZZ/POP/R&B/USER/CLASSICALDrive equalizer (DRVN 3/DRVN 2/DRVN 1) boosts specific frequencies in the audio signal to reduce the noise heard from outside the car or running noise of the tyres.
EASY EQ	Adjust your own sound settings.The settings are stored to [USER].The settings made may affect the current settings of [PRO EQ].SUB.W SP*1*2: 00 to +06 (Default: +03)SUB.W*1*3 -50 to +10 00BASS: LVL-09 to LVL+09 LVL 00MID: LVL-09 to LVL+09 LVL 00TRE: LVL-09 to LVL+09 LVL 00)

*1, *2, *3: (=24)

AUDIO SETTINGS

PRO EQ	Adjust your own sound settings.The settings are stored to [USER].The settings made may affect the current settings of [EASY EQ].
62.5HZLEVEL -09 to LEVEL +09 (LEVEL 00): Adjusts the level to memorize for each source.(Before making an adjustment, select the source you want to adjust.)ON: Turns on the extended bass. ;OFF: Cancels.
100HZ/ 160HZ/250HZ/400HZ/630HZ/1KHZ/ 1.6KHZ/2.5KHZ/ 4KHZ/6.3KHZ/10KHZ/16kHz
LEVEL -09 to LEVEL +09 (LEVEL 00): Adjusts the level to memorize for each source.(Before making an adjustment, select the source you want to adjust.)
Q FACTOR 1.35 / 1.50/2.00: Adjust the quality factor.
AUDIO CONTROL
BASS BOOST	LEVEL +01 to LEVEL +05: Selects your preferred bass boost level. ;OFF: Cancels.
LOUDNESS LEVEL 01 / LEVEL 02: Boosts low or high frequencies to produce a well-balanced sound at low volume. ;OFF: Cancels
SUB.W LEVEL*1	SPK-OUT*2	(Not applicable when 3-way crossover is selected.)SUB.W 00 to SUB.W +06 (SUB.W +03): Adjuststhe output level of the subwoofer connected viaspeaker lead. (-9)
	PRE-OUT*3	SUB.W -50 to SUB.W +10 (SUB.W 00: Adjuststhe output level of the subwoofer connected tothe lineout terminals (SW or REAR/SW) through anexternal amplifier. (-40)
SUBWOOFER SET*3	ON: Turns on the subwoofer output. ;OFF: Cancels.
FADER	(Not applicable when 3-way crossover is selected.)POSITION R15 to POSITION F15 (POSITION 00): Adjusts the front andrear speaker output balance.

BALANCE*4	POSITION L15 to POSITION R15 (POSITION 00): Adjusts the left and right speaker output balance.
VOLUME ADJUST LEVEL -15 to LEVEL +06 (LEVEL 00): Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust.
AMP GAIN LOW	POWER: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ;HIGH POWER: The maximum volume level is 35.
SPK/PRE OUT	(Not applicable when 3-way crossover is selected.) Depending on the speaker connection method, select the appropriate setting to get the desired output. (→ 25, Speaker output settings)
SPEAKER SIZE	Depending on the crossover type you have selected (→ [X ' OVER TYPE]), 2-way crossover or 3-way crossover setting items will be shown. (→26, Crossover settings) By default, 2-way crossover type is selected.
X' OVER
DTA SETTINGS	For settings, → 27, Digital Time Alignment settings.
CAR SETTINGS
X' OVER TYPE Caution : Adjust the volume before changing the [X ' OVER TYPE] to avoid the sudden increase or decrease of the output level.
2-WAY	(Displayed only when [3-WAY] is selected) YES: Selects two way crossover type. ;NO: Cancels.
3-WAY	(Displayed only when [2-WAY] is selected) YES: Selects three way crossover type. ;NO: Cancels.

*1 Displayed only when [SUBWOOFER SET] is set to [ON]
*2 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. (-25)
*3 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. (-25)
*4 This adjustment will not affect the subwoofer output.

AUDIO SETTINGS

SOUND EFFECT

SPACE ENHANCE (Not applicable for TUNER source.)SMALL/MEDIUM/LARGE: Virtually enhances the sound space.;OFF: Cancels.

SND RESPONSE LEVEL1 /LEVEL2 /LEVEL3: Virtually makes the sound more realistic.;OFF: Cancels.

SOUND LIFT LOW /MIDDLE/HIGH: Virtually adjust the sound position heard fromthe speakers.;OFF: Cancels.

VOL LINK EQ ON: Boosts the frequency to reduce the noise heard from outside thecar or running noise of the tyres.;OFF: Cancels.

K2 TECHNOLOGY (Not applicable for TUNER source, SIRIUS XM source and AUX source.)ON: Improve the sound quality of compressed music.;OFF: Cancels.

Speaker output settings [SPK/PRE OUT]

(Applicable only if [X' OVER TYPE] is set to [2-WAY]) (→ 24)

Select the output setting for the speakers [SPK/PRE OUT], based on the speaker connection method.

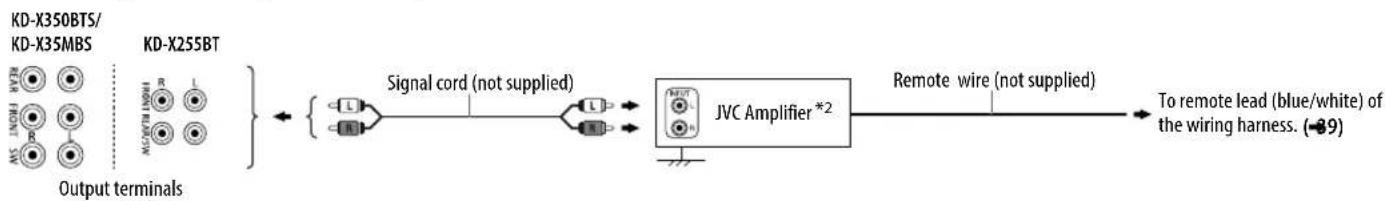

Connection via lineout terminals

For connections through an external amplifier. (40)

Setting on[SPK/PRE OUT]	Audio signal through lineout terminal
	FRONT REAR SW
REAR/REAR (default)	Front speakers output Rear speakers output Subwoofer output
REAR/SUB.W	( Not available ) ( Not available ) ( Not available )
SUB.W/SUB.W	Front speakers output L (left): Subwoofer outputR (right): (Mute)		Subwoofer output

KD-X255BT:

Setting on[SPK/PRE OUT]	Audio signal through lineout terminal
	FRONT REAR/SW
REAR/REAR	Front speakers output	Rear speakers output
REAR/SUB.W (default)	Front speakers output	Subwoofer output
SUB.W/SUB.W	Front speakers output	Subwoofer output

Connection via speaker leads

For connections without using an external amplifier. However, with this settings you can also enjoy the subwoofer output. (→9)

Setting on[SPK/PRE OUT]	Audio signal through rear speaker lead
	L (left)	R (right)
REAR/REAR	Rear speakers output	Rear speakers output
REAR/SUB.W	Rear speakers output	Rear speakers output
SUB.W/SUB.W	Subwoofer output	(Mute)

If [SUB.W/SUB.W] is selected:
- [120HZ] is selected in [SUBWOOFER LPF] and [THROUGH] is not available.
- [POSITION R02] is selected in [FADER] and selectable range is [POSITION R15] to [POSITION 00].

AUDIO SETTINGS

Crossover settings

Below are the available setting items for 2-way crossover and 3-way crossover.

Caution

Select a crossover type according to how the speakers are connected. (-89, 40)

If you select a wrong type:

• The speakers may damage.

- The output sound level may be extremely high or low.

SPEAKER SIZE

Selects according to the connected speaker size for optimum performance.

• The frequency and slope settings are automatically set for the crossover of the selected speaker.
• When 2-way crossover is selected, if [NONE] is selected for[TWEETER] of [FRONT], [REAR] and [SUBWOOFER] for [SPEAKER SIZE], the [X'OVER] setting of the selected speaker is not available.
• When 3-way crossover is selected, if [NONE] is selected for [WOOFER] of [SPEAKER SIZE], the [X'OVER] setting of [WOOFER] is not available.

X'OVER(crossover)

• [FRQ]/[F-HPF FRQ] /[R-HPF FRQ]/[SW LPF FRQ]/[HPF FRQ]/[LPF FRQ]: Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter).
  If [THROUGH] is selected, all signals are sent to the selected speakers.

- [SLOPE]/[F-HPF SLOPE]/[R-HPF SLOPE]/[SW LPF SLOPE]/[HPF SLOPE] / [LPF SLOPE]: Adjusts the crossover slope. Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.

- [SW LPF PHASE] /[PHASE]: Selects the phase of the speaker output to be in line with the other speaker output.

- [GAIN LEFT]/[GAIN RIGHT]/[F-HPF GAIN]/[R-HPF GAIN]/[SW LPF GAIN]/[GAIN]: Adjusts the output volume of the selected speaker.

2-way crossover setting items

SPEAKER SIZE
FRONT SIZE		3.5"/4"/4.75"/5"/6.5"/6.75"/7"/4×6/5×7/6×8/6×9/7×10
	TWEETER	SMALL/MIDDLE/LARGE/NONE (not connected)
REAR*1	3.5"/4"/4.75"/5"/6.5"/6.75"/7"/4×6/5×7/6×8/6×9/7×10/NONE (not connected)
SUBWOOFER*2*3	6.5"/8"/10"/12"/15" OVER/NONE(not connected)
X'OVER
TWEETER FRQ		1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ
	GAIN LEFT	-08DB to 00DB
	GAIN RIGHT	-08DB to 00DB
FRONT HPF F-HPF FRQ		30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	F-HPF SLOPE	-06DB/-12DB/-18DB/-24DB
	F-HPF GAIN	-08DB to 00DB
REAR HPF*1	R-HPF FRQ 30HZ	/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	R-HPF SLOPE	-06DB/-12DB/-18DB/-24DB
	R-HPF GAIN	-08DB to 00DB
SUBWOOFER LPF*2*3	SW LPF FRQ 30HZ	/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	SW LPF SLOPE	-06DB/-12DB/-18DB/-24DB
	SW LPF PHASE	REVERSE (180°)/NORMAL (0°)
	SW LPF GAIN -08DB to 00DB

*1,*2,*3:(-27)

AUDIO SETTINGS

3-way crossover setting items

SPEAKER SIZE
TWEETER	SMALL/MIDDLE/LARGE
MID RANGE	3.5"/4"/4.75"/5"/6.5"/6.75"/7"/4×6/5×7/6×8/6×9
WOOFER*3	6.5"/8"/10"/12"/15" OVER/NONE (not connected)
X'OVER
TWEETER HPF FRQ	1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ
SLOPE	-06DB/-12DB
PHASE	REVERSE (180°)/NORMAL (0°)
GAIN -08DB	to 00DB
MID RANGE HPF FRQ	30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
HPF SLOPE	-06DB/-12DB
LPF FRQ	1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ/THROUGH
LPF SLOPE	-06DB/-12DB
PHASE	REVERSE (180°)/NORMAL (0°)
GAIN -08DB	to 00DB
WOOFER*3	LPF FRQ 30HZ /40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
SLOPE	-06DB/-12DB
PHASE	REVERSE (180°)/NORMAL (0°)
GAIN -08DB	to 00DB

*1 Displayed only when [SPK/PRE OUT] is set to [REAR/REAR] or [REAR/SUB.W]. (-25)
*2 KD-X255BT: Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W] (-25)
*3 Displayed only when [SUBWOOFER SET] is set to [ON]. (-24)

Digital Time Alignment settings

Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.

- For more information, 28, Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS].

DTA SETTINGS
POSITION	Selects your listening position (reference point).ALL: Not compensating; FRONT RIGHT: Front right seat; FRONT LEFT: Front left seat; FRONT ALL: Front seat• [FRONT ALL] is displayed only when [X' OVER TYPE] is set to [2-WAY]. (-24)
DISTANCE*1	0FT to 20.01FT: Fine adjust the distance to compensate.
GAIN*1	-8DB to 0DB: Fine adjust the output volume of the selected speaker.
DTA RESET YES	: Resets the settings ([DISTANCE] and [GAIN]) of the selected [POSITION] to default.; NO: Cancels.
CAR SETTINGS	Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS].
CAR TYPE COMPACT	/FULL SIZE CAR/WAGON/MINIVAN/SUV/MINIVAN(LONG): Selects the type of vehicle.; OFF: Not compensating.
R-SP LOCATION*2	Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).DOOR/REAR DECK: Selectable only when [CAR TYPE] is selected as [OFF], [COMPACT], [FULL SIZE CAR], [WAGON] or [SUV]2ND ROW/3RD ROW: Selectable only when [CAR TYPE] is selected as [MINIVAN] or [MINIVAN(LONG)].

*1, *2: (→28)

AUDIO SETTINGS

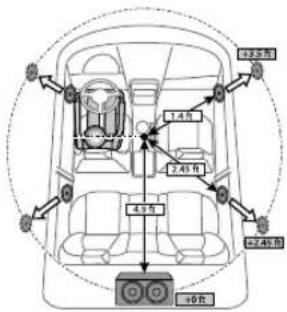

Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS]

4.5 ft 2.4ft 4.5 ft 100 rad

If you specify the distance from the center of the currently set listening position to every speaker, the delay time will be automatically computed and set.

1 Determine the center of the currently set listening position as the reference point.
2 Measure the distances from the reference point to the speakers.
3 Calculate the differences between the distance of the furthest speaker (rear speaker) and other speakers.
4 Set the DISTANCE] calculated in step 3 for individual speakers.
5 Adjust [GAIN] for individual speakers.

Example: When [FRONT ALL] is selected as the listening position

*1 Before making an adjustment, select the speaker:

When 2-way crossover is selected:

FRONT LEFT/ FRONT RIGHT/ REAR LEFT / REAR RIGHT/SUBWOOFER:

[REAR LEFT] [REAR RIGHT] and [SUBWOOFER] is selectable only if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER] of [SPEAKER SIZE]. (-26)

When 3-way crossover is selected:

TWEETER LEFT/TWEETER RIGHT/MID LEFT/MID RIGHT/WOOFER:

[WOOFER] is selectable only if a setting other than [NONE] is selected for [WOOFER] of [SPEAKER SIZE]. (-27)

*2 Displayed only when [X'OVER TYPE] is set to [2-WAY] (24) and if a setting other than [NONE] is selected for [REAR] of [SPEAKER SIZE].(26)

DISPLAY SETTINGS

Zone identification for brightness setting

Zone identification for color setting (for KD-X350BTS/KD-X35MBS)

1 Press and hold .

2 Turn the volume knob to select an item (see the following table), then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press Q/5.

Default: XX

DISPLAY

DIMMER

Dim the illumination.OFF: Dimmer is turned off. Brightness changes to [DAY] setting.ON: Dimmer is turned on. Brightness changes to [NIGHT] setting.(29, [BRIGHTNESS])DIMMER TIME: Set the dimmer on and off time.Turn the volume knob to adjust the [ON] time, then press the knob.Turn the volume knob to adjust the [OFF] time, then press the knob.(Default: [ON]:PM6:00; [OFF]: AM6:00)DIMMER AUTO: Dimmer turns on and off automatically when you turn off or on the car headlights.*1

*1 The illumination control wire connection is required. (39)

DISPLAY SETTINGS REFERENCES

BRIGHTNESS	Set the brightness for day and night separately.1 DAY/ NIGHT: Select day or night.2 Select a zone. (28)3 LEVEL 00 to LEVEL 31: Set the brightness level.
TEXT SCROLL *2	SCROLL ONCE: Scrolls the display information once.; SCROLL AUTO: Repeats scrolling at 5-second intervals.; SCROLL OFF: Cancels.
COLOR (for KD-X350BTS/KD-X35MBS)
PRESET	Select an illumination color for the buttons.COLOR 01 to COLOR 49USER: The color you have created for [DAY COLOR] or [NIGHT COLOR] is shown.COLOR FLOW01 to COLOR FLOW03: Color changes at different speeds.
DAY COLOR	Store your own day and night illumination colors for the buttons.1 RED/ GREEN BLUE: Select a primary color.2 00 to 31: Select the level.Repeat steps 1 and 2 for all the primary colors.Your setting is stored to [USER] in [PRESET].[NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your car's headlight.
NIGHT COLOR
MENU COLOR	ON: The color of buttons illumination changes to white color when in menu mode or when selecting a music file from a folder/list.; OFF: Cancels.

*2 Some characters or symbols will not be shown correctly (or will be blanked).

■ Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Connector (on the reverse side of the faceplate)

■ More information

For: — Latest firmware updates and latest compatible item list

– JVC original application

– Any other latest information

Visit http://www.jvc.net/cs/car/.

playable files

- For detailed information and notes about the playable audio files, visit http://www.jvc.net/cs/car/.

- Playable audio file:

MP3 (.mp3), WMA (.wma), AAC (.aac), AAC (.m4a), WAV (.wav), FLAC (.flac)

- Playable USB device file system: FAT12, FAT16, FAT32

Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

About USB devices

- You cannot connect a USB device via a USB hub.

- Connecting a cable whose total length is longer than 5 m may result in abnormal playback.

- This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A.

REFERENCES

About iPod/iPhone

• Via USB input terminal:

Made for

- iPod touch (5th and 6th generation)

- iPod nano (7th generation)

- iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus

- Via Bluetooth:

Made for

- iPod touch (5th and 6th generation)

- iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus

- It is not possible to browse video files on the "Videos" menu in [HEAD MODE].

- The song order displayed on the selection menu of this unit may differ from that of the iPod/iPhone.

- Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit.

About Android device

• This unit supports Android OS 4.1 and above.

- Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.

- If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.

About Pandora

- Pandora is only available in certain countries.

For more information, visit http://www.pandora.com/legal.

- Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.

- Some functions of Pandora cannot be operated from this unit.

- For issues using the application, please contact Pandora at [e-mail].

About iHeartRadio

• iHeartRadio® is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Some iHeartRadio® functionality cannot be operated from this unit.

About Spotify

- Spotify application supports:

• iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus (iOS 8 or above)
• iPod touch (5th and 6th generation)

• Android OS 4.0.3 or above

• Spotify is a third party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

• Some functions of Spotify cannot be operated from this unit.
• For issues using the application, please contact Spotify at .

About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.
• This unit may not work with some Bluetooth devices.
  • Signal conditions vary, depending on the surroundings.

REFERENCES

Change the display information

Each time you press □ the display information changes.

- If the information is unavailable or not recorded, "NO TEXT", "NO NAME", or other information (eg. station name) appears or display will be blank.

Source name	Display information
	KD-X350BTS/KD-X35MBS KD-X255BT
FM or AM	Frequency (Date/Clock)*1 →frequency (Date) with music synchronisation* 2 →(back to the beginning)	Frequency →Clock →frequency with music synchronisation* 2 →(back to the beginning)
	(For FM Radio Broadcast Data System stations only)Station name (PS)/Program type (PTY) (Date/Clock)*1 →Radio text (Date/Clock) *1 →Radio text + (Radio text+) → Song title (Artist) →Song title (Date/Clock) *1 →frequency (Date/Clock)*1 →station name (PS)/Program type (PTY) (Date) with music synchronisation* 2 →(back to the beginning)	(For FM Radio Broadcast Data System stations only)Station name (PS)/Program type (PTY) →Radio text →Radio text + → Radio text + title/Radio text + artist →frequency → Clock →station name (PS)/Program type (PTY) with music synchronisation*2 →(back to the beginning)
USB (For MP3/WMA/AAC/WAV/FLAC files)	Song title (Artist) →Song title (Album name) →Song title (Date/Clock) *1 →File name (Folder name) →File name (Date/Clock) *1 →Playing time (Date/Clock) *1 →Song title (Artist) with music synchronisation*2 →(back to the beginning)	(For MP3/WMA/AAC/WAV/FLAC files)Song title/Artist →Album name/Artist →Folder name →File name →Playing time →Clock →Song title/Artist with music synchronisation*2 →(back to the beginning)
iPod USB/iPod BT or ANDROID	When [HEAD MODE]/[AUTO MODE] is selected (-8) :Song title (Artist) →Song title (Album name) →Song title (Date/Clock) *1 →Playing time (Date/Clock)*1 →Song title (Artist) with music synchronisation* 2 →(back to the beginning)	When [HEAD MODE]/[AUTO MODE] is selected (-8) :Song title/Artist →Album name/Artist →Playing time →Clock →Song title/Artist with music synchronisation*2 →(back to the beginning)
PANDORA/PANDORA BT	Station name (Date/Clock)*1 →Shared/Radio (Date/Clock) *1 →Song title (Artist) →Song title (Album name) →Song title (Date/Clock)*1 →Playing time (Date/Clock) *1 →Station name (Date) with music synchronisation*2 →(back to the beginning)	Station name →Shared/Radio →Song title →Artist name →Album name →Playing time →Clock →Station name with music synchronisation*2 →(back to the beginning)
IHEARTRADIO	Station name (Date/Clock)*1 →Song title (Artist) →Song title (Date/Clock) *1 →Station name (Date) with music synchronisation*2 →(back to the beginning)	Station name →Song title/Artist →Clock →Station name with music synchronisation*2 →(back to the beginning)

*1, *2: (32)

REFERENCES

Source name	Display information
	KD-X350BTS/KD-X35MBS KD-X255BT
SPOTIFY/SPOTIFY BT	Context title (Date/Clock)*1 song title (Artist) Song title (Album name) Song title (Date/Clock)*1 Playing Time (Date/Clock) *1 Context title (Date) with music synchronisation*2 back to the beginning)	Context title ➔ Song title ➔ Artist name Album name ➔ Playing Time ➔ Clock Context title with music synchronisation*2 back to the beginning)
SIRIUS XM	Channel number (Status) Channel name (Status) Artist (Status) Song title (Status) Content information (Status) ➔ Category name (Status) Date (Status) Channel number (Status) with music synchronisation*2 back to the beginning)	—
BT AUDIO	Song title (Artist) Song title (Album name) Song title (Date/Clock) *1 Playing time (Date/Clock)*1 Song title (Artist) with music synchronisation*2 back to the beginning)	Song title/Artist ➔ Album name/Artist Playing time Clock ➔ Song title/Artist with music synchronisation*2 back to the beginning)
AUX	AUX (Date/Clock)*1 AUX (Date) with music synchronisation*2 back to the beginning) AUX	Clock AUX with music synchronisation*2 back to the beginning)

*1 Battery and signal strength of the Bluetooth device will be shown if[BATT/SIGNAL] is set to[AUTO]. (-17)

*2 For KD-X350BTS/KD-X35MBS: The color of the button illumination changes and synchronises with the music.

For KD-X255BT: The brightness of the button illumination changes and synchronises with the music.

TROUBLESHOOTING

Symptom Remedy
General	Sound cannot be heard. • Adjust the volume to the optimum level.• Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Source cannot be selected. Check the [SOURCE SELECT] setting. (→)
Radio	• Radio reception is poor.• Static noise while listening to the radio.	Connect the antenna firmly.
USB/iPod	Playback order is not as intended.	The playback order is determined by the file name.
	Elapsed playing time is not correct.	This depends on the recording process earlier.
	"NOT SUPPORT" appears and file skips.	Check whether the file is a playable format. (-29)
	"READING" keeps flashing. • Do not use too many hierarchical levels and folders.• Reattach the USB device.
	"UNSUPPORTED DEVICE" appears.	• Check whether the connected device is compatible with this unit and ensure the file systems are in supported formats. (-29)• Reattach the device.
	"UNRESPONSIVE DEVICE" appears.	Make sure the device is not malfunction and reattach the device.

Symptom Remedy
USB/iPod	“USB HUB IS NOT SUPPORTED” appears.	This unit cannot support a USB device connected via a USB hub.
	“CANNOT PLAY” appears.	Connect a USB device that contains playable audio files.
	The source does not change to “USB” when you connect a USB device while listening to another source.“USB ERROR” appears	The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device.
	The iPod/iPhone does not turn on or does not work	Check the connection between this unit and iPod/ iPhone.Disconnect and reset the iPod/iPhone using hard reset.
	“LOADING” appears when you enter search mode by pressing Q/→.	This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later.
	Correct characters are not displayed.	This unit can only display uppercase letters, numbers, and a limited number of symbols.Depending on the display language you have selected (→), some characters may not be displayed correctly.
ANDROID	Sound cannot be heard during playback.Sound output only from the Android device.	Reconnect the Android device.If in [AUDIO MODE], launch any media player application on the Android device and start playback.If in [AUDIO MODE], relaunch the current media player application or use another media player application.Restart the Android device.If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (→0)

TROUBLESHOOTING

Symptom	Remedy
ANDROID	Cannot playback at [AUTO MODE].	Make sure JVC MUSIC PLAY APP is installed on the Android device. (→)Reconnect the Android device and select the appropriate control mode. (→)If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (→0)
	"NO DEVICE" or "READING" keeps flashing.	Switch off the developer options on the Android device.Reconnect the Android device.If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (→0)
	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	"CANNOT PLAY" · Make sure Android device contains playable audio files.Reconnect the Android device.Restart the Android device.
Pandora	"ADD ERROR" New station creation is unsuccessful.
	"CHK DEVICE" Check the Pandora application on your device.
	"NO SKIPS" The skip limit has been reached.
	"NO STATIONS" No stations are found.
	"STATION LMT" The number of registered stations has reached its limit.Retry after deleting unnecessary stations from your device.
	"UPGRADE APP" Make sure you have installed the latest version of the Pandora application on your device.
	"CONNECT ERR" Communication is unstable.

Symptom Remedy
Pandora	“RATING ERR” Registration of thumbs up/thumbs down has failed due to insufficient network connectivity.
	“THUMBS N/A” Registration of thumbs up/thumbs down is not allowed.
	“LICENSE ERR” You try to access from a country which Pandora is not deliverable.
iHeartRadio	Station cannot be selected. If “Explicit Content” in [Account Settings] is checked in the web version of iHeartRADIO, custom stations become unavailable.
	“NOT CONNECTD” Link to the application is impossible.
Spotify	“DISCONNECTED” USB is disconnected from the head unit. Please make sure the device is connected properly through USB.
	“CONNECTING” Connected via USB input terminal: The device is connecting to the head unit. Please wait. Connected via Bluetooth: The Bluetooth is disconnected. Please check Bluetooth connection and make sure both the device and unit are paired and connected.
	“CHECK APP” The Spotify application is not connected properly, or user is not login. End the Spotify application and restart, then log in to your Spotify account.
SiriusXM® Radio	“CH LOCKED LOCK CODE?” The selected channel is locked. Enter the correct pass code to unlock. (-4)
	“CHAN UNSUB” The selected channel is unsubscribed. Call 1-866-635-2349 in the U.S.A. or 1-877-438-9677 in Canada to subscribe.
	“CH UNAVAIL” The selected channel is unavailable. For more information about the SiriusXM channel lineup, visit<www.siriusxm.com>.

TROUBLESHOOTING

Symptom	Remedy
SiriusXM ^ Radio	“CHECK ANTENNA” Check that the antenna and its connection are in good condition.
	“CHECK TUNER” Make sure the SiriusXM Vehicle Tuner is connected to the unit.
	“NO SIGNAL” Make sure the antenna is mounted outside the vehicle.
	“SUBSCRIPTION UPDATED Your subscription is updated. Press the volume knob to – PRESS ENTER TO continue. CONTINUE.”
	“CODE ERROR” Make sure you have entered the correct pass code. (→4)
	“NO CONTENT” There is insufficient content to start TuneScan.
	“SCAN CANCEL” TuneScan has been aborted.
Bluetooth ^	No Bluetooth device is detected.• Search from the Bluetooth device again.• Reset the unit. (→)
	Pairing cannot be made.• Make sure you have entered the same PIN code to both the unit and Bluetooth device.• Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (→5)
	Echo or noise occurs.• Adjust the microphone unit’s position. (→5)• Check the[ECHO CANCEL] setting. (→7)
	Phone sound quality is poor• Reduce the distance between the unit and the Bluetooth device.• Move the car to a place where you can get a better signal reception.

Symptom Remedy
Bluetooth®	Sound is being interrupted or skipped during playback of a Bluetooth audio player.	Reduce the distance between the unit and the Bluetooth audio player.Turn off, then turn on the unit and try to connect again.Other Bluetooth devices might be trying to connect to the unit.
	The connected Bluetooth audio player cannot be controlled.	Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP).(Refer to the instructions of your audio player.)Disconnect and connect the Bluetooth player again.
	“PLEASE WAIT” The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again.
	“NOT SUPPORT” The connected phone does not support Voice Recognition feature.
	“ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried.
	“H/W ERROR”	Reset the unit and try the operation again. If “H/W ERROR” appears again, consult your nearest service center.
	“SWITCHING NG” The connected phones might not support phone switching feature.

If you have any troubles, try the following:

1 Check TROUBLESHOOTING

2 Reset the unit (3)

3 Contact (USA only)

Call: 1-800-252-5722 (or) visit: http://www.jvc.com

SPECIFICATIONS

Tuner	FM Frequency Range 87.9 MHz — 107.9 MHz (200 kHz step)87.5 MHz — 108.0 MHz (50 kHz step)
	Usable Sensitivity (S/N = 26 dB) 8.2 dBf (0.71 μV/75 Ω)
	Quieting Sensitivity (DIN S/N = 46 dB) 17.2 dBf (2.0 μV/75 Ω)
	Frequency Response (±3 dB) 30 Hz — 15 kHz
	Signal-to-Noise Ratio (MONO) 64 dB
	Stereo Separation (1 kHz) 40 dB
	AM Frequency Range 530 kHz — 1 700 kHz (10 kHz step)531 kHz — 1 611 kHz (9 kHz step)
	Usable Sensitivity (S/N = 20 dB) 29 dBμ (28.2 μV)
USB	USB Standard USB 1.1, USB 2.0 (Full speed)
	Compatible Devices Mass storage class
	File System FAT12/16/32
	Maximum Supply Current DC 5 V	== 1.5 A
	D/A Converter 24 Bit
	Frequency Response (±1 dB) 20 Hz — 20 kHz
	Signal-to-Noise Ratio (1 kHz) 105 dB
	Dynamic Range	90 dB
	Channel Separation 85 dB
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	AAC Decode	AAC-LC “.aac”, “.m4a” files
	WAV Decode	RIFF waveform Audio Format (Linear PCM only)
	FLAC Decode	FLAC file, up to 24 bit/96 kHz

Auxiliary	Frequency Response (±3 dB)	20 Hz — 20 kHz
	Input Maximum Voltage	1 000 mV
	Input Impedance	30 kΩ
Bluetooth	Version	Bluetooth 3.0
	Frequency Range	2.402 GHz — 2.480 GHz
	Output Power	+4 dBm (MAX), 0 dBm (AVE) Power Class 2
	Maximum Communication Range	Line of sight approx. 10 m (32.8 ft)
	Pairing	SSP (Secure Simple Pairing)
	Profile	HFP1.6 (Hands-Free Profile)A2DP (Advanced Audio Distribution Profile)AVRCP1.5 (Audio/Video Remote Control Profile)PBAP (Phonebook Access Profile)SPP (Serial Port Profile)
Audio	Maximum Output Power	50 W × 4 or50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)
	Full Bandwidth Power(at less than 1 % THD)	22 W × 4
	Speaker Impedance	4 Ω — 8 Ω
	Preout Level/Load	KD-X350BTS/KD-X35MBS:4 000 mV/10 kΩ loadKD-X255BT:USB: 2 500 mV/10 kΩ load
	Preout Impedance	≤ 600 Ω

SPECIFICATIONS

General	Operating Voltage (10.5 V — 16 V allowable)	14.4 V
	Maximum Current Consumption 10 A
	Operating Temperature Range -10°C — +60°C
	Installation Size (W × H × D) 182 mm × 53 mm × 100 mm (7-3/16" × 2-1/8" × 3-15/16")
	Net Weight (includes Trimplate, Mounting Sleeve)	0.6 kg (1.4 lbs)

Subject to change without notice.

INSTALLATION/CONNECTION

▲ Warning

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

• To prevent short circuit:

- Insulate unconnected wires with vinyl tape.

- Be sure to ground this unit to the car's chassis again after installation.

- Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50 W. If the maximum power of the speakers is lower than 50 W, change the [AMP GAIN] setting to avoid damaging the speakers. (24)
• Mount the unit at an angle of less than 30^ .
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

INSTALLATION/CONNECTION

Part list for installation

(A) Faceplate

(C) Mounting sleeve

(E) Extraction key

(B) Trim plate

(D) Wiring harness

Basic procedure

1 Remove the key from the ignition switch, then disconnect the ⊖ terminal of the car battery.
2 Connect the wires properly. See Wiring connection. (39)
3 Install the unit to your car. See Installing the unit (in-dash mounting).
4 Connect the terminal of the car battery.
5 Press ☐ SROturn on the power.
6 Detach the faceplate and reset the unit within 5 seconds. (→)

Installing the unit (in-dash mounting)

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available).

(B) 8 mm (3/8") MAX M5 mm M5 mm

⚠ Use only the specified screws. Using wrong screws might damage the unit.

How to remove the unitWhen installing

(A) (B) (C) (E) ① ② ③

INSTALLATION/CONNECTION

Wiring connection

IMPORTANT

We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer.

INSTALLATION/CONNECTION

Connecting external components

KD-X350BTS/ KD-X35MBS: MIC (Microphone input terminal) (→15) KD-X350BTS/ KD-X35MBS: Expansion port (12 V --- 500 mA) To the optional SiriusXM Vehicle Tuner (commercially available) (→2) KD-X255BT: Microphone input jack (→5)

Connecting external amplifiers via output terminals

Output terminals 2-way crossover setting 3-way crossover setting

REAR	: Rear output	Tweeter output
FRONT	: Front output	Mid Range output
SW	: Subwoofer output	Woofer output
FRONT	: Front output	Mid Range output
REAR/SW	: Rear/subwoofer output	Woofer output

*2 Firmly connect the ground wire of the amplifier to the car's chassis to avoid damaging the unit.

TABLE DES MATIERES

JVC G/75 m-B

4.5 ft 2.4 ft +0.8 feet +2.4 ft

Consultez http://www.jvc.net/cs/car/.

http://www.jvc.net/cs/car/

- iPod touch (5th et 6th generation)

- iPod nano (7th generation)

- iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus

- Via Bluetooth:

Made for

3 Contactez (USA uniquement)

Appelez: 1-800-252-5722 (ou) consultez: http://www.jvc.com

SPÉCIFICATIONS

INSTALLATION/RACCORDEMENT

Avertissement

INSTALLATION/RACCORDEMENT

montage

(B) 8 mm (3/8") MAX MS mm MS mm

Diagram illustrating a three-step process of a device with labeled steps (A, B, C, E) and directional arrows indicating movement.

INSTALLATION/RACCORDEMENT

Connexions

IMPORTANTES

INSTALLATION/RACCORDEMENT

"AUD.STREAM OK"*2 y/o "PBAP OK"*3 : Compatible

Visite http://www.jvc.net/cs/car/.

(B) 8 mm (3/8") MAX MS mm MS mm

(A) (B) (C) (E) ① ② ③

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Lightning is a trademark of Apple Inc.
• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
• iHeartRadio® and iHeartAuto™ are trademarks owned by iHeartMedia, Inc. All uses are authorized under license.
• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.
• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
  • Android is trademark of Google Inc.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
