From now on, your daily housework will be easier than ever before. Your appliance Air*optionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

GUIDELINES CONCERNING THE SAFETY OF USE

• To ensure safety and reduce the risk of injury or electric shock, follow all precautions listed below.
• This appliance is intended for household use indoors and similar applications such as:

- farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;
• staff kitchen areas in shops, offices and other working environments;

• catering and similar non-retail applications.

• The appliance must be handled by at least 2 people.

• Make sure the plug is easily accessible to allow disconnection from the mains supply.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.
• The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.
• Keep this manual for future reference, or to pass it over to the next user.
• This appliance is not intended for use by persons (including children) with limited physical or mental capabilities and persons who lack experience or familiarity with the appliance.
• Do not allow children to use the appliance. Do not allow them to play with the appliance. They must not climb inside the drawers and swing on the doors.
• The appliance operates properly at the ambient temperature (see product fiche). Do not use it in the cellar, unheated summer cottage during au-

tumn and winter.

- When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit.

- Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.

- The “cracking” sound, which the appliance may emit is caused by the expansion and contraction of parts as a result of temperature variations.

- For safety reasons do not repair the appliance yourself. Repairs carried out by persons who do not have the required qualifications may result in serious danger for the user of the appliance.

- Make sure you do not damage the cooling system, by puncturing the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant is flammable. If the refrigerant makes contact with the eyes, rinse them with clean water and call for medical assistance immediately.

- Important! If the power cord is damaged, it should be replaced by the manufacturer or specialist repair centre or a qualified person in order to avoid danger.

- When performing activities, such as cleaning, maintenance or moving, the appliance must be completely disconnected from power supply (by pulling the plug out from the socket)

- This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are super-

vised by a competent person.

• Do not clean the appliance with steam
• Keep the appliance and its power cord away from children under 8 years old.
• Do not immerse the power cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow the connection cord hanging over the edge of a table or counter.
• Do not use any electrical appliances inside the chamber
• Do not use any tools to speed up the defrosting process
• Regularly clean the ventilation openings (in case of built-in appliances or those installed under the worktop)
• This appliance is not designed to be controlled by electronic timers or other devices that cut off power directly or remotely.
• In case of accidental spillage of liquids on electrical components, immediately unplug your appliance from the power supply.
• Make sure that the power cord is not crushed or damaged during installation.
• Disable the appliance before disposing of it. Unplug the appliance from the power supply and cut off the power cord. To prevent children or animals from being trapped in the appliance, remove the doors, hinges and locks.
• Note: If the appliance does not have a freezer compartment ( ^ ^** ), it is not suitable for freezing foodstuffs.
• Pursuant to Commission Regulation (EU) 2019/2019, the minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part.
• The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or an authorized representative.

INSTALLATION AND OPER- ATING CONDITIONS OF THE APPLIANCE

• Connect the appliance to the power supply 24 hours after unpacking and setting in the final location.
• Take the product out of the package, remove the scotch tape protecting the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent.
• Clean the interior surface of the cooler and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry.
• Place the cooler on an even, flat and stable surface, in dry, aired and shaded room, far from the heat sources such as: oven, hob, central heating radiators, central heating pipes, hot water installation, etc.
• On the exterior surface of the product may be a protective foil, this foils should be removed.

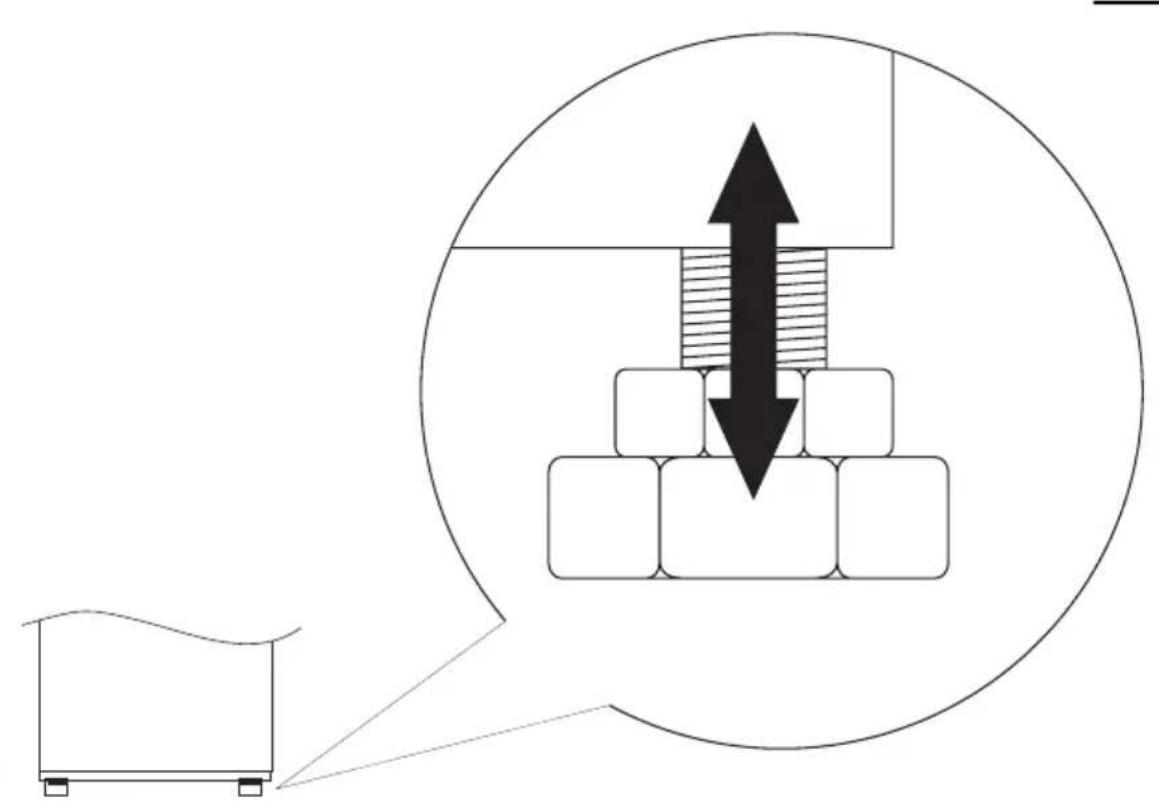

• Make sure the appliance is placed in a horizontal position by screwing in the 2 adjustable front legs (fig. 1)
• Keep free space on the sides and rear of the appliance (see installation drawing)
• When you install your wine cooler inside a furniture cabinet, make sure that the ventilation grille located in the bottom of the appliance is not blocked.
• Odours may be released when you first start your appliance. It will dissipate when the interior of the appliance cools down
• When you first start your wine cooler, the compressor will run continuously until the desired temperature is reached inside the chamber
• When you unplug your appliance from the power supply, it is recommended to wait 5 minutes before you plug it back in. This will reduce the risk of damage to the compressor.
• On selected models, the correct temperature will be shown on the display only a few hours after the wine cooler has been put into operation
• This appliance should be connected to AC 220-240V 50Hz supply socket. The socket must be fitted properly, and must be supplied with an earthing conduit and a 10A fuse.
• It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.
• Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate.
• If an extension lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be flooded by water or waste water.
• Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.

Climate range

The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

Climate class Allowable ambient temperature

SN	Extended Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 10°C and 32°C
N Temperate		This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 32°C
ST Subtropical		This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 38 °C
T Tropical		This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 43 °C

PRACTICAL EVERYDAY TIPS

• If the light inside the appliance remains turned on, keep in mind that the temperature inside the appliance will be higher
• Temperature inside the appliance depends on the amount and type of stored wine bottles
• To ensure user safety and high quality of stored wine, do not install the appliance in damp rooms

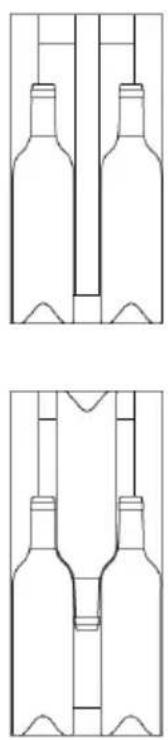

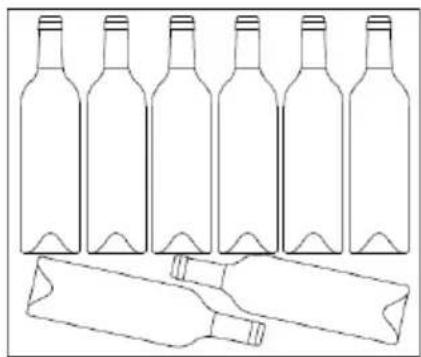

• Store wine bottles in designated spaces
• Your wine cooler has a limited capacity. Do not place more bottles in your wine cooler than recommended in specification
• Do not open the wine cooler door if it is not necessary
• Do not cover the shelves with aluminium foil or other material. This blocks the air circulation inside the appliance
• To avoid damage to the door seal, make sure that the door is completely open before pulling out the shelf. The shelves should be inserted as far as possible, otherwise the shelf may deform and damage the door seal.
• Do not extend the loaded shelves beyond the extension limit (about 1/3 of the shelf length)
• This appliance is designed for storing bottles of wine. Do not use it for any other purpose.
  • Temperature stability is very important when storing wine.
• Exposing your wine cooler to sunlight, significant temperature fluctuations, high humidity and vibrations may cause the wine to go bad.
• In periods of high humidity, condensed water vapour may appear on the outer surfaces of the glass door. To prevent this, install the appliance in a dry, adequately ventilated room.

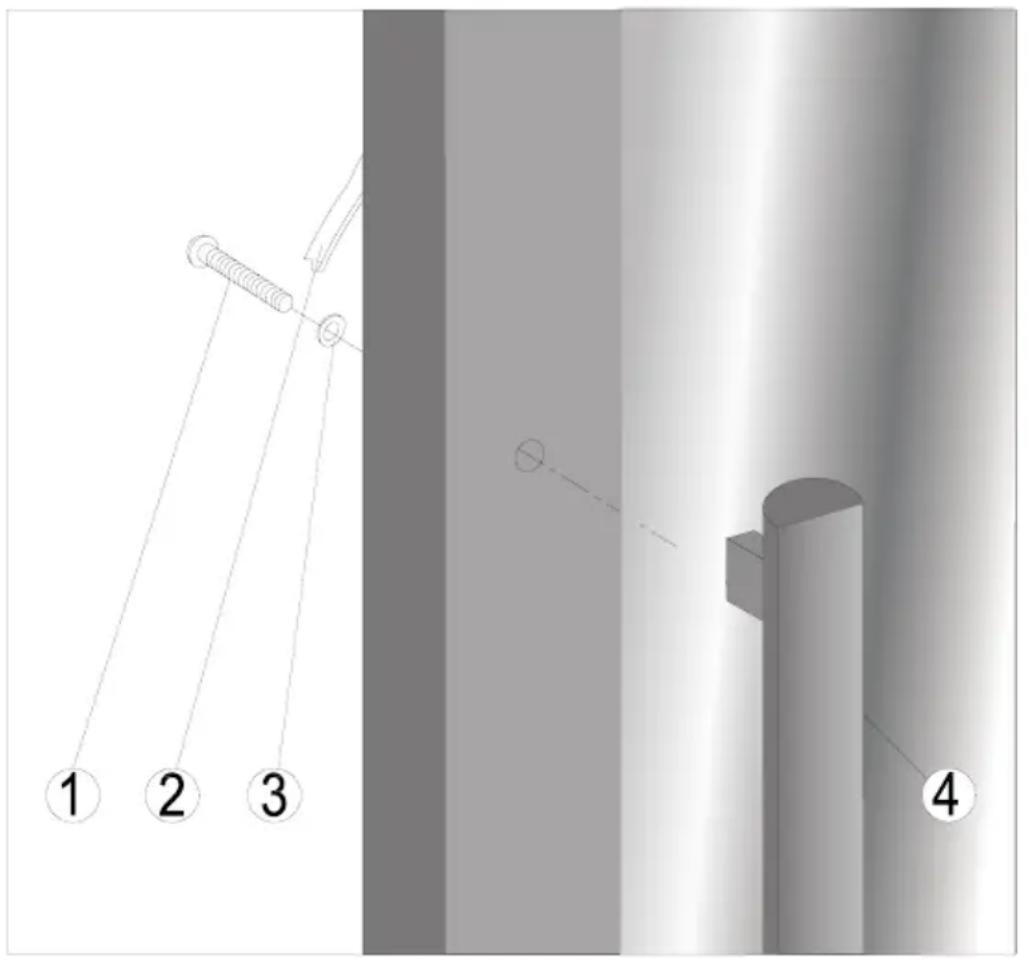

• Selected models have an external handle. You need to install it on your own. Do not use electric tools for this purpose (fig. 3*). To do this, pull the door seal slightly to the side and place the screws on the inside of the door. Align the handle with the holes on the outside

of the door and tighten the screws with a screwdriver. Reinstall the door seal.

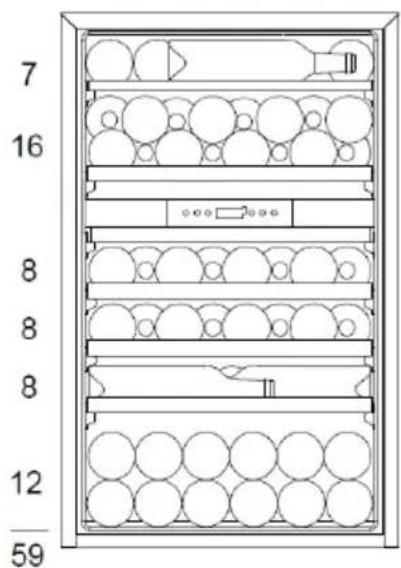

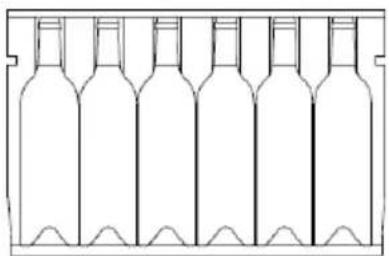

• The maximum capacity of the appliance is given in the product sheet enclosed with the wine cooler. This capacity applies to standard 0.75 litre bottles of Bordeaux.
• Selected models have an Anti-tip kit. Install it according to the enclosed diagram (fig. 6*).
• This refrigeration appliance is intended for use as a built-in appliance.
• To achieve the most effective food preservation for the longest possible time and to avoid wasting any food, position the products as shown in Figure 12. In addition, this figure illustrates the layout of drawers, baskets and shelves, which allows the most efficient use of energy.
• Optimal temperature and storage conditions will extend product shelf life and optimize electricity consumption. Optimal storage temperature range should be stated on the food product packaging.

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for

packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with no visible text or labels

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user is obliged to hand it

over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

CONTROLS

Appliance controls- single and dual zone

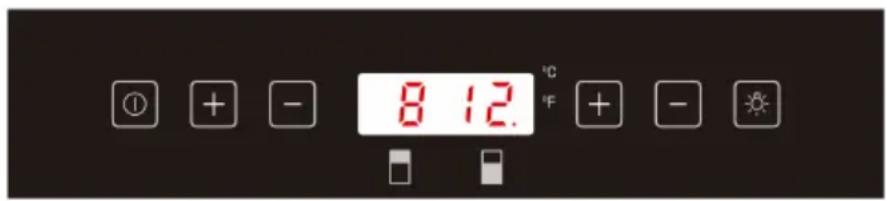

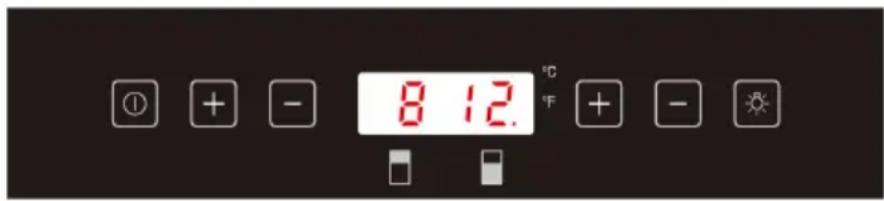

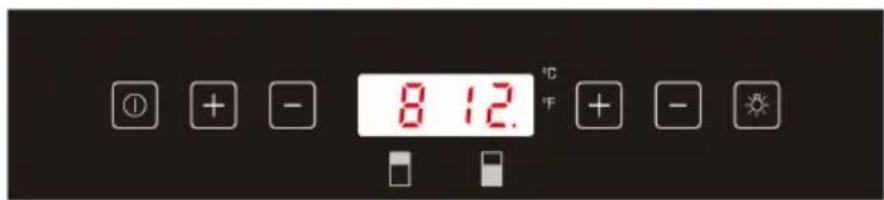

The control panel is shown in figure 4. For reference it is also shown below:

Single zone

12 °C + - ①

Dual zone

8 12 °C + - F + -

① - Power button
- Light button
+ - "+" button
- “-” button

To switch the power on/off

Press and hold the power button for one second to switch the wine cooler on. Press and hold the power button for five seconds to switch the wine cooler off.

Note: Turn off your appliance by unplugging the power cord from the wall outlet.

To change the temperature

• Press the "+" or "-" buttons until the required temperature is shown on the display.
• The Preset temperature is 12^ / 54^ . (for single zone models)
• For dual zone models: For the upper/left zone, the default temperature setting is 8°C/46°F, and for the lower/right zone, the default temperature setting is 12°C/54°F.
• To view the set temperature, touch the "+" or "-" button at any time and the set temperature will flash in the LED display for five seconds.
• The display shows the current internal temperature when the wine cooler is on.

Note: The temperature in the lower zone must be set either the same as or higher than the temperature in the upper zone.

Optimal temperature selection

Whilst wine is best stored at temperatures between 13 and 15°C, your wine can also be stored at drinking temperature. For red wine this is between 15 and 17°C, and for white wine between 12 and 13°C.

Interior lighting

The wine cooler has two options for the interior lights. To change from one option to the other, press and hold the light button for 5 seconds.

• Display mode - This mode will leave the interior light on constantly, allowing you to see the contents of the wine cooler at a glance at any time. The light indicator will light up in display mode.
• Energy saving mode - This mode only switches on the interior light when the door is opened.

Settings mode

Some settings are available depending on the mode.

Set the temperature unit °F or °C.

Touch and hold +for 5 seconds, then use and to-set the unit. Touch Ⓞ to confirm. Touch +for 5 seconds to exit.

Set the display backlight intensity

Touch and hold + for 5 seconds, then touch Ⓞ once. Now use + and - to set the display backlight intensity. The default setting is d1. Touch Ⓞ to confirm. Touch +for 5 seconds to exit.

Set the appliance interior lighting intensity.

Touch and hold + for 5 seconds, then touch Ⓞ twice. Now use + and - to set the interior lighting intensity. The default setting is L3 Touch Ⓞ to confirm. Touch + for 5 seconds to exit.

Set sounds.

Touch and hold + for 5 seconds, then touch ⊕ four times. Now use + and - to set the sounds. The default setting is S1. The possible settings are as follows:

S0: Touch sensor sound ON / Audio alarm OFF
S1: Touch sensor sound ON / Audio alarm ON
S2: Touch sensor sound OFF / Audio alarm OFF
S3: Touch sensor sound OFF / Audio alarm ON
Touch Ⓞ to confirm. Touch for 5 seconds to exit.

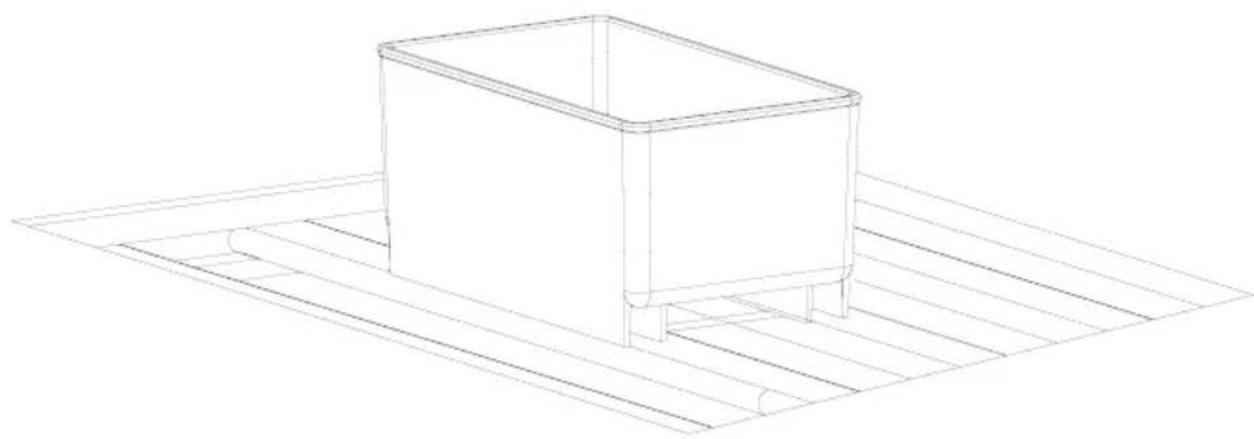

Internal Humidity

According to the model wine coolers are equipped with a humidity system to maintain optimal humidity within the wine cooler. Fill the humidity reservoir approximately 3/4 full with water. Place the reservoir on the runners on the top shelf as shown in fig. 2. Ensure it is located correctly to prevent water spillage. Check the water level regularly and refill if required.

Temperature display

The temperature display will show the current internal temperature. The display flashes:

• When a different temperature is being set
• If the internal temperature is +/- 5^ away from the set temperature. This serves as a warning to prevent damage to the contents of the appliance should the temperature be too high.

Silent Mode

Touch and hold + for 5 seconds, then touch three times. Now use + an - to set the silent mode (F0). When the required temperature is reached, the appliance operates without the fan. This is the default mode of the wine cooler.

Dynamic cooling mode

Touch and hold + for 5 seconds, then touch ⊕ three times. Now use + and - to set the dynamic mode (F1- half time, F2- full time). The fan alternately turns on and off to maintain air circulation even when the required temperature is reached. This ensures uniform and stable humidity and temperature in the wine cooler for ideal long-term wine storage conditions.

Weekend mode

This will switch off the displays, interior light and audible alarms. The cooling process will continue.

To switch the Weekend mode on, touch and hold the power and light keys simultaneously for five seconds. The indicator light will flash four times and confirm the mode is on. Mode will switch off automatically after 96 hours, but to switch the mode off at any time, touch and hold the power and light keys simultaneously for five seconds.

Temperature alarm

If the temperature rises or falls outside the set temperature range, an alarm will sound and the display will flash. This may be because:

- The wine cooler has not yet reached the set temperature (when first switched on).

• There has been a power failure.

• The wine cooler has been overloaded.

- The door is not closed properly.

Push To Open feature\*

The function is active when the appliance is connected to the power supply. Push the door slightly toward the appliance, the door will be slightly ajar, then you can open it all the way.

Do not block the door during automatic opening, it may damage the mechanism.

Do not block the pin, it is a small element that opens the door. If the pin is stuck preventing the door from closing, unplug the appliance from the wall power outlet the pin should return to the correct position after about 10 seconds.

The Push To Open feature operates properly after about 3 seconds after the door is closed or opened. If the door does not open immediately after closing it, wait a while.

Door pressure sensitivity adjustment

To change the door pressure sensitivity for Push To Open feature, do the following:

• Open the door
• Turn the screw at the top centre of the door counter-clockwise to increase sensitivity and clockwise to decrease sensitivity.
• Close the door and check that it is properly adjusted.

Turning the adjustment screw too far may cause the door to open automatically, or the door may not open even with a strong push.

CARE AND CLEANING

Always disconnect the appliance from the mains electrical supply before any cleaning or maintenance.

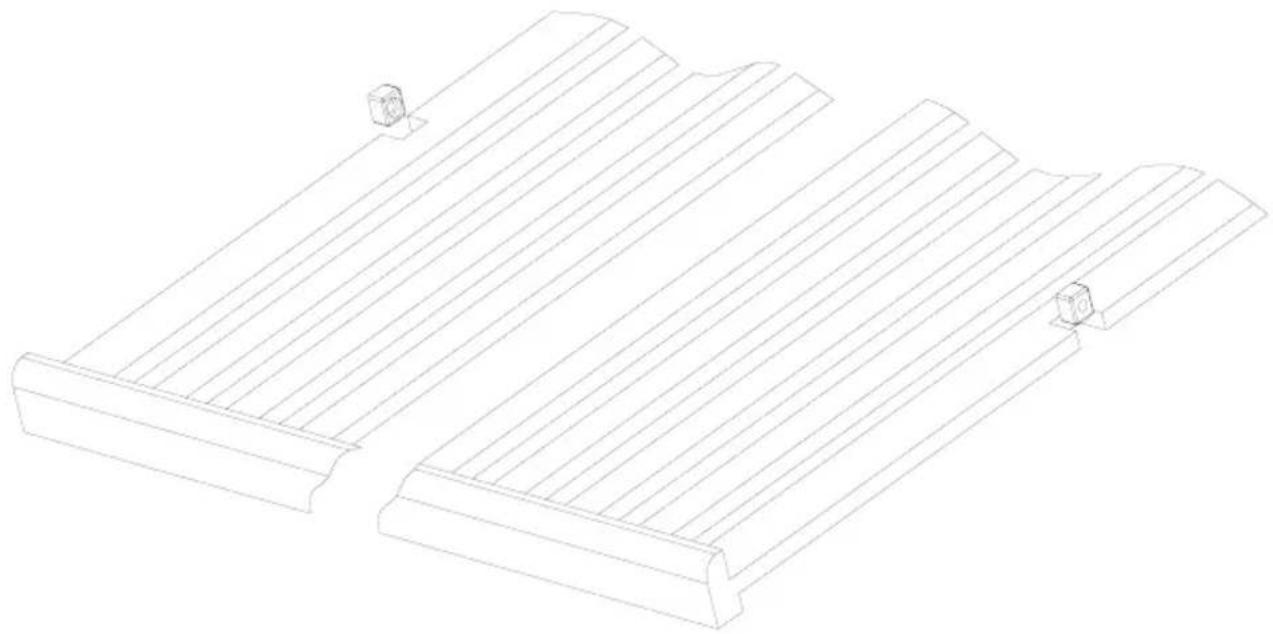

Removing the shelves

• To remove a shelf from the wine cooler, first remove all bottles from the shelf, then pull the shelf forwards until the groove on either side of the shelf is level with the plastic peg on either side of the cabinet (as shown in fig 5). Then lift the shelf up and pull forwards.
• To replace the shelves, follow the steps above in reverse order.

Cleaning

• Do not use abrasive products or detergents. After washing, rinse and dry thoroughly.
• The exterior of the appliance and the door seal should be cleaned using mild soapy water and dried thoroughly.
• The interior cabinet should be cleaned using a solution of bicarbonate of soda and lukewarm water.
• Clean the shelves separately by hand using soap and water. Do not put them in the dishwasher.
• Ensure that the cloth is only moist when cleaning the control panel and electrical parts, and that all water is thoroughly dried off before reconnecting the power.
• Once cleaning is complete, reconnect the mains electrical supply.
• If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance thoroughly. The door should be left slightly ajar to prevent the formation of odours or condensation

TROUBLESHOOTING

If you have any problems with your appliance, you should check the troubleshooting guide prior to calling Call Center to prevent unnecessary service calls and potential cost.

If the appliance is not working, check

• There is power to the appliance
- The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
- The plug socket is functioning correctly. To check this, plug another electrical appliance in to see if the socket is working.
- The ambient temperature is between 16^ to 32^ .

The appliance is working, but not very well, check

• The appliance is not overloaded.
• The thermostat is set to an appropriate temperature.
• The door is closing properly.
  • The door gasket is sealing properly
• There is enough ventilation at the side and rear walls.
• The ambient temperature is between 16^ to 32^ .

The appliance is noisy, check

• The appliance is level and stable.
• The cooling gas will make some noise, even when the compressor is not running.
• During operation, it is normal for the fan to run, even when the compressor is not running.

The light does not work, check

• There is power to the appliance.
• The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
• The light button is not set to off.

Please note:

The LED lighting cannot be replaced without a service call

The door will not close properly, check

• The appliance is level and stable.
• If the door has been removed, it may not have been correctly refitted.
  • The door seal is dirty.
• The shelves are not positioned correctly.

The display shows "E1" or "E2"

- The temperature sensor has failed. Please contact Call Center

EPREL

For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/

FITTING THE PLINTH

We recommend the help of at least one other individual throughout this process. Protect the area beneath the door and plinth with several clean towels or similar protective means. Do not tilt the appliance further than 45° during this process. Allow the cooler to settle for at least 8 hours before switching on after tilting.

1. Unscrew and remove the two screws that are used to fix the plinth and bottom bracket (Fig. A).

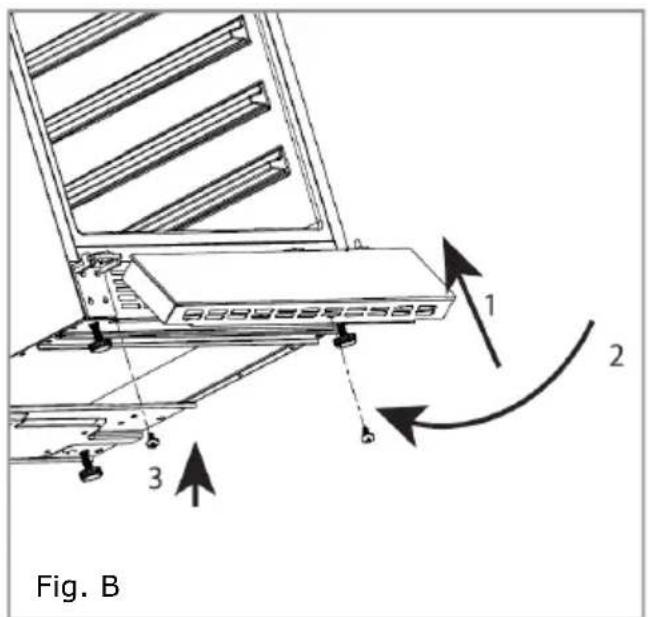

2. Insert the tabs on the glass fronted plinth section into the top slots of the metal plinth, as per part 1 of Fig. 14. Manoeuvre the plinth so that the holes in the inner lip of the glass fronted plinth section are level with the holes in the metal plinth (2 in Fig, B).

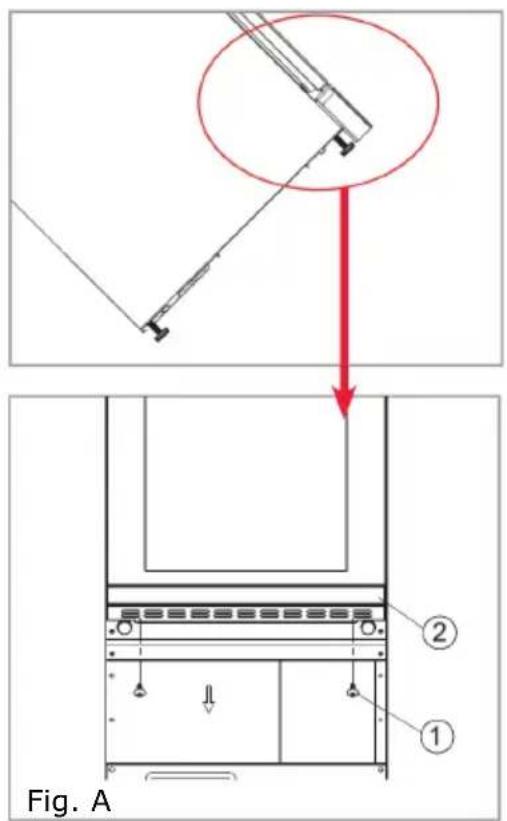

Fig. A

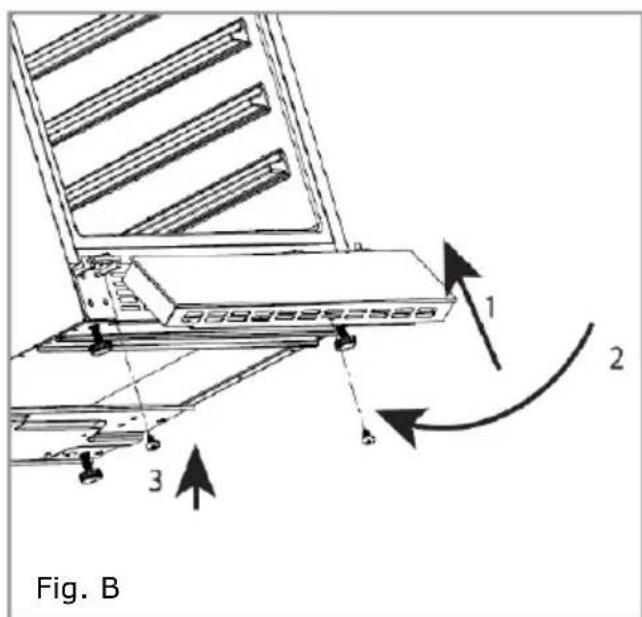

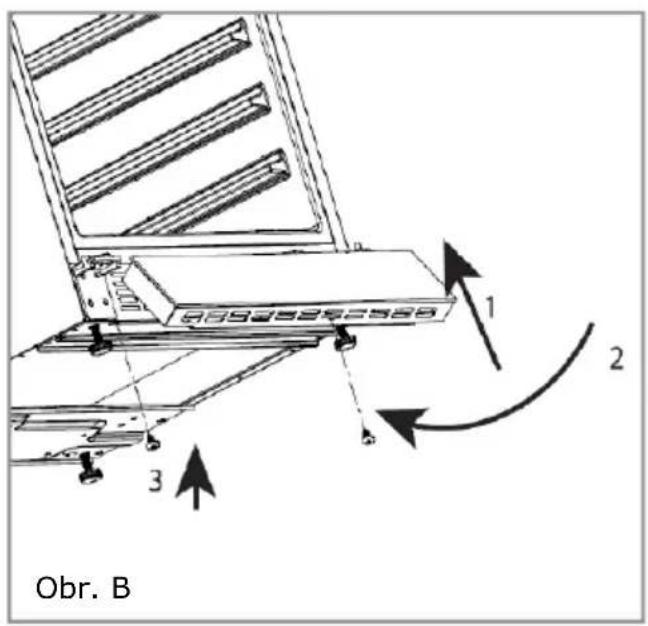

Fig. B

WARRANTY AND AFTER SALES SERVICE

Warranty

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see website for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Certifi cate of compliance CE and UKCA

The Manufacturer hereby declares that this product complies with the general requirements pursuant to the following European Directives and analogous UK requirements:

• The Low Voltage Directive 2014/35/EC / Electrical Equipment (Safety) Regulations 2016.
  • Electromagnetic Compatibility Directive 2014/30/EC / Electromagnetic Compatibility Regulations 2016.
• ErP Directive 2009/125/EC / The Ecodesign for Energy-related Products Regulations 2010 (as amended) for the applicable implementing measures which apply in Great Britain and Northern Ireland, respectively.

and therefore the product has been marked with C€ and UK symbols and the Declaration of Conformity, the Manufacturer has drawn up the declaration and is available to the competent authorities regulating the market.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

GARANTIE, NACHVERKAUFSERVICE

Garantie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

12.°C F +

Dvě zóny

8 12. °C + - F + -

Obr. A ① ②

Obr. B 1 2 3

ZÁRUKA, POPRODEJNÍ SERVIS

Záruka

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Technical diagram of a mechanical or electrical component with labeled parts 1 and 2

obr. A

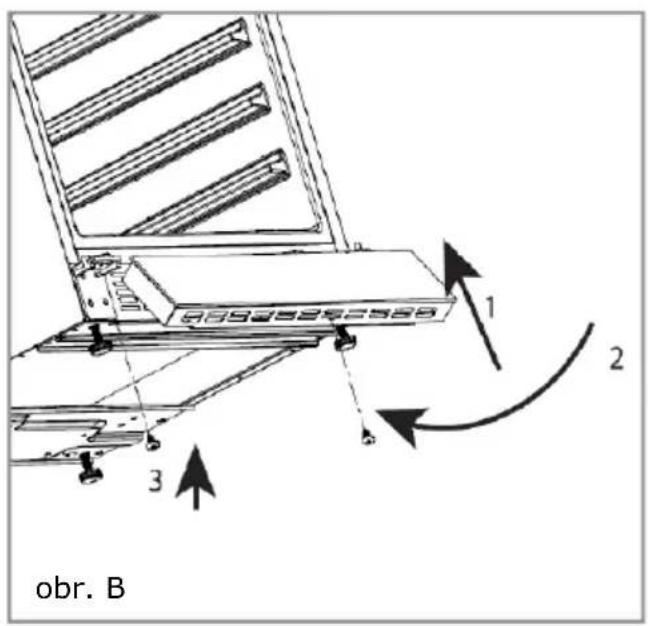

obr. B 1 2 3

ZÁRUKA, POPREDAJNÝ SERVIS

Záruka

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a three chasing recycling symbol (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Technical diagram of a mechanical or electrical component with labeled parts 1 and 2

Fig. A

Fig. B

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a three chasing recycling symbol (no text or labels)

Uređaj je za vreme transporta zaštićen od oštećenja. Posle vađenja uređaja iz pakovanja molimo Vas da elemente ambalaže uklonite na način koji ne ugrožava prirodnu sredinu.

Svi materijali korišteni za ambalažu nisu štetni za prirodnu okolinų, 100% je moguća reciklaža i označeni su

odgovarajućim simbolom.

Pažnja! Ambalažne materijale (polietilenske kesice, komadiće stiropora itd.) prilikom uklanjanja ambalaže držati daleko od dece.

ODLAGANJE ISTROŠENIH UREĐAJA

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Ovaj uređaj je označen u skladu sa evropskom direktivom 2012/19/EU. Ujedno je označen simbolom precrtanog kontejnera za otpatke. Oznaka na proizvodu pokazuje da ovaj proizvod posle njegovog životnog veka ne može da buđe biti tretiran kao ostali kućni otpad.

Korisnik ima obavezu da ovaj' proizvod pređa na odgovarajuće sabirno mesto za reciklažu potrošene električne i elektronske opreme. Institucije za prikupljanje ovakvog otpada, uključujući lokalne sabirne tačke, kupovna mesta, opštinske jedinice, sačinjavaju odgovarajući sistem koji omogućava zbrinjavanje ove opreme. Pravilno odlaganje potrošene električne i elektronske opreme sprečava potencijalne negativne posledice za okolinu i ljudsko zdravlje koje inače mogu da budu uzrokovane neodgovarajućim odlaganjem ovog proizvoda.

UPRAVLJAČKI ELEMENTI

Upravljački elementi - jedna i dve zone

Komandna tabla je prikazana na crtežu 4. Pokazana je i niže:

Jedna zona

12 °C °F + - ①

Dve zone

8 12. °C °F

• Taster napajanja
• Taster osvetljenja
• • Taster "+"
• • Taster "-"

Crtež A ① ②

Crtež B 1 2 3

GARANCIJA, USLUGE POSLE PRODAJE

Garancija

Garantne usluge u skladu sa garantnim listom. Proizvođač ne snosi odgovornost za bilo kakvu štetu prouzrokovanu nepravilnom upotrebom proizvoda.

Servis

• Proizvođač sugerira da sve popravke i regulacione delatnosti obavlja Fabrički Servis ili Ovlasteni Servis proizvođača. Iz bezbednosnih razloga samostalno ne popravliati uređaj.
• Popravke koje obavljaju 'osobe bez odgovarajućih kvalifikacija mogu da uzrokuju ozbiljnu opasnost po korisnika uređaja.
• Minimalni period garancije za aparat, koji nudi proizvođač, uvoznik ili ovlasteni predstavnik, je naveden u garantnom listu.
• Aparat gubi garanciju u slučaju samovoljnih promena ili prepravki, skidanja plombi ili druge zastite sa aparata ili njegovih delova, ili drugog samovoljnog uplitanja u konstrukciju aparata koje nije u skladu sa uputstvima za upotrebu.

Prijavljivanje popravke i pomoć u slučaju kvara

Ako aparat zahteva popravku, stupite u kontakt sa servisom. Adresni podaci i kontaktni broj telefona nalaze se u garantnom listu. Pre stupanja u kontakt, pripremite serijski broj aparata koji se nalazi na nazivnoj plocici. Prepisite ga niže kako biste ga imali pri ruci:

Izjava proizvođača

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

EN: The plinth must be cut out in order to ensure ventilation. In order to position the appliance, the glass door should be even with the furniture front. To ensure stability the adjustable feet should be screwed out until they appliance is touching the work top. This appliance is designed to fit under worktops between 820 – 890mm in height, using the adjustable plinth plate to ensure that the feet are concealed from view.

- Since the appliance will be built into a furniture unit, before installing the appliance, prepare a ventilation duct behind the appliance running from the floor to the top of the furniture unit. Ensure there is free space between the back of the appliance and the wall, which is not blocked by furniture. The area of ventilation grille should be at least 250~cm^2

- To ensure correct appliance operation never cover any ventilation openings. Regularly clean the ventilation grille.

DE:

EN - Auto Ventilation (according to the model)

The unit has an integrated ventilation system that automatically distributes the warm air generated at the back. The air inlet is located under the appliance door, while the warm air escapes at the top of the door. To ensure optimal functionality, the inlets and outlets must never be blocked or covered. Regular cleaning of dust deposits is also important.

EN- Adjusting the plinth (according to the model)

The pre-fitted plinth for some appliance comes with an adjustable lower section that is initially seated behind the upper section. The process for adjusting the plinth trim is simple and is achieved by following the image and steps below.

1. Remove the screws (1) from both the top left and top right hand sides.
2. Loosen or remove the screws (2) from the bottom left and bottom right hand sides. Failure to sufficiently loosen the bottom screws may cause damage to the lower trim when adjusting it.
3. Carefully guide the lower trim down until the desired height is achieved.
4. Reinsert screws (1) and tighten them. Then, tighten or reinsert screws (2).

Technical diagram showing a structural assembly with labeled components, including numbered parts 1 and 2.

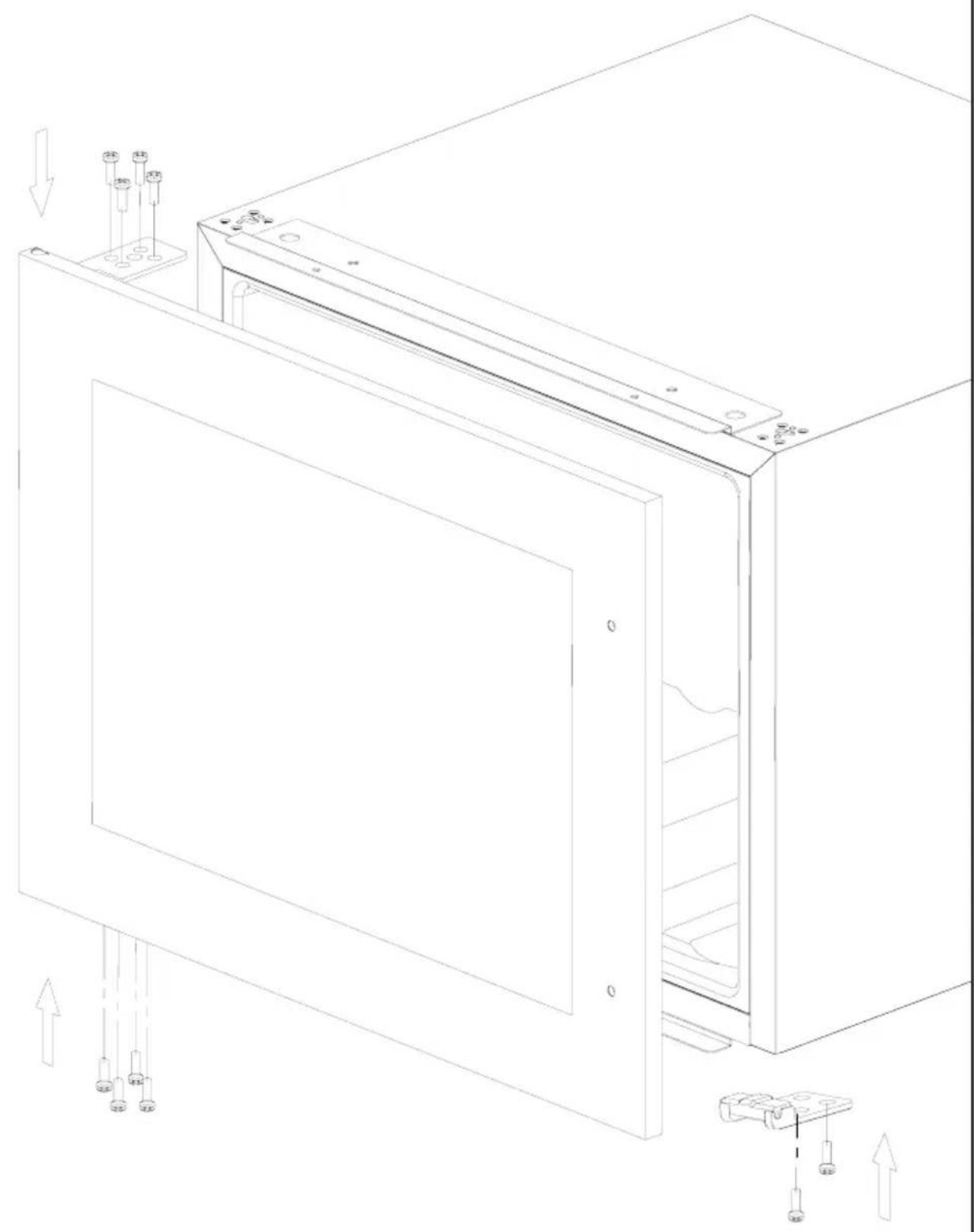

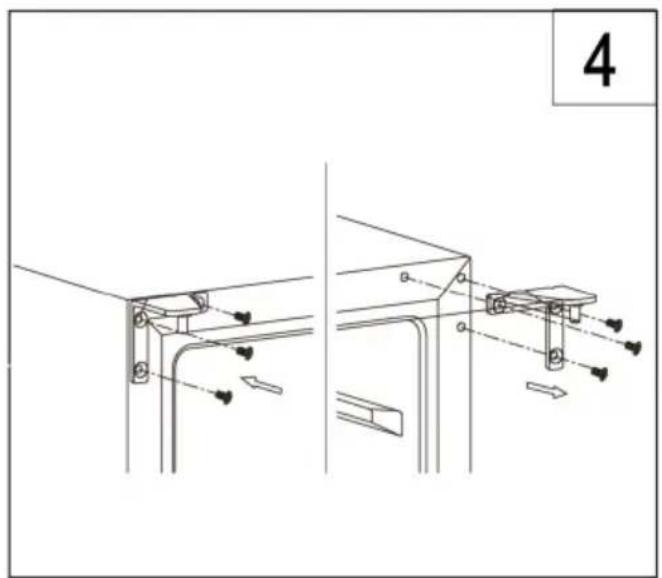

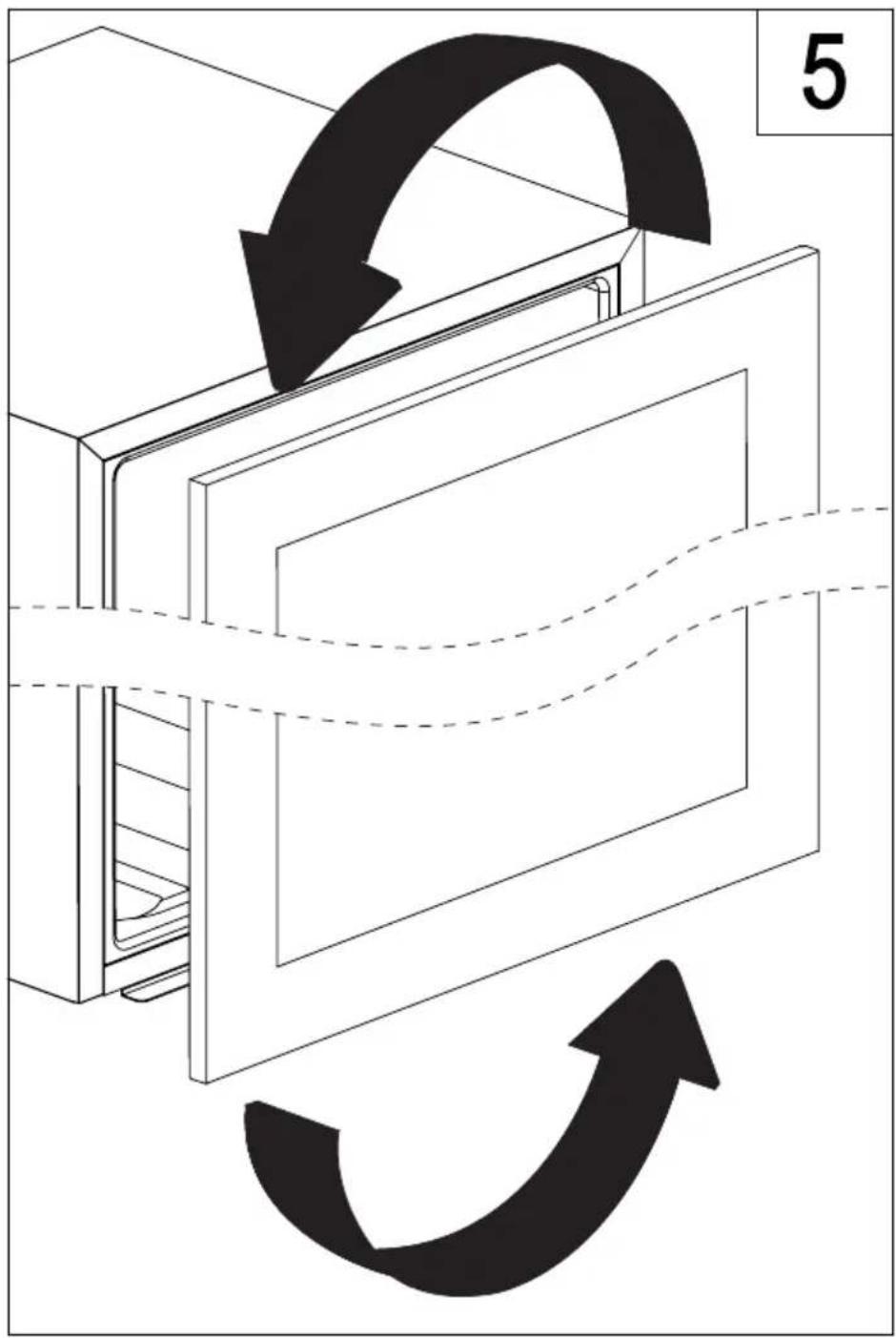

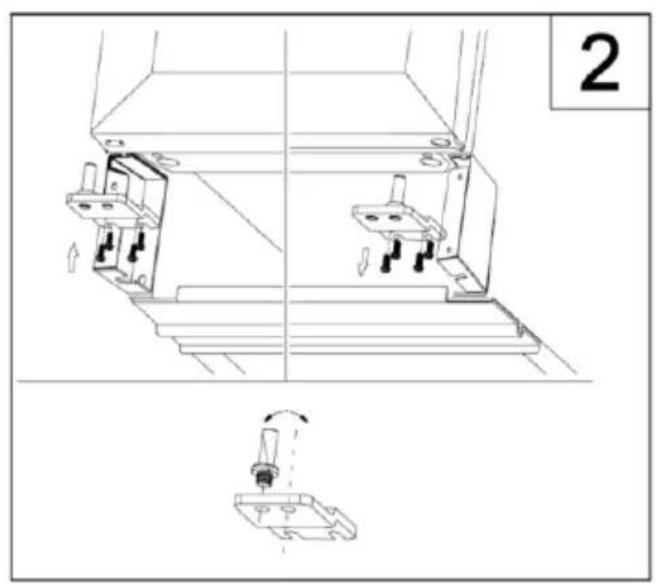

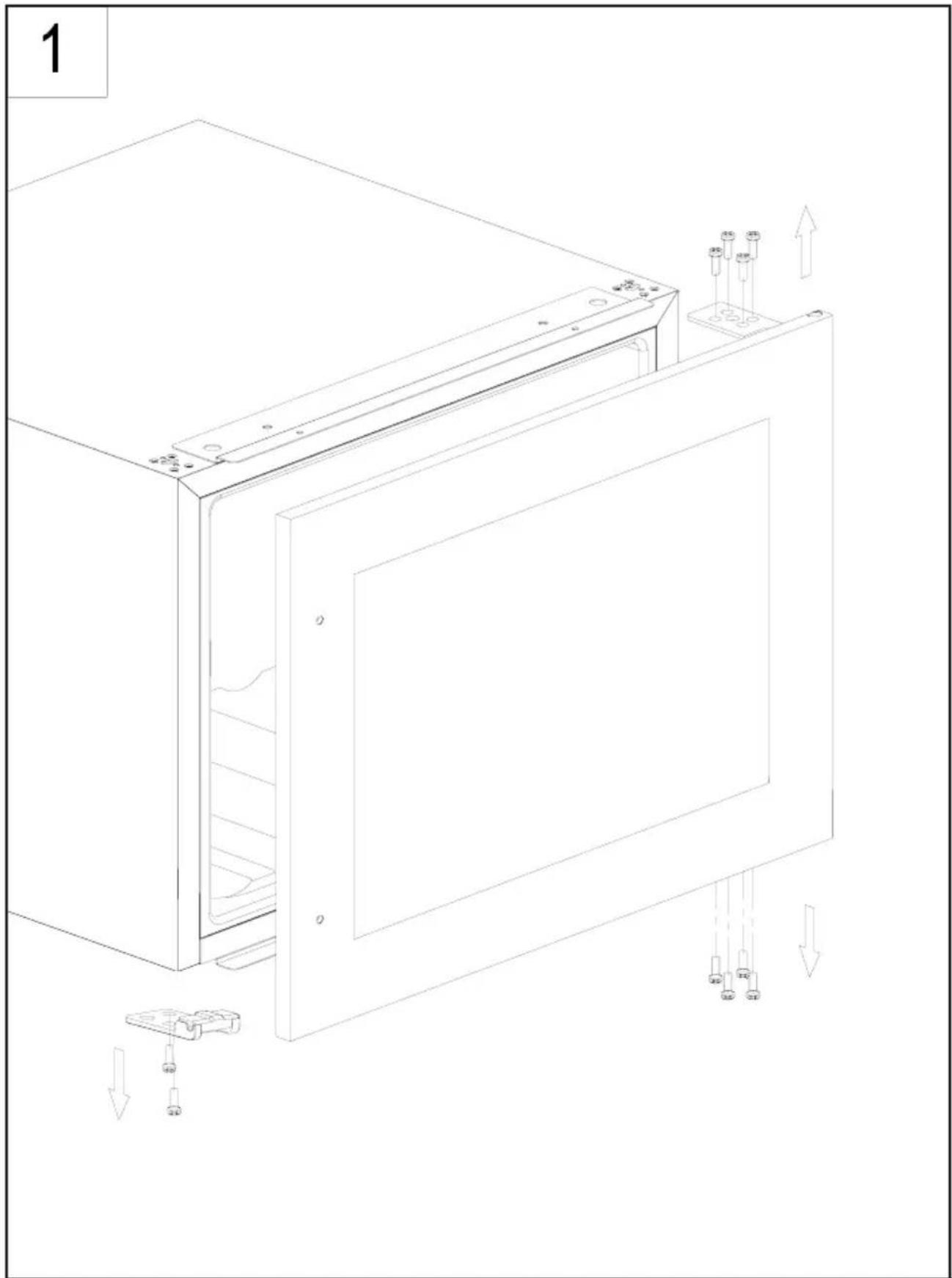

EN- CHANGING THE DIRECTION OF THE DOOR OPENING

DE- WECHSEL DES TÜRANSCHLAGS

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with two components and a close-up view of a component (no text or symbols)

Line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a refrigerated refrigerator with airflow arrows indicating circulation (no text or symbols)

WCB1K54B24.1 / WBA 2455 DB / WCB1K60B40.1 / WBA 4060 DB / WCU2K60B45.1 / WBB 4660 DZB / WK 341 110-1 S / WK 341 215 S / WBB 4661 ADB / WK 341 210 S / WK 341 200 S / WK 341 800 V

Technical line drawing of a door frame with internal components and mounting points (no text or symbols)

2

Technical line drawing of a cabinet or enclosure with internal components and mounting points (no text or symbols)

Technical diagram showing exploded and assembled views of a device with numbered components and directional arrows indicating assembly or movement.

Diagram showing a mechanical assembly with stacked blocks and an upward arrow, enclosed in a circle (no text or symbols)

1

Line drawing of a rectangular container placed on a grid base (no text or symbols)

2

WCF1K15B7* / WFBB 715 DB / WK 341 100 S / WCB1K54B24.1 / WBA 2455 DB / WK 341 200 S / WCB1K60B40.1 / WBA 4060 DB / WK 341 210 S / WCU2K60B45.1 / WBB 4660 DZB / WK 341 110 S / WCF1K30B20.1 / WFBA 2030 DL / WK 341 115 S / WK 341 100-2 S / WK 341 110-2 S / WCF2K30B16.1 / WK 348 100-1 S / WK 341 118 S / WFG 715 DB / WCB2K60B36.2

Technical diagram showing four numbered components of a mechanical assembly or assembly, with labeled parts 1 to 4.

3

12.°C + -

8 12. °C + - F + - S

4

Technical line drawing of a mechanical component with two parallel grooves and a small protrusion (no text or symbols)

5

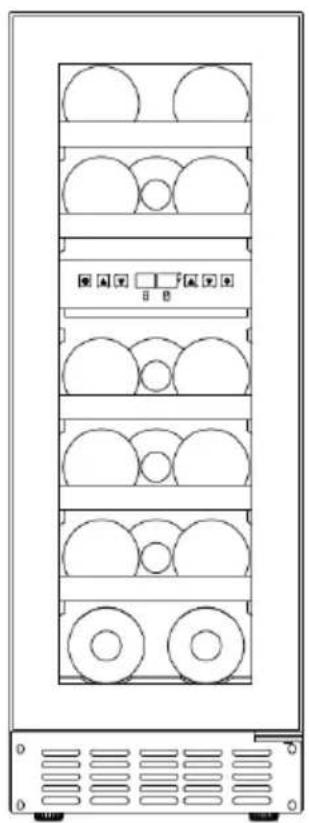

WCF1K15B7* / WFG 715 DB / WFBB 715 DB / WK 341 100 S / WK 341 100-1 S / WK 341 100-2 S / WCF1K15B7.2 / WCF1K15B7.3 / WFBB 716 GDB

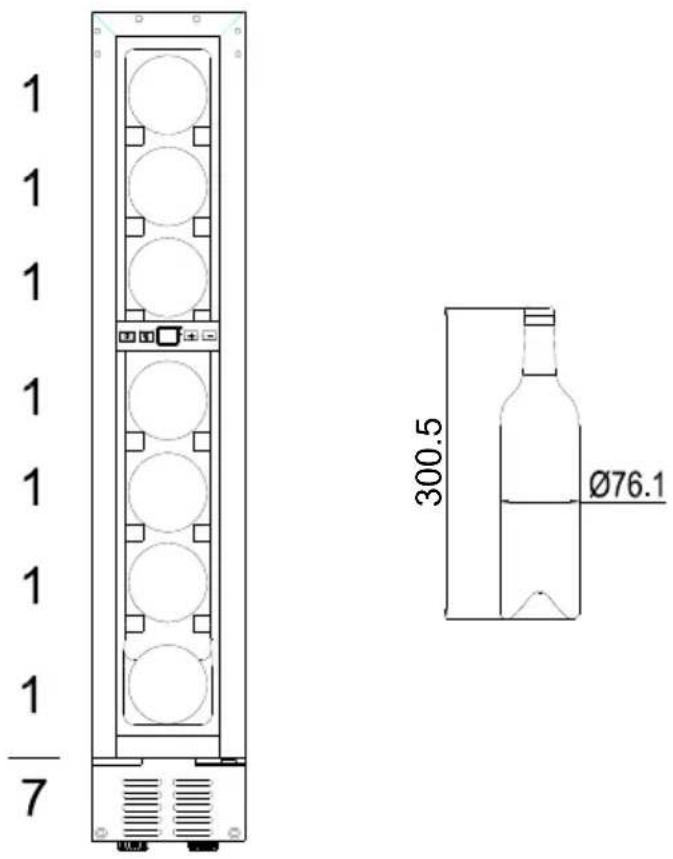

1 1 1 1 1 1 1 7 300.5 Ø76.1

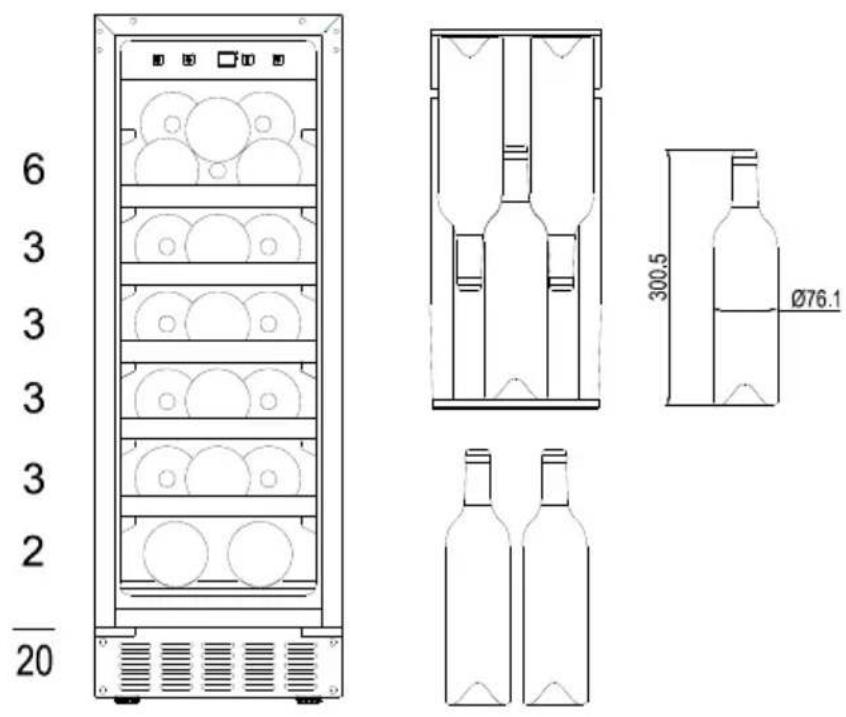

WCF1K30B20.1 / WFBA 2030 DL / WK 341 115 S /

6 3 3 3 3 2 20 300.5 Ø76.1

12

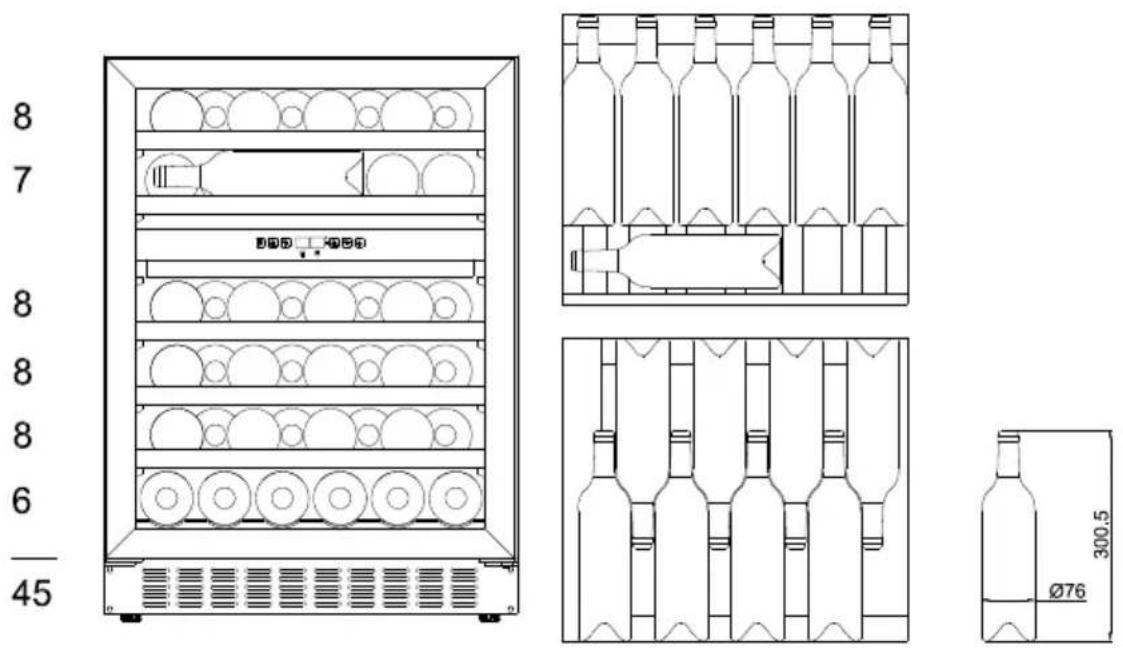

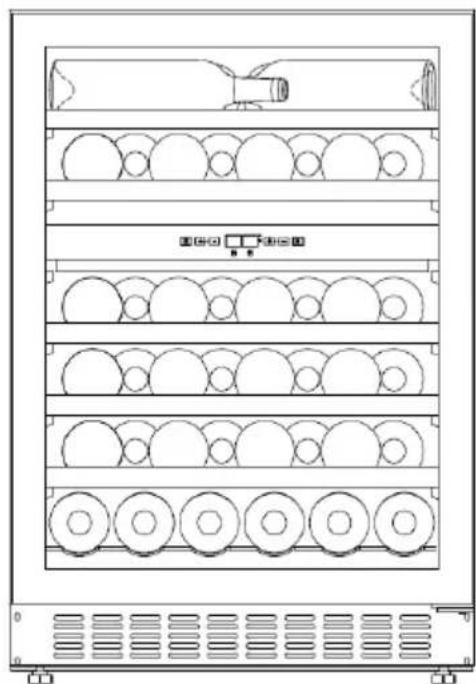

WCU2K60B45.1 / WBB 4660 DZB / WK 341 110 S / WK 341 110-1 S / WBB 4661 ADB

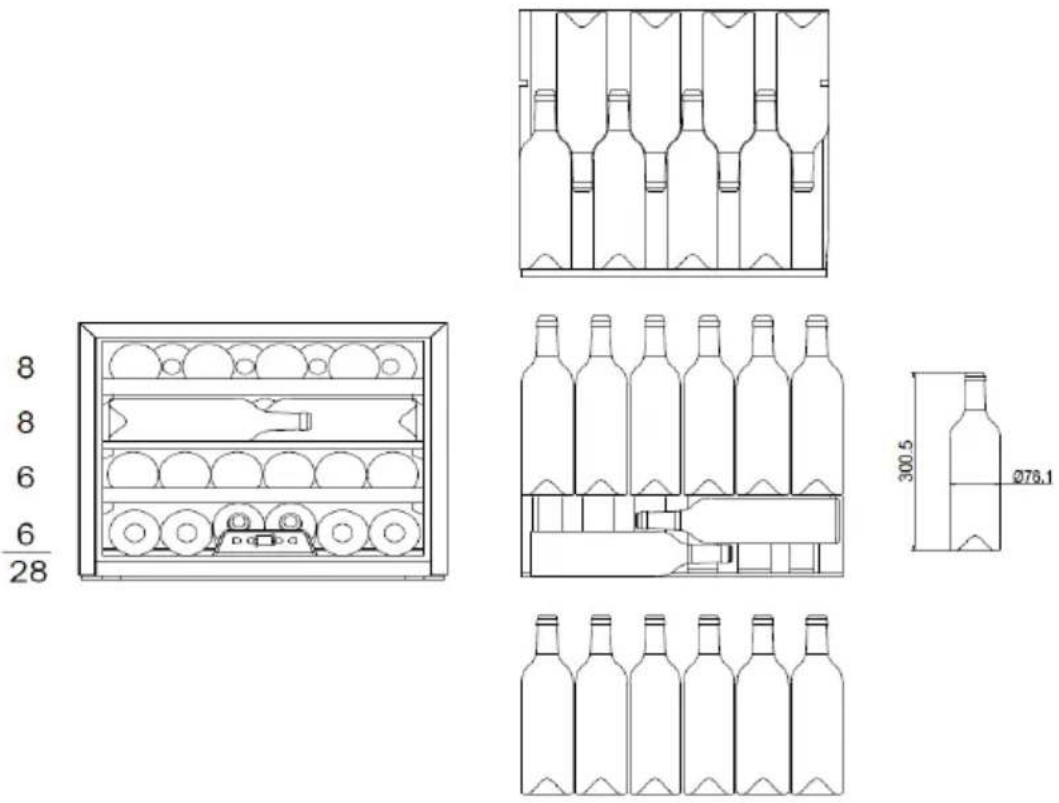

WCB1K54B24.1 / WBA 2455 DB / WK 341 200 S

WCB1K60B40.1 / WBA 4060 DB / WK 341 210 S

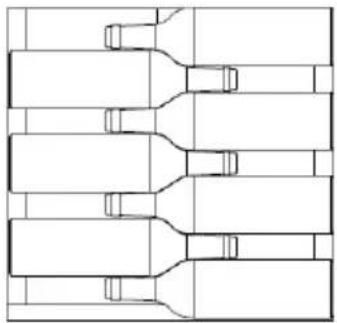

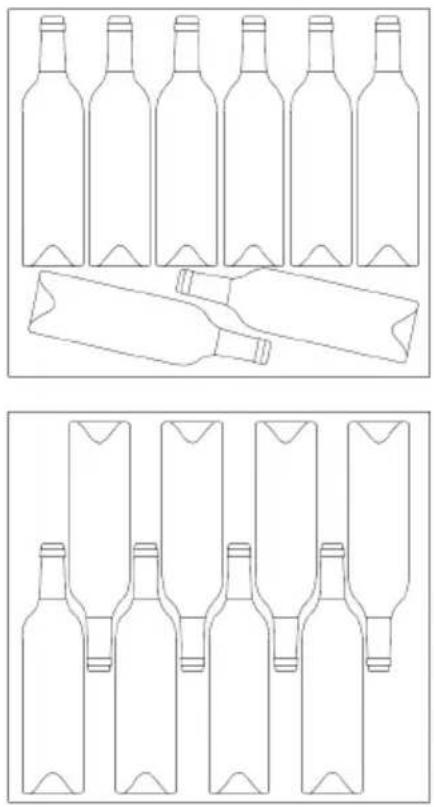

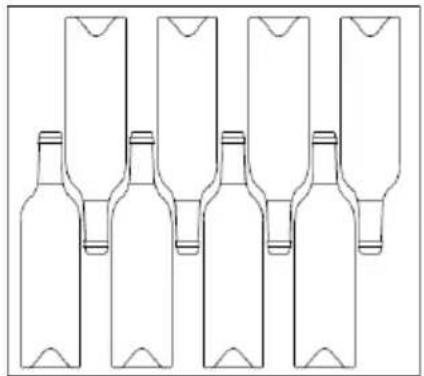

Line drawing of a multi-volume wine bottle structure (no text or labels)

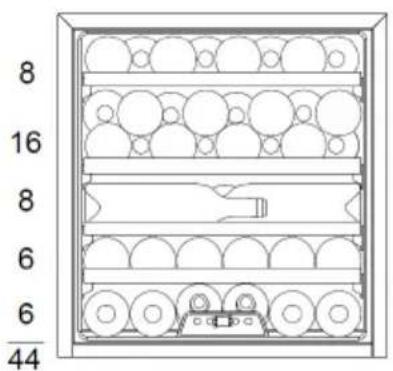

8 16 8 6 6 44

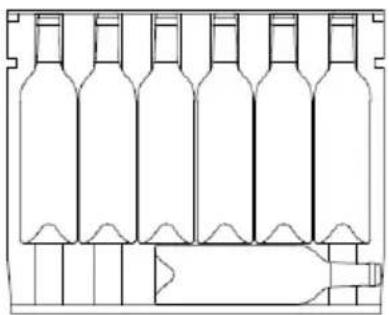

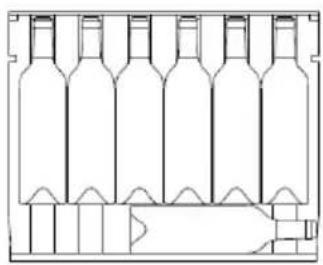

Line drawing of six identical bottles arranged in a row, with a container partially visible below (no text or symbols)

Six identical empty wine bottles arranged in a row (no text or symbols)

WCF2K30B16.1

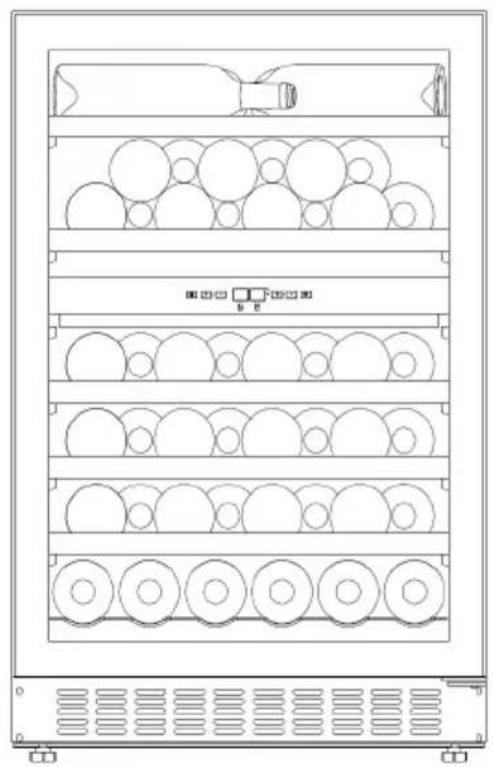

Front view of a rack-mounted server unit with multiple circular compartments and control panel (no visible text or labels)

Two identical line drawings of wine bottles with no text, numbers, or symbols present.

Ø76.1 300.5

WCB2K60B36.1 / WCB2K60B36.2 / WK 341 212 S

Line drawing of a wine bottle rack with multiple bottles and a tray (no text or symbols)

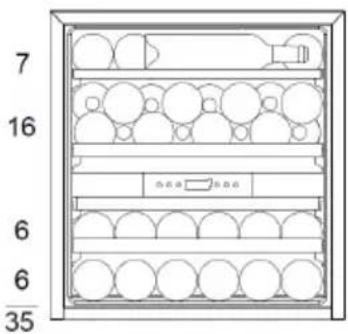

7 16 6 6 35

Pure architectural line drawing of a multi-story building facade with no text, numbers, or symbols

Line drawing of five identical empty wine bottles arranged in a row (no text or symbols)

WK 341 220 S

7 16 8 8 8 12 59

Line drawing of a multi-volume wine bottle structure (no text or labels)

Line drawing of six bottles arranged in a row, with one bottle partially visible below (no text or symbols)

Pure line drawing of a multi-volume bottle structure without any text, labels, or symbols

Line drawing of six identical empty wine bottles arranged in a row (no text or symbols)

12

Technical line drawing of a multi-level rack cabinet with circular compartments and control panel (no text or symbols)

Line drawing of a wine bottle structure with multiple bottles arranged in rows (no text or symbols)

Line drawing of seven identical wine bottles arranged in a row (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

WK 341 110-2S

8 8 8 8 8 6 4

Technical line drawing of a multi-level rack-mounted refrigerator with circular compartments and ventilation grilles (no text or symbols)

Line drawing of six empty bottles and a partially cut bottle (no text or symbols)

Line drawing of five identical bottles arranged in a row, each with a rectangular holder (no text or symbols)

12

WK 341 118 S

Line drawing of a multi-level rack-mounted refrigerator with circular compartments and ventilation grilles (no text or symbols)

Line drawings of wine bottles arranged in two rows, one with a double-headed cutout (no text or symbols)

Ø76.1 300.5

Two identical line drawings of wine bottles arranged in a row, each with a separate empty section (no text or symbols)

12

Amica S.A.

ul . Mickiewicza 52 / 64-510 Wronki

tel. [phone] / fax [phone]

www.amica.pl

Amica International GmbH

Lüdinghauser Str. 52

D-59387 Ascheberg

Tel: 0 25 93 - 95 67-0

www.amica-group.de
