USER MANUAL WCF2V60B38.1 AMICA

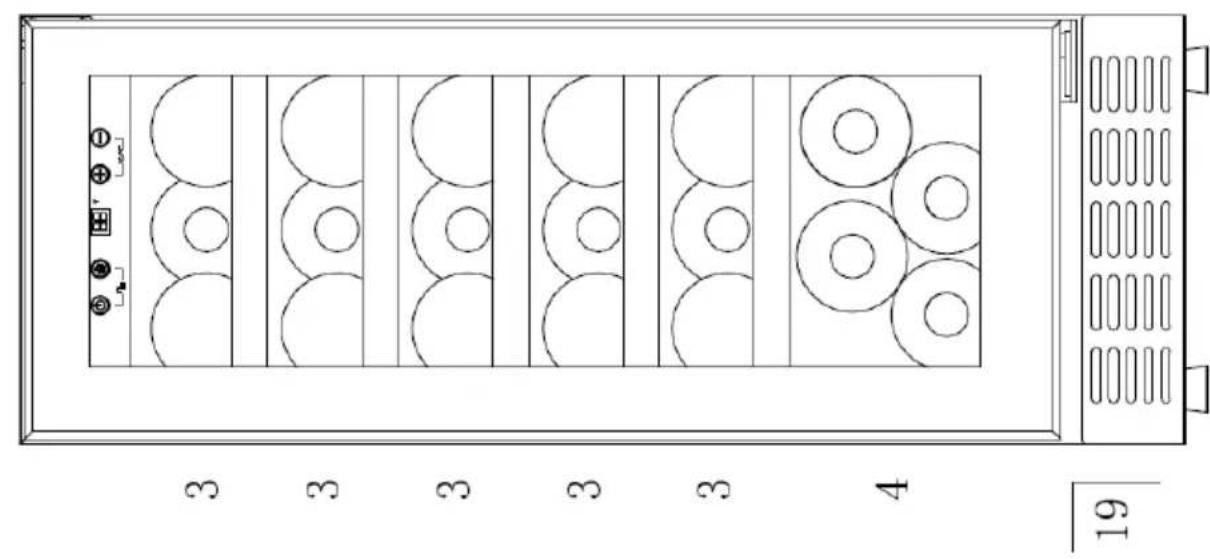

Simple line drawing of a rectangular frame containing a grid of circles, no text or symbols present.

WCF2V60B38.1 / WFG 3860 DB / WCFU1VB19.1 / WK 341 111* / WK 341 101 E

PL- Spis treści

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA 16 INSTALACJA I WARUNKI PRACY URZĄDZENIA 19

KLASA KLIMATYCZNA 20

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE 33

CLIMATE RANGE 34

PRACTICAL EVERYDAY TIPS 34

UNPACKING 36

DISPOSAL OF OLD APPLIANCE 36

CONTROLS 37

CONTROLS - ONE AND TWO ZONES 37

POWER ON/OFF 37

CHILD LOCK 37

INTERIOR LIGHTING 37

DISPLAY 38

ADJUST TEMPERATURE 38

CHANGE THE TEMPERATURE UNIT 38

CARE AND CLEANING 39

REMOVING THE SHELVES 39

CLEANING 39

TROUBLESHOOTING 39

IF THE APPLIANCE IS NOT WORKING, CHECK 39

THE APPLIANCE IS WORKING, BUT NOT VERY WELL, CHECK 40

THE APPLIANCE IS NOISY, CHECK 40

THE LIGHT DOES NOT WORK, CHECK 40

THE DOOR WILL NOT CLOSE PROPERLY, CHECK 40

EPREL 40

WARRANTY AND AFTER SALES SERVICE 41

WARRANTY 41

CS - Obsah

POKYNY TÝKAJÍCÍ SE BEZPEČNOSTI POUŽÍVÁNÍ 43 INSTALACE A PROVOZNÍ PODMINKY SPOTREBICE 46

KLIMATICKÁ TRÍDA 47

PRAKTICKÉ RADY 47

VYBALENI 49

LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ 49 OVLÁDACI PRVKY 50

OVLÁDACÍ PRVKY – JEDNA A DVĚ ZÓNY 50

ZAPNUTÍ/VYPNUTÍ NAPÁJENÍ 50

RODIČOVSKÁ BLOKÁDA 50

VNITŘNÍ OSVĚTLENÍ 50

DISPLEJ 51

ZMĚNA TEPLOTY 51

ZMĚNA JEDNOTKY TEPLOTY 51

ČISTĚNÍ A ÚDRŽBA 52

VYTAHOVÁNÍ POLIC 52

ČISTĚNÍ 52

ŘEŠENÍ PROBLÉMŮ

POKUD ZAŘÍZENÍ NEFUNGUJE, ZKONTROLUJTE 52

POKUD ZAŘÍZENÍ NEFUNGUJE DOBŘE, ZKONTROLUJTE 53

POKUD JE ZAŘÍZENÍ HLUČNĚ, ZKONTROLUJTE 53

POKUD NEFUNGUJE OSVĚTLENI, ZKONTROLUJTE 53

POKUD DVÍRKA NEJSOU DOBŘE ZAVŘENÁ, ZKONTROLUJTE 53

EPREL

ZÁRUKA, POPRODEJNÍ SERVIS

ZÁRUKA 54

SK - Obsah

DÔLEŽITÉ BEZPEČNOSTNÉ PQKyny 56 INSTALÁCIA A PREVÁDZKOVÉ PODMIENKY SPOTREBIČA 59

KLIMATICKÁ TRIEDA 60

PRAKTICKÉ RADY 60

ROZBALENIE 62

LIKVIDÁCIA ZARIADENÍ 62

OVLÁDACIE PRVKY 63

OVLÁDACIE PRVKY - JEDNA A DVE ZÓNY 63

ZAPNUTIE / VYPNUTIE NAPÁJANIA 63

DETSKÁ ZÁMKA 63

VNÚTORNÉ OSVETLENIE 63

DISPLEJ 64

ZMENA TEPLOTY 64

VÝMENA TEPLOTNEJ JEDNOTKY 64

ČISTENIE A ÚDRŽBA 65

VYBERANIE POLÍC 65

ČISTENIE 65

RIEŠENIE PROBLÉMOV 65

AK ZARIADENIE NEFUNGUJE 65

AK ZARIADENIE SÍCE FUNGUJE, ALE NEFUNGUJE PRÍLIŠ DOBRE, SKONTROLUJTE 66

AK JE ZARIADENIE PRÍLIŠ HLUČNĚ 66

AK NEFUNGUJE OSVETLENIE 66

AK DVERE NIE SÚ ZATVORENÉ SPRÁVNE, SKONTROLUJTE 66

EPREL 66

ZÁRUKA, POPREDAJNÝ SERVIS 67

ZÁRUKA 67

HU - Tartalomjegyzék

BIZTONSÁGI UTASÍTÁSOK 69

A KÉSZÜLÉK TELEPÍTÉSI ÉS ÜZEMELTETÉSI FELTÉTELEI 72

KLÍMA OSZTÁLY 73

GYAKORLATI TANÁCSOK 73

KICSOMAGOLAS 75

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Pure electrical circuit lines without any symbols

From now on, your daily housework will be easier than ever before. Your appliance Air*optionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

GUIDELINES CONCERNING THE SAFETY OF USE

• To ensure safety and reduce the risk of injury or electric shock, follow all precautions listed below.
• This appliance is intended for household use indoors and similar applications such as:

- farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;
• staff kitchen areas in shops, offices and other working environments;

• catering and similar non-retail applications.

• The appliance must be handled by at least 2 people.

• Make sure the plug is easily accessible to allow disconnection from the mains supply.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.
• The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.
• Keep this manual for future reference, or to pass it over to the next user.
• This appliance is not intended for use by persons (including children) with limited physical or mental capabilities and persons who lack experience or familiarity with the appliance.
• Do not allow children to use the appliance. Do not allow them to play with the appliance. They must not climb inside the drawers and swing on the doors.
• The appliance operates properly at the ambient temperature (see product fiche). Do not use it in the cellar, unheated summer cottage during au-

tumn and winter.

- When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit.

- Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.

- The “cracking” sound, which the appliance may emit is caused by the expansion and contraction of parts as a result of temperature variations.

- For safety reasons do not repair the appliance yourself. Repairs carried out by persons who do not have the required qualifications may result in serious danger for the user of the appliance.

- Make sure you do not damage the cooling system, by puncturing the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant is flammable. If the refrigerant makes contact with the eyes, rinse them with clean water and call for medical assistance immediately.

- Important! If the power cord is damaged, it should be replaced by the manufacturer or specialist repair centre or a qualified person in order to avoid danger.

- When performing activities, such as cleaning, maintenance or moving, the appliance must be completely disconnected from power supply (by pulling the plug out from the socket)

- This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are super-

vised by a competent person.

• Do not clean the appliance with steam
• Keep the appliance and its power cord away from children under 8 years old.
• Do not immerse the power cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow the connection cord hanging over the edge of a table or counter.
• Do not use any electrical appliances inside the chamber
• Do not use any tools to speed up the defrosting process
• Regularly clean the ventilation openings (in case of built-in appliances or those installed under the worktop)
• This appliance is not designed to be controlled by electronic timers or other devices that cut off power directly or remotely.
• In case of accidental spillage of liquids on electrical components, immediately unplug your appliance from the power supply.
• Make sure that the power cord is not crushed or damaged during installation.
• Disable the appliance before disposing of it. Unplug the appliance from the power supply and cut off the power cord. To prevent children or animals from being trapped in the appliance, remove the doors, hinges and locks.
• Note: If the appliance does not have a freezer compartment ( ^* **), it is not suitable for freezing foodstuffs.
• Pursuant to Commission Regulation (EU) 2019/2019, the minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part.
• The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or an authorized representative.

INSTALLATION AND OPER- ATING CONDITIONS OF THE APPLIANCE

• Connect the appliance to the power supply 24 hours after unpacking and setting in the final location.
• Take the product out of the package, remove the scotch tape protecting the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent.
• Clean the interior surface of the cooler and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry.
• Place the cooler on an even, flat and stable surface, in dry, aired and shaded room, far from the heat sources such as: oven, hob, central heating radiators, central heating pipes, hot water installation, etc.
• On the exterior surface of the product may be a protective foil, this foils should be removed.
• Make sure the appliance is placed in a horizontal position by screwing in the 2 adjustable front legs (fig. 1)
• Keep free space on the sides and rear of the appliance (see installation drawing)
• When you install your wine cooler inside a furniture cabinet, make sure that the ventilation grille located in the bottom of the appliance is not blocked.
• Odours may be released when you first start your appliance. It will dissipate when the interior of the appliance cools down
• When you first start your wine cooler, the compressor will run continuously until the desired temperature is reached inside the chamber
• When you unplug your appliance from the power supply, it is recommended to wait 5 minutes before you plug it back in. This will reduce the risk of damage to the compressor.
• On selected models, the correct temperature will be shown on the display only a few hours after the wine cooler has been put into operation
• This appliance should be connected to AC 220-240V 50Hz supply socket. The socket must be fitted properly, and must be supplied with an earthing conduit and a 10A fuse.
• It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.
• Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate.
• If an extension lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be flooded by water or waste water.
• Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.

Climate range

The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

Climate class Allowable ambient temperature

SN	Extended Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 10°C and 32°C
N Temperate		This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 32°C
ST Subtropical		This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 38 °C
T Tropical		This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 43 °C

PRACTICAL EVERYDAY TIPS

• If the light inside the appliance remains turned on, keep in mind that the temperature inside the appliance will be higher
• Temperature inside the appliance depends on the amount and type of stored wine bottles
• To ensure user safety and high quality of stored wine, do not install the appliance in damp rooms
• Store wine bottles in designated spaces
• Your wine cooler has a limited capacity. Do not place more bottles in your wine cooler than recommended in specification
• Do not open the wine cooler door if it is not necessary
• Do not cover the shelves with aluminium foil or other material. This blocks the air circulation inside the appliance
• To avoid damage to the door seal, make sure that the door is completely open before pulling out the shelf. The shelves should be inserted as far as possible, otherwise the shelf may deform and damage the door seal.
• Do not extend the loaded shelves beyond the extension limit (about 1/3 of the shelf length)
• This appliance is designed for storing bottles of wine. Do not use it for any other purpose.
  • Temperature stability is very important when storing wine.
• Exposing your wine cooler to sunlight, significant temperature fluctuations, high humidity and vibrations may cause the wine to go bad.
• In periods of high humidity, condensed water vapour may appear on the outer surfaces of the glass door. To prevent this, install the appliance in a dry, adequately ventilated room.

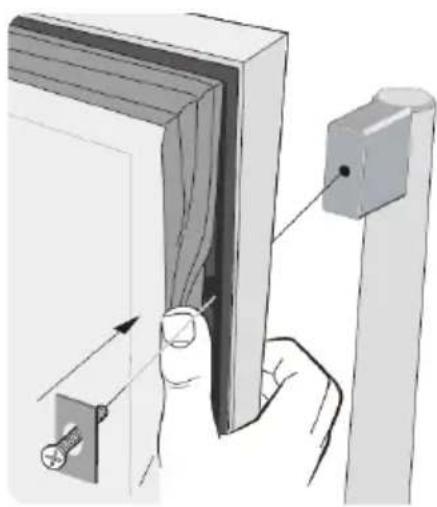

• Selected models have an external handle. You need to install it on your own. Do not use electric tools for this purpose (fig. 3*). To do this, pull the door seal slightly to the side and place the screws on the inside of the door. Align the handle with the holes on the outside

of the door and tighten the screws with a screwdriver. Reinstall the door seal.

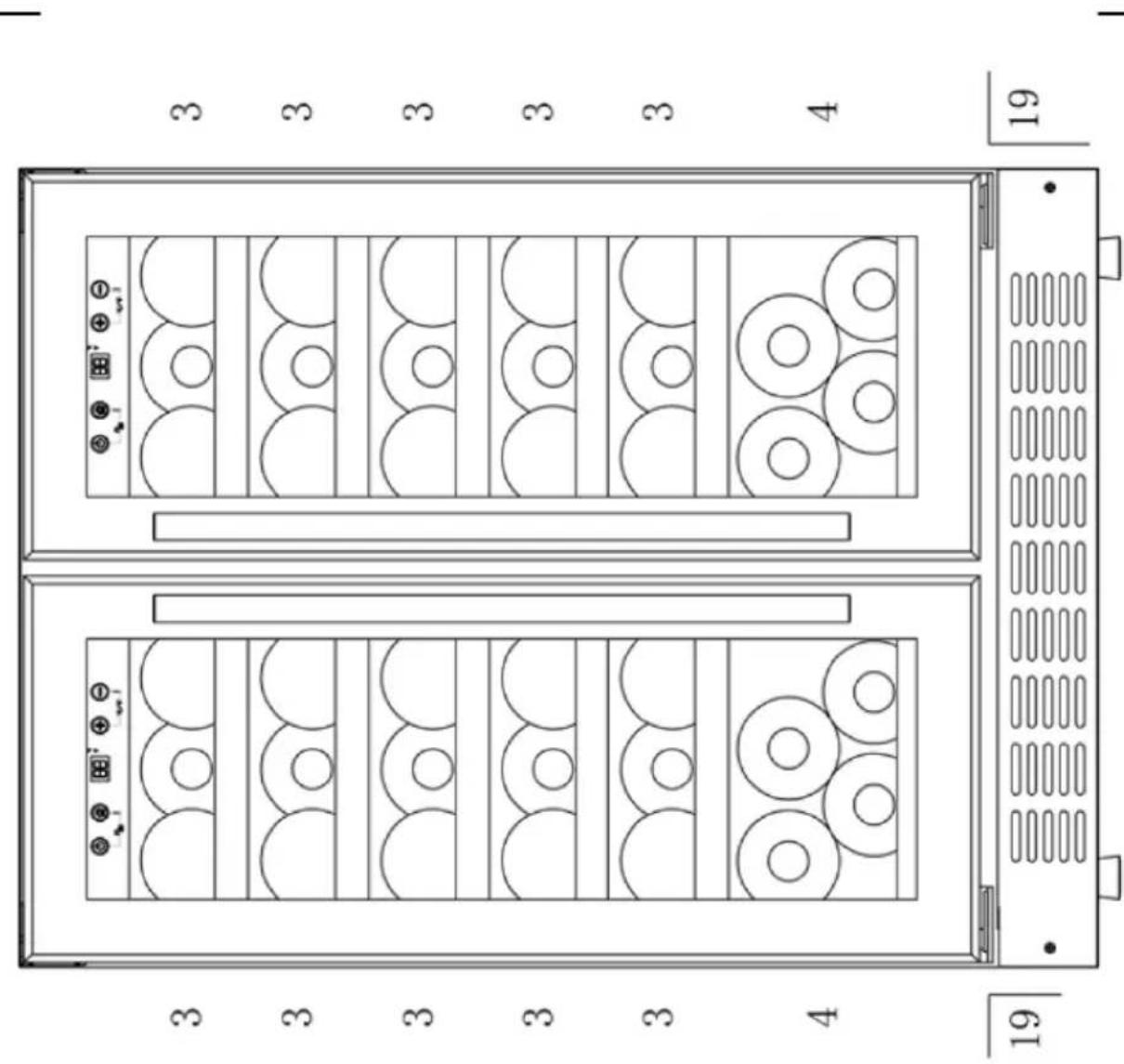

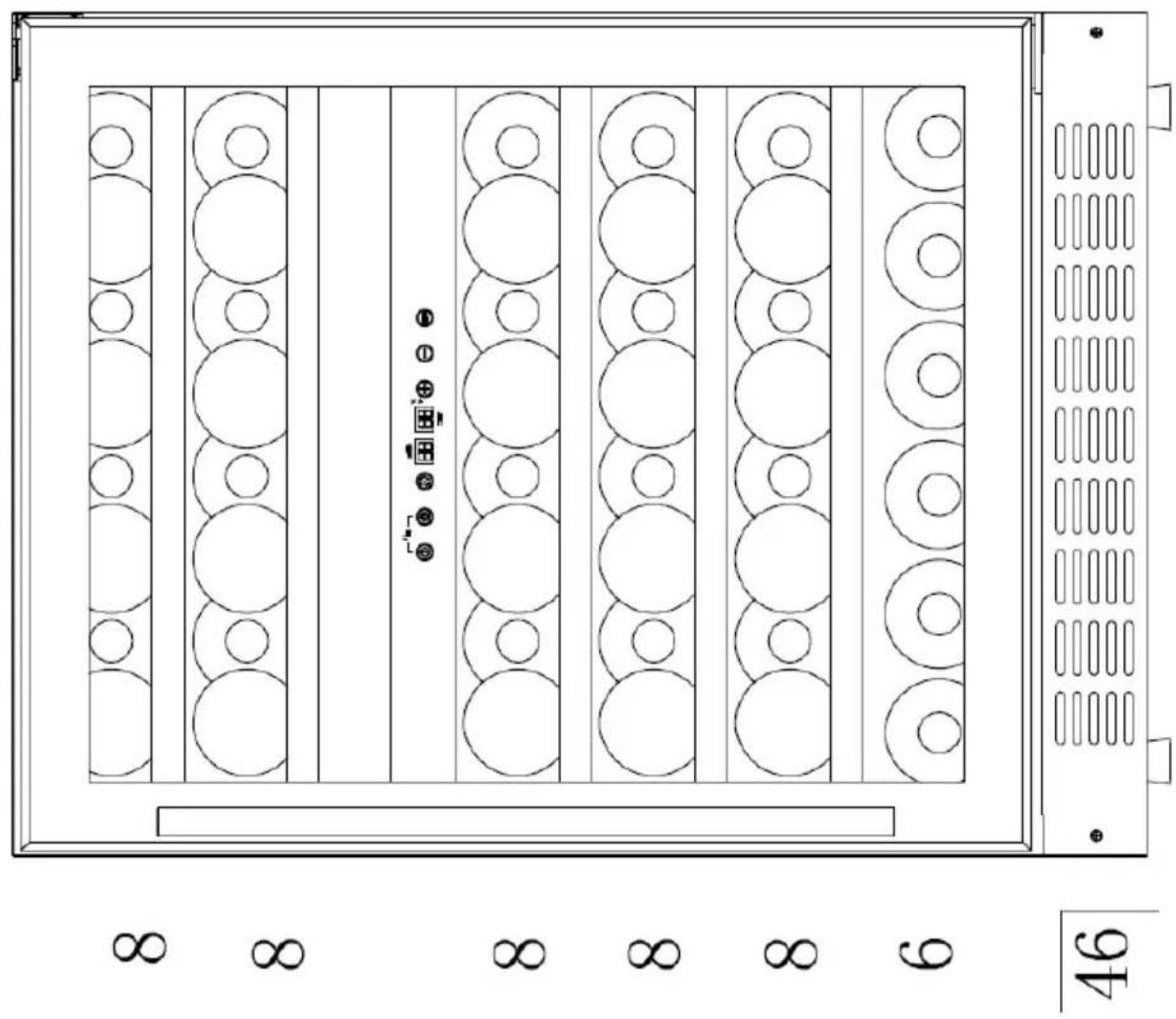

• The maximum capacity of the appliance is given in the product sheet enclosed with the wine cooler. This capacity applies to standard 0.75 litre bottles of Bordeaux.
• Selected models have an Anti-tip kit. Install it according to the enclosed diagram (fig. 6*).
• This refrigeration appliance is intended for use as a built-in appliance.
• To achieve the most effective food preservation for the longest possible time and to avoid wasting any food, position the products as shown in Figure 12. In addition, this figure illustrates the layout of drawers, baskets and shelves, which allows the most efficient use of energy.
• Optimal temperature and storage conditions will extend product shelf life and optimize electricity consumption. Optimal storage temperature range should be stated on the food product packaging.

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for

packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with no visible text or labels

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user is obliged to hand it

over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

CONTROLS

Controls - one and two zones

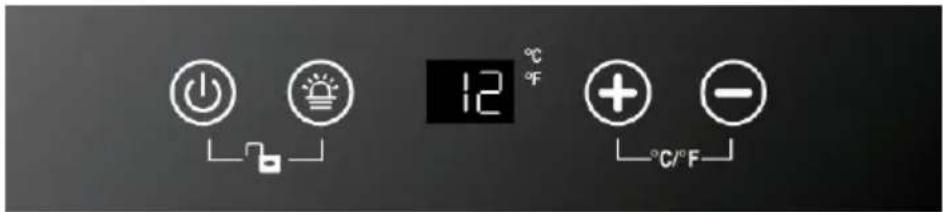

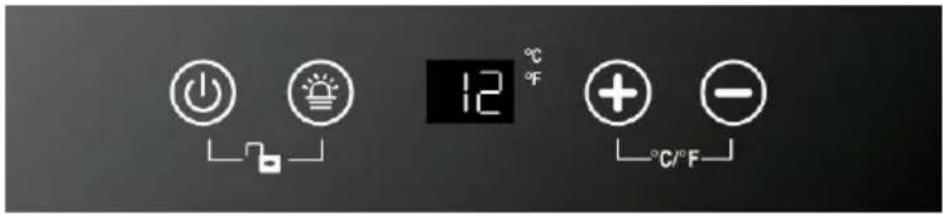

The control panel is shown in Figure 4. It is also shown below:

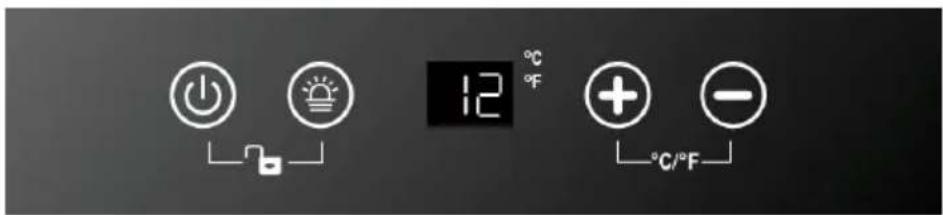

Single zone

12 °C + - °C/°F

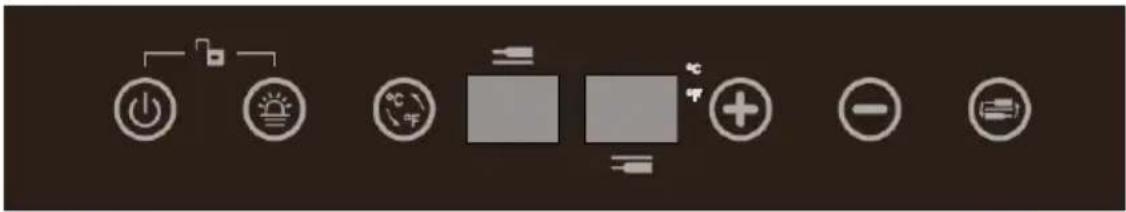

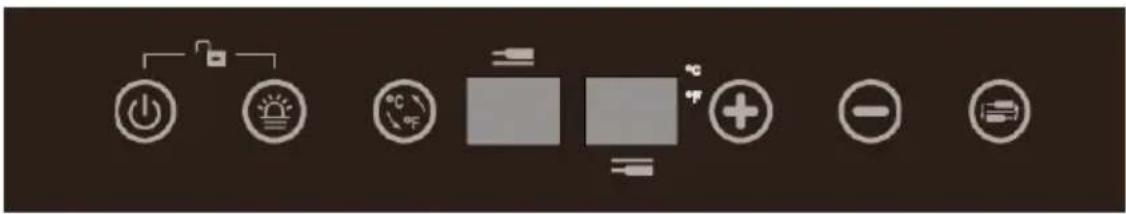

Dual zone

Pure electrical circuit lines without any symbols

• Power on/off
• Lighting
  ⊕ - " + "
  一 - "-"
• Temperature unit changing
• Zone changing

Power on/off

After connecting the appliance to the power supply, touch and hold for 10 seconds for one of the zones to turn appliance on. Each zone has a separate control panel. Regardless of the lock control panels, touch and hold for 10 seconds.

When you turn off any zone, wait at least 5 minutes before turning it back on. Turning it on early may damage the compressor.

Child Lock

To enable or disable the Child Lock, touch and hold two sensors for 3 seconds. You will hear a beep. Child lock automatically switch on after 5 seconds after touching the panel.

Interior lighting

If active, disable the Child Lock and then touch to turn the light on / off. The effect will be visible after closing the door. The light is always on when you open the door.

Display

While adjusting the temperature, the display shows the set temperature. The display will show the current temperature measured inside the appliance after about 10 seconds.

Note: If the temperature sensor malfunctions, the display may show "HH" or "LL" and you will hear a beep. Even if the temperature sensor malfunctions, the appliance will continue to operate periodically in order to maintain the correct temperature. Contact the manufacturer's service department to repair the appliance as soon as possible.

Adjust temperature

• You can set the temperature individually for each zone in the range from 5-12°C (Upper zone) and 12-20°C (lower zone) and 5-20°C (single zone).
• If active, disable the Child Lock, then touch to select zone (upper or lower).
• Touch ☑ to set the desired temperature.

Note: When you connect the appliance to power for the first time, or after it was not used for an extended period, it may take longer to reach the set temperature.

Change the temperature unit

Touch and hold two sensors ⊕ for 5 seconds to switch between °C and °F.

Note: Blinking of the temperature unit means the compressor is operating. This is normal device operation.

CARE AND CLEANING

Always disconnect the appliance from the mains electrical supply before any cleaning or maintenance.

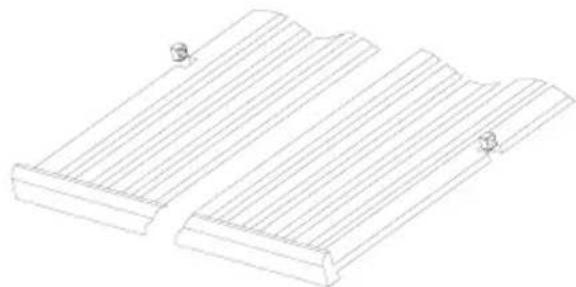

Removing the shelves

• To remove a shelf from the wine cooler, first remove all bottles from the shelf, then pull the shelf forwards until the groove on either side of the shelf is level with the plastic peg on either side of the cabinet (as shown in fig 2). Then lift the shelf up and pull forwards.
• To replace the shelves, follow the steps above in reverse order.

Cleaning

• Do not use abrasive products or detergents. After washing, rinse and dry thoroughly.
• The exterior of the appliance and the door seal should be cleaned using mild soapy water and dried thoroughly.
• The interior cabinet should be cleaned using a solution of bicarbonate of soda and lukewarm water.
• Clean the shelves separately by hand using soap and water. Do not put them in the dishwasher.
• Ensure that the cloth is only moist when cleaning the control panel and electrical parts, and that all water is thoroughly dried off before reconnecting the power.
• Once cleaning is complete, reconnect the mains electrical supply.
• If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance thoroughly. The door should be left slightly ajar to prevent the formation of odours or condensation

TROUBLESHOOTING

If you have any problems with your appliance, you should check the troubleshooting guide prior to calling Call Center to prevent unnecessary service calls and potential cost.

If the appliance is not working, check

• There is power to the appliance
- The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
- The plug socket is functioning correctly. To check this, plug another electrical appliance in to see if the socket is working.
- The ambient temperature is between 16^ to 32^ .

The appliance is working, but not very well, check

• The appliance is not overloaded.
• The thermostat is set to an appropriate temperature.
• The door is closing properly.
  • The door gasket is sealing properly
• There is enough ventilation at the side and rear walls.
• The ambient temperature is between 16^ to 32^ .

The appliance is noisy, check

• The appliance is level and stable.
• The cooling gas will make some noise, even when the compressor is not running.
• During operation, it is normal for the fan to run, even when the compressor is not running.

The light does not work, check

• There is power to the appliance.
• The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
• The light button is not set to off.

Please note:

The LED lighting cannot be replaced without a service call

The door will not close properly, check

• The appliance is level and stable.
• If the door has been removed, it may not have been correctly refitted.
  • The door seal is dirty.
• The shelves are not positioned correctly.

EPREL

For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/

WARRANTY AND AFTER SALES SERVICE

Warranty

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see website for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Certifi cate of compliance CE and UKCA

The Manufacturer hereby declares that this product complies with the general requirements pursuant to the following European Directives and analogous UK requirements:

• The Low Voltage Directive 2014/35/EC / Electrical Equipment (Safety) Regulations 2016.
  • Electromagnetic Compatibility Directive 2014/30/EC / Electromagnetic Compatibility Regulations 2016.
• ErP Directive 2009/125/EC / The Ecodesign for Energy-related Products Regulations 2010 (as amended) for the applicable implementing measures which apply in Great Britain and Northern Ireland, respectively.

and therefore the product has been marked with C€ and UK symbols and the Declaration of Conformity, the Manufacturer has drawn up the declaration and is available to the competent authorities regulating the market.

Vážený kliente,

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Control panel interface icons including power, sun, battery, and display buttons

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with diagonal lines and a horizontal bar below (no text or labels)

Pure electrical circuit lines without any symbols

Simple line drawing of a three chasing recycling symbol (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Control panel interface with icons for power, sun, battery, and print settings

Simple line drawing of a three chasing recycling symbol (no text or labels)

Uređaj je za vreme transporta zaštićen od oštećenja. Posle vađenja uređaja iz pakovanja molimo Vas da elemente ambalaže uklonite na način koji ne ugrožava prirodnu sredinu.

Svi materijali korišteni za ambalažu nisu štetni za prirodnu okolinų, 100% je moguća reciklaža i označeni su

odgovarajućim simbolom.

Pažnja! Ambalažne materijale (polietilenske kesice, komadiće stiropora itd.) prilikom uklanjanja ambalaže držati daleko od dece.

ODLAGANJE ISTROŠENIH UREĐAJA

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

Ovaj uređaj je označen u skladu sa evropskom direktivom 2012/19/EU. Ujedno je označen simbolom precrtanog kontejnera za otpatke. Oznaka na proizvodu pokazuje da ovaj proizvod posle njegovog životnog veka ne može da buđe biti tretiran kao ostali kućni otpad.

Korisnik ima obavezu da ovaj' proizvod pređa na odgovarajuće sabirno mesto za reciklažu potrošene električne i elektronske opreme. Institucije za prikupljanje ovakvog otpada, uključujući lokalne sabirne tačke, kupovna mesta, opštinske jedinice, sačinjavaju odgovarajući sistem koji omogućava zbrinjavanje ove opreme. Pravilno odlaganje potrošene električne i elektronske opreme sprečava potencijalne negativne posledice za okolinu i ljudsko zdravlje koje inače mogu da budu uzrokovane neodgovarajućim odlaganjem ovog proizvoda.

UPRAVLJAČKI ELEMENTI

Upravljački elementi - jedna i dve zone

Komandna tabla je prikazana na crtežu 4. Pokazana je i niže:

Jedna zona

12 °C + °C/°F

Dve zone

Pure electrical circuit symbols without any text or labels

• Taster napajanja
• Taster osvetljenja
  ⊕ - Taster "+"
• Taster "-"
• Gumb za promjenu jedinice temperature
• Gumb za promjenu zone

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Pure electrical circuit lines without any symbols

• Gumb napajanja
• Gumb osvetlitve
  ⊕ - Gumb "+"
• • Gumb "-"
• Gumb za spremembo enote temperature
• Gumb za spremembo cone

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Pure electrical circuit lines without any symbols

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

Pure electrical circuit lines without any symbols

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Control panel interface icons including power, sun, temperature, battery, and print symbols

GARANTIE, NACHVERKAUFSERVICE

Garantie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Pure electrical circuit lines without any symbols

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Pure electrical circuit lines without any symbols

54mm 488mm

EN Since the appliance will be built into a furniture unit, before installing the appliance, prepare a ventilation duct behind the appliance running from the floor to the top of the furniture unit. Ensure there is free space between the back of the appliance and the wall, which is not blocked by furniture.

To ensure correct appliance operation never cover any ventilation openings. Regularly clean the ventilation grille.

SR S obzirom na potpunu ugradnju aparata u nameštaj pre instalacije pripremiti kanal za ventilaciju koji vodi od poda, iza aparata, do samog vrha nameštaja. Između zida prostorije i aparata ne sme da se nalazi stenka nameštaja (treba ostaviti slobodni prostor). Za ispravno delovanje aparata nikad ne prekrivati otvore za ventilaciju. Redovno čistiti rešetku za ventilaciju.

SL Zaradi popolne vgradnje naprave je treba pred namestitvijo pripraviti prezračevalni kanal od tal, za napravo, vse do vrha pohištva. Med steno prostora in napravo ne sme biti pohištvene stene (treba je ohraniti prost prostor).

EN Adjust masking frame (depending on the model)

Selected device models have a fitted masking frame. Initially, the masking frame is aligned with air vent directly behind it. Adjusting the masking frame is easy, follow the steps below:

1. Remove the upper bolts on both sides of the masking frame.

2. Undo or remove the lower bolts on both sides of the masking frame. Make sure screws are undone sufficiently to avoid damaging the masking frame.

3. Carefully lower the masking frame to the correct height

4. Replace and tighten the top bolts. Tighten the lower bolts.

SR Regulacija podne lajsne (zavisno od modela)

Izabrani modeli aparata su isporučeni s delomično ugrađenom podnom lajsnom. Početno se jedan deo lajsne nalazi iza drugog dela. Proces regulacije nije komplikovan, obaviti niže navede korake:

1. Odvrnuti gornje šrafove koji se nalaze s obe strane lajsne.

2. Popustiti ili odvrnuti donje šrafove sa svake strane lajsne. Nedovoljno popuštanje šrafova može da ošteti lajsnu.

3. Oprezno spustiti lajsnu na odgovarajuću visinu.

4. Umetnuti gornje šrafove i pričvrstiti. Zavrnuti donje šrafove.

5. Remove the upper bolts on both sides of the masking frame.

6. Undo or remove the lower bolts on both sides of the masking frame. Make sure screws are undone sufficiently to avoid damaging the masking frame.

7. Carefully lower the masking frame to the correct height

8. Replace and tighten the top bolts. Tighten the lower bolts.

Diagram of a ventilation system with airflow arrows and component placement (no text or symbols)

Simple line drawing of a black conical object suspended from a metal frame (no text or symbols)

Illustration of a hand holding a door with a switch and lock, showing mechanical components (no text or symbols)

Mechanical assembly diagram showing a piston-like component with an upward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a black component being lifted by a spring, with an arrow indicating motion (no text or symbols present)

1

3

Pure electrical circuit lines without any symbols

4

12 °C + -

5

Line drawing of two corrugated metal sheets with rivets at top (no text or symbols)

3 3 3 3 3 4 19 3 3 3 3 3 4 19

Top-down schematic of a server rack with circular and rectangular compartments, no text or symbols present

12

Technical line drawing of a rectangular electronic device with multiple circular components and ventilation slots (no text or symbols)

12

Amica S.A.

ul . Mickiewicza 52 / 64-510 Wronki tel. [phone] / fax [phone]

www.amica.pl

Amica International GmbH

Lüdinghauser Str. 52

D-59387 Ascheberg

Tel: 0 25 93 - 95 67-0

www.amica-group.de
