USER MANUAL TSA3222 Teesa

Sandwich maker with ceramic plates

TSA3222

Bedienungsanleitung

Owner's manual

Diagram of a grater with labeled parts including one open and six closed, showing internal structure and color coding.

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use. Distributor does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the injuries or damages, follow basic safety precautions applied when using any electrical device, including the following:

• Read this instruction manual carefully, even if you are familiar with the appliance. Keep the manual for future reference.
• Before connecting the device to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.
• In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• Place the device on flat, stable surface.

• Clean this device in accordance to instructions listed in "Cleaning" section.
  • ALWAYS turn off the device and disconnect it from the mains supply:

• if it's not operating correctly

• if there's an uncommon voice when using
• before disassembling the device
• before cleaning
• before servicing

- When you disconnect the power cord of the device, grasp and pull the plug, not the cord/cable.

- Keep the device out of the reach of children. Do not leave children unsupervised with the product.

- This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

• Fixed power cable may only be replaced in an authorized service point.

- Keep the device and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.

- Do not place the appliance in water or any liquid; nor handle/use it with wet or moist hands.

- Do not use the product for purposes different from displayed in this operating manual.

- Do not leave the appliance unattended when it's working.

- Producer of this product is not responsible for damages caused by inappropriate handling and using of the device.

• DO NOT use this device if the cord or the plug is damaged, or the appliance is broken.

- Do not attempt to repair this appliance yourself. Only authorized and qualified personnel may repair this device. There are no user-serviceable parts inside the device, never disassemble this product.

• Do not use unauthorized accessories.

• Appliance for indoor use only.

• Make sure the power cord does not touch any hot or sharp elements.

• Do not move the appliance while it is operating.

- This appliance is suitable exclusively for food preparation. Do not place anything but food in the appliance.

- Switch off the appliance before fitting and removing the attachment.

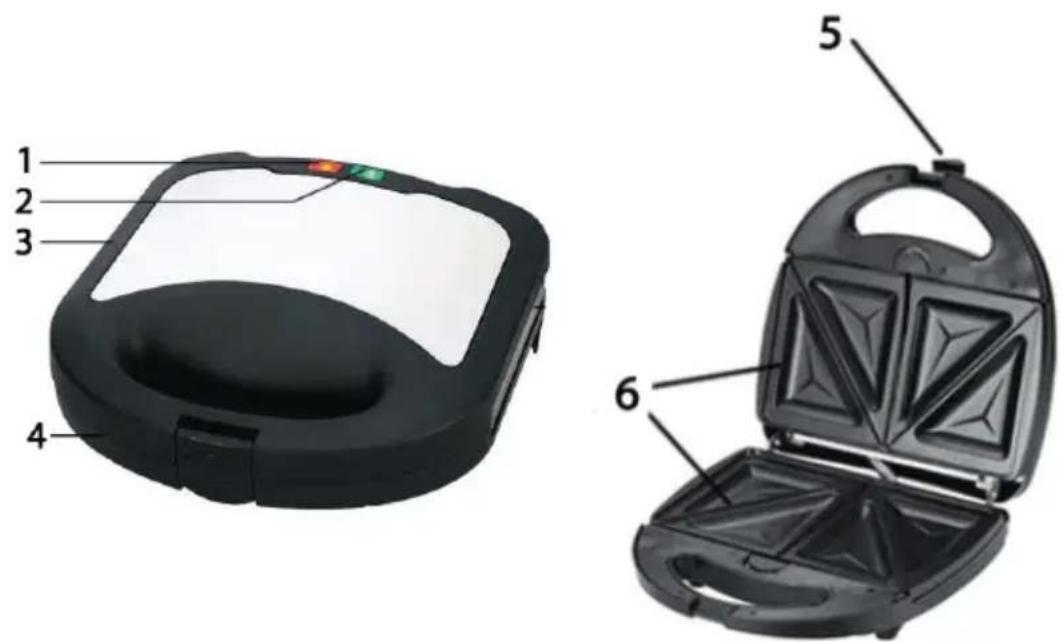

PRODUCT DESCRIPTION

1 2 3 4 5 6

1. Red pilot light (power)
2. Green pilot light (heating)
3. Cover
4. Handle
5. Hook
6. Ceramic plates

OPERATION

1. Remove the device from the packaging and peel off any labels.
2. Place the device on dry and flat surface.
3. Make sure the power supply socket is nearby.
4. Open the cover and apply a layer of vegetable oil or butter on the plates using kitchen towel or brush for dough.
5. If necessary wipe off any excess oil.
6. Close the cover and insert the plug into supply socket. Red and green indicators turn on.
7. Wait until green light goes off; it means that heating plates reached the toasting temperature. Sandwich maker is now ready to be used.

Note:

• It is normal for the green light to go on and off while the device is operating. It means that the sandwich maker keeps the toasting temperature.
• Hot steam can emit from the cover of the sandwich maker during operation. Please exercise caution.
• Initially, the appliance may release an odor. This is a normal reaction caused by initial heating of the plates and should not reoccur.

PREPARATION OF SANDWICHES

1. Insert the plug into power supply socket and preheat the device.
2. Prepare your sandwich.
3. When the device is ready to be used (green light goes off), open cover and place your sandwiches buttered side down on the lower plates.
4. Use the hook to close the sandwich maker.

Notes:

• If it is difficult to close the device, remove any excess from your sandwich.
- Do not use force while closing the device.
- Do not touch the device while it is operating.
- Do not open the cover during the cooking process.

1. Open the cover after about 3 to 6 minutes (or longer if you prefer; it depends on the recipe or user's preferences) and carefully remove the sandwich.

Notes:

• For best results, use medium sliced bread with or without crusts. Adjust the toasting time according to the thickness of the bread (increase the time slightly for thick sliced bread; reduce it for thin sliced bread).
  • Brown bread can also be used but the toasting time may differ.
  • Make sure the bread you are using fits the plates of the sandwich maker. If not, please cut the bread so that it fits the device.
• Use only butter or margarine when preparing food. Synthetic or low fat spread is not recommended as it tends to overheat at a lower temperature forming dark brown residue that can cause the toasted sandwich to stick to the plates.
  • Make sure not to overfill the sandwiches as excessive ingredients would leak from them.
• Avoid using salad fittings such as lettuce and cucumber which soften the sandwiches while toasting. Use tomatoes or onions instead.

CLEANING AND MAINTENANCE

1. Remove the plug from the power supply socket and let the device cool down before cleaning.

Note: Never immerse the sandwich maker in water!

1. Wipe the plates with a cloth damped in hot, soapy water.
2. Dry the plates with a clean, dry cloth or a kitchen towel.
3. Do not use any abrasives or chemical agents to clean this product.
4. After each usage remove the accumulated crumbs and wipe the surface of the heating plates with a paper towel to absorb and remove the fat accumulated during roasting.

SPECIFICATION

• Power light
• Heating light
• Heatproof grip

• Ceramic coating
  • Overheating protection
  • Stainless steel cover
  • Thermostat control

• Anti-slip base

• Upright storage
  • Max. Power: 800 W
  • Voltage: 220 \~ 240 V; 50/60 Hz
  • Dimensions: 227 x 217 x 73 mm
  • Cable length: 90 cm
  • Weight: 1,34 kg

EN

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for Lechpol Electronics Leszek Sp.k., ul. Garwolińska 1, 08-400 Miętne.
