DW8540.0S - Range hood Küppersbusch - Free user manual and instructions

Product type	Cooker hood
Brand	Küppersbusch
Model	DW8540.0S
Category	Hood
Use	Domestic
Electrical class	Class I (earthing required)
Minimum safety distance	650 mm between hob and hood
Minimum duct diameter	120 mm
Power supply	See rating label inside the hood (typically 220-240 V)
Grease filter	Dishwasher safe, replace every 2 months (or more frequently with heavy use)
Charcoal filter	Not washable, replace every 4 months (or more frequently with heavy use)
Lighting	LED, replacement by after-sales service
Controls	Touch controls with 3 speeds + Delay function (delayed shutdown 5 min) and intensive (boost speed 6 min)
Cleaning the hood	Damp cloth and neutral liquid detergent
Safety	Do not flambé under the hood, do not use with combustion appliances without adequate ventilation
Installation	Reserved for a competent technician, comply with local extraction regulations
Power cord length	Adapted according to standard, replacement by professional if damaged
Material	Not specified (stainless steel or glass depending on model)

Frequently Asked Questions - DW8540.0S Küppersbusch

What is the minimum distance between the hood and the hob?

The minimum safety distance is 650 mm. Also consult your hob instructions which may require a greater distance.

How to clean the grease filters?

The grease filters should be cleaned every 2 months (or more frequently with heavy use). They are dishwasher safe. Use a low temperature wash program.

How often should the charcoal filter be replaced?

The charcoal filter should be replaced approximately every 4 months, or more frequently if the hood is used intensively. It cannot be washed or regenerated.

How to use the delay shutdown function?

Press the A button for about 2 seconds to activate the Delay function. The hood will automatically turn off after 5 minutes. To deactivate, press the desired speed button.

What to do if the intensive speed indicator flashes?

The flashing indicates the intensive speed (boost) is activated for 6 minutes. You can deactivate it before the end by holding the button pressed for 3 seconds to return to speed 3.

Can I use the hood simultaneously with a gas appliance?

Yes, but ensure adequate ventilation of the room to prevent backflow of combustion gases. The negative pressure must not exceed 0.04 mbar.

How to replace the LED lighting?

Replacement of the LED lighting must be done by the after-sales service. Do not attempt to do it yourself.

What type of detergent to use for cleaning the exterior of the hood?

Use a damp cloth and a neutral liquid detergent. Avoid abrasive or corrosive products.

Can the hood be installed above an induction hob?

Yes, the hood is suitable for all types of cooking. The minimum safety distance of 650 mm must be observed, unless otherwise specified by the hob manufacturer.

What to do in case of breakdown or malfunction?

Contact the Küppersbusch after-sales service. Do not disassemble the appliance yourself. Keep the manual and the invoice.

USER MANUAL DW8540.0S Küppersbusch

Simple line drawing of a tall rectangular object with a base, no text or symbols present

DW8540.0S

Please read the users and installation instructions carefully before installation of the appliance and before starting to use it.

ES MANUAL DE USO....19

PT LIVRO DE INSTRUÇÕES PARA UTILIZAÇÃO....23

IT LIBRETTO DI USO....27

SV ANVÄNDNINGSHANDBOK 31

NO BRUKSVEILEDNING 34

FI KÄYTTÖOHJEET 37

DA BRUGSVEJLEDNING 40

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
  • Regulations concerning the discharge of air have to be fulfilled.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste

disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

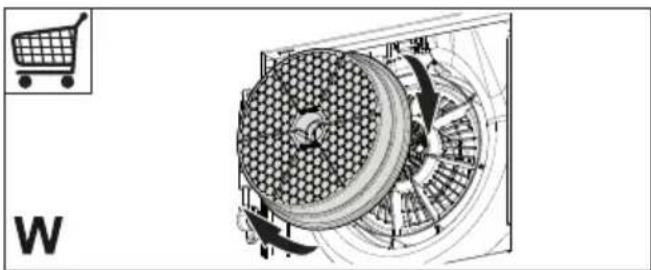

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

Technical line drawing of a mechanical device with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

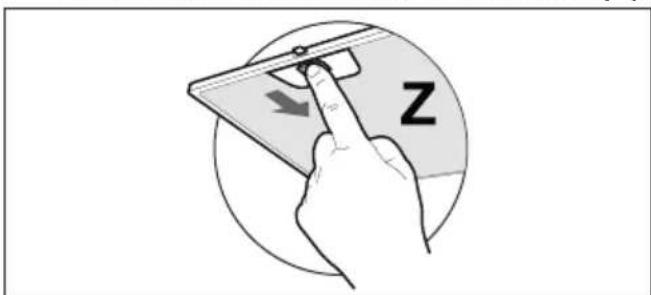

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

Button	Function Led
A	Turns the lighting system on and off at maximum intensity.	On/Off.
	Press and hold the button for approximately 2 seconds to activate the Delay. Suitable to complete elimination of residual odours. It can be activated from any speed. Press and hold at length to activate automatic shutdown with a 5 minute delay. It is disabled by pressing the button for the speed.	The Led flashes.
B	Brief pressure. Turns the suction motor on and off at speed one.	On/Off.
C	Brief pressure. Turns the suction motor on and off at speed two.	On/Off.
D	Turns the suction motor on at speed three.	On/Off.
	- Press and hold 3 seconds on third speed button switches to intensive speed with a duration of 6 minutes. Led flashes.- Press and hold 3 seconds before the 6 minutes end switches back to third speed. Led is on.- Short push before the 6 minutes elapse switches the hood off.	On/Off.

5. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").

Technical diagram of a mechanical assembly with concentric gears and a central hub (no text or labels)

Technical illustration of a mechanical assembly with concentric components and directional arrows (no text or symbols)
