Product Type	Shower Arm and Wall Flange
Brand	Kohler
Model	K-10124
Material	Chrome-plated Brass
Arm Length	Approximately 20 cm
Thread Diameter	1/2 inch NPT
Weight	Approximately 0.5 kg
Main Function	Supports and supplies water to the showerhead
Installation	Screws onto the wall shower elbow
Required Tools	Adjustable wrench, hex key, strap wrench, plumber's putty
Kit Contents	Shower arm, wall flange, retaining screw
Compatibility	Standard showerhead (not included)
Maintenance	Clean with a soft cloth and soapy water
Cleaning	Avoid abrasive products to preserve the chrome
Safety	Cut off water supply before installation
Compliance	Follow local plumbing codes
Warranty	Limited Kohler warranty (see terms)
Repairability	Spare parts available through Kohler
Country of Manufacture	United States (likely)

Frequently Asked Questions - K-10124 KOHLER

Is the showerhead included in the K-10124 kit?

No, the showerhead and adapter are not included. You must purchase them separately.

What tools are needed to install the shower arm?

You will need an adjustable wrench, a hex key, a strap wrench, and plumber's putty or sealing tape.

What type of thread does the K-10124 shower arm have?

The thread is 1/2 inch NPT, standard for residential plumbing.

How to clean the chrome shower arm?

Use a soft cloth and soapy water. Avoid abrasive products that could scratch the chrome.

Can I install this arm on an existing water outlet?

Yes, it screws directly onto the wall shower elbow. Make sure to turn off the water first.

What is the length of the shower arm?

The standard length is about 20 cm (8 inches).

Should I use putty or sealing tape?

Yes, apply plumber's putty or sealing tape to the threads to prevent leaks.

Does the kit include a showerhead adapter?

No, the adapter is not included. It must be purchased separately if needed.

How to fix the wall flange?

Place the flange over the arm, then tighten the retaining screw against the arm. Use putty on the back of the flange to seal.

What to do if the arm leaks after installation?

Check that the sealing tape is properly applied and that all connections are tight. Purge the air by letting the water run for a few moments.

USER MANUAL K-10124 KOHLER

Shower Arm and Flange

K-10124

Simple line drawing of a bent pipe or conduit with a flanged end (no text or symbols)

M product numbers are for Mexico (i.e. K-12345M)

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Before You Begin

□ Observe all local plumbing and building codes.
□ Shut off the main water supply.
☐ For roughing-in specifications, please refer to the faucet manufacturer's installation instructions.
☐ Kohler Co. reserves the right to make revisions in the design of products without notice, as specified in the Price Book.

1. Install the Shower Arm

NOTE: The showerhead with adapter are not provided.

□ Remove the temporary nipple from the shower ell.

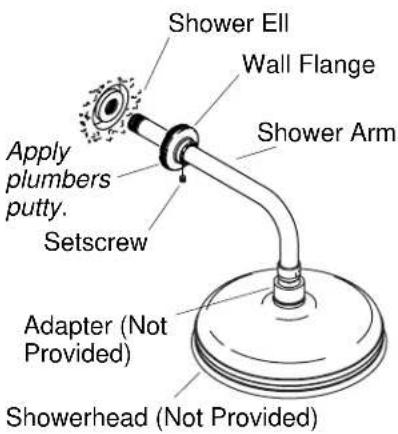

□ Apply a bead of plumbers putty or other sealant to the back of the wall flange according to the manufacturer's instructions.
☐ Place the wall flange onto the long end of the shower arm just below the threads, as illustrated.
□ Apply thread sealant tape to the threads of each end of the shower arm.
□ Place the shower arm in the shower ell.
□ Carefully tighten the shower arm to the shower ell with a clean strap wrench.
□ Press the wall flange against the finished wall.
☐ Secure the flange to the shower arm by tightening the setscrew.
□ Remove any excess putty.
☐ Turn on the water and allow water to flow through the shower arm to flush the system of any debris.
□ Turn off the water.
☐ Thread the adapter (not provided) onto the showerhead until hand-tight.
□ Hand tighten the showerhead (not provided) to the shower arm.

Install the Shower Arm (cont.)

☐ Use a clean strap wrench to completely tighten the showerhead to the shower arm.
□ Check for proper operation.
