LAY-Z-SPA 60313 - Vacuum Cleaner BESTWAY - Free user manual and instructions

Product type	Pool and spa vacuum
Brand	Bestway
Model	LAY-Z-SPA 60313
Reference	60313
Water depth	45 cm - 140 cm
Water temperature	4 °C - 35 °C
Battery life	Approximately 50 minutes
Charging time	4 to 5 hours (first charge)
Power supply	Power supply compliant with EN 61558-1 and EN 61558-2-16, very low voltage
Battery type	Rechargeable lithium (replacement only with original battery)
Charge indicator	Green light when fully charged
Filtration system	Debris collection bag to be emptied regularly
Use	Pool or spa, depth 45-140 cm
Safety	Use under supervision for children aged 8 and above
Precautions	Keep body parts, hair, animals away from suction head
Maintenance	Regularly clean the motor wheel and collection bag
Storage	Clean, dry place away from direct sunlight
Charging	Only with the provided detachable power supply
Environment	Do not expose to explosives, lubricating oil must not leak

Frequently Asked Questions - LAY-Z-SPA 60313 BESTWAY

How to charge the LAY-Z-SPA 60313 vacuum?

Use only the provided detachable power supply and original USB cable. Plug in the vacuum while it is off. The first charge takes 4 to 5 hours. When fully charged, the indicator light turns green.

What is the battery life after a full charge?

The vacuum can operate normally for approximately 50 minutes after a full charge.

What to do if the vacuum does not work?

First check the battery charge level. If the battery is discharged, recharge it. If the battery is damaged, contact the retailer for replacement with an original lithium battery.

How to clean the filter bag?

Regularly remove debris from the collection bag. Check that the bag is not punctured by sharp objects. A clogged bag reduces suction.

Can I use the vacuum in an above-ground pool?

Yes, the vacuum is designed to clean pools and spas. The water depth range must be between 45 cm and 140 cm, and the water temperature between 4°C and 35°C.

Is the vacuum suitable for spas?

Yes, it is suitable for spas. Follow the indicated depth and temperature conditions.

What to do if suction is too weak?

Check the battery charge level: recharge if necessary. Also check the debris collection bag capacity: empty it regularly.

How to replace the battery?

Batteries are not user-replaceable. Contact the retailer for replacement with an original lithium battery. Using an unsuitable battery may damage the device.

What are the important safety precautions?

Keep body parts, hair, animals or clothing away from the suction head. Use under adult supervision for children 8 years and older. Store in a clean, dry place away from direct sunlight. Do not let lubricating oil leak.

Can I leave the vacuum charging overnight?

It is recommended not to exceed the charging time of 4 to 5 hours. Prolonged charging may damage the battery. Monitor the charge and unplug once the indicator turns green.

USER MANUAL LAY-Z-SPA 60313 BESTWAY

(1) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
(2) The appliance is only to be used with the power supply unit fitted with EN 61558-1& EN 61558-2-16. it must only be supplied at safety extra low voltage corresponding to the marking on the appliance.
(3) This appliance contains batteries that are non-replaceable.

WARNING: For the purposes of recharging the battery, only use the detachable supply unit fitted with EN 61558-1& EN 61558-2-16.

(4) The cleaner is designed to clean the swimming pool, SPA.
(5) Please use the original batteries and USB Line when using.
(6) Only charging it when the cleaner is power off.
(7) Put the cleaner into a clean and dry place. Do not expose it under the sun, or close to explosive.
(8) The filter bag is easy to be broken when there is sharp substances under water.
(9) Do not close to the vacuum head when it is working, due to its suction power, especially for the human body, animals, hairs or clothes.

(10) Do not leak the lubricant oil, and it causes water polluted.

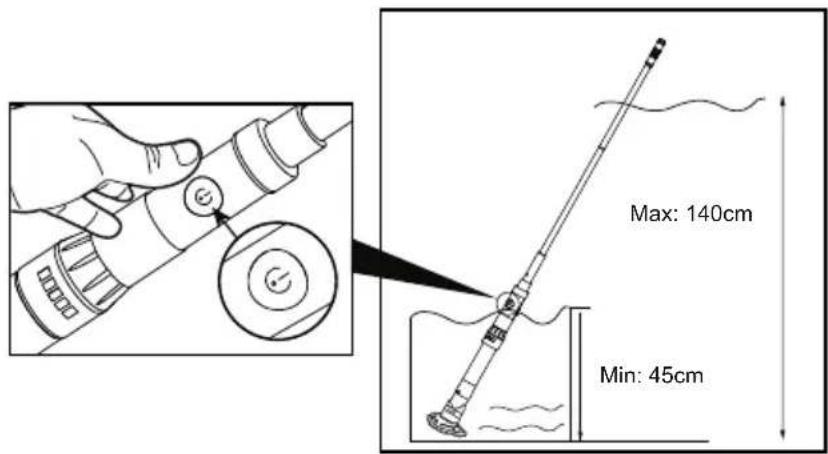

(11) Cleaner working conditions: (11-1) Water depth from 45cm to 140cm (11-2) Water temperature: 4°C (39.2°F)- 35°C (95°F)
(12) SAVE THESE INSTRUCTIONS Above warning and cautions are not intended to incorporate all possible instances for risks and/or severe injury. Pool/spa owners should always exercise intensive caution and common sense when operating the cleaner.

OPERATING WARNING

NOTE: When fully charged, the charging indicator will show a green light.

NOTE: Charge the cleaner 4-5 hours prior to the first use. Normally cleaner can be operated about 50 minutes after fully charged.

TROBULESHOOTING

Problems Probable Causes Solutions
Machine does not work	Dead battery	Recharge, it can operate normally for 50 minutes after charging.
	Battery damage	Contact dealer for replacement Warning! Please purchase original lithium batteries for replacement to avoid damage to the cleaner.
Too little suction	Please check the battery level	Recharge, it can operate normally for 50 minutes after charging.
	Please check the garbage bag capacity	Clean up excessive garbage in the net bag in time
Abnormal noise	Please check the motor impeller	Unscrew the suction head to clean the foreign matter at the impeller
	Motor impeller is broken	Return to the shop to get assistance
The cleaner cannot be charged	Battery damage	Contact dealer for replacement Warning! Please purchase the original lithium battery for replacement to avoid damage to the cleaner.
	Damaged charger	Replace the charger
	USB charging cable is damaged	Contact dealer for replacement Warning! The wrong charger will cause damage to the machine, battery, and wire.There is no warranty in this case.

DISPOSAL

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

MANUEL DE L'UTILISATEUR

Modèle N° 60313

ALERTE DE SÉCURITÉ

VEILIGHEIDSWAARSCHUWING

GEBRUIKSWAARSCHUWING

INSTALLATION / INSTALLATION / AUFBAU / INSTALLAZIONE / INSTALLATIE / MONTAJE / INSTALLATION / MONTAGEM / EΓΚΑΤΑΣΤΑΣΗ / ΥCTAHOBKA / INSTALACE / INSTALLASJON / INSTALLATION / ASENNUS / INŠTALÁCIA / MONTAŽ / ÖSSZESZERELÉS / UZSTĀDĪŠANA / SURINKIMAS / NAMESTITEV / KURULUM / INSTALARE / ИНСТАЛИРАНЕ / MONTAŽA / PAIGALDAMINE / MONTAŽA / التركيب

1.

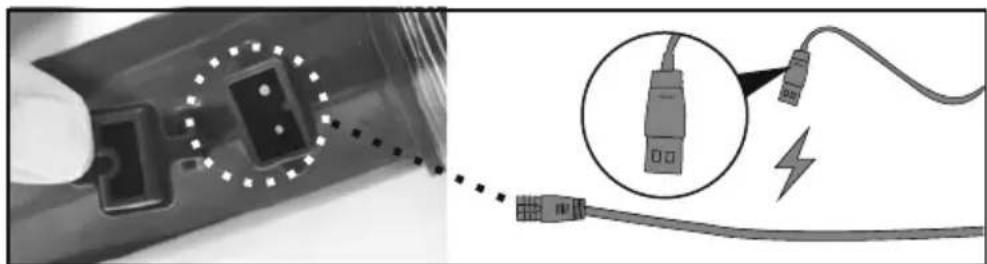

Diagram showing a connector with a dotted line and a magnified view of an Ethernet cable with a lightning bolt (no text or symbols)

1.

1.

1.

1.

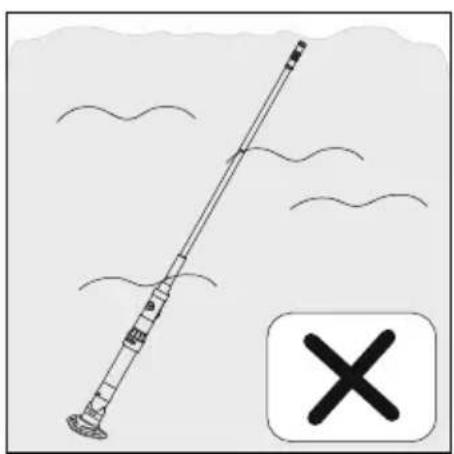

Illustration of a fishing rod with a cross symbol, set against water and clouds (no text or labels)

HOW TO CLEAN THE PRODUCT / COMMENT NETTOYER LE PRODUIT / REINIGUNG DES PRODUKTS / PULIZIA DEL DISPOSITIVO / HOE SCHOON TE MAKEN / COMO LIMPIAR EL PRODUCTO / SÂDAN RENGÕRES PRODUKTET / COMO LIMPAR O PRODUTO / ΠΩΣ NA KAΘΑΡΙΣΕΤΕ ΤΟ ΠΡΟΪΟΝ / ΚΑΚ ΟЧИСТИТЬ ИЗДЕЛИЕ / POSTUP ČΙŠΤËNÍ VÝROBKU / SLIK RENGJ∅R DU PRODUKTET / HUR DU RENGÖR PRODUKTEN / TUOTTEEN PUHDISTAMINEN / AKO ČISTIÏT VÝROBOK / JAK CZYŚCIĆ PRODUKT / A TERMÉK TISZTÍTÁSA / KÃ TİRÎT PRODUKTU / KAIP VALYTI GAMINİ / KAKO OČISTITI IZDELEK / ÜRÜN NASIL TEMIZLENIR / CUM SÃ CURĂTAȚI PRODUSUL / KAK CE ПОЧИСТВА ПРОДУКТЪТ / KAKO OČISTITI PROIZVOD / TOOTE PUHASTAMINE / KAKO OČISTITI PROIZVOD / كيفية تنظيف المنتج

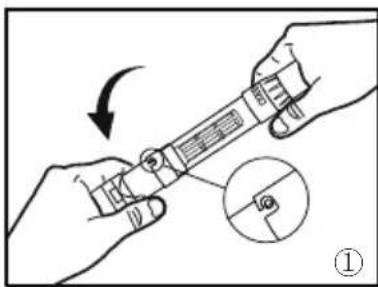

Illustration of two hands holding a tool with a magnified inset showing the tip of the tool (no text or symbols present)

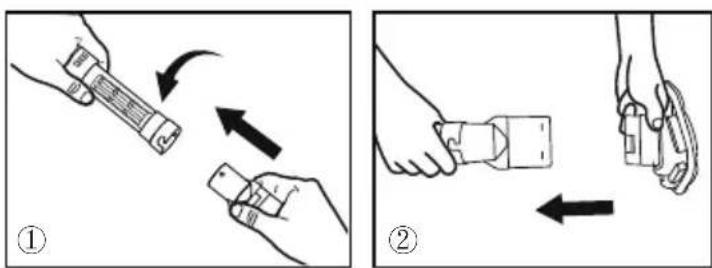

Illustration of two hands exchanging a device with arrows indicating motion (no text or symbols)

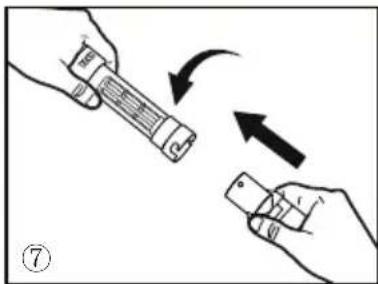

Illustration of two hands holding a cylindrical object with an arrow indicating motion (no text or symbols)

Hand holding a cylindrical object with scattered diamond-shaped fragments, no text or symbols present

Illustration of two hands using a tool to handle a piece of material, no text or symbols present

Illustration of two hands exchanging a cylindrical object with an arrow indicating motion (no text or symbols)

Illustration of two hands exchanging a device with arrows indicating motion (no text or symbols)
