Product Type	Rechargeable retro radio with Bluetooth
Brand	Sogo
Model	SS-8635
Power Supply	Lithium battery 3.7V / 1500mAh, recharge via USB-C
Battery Life	4 to 6 hours
Charging Time	2 to 3 hours
Bluetooth Version	5.3
Bluetooth Range	10 meters
Bluetooth Name	SOGO SS-863540
Speaker	3 inches, power 3W RMS
Sound Sensitivity	≥ 65 dB
Frequency Response	2.4 GHz
Maximum USB Memory	64 GB
Connection Modes	Bluetooth, USB, FM, auxiliary input (AUX)
FM Radio	Yes, with frequency selector
Auxiliary Input	Yes, 3.5mm jack
LED Indicators	Charge (red), Bluetooth/AUX (blue), FM/USB (red/blue)
Cleaning	Soft dry cloth; do not use abrasive cleaners
Safety	Do not immerse, do not repair yourself, keep away from heat sources
Compliance	RED 2014/53/EU, EMC 2014/30/EU, RoHS 2015/863/EU
Included Accessories	USB-C cable

Frequently Asked Questions - SS-8635 Sogo

How to charge the Sogo SS-8635 radio?

Connect the provided USB-C cable to the charging port on the back of the radio. Plug the other end into a 5V USB adapter (not included) or a computer. The red light turns on during charging and turns off when the battery is full. Charging time is approximately 2 to 3 hours.

How to connect the radio via Bluetooth?

Turn on the radio and press the Mode button until Bluetooth mode is selected. Enable Bluetooth on your device and search for 'SOGO SS-863540'. Select it to pair. If a password is requested, enter '0000'. A tone confirms the connection.

How to listen to FM radio?

Turn on the radio; it automatically switches to FM mode by default. Turn the FM frequency selector to tune to the desired station. The FM/USB indicator lights up solid red.

How to play music from a USB flash drive?

Insert a USB flash drive (max 64 GB) into the USB port on the back of the radio. Playback starts automatically in USB mode. Use the Previous/Next track buttons to navigate.

How to use the auxiliary input (AUX)?

Connect a 3.5mm audio cable to the auxiliary jack of the radio and to your device (smartphone, computer). The radio automatically switches to AUX mode. The BT/AUX indicator blinks slowly blue then turns red during playback. Controls are on the external device; the Play/Pause button remains usable.

What to do if the radio does not turn on?

Check that the battery is charged: plug in the USB-C cable and wait a few minutes. If the charging light does not turn on, try another adapter. Make sure the power button on the back is pressed. If the problem persists, contact after-sales service.

How to clean the radio?

Use a soft dry cloth. For stubborn stains, lightly dampen the cloth. Never use abrasive cleaners, alcohol, or ammonia. Avoid moisture and direct sunlight.

Is the battery removable?

No, the battery is built-in and cannot be replaced by the user. For any intervention, contact an authorized service. Do not attempt to disassemble the radio.

Can I use the radio while charging?

It is not recommended to use the radio while charging as this could damage it. Always turn off the device before connecting or disconnecting the charging cable.

What are the LED indicators and their meaning?

Charging indicator (back): solid red during charging, off when battery is full. BT/AUX indicator (front): fast blinking blue in Bluetooth mode, slow blinking blue in AUX mode, slow blinking red during AUX playback. FM/USB indicator (front): slow blinking blue in USB mode, solid red in FM mode.

USER MANUAL SS-8635 Sogo

Vintage SOGO Vivacious Sound radio with a circular dial and handle (no visible text or symbols on the device body)

SS-8635

SS-8640

RADIO RETRO CON ALTAVOZ BLUETOOTH RETRO RADIO WITH BLUETOOTH SPEAKER RADIO RÉTRO AVEC HAUT-PARLEUR BLUETOOTH RÁDIO RETRO COM ALTO-FALANTE BLUETOOTH RETRO-RADIO MIT BLUETOOTH-LAUTSPRECHER RADIO RETRÒ CON ALTOPARLANTE BLUETOOTH

Caution: please read and preserve these important instructions

This manual can be downloaded from our website, www.sogo.es in the following languages.

SPANISH, CATALAN, ENGLISH, FRENCH, PORTUGUESE, GERMAN, ITALIAN AND MORE

ref. SS-8635

SS-8640

1. AVISO IMPORTANTE

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or numbers present)

1. IMPORTANT NOTICE

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. SAFETY INSTRUCTIONS FOR THE USER

I. Restrictions

• Never immerse the Retro radio or the charging cable-in water or any other liquid. In the event of the Retro radio falling in water take it to an authorized service agent for repair before reusing.
• Do not place or operate the Retro radio on or near hot surfaces (e.g., stove plates) or open flames. In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or irreparable damage to the product.
• Do not use the radio for any other purpose than described in this manual.
• Do not leave the radio charging longer than recommended by the manufacturer, as this may damage the battery or the radio itself.
• Do not use the radio while in charge,

otherwise it may also damage the radio.

• Do not drop, disassemble, deform, modify or insert any objects into this product as operating damage may result.
• Do not attempt to repair, modify or disassemble the product yourself. This product does not contain any user-serviceable components and may void the warranty.
• Do not clean the product with alcohol, ammonia based cleaners and abrasive cleaners.
• Do not place this product in to contact with any sharp objects as this may cause scratches and operating damage.
• Do not attempt to replace the product battery, it is built-in and is not user changeable.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children.

II. Precautions while during the usage of product

• Keep the radio away from direct sun-light, fire, or other high voltage equipment.
• WARNING: the device might get warm during charging. Always ensure the radio is turned off when you plug and unplug the device. If the device is not turned off you might damage the radio or injure yourself.

• Observe all signs and displays that require an electrical device or RF radio product to be switch off in designated areas.

• Dispose of the product and the product's battery in accordance with local laws and regulations.

• In case of radio malfunction, or if it has been damaged in any manner, return it to the nearest authorized service facility for examination, repair or adjustment.

3. Product Features

• Rechargeable retro radio with Bluetooth connection
• FM radio
• 3" speaker
• 5 W speaker output
• 3 W amplifier output
• Classic control button
• Battery capacity: 3.7V, 1500mAh
• LED indicator lights
• Low noise level ≥65dB
• BT range 10M
• Charging time 2-3h
• Working time 4-6H
• Frequency 2.4G
• Multiple connection modes: BT, auxiliary cable, USB, FM radio,
• Stylish leather handle

4. Technical Specifications

Output power

3W RMS Power

Sound Sensitivity

≥65dB

Frequency response

2.4G

Bluetooth version

V5.3

Bluetooth Range

10 metres

Bluetooth Pairing Name Maximum USB

SOGO SS-863540

Memory

64 GB

Battery Capacity

3.7V 1500 mAh

Battery Type

Lithium Ion

Working Time

4-6 hrs (máx.)

Charging Time

2-3 hrs

Slot

USB card (64GB),

Connection

Aux. Cable, Bluetooth

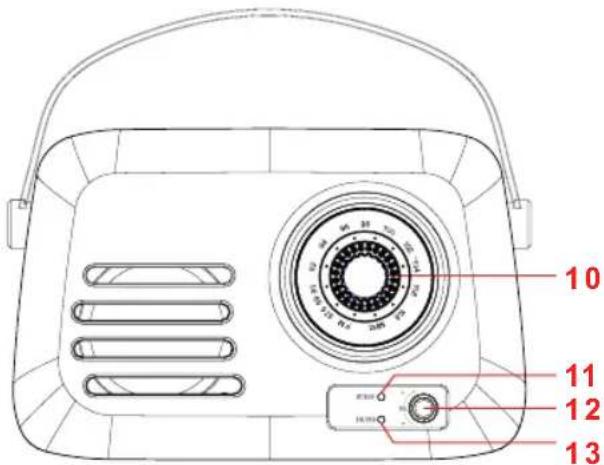

5. Key functions description:

1. Power button

2. Type C charging port

3. Charging indicator

4. USB port

5. Auxiliary jack

6. Mode

7. Previous track

8. Play / Pause

9. Next track

10. FM frequency dial

11. BT / AUX indicator

12. Volume knob

13. FM / USB indicator

1. Power button: This button is located on the back part of retro radio. With the help of this button, we can turn on the radio and play the music and by pressing the same button device can be turned off.

2. Type C charging port: This radio is provided with type C charging port, insert the type c connector of charging cable (provided with the unit) to charge the radio.

3. Charging indicator: This radio has the charging indicator. When we connect the device with charging cable and other side with the wall outlet with the help of charging adaptor, the charging indicator turns on and stays illuminated in red colour and once the battery gets fully charged it turns off.

4. USB port: with the help of USB port, we can connect any USB drive which contains music and listen.

5. Auxiliary jack: With the help of Auxiliar cable can connect any devise like MP4, Radios or any other devise and enjoy the content.

6. Mode: With the help of this button, we can change the working mode of retro radio, apparently this radio is provided with multiple Connection modes like Bluetooth connection, Aux Cable, USB and FM Radio.

7. Previous track: In USB mode / Bluetooth mode, we can change from one track to the previous track. In order to do so we need to keep pressing same button, until we reach our desired song.

8. Play / Pause: After turning on the device, choose in between USB / Bluetooth / Auxiliary cable mode. Once we have chosen the mode, we can play and pause the music anytime.

9. Next track: In USB mode / Bluetooth mode, we can change the track to next track. In order to do so we need to keep pressing same button, until we reach our desired song.
10. FM frequency dial: With the help of this dial, we can tune into the FM station as per our desire.
11. BT / Auxiliary indicator: This indicator light stays turned on in Bluetooth / Auxiliary mode. In Bluetooth mode, blue light keep flashing quickly while in Auxiliary mode the same blue light flashes slowly. When the unit is in auxiliary mode and plays music, the indicator light turns into red colour and keep flashing slowly.
12. Volume knob: With the help of this button, we can increase and decrease the volume of device.
13. FM / USB indicator light: this light turns on in FM and USB connection mode. In USB mode, this indicator light keeps flashing slowly in blue colour and on the other side in FM mode, this indicator light turns on in constant red colour.

6. Multiple connection modes:

Radio function mode:

To bring the unit in radio function mode, simply turn on the radio by pressing power button and device automatically enters into the radio mode. Once the device enters into radio mode, we can choose the FM stations with the help of FM frequency dial and enjoy the music.

Note: Radio function mode is default function of this device.

Bluetooth function mode

1) Power control: Press the power button (1) to turn on the radio. A sound will be heard indicating device is on.
2) Press the mode button and select Bluetooth mode among multiple modes of connections.
3) Turn on the BT function of your external BT device, then search on it for the Bluetooth device with the name "SOGO SS-863540" and choose it to pair and connect. In case if your device connects to the Bluetooth and you are being asked for password by the external device, enter the password "0000" and finally your external device connected to the retro radio. After a successful pairing, a tone will be heard. 4) Now with the help of External BT device you can play any kind of music through the retro radio.

USB mode

Insert USB drive to USB port (4) to play music stored on the drive, In USB mode the retro radio will play music automatically.

Auxiliary cable mode

With the help of Auxiliar cable can connect any devise like MP4, Radios or any other devise and enjoy the content.

Aux-In / Line-In

With the help of Aux-In input we can connect all the musical devices such as Radios, Laptops,

Televisions, and all the devices, which doesn't have Bluetooth connection function.

To connect the devices, you need an audio cable and connect the one end to the radio Aux-in and other side to the device which needed to connect and automatically device will connect with the radio.

Aux-In mode is automatic and one you insert the auxiliar cable, radio automatically enters into the mode.

With the help of device, you can play the music and songs.

NOTE: In this mode all the functions, controlled by the external device, but still Play / pause button can be used.

7. Charging instructions:

How to charge Retro radio:

This unit has been provided with an USB - Type C charging cable, to charge the radio connect the radio with charging adaptor and plug in to the wall outlet. You can use any charging adaptor including which you use to charge your mobile phone.

When the device is completely discharged, a sound can be heard as low power indication which indicates that device need to charge.

Insert type C connector of USB charging cable into the charging port (2) on the back of the retro radio. Insert the USB charging connector of charging cable into the USB port on a computer, USB charging device or 5V USB adapter (Not Included) and plug into a wall outlet.

The charging indicator (3) will turn red, while radio is in charging mode and the light will goes out once it charges completely.

Note:

1. This unit is not included USB charging adaptor, but any USB charging adaptor can be used including your common mobile phone charging adaptor.

2. To increase the battery life and smooth working, it is recommended to charge fully.

8. Cleaning and maintenance

While cleaning the product, just use soft or dry cloth and in case of severe stains use the damp cloth. Do not use abrasive cleaners, as it can damage the paint, plastic or even the radio itself.

Keep it away from sun light and do not keep it in hot and humid atmosphere.

Make sure to remove the power adaptor cable and keep it in cool and dry place.

9. Disposal of electronic goods

DISPOSAL OF BATTERY-OPERATED UNITS

Do not dispose the battery-operated units as normal rubbish, always these should be recycled in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

1. AVIS IMPORTANT

integrated lithium-ion

4-6 hours (max.)

2-3 hours

USB card (64GB),

Aux-in/Bluetooth

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

1. AVIS IMPORTANT

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

1. AVVISO IMPORTANTE

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU RED Directive 2014/53/ EU related to Health and Safety from usage of Radio spectrum in household electronic equipment.

Electromagnetic Compatibility Directive 2014/30/EU.

Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in China After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
