SS-5317 - Toaster Sogo - Free user manual and instructions

Product Type	Toaster
Brand	Sogo
Model	SS-5317
Power Supply	AC 220-240 V, 300 W, 50 Hz
Main Functions	Toast and reheat bread
Capacity	2 slices of bread
Estimated Dimensions	25 x 20 x 15 cm
Estimated Weight	0.8 kg
Main Parts	Main body, power cord, crumb tray, grill, ON/OFF switch with indicator
Care and Cleaning	Unplug and let cool before cleaning. Clean the exterior and grill with a damp cloth. Empty the crumb tray after each use.
Safety	Supervise during use; do not immerse; do not cover; avoid hot surfaces; keep out of reach of children under 8 years.
Repairability	Contact an authorized service center. The power cord must be replaced by the manufacturer or a qualified professional.
Compliance	Low Voltage Directive, EMC, RoHS, Ecodesign
Supplied Accessories	Short power cord
General Information	Household use only; do not use outdoors; flat and stable surface required.

Frequently Asked Questions - SS-5317 Sogo

What should I do if the toaster emits smoke the first time I use it?

It's normal for a new toaster to emit some smoke during first use. This is from burning off manufacturing residues. Run the appliance empty for a few minutes in a well-ventilated area before using it with bread.

How to clean the crumb tray?

Pull the crumb tray (drawer) located at the bottom of the toaster using the handle, empty the crumbs, and put it back. Make sure it is properly inserted before using the appliance. Never use the toaster without the crumb tray.

Can I toast frozen bread?

Yes, you can toast frozen bread. Place the frozen slices on the grill and press the switch. Toasting time will be longer than for fresh bread. Monitor cooking to avoid burning the bread.

Why does my toaster get very hot on the outside?

The metal panels of the toaster become hot during operation. This is normal. Always use the handle to operate the appliance and do not touch metal surfaces. Let it cool before cleaning.

What to do if a slice of bread gets stuck?

Unplug the toaster immediately and let it cool. Never use sharp metal utensils to remove the bread, as they could damage the heating elements. Use wooden or plastic tongs or gently turn the appliance upside down to let the bread fall out.

The power cord is short, can I use an extension cord?

Using an extension cord is not recommended. If necessary, ensure the extension cord has at least equivalent electrical ratings (220-240 V, 300 W) and place it to avoid tripping hazards.

How to clean the exterior of the toaster?

Unplug the appliance and let it cool completely. Clean the exterior with a non-abrasive damp cloth. Do not use harsh chemicals. Never immerse the appliance in water.

Can I melt cheese or toast sandwiches?

This toaster is designed for toasting bread slices. It is not suitable for melting cheese or toasting filled sandwiches. Do not place food wrapped in aluminum foil, as this could cause a fire.

What is the power of this toaster?

The Sogo SS-5317 toaster has a power of 300 W and operates under a voltage of 220-240 V at 50 Hz.

How to use the toaster for the first time?

Remove all packaging. Place the toaster on a flat, stable, dry surface. Properly install the crumb tray. Plug in the appliance and run it empty for a few minutes (slight smoke may appear). Then, place the bread slices on the grill, press the switch, and turn the bread when one side is toasted.

USER MANUAL SS-5317 Sogo

ES Instructions for use

FR Mode d'emploi

Download your manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

5. INSTRUCTIONS FOR USE

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

2. Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors. • Always place the appliance on a flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance. • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended to be used in household and similar applications such as
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorised service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case the cord is damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorised service facility for examination, repair or adjustment.
• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

Restrictions on use when used with children and elders

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

Instructions to follow when using the appliance

• Do not touch the surface of the appliance; use the handle or mitts.
• Do not use sharp utensils to remove toast. When removing toast, be careful not to damage the heating wires.
• Do not touch any metal parts on the exterior of the device. These can become very hot during operation.
• Do not place bread slices that are too thick or wrapped in aluminium foil, to avoid risk of electric shock or fire.
• Do not cover the appliance with anything.
• Do not toast bread for too long as it may burn and cause a fire.
• Do not position the device beneath a curtain, wall cabinets or combustible materials.
• When this symbol is used, it means "Caution: Hot surfaces". The toaster grill may reach a high temperature when the appliance is operating. The temperature of the metal panels on the main body can also get hot.

CLEANING AND MAINTENANCE: Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which come in contact with food.

3. TECHNICAL SPECIFICATIONS

Voltage Power Frequency
AC220-240V	300W 50Hz

4. PARTS DESCRIPTION

Main components

1. Main body
2. Power cord
3. Crumb tray
4. Toaster grill

Controls

1. ON/OFF switch with pilot light

5. INSTRUCTIONS FOR USE

• Place your toaster on a flat, dry, stable surface. This appliance is designed to toast and heat bread. Do not use it to cook any other food.
• Completely remove all elements from inside or outside the appliance that were used for packing and transport.
• Install the crumb tray correctly. Never use the toaster without having correctly installed the crumb tray.
• Before using the toaster for the first time, turn it on without bread for a few minutes. It is normal for it to give off a little smoke at the start.
• Plug it into the mains.
• Put slices of bread on the toaster grill (4).
• DO NOT spread oil or butter on slices of bread before toasting.
• DO NOT cover the toaster grill completely with bread. Leave spaces between slices.
• Press the switch (5) and leave it in the ON position (I). The pilot light will turn on.
• Turn the slice of bread over manually when it is toasted on one side.

6. CLEANING AND MAINTENANCE

• Clean the appliance before using it for the first time, immediately after each use and after not using it for a long period of time.
• Before cleaning the toaster, make sure it is unplugged from the mains and completely cold.
• Clean the outside of the appliance and toaster grill with a damp cloth.

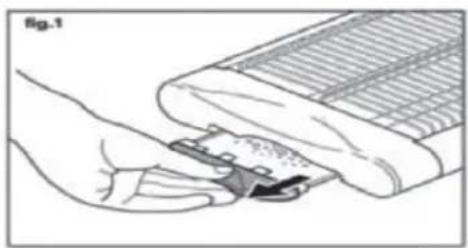

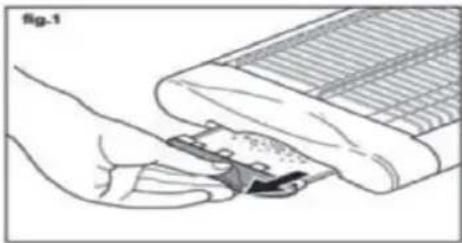

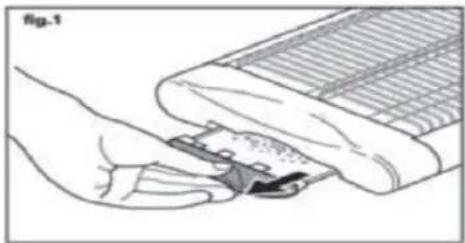

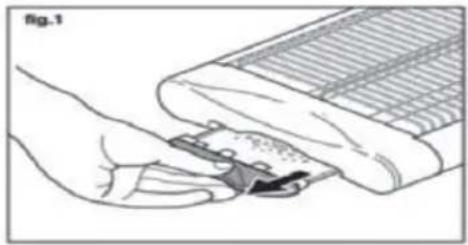

• Pull out the crumb tray (fig 1) to remove crumbs, bits of bread, etc. Always use the grip to pull out the crumb tray.
• Place the tray back in place and ensure it is placed correctly.
• To store the appliance, store the power cord by winding it

1. IMPORTANT:

Controls

5. INSTRUCTIONS FOR USE

Controls

5. INSTRUCTIONS FOR USE

5. INSTRUCTIONS FOR USE

5. INSTRUCTIONS FOR USE

5. INSTRUCTIONS FOR USE

5. INSTRUCTIONS FOR USE

• Place the toaster on a flat, dry, stable surface. - This appliance is designed for toasting and warming bread. Do not use it to cook other food. - Completely remove all elements inside or outside the appliance that were used for packaging and transport. - Correctly position the crumb tray. Never use the toaster if the crumb tray is not correctly positioned. - Before first use, run the toaster for a few minutes without bread. It is normal for it to emit a little smoke at the beginning. 1. Plug it in. 2. Place bread slices on the toaster rack (4). - DO NOT butter or oil the bread slices before toasting. - DO NOT completely cover the toaster rack with bread. Leave gaps between slices. 3. Press the switch (5) and leave it in the ON (I) position. - The indicator light will turn on. 4. Turn the bread slice over manually when it is toasted on one side.

6. CLEANING AND MAINTENANCE

5. INSTRUCTIONS FOR USE

5. INSTRUCTIONS FOR USE

5. INSTRUCTIONS FOR USE

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product cannot be disposed of as normal rubbish or household waste. All electrical, electronic equipment and battery-operated units must be recycled in a proper manner and according to local municipal laws. You can recycle them by taking them to government-authorized disposal centers or specialized bins which you can find in any nearby big supermarkets, electronics or electro-domestic products stores, or malls that have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
