USER MANUAL SS-5485 Sogo

White SOGO Crispy DVO S400 toaster with control knobs and a handle (no visible text or symbols on the device body)

Caution: please read and preserve these important instructions

ÍNDICE

1. Important Note P. 10

2. Symbol definitions P. 10

3. Safety instructions for the user P. 10

I. General precautions during the use of electrical equipment P. 10-11
II. Restrictions on use to avoid personal injury P. 12-13
III. Product use restrictions due to poor condition or breakdown P. 13
IV. Restrictions on use when used with children and elders P. 13-14
V. IMPORTANT WARNING P. 14
VI. Instructions to follow while using the device P. 15

1. Technical specifications P. 16
2. Parts description P. 16
3. Instructions for use P. 16
4. Cleaning and maintenance P. 16
5. Declaration of conformity P. 46
6. Responsibility of disposal, details of the manufacturer and after-sales service P. 47

ÍNDICE

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definitions

1

GENERAL PRECAUTIONS

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
4- Warning against hot surfaces
5- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper

handling may cause problems in the appliance and cause injury to the user.

- The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.

- Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

- Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.

- Close supervision is necessary when any appliance is being used by or near children.

- Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

- The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

- The appliances are not intended to be operated by means of an external timer or separate remote-control system.

- This appliance is intended to be used in household and similar applications such as

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses and by clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments;

- Catering and similar non-retail applications.

- Avoid spillage on the connector

II. Restrictions on use to avoid personal injury

- Do not let the appliance operate unattended.

- Do not place or operate this appliance near water sources.

- Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.

- Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

- Never use accessories that are not recommended by the manufacturer.

- The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.

- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

- To avoid electric shock, make sure your hands are dry before plugging or unplugging.

- Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.

- While using the appliance, make sure that the power cord must not be caught or crushed.

- Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

- Be careful, while handling electrical appliances, as the surface of the heating element is subject to residual heat after use. Any misuse may cause potential injury to the user and may

damage the appliance.

- Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.

III. ▲Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. !Restrictions on use when used with children and elders

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction.

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

V. IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. Instructions to follow while using the device

Warning symbols including a yellow warning triangle with exclamation marks and three black exclamation signs.

Warning symbols including a yellow warning triangle with exclamation marks and three black exclamation signs.

Warning symbols including a yellow warning triangle with exclamation marks and three black exclamation signs.

Warning symbols including a yellow warning triangle with exclamation marks and three black exclamation signs.

D !

D !

D !

D !

D !

Warning symbols including a yellow warning triangle with exclamation marks and three black exclamation signs.

Warning symbols including a yellow warning triangle with exclamation marks and three black exclamation signs.

Warning symbols including a yellow warning triangle with exclamation marks and three black exclamation signs.

Warning symbols including a yellow warning triangle with exclamation marks and three black exclamation signs.

4. TECHNICAL SPECIFICATIONS

Voltage Power Frequency
220-240V 1400W 50 – 60Hz

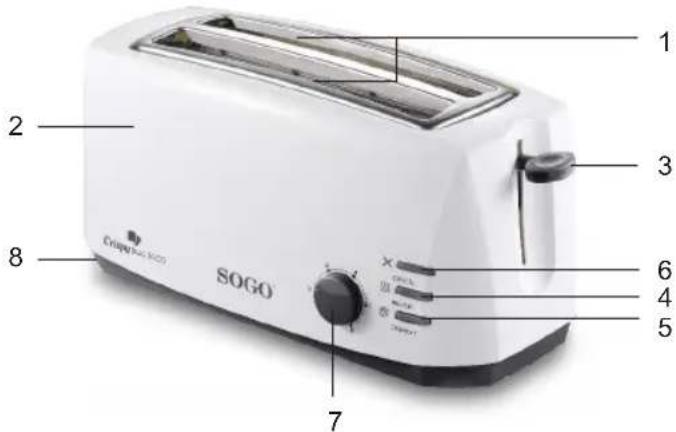

5. PARTS DESCRIPTION

1. 2 long slots
2. Housing
3. Bread carriage handle
4. Reheat button
5. Defrost button
6. Cancel button
7. Browning control selector
8. Crumb tray (under the unit)

1 2 3 6 4 5 7 8 Cruppal SGO SOGO

6. INSTRUCTIONS FOR USE

Before the first use

• A- Before using the appliance for the first time, clean the parts thoroughly (see Maintenance section).
• Set the toaster to the highest setting, and operate twice without any bread inside. Ventilate the room during this period.
• It is normal if some smoke or smell emanates from the appliance when using it for the first time.

Toasting

• Plug the unit into the power supply socket.
• Insert the slices of bread into the slot.
• Adjust the timer to the desired level:
• 1 = minimum
• 6 = maximum
• Press the sliding lever down until it locks. The pilot light will come on, indicating that the appliance is heating.
• When toasting is finished, the bread slices will be ejected, and the toaster will shut off automatically.

Reheating

• Use the Reheat function to warm up cold toasts without over browning.
  • After following the Toasting instructions, press the Reheat button to reduce heat intensity. The Reheat pilot light will come on.

Defrost

- Frozen bread requires more time to warm up.

• After following the Toasting instructions, press the Defrost button to prolong toasting time. The Defrost pilot light will come on.

Cancel

- You can cancel toasting at any time, by pressing the Cancel button. The Cancel pilot light will come on.

Crumb Tray

• The crumb tray collects any crumbs that fall into the toaster.
  • Regularly empty out the crumb tray.
• Pull out to remove the crumb tray. Slide back in once finished.

7. CLEANING AND MAINTENANCE

• Before you start cleaning, unplug the appliance and let it cool down. Pull out to remove the crumb tray, empty it and place it again.
• Never use abrasive detergents, organic solvents or aggressive chemicals.
• Remove any bread crumbs stuck in the slot by gently turning the device upside down.

STORAGE

• Make sure the appliance is unplugged and allow it to cool down before storing it.
- Clean the device before storing it (see Maintenance section).
• Carefully reel the cable.
• Store the appliance in a cool and dry place.

1. IMPORTANT:

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
