USER MANUAL SS-6380 Sogo

Black and white Proflisteam steam iron with steam iron, no visible text or symbols on body

Caution: please read and preserve these important instructions

Labeled diagram of a steam iron with numbered parts for identification

This instruction manual can also be downloaded from our web page www.sogo.es

PLEASE READ THE FOLLOWING BEFORE USE

• Before using your Steam Station carefully read these usage instructions.
• Before connecting the Steam Station to the mains make sure that the current is the same as indicated for the machine and that the plug is an earthed plug.
• Do not put any detergent or chemical substance in the tank.
  Water by its nature contains magnesium, mineral salts and other deposits which in hard water areas can contribute to limescale build up in the tank. To avoid these problems, it is necessary to swill out with tap water and empty the generator tank after every 3 uses. In very hard water areas we recommend the use of Vinegar Solution (75%water+25%vinegar) to clean the tank.
• Do not refill the tank while it is still hot, allow it to cool down for a few minutes before refilling.
  The plug of the supply cord must be removed from the socket-outlet before the water reservoir is filled with water.
• Never empty the Steam Station when the water inside the generator tank is still hot.
• Do not place the appliance in water or in any other liquids.

• Do not touch the appliance with wet hands or feet whilst the appliance is connected do the mains.

• Never leave the appliance unattended whilst it is connected to the mains.

• Do not allow the Steam Station to be used by children or by people who are not familiar with the usage instructions.
  • We recommend that the appliance is disconnected from the mains whenever it is not in use.
• When Refilling the generator tank, use HOT rather than cold water, pour in gently at first and keep your face away. Otherwise the still hot tank walls can spit drops of very hot water or steam spray.
• Do not leave the appliance exposed to wind or rain.
• Do not lay the hot appliance on surfaces sensitive to heat.
• Do not use electric extension leads that are not authorized by the manufacturer, as they may cause damage or fire.
• Never direct the jet of steam towards small particles of debris without first protecting the user's eyes.

The filling aperture must not be opened during use.

The iron must be used and rested on a stable surface.

• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
• The iron is not to used if it has been dropped, if there are visible signs of damage or if it is leaking.
• The user must not leave the iron unattended while connected to the supply
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly

qualified person in order to avoid hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
  • Children should be supervised to ensure that they do not play with the appliance
• Do not leave the iron unattended whilst connected to the mains.
• Iron only on heat resistant surfaces and on surfaces that allow the steam to escape e. g. mesh ironing boards.
• Ensure the safety cap is fully and correctly screwed on, otherwise you may experience steam escaping from around the cap.
• The indicator light of steam (9) may go on and off from time to time during use of the Steam Station. This indicates the machine maintaining the correct and constant pressure and is quite normal.
• If the indicator light of NO WATER (12) go on that's mean there is no water in the boiler.
• The appliance is fitted with a safety thermostat, which should only be replaced by an authorized technician.
• If it is necessary to replace the power supply cable, please refer to the nearest authorized service center, since the use of a special tool is necessary.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid hazard.
• This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
• Children should be supervised to ensure that they do not play with the appliance
- In the case of breakdown or malfunction do not attempt to repair the appliance
yourself but refer to your nearest authorized service center.

IMPORTANT

Before leaving our factory all our products are rigorously tested.

However, your steam station may contain some residual water in the boiler or steam tube.

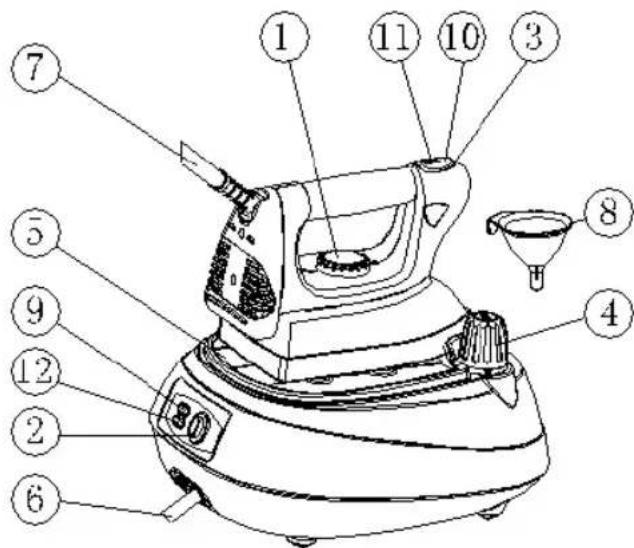

PRODUCT PARTS

1) Iron temperature adjustment
2) Water heater ON/OFF switch
3) Steam button
4) Safety cap
5) Therm-isolated panel
6) Power cable
7) Monotube (cable+steam tube)
8) Filler funnel
9) Indicator light of steam
10) Indicator light of steam button
11) "Steam Holding System"
12) Indicator light of NO WATER

Labeled diagram of a steam iron with numbered parts for identification

PREPARATION FOR USE

1a. Unscrew the safety cap (4) and fill the boiler with about 1.2 liters of water using the special funnel (8) making sure that it does not overflow.
2a. Retighten the cap fully and carefully.
3a. Connect the power supply cable into an earthed power supply of the correct voltage.
4a. Switch on the boiler and iron by pressing the switch (2)

NOTE: during the filling operation, be careful that the water does not overflow as it may come out and wet the surface where the Steam Station is laid.

INSTRUCTIONS FOR USE

STEAM IRONING

1b. Set the iron temperature to the "COTTON-LINEN" steam position, by turning the knob (1). All types of fabric can be ironed at this temperature.
2b. Wait for the indicator light of steam(9) go on and the steam button light(10) go off.
Push button (3) on the iron to release bursts of steam form the holes on the soleplate.
Use the "Steam Holding System"(11) can keep the steam burst without the finger pressure.
Release the button and the steam will stop.

NOTE: during initial operation of the iron, a few drops of water mixed with steam may come out of the soleplate until the temperature stabilizes. It is advisable to direct the first jets of steam onto an old cloth until a uniform stable jet of steam is obtained.

DRY IRONING

1c. For dry ironing, connect the supply cable to the mains, regulate the temperature of the iron by turning the knob (1) to the required temperature for the fabric shown on the knob itself.

SAFETY CAP

The Steam Station is equipped with the safety cap, which prevents the children open the generator tank as there is any pressure remaining inside the tank. This is an important and indispensable safety device, and it is necessary to follow certain procedures when refilling the tank.

When you have used up all the water in the tank, do as follows:

1a. Switch off the heater on/off switch (2).
2a. Press the steam request button on the iron (3) so as to fully exhaust the steam supply from the tank.
3a. Disconnect the power supply cable from the mains.
4a. Press and at the same time unscrew anti-clockwise the safety cap (4).
5a. Wait for a few minutes to allow the generator tank to cool down.
6a. When cool proceed to carefully refill the tank as described in paragraph la of the section "REPARATION FOR USE" in the instructions. If refilling the generator when not completely cooled, we recommend that you carefully pour only very small quantities of water at each pouring into the tank, so to avoid spitting form the tank.

IMPORTANT

• Before attempting any maintenance operation, be sure to always disconnect the appliance from the mains.
• Normal tap water can be used. However, as hard water by its nature contains limestone, which may cause a build-up of limescale in the tank, in hard water areas we recommend the use of Vinegar Solution(75%water+25%vinegar) to clean the tank.
• To clean the body of the appliance, simply use a moist cloth. Do not use solvents or detergents which may harm the body material.
• We decline liability for any damage or accident derived from any use of the Steam Station which is not in conformity with the instructions contained in this booklet

TECHNICAL SPECIFICATIONS

Rating: 230V, 50Hz, class I

Power: 2000W

Labeled diagram of a steam iron with numbered parts for identification

Labeled diagram of a steam iron with numbered parts for identification

PREPARAÇÃO DE USO

Labeled diagram of a steam iron with numbered parts for identification

Labeled diagram of a steam iron with numbered parts for identification

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2 46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
