USER MANUAL SS-6007 Sogo

Exterior view of a SOGO iron (£) with black handle and silver body (no visible text or symbols)

Steam Iron for Travel

Caution: please read and preserve these important instructions

_

| _

一

1

PRECAUCIONES IMPORTANTES

Simple line drawing of a container with a handle and label (no text or symbols)

- When using your flat iron, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

This instruction manual can also be downloaded from our web page www.sogo.es

1. Use iron only for its intended use.
2. To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
3. The iron should always be turned to "min", before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
5. Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualified serviceman for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or

on an ironing board.

1. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down – there may be hot water in the reservoir.

2. If the malfunction indicator goes on, the flatiron is not operating normally. Disconnect from the power supply and have the flatiron serviced by qualified service personnel.

3. The iron must be used and rested on a stable surface.

4. The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

6. Children should be supervised to ensure that they do not play with appliance.

7. The iron must not be left unattended while it is connected to the supply mains;

8. The plug must be removed from the socked-outlet before the water reservoir is filled with water.

9. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

10. If the supply cord is damaged, it must be replaced by the manufacturer. Its service agent or similarly qualified persons in order to avoid a hazard.

11. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

12. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

13. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

14. Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

More specifically:

DO NOT let children or untrained persons use the appliance without supervision.

NEVER immerse the iron, cable or plug in any liquid.

DO NOT leave the hot iron touching fabrics or very inflammable surfaces.

DO NOT leave the appliance unnecessarily plugged in. Disconnect the plug from the mains when the appliance is not being used.

NEVER touch the appliance with wet or damp hands.

DO NOT use the power cord or the appliance in order to pull the plug out of the socket.

DO NOT leave the appliance exposed to the weather (rain, sun, etc.)

DO NOT leave the iron without supervision when it is connected to the power supply.

DO NOT fill the reservoir with water before removing the plug from the socket.

PLEASE NOTE!

Do not use chemical additive, scented substances or decalcifies. Failure to comply with the above-mentioned regulations leads to the loss of guarantee.

WARNING: FAILURE TO UNPLUG THE PRODUCT BEFORE CHANGING THE VOLTAGE SELECTION MAY RESULT IN ELECTROCUTION AND POSSIBLY DEATH.

GENERAL INSTRUCTIONS

When using the iron for the first time, you may notice a slight emission of smoke and hear some sounds made by the expanding plastics. This is quite normal and it stops after a short time. We also recommend passing the iron over an ordinary cloth before using it for the first time.

SUGGESTIONS BEFORE USING THE IRON FOR THE FIRST TIME

1. Certain parts of the iron have been lightly

greased therefore the iron could give off a little smoke when plugged in for the first time. This will cease after a short while.

1. Before using the iron for the first time, remove the plastic protector from the base (if it has one) clean the base with a soft cloth.
2. Keep the base very smooth. Do not run it over metal objects (such as against the ironing board, buttons, zips, etc.)
3. Pure wool fibers (100% wool) can be ironed with the appliance in the steam position .by preference, select a high steam position and use a dry ironing cloth.

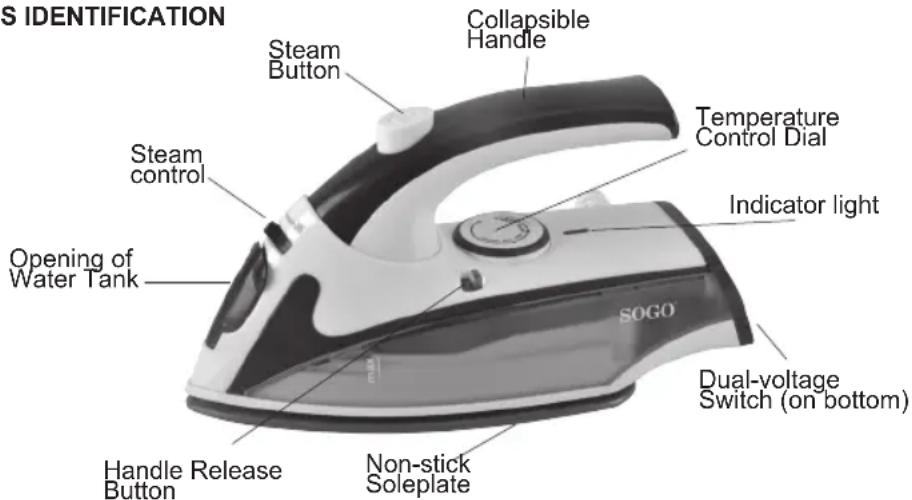

PARTS IDENTIFICATION

S IDENTIFICATION Steam Button Collapsible Handle Steam control Temperature Control Dial Indicator light Opening of Water Tank SOGO Dual-voltage Switch (on bottom) Handle Release Button Non-stick Soleplate

To use:

Dual Voltage:

NOTE: A plug adaptor is necessary for the Power Cord when traveling to a country where the current is NOT 220V-240V. Use the "120V" position to operate the product in those countries.

To Change the voltage selection:

I. Ensure the Temperature Control Dial is in the "MIN" (OFF) position
2. Unplug the product from the electrical outlet

WARNING: FAILURE TO UNPLUG THE PRODUCT BEFORE CHANGING THE VOLTAGE SELECTION MAY RESULT IN ELECTROCUTION AND POSSIBLY DEATH.

1. Insert a toothpick or similar item into the Dual Voltage Selector slot.
2. Slide the Dual Voltage Selector left or right to the electrical current voltage for your location.
3. Follow the "Dry Pressing" section below to operate the product.

Simple line drawing of a container with a curved handle and a rectangular base (no text or symbols)

g:

NOTE: Check the garment label of the item to be ironed for care instructions. Some fabrics may be damaged when exposed to steam or water.

1. Unplug the product from the electrical outlet.
2. Set the product upright on a flat, steady, stable, heat-resistant surface.
3. Turn the Temperature Control Dial to the "MIN" (OFF) position.
4. Open the Water Tank Fill Opening cap.
5. Fill the Water Tank (with water only).
   NOTE: Do not put other liquids or materials into the Water tank.
6. Close the Water Tank Fill Opening cap.
7. To release steam while ironing, press the Steam Button or Control Steam Button.

Dry Ironing

1. Unplug the product from the electrical outlet.
2. Set the product upright on a flat. Steady, stable, heat-resistant surface.
3. Turn the Temperature Control Dial to the "MIN" (OFF) position.
4. Ensure the Dual Voltage Selector is in the correct position for your location. Reference the "Dual Voltage" section.
5. Plug the product into a standard AC electrical outlet for your location.
6. Turn the Temperature Control Dial to the setting desired.

a. Reference the Temperature Control Dial Setting Chart.

NOTE: Check the garment / fabric label for the fiber content. If the garment/fabric is made of blended Fibers, turn the Temperature Control Dial to the fabric with the lowest temperature setting.

1. Set the product upright on a flat, steady, stable, heat resistant surface. Wait until the product heats to the selected temperature setting before ironing.
2. When done ironing, turn the Temperature Control Dial to the "MIN" (OFF) position.
3. Unplug the Power Cord from the electrical outlet when the product is not in use or is left unattended.

Temperature Control Dial Setting Chart
●●● High	Cotton, Linen
●● Medium	Wool, Silk
● Low	Rayon, Acrylics

Ironing Tips

• To avoid fabric damage, ensure the Temperature Control Dial is set according to the care label on the garment or item to be ironed.
- Refer to the garment label for the fiber content and set the temperature Control Dial to the lowest temperature setting recommended for the fabric.
- Begin ironing with those garments/fabrics requiring a lower temperature setting (i.e. silk) followed by those requiring a higher temperature setting (i.e., wool, cotton, and linen).
- If unsure of the temperature setting for a fabric, test the iron on a small concealed area (i.e., an inside scam or inside hem of the garment) before press ironing. Gradually increase the Temperature Dial setting until you obtain the desired ironing effect.
- When possible, use a press cloth or turn fabrics inside out to iron. This will help to prevent the fabric taking a shiny appearance after ironing. A press cloth should also be used when ironing over abrasive objects (i.e., buttons or zippers).
• For press ironing techniques, either place and reposition the Soleplate while applying

pressure to the fabric or lightly move the Soleplate across the fabric.

• Use care when ironing around plastic buttons or zippers, as these may melt.
• Avoid tipping the product upside down or backwards, as water may spill from the Water Tank.

Care and Cleaning

CAUTION: Turn the Temperature Control Dial to the "MIN" (OFF) Position. Unplug the product from the electrical outlet and allow the product to completely cool before cleaning it. Wipe the outside and the Soleplate of the product with a damp cloth.

Do not use abrasive cleaners or pads to clean the product.

To prevent scratching of the Soleplate, do not allow the product to come into contact with abrasive objects (i.e., zippers, buttons, etc.) while ironing. You may wish to cover these items with a press cloth before ironing.

To store the product

a. Ensure the Temperature Control Dial is set to the "MIN" (OFF) position.
b. Unplug the product from the electrical outlet and allow the product to completely cool.
c. Remove the Water Tank from the product and empty the remaining water into a sink. Reattach the Water Tank to the product when it is empty.
d. If desired, collapse the Handle for storage or packing:

i. Press the Handle Release Button.
ii. Press down on the Handle until its end clicks into place under the Release Latch. iii. To release the Handle, slide the Handle Storage Release Latch backwards.

TECHNICAL SPECIFICATION

Model No: SS-6007

Voltage / Frequency: 115/230V \~ 50/60Hz

Power: 800W

CONSIGNES DE SÉCURITÉ IMPORTANTES

Simple line drawing of a container with a handle and label (no text or symbols)

Simple line drawing of a container with a curved handle and a small rectangular button at the bottom (no text or symbols)

Simple line drawing of a container with a handle and a small rectangular button (no text or symbols)

WARNUNG: DAS PRODUKT ZU

Simple line drawing of a container with a curved top and a rectangular base (no text or symbols)

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
