USER MANUAL SS-18440 Sogo

Exterior view of a white electric solar air conditioner unit with mesh insulation and wheels (no visible text or symbols)

RADIADOR DE MICA MIÇA HEATER CHAUFFANT ÉLECTRIQUE EN MICA AQUECEDOR DE MICA ELEKTRISCHE HEIZUNG IN MICA RISCALDAMENTO ELETTRICO IN MICA

Exterior view of a white electric solar air conditioner unit with control knobs and wheels (no visible text or symbols)

Luz de encendido

Technical line drawings of a mechanical device with three views (①, ②), no text or symbols present.

This instruction manual can also be downloaded from our web page www.sogo.es

• Remove the packing and make sure that the appliance is intact. In case of doubt do not use the appliance and contact our after-sales service. Do not leave packaging materials like bags and staples within reach of children.
• Before switching on appliance check if the electrical voltage and frequency of the circuit correspond to those indicated on the appliance.
• The appliance has to be connected to a circuit according to the rules in force concerning the civil plant. The plant has to be related to the nominal power of the appliance and has to be provided with an earth –wire.
• Use the appliance only for the mentioned purpose, namely as a radiator for domestic use. Do not use it for any other application as it could get dangerous.
• The manufacture is not responsible for any eventual damages caused by improper or faulty use.
• The use of every electrical appliance calls for the awareness of some basic rules, such as:
• Never touch the appliance with wet or damp hands or feet.
• Never expose the appliance to atmospheric conditions (rain, sun, etc.)
• The appliance must be always placed on a flat and stable surface.

• Switch the appliance off and unplug it before cleaning.

• When the appliance is not in use switch it off and unplug it. Make harmless the parts of the appliance which could be handled hazardously by children for playing.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not put the cable on the appliance when it still warm.
• A correct operation of the appliance is obtained when the radiator is installed vertically. Do not switch on the fan heater near pieces of furniture, curtains, shelves, etc.
• Do not use the appliance near liquids or inflammable matters.
• The appliance must not be located immediately below a socket outlet.
• In order to avoid overheating, do not cover the heater
• In case the power cord is damaged, send it to the nearest after sale service recommended by the manufacturer for the replacement.
• This appliance is not intended use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not connect the appliance to extension cords or multiple outlets.

• Do not damage and do not kink the power cord.

• Before cleaning the appliance or carrying out any maintenance switch off the whole system.

• If the appliance is out of work switch it off without tampering it, if any repair is required please contact only the after-sale centers approved by the manufacturer and ask for original spare parts. Otherwise safety of the appliance can be compromised.
• Children under 3 year of age should be kept away from the appliance unless they are under constant supervision.
• Children from 3 to 8 years of age are allowed to operate the on/off button ONLY, provide that the appliance is installed and ready for operation and such children have been supervised and instructed in safe operation of the appliance and they understand all related risks.
• Children from 3 to 8 years of age MUST NOT: connect the plug to power sockets, make adjustment, clean it or carry out user maintenance operations.
• This appliance should not be used by children younger than 8 years of age and by people with reduced physical, sensor and mental capabilities, as well as by people with insufficient experience and knowledge provided they are supervised or instructed in safe operation of the appliance and understand the related risk.
• Children should not be allowed to play with the appliance. Cleaning and user maintenance operations must not be carried out by children without supervision.
• Warning: Do not use this appliance with a

programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

WARNING

1. Not suitable for use in bathroom.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CAUTION

Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

This product is only suitable for well insulated spaces or occasional use.

WARNING: DO NOT COVER

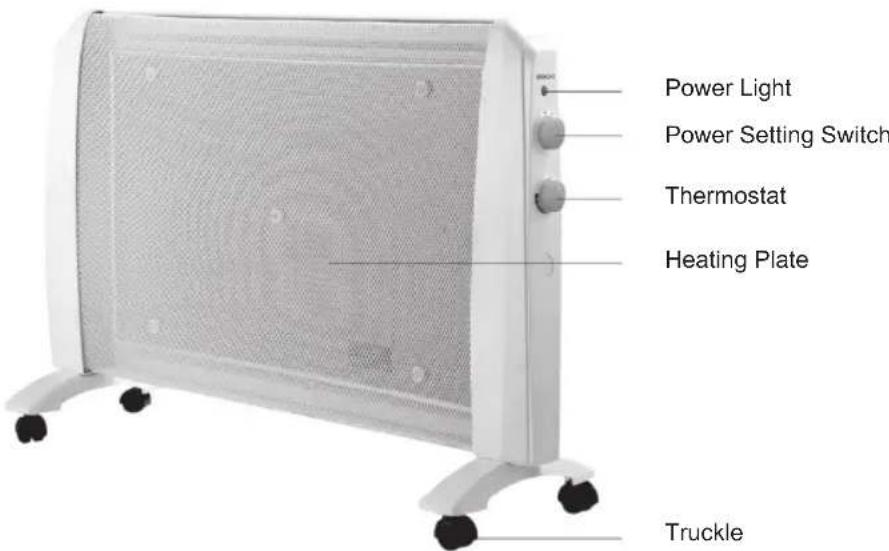

Power Light Power Setting Switch Thermostat Heating Plate Truckle

How to install

(The product has tow installation methods: Desk-top and wall mount)

1.Free standing installation:

First, take the heater out the package and place it upside down on soft surface. Second, take four screws from the accessories(two screw for each castor, parallel the bevel of castor bracket to the bevel of the heater, if installed reversely, the screw cannot be revolved in.)and aim them at the taps to tighten them. Third, Then just upright the heater and put it into use. You may refer to the following figure.

Technical line drawings of a mechanical device with two views (① and ②), no text or symbols present.

2. Wall mounting:

First, use an electric drill to drill four holes on the wall.

Second, screw the hooks into the four holes. Aim two rubber pads on the back of heater with screws.

Third, find two holes locations on the handle at the rear of the heater and fix them to the hooks on the wall. Pull the heater rightward to make the hooks tally with the hole's location.

NOTE:

If wall mount method is adopted, installation of truckles is not allowed.

The mounting location shall be 15cm above the floor and 50cm beneath

the ceiling or more. You may refer to the following figure.

1) Room temperature can be adjusted using the thermostat. Simply turn the thermostat knob clockwise, to increase the heater, and anti-clockwise to decrease the temperature, until you reach the desired temperature.

2) Switch the heater to one of the following power settings.

Push switch one (I) for 1000W

Push switch two (II) for 2000W

3) The power switch lights up when activated.

4) Turning the thermostat control clockwise will increase the "set" temperature.

5) Turning the thermostat anti-clockwise will decrease the "set" temperature.

6) Do not cover the heater at any time during operation. There is a risk of fire if the heater is covered.

7) Once you have finished using your heater, turn the power switches off, and the thermostat control switch to the "Low" positions, and unplug from the mains supply.

ATTENTION

surface plane et stable.

Attention: NE PAS COUVRIR

Prohibition sign with a diagonal line crossing over a document icon, indicating no text or document.

Exterior view of a white electric solar air conditioner unit with control knobs and wheels (no visible text or symbols)

Technical line drawings of a mechanical device with two views (① and ②), no text or symbols present.

2. montage mural:

Prohibition sign with document and checkmark symbol, indicating no text or document

Technical line drawings of a mechanical device with labeled parts (no text or symbols present)

2. Montagem wall

Prohibition sign with a diagonal line crossing over a document icon, indicating no text or document.

Technical line drawings of a mechanical device with three views (①, ②), no text or symbols present.

2. Wandmontage:

Prohibition sign with no text, featuring a document icon and diagonal line

Exterior view of a white electric solar heating box with control knobs and wheels (no visible text or symbols)

Luce di Potenza

Interruttore di

Technical line drawings of a mechanical device with three views (①, ②), no text or symbols present.

2. montaggio a parete:

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
